Pelco CM9760-PEX User Manual
®
CM9760-PEX
Port Expander
Installation/
Operation Manual
C546M (8/98)
Pelco • 3500 Pelco Way, Clovis • CA 93612-5699 USA • www.pelco.com
In North America and Canada: Tel (800) 289-9100 or FAX (800) 289-9150
International Customers: Tel (1-559) 292-1981 or FAX (1-559) 348-1120
CONTENTS
Section Page
1.0 GENERAL .................................................................................................. 3
1.1 IMPORTANT SAFEGUARDS AND WARNINGS ............................... 3
2.0 DESCRIPTION ..........................................................................................4
2.1 MODELS ............................................................................................5
2.2 OPTIONS ........................................................................................... 5
3.0 INSTALLATION .......................................................................................... 6
3.1 HARDWARE ...................................................................................... 6
3.1.1 Card Expansion Installation ...................................................6
3.1.2 DIP Switch Settings ............................................................... 7
3.1.3 Device Connections ...............................................................7
3.1.3.1 Connection Between a CM9760-PEX and
a CM9760-CC1 ...................................................... 8
3.1.3.2 Connection Between a CM9760-PEX and
Pelco Receiver/Drivers ...........................................8
3.1.3.3 Connection Between a CM9760-PEX and
Multiplexers ............................................................. 9
3.1.3.4 Connection Between a CM9760-PEX and
Pelco Keyboards .....................................................9
3.1.4 System Illustration ................................................................ 10
3.2 SOFTWARE ...................................................................................... 11
3.2.1 Address Details ..................................................................... 11
3.2.2 Software Considerations ....................................................... 12
4.0 GUIDELINES FOR PORT EXPANDER USE ............................................14
5.0 SPECIFICATIONS .................................................................................... 15
6.0 WARRANTY AND RETURN INFORMATION ........................................... 16
LIST OF ILLUSTRATIONS
Figure Page
1 Fully Populated CM9760-PEX (Port Expander) Rear View. ............... 4

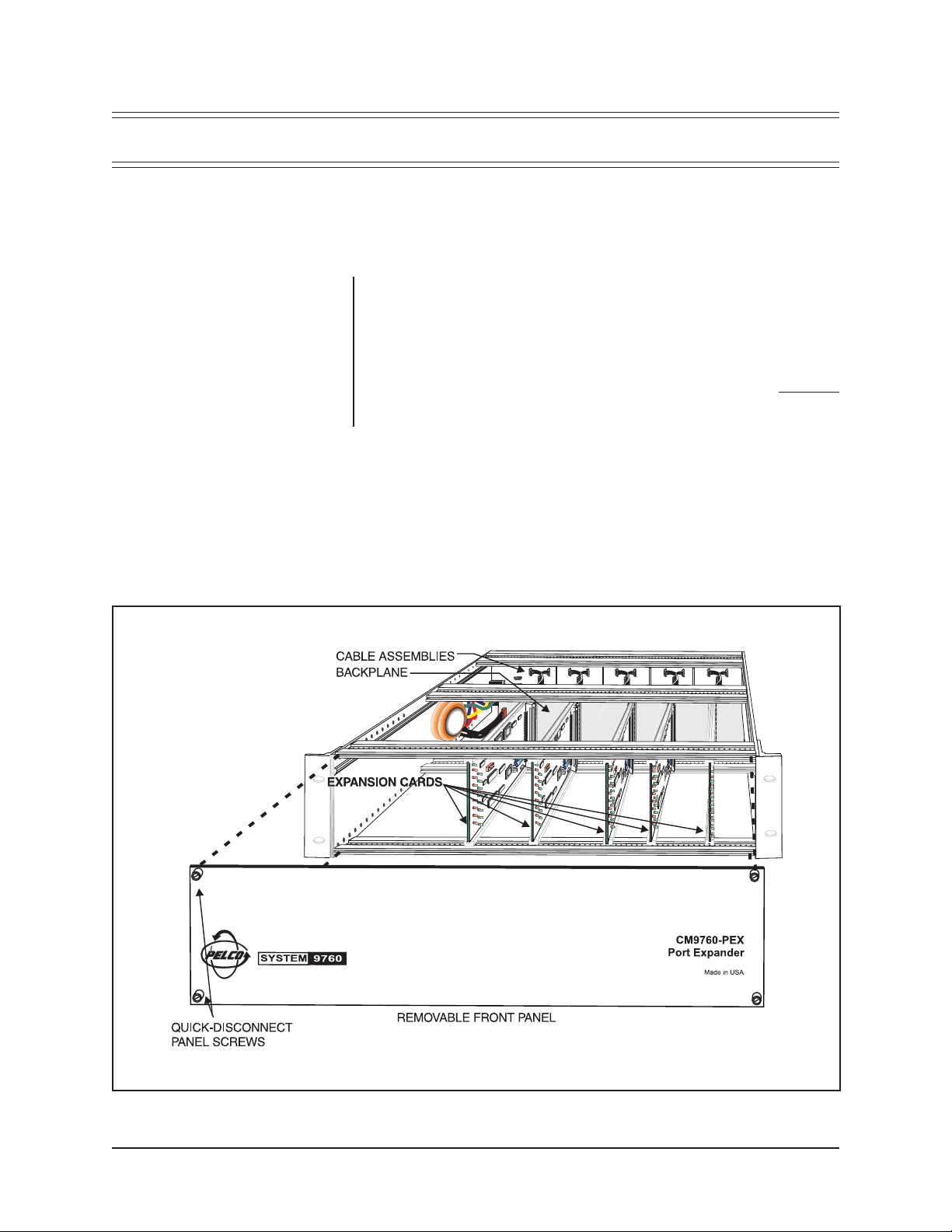

2 CM9760-PEX Front View with Card Installation ................................. 6

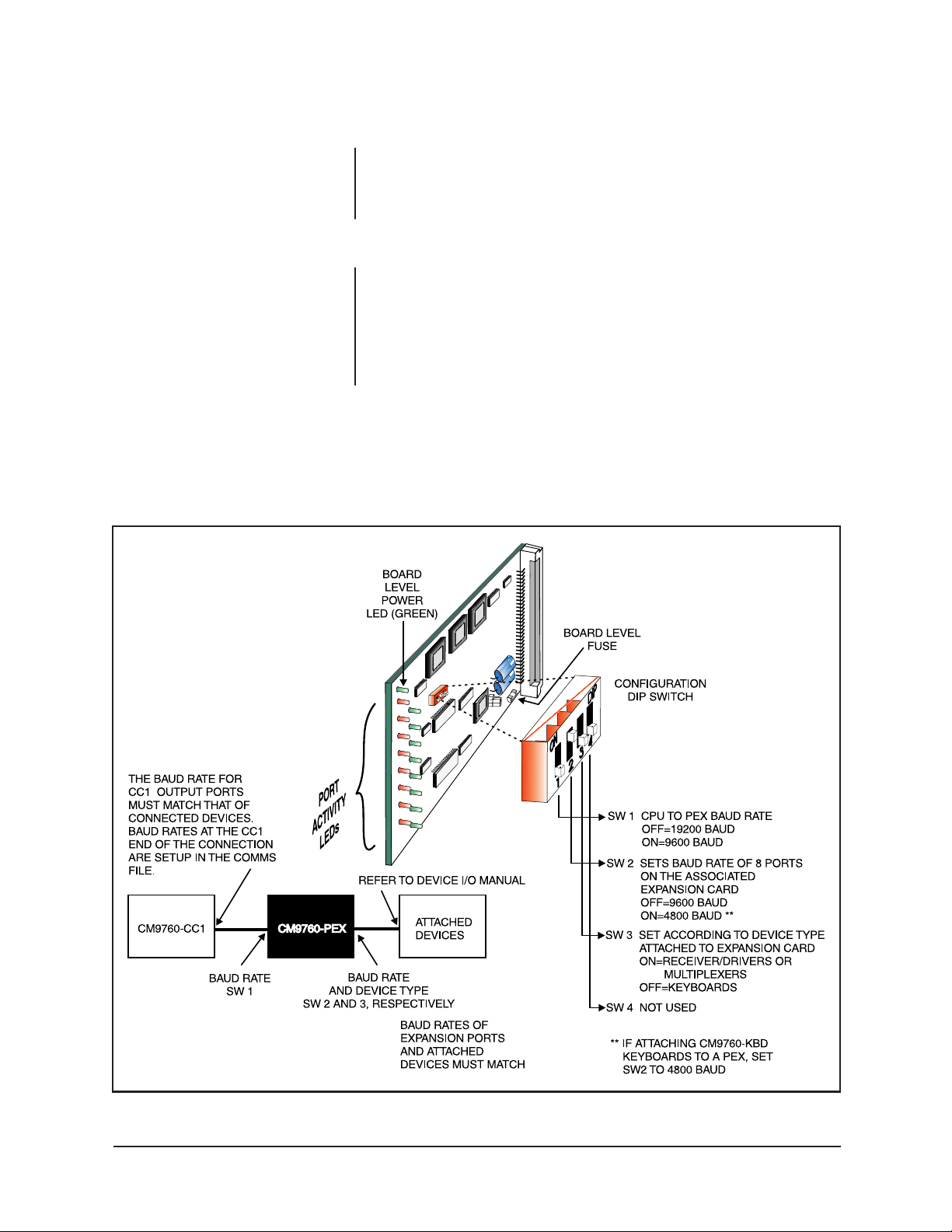

3 Expansion Card DIP Switch Configuration ........................................ 7

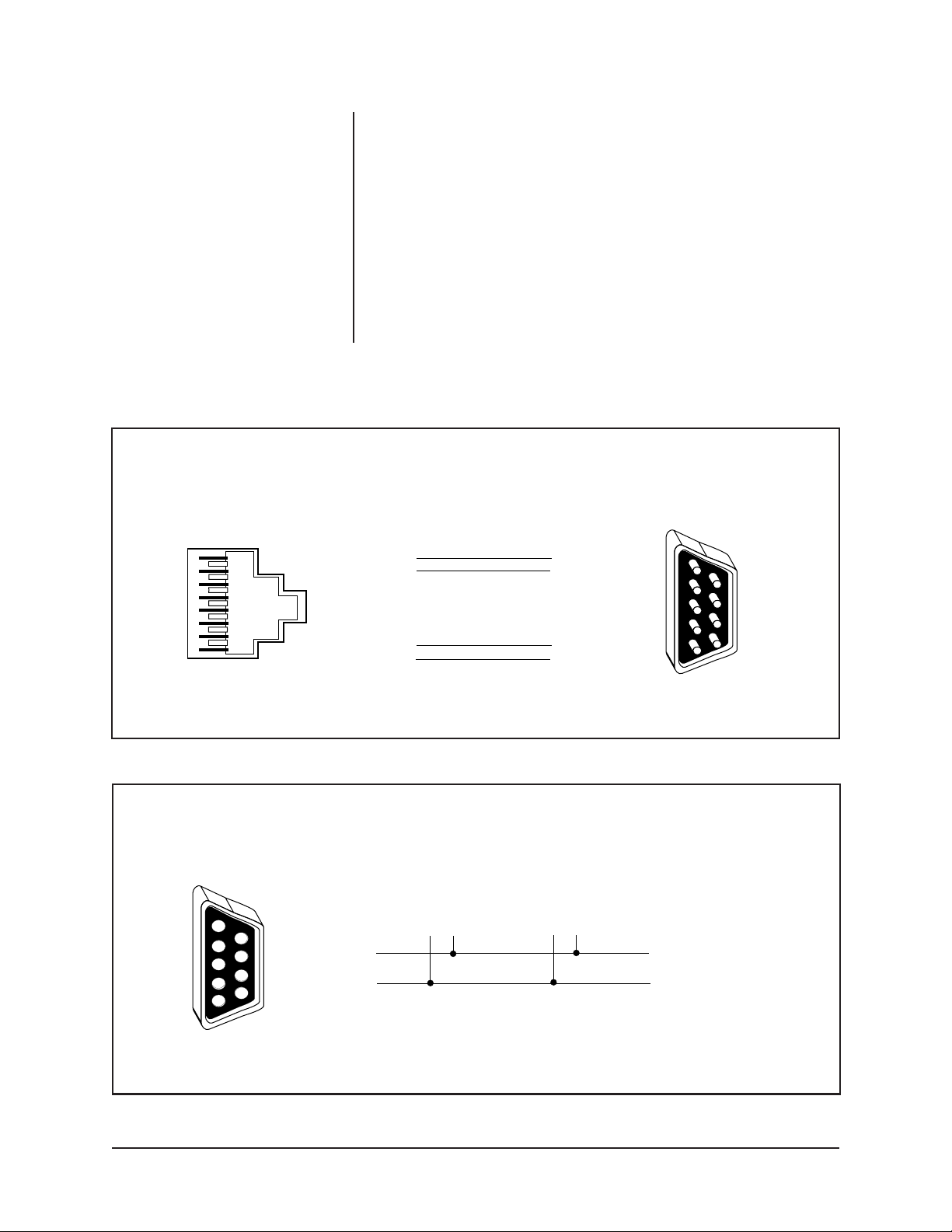

4 Pin Connections Between a CM9760-PEX and CM9760-CC1 .......... 8
5 Pin Connections Between a CM9760-PEX and Pelco
Receiver/Drivers ................................................................................ 8
6 Pin Connections Between a CM9760-PEX and a Multiplexer ............ 9
7 Pin Connections Between a CM9760-PEX and CM9760-KBD .......... 9
8 Example of Port Expander as Part of CM9760 System ....................10

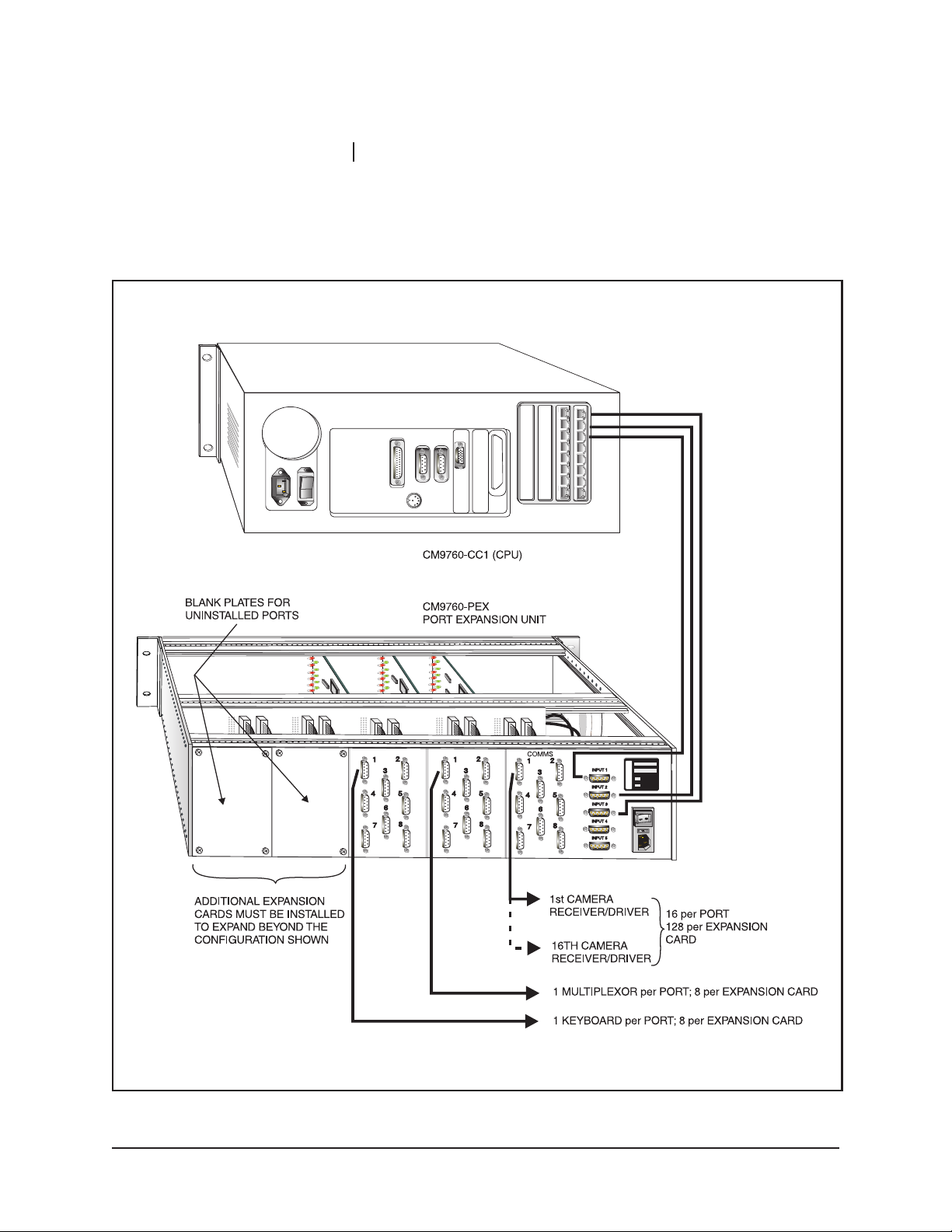

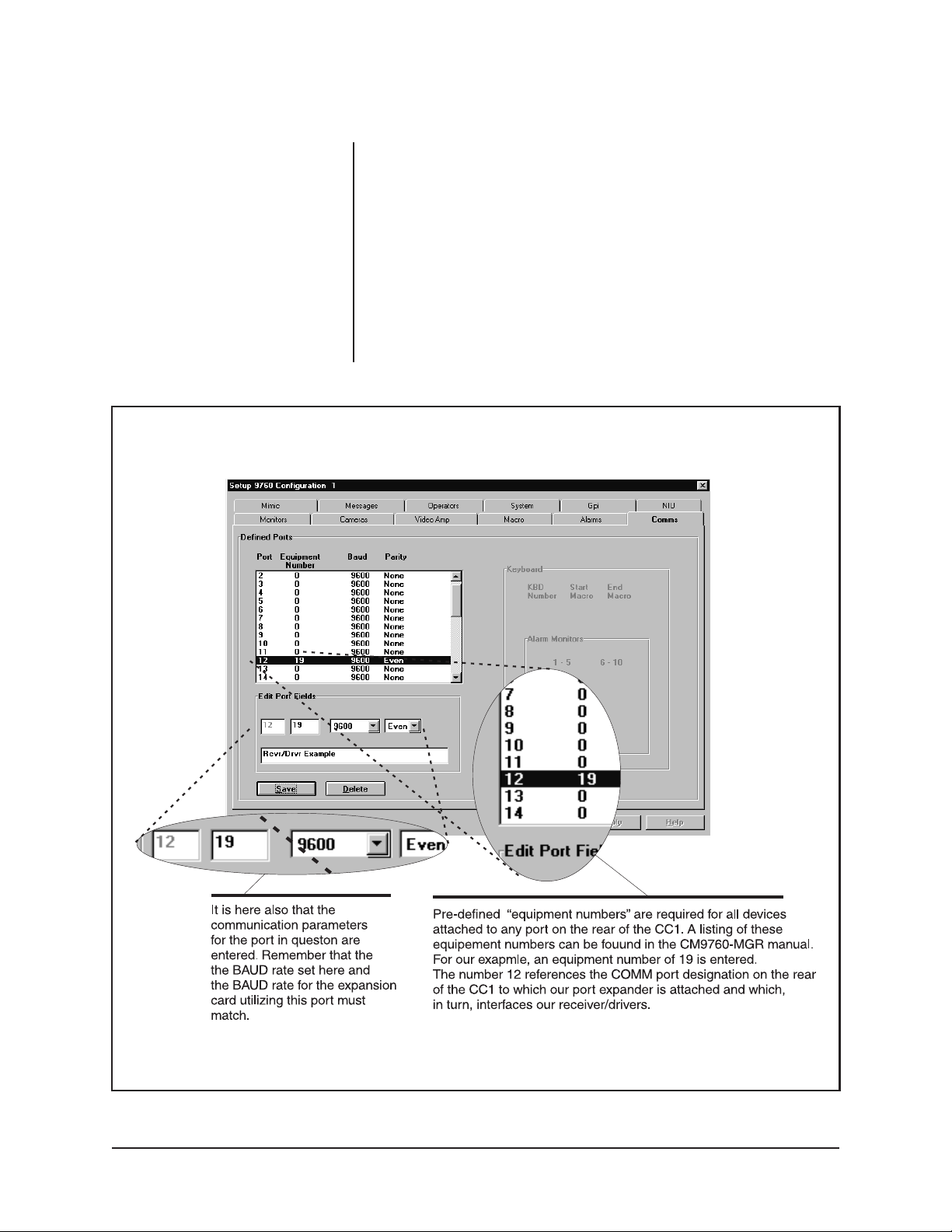

9 Comms Configuration for Receiver/Drivers ....................................... 12

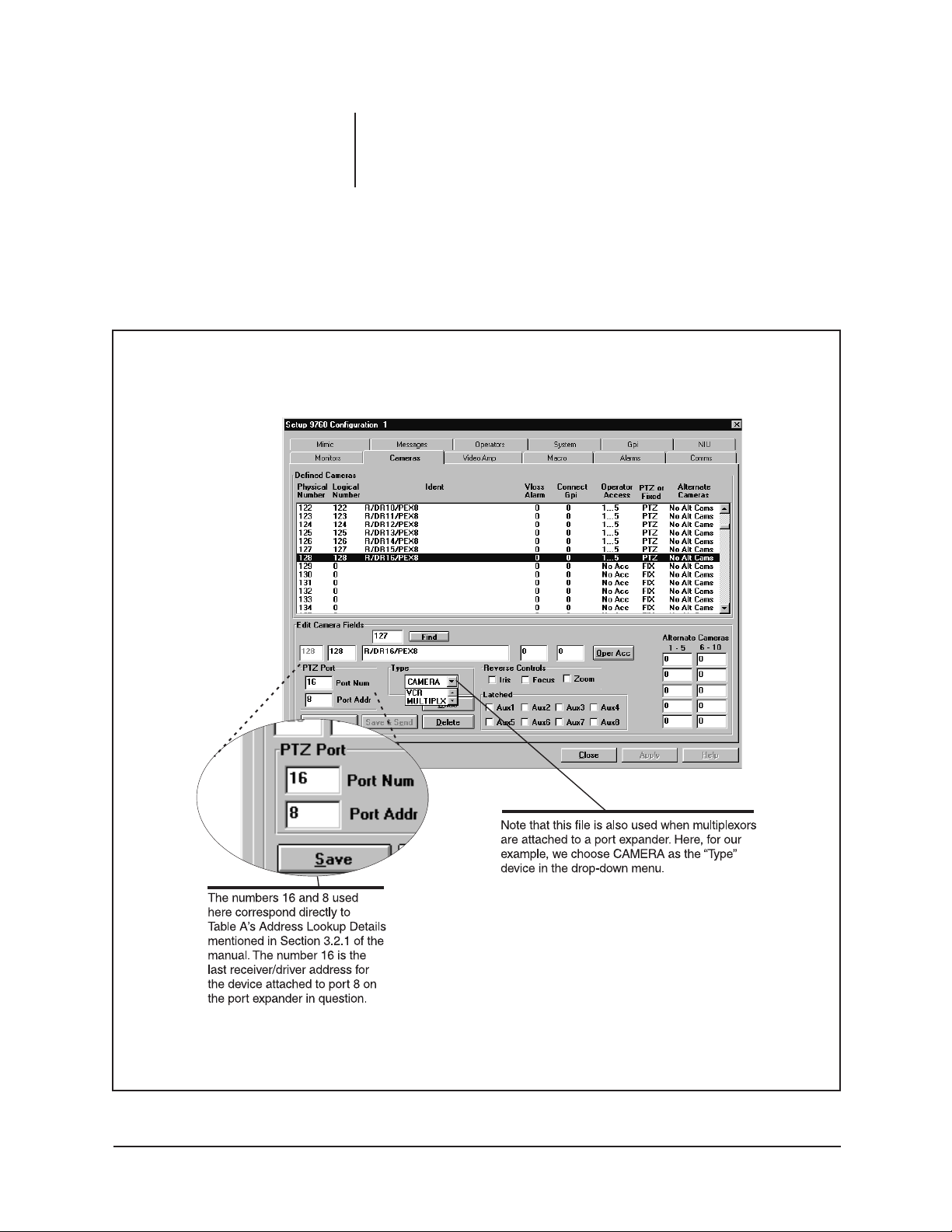

10 Camera File Configuration ................................................................13
LIST OF TABLES
Table Page
A Address Lookup Details .................................................................... 11
REVISION HISTORY
Manual # Date Comments
C546M 8/98 Original version.
2 Pelco Manual C546M (8/98)
1.0 GENERAL
1.1 IMPORTANT SAFEGUARDS AND WARNINGS
Prior to installation and use of this product, the following WARNINGS should be
observed.
1. Installation and servicing should only be done by qualified service personnel
and conform to all local codes.
2. Only use replacement parts recommended by Pelco.
3. After replacement/repair of this unit’s electrical components, conduct a
resistance measurement between line and exposed parts to verify the
exposed parts have not been connected to line circuitry.
The product and/or manual may bear the following marks:
This symbol indicates that dangerous voltage constituting a
risk of electric shock is present within this unit.
This symbol indicates that there are important operating and
maintenance instructions in the literature accompanying this
unit.
CAUTION:
RISK OF
ELECTRIC SHOCK.
DO NOT OPEN.
TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER. NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
CAUTION:
Please thoroughly familiarize yourself with the information
in this manual prior to installation and operation.
Pelco Manual C546M (8/98) 3
2.0 DESCRIPTION
The Pelco CM9760-PEX (Port Expander) is designed to increase the number of
devices that can be connected to a CM9760-CC1, using additional serial
communication channels to increase port density.
NOTE:
Each expansion card and
it associated eight ports can have,
at most, one device type at a time
connected to any one or all eight
ports; that is connection of two or
more device types on one card is
not permitted.
Currently the CM9760-PEX supports:
1. Pelco Camera Receiver/Drivers
2. Pelco Keyboards
3. Multiplexers
Pictured in Figure 1 is a rear view of a fully populated CM9760-PEX. As indicated
by the rear panel subdivisions, the Pelco port expander can be configured with up
to five port expander cards. Each input port (1-5) is associated with a
correspondingly numbered expansion card in the illustration below.
Each port expander card, in turn, is designed to expand any available RS-422, RJ-45
COMM port located on the rear of the CM9760-CC1 from one to eight RS-422 ports
on the rear of the CM9760-PEX.
Each of the eight ports that are part of the expansion, have the same functionality
as that of the original port on the rear of the CC1. Of course, a few new rules
regarding port grouping need to be obeyed (for example, refer to the margin note).
Any one of the eight ports associated with any installed expansion card can
accommodate:
1. Up to 16 camera receiver/drivers (up to 128 per port expansion card).
2. One CM9760-KBD (up to eight per port expansion card).
3. One Multiplexer (up to eight per port expansion card).
Figure 1. Fully Populated CM9760-PEX (Port Expander) Rear View.
4 Pelco Manual C546M (8/98)
2.1 MODELS
CM9760-PEX A port expander card cage capable of containing up to five port
2.2 OPTIONS
CM9760-PEX-CRD The basic building block of the CM9760-PEX, consisting of a
expansion cards. Each installed card assembly expands one
COMM port on the rear of the CM9760-CC1 from one to eight
ports.
port expansion card, its eight associated ports and supporting
cable assembly used for populating the CM9760-PEX with up
to five expansion card units.
Pelco Manual C546M (8/98) 5
