TECHNICAL D ATA SHEET -
page 1 of 2

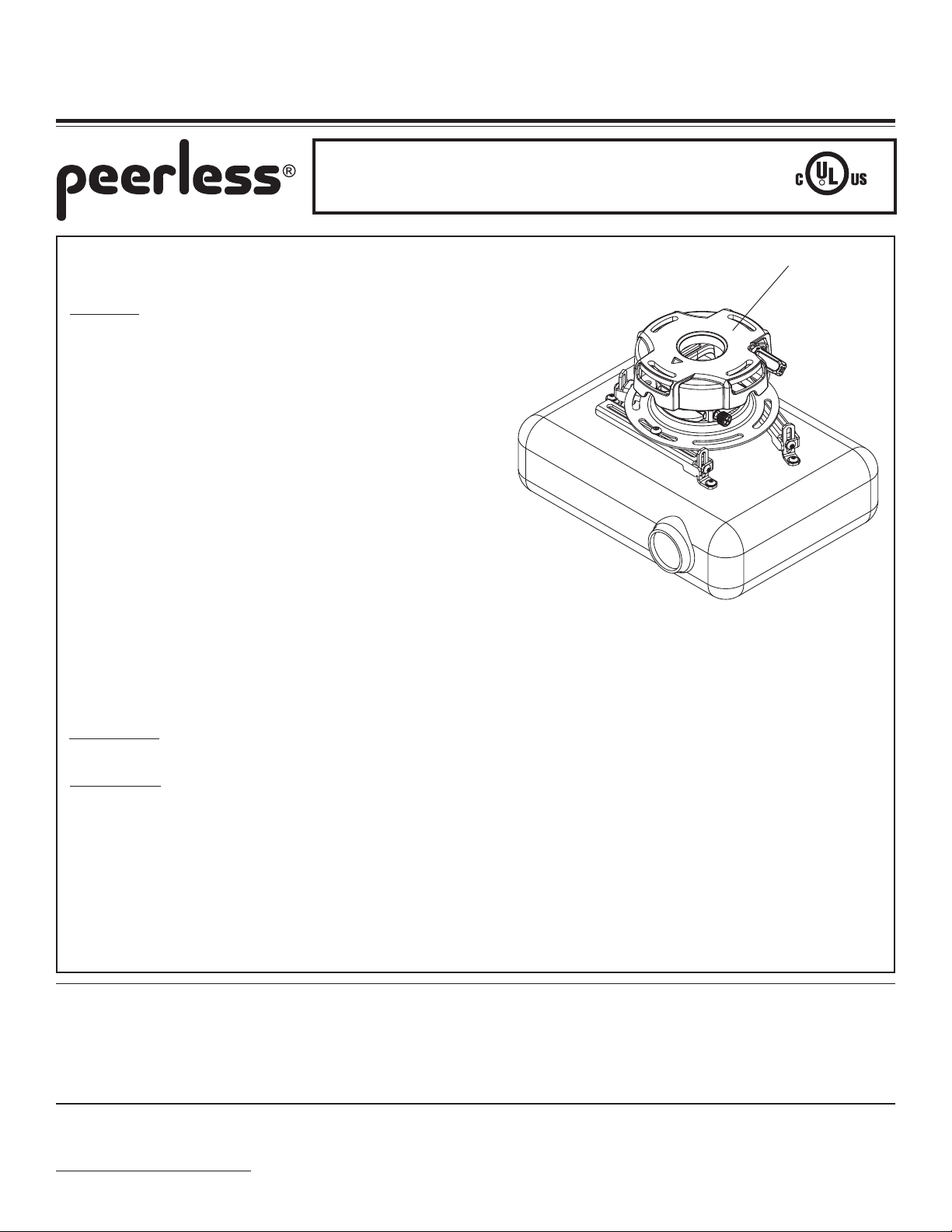

PRG-Precision Gear
Projector Mount
MODELS: PRG-UNV, PRG-UNV-S, PRG-UNV-W
Patent pending precision gears provide pinpoint image alignment
with a simple turn of the adjustment knobs for tilt and roll.
Features:
• Fits most projectors up to 50 lbs
• Color: Black, Silver, White
• Patent pending precision gear provides accurate
projector image alignment
• Two adjustment knobs control projector image
alignment
• Horizontal wrench access slots make flush
mounting installations fast & easy
• Pre-assembled design reduces installation time
• Quick release mechanism to easily service
projector
• Cable management allows cables to be routed
through projector mount out of sight.
• Security hardware included for theft prevention
• Tilt- ± 20°, Roll ± 10°, Swivel (yaw) 360°
• Includes Spider® Universal adapter plate
• Model specific adapter plate, or universal clamp
style adapter plates available.
• Tilt and roll locking security screws provided
R
PRG SERIES
PROJECTOR
MOUNT
Dimensions:
For product dimensions, see page 2.
Accessories:
• Suspended Ceiling Kits (CMJ series)
• Ceiling plates (various models available)
• Extension Columns (various models available)
• Cord Management Adapter (ACC 800)
• extension collar connector (ACC 109)
• Projector Wall Arm (PWA-14)
• Truss Ceiling Adapter (ACC 557)
A R C H I T E C T S S P E C I F I C A T I O N S
The PRG-Precision Gear Projector Mount shall be a Peerless model ____________ and shall be located where indicated on the plans. It
shall feature 20° pitch (tilt), 10° roll, 360° swivel (yaw) (when attached to an extension column), and 15° swivel (when flush mounted). It shall
have a 50 lb load capacity. It shall be constructed of aluminum alloy finished in black, white, or silver. Assembly and installation shall be done
according to instructions provided by the manufacturer.
Peerless Industries, Inc.
3215 W. North Ave. Melrose Park, IL 60160
708-865-8870 800-865-2112 Fax 708-865-2941
www.peerlessmounts.com
• Unistrut Adapter (ACC 550)
• I-beam Clamps (ACC 558, ACC559)
• Cathedral Ceiling Plate (ACC 912)
• Anti-vibration Plate (ACC 840, ACC 845)
• Side-side Adjuster (ACC 830)
• Cord Wrap (ACC 852, ACC 852S, ACC 852W)
• Escutcheon ring (ACC 640)
ISSUED: 06-27-07 SHEET NO: 056-9615-1
All other brand and product names are trademarks or registered trademarks of their respective owners.
© 2007, Peerless Industries, Inc. All rights reserved.
page 2 of 2
TECHNICAL DATA SHEET
All dimensions shown as:
Dimensions:
Weight:
2.95 lb (1.34 kg)
Shipping weight:
3.52 lb (1.60 kg)
Maximum Load Capacity:
50 lb (22.6 kg)
Shipping Carton dimensions:
L = 13.56 in (344 mm)
W = 6.375 in (162 mm)
H = 3.25 in (83 mm)
inch
(mm)
5.2 in
(132 mm)
MODELS: PRG-UNV, PRG-UNV-S, PRG-UNV-W
5.59
(142)
2.47
(63)
X
X
(145 mm)
Adjustable Height
Min. Max.
1.21 in
(31 mm)
5.7 in
2.14 in
(54 mm)
16.55 in*
(420 mm)
*Mounting holes on projector must be within a
16.55 in diameter in order to use this product.
TOP VIEW OF
ADAPTER PLATE
ROLL +10°
PITCH +20°
6.3 in
(160 mm)
CHANNEL
SWIVEL (Y A W) 360° (when attached to an
extension column), +/- 15° (when flush
mounted)
Peerless Industries, Inc.
3215 W. North Ave. Melrose Park, IL 60160
708-865-8870 800-865-2112 Fax 708-865-2941
www.peerlessmounts.com
ISSUED: 06-27-07 SHEET NO: 056-9615-1
All other brand and product names are trademarks or registered trademarks of their respective owners.
© 2007, Peerless Industries, Inc. All rights reserved.
