CORDLESS ANGLE GRINDER PWSA 20-Li B2
CORDLESS ANGLE GRINDER
Translation of the original instructions
IAN 290849
AKKU-WINKELSCHLEIFER
Originalbetriebsanleitung
Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the
device.
Klappen Sie vor dem Lesen die beiden Seiten mit den Abbildungen aus und machen Sie sich anschließend
mit allen Funktionen des Gerätes vertraut.
GB / IE / NI Translation of the original instructions Page 1
DE / AT / CH Originalbetriebsanleitung Seite 19
A
B
DC
BATTERY COMPATIBLE WITH ALL DEVICES OF THE SERIES
„PARKSIDE X 20V TEAM“
20V max.
18V
Contents
Introduction ......................................................2
Intended use ................................................................ 2
Features ................................................................... 2
Package contents ............................................................ 3
Technical details ............................................................. 3
General Power Tool Safety Warnings ................................4
1. Work area safety .......................................................... 4
2. Electrical safety ........................................................... 4
3. Personal safety ............................................................ 4
4. Power tool use and care .................................................... 5
5. Use and handling of the cordless electrical power tool ............................. 5
6. Service .................................................................. 6
Safety instructions for all applications ............................................ 6
Kickback and corresponding safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Special safety instructions for grinding and abrasive cutting ........................... 8
Additional special safety instructions for abrasive cutting ............................. 8
Safety guidelines for battery chargers ............................................. 9
Permissible accessories .......................................................10
Storage and handling of the recommended accessory tools .......................... 10
Working procedures ......................................................... 11
Before use ......................................................12
Charging the battery pack (see fig. A) ...........................................12
Attaching/disconnecting the battery pack to/from the appliance ......................12
Checking the battery charge level ..............................................12
Fitting the blade guard with quick release ........................................12
Fitting the additional handle ................................................... 13
Fitting/changing the roughing/cutting disc ....................................... 13
Operation ......................................................14
Switching on and off ........................................................14
Adjusting the rotational speed ................................................. 14
Maintenance and cleaning .........................................14
Disposal ........................................................15
Kompernass Handels GmbH warranty ..............................15
Service .........................................................16
Importer .......................................................16
Translation of the original Conformity Declaration .....................17
Ordering a replacement battery ....................................18
Online ordering ............................................................ 18
Telephone ordering ......................................................... 18
PWSA 20-Li B2
GB│IE│NI
│
1 ■
CORDLESS ANGLE GRINDER
PWSA 20-Li B2
Introduction
Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The
operating instructions are part of this product. They
contain important information about safety, usage
and disposal. Before using the product, please
familiarise yourself with all operating and safety
instructions. Use the product only as described and
for the range of applications specified. Please also
pass these operating instructions on to any future
owner.
Intended use
The appliance is intended for cutting, rough cutting
and brushing metal, concrete or tiles without the
use of water. Any other usage or modification of
the appliance is deemed to be improper and carries
a significant risk of accidents. The manufacturer
accepts no responsibility for damage(s) resulting
from improper usage. The appliance is not intended
for commercial use.

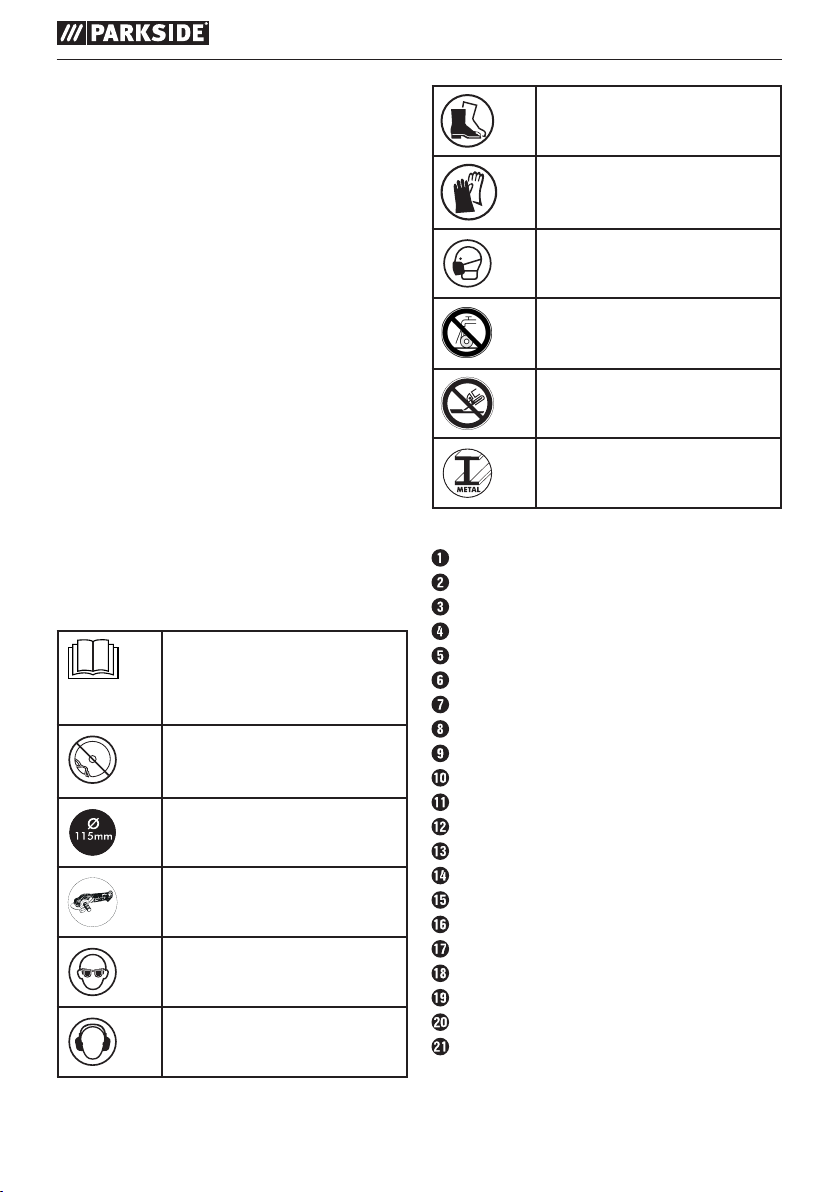

Explanation of the symbols used:
Before using the device for
the first time, read the original
operating instructions and
safety instructions.
Using damaged cutting or
roughing discs is dangerous
and may cause serious injury!
Disc diameter
Cordless angle grinder
Wear protective goggles!
Wear hearing protection!
Wear safety shoes!
Wear protective gloves!
Wear a dust mask!
Not approved for wet grinding
Not approved for side grinding
Intended for metal grinding
Features
ON/OFF switch
Release button for the battery pack
Battery pack*
Battery charge level button
Battery display LED
Adjusting wheel for speed preselection
Additional handle
Blade guard
Spindle locking button
Screw thread (3 x) for the additional handle
Clamping lever
Coding pin
Adjusting nut
High-speed battery charger (see fig. A)*
Red charge control LED (see fig. A)
Green charge control LED (see fig. A)
Clamping nut (see fig. C)
Mounting spindle (see fig. C)
Mounting flange (see fig. C)
Coding groove (see fig. C)
Two-hole mounting spanner (see fig. D)
■ 2 │ GB
│IE│
NI
PWSA 20-Li B2
Package contents
1 cordless angle grinder PWSA 20-Li B2
1 additional handle
1 blade guard (pre-assembled)
1 two-hole mounting spanner
1 cutting disc (pre-assembled)
1 set of operating instructions
Technical details
Cordless angle grinder: PWSA 20-Li B2
Rated voltage: 20 V
Rated idle speed: n 2500–10000 rpm
Disc width: Ø 115 mm
Thread size: M14
Use the following battery to operate the
cordless tool: PAP 20 A3*
Type: LITHIUM ION
Rated voltage: 20 V
Capacity: 4 Ah
Cells: 10
To charge the battery pack rapidly use the
following high-speed battery charger:
PLG 20 A2*
INPUT:
Rated voltage: 230–240 V ~, 50 Hz
Rated power
consumption: 85 W
Fuse (internal): 3.15 A
OUTPUT:
Rated voltage: 21.5 V
Rated current: 3.5 A
Charging time: approx. 80 min
Protection class: II /
*BATTERY AND CHARGER ARE NOT INCLUDE
(DC)
(DC)
(AC)
T3.15A
(DC)
(double insulation)
Noise and vibration data:
Noise measurement value determined in accordance with EN 60745. The A-rated noise level of
the power tool is typically as follows:
Noise emission value:
Sound pressure level: L
= 84 dB(A)
PA
Uncertainty: K = 3 dB
Sound power level: L
= 95 dB(A)
WA
Uncertainty: K = 3 dB
Wear hearing protection!
Total vibration value:
Surface grinding main
handle: a
= 1.83m/s
h, AG
Uncertainty: K = 1.5 m/s
Surface grinding additional
handle: a
= 1.224 m/s
h, AG
Uncertainty: K = 1.5 m/s
2
2
2
2
NOTE
► The vibration level specified in these instruc-
tions has been measured in accordance with
a standardised measuring procedure and
can be used for equipment comparisons. The
specified vibration emission value can also be
used to make an initial exposure estimate.
WARNING!
► The vibration level varies depending on the
use of the power tool and may be higher
than the value specified in these instructions
in some cases. Regular use of the power tool
in this way may cause the user to underestimate the vibration. Try to keep the vibration
loads as low as possible. Measures to reduce
the vibration load are, e.g. wearing gloves
and limiting the working time. Wherein all
states of operation must be included (e.g.
times when the power tool is switched off and
times where the power tool is switched on but
running without load).
PWSA 20-Li B2
GB│IE│NI
│
3 ■
General Power
Tool Safety Warnings
WARNING!
► Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future
reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or batteryoperated (cordless) power tool.
1. Work area safety
a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create
sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way.
Do not use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
Do not abuse the cord. Never use the cord
d)
for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
e)
When operating a power tool outdoors, use
an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces
the risk of electric shock.
f) If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and
use common sense when operating a power
tool. Do not use a power tool while you are
tired or under the influence of drugs, alcohol
or medication. A moment of inattention while
operating power tools may result in serious
personal injury.
b)
Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools
with your finger on the switch or energising
power tools that have the switch on invites
accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key
left attached to a rotating part of the power tool
may result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewel-
lery or long hair can be caught in moving parts.
g) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used.
Use of dust collection can reduce dust-related
hazards.
■ 4 │ GB
│IE│
NI
PWSA 20-Li B2
4. Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at
the rate for which it was designed.
b) Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous
and must be repaired.
c) Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many acci-
dents are caused by poorly maintained power
tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to
control.
g) Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed.
Use of the power tool for operations different
from those intended could result in a hazardous
situation.
5. Use and handling of the cordless
electrical power tool
a) Charge a rechargeable battery unit using
only the charger recommended by the manufacturer. Chargers are often designed for a
particular type of rechargeable battery unit.
There is the danger of fire if other types of
rechargeable battery units are used.
b) Only the rechargeable battery units supplied
are to be used with an electrical power tool.
The use of other rechargeable batteries may
lead to a risk of injury or fire.
c) When they are not being used, store re-
chargeable battery units away from paperclips, coins, keys, nails, screws or other small
metal objects that could cause the contacts
to be bridged. Short-circuiting the contacts of
a rechargeable battery unit may result in heat
damage or fire.
d) Fluids may leak out of rechargeable battery
units if they are misused. If this happens,
avoid contact with the fluid. If contact occurs,
flush the affected area with water. Seek additional medical help if any of the fluid gets into
your eyes. Escaping battery fluid may cause
skin irritation or burns.
PWSA 20-Li B2
GB│IE│NI
│
5 ■
CAUTION! RISK OF EXPLOSION!
Never charge non-rechargeable
batteries.
Protect the rechargeable battery from
heat, for example from continuous
exposure to sunlight, fire, water and
moisture. There is a risk of explosion.
6. Service
a) Have your power tool serviced by a qualified
repair person using only identical replacement parts. This will ensure that the safety of
the power tool is maintained.
Safety instructions for all applications
Special safety instructions for grinding and
abrasive cutting:
a) This power tool is to be used as a grinder and
abrasive cutting appliance. Please follow all
safety instructions, instructions, diagrams and
data that you receive with the appliance.
If you do not observe the following instructions,
this can lead to an electrical shock, fire and/or
serious injuries.
b) This power tool is not suitable for sandpaper
sanding, working with a steel brush or burnishing. Using the power tool for applications for
which it is not designed can lead to hazards
and injuries.
c) Do not use any accessories that have not
been specifically provided or recommended
by the manufacturer for this power tool. Just
because you can attach the accessories to your
power tool does not guarantee they are safe to
use.
d) The maximum speed of the accessory tool
used must be at least as high as the maximum
speed specified for the power tool. Accessories
that rotate faster than the permissible rate can
break and throw pieces into the air.
e) The external diameter and thickness of the
accessory tool used must comply with the
dimensions of the power tool. Incorrectly di-
mensioned accessory tools cannot be sufficiently shielded or controlled.
f) Attachment tools with a thread insert must
match the thread of the grinding spindle exactly. For attachment tools that are mounted
using a flange, the diameter of the hole on
the attachment tool must correspond to the
width of the fitment on the flange. Accessory
tools that cannot be fitted precisely to the power
tool rotate unevenly, vibrate severely and can
lead to a loss of control.
g) Never use damaged attachment parts. Check
accessory tools such as grinding discs before
each use for chips or cracks, grinding plates
for cracks, wearing or excessive wear and
tear and wire brushes for loose or broken
wires. If the power tool or the accessory tool
in use is dropped, check to see if it is damaged or use an undamaged accessory tool.
When you have checked and inserted the
accessory tool, ensure that you and any other
people in the vicinity remain outside of the
level of the rotating accessory tool and allow
the tool to rotate at maximum speed for one
minute. Damaged accessories usually break
during the test period.
h) Wear personal protective equipment.
Depending on the application, ensure that
you use full face protection, eye protection
or goggles. Use a dust mask, hearing protection, protective gloves or special apron to
protect yourself from grindings and material
particles as required. Protect your eyes from
flying debris that may be created during certain
applications. Dust or filter masks must be used
to filter any dust created by the application. If
you are exposed to loud noise for any length of
time, you can suffer a hearing loss.
■ 6 │ GB
│IE│
NI
PWSA 20-Li B2
i) Ensure that other people remain at a safe dis-
tance to your workspace. Anyone who enters
the workspace must wear personal protective
equipment.
Fragments of the workpiece or broken accessory tools can fly off and cause injury – even
outside the immediate working area.
j) Hold the power tool only by the insulated
handles when you are carrying out work in
which the accessory tool may come into
contact with concealed power cables.
Contact with a live wire may make exposed
metal parts of the power tool live and could
give the operator an electric shock.
k) Keep the power cord away from any rotating
accessories. If you lose control of the appliance,
the cord may get caught or cut and your hand or
arm could get caught in the rotating accessory
tool.
l) Never put the power tool down until the
accessory tool being used has come to a
complete standstill. The rotating accessory tool
could come into contact with the surface and
cause you to lose control of the power tool.
m) Do not leave the power tool running whilst
carrying it. Accidental contact between your
clothing and the rotating accessory tool could
lead to a physical injury.
n) Clean the ventilation slits of your power tool
regularly. The engine fan draws dust into the
housing and a strong accumulation of metal
dust can cause electrical hazards.
o) Never use the power tool in the vicinity of
inflammable materials. Sparks can ignite these
materials.
p) Do not use any accessory tools which require
liquid coolant. The use of water or other liquid
coolants may lead to an electric shock.
Kickback and corresponding safety
instructions
Kickback is a sudden reaction caused when a
rotating accessory tool, e.g. grinding disc, grinding
plate, wire brush, etc., catches or jams. Catching or
jamming leads to an abrupt stop of the rotating accessory tool. If this happens, an uncontrolled power
tool turns rapidly against the direction of rotation of
the accessory tool caught in the blockage.
If, for example, a grinding disc catches or jams in a
workpiece, the edge of the grinding disc projecting
into the workpiece can get caught and break off
the grinding disc or cause a kickback. The grinding
disc can then fly in the direction of the operator
or away from him, depending on the direction of
rotation of the disc at the blockage. This can also
break grinding discs.
A kickback is caused by improper or incorrect use
of the power tool. This can be avoided by taking
proper precautions as given below.
a) Hold the power tool firmly in both hands and
position your body and arms so they can
absorb the force of a kickback. Always use
the additional handle, if available, so that
you have the maximum possible control over
the kickback force or reaction forces at full
speed. By taking adequate precautions, the
operator can stay in control of the kickback
and reaction torques.
b) Never hold your hand close to a rotating
accessory tool. The accessory tool could hit
your hand in the event of a kickback.
c) Avoid having any part of your body in the
region in which the power tool is likely to
move in event of a kickback. The kickback will
force the power tool in the opposite direction to
the direction of rotation of the grinding disc at
the blockage.
d) Take special care when working near corners,
sharp edges, etc. Avoid allowing the accessory tool to bounce back from the workpiece
or jam. The rotating accessory tool is more
likely to jam in corners or sharp edges or if it
rebounds off them. This can cause a loss of
control or kickback.
PWSA 20-Li B2
GB│IE│NI
│
7 ■
e) Do not use chains or toothed saw blades.
Such accessories often cause a kickback or
loss of control over the power tool.
Special safety instructions for
grinding and abrasive cutting
a)
Use only the grinding accessories approved
for your power tool and the appropriate
blade guard for these grinding tools. Grinding
tools which are not designed for the power tool
cannot be sufficiently shielded and are unsafe.
b)
Offset grinding discs must be fitted so that the
grinding surface does not protrude over the
level of the blade guard edge. An improperly
fitted grinding disc which protrudes over the level
of the blade guard edge cannot be properly
guarded.
c) The blade guard must be securely mounted
on the power tool and adjusted to ensure
maximum safety so that the smallest possible
amount of the grinding tool is open to the
operator. The blade guard is designed to
protect the operator from fragments, accidental
contact with the grinding tool and sparks that
could ignite clothing.
d) Grinding tools should only be used for the
recommended applications.
For example: Never grind with the side surface of a cutting disc. Cutting discs are de-
signed to remove material with the edge of the
disc. Any lateral application of force on these
grinding tools can lead to a breakage.
e) Always use an undamaged clamping flange
of the correct size and shape for the selected
grinding disc. Suitable flanges support the
grinding disc and reduce the risk of disc breakage. Flanges for cutting discs can be different
to flanges for other grinding discs.
f) Do not use worn grinding discs from larger
power tools. Grinding discs for larger power
tools are not designed for the higher rotational
speeds of smaller power tools and can break.
Additional special safety instructions
for abrasive cutting
a) Avoid any blockage to the cutting disc or
high contact pressure. Do not make any
excessively deep cuts. Overloading the cut-
ting disc increases the stress and likelihood of
canting or blocking and thus the possibility of a
kickback or a breakage of the grinding tool.
b) Avoid the area in front of and behind the
rotating cutting disc. When you move the cutting disc away from yourself in the workpiece, it
is possible, in the event of a kickback, that the
electrical tool along with the rotating disc is
thrown out directly towards you.
b) If the cutting disc jams or you stop working,
switch the tool off and hold it steadily in
the workpiece until the disc has completely
stopped turning. Never attempt to pull a
rotating cutting disc out of a cut. This could
lead to kickback. Identify and remove the
cause of the jam.
d) Do not switch the power tool back on while
it is located in the workpiece. Allow the cutting disc to reach its full speed before you
carefully continue the cut. Otherwise, the disc
can jam, jump out of the workpiece or cause a
kickback.
e) Support boards or large workpieces to re-
duce the risk of the cutting disc jamming and
causing a kickback. Large workpieces can
bend under their own weight. The workpiece
must be supported on both sides of the disc:
both in the vicinity of the cutting disc and also
at the edge.
f)
Be particularly careful when making pocket
cuts into existing walls or other obscured areas.
The inserted cutting disc may cut into gas or
water pipes, electrical wiring or other objects
that can cause kickback.
■ 8 │ GB
│IE│
NI
PWSA 20-Li B2
Loading...
