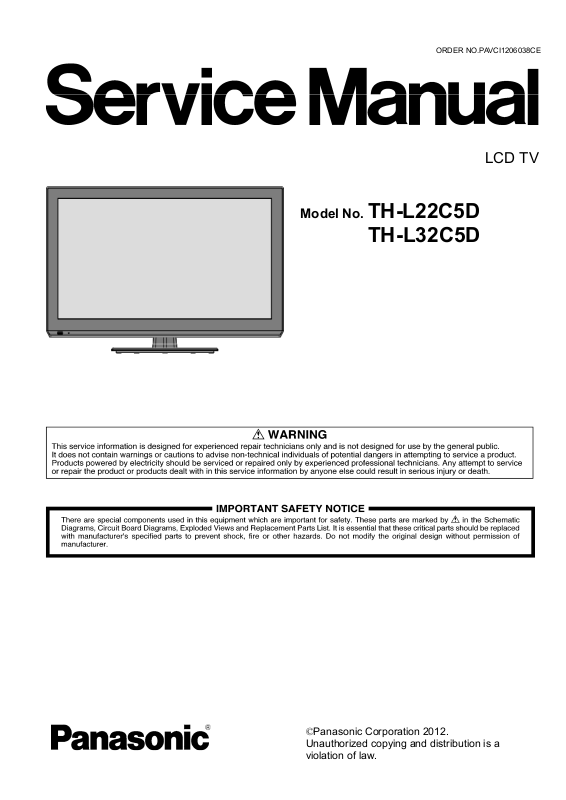

Panasonic TH-L22C5D Schematic

ORDER NO.PAVCI1206038CE

LCD TV

Model No. TH-L22C5D

TH-L32C5D

©Panasonic Corporation 2012.
Unauthorized copying and distribution is a
violation of law.

CONTENTS

1. Safety precautions .................................................................................................

2. Alignment instructions and method of software upgrading.....................................

3. Working principle analysis of the unit ...................................................................14

4. Specifications.......................................................................................................15

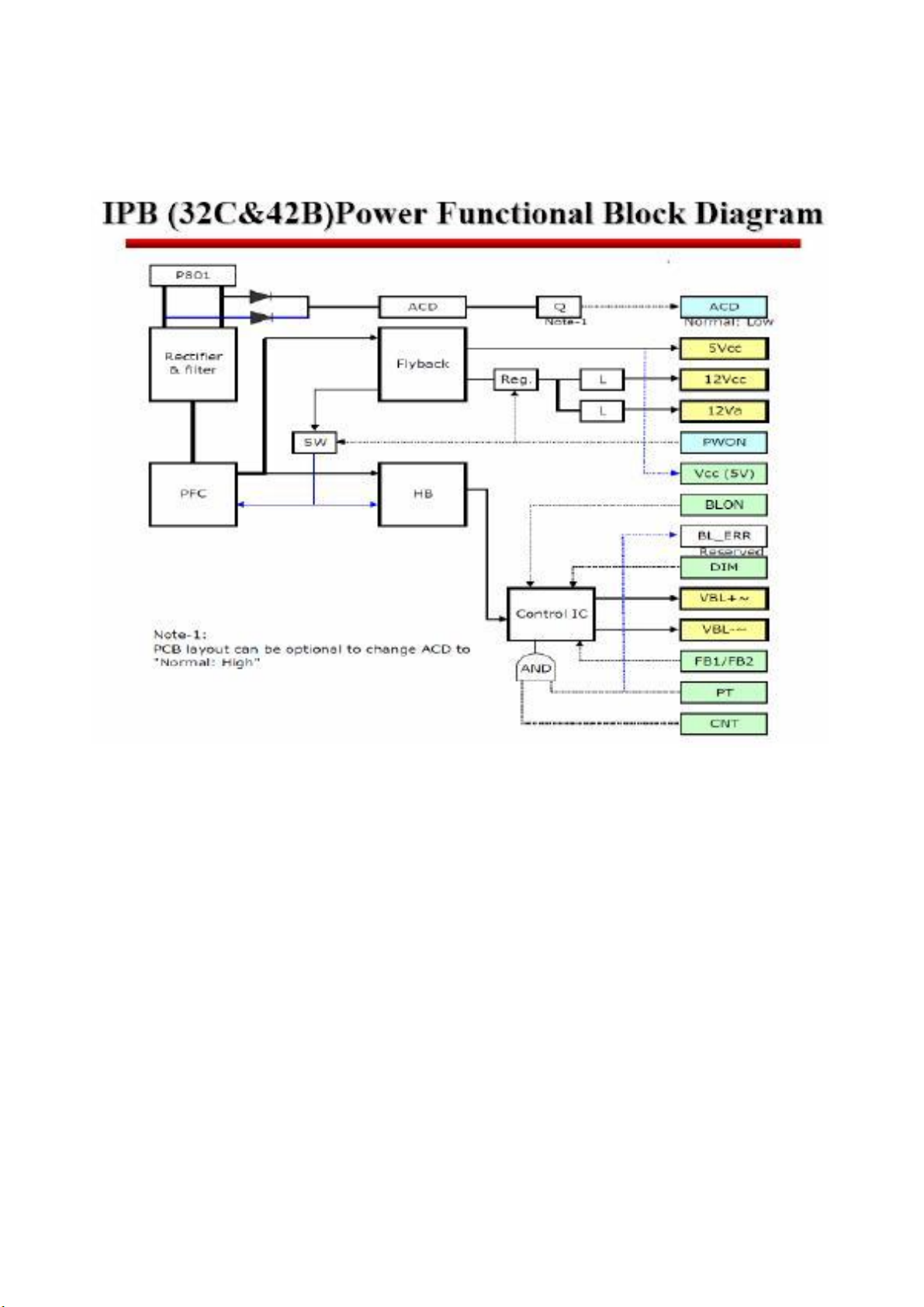

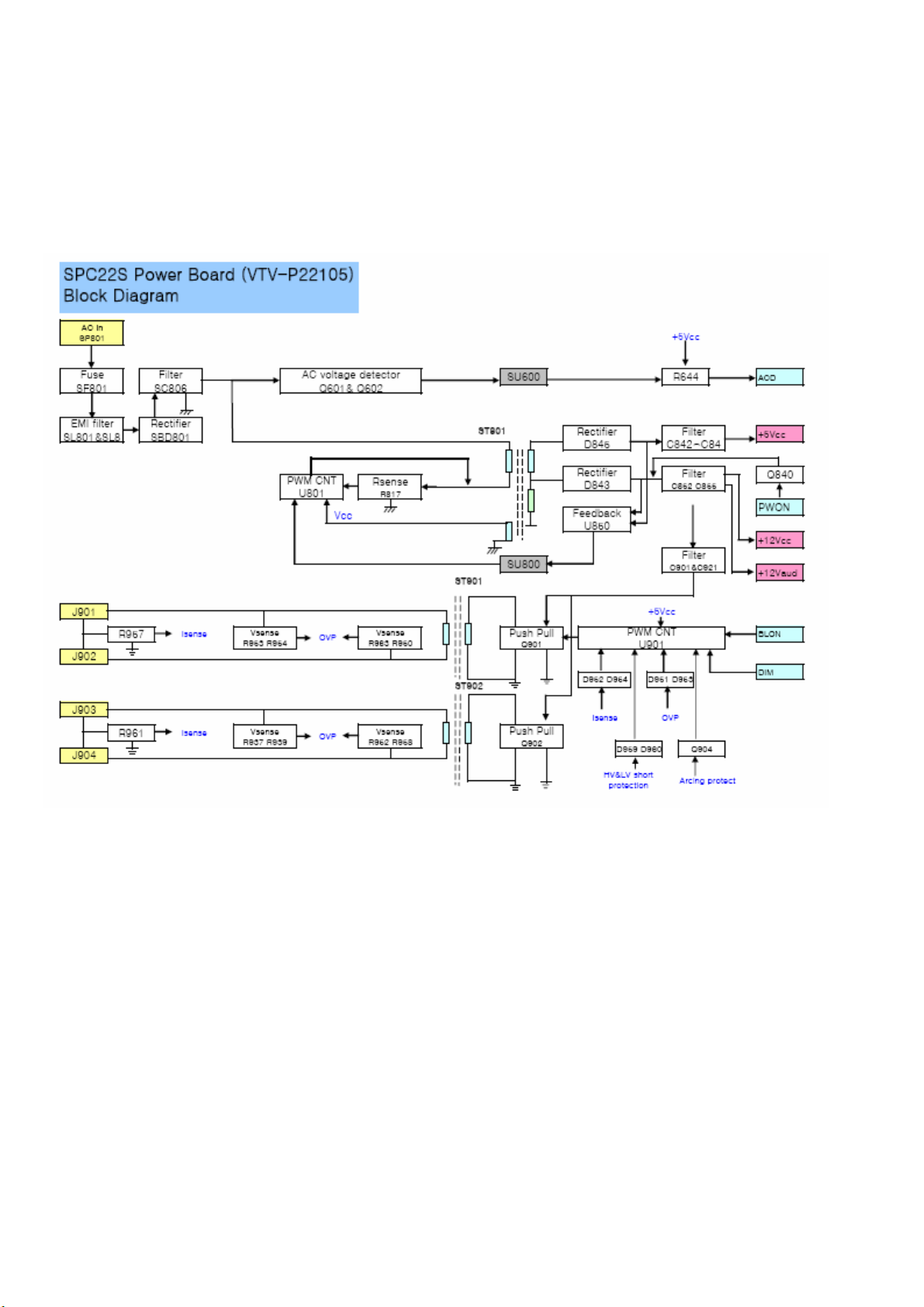

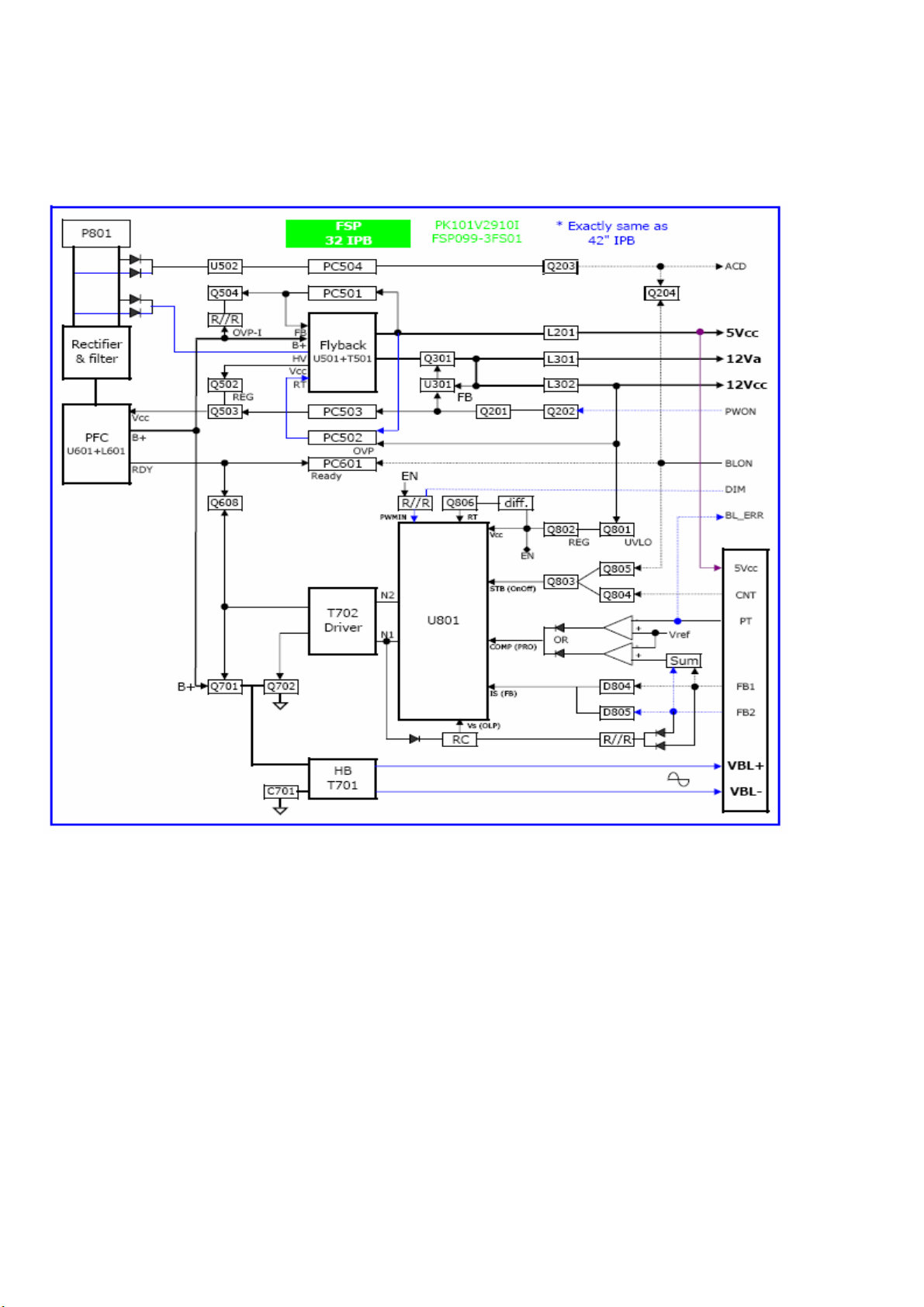

5. Block diagram ......................................................................................................16

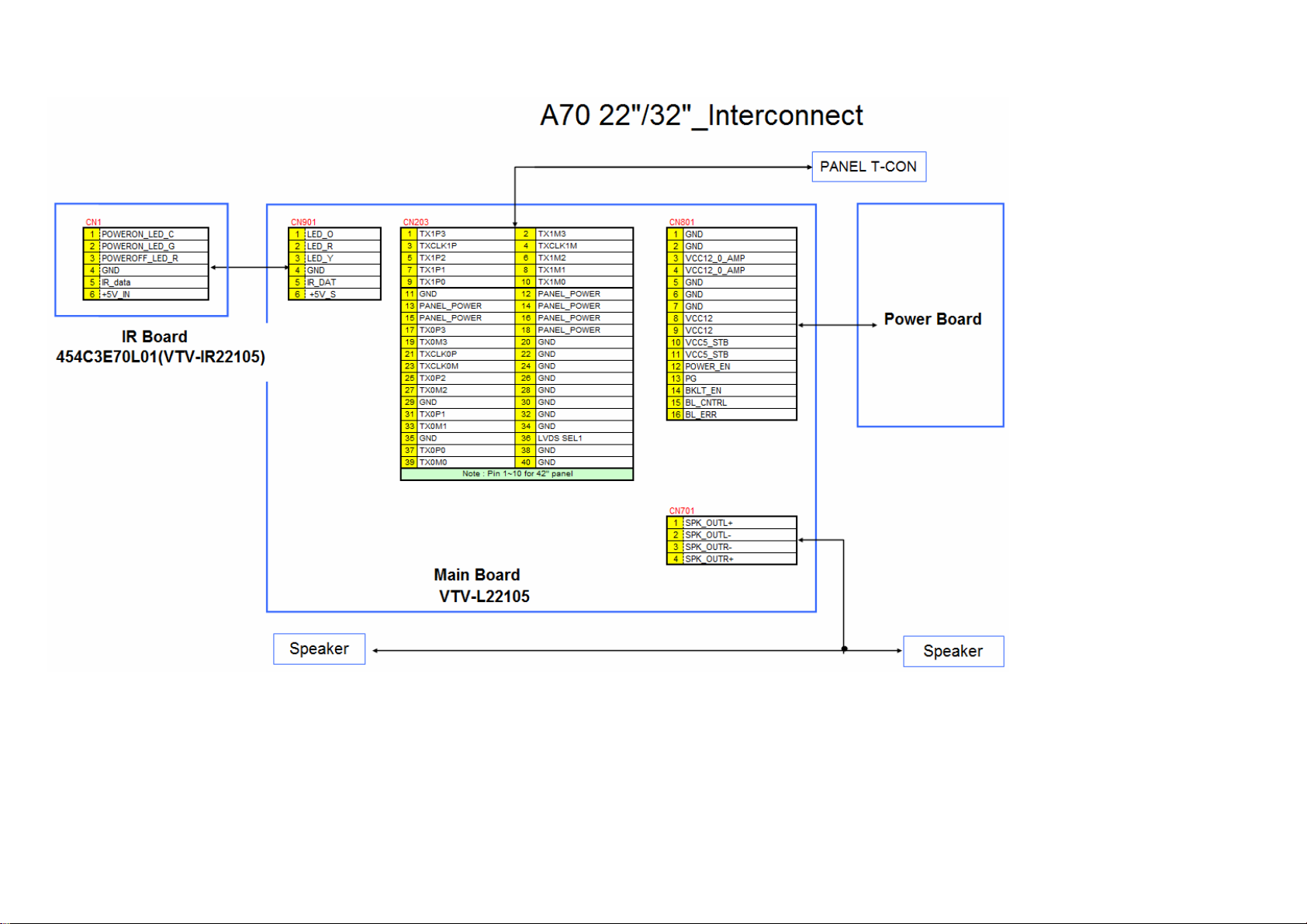

6. Wiring diagram ...................................................................................................

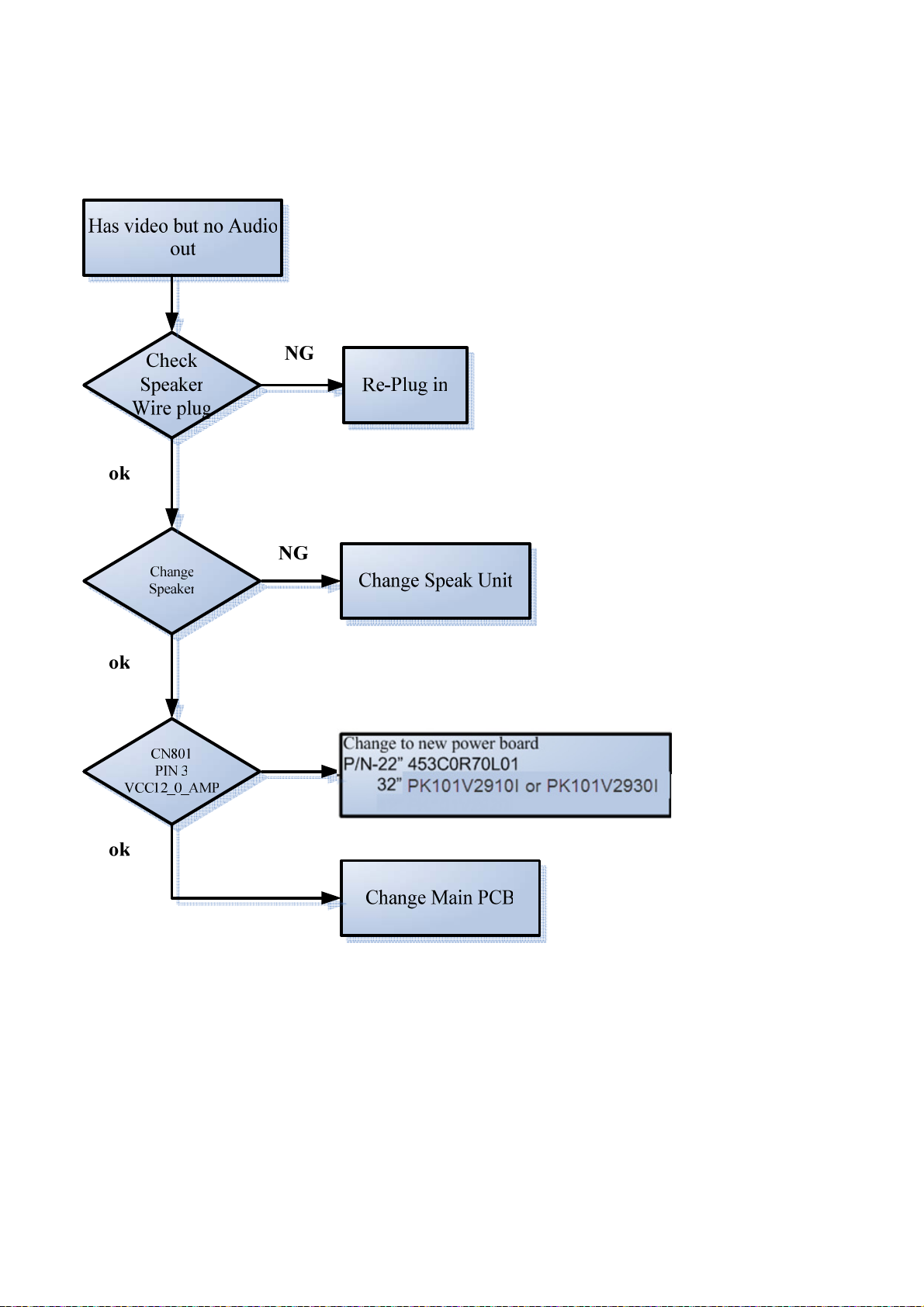

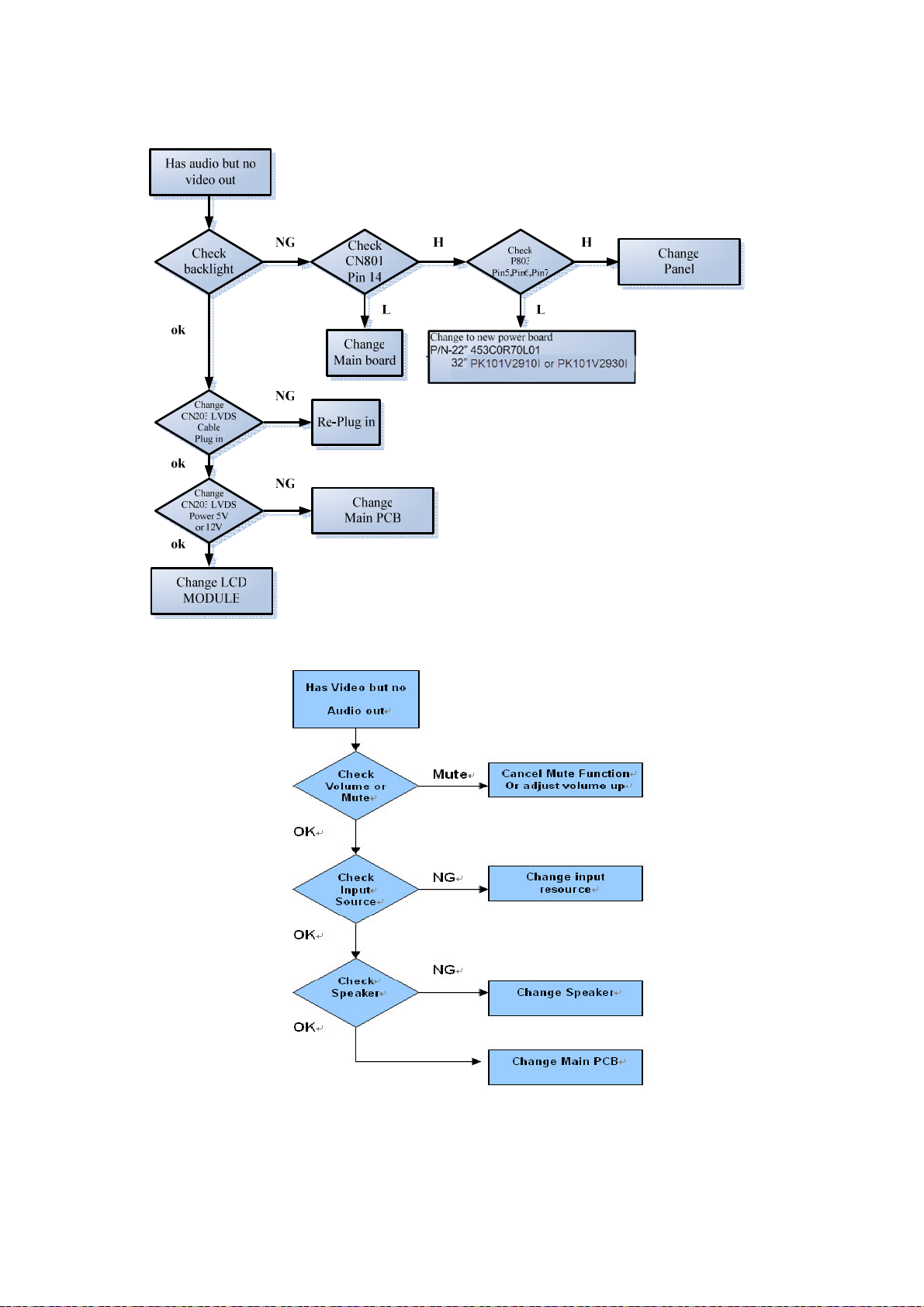

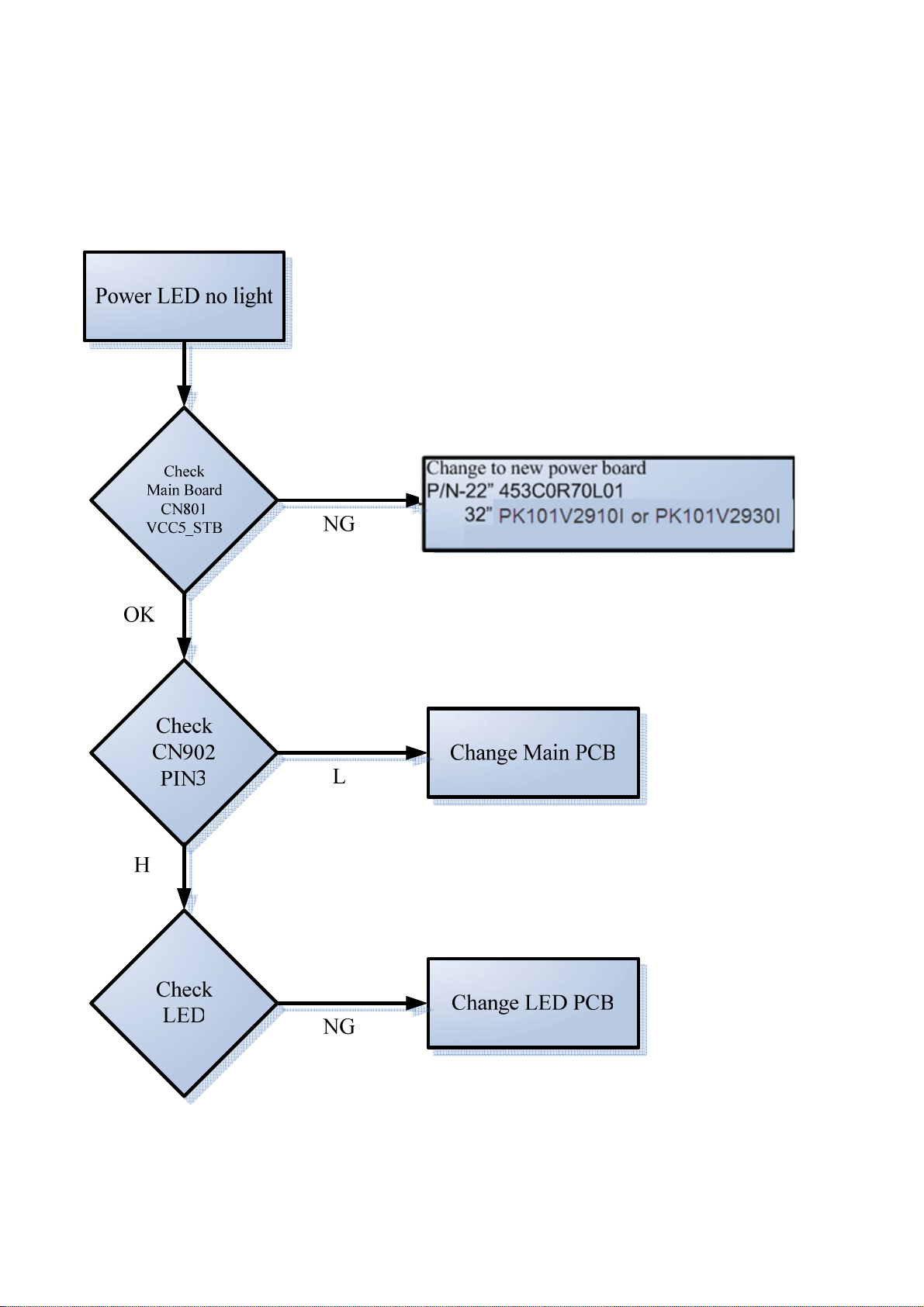

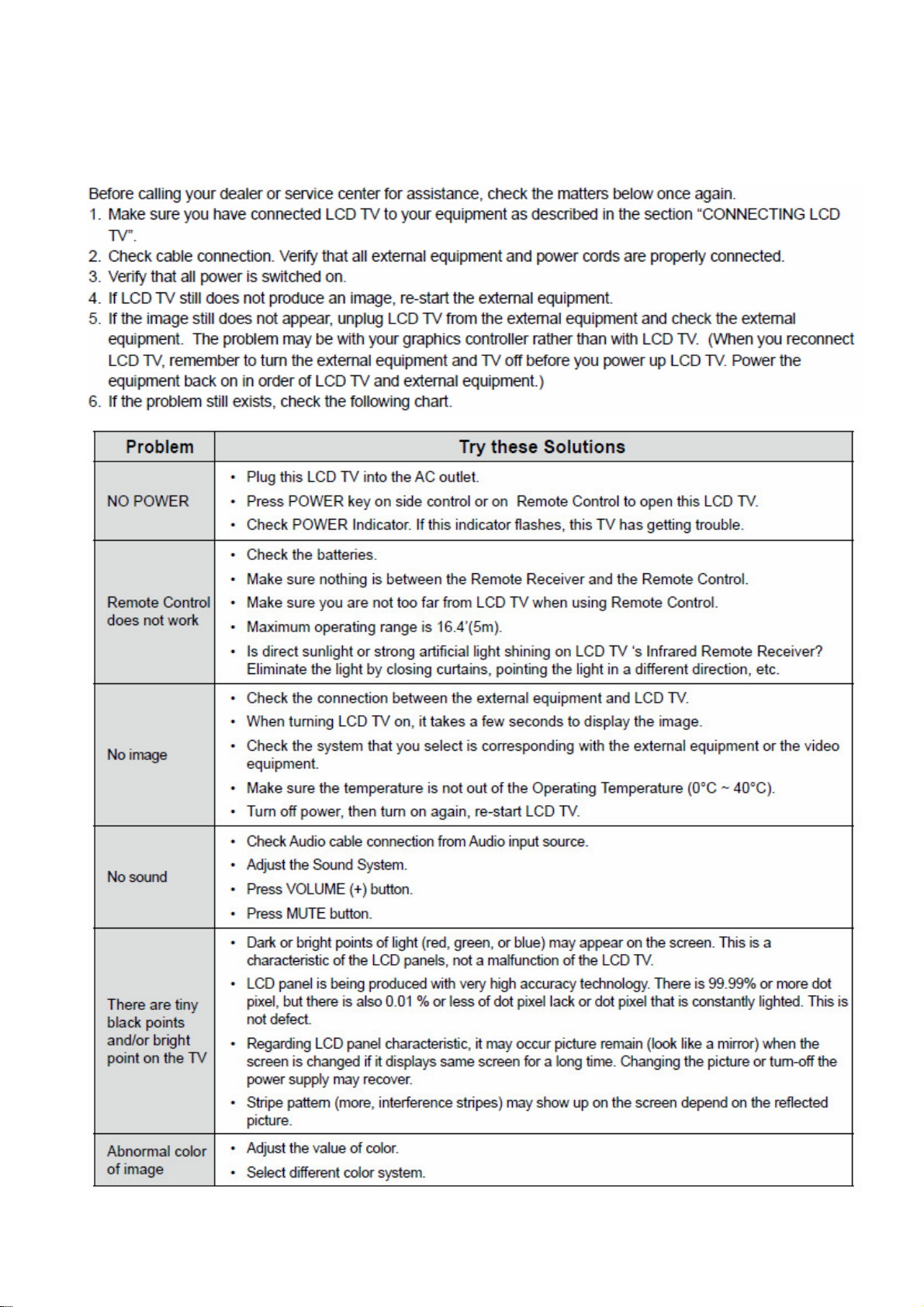

7. Troubleshooting guide..........................................................................................24

8. Exploded View (22”, 32”) .....................................................................................28

9. Replacement Parts List (22”, 32”) ........................................................................32

10. Boards Layout....................................................................................................34

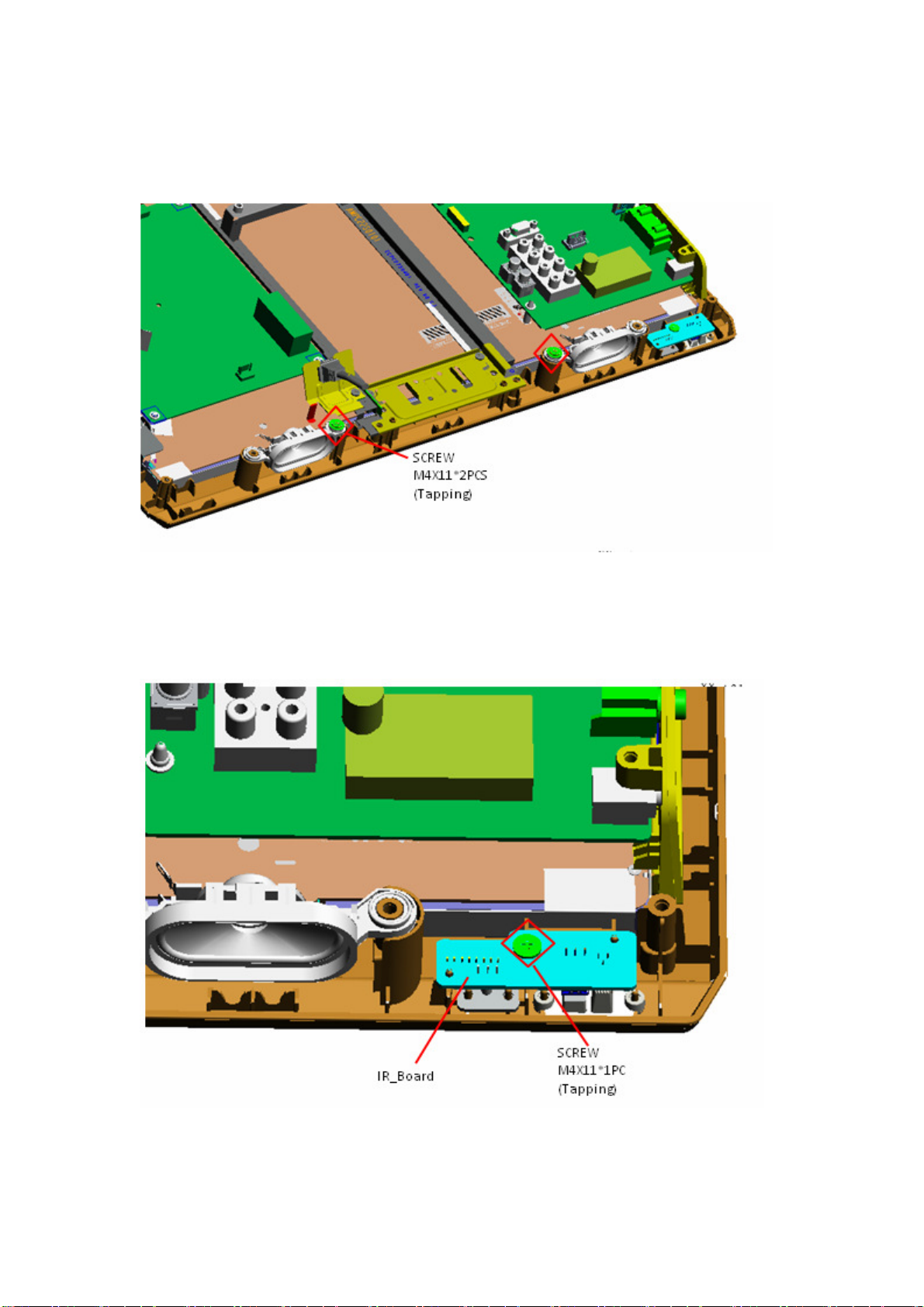

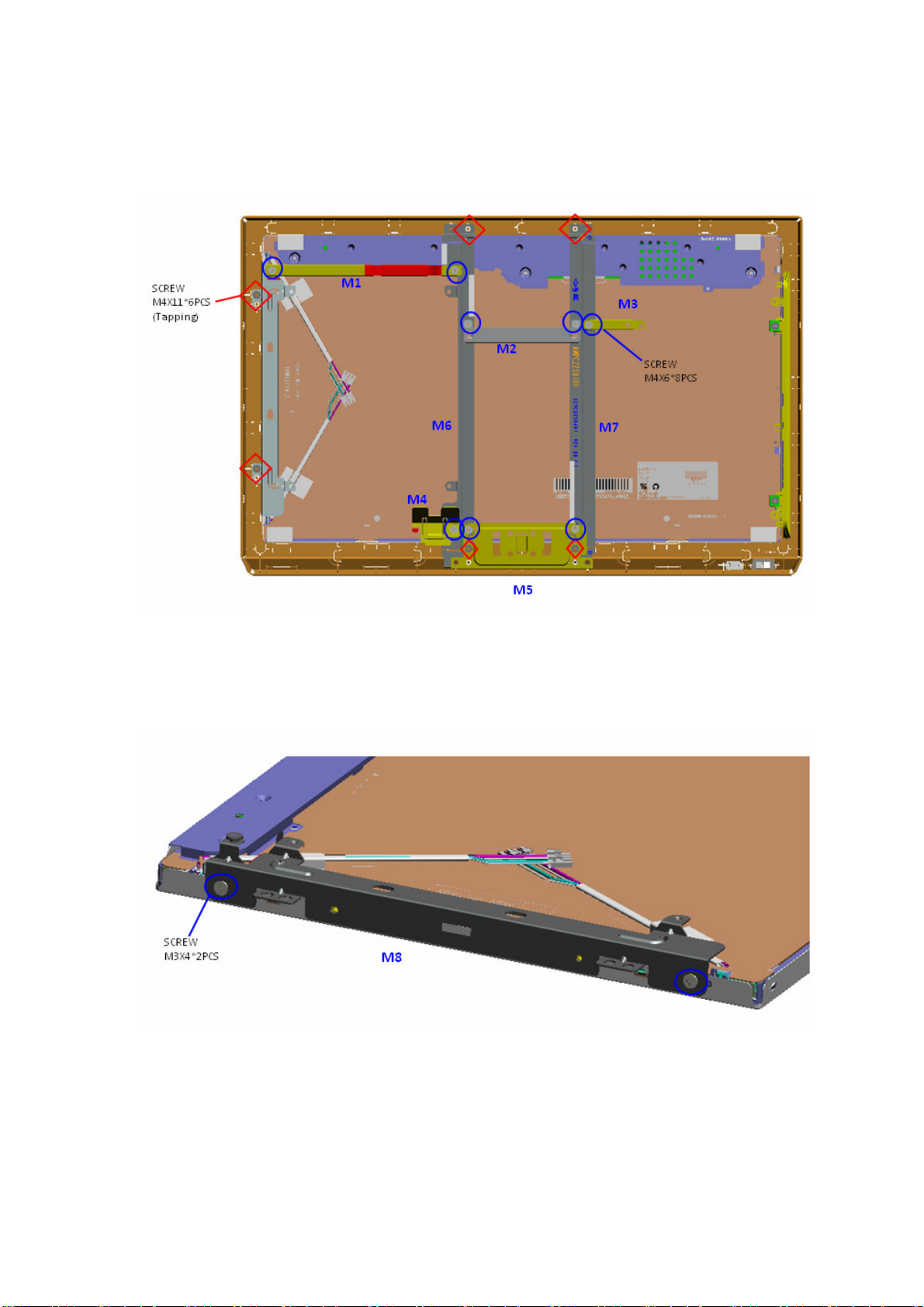

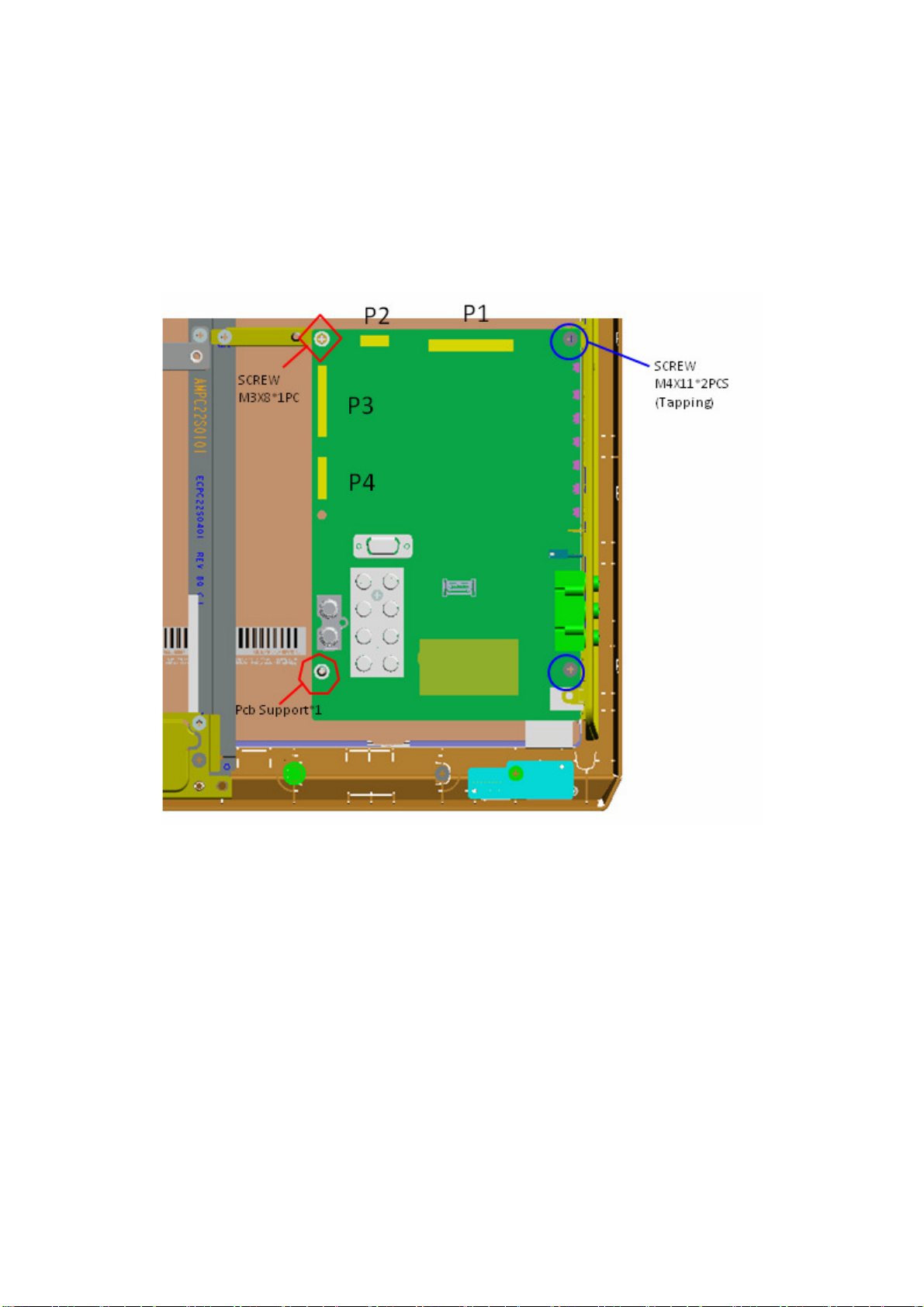

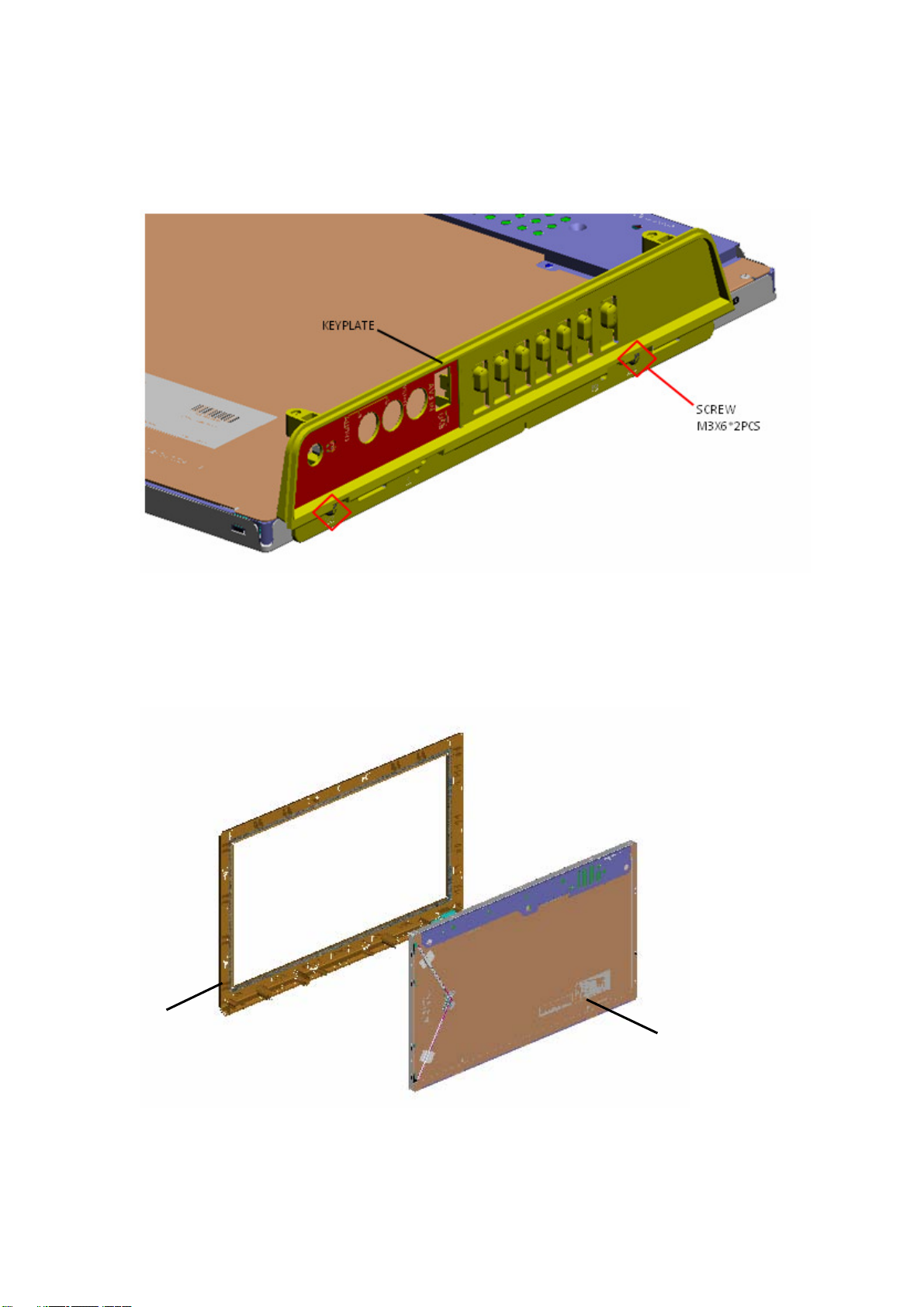

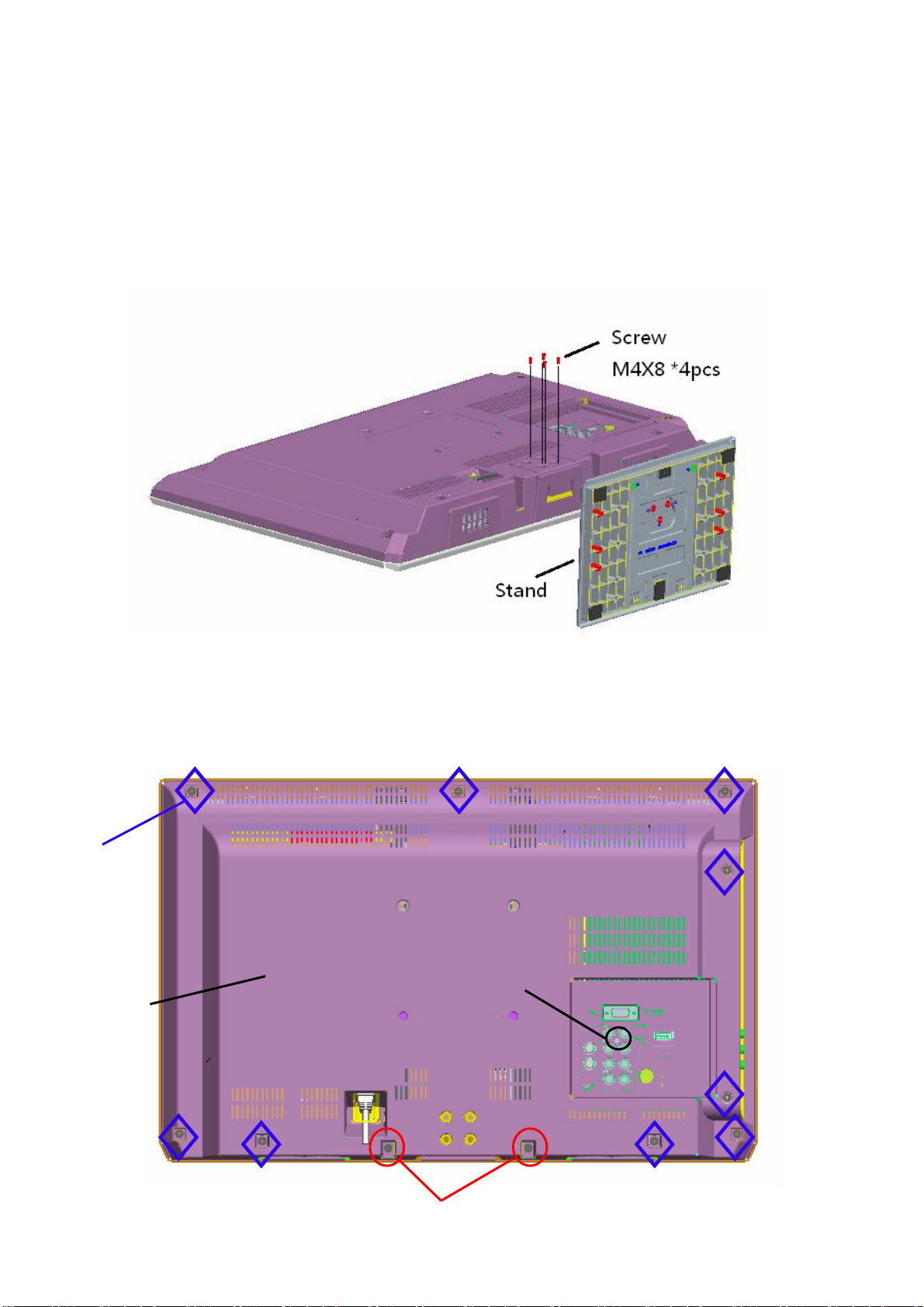

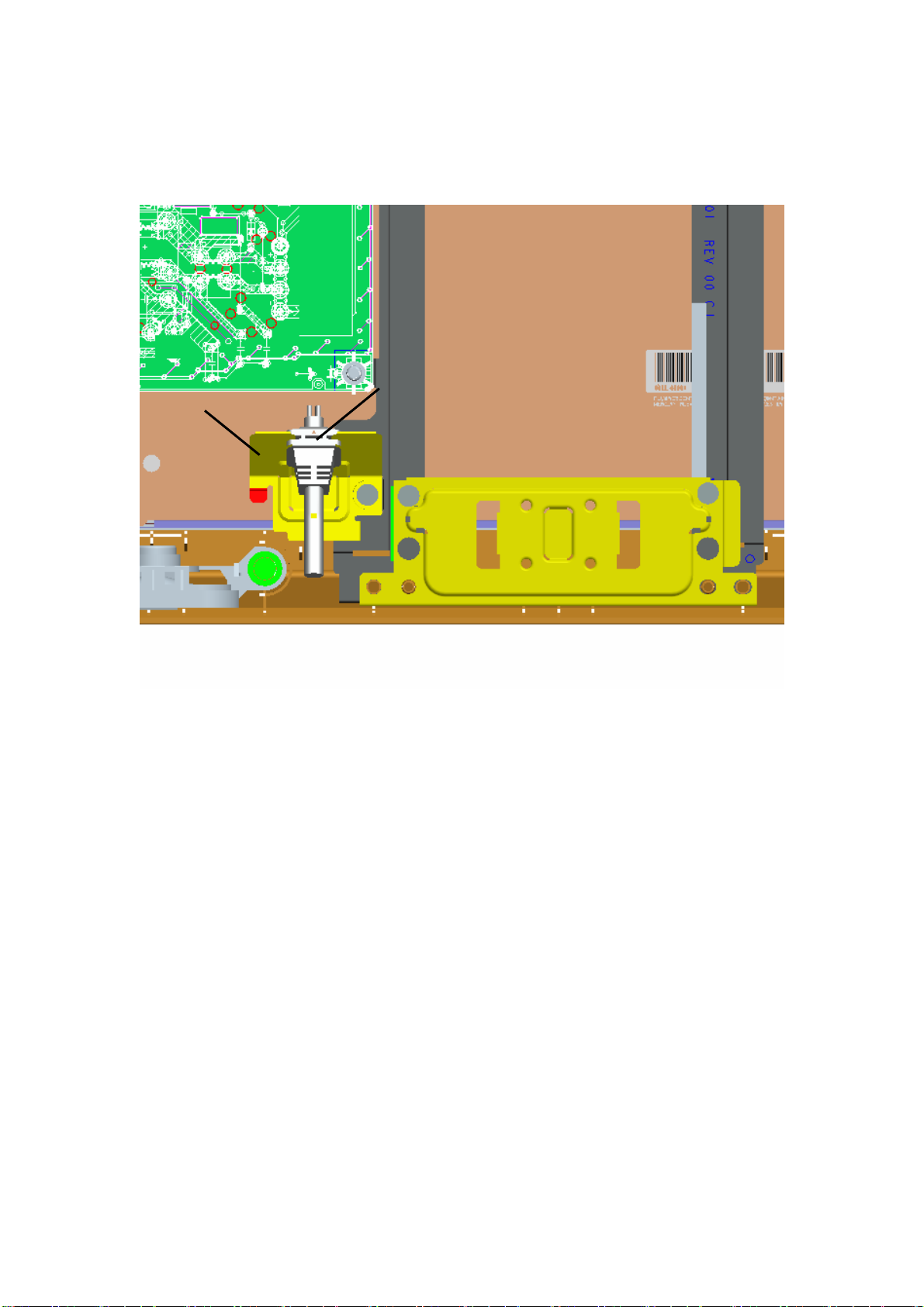

11. Disassembly and Assembly Instructions............................................................33

20

3

5

2

Attention:

please read the following points carefully.

Safety precautions

This service manual is only for service personnel to take reference with. Before

servicing

1. Instructions

Be sure to switch off
inserting/plugging in connection wire Anti static measures to be taken (throughout the entire production
process!):

a) Do not touch here and there by hand at will;
b) Be sure to use anti static electric iron;
c) It’s a must for the welder to wear anti static gloves.
Please refer to the detailed list before replacing components that have special safety requirements.
Do not change the specs and type at will.

the power supply before

replacing or welding any components or

2. Points for attention in servicing of LCD

2.1 Screens are different from one model to another and therefore not interchangeable. Be sure to

Use the screen of the original model for replacement.

2.2 The operation voltage of LCD screen is
protecting yourself and the machine when testing the system in the course of normal operation or
right after the power is switched off. Please do not touch the circuit or the metal part of the module

high voltage. Be

sure to take proper measures in

That is in operation mode. Relevant operation is possible only one minute after the power is switched
off.

2.3 Do not use any adapter that is not identical with the TV set. Otherwise it will cause fire or damage
to the set.

2.4 Never operate the set or do any installation work in bad environment such as wet bathroom,

laundry, kitchen, or nearby fire source, heating equipment and devices or exposure to sunlight etc.
Otherwise bad effect will result.

2.5 If any foreign substance such as water, liquid, metal slices or other matters happens to fall into the

module, be sure to cut the power off immediately and do not move anything on the module lest it should
cause fire or electric shock due to contact with the high voltage or short circuit.

2.6 Should there be smoke, abnormal smell or sound from the module, please shut the power off at

once. Likewise, if the screen is not working after the power is on or in the course of operation, the
power must be cut off immediately and no more operation is allowed under the same condition.

2.7 Do not pull out or plug in the connection wire when the module is in operation or just after the

power is off because in this case relatively high voltage still remains in the capacitor of the driving
circuit. Please wait at least one minute before the pulling out or plugging in the connection wire.

2.8 When operating or installing LCD please don’t subject the LCD components to bending, twisting or

extrusion, collision lest mishap should result.

2.9 As most of the circuitry in LCD TV set is composed of CMOS integrated circuits, it’s necessary to

pay attention to anti statics. Before servicing LCD TV make sure to take anti static measure and
ensure full grounding for all the parts that have to be grounded.

2.10 There are lots of connection wires between parts behind the LCD screen. When servicing or

moving the set please take care not to touch or scratch them. Once they are damaged the screen
would be unable to work and no way to get it repaired.

If the connection wires, connections or components fixed by the thermo tropic glue need to disengage
when service, please soak the thermo tropic glue into the alcohol and then pull them out in case of
damage.

3

2.11 Special care must be taken in transporting or handling it. Exquisite shock vibration may lead to

breakage of screen glass or damage to driving circuit. Therefore it must be packed in a strong case
before the transportation or handling.

2.12 For the storage make sure to put it in a place where the environment can be controlled so as to

prevent the temperature and humidity from exceeding the limits as specified in the manual. For
prolonged storage, it is necessary to house it in an anti-moisture bag and put them altogether in one
place.

The ambient conditions are tabulated as follows:

Temperature

Scope for operation

0

~ + 35

oC

Humidity

2.13

Display of a fixed picture for a long time may result in appearance of picture residue on the
screen, as commonly called “ghost shadow”. The extent of the residual picture varies with the maker
of LCD screen. This phenomenon doesn’t represent failure. This “ghost shadow” may remain
in the picture for a period of time (several minutes). But when operating it please avoid displaying still
picture in high brightness for a long time.

Scope for storage

Scope for operation

Scope for storage

0 ~

+ 60oC

20% ~

5% ~ 90%

80

%

3. Points for attention during installation

3.1 The front panel of LCD screen is of glass. When installing it please make sure to put it in place.

3.2 For service or installation it’s necessary to use specified screw lest it should damage the screen.

3.3 Be sure to take anti dust measures. Any foreign substance that happens to fall down between the
screen and the glass will affect the receiving and viewing effect

3.4 When dismantling or mounting the protective partition plate that is used for anti vibration and
insulation please take care to keep it in intactness so as to avoid hidden trouble.

3.5 Be sure to protect the cabinet from damage or scratch during service, dismantling or mounting.

4

2. Alignment instructions

(1) Test equipment

VG-859 (YPbPr, VGA, HDMI signal generator)
FLUKE 54200(TV signal generator)
CA210 (white balancer)

(2) Power test

Connect main board, power board and IR board according the wiring diagram, connect
the power and press power key (Remote controller or Keypad) button to turn on the TV.
a)Test the pin voltage of P802/power board , the data is shown in table1:

Table1 voltage data of P802

For 22”

P802 Pin1,2 Pin2 Pin3,4 Pin5 Pin6

Voltage 4.75V~5.25V 4.75V~5.25V GND

For 22”

Pin7 Pin8,9 Pin 10,11 Pin12 Pin13

Dute:20%~100% 11.4V~12.6V GND

Normal:0V~0.5V

Abnormal :Open drain

On:2.5V-5.25V

Off: 0-0.5V

On:2.5V-5.25V

Off: 0-0.5V

For 32”

P802 Pin1,2 Pin3,4 Pin5,6,7

Voltage GND 11.4V~12.6V GND 11.4V~12.6V 4.75V~5.25V

For 32”

Pin12 Pin13 Pin 14 Pin15 Pin16

On:2.5V-5.25V

Off: 0-0.5V

Normal:0V~0.5V

Abnormal :Open drain

On:2.5V-5.25V

Off: 0-0.5V

Pin8,9 Pin10,11

Duty 20%~100% NC

NC

5

(3) Alignment flow-chart

The alignment flow-chart is shown as fig-1

Connect to the center signal source and check each
Function of TV (station leaking, analog control, etc.)

Check the output of earphone and speaker.

Check if DDC, HDCP KEY, FLASH are written

Combined test for general assembly

White balance adjustment

Input HD signal and check the function of YPbPr

Input VGA signal and check if the display is normal,

Input AV signal and check the function

the function (analog control), horizontal/vertical center, etc.

check

Input USB signal and check if the display is normal, check

Input HDMI signal and check if the display is normal

, check

the function (analog control), horizontal/vertical center, etc.

the function (analog control), horizontal/vertical center, etc.

Preset ex-factory

Check the accessories and packing

Fig-1 adjustment flow-chart

6

(4) Adjustment instruction

At any input source then press the “Mute” (Remote control) and External Manual key to enter factory mode
During Factory menu, if “Mute” (Remote control) key is pushed, system will exit factory mode.

4-1. Source Calibration

4-1.1. Follow Compal provided auto adjustment tool or refer below process if no tool.

Set the generator to input the source Component on LCD-TV AV1.
The Generator ASTRO-859 or equal equipment set on Timing 720p color bar of 100%.
ASTRO setting:
Timing: PG2 940 720p/60 or 50Hz, Pattern: PG2 924 NTSC Color bar 100% as below
picture.

Color Bar 100/100-H

Y

Pb

Pr

Y

Cb

Cr

1 2 3 4 5

mV
mV
mV

700

0

0

16 to 235 235
16 to 240 128
16 to 240 128

6 7 8

147 47 0

-81 350 0

350 -34 0

62 31 16
102 240 128
240 117 128

4-1.2. Press the up or down key on remote controller to select the Auto Calibration icon with

press the key “>” on remote to perform the calibration.

7

The calibration performing is automatically, when show the OK means finish.
Repeat 4-1.2 for VGA source calibration.
Astro-859 or equal equipment is set on timing 1024x768 60Hz, Pattern color bar below
ASTRO setting:
Timing: PG2 963 1024*768/60Hz, Pattern: PG2 924 NTSC Color bar 100% as below picture.

1 8

R

G

B

mV
mV
mV

700 0
700 0
700 0

4-2. Color Temperature Adjustment & Check

4-2.1 Set the signal generator to HDMI 720p full white pattern, into LCD-TV HDMI IN.

ASTRO-859 or equal equipment, PG2 timing 857, pattern 956,
The adjustments that G gain and G Offset is keep always 512 without change.
Only adjust the R and B with gain and offset.

4-2.2 Press the up or down key on remote controller to select the Cool first.

Press “OK” key to enter adjusts items.
Firstly adjusts the Offset on signal level 30IRE(77/255) with R Offset and B Offset for
in spec as below table.
Secondly, adjusts the Gain on signal 70IRE(179/255) with R Gain and B Gain for in
spec as below table.
Repeat to 30IRE and next 70IRE adjustments for meet 30/70 IRE spec as below table.

8

4-2.3. Select 「Warm」

Step 1.First Turning Gain parts of RGB.

(1) Warm spec.:

x= 0.318±0.005
y= 0.331±0.005

(2) If the x and y value are larger than specification,

Decrease R GAIN drive from default value.
Increase B GAIN drive from default value

(3) If the x or y or both x and y value is/are smaller than specification.

Decrease B GAIN drive from default value

(4) According to a x and y value, please following adjustment of (4)-1 or (4)-2.

(4)-1 If x value is higher than spec

Decrease R GAIN drive from default value.
Increase B GAIN drive from default value.

(4)-2 If y value is higher than spec,

Decrease B GAIN drive from default value

Step 2.When finish Gain parts, then turning OFFSET parts

Select 「N

(1) Medium spec.: (Same as the Gain session )

x= 0.289±0.005
y= 0.306±0.005

(2) If the x and y value are larger than specification,

Decrease R OFFSET drive from default value.
Increase B OFFSET drive from default value.

(3) If the x or y or both x and y value is/are smaller than specification.

Decrease B OFFSET drive from default value

(4) According to a x and y value, please following adjustment of (4)-1 or (4)-2.

Step 3. Than select 「C

x= 0.273±0.005
y= 0.280±0.005

4-2.4. Exit Factory Mode:
After finish adjusting color temperature press [MENU] to exit factory mode.

ormal」

(4)-1 If x value is higher than spec

Decrease R OFFSET drive from default value.
Increase B OFFSET drive from default value.

(4)-2 If y value is higher than spec,

Decrease B OFFSET drive from default value
Step 3.When finishing OFFSET parts, then recheck Gain parts .unitl Both of them meet the
target specification.

ool」 using same way to adjust the setting.

9

(5) Items of Factory menu

When in PC/ Component/ Video (Composite)/ ANT inputs then press the [MUTE] key by remote control and
press [MENU] key by side key over 2 sec to enter factory mode.

During Factory menu, if [EXIT] key is pushed, system will exit factory mode.
Press up and down key can move high light item from Color Temperature -> Shipping -> NV Clear -> Full

Power -> Auto Calibration -> RF Burn In -> Reset -> USB Upgrade -> Write EDID -> Gamma.

Push [OK] or [ > ] key can select high light item function. (Press left and right can adjust value)
Display model name, firmware version and released date on top.

Panel size : 22 / 32/ 42

F/W Version

1) Factory Color Temp data edit
Press up or down key can select high light item function
Press enter key to enter the item.

-Color temp default preset No (Warm, Medium, Cool).

-R, G, B data for each preset
Press “Up” or “Down” key to select “R”, “G”, “B” item
Press “Left” or “Right” key to set the “R”, “G”, “B” value
Press “MENU” or “EXIT” item to exit to factory mode

2) Shipping mode

Select shipping country then “Reset” for into shipping mode.

Board Name (PCB Version)

PQ Version

AQ Version

Panel Name (Panel vendor)

10

3) NV CLEAR

Initialize program’s default values to NVRAM for following adjustment items accuracy.

In factory mode it is the first and important step to make sure all values are default value and correct

- Reset settings: Gamma table, Channel table (Favorite channel, Channel label etc.), Model table (H/V
Position, Clock, Phase), Source dependent setting (Contrast, Brightness etc.), Common setting (Volume,
Language etc.), Parental Control (Rating, Password etc), Closed Caption.

To avoid a mistake initial process after factory setting is done. This item will have a check dialog “yes or
no” to do the initial or not.

4) Full power
This is for power consumption testing.
To measure the maximum power consumption of TV set, we adjust the value of following items to
maximum.

- Video: Contrast maximum value, Brightness maximum value, Backlight maximum value.

- Audio: Volume maximum value, Bass default value, Treble default value.
Press enter key to turn on Full Power and OSD stay display until press enter key to recover from Full
Power.

5) Auto Calibration
Source Calibration (gain/offset) must be adjusted color by firmware automatic adjustment in PC,
Composite and Component input source.
This item will have a result dialog “OK” or “NG”.

6) RF Burn In
Use “snow” pattern for burn in. Selected items are “On” and “Off”.
While turn on burn in mode, firmware will automatically turn off “Auto power off” function.
If there is no power supply suddenly, firmware will re-enter burn in mode automatically when power
supply is back
Pressed the “Power” key, firmware will automatically turn off burn in mode.
Burn in mode: Source is “ANT/Cable" and channel is NTSC channel 3.

7) Reset
Reset all settings of OSD menu to default value.

- Reset settings: Channel table, Model table (H/V Position, Clock, Phase), Source dependent setting
(Contrast, Brightness etc.), Common setting (Volume, Language etc.), Parental Control (Rating,
Password etc), Closed Caption.

8) USB Upgrade

Upgrade firmware through USB.

9) Write EDID

Write EDID into VGA and HDMI EEPROM.
This item will have a check dialog “yes or no” to do the initial or not.

10) Gamma
For factory test value of gamma.

(

6) Performance check

6-1 TV function
Connect RF to the center signal source, enter Channel menu → auto tuning, check if there are channels be
skipped, check if the picture and speaker are normal.

6-2 AV terminals
Input Video signal, check if the picture and sound are normal.

6-3 YPbPr terminal
Input YUV signal (VG859 signal generator), separately input the YUV signals listed in table4 and check if the
display and sound are normal at any situation (power on, channel switch and format convert, etc.)

11

LINE (pixel)

LINE (pixel)

LINE (pixel)

Table4 YUV signal format

FREQ PERIOD

SYNC

POLARITY

PIXEL

CLOCK

Display

SYNC

WIDTH

BACK

PORCH

MODE

LINE(kHz)

FRAME

(Hz)

LINE (pixel)

FIELD
(lines)

LINE

FIELD

(MHz)

FRAME

(lines)

FRAME

(lines)

FRAME

(lines)

15.734 1716 Negitive 27 1440 124 114

59.94Hz 720x480i

59.94Hz 720x480P

60Hz 1280x720P

60Hz 1920X1080i

60Hz 1920X1080P

59.94 525 Negitive 480 3 15

31,469 858 Negitive 27 720 62 60

59.94 525 Negitive 480 6 30

45 1650 Positive 74.25 1280 40 220

60 750 Positive 720 5 20

33.75 2200 Positive 74.25 1920 44 148

60 1125 Positive 1080 5 15

67.5 2200 Positive 148.5 1920 44 148

60 1125 Positive 1080 5 36

6-4 VGA terminal

Input VGA signal (VG848 signal generator), separately input the signals listed in table5 and check the display and
sound. If the image is deflection of the Horizontal and vertical, select Menu->Setup->Auto Adjust to perform auto­correct.

Table5 VGA signal format

FREQ PERIOD

SYNC

POLARITY

PIXEL

CLOCK

Display

SYNC

WIDTH

BACK

PORCH

Mode

VGA 60Hz

LINE(kHz)

FRAME(Hz)

LINE (pixel)

FIELD(lines)

LINE

FIELD

(MHz)

LINE (pixel)

FRAME(lines)

31.469 800 Negative 25.175 640 96 40

LINE (pixel)

FRAME

(lines)

LINE (pixel)

FRAME

640x480 59.941 525 Negative 480 2 25

SVGA 60Hz

37.879 1056 Positive 40 800 128 88

800x600 60.317 628 Positive 600 4 23

XGA 60Hz

1024x768

WXGA 60Hz

1280x768

WXGA 60Hz

1360x768

48.363 1344 Negative 65 1024 136 160

60.004 806 Negative 768 6 29

47.776 1664 Negative 79.5 1280 128 192

59.87 798 Positive 768 7 20

47.712 1792 Positive 85.5 1360 112 256

60.015 795 Positive 768 6 18

(lines)

12

6-5 HDMI terminal

LINE (pixel)

Input HDMI signal (VG859 signal generator), separately input the signals listed in table6 and check the display and
sound (32 KHz, 44.1 KHz, 48 KHz) at any situation (power on, channel switch and format convert, etc.)

Table6 HDMI signal format

FREQ FREQ PERIOD

MODE

VGA 60Hz 31.469 800 Negitive 25.175 640 96 40

640x480 59.94 525 Negitive

SVGA 60Hz 37.879 1056 Positive

800x600 60.317 628 Positive

XGA 60Hz 48.363 1344 Negitive

1024x768 60.004 806 Negitive

WXGA 60Hz 47.776 1664 Negitive

1280x768 59.87 798 Positive

WXGA 60Hz 47.712 1792 Positive

1360x768 60.015 795 Positive

59.94Hz 720x480i

59.94 525 Negitive

59.94Hz 720x480P 31.469 858 Negitive

LINE(kHz)

FRAME(Hz)

15.734 1716 Negitive

LINE (pixel)

FIELD(lines)

SYNC

POLARITY

LINE

FIELD

PIXEL

CLOCK

(MHz)

480 2 25

40 800 128 88

600 4 23

65 1024 136 160

768 6 29

79.5 1280 128 192

768 7 20

85.5 1360 112 256

768 6 18

27 1440 124 114

480 3 15

27 720 62 60

Display

FRAME

(lines)

SYNC

WIDTH

LINE (pixel)

FRAME

(lines)

BACK

PORCH

LINE (pixel)

FRAME

(lines)

59.94 525 Negitive

60Hz 1280x720P

60 750 Positive

60Hz 1920X1080i

60 1125 Positive

60Hz 1920X1080P

60 1125 Positive

24Hz 1920x1080P

24 1125 Positive

6-6 other functions check
a) Check the turn on/turn off timer, sleep timer, picture/sound mode, OSD, stereo and analog TV Teletext, etc.

45 1650 Positive 74.25 1280 40 220

33.75 2200 Positive 74.25 1920 44 148

67.5 2200 Positive

27 2750 Positive 74.25 1920 44 148

480 6 30

720 5 20

1080 5 15

148.5 1920 44 148

1080 5 36

1080 5 36

(7) USB Software updated

(1) Plug the USB with the firmware file named .
(

2) Into Factory mode & select USB upgrade , USB upgrade message would appear automatically.
(3) Select Yes, and then start the upgrading.
(4) Upgrading is starting, please wait for the progress finish.
(5) When the progress completed, press Remote power on .

13

Working principle analysis of the unit

1. PAL/SECAM
Antenna reception, B/G, I, D/K, signal will be send to tuner M40CPT-2PNB-E_1,
be

demodulating and output standard video signal TV-CVBS, and sound SIF signal

TV-CVBS will send to the master control IC SPV7168Mx to video decode, de-interlace and scaler,

and NTSC

signals flow:

th en T un er wi ll

.

then output LVDS level drive for panel display.
The sound IF (SIF) will be fed into SPV7168Mx, after demodulating, pre-amplifying, bass adjusting
and volume control, the sound signal will
tr an sf or m int o di gi ta l I 2S s ig na l
speaker, another will be sent analog sound signal to

2. Composite & Component signal flow
Composite & Component signal path AV signal switch

b e ou tp ut t wo w ay s, o ne w ay wi ll b e

and sent to digital amplifier TAS5707,

then sent to

earphone amplifier TPA6132.

by menu “Setup”->“Video1” Input

fed to
SPV7168Mx, to perform video decode, de-interlace and scaler, then output LVDS drive level for
panel display.
Audio signal from Composite
volume control, the sound signal will
di gi ta l I 2 S s ig na l
sent analog sound signal to

3. PC signal flow

PC signal via terminal
decode,

Sound signal of PC
volume control, the sound signal will
di gi ta l I 2 S s ig na l
sent analog sound signal to

4. HDMI signal flow

terminal

via matched resistance is fed to SPV7168Mx, to bass adjust and

b e ou tp ut t wo wa ys , on e way w il l be t ran sf or m int o

and sent to digital amplifier TAS5707,

then sent to speaker, another will be

earphone amplifier TPA6132.

socket

and

image scale, then send to LVDS level drive for panel display.

t er m in a l

sent to SPV7168Mx, output R/G/B of 24 bit to back end module to

via matched resistance

an d

b e ou tp ut t wo wa ys , on e way w il l be t ran sf or m int o

and sent to digital amplifier TAS5707,

earphone amplifier TPA6132.

then sent to speaker, another will be

sent to SPV7168Mx, to bass adjust and

One HDMI video signals are directly fed to the master control IC SPV7168Mx, to digital decode, image
scale, then output LVDS drive level for panel display. HDMI audio signal via decoder built-in
SPV7168Mx, to bass adjust and volume control, the sound signal will
wa y wi ll b e t ra ns fo rm i nto d ig it al I 2S si gn al

and sent to digital amplifier TAS5707,

sent to speaker, another will be sent analog sound signal to

b e ou tp ut t w o wa ys , on e

earphone amplifier TPA6132.

then

5. Multimedia signal flow

Multimedia signal via USB connector sent to SPV7168Mx,
end module to Video decode,
panel display.

de-interlace and

th e n out pu t

R/G/B of 24 bit to back

image scale, then send to LVDS level drive for

Sound signal of Multimedia signal sent to SPV7168Mx, to bass adjust and volume control, the sound
signal will
sent to digital amplifier TAS5707,
earphone amplifier TPA6132

be ou tp ut t wo wa ys , on e way w il l be t r a n sf or m in to d ig it al I 2S s ig na l

then sent to speaker, another will be sent analog sound signal to

and

14

15

SPC22S&32S Block Diagram

4-1 Power Block Diagram

SPC22S:

16

SPC32S:

FSP power board:

17

DARFON power board:

18

1

AV2

TV CVBS

AV1

Flash RAM 2MB

AV3 (Side)

Audio

RS-232/Tx/Rx

EE PROM

EEPROM

EEPROM

TUNER(TCL)

M40CTP-2PNB-E1

INPUT

VGA

INPUT

YPbPr/CVBS1

Audio

INPUT

CVBS2

Audio input

(share PC & HDMI)

India/Asia Models system design

I

CVBS3

Audio

INPUT

HDMI

INPUT

USB

port

24LC02

24LC02

System IC

DDR

256Mb

LCD WXGA

Panel

Keypad

SIF

Sunplus

SPV7168Mx

IR

MX25L16

24LC32

12V

STB 5V

TPA6132

Audio 10W

TI AMP

TAS5707

System Power

Presentation Title | Prosperity | Version 1

Presentation Title | Prosperity | Version

Supply

OUT

EAR

PHONE

20

BLOCK

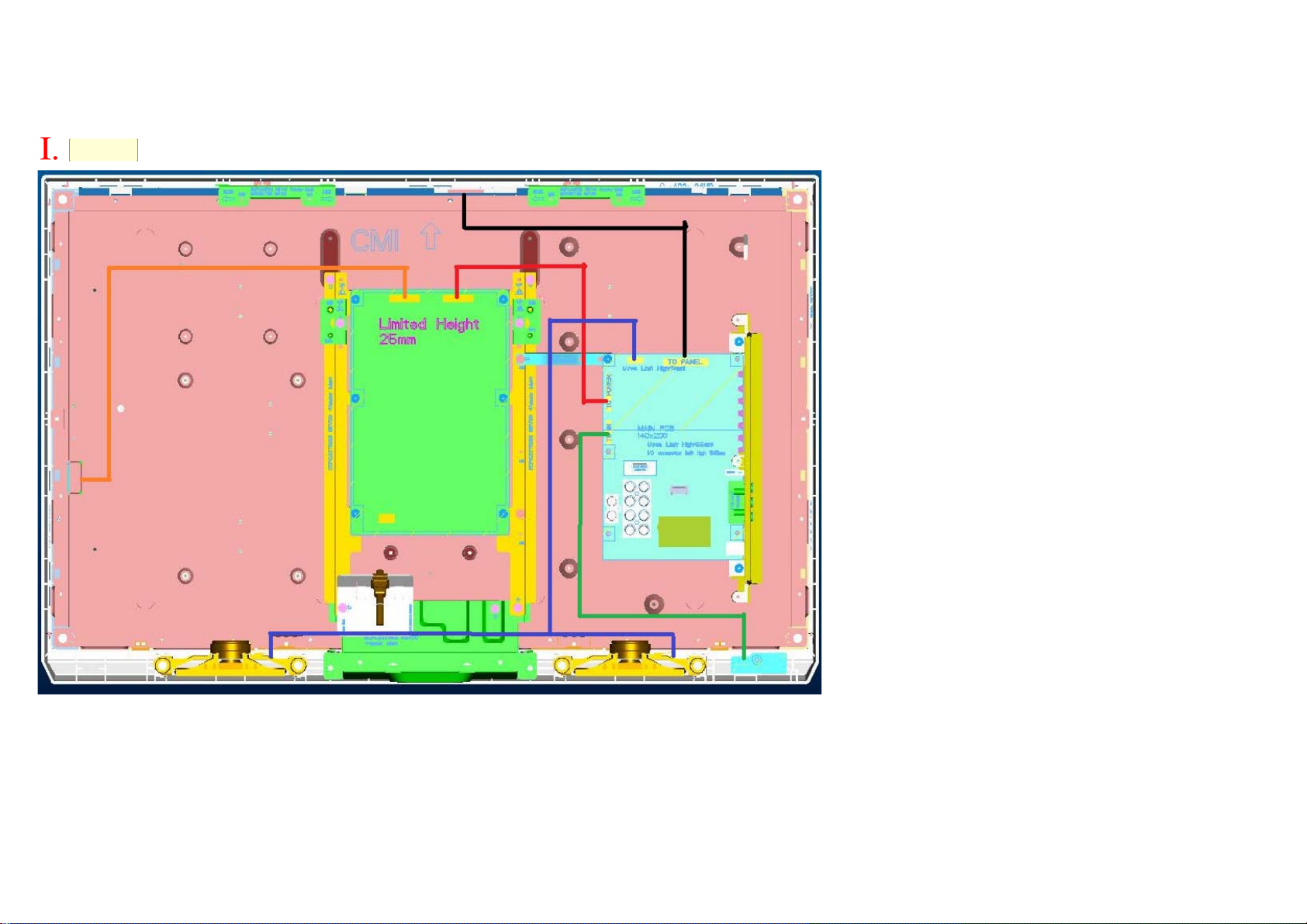

SPC22/32 Wiring Diagram

52

II. Wiring Connection(ELECTRON)

26

III. Wiring Connection(POWER)

27

IV. Wiring Connection(POWE)

28

Trouble shooting

1. Fault clearance

29

2. Troubleshooting guide

The flow chart shown below will help you to troubleshoot your Televison set with it doesn’t display
normally. Each procedure offers a simple way to check for system errors. Before starting, ensure
that there is a signal in and that the Televison is turned on.

2-1 Power LED no light

30

2-2 Has audio but no video out

2-3 Has video but no audio out step 1

31

2-4 Has video but no audio out step 2

32

APPENDIX-B: SPC22 Exploded View

16

28

13

35

2

28

37

27

23

31

5

8

4

10

11

4

34

21

29

35

14

15

31

22

6

26

25

30

24

3

32

7

35

17

35

36

1

32

19

35

20

31

18

9

41

38

33

35

APPENDIX-B: SPC22 Exploded View

41

45

42

44

40

39

46

43

12

APPENDIX-B: SPC32 Exploded View

11

34

40

39

13

40

13

29

23

32

16

37

19

18

20

2

28

21

32

17

25

3

39

31

6

35

41

22

15

32

14

1

28

12

27

28

30

42

24

32

41

26

38

28

30

28

APPENDIX-B: SPC32 Exploded View

33

43

10

09

08

07

36

04

05

9. Replacement Parts List

For TH-L22C5D

Safety Ref.No. Part No. Part Name & Description Pcs Remarks

1 TZZ00000597A PCBA POWER/B 1
2 TZZ00000598A PCBA IR/B 1
3 TZZ00000599A FIRMWARE M/B 1
4 TZZ00000611A SPK SET(90d)(PIN60d) 2
5 TZZ00000613A H-CON SET 1
6 TZZ00000614A H-CON SET 1
7 TZZ00000617A H-CON SET 1
8 TZZ00000618A H-CON SET 1

9 TZZ00000634A PWR CORD(S) 1
10 TZZ00000079A MYLAR AL TAPE 2
11 TZZ00000080A MYLAR AL TAPE 1
12 TZZ00000648A ACETIC ACID TAPE 1
13 TZZ00000602A PANEL BRKT R ASSY(PC 1
14 TZZ00000603A PANEL BRKT L ASSY(PC 1
15 TZZ00000604A TOP BRKT_L ASSY(PC22 1
16 TZZ00000606A BEZEL ASSY 1
17 TZZ00000607A BACK COVER ASSY 1
18 TZZ00000609A NECK ASSY 1
19 TZZ00000619A NECK BRKT 1
20 TZZ00000620A POWER CABLE BRKT 1
21 TZZ00000621A PANEL SIDE BRKT L(PC 1
22 TZZ00000622A TOP WALL MOUNT BRKT 1
23 TZZ00000623A PCB BRKT(PC22S) 1
24 TZZ00000624A PCB SPRING 2
25 TZZ00000629A KEY PLATE(PC22S) 1
26 TZZ00000646A SUPPORT(PC22S) 1
27 TZZ00000647A SUPPORT 1
28 TZZ00000081A ACETIC ACID TYPE 4
29 TZZ00000649A SCREW 2
30 TZZ00000650A SCREW 2
31 TZZ00000652A SCREW 8
32 TZZ00000083A SCREW+LOCK WASHER(8) 5
33 TZZ00000653A SCREW 4
34 TZZ00000655A SCREW+WASHER (D=12T= 2
35 TZZ00000656A TAPPING SCREW 17
36 TZZ00000657A TAPPING SCREW 1
37 TZZ00000658A SCREW 1
38 TZZ00000090A TAPPING SCREW 2
39 TZZ00000627A RATING LABEL-22C5D 1
40 TZZ00000640A KEY LABEL-TH-L22C5D 1
41 TZZ00000071A ZIPPERED BAG 1
42 TZZ00000644A HDPE BAG-TV 1
43 TZZ00000645A PE BAG-STAND 1
44 TZZ00000651A SCREW 3
45 TZZ00000139A REMO CTRL AAA 1
46 TZZ00000608A BASE ASSY 1

#N/A LCD MODU 1
#N/A OWNER'S MANUAL 1
#N/A EPS FOAM (TOP) 1
#N/A EPS FOAM (BOTTOM) 1
#N/A CARTON-TH-L22C5D 1

32

For TH-L32C5D

Safety Ref.No. Part No. Part Name & Description Pcs Remarks

1 TZZ00000125A FIRMWARE M/B 1

2 TZZ00000598A PCBA IR/B 1

3 TZZ00000092A PWR MODU(SPC32PMA) 1

4 TZZ00000029A STAND ASSY 1

5 TZZ00000074A PE BAG-STAND 1

6 TZZ00000610A KEY PLATE ASSY(ASIA) 1

7 TZZ00000138A KEY LABEL-32C5D/42U5 1

8 TZZ00000071A ZIPPERED BAG 1

9 TZZ00000654A SCREW+2WASHER 4
10 TZZ00000659A TAPPING SCREW 1
11 TZZ00000126A BEZEL ASSY(ASIA) 1
12 TZZ00000127A BACK COVER ASSY(ASIA 1
13 TZZ00000030A SPK SET(90d)(PIN12d) 2
14 TZZ00000129A H-CON SET 1
15 TZZ00000033A H-CON SET 1
16 TZZ00000034A H-CON SET 1
17 TZZ00000130A H-CON SET 1
18 TZZ00000131A H-CON SET 1
19 TZZ00000044A PANEL BRKT (L) 1
20 TZZ00000045A PANEL BRKT (R) 1
21 TZZ00000046A WALL MOUNT BRKT (L) 1
22 TZZ00000047A WALL MOUNT BRKT (R) 1
23 TZZ00000048A BOTTOM BRKT 1
24 TZZ00000049A POWER CABLE SR BRKT 1
25 TZZ00000050A MAIN PCB BRKT (CMI) 1
26 TZZ00000632A PWR CORD(S) 1
27 TZZ00000084A SCREW 4
28 TZZ00000086A SCREW 12
29 TZZ00000087A SCREW+WASHER 2
30 TZZ00000088A TAPPING SCREW 4
31 TZZ00000110A SCREW(NL) 1
32 TZZ00000091A SCREW 10
33 TZZ00000075A PE BAG-TV 1
34 TZZ00000025A TOP PANEL BRKT ASSY 2
35 TZZ00000051A PCB SPRING 2
36 TZZ00000628A RATING LABEL-32C5D 1
37 TZZ00000078A LOCKING CABLE TIE 2
38 TZZ00000109A PST-12 (GIN LIAN) 1
39 TZZ00000079A MYLAR AL TAPE 3
40 TZZ00000081A ACETIC ACID TYPE 4
41 TZZ00000083A SCREW+LOCK WASHER(8) 9
42 TZZ00000089A TAPPING SCREW 1
43 TZZ00000139A REMO CTRL AAA 1

#N/A LCD MODU 1
#N/A OWNER'S MANUAL 1
#N/A EPS FOAM (T-L) 1
#N/A EPS FOAM (T-R) 1
#N/A EPS FOAM (B-L) 1
#N/A EPS FOAM (B-R) 1
#N/A EPS FOAM (B-M) 1
#N/A CARTON-TH-L32C5D 1

33

10. Boards Layout

1

Ref No. Board Name Function Remrks

2 PCBA IR/B Remote Receiver, LED
3 FIRMWARE M/B Main Board, Audio & Video Signal Processing
1 PWR MODU Power (AD/DC), DC-DC

25 KEY PLATE ASSY(NA) Control Button

3

25

2

All boards are non servicable
and should be exchanged for
service

34

11 Disassembly and Assembly Instructions

11.1. Stand

1. Lay down the unit so that the rear cover faces upward.

2. Remove the 4 screws.

3. Remove the stand

Screw

M4X11*9PCS

(Tapping)

Rear Cover

Rear Cover

11.2. Rear cover

1. Remove the total 12 screws.

2. Remove the rear cover.

Screw

M3X10*1P

(Tapping)

Screw

M

4X14 *2PCS

11.3. Remove AC cord

1. Remove the bushing of the AC cord from the AC cord bracket.

2. Disconnect the connector (P1) of AC cord.

AC CORD BRACKET

AC CORD

11.4. P-Board

1. Remove the 4 screws.

2. Disconnect the connectors (P1).

3. Remove the P-Board.

11.5. M-Board

1. Remove the 3 screws.

2. Disconnect the connectors (P1, P2, P3,P4).

3. Remove the M-Board.

4. Remove the PCB-support.

11.6. Speaker unit

1. Remove the 2 screws.

2. Remove the speaker units.

11.7. IR-Board

1. Remove the 1 screw.

2

. Remove the IR-Board.

11.8. Metal parts I

1. Remove the 14 screws.

2. Remove the metal parts (M1,M2,M3,M4,M5,M6,M7).

11.9. Metal parts II

1. Remove the 2 screw.

2

. Remove the metal part (M8).

11.10. Key plate

Front cover

LCD Panel

1. Remove the 2 screws.

2. Remove the key plate.

11.11. LCD Panel

1. Remove the LCD panel.
