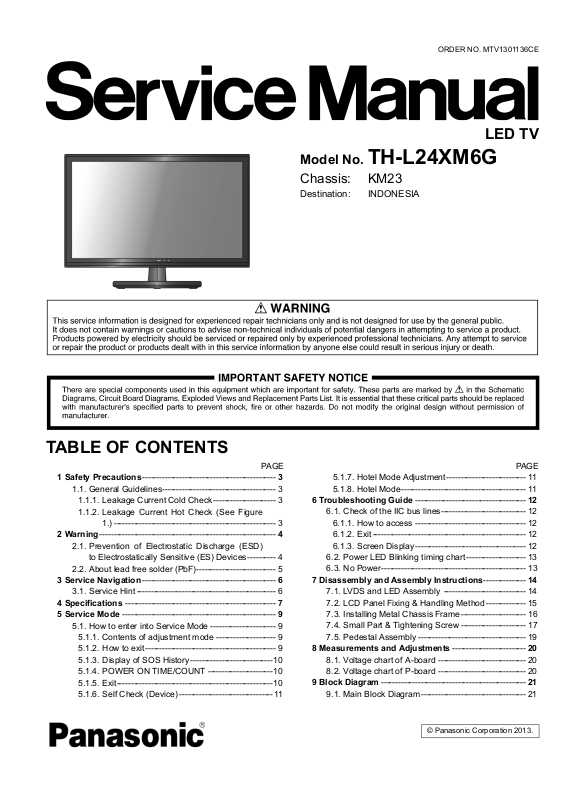

Page 1
ORDER NO. MTV1301136CE
LED TV
Model No. TH-L24XM6G
Chassis: KM23
Destination: INDONESIA
TABLE OF CONTENTS
1 Safety Precautions ----------------------------------------------- 3
1.1. General Guidelines---------------------------------------- 3
1.1.1. Leakage Current Cold Check ---------------------- 3
1.1.2. Leakage Current Hot Check (See Figure
1.) --------------------------------------------------------- 3
2 Warning-------------------------------------------------------------- 4
2.1. Prevention of Electrostatic Discharge (ESD)
to Electrostatically Sensitive (ES) Devices---------- 4
2.2. About lead free solder (PbF)---------------------------- 5
3 Service Navigation ----------------------------------------------- 6
3.1. Service Hint ------------------------------------------------- 6
4 Specifications ----------------------------------------------------- 7
5 Service Mode ------------------------------------------------------ 9
5.1. How to enter into Service Mode ----------------------- 9
5.1.1. Contents of adjustment mode --------------------- 9
5.1.2. How to exit---------------------------------------------- 9
5.1.3. Display of SOS History -----------------------------10
5.1.4. POWER ON TIME/COUNT -----------------------10
5.1.5. Exit-------------------------------------------------------10
5.1.6. Self Check (Device) --------------------------------- 11
PAG E PAG E
5.1.7. Hotel Mode Adjustment ---------------------------- 11
5.1.8. Hotel Mode-------------------------------------------- 11
6 Troubleshooting Guide --------------------------------------- 12
6.1. Check of the IIC bus lines------------------------------ 12
6.1.1. How to access --------------------------------------- 12
6.1.2. Exit ------------------------------------------------------ 12
6.1.3. Screen Display --------------------------------------- 12
6.2. Power LED Blinking timing chart --------------------- 13
6.3. No Power--------------------------------------------------- 13
7 Disassembly and Assembly Instructions--------------- 14
7.1. LVDS and LED Assembly ----------------------------- 14
7.2. LCD Panel Fixing & Handling Method -------------- 15
7.3. Installing Metal Chassis Frame----------------------- 16

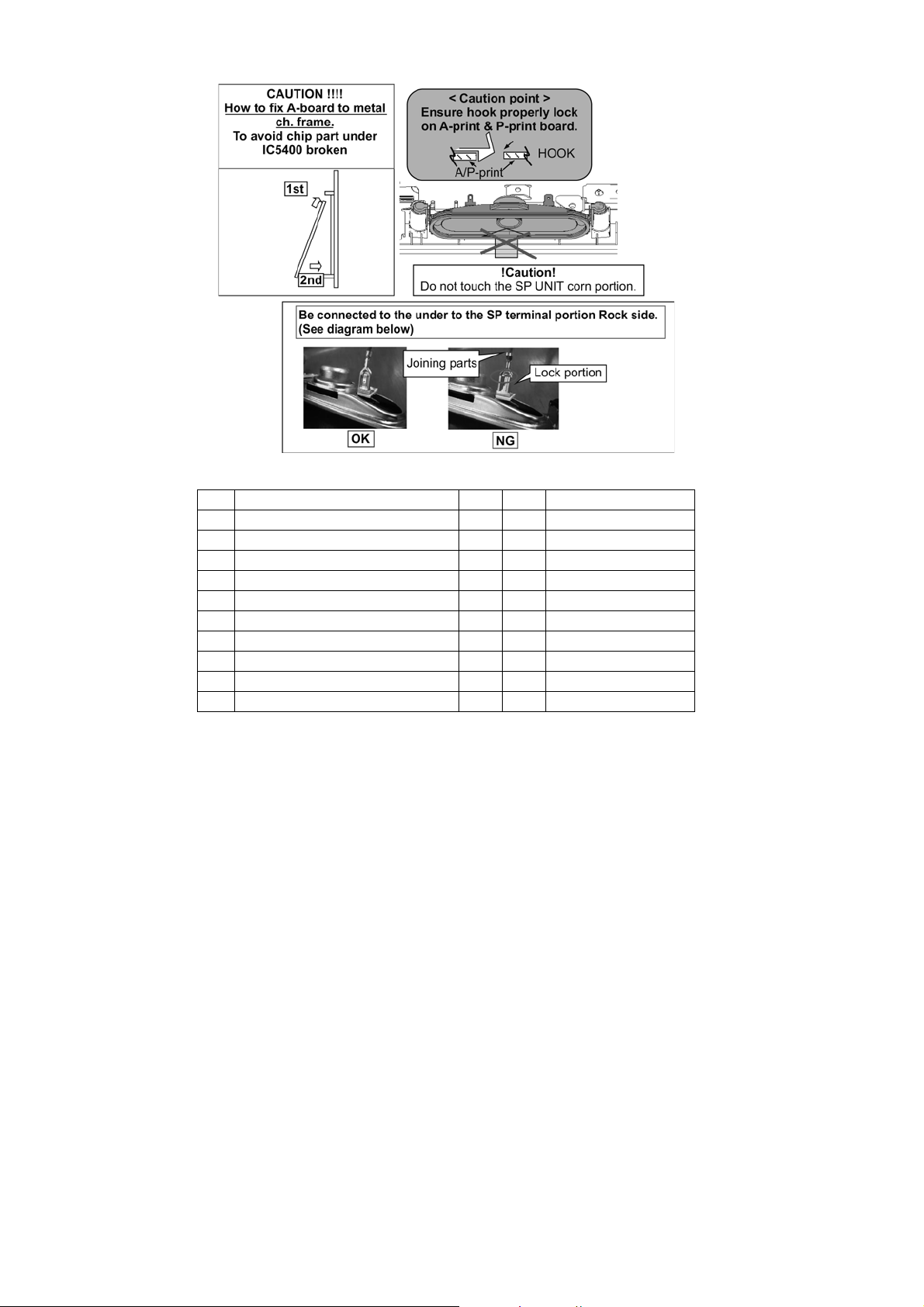

7.4. Small Part & Tightening Screw ----------------------- 17

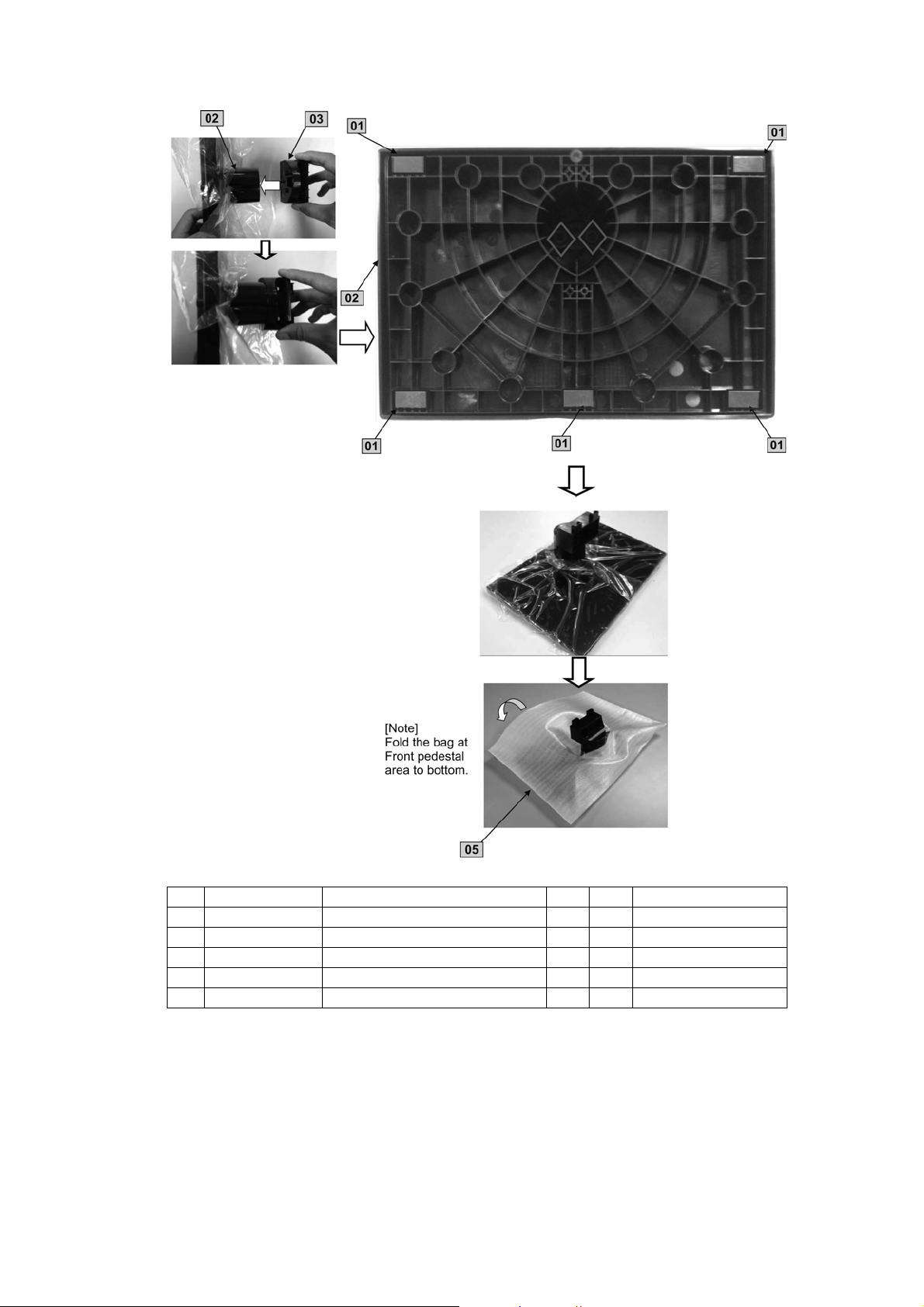

7.5. Pedestal Assembly -------------------------------------- 19
8 Measurements and Adjustments -------------------------- 20
8.1. Voltage chart of A-board ------------------------------- 20
8.2. Voltage chart of P-board ------------------------------- 20
9 Block Diagram --------------------------------------------------- 21

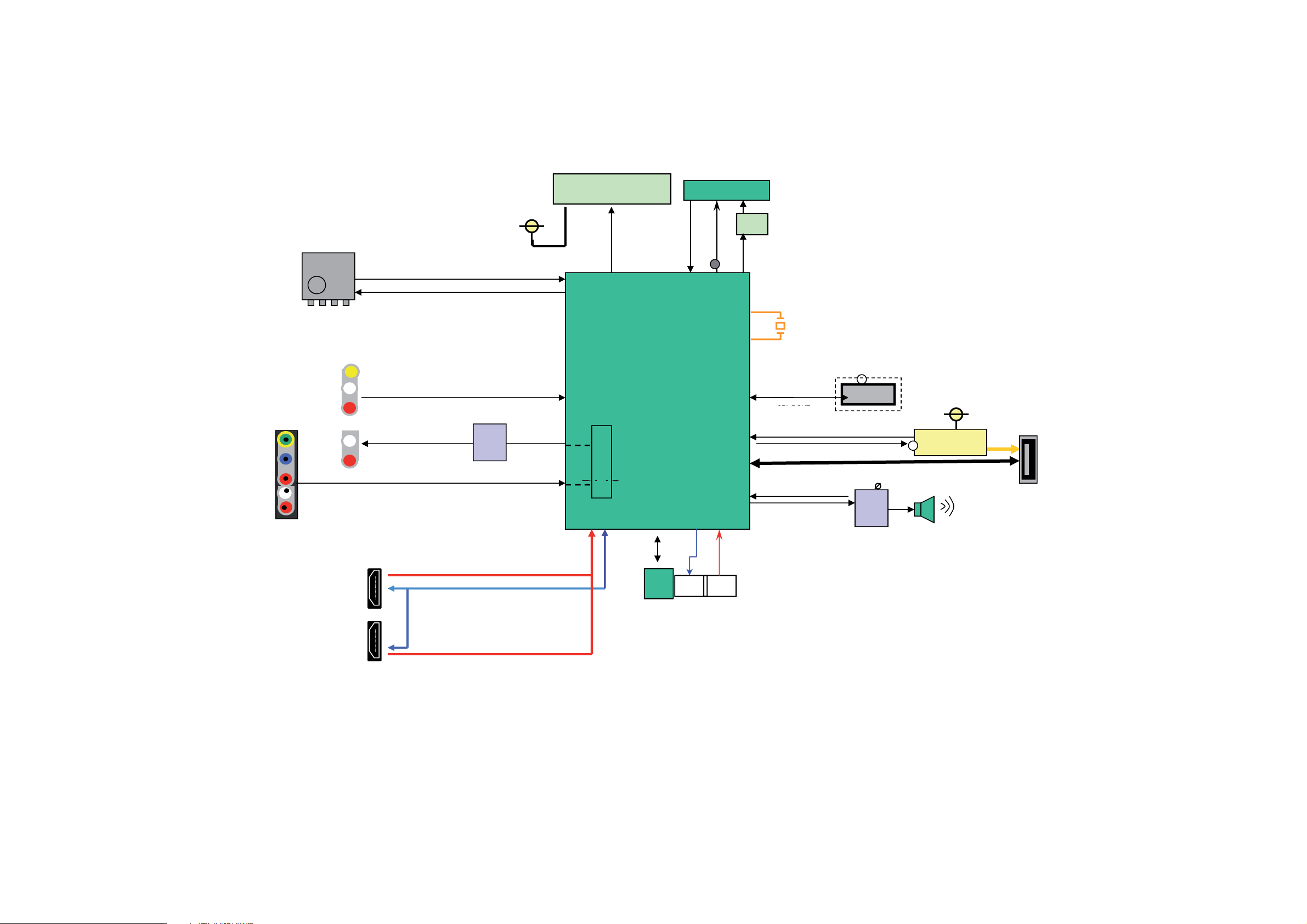

9.1. Main Block Diagram ------------------------------------- 21
© Panasonic Corporation 2013.
Page 2
TH-L24XM6G
10 Wiring Connection Diagram --------------------------------- 22

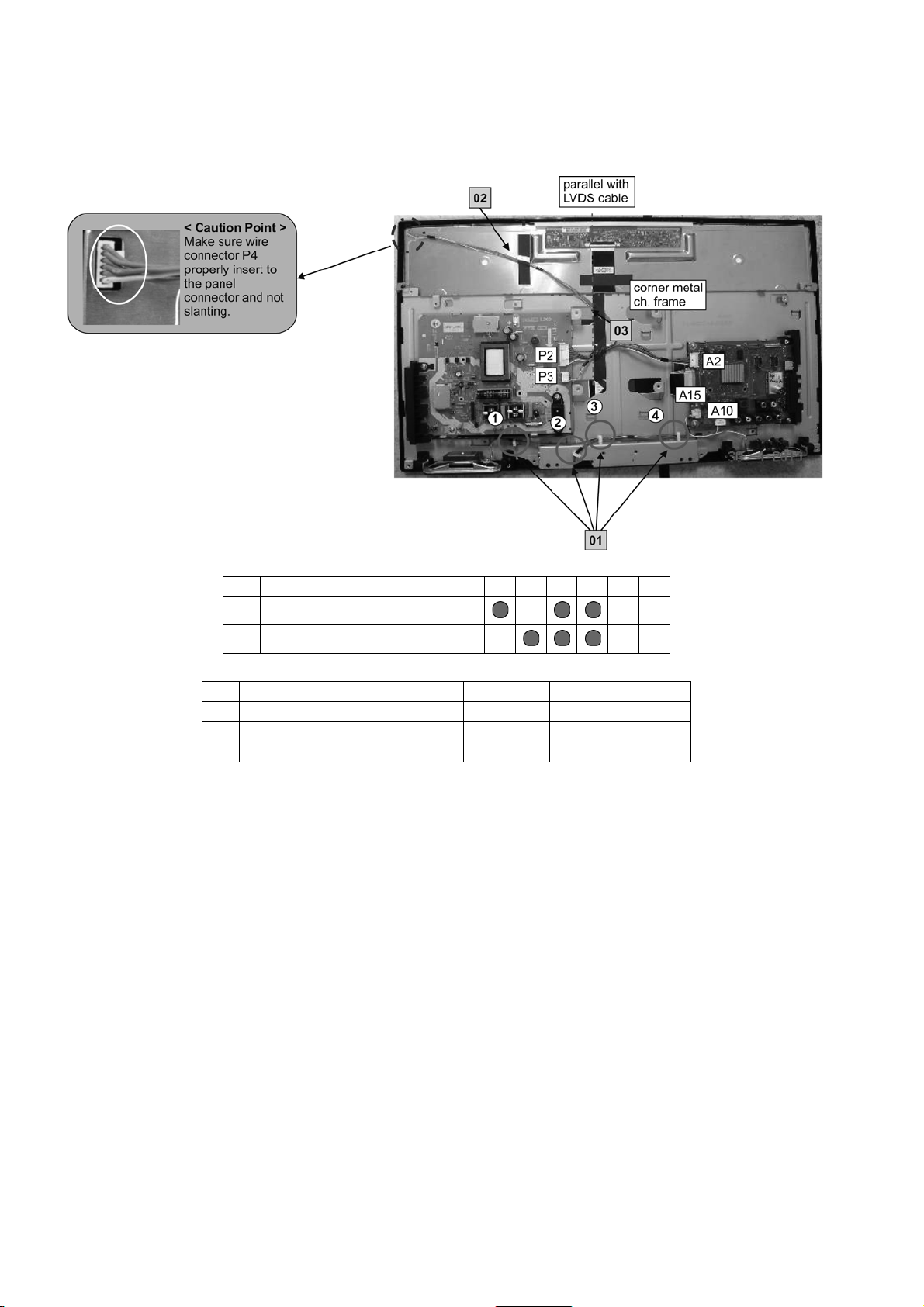

10.1. Wire Dressing --------------------------------------------- 22

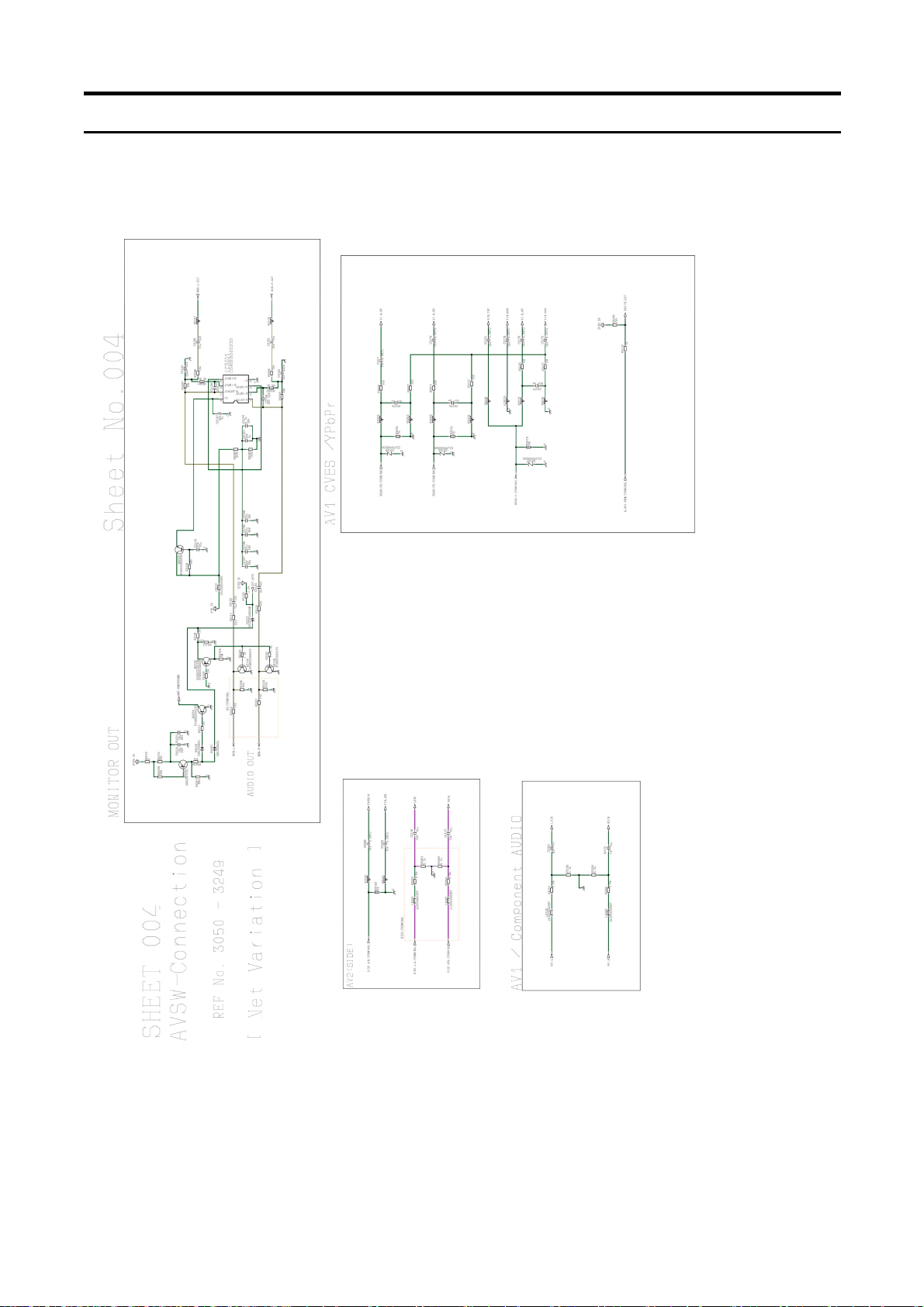

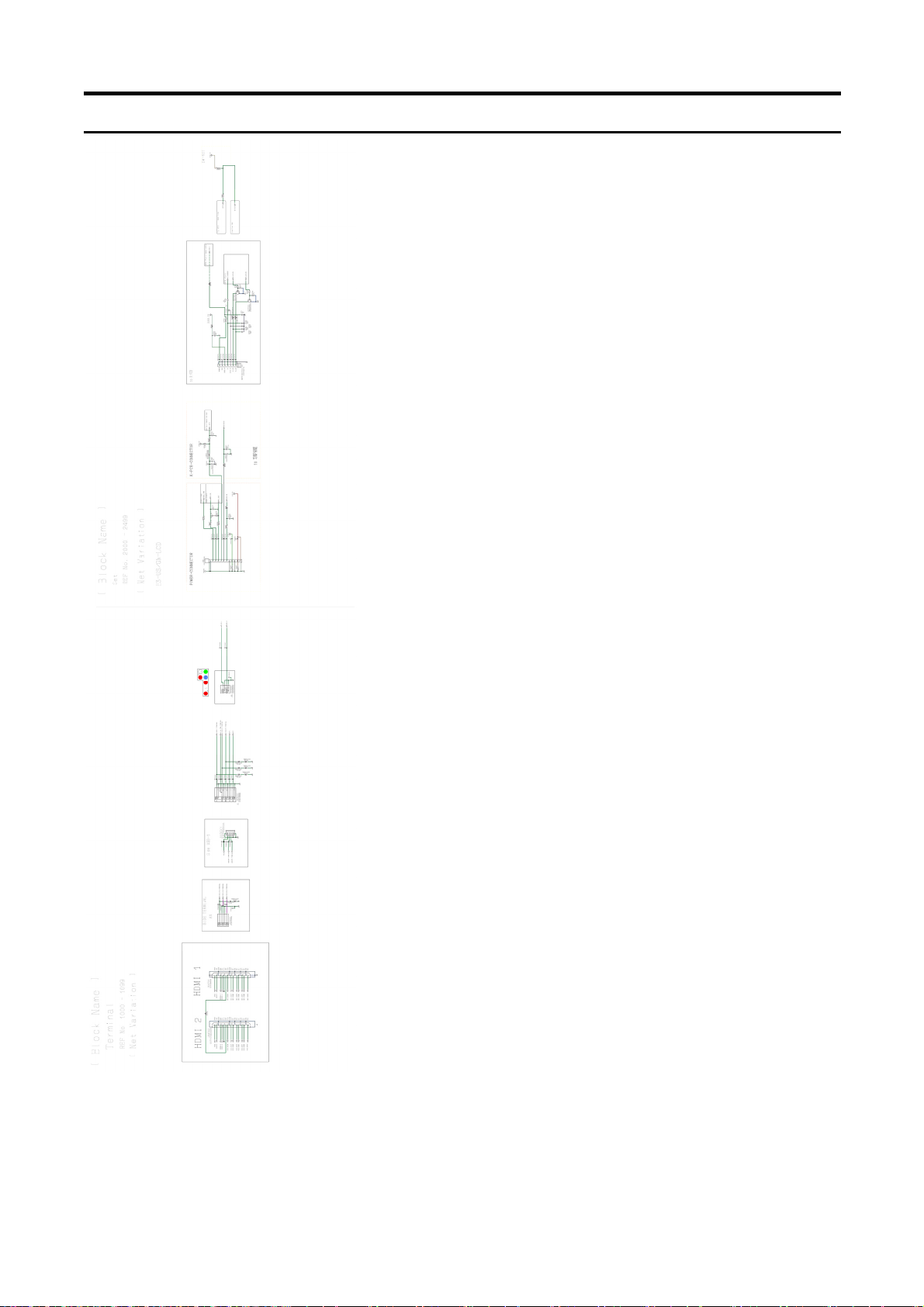

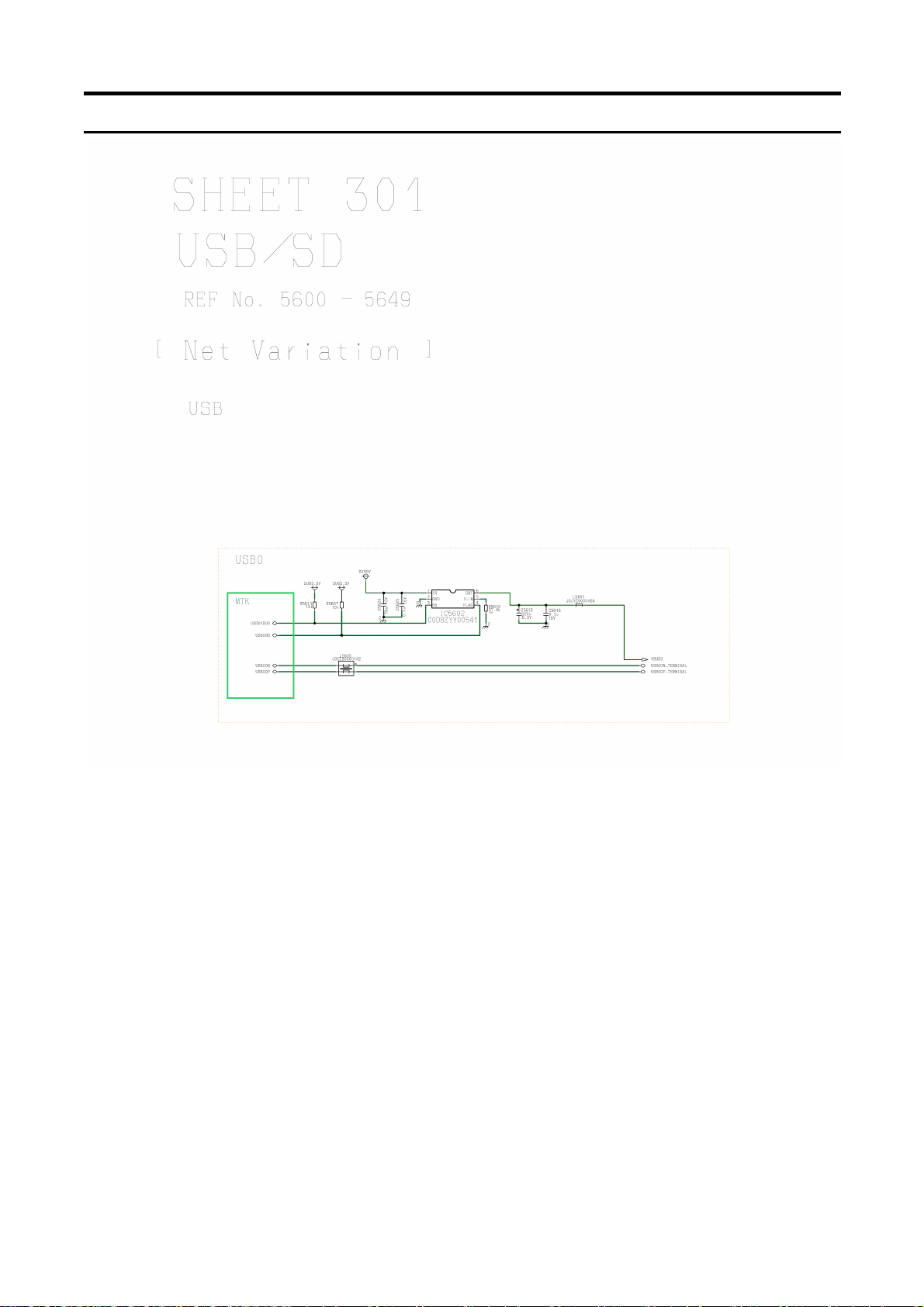

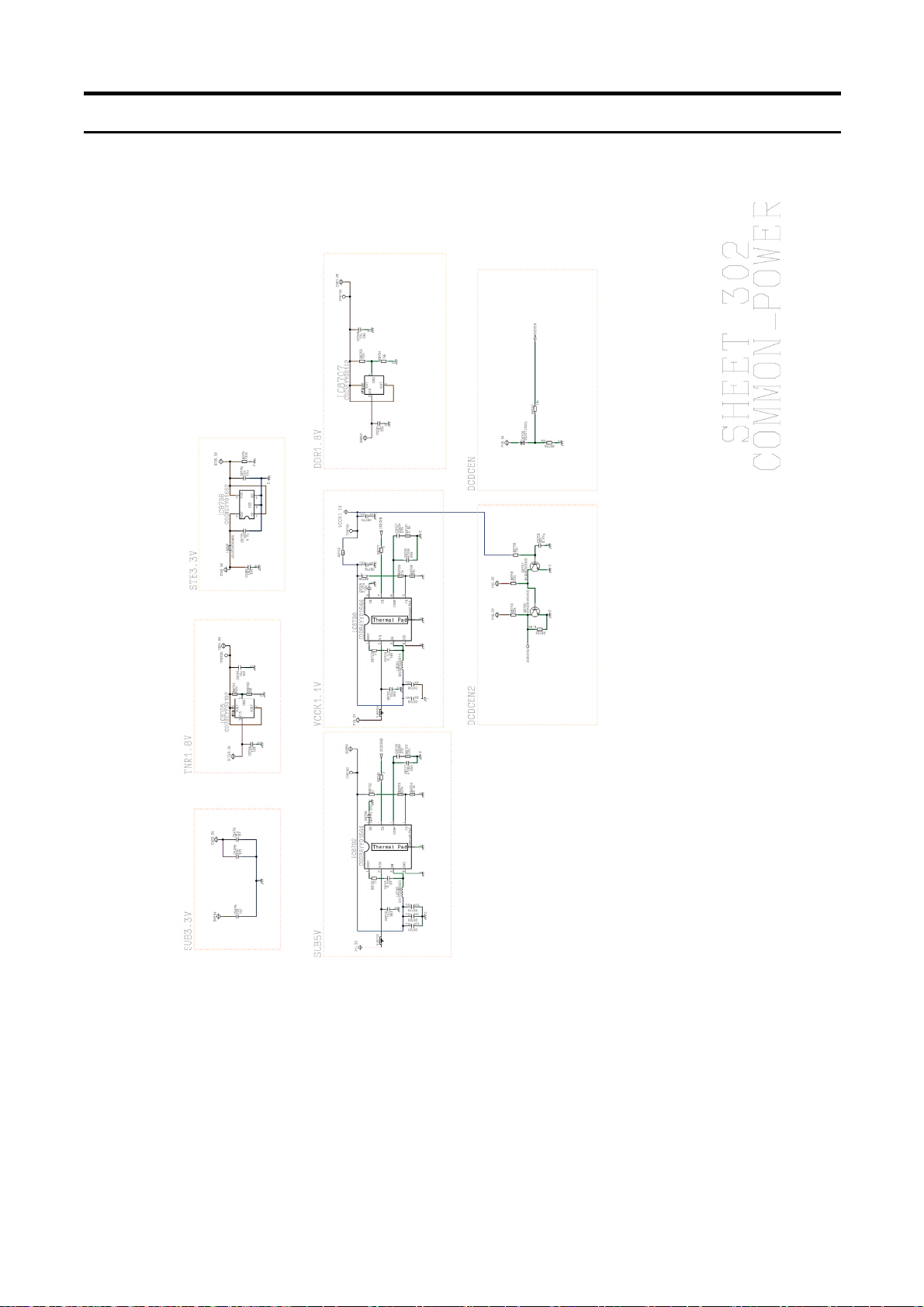

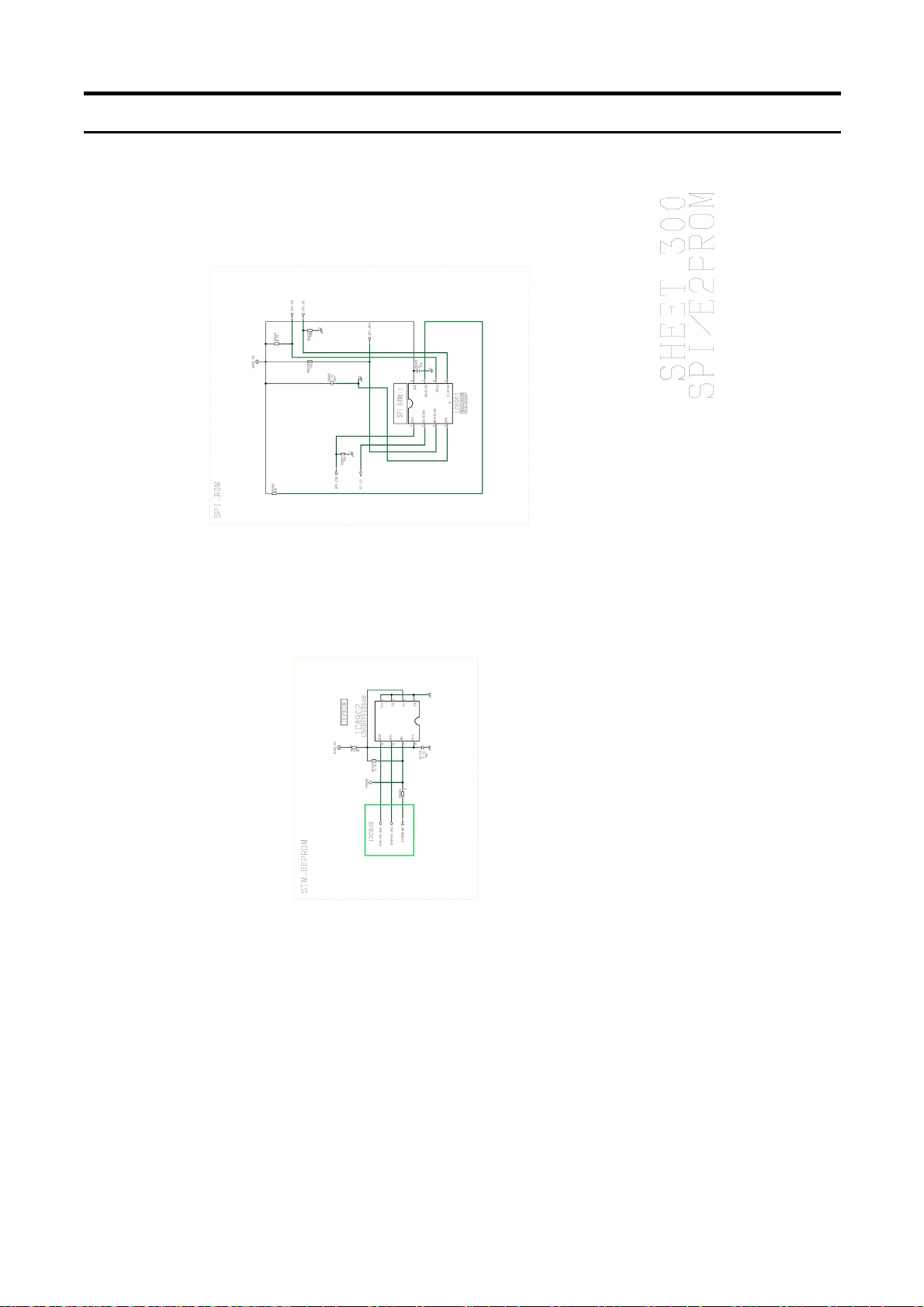

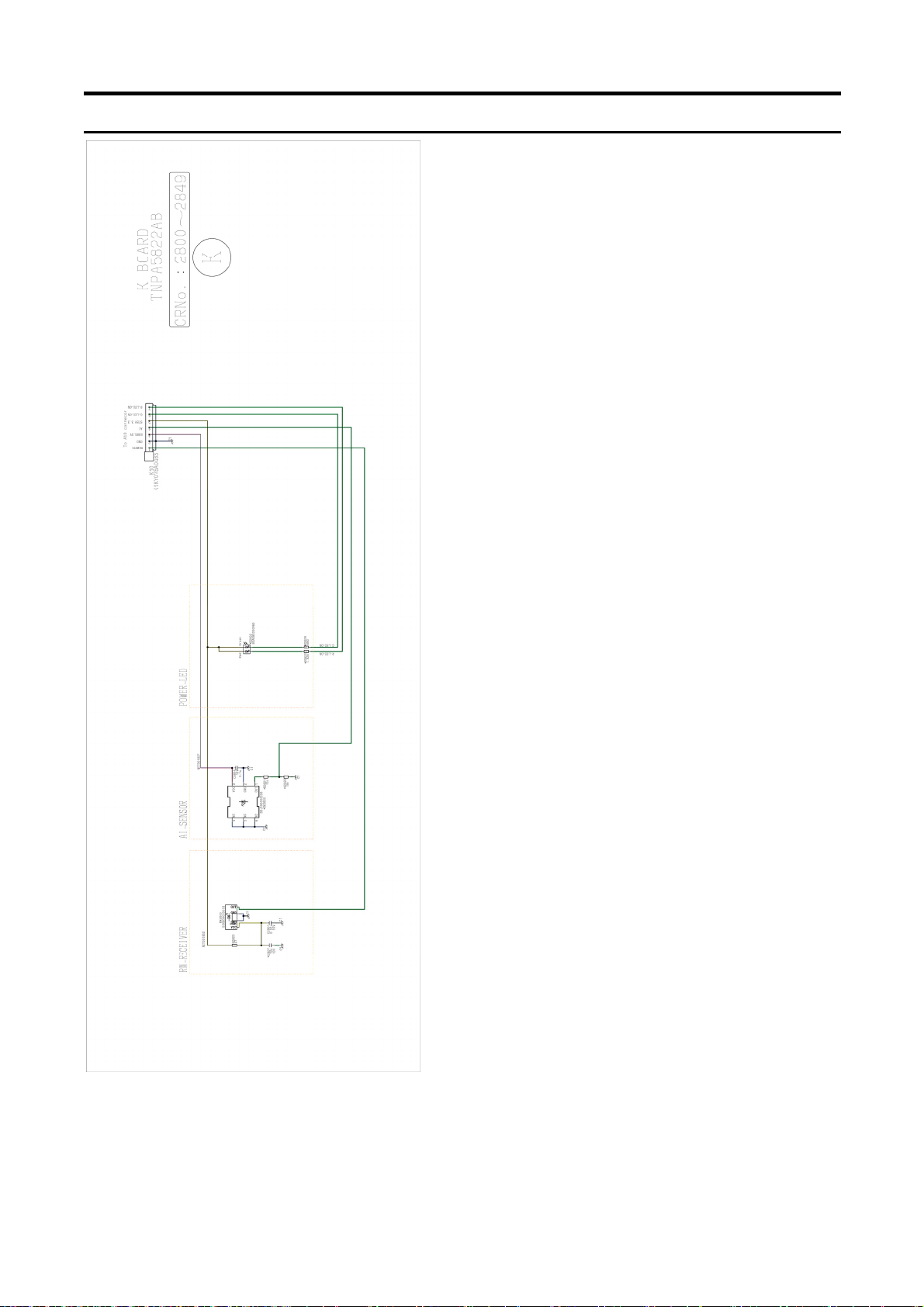

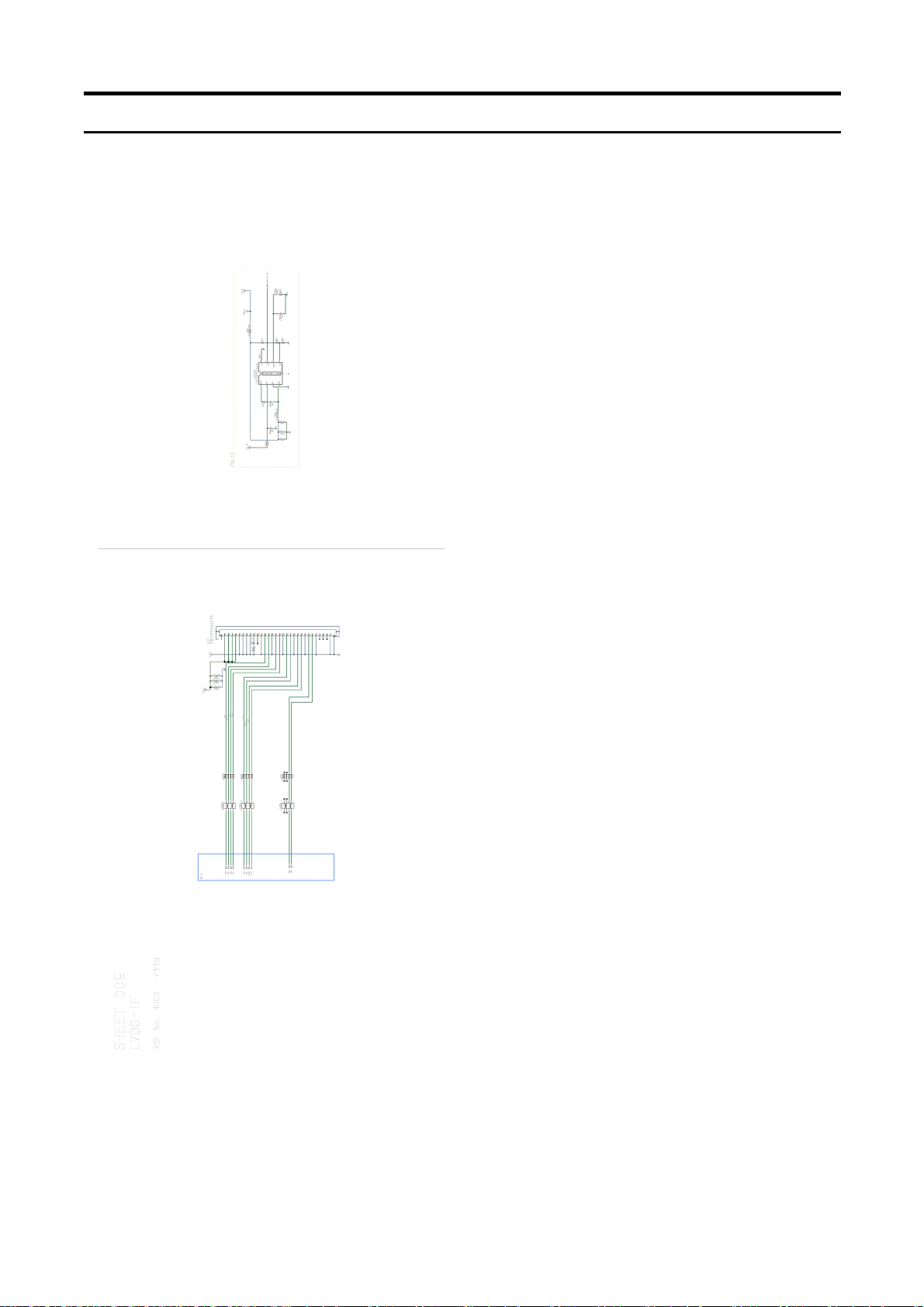

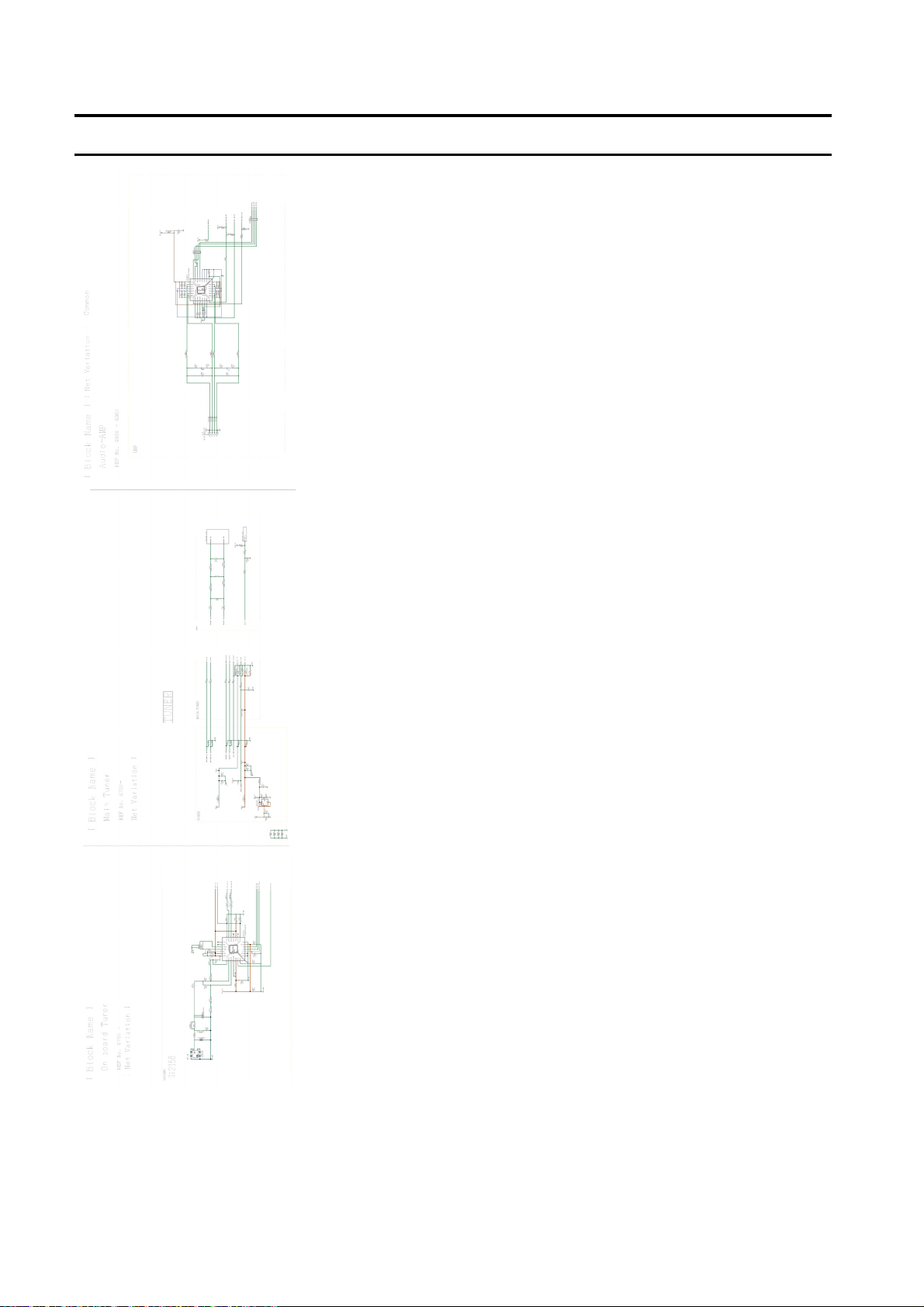

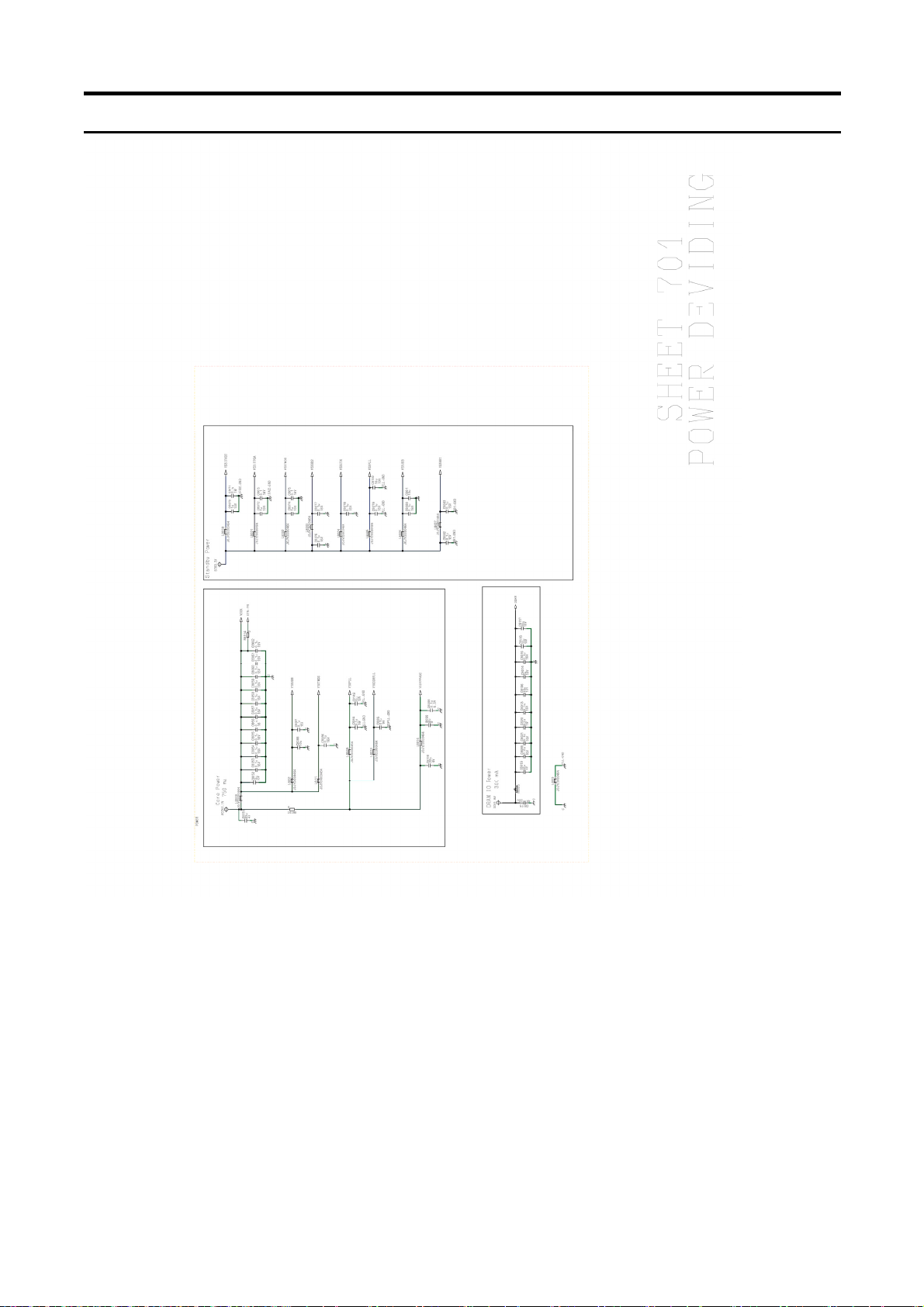

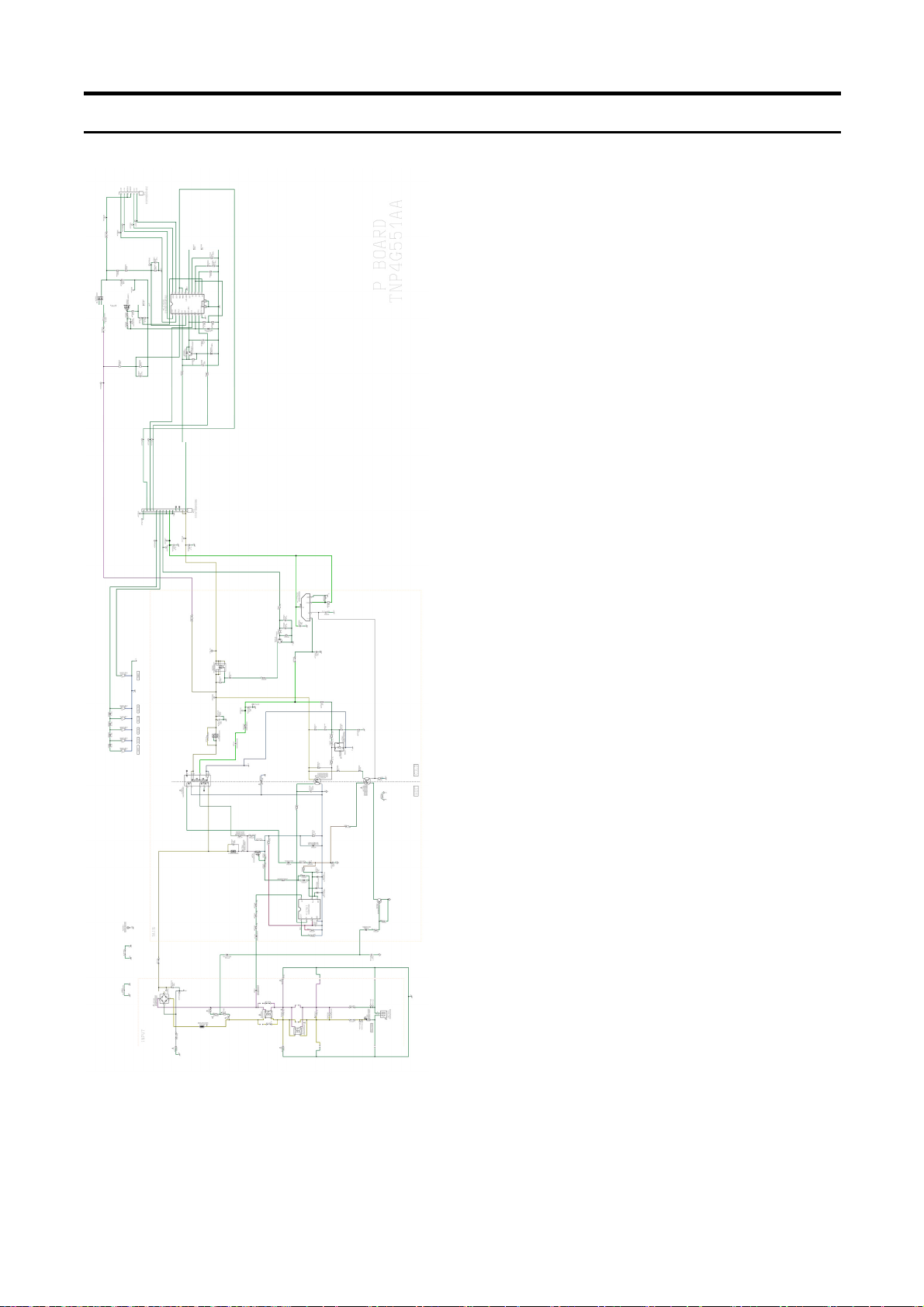

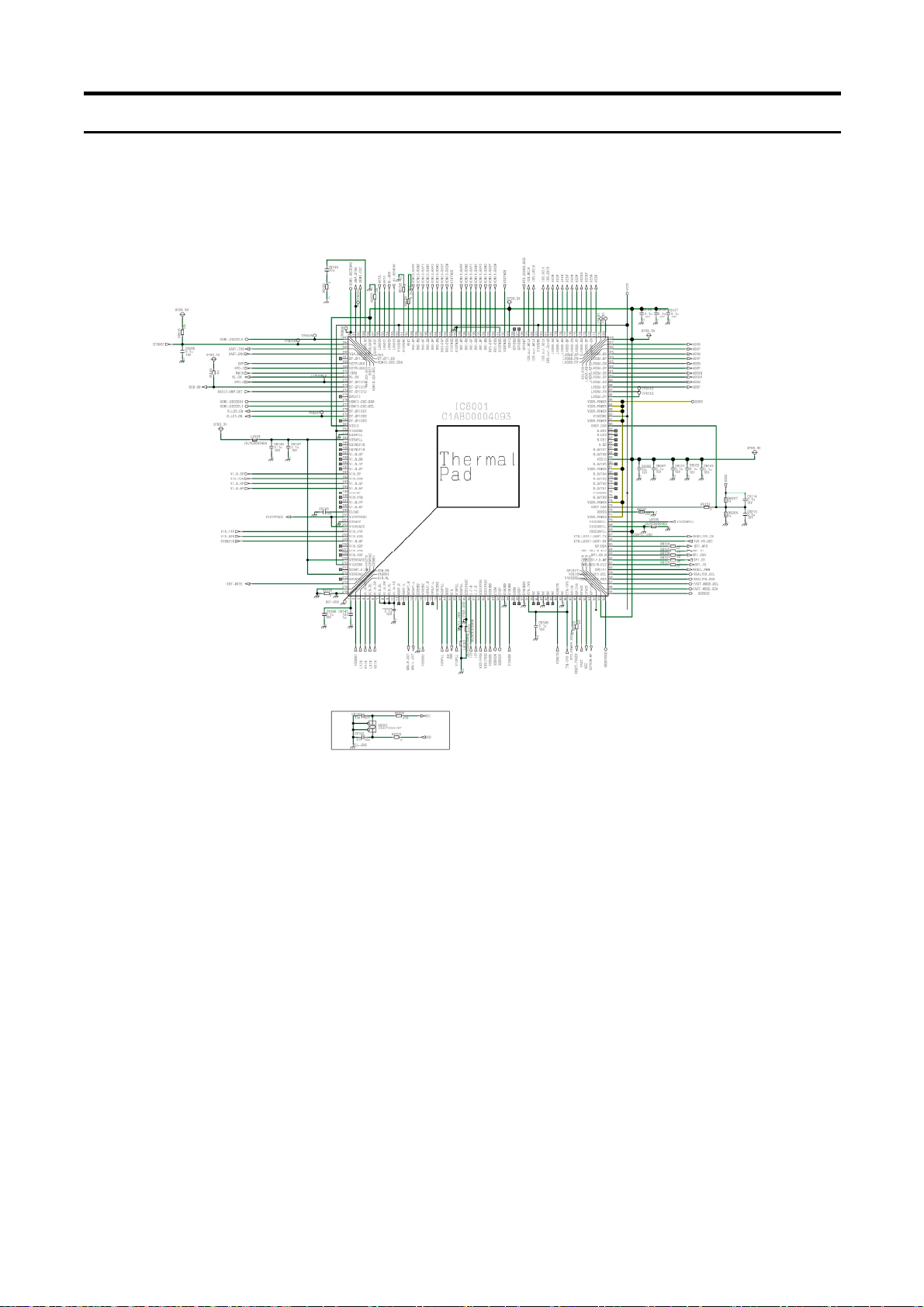

11 Schematic Diagram--------------------------------------------- 23

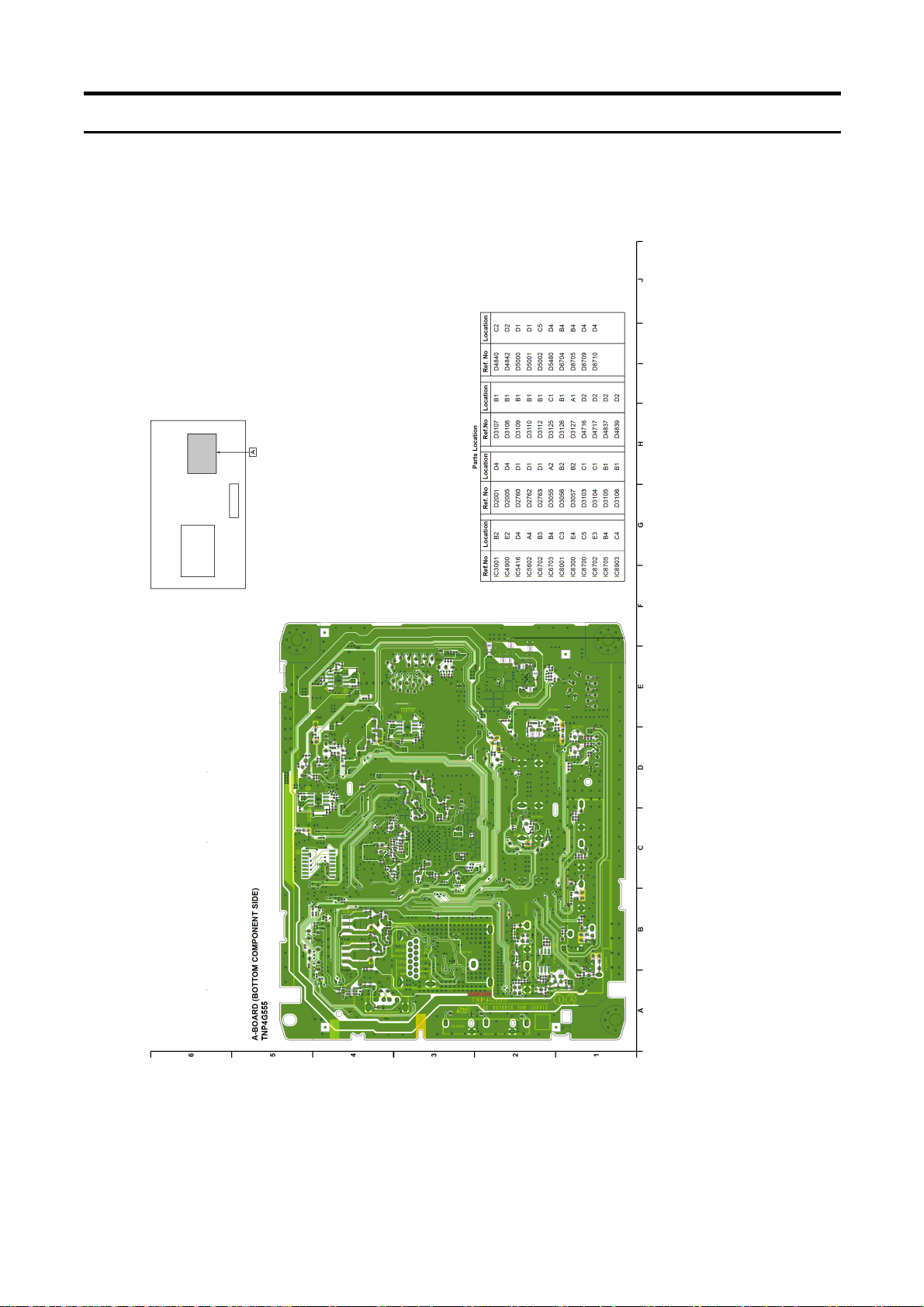

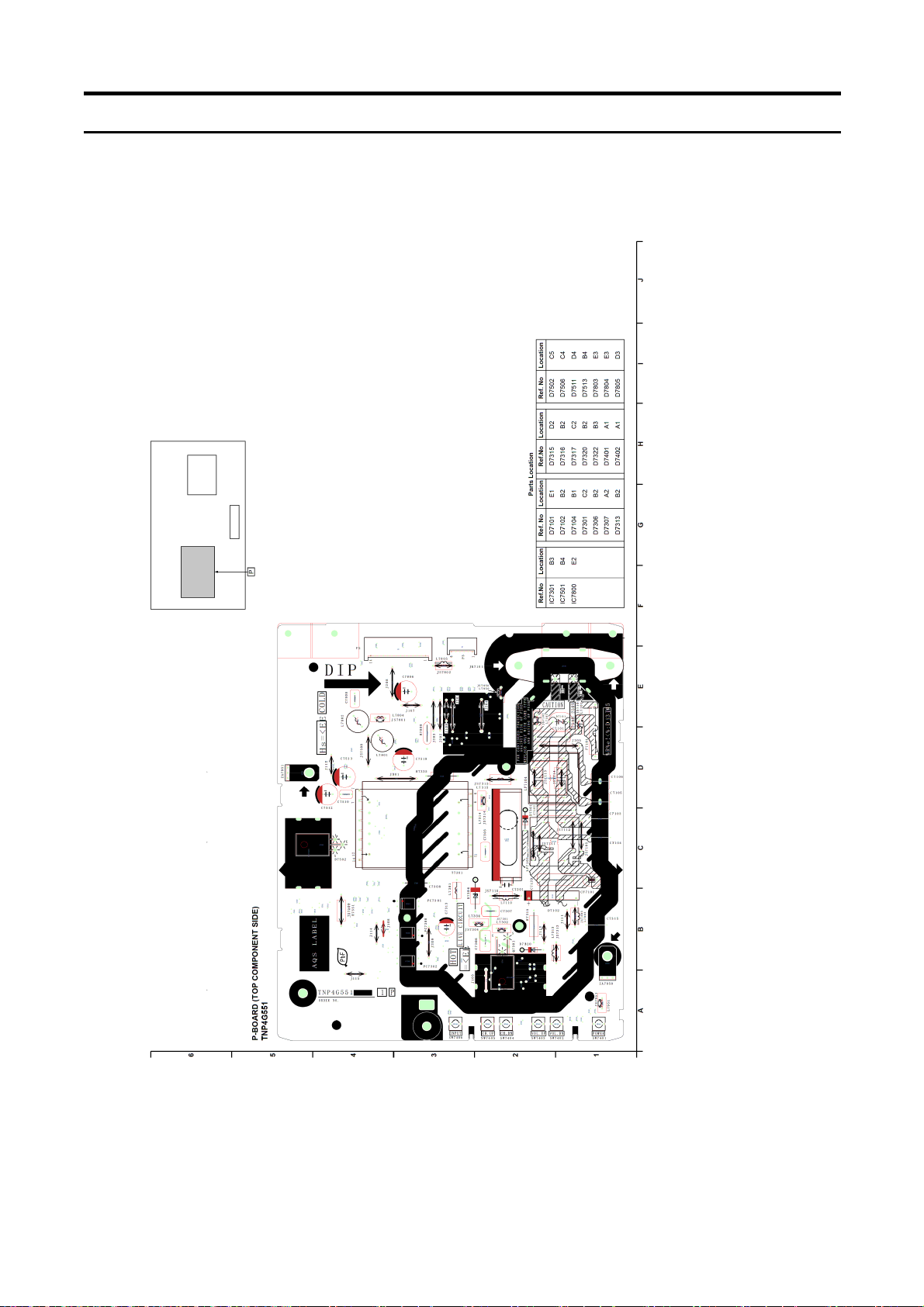

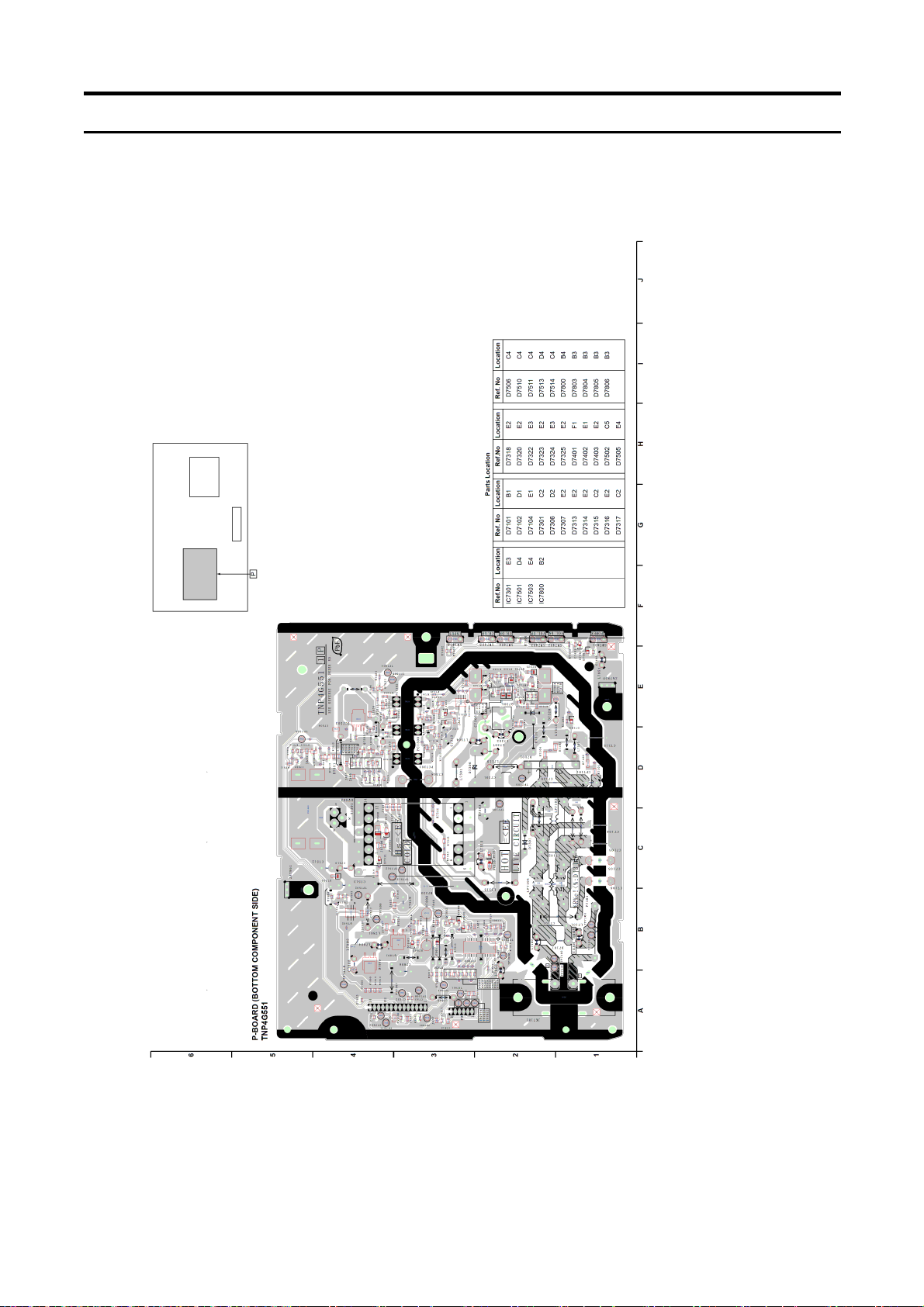

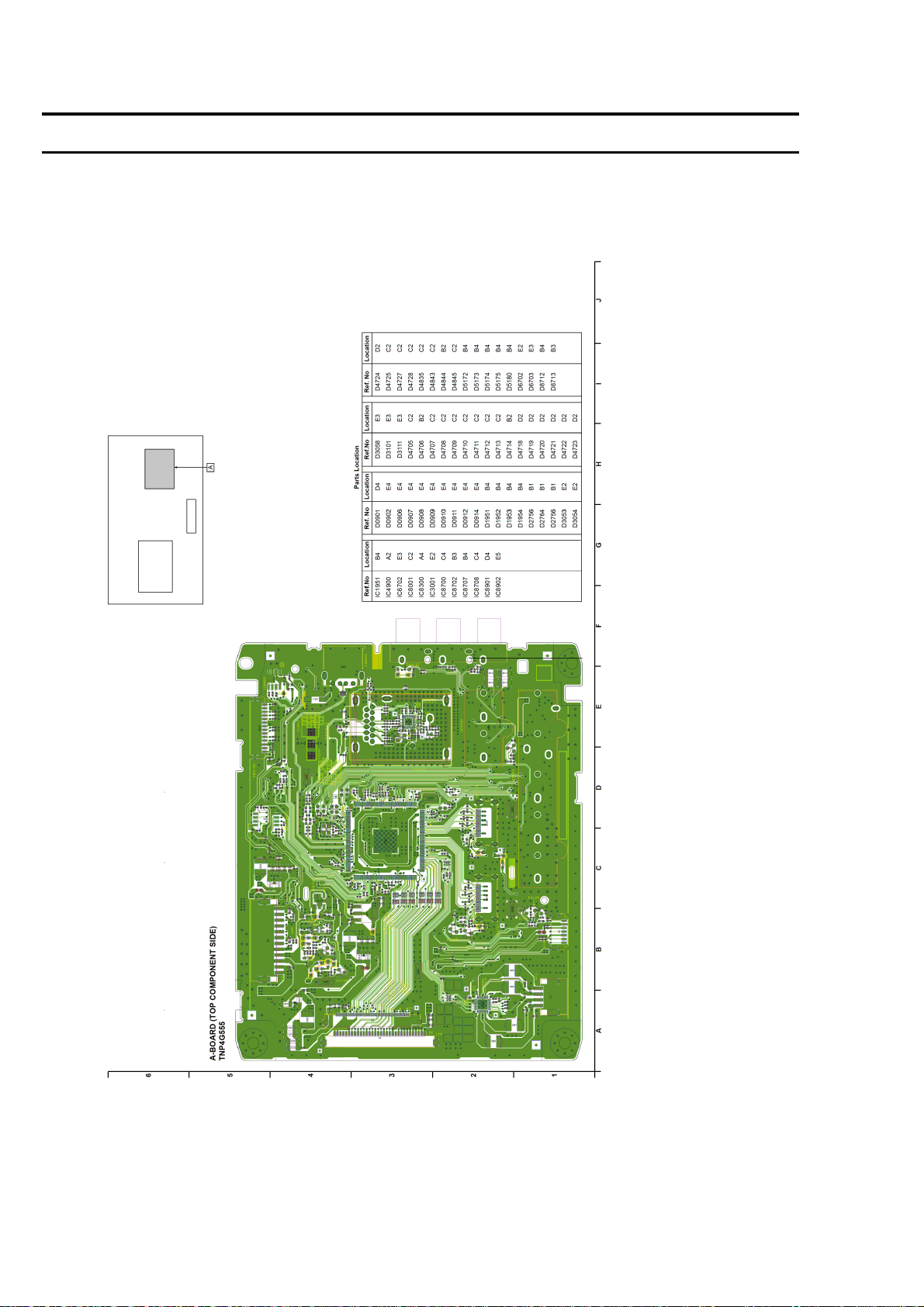

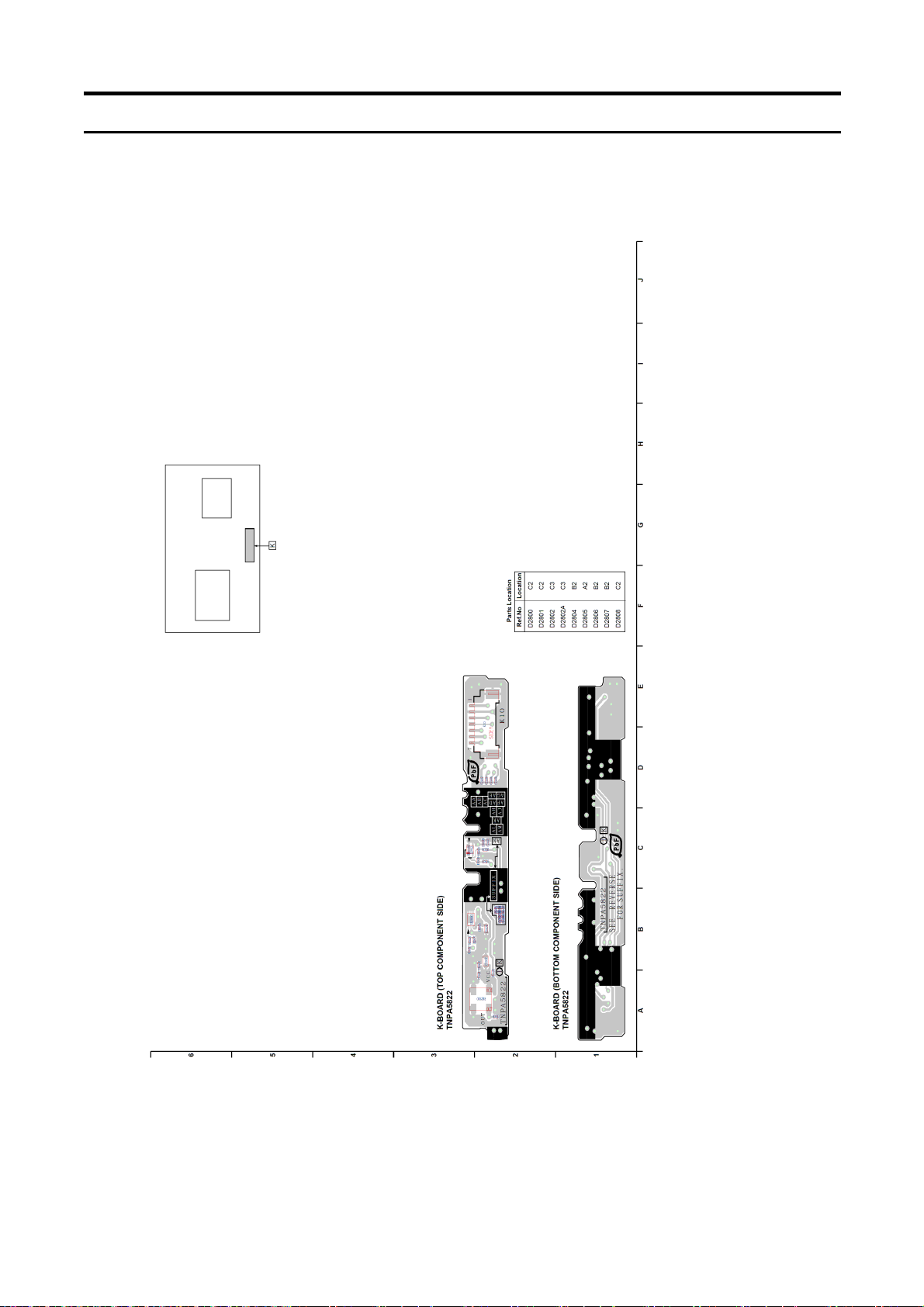

12 Printed Circuit Board ------------------------------------------ 36

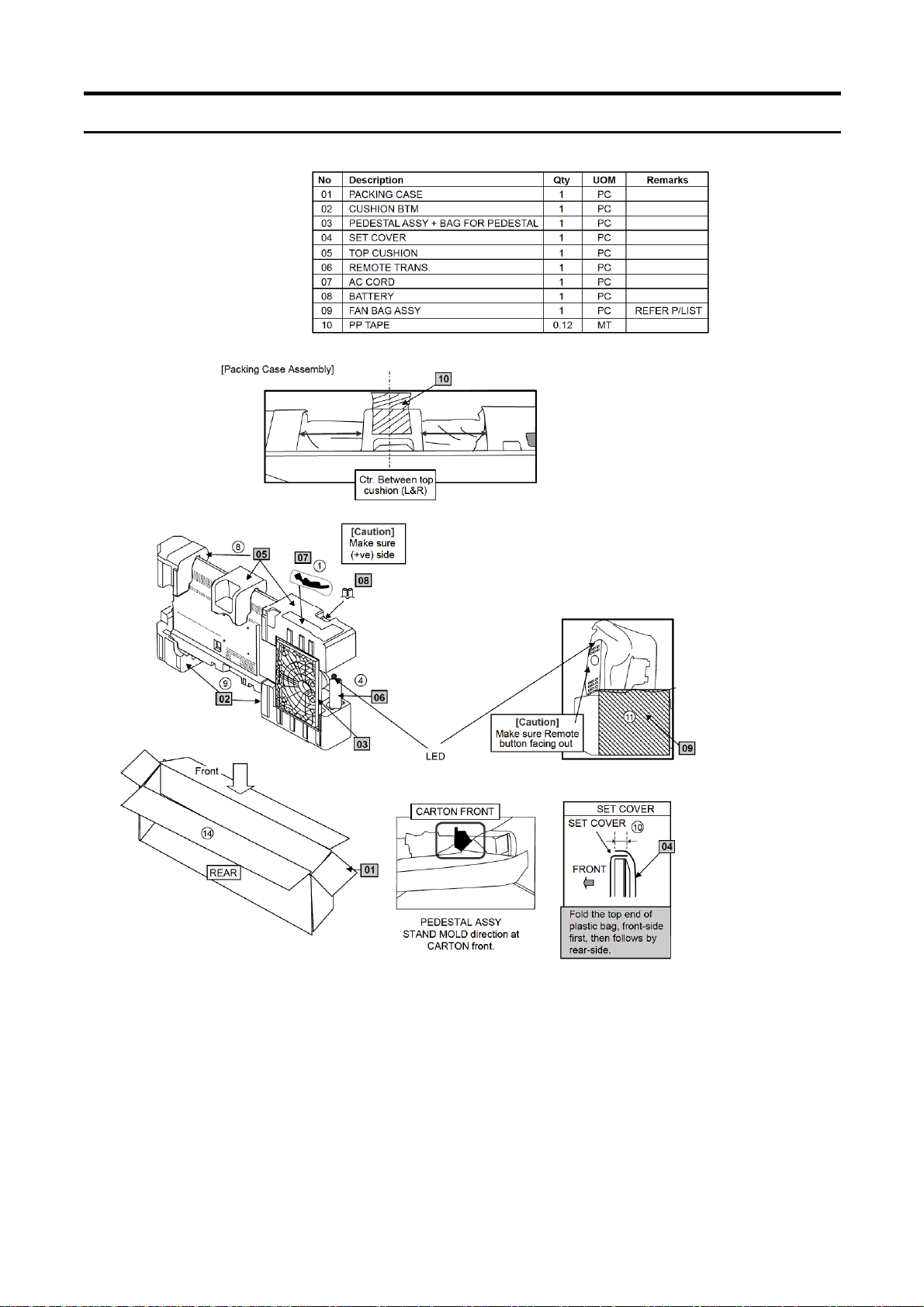

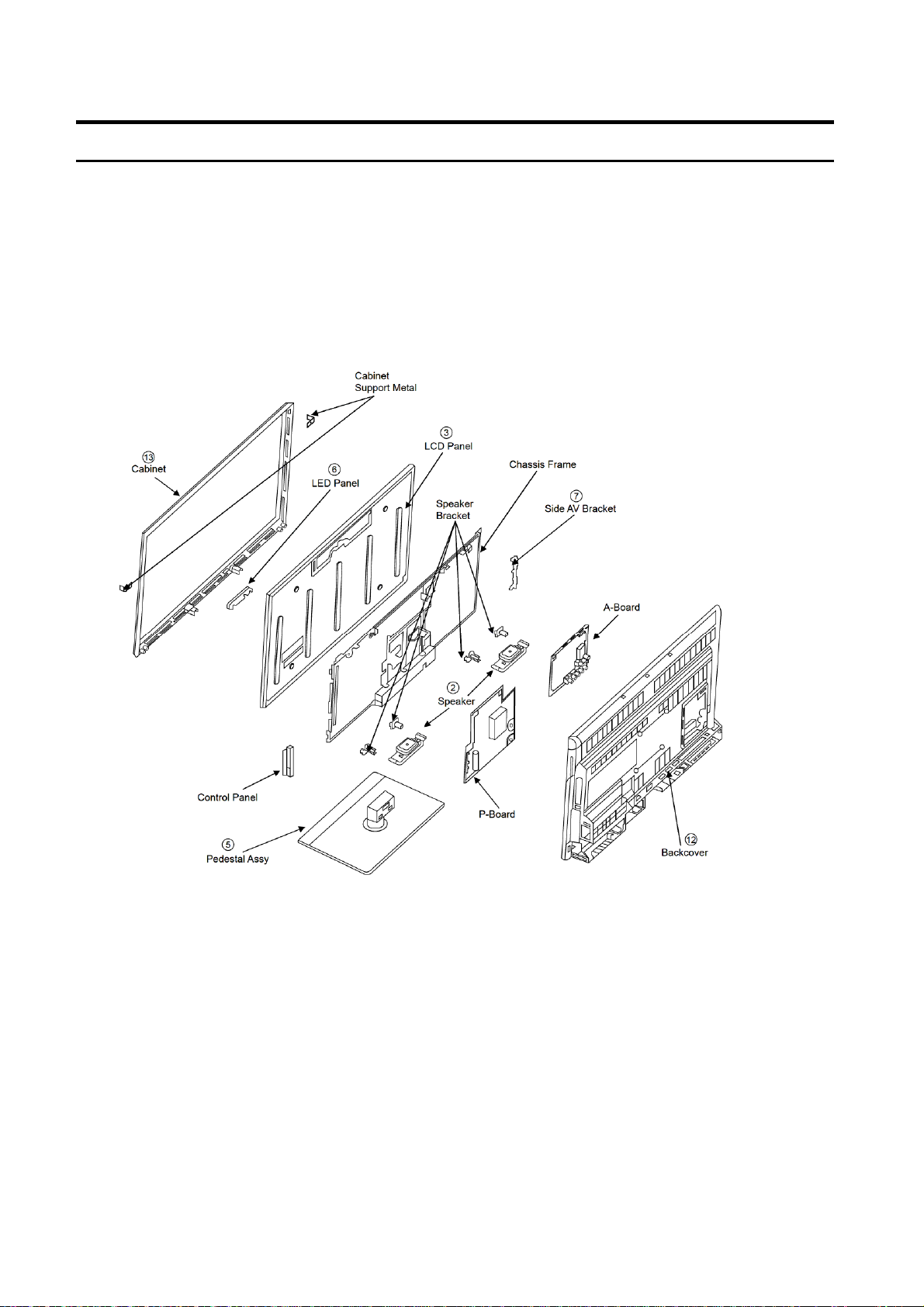

13 Exploded View and Replacement Parts List -----------41
13.1. Exploded View and Mechanical Replacement
Parts List --------------------------------------------------- 41
2
Page 3
TH-L24XM6G
1 Safety Precautions
1.1. General Guidelines
1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or
damaged by the short circuit.
2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly
installed.
3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.
4. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials.
5. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the
wires have been broken or disconnected, do not attempt to repair or re-wire the units. Replace the entire wiring unit instead.
6. When conducting repairs and servicing, do not twist the Faston connectors but plug them straight in or unplug them straight
out.
1.1.1. Leakage Current Cold Check
1. Unplug the AC cord and connect a jumper between the
two prongs on the plug.
2. Measure the resistance value, with an ohmmeter,
between the jumpered AC plug and each exposed
metallic cabinet part on the equipment such as
screwheads, connectors, control shafts, etc. When the
exposed metallic part has a return path to the chassis, the
reading should be 100 Mohm and over.
When the exposed metal does not have a return path to
the chassis, the reading must be .
1.1.2. Leakage Current Hot Check (See Figure 1.)
1. Plug the AC cord directly into the AC outlet. Do not use
an isolation transformer for this check.
2. Connect a 1.5kohm, 10 watts resistor, in parallel with a
0.15F capacitors, between each exposed metallic part
on the set and a good earth ground such as a water pipe,
as shown in Figure 1.
3. Use an AC voltmeter, with 1000 ohms/volt or more
sensitivity, to measure the potential across the resistor.
4. Check each exposed metallic part, and measure the
voltage at each point.
5. Reverse the AC plug in the AC outlet and repeat each of
the above measurements.
6. The potential at any point should not exceed 0.75 volts
RMS. A leakage current tester (Simpson Model 229 or
equivalent) may be used to make the hot checks, leakage
current must not exceed 1/2 milliamp. In case a
measurement is outside of the limits specified, there is a
possibility of a shock hazard, and the equipment should
be repaired and rechecked before it is returned to the
customer.
Figure 1
3
Page 4
TH-L24XM6G
2Warning
2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and
semiconductor [chip] components. The following techniques should be used to help reduce the incidence of component damage
caused by electrostatic discharge (ESD).
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your
body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,
which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as [anti-static (ESD protected)] can
generate electrical charge sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or
comparable conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be installed.
Caution
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the
brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD)
sufficient to damage an ES device).
4
Page 5
TH-L24XM6G
2.2. About lead free solder (PbF)
Note: Lead is listed as (Pb) in the periodic table of elements.
In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.
The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).
That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.
This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d
suggest the use of Pb free solder as well, although Pb solder may be used.
PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.
Caution
• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 F (30~40 C) higher. Please
use a high temperature soldering iron and set it to 700 ± 20 F (370 ± 10 C).
• Pb free solder will tend to splash when heated too high (about 1100 F or 600 C).
If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb
solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.
• After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the
opposite side. (see figure below)
5
Page 6
TH-L24XM6G
3 Service Navigation
3.1. Service Hint
Board Name Main Device Remarks
A BOARD TUN, OFDM, ADV, LD4, STBY EEP Repairable
P BOARD Power Supply Repairable
K BOARD LED/RM/CATS Repairable
6
Page 7
4 Specifications
Power Source AC Single 220 - 240 V, 50 / 60 Hz
Power Consumption
Power Rating 41 W
Standby Condition 0.3 W
Display panel
Panel TFT LCD Module with LED Backlight
Visible screen size (diagonal) 61 cm (24 inches)
Number of pixels 1,049,088 (1,366 (W) 768 (H))
Sound
Speaker (100 mm 30 mm) 2 pcs, 8
Audio Output 6 W (3 W + 3 W), 10% THD
Dimensions (W H D)
With Pedestal (mm) 576 416 180
TV only (mm) 576 351 59
Mass (Net)
With Pedestal (kg) 5.0
TV only (kg) 4.5
Aerial - Rear VHF / UHF
Receiving Systems / Band name 17 SYSTEMS FUNCTIONS
1 PAL B, G, H
2PAL I
3PAL D, K
4 SECAM B, G
5 SECAM D, K
6 SECAM K1
7
NTSC M (NTSC 3.58 / 4.5 MHz)
8 NTSC 4.43 / 5.5 MHz
9 NTSC 4.43 / 6.0 MHz
10 NTSC 4.43 / 6.5 MHz
11 NTSC 3.58 / 5.5 MHz
12 NTSC 3.58 / 6.0 MHz
13 NTSC 3.58 / 6.5 MHz
14 SECAM I
15 PAL 60 Hz / 5.5 MHz
16 PAL 60 Hz / 6.0 MHz
17 PAL 60 Hz / 6.5 MHz
Receiving Channels
VHF BAND 2 - 12 (PAL / SECAM B, K1)
0 - 12 (PAL B AUST.)
1 - 9 (PAL B N.Z.)
1 - 12 (PAL / SECAM D)
1 - 12 (NTSC M Japan)
2 - 13 (NTSC M USA)
UHF BAND 21 - 69 (PAL G, H, I / SECAM G, K, K1)
28 - 69 (PAL B AUST.)
13 - 57 (PAL D, K)
13 - 62 (NTSC M Japan)
14 - 69 (NTSC M USA)
CATV S1 - S20 (OSCAR)
1 - 125 (USA CATV)
C13 - C49 (JAPAN)
S21 - S41 (HYPER)
Z1 - Z37 (CHINA)
5A, 9A (AUST.)
Operating Conditions Temperature : 0C - 40C,
Humidity : 20 % - 80 % RH (non-condensing)
Connection Terminals
AV1 IN AUDIO L-R RCA PIN Type 2 0.5 V [rms]
VIDEO RCA PIN Type 1 1.0 V [p-p] (75 )
COMPONENT Y 1.0 V [p-p] (including synchronization)
P
, PR/C
B/CB
AV2 IN AUDIO L-R RCA PIN Type 2 0.5 V [rms]
VIDEO RCA PIN Type 1 1.0 V [p-p] (75 )
AUDIO OUT AUDIO L-R RCA PIN Type 2 0.5 V [rms]
R
Reception of broadcast transmissions and
Playback from Video Cassette Tape
Recorders
Playback from Special VCR’s or DVD
Playback from Special Disc Players and
Special VCR’s or DVD
±0.35 V [p-p]
TH-L24XM6G
7
Page 8
TH-L24XM6G
HDMI AV IN TYPE A Connectors 2
USB
USB 2.0 TYPE A Connectors
1 DC 5 V, Max. 500 mA
Note
• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.
8
Page 9
TH-L24XM6G
5 Service Mode
5.1. How to enter into Service Mode
While pressing [VOLUME ( - )] button of the main unit, press [INFO] button of the remote control three times within 2 seconds.
5.1.1. Contents of adjustment mode
• Value is shown as a hexadecimal number.
• Preset value differs depending on models.
• After entering the adjustment mode, take note of the value in each item before starting adjustment.
Main item Sub item Sample Data
WB-ADJ R-GAIN 8D
G-GAIN AE
B-GAIN FF
R-CENT 6C
G-RENT 80
B-CENT A0
OPTION Boot ROM
STBY-SET 00
EMERGENCY ON
CLK MODE 00
CLOCK FC7
5.1.2. How to exit
Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.
9
Page 10
TH-L24XM6G
5.1.3. Display of SOS History
SOS History (Number of LED blinking) indication.
From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment.
This indication except 2nd and 1st occurrence after shipment will be cleared by [Self-check indication and forced to factory
shipment setting].
5.1.4. POWER ON TIME/COUNT
Note : To display TIME/COUNT menu, highlight position, then press MUTE for 3sec.
Time : Cumulative power on time, indicated hour : minute by decimal
Count : Number of ON times by decimal
Note : This indication will not be cleared by either of the self-checks or any other command.
5.1.5. Exit
1. Disconnect the AC cord from wall outlet.
10
Page 11
TH-L24XM6G
5.1.6. Self Check (Device)
1. Press the ‘MENU’ button (on the remote control) and the ‘VOL DOWN’ button on the LCD panel.
2. Press ON/OFF button on the panel to Exit.
NOTE: After self check, the following process need to follow.
TVA and QC.
5.1.7. Hotel Mode Adjustment
1. Press the ‘VOLUME DOWN’ button on the TV panel and simultaneously press the INPUT button on the remote control 3
times to enter Hotel Mode.
2. Set Hotel mode ‘on/off’, then press ‘EXIT’ to come out.
5.1.8. Hotel Mode
1. Purpose
Restrict a function for hotels.
2. Access command to the Hotel mode setup menu.
In order to display the Hotel mode setup menu, please
enter the following command (within 2 second).
[TV] : Vol [Down] + [REMOTE] : INPUT (3 times).
Then, the Hotel mode setup menu is displayed.
3. To exit the Hotel mode setup menu
Disconnect AC power cord from wall outlet.
4. Explain the Hotel mode setup menu
Item Function
Mode Select hotel mode off/on
Initial INPUT Select input signal modes.
Set the input, when each time power is switched
on.
Selection :
-/RF/HDMI1/HDMI2/HDMI3/Component/
Video/PC
• Off: give priority to a last memory.
Initial POS Select channel when input signal is RF.
Set the channel, each time power is switched
on.
Selection :
Any channel number or [-].
[-] means the channel when turns off.
Initial VOL Level Adjust the volume when each time power is
switched on.
Range :
0 to 100
Maximum VOL
LEVEL
Button Lock Restrict the OSD.
Remote Lock Select front key conditions.
Adjust maximum volume.
Range :
0 to 100
Selection :
OFF/PATTERN1
• OFF: No restriction
• PATTERN1: restriction
Selection :
OFF/PATTERN1/ALL
• OFF: altogether valid.
• PATTERN1: only input key is valid.
• ALL: altogether invalid.
11
Page 12
TH-L24XM6G
6 Troubleshooting Guide
Use the self-check function to test the unit.
1. Checking the IIC bus lines
2. Power LED Blinking timing
6.1. Check of the IIC bus lines
6.1.1. How to access
Self-check indication only:
Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control
for more than 3 seconds.
Self-check indication and forced to factory shipment setting:
Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote
control for more than 3 seconds.
6.1.2. Exit
Disconnect the AC cord from wall outlet.
6.1.3. Screen Display
12
Page 13
TH-L24XM6G
6.2. Power LED Blinking timing chart
1. Subject
Information of LED Flashing timing chart.
2. Contents
When an abnormality occurs, the protection circuit will operate and reset the unit to stand by mode. During this time, the
defective block can be identified by the number of blinking times of the Power LED on the front panel of the unit as follow:
Priority Name Factor R_LED Blink
1 BL_SOS SOS from PANEL inverter 1
2 RTD_POWER_SOS PNL 12V power down 3
3 RTD_SOUND_SOS SOS from audio AMP 9
4 OVP OVP from Power Board 12
6.3. No Power
First check point
There are following 2 states of No Power indication by power LED.
1. No lit
2. Red is lit then turns red blinking a few seconds later. (See 6.2.)
13
Page 14
TH-L24XM6G
7 Disassembly and Assembly Instructions
7.1. LVDS and LED Assembly
1. Fix LCD PANEL, LED PANEL ( with board & wire ) to CABINET COMPLETE ASSY.
2. Fix LVDS CABLE and PET TAPE to LCD PANEL.
< Caution Point >
Need to do iron blow at LVDS connector and panel before insert. And make sure connector did not slanting.
No Description Qty UOM Remarks
01 CABINET COMPLETE ASSY 1 PC
02 LED PANEL 1 PC
03 LCD PANEL 1 PC
04 LVDS CABLE 1 PC
05 PET TAPE 0.28 MT 4 70mm
06 PET TAPE 0.10 MT 1 100mm
14
Page 15
7.2. LCD Panel Fixing & Handling Method
1. Place down the cabinet as shown below.
2. Fix LCD panel into the cabinet by taking below precautions.
TH-L24XM6G
Other general precautions
1. Do not press panel surface to avoid blue spot on the panel display.
2. Do not use hard cloth or rub the surface too hard. This may cause scratches on the surface.
3. Take care not to subject the TV’s surface to water or detergent. Any liquid (including pets urine) if enters the product could
lead to TV failure.
4. Take care not to subject the surface to insect repellent, solvent, thiner or other voiltile substances. This may degrade surface
quality or cause peeling of the paint.
5. The surface of the display panel is specially treated and may be easily damaged. Take care not to tap or scratch with your
fingernail or other hard objects.
15
Page 16
TH-L24XM6G
7.3. Installing Metal Chassis Frame
1. Fixing Metal CH Frame to LCD Panel.
2. Fixing screw to LCD Panel & Metal CH Frame at left bottom side.
3. Stick Barrier P (Peel off the separator) to Metal CH Frame.
4. Stick Felt & Sponge to Metal CH Frame.
No Description Qty UOM Remarks
01 METAL CH FRAME 1 PC
02 BARRIER P-PCB 1 PC
03 SCREW(LCD1) 1 PC 3 ± 1Kgf.cm
04 FELT 4 PC
05 SPONGE 2 PC
16
Page 17
7.4. Small Part & Tightening Screw
1. Insert P-print and A-print to Metal CH Frame.
2. Fixing small mechanical part to set (cabinet & metal ch.frame).
3. Fixing Key Indi Sheet to Key Button Bracket and slot at P-print board.
4. Screw them by screw.
TH-L24XM6G
17
Page 18
TH-L24XM6G
No Description Qty UOM Remarks
01 SP UNIT 2 PC
02 SPEAKER BRACKET (R) 2 PC
03 SPEAKER BRACKET (L) 2 PC
04 SCREW (SP BRK4) 4 PC 6 ± 1Kgf.cm
05 SCREW 10.9 PC 12 ± 2Kgf.cm
06 LCD MTG SIDE 2 PC
07 SIDE AV BRACKET 1 PC
08 KEY BUTTON ASSY 1 PC
09 KEY BUTTON BRACKET 1 PC
10 KEY INDI SHEET 1 PC
18
Page 19
7.5. Pedestal Assembly
TH-L24XM6G
No Part no Description Qty UOM Remarks
01 TBL5ZG30211 RUBBER FOOT 05 PC
02 TBL5ZB32861 BASE COVER 01 PC
03 TBL5ZB33111 STAND MOLD 01 PC
04 XTV3 + 12JFJK SCREW 02 PC 6 ± 1Kgf.cm
05 TPE4GB004 BAG FOR PEDESTAL 01 PC
19
Page 20
TH-L24XM6G
8 Measurements and Adjustments
8.1. Voltage chart of A-board
Set A-Board to a dummy set and check the satisfaction with the specified voltage as following table.
Power Supply Name Measurement Point Specification (V) Remark
TNR1.8V TP8705 1.74 - 1.90 -
VCCK1.1V TP8700 1.10 ~ 1.20 -
SUB3.3V TP5400 3.19 - 3.46 -
SUB5V TP8702 4.9 - 5.1 -
STB5.3V TP2015 4.9 - 5.5 -
PNL12V TP4085 11.5 - 12.5 -
DDR1.8V TP8706 1.75 ~ 1.85 -
STB3.3V TP2773 3.2V ~ 3.40V -
TNR3.3V TP6701 3.2V ~ 3.4V -
8.2. Voltage chart of P-board
Set P-Board to a dummy load and check the satisfaction with the specified voltage as following table.
Output Test point
5.3VS TP7507 5.3V ± 0.2V < 1V
16V TP7508 15.7V ± 0.8V < 1V
Operate STBY
Specification
20
Page 21
9 Block Diagram
p
p
RTD2648S
SPI_DOUT
A
DAC
9.1. Main Block Diagram
TH-L24XM6G
(AV1)
V1/YUV share
(AV2)
Audio OUT
PNL12V
IFN / IFP
P_IF_AGC
IC3001
Op Amp
PANEL
ADC
LVDS: :
air data + 1
4
pair CLK
IC8001
LED Driver
BL_SOS/
BL_ON/
PWM
CIRCUIT
Panel_PWM
SPI_CK,
SPI_DIN,
SOUND_SOS
I2S_MCLK
I2S_SDIN
I2S_BCLK
I2S_LRCLK
27 MHz
SPI Flash
64 Mbit
USB0OD,
USB0VBUS,
IC5602
USB 5V Mosfet
USB0DP, USB0DN
5V
P15V
IC4900
Audio Amp
HDMI1
HDMI2
/ HPD
EEPROM
64 kb
RMT/KEYLED
21
Page 22
TH-L24XM6G
10 Wiring Connection Diagram
10.1. Wire Dressing
123456
1 A15 ~ SP (R)
2 A10 ~ KA10
No. Description Qty UOM Remarks
01 CLAMPER 4 PC
02 PET TAPE 0.07 MT 1 70mm
03 PET TAPE 0.12 MT 1 120mm
22
Page 23
11 Schematic Diagram
Model No. : TH-L24XM6G A-Board (1/10-1)
TH-L24XM6G
23
Page 24
Model No. : TH-L24XM6G A-Board (1/10-2)
Page 25
Model No. : TH-L24XM6G A-Board (2/10)
Page 26
Model No. : TH-L24XM6G A-Board (3/10)
Page 27
Model No. : TH-L24XM6G A-Board (4/10)
Page 28
Model No. : TH-L24XM6G A-Board (5/10)
Page 29
Model No. : TH-L24XM6G A-Board (6/10)
Page 30
Model No. : TH-L24XM6G A-Board (7/10)
Page 31
Model No. : TH-L24XM6G A-Board (8/10)
Page 32
Model No. : TH-L24XM6G A-Board (9/10)
Page 33
Model No. : TH-L24XM6G A-Board (10/10)
Page 34
Model No. : TH-L24XM6G K-Board
Page 35
Model No. : TH-L24XM6G P-Board
Page 36
TH-L24XM6G
12 Printed Circuit Board
Model No. : TH-L24XM6G A-Board (Top Component Side)
Page 37
Model No. : TH-L24XM6G A-Board (Bottom Component Side)
Page 38
Model No. : TH-L24XM6G K-Board
Page 39
Model No. : TH-L24XM6G P-Board (Top Component Side)
Page 40
Model No. : TH-L24XM6G P-Board (Bottom Component Side)
Page 41
13 Exploded View and Replacement Parts List
Model No. : TH-L24XM6G Parts Location
TH-L24XM6G
Page 42
Model No. : TH-L24XM6G Packing Exploded View
Page 43
Model No. : TH-L24XM6G Parts List
Change Safety
CAPACITOR
Ref.
No.
C2001 F1G1E103A059 C 0.01UF 25V
C2003 F1G1H1020008 C 1000PF 50V
C2008 F1JZZ1060001 C 10UF, 20V
C2009 F1G1C104A077 C 0.1UF 16V
C2010 F1G1C1030008 C 0.01UF 16V
C2011 F1G1H1020008 C 1000PF 50V
C2751 F1G1H1020008 C 1000PF 50V
C2752 F1G1H1020008 C 1000PF 50V
C2753 F1G1H1020008 C 1000PF 50V
C2754 F1G1H1020008 C 1000PF 50V
C2755 F1G1H1020008 C 1000PF 50V
C2775 F1G1H101A948 C 100PF, 50V
C2801 F1G1C1030008 C 0.01UF 16V
C2804 F1H1C104A178 C 0.1UF 16V
C2807 F1J1A106A043 C 10UF, 10V
C3098 F1G1A473A079 C 0.047UF, 10V
C3099 F1G1A473A079 C 0.047UF, 10V
C3113 F1K1V106A010 C 10UF, 25V
C3116 F1J1A106A043 C 10UF, 10V
C3117 F1J1A106A043 C 10UF, 10V
C3121 F1H1C105A149 C 1UF, 16V
C3130 F1J1A106A043 C 10UF, 10V
C3132 F1J1A106A043 C 10UF, 10V
C3134 F1J1C475A225 C 4.7UF, 10V
C3135 F1J1A106A043 C 10UF, 10V
C3136 F1J1A106A043 C 10UF, 10V
C3137 F1H1H105B027 C 1UF, 50V
C3138 F1G1H220A948 C 22PF, 50V
C3139 F1G1H220A948 C 22PF, 50V
C3142 F1G1H331A946 C 330PF, 50V
C3143 F1G1H331A946 C 330PF, 50V
C3169 F1J1A106A043 C 10UF, 10V
C3170 F1J1A106A043 C 10UF, 10V
C3171 F1G1A473A079 C 0.047UF, 10V
C3172 F1G1A473A079 C 0.047UF, 10V
C3173 F1G1H5R0A831 C 5PF , 50V
C3174 F1G1A473A079 C 0.047UF, 10V
C3175 F1G1H5R0A831 C 5PF , 50V
C3176 F1G1A473A079 C 0.047UF, 10V
C3177 F1G1H5R0A831 C 5PF , 50V
C3178 F1G1A473A079 C 0.047UF, 10V
C3179 F1G1A473A079 C 0.047UF, 10V
C3185 F1L1C226A068 C 22UF, 16V
C3186 F1L1C226A068 C 22UF, 16V
C3187 F1L1C226A068 C 22UF, 16V
C3188 F1L1C226A068 C 22UF, 16V
C4003 F1H1H103B047 C 0.01UF, 50V
C4004 F1H1H103B047 C 0.01UF, 50V
C4008 F1J1C475A225 C 4.7UF, 10V
C4900 F1K1V106A010 C 10UF, 25V
C4901 F1K1V106A010 C 10UF, 25V
C4902 F1J1E105A287 C 1UF, 25V
C4903 F1K1V106A010 C 10UF, 25V
C4904 F1J1E105A287 C 1UF, 25V
C4905 F1H1A105A099 C 1UF, 10V
C4906 F1K1V106A010 C 10UF, 25V
C4907 F1J1E105A287 C 1UF, 25V
C4908 F1K1V106A010 C 10UF, 25V
C4909 F1J1E105A287 C 1UF, 25V
C4919 F1J1E224A272 C 0.22UF, 25V
C4920 F1J1E224A272 C 0.22UF, 25V
Part No. Part Name & Description Q'ty Remarks
Page 44
Model No. : TH-L24XM6G Parts List
Change Safety
Ref.
No.
C4921 F1H1E104A161 C 0.1UF, 25V
C4922 F1H1E104A161 C 0.1UF, 25V
C4923 F1H1E104A161 C 0.1UF, 25V
C4924 F1H1E104A161 C 0.1UF, 25V
C5000 F1K1V106A010 C 10UF, 25V
C5001 F1K1V106A010 C 10UF, 25V
C5171 F1G1C1030008 C 0.01UF 16V
C5476 F1G1A105A047 C 1UF 10V
C5478 F1J1A106A043 C 10UF, 10V
C5479 F1J1A106A043 C 10UF, 10V
C5613 EEEHB0J221UP E 220UF, 6.3V
C5616 F1G1C104A077 C 0.1UF 16V
C5624 F1J1A106A043 C 10UF, 10V
C5625 F1G1C104A077 C 0.1UF 16V
C6704 F1J1A106A043 C 10UF, 10V
C6707 F1G1C104A077 C 0.1UF 16V
C6708 F1J1A106A043 C 10UF, 10V
C6710 F1G1C104A077 C 0.1UF 16V
C6720 F1G1C470A160 C 47PF , 16V
C6721 F1G1C470A160 C 47PF , 16V
C6723 F1G1H220A834 C 22PF, 50V
C6724 F1G1H220A834 C 22PF, 50V
C6729 F1G1C104A077 C 0.1UF 16V
C6730 F1G1H222A830 C 2200PF, 50V
C6732 F1G1C1030008 C 0.01UF 16V
C6736 F1G1H101A834 C 100PF 50V
C6737 F1G1H101A834 C 100PF 50V
C6741 F1G0J105A049 C 1UF , 6.3V
C6745 F1G1C104A077 C 0.1UF 16V
C6750 F1G1H471A834 C 470PF, 50V
C6751 F1G1H471A834 C 470PF, 50V
C6752 F1G1H101A834 C 100PF 50V
C6757 F1G1H101A834 C 100PF 50V
C6758 F1G1H181A834 C 180PF , 50V
C6759 F1G1H181A834 C 180PF , 50V
C6760 F1G1H102A541 C 180PF , 50V
C6761 F1G1C104A077 C 0.1UF 16V
C6762 F1G1H102A541 C 1000PF , 50V
C6763 F1G1C104A077 C 0.1UF 16V
C6764 F1G1C104A077 C 0.1UF 16V
C6765 F1G1C104A077 C 0.1UF 16V
C6766 F1G1H1020008 C 1000PF 50V
C6767 F1G1H1020008 C 1000PF 50V
C6768 F1G1H1020008 C 1000PF 50V
C6769 F1G1E103A059 C 0.01UF 25V
C6770 F1G1E103A059 C 0.01UF 25V
C6773 F1G1H1020008 C 1000PF 50V
C6774 F1G1C104A077 C 0.1UF 16V
C6776 F1G1A105A047 C 1UF 10V
C6777 F1G1A105A047 C 1UF 10V
C6778 F1J1A106A043 C 10UF, 10V
C6779 F1J1C475A225 C 4.7UF, 10V
C6783 F1G1H5R0A947 C 5PF , 50V
C6784 F1G1H100A834 C 10PF 50V
C6785 F1G1H5R0A947 C 5PF , 50V
C7101 F0CAF1040016 C 0.1UF , 240V
C7102 F0CAF1040016 C 0.1UF , 240V
C7103 F1AAF471A019 470PF , 240V
C7104 F1AAF471A019 470PF , 240V
C7128 F1H1H103A219 C 0.01UF, 50V
C7301A F2A2W6800013 C 68UF, 450V
C7306 F1B3D221A099 C 220P 2000V
Part No. Part Name & Description Q'ty Remarks
Page 45
Model No. : TH-L24XM6G Parts List
Change Safety
Ref.
No.
C7307 F1B3D101A099 C 100PF, 2kV
C7310 F1J1H104A578 C 0.1UF, 50V
C7311 F1H1H102A831 C 1000PF, 50V
C7312 F1J1H105A945 C 1UF, 50V
C7313 F2A1V470B763 C 47UF, 35V
C7314 F1H1H102A831 C 1000PF, 50V
C7315 F1AAF102A020 C 1000PF, 50V
C7503 F1H1H104A913 C 0.1UF, K , 50V
C7510 F1B2H471A058 C 470PF, 500V
C7512 F2A1E4710124 C 470UF, 25V
C7513 F2A1E4710124 C 470UF, 25V
C7519 F2A1C4710114 C 470UF, 16V
C7520 F1H1A225A102 C 2.2UF, 10V
C7521 F1H1A225A102 C 2.2UF, 10V
C7523 F1J1H104A578 C 0.1UF, 50V
C7531 F1H1H104A913 C 0.1UF, K , 50V
C7532 F1H1H104A913 C 0.1UF, K , 50V
C7534 F1K1E106A134 C 10UF, 25V
C7535 F1K1E106A134 C 10UF, 25V
C7801 F1H1H103A219 C 0.01UF, 50V
C7802 F1H1H223A219 C 0.022UF, 50V
C7803 F1J1H474A757 C 0.47UF, 50V
C7804 F1J1E105A287 C 1UF, 25V
C7805 F1J1E105A287 C 1UF, 25V
C7806 F2A1J1210012 C 120UF, 63V
C7807 F1H1H103A219 C 0.01UF, 50V
C8013 F1G1C104A077 C 0.1UF 16V
C8014 F1G1A105A047 C 1UF 10V
C8016 F1G1C104A077 C 0.1UF 16V
C8019 F1J0G2260001 C 22 UF 4 V
C8020 F1G1C104A077 C 0.1UF 16V
C8021 F1G1C104A077 C 0.1UF 16V
C8052 F1J1A106A043 C 10UF, 10V
C8053 F1G1C104A077 C 0.1UF 16V
C8054 F1G1C104A077 C 0.1UF 16V
C8055 F1G1C104A077 C 0.1UF 16V
C8056 F1G1C104A077 C 0.1UF 16V
C8057 F1G1C104A077 C 0.1UF 16V
C8058 F1G1C104A077 C 0.1UF 16V
C8059 F1G1C104A077 C 0.1UF 16V
C8060 F1G1C104A077 C 0.1UF 16V
C8061 F1G1C104A077 C 0.1UF 16V
C8062 F1G1C104A077 C 0.1UF 16V
C8070 F1G1A105A047 C 1UF 10V
C8071 F1G1C104A077 C 0.1UF 16V
C8072 F1G1A105A047 C 1UF 10V
C8073 F1G1C104A077 C 0.1UF 16V
C8074 F1G1A105A047 C 1UF 10V
C8075 F1G1C104A077 C 0.1UF 16V
C8076 F1G1C104A077 C 0.1UF 16V
C8077 F1G1C104A077 C 0.1UF 16V
C8078 F1G1C104A077 C 0.1UF 16V
C8079 F1G1C104A077 C 0.1UF 16V
C8080 F1G1C104A077 C 0.1UF 16V
C8081 F1JZZ1060001 C 10UF, 20V
C8082 F1G1C104A077 C 0.1UF 16V
C8083 F1G1C104A077 C 0.1UF 16V
C8084 F1G1C104A077 C 0.1UF 16V
C8085 F1G1C104A077 C 0.1UF 16V
C8086 F1G1C104A077 C 0.1UF 16V
C8087 F1G1C104A077 C 0.1UF 16V
C8088 F1JZZ1060001 C 10UF, 20V
Part No. Part Name & Description Q'ty Remarks
Page 46
Model No. : TH-L24XM6G Parts List
Change Safety
Ref.
No.
C8089 F1H1C225A065 C 2.2UF, 16V
C8093 F1G1C104A077 C 0.1UF 16V
C8095 F1G1C104A077 C 0.1UF 16V
C8096 F1J1A106A043 C 10UF, 10V
C8097 F1G1C104A077 C 0.1UF 16V
C8098 F1G0J104A009 C 0.1UF, 6.3V
C8099 F1J0G2260001 C 22 UF 4 V
C8100 F1J0G2260001 C 22 UF 4 V
C8101 F1G1C104A077 C 0.1UF 16V
C8102 F1G1C104A077 C 0.1UF 16V
C8103 F1G1C104A077 C 0.1UF 16V
C8104 F1G1C104A077 C 0.1UF 16V
C8105 F1G1C104A077 C 0.1UF 16V
C8106 F1J1A106A043 C 10UF, 10V
C8107 F1G1C104A077 C 0.1UF 16V
C8108 F1G1C104A077 C 0.1UF 16V
C8112 F1G1C104A077 C 0.1UF 16V
C8114 F1G1C104A077 C 0.1UF 16V
C8115 F1J0G2260001 C 22 UF 4 V
C8116 F1J1A106A043 C 10UF, 10V
C8117 F1J1A106A043 C 10UF, 10V
C8140 F1G1H100A544 C 10PF, 50V
C8142 F1G1H100A544 C 10PF, 50V
C8143 F1JZZ1060001 C 10UF, 20V
C8144 F1JZZ1060001 C 10UF, 20V
C8145 F1G1A105A047 C 1UF 10V
C8146 F1G1C104A077 C 0.1UF 16V
C8147 F1G1C104A077 C 0.1UF 16V
C8148 F1G1C104A077 C 0.1UF 16V
C8149 F1J1A106A043 C 10UF, 10V
C8150 F1J1A106A043 C 10UF, 10V
C8151 F1J0G2260001 C 22 UF 4 V
C8213 F1G1C104A077 C 0.1UF 16V
C8300 F1K1V106A010 C 10UF, 25V
C8302 F1G1C104A077 C 0.1UF 16V
C8303 F1G1C1030008 C 0.01UF 16V
C8304 F1G1C223A146 C 0.022UF, 16V
C8305 F1G1E332A144 C 3300PF, 25V
C8310 F1K1V106A010 C 10UF, 25V
C8311 F1K1V106A010 C 10UF, 25V
C8312 F1K1V106A010 C 10UF, 25V
C8704 F1J1A106A043 C 10UF, 10V
C8705 F1J1A106A043 C 10UF, 10V
C8713 F1K1V106A010 C 10UF, 25V
C8715 F1G1C104A077 C 0.1UF 16V
C8716 F1G1C1030008 C 0.01UF 16V
C8717 F1G1E472A144 C 4700pF 25V
C8718 F1G1E332A144 C 3300PF, 25V
C8719 F1J1A106A043 C 10UF, 10V
C8720 F1J1A106A043 C 10UF, 10V
C8721 F1J1A106A043 C 10UF, 10V
C8722 F1K1V106A010 C 10UF, 25V
C8724 F1G1C104A077 C 0.1UF 16V
C8725 F1G1C1030008 C 0.01UF 16V
C8726 F1G1E472A144 C 4700pF 25V
C8727 F1G1E332A144 C 3300PF, 25V
C8728 F1J0G2260001 C 22 UF 4 V
C8729 F1J0G2260001 C 22 UF 4 V
C8753 F1G1C474A108 C 0.47UF, 16V
C8775 F1J1C475A225 C 4.7UF, 10V
C8776 F1J1A106A043 C 10UF, 10V
C8778 F1J0G2260001 C 22 UF 4 V
Part No. Part Name & Description Q'ty Remarks
Page 47
Model No. : TH-L24XM6G Parts List
Change Safety
DIODE
Ref.
No.
C8779 F1J0G2260001 C 22 UF 4 V
C8780 F1J1A106A043 C 10UF, 10V
C8781 F1J1A106A043 C 10UF, 10V
C8783 F1J1A106A043 C 10UF, 10V
C8900 F1G1C104A077 C 0.1UF 16V
C8902 F1G1A105A047 C 1UF 10V
D0901 EZJZ0V120JA VARISTOR
D0902 EZJZ0V120JA VARISTOR
D0906 J0ZZB0000175 DIODE
D0907 J0ZZB0000175 DIODE
D0910 J0ZZB0000175 DIODE
D0911 J0ZZB0000175 DIODE
D0914 J0ZZB0000175 DIODE
D2001 EZJZ0V120JA VARISTOR
D2005 EZJZ0V120JA VARISTOR
D2802 B3AGB0000060 LED
D3057 B0JCDE000006 DIODE
D3101 DZ2J140M0L DIODE
D3105 DZ2J140M0L DIODE
D3106 DZ2J140M0L DIODE
D3107 DZ2J140M0L DIODE
D3109 DZ2J140M0L DIODE
D3110 DZ2J140M0L DIODE
D3111 DZ2J140M0L DIODE
D3112 DZ2J140M0L DIODE
D3125 EZJP0V080GA CHIP VARISTOR
D3126 EZJP0V080GA CHIP VARISTOR
D3127 EZJP0V080GA CHIP VARISTOR
D4842 B0JCCD000020 DIODE
D4843 B0JCCD000020 DIODE
D5000 DB2J30900L DIODE
D5001 DB2J30900L DIODE
D5002 B0JCDE000006 DIODE
D5172 DZ2J220M0L DIODE
D5173 DA2J10100L DIODE
D5174 DZ2J110M0L DIODE
D5175 DA2J10100L DIODE
D5180 DZ2J033M0L DIODE
D6702 J0ZZB0000175 DIODE
D6703 B0ZBZ0000203 DIODE
D7101 ERZE08C621CD SURGE ABSORBER
D7102 B0EBNT000030 DIODE
D7104 DA2J10100L DIODE
D7301 B0HAGQ000001 DIODE
D7306 B0BB140A0011 DIODE
D7307 DZ2J068M0L DIODE
D7313 DB2J41100L DIODE
D7316 B0JCDE000006 DIODE
D7317 DA2JF2300L DIODE
D7320 B0JAME000126 DIODE
D7324 DZ2J150M0L DIODE
D7325 B0JCDE000006 DIODE
D7502 B0FBCM000016 DIODE
D7514 B0ECKM000053 DIODE
D7800 B0JDRJ000001 DIODE
D7803 DB2J41100L DIODE
D7804 DB2J41100L DIODE
D7805 DZ2J110M0L DIODE
D7806 DB2J41100L DIODE
D8709 DZ2J11000L DIODE
Part No. Part Name & Description Q'ty Remarks
Page 48
Model No. : TH-L24XM6G Parts List
Change Safety
INTEGRATED CIRCUIT
COIL
Ref.
No.
IC3001 C0ABBB000230 IC
IC4900 C1AB00003984 IC
IC5602 C0DBZYY00541 IC
IC6702 C1AB00004053 IC
IC6703 C0DBEYY00102 IC
IC7301 C0DBBYY00065 IC
IC7501 C0DBZYY00531 IC
IC7503 C0DBEYG00002 IC REGULATOR
IC7800 C1ZBZ0004572 IC
IC8001 C1AB00004093 IC
IC8300 C0DBAYY01644 IC
IC8700 C0DBAYY01644 IC
IC8702 C0DBAYY01644 IC
IC8705 C0DBEYY00102 IC
IC8707 C0DBEYY00102 IC
IC8708 C0DBGYY01682 IC
IC8901 TVR4G253-AA ROM VERSION IC
IC8902 C3EBJY000048 IC
L2001 J0JYC0000328 COIL
L3004 J0JCC0000287 COIL
L3005 J0JCC0000287 COIL
L3012 J0JHC0000075 BEAD COIL
L3122 J0JCC0000287 COIL
L3123 J0JCC0000287 COIL
L4703 J0JYC0000068 COIL
L4704 J0JYC0000068 COIL
L4705 J0JYC0000068 COIL
L4706 J0JYC0000068 COIL
L4900 J0JHC0000042 COIL
L4901 G1C220MA0533 INDUCTOR
L4902 G1C220MA0533 INDUCTOR
L4903 G1C220MA0533 INDUCTOR
L4904 G1C220MA0533 INDUCTOR
L5601 J0JYC0000464 BEAD CORE
L5605 J0ZZB0000142 FILTER
L6704 J0JYC0000464 BEAD CORE
L6706 J0JYC0000464 BEAD CORE
L6710 J0JYC0000464 BEAD CORE
L6712 J0JYC0000464 BEAD CORE
L6743 G1CR47J00012 BEAD COIL
L6763 G1CR27JA0097 COIL
L6765 G1C10NJ00008 BEAD COIL
L6772 G1CR27JA0097 COIL
L6773 G1CR27JA0097 COIL
L6774 G1CR27JA0097 COIL
L6776 G1CR27JA0097 COIL
L6777 G1CR22JA0097 COIL
L6778 G1CR22JA0097 COIL
L6779 J0JYC0000464 BEAD CORE
L6780 G1CR47J00012 BEAD COIL
L6781 G1CR47J00012 BEAD COIL
L6782 G1CR47J00012 BEAD COIL
L7301 J0JKA0000038 BEAD CORE
L7304 J0JKB0000034 EMI FILTER
L7313 J0JKA0000038 BEAD CORE
L7315 J0JKA0000024 EMI FILTER
L7802 G0C270MA0049 INDUCTOR
L7951 J0JKB0000034 EMI FILTER
L8000 J0JYC0000464 BEAD CORE
L8001 J0JYC0000464 BEAD CORE
Part No. Part Name & Description Q'ty Remarks
Page 49
Model No. : TH-L24XM6G Parts List
Change Safety
TRANSISTOR
RESISTORS
Ref.
No.
L8002 J0JYC0000464 BEAD CORE
L8003 J0JYC0000464 BEAD CORE
L8004 J0JYC0000464 BEAD CORE
L8005 J0JYC0000464 BEAD CORE
L8006 J0JYC0000464 BEAD CORE
L8007 J0JYC0000464 BEAD CORE
L8008 J0JYC0000464 BEAD CORE
L8009 J0JYC0000464 BEAD CORE
L8010 J0JYC0000464 BEAD CORE
L8011 J0JYC0000464 BEAD CORE
L8012 J0JYC0000464 BEAD CORE
L8013 J0JYC0000464 BEAD CORE
L8014 J0JYC0000464 BEAD CORE
L8101 J0JYC0000464 BEAD CORE
L8102 J0JYC0000464 BEAD CORE
L8103 J0JYC0000464 BEAD CORE
L8105 J0JYC0000464 BEAD CORE
L8300 G1C220MA0533 INDUCTOR
L8301 J0JYC0000464 BEAD CORE
L8700 G1C4R7ZA0311 INDUCTOR
L8702 G1C150MA0533 INDUCTOR
L8708 J0JYC0000464 BEAD CORE
Q2752 B1ABCE000015 TRANSISTOR
Q2753 B1ABCE000015 TRANSISTOR
Q3002 B1ABCE000015 TRANSISTOR
Q3104 B1ABCE000015 TRANSISTOR
Q3105 B1ABCE000015 TRANSISTOR
Q3106 B1ADCF000194 TRANSISTOR
Q4811 B1ABCE000015 TRANSISTOR
Q4812 B1ABCE000015 TRANSISTOR
Q5003 DSA200100L TRANSISTOR
Q5004 B1ABBE000003 TRANSISTOR
Q5100 B1ABBE000003 TRANSISTOR
Q7301 B1CERR000067 TRANSISTOR
Q7302 B1ABBE000003 TRANSISTOR
Q7502 B1CHRE000015 TRANSISTOR
Q7510 B1ABBE000003 TRANSISTOR
Q7801 B1CFRL000011 TRANSISTOR
Q7802 B1ABGJ000007 TRANSISTOR
Q8700 B1ABBE000003 TRANSISTOR
Q8701 B1ABBE000003 TRANSISTOR
R0900 D0GA272JA023 M 2.7KOHM, J.1/16W
R0901 D0GA272JA023 M 2.7KOHM, J.1/16W
R0911 D0GA473JA039 M 47KOHM J. 1/10W
R0932 D0GAR00J0005 M 0 OHM, 1/16W
R0933 D0GAR00J0005 M 0 OHM, 1/16W
R0934 D0GA680JA023 M 68 OHM, J,1/16W
R0935 D0GA680JA023 M 68 OHM, J,1/16W
R0944 D0GA102JA039 M 1KOHM, J , 1/16W
R0945 D0GA102JA039 M 1KOHM, J , 1/16W
R0947 D0GA680JA023 M 68 OHM, J,1/16W
R0964 D0GA680JA023 M 68 OHM, J,1/16W
R0965 D0GA680JA023 M 68 OHM, J,1/16W
R0966 D0GAR00J0005 M 0 OHM, 1/16W
R0967 D0GAR00J0005 M 0 OHM, 1/16W
R0972 D0GA101JA039 M 100OHM, J, 1/16W
R0973 D0GA101JA039 M 100OHM, J, 1/16W
R0974 D0GA472JA023 M 4.7KOHM, J,1/16W
R0975 D0GA472JA023 M 4.7KOHM, J,1/16W
R0976 D0GA680JA023 M 68 OHM, J,1/16W
Part No. Part Name & Description Q'ty Remarks
Page 50
Model No. : TH-L24XM6G Parts List
Change Safety
Ref.
No.
R0977 D0GA680JA023 M 68 OHM, J,1/16W
R0978 D0GA272JA023 M 2.7KOHM, J.1/16W
R0979 D0GA272JA023 M 2.7KOHM, J.1/16W
R1955 D0GA680JA023 M 68 OHM, J,1/16W
R1964 D0GA103JA039 M 100OHM, J, 1/16W
R2006 D0GA102JA039 M 1KOHM, J , 1/16W
R2009 D0GA102JA039 M 1KOHM, J , 1/16W
R2012 D0GA222JA023 M 2.2KOHM, J,1/16W
R2018 D0GA473JA039 M 47KOHM J. 1/10W
R2019 D0GA473JA039 M 47KOHM J. 1/10W
R2026 D1BA5601A023 M 5.6KOHM ,J, 1/16W
R2027 D0GA102JA039 M 1KOHM, J , 1/16W
R2034 D0GA102JA039 M 1KOHM, J , 1/16W
R2753 D0GB101JA065 M 100 OHM,J,1/10W
R2756 D0GA103JA039 M 100OHM, J, 1/16W
R2757 D0GA473JA039 M 47KOHM J. 1/10W
R2759 D0GA223JA023 M 22K OHM J 1/16W
R2760 D0GA473JA039 M 47KOHM J. 1/10W
R2792 D0GAR00J0005 M 0 OHM, 1/16W
R2804 D0GAR00J0005 M 0 OHM, 1/16W
R2820 D0GA470JA023 M 47 OHM, J,1/16W
R2821 D0GA153JA023 M 15K OHM J 1/16W
R2822 D0GA183JA023 M 18K OHM J.1/16W
R2823 D1BA1821A023 M 1.82KOHM, 1/16W
R2824 D1BA6800A023 M 680OHM, 1/16W
R3051 D0GA111JA023 M 110 OHM, J.1/16W
R3052 D0GA111JA023 M 110 OHM, J.1/16W
R3061 D0GA512JA023 M 5.1KOHM, J,1/16W
R3062 D0GA512JA023 M 5.1KOHM, J,1/16W
R3063 D0GA562JA023 M 5.6KOHM, J,1/16W
R3064 D0GA562JA023 M 5.6KOHM, J,1/16W
R3091 D1BA4532A023 M 45.3 KOHM,F,1/16W
R3092 D1BA4532A023 M 45.3 KOHM,F,1/16W
R3093 D0GA154JA023 M 150KOHM J 1/16W
R3094 D0GA304JA023 M 300KOHM J ,1/16W
R3095 D0GA153JA023 M 15K OHM J 1/16W
R3096 D0GA153JA023 M 15K OHM J 1/16W
R3097 D0GA393JA023 M 39KOHM,J,1/16W
R3098 D0GA393JA023 M 39KOHM,J,1/16W
R3099 D0GA223JA023 M 22K OHM J 1/16W
R3102 D1BD75R00003 M 75OHM J 1/10W
R3103 D0GA222JA023 M 2.2KOHM, J,1/16W
R3104 D0GA104JA039 M 100KOHM,J.1/10W
R3106 D0GA104JA039 M 100KOHM,J.1/10W
R3108 D0GA105JA023 M 1M OHM, J,1/16W
R3109 D0GA103JA039 M 10KOHM,F,1/16W
R3110 D0GA221JA023 M220 OHM, J.1/16 W
R3111 D0GA221JA023 M220 OHM, J.1/16 W
R3113 D0GA473JA039 M 47KOHM J. 1/10W
R3114 D0GA101JA039 M 100OHM, J, 1/16W
R3118 D0GA683JA023 M 68KOHM, J,1/16W
R3119 D0GA102JA039 M 1KOHM, J , 1/16W
R3190 D0GA152JA023 M 1.5KOHM, J,1/16W
R3191 D0GA152JA023 M 1.5KOHM, J,1/16W
R3199 D0GA512JA023 M 5.1KOHM, J,1/16W
R3200 D0GA512JA023 M 5.1KOHM, J,1/16W
R3201 D0GA562JA023 M 5.6KOHM, J,1/16W
R3202 D0GA562JA023 M 5.6KOHM, J,1/16W
R3205 D1BD75R00003 M 75OHM J 1/10W
R3206 D0GA101JA039 M 100OHM, J, 1/16W
R3207 D0GA101JA039 M 100OHM, J, 1/16W
R3210 D1BD75R00003 M 75OHM J 1/10W
Part No. Part Name & Description Q'ty Remarks
Page 51
Model No. : TH-L24XM6G Parts List
Change Safety
Ref.
No.
R3211 D0GA101JA039 M 100OHM, J, 1/16W
R3212 D0GA101JA039 M 100OHM, J, 1/16W
R3215 D1BD75R00003 M 75OHM J 1/10W
R3216 D0GA101JA039 M 100OHM, J, 1/16W
R3217 D0GA101JA039 M 100OHM, J, 1/16W
R4133 D0GAR00J0005 M 0 OHM, 1/16W
R4502 D0GA102JA039 M 1KOHM, J , 1/16W
R4503 D0GA102JA039 M 1KOHM, J , 1/16W
R4831 D0GA104JA039 M 100KOHM,J.1/10W
R4832 D0GA473JA039 M 47KOHM J. 1/10W
R4833 D0GA473JA039 M 47KOHM J. 1/10W
R4834 D0GA103JA039 M 100OHM, J, 1/16W
R4835 D0GA102JA039 M 1KOHM, J , 1/16W
R4846 D0GA104JA039 M 100KOHM,J.1/10W
R4848 D0GA473JA039 M 47KOHM J. 1/10W
R4849 D0GA473JA039 M 47KOHM J. 1/10W
R4851 D0GA103JA039 M 100OHM, J, 1/16W
R4852 D0GA102JA039 M 1KOHM, J , 1/16W
R4886 D0GA103JA039 M 100OHM, J, 1/16W
R4887 D0GA103JA039 M 100OHM, J, 1/16W
R4889 D0GA473JA023 M 47KOHM, J,1/16W
R4894 D0GA103JA039 M 100OHM, J, 1/16W
R4895 D0GA103JA039 M 100OHM, J, 1/16W
R4899 D0GA273JA023 M 27K OHM J ,1/16W
R4901 D1H86804A042 NETWORK RESISTOR
R4903 D1H8R0040016 0 OHM ,J, 1/16W
R4904 D0GAR00J0005 M 0 OHM, 1/16W
R4906 D0GA103JA039 M 10KOHM,F,1/16W
R4915 D0GA683JA023 M 68KOHM, J,1/16W
R4917 D0GAR00J0005 M 0 OHM, 1/16W
R4918 D0GAR00J0005 M 0 OHM, 1/16W
R4919 D0GA472JA023 M 4.7KOHM, J,1/16W
R4973 D0GA103JA039 M 10KOHM,F,1/16W
R4983 D0GA103JA039 M 10KOHM,F,1/16W
R4990 D0GA103JA039 M 10KOHM,F,1/16W
R4998 D0GA103JA039 M 10KOHM,F,1/16W
R4999 D0GA303JA023 M 30K OHM J 0.063W
R5004 D0GA103JA039 M 10KOHM,F,1/16W
R5005 D0GA302JA023 M 3K OHM J ,1/16W
R5009 D0GA333JA023 M 33KOHM,J,1/16W
R5010 D0GA333JA023 M 33KOHM,J,1/16W
R5011 D0GA103JA039 M 10KOHM,F,1/16W
R5015 D0GAR00J0005 M 0 OHM, 1/16W
R5016 D0GA103JA039 M 10KOHM,F,1/16W
R5020 D0GA102JA039 M 1KOHM, J , 1/16W
R5021 D0GA303JA023 M 30K OHM J 0.063W
R5175 D0GA680JA023 M 68 OHM, J,1/16W
R5176 D0GA102JA039 M 1KOHM, J , 1/16W
R5177 D0GA103JA039 M 100OHM, J, 1/16W
R5607 D0GA103JA039 M 100OHM, J, 1/16W
R5610 D1BA3742A023 M 37.4 KOHM,F.1/16 W
R5611 D0GA103JA039 M 100OHM, J, 1/16W
R6721 D0GA102JA039 M 1KOHM, J , 1/16W
R6723 D0GA101JA039 M 100OHM, J, 1/16W
R6724 D0GA101JA039 M 100OHM, J, 1/16W
R6730 D0GA103JA039 M 100OHM, J, 1/16W
R6739 D0GA101JA039 M 100OHM, J, 1/16W
R6740 D0GA101JA039 M 100OHM, J, 1/16W
R6741 D0GA332JA023 M 3.3KOHM, J,1/16W
R6751 D0GA103JA039 M 100OHM, J, 1/16W
R6752 D0GAR00J0005 M 0 OHM, 1/16W
R6757 D0GBR00J0004 M 0 OHM J 1/10W
Part No. Part Name & Description Q'ty Remarks
Page 52
Model No. : TH-L24XM6G Parts List
Change Safety
Ref.
No.
R6758 D0GBR00J0004 M 0 OHM J 1/10W
R6759 D0GBR00J0004 M 0 OHM J 1/10W
R6760 D0GBR00J0004 M 0 OHM J 1/10W
R6761 D0GA104JA039 M 100KOHM,J.1/10W
R6762 D1BA2000A023 M 200 OHM,F.1/16 W
R6763 D1BA1200A023 M 120 OHM,F.1/16 W
R6767 D0GA102JA039 M 1KOHM, J , 1/16W
R6768 D0GAR00J0005 M 0 OHM, 1/16W
R6769 D0GA332JA023 M 3.3KOHM, J,1/16W
R6772 D0GAR00J0005 M 0 OHM, 1/16W
R7101 D0GF105JA048 M 1M OHM. 1/4W
R7102 D0GF105JA048 M 1M OHM. 1/4W
R7103 D0GF105JA048 M 1M OHM. 1/4W
R7104 D0GF105JA048 M 1M OHM. 1/4W
R7311 D0GB183JA065 M 18KOHM,J,1/10W
R7313 D0GD220JA052 M 22 OHM,J,1/8W
R7314 D0GD681JA059 M 680OHM, J , 1/10W
R7315 D0C1R33JA104 M 0.33OHM ,J, 1W
R7317 D0GD680JA059 M 68OHM,J,1/4W
R7318 D0GD471JA052 M 470 OHM,J,1/8W
R7319 D0GB683JA070 M 68KOHM, J,1/16W
R7320 D0GB562JA065 M 5.6KOHM,J,1/10W
R7322 D0GB752JA072 M 7.5KOHM, J,1/10W
R7325 D0GD4R7JA059 M 4.7 OHM,J,1/4W
R7329 D0GDR00J0004 M 0 OHM, 1/8W
R7335 D0B1106JA033 M 10MOHM J 1W
R7342 D0GD182JA052 M 1.8KOHM, J, 1/8W
R7343 D0GD182JA052 M 1.8KOHM, J, 1/8W
R7344 D0GD182JA052 M 1.8KOHM, J, 1/8W
R7346 D0GBR00J0004 M 0 OHM J 1/10W
R7350 D0GDR00J0004 M 0 OHM, 1/8W
R7402 D1BB1692A073 M 16.9 OHM,.1/16 W
R7403 D1BB6041A073 M 6.04KOHM, 1/16W
R7404 D1BB3091A073 M 3.09KOHM, 1/16W
R7405 D1BB1911A073 M 1.91KOHM, 1/16W
R7503 D0GB153JA072 M 15KOHM,J.1/10W
R7504 D0GB153JA072 M 15KOHM,J.1/10W
R7505 D0GBR00J0004 M 0 OHM J 1/10W
R7507 D0GB124JA065 M 120KOHM ,J, 1/16W
R7511 D0GD103JA052 M 10KOHM,J,1/8W
R7512 D0GB472JA072 M 4.7KOHM, J,1/10W
R7515 D0GB222JA072 M 2.2KOHM,J,1/10W
R7516 D0GD472JA052 M 4.7KOHM,J,1/8W
R7517 D0GB222JA072 M 2.2KOHM,J,1/10W
R7519 D0GB123ZA038 M 12KOHM, 1/10W
R7520 D0GB332ZA038 M 3.3KOHM , 1/16W
R7521 D0GD123JA052 M 12KOHM,J,1/8W
R7523 D0GD473JA052 M 47KOHM,J,1/8W
R7524 D0GB473JA072 M 47KOHM J 1/10W
R7530 D1BB2702A074 M 27KOHM,F,1/16W
R7531 D0GBR00J0004 M 0 OHM J 1/10W
R7532 D0GBR00J0004 M 0 OHM J 1/10W
R7544 D1BB3901A055 M 3.9KOHM,J.1/10W
R7545 D1BB1001A055 M 1KOHM,J. 1/10W
R7803 D0GD100JA059 M 10 OHM,J,1/4W
R7804 D0GD470JA059 M 47 OHM,J,1/4W
R7806 D0GB473JA072 M 47KOHM J 1/10W
R7808 ERX1SJR22V M 0.22 OHM ,J, 1/10W
R7811 D0GB102JA071 M 1KOHM,J,1/10W
R7812 D0GD272JA052 M 2.7KOHM,J,1/8W
R7813 D0GB224JA068 M 220KOHM,J,1/10W
R7814 D0GD224JA052 M 220KOHM,J,1/8W
Part No. Part Name & Description Q'ty Remarks
Page 53
Model No. : TH-L24XM6G Parts List
Change Safety
Ref.
No.
R7816 D0GB273JA072 M 27KOHM,J, 1/10W
R7817 D0GB223ZA038 M 22KOHM,J,1/10W
R7818 D0GB302ZA039 M 3KOHM ,F, 1/10W
R7819 D1BB1003A073 M 100KOHM,J.1/10W
R7820 D0GB102JA071 M 1KOHM,J,1/10W
R7821 D0GD1R0JA035 M 1.0 OHM,J,1/4W
R7822 D0GB102JA071 M 1KOHM,J,1/10W
R7824 D0GB154JA068 M 150KOHM J 1/16W
R7826 D0GD473JA052 M 47KOHM,J,1/8W
R7830 D0GBR00JA071 M 0 OHM ,J, 1/16W
R7843 D0GD225JA052 M 2.2MOHM ,J, 1/16W
R7844 D0GB105JA065 M 1M OHM F 1/10W
R8099 D0GAR00J0005 M 0 OHM, 1/16W
R8100 D0GA472JA023 M 4.7KOHM, J,1/16W
R8101 D0GDR00J0004 M 0 OHM, 1/8W
R8103 D0GA103JA039 M 10KOHM,F,1/16W
R8104 D0GA220JA023 M22 OHM, J.1/16 W
R8105 D0GA220JA023 M22 OHM, J.1/16 W
R8106 D0GA220JA023 M22 OHM, J.1/16 W
R8107 D0GA220JA023 M22 OHM, J.1/16 W
R8109 D0GA103JA039 M 10KOHM,F,1/16W
R8110 D0GA220JA023 M22 OHM, J.1/16 W
R8113 D0GA103JA039 M 10KOHM,F,1/16W
R8114 D0GAR00J0005 M 0 OHM, 1/16W
R8116 D0GBR00J0004 M 0 OHM J 1/10W
R8120 D0GAR00J0005 M 0 OHM, 1/16W
R8131 D0GAR00J0005 M 0 OHM, 1/16W
R8135 D0GAR00J0005 M 0 OHM, 1/16W
R8136 D0GAR00J0005 M 0 OHM, 1/16W
R8137 D0GA103JA039 M 10KOHM,F,1/16W
R8138 D0GAR00J0005 M 0 OHM, 1/16W
R8139 D1BA6201A023 M 6.2 KOHM,F.1/16 W
R8141 D1BA2400A023 M 240 OHM,F.1/16 W
R8143 D0GA220JA023 M22 OHM, J.1/16 W
R8204 D1BA1001A023 M 1 KOHM,F.1/16 W
R8207 D1BA1001A023 M 1 KOHM,F.1/16 W
R8240 D0GA103JA039 M 10KOHM,F,1/16W
R8300 D0GAR00J0005 M 0 OHM, 1/16W
R8301 D1BA4702A023 M 47 KOHM,F.1/16 W
R8302 D1BA3601A023 M 3.6KOHM,F 1/16 W
R8303 D1BA5102A023 M 5.2KOHM,J,1/10W
R8305 D0GAR00J0005 M 0 OHM, 1/16W
R8306 D0GBR00J0004 M 0 OHM J 1/10W
R8308 D0GA471JA023 M 470OHM, J,1/16W
R8700 D1BA56R0A023 M 56 OHM,F.1/16 W
R8701 D1BA1200A023 M 120 OHM,F.1/16 W
R8702 D0GAR00J0005 M 0 OHM, 1/16W
R8703 D1BA2002A023 M 20K OHM,F.1/16 W
R8704 D1BA5601A023 M 5.6K OHM ,F, 1/16W
R8705 D1BA3002A023 M 30KOHM,F. 1/16 W
R8706 D0GAR00J0005 M 0 OHM, 1/16W
R8707 D1BA3601A023 M 3.6KOHM,F 1/16 W
R8708 D1BA2402A023 M 24KOHM,F,1/16W
R8709 D1BA1102A023 M 11KOHM ,F, 1/16W
R8722 D0GAR00J0005 M 0 OHM, 1/16W
R8723 D0GAR00J0005 M 0 OHM, 1/16W
R8726 D0GA103JA039 M 10KOHM,F,1/16W
R8728 D0GA333JA023 M 33KOHM,J,1/16W
R8729 D0GA682JA023 M 6.8KOHM, J,1/16W
R8730 D0GA333JA023 M 33KOHM,J,1/16W
R8737 D0GAR00J0005 M 0 OHM, 1/16W
R8739 D0GA103JA039 M 10KOHM,F,1/16W
Part No. Part Name & Description Q'ty Remarks
Page 54
Model No. : TH-L24XM6G Parts List
Change Safety
TRANSFORMER
OTHERS
Ref.
No.
R8740 D0GA103JA039 M 10KOHM,F,1/16W
R8745 D0GAR00J0005 M 0 OHM, 1/16W
R8751 D0GA104JA039 M 100KOHM,J.1/10W
R8752 D0GDR00J0004 M 0 OHM, 1/8W
R8753 D1BA1200A023 M 120 OHM,F.1/16 W
R8754 D1BA56R0A023 M 56 OHM,F.1/16 W
R8900 D0GA472JA023 M 4.7KOHM, J,1/16W
R8901 D0GA103JA039 M 10KOHM,F,1/16W
R8902 D0GA103JA039 M 10KOHM,F,1/16W
R982 D0GAR00J0005 M 0 OHM, 1/16W
R983 D0GAR00J0005 M 0 OHM, 1/16W
T7301A G4DYA0000457 SWITCHING TRANSFORMER
A09 K1KY12BA0388 CONNECTOR
A10 K1KY07AA0719 CONNECTOR
A12 K1KY04BA0387 CONNECTOR
A21 K1KY30BA0275 CONNECTOR
CF7101 D4CAY4R7A096 THERMISTOR RESISTOR
CN0100 K1KA14A00248 CONNECTOR
F7101 K5E502YYA162 FUSE
FL4201 EXC28CE201U CHOKE COIL
FL4202 EXC28CE201U CHOKE COIL
FL4203 EXC28CE201U CHOKE COIL
JA11 D0GFR00J0005 CHIP RESISTOR
JA13 D0GFR00J0005 CHIP RESISTOR
JA14 D0GFR00J0005 CHIP RESISTOR
JA15 D0GFR00J0005 CHIP RESISTOR
JA16 D0GFR00J0005 CHIP RESISTOR
JA22 D0GFR00J0005 CHIP RESISTOR
JA24 D0GFR00J0005 CHIP RESISTOR
JA3 D0GFR00J0005 CHIP RESISTOR
JA4 D0GFR00J0005 CHIP RESISTOR
JA51 D0GDR00J0004 CHIP RESISTOR
JA53 D0GDR00J0004 CHIP RESISTOR
JA54 D0GDR00J0004 CHIP RESISTOR
JA55 D0GDR00J0004 CHIP RESISTOR
JA57 D0GDR00J0004 CHIP RESISTOR
JA60 D0GDR00J0004 CHIP RESISTOR
JA62 D0GDR00J0004 CHIP RESISTOR
JK3000 K1U204D00004 AV TERMINAL
JK3001 K1U511D00004 AV TERMINAL
JK3002 K1U307E00002 AV TERMINAL
JK4701 K1FY119D0029 TERMINAL
JK4702 K1FY119D0029 TERMINAL
JK6750 K1ZZ00001551 TUNER SHIELD
JK7101 K2AAYA000003 TERMINAL
JK8601 K1FY104B0095 AV TERMINAL
JS0011 D0GAR00J0005 CHIP RESISTOR
JS0023 D0GAR00J0005 CHIP RESISTOR
JS7803 D0GFR00J0005 CHIP RESISTOR
K10 K1KY07BA0483 CONNECTOR
LF7103 G0B243G00002 LINE FILTER
LF7104A G0B243G00002 LINE FILTER
P2 K1KY14BA0386 CONNECTOR
P3 K1KY06BA0402 CONNECTOR
PA7501 ERBRE4R00V FUSE RESISTOR
PC7300 B3PAA0000629 PHOTO COUPLER
PC7301 B3PAA0000629 PHOTO COUPLER
RM2800 B3RBB0000018 PHOTO DETECTOR
SN2800 B3JB00000208 IC
SW7401 EVQ11G05R SWITCH
Part No. Part Name & Description Q'ty Remarks
Page 55
Model No. : TH-L24XM6G Parts List
Change Safety
Ref.
No.
SW7402 EVQ11G05R SWITCH
SW7403 EVQ11G05R SWITCH
SW7404 EVQ11G05R SWITCH
SW7405 EVQ11G05R SWITCH
SW7406 EVQ11G05R SWITCH
X6701 H0J240500067 CRYSTAL OSCILLATOR
X8301 H0J270500137 RESONATORS
ZA7950 K4AD01A00004 RUG TERMINAL
ZA7951 K4AD01A00004 RUG TERMINAL
Part No. Part Name & Description Q'ty Remarks
Page 56
Model No. : TH-L24XM6G Parts List
Change Safety
Exploded View
Electrical Replacement Part List
Ref.
No.
1 K2CQ2YY00109 AC CORD
2 L0AA10C00009 SPEAKER
3 L5EDDYY00449 LCD PANEL
4 N2QAYB000823 REMOTE TRANSMITTER
5 TBL5ZX05931 PEDESTAL ASSY
6 TKK5ZC50311 LED PANEL
7 TKP5ZA32203 SIDE AV BRACKET
8 TPD4GA04181 TOP CUSHION
9 TPD4GA04191 BOTTOM CUSHION
10 TPE4GH093 SET COVER
11 TQZ4GB686 FAN BAG ASSY
12 TTU4GA0985 BACK COVER ASSY
13 TTY4GA0316 CABINET ASSY
14 TXFPC01SBUG PACKING CASE
RTL TXN/K1RDUK K PRINT
RTL TXN/P1RFUK P PRINT
RTL TZT/A1RFUK A PRINT ASSY
Part No. Part Name & Description Q'ty Remarks
TBM4GD1351 MODEL NAME PLATE
TSCFH0140001 LVDS FFC
TXFKP5Z0201 KEY BUTTON ASSY
XYN4+F12FJK STAND BRAC SCREW
Loading...
