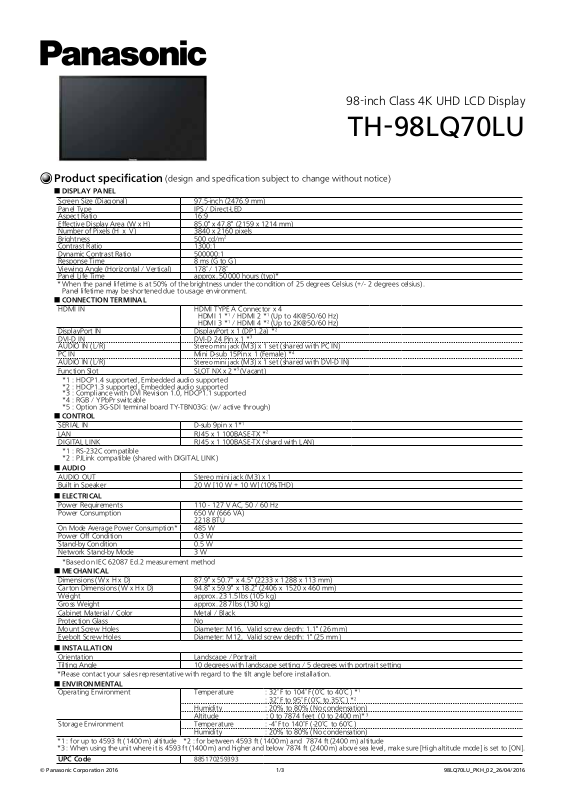

Panasonic TH98LQ70LU Specifications

98-inch Class 4K UHD LCD Display

TH-98LQ70LU

(design and specification subject to change without notice)

Product specification

■ DISPLAY PANEL

Screen Size (Diagonal) 97.5-inch (2476.9 mm) Panel Type IPS / Direct-LED Aspect Ratio 16:9 Effective Display Area (W x H) 85.0" x 47.8" (2159 x 1214 mm) Number of Pixels (H ｘ V) 3840 x 2160 pixels Brightness 500 cd/m Contrast Ratio 1300:1 Dynamic Contrast Ratio 500000:1 Response Time 8 ms (G to G) Viewing Angle (Horizontal / Vertical) 178°/ 178° Panel Life Time approx. 50000 hours (typ)*

* When the panel lifetime is at 50% of the brightness under the condition of 25 degrees Celsius (+/- 2 degrees celsius).

Panel lifetime may be shortened due to usage environment.

■ CONNECTION TERMINAL

HDMI IN HDMI TYPE A Connector x 4

DisplayPort IN DisplayPort x 1 (DP1.2a) * DVI-D IN DVI-D 24 Pin x 1 * AUDIO IN (L/R) PC IN Mini D-sub 15Pin x 1 (Female) * AUDIO IN (L/R) Function Slot SLOT NX x 2*

*1 : HDCP1.4 supported, Embedded audio supported *2 : HDCP1.3 supported, Embedded audio supported *3 : Compliance with DVI Revision 1.0, HDCP1.1 supported *4 : RGB / YPbPr switcable *5 : Option 3G-SDI terminal board TY-TBN03G: (w/ active through)

■ CONTROL

SERIAL IN D-sub 9pin x 1* LAN RJ45 x 1 100BASE-TX * DIGITAL LINK RJ45 x 1 100BASE-TX (shard with LAN)

*1 : RS-232C compatible *2 : PJLink compatible (shared with DIGITAL LINK)

■ AUDIO

AUDIO OUT Stereo mini jack (M3) x 1 Built in Speaker 20 W [10 W + 10 W] (10%THD)

■ ELECTRICAL

Power Requirements 110 - 127 V AC, 50 / 60 Hz Power Consumption 650 W (666 VA)

On Mode Average Power Consumption* Power Off Condition 0.3 W Stand-by Condition 0.5 W Network Stand-by Mode 3 W

*Based on IEC 62087 Ed.2 measurement method

■ MECHANICAL

Dimensions (W x H x D) 87.9" x 50.7" x 4.5" (2233 x 1288 x 113 mm) Carton Dimensions (W x H x D) 94.8" x 59.9" x 18.2" (2406 x 1520 x 460 mm) Weight approx. 231.5 lbs (105 kg) Gross Weight approx. 287 lbs (130 kg) Cabinet Material / Color Metal / Black Protection Glass No Mount Screw Holes Diameter: M16, Valid screw depth: 1.1" (26 mm) Eyebolt Screw Holes Diameter: M12, Valid screw depth: 1" (25 mm)

■ INSTALLATION

Orientation Landscape / Portrait Tilting Angle 10 degrees with landscape setting / 5 degrees with portrait setting

*Please contact your sales representative with regard to the tilt angle before installation.

■ ENVIRONMENTAL

Operating Environment Temperature : 32°F to 104°F (0℃ to 40℃) *

Storage Environment

*1 : for up to 4593 ft (1400 m) altitude　*2 : for between 4593 ft (1400 m) and 7874 ft (2400 m) altitude *3 : When using the unit where it is 4593 ft (1400 m) and higher and below 7874 ft (2400 m) above sea level, make sure [High altitude mode] is set to [ON].

UPC Code

HDMI 1 * HDMI 3 *

Stereo mini jack

2218 BTU 485 W

Humidity : 20% to 80% (No condensation) Altitude ：0 to 7874 feet (0 to 2400 m)* Temperature : -4°F to 140°F (-20℃ to 60℃) Humidity : 20% to 80% (No condensation)

885170259393

/ HDMI 2 *1 (Up to 4K@50/60 Hz)

/ HDMI 4 *2 (Up to 2K@50/60 Hz)

(M3) x 1 set (shared with PC IN)

(M3) x 1 set (shared with DVI-D IN)

(Vacant)

: 32°F to 95°F (0℃ to 35℃) *

98-inch Class 4K UHD LCD Display

TH-98LQ70LU

MAIN FEATURE

Automatic Picture Position Yes 4 Input Multi Display (up to FHD) Yes Screen Saver Yes PC Power Management Yes HDMI Power Management Yes DVI-D Power Management Yes ECO Mode Yes Button Lock Yes Remote-control Lock Yes Power-on Screen Delay Yes Input Search Yes Local Dimming Yes Operating Time* 24 h/day

*In case of running for a long time, the moving image is recommended

to be displayed. If you display a still picture for an extended period, the image retention might remain on the scree.However, imageretention can gradually disapperar by displaying a movie images.

DIMENSIONS

52.9(1342)

OPTIONAL ACCESSORIES

3G-SDI Terminal Board TY-TBN03G* Pedestal TY-ST103PF9 Wall-hanging Bracket TY-WK103PV9 Celling-hanging Bracket TY-CE103PS10* Digital Interface Box ET-YFB100G

*1 2 boards (total 3G-SDI x 4) required for 4K@50/60 Hz,

1 board (total 3G-SDI x 2) required for up to 4K@25/30 Hz

*2 Tilt angle limited to 10 degree maximum

STANDARD (CERTIFICATIONS)

Safety Regulations UL60065, CAN/CSA22.2 No 60065:03 Radiation Regulations FCC Part15 Class B, ICES-003

INCLUDED ACCESSORIES

AC power cord (Approx. 118" (3 m)), Operating Instructions (Book), (CD-ROM), Remote Control Transmitter,Batteries x 2, Clamper, Eyebolt cap, Eyebolt, Panasonic badge, Panasonic badge attachment plate, Allen wrench

Cautions: This drawing is not a scale

Units : inches (mm)

87.9(2233)

1.3(32.5)

0.1(2.9)

1.3(32.5)

0.1(2.9)

AUDIO IN

PC-IN

DVI-D IN

1.3(32.5)

CONNECTION TERMINAL

0.1(2.9)

AUDIO OUT

SERIAL

Display Port

DIGITAL LINK/LANHDMI

1.3(32.5)

0.1(2.9)

2.3(57.7)

1.1(27.6)

50.7(1288)

4.5(113)

59.6(1512)

44.1(1120)

23.2(590)

AC INLET

* Specifications and appearance are subject to change without notice.
