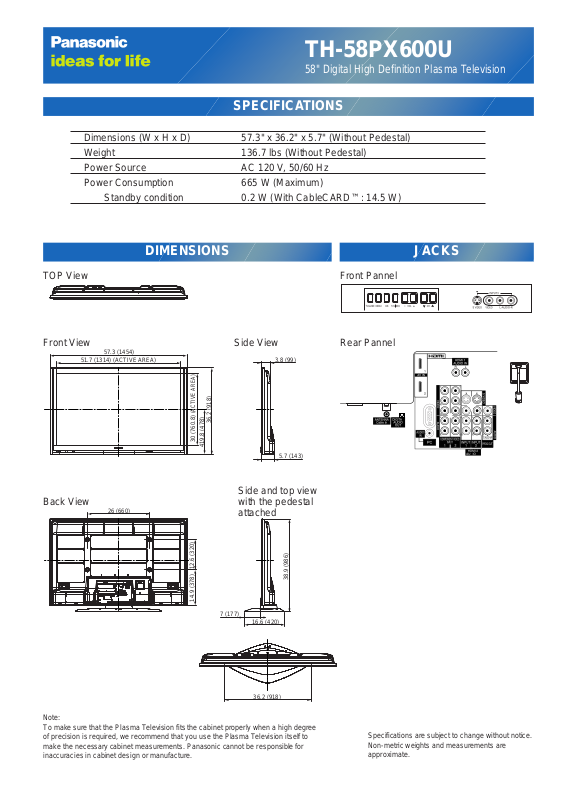

Panasonic th-58px600 cut sheet

TH-58PX600U

58" Digital High Definition Plasma Television

Dimensions (W x H x D) 57.3" x 36.2" x 5.7" (Without Pedestal)
Weight 136.7 lbs (Without Pedestal)
Power Source AC 120 V, 50/60 Hz
Power Consumption 665 W (Maximum)

Standby condition 0.2 W (With CableCARD™: 14.5 W)

SPECIFICATIONS

DIMENSIONS JACKS

TOP View

51.7 (1314) (ACTIVE AREA)

26 (660)

57.3 (1454)

3.8 (99)

5.7 (143)

36.2 (918)

7 (177)

16.6 (420)

30 (760.8)

(ACTIVE AREA)

36.2 (918)

38.9 (986)

14.9 (378) 12.6 (320)

419.8 (478)

Front View

Back View

Side and top view
with the pedestal
attached

Note:
To make sure that the Plasma Television fits the cabinet properly when a high degree
of precision is required, we recommend that you use the Plasma Television itself to
make the necessary cabinet measurements. Panasonic cannot be responsible for
inaccuracies in cabinet design or manufacture.

Specifications are subject to change without notice.
Non-metric weights and measurements are
approximate.

Front Pannel

Rear PannelSide View
