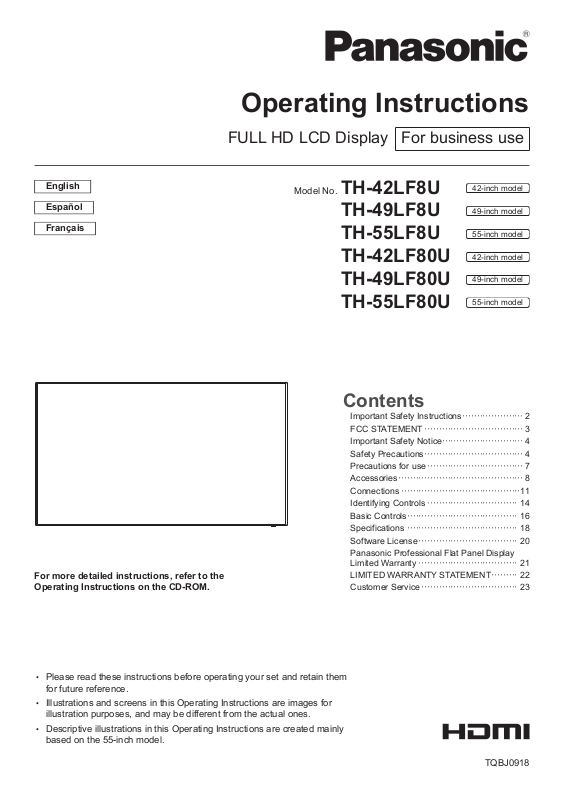

Panasonic TH-55LF8U, TH-49LF8U, TH-49LF80U, TH-42LF8U, TH-55LF80U User Manual

English

Español

Français

For more detailed instructions, refer to the
Operating Instructions on the CD-ROM.

Operating Instructions

FULL HD LCD Display For business use

Model No.

TH-42LF8U

TH-49LF8U

TH-55LF8U
TH-42LF80U

TH-49LF80U
TH-55LF80U

Contents

Important Safety Instructions ····················· 2
FCC STATEMENT ··································3
Important Safety Notice ···························· 4
Safety Precautions ·································· 4
Precautions for use ·································7
Accessories ···········································8
Connections ·········································11
Identifying Controls ······························· 14
Basic Controls ······································ 16
Specifications ······································ 18
Software License ·································· 20
Panasonic Professional Flat Panel Display

Limited Warranty ·································· 21
LIMITED WARRANTY STATEMENT ········· 22

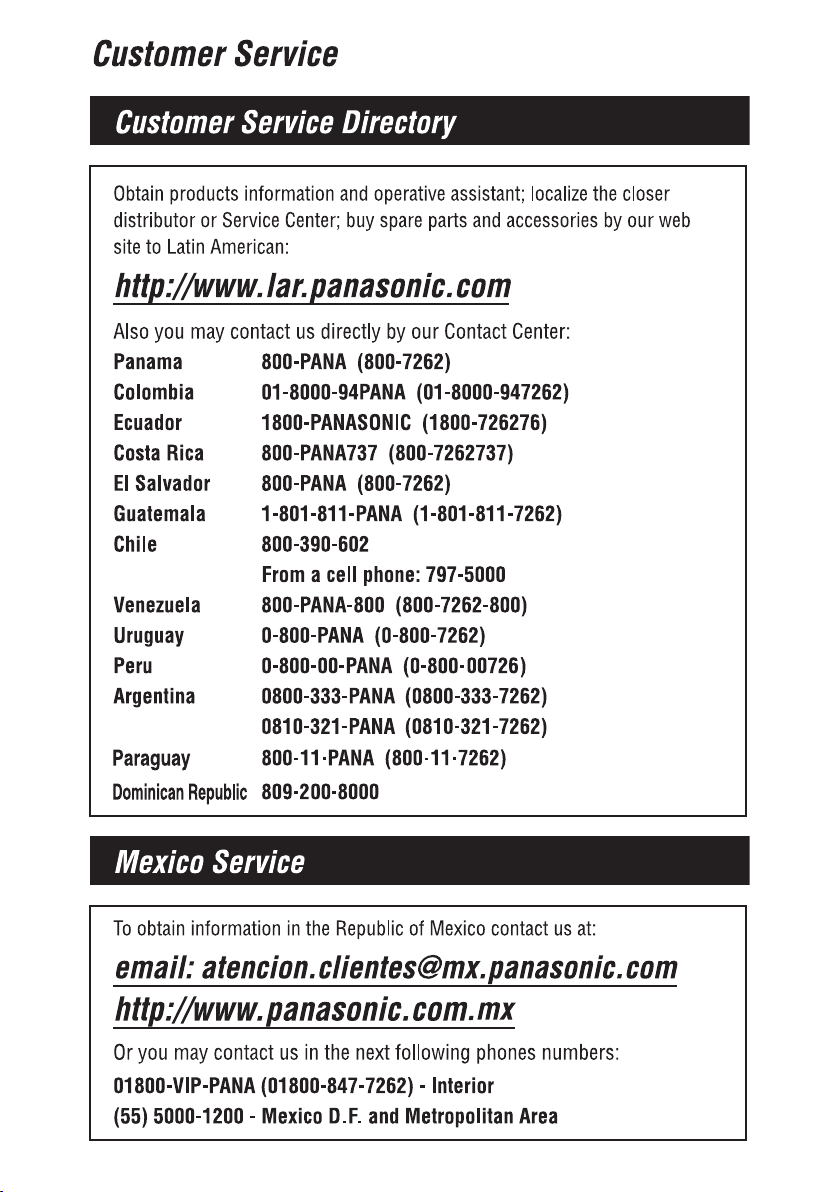

Customer Service ································· 23

42-inch model

49-inch model

55-inch model

42-inch model

49-inch model

55-inch model

Please read these instructions before operating your set and retain them

•

for future reference.
Illustrations and screens in this Operating Instructions are images for

•

illustration purposes, and may be different from the actual ones.
Descriptive illustrations in this Operating Instructions are created mainly

•

based on the 55-inch model.

TQBJ0918

CAUTION

RISK OF ELECTRIC

WARNING: To reduce the risk of electric shock,
do not remove cover or back.

No user-serviceable parts inside. Refer servicing
to qualified service personnel.

WARNING :
To prevent damage which may result in fire or

shock hazard, do not expose this apparatus to
rain or mois ture.

Do not place containers with water (flower vase,
cups, cosmetics, etc.) above the set.

(including on shelves above, etc.)

WARNING :

1) To prevent electric shock, do not remove cover. No
user serviceable parts inside. Refer servicing to
qualified service personnel.

2) Do not remove the grounding pin on the power
plug. This apparatus is equipped with a three pin
grounding-type power plug. This plug will only fit
a grounding-type power outlet. This is a safety
fea ture. If you are unable to insert the plug into the
outlet, contact an electrician.

Do not defeat the purpose of the grounding plug.

SHOCK
DO NOT OPEN

The lightning flash with arrow-head within a
triangle is in tend ed to tell the user that parts
inside the product are a risk of electric shock
to per sons.

The exclamation point within a triangle
is intended to tell the user that important
operating and servicing instructions are in the
papers with the ap pli ance.

Important Safety
Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The
wide blade or the third prong are provided for your
safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the
obsolete outlet.

10) Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.

11) Only use attachments / accessories specified by the
manufacturer.

12) Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart / apparatus combination
to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or
when unused for long periods of time.

14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.

15) To prevent electric shock, ensure the grounding pin
on the AC cord power plug is securely connected.

English

2

FCC STATEMENT

This equipment has been tested and found to comply
with the limits for a class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference when the equipment is operated in a
commercial environment. This equipment generates,
uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions
manual, may cause harmful interference to radio
communications. Operation of this equipment in a
residential area is likely to cause harmful interference
in which case the user will be required to correct the
interference at his own expense.

FCC CAUTION:
To assure continued compliance, follow the attached

installation instructions and use only the provided
power supply cord. Any changes or modifications
not expressly approved by Panasonic Corp. of North
America could void the user’s authority to operate
this device.

Declaration of Verification
Model No.

TH-42LF8U, TH-49LF8U, TH-55LF8U, TH-42LF80U,
TH-49LF80U, TH-55LF80U

Responsible Party:

Panasonic Corporation of North America
Two Riverfront Plaza, Newark, New Jersey
07102-5490

Contact Source:

Panasonic System Communications Company of
North America

1-877-655-2357

General Contact:

http://www.panasonic.com/contactinfo

This device complies with Part 15 of the FCC Rules and
all applicable IC RSS standards. Operation is subject
to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must
accept any interference received, including interference
that may cause undesired operation.

CANADIAN NOTICE:

This Class A digital apparatus complies with
Canadian ICES-003.

WARNING:

Not for use in a computer room as defined in the

•

Standard for the Protection of Electronic Computer/
Data Processing Equipment, ANSI/NFPA 75.

For permanently connected equipment, a readily

•

accessible disconnect device shall be incorporated
in the building installation wiring.

For pluggable equipment, the socket-outlet shall

•

be installed near the equipment and shall be easily
accessible.

Note:

Image retention may occur. If you display a still
picture for an extended period, the image might
remain on the screen. However, it will disappear when
a general moving picture is displayed for a while.

Trademark Credits

Microsoft, Windows, Windows Vista and Internet

•

Explorer are the registered trademarks or trademarks
of Microsoft Corporation in the United States and/or
other countries.

Macintosh, Mac, Mac OS, OS X and Safari are the

•

trademarks of Apple Inc. registered in the United
States and other countries.

PJLink is a registered or pending trademark in Japan,

•

the United States, and other countries and regions.
HDMI, the HDMI Logo, and High-Definition

•

Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC in the United
States and other countries.

JavaScript is a registered trademark or a trademark of

•

Oracle Corporation and its subsidiary and associated
companies in the United States and/or other
countries.

RoomView, Crestron RoomView and Fusion RV are

•

registered trademarks of Crestron Electronics, Inc.
Crestron Connected is the trademark of Crestron

Electronics, Inc.

Even if no special notation has been made of company
or product trademarks, these trademarks have been fully
respected.

English

3

Important Safety

Safety Precautions

Notice

WARNING

1) To prevent damage which may result in fire or
shock hazard, do not expose this appliance to
dripping or splashing.

Do not place containers with water (flower vase,
cups, cosmetics, etc.) above the set. (including on
shelves above, etc.)

No naked flame sources, such as lighted candles,
should be placed on / above the set.

2) To prevent electric shock, do not remove cover. No
user serviceable parts inside. Refer servicing to
qualified service personnel.

3) Do not remove the earthing pin on the power
plug. This apparatus is equipped with a three pin
earthing-type power plug. This plug will only fit an
earthing-type power outlet. This is a safety feature.
If you are unable to insert the plug into the outlet,
contact an electrician.

Do not defeat the purpose of the earthing plug.

4) To prevent electric shock, ensure the earthing pin
on the AC cord power plug is securely connected.

CAUTION

This appliance is intended for use in environments
which are relatively free of electromagnetic fields.

Using this appliance near sources of strong
electromagnetic fields or where electrical noise may
overlap with the input signals could cause the picture
and sound to wobble or cause interference such as
noise to appear.

To avoid the possibility of harm to this appliance, keep
it away from sources of strong electromagnetic fields.

WARNING

■ Setup

This LCD Display is for use only with the following
optional accessories.

Use with any other type of optional accessories may
cause instability which could result in the possibility
of injury.

(All of the following accessories are manufactured by
Panasonic Corporation.)

Pedestal

•

TY-ST43PE8

Digital Interface Box

•

ET-YFB100G

DIGITAL LINK Switcher

•

ET-YFB200G

Early Warning Software

•

ET-SWA100 series

Video Wall Manager

•

TY-VUK10

1: Suffix of the part number may differ depending on

*

the license type.

2: Supports Ver1.1 or later.

*

Note

●

The part number of the optional accessories are
subject to change without notice.

We are not responsible for any product damage, etc.
caused by failures in the installation environment for
the pedestal or wall-hanging bracket even during the
warranty period.

Always be sure to ask a qualified technician to carry out
set-up.

Small parts can present choking hazard if accidentally
swallowed. Keep small parts away from young children.
Discard unneeded small parts and other objects,
including packaging materials and plastic bags/sheets to
prevent them from being played with by young children,
creating the potential risk of suffocation.

Do not place the Display on sloped or unstable
surfaces, and ensure that the Display does not hang
over the edge of the base.

The Display may fall off or tip over.

•

Install this unit at a location with minimal vibration
and which can support the weight of the unit.

Dropping or falling of the unit may cause injury or

•

malfunction.

Do not place any objects on top of the Display.

If foreign objects or water get inside the Display, a

•

short-circuit may occur which could result in fire or
electric shock. If any foreign objects get inside the
Display, please consult your local Panasonic dealer.

Transport only in upright position!

1

*

2

*

English

4

Transporting the unit with its display panel facing

•

upright or downward may cause damage to the
internal circuitry.

Ventilation should not be impeded by covering
the ventilation openings with items such as
newspapers, table cloths and curtains.

For sufficient ventilation, see page 7.
Caution - For use only with UL Listed Wall Mount

Bracket with minimum weight/load 24.7 kg (54.5 lbs).
When installing the Display vertically;

When installing the Display vertically, be sure that
the Power Indicator comes to the downside. Heat is
generated and it may cause fire or damage to the
Display.

Power indicator

Cautions for Wall or Pedestal Installation

Wall or Pedestal installation should be performed

•

by an installation professional. Installing the Display
incorrectly may lead to an accident that results in
death or serious injury. Use the optional Pedestal.

When installing on a wall, a wall hanging bracket that

•

conforms to VESA standards must be used.

42-inch model

49-inch model 55-inch model

: VESA 200×200

: VESA 400×400

(see page 7)
If you terminate the use of the Display on the Wall or

•

Pedestal, ask a professional to remove the Display as
soon as possible.

When mounting the Display on the wall, prevent the

•

mounting screws and power cable from contacting
metal objects inside the wall. An electric shock may
occur if they contact metal objects inside the wall.

Do not install the product to a place where the
product is exposed to direct sunlight.

If the screen is exposed to direct sunlight, the liquid

•

crystal panel may have adverse effect.

■ When using the LCD Display

The Display is designed to operate on 110 - 127 V
AC, 50/60 Hz.

Do not cover the ventilation holes.

Doing so may cause the Display to overheat, which

•

can cause fire or damage to the Display.

Do not stick any foreign objects into the Display.

Do not insert any metal or flammable objects into the

•

ventilations holes or drop them onto the Display, as
doing so can cause fire or electric shock.

Do not remove the cover or modify it in any way.

High voltages which can cause severe electric shocks

•

are present inside the Display. For any inspection,
adjustment and repair work, please contact your local
Panasonic dealer.

Ensure that the mains plug is easily accessible.
The mains plug shall be connected to a mains

socket outlet with a protective earthing connection.
Do not use any power supply cord other than that

provided with this unit.

Doing so may cause short-circuit, generates heat,

•

etc., which could cause electric shock or fire.

Do not use the supplied power supply cord with any
other devices.

Doing so could cause electric shock or fire.

•

Securely insert the power supply plug as far as it
will go.

If the plug is not fully inserted, heat may be generated

•

which could cause fire. If the plug is damaged or the
wall socket is loose, they shall not be used.

Do not handle the power supply plug with wet
hands.

Doing so may cause electric shocks.

•

Do not do anything that may damage the power
cable. When disconnecting the power cable, pull on
the plug body, not the cable.

Do not damage the cable, make any modifications

•

to it, place heavy objects on top of it, heat it, place it
near any hot objects, twist it, bend it excessively or
pull it. To do so may cause fire and electric shock. If
the power cable is damaged, have it repaired at your
local Panasonic dealer.

Do not remove covers and NEVER modify the
Display yourself

Do not remove the rear cover as live parts are

•

accessible when it is removed. There are no user
serviceable parts inside. (High-voltage components
may cause serious electrical shock.)

Have the Display checked, adjusted, or repaired at

•

your local Panasonic dealer.

Keep the supplied AAA/R03/UM4 batteries out of
reach of children. If accidentally swallowed, it will be
harmful to the body.

Please contact a doctor immediately in case you

•

doubt that the child may have swallowed it.

If the Display is not going to be used for any
prolonged length of time, unplug the power supply
plug from the wall outlet.

Picture noise may occur if you connect / disconnect
the connection cables of the input terminals you
are currently not watching, or if you turn the power
of the video equipment on / off, but it is not a
malfunction.

To prevent the spread of fire, keep
candles or other open flames away from
this product at all times.

English

5

CAUTION

If problems or malfunction occur, stop using
immediately.

■ If problems occur, unplug the power supply

plug.

Smoke or an abnormal odour come out from the unit.

•

No picture appears or no sound is heard,

•

occasionally.
Liquid such as water or foreign objects got inside the

•

unit.
The unit has deformed or broken parts.

•

If you continue to use the unit in this condition, it
could result in fire or electric shock.

Turn the power off immediately, unplug the power

•

supply plug from the wall outlet, and then contact the
dealer for repairs.

To cut off the power supply to this Display completely,

•

you need to unplug the power supply plug from the
wall outlet.

Repairing the unit yourself is dangerous, and shall

•

never be done.
To enable to unplug the power supply plug

•

immediately, use the wall outlet which you can reach
easily.

■ When using the LCD Display

Do not bring your hands, face or objects close to the
ventilation holes of the Display.

Heated air comes out from the ventilation holes at the

•

top of Display will be hot. Do not bring your hands or
face, or objects which cannot withstand heat, close to
this port, otherwise burns or deformation could result.

At least 2 people are required to carry or unpack
this unit.

If this is not observed, the unit may drop, resulting in

•

injury.

Be sure to disconnect all cables before moving the
Display.

If the Display is moved while some of the cables are

•

still connected, the cables may become damaged,
and fire or electric shock could result.

Disconnect the power supply plug from the wall
socket as a safety precaution before carrying out
any cleaning.

Electric shocks can result if this is not done.

•

Clean the power cable regularly to prevent it
becoming dusty.

If dust built up on the power cord plug, the resultant

•

humidity can damage the insulation, which could
result in fire. Pull the power cord plug out from the
wall outlet and wipe the mains lead with a dry cloth.

Do not step on, or hang from the display or the
Pedestal.

They might tip over, or might be broken and it may

•

result in injury. Pay special attention to the children.

Do not reverse the polarity (+ and -) of the battery
when inserting.

Mishandling the battery may cause its explosion

•

or leakage, resulting in fire, injury or damage to
surrounding properties.

Insert the battery correctly as instructed. (see page 9)

•

Remove the batteries from the remote control
transmitter when not using for a long period of time.

The battery may leak, heat, ignite or burst, resulting in

•

fire or damage to surrounding properties.

Do not burn or breakup batteries.

Batteries must not be exposed to excessive heat such

•

as sunshine, fire or the like.

Do not turn the Display upside down.
Do not position the unit with its display panel facing

upright.

English

6

Precautions for use

Cautions when installing

Do not set up the Display outdoors.

The Display is designed for indoor use.

•

Environmental temperature to use this unit

When using the unit where it is below 1 400 m (4 593

•

ft) above sea level: 0 °C to 40 °C (32 °F to 104 °F)
When using the unit at high altitudes (1 400 m (4 593

•

ft) and higher and below 2 800 m (9 186 ft) above sea
level): 0 °C to 35 °C (32 °F to 95 °F)

Do not install the unit where it is 2 800 m (9 186 ft)
and higher above sea level.

Failure to do so may shorten the life of the internal

•

parts and result in malfunctions.

Required space for ventilation

When using the pedestal (optional accessory), leave
a space of 10 cm (3
right, and 5 cm (1
keep the space between the bottom of the display and
the floor surface.

If using some other setting-up method (wall-hanging,
etc), follow the manual of it. (If there is no specific
indication of installation dimension in the installation
manual, leave a space of 10 cm (3
top, bottom, left and right, and 5 cm (1 31/32”) or more at
the rear.)

Minimum distance:

a

About the screws used when using a wall hanging
bracket that conforms to VESA standards

Inch

model

42 200 mm × 200 mm 10 mm M6 (4)
49 400 mm × 400 mm 10 mm M6 (4)
55 400 mm × 400 mm 10 mm M6 (4)

When installing, do not use the screw holes
(situated at the bottom of the display’s back) as
shown in the following figures.

It may damage the LCD panel.

42-inch model

49-inch model

15/16”) or more at the top, left and

31/32”) or more at the rear, and also

15/16”) or more at the

a

a

Screw pitch for

installation

b

Depth of

screw

hole

a: 10 cm

15/16”)

(3

b: 5 cm

31/32”)

(1

(quantity)

Screw

55-inch model

Be careful of the movable structure of the power
indicator and remote control sensor.

As factory default, the power indicator and remote

•

control sensor are stored in the main unit. For normal
use, pull out the remote control sensor from the edge
side of the main unit by operating the lever on the
rear panel. Depending on the setup condition such as
when using the multi display, store the remote control
sensor in the main unit. (see page 14)

Do not grab the liquid crystal panel.

Do not forcibly press the liquid crystal panel, or push

•

it with a pointed object. Applying a strong force to
the liquid crystal panel will cause unevenness of the
screen display, resulting in malfunction.

Depending on the temperature or humidity
conditions, uneven brightness may be observed.
This is not a malfunction.

This unevenness will disappear while applying current

•

continuously. If not, consult the distributor.

Cleaning and maintenance

The front of the display panel has been specially
treated. Wipe the surface of the display panel gently
using only a cleaning cloth or a soft, lint-free cloth.

If the surface is particularly dirty, wipe with a soft,

•

lint-free cloth which has been soaked in pure water or
water in which neutral detergent has been diluted 100
times, and then wipe it evenly with a dry cloth of the
same type until the surface is dry.

Do not scratch or hit the surface of the panel with

•

fingernails or other hard objects, otherwise the
surface may become damaged. Furthermore, avoid
contact with volatile substances such as insect
sprays, solvents and thinner, otherwise the quality of
the surface may be adversely affected.

If the cabinet becomes dirty, wipe it with a soft, dry
cloth.

If the cabinet is particularly dirty, soak the cloth in

•

water to which a small amount of neutral detergent
has been added and then wring the cloth dry. Use this
cloth to wipe the cabinet, and then wipe it dry with a
dry cloth.

Do not allow any detergent to come into direct contact

•

with the surface of the Display. If water droplets get
inside the unit, operating problems may result.

Avoid contact with volatile substances such as insect

•

sprays, solvents and thinner, otherwise the quality of
the cabinet surface may be adversely affected or the
coating may peel off. Furthermore, do not leave it for
long periods in contact with articles made from rubber

English

7

or PVC.

Usage of a chemical cloth

Do not use a chemical cloth for the panel surface.

•

Follow the instructions for the chemical cloth to use it

•

for the cabinet.

Wired LAN

When setting up the Display at a place, where
electric statistic occurs often, take a sufficient anti­static measure before start using.

When the Display is used at a location, where

•

static electricity occurs often, such as on a carpet,
communications of the wired LAN or DIGITAL LINK
are disconnected more often. In that case, remove
static electricity and the noise source that may cause
problems with an antistatic mat, and re-connect the
wired LAN or DIGITAL LINK.

In rare cases, the LAN connection is disabled due

•

to static electricity or noise. In that case, turn off the
power of the Display and the connected devices once
and then re-turn on the power.

The Display may not work properly due to strong
radio wave from the broadcast station or the radio.

If there is any facility or equipment, which outputs

•

strong radio wave, near the installation location, set
up the Display at a location sufficiently far from the
source of the radio wave. Or, wrap the LAN cable
connected to the DIGITAL LINK / LAN terminal by
using a piece of metal foil or a metal pipe, of which is
grounded at both ends.

Disposal

When disposing the product, ask your local
authority or dealer about the correct methods of
disposal.

Accessories

Accessories Supply

Check that you have the accessories and items shown

Operating Instructions
(Book)

Operating Instructions
(CD-ROM)

Remote Control Transmitter

●

N2QAYA000099

Batteries for the Remote
Control Transmitter

(AAA/R03/UM4 type × 2)

Clamper × 3

Warranty card × 1

Power supply cord

(Approx. 2 m)

English

8

Attention

●

Store small parts in an appropriate manner, and keep
them away from young children.

●

In case you lost accessories, please consult your
dealer.

●

Dispose the packaging materials appropriately after
taking out the items.

Remote Control Batteries

1. Pull and hold the hook, then open the battery cover.

2. Insert batteries - note correct polarity (+ and -).

AAA/R03/UM4 type

3. Replace the cover.

Helpful Hint

●

For frequent remote control users, replace old
batteries with Alkaline batteries for longer life.

Precaution on battery use

Incorrect installation can cause battery leakage
and corrosion that will damage the remote control
transmitter.

Disposal of batteries should be in an environment­friendly manner.

Observe the following precaution:

1. Batteries shall always be replaced as a pair. Always
use new batteries when replacing the old set.

2. Do not combine a used battery with a new one.

3. Do not mix battery types (example: “Zinc Carbon” with
“Alkaline”).

4. Do not attempt to charge, short-circuit, disassemble,
heat or burn used batteries.

5. Battery replacement is necessary when remote
control acts sporadically or stops operating the
Display set.

6. Do not burn or breakup batteries.

7. Batteries must not be exposed to excessive heat such
as sunshine, fire or the like.

English

9

Kensington security

This security slot is compatible with the Kensington
security cables.

42-inch model

49-inch model

55-inch model

10

English

Connections

AC cord connection and fixing

Back of the unit

AC cord fixing

Plug the connector into the display unit.

Plug the AC cord until it clicks.

Note

●

Make sure that the AC cord is locked on both the
left and right sides.

Unplug the AC cord

AC cord (supplied)

Cable fixing

Note

●

3 clampers are supplied with this unit. Fix the cables
at 3 locations using the holes of clampers as shown
below.

If you need more clampers, purchase them from your
dealer. (Available from the customer service)

55-inch model

●

The position of the holes are the same for 42-inch
and 49-inch models.

1. Attach the clamper

hole

Insert the clamper in a
hole.

To remove from
the unit:

snaps

Unplug the connector pressing the two knobs.

Note

●

When disconnecting the AC cord, be absolutely sure
to disconnect the AC cord plug at the socket outlet
first.

●

The supplied AC cord set is for this unit exclusive use.
Do not use this for other purposes.

2. Bundle the cables

hooks

To loosen:

knob

Keep pushing both side
snaps

Set the tip in the hooks

Keep pushing the knob

English

11

Video equipment connection

LF8

B/P

B/CB

AUDIO1 IN AUDIO2 IN

PC IN

R/PR/CR

COMPONENT/RGB/VIDEO IN

G/Y/VIDEO

AUDIO OUT

LAN

DVI-D IN DVI-D OUT

AV IN

1 2 3 4 5 9 6 7 8

LF80

B/P

B/CB

AUDIO1 IN AUDIO2 IN

PC IN

1 2 3 4 5 10 6 7 8

R/PR/CR

COMPONENT/RGB/VIDEO IN

G/Y/VIDEO

AUDIO OUT

DIGITAL LINK

LAN

DVI-D IN DVI-D OUT

AV IN

IR INSERIAL OUT IR OUTSERIAL IN

11

12

USB

USB

1 PC IN: PC Input Terminal

Connect to video terminal of PC,
video equipment with “YP

BPR /

YCBCR” or “RGB” output.

2 AUDIO1 IN: Audio input terminal shared

with DVI-D IN and PC IN

3 COMPONENT /

RGB /
VIDEO IN:

COMPONENT / RGB Video
Input Terminal (R/P

R/CRB/PB/

CBG/Y)

Connect to video equipment

BPR / YCBCR” or “RGB”

with “YP
output.

Composite Video Input
Terminal (VIDEO)

Connect to video equipment with
Composite signal output.

4 AUDIO2 IN: Audio Input Terminal shared

with COMPONENT/RGB IN and
VIDEO IN

5 AUDIO OUT: Analogue Audio Output

Terminal

Connect to audio equipment with
analogue audio input terminal.

6 AV IN

(HDMI 1,
HDMI 2):

HDMI Input Terminal

Connect to video equipment such
as VCR or DVD player, etc.

7 DVI-D IN,

DVI-D OUT:

DVI-D Input / Output Terminal

Connect to video equipment
with DVI-D output. Also, when
displaying the picture by daisy
chaining multiple displays,
connect to the other display.

8 USB: USB Memory Terminal

Connect the USB memory to use
the USB media player function.
Also, this can be used to supply
power of up to 5V/1A to an
external device when receiving
images.

9 LAN: LAN Terminal (LF8 series only)

Control the Display by connecting
to Network.

10 DIGITAL LINK /

LAN:

DIGITAL LINK Input Terminal
(LF80 series only)

Control the Display by connecting
to Network.

Alternatively, connect to a device
that sends video and audio
signals via the DIGITAL LINK
terminal.

12

English

11 IR IN, IR OUT: Infrared Signal Input / Output

12 SERIAL IN,

SERIAL OUT:

Terminal

Use this when operating more
than one display with one remote
control.

SERIAL Input / Output Terminal

Control the Display by connecting
to PC.

Before connecting

●

Before connecting cables, carefully read the operating
instructions for the external device to be connected.

●

Turn off the power of all devices before connecting
cables.

●

Take note of the following points before connecting
the cables. Failure to do so may result in
malfunctions.

When connecting a cable to the unit ora device

•

connected to the unit itself, touch any nearby
metallic objects to eliminate static electricity from
your body before performing work.

Do not use unnecessarily long cables to connect

•

a device to the unit or to the unit body. The
longer the cable, the more susceptible to noise it
becomes. Since using a cable while it is wound
makes it act like an antenna, it is more susceptible
to noise.

When connecting cables, connect GND first, then

•

insert the connecting terminal of the connecting
device in a straight manner.

●

Acquire any connection cable necessary to connect
the external device to the system that is neither
supplied with the device nor available as an option.

●

If the outer shape of the plug of a connection cable
is large, it may come in contact with the plug of an
adjacent connection cable. Use a connection cable
with the suitable plug size for the terminal alignment.

●

If video signals from video equipment contain too
much jitter, the images on the screen may wobble.
In this case, a time base corrector (TBC) must be
connected.

●

When the sync signals output form PC or video
equipment are disturbed, for example, when changing
settings of video output, the colour of the video may
be disturbed temporarily.

●

The unit accepts Composite video signals, YCBCR/

BPR signals, analogue RGB signals and digital

YP
signals.

●

Some PC models are not compatible with the unit.

●

Use cable compensator when you connect devices to
the unit using long cables. Otherwise the image may
not display properly.

English

13

Identifying Controls

Main Unit

INPUT

MENU

●

The power indicator and remote control sensor can
be pulled out by sliding the lever on the rear panel.

To store the part, press it directly.

Note

●

For normal use, pull out the power indicator and
remote control sensor from the edge side of the
main unit by operating the lever on the rear panel.
Depending on the setup condition such as when
using the multi display, store them in the main unit.

1 Power Indicator / Remote control sensor

The Power Indicator will light.

When the power of the unit is ON (Main Power On
/ Off button: ON)

●

Picture is displayed: Green

●

Power OFF (Standby) with remote control: Red
When [Network control] is set to [On]: Orange

(Red/Green)

●

Power OFF with “Power management” function:
Orange (Red/Green)

When the power of the unit is OFF (Main Power
On / Off button: OFF): No light

Note

●

The unit will still consume some power as long as
the power cord is still inserted into the wall outlet.

●

When the power indicator is orange, power
consumption during standby is generally larger than
that of when the power indicator is red.

ENTER

1 External Input Terminal

●

Connects to video equipment, PC, etc. (see page

12)

2 <Main Power On / Off button>

●

Turns the power On / Off.

3 <INPUT (Unit)> (INPUT signal selection)

●

Selects the connected device.

4 <MENU (Unit)>

●

Each time the <MENU (Unit)> button is pressed,
the menu screen will switch.

5 <+ (Unit)> / <- (Unit)>

●

Adjusts the volume.

●

On the main screen, switches settings or adjusts
settings level.

(Unit)> / < (Unit)>

6 <

●

Selects the setting item.

7 <ENTER (Unit)>

●

Configures the item on menu screen.

●

Switches aspect mode.

14

English

Remote Control Transmitter

1 Standby (ON/OFF) button ( / )

●

Turns the power on or off when the Display is
turned on at the <Main Power On / Off button>.
(see page 16)

2 POSITION
3 SETUP
4 ENTER / Cursor buttons (

●

Used to operate the menu screens.

5 ZOOM

Enters the digital zoom mode.

6 DEFAULT

●

Resets the settings of picture, sound, etc., to
defaults.

7 MUTE

●

Sound mute on / off.

8 ASPECT

●

Adjusts the aspect.

9 VOL + / VOL -

●

Adjusts sound volume level.

10 AUTO SETUP

●

Automatically adjusts the position/size of the
screen.

11 INPUT

●

Switches input to display on the screen.

12 PICTURE
13 SOUND
14 RECALL

●

Displays the current setting status of Input mode,
Aspect mode, etc.

15 RETURN

●

Used to return to the previous menu.

)

16 FUNCTION
17 OFF TIMER

●

Switches to stand-by after a fixed period.

18 Numeric buttons (1 - 6)

●

Used as shortcut buttons by assigning frequently
used operations.

19 Signal emission

Note

●

In this manual, buttons of the remote control and the
unit are indicated as < >.

(Example: <INPUT>.)
The operation is mainly explained indicating the

remote control buttons but you can also operate with
the buttons on the unit when there are the same
buttons.

English

15

Basic Controls

AC socket outlet

AC cord (supplied)

Main Power On / Off button
(Back of the unit)

Remote Control Sensor /

Operate pointing the remote control directly at
the unit’s Remote Control Sensor.

Note

●

For normal use, pull out the remote control sensor
from the edge side of the main unit by operating the
lever on the rear panel. (see page 14)

●

Do not put an obstacle between the remote control
sensor of the main unit and the remote control.

●

Operate the remote control in front of the remote
control sensor or from the area where the sensor can
be seen.

●

Do not subject the remote control sensor of the main
unit to the direct sunlight or strong fluorescent light.

Power Indicator

Connect the AC cord plug to the

1

Display.

(see page 11)

Connect the plug to the socket outlet.

2

Note

●

When disconnecting the AC cord, be absolutely
sure to disconnect the AC cord plug at the socket
outlet first.

●

The settings may not be saved if the power plug is
disconnected immediately after changing settings
with on-screen menu. Disconnect the power plug
after a enough period of time. Or, disconnect the
power plug after turning the power off with the
remote control, RS-232C control or LAN control.

Press the <Main Power On / Off

3

button> on the unit to turn the set on:
Power-On.

●

Power Indicator: Green (Picture is displayed.)

●

When the power of the unit is ON, remote control
operation is possible.

■ To turn the power ON/OFF with the remote

control

Press the <Standby (ON/OFF) button> to turn the
Display on.

●

Power Indicator: Green (Picture is displayed.)

Press the <Standby (ON/OFF) button> to turn the
Display off.

●

Power Indicator: Red (standby)

Press the <Main Power On / Off button> on the unit to
turn the unit off, when the power of the unit is turned on
or in standby mode.

Note

●

During operation of the “Power management”
function, the power indicator turns orange in the
power off state.

16

English

■ When the Unit is turned on for the first time

Following screen will be displayed.

Select the language with and

1

press <ENTER>.

OSD Language

English (UK)

Deutsch

Français

Italiano

Español

ENGLISH (US)

Select [Year] / [Month] / [Day] / [Hour] /

2

[Minute] with and set with .

Select [Set] with and press

3

<ENTER>.

For vertical installation, select

4

[Portrait] with and press
<ENTER>.

Note

●

Once the items are set, the screens won’t be
displayed when switching on the unit next time.

After the setting, the items can be changed in the
following menus.

[OSD language]
[Date and time]
[Display orientation]

Русский

Date and time

- - - - / - - / - -

Set

Year - - - -

Month
Day
Hour
Minute

Date and time

- - - - / - - / - -

Set

Year 2015
Month
Day
Hour
Minute

Display orientation

Landscape

Portrait

- - - - - - : - -

- -

- -

- -

- -

- - - - - - : - -

10
20

1
1

No activity power off Precautions

‘No activity power off’ is enabled.

When [No activity power off] in the [Setup] menu is set to
[Enable], a warning message is displayed every time the
power is turned ON.

“Power management” Information

Last turn off due to ‘Power management’.

When “Power management” is functioned, an
information message is displayed every time the power
is turned ON.

These message displays can be set with the following
menu:

●

[Options] menu
Power on message(No activity power off)
Power on message(Power management)

■ Power ON message

The following message may be displayed when turning
the unit power ON:

English

17

Specifications

Model No.

42-inch model

49-inch model

55-inch model

42-inch model

49-inch model

55-inch model

Power Consumption

42-inch model

145 W (LF8)
155 W (LF80)

49-inch model

160 W (LF8)
175 W (LF80)

55-inch model

185 W (LF8)
190 W (LF80)

Power off condition

0.3 W

Stand-by condition

0.5 W

LCD Display panel

42-inch model

42-inch IPS panel (Edge LED backlight), 16:9 aspect
ratio

49-inch model

49-inch IPS panel (Edge LED backlight), 16:9 aspect
ratio

55-inch model

55-inch IPS panel (Edge LED backlight), 16:9 aspect
ratio

Screen size

42-inch model

927 mm (W) × 521 mm (H) × 1 064 mm (diagonal) /

36.5” (W) × 20.5” (H) × 41.9” (diagonal)

49-inch model

1 073 mm (W) × 604 mm (H) × 1 232 mm (diagonal) /

42.2” (W) × 23.7” (H) × 48.5” (diagonal)

55-inch model

1 209 mm (W) × 680 mm (H) × 1 387 mm (diagonal) /

47.6” (W) × 26.7” (H) × 54.6” (diagonal)

(No. of pixels)

2 073 600 (1 920 (W) × 1 080 (H))

:

TH-42LF8U

:

TH-49LF8U

:

TH-55LF8U

:

TH-42LF80U

:

TH-49LF80U

:

TH-55LF80U

Dimensions (W × H × D)

42-inch model

947 mm × 541 mm × 72 mm (57 mm: without
handles) /

37.3” × 21.3” × 2.8” (2.3”: without handles)

49-inch model

1 093 mm × 623 mm × 72 mm (57 mm: without
handles) /

43.1” × 24.6” × 2.8” (2.3”: without handles)

55-inch model

1 229 mm × 699 mm × 72 mm (57 mm: without
handles) /

48.4” × 27.6” × 2.8” (2.3”: without handles)

Mass

42-inch model

approx. 15.3 / 33.8 lbs net

49-inch model

approx. 19 / 41.9 lbs net

55-inch model

approx. 24.7 / 54.5 lbs net

Power source

110 - 127 V AC, 50/60 Hz

Operating condition

Temperature

0 °C to 40 °C (32 °F to 104 °F)

Humidity

20 % to 80 % (no condensation)

1

*

Storing condition

Temperature

-20 °C to 60 °C (-4 °F to 140 °F)

Humidity

20 % to 80 % (no condensation)

Connection terminals

HDMI 1
HDMI 2

TYPE A Connector
Audio signal:

Linear PCM (sampling frequencies - 48 kHz,

44.1 kHz, 32 kHz)

DVI-D IN

DVI-D 24 Pin:

Compliance with DVI Revision 1.0

Content Protection:

Compatible with HDCP 1.1

DVI-D OUT

DVI-D 24 Pin:

Compliance with DVI Revision 1.0

2

*

× 2

18

English

Content Protection:

Compatible with HDCP 1.1

COMPONENT/RGB IN

Y/G

BNC terminal 1.0 Vp-p (75  ) (with sync)

B/CB/B

P

BNC terminal 0.7 Vp-p (75  ) (without sync)

R/CR/R

P

BNC terminal 0.7 Vp-p (75  ) (without sync)

VIDEO IN

VIDEO

BNC terminal 1.0 V [p-p] (75  )
Also used as Y/G terminal

PC IN

High-Density Mini D-sub 15 Pin:

Compatible with DDC2B

Y/G:

1.0 Vp-p (75 ) (with sync)

0.7 Vp-p (75 ) (without sync)

B/CB/B:

P

0.7 Vp-p (75 ) (without sync)

R/CR/R:

P

0.7 Vp-p (75 ) (without sync)

HD/VD:

1.0 - 5.0 Vp-p (high impedance)

AUDIO1 IN

Stereo mini jack (M3) 0.5 Vrms
Shared with DVI-D IN and PC IN

AUDIO2 IN

Stereo mini jack (M3) 0.5 Vrms
Shared with COMPONENT/RGB IN and VIDEO IN

AUDIO OUT

Stereo mini jack (M3) 0.5 Vrms
Output: Variable (-∞ to 0 dB)

(1 kHz 0 dB input, 10 k load)

SERIAL IN

External Control Terminal
D-sub 9 Pin:

RS-232C compatible

SERIAL OUT

External Control Terminal
D-sub 9 Pin:

RS-232C compatible

LAN (LF8 series)

For RJ45 network connections, compatible with
PJLink

Communication method:

RJ45 10BASE-T/100BASE-TX

DIGITAL LINK/LAN (LF80 series)

For RJ45 network connections, compatible with
PJLink

Communication method:

RJ45 100BASE-TX

IR IN

Stereo mini jack (M3)

IR OUT

Stereo mini jack (M3)

USB

TYPE A USB connector
5V DC / 1A (USB 3.0 is not supported.)

Sound

Speakers

96 mm × 27 mm × 2 pcs

Audio Output

20 W [10 W + 10 W] (10 % THD)

Remote Control Transmitter

Power source

DC 3 V (battery (AAA/R03/UM4 type) × 2)

Operating range

Approx. 7 m (22.9 ft)
(when operated directly in front of remote control

sensor)

Mass

Approx. 63

Dimensions (W × H × D)

44 mm × 105 mm × 20.5 mm /

1.74” × 4.14” × 0.81”

1: Environmental temperature to use this unit at high

*

altitudes (1 400 m (4 593 ft) and higher and below
2 800 m (9 186 ft) above sea level): 0 °C to 35 °C
(32 °F to 95 °F)

2: VIERA LINK is not supported.

*

Note

●

Design and specifications are subject to change
without notice. Mass and dimensions shown are
approximate.

/ 2.22 oz (including batteries)

English

19

Software License

This product incorporates the following software:
(1) the software developed independently by or for Panasonic Corporation,
(2) the software owned by third party and licensed to Panasonic Corporation,
(3) the software licensed under the GNU General Public License, Version 2.0 (GPL V2.0),
(4) the software licensed under the GNU LESSER General Public License, Version 2.1 (LGPL V2.1), and/or
(5) open source software other than the software licensed under the GPL V2.0 and/or LGPL V2.1.
The software categorized as (3) - (5) are distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY,

without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. For details,
see the license conditions displayed by selecting [Software licenses], following the specified operation from the initial
setting menu of this product.

At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at
the contact information provided below, for a charge no more than our cost of physically performing source code
distribution, a complete machine-readable copy of the corresponding source code covered under GPL V2.0, LGPL
V2.1 or the other licenses with the obligation to do so, as well as the respective copyright notice thereof.

Contact Information:
[email protected]

Notice about AVC/VC-1/MPEG-4

This product is licensed under the AVC Patent Portfolio License, VC-1 Patent Portfolio License and MPEG-4 Visual
Patent Portfolio License for the personal use of a consumer or other uses in which it does not receive remuneration
to (i) encode video in compliance with the AVC Standard, VC-1 Standard and MPEG-4 Visual Standard (“AVC/
VC-1/MPEG-4 Video”) and/or (ii) decode AVC/VC-1/MPEG-4 Video that was encoded by a consumer engaged in
a personal activity and/or was obtained from a video provider licensed to provide AVC/VC-1/MPEG-4 Video. No
license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA,
LLC. See http://www.mpegla.com.

20

English

Panasonic Professional Flat Panel Display Limited Warranty

(for the U.S.A and Puerto Rico)

Panasonic Solutions Company
Unit of Panasonic Corporation of
North America

Two Riverfront Plaza, Newark,
New Jersey 07102-5490

Panasonic Solutions Company. (referred to as “the
Warrantor”) will repair this product and all included
accessories with new or refurbished parts, free of
charge in the USA or Puerto Rico, of the original
purchase in the event of a defect in materials or work­manship as follows:

Models or Parts

Professional Flat
Panel Display

On-site or carry-in service in the USA and Puerto Rico
may be obtained during the warranty period by contacting
Panasonic Solutions Company Service toll free at
1-877-655-2357.

Panasonic Professional Flat Panel Display

Limited Warranty

antenna, inadequate signal pickup, maladjustment of
consumer controls, improper operation, power line surge,
improper voltage supply, lighting damage, or service by
anyone other than an authorized repair facility, or
damage that is attributable to acts of God.

Part

Warranty

2 Years 2 Years

Labor

Warranty

LIMITS AND EXCLUSIONS

There are no express warranties except as listed above.

THE WARRANTOR SHALL NOT BE LIABLE FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES
(INCLUDING, WITHOUT LIMITION, DAMAGE
TO DISCS) RESULTING FROM THE USE OF THIS
PRODUCT, OR ARISING OUT OF ANY BREACH OF
THE WARRANTY. ALL EXPRESS AND IMPLIED
WARRANTIES, INCLUDING THE WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR
PARTICULAR PURPOSE, ARE LIMITED TO THE
APPLICABLE WARRANTY PERIOD SET FORTH
ABOVE.

This warranty is extended only to the original purchaser
and is non transferable. A purchase receipt or other
proof of date of original purchase will be required before
warranty service is rendered.

This warranty only covers failures due to defects in
materials or workmanship, which occur during normal
use. The warranty does not cover damage which occur
in shipment, or failures which are caused by products
not supplied by the warrantor, or failures which result
from improper installation, set-up adjustments, improper

In the USA and Puerto Rico

FOR SERVICE

CALL TOLL FREE

1-877-655-2357

Some states do not allow the exclusion or limitation
of incidental or consequential damages, or limitations
on how long an implied warranty lasts, so the above
exclusions or limitations may nor apply to you. This
warranty gives you specific legal rights and you may
other rights, which vary from state to state.

If you have a problem with this product that is not
handled to your satisfaction, then write the Consumer
Affairs Department at the Company address indicated
above.

English

21

LIMITED WARRANTY STATEMENT

(for Canada)

22

English

Customer Service

English

23

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the

correct method of disposal.

EU

Notice (U.S.A. only)
Disposal may be regulated in your community due to environmental considerations. For disposal or

recycling information, please visit Panasonic website:
http://www.panasonic.com/environmental
or call 1-888-769-0149.

Customer’s Record

The model number and serial number of this product may be found on its rear panel. You should note this serial
number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of
your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

Panasonic System Communications Company of North America

Unit of Panasonic Corporation of North America

Executive Office :

Two Riverfront Plaza, Newark, New Jersey 07102-5490

Panasonic Canada Inc.

5770 Ambler Drive
Mississauga, Ontario
L4W 2T3

Web Site: http://panasonic.com

© Panasonic Corporation 2015

English

TP0815TS0 -PB

Printed in China
