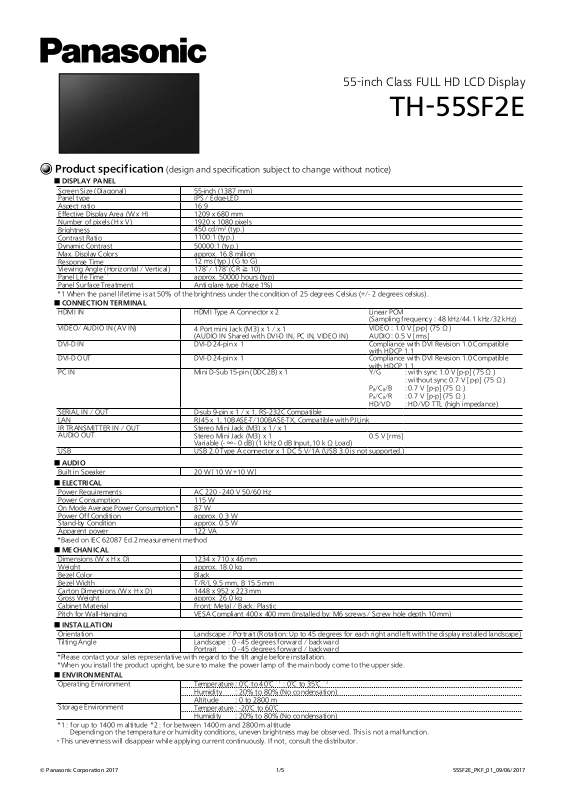

55-inch Class FULL HD LCD Display
TH-55SF2E
Product specification (design and specification subject to change without notice)
■ DISPLAY PANEL
Screen Size (Diagonal) |
55-inch (1387 mm) |
Panel type |
IPS / Edge-LED |
Aspect ratio |
16:9 |
Effective Display Area (W x H) |
1209 x 680 mm |
Number of pixels (H x V) |
1920 x 1080 pixels |
Brightness |
450 cd/m2 (typ.) |
Contrast Ratio |
1100:1 (typ.) |
Dynamic Contrast |
50000:1 (typ.) |
Max. Display Colors |
approx. 16.8 million |
Response Time |
12 ms (typ.) (G to G) |
Viewing Angle (Horizontal / Vertical) |
178°/ 178°(CR 10) |
Panel Life Time*1 |
approx. 50000 hours (typ) |
Panel Surface Treatment |
Anti glare type (Haze 1%) |
*1 When the panel lifetime is at 50% of the brightness under the condition of 25 degrees Celsius (+/- 2 degrees celsius).
■ CONNECTION TERMINAL
|
HDMI IN |
HDMI Type A Connector x 2 |
Linear PCM |
|
|
|
|
(Sampling frequency 48 kHz/44.1 kHz/32 kHz) |
|
|
VIDEO/ AUDIO IN (AV IN) |
4 Port mini Jack (M3) x 1 / x 1 |
VIDEO 1.0 V [p-p] (75 Ω ) |
|
|
|
(AUDIO IN Shared with DVI-D IN, PC IN, VIDEO IN) |
AUDIO 0.5 V [rms] |
|
|
DVI-D IN |
DVI-D 24-pin x 1 |
Compliance with DVI Revision 1.0 Compatible |
|
|
|
|
with HDCP 1.1 |
|
|
DVI-D OUT |
DVI-D 24-pin x 1 |
Compliance with DVI Revision 1.0 Compatible |
|
|
|
|
with HDCP 1.1 |
|
|
PC IN |
Mini D-Sub 15-pin (DDC2B) x 1 |
Y/G |
: with sync 1.0 V [p-p] (75 Ω ) |
|
|
|
|
: without sync 0.7 V [p-p] (75 Ω ) |
|
|
|
PB/CB/B |
: 0.7 V [p-p] (75 Ω ) |
|
|
|
PR/CR/R |
: 0.7 V [p-p] (75 Ω ) |
|
|
|
HD/VD |
: HD/VD TTL (high impedance) |
|
SERIAL IN / OUT |
D-sub 9-pin x 1 / x 1, RS-232C Compatible |
|
|
|
LAN |
RJ45 x 1, 10BASE-T/100BASE-TX, Compatible with PJLink |
|
|
|
IR TRANSMITTER IN / OUT |
Stereo Mini Jack (M3) x 1 / x 1 |
|
|
|
AUDIO OUT |
Stereo Mini Jack (M3) x 1 |
0.5 V [rms] |
|
|
|
Variable (- ∞ - 0 dB) (1 kHz 0 dB Input,10 k Ω Load) |
|
|
|
USB |
USB 2.0 Type A connector x 1 DC 5 V/1A (USB 3.0 is not supported.) |
|
|
■ AUDIO |
|
|
|
|
|
Built in Speaker |
20 W [10 W +10 W] |
|
|
■ ELECTRICAL |
|
|
|
|
|
Power Requirements |
AC 220 - 240 V 50/60 Hz |
|
|
|
Power Consumption |
115 W |
|
|
|
On Mode Average Power Consumption* |
87 W |
|
|
|
Power Off Condition |
approx. 0.3 W |
|
|
|
Stand-by Condition |
approx. 0.5 W |
|
|
|
Apparent power |
122 VA |
|
|
*Based on IEC 62087 Ed.2 measurement method |
|
|
||
■ MECHANICAL |
|
|
|
|
|
Dimensions (W x H x D) |
1234 x 710 x 46 mm |
|
|
|
Weight |
approx. 18.0 kg |
|
|
|
Bezel Color |
Black |
|
|
|
Bezel Width |
T/R/L 9.5 mm, B 15.5 mm |
|
|
|
Carton Dimensions (W x H x D) |
1448 x 952 x 223 mm |
|
|
|
Gross Weight |
approx. 26.0 kg |
|
|
|
Cabinet Material |
Front: Metal / Back: Plastic |
|
|
|
Pitch for Wall-Hanging |
VESA Compliant 400 x 400 mm (Installed by: M6 screws / Screw hole depth 10 mm) |
||

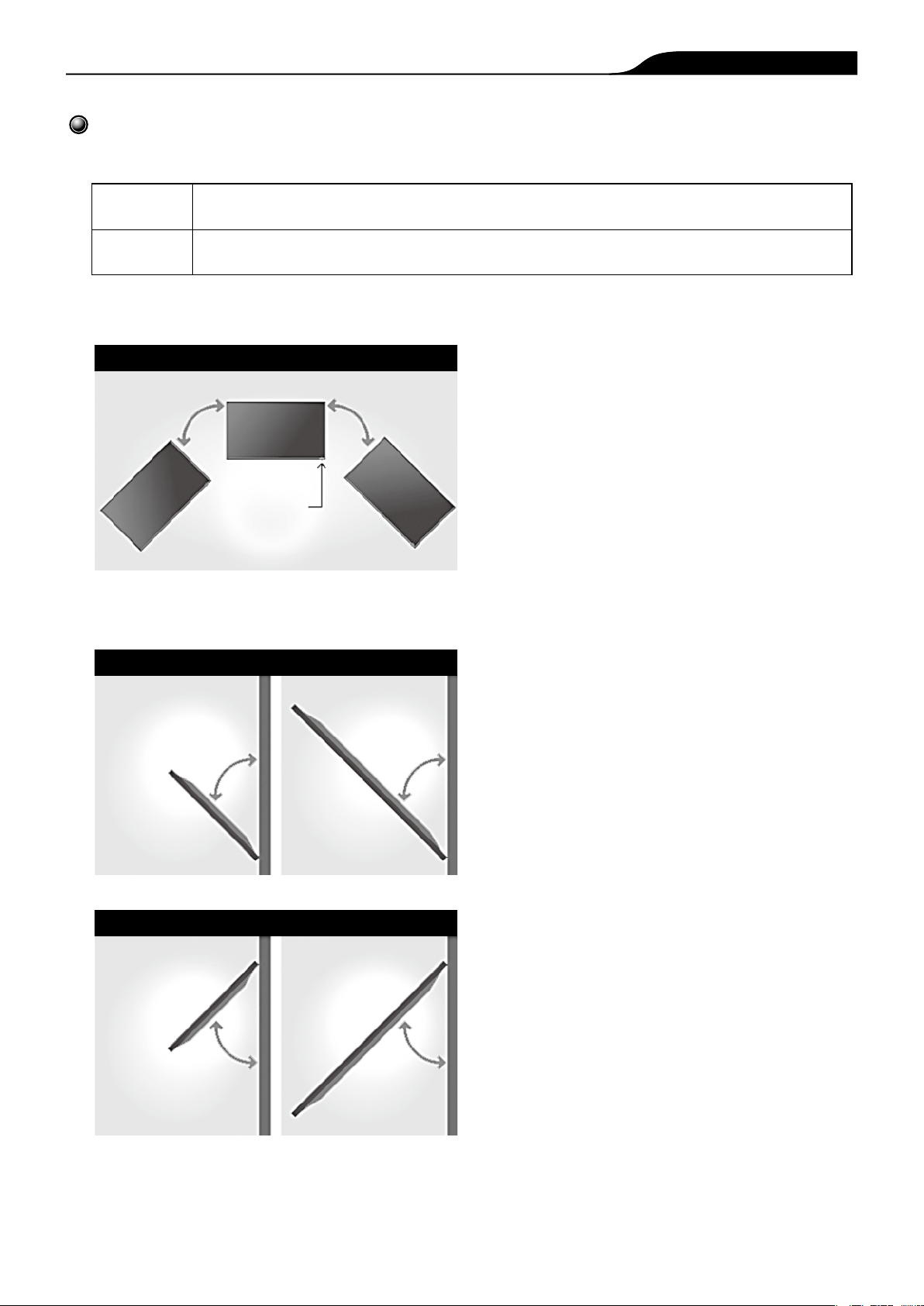

■ INSTALLATION |
|
|
|
|
|
Orientation |
Landscape / Portrait (Rotation: Up to 45 degrees for each right and left with the display installed landscape) |
||
|
Tilting Angle |
Landscape : 0 - 45 degrees forward / backward |
|
|
|
|
Portrait : 0 - 45 degrees forward / backward |
|
|
*Please contact your sales representative with regard to the tilt angle before installation.
*When you install the product upright, be sure to make the power lamp of the main body come to the upper side.
■ ENVIRONMENTAL
Operating Environment |
Temperature 0 to 40 *1 : 0 to 35 *2 |
|
|
Humidity |
20% to 80% (No condensation) |
|
Altitude |
0 to 2800 m |
Storage Environment |
Temperature -20 to 60 |
|
|
Humidity |
20% to 80% (No condensation) |
*1 : for up to 1400 m altitude *2 : for between 1400 m and 2800 m altitude
Depending on the temperature or humidity conditions, uneven brightness may be observed. This is not a malfunction.This unevenness will disappear while applying current continuously. If not, consult the distributor.
© Panasonic Corporation 2017 |
1/5 |
55SF2E_PKF_01_09/06/2017 |
55-inch Class FULL HD LCD Display |
TH-55SF2E |
MAIN FEATURE
USB Media Player |
YES |
|
Failback / Failover |
YES |
|
Data Cloning |
YES |
|
Digital ZOOM |
YES |
|
Multi display settings |
YES |
|
Power on screen delay |
YES |
|
Auto setting |
YES |
|
Screensaver |
YES |
|
HDMI power management |
YES |
|
PC power management |
YES |
|
DVI-D power management |
YES |
|
Power save |
YES |
|
Button lock |
YES |
|
Controller user level |
YES |
|
Input search |
YES |
|
6-segment colour management |
YES |
|
Dynamic contrast |
YES |
|
Colour enhancement |
YES |
|
Refine enhancer |
YES |
|
Gradation smoother |
YES |
|
Set up timer |
YES |
|
AMX D.D. |
YES |
|
Crestron ConnectedTM |
YES |
|
Extron XTP |
YES |
|
WEB Browser control |
YES |
|
PJLinkTM |
YES |
|
Image compatible |
YES |
|
Input Detection |
YES |
|
HDMI CEC compatible |
YES |
|
Viewer |
YES |
|
Early Warning Software compatible |
YES |
|
Multi Monitoring & |
YES |
|
Control Software compatible |
||
|
||
Video Wall Manager compatible |
YES |
|
CMS Content management |
YES |
|
Software compatible |
||
|
Operating Time* |
24h/day |
*The brightness of the display panel is equivalent to about 75% its full capacity, when the Light ID is transmitted. The displayed image may flicker, but this is due to a change in the brightness during Light ID transmission and not due to trouble.
*In case of running for a long time, the moving image is recommended to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying a moving images.
*Specifications and appearance are subject to change without notice.
STANDARD (CERTIFICATIONS)
SAFETY |
EU:EN60950-1:2006 + A11:2009 + A1:2010 + |
REGULATIONS |
A12:2011+A2:2013 |
|
BEAB approval |
RADIATION |
EN55032:2012+AC:2013 (CLASS A) |
REGULATIONS |
EN55024:2010, EN61000-3-2:2014, EN61000-3-3:2013 |
|
IEC61000-4-2:2008, IEC61000-4-3:2010, IEC61000-4-4:2012 |
|
IEC61000-4-5:2005, IEC61000-4-6:2013, IEC61000-4-8:2009 |
|
IEC61000-4-11:2004 |
REMOTE CONTROL TRANSMITTER
Power Requirements |
DC 3 V (2 x AAA Size batteries) |
Operating distance |
approx. 7 m* |
Weight |
approx. 63 g including batteries |
Dimensions (W x H x D) |
48 x 134 x 20 mm |
*When operated directly in front of receptor.
INCLUDED ACCESSORIES
- AC cord (1.8 m) - Remote Control - Batteries (AAA size) x 2 - Clamper x 3 - CD-ROM / User Manual
OPTIONAL ACCESSORIES
DIMENSIONS
Pedestal Stand |
TY-ST55PE9 |
Cautions: This drawing is not a scale
Units : mm
|
|
|
46 |
|
400 |
|
1234 |
|
|
|
|
9.5 |
|
|
9.5 |
|
|
9.5 |
|
|
|
|
|
|
Effective Display Area 1209.6 |
|
|
|
|
15.5 |
Effective Display Area |
680.4 |
710 |
|
400 |
|
|
|
16.8 |
3.4 |
|
|
|
|
58.8 |
22 |
M6 Screw hole depth 10 mm |
|
|
|
|
|

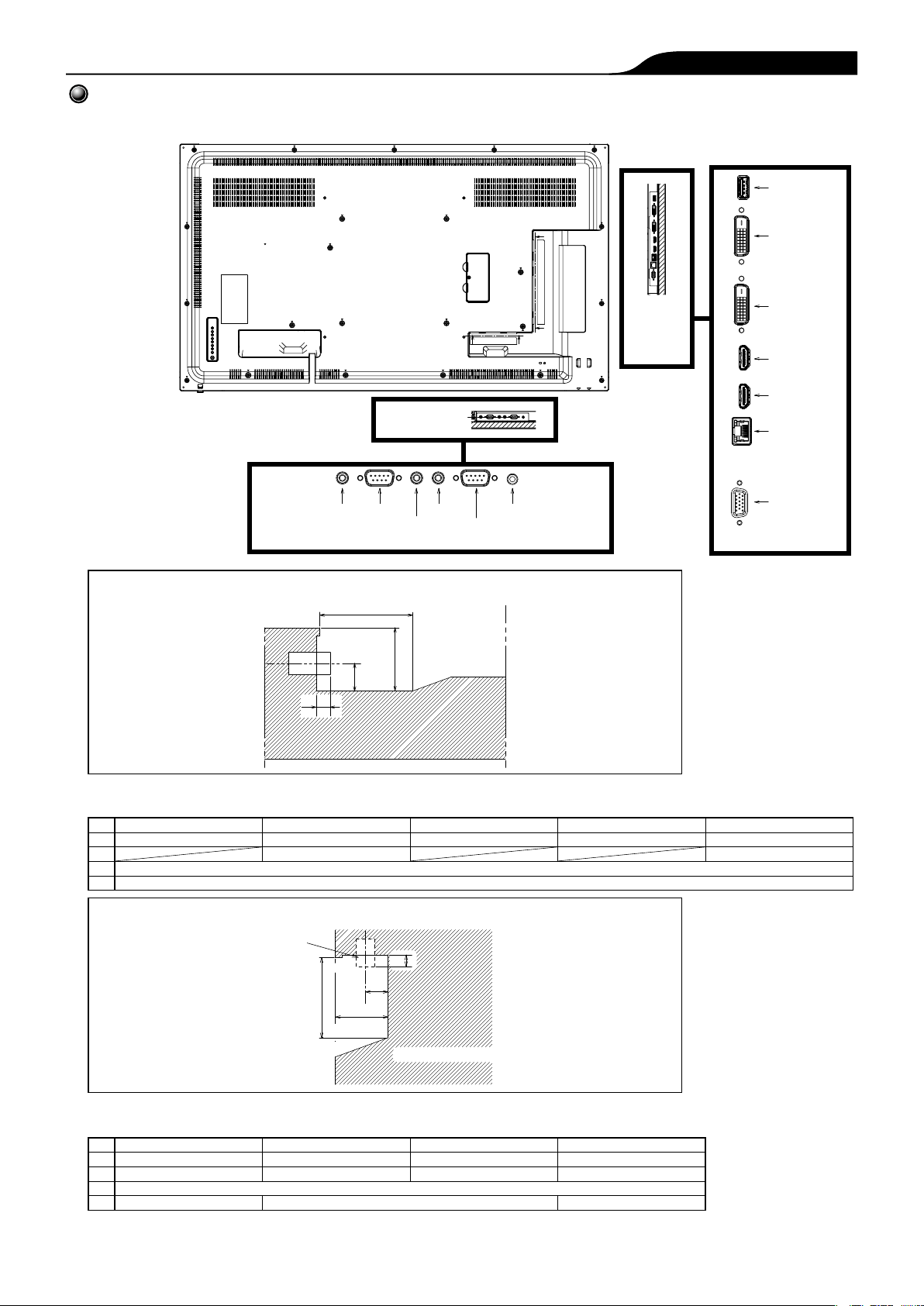

CONNECTION TERMINAL
DIGITAL LINK
* Specifications and appearance are subject to change without notice.
© Panasonic Corporation 2017 |
2/5 |
55SF2E_PKF_01_09/06/2017 |
