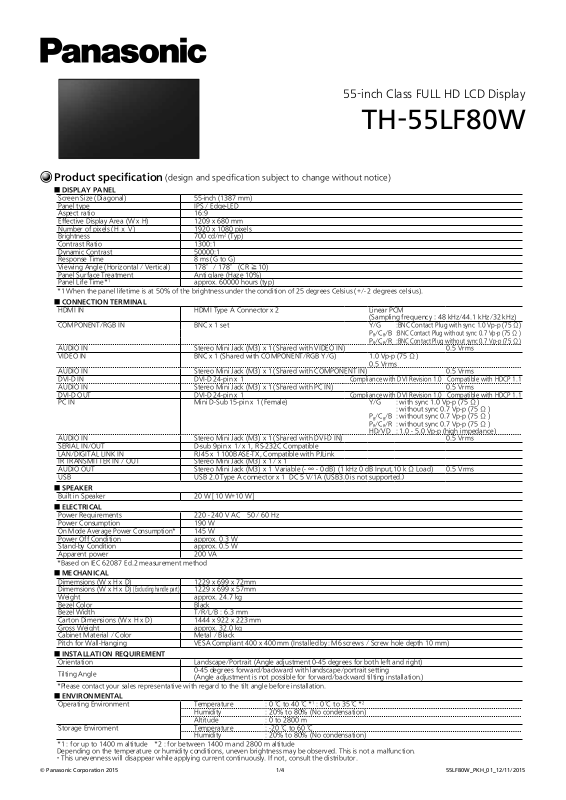

Panasonic TH-55LF80W Datasheet

55-inch Class FULL HD LCD Display

TH-55LF80W

(design and specification subject to change without notice)

Product specification

■ DISPLAY PANEL

Screen Size (Diagonal) 55-inch (1387 mm) Panel type IPS / Edge-LED Aspect ratio 16:9 Effective Display Area (W x H) 1209 x 680 mm Number of pixels (H ｘ V) 1920 x 1080 pixels Brightness 700 cd/m Contrast Ratio 1300:1 Dynamic Contrast 50000:1 Response Time 8 ms (G to G) Viewing Angle (Horizontal / Vertical) 178° / 178° (CR ≧ 10) Panel Surface Treatment Anti glare (Haze 10%) Panel Life Time*

*1 When the panel lifetime is at 50% of the brightness under the condition of 25 degrees Celsius (+/- 2 degrees celsius).

■ CONNECTION TERMINAL

HDMI IN HDMI Type A Connector x 2 Linear PCM

COMPONENT/RGB IN BNC x 1 set Y/G :

AUDIO IN Stereo Mini Jack (M3) x 1 (Shared with VIDEO IN) VIDEO IN BNC x 1 (Shared with COMPONENT/RGB Y/G) 1.0 Vp-p (75 Ω )

AUDIO IN Stereo Mini Jack (M3) x 1 (Shared with COMPONENT IN) DVI-D IN DVI-D 24-pin x 1 AUDIO IN Stereo Mini Jack (M3) x 1 (Shared with PC IN) DVI-D OUT DVI-D 24-pin x 1 PC IN Mini D-Sub 15-pin x 1 (Female) Y/G

AUDIO IN Stereo Mini Jack (M3) x 1 (Shared with DVI-D IN) SERIAL IN/OUT D-sub 9pin x 1/ x 1, RS-232C Compatible LAN/DIGITAL LINK IN RJ45 x 1 100BASE-TX, Compatible with PJLink IR TRANSMITTER IN / OUT Stereo Mini Jack (M3) x 1 / x 1 AUDIO OUT Stereo Mini Jack (M3) x 1 Variable (- ∞ - 0 dB) (1 kHz 0 dB Input,10 k Ω Load) 0.5 Vrms USB USB 2.0 Type A connector x 1 DC 5 V/1A (USB3.0 is not supported.）

■ SPEAKER

Built in Speaker 20 W [10 W+10 W]

■ ELECTRICAL

Power Requirements 220 - 240 V AC　50 / 60 Hz Power Consumption 190 W On Mode Average Power Consumption* Power Off Condition approx. 0.3 W Stand-by Condition approx. 0.5 W Apparent power 200 VA

*Based on IEC 62087 Ed.2 measurement method

■ MECHANICAL

Dimemsions (W x H x D) 1229 x 699 x 72mm Dimemsions (W x H x D) Weight approx. 24.7 kg Bezel Color Black Bezel Width T/R/L/B : 6.3 mm Carton Dimensions (W x H x D) 1444 x 922 x 223 mm Gross Weight approx. 32.0 kg Cabinet Material / Color Metal / Black Pitch for Wall-Hanging

■ INSTALLATION REQUIREMENT

Orientation Landscape/Portrait (Angle adjustment 0-45 degrees for both left and right)

Tilting Angle

*Please contact your sales representative with regard to the tilt angle before installation.

■ ENVIRONMENTAL

Operating Environment Temperature : 0 ℃ to 40 ℃*1 : 0 ℃ to 35 ℃*

Storage Enviroment Temperature : -20 ℃ to 60 ℃

*1 : for up to 1400 m altitude　*2 : for between 1400 m and 2800 m altitude Depending on the temperature or humidity conditions, uneven brightness may be observed. This is not a malfunction.

・This unevenness will disappear while applying current continuously. If not, consult the distributor.

(Excluding handle part)

(Typ)

approx. 60000 hours (typ)

(Sampling frequency：48 kHz/44.1 kHz/32 kHz)

PB/CB/B:BNC Contact Plug without sync 0.7 Vp-p (75 Ω ) PR/CR/R :

0.5 Vrms

Compliance with DVI Revision 1.0　Compatible with HDCP 1.1

P P HD/VD

145 W

1229 x 699 x 57mm

VESA Compliant 400 x 400 mm (Installed by: M6 screws / Screw hole depth 10 mm)

0-45 degrees forward/backward with landscape/portrait setting (Angle adjustment is not possible for forward/backward tilting installation.)

Humidity : 20% to 80% (No condensation) Altitude : 0 to 2800 m

Humidity : 20% to 80% (No condensation)

BNC Contact Plug with sync 1.0 Vp-p (75 Ω)

BNC Contact Plug without sync 0.7 Vp-p (75 Ω )

: with sync 1.0 Vp-p (75 Ω ) : without sync 0.7 Vp-p (75 Ω ) : without sync 0.7 Vp-p (75 Ω )

B/CB

: without sync 0.7 Vp-p (75 Ω )

R/CR

: 1.0 - 5.0 Vp-p (high impedance)

0.5 Vrms

55-inch Class FULL HD LCD Display

TH-55LF80W

MAIN FEATURE

USB Media Player Yes Fail back ＆ Fail over Yes Data Cloning Yes Early Warning Software compatible

Multi Monitoring & Control Software compatible

Operating Time 24h/7d Digital Zoom Multi Display Yes Power ON Screen Delay Yes 1:1 Pixel mode Yes Auto setup Yes Screen Saver Yes HDMI Power Management Yes DIGITAL LINK Power Management Yes PC Power Management Yes DVI-D Power Management Yes Input Lock Yes Button Lock Yes Remote-control User Level Yes Input Search Yes

In case of running for a long time, the moving image is recommended to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying a moving images.

Yes

DIMENSIONS

266.5

696

266.5

STANDARD (CERTIFICATIONS)

SAFETY REGULATIONS IEC60950-1 RADIATION REGULATIONS EN55022:2010 Class A

EN55024:2010 EN61000-3-2:2006+A1:2009+A2:2009 class D EN61000-3-3:2013 AS/NZS CISPR22:2009 RCM Mark

REMOTE CONTROL TRANSMITTER

Power Requirements

Operating distance approx. 7 m* Weight

Dimemsions (W x H x D)

*When operated directly in front of receptor.

DC 3 V (2 x AAA Size batteries)

approx. 63 g including batteries 44 x 105 x 20.5 mm

INCLUDED ACCESSORIES

- AC cord (2.0 m)　- Remote Control　- Batteries (AAA size) x 2

- Clamper x 3　- Operating instruction book

OPTIONAL ACCESSORIES

Pedestal Stand TY-ST43PE8

Cautions: This drawing is not a scale

Units : mm

6.3

1229

1209

CONNECTION TERMINAL

680

17 60

6.3

699

72 57

400

* Specifications and appearance are subject to change without notice.
