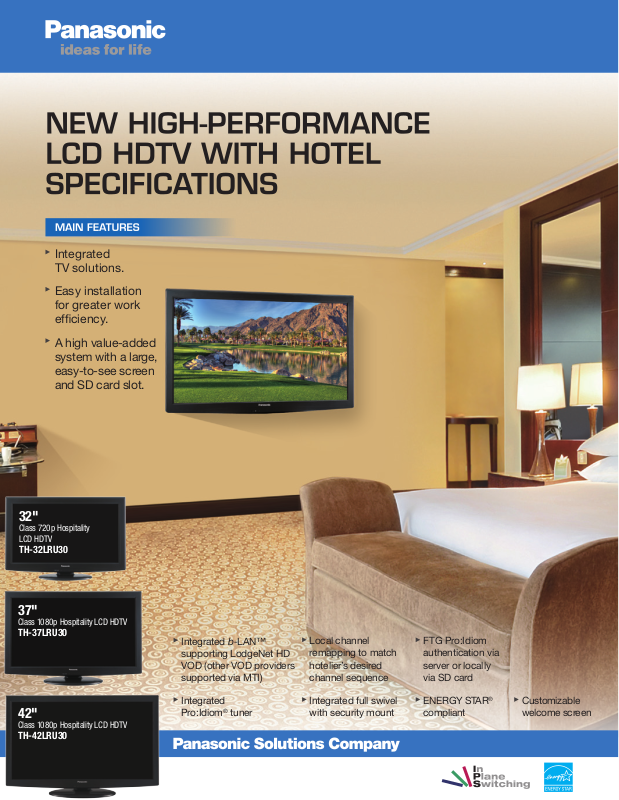

Panasonic TH-42LRU30, TH-37LRU30, TH-32LRU30 cut sheet

Integrated TV solutions.

Easy installation for greater work efﬁciency.

A high value-added system with a large, easy-to-see screen and SD card slot.

Class 720p Hospitality LCD HDTV

TH-32LRU30

Class 1080p Hospitality LCD HDTV

TH-37LRU30

Class 1080p Hospitality LCD HDTV

TH-42LRU30

Integrated b-LAN™ supporting LodgeNet HD VOD (other VOD providers supported via MTI)

Integrated Pro:Idiom® tuner

Local channel remapping to match hotelier’s desired channel sequence

Integrated full swivel with security mount

FTG Pro:Idiom authentication via server or locally via SD card

ENERGY STAR® compliant

Customizable welcome screen

INTEGRATED TV SOLUTIONS

EASY INSTALLATION FOR GREATER WORK EFFICIENCY

A built-in digital tuner with Pro:Idiom compatibility eliminates the need to install a separate set-top box, which provides strong FTG (Free-to-Guest) content and support.* It also comes equipped with an enhanced “hotel mode” that enables a lock on initial volume and other settings. Installing these TVs provides more efﬁciency to the hotel and more content and information for its guests.

The LRU30 Series features a built-in TV tuner with Pro:Idiom and is compatible with major PPV systems. A terminal adapter is included, eliminating the need to connect to any additional devices, which makes installation simpler, and without the need for an additional set-top box, saving space and making troubleshooting problems easier. Cloning can also be done simply with the use of an SD card, allowing for the easy transfer of all settings to a large number of units without having to set up individual TVs by remote. This new hospitality series is designed for easy connection to many external devices, while existing devices can be quickly linked via the RS-232C interface. Soundbar-type home theater systems and other high-end audio systems can also be added by digital connection.

*Local authentication via SD card or optional FMA-PA101 Free-to-Guest Management Appliance required to enable tuning of Pro:Idiom encrypted HD content. FMA option also substantially reduces labor costs by managing channel lineups from the head-end.

A HIGH VALUE-ADDED SYSTEM WITH A LARGE, EASY-TO-SEE SCREEN AND SD CARD SLOT

The IPS panel features a wide viewing angle of 178º to ensure that guests enjoy clear, easy-to-see images from virtually anywhere in the room. Panasonic’s unique Fine Black Panel also achieves stunning images with deep, rich blacks. The Intelligent Scene Controller produces crisp, easy-to-see images with a high contrast of up to 20,000:1. The units’ C.A.T.S. (Contrast Auto Tracking System) automatically senses the ambient light conditions and adjusts brightness and gradation, ensuring the best possible image contrast while reducing power consumption.

Guests can use the display’s SD card slot for large-screen viewing of digital camera images that they have saved onto an SD Memory Card. The SD card slot can also be used at install for local Pro:Idiom authentication and to copy and clone the TV settings and channel map.

The displays are equipped with essential “hotel mode” functions, such as initial input/channel/ volume and maximum volume setting. And they support RS-232C devices for external control of the TV and other in-room appliances.

These displays come fully equipped with many functions that enhance viewing, as well as hotel security, including a locking pedestal stand that rotates 90º in both directions. (Choose from three settings of 30º, 60º or 90º. The display can also be set for asymmetrical left and right angles.)

VERSATILE TERMINALS

OPTION

Wall-hanging bracket (angled) | TY-WK3L2RW

SPECIFICATIONS

Screen Size

Apect Ratio

Panel

Number of Pixels (H x V) 1,920 x 1,080 pixels 1,920 x 1,080 pixels 1,366 x 768 pixels

Brightness

Contrast Ratio

Viewing Angle

Response Time

Receiving System

Pro:Idiom

Local Pro:Idiom Authentication

Local Channel Remapping

Welcome Screen

Interface Input 3xHDMI, 2xComposite, 1xYPbPr, 1xRGB(VGA)

Output Analog audio out, Digital audio out (optical)

Control MTI for external PPV terminal, RS232C (3.5mm mini), Game controller port (shared with MTI)

Other SD card slot (cloning, image viewer)

Bezel Color

Speaker

Stand

Power Requirements

Power Consumption

On Mode Average Power Consumption**

Stand-by Condition

Dimensions (Including TV Stand)

Weight (TV Set Only) Approx. 38.6 lbs (17.5 kg) Approx. 28.7 lbs (13.0 kg) Approx. 21.0 lbs (9.5 kg)

Weight (Including TV Stand) Approx. 47.7 lbs (21.6 kg) Approx. 36.9 lbs (16.7 kg) Approx. 27.6 lbs (12.5 kg)

Safety Regulations

Radiation Regulations

TH-42LRU30 TH-37LRU30 TH-32LRU30

42.0-inch 37.0-inch 31.5-inch

16:9 16:9 16:9

IPS 1080p (WSXGA) IPS 1080p (WSXGA) IPS (WXGA)

450 cd/m2 450 cd/m2 450 cd/m2

20,000:1 18,000:1 18,000:1

178 degrees 178 degrees 178 degrees

7 ms (G to G)

ATSC/QAM/NTSC (MPEG2, MPEG4/H.264 support)

Yes

Matte Black

10 W + 10 W (10% THD) 1 Way 2 Bottom Speaker

Swivel (+/-90° (Lock function :±30°/±60°) ) w/Security lock down

110 - 127 V AC, 60 Hz

206 W (Energy Star 4.1/5.3) 160 W (Energy Star 4.1/5.3) 106 W (Energy Star 4.1/5.3)

113 W TBD 62 W

0.9 W 0.8 W 0.8 W

40.2" x 26.9" x 12.6"

(1,021 x 682 x 318 mm)

36.1" x 24.5" x 12.1" (915 x 622 x 307 mm)

UL 6500 Ver.2 (to Standard)

FCC Part 15 Class-B, ICES-003

31.5" x 21.8" x 10.8"

(798 x 553 x 272 mm)

**Based on IEC 62087 Ed.2 section 11.6.1 measurement method.

b-LAN is a trademark of LodgeNet Interactive Corp. Pro:Idiom is a registered trademark of the Zenith

Electronics Corp. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. Simulated

pictures on screen. Design and speciﬁcations are subject to change without notice. As of March 1, 2011.
