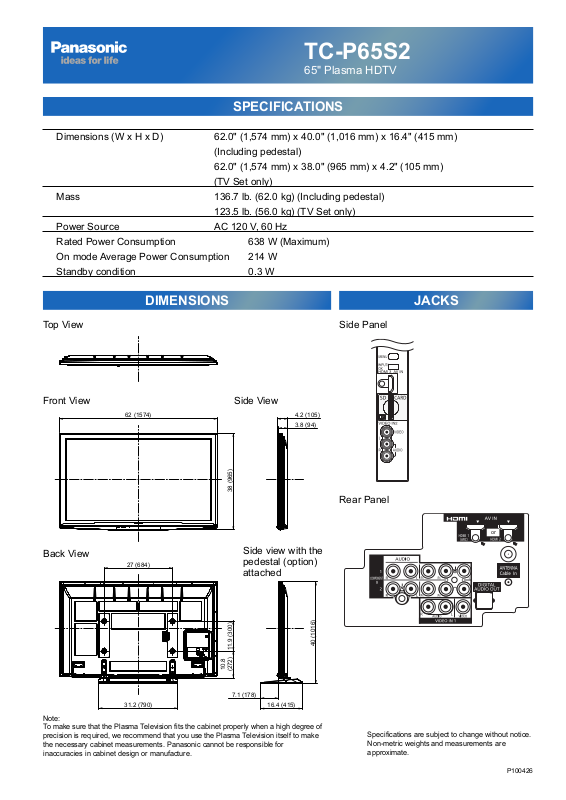

Panasonic tc-p65s2 cut sheet

TC-P65S2

65" Plasma HDTV

SPECIFICATIONS

Dimensions (W x H x D) 62.0" (1,574 mm) x 40.0" (1,016 mm) x 16.4" (415 mm)

(Including pedestal)

62.0" (1,574 mm) x 38.0" (965 mm) x 4.2" (105 mm)

(TV Set only)

Mass 136.7 lb. (62.0 kg) (Including pedestal)

123.5 lb. (56.0 kg) (TV Set only)

Power Source AC 120 V, 60 Hz

Rated Power Consumption 638 W (Maximum)

On mode Average Power Consumption 214 W

Standby condition 0.3 W

DIMENSIONS JACKS

Top View

Front View

Back View

62 (1574)

27 (684)

Side Panel

Side View

4.2 (105)

3.8 (94)

38 (965)

Rear Panel

or

Side view with the
pedestal (option)
attached

11.9 (300)

10.8

(272)

7.1 (178)

31.2 (790)

Note:
To make sure that the Plasma Television fits the cabinet properly when a high degree of
precision is required, we recommend that you use the Plasma Television itself to make
the necessary cabinet measurements. Panasonic cannot be responsible for
inaccuracies in cabinet design or manufacture.

16.4 (415)

40 (1016)

Specifications are subject to change without notice.
Non-metric weights and measurements are
approximate.

P100426
