Panasonic TC-P65S1, TC-P58S1 User Manual

Download

Operating Instructions

58”/65” Class 1080p Plasma HDTV

(58.0/64.7 inches measured diagonally)

Manual de instrucciones

Televisión de alta definición de 1080p y clase 58”/65” de Plasma

(58,0/64,7 pulgadas medidas diagonalmente)

Model No.

Número de modelo

TC-P58S1 TC-P65S1

Quick Start Guide

(See page 8-18)

Guía de inicio rápido

(vea la página 8-18)

For assistance (U.S.A./Puerto Rico), please call: 1-877-95-VIERA (958-4372) or visit us at www.panasonic.com/contactinfo

For assistance (Canada), please call:

1-866-330-0014

or visit us at www.vieraconcierge.ca

Para solicitar ayuda (EE.UU./Puerto Rico), llame al:

1-877-95-VIERA (958-4372)

ó visítenos en www.panasonic.com/contactinfo

(Image: TC-P58S1)

English

Please read these instructions before operating your set and retain them for future reference. The images shown in this manual are for illustrative purposes only.

Español

Lea estas instrucciones antes de utilizar su televisor y guárdelas para consultarlas en el futuro. Las imágenes mostradas en este manual tienen solamente fines ilustrativos.

TQB2AA0560

Turn your own living room into a movie theater!

Experience an amazing level of multimedia excitement

(Image: TC-P58S1)

HDMI, the HDMI logo and High-

Definition Multimedia Interface are

trademarks or registered trademarks of

HDMI Licensing LLC.

HDAVI Control™ is a trademark of

Panasonic Corporation.

VIERA Link™ is a trademark of

Panasonic Corporation.

Manufactured under license from Dolby

Dolby and the double-D symbol are

trademarks of Dolby Laboratories.

Laboratories.

SDHC Logo is a trademark.

Enjoy rich multimedia

Contents

Please read before using the unit

Safety Precautions ·······································4 Notes ···························································· 7

Amplifier Home theater system

VCR

Blu-ray Disc recorder

Set T op Box

DVD recorder/

SD memory card

Camcorder

DVD player/

Blu-ray Disc player

Quick Start Guide

Accessories/Optional Accessory ····· 8 Basic Connection ····························1 1 Identifying Controls ························15 First Time Setup·····························16

Enjoy your TV!

Basic Features

Watching TV ···············································19 Using VIERA TOOLS ································· 21 Viewing from an SD Card ··························22 Watching Videos and DVDs ·······················24

Advanced Features

How to Use Menu Functions

(picture, sound quality, etc.) ·······················26 VIERA LinkTM “HDAVI ControlTM” ················30 Lock ··························································· 36 Editing and Setting Channels·····················38 Closed Caption ·········································· 40 Input Labels ··············································· 41 Using Timer ················································ 42 Recommended AV Connections ················ 43

Quick Start

Guide

Viewing Advanced FAQs, etc.

This product qualifies for ENERGY STAR in the “Home Use” setting and this is the setting in which energy savings will be achieved. Any modifications to the “Home Use” setting or other factory default settings could result in greater energy consumption beyond levels that meet ENERGY STAR qualifications.

FAQs, etc.

Ratings List for Lock ··································44 Technical Information ·································45 Care and Cleaning ·····································49 FAQ ···························································· 50 Specifications ············································· 52 Limited Warranty

(for U.S.A. and Puerto Rico only)···············53 Customer Services Directory

(for U.S.A. and Puerto Rico) ······················54 Limited Warranty (for Canada) ···················55

Safety Precautions

The lightning flash with

CAUTION

RISK OF ELECTRIC SHOCK

WARNING: To reduce the risk of electric shock, do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualified service personnel.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

Do not place liquid containers (flower vase, cups, cosmetics, etc.) above the set (including on shelves above, etc.).

DO NOT OPEN

Important Safety Instructions

11) Only use attachments / accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) To prevent electric shock, ensure the grounding pin on the AC cord power plug is securely connected.

arrowhead within a triangle is intended to tell the user that parts inside the product are a risk of electric shock to persons.

The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are in the papers with the appliance.

FCC STATEMENT

This equipment has been tested and found to comply with the limits for an Other Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the Panasonic Service Center or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, follow the attached installation instructions and use only shielded interface cables when connecting to peripheral devices. Any changes or modifications not expressly approved by Panasonic Corp. of North America could void the user’s authority to operate this device.

Responsible Party: Panasonic Corporation of North America

Contact Source: Panasonic Consumer Electronics Company

email: consumerproducts@panasonic.com

CANADIAN NOTICE:

For Model TC-P58S1, TC-P65S1 This Class B digital apparatus complies with Canadian ICES-003.

One Panasonic Way, Secaucus, NJ 07094

1-877-95-VIERA (958-4372)

WARNING/CAUTION

WARNING

Small parts can present choking hazard if accidentally swallowed. Keep small parts away from young children. Discard unneeded small parts and other objects, including packaging materials and plastic bags/sheets to prevent them from being played with by young children, creating the potential risk of suffocation.

Set up

This Plasma TV may fall and can cause personal injury or

even death if not installed correctly. To prevent personal injury or death, follow these warnings:

Install the Plasma TV in accordance with the

manufacturer’s recommended pedestal or stand, corresponding hardware and installation instructions.

This Plasma TV is for use only with the following optional

accessories. Use with any other type of optional accessories may cause instability. The following accessories are manufactured by Panasonic Corporation.

• Wall-hanging bracket (Angled) TY-WK5P1RW (TC-P58S1) TY-WK6P1RW (TC-P65S1)

Be sure to ask a qualified technician to carry out the

installation and set-up.

Two or more people are required to install or remove the

television.

Some wall mounts (wall-hanging brackets) are not

designed to be mounted to walls with steel studs or old cinder block constructions.

Ask your dealer or licensed contractor to properly secure the

wall-hanging bracket.

Do not place the Plasma TV or its stand on a sloped or

unstable surface.

The Plasma TV may fall or tip over.

Do not support the Plasma TV on a non-specified

pedestal.

Do not place the Plasma TV on furniture that can easily

be used as steps, such as a chest of drawers. Do not climb or allow children to climb on the Plasma TV Place or install the Plasma TV where it cannot be pushed,

pulled over or knocked down. Route all cords and cables such that they cannot be

tripped over or pulled by curious children. Do not place any objects on top of the Plasma TV.

If water spills onto the Plasma TV or foreign objects get

inside it, a short-circuit may occur which could result in fire

or electric shock. If any foreign objects get inside the Plasma

TV, please consult an Authorized Service Center.

AC Power Supply Cord

To prevent fire or electric shock:

The Plasma TV is designed to operate on a 120 V AC,

60 Hz service. Insert the power cord plug as far as it will

go into the wall socket.

If the plug is not fully inserted, heat may generate, which

could cause a fire.

The included power cord is for use with this unit only. Do not use any power cord other than that provided with

this TV. Do not handle the power cord plug with wet hands. Do not do anything that might damage the power supply

cord.

When disconnecting the power supply cord, hold the

plug, not the cord.

Do not use the power supply cord if the plug or cord is

damaged.

Replace the cord or contact your Authorized Service Center

Handling the power supply cord

Insert the power plug fully into the socket outlet. (If the

power plug is loose, it could generate heat and cause fire.) Ensure that the power plug is easily accessible. Ensure the earth pin on the power plug is securely

connected to prevent electrical shock.

An apparatus with CLASS I construction shall be connected to

• a power socket outlet with a protective earthing connection.

Do not touch the power plug with a wet hand. (This may

cause electrical shock.)

Do not use any power cord other than that provided with

this TV. (This may cause fire or electrical shock.)

Do not damage the power cord. (A damaged cord may

cause fire or electrical shock.)

•

Do not move the TV with the cord plugged in the socket outlet.

• Do not place a heavy object on the cord or place the cord near a high-temperature object.

• Do not twist the cord, bend it excessively, or stretch it.

• Do not pull on the cord. Hold onto the power plug body when disconnecting cord.

• Do not use a damaged power plug or socket outlet.

If Problems Occur During Use

If a problem occurs (such as no picture or no sound),

or if smoke or an abnormal odor is detected from the Plasma TV, unplug the power supply cord immediately.

Continued use of the TV under these conditions might cause

a fire or permanent damage to the TV. Have the TV evaluated by an Authorized Service Center. Servicing of the TV by unauthorized personnel is strongly discouraged due to its high voltage.

If water or an object gets inside the Plasma TV, if the

Plasma TV is dropped, or if the enclosure becomes damaged, unplug the power supply cord immediately.

A short-circuit may occur, which could cause a fire. Contact

an Authorized Service Center for an evaluation.

CAUTION

Do not cover the ventilation holes.

Doing so may cause the Plasma TV to overheat, which can

cause a fire or damage to the Plasma TV.

Leave a space of 3 15/16” (10 cm) or more at the top, left

and right, and 2 3/4” (7 cm) or more at the rear.

When using the pedestal, keep the space between the

bottom of the TV and the pedestal or stand surface clear from objects that may obstruct ventilation.

When Moving the Plasma TV

Be sure to disconnect all cables before moving the

Plasma TV.

Moving the TV with its cables attached might damage the

cables which, in turn, can cause fire or electric shock

To prevent an electric shock, disconnect the power

plug from the wall outlet as a safety precaution before carrying out any cleaning.

Safety Precautions (Continued)

Transport only in upright position

Transporting the unit with its display panel facing upright or

downward may cause damage to the internal circuitry.

Using a dry cloth, clean any dust from the power supply

cord and plug regularly.

Build-up of dust on the power cord plug can increase

humidity, which might damage the insulation and cause a fire.

This Plasma TV radiates infrared rays;

therefore, it may affect other infrared communication

equipment. Install your infrared sensor in a place away from direct or reflected light from your Plasma TV.

The TV will still consume some power as long as the power supply cord is connected to the wall outlet.

CEA CHILD SAFETY NOTICES: Flat panel displays are not always supported on the proper stands or installed according to the manufacturer’s recommendations. Flat panel displays that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests or carts may fall over and may cause personal injury or even death.

The consumer electronics industry (of which Panasonic is a member) is committed to making home entertainment enjoyable and safe. To prevent personal injury or death, be sure to follow the following safety guidelines:

TUNE INTO SAFETY:

• One size does NOT fit all. Follow the manufacturer’s recommendations for the safe installation and use of your flat panel display.

• Carefully read and understand all enclosed instructions for proper use of this product.

• Don’t allow children to climb on or play with furniture and television sets.

• Don’t place flat panel displays on furniture that can easily be used as steps, such as a chest of drawers.

• Remember that children can become excited while watching a program, especially on “larger than life”

flat panel displays. Care should be taken to install the display where it cannot be pushed, pulled over, or knocked down.

• Care should be taken to route all cords and cables connected to the flat panel display so that they cannot be pulled or grabbed by curious children.

WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT YOUR FLAT PANEL DISPLAY, ALWAYS:

• Use a mount that has been recommended by the display manufacturer and/or listed by an independent laboratory (such as UL, CSA, ETL).

• Follow all instructions supplied by the display and wall mount manufacturers.

• If you have any doubts about your ability to safely install your flat panel display, contact your retailer

about professional installation.

• Make sure the wall where you are mounting the display is appropriate. Some wall mounts are not designed to be mounted to walls with steel studs or old cinder block construction. If you are unsure, contact a professional installer.

• A minimum of two people are required for installation. Flat panel displays can be heavy.

Display panel is made of glass. Do not apply strong force

or impact to the display panel.

This may cause damage resulting in injury.

The TV is heavy. TV should be handled by 2 or more

people. Support as shown to avoid injury by the TV tipping or falling.

Panasonic recommends that a qualified installer perform the wall-mount installation. See page 5.

Notes

Do not display a still picture for a long time

This causes the image to remain on the plasma screen (“Image retention”). This is not considered a malfunction and is not covered by the warranty.

4 : 3

Typical still images

Channel number and other logos

•

Image displayed in 4:3 mode

•

SD Card photo • Video game • Computer image

•

Set up

■

Do not place the unit where it’s exposed to sunlight or other bright light (including reflections). Use of some types of fluorescent lighting may reduce the remote control’s transmission range.

To prevent “Image retention”, the screen saver is automatically activated after a few minutes if no signals are sent or no operations are performed. (p. 51)

Accessories/Optional Accessory

Accessories

Check you have all the items shown.

Accessories

Remote Control Transmitter

N2QAYB000321

AC cord Pedestal

Operating Instructions Viera Concierge and basic

instruction for HDTV

Batteries for the Remote Control Transmitter (2)

AA Battery

TBLX0102

(TC-P58S1)

Product Registration Card (U.S.A.) Customer Care Plan Card (U.S.A.)

Optional Accessory

Wall-hanging bracket

(angle)

TY-WK5P1RW (for 58”) TY-WK6P1RW (for 65”)

How to assemble (p. 9)

Note

In order to maintain the TV’s performance and

safety, be absolutely sure to ask your dealer or a licensed contractor to secure the wall-hanging brackets.

Carefully read the instructions accompanying the

plasma TV stand or pedestal, and be absolutely sure to take steps to prevent the TV from tipping over.

Handle the TV carefully during installation since

subjecting it to impact or other forces may cause its panel to crack.

Cleaning cloth

TBLX0126

(TC-P65S1)

Installing the remote’s batteries

Caution

Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control.

Do not mix old and new batteries.

•

Do not mix different battery types (such

•

as alkaline and manganese batteries). Do not use rechargeable (Ni-Cd)

•

batteries.

Do not burn or break batteries.

Hook

Open

Note the correct polarity (+ or -).

Attaching the pedestal to TV

Assembling the pedestal

■

[TC-P58S1 (TBLX0102)] [TC-P65S1 (TBLX0126)]

Fix securely with assembly screws A. (Total 4 screws)

Tighten screws firmly.

Pole

Front

Base

Set-up

■

Carry out work on a horizontal and level surface.

Tighten screws firmly.

Fix securely with assembly screws A. (Total 6 screws)

Tighten screws firmly using

Allen wrench

Pole

Bottom view

Rear side

Base

Pole

Front

Accessories

Assembly screws

(for 58”) M5 × 25 (Silver) (4)

(for 65”) M5 × 30 (Silver) (6)

(for 58”) M5 × 30 (Black) (4) (for 65”) M6 × 25 (Black) (4)

Poles (2)

(for 58”)

L or R is printed at the

bottom of the poles.

(for 65”)

Quick Start

Guide

Accessories/Optional Accessory

Pole

Arrow mark

(Image: TC-P58S1)

Base

Hole for pedestal installation

Pole

Fix securely with assembly

screws B. (Total 4 screws)

Base (1)

(for 58”)

(for 65”)

Back

Front

Warning

Do not disassemble or modify the pedestal.

Otherwise the TV may fall over and become damaged, and personal injury

may result.

Caution

Do not use any other TV and displays.

Allen wrench (included tool only for 65”)

Otherwise the TV may fall over and become damaged, and personal injury

may result.

Do not use the pedestal if it becomes warped or physically damaged.

If you use the pedestal when it is physically damaged, personal injury may result.

Contact your nearest Panasonic Dealer immediately.

During set-up, make sure that all screws are securely tightened.

If sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be

strong enough to support the TV, and it might fall over and become damaged, and personal injury may result.

Accessories/Optional Accessory

AC cord connection

To attach To remove

Insert it firmly until the tabs on both sides click into place.

(Continued)

Keep pushing both side snaps and pull down

Reference of connection

Antenna terminal Pin terminals HDMI terminal

greenbluered

green

Firmly tighten by hand.

Match colors of plugs and terminals. Insert firmly.

Insert firmly.

To connect the antenna terminal and Cable Box

VIDEO

AUDIO

VIDEO

AUDIO

Basic Connection

Example 1

Cable TV

Connecting Antenna (To watch TV)

VHF/UHF Antenna

Cable TV

VHF/UHF Antenna

Back of the TV

VHF/UHF Antenna

NTSC (National Television System Committee):

•

Conventional broadcasting ATSC (Advanced Television Systems Committee):

•

Digital TV Standards include digital high-definition television

(HDTV), standard-definition television (SDTV), data broadcasting, multi-channel surround-sound audio and interactive television.

* See page 10

(AC cord connection)

AC 120 V

60 Hz

AC Cord (Connect after all the other connections have been made.)

Quick Start

Guide

Basic Connection (Antenna + TV)

Accessories/Optional Accessory

(If no Cable Box) or

ANT OUTANT IN

Cable Box

Note

Not all cables and external equipment shown in this book are supplied with the TV. For more details on the external equipment’s connections, please refer to the operating manuals for the equipment. When disconnecting the power cord, be absolutely sure to disconnect the power cord plug from the wall outlet first. For additional assistance, visit us at: www.panasonic.com

Cable Box/Cable

You need to subscribe to a cable TV service to enjoy viewing their

•

programming. If using a Cable Box, set the TV channel to CH3 or CH4 for regular cable.

•

You can enjoy high-definition programming by subscribing to a high-

•

definition cable Service. The connection for high-definition can be done with the use of HDMI or Component Video cable. (p. 14) To view high-definition programming select the correct video input. (p. 24)

•

www.panasonic.ca

To connect the antenna terminal and DVD recorder or VCR

COMPONENT

VIDEO IN 1

VIDEO

S VIDEO

AUDIO

LRL

HDMI 1 HDMI 2

VIDEO

AUDIO

Basic Connection (Continued)

Example 2

Connecting DVD recorder (VCR) (To record/playback)

AV Equipment (e.g. DVD Recorder or VCR)

VHF/UHF Antenna

DVD Recorder

If the source has a higher resolution signal (480p/720p/ 1080i/1080p), connection can be made with the use of a Component Video or HDMI cable. (p. 14)

VCR

Connection can be made with the use of an RF cable and Composite Video/S Video cable. (p. 14)

VHF/UHF Antenna

AC Cord

Back of the TV

* See page 10

(AC cord connection)

AC 120 V

60 Hz

ANT OUTANT IN

AV Equipment

(e.g. DVD Recorder or VCR)

(with TV tuner)

Connecting TV and AV equipment

Please refer to

- D on p. 14

To connect the antenna terminal and Satellite Receiver and DVD recorder or VCR

COMPONENT

VIDEO IN 1

VIDEO

S VIDEO

AUDIO

LRL

HDMI 1 HDMI 2

VIDEO

AUDIO

Example 3

Connecting DVD recorder (VCR) and satellite receiver

DVD Recorder

VCR

Satellite

Receiver

VHF/UHF Antenna

You can enjoy high-definition programming by subscribing to high-definition satellite service. Connection can be done with the use of HDMI or Component Video cable. (p. 14)

Quick Start

Guide

VHF/UHF Antenna

AC 120 V

60 Hz

Back of the TV

* See page 10

(AC cord connection)

AC Cord

Basic Connection (TV + DVD Recorder or VCR + Satellite Receiver)

(TV + DVD Recorder or VCR)

ANT IN

Satellite Receiver DVD Recorder or VCR

Note

For details of external equipment connections, please refer to the operating manuals for the equipment.

ANT OUTANT IN

Connecting TV and AV equipment

Please refer to

(with TV tuner)

- D on p. 14.

High-Definition

Standard-Definition

Basic Connection (Continued)

COMPONENT

1 2

VIDEO IN 1

S VIDEO

LRL

VIDEO IN 1

LRL

AV cable connections

To use HDMI terminals

HDMI 1 HDMI 2

Connecting to HDMI terminals will enable you to enjoy high-definition digital images and high-quality sound. The HDMI connection is required for a 1080p signal. For “VIERA LinkTM connections”, please refer to p. 31.

To use COMPONENT terminals

green

blue

red

white

red

green

blue

red

white

red

Recorders may also be connected to COMPOSITE or S VIDEO terminals. (see below)

green

blue

red

white

red

HDMI AV OUT

COMPONENT

VIDEO OUT

AUDIO OUT

AV Equipment

e.g. Blu-ray Disc player

AV Equipment

e.g. Blu-ray Disc player

To use S VIDEO terminals

To use COMPOSITE terminals

Note

Some programs contain a copyright protection signal to prevent recording.

When the copyright protection program is displayed, do not connect the other TV monitor through a VCR. Video signals fed through VCRs may be affected by copyright protection systems and the picture will be distorted on the other TV monitor.

For more details on the external equipment’s connections, please refer to the operating manuals for the equipment.

The S Video input will override the composite video signal when S Video cable is connected. Connect

either S Video or Video cable. Connecting to S VIDEO terminals will enable you to enjoy greater picture quality than using Composite

terminals.

white

red

yellow

white

red

white

red

yellow

white

red

white

red

yellow

white

red

S VIDEO OUT

AUDIO

OUT

COMPOSITE OUT

AV Equipment

e.g. DVD Recorder

e.g. VCR

AV Equipment

e.g. DVD Recorder

e.g. VCR

Identifying Controls

TV controls/indicators

Front of the TV

Selects channels in sequence

Volume up/down

POWER button

Note

The TV consumes a limited amount of power as long as the power cord is inserted into the wall outlet. Do not place any objects between the TV remote control sensor and remote control.

Remote control sensor Within about 23 feet (7 meters) in front of the TV set.

Power indicator (on: red, off: no light)

C.A.T.S. sensor Plasma C.A.T.S. (Contrast Automatic Tracking System). (p. 26)

Displays the Main menu.

Changes the input mode Chooses menu and submenu entries.

Remote control

Back of the TV

HDMI input 3 connector

Video Input 2 connector

Closed Caption On/Off (p. 19)

SD card slot

Quick Start

Guide

Identifying Controls

Basic Connection (AV cable connections)

Switches TV On or Off (Standby) Changes the input mode (p. 24)

VIERA Link menu (p. 34-35)

Displays Sub Menu (p. 19, 28) Colored buttons

(used for various functions) (for example, p. 18, 22, 35)

Volume up/down Sound mute On/Off

Changes aspect ratio (p. 20, 45)

Switches to previously viewed channel or input modes.

External equipment operations (p. 35)

Selects Audio Mode for TV viewing (p. 19) Exits from menu screen

Displays Main Menu (p. 26) Display VIERA TOOLS (p. 21) Viewing from SD Card (p. 22-23) Selects/OK/Change Returns to previous menu Channel up/down

Displays or removes the channel banner (p. 20)

Operates the Favorite channel list function. (p. 20)

Numeric keypad to select any channel (p. 19) or press to enter alphanumeric input in menus. (p. 18, 24, 34, 36, 38, 41, 42)

Use for digital channels. (p. 19)

First Time Setup

“First time setup” is displayed only when the TV is turned on for the first time after the power cord is inserted into a wall outlet and when “Auto power on” (p. 28-29) is set to “No”.

Turn the TV On with the POWER button

(Remote)(TV)

* This setting will be skipped next time if you select “Home Use”.

Select your language

Language

English FrançaisEspañol

select

Be sure to select “Home Use”

Please select your viewing environment

Home Use Store Demonstration

Select “Home Use” when using this TV in your home.

Please confirm your selection (Home Use) before pressing OK button.

If you select “Store Demonstration” by mistake in ,

■

select

confirmation screen will be displayed.

You are selecting the mode for store demonstration

Yes No

If you select “Yes”, the picture mode will regularly reset to “Vivid” and a Picture Refresh message will be displayed on the screen.

Select “No” and return to previous screen . If you select “Yes”, Screen enters store demonstration mode.

To display the “Please select your viewing environment” screen again as shown above and select “Home Use”, do one of the following:

• Press and hold down the front POWER button.

• Unplug the TV and plug it again.

select

Press to exit from

■

a menu screen

Press to return

■

to the previous screen

Adjust the clock

First time setup

Language

Clock

ANT/Cable setup Input labels

select

Press to exit from

■

a menu screen

Note

To change setting

(Language/Clock/ ANT/Cable setup/ Input labels) later, go to Menu screen (p. 28)

Clock

Year

Month Day Hour Minute

2009

1 7

10 AM

set select item

Year: Select the year Month: Select the month Day: Select the day Hour: Adjust the hour Minute: Adjust the minute

Auto channel setup

Select “ANT/Cable setup”

First time setup

Language Clock

ANT/Cable setup

Input labels

Select “ANT in”

ANT/Cable setup

ANT in

Auto program

Select “Not used” when no wire is connected to the “Antenna/Cable” terminal.

Typical when Cable/Satellite box is connected to a TV input. Prevents accidental tuning to an unavailable signal.

Select “Auto program”

ANT/Cable setup

ANT in

Auto program

Cable

select

set

select

ANT in

Cable: Cable TV Antenna

: Antenna

Not used

: Skip TV tuning

Quick Start

Guide

First Time Setup

go to

Select OK

RETURN

DeleteABC → abc

R G B Y

G A A

Video 1

Video 2

First Time Setup (Continued)

Select scanning mode (ALL channels/Analog only/Digital only)

Auto program

All channels

Analog only Digital only

select

Press to exit from

■

a menu screen

Note

About broadcasting

systems

Analog (NTSC): Conventional

Digital (ATSC): New

broadcasting

programming that allows you to view more channels featuring high-quality video and sound

Auto program

Progress Number of analog channels Number of digital channels

Press RETURN to quit

RETURN

Start scanning the channels

32%

Available channels (analog/digital) are automatically set.

All channels: Scans digital and analog channels Analog only: Scans Analog channels only Digital only: Scans Digital channels only

Confirm registered channels

program

Caption Favorite Add

... ... ...

CancelApply

...

Yes

...

Yes

...

Yes

If OK is not pressed after selecting “Apply”, the channels will not be saved.

The channel will be saved when no operation is performed for 60 seconds and

the “Manual program” menu will also exit automatically.

If you perform scanning more than twice, previously saved channels are erased.

select “Apply”

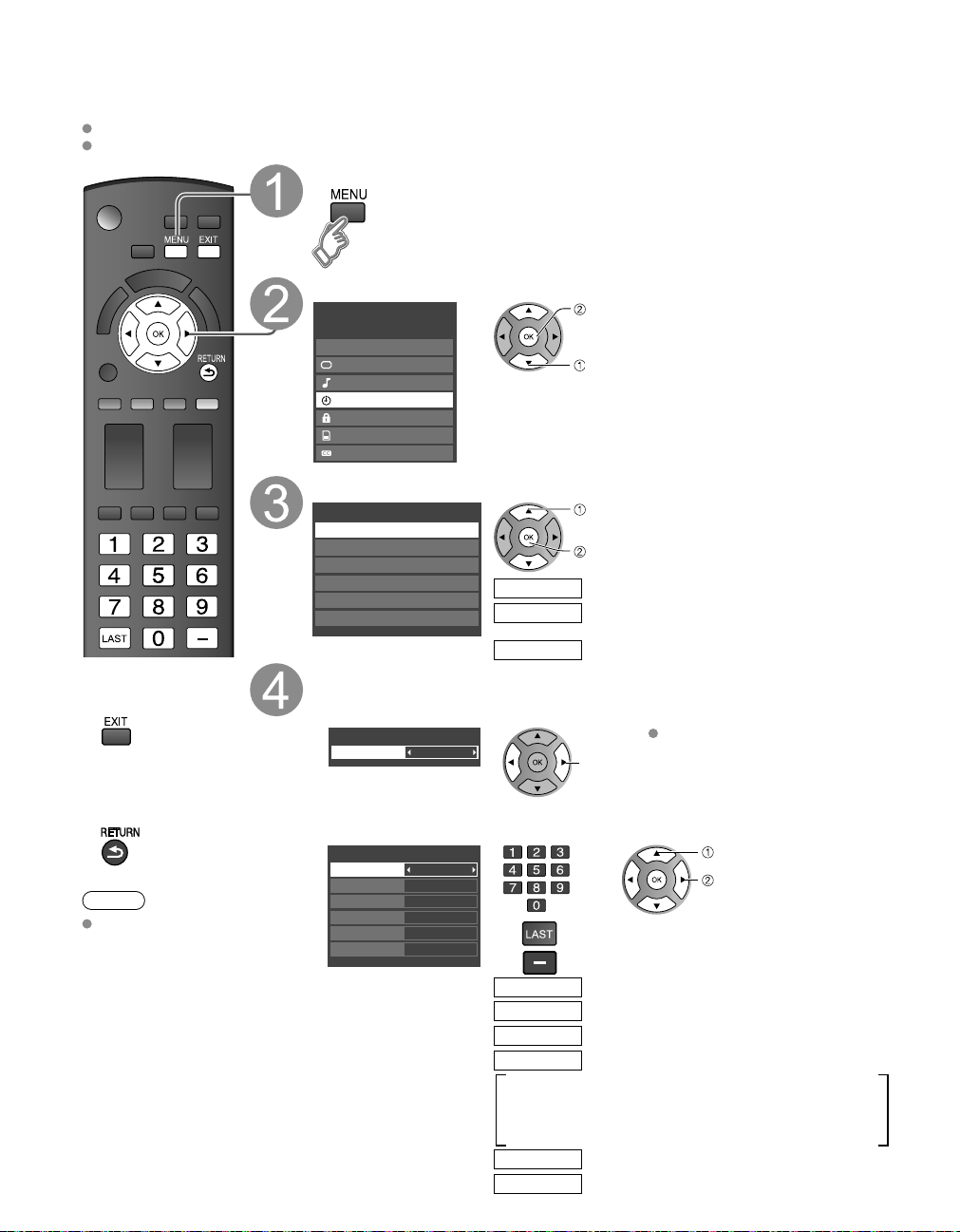

Set the Input labels

First time setup

Language Clock ANT/Cable setup

Input labels

Component 1 Component 2 HDMI 1 HDMI 2 HDMI 3 Video 1

Video 2

GAME

Label: [BLANK] SKIP/VCR/DVD/CABLE/SATELLITE/DVR/GAME/AUX/RECEIVER/

COMPUTER/Blu-ray/CAMERA/DVD REC/HOME THTR/MONITOR/ MEDIA CTR/MEDIA EXT/OTHER

select

select set

Switches Input mode alphabet to numeric

Watching TV

Listen with SAP (Secondary Audio Program)

■

Select Audio Mode for watching TV

Digital mode

Press SAP to select the next audio track (if available) when receiving a digital

channel.

Analog mode

Press SAP to select the desired audio mode.

• Each press of SAP will change the audio mode. (Stereo/SAP/Mono)

Closed Caption

■

Switches Closed Caption mode On or Off

CC On CC Off

Display the SUB MENU

■

Press SUB MENU to show sub menu screen. (p. 28)

This menu consists of shortcuts to convenient functions.

All

Setup SUB MENU

Edit CH caption Signal meter

Set favorite

Channel surf mode

Connect the TV to a cable box/cable, set-top-box, satellite box or antenna cable (p. 11-14)

To watch TV and other functions

Turn power on

Note

If the mode is not TV, press and

select TV. (p. 24)

Select a channel number

down

(TV)

Note

Reselect “Cable” or “Antenna” in “ANT in” of “ANT/Cable setup” to switch the

signal reception between cable TV and antenna. (p. 17, 39)

The channel number and volume level remain the same even after the TV is

turned off.

Audio track 1 of 2

(English)

(TV)

Quick Start

Guide

To directly input the digital

■

channel number

When tuning to a digital channel, press the button to enter the minor number in a compound channel number.

example: CH15-1:

Viewing

Watching TV

First Time Setup

SUB

Watching TVWatching TV (Continued)

Information Recall

■

Displays or removes the channel banner.

Channel

Station identifier

SAP indication

Signal resolution

Rating Level

Picture mode

Sleep timer remaining time

Aspect ratio

Closed caption

Clock

Change aspect ratio

■

Press FORMAT to cycle through the aspect modes. (p. 45)

• 480i, 480p: FULL/JUST/4:3/ZOOM

• 1080p, 1080i, 720p: FULL/H-FILL/JUST/4:3/ZOOM

Call up a favorite channel

■

FAVORITE

Channel numbers registered in Favorite are displayed on the favorite tune

screen. Select the desired broadcast station with the cursor or use number buttons. (see below)

Set favorite 1/3

26-1

1 2 3 4 5

Set favorite 1/3

26-1

1 2 3 4 5

Favorite channels

1/3

26-1

1 2 3 4 5

Favorite channels

1/3

26-1

1 2 3 4 5

Other Useful Functions (Operate after )

■

Set Favorite Feature

■

15-2 12:30 PM ABC-HD

THE NEWS CC SAP

TV-G 1080i Standard 4:3

Favorite Feature

■

Display the SUB MENU.

SUB

Select “Set favorite”

Setup SUB MENU

Channel surf mode

All

Set favorite

Edit CH caption Signal meter

Set the displayed channel

Delete a favorite channel

select

select the list number

save the displayed channel

select the list number (to save the channel without pressing OK)

select

■

Use Favorite Feature

Display “Favorite channels”

Select the channel

Set Favorite channel

To change the page

Press repeatedly to change between pages(1/3, 2/3, 3/3 or exit)

Changes the page forward/backward

select

delete (while holding down)

Using VIERA TOOLS

VIERA TOOLS are the easy way to access high use menu items. They are displayed as shortcut icons on the TV screen.

Unlike a conventional menu, you can enjoy using, playing or setting a function quickly.

Display VIERA TOOLS

Select the item

select

GAME MODE

Displayed “VIERA Link” menu (p. 34-35)

Start Slideshow (p. 22-23)

Viewing

Press to exit from

■

a menu screen

Press to return

■

to the previous screen

Set “Sleep”(Off timer) (p. 42)

Change to “Game” mode (p. 27) Switches Picture mode “Game, Custom, Vivid, Standard or Cinema” setting.

Picture mode

Game

Change

Custom

Vivid

Standard

Cinema

Using VIERA TOOLS

Watching TV

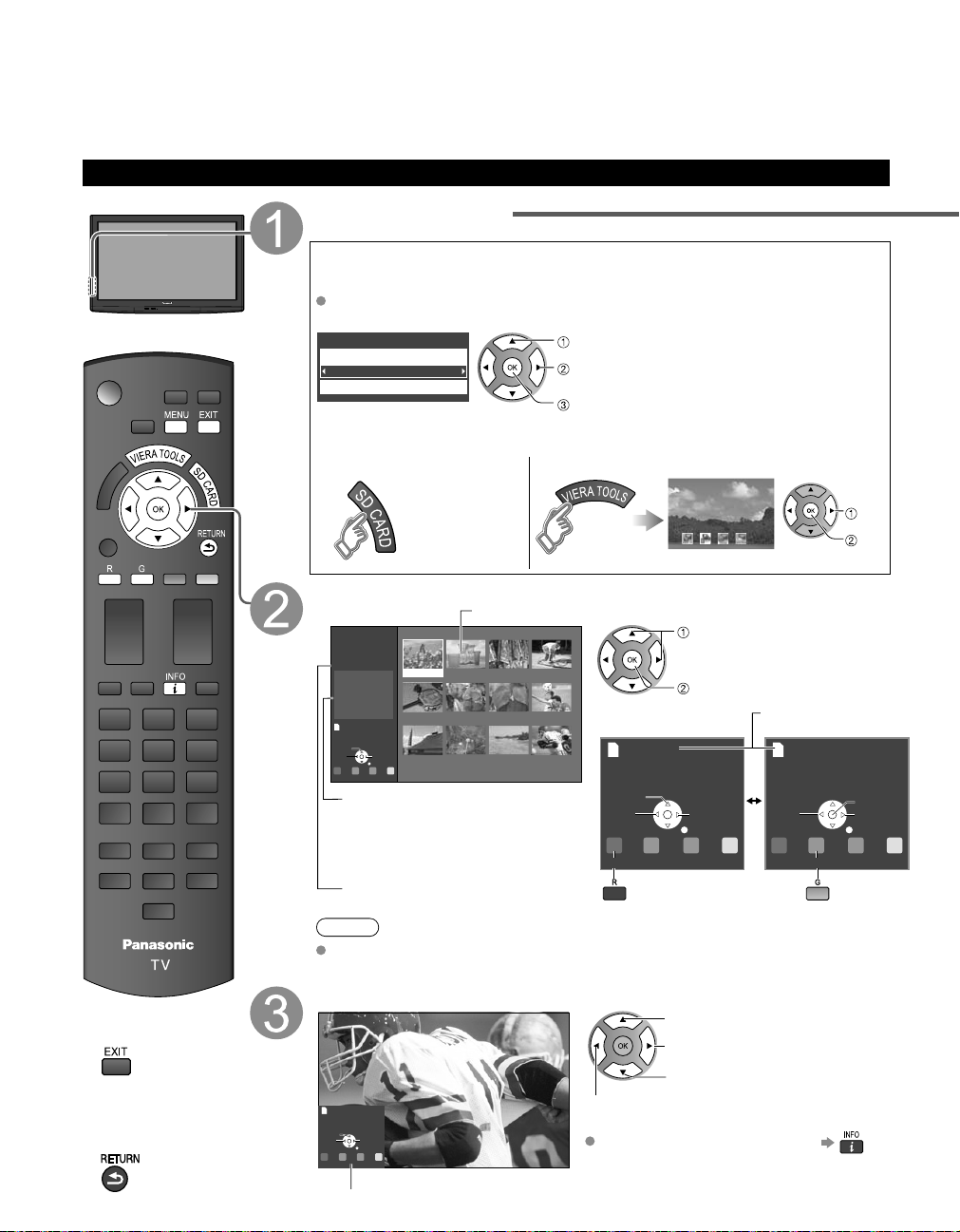

Viewing from an SD Card

You can view photos taken with a digital camera or digital video camera and saved on an SD card. (Media other than SD Cards may not be reproduced properly.)

Photo viewer

Insert the SD card

* This setting will be skipped next time unless you select “Set later”.

Set “SD card setting” and select “Play SD card now”

“SD card setting” will be displayed automatically each time an SD card is

inserted for the first time.

select

SD card setting

Play SD card automatically

Set later

Play SD card now

Slideshow:

change

Thumbnail: Set later: “SD card setting” menu will be

set

Off: The data can be played manually.

Manual operation (“Play SD card automatically” is “Off”)

■

Display “Photo viewer” Start Slideshow

A Slideshow will start automatically next time. The Photo viewer menu will be displayed automatically next time.

displayed repeatedly.

Slideshow

select next

Press to exit from

■

a menu screen

Press to return

■

to the previous screen

Select the data to be viewed

Thumbnail view

Photo viewer

Total

Name Date

03/04/2009 Size

Accessing

Rotate Prev.

R YG B

Slideshow

Selected picture information is displayed.

Name: Image number or file name is Date: Date of recording is displayed.

Size: Display resolution is displayed.

Pana0001 Pana0002 Pana0003 Pana0004

Pana0001

1600×1200

Pana0005 Pana0006 Pana0007 Pana0008

Pana0009 Pana0010 Pana0011 Pana0012

RETURN

displayed.

Total number of images

Navigation area

Accessing

Rotate Prev.

R YG B

Slideshow

To Slideshow

select

view

Next RETURN

Present status (While reading the data)

Accessing

Prev.

R YG B

Single

Note

Depending on the JPEG format, “Information” contents may not be displayed

correctly. Refer to p. 46 (Data format for SD card browsing) for details.

View

Rotate 90 degrees (counter-clockwise) To next photo Rotate 90 degrees (clockwise)

To previous photo

Rotate Prev.

Next RETURN

R YG B

Slideshow

Navigation area

Displays one at a time

To display/hide Navigation area

Pause Next

RETURN

To Single photo play

SD Card

Insert the card Remove the card

Label surface

Push until a click is

heard

Press in lightly on SD

Card, then release.

Compliant card type (maximum capacity): SDHC Card (16 GB), SD Card (2 GB), miniSD Card

(1 GB) (requiring miniSD Card adapter)

For cautions and details on SD Cards (p. 46)

Photo settings

In or

■

Adjust the picture

Display “Photo settings”

Picture menu (p. 26)

0 0 0 0 0

Vivid

Picture 1/2

Brightness Color Tint Sharpness

Picture mode

Contrast

Reset to defaults

Select Adjust

Select the item

Photo settings


Slideshow settings

Select

Set

set

■

Set up Slideshow

Fast

Slideshow settings

Speed

Repeat

Select Adjust

Speed

You can set how many seconds each image is displayed in Slideshow mode.

(Very fast/Fast/Medium/Slow/Very slow)

Repeat

Turn the slideshow Repeat function On or Off.

Note

To stop in mid-cycle Press

VIERA IMAGE VIEWER

The VIERA Image Viewer is a function that lets you easily view still and motion images on a VIERA television by simply inserting an SD card into the VIERA SD card slot.

Viewing

Viewing from SD Card

Watching Videos and DVDs

If you have applicable equipment connected to the TV, you can watch videos and DVDs on the TV’s screen.

Input Select

You can select the external equipment to access.

With the connected equipment turned On

Display the Input select menu

Select the input mode

Input select

Component 1

Component 2

HDMI 1

HDMI 2

HDMI 3

Video 1

Video 2

AUX

GAME

(example)

Press corresponding NUMBER button on the remote control to select the input of your choice.

Select the input of your choice, then press OK.

select

During the selection, if no action

enter

is taken for several seconds, the “Input select” menu disappears.

To return to TV

■

HDMI 1

GAME

Terminal Label

The terminal and label of the

connected equipment are displayed.

To label each of the inputs,

(example)

please refer to p. 41.

Note

The input label will be displayed on “Input select” screen if Input label is set on p. 41.

For side input terminals (HDMI 3/Video 2), “GAME” input label is set as default.

(Picture mode is set to “Game”, refer to p. 47.) For more details for picture mode setting, refer to p. 47. For Input label, refer to p. 41.

Operate the connected equipment using the remote control supplied with the equipment

Note

For details, see the manual of the connected equipment.

VIERA Link

Setting

If you connect equipment that has the “HDAVI Control” function to a TV using an HDMI cable,

VIERA Link


Lock SD card Closed Caption

Setup

Setup 2/2

Advanced setup About

VIERA Link settings

ECO/power saving

you will find it easier to use. Please refer to p. 30-35. Before using these functions, you need to set “VIERA Link” setting to “On” as shown below.

Display menu

Select “Setup”

select

Select “VIERA Link settings”

select

Viewing

Press to exit from

■

a menu screen

Press to return

■

to the previous screen

Select “VIERA Link”

VIERA Link settings

VIERA Link

Power on link Power off link Stand-by power save

Auto power stand-by

Default speakers

On Yes Yes

select

Select “On”

(default is On)

Now you can set each “VIERA Link” function according to your preference (p. 32-35).

Note

If no HDMI equipment is connected or standard HDMI equipment (non- “VIERA

Link”) is used, set it to “Off”.

For more details on the external equipment’s connections, please refer to the

operating manuals for the equipment.

change

Watching Videos and DVDs

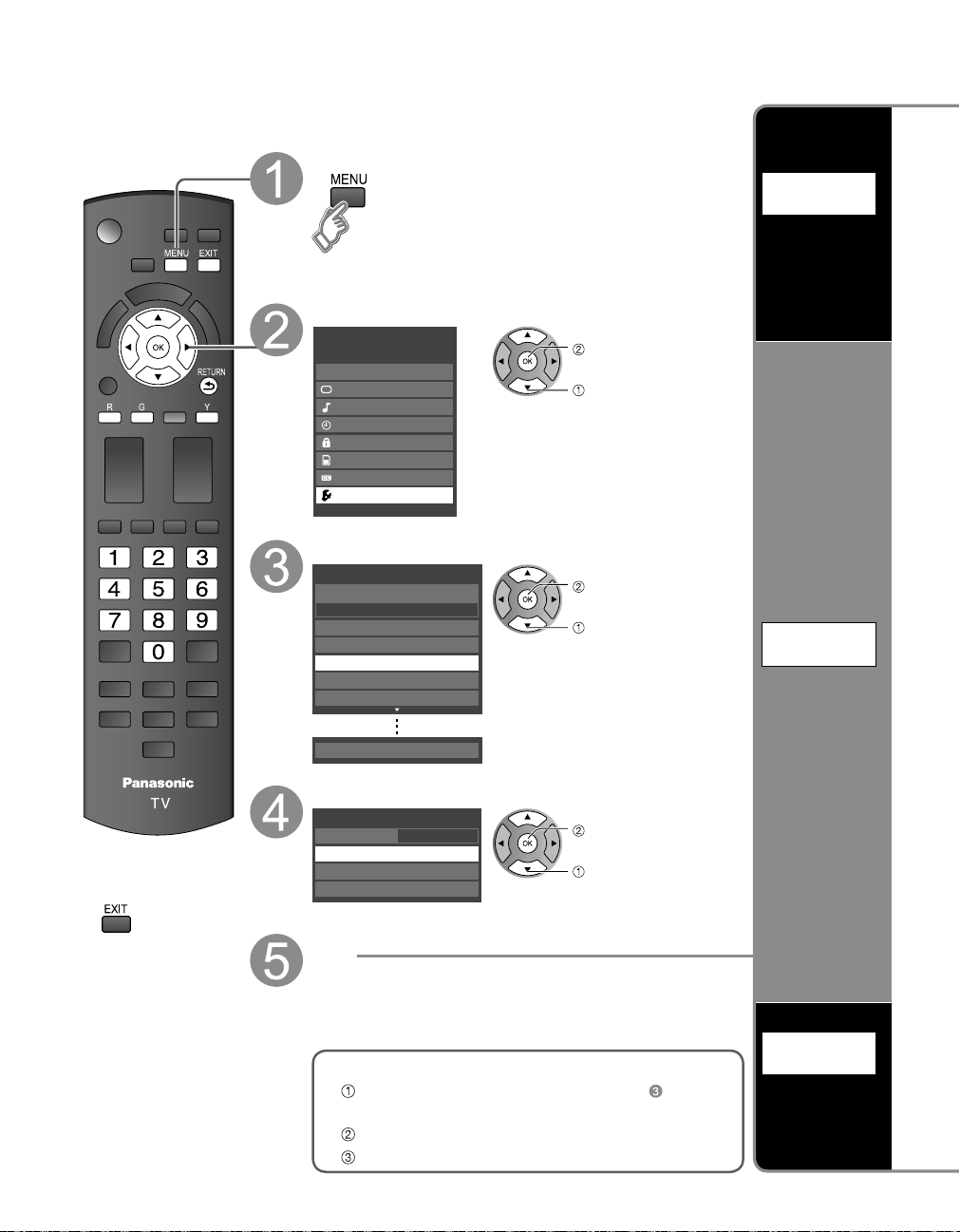

How to Use Menu Functions

Menu listVarious menus allow you to make settings for the picture, sound, and

■

other functions so that you can enjoy watching TV best suited for you.

Display menu

Displays the functions that can be set

(varies depending on the input signal)

Select the menu

VIERA Link


Audio Timer Lock SD card Closed Caption Setup

select

VIERA

Link

VIERA Link control Speaker output

Reset to defaults Picture mode

Contrast, Brightness, Color, Tint, Sharpness

Color temp. C.A.T.S. Video NR


Zoom adjustments

Advanced picture

Item

3D Y/C filter

Color matrix

Press to exit from

■

a menu screen

Press to return

■

to the previous screen

Select the item

Picture 1/2

Reset to defaults

Picture mode

Contrast Brightness Color Tint Sharpness

(example: Picture menu)

Vivid 0 0 0 0 0

Adjust or select

Picture 1/2

Reset to defaults

Picture mode

Contrast Brightness Color Tint Sharpness

(example: Picture menu)

Vivid 0 0 0 0 0

select

adjust or select

Reset to defaults Bass Treble Balance

Audio

Sleep, Timer 1-5

Timer

Lock

SD card

Caption

Closed

MPEG NR Black level

HD size

H size

Surround

Advanced audio

Volume leveler TV speakers

HDMI 1 in HDMI 2 in HDMI 3 in

Closed Caption

Adjustments/Configurations (alternatives)

[VIERA Link control] Selects equipment to access and operate. (Recorder/Home theater/Player/Camcorder/LUMIX) (p. 34-35) [Speaker output]

Selects an audio output. (Home theater/TV) (p. 34-35)

VIERA Link menu is accessible directly by pressing the VIERA Link button on the remote control. (p. 34)

•

Resets all picture adjustments to factory default settings except for “Advanced picture”. Basic picture mode (Vivid/Standard/Cinema/Game/Custom) (p. 47)

Adjusts color, brightness, etc. for each picture mode to suit your taste

Display range

•

Contrast/Brightness/Color/Sharpness: 0 - 100 Tint: -50 - +50

Contrast Brightness Color

Selects a choice of Cool(blue), Normal, or Warm(red) color. (Cool/Normal/Warm) Adjusts the brightness and gradation according to the ambient lighting condition. (Off/On) Reduces noise, commonly called snow. Leave it off when receiving a strong signal. (Off/On) Adjusts vertical alignment and size when aspect setting is “ZOOM” (p. 45) Minimizes noise and cross-color in the picture. (On/Off)

Selects image resolution of component-connected devices (HD/SD)

SD: Standard Definition HD: High Definition

•

Only 480p signal accepted; regular TV (NTSC) is not available.

•

Reduces noise of specific digital signals of DVD, STB, etc. (On/Off) Selects Dark or Light. Valid only for external input signals. (Dark/Light)

Selects between 95 % (Size 1) or 100 % (Size 2) for the scanning area with High-definition signal. (Size 1/ Size 2) Select “Size 1” if noise is generated on the edges of the screen.

Size 1: Selected item for “HD size”. Scanning 95%

•

Size 2: Selected item for “HD size”. Scanning 100%

•

Adjust horizontal display range to reduce noise of both side edges of an image. (Size 1/Size 2) Size 2: Adjust image size according to aspect mode for reducing noise. (p. 48)

Resets Bass, Treble and Balance adjustments to factory default settings. Increases or decreases the bass response. Increases or decreases the treble response. Emphasizes the left / right speaker volume. Enhances audio response when listening to stereo. (On/Off) Minimizes volume disparity after switching to external inputs.

Switch to “Off” when using external speakers (On/Off)

“Surround” and “Volume leveler” do not work if “Off” is selected.

•

The default setting is “Digital” for HDMI connection. (Digital input signal) Select audio input terminal when DVI cable is connected. (Analog audio input signal)

(Digital/Component 1/Component 2/Video 1/Video 2)

The TV can automatically turn On/Off at the designated date and time (p. 42) Locks the channels and programs (p. 36) Displays SD card data (p. 22-23)

+20 0 0

Reset to defaults

Picture mode

Tint Sharpness

Color temp.

C.A.T.S.

Video NR

Zoom adjustments

3D Y/C filter

Color matrix

MPEG NR

Black level

HD size

H size

Reset to defaults

Bass

Treble

Balance

Surround

Volume leveler

TV speakers

HDMI1 in HDMI2 in HDMI3 in

SD card

0 0

Vivid

Cool

Off

Light

Size1

Size 1

Off

Digital Digital Digital

How to Use Menu Functions

(picture, sound quality, etc.)

Advanced

Displays subtitles (Closed Caption) (p. 40)

In AV mode, the Audio menu and Setup menu give fewer options.

Closed Caption

How to Use Menu Functions

Various menus allow you to make settings for the picture, sound, and other functions so that you can enjoy watching TV best suited for you.

Display menu

Displays the functions that can be set

(varies depending on the input signal)

Select “Setup”

select

Press to exit from

■

a menu screen

Press to return

■

to the previous screen

VIERA Link

Picture Audio Timer Lock SD card Closed Caption

Setup

Select the item

Setup 1/2

Channel surf mode

All Language Clock ANT/Cable setup Connected devices Anti image retention

Menu list

■

Channel surf mode

Language Clock ANT/Cable setup

devices

Anti Image retention

VIERA Link settings

Setup

ECO/power saving

Item

Connected

Input labels

Pixel orbiter

Time (minutes) 4:3 side bars Scrolling bar VIERA Link Power on link

Power off link Stand-by power

save Auto power

stand-by Default speakers

No signal for 10 minutes

Display Sub Menu

SUB

Select the item

Setup SUB MENU

Channel surf mode

Set favorite Edit CH caption Signal meter

All

select

set or next

No activity for 3 hours

Advanced

setup

Auto power on

Play SD card

automatically About Reset to defaults

Sub menu list

■

Menu Item

SUB MENU

Channel surf mode

Setup

Set favorite Edit CH caption Signal meter

(Continued)

Adjustments/Configurations (alternatives)

Sets the mode to select the channel with Channel up/down button

(All/Favorite/Digital only/Analog only)

Favorite: Only channels registered as FAVORITE (p. 20)

•

Selects the screen menu language (p. 16) Adjusts the clock (p. 17) Sets channels (p. 39)

Selects the terminal and label of the external equipment (p. 41)

Channel surf mode

All

Language

Clock

ANT/Cable setup

Prevents “Image retention” with Wobbling. (Automatic/Periodic)

Automatic: Shifts the display image automatically.

•

Periodic:

•

Sets the time for “Pixel orbiter-Periodic” setting. (1/2/3/4) Change the brightness of the side bar (Off/Dark/Mid/Bright) (4:3 mode only)

The recommended setting is “Bright” to prevent panel “Image retention”. (p. 48)

•

Press “OK” to start horizontal “Scrolling” on the screen (p. 48) Controls equipment connected to HDMI terminals (p. 32) (On/Off)

“Power off link”, “Power on link”, “Stand-by power save”, “Auto power stand-by” and “Default speakers” cannot be selected if “Off” is set.

•

Sets “Power on link” of HDMI connection equipment (p. 32) (Yes/No) Sets “Power off link” of HDMI connection equipment (p. 32) (Yes/No)

Set “Stand-by power save” of HDMI connection equipment. (p. 32) (No/Yes)

Set “Auto power stand-by” of HDMI connection equipment. (p. 32)

(No/Yes (with reminder)/Yes (no reminder)

Selects the default speakers (p. 32) (TV/Theater) To conserve energy, the TV automatically turns off when NO SIGNAL and NO OPERATION is performed

for more than 10 minutes. (Enable/Disable)

Note

Not in use when setting “Auto power on”, “On/Off Timer”, “Lock”, “SD mode” or Digital channel.

•

“No signal for 10 minutes was activated” will be displayed for about 10 seconds when the TV is turned

•

on for the first time after turning the power off by “No signal for 10 minutes”. The on-screen display will flash 3, 2 and 1 to indicate the last three (3) remaining minutes prior to the shut-off.

•

To conserve energy, the TV automatically turns off when no operation of remote or side panel key continues for more than 3 hours. (Enable/Disable)

Note

Not in use when setting “Auto power on” or “On/Off Timer”.

•

“No activity for 3 hours was activated” will be displayed for about 10 seconds when the TV is turned on

•

for the first time after turning the power off by “No activity for 3 hours”. The on-screen display will flash 3, 2 and 1 to indicate the last three (3) remaining minutes prior to the shut-off.

•

Turns TV On automatically when the cable box or a connected device is turned On (No/Yes) TV AC cord must be plugged into this device. TV comes on every time the power is restored.

The “Sleep” timer, “On / Off timer”, and “First time setup” will not function if “Auto power on” is set. (p. 42)

•

Set “Thumbnail” or “Slideshow” to play back SD cards automatically. (Slideshow/Thumbnail/Set later/Off)

Displays TV version and software license. Performing Reset will clear all items set with Setup, such as channel settings. (p. 38)

Shifts the display image every (1/2/3/4) minutes according to what was set in the “Time (minutes)” menu.

Pixel orbiter

Time (minutes)

4:3 side bars

Scrolling bar

VIERA Link

Power on link

Power off link

Stand-by power save

Auto power stand-by

Default speakers

No signal for 10 minutes

No activity for 3 hours

Auto power on

Play SD card automatically

About

Reset to defaults

Automatic

Bright

Yes

Enable

Disable

Set later

How to Use Menu Functions

(picture, sound quality, etc.)

Advanced

Adjustments/Configurations (alternatives)

Sets the mode to select the channel with Channel up/down button (All/Favorite/Digital only/Analog only) Sets favorite channels. (p. 20) Changes the station identifier. (p. 39) Checks the signal strength if interference or freezing occurs on a digital image. (p. 39)

VIERA Link

Simultaneously control all Panasonic “HDAVI Control” equipped components using one button on the TV remote. Enjoy additional HDMI Inter-Operability with Panasonic products which have the “HDAVI Control” function. This TV supports “HDAVI Control 4” function. Connections to the equipment (DVD recorder DIGA, HD Camcorder, Player theater, RAM theater, Amplifier, etc.) with HDMI cables allow you to interface with them automatically.

Equipment with the “HDAVI Control” function enables the following operations:

Version Operations

HDAVI Control or later

HDAVI Control 2 or later

HDAVI Control 3 or later

HDAVI Control 4

For the first time/When adding new equipment, reconnecting equipment or changing the setup

■

after the connection, turn the equipment on and then switch the TV on. Set the input mode to HDMI1, HDMI2 or HDMI3 (p. 24), and make sure that the image is displayed correctly.

VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed. Please refer to the individual manuals for other manufacturers’ equipment supporting the VIERA Link function.

Automatic Input Switching (p. 33)

•

Power on link (p. 33)

•

Power off link (p. 33)

•

Default speakers (p. 33)

•

One-touch theater playback (p. 33)

•

Speaker control (p. 35)

•

VIERA Link control only with the TV’s remote control (p. 35)

•

Auto power stand-by (for available equipment only) (p. 33)

•

Providing the setting information (p. 33)

•

Automatic lip-sync function (p. 33)

•

Stand-by power save (with quick start mode) (p. 33)

•

“HDAVI Control

”

HDMI cable

■

This function needs an HDMI compliant (fully wired) cable. Non-HDMI-compliant cables cannot be utilized. It is recommended that you use Panasonic’s HDMI cable. Recommended part number: RP-CDHF15 (4.9 ft/1.5 m), RP-CDHG15 (4.9 ft/1.5 m), RP-CDHF30 (9.8 ft/3.0 m), RP-CDHG30 (9.8 ft/3.0 m), RP-CDHG50 (16.4 ft/5.0 m) * For more details on the external equipment’s connections, please refer to the operating manuals for the equipment.

COMPONENT

VIDEO IN 1

VIDEO

S VIDEO

AUDIO

LRL

HDMI 1 HDMI 2

VIDEO IN 1

VIDEO

AUDIO

VIERA LinkTM Connections

Follow the connection diagrams below for HDAVI control of a single piece of AV equipment such as a DVD recorder (DIGA), RAM theater, or Player theater system. Refer to page 32-35 for Setup Menu settings and additional control information.

Optional HDMI and/or optical cables are not included.

•

If connection (or setting) of equipment compatible with HDAVI control is changed, switch the power of this unit Off and On again while the power of all equipment is On (so that the unit can correctly recognize the connected equipment) and check that the DVD recorder (DIGA), RAM theater, and Player theater playback operate.

Note

HDMI 1 is recommended.

When connecting to HDMI 2/HDMI 3, set the input mode to HDMI 2/HDMI 3 (p. 24) initially before connecting to

HDMI 2/HDMI 3. After connection, confirm the HDMI control functions (p. 32-35).

Connecting this unit to the DVD recorder (DIGA), RAM

■

theater, or Player theater

For DVD recorder (DIGA): Connect with HDMI cable

For RAM theater and Player theater: Connect with the HDMI and audio cables. If audio cable is not connected, you cannot listen to the TV program

Connecting this unit to a DVD

■

recorder (DIGA) and AV amp

When using a “VIERA Link” audio-

video amplifier and a compatible DVD recorder (DIGA) use a daisy chain connection as shown below.

through the theater system.

Digital Audio out

Back of the TV

VIERA Link

“HDAVI Control

”

HDMI cable

HDMI

(AV IN)

HDMI (AV OUT)

DVD recorder (DIGA) with VIERA Link function

AV amp with VIERA Link function

One AV amp and one DVD recorder (DIGA) can be operated with this unit.

Home theater systems with VIERA Link function

HD Camcorder with VIERA Link function

LUMIX with VIERA Link function

DVD recorder (DIGA) with VIERA Link function

Be sure to connect the AV amp between this unit and the DVD recorder (DIGA).

Setting of this unit after connection

■

After making connections as shown above, set “VIERA Link” (under “VIERA Link settings”) to “On” using the Setup

menu. (p. 25, 32-33).

Note

Individual HDMI equipment may require additional menu settings specific to each model. Please refer to their

respective operating instruction manuals.

When audio from other equipment connected to this unit via HDMI is output using “DIGITAL AUDIO OUT” of this

unit, the system switches to 2CH audio.

(When connecting to an AV amp via HDMI, you can enjoy higher sound quality.)

For details about HDMI cable for connecting Panasonic HD camcorder, read the manual for the equipment.

Advanced

VIERA Link

Automatic Input Switching

Power on link

Power off link

Stand-by power save

(for “HDAVI Control 4” (with quick start mode))

Auto power stand-by

(for “HDAVI Control 2 or later”)

Default speakers

One-touch theater playback

Providing the setting information

(for “HDAVI Control 3 or later”)

Automatic lipsync function

(for “HDAVI Control 3 or later”)

VIERA Link


Lock SD card Closed Caption

Setup

Setup 2/2

Advanced setup About

VIERA Link settings

ECO/power saving

“HDAVI Control

Display menu

Select “Setup”

”

select

Press to exit from

■

a menu screen

Press to return

■

to the previous screen

Select “VIERA Link settings”

select

Select “VIERA Link”

VIERA Link settings

VIERA Link

Power on link Power off link Stand-by power save

Auto power stand-by

Default speakers

Select “On”

(default is On)

On Yes Yes

select

change

Select settings

VIERA Link settings

VIERA Link Power on link Power off link Stand-by power save

Auto power stand-by

Default speakers

On Yes Yes

select

Set

VIERA Link settings

VIERA Link Power on link Power off link Stand-by power save

Auto power stand-by

Default speakers

On Yes Yes

Theater

change

(Continued)

At the start of the DIGA, Player theater, or RAM theater playback, the TV’s input automatically switches to the input based on the playback equipment.

For the RAM theater, the speakers automatically switch to the theater system.

If using the DIGA operation, the TV’s input automatically switches to the DIGA and DIGA menu is displayed.

When “Yes” is selected (p. 29), TV is turned on automatically and switches to the appropriate HDMI input whenever VIERA Link compatible equipment is initially turned on and Play mode is selected.

When “Yes” is selected (p. 29) and the TV is turned off, all connected VIERA Link compatible equipment is also automatically turned off.

DIGA (Panasonic DVD Recorder) will not turn off if it is still in rec mode.

Caution: The TV remains on even if the VIERA Link compatible equipment is turned off.

Condition Power off link: Yes, Stand-by power save: Yes The equipment has “HDAVI Control 4 (with quick start mode)” connected with HDMI cable. When TV is turned off, all connected VIERA Link compatible equipment is moved to ECO standby mode* automatically under above conditions. * Minimum power consumption of standby condition for the equipment.

Condition Auto power stand-by: Yes,

The equipment has “HDAVI Control 2 or later” (for available equipment only) connected with HDMI cable. [ Examples of timing for operation ]

• When the input is switched from HDMI.

• When the "Speaker output" is changed from "Home theater" to "TV".

The connected VIERA Link compatible equipment will be turned off automatically when not in use. “TV” is the default setting. To set the Home Theater system as default speakers, change the default speakers

setting from “TV” to “Theater”. Sound will be output from the Home Theater whenever the TV is powered on. If the “ONE TOUCH PLAY” key is pressed on the remote control for Panasonic Home Theater system, the following

sequence of operations is performed automatically.

Home Theater power switches On, and playback begins. TV power switches On, and the playback screen is displayed. Audio is muted on the TV and switches to the theater system.

The following information about the TV settings can be transmitted to each piece of equipment (Recorder/Home theater/Player) that has “HDAVI Control 3 or later” function connected to a TV with HDMI cable.

Transmittable data

Recorder Home theater Player

On Screen Display Language setting

(English/Español/Français)

○○○

Panel Aspect Ratio

(16:9 fixed)

○○○

Closed caption information

(Mode/CC type/Digital setting)

○

--- ---

Channel information

(Input signal/Channel list/Caption information)

○

--- ---

Note

There is a possibility that all the GUI language information might be set from equipment that has HDMI CEC

function connected to TV with HDMI cable. Depending on operating conditions or the specification for each piece of equipment the setting may or may not be applied.

For more details on the external equipment’s operation, please refer to the operating manuals for the equipment.

[For Recorder]

You cannot operate other functions while transmitting TV’s information above except Power On/Off key operation. When you turn off this unit, the transmission will be interrupted (only when you are transmitting Channel information).

Minimizes lip-sync delays between the picture and audio when you connect to a Panasonic theater system or Amplifier.

VIERA Link

“HDAVI Control

”

Advanced

VIERA Link

Speaker control

VIERA Link control only with the TV’s remote control

(for “HDAVI Control 2 or later”)

You can enjoy more convenient operation with the “HDAVI Control” function in the “VIERA Link”

menu.

For more details on the “HDAVI Control” function, refer to p. 30

Display VIERA Link menu

“HDAVI Control

”

Press to exit from

■

a menu screen

Press to return

■

to the previous screen

Select the item

VIERA Link control

Recorder

Speaker output

Select

VIERA Link control

Home theater

Speaker output

Set

select next

VIERA Link

select

change

(Continued)

You can select Home theater or TV speakers for audio output. Control theater speakers with the TV’s remote control. This function is available only when Panasonic Amplifier or Player theater is connected.

Select “Speaker output” Select “Home theater” or “TV”

■

Home theater: Adjustment for equipment

Volume up / down

Mute

The sound of the TV is muted. When the equipment is turned off, the TV speakers

take over.

Selecting “Home theater” turns the equipment on

automatically if it is in standby mode.

■

TV: The TV speakers are on.

Recorder

VIERA Link control

Speaker output

select change

In the VIERA Link menu, you can select HDMI connected equipment and access it quickly. Continue using your TV’s remote control to operate the equipment, pointing it at the TV.

Select “VIERA Link control” Select the equipment you want to access.

(Recorder/Home theater/Player/Camcorder/LUMIX)

If there is more than one equipment item, a

number after the name indicates the number of items. (e.g. Recorder 1/Recorder 2/Recorder 3...) The number of equipment items that can be connected is three for recorders, and a total of three for Home theater/Player/Camcorder/LUMIX.

Note

There is a limit to the number of HDMI

connectors.

Recorder

VIERA Link control

Speaker output

select change

You can select available items only.

Operate the equipment with the TV’s remote control, pointing it at the TV.

To operate the equipment, read the manual of the equipment.

■

Available TV’s remote control buttons

Whether an operation is available differs depending on the connected equipment.

Move the cursor/Select Play Set/Access Stop

Return to previous menu Reverse/Forward Display the functions

menu on the equipment

Skip Reverse/Forward

Available when the purpose of the keys is displayed on screen

Pause Exit Closed Caption Channel Up/Down SAP (Select Audio Mode)

0-9 Select digital subchannel

VIERA Link

SUB

“HDAVI Control

”

Advanced

Lock

You can lock specified channels or shows to prevent children from watching objectionable content.

Display menu

Select “Lock”

VIERA Link

Picture Audio Timer

Lock

SD card Closed Caption Setup

select

Input your 4-digit password

A 4-digit code must be entered to view a blocked program or change rating settings.

Password Enter password.

- - - -

RETURN

You will be asked to enter your password each time you display the Lock menu.

If it is your first time entering the

password, enter the password twice in order to register it.

Press to exit from

■

a menu screen

Caution

Make a note of your

password in case you forget it. (If you have forgotten your password, consult your local dealer.)

Note

When you select a

locked channel, a message will be displayed that allows you to view the channel if you input your password.

Select the Lock mode

Lock

Mode

Channel Game Program Change password

Off Off Off Off

Select the item

Lock

Mode

Channel

Game Program Change password

Custom

Off Off Off

Set

set select

select

set

Off: Unlocks all the lock

settings of “Channel”, “Game” and “Program”.

All: Locks all the inputs

regardless of the lock settings of “Channel”, “Game” and “Program”.

Custom:

Locks specified inputs of “Channel”, ”Game” and “Program”.

“Channel”, ”Game” and

“Program” are not accessible unless “Custom” is selected in “Mode”.

■

Channel lock

Select up to 7 (1-7) channels to be blocked. These channels will be blocked regardless of the program rating.

Select “Mode” and set to “Custom” Select channel to lock.

Custom

3 4

Channel lock

Mode

Channel 1 Channel 2 Channel 3 Channel 4 Channel 5

select

set

To lock/unlock all channels:

Select “Mode” and set to “All” or “Off”. All: Locks all channels

Off: Unlocks all channels

Game lock

Locks Channel 3, Channel 4 and external inputs.

Select “Game” in 5 and set to “On”.

select

set

On: Locks Off: Unlocks

Program lock

■

To set a rating level

“V-chip” technology enables restricted shows to be locked according to TV ratings.

Select “Mode” and set to “On”.

On Off Off Off Off

Program lock

Mode

MPAA U.S.TV C.E.L.R. C.F.L.R.

set select

Select the rating category you wish

to follow

On Off Off Off Off

Program lock

Mode

MPAA

U.S.TV C.E.L.R. C.F.L.R.

select

MPAA: U.S movie ratings U.S.TV: U.S TV program ratings C.E.L.R.:Canadian English ratings C.F.L.R.: Canadian French ratings

Select the rating to be locked

select

Example of “MPAA” (U.S movie ratings)

Change password

■

To change the password

In , select “Change password” and

press OK

Input the new 4-digit password twice

Off

Lock

Mode Channel Game

Change password

Program

RETURN

Change password Enter new password.

- - - -

To select the channel or the rating of the program to be locked

Note

This television is designed to support the “Downloadable U.S. Region Rating System” when available.

(Available only in U.S.A.) The Off rating is independent of other ratings. When placing a lock on a specific-age-based-rating level, the Off rating and any other more restrictive ratings will

also be blocked.

NR No rating

G General Audience: All ages admitted

PG Parental Guidance Suggested

PG-13Parents Strongly Cautioned: Inappropriate

NC-

for children under 13 Restricted: Under 17 requires

accompanying parent or adult guardian No one 17 and under admitted

X Adults only

To get more information (p. 44)

Lock

Advanced

Editing and Setting Channels

Auto

program

Set automatically

Manual

program

Set manually

Signal

meter

Check signal strength

The current channel settings can be changed according to your needs and reception conditions.

Display menu

Press to exit from

■

a menu screen

Select “Setup”

VIERA Link

Picture Audio Timer Lock SD card Closed Caption

Setup

Select “ANT/Cable setup”

Setup 1/2

Channel surf mode

Language Clock

ANT/Cable setup

Connected devices Anti image retention

Reset to defaults

All

Select the function

ANT/Cable setup

ANT in

Auto program

Manual program Signal meter

Cable

select

Set

To reset the settings of setup menu

■

Select “Reset to defaults” in Setup menu ( ) and

press OK

Input your 4-digit password with number buttons

Select “YES” on the confirmation screen and press OK

Automatically searches and adds available channels to the memory.

Select “ANT in”

Select Cable or Antenna

Or select “Not used” (p. 17).

Select “Auto program”

Cable

ANT/Cable setup

ANT in

Auto program

Manual program Signal meter

select

Select a scanning mode (p. 18)

Auto program

All channels

Analog only Digital only

select

Settings are made automatically

After the scanning is completed, select “Apply”. (see below ). All previously saved channels are erased.

Use this procedure when changing the channel setup or changing the channel display. Also, use this to add or skip channels from the channel list manually. You can select a channel tuning mode (Digital only/ Analog only) in “Channel surf mode”(p. 29)

Edit

Caption

---

80-101

Edit CH caption

Caption

Channel

Select OK

RETURN

DeleteABC → abc

R G B Y

select change set/next

Caption

Select or edit the station identifier. (maximum 7 characters available)

Favorite

Set favorite 1/3

26-1

1 2

select

Set favorite Select the number

Add

Press OK to select “Yes (add)” or “No (skip)”

Move cursor to channel number

Manual program

Edit CancelApply

Caption Favorite Add

2 ...

...

Yes

3 ...

...

Yes

Channel

select Press OK to tune

to the channel.

Select “Apply”

program

CancelApply

Caption Favorite Add

...

Yes

select “Apply”

Select “Edit”

Manual program

Edit CancelApply

Caption Favorite Add

2 ...

...

Yes

3 ...

...

Yes

4 ...

...

Yes

5 ...

...

Yes

Channel

select next

Select the item to be edited

R G B Y

Select

RETURN

Manual program

Edit CancelApply

Caption Favorite Add

2 ...

...

Yes

3 ...

...

Yes

4 ...

...

Yes

5 ...

...

Yes

6 ...

...

Yes

7 ...

...

Yes

8 ...

...

Yes

9 ...

...

Yes

Channel

Prev.page Next page

Caption

Favorite

Add

Proceed to next page

Go back to previous page

select the item to edit (Caption/ Favorite/Add)

•

Caption:

Changes the station identifier

•

Favorite:

Registers channel to Favorite

List

•

Add:

Adds or skips channels

To cancel the Edit

Manual program

Edit CancelApply

Caption Favorite Add

2 ...

...

Yes

3 ...

...

Yes

4 ...

...

Yes

5 ...

...

Yes

Channel

select next

Changes will be lost. Continue?

Yes No

(returns to “ANT/

Cable setup”) select “Yes”

Check the signal strength if an interference is found or freezing occurs on a digital image.

1-1

Signal meter

Channel

Signal strength

Current 30% Peak level 45%

Signal intensity

change channel ok

If the signal is weak, check the antenna. If no problem is found, consult your local dealer.

Note

Not available if “Cable” is selected in “ANT in” (see above). Available only for digital antenna channels.

Editing and Setting Channels

Advanced

If “Lock” (p. 36) is activated and “ANT/Cable setup” is selected, “Enter password.” will be displayed.

Closed Caption

Display Closed Caption

The television includes a built-in decoder that is capable of providing a text display of the audio. The program being viewed must be transmitting Closed Caption (CC) information. (p. 45)

■

Select the item and set

Primary

CC1

Closed Caption

Digital

Mode Analog

Digital setting

Reset to defaults

select set

Mode

Select “On” (when not using, select “Off”).

Analog

(Choose the Closed Caption service of Analog broadcasting.)

CC1-4: Information related to pictures

(Appears at bottom of screen)

T1-4: Textual information

(Appears over entire screen)

Digital

(The Digital Closed Caption menu lets you configure the way you choose to view the digital captioning.)

Select the setting.

“Primary”, “Second.”, “Service 3”, “Service

4”, “Service 5”, “Service 6”

The settings in “Analog” or “Digital”

depend on the broadcaster.

■

To make more in-depth display settings in digital programs

Select “Digital setting” and press OK Select the item and set

Automatic Automatic Automatic

Automatic Automatic Automatic Automatic

Automatic

Digital setting

Size

Foreground

Font Style

Fore. opacity Background Back. opacity Outline

select set

Size: Text size Font: Text font Style: Text style (Raised, Depressed, etc.) Foreground: Color of text Fore. opacity: Opacity of text Background: Color of text box Back. opacity: Opacity of text box Outline: Outline color of text

(Identify the setting options on the screen.)

■

To reset the settings

Select “Reset to defaults” and press OK

Press to exit from

■

a menu screen

Display menu

Select “Closed Caption”

VIERA Link

Picture Audio Timer Lock SD card

Closed Caption

Setup

select

Input Labels

Input labels

Display labels of Connected devices

Devices connected to external input terminals can be labeled for easier identification during input selection. (In selecting input mode from p. 24 )

■

Select the terminal and label of the external equipment

GAME

Input labels

Component 1

Component 2 HDMI 1 HDMI 2 HDMI 3 Video 1 Video 2

G A A

Select OK

RETURN

DeleteABC → abc

R G B Y

Input labels

Component 1

Switches Input mode from alphabetical to numeric

select set

Video 1

VCR

Label Terminal

[example]

Terminals: Component 1-2/HDMI 1-3/Video 1-2 Label:

[BLANK]

SKIP/VCR/DVD/CABLE/SATELLITE/DVR/GAME/ AUX/RECEIVER/COMPUTER/Blu-ray/CAMERA/DVD REC/ HOME THTR/MONITOR/MEDIA CTR/MEDIA EXT/OTHER

* If “SKIP” is selected, the INPUT button press will skip its input.

Each selected label will be displayed on “Input select” screen.

(p. 24)

Display menu

Select “Setup”

Press to exit from

■

a menu screen

VIERA Link

Picture Audio Timer Lock SD card Closed Caption

Setup

select

Select “Connected devices”

Setup 1/2

Channel surf mode

All

Language Clock ANT/Cable setup

Connected devices

Anti image retention

select

Select “Input labels”

Connected devices

Input labels

select

Closed Caption

Input Labels

Advanced

Using Timer

The TV can automatically turn On/Off at the designated date and time.

The Clock must be set before On time/Off time settings. (p. 17) The “Sleep” timer and “On / Off timer” will not work if the “Auto power on” (p. 28) is set.

Display menu

Select “Timer”

Press to exit from

■

a menu screen

Press to return

■

to the previous screen

Note

The TV automatically

turns Off after 90 minutes when turned On by the Timer. This operation will be cancelled if the Off time is selected or if a key is pressed.

VIERA Link

Picture Audio

Timer

Lock SD card Closed Caption

select

Select the timer to set

Timer

Sleep

Timer 1 Timer 2 Timer 3 Timer 4 Timer 5

Sleep

Timer 1

Timer 5

select

Turns Off automatically Turns On/Off automatically

(5 timers can be set.)

Set the timer

To set “Sleep” (Off Timer)

■

Set to shut the unit off after a pre-selected amount of time.

Sleep

Sleep (minutes)

To set “Timer 1-5” (On/Off Timer)

■

Select the item and set

Timer 1

Timer set

Inputs Channel Day On time Off time

On TV

10-3

7/6[FRI] 1:15 AM 12:45 AM

Timer set

Inputs

Channel

Day

SUN/MON/TUE/WED/THU/FRI/SAT (displays the nearest future date) MON-FRI/SAT-SUN/DAILY/Every SUN/Every MON/ Every TUE/Every WED/Every THU/Every FRI/ Every SAT

On time Off time

set

AM/PM Clear

Timer setting (On/Off) Select the inputs Select the channel Select the day

The time to turn On The time to turn Off

0/30/60/90 (minutes)

select set

COMPONENT

VIDEO IN 1

VIDEO

S VIDEO

AUDIO

LRL

HDMI 1 HDMI 2

VIDEO

AUDIO

Recommended AV Connections

These diagrams show our recommendations or how to connect the TV unit to your various equipment. For other connections, consult the instructions for each piece of equipment and its specifications. For additional assistance, please visit our website at: www.panasonic.com

www.panasonic.ca

Front of the TV

Cable TV

Cable Box

Back of the TV

AC 120 V 60 Hz

AC Cord (Connect after all the other connections are complete.)

Recommended AV Connections

To watch camcorder

■

images

Camcorder VCR

DVD Player

(For HDMI connection,

HDMI compatible equipment only. For connection using HDMIDVI Conversion cable, see HDMI 1 or HDMI 2 connection on this page.)

* Please see p. 26-27 for setup when using an external analog audio cable with an HDMI to DVI cable.

Optical digital audio cable

OPTICAL

To listen to the TV

■

through speakers

DVD Recorder /

■

VCR

Amplifier

To watch DVDs

■

DVD Player/Set Top Box

HDMI-DVI

Conversion

Audio cable*

cable +

To watch digital video image

■

DVD Player or Set Top Box (HDMI compatible machines only)

Connect with

HDMI cable

Using Timer

Advanced

Ratings List for Lock

“V-chip” technology enables you to lock channels or shows according to standard ratings set by the entertainment industry. (p. 37)

U.S. MOVIE RATINGS (MPAA)

■

G GENERAL AUDIENCES. All ages admitted.

PG PARENTAL GUIDANCE SUGGESTED. Some material may not be suitable for children.

PG-13 PARENTS STRONGLY CAUTIONED. Some material may be inappropriate for children under 13.

R RESTRICTED. Under 17 requires accompanying parent or adult guardian.

NC-17 NO ONE 17 AND UNDER ADMITTED.

X ADULTS ONLY.

U.S. TV PROGRAMS RATINGS (U. S. TV)

■

Age-based

Group

NR (Not Rated)

Youth

Guidance

FV: Fantasy/Cartoon Violence. V: Violence S: Sex L: Offensive Language D: Dialogue with sexual content.

NO RATING (NOT RATED) AND NA (NOT APPLICABLE) PROGRAMS. Movie which has not been rated or where rating does not apply.

Age-based

Ratings

TV-NR

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

Possible Content

Selections

Viewable

•

Blocked

•

Viewable

•

Blocked

•

FV Blocked

•

Viewable

•

Blocked

•

Viewable

•

Blocked

•

D,L,S,V (all selected)

•

Any combination of

•

D, L, S, V D,L,S,V (all selected)

•

Any combination of

•

D, L, S, V L,S,V (all selected)

•

Any combination of

•

L, S, V

Description

Not Rated. All children. The themes and elements in this program are specifically

designed for a very young audience, including children from ages 2-6. Directed to older children. Themes and elements in this program may

include mild physical or comedic violence, or may frighten children under the age of 7.

General audience. It contains little or no violence, no strong language, and little or no sexual dialogue or situations.

Parental guidance suggested. The program may contain infrequent coarse language, limited violence, some suggestive sexual dialogue and situations.

Parents strongly cautioned. This program may contain sophisticated themes, sexual content, strong language and more intense violence.

Mature audiences only. This program may contain mature themes, profane language, graphic violence, and explicit sexual content.

CANADIAN ENGLISH RATINGS (C. E. L. R.)

■

C Programming intended for children under age 8. No offensive language, nudity or sexual content.

C8+

G General programming, suitable for all audiences.

PG Parental Guidance suggested. Some material may not be suitable for children. 14+ 18+ 18+ years old. Programming restricted to adults. Contains constant violence or scenes of extreme violence.

CANADIAN FRENCH RATINGS (C. F. L. R.)

■

E Exempt - Exempt programming.

8 ans+ 13 ans+ 16 ans+

18 ans+ Programming restricted to adults. Contains constant violence or scenes of extreme violence.

Caution

The V-Chip system that is used in this set is capable of blocking “NR” programs (non rated, not applicable and

none) as per FCC Rules Section15.120(e)(2). If the option of blocking “NR” programs is chosen “unexpected and possibly confusing results may occur, and you may not receive emergency bulletins or any of the following types of programming:”

• Emergency Bulletins (Such as EAS messages, weather warnings and others)

• Locally originated programming • News • Political • Public Service Announcements • Religious • Sports • Weather

Exempt - Exempt programming includes: news, sports, documentaries and other information programming, talk shows, music videos, and variety programming.

Programming generally considered acceptable for children 8 years and over. No profanity, nudity or sexual content.

Programming contains themes or content which may not be suitable for viewers under the age of 14. Parents are strongly cautioned to exercise discretion in permitting viewing by pre-teens and early teens.

General - Programming intended for audience of all ages. Contains no violence, or the violence content is minimal or is depicted appropriately.

8+ General - Not recommended for young children. Programming intended for a broad audience but contains light or occasional violence. Adult supervision recommended.

Programming may not be suitable for children under the age of 13 - Contains either a few violent scenes or one or more sufficiently violent scenes to affect them. Adult supervision strongly suggested.

Programming may not be suitable for children under the age of 16 - Contains frequent scenes of violence or intense violence.

Technical Information

Closed Caption (CC)

For viewing the CC of digital broadcasting, set the aspect to FULL (If viewing with H-FILL, JUST, ZOOM or 4:3;

characters might be cut off).

The CC can be displayed on the TV if the receiver (such as a set-top box or satellite receiver) has the CC set On

using the Component or HDMI connection to the TV.

If the CC is set to On on both the receiver and TV when the signal is 480i (except for the HDMI connection), the CC

may overlap on the TV. If a digital program is being output in analog format, the CC data will also be output in analog format. If the recorder or output monitor is connected to the TV, the CC needs to be set up on the recorder or output

monitor.

Aspect Ratio (FORMAT)

Press the FORMAT button to cycle through the aspect modes. This lets you choose the aspect depending on the format of the received signal and your preference. (p. 20) (e.g.: in case of 4:3 image)

FULL JUST

FULL

JUST

Enlarges the 4:3 image horizontally to the screen’s side edges. (Recommended for anamorphic picture)

H-FILL 4:3

H-FILL

Enlarges the 4:3 image horizontally to the screen’s side edges. The side edges of the image are cut off.

ZOOM

Enlarges the 4:3 image to the entire screen. (Recommended for Letter Box)

Zoom adjustments

Vertical image position and size can be adjusted in “ZOOM”. Select “Zoom adjustments” on the “Picture” menu. (p. 26-27)

V-position: Vertical position adjustment V-size: Vertical size adjustment

To reset the aspect ratio (OK)

Stretches to justify the 4:3 image to the four corners of the screen. (Recommended for normal TV broadcast)

Standard (Note that “Image retention” of the side bar may occur from displaying it for a long time.)

Note

480i (4:3), 480i (16:9), 480p (4:3), 480p (16:9):

FULL, JUST, 4:3 or ZOOM

1080p / 1080i / 720p:

FULL, H-FILL, JUST, 4:3 or ZOOM

Side bar

Technical Information

Ratings List for Lock

FAQs, etc.

Technical Information

Data format for SD Card browsing

Photo: Still images recorded with digital still cameras compatible with JPEG files of DCF* and EXIF** Data format: Baseline JPEG (Sub-sampling: 4:4:4, 4:2:2 or 4:2:0)

Max. number of files: 9,999 Image resolution: 160 x 120 to 10,000,000

* DCF (Design rule for camera file system): A Japan Electronics and Information Technology Industries Association’s standard

Caution

A JPEG image modified with a PC may not be displayed. Partly degraded files might be displayed at a reduced resolution.

Note

Folder structure viewed in PC

DCIM

100_P ANA

standards

** EXIF (Exchangeable Image File Format)

Created automatically 3-digit folder number + 5-digit arbitrary characters

P1000001.JPG P1000002.JPG P1000003.JPG

The folder and file names may be different depending on the digital camera used. For the suitable SD Memory Cards, please confirm the latest information on the following website.

http://panasonic.jp/support/global/cs (This site is in English only)


4-digit arbitrary characters + 4-digit file number

Usable characters: 1-byte “a to z”, “A to Z”, “0 to 9,” and “_”

Cautions in handling SD Card:

Do not remove the card while the unit is accessing data (this can damage card or unit). Do not touch the terminals on the back of the card. Do not subject the card to high pressure or impact. Insert the card in the correct direction (otherwise, card may be damaged). Electrical interference, static electricity or erroneous operation may damage the data or card. Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic operation of the unit.

(Panasonic is not liable for any deterioration or damage of recorded data.)

SD Card warning messages

Message Meaning

SD card slot is empty.

No photos

Cannot read file

The card is not inserted.

The card has no data or this type of data is not supported.

The file is broken or unreadable. The TV does not support the format.

(Continued)

VIERA LinkTM “HDAVI ControlTM”

HDMI connections to some Panasonic equipment allow you to interface automatically. (p. 30)

This function may not work normally depending on the equipment condition. The equipment can be operated by other remote controls with this function on even if TV is in Standby mode. Image or sound may not be available for the first few seconds when the playback starts. Image or sound may not be available for the first few seconds when Input mode is switched. Volume function will be displayed when adjusting the volume of the equipment.

If you connect the same kind of equipment at once (for example: one DIGA to HDMI 1 / another DIGA to HDMI 2), VIERA LinkTM

is available for the terminal with the smaller number. If you connect equipment that has “HDAVI Control 2 or later” function to the TV with HDMI cable, the sound from DIGITAL

AUDIO OUT terminal can be output as multi channel surround. “HDAVI Control 4” is the newest standard (current as of December, 2008) for the HDAVI Control compatible equipment.

This standard is compatible with the conventional HDAVI equipment.

HDMI connection

HDMI (high-definition multimedia interface) allows you to enjoy high-definition digital images and high-quality sound by connecting the TV unit and the devices. HDMI-compatible equipment (*1) with an HDMI or DVI output terminal, such as a set-top box or a DVD player, can be connected to the HDMI connector using an HDMI compliant (fully wired) cable.

HDMI is the world’s first complete digital consumer AV interface complying with a non-compression standard. If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adapter cable (*2). When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal. Audio settings can be made on the “HDMI 1 in”, “HDMI 2 in” or “HDMI 3 in” menu screen. (p. 26)

Applicable audio signal sampling frequencies (L.PCM): 48 kHz, 44.1 kHz, 32 kHz

(*1): The HDMI logo is displayed on an HDMI-compliant device. (*2): Enquire at your local digital equipment retailer shop.

Caution

Use with a PC is not assumed. All signals are reformatted before being displayed on the screen. If the connected device has an aspect adjustment function, set the aspect ratio to “16:9”. These HDMI connectors are “type A”. These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection. A device having no digital output terminal may be connected to the input terminal of either “COMPONENT”, “S VIDEO”, or

“VIDEO” to receive analog signals. The HDMI input terminal can be used with only the following image signals: 480i, 480p, 720p, 1080i and 1080p.

Match the output setting of the digital device. For details of the applicable HDMI signals, see p. 48.

Technical Information

DIGITAL AUDIO OUT terminals

You can enjoy your home theater by connecting a Dolby Digital (5.1 channel) decoder and “Multi Channel” amplifier to the DIGITAL AUDIO OUT terminals.

Caution

Depending on your DVD player and DVD-Audio software the copyright protection function may operate and disable optical output. When an ATSC channel is selected, the output from the DIGITAL AUDIO OUT jack will be Dolby Digital. When an NTSC

channel is selected, the output will be PCM.

Picture mode

Vivid: Provides enhanced picture contrast and sharpness for viewing in a well-lit room. Standard: Recommended for normal viewing conditions with subdued room lighting. Cinema: For watching movies in a darkened room. It provides a soft, film-like picture. Game: Custom (Photo): Customizes each item according to your taste.

Note

Picture mode will be automatically set to “Standard” if you change the Input label from “GAME” to other labels. Picture mode will be automatically set to “Game” if you change from an Input label other than “GAME” to “GAME” label.

For playing video game. This mode will be set automatically if “GAME” is selected from Input label setting (p. 41) Photo is displayed in JPEG menu.

FAQs, etc.

Technical Information (Continued)

H size

Aspect Ratio: 4:3

Size 1 Size 2

The width will be decreased on both sides to

reduce noise.

Aspect Ratio: FULL/JUST(H-FILL/ZOOM)

Size 1 Size 2

See pages 26-27 for more information

The width will be increased on both sides to

reduce noise.

4:3 side bars

Do not display a picture in 4:3 mode for an extended period, as this can cause “Image retention” to remain on either or both sides of the display field. To reduce the risk of such “Image retention”, change the brightness of the side bars. See pages 28-29 for more information

The side bar may flash (alternate black/white) depending on the picture. Using

Cinema mode will reduce such flashing (See below).

Side Bar

4:3 Screen Display

Scrolling bar

Scrolling bar: To prevent “Image retention”, scrolls white vertical bar from left to right on a black screen.

Press any key except the POWER key to return to previous screen. You will return to the previous screen if no key operation has been performed for 15 minutes.

See pages 28-29 for more information

Image retention

[Scrolling bar]

Input signals that can be displayed

* Mark: Applicable input signal for Component (Y, PB, PR) and HDMI

horizontal

525 (480) / 60i 15.73 59.94 525 (480) /60p 31.47 59.94 750 (720) /60p 45.00 59.94 1,125 (1,080) /60i 33.75 59.94 1,125 (1,080)/60p 67.43 59.94 1,125 (1,080)/60p 67.50 60.00 1,125(1,080)/24p 26.97 23.98 1,125(1,080)/24p 27.00 24.00

frequency (kHz)

Note

Signals other than those shown above may not be displayed properly. The above signals are reformatted for optimal viewing on your display.

vertical

frequency (Hz)

COMPONENT HDMI

** ** ** **

* * * *

Care and Cleaning

First, unplug the Power cord plug from the wall outlet.

Display panel

The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or a soft, lintfree cloth.

If the surface is particularly dirty, soak a soft, lint-free cloth in diluted mild liquid dish soap (1 part mild liquid dish soap diluted

by 100 times the amount of water) and then wring the cloth to remove excess liquid. Use this cloth to wipe the surface of the display panel, then wipe it evenly with a dry cloth of the same type until the surface is dry.

Do not scratch or hit the surface of the panel with fingernails or other hard objects. Furthermore, avoid contact with volatile

substances such as insect sprays, solvents, and thinner; otherwise, the quality of the surface may be adversely affected.

Cabinet

If the cabinet becomes dirty, wipe it with a soft, dry cloth.

If the cabinet is particularly dirty, soak the cloth in a weak mild liquid dish soap and then wring the cloth dry.

Use this cloth to wipe the cabinet and then wipe it dry with a dry cloth.

Do not allow any mild liquid dish soap to come into direct contact with the surface of the Plasma TV.

If water droplets get inside the unit, operating problems may result.

Avoid contact with volatile substances such as insect sprays, solvents, and thinner; otherwise, the quality of the cabinet surface

may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods in contact with articles made from rubber or PVC.

Pedestal

Cleaning

Wipe the surfaces with a soft, dry cloth. If the unit is particularly dirty, clean it using a cloth soaked with water to

which a small amount of mild liquid dish soap has been added and then wipe with a dry cloth.

Do not use products such as solvents, thinner, or household wax for cleaning, as they can damage the surface

coating. (If using a chemically-treated cloth, follow the instructions supplied with the cloth.)

Do not attach sticky tape or labels, as they can make the surface of the pedestal dirty. Do not allow long-term

contact with rubber, vinyl products, or the like. (Doing so will cause deterioration.)

Technical Information

Care and Cleaning

FAQs, etc.

FAQ

Before requesting service or assistance, please follow these simple guides to resolve the problem. If the problem still persists, please contact your local Panasonic dealer or Panasonic Service Center for assistance. For details (p. 54, 55) For additional assistance, please contact us via the website at: www.panasonic.com/contactinfo www.panasonic.ca

White spots or shadow images (noise)

Check the position, direction,

and connection of the antenna.

Interference or frozen digital channels

(intermittent sound)

Change the direction of antenna

for digital channels.

Check “Signal meter” (p. 39).

If the signal is weak, check the antenna and consult your local dealer.

The remote control does not work

Are the batteries installed correctly?

(p. 8)

Are the batteries new?

Pictures from external equipment are distorted when the unit is connected via HDMI

Is the HDMI cable connected properly?

(p. 31, 43)

Turn Off the TV unit and equipment, then

turn them On again. Check an input signal from the equipment. (p. 48)

Use equipment compliant with

EIA/CEA-861/861B.

When the channel is changed on an STB that is connected with HDMI, “HDMI” may be displayed on the top left of the screen

This is not a malfunction.

Recording does not start immediately

Check the settings of the recorder. For

details, read the manual of the recorder.

If there is a problem with your TV, please refer to the table below to determine the symptoms, then carry out the suggested check. If this does not solve the problem, please contact your local Panasonic dealer, quoting the model number and serial number (both found on the rear of the TV).

Problem Actions

“Press any button to return” moves on the screen

Some spots remain bright or dark

Chaotic image, noisy

Screen

No image can be displayed

Only spots are displayed instead of images

Neither image nor sound is produced

Black Box appears

The function to prevent “Image retention” is activated.

(Not a faulty symptom)

The screen saver is activated if the TV unit is not operated for

•

a certain time in SD mode. “Image retention” (p. 7)

•

The Plasma panel is made up of a few million pixels and

is produced with advanced technology through an intricate process. Sometimes a few pixels may be bright or dark. These pixels do not indicate a defective panel and will have no impact on the performance of the TV.

Check nearby electrical products

(car or motorcycle ignition systems, fluorescent lamp, etc.)

Check Picture menu (p. 26) Check the cable connections. (p. 11-14) Check that the correct input has been selected. (p. 24)

Check the channel settings. (p. 38) Check the antenna cables.

Is the AC power cord plugged into the outlet? Is the TV unit turned On? Check Picture menu (p. 26) and volume. Check the AV cable connections. (p. 11-14) Check that the correct input has been selected. (p. 24)

Change settings of Closed Caption (CC). (p. 40)

Frequently Asked Questions

No sound is produced

Sound TV set

Sound is unusual

Unknown sound heard 1- Sounds from TV

cabinet 2- Whirring sound 3- Tick/Click sound 4- Buzzing sound

Parts of the TV set become hot.

Are the speakers’ cables connected correctly? (p. 43) Is “Sound Mute” active? (p. 15) Is the volume set to the minimum? Is “TV speakers” set to “Off”? (p. 26) Change “SAP” settings. (p. 19)

Check “HDMI 1 in”, “HDMI 2 in” or “HDMI 3 in” settings. (p. 26)

Set “SAP” setting to “Stereo” or “Mono”. Check the HDMI device connected to the unit. Set the audio setting of the HDMI device to “Linear PCM”. If digital sound connection has a problem,

select analog sound connection.

Changes in the temperature and humidity of the room may cause the TV’s cabinet to expand or contract and produce metallic sounds. This is not a sign of faulty operation or a malfunction.

2- The TV may have a cooling fan that makes a soft whir.

This is not a sign of faulty operation or a malfunction.

When the TV is powered on, an electrical component in the TV activates producing a tick/click sound. This is not a sign of faulty operation or a malfunction.

4- Electrical circuits are active while the TV set is on.

This is not a sign of faulty operation or a malfunction.

Even when the temperature of parts of the front, top and

rear panels has risen, these temperature rises will not pose any problems in terms of performance or quality.

FAQs, etc.

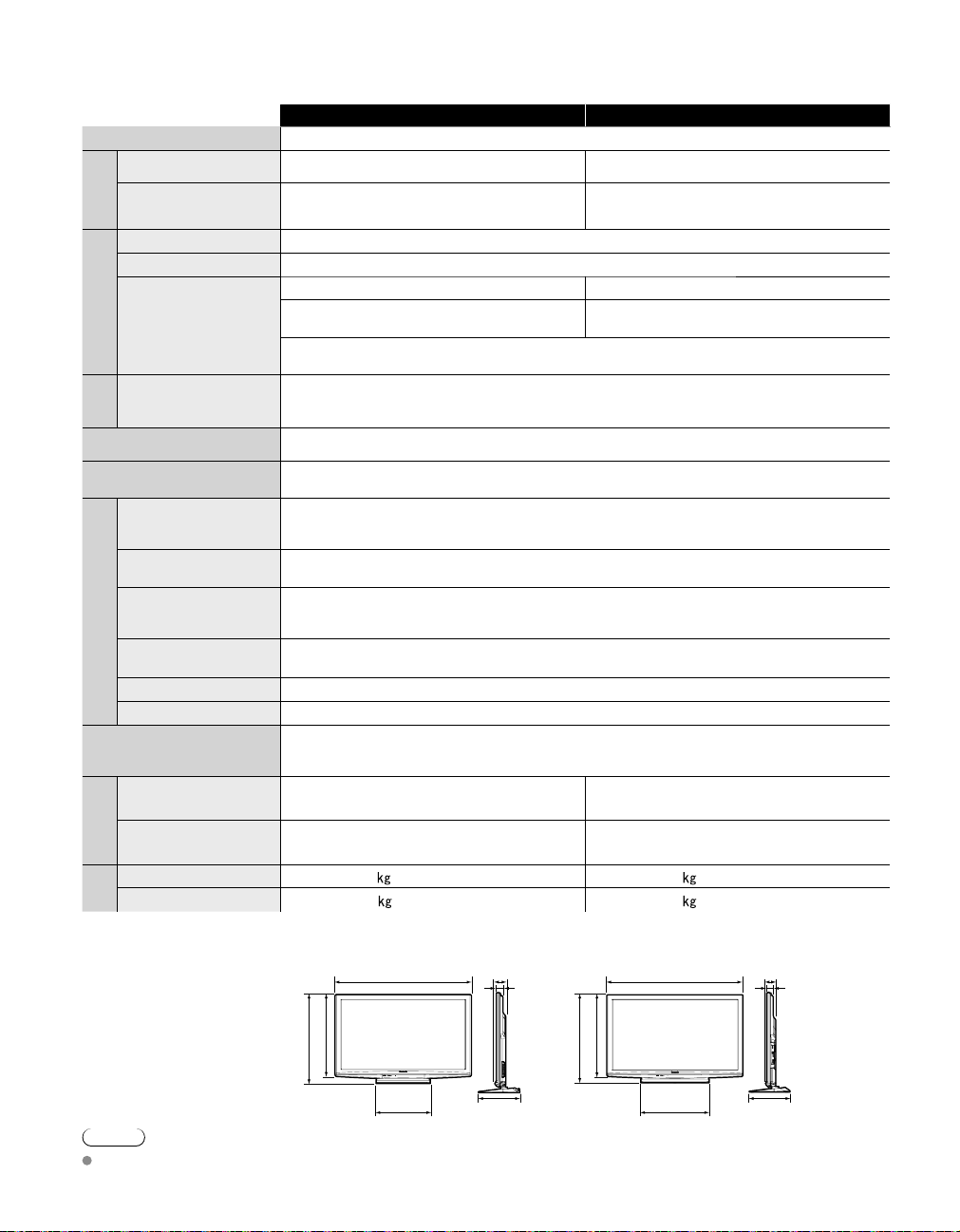

SpecificationsSpecifications

TC-P58S1 TC-P65S1

Power Source AC 120 V, 60 Hz

Power

Consumption

Maximum 675 W 724 W

Standby condition 0.3 W 0.3 W

Plasma Display

panel

Drive method AC type Aspect Ratio 16:9

Visible screen size (W × H × Diagonal)

(No. of pixels)

Sound

Audio Output 20 W [10 W + 10 W] (10 % THD)

58” class (58.0 inches measured diagonally) 65” class (64.7 inches measured diagonally)

50.5” × 28.4” × 58.0” (1,284 mm × 722 mm × 1,473 mm)

2,073,600 (1,920 (W) × 1,080 (H)) [5,760 × 1,080 dots]

56.4” × 31.7” × 64.7” (1,434 mm × 806 mm × 1,645 mm)

Channel Capability (Digital/Analog)

Operating Conditions

VIDEO IN 1

Connection Terminals

VIDEO IN 2

COMPONENT IN 1-2

HDMI 1-3 Card slot SD CARD slot × 1

DIGITAL AUDIO OUT PCM / Dolby Digital, Fiber Optic

FEATURES

( W × H × D )

Dimensions

Including pedestal

TV Set only

Mass

Including pedestal 112.5 lb. (51.0 ) 145.6 lb. (66.0 ) TV Set only 108.1 lb. (49.0

VHF/ UHF: 2 - 69, CATV: 1 - 135 Temperature: 32 °F – 104 °F (0 °C – 40 °C)

Humidity: 20 % – 80 % RH (non-condensing) VIDEO: RCA PIN Type × 1 1.0 V [p-p] (75 Ω)

S-VIDEO: Mini DIN 4-pin Y: 1.0 V [p-p] (75 Ω) C: 0.286 V [p-p] (75 Ω) AUDIO L-R: RCA PIN Type × 2 0.5 V [rms]

VIDEO: RCA PIN Type × 1 1.0 V [p-p] (75 Ω) AUDIO L-R: RCA PIN Type × 2 0.5 V [rms]

Y: 1.0 V [p-p] (including synchronization)

B, PR: ±0.35 V [p-p]

P AUDIO L-R: RCA PIN Type × 2 0.5 V [rms]

TYPE A Connector × 3

This TV supports “HDAVI Control 4” function.

•

3D Y/C FILTER CLOSED CAPTION V-Chip Photo Viewer HDAVI Control 4

56.1” × 36.8” × 15.3” (1,424 mm × 933 mm × 387 mm)

56.1” × 34.8” × 2.5” (3.9”) (1,424 mm × 882 mm × 62 mm (99 mm))

) 132.3 lb. (60.0 )

[TC-P58S1] [TC-P65S1]

56.1 ” (1,424 mm)

3.9 ” (99 mm)

2.5 ” (62 mm)

62.0” × 40.0” × 16.4” (1,574 mm × 1,016 mm × 415 mm)

62.0” × 38.0” × 2.6” (4.1”) (1,574 mm × 965 mm × 66 mm (104 mm))

62.0 ” (1,574 mm)

4.1 ” (104 mm)

2.6 ” (66 mm)

34.8 ” (882 mm)

36.8 ” (933 mm)

22.4 ”

(567 mm)

15.3 ” (387 mm)

38.0 ” (965 mm)

40.0 ” (1,016 mm)

31.2 ”

(790 mm)

16.4 ” (415 mm)

Note

Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

Limited Warranty (for U.S.A. and Puerto Rico only)

PANASONIC CONSUMER ELECTRONICS COMPANY, DIVISION OF PANASONIC CORPORATION OF NORTH AMERICA One Panasonic Way Secaucus, New Jersey 07094

Panasonic Plasma Television

Limited Warranty

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the warrantor.

PLASMA TV CATEGORIES PARTS LABOR SERVICE

Up to 37’ (diagonal)

42” (diagonal) and larger On-Site

During the “Labor” Limited Warranty period there will be no charge for labor. During the “Parts” Limited Warranty period, there will be no charge for parts. You must carry-in your product or arrange for on-site service during the Limited Warranty period. If non-rechargeable batteries are included, they are not warranted. This Limited Warranty only applies to products purchased and serviced in the United States or Puerto Rico. This Limited Warranty is extended only to the original purchaser and only covers product purchased as new. A purchase receipt or other proof of the original purchase date is required for Limited Warranty service.

On-Site or Carry-in Service

For On-Site or Carry-In Service in the United States and Puerto Rico call 1-877-95-VIERA (1-877-958-4372). On-site service where applicable requires clear, complete and easy access to the product by the authorized servicer

and does not include removal or re-installation of an installed product. It is possible that certain on-site repairs will not be completed on-site, but will require that the product or parts of the product, at the servicer’s discretion be removed for shop diagnosis and/or repair and then returned.

Limited Warranty Limits And Exclusions

This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage, nor does it cover markings or retained images on the glass panel resulting from viewing fixed images (including, among other things, non-expanded standard 4:3 pictures on wide screen TV’s, or onscreen data in a stationary and fixed location). The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, bug infestation, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, or commercial use (such as in a hotel, office, restaurant, or other business), rental use of the product, service by anyone other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY. (As

examples, this excludes damages for lost time, cost of having someone remove or re-install an installed unit if applicable, or travel to and from the servicer. The items listed are not exclusive, but are for illustration only.) ALL

EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE LIMITED WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied Limited Warranty lasts, so the exclusions may not apply to you.

This Limited Warranty gives you specific legal rights and you may also have others rights which vary from state to state. If a problem with this product develops during or after the Limited Warranty period, you may contact your dealer or Service Center. If the problem is not handled to your satisfaction, then write to the warrantor’s Consumer Affairs Department at the addresses listed for the warrantor.

PARTS AND SERVICE (INCLUDING COST OF AN ON-SITE SERVICE CALL, WHERE APPLICABLE) WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR RESPONSIBILITY.

1 (ONE) YEAR 1 (ONE) YEAR

Carry-In

Limited Warranty (for U.S.A. and Puerto Rico only)

Specifications

FAQs, etc.

Customer Services Directory (for U.S.A. and Puerto Rico)

Customer Services Directory (United States and Puerto Rico)

Obtain Product Information and Operating Assistance; locate your nearest Dealer or Service Center; purchase Parts and Accessories; or make Customer Service and Literature requests by visiting our Web Site at:

http://www.panasonic.com/help

or, contact us via the web at:

http://www.panasonic.com/contactinfo

You may also contact us directly at: 1-877-95-VIERA (958-4372) Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.

For hearing or speech impaired TTY users, TTY: 1-877-833-8855

■

Accessory Purchases (United States and Puerto Rico)

Purchase Parts, Accessories and Instruction Books on line for all Panasonic Products by visiting our Web Site at:

http://www.pstc.panasonic.com

or, send your request by E-mail to:

npcparts@us.panasonic.com

You may also contact us directly at: 1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday - Friday 9 am to 9 pm, EST.) Panasonic Service and Technology Company 20421 84th Avenue South, Kent, WA 98032 (We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)

For hearing or speech impaired TTY users, TTY: 1-866-605-1277

■

Limited Warranty (for Canada)

Panasonic Canada Inc.

PANASONIC PRODUCT - LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect for a period as stated below from the date of original purchase.

Viera TV (42” & over) In-home service One (1) year, parts (including panel) and labour. Viera TV (under 42”) Carry-in service One (1) year, parts (including panel) and labour.

In-home Service will be carried out only to locations accessible by roads and within 50 km of an authorized Panasonic service facility.

LIMITATIONS AND EXCLUSIONS

This warranty does not apply to products purchased outside Canada or to any product which has been improperly installed, subjected to usage for which the product was not designed, misused or abused, damaged during shipping, or which has been altered or repaired in any way that affects the reliability or detracts from the performance, nor does it cover any product which is used commercially. Dry cell batteries are also excluded from coverage under this warranty. This warranty is extended to the original end user purchaser only. A purchase receipt or other proof of date of original purchase is required before warranty service is performed.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES.

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable.

In-home service requires clear, complete and easy access to the product by the Authorized Servicentre and does not include removal or re-installation of an installed product. If removal is required to service the product, it will be at the discretion of the Servicentre and in no event will Panasonic Canada Inc. or the Servicentre be liable for any special, indirect or consequential damages.

Customer Services Directory (for U.S.A. and Puerto Rico)

Limited Warranty (for Canada)

WARRANTY SERVICE

For product operation and information assistance, please contact:

Our Customer Care Centre: 1-800 #: 1-866-330-0014 Email link: www.vieraconcierge.ca

FOR PRODUCT REPAIRS, please contact Viera Customer Care Agent using the above contact info.

IF YOU SHIP THE PRODUCT TO A SERVICENTRE

Carefully pack and send prepaid, adequately insured and preferably in the original carton.

Include details of the defect claimed, and proof of date of original purchase.

FAQs, etc.

Note

Customer’s Record

The model number and serial number of this product can be found on its back cover. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

Anotación del cliente

El modelo y el número de serie de este producto se encuentran en su panel posterior. Deberá anotarlos en el espacio provisto a continuación y guardar este manual, más el recibo de su compra, como prueba permanente de su adquisición, para que le sirva de ayuda al identificarlo en el caso de que le sea sustraído o lo pierda, y también para disponer de los servicios que le ofrece la garantía.

Modelo Número de serie

Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North America

One Panasonic Way, Secaucus New Jersey 07094 U.S.A.

Panasonic Canada Inc.

5770 Ambler Drive Mississauga, Ontario L4W 2T3 CANADA

Printed in U.S.A.

Impreso en EE.UU.

Panasonic TC-P65S1, TC-P58S1 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Safety Precautions

Notes

Accessories/Optional Accessory

Basic Connection

Identifying Controls

First Time Setup

Watching TV

Viewing

Using VIERA TOOLS

Viewing from an SD Card

Watching Videos and DVDs

Lock

Editing and Setting Channels

Closed Caption

Input Labels

Using Timer

Recommended AV Connections

Ratings List for Lock

Technical Information

Care and Cleaning

SpecificationsSpecifications

Limited Warranty (for U.S.A. and Puerto Rico only)

Customer Services Directory (for U.S.A. and Puerto Rico)

Limited Warranty (for Canada)
