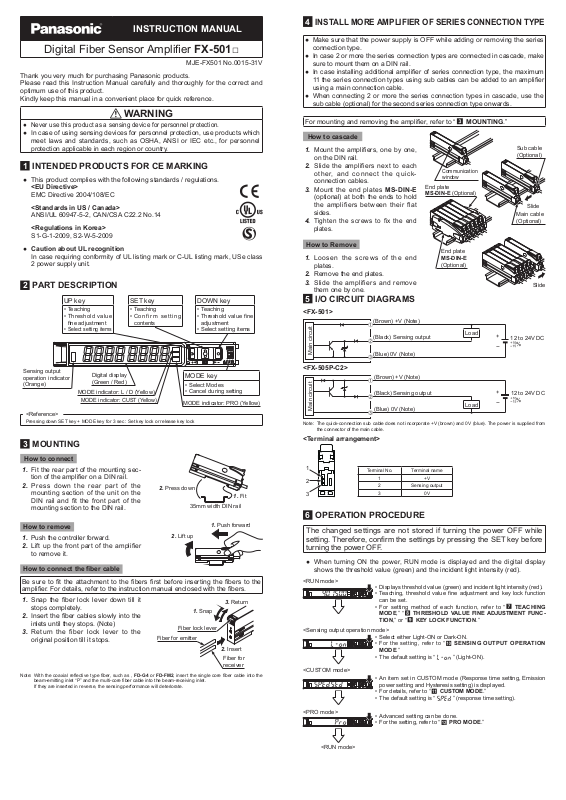

INSTRUCTION MANUAL

Digital Fiber Sensor Amplier FX-501□

MJE-FX501 No.0015-31V

Thank you very much for purchasing Panasonic products. Please read this Instruction Manual carefully and thoroughly for the correct and optimum use of this product. Kindly keep this manual in a convenient place for quick reference.

WARNING

● Never use this product as a sensing device for personnel protection.

● In case of using sensing devices for personnel protection, use products which meet laws and standards, such as OSHA, ANSI or IEC etc., for personnel protection applicable in each region or country.

INTENDED PRODUCTS FOR CE MARKING

● This product complies with the following standards / regulations.

EMC Directive 2004/108/EC

ANSI/UL 60947-5-2, CAN/CSA C22.2 No.14

S1-G-1-2009, S2-W-5-2009

● Caution about UL recognition

In case requiring conformity of UL listing mark or C-UL listing mark, USe class 2 power supply unit.

PART DESCRIPTION

UP key

• Teaching

• Threshold value ne adjustment

• Select setting items

Sensing output operation indicator (Orange)

Pressing down SET key + MODE key for 3 sec : Set key lock or release key lock

MOUNTING

Digital display

(Green / Red)

MODE indicator: L / D (Yellow)

MODE indicator: CUST (Yellow)

How to connect

1. Fit the rear part of the mounting sec-

tion of the amplier on a DIN rail.

2. Press down the rear part of the mounting section of the unit on the DIN rail and fit the front part of the mounting section to the DIN rail.

How to remove

Push the controller forward.

2. Lift up the front part of the amplier

to remove it.

How to connect the ber cable

Be sure to t the attachment to the bers rst before inserting the bers to the amplier. For details, refer to the instruction manual enclosed with the bers.

1. Snap the fiber lock lever down till it stops completely.

2. Insert the ber cables slowly into the

inlets until they stops. (Note)

3. Return the fiber lock lever to the original position till it stops.

Note: With the coaxial reective type ber, such as , FD-G4 or FD-FM2, insert the single core ber cable into the

beam-emitting inlet “P” and the multi-core ber cable into the beam-receiving inlet.

If they are inserted in reverse, the sensing performance will deteriorate.

SET key

• Teaching

• Confirm setting

contents

2. Press down

2. Lift up

Fiber for emitter

DOWN key

• Teaching

• Threshold value ne

adjustment

• Select setting items

MODE key

• Select Modes

• Cancel during setting

MODE indicator: PRO (Yellow)

1. Fit

35mm width DIN rail

1. Push forward

1. Snap

Fiber lock lever

3. Return

2. Insert

Fiber for receiver

INSTALL MORE AMPLIFIER OF SERIES CONNECTION TYPE

● Make sure that the power supply is OFF while adding or removing the series connection type.

● In case 2 or more the series connection types are connected in cascade, make sure to mount them on a DIN rail.

● In case installing additional amplier of series connection type, the maximum

11 the series connection types using sub cables can be added to an amplier

using a main connection cable.

● When connecting 2 or more the series connection types in cascade, use the sub cable (optional) for the second series connection type onwards.

For mounting and removing the amplier, refer to “ MOUNTING.”

How to cascade

1. Mount the ampliers, one by one,

on the DIN rail.

2. Slide the amplifiers next to each other, and connect the quickconnection cables.

3. Mount the end plates MS-DIN-E (optional) at both the ends to hold the amplifiers between their flat sides.

Tighten the screws to fix the end

Communication window

End plate MS-DIN-E (Optional)

Sub cable (Optional)

Slide

Main cable (Optional)

plates.

How to Remove

1. Loosen the screws of the end plates.

End plate

MS-DIN-E

(Optional)

2. Remove the end plates.

3. Slide the amplifiers and remove

them one by one.

I/O CIRCUIT DIAGRAMS

Slide

<FX-501>

(Brown) +V (Note)

Main circuit

(Black) Sensing output

(Blue) 0V (Note)

Load

12 to 24V DC

<FX-505P-C2>

(Brown) +V (Note)

(Black) Sensing output

Main circuit

Note: The quick-connection sub cable does not incorporate +V (brown) and 0V (blue). The power is supplied from

the connector of the main cable.

(Blue) 0V (Note)

Load

12 to 24V DC

OPERATION PROCEDURE

Terminal

No. Terminal name

1 +V

2 Sensing output

3 0V

The changed settings are not stored if turning the power OFF while

setting. Therefore, conrm the settings by pressing the SET key before

turning the power OFF.

● When turning ON the power, RUN mode is displayed and the digital display shows the threshold value (green) and the incident light intensity (red).

• Displays threshold value (green) and incident light intensity (red).

• Teaching, threshold value ne adjustment and key lock function

can be set.

• For setting method of each function, refer to “

MODE,” “ TION,” or “

• Select either Light-ON or Dark-ON.

• For the setting, refer to

MODE

• The default setting is “ ” (Light-ON).

• An item set in CUSTOM mode (Response time setting, Emission

power setting and Hysteresis setting) is displayed.

• For details, refer to “

• The default setting is “

• Advanced setting can be done.

• For the setting, refer to “

THRESHOLD VALUE FINE ADJUSTMENT FUNC-

KEY LOCK FUNCTION.”

.”

“ SENSING OUTPUT OPERATION

CUSTOM MODE.”

” (response time setting).

PRO MODE.”

TEACHING

<PRO1>

TEACHING MODE

● Be sure that detection may become unstable depending on the use environ- ment in teaching if less margin is applied.

● When teaching in Window comparator mode or Hysteresis mode, a setting has to be made in PRO mode beforehand. In case 1-point teaching, make sure to set the shift amount. (initial value is 10% or 100) For the setting, refer to “PRO MODE OPERATION MANUAL.”

● Teaching can be set in RUN mode.

Useful when sensing object can be set

● This is basic teaching method.

2-point teaching

<Thru-beam type>

1. Press the SET key in the sensing object present condition.

<Reective type>

1 2

1-point teaching (Window comparator mode / Hysteresis mode)

● This is method to set the shift amount to the desired value and to set the threshold range by using the 1-point teaching.

Set to desired value

1_SL P-1 2_SL

Notes 1)

The shift amount of 10% is an initial value. The shift amount can be set in PRO mode. Furthermore, the shift value can be set in incident light amount. For setting method, refer to “PRO MODE OPERATION MANUAL.”

2) If the value after setting exceeds the maximum (minimum), the maximum (minimum) sensitivity will be set.

Set to desired value

1. Pressing SET key down

2. Press the SET key down in the sensing object present condition.

3. The threshold value (1_SL) that is 10% lower from the incident

light intensity and the threshold value (2_SL) that is 10% higher from the incident light intensity are set. (Note 1, 2)

Stable sensing is possible

Stable sensing is not possible

Set to desired value

1_SL P-1 2_SL

Set to desired value

2-point teaching (Window comparator mode / Hysteresis mode)

● This is method to set the threshold range by conducting the 2-point teaching (P-1, P-2).

● When conducting teaching, use sensing objects (P-1 and P-2) whose incident light intensities are different from each other.

2. Press the SET key in the sensing object absent condition.

Stable sensing is possible

Stable sensing is not possible

Useful when sensing object cannot be set

● This is teaching method in case small object or object in back ground are existing

Limit-teaching

<Thru-beam type and refractive type are common>

1. Press the SET key in the sensing object present condition or non sensing object present condition.

2. The threshold level is shifted to high value (low sensitivity) by pressing down UP key.

The threshold level is shifted to low

value (high sensitivity) by pressing down UP key.

Stable sensing is possible

Stable sensing is not possible

Note: The shift value of approx. 15% is an initial value. Display of the shift value can be changed to percentage

[approx. 0 to 999% (unit 1 %)] or incident light intensity [0 to 9999 (unit 1)].

For setting the shift amount, refer to “PRO MODE OPERATION MANUAL.”

Useful when not want to stop production line and to keep the sensing object move

Full-auto teaching

<Thru-beam type and refractive type are common>

1_SL (P-1) 2_SL (P-2)

1. Pressing SET key down (1st time)

2. Press down the SET key in the sensing object present condition.

(2nd time)

Stable sensing is possible

Stable sensing is not possible

Note: If the value after setting exceeds the maximum (minimum), the maximum (minimum) sensitivity will be set.

1_SL (P-1) 2_SL (P-2)

3-point teaching (Window comparator mode / Hysteresis mode)

● This is the method to conduct the 3-point teaching (P-1, P-2, P-3) and to set the threshold range by setting the threshold value (1_SL) of the mid-point between “A” and “B” and the threshold value (2_SL) of the mid-point between “B” and “C”.

● When conducting teaching, use sensing objects (A, B and C) whose incident light intensities are different.

● After teaching, P-1, P-2 and P-3 will be automatically relocated in ascending order: i.e. the lowest value is placed in “A”, the second lowest in “B” and the highest in “C”.

A 2_SL1_SL B C

1. Press SET key down in the sensing object present condition (1st time)

Press SET key down in the sensing object present condition (2nd time)

Press SET key down in the sensing object present condition (3rd time)

A 2_SL1_SL B C

1. Pressing SET key down

Pressing down long

3. “ ” is displayed on the digital display (green) and when the

Automatic

Stable sensing is possible

Stable sensing is not possible

Run the sensing object on the line and hold down the SET key.

sensing object passed through, release the SET key.

Stable sensing is possible

Stable sensing is not possible

Note: If the value after setting exceeds the maximum (minimum), the maximum (minimum) sensitivity will be set.

Span adjustment in rising differential mode or trailing differential mode

● Press the SET key to conrm the setting item.

● The threshold can be set by using the threshold value ne adjustment function.

For the threshold value ne adjustment function, refer to “

THRESHOLD

VALUE FINE ADJUSTMENT FUNCTION”

Changed intensity

Short span

Long span
