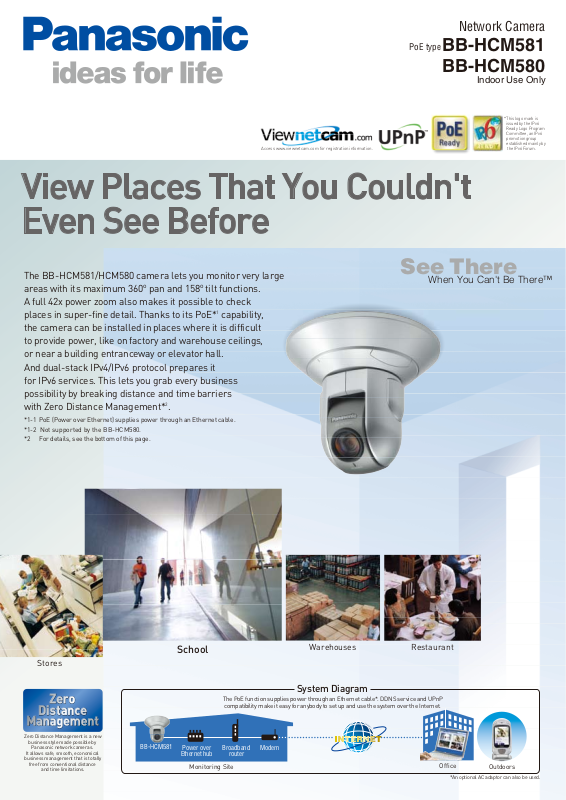

Panasonic BB-HCM581, BB-HCM580 User Manual

Network Camera

PoE type

BB-HCM581 BB-HCM580

Access www.viewnetcam.com for registration information.

View Places That You Couldn't Even See Before

The BB-HCM581/HCM580 camera lets you monitor very large areas with its maximum 360o pan and 158o tilt functions. A full 42x power zoom also makes it possible to check places in super-fine detail. Thanks to its PoE*1 capability, the camera can be installed in places where it is difficult to provide power, like on factory and warehouse ceilings, or near a building entranceway or elevator hall. And dual-stack IPv4/IPv6 protocol prepares it for IPv6 services. This lets you grab every business possibility by breaking distance and time barriers with Zero Distance Management*2.

*1-1 PoE (Power over Ethernet) supplies power through an Ethernet cable. *1-2 Not supported by the BB-HCM580. *2 For details, see the bottom of this page.

See There

When You Can't Be There™

Indoor Use Only

* This logo mark is

issued by the IPv6 Ready Logo Program Committee, an IPv6 promotion group established mainly by the IPv6 Forum.

Stores

Zero Distance Management is a new

business style made possible by

Panasonic network cameras.

It allows safe, smooth, economical

business management that is totally

free from conventional distance

and time limitations.

BB-HCM581

School

Power over

Ethernet hub

Monitoring Site

Warehouses

Restaurant

System Diagram

The PoE function supplies power through an Ethernet cable*. DDNS service and UPnP

compatibility make it easy for anybody to set up and use the system over the Internet.

Broadband

router

Modem

Office

*An optional AC adaptor can also be used.

Outdoors

Achieving Zero Distance Management

SALE

with a Variety of Functions

Capture

Colour Night View Mode

When the subject darkens, the camera automatically adjusts the brightness to show you the image.

OFF

Motion Detection Function

This function detects changes by reacting to a camera threshold or sensitivity that is set in advance on the PC. Captured images can also be stored temporarily in the camera*1 or sent to you by e-mail*2 or FTP data transfer*3.

*1 A maximum of approximately 350 images (320 x 240 pixels) can

be stored in the camera.

*2 PDP before SMTP

authentication and SMTP authentication (PLAIN, LOGIN and CRAM-MD5) are supported.

*3 The sensor's detection history

can also be e-mailed to you once a day at a preset time.

Threshold

Store

SD Memory Card*4 Recording

A large number of images can be saved onto an SD Memory Card inserted into the camera. The images on the card can be checked over the Internet, or if no network is being used, monitoring is possible using only the camera by simply storing the images onto the card.

2GB SD Memory Card Recording Capacity

[image quality:Standard]

Format

JPEG

MPEG-4*

*4 The SD Memory Card is sold

separately.

*5 The MPEG-4 recording times will vary

depending on the subject and the maximum MPEG-4 frame rate (image refresh speed) and bit rate settings for image distribution.

*The values in the table are all approximate.

Resolution

640 x 480

35 KB/file 16 KB/file 7 KB/file

55,000 images 115,000 images 370,000 images

9 hours 9 hours 17 hours

320 x 240

192 x 144

View

Enjoy comfortable, versatile monitoring.

Simultaneous MPEG-4 and JPEG

Cameras simultaneously send MPEG-4 images in three resolutions (VGA*6, QVGA, and SCIF), and

JPEG images in the same three resolutions in favour motion, standard, and favour clarity image-quality types. MPEG-4 is recommended for viewing smooth motion images, and JPEG is recommended for recording higher quality images.

*6 When viewing in VGA, only MPEG-4 playback offers a maximum of 30 fps. *7 For JPEG only. The audio feature does not work on cell phones.

Internet

MPEG-4 JPEG

MPEG-4 Visual License

When installing the MPEG-4 viewer program on additional PCs, please purchase additional licenses (Model No. BB-HCA5A for USA, BB-HCA5CE for others).

You can make use of your existing equipment.

Analogue Video Output*

By connecting a cable directly to the camera's video output terminal, you can use your existing TV or video recorder for monitoring. When using analogue video output, the camera automatically switches to interlace scanning*9 to suppress flicker in motion images.

*8-1 Compatible with both NTSC and PAL systems. *8-2 A mini video cable (with 3.5-mm mini plug) is required. *8-3 The camera cannot be controlled when using analogue video

output. The video image displays poorly in colour night view mode.

*9 Images are output to the PC with progressive scanning.

Connect

Image Transfer Function

In accordance with preset settings*10, the camera will automatically transfer images and a data log by e-mail to an e-mail*2 address or by FTP to a server. This allows you to check images only when necessary, and also prevents you from forgetting to check them.

*10 Preset settings can include timer, alarm, and motion

detection. With JPEG connection only.

MPEG-4 JPEG

JPEG

Recommended type

Narrow band:MPEG-4 High quality recording:JPEG

Cell phone*

image resolution: 192 x 144 or 320 x 240

BB-HCM581/BB-HCM580

Control

Monitor large areas entirely.

Remote Pan/Tilt and Zoom Control

The camera angle can be varied by remote control to monitor large areas. Monitoring precision can be further increased by using the 42x zoom* (21x optical zoom and 2x digital zoom).

*11 The zoom function cannot be used from a cell phone.

Audio 2-Way Communication*

By using a separately purchased microphone and speaker, you can speak*13 to someone near the camera while monitoring. This gives you more precise communication to lessen the inconvenience of being in a distant location.

*12-1 The audio feature does not work with cell phones. *12-2 Not supported by the BB-HCM580. *13 Walkie-talkie type conversation.

Part Names

Front View

Lens

SD Memory Card slot

Rear View

I/O connector

Audio/video terminal*

42x Zoom

Head office

Supermarket

Let's make the aisle a little wider.

Speaker

Pan and tilt control

Mic

Internet

Mic

Network camera

*Video terminal only for BB-HCM580.

Pan (display range: 360˚max) Tilt (display range: 158˚max)

How does the sales corner look?

Speaker

Indicator

LAN port

DC IN jack

42x

Server Video Compression Video Resolution Image Quality

Frame Rate*

Security Supported Protocols

User Access Limit Buffered Images*

Image Transfer Method Image Buffer/Transfer Triggers Camera Zoom Horizontal Viewing Angle Vertical Viewing Angle Pan Angle Tilt Angle Revolving Speed

JPEG (3 levels), MPEG4 640 x 480, 320 x 240 (default), 192 x 144 JPEG (favor clarity, standard, favor motion), MPEG4 Max. 30 frames/sec. (640 x 480*3, 320 x 240, 192 x144) User ID/password IPv4 /

IPv6 Dual-Stack IPv4: TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS, ARP, ICMP, POP3, NTP, UPnP SMTP Authentication, RTP, RTSP, RTCP IPv6: TCP, UDP, IP, HTTP, FTP, SMTP, DNS, ICMPv6, POP3, NDP, NTP, RTP, RTSP, RTCP Max. 30 simultaneous accesses (max. 10 accesses in MPEG-4 mode with sound playback) Approx. 350 images (320 x 240)

SMTP*5, FTP, HTTP Alarm, timer or motion detection

42x zoom (21 x optical, 2 x digital) Tele: 2.6° (optical) / 1.3° (digital), wide: 51° Tele: 1.9° (optical) / 0.9° (digital), wide: 38°

-175° up to +175°

-120° up to +0° (on a table), 0° up to +90° (on a ceiling) Pan: max. 300°/sec, tilt: max. 200°/sec

without using SD Memory Cardstandard image quality with time display

Camera Sensor Type Lens Focal Point Lens Brightness White Balance Exposure Required Light Intensity

Audio

Audio Communication Audio Play Method

Audio Encoding Method

Audio Compression Audio Bandwidth Audio Input Audio Output

Terminal Network Interface External I/O Connector Video Output* Audio Output* External Microphone Input SD Memory Card Slot

http://panasonic.co.jp/pcc/products/en/netwkcam/

Specifications

[BB-HCM581/BB-HCM580*1]

1/4 inch CCD sensor, approx. 320,000 pixels Auto/manual (40 steps) F1.6(wide) - F3.6(tele) Auto/manual/hold Auto 2 to 100,000 lux (in Colour Night View mode: 0.09 to 100,000 lux)

2-Way half duplex Play with ActiveX

Encoding with ActiveX

ADPCM 32 kbps 300 Hz - 3.4 kHz External microphone input terminal Audio line output terminal for external speaker

Ethernet (10Base-T/100Base-TX) Input: 2, output: 1 Analog composite (NTSC/PAL)

3.5 mm stereo mini jack (output is mono)

3.5 mm mini jack Full size (operation guaranteed for 2GB, 1GB, 512MB, 256MB, 128MB and 64MB SD Memory Cards)

General Temperature

Humidity

Dimension (H x W x D) Weight (Only the Unit) Consumption Power Supply

*1 The BB-HCM580 does not support audio 2-way communication or the

easy PoE power supply.

*2 The frame rate may slow down depending on the network environment,

PC performance, image quality, SD memory recording, when colour

night view mode is activated, etc. *3 For MPEG-4 only. Not applicable to JPEG. *4 The maximum number of frames changes depending on the image quality and what object you buffer. *5 PDP before SMTP authentication and SMTP authentication (PLAIN,

microphone, speaker or TV.

Operation: 0°C to +40°C (+32°F to +104°F ) Storage: 0°C to +50°C (+32°F to +122°F) Operation: 20 % to 80 % (No Condensation) Storage: 20 % to 90 % (No Condensation) 140 x 123 x 123 mm (5 1/2 x 4 13/16 x 4 13/16 inches ) BB-HCM580: 640g (1.41lb.) BB-HCM581: 650g (1.43lb.) PoE: 9W (HCM581 only) AC adaptor: 10.5W PoE: 48 V, IEEEE 802.3af-compliant Power over Ethernet (HCM581 only)

AC adaptor (option for HCM581): input 100 - 240 V AC, output 12 V DC

0.2M0707SDSP-HCM581/580-LT.CE

All pictures simulated.

Design and specifications are subject

to change without notice.
