Panasonic AKHC910 User Manual

AK-HC910P

Before attempting to connect, operate or adjust this product, please
read these instructions completely.

1080I Multi-purpose

Digital Camera

2

FCC Note:

This device complies with Part 15 of the
FCC Rules. To assure continued
compliance follow the attached instal­lation instructions and do not make any
unauthorized modifications.

This equipment has been tested and
found to comply with the limits for a
class A digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
when the equipment is operated in a
commercial environment. This
equipment generates, uses, and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instruction manual, may cause
harmful interference to radio
communications. Operation of this
equipment in a residential area is likely
to cause harmful interference in which
case the user will be required to correct
the interference at his own expense.

For Your Safety

1

indicates safety information.

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER TO SERVICING TO QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with
arrowhead symbol, within an
equilateral triangle, is intended
to alert the user to the presence
of uninsulated “dangerous
voltage” within the product’s
enclosure that may be of
sufficient magnitude to constitute
a risk of electric shock to
persons.

The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and main­tenance (service) instructions in
the literature accompanying the
appliance.

CAUTION:

TO REDUCE THE RISK OF FIRE OR
SHOCK HAZARD AND ANNOYING
INTERFERENCE, USE THE RECOM­MENDED ACCESSORIES ONLY.

WARNING:

TO REDUCE THE RISK OF FIRE OR
SHOCK HAZARD, DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR
MOISTURE.

The serial number of this product may
be found on the bottom of the unit.

This class A digital apparatus complies
with Canadian ICES-003.
Cet appareil numéique de la classe A
est conforme à la norme NMB-003 du
Canada.

For CANADA

3

For Your Safety...................................2

Preface ...............................................4

Features..............................................4

Precautions.........................................5

Major Operating Controls and

Their Functions.............................6, 7

How to Install ......................................8

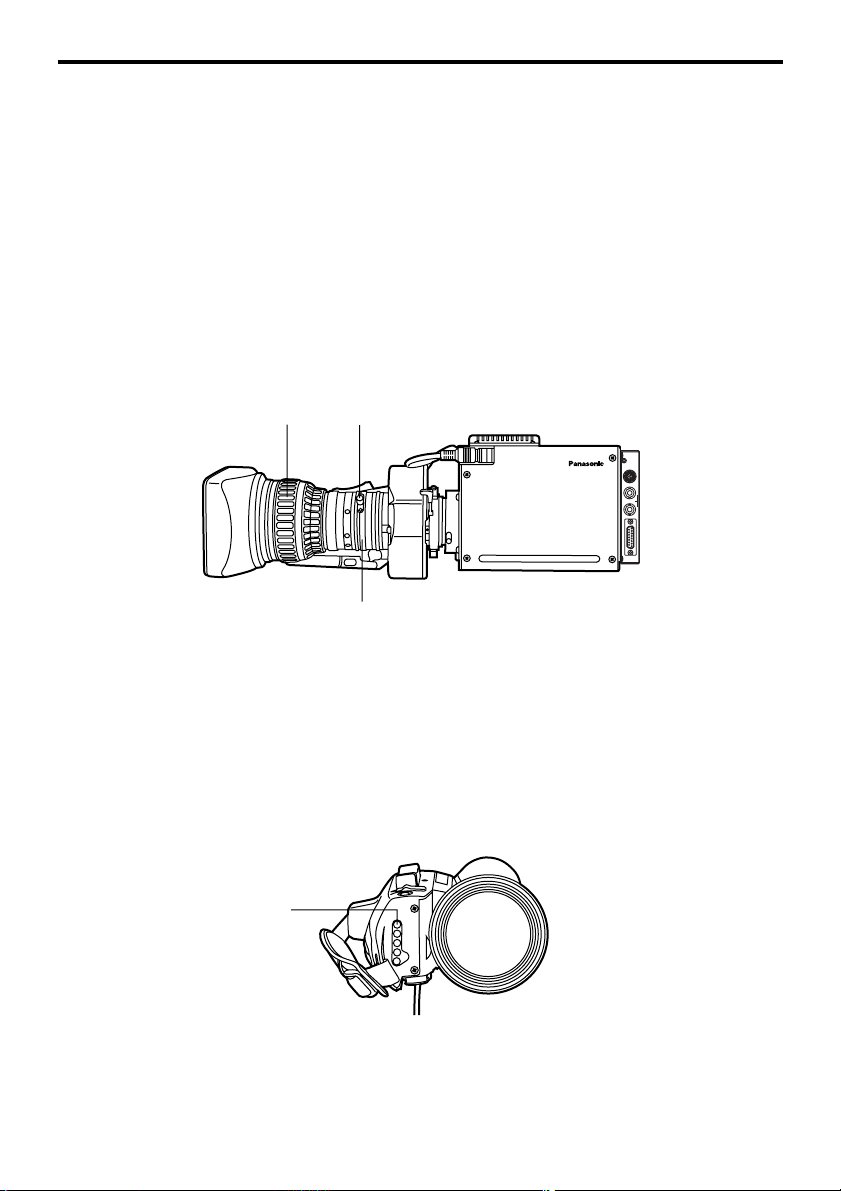

_ How to set the lens .......................8

_ How to install on the camera

housing, pan/tilt head,

tripod, etc. .....................................8

How to Set Up the System

(Connection) .....................................9

Multi-purpose Digital Camera

Control System Configuration 1........10

Multi-purpose Digital Camera

Pan/Tilt Head Compatible

System Configuration 1....................11

Multi-purpose Digital Camera

Control System Configuration 2........12

Multi-purpose Digital Camera

Pan/Tilt Head Compatible

System Configuration 2....................13

Operation Procedure ........................14

How to Adjust...........................15 to 17

_ Flange back adjustment

(for zoom lens)............................15

_ Lens iris gain volume

adjustment ..................................15

_ White balance adjustment ..........16

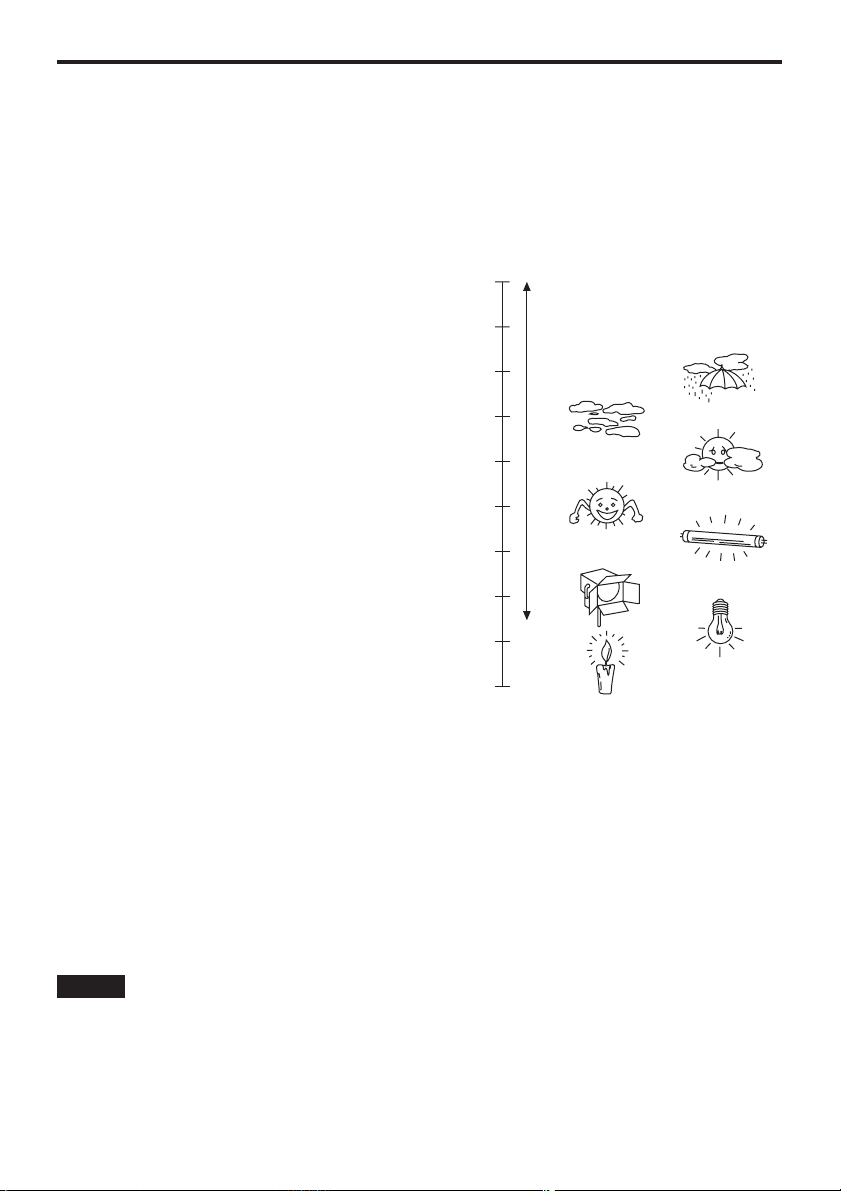

_ Color temperature and

white balance adjustment

(reference) ..................................16

_ Black balance adjustment...........17

_ Gen lock adjustment ...................17

Setting of Menu Items..............18 to 29

_ Configuration of menu display

screen .........................................18

_ USER menu (Initial screen) ........19

! Maintenance menu ............20 to 26

1 Black shading correction

menu.......................................20

2 Pedestal, gamma, flare

adjustment menu ....................21

3 Knee&white clip

adjustment menu ....................22

4 Gain adjustment menu............23

5 Detail adjustment menu ....23, 24

6 Master gain, auto iris setting

menu.......................................24

7 Super gain, Detail, Pedestal-

offset level setting menu .........25

8 Matrix menu ............................26

9 Color correction 1 menu .........26

qZ Color correction 2 menu .........26

@ Setting menu.........................27, 28

1 Camera mode setting

menu.................................27, 28

2 Electronic shutter setting

menu.......................................28

3 Horizontal phase adjustment

menu for external reference

signal ......................................28

# Camera ID setting menu.............29

$ File managing and renewing

menu.....................................29, 30

- File operation menu ..........29, 30

Outside Dimension Diagram.............31

Specifications & Accessories............32

CONTENTS

4

Preface

Thank you very much for purchasing the multi-purpose digital
camera.

New 2/3q 2.2 million-pixel CCD is
employed.
[1920(H) k1080(V)]

• 2.2 million-pixel CCD is 2/3q size, being

compact and light-weight.

The camera section is equipped with a
high picture quality digital signal
processing LSI.

• 10 Bit, 74 MHz high picture quality digital

processing after the process circuit.

• New type CCD flaw correcting function.

• High reliability, multi-function, and

improvement of maneuverability are
realized.

• Max. +48 dB gain-up is possible.

(Memory addition, CCD pixel addition
mode included)

Performance improvement by new­generation FIT

• High sensitivity, wide dynamic range and
low smear are realized by CCD most
suited for high-quality pictures.

• High response and high resolution are
realized by driving H-CCD at 74 MHz.

Multiple functions

• Multi-function DTL such as high­luminance DTL and skin DTL.

• Two HD-SDI output lines.

This camera employs new 2/3q 2.2 million-pixel FIT CCD [1920(H)k1080(V)], realizing a
compact light-weight system including the optical system.
Also, the newly developed CCD having an FIT configuration suited for higher picture
quality and the development of low-noise, high-speed amplifiers have enabled the
realization of high sensitivity, high S/N ratio, and wide dynamic range.
With the newly developed digital signal processing LSI mounted on the camera head, it
performs signal processing such as GAMMA, KNEE and DTL matrix, and CCD flaw
correction based on a new system, intending to improve the maneuverability with
multifunction, high-quality, and high stability peculiar to a digital system.
Making the best use of the features of a small-sized self-contain camera, it is
accommodated in the camera housing and able to provide high-quality HD pictures as an
multi-purpose digital camera.

Features

5

• Do not attempt to disassemble the
camera or other units. In order to prevent
electric shock, do not remove screws or
covers. There are no user-serviceable
parts inside.

• Do not abuse the camera. Avoid striking,
shaking, etc. The camera contains
sensitive components which could be
damaged by improper handling or
storage.

• Do not let the lens remain uncapped
when the camera is not use. If the lens is
not installed, do not leave the lens mount
hole uncovered.

• Do not touch the surface of the lens or
prism.

• Do not use strong of abrasive detergents
when cleaning the camera body.

• Do not aim the camera toward the sun,
no matter whether it is turned on or not.

• Do not expose the camera to rain or
moisture, and do not try to operate the
equipment in wet conditions. Do not
operate the camera if it becomes wet.

• Do not operate the camera outdoors
during a lightning storm.

• Do not use the camera in an extreme
environment where high temperatures or
high humidity exist.

• Do not leave the camera turned on when
not in use. Do not unnecessarily turn the
camera power on and off repeatedly. Do
not block the ventilation slots.

•Do not cover the port otherwise block
ventilation during operation. Internal heat
buildup can cause a fire.

• Refer any servicing to qualified service
personnel.

• Handle the camera with care.

• Protect the precision made lens by
placing the lens cap over when the
camera is not in use. If the lens is not
installed, protect the surface of the prism
by placing the body cap into the lens
mount hole.

• Use a mild blower or lens cleaning tissue
designed for coated lenses, to clean the
surface of the lens or prism in the event
that it should become dirty.

• Use a dry cloth to clean the camera if it is
dirty. In case the dirt is hard to remove,
use mild detergent and wipe gently.

• Use caution when operating the camera
in the vicinity of spot lights or bright
lights, as well as light reflecting objects
and surfaces.

• Take immediate action if ever the camera
should become wet. Turn the power off
and have the unit checked by an
authorized service facility.

• Follow normal safety precaution to avoid
personal injury.

• Use the camera in an environment where
the temperature is within 32°F to +104°F
(0°C to +40°C), and the relative humidity
is within 30% to 90% (no condensation).

• Always turn the power off when the
camera is not going to be used. Operate
the camera only when there is adequate
ventilation.

• Cooling fan
There is internally provided a cooling fan.
Since the cooling fan is a consumable
part, replace it after about 50,000 hours
of operation.
(Be sure to ask the dealer for the
replacement.)

DON’TS DO’S

Precautions

6

Major Operating Controls and Their Functions

_ Front Panel

5 Cooling Fan

• Do not block or obstruct the ventilation during operation. It may otherwise cause
internal heating or fire.

• The life of this fan is approximately 50,000 hours (at room temp. 25°C). Replace the
fan as needed.
(When the room temperature is higher than 35°C, replace the fan earlier.)
Be sure to ask the dealer for the replacement.

_ Top and Bottom Panels

3

4

1

2

LENS

5

6

6

7

1

2

3

4

5

6

7

8

9

10

11

12

Pin No.

1

2

3

4

5

6

Signal

Return control

VTR-S/S

UNREG GND

Iris manual selection

Iris control

UNREG 12V

Pin No.

7

8

9

10

11

12

Signal

Iris follow

Iris auto selection

——

——

——

NC

1 Lens Mount

2/3q standard bayonet type (B4 mount) lens is installed.

2 Lens Fixing Ring Knob

Lens is fixed by turning the knob counterclockwise.

3 Cable Clamp

Used to clamp the lens cable.

4 Lens Connector [LENS]

Used to connect the camera cables of the lens.

7

8 Breaker [BREAKER]

If the breaker is operated due to over-current or the like, check the cause and eliminate
the trouble, then press the breaker button.

9 Zoom/Focus Connector [ZOOM/FOCUS]

Used to connect the zoom/focus control cables of lens.

6 Camera mounting hole (1/4-20UNC)

7 Camera mounting hole (3/8-16UNC)

The screw holes can be used to secure the camera for installing it on camera housing,
and when using a pan/tilt head or a tripod.

Major Operating Controls and Their Functions

_ Side Panel

: SDI Output Connectors [SDI OUT 1, 2]

SDI signal output is given by two lines.

; Interface Connector [I/F]

1

2

3

4

5

6

7

8

9

10

11

12

BREAKER

ZOOM/
FOCUS

SDI OUT

1

2

1

/

F

8
9

;

:

TXD: Data from Camera to remote controller
RXD: Data from remote controller to camera

1

7

2

3

4

5

6

8

9

10

11

12

13

14

15

Pin No.

1

2

3

4

5

6

Signal

Focus control selection

Zoom control selection

GND

Forcible iris closing

Iris control

+Voltage

Pin No.

7

8

9

10

11

12

Signal

COM

Focus control

Zoom control

Iris control selection

COM +Voltage

COM –Voltage

Pin No.

1

2

3

4

5

6

7

Signal

Y signal output

Pb signal output

Pr signal output

Sync signal input

DC 12V

Frame GND

TXD (H)

Pin No.

8

9

10

11

12

13

14

15

Signal

Y signal GND

Pb signal GND

Pr signal GND

Sync signal GND

DC GND

TXD (C)

RXD (H)

RXD (C)

8

BREAKER

ZOOM/
FOCUS

SDI OUT

1

2

1

/

F

720

PROGRESSIVE

How to Install

_ How to set the lens

• Standard 2/3q bayonet type (B4 mount) lens of any makers can be used*.

1 Turn the lens fixing ring knob counterclockwise to remove the lens mount cap.
2 Set the lens in place, and turn the lens fixing ring knob clockwise to precisely fix the

lens.

3 Connect the lens cable to the lens connector.
4 Connect the remote (zoom/focus control) cable to the zoom/focus connector on the

rear panel.

* Note that there are some lenses uncontrollable with respect to zoom, focus function.

Be sure to ask the dealer for the installation,
adjustment and connection of this equipment.

_

How to install on the camera housing, pan/tilt head, tripod, etc.

1 Precisely set the camera on the camera housing, pan/tilt head, tripod, etc. by using

the camera set-screw hole (1/4-20UNC, 3/8-16UNC).

2 When mounting the camera on a pan/tilt head, be sure to use proper tools and

make sure that there is no fear of falling off.

Remote (zoom/focus control) Cable
(When a pan/tilt head is used, connect
the cable to the pan/tilt head.)

Camera Cable
(To Lens Connector)

Lens Fixing Ring Knob

9

O I

BREAKER

ZOOM/
FOCUS

SDI OUT

1

2

1

/

F

AK-HC910P

YPbPr

D-sub 15-pin

D-sub 15-pin

How to Set Up the System (Connection)

_ Connection of remote control box

• Use multi-cable for the connection of HD controller AK-HRP900 and this unit.

HD-SDI

Multi-cable (5m)
AK-HDMLTCA05

Coaxial Cable
(5C-FB)

HD Monitor

1 Before connecting the cables, be sure to set the Power Switch of AC Adaptor and HD

Controller to OFF.

2 Connect the multi-cable to the interface connector of the camera, and the opposite side

to HD Controller.

3 Set the AC Adaptor Power Switch to ON, and the HD Controller Power Switch to ON,

then the camera can be controlled.

4 After shooting, set the HD Controller Power Switch to OFF, and the AC Adaptor Power

Switch to OFF.

Note that the monitor output is
attenuated and deteriorated if
the cable is too long.

External
sync
signal
(3 value
sync)

Video
Input
Signal

AC Adaptor
AW-PS505

DC Power
Cable

HD Controller

AK-HRP900

NOTE

HD Monitor

10

O I

BREAKER

ZOOM/
FOCUS

SDI OUT

1

2

1

/

F

HD-SDI

D-sub 15-pin

D-sub 15-pin

Multi-cable (5m)
AK-HDMLTCA05

Coaxial Cable (5C-FB)

AC Adaptor

AW-PS505

HD Controller

AK-HRP900

HD Monitor

Multi-purpose Digital Camera Control System Configuration 1

Remote
controllable
lens

Multi-purpose
Digital Camera

AK-HC910P

External sync signal
(3 value sync)

Remote (zoom/focus
control) cable

DC
Power
Cable

11

O I

BREAKER

ZOOM/
FOCUS

SDI OUT

1

2

1

/

F

G/LIN Pb OUT Pr/SDI

OUT

Y/VIDEO

OUT

1394

CONTROL IN

IP/RP

DC12V

IN

CAMERA I/F

LENSE I/F

ND/EXT

SDI

IN

CSOP

O I

HD-SDI

Pan/Tilt Head Controller

AW-RP301

Multi-cable (5m)
AK-HDMLTCA05

Coaxial Cable (5C-FB)

AC Adaptor

AW-PS505

DC
Power
Cable

HD Controller

AK-HRP900

HD Monitor

Remote
controllable
lens

Multi-purpose Digital
Camera AK-HC910P

External sync signal
(3 value sync)

Remote
(zoom/focus
control) cable

Multi-purpose Digital Camera Pan/Tilt Head
Compatible System Configuration 1

Pan/Tilt Head

AW-PH300A

AC Adaptor

AW-PS300

DC Power
Cable

AC Adaptor

AW-PS301

NOTE:

Pan/Tilt Head is also
compatible with AW-PH500/
PH600.

12

O I

BREAKER

ZOOM/
FOCUS

SDI OUT

1

2

1

/

F

O I

HD-SDI

Multi-cable (5m)
AK-HDMLTCA05

Coaxial Cable (5C-FB)

AC Adaptor

AW-PS505

DC
Power
Cable

HD Controller

AK-HRP900

HD Monitor

Remote
controllable
lens

Multi-purpose
Digital Camera

AK-HC910P

AC Adaptor

AW-PS505

DC Power
Cable

Multi-purpose Digital Camera Control System Configuration 2

(System for remotely monitoring picture control)

Multi-cable (5m)
AK-HDMLTCA05

Relay box

AK-HTF900

Remote (zoom/focus
control) cable

Transfer

13

O I

BREAKER

ZOOM/
FOCUS

SDI OUT

1

2

1

/

F

G/LIN Pb OUT Pr/SDI

OUT

Y/VIDEO

OUT

1394

CONTROL IN

IP/RP

DC12V

IN

CAMERA I/F

LENSE I/F

ND/EXT

SDI

IN

CSOP

O I

O I

HD-SDI

Multi-cable (5m)
AK-HDMLTCA05

Coaxial Cable (5C-FB)

AC Adaptor

AW-PS505

DC
Power
Cable

HD Controller

AK-HRP900

HD Monitor

Remote
controllable
lens

Multi-purpose Digital
Camera AK-HC910P

Remote
(zoom/focus
control) cable

Pan/Tilt Head

AW-PH300A

AC Adaptor

AW-PS300

DC Power
Cable

AC Adaptor

AW-PS301

NOTE:

Pan/Tilt Head is also
compatible with AW-PH500/
PH600.

(System for remotely monitoring picture control)

AC Adaptor

AW-PS505

Pan/Tilt Head Controller

AW-RP301

Multi-purpose Digital Camera Pan/Tilt Head Compatible System Configuration 2

Multi-cable (5m)
AK-HDMLTCA05

Relay box

AK-HTF900

Transfer

14

Operation Procedure

1 Turn on the power of each

equipment.

2 Properly adjust the light for the

object.

3 Adjust the flange back of the lens,

the iris and the focus.

• Flange back must be adjusted when
the camera is used for the first time or
after replacement of the lens.

4 Adjust the white balance.

• This adjustment is needed when the
camera is used for the first time or
after leaving unused for a long time.

• The adjustment is necessary when
the lighting condition or brightness is
changed.

• After adjusting the white balance
once, re-adjustment is not needed
under the same condition.

5 Adjust the black balance.

• This adjustment is needed when the
camera is used for the first time or
after leaving unused for a long time.

• The adjustment is necessary when
the ambient temperature is greatly
changed or at the change of season.

• After adjusting the black balance
once, re-adjustment is not needed
under the same condition.

6 Start shooting.

(After shooting, be sure to turn off the
power of each equipment connected.)

15

_ Flange back adjustment (for zoom lens)

The adjustment is to adjust the focus in all the range from the maximum zoom to the
widest angle of the zoom lens.

1 Shoot a dark object to open the iris.
2 Adjust the distance from the object to 6.6 ft. (2 m) at least, then loosen the flange

back fixing knob of the lens.

3 Set the lens to the maximum zoom and adjust the focus by turning the focus ring.
4 Set the lens to the widest angle and adjust the focus by turning the flange back

adjust ring.

5 Repeat adjusting the focus ring and flange back adjust ring until the focus is

adjusted within the zooming range.
After finishing the adjustment, tighten the flange back fixing knob.

BREAKER

ZOOM/
FOCUS

SDI OUT

1

2

1

/

F

How to Adjust

Focus Ring Flange Back Fixing Knob

_ Lens iris gain volume adjustment

• Iris gain adjust hole (G or S) is provided at front of the lens housing. Adjust the iris
according to the following procedure by using a screwdriver.

1 Set the iris select switch of the lens to A “AUTO” side.
2 Turn the iris gain adjust volume to maximize the gain in such extent that no hunting

takes place.

* Iris PEAK/AVE of camera menu can also be used for the adjustment.

Flange Back Adjust Ring

Iris Gain Adjust Volume

Auto Iris Power Zoom Lens

16

_ Color temperature and while balance adjustment (reference)

When carbon is burnt, it develops
various colors of light depending on the
temperature. Natural light can be
specified by color temperature reflecting
to the color developed when carbon is
burnt.
The light of 3,200K (K=Kelvin, –273°C
equals to absolute zero temperature 0K)
represents the same value (color) as
what develops when carbon is burnt at
3,200K (2,927°C). The relationship
between the color temperature of the
light source and weather condition is
indicated in the right figure. Let’s study
the difference of shooting an indoor
object from shooting one outdoors.
Studios are usually lighted with
incandescent lamps and the color
temperature of a white object in a studio
is around 3,200K. The color temperature
of a white object outdoors is around
6,500K. The former may look a little
yellowish while the latter appears
somewhat bluish when they are shot by a camera. However, the human eye does not
recognize color differences among these objects even under different ambient lighting
conditions, because of their adaptability to light.
The video camera reproduces color differences with high fidelity and the color of an
object somewhat different from what appears to the human eye.
Therefore, there is a need to adjust the white balance in order to correct differences
between color temperatures.

How to Adjust

_ White balance adjustment

Adjust the white balance after shooting a white object by at least 50% of the screen.
NOTE: If the white signal level is over 100% or less than 50%, the white balance may

not be normally adjusted.

Color temperature outdoors may vary depending on weather conditions.

NOTE

10000K

Blue sky

Rainy

Partly cloudy

Cloudy

AWC

Fine

Fluorescent lamp

Halogen lamp

Tangsten lamp

Candle

9000K

8000K

7000K

6000K

5000K

4000K

3000K

2000K

1000K

Color temperature values

17

H.PHASE

H.PHASE-COARSE :03
H.PHASE-FINE :40



°° °°

_ Black balance adjustment

• Adjust it with the lens closed.
When the motor drive lens is controlled from the camera, adjusting the black balance
causes the lens to be automatically closed.

How to Adjust

_ Gen lock adjustment

When multiple cameras are used or the camera is combined with other equipment, it is
necessary to adjust the phase for phase matching by external synchronization.

• Horizontal phase adjustment

Observe the waveforms of externally synchronizing signal input (black burst signal)
and video signal output by a two-phenomenon oscilloscope, and make the horizontal
phase according to the camera menu.

1 Roughly adjust the synchronizing

signal input and video signal
output phases by H.PHASE­COARSE.

2 Finely adjust the synchronizing

signal input and video signal
output phases by H.PHASE-FINE.

Adjustment with H.PHASE of
SETTING menu

H.Phase adjustment is executed by
the HD Controller AK-HRP900.

18

File managing & renewing menu

USER MENU

Maintenance menu

Using condition setting menu

Camera ID setting menu

Setting of Menu Items

_ Configuration of menu display screen

USER MENU




1.MAINTENANCE

2.SETTING

3.CAM ID

4.FILE MENU


MAINTENANCE

°°



1.BLACK SHADING



2.PED,GAMMA,FLARE

3.KNEE,WHITE CLIP

4.R/B GAIN

5.DTL

6.GAIN,AUTO IRIS

7.S.GAIN 1

8.S.GAIN 2

9.S.GAIN 3

10.MATRIX

11.COLOR CORRECTION1

12.COLOR CORRECTION2

SETTING

°° °°



1.MODE



2.SHUTTER

3.H.PHASE



CAM ID

°°

°°


ID:AKHC900



H FILE MENU

°°


FILE :USER1



(DATA REF :PRESET)
SAVE FILE? :USER1
SAVE :

19

USER MENU


1.MAINTENANCE

2.SETTING

3.CAM ID

4.FILE MENU




Setting of Menu Items

_ USER menu (Initial screen)

The readout data at start of power supply
is the data just before cutting off the power
supply, and the operation is started with
the data.

1. MAINTENANCE

It sets various adjusting data.

2. SETTING

It sets various modes.

3. CAM ID

It sets the camera ID.

4. FILE MENU

It executes file loading and saving, and
makes the basic setting of data display.

Menu operation is executed by the HD Controller AK-HRP900.

20

MAINTENANCE


1.BLACK SHADING

2.PED,GAMMA,FLARE

3.KNEE,WHITE CLIP

4.R/B GAIN

5.DTL

6.GAIN,AUTO IRIS

7.S.GAIN 1

8.S.GAIN 2

9.S.GAIN 3

10.MATRIX

11.COLOR CORRECTION1

12.COLOR CORRECTION2



°°

°BLACK SHADING

°




DETECTION
CORRECT(DIG) :ON
CORRECT(ANA) :ON



Setting of Menu Items

! Maintenance menu

• Move the cursor (arrow mark) to the item
to be adjusted and press the MENU key,
then it enters the adjustment menu
thereunder.

• Move the cursor to MAINTENANCE and
press the MENU key, then it returns to
USER MENU.

1 Black shading correction menu

• When MENU key is pressed at
DETECTION, (BLK-SHD:ACTIVE)
appears, then the lens is automatically
stopped down and ABB operation is
executed.

• When CORRECT (DIG) is turned ON,
horizontal and vertical shading
correction is automatically executed.
When it is turned OFF, the current
value is maintained.

• Move the cursor to “BLACK
SHADING” and press the MENU key,
then it returns to MAINTENANCE
MENU.

• When CORRECT (ANA) is set to ON,
vertical shading correction (SAW tooth)
is automatically corrected.

Note:

It takes about 90 sec. until completion
of black shading correction.

21



PED,GAMMA,FLARE

M PED :+027
R PED :+000
B PED :+000
M GAMMA :0.45
R GAMMA :+00
B GAMMA :+00
R FLARE :010
G FLARE :000
B FLARE :017
GAMMA :ON
FLARE :ON



°° °°

Setting of Menu Items

! Maintenance menu

2 Pedestal, gamma, flare adjustment

menu

M PED: Master pedestal can be

adjusted only by turning the control
panel VR.
The R, G, B pedestal can be totally
adjusted.

R, B PED: R, B pedestal adjustment.
Besides the master pedestal
adjustment, R, B pedestal can be
independently adjusted. It is not related
to DATA REF. The numeral display
after normal ending of ABB is “0” for
both of R, B.

M GAMMA: Master gamma adjustment.
The R, G, B gamma can be totally
adjusted.

R, B GAMMA: R, B gamma adjustment.
Besides the master gamma adjustment,
R, B gamma can be independently
adjusted.

R FLARE: R flare adjustment

G FLARE: G flare adjustment

B FLARE: B flare adjustment

GAMMA: Gamma ON/OFF setting

FLARE: Flare ON/OFF setting

22



KNEE,WHITE CLIP

M KNEE POINT :95.00%
R KNEE POINT :+00.00%
B KNEE POINT :+00.00%
M KNEE SLOPE :95.00%
R KNEE SLOPE :+000
B KNEE SLOPE :+000
A.KNEE POINT :95.00%
A.KNEE LVL :108
WHITE CLIP LVL :109%
KNEE :MANU
WHITE CLIP :ON






°° °°

Setting of Menu Items

! Maintenance menu

3 Knee&white clip adjustment menu

M KNEE POINT: Master knee point
adjustment.
G, B, R knee point can be totally
adjusted.

R, B KNEE POINT: R, B knee point
adjustment.
Besides the master knee point
adjustment, R, B knee point can be
independently adjusted.

M KNEE SLOPE: Master knee slope
adjustment.
G, B, R knee slope can be totally
adjusted.

R, B KNEE SLOPE: R, B knee slope
adjustment.
Besides the master knee slope
adjustment, R, B knee slope can be
independently adjusted.

A. KNEE POINT: Auto knee point
setting. Knee point in auto knee mode is
set.

A. KNEE LVL: Auto knee level.

WHITE CLIP LVL: White clip level

adjustment.
Video level with white clipped is set.

KNEE: KNEE mode
(OFF/MANU/AUTO)
OFF: Knee function is turned OFF.
MANU: Knee function is adjustable with
menu.
AUTO: Auto knee function is executed.

WHITE CLIP: White clip operation
setting.
With it ON, white clip is effective.

23



R/B GAIN

R GAIN :+000
B GAIN :+000





°° °°

DTL

DTL :ON
TOTAL DTL LVL :+00
H DTL LVL :11
CRISP :02
LVL DEPENDENT :2
PEEK FREQUENCY :10
KNEE APERTURE :ON
KNEE APA.LVL :10
SLIM DTL :OFF
DTL(+) :+00
DTL(-) :+00
DTL CLIP :0
DTL SOURCE :(B+G)/2



°° °°

Setting of Menu Items

! Maintenance menu

4 Gain adjustment menu

The gain of R, B GAIN is adjusted.
The difference from the state of being
white-balanced can be adjusted.

• The numeral value displayed after
normal ending of AWB is “0” for both
of R, B.

5 Detail adjustment menu

DTL: Setting of valid/invalid of detail

function.

TOTAL DTL LVL: Horizontal and
vertical detail level adjustment.

H DTL LVL: Horizontal DTL component
is adjusted independently of DTL
adjusted by TOTAL DTL.

CRISP: It functions to eliminate slight
detail component and to reduce the
noise level.

LVL DEPENDENT: It suppresses the
detail of low brightness level. The
brightness level to be suppressed is
adjusted here.

PEAK FREQUENCY: It lifts up the
detail component, and selects the
central frequency.

KNEE APERTURE: It functions to
emphasizes the detail component of the
portion with knee applied.

KNEE APA.LVL: It sets the degree of
knee aperture.

SLIM DTL: It validates the function of
slimming the portion where the detail is
thick and emphasized.

24

DTL

DTL :ON
TOTAL DTL LVL :+00
H DTL LVL :11
CRISP :02
LVL DEPENDENT :2
PEEK FREQUENCY :10
KNEE APERTURE :ON
KNEE APA.LVL :10
SLIM DTL :OFF
DTL(+) :+00
DTL(-) :+00
DTL CLIP :0
DTL SOURCE :(B+G)/2



°° °°



GAIN,AUTO IRIS

LOW GAIN :0dB
MID GAIN :9dB
HIGH GAIN :18dB
A.IRIS LVL :082
A.IRIS PEAK/AVG :075
A.IRIS WINDOW :NORM1
IRIS MODE :LENS
IRIS GAIN :06



°° °°

Setting of Menu Items

! Maintenance menu

5 Detail adjustment menu

(continued from previous page)

DTL (+): Setting of DTL at the edge in

positive direction.

DTL (–): Setting of DTL at the edge in
negative direction.

DTL CLIP: Setting of clip level of DTL
edge.

DTL SOURCE: Setting of video source
[G, R, (3G+R) /4, (2G+R+B) /4,
(G+B/2)] to create the detail.

6 Master gain, auto iris setting menu

LOW GAIN: LOW setting of master

gain.

MID GAIN: MID setting of master gain.

HIGH GAIN: HIGH setting of master

gain.

• The above GAIN setting is able to set
–6 to +18 dB in 3 dB step.

A.IRIS LVL: Setting of the intended
convergence level of auto iris.

A.IRIS PEAK/AVG: Setting of the
detection ratio of peak value and
average value of the quantity of light
when auto iris is operated.

A.IRIS WINDOW: Setting of the
detecting position of auto iris.

IRIS MODE: Auto iris mode setting:
(LENS/CAM).

IRIS GAIN: Iris loop gain adjustment.

25



S GAIN 1

TOTAL GAIN :42dB
ANLG GAIN :36dB
PIX MIX :06dB
H DTL LVL :00
CRISP :0
LEVEL DEPENDENT :5
PEAK FREQUENCY :2
M GAMMA :0.45
MASTER PED OFFSET :-043
R PED OFFSET :-046
B PED OFFSET :-045



°° °°

°

Setting of Menu Items

7 Super gain, Detail, Pedestal-offset

level setting menu

TOTAL GAIN: Total gain in analog,

pixel addition, and memory addition is
displayed.

ANLG GAIN: Gain setting in analog.
PIX MIX: Gain setting in horizontal pixel

addition. Capable of setting 0/6 dB.
H DTL LVL: DTL level setting of super

gain.
CRISP: Setting the function of reducing

noise level of super gain. It is invalid
when DTL level is “0”.

LEVEL DEPENDENT: Setting of DTL
suppression at low lighting intensity of
super gain.

PEAK FREQUENCY: Setting of DTL
boost frequency of super gain.

M GAMMA: Gain setting in super gain.
Capable of setting 0/6 dB.

MASTER PED OFFSET: Setting of
master pedestal offset of super gain 1.

R PED OFFSET: Setting of R pedestal
offset of super gain.

B PED OFFSET: Setting of B pedestal
offset of super gain.

! Maintenance menu

(Super gain 1, 2, 3 are same menu.)

26

Setting of Menu Items

! Maintenance menu

8 Matrix menu

Selection of table A, B or OFF.
Adjustment of gain of each color.



< MATRIX >

MATRIX TABLE :A
MATRIX R-G :+00
MATRIX R-B :+00
MATRIX G-R :+00
MATRIX G-B :+00
MATRIX B-R :+00
MATRIX B-G :+00








< COLOR CORRECTION1 >

SAT PHASE

R +00 +00

Mg +00 +00

B +00 +00

Cy +00 +00

G +00 +00

Y1 +00 +00





qZ Color correction 2 menu

Adjustment of gain and phase of matrix.

9 Color correction 1 menu

Adjustment of gain (saturation) and
phase of each color.



< COLOR CORRECTION2 >
SAT PHASE
R - Mg +00 +00
Mg - B +00 +00
B - Cy +00 +00
Cy - G +00 +00
G - Y1 +00 +00
Y1 - R +00 +00




27

SETTING


1.MODE

2.SHUTTER

3.H.PHASE





°° °°



MODE



BLACK STRETCH :OFF
D5600K :OFF
CABLE COMPE :0m
SUP GAIN :OFF
CAM ID :BAR
CAM ID POSI :0
MATRIX TABLE :OFF
COLOR CORRECTION :OFF
STATUS :ON



°° °°

Setting of Menu Items

@ Setting menu

- Menu for various settings.

1 Camera mode setting menu

BLACK STRETCH: Setting of the
function of expanding low-brightness
analog video level.
It is set by ON/OFF.

D5600K: It is able to make color
temperature correction of about 5600
degrees of electric color temperature
correcting file.
It is set by ON/OFF.

CABLE COMPE: Setting of video cable
compensation. It is able to set
0/25/50m.

SUP GAIN: It sets OFF/1/2/3 of MAX
GAIN.

CAM ID: Setting of camera ID display.
It is set by OFF/BAR/ON.
In BAR setting, CAM ID is displayed
only in BAR mode.

28

Setting of Menu Items



SHUTTER

SHUTTER MODE :OFF
SHUTTER SPEED :1/100
SYNCHRO SCAN :75.1




°° °°

H.PHASE

H.PHASE-COARSE :09
H.PHASE-FINE :40



°° °°

@ Setting menu

3 Horizontal phase adjustment menu

for external reference signal

H.PHASE-COARSE: It is able to set the

horizontal phase in 15µ step.

H.PHASE-FINE: Setting of 1-step fine
adjustment in the above phase
adjustment.

2 Electronic shutter setting menu

SHUTTER MODE: It selects the shutter

operation. ON/SYNCHRO/OFF can be
selected.
ON  Setting of normal discrete shutter
speed.
SYNCHRO  Setting of synchro scan
mode.

SHUTTER SPEED: Setting of normal
shutter speed.

SYNCHRO SCAN: Setting of synchro
scan mode.

Shutter speeds of 60 Hz to 120 Hz can
be continuously changed.



MODE



BLACK STRETCH :OFF
D5600K :OFF
CABLE COMPE :0m
SUP GAIN :OFF
CAM ID :BAR
CAM ID POSI :0
MATRIX TABLE :OFF
COLOR CORRECTION :OFF
STATUS :ON



°° °°

1 Camera mode setting menu

(continued from previous page)

CAM ID POSI: It sets the display

position of camera ID.
0: top left, 1: top right, 2: down left,
3: down right.

MATRIX TABLE: It sets A, B or OFF of
Matrix table.

COLOR CORRECTION: Setting of
matrix ON/OFF.

STATUS: It sets displaying/not
displaying the status when AWB/ABB is
executed.

29

°°

CAM ID

ID:AKHC900



°°

H FILE MENU

FILE :USER1
SAVE FILE? :USER1
SAVE :



°°

H FILE MENU

FILE :USER1
SAVE FILE? :USER1
SAVE :



°°

Setting of Menu Items

# Camera ID setting menu

$ File managing and renewing menu

- File operation menu

: blinking display.

1 The file selected by FILE is loaded.

It can be selected from
[PRESET/USER1 / USER2
/CURRENT].
When desired to return to the
previous data after loading other file,
select “CURRENT”.

30

H FILE MENU

FILE :USER1
SAVE FILE? :USER1
SAVE :



°

FILE MENU



FILE :USER1
SAVE FILE? :USER1
SAVE IN USER1.OK?
YES
NO

°°

FILE MENU



FILE :USER1
SAVE FILE? :USER1
SAVE IN USER1.OK?
SAVE COMPLETE

°°

Setting of Menu Items

$ File managing and renewing menu

- File operation menu

(continued from previous page)

2 When saving the current data, two

files (USER1 /USER2) can be saved.
Select the file by “SAVE FILE?”
Select “USER1” and move the cursor
to SAVE and press the MENU key,
then the item menu is displayed.

3 SAVE IN USER1. OK?

“YES” and “NO” are displayed.
Move the cursor from “NO” to “YES”
and check that “YES” blinks.

4 When the menu key is pressed,

“SAVE COMPLETE” appears, then
“SAVE” of the file is completed.

31

Outside Dimension Diagram

( ): mm

LENS

4-3/8q (110)

4-15/16q (125)

7/16q

(10)

1/2q

(12)

5/8q

(15)

6-5/16q (160)

BREAKER

ZOOM/
FOCUS

SDI OUT

13/16q

(20)

1

2

1

/

F

32

1

indicates safety information.

Image pickup device: 2/3q 2.2 million-pixel FIT CCDk3
System: GBR image pickup system
Resolving optical system: F1.4 prism
Optical filter: CC: clear, 4300K, 6300K, cross

ND: 100%, 25%, 6.3%, 3.2%
Lens mount: Bayonet type
Output spec.: SMPTE 292M
Sensitivity: F10, 2000Ix, 3200K, white reflection rate 89.9%
S/N: 54 dB (Y signal  30 MHz)
Horizontal frequency: 33.716 kHz (1125 lines/frame)
Vertical frequency: 59.94 Hz (interlace)
Ambient temp. for operation: 0°C to i40°C
Ambient temp. for storage: –20°C to +60°C
Weight: Approx. 4.07 lbs (1.85 kg)
Dimensions: 4-3/8q (W)k5-13/16q (H) k7-1/8q (D)

110k147k180 mm

Input/output signal

Video output: Y, PB, PR, each 75 ohm output (signal band  30 MHz)
SYNC input: SYNC input (GL input 3 value SYNC)
Camera connector: D-SUB 15-pin connector seat (JAE: DAU-15PF-FO)
Control system: Synchronous (RS422, 38.4Kbps)
HD-SDI: BNC 2 system
Lens connector 1: Iris control (HIROSE: HR10A-10R 12SC)
Lens connector 2: Zoom, focus control (HIROSE: HR10A-10R12PC)

Specifications & Accessories

Supply voltage: DC 12V (supplied from D-SUB 15 pins)
Power consumption: 22 W

_ Specifications

_ Accessories

• Lens cap (1)

• Instruction manual (1)

Weight and dimensions shown are approximate.
Specifications are subject to change without notice.

PANASONIC BROADCAST & TELEVISION SYSTEMS COMPANY

UNIT COMPANY OF MATSUSHITA ELECTRIC CORPORATION OF AMERICA

Executive Office:

One Panasonic Way 4E-7, Secaucus, NJ 07094 [phone]

EASTERN ZONE:

One Panasonic Way 4E-7, Secaucus, NJ 07094 [phone]

Southeast Region:

1225 Northbrook Parkway, Ste 1-160, Suwanee, GA 30024 [phone]

Central Region:

1707 N Randall Road E1-C-1, Elgin, IL 60123 [phone]

WESTERN ZONE:

3330 Cahuenga Blvd W., Los Angeles, CA 90068 [phone]

Government Marketing Department:

52 West Gude Drive, Rockville, MD 20850 [phone]

Broadcast PARTS INFORMATION & ORDERING:

9:00 a.m. – 5:00 p.m. (EST) [phone]/24 Hr. Fax [phone]
Emergency after hour parts orders [phone]

TECHNICAL SUPPORT:

Emergency 24 Hour Service [phone]

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3 [phone]

Panasonic de Mexico S.A. de C.V.

Av angel Urraza Num. 1209 Col. de Valle 03100 Mexico, D.F. (52) 1 951 2127

Panasonic Sales Company
Division of Matsushita Electric of Puerto Rico Inc.

San Gabriel Industrial Park, 65th Infantry Ave., Km. 9.5, Carolina, Puerto Rico 00630 [phone]

Printed in Japan
VQT0H34 F1003I0

D

P

documentation manual, user maintenance, brochure, user reference, pdf manual

This file has been downloaded from:

User Manual and User Guide for many equipments like mobile phones, photo cameras, monther board, monitors, software, tv, dvd, and othes..

Manual users, user manuals, user guide manual, owners manual, instruction manual, manual owner, manual owner's, manual guide,

manual operation, operating manual, user's manual, operating instructions, manual operators, manual operator, manual product,
