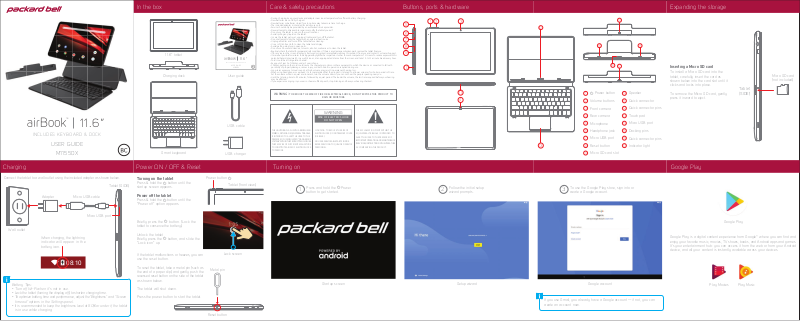

Packard bell M11550X User Manual

11.6”
INCLUDES KEYBOARD & DOCK
USER GUIDE
M11550X
In the box
11.6” tablet
Charging dock
USER GUIDE
M11550X
11.6”
INCLUDES KEYBOARD & DOCK
User guide
USB cable
USB charger
Care & safety precautions Expanding the storage
• During charging, keep your device and adapter near room temperature for efficient battery charging.
• New batteries are not fully charged.
• New batteries or batteries stored for a long time may take more time to charge.
• The included adapter is intended for indoor use only.
• Service should only be provided by an authorized service provider.
• Never attempt to disassemble, repair or modify the tablet yourself.
• Do not use the tablet in rain or other wet locations.
• Avoid spilling any liquid on the tablet.
• In case the tablet gets wet, unplug all cables and turn off the tablet.
• Do not attempt to dry the tablet with an external heat source.
• Unplug all cables and turn off the tablet before cleaning.
• Use a soft, lint-free cloth to clean the tablet and display.
• Avoid getting moisture in open ports.
• Do not use household cleaners, solvents, alcohol, or abrasives to clean the tablet.
• Routinely check the tablet for proper and safe conditions. If there is any damage, or broken parts, remove the tablet from use.
• If for any reason the screen (display) is fractured or cracked, immediately remove this product from use and contact Customer Support.
• It is rare but possible for seizures to be triggered by light flashes or patterns such as those on computer or TV screens. To reduce exposure to this potential hazard, play/watch in a well-lit room, sit an appropriate distance from the screen and take 10- to 15-minute breaks every hour.
• Cords could be a strangulation hazard.
• Keep out of reach of children under 3 years of age.
• Children pulling on the cord could cause the computer monitor or other equipment to which the device is connected to fall with possibility of property damage, serious injury, or death. Adult supervision required during use.
• Long-term exposure to loud sounds, at high volume, may result in permanent hearing loss.
• When using headphones or earbuds, it is recommended that the product is listened to at lower volumes for shorter periods of time. Set the volume while in a quiet environment; turn the volume down if you cannot hear the people speaking near you.
• Limit the listening time to 90 minutes, followed by a quiet period. The louder the volume, the less time required before your hearing may be affected.
• If you experience ringing in your ears or hear muffled speech, stop listening and have your hearing checked.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS PRODUCT TO
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED “DANGEROUS VOLTAGE” WITHIN THE PRODUCT’S ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.
RAIN OR MOISTURE.
WARNING
RISK OF ELECTRIC SHOCK
DO
NOT OPEN
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER OR BACK.
NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THE EXCLAMATION POINT WITHIN THE EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE SERVICING INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE PRODUCT.
Buttons, ports & hardware
5
1 2
6
7
8
9
10
3
11
4
14
12
15
16
17
15
Inserting a Micro SD card
To install a Micro SD card into the tablet, carefully insert the card as shown below into the card slot until it clicks and locks into place.
Power button
1
2
Volume buttons
3
Front camera
4
Rear camera
5
Microphone
6
Headphone jack
7
Micro USB port
13
8
Reset button
9
Micro SD card slot
Speaker
10
11
Quick connector
12
Quick connector pins
13
Touch pad
14
Micro USB port
15
Docking pins
16
Quick connector pins
17
Indicator light
To remove the Micro SD card, gently press it inward to eject.
Micro SD card
(not included)
Tablet (SIDE)
Charging
Connect the tablet to a wall outlet using the included adapter as shown below.
Tablet (SIDE)
Adapter
Micro USB cable
Micro USB port
Wall outlet
When charging, the lightning indicator will appear in the battery icon.
08:10
Battery Tips:
• Turn off Wi-Fi when it’s not in use.
• Lock the tablet (turning the display off) to shorten charging time.
• To optimize battery time and performance, adjust the "Brightness" and "Screen timeout" options in the Settings panel.
• It is recommended to keep the brightness level at 50% or under if the tablet is in use while charging.
Turning on the tablet
Press & hold the � button until the startup screen appears.
Power off the tablet
Press & hold the button until the “Power off” option appears.
Briefly press the � button. (Lock the tablet to conserve the battery).
Unlock the tablet Briefly press the � button, and slide the ”Lock icon” up.
If the tablet malfunctions or freezes, you can use the reset button.
To reset the tablet, take a metal pin (such as the end of a paper clip) and gently push the recessed reset button on the side of the tablet as shown below.
The tablet will shut down.
Press the power button to start the tablet.
Power button
Lock screen
Metal pin
Reset button
Tablet (front view)
Turning onPower ON / OFF & Reset
Press and hold the � Power
1
button to get started.
Follow the initial setup
2
wizard prompts.
To use the Google Play store, sign into or
3
create a Google account.
Google Play
Google Play
Google Play is a digital content experience from Google™ where you can find and enjoy your favorite music, movies, TV shows, books, and Android apps and games. It’s your entertainment hub: you can access it from the web or from your Android device, and all your content is instantly available across your devices.
Startup screen Setup wizard Google account
Play MusicPlay Movies
If you use Gmail, you already have a Google account — if not, you can create an account now.
ConnectingNotifications and Quick SettingsHome Screen
Home Screen
Home
Previous
Widgets
To add a widget, press and hold anywhere
on the home screen, and select the “Widgets”
option.
Multitasking
Press and hold a widget and place it on the home screen as shown below. Swipe up the home screen to access the Apps Screen.
Home Screen
Apps Screen
Notifications panel
Swipe down from the top edge of the screen to display the Notifications panel where you can browse and reply to your emails, check software updates, reminders and more.
Home screen
Swipe down once
Quick Settings panel
Swipe down twice from the top edge of the screen to expand and access the Quick
Settings panel, where you can easily enable/disable Wi-Fi, Bluetooth, Airplane mode and other settings.
Quick Settings panel
Quick Settings
panel
Swipe
down twice
Wi-Fi and Bluetooth
®
To enable/disable Wi-Fi or Bluetooth®, simply tap the icons on the Quick Settings panel as shown below.
To access more settings options, select the icon.
Quick Settings panel
Settings
Show your tablet's screen on devices with Miracast Wireless display capabilities:
1. Turn on the Miracast feature on your Miracast supported TV or Miracast dongle (not included).
2. Connect your tablet to the same Wi-Fi network as your Miracast enabled TV.
3. Go to Settings > Connected devices > Cast and tap on “ “.
4. Select “Enable wireless display”, then select the available display that will appear.
Enable wireless display
Optimal video performance is achieved with videos that are 720p or under.
• To dock the tablet to the smart keyboard, align the tablet and the smart keyboard, then slide the tablet into the dock as shown below.
• To undock the tablet from the smart keyboard, firmly hold the keyboard as shown below, then gently pull the tablet upwards.
The tablet will automatically recognize the keyboard when docked properly.
Tablet
IMPORTANT
The touch pad does not have a mechanical click. Tap to select.
Correct
Tap the touch pad
to select
Incorrect
Don’t push down on the touch pad
Connect the Micro USB cable and adapter that were included with your tablet to the dock as shown below.
When the tablet is inserted properly into the dock, the indicator light turns on.
Micro USB
cable
Adapter
Wall outlet
FCC Part 15:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help
Information Regarding Exposure to Radio Frequency Energy
Your device is designed and manufactured not to exceed the emission limits for exposure to RF energy set by the Federal Communications Commission of the United States (FCC). Information on your Device is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/ea/ after searching on the FCC ID for your Device, which can be found on the back of the Device.
If your electronic device has internal memory on which personal or other confidential data may be stored, you may want to perform a data sanitization process before you dispose of your device to assure another party cannot access your personal data. Data sanitization varies by the type of product and its software, and you may want to research the best sanitization process for your device before disposal. You may also check with your local recycling facility to determine their data sanitization procedures during the recycling process.
Specific Absorption Rate (SAR) This device meets the government’s requirements for exposure to radio waves. The Specific Absorption Rate (SAR) limit set by the FCC is 1.6W/kg. The highest SAR value reported to the FCC for this device is 1.358W/kg and complies with this limit.
Battery Disposal & Recycle
This device contains a Lithium-ion battery. The battery must be recycled or disposed of properly. Contact your local waste management office for information on battery recycling or disposal. 1-800-822-8837
Designed and distributed by Southern Telecom Inc. 5601 1st Avenue Brooklyn, NY 11220 © 2019 All Rights Reserved. Made in China.
Packard Bell® is a registered trademark of JMM Lee Properties, LLC and is used under license.
Google, Android, Google Play and other marks are trademarks of Google LLC;
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc.
All other trademarks and trade names are those of their respective owners.
Limited WarrantyLegal informationSmart keyboard Charging DockCast screen
LIMITED WARRANTY TO ORIGINAL CONSUMER
This Product (including any accessories included in the original packaging) as supplied and distributed new by an authorized retailer is warranted by Southern Telecom, Inc. to the original consumer purchaser against defects in materials and workmanship (“Warranty”) as follows:
Product Type: Tablet, Territory: United States/Canada, Parts Warranty: 1 Year, Labor Warranty: 1 Year
To obtain warranty service:
• Call the Customer Support number located below, or go to our website portal to receive an SRO number.
• Provide proof of the date of purchase within the package (Dated bill of sale).
• Prepay all shipping costs to the authorized service center, and remember to insure your return.
• Include a return shipping address (no P.O. Boxes), a telephone contact number, and the defective unit within the package.
• Describe the defect or reason you are returning the product.
Customer Support:
1-877-768-8481 (Toll Free) www.southerntelecom.com Monday - Friday: 8AM - 10PM (EST) Click on “Product Support”
Your product will be repaired or replaced, at our option, for the same or similar model of equal value if examination by the service center determines this product is defective. Products received damaged as a result of shipping will require you to file a claim with the carrier.
The shipping address of the authorized service center is:
Customer Service Dept. 36 c/o Southern Telecom 400 Kennedy Drive Sayreville, NJ 08872
Warranty service not provided
This warranty does not cover damage resulting from accident, misuse, abuse, improper installation or operation, lack of reasonable care, unauthorized modification including software modifications such as the installation of custom firmwares. This warranty is voided in the event any unauthorized person opens, alters or repairs this product. All products being returned to the authorized service center for repair must be suitably packaged.
NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OTHER THAN THOSE EXPRESSLY DESCRIBED ABOVE SHALL APPLY. DISTRIBUTOR FURTHER DISCLAIMS ALL WARRANTIES AFTER THE EXPRESS WARRANTY PERIOD STATED ABOVE. NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR ENTITY WITH RESPECT TO THE PRODUCT SHALL BE BINDING ON DISTRIBUTOR. REPAIR, REPLACEMENT, OR REFUND OF THE ORIGINAL PURCHASE PRICE - AT DISTRIBUTOR’S SOLE DISCRETION - ARE THE EXCLUSIVE REMEDIES OF THE CONSUMER. IN NO EVENT WILL DISTRIBUTOR OR ITS MANUFACTURERS BE LIABLE FOR ANY INCIDENTAL, DIRECT, INDIRECT, SPECIAL, PUNITIVE OR CONSEQUENTIAL DAMAGES (SUCH AS, BUT NOT LIMITED TO, DAMAGES FOR LOSS OF PROFITS, BUSINESS, SAVINGS, DATA OR RECORDS) CAUSED BY THE USE, MISUSE OR INABILITY TO USE THE PRODUCT. EXCEPT AS STATED HEREIN, NO OTHER WARRANTIES SHALL APPLY. NOTWITHSTANDING THE FOREGOING, CONSUMER’S RECOVERY AGAINST DISTRIBUTOR SHALL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT SOLD BY DISTRIBUTOR. THIS WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL CONSUMER WHO PURCHASED THE PRODUCT AND IS NOT TRANSFERABLE.
Some countries, states or provinces do not allow the exclusion or limitation of incidental or consequential damages or allow limitations on warranties, so limitation or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights that vary from state to state or province to province. Contact your authorized retailer to determine if another warranty applies.
