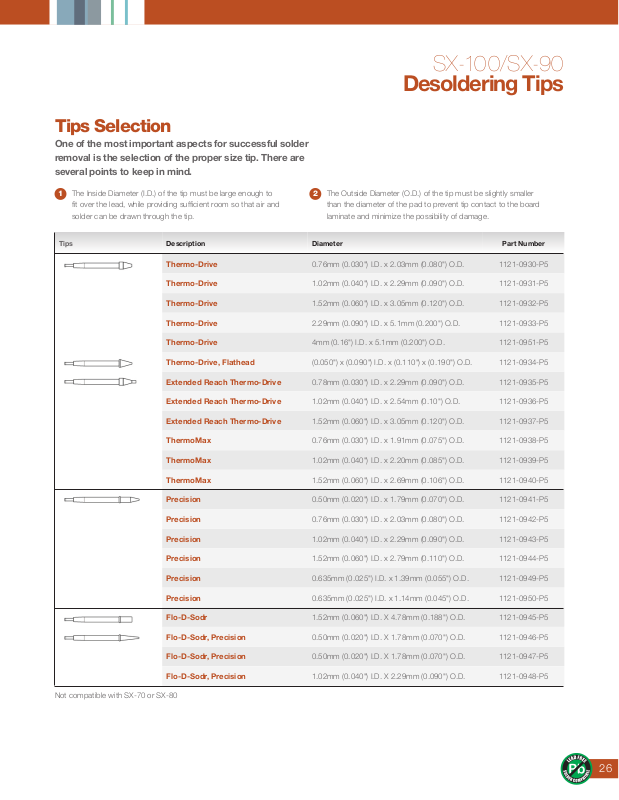

Tips Selection
One of the most important aspects for successful solder
removal is the selection of the proper size tip. There are
several points to keep in mind.
SX-100/SX-90
Desoldering Tips
The Inside Diameter (I.D.) of the tip must be large enough to
1
fit over the lead, while providing sufficient room so that air and
solder can be drawn through the tip.
Tips Description Diameter Part Number
Thermo-Drive
Thermo-Drive
Thermo-Drive
Thermo-Drive
Thermo-Drive
Thermo-Drive, Flathead
Extended Reach Thermo-Drive
Extended Reach Thermo-Drive
Extended Reach Thermo-Drive
ThermoMax
ThermoMax
ThermoMax
The Outside Diameter (O.D.) of the tip must be slightly smaller
2
than the diameter of the pad to prevent tip contact to the board
laminate and minimize the possibility of damage.
0.76mm (0.030") I.D. x 2.03mm (0.080") O.D. 1121-0930-P5
1.02mm (0.040") I.D. x 2.29mm (0.090") O.D. 1121-0931-P5
1.52mm (0.060") I.D. x 3.05mm (0.120") O.D. 1121-0932-P5
2.29mm (0.090") I.D. x 5.1mm (0.200") O.D. 1121-0933-P5
4mm (0.16") I.D. x 5.1mm (0.200") O.D. 1121-0951-P5
(0.050") x (0.090") I.D. x (0.110") x (0.190") O.D. 1121-0934-P5
0.78mm (0.030") I.D. x 2.29mm (0.090") O.D. 1121-0935-P5
1.02mm (0.040") I.D. x 2.54mm (0.10") O.D. 1121-0936-P5
1.52mm (0.060") I.D. x 3.05mm (0.120") O.D. 1121-0937-P5
0.76mm (0.030") I.D. x 1.91mm (0.075") O.D. 1121-0938-P5
1.02mm (0.040") I.D. x 2.20mm (0.085") O.D. 1121-0939-P5
1.52mm (0.060") I.D. x 2.69mm (0.106") O.D. 1121-0940-P5
Precision
Precision
Precision
Precision
Precision
Precision
Flo-D-Sodr
Flo-D-Sodr, Precision
Flo-D-Sodr, Precision
Flo-D-Sodr, Precision
Not compatible with SX-70 or SX-80
0.50mm (0.020") I.D. x 1.79mm (0.070") O.D. 1121-0941-P5
0.76mm (0.030") I.D. x 2.03mm (0.080") O.D. 1121-0942-P5
1.02mm (0.040") I.D. x 2.29mm (0.090") O.D. 1121-0943-P5
1.52mm (0.060") I.D. x 2.79mm (0.110") O.D. 1121-0944-P5
0.635mm (0.025") I.D. x 1.39mm (0.055") O.D. 1121-0949-P5
0.635mm (0.025") I.D. x 1.14mm (0.045") O.D. 1121-0950-P5
1.52mm (0.060") I.D. X 4.78mm (0.188") O.D. 1121-0945-P5
0.50mm (0.020") I.D. X 1.78mm (0.070") O.D. 1121-0946-P5
0.50mm (0.020") I.D. X 1.78mm (0.070") O.D. 1121-0947-P5
1.02mm (0.040") I.D. X 2.29mm (0.090") O.D. 1121-0948-P5
26
SX-100
Surface Mount Removal Pik-Tips
Tips Description Tip Size A X B Part Number
TSOP-32
TSOP-28
A
A
B
B
TSOP-40
TSOP-56
TQFP-28
TQFP-32
TQFP-52
TQFP-40
TQFP-80
TQFP-80/100
PQFP-80/100
TQFP-144
TQFP-112
8.1mm (0.320”) x 12.7mm (0.500”) 1121-0566-P1
8.1mm (0.320”) x 19.3mm (0.760”) 1121-0567-P1
9.9mm (0.390") x 19.3mm (0.760") 1121-0568-P1
14.2mm (0.560") x 19.3mm (0.760") 1121-0569-P1
8.2mm (0.322") x 8.23mm (0.3220") 1121-0571-P1
8.7mm (0.344") x 8.7mm (0.344") 1121-0572-P1
12mm (0.472") x 12mm (0.472") 1121-0573-P1
12mm (0.472") x 12mm (0.472") 1121-0574-P1
13.2mm (0.520") x 13.2mm (0.520") 1121-0575-P1
15.3mm (0.604") x 15.3mm (0.604") 1121-0576-P1
16.8mm (0.660") x 22.9mm (0.900") 1121-0603-P1
21.6mm (0.850") x 21.6mm (0.850") 1121-0604-P1
22.1mm (0.870") x 22.3mm (0.870") 1121-0605-P1
