Pace Sky plus User Manual

Download

sets your remote control to operate your Sky+ set top box

turns your Sky+ set top box (or TV) on and off

standby

services

shows the Services screen

interactive

shows the Interactive screen

shows information about the programme you have highlighted

changes the channel

ch + and –

select

selects the option you have highlighted or confirms your choice

back up

shows the previous screen

help

shows help on using Sky Guide

fast forward

fast forwards the programme

stop

stops playback of the programme

number keys

select channel numbers or on-screen options

select the corresponding colour

option shown on-screen

colour keys

records the programme

rewind

rewinds the programme

play / pause

plays or pauses the programme

text

switches to text mode

arrows

move the highlight around the screen

to select the option you want

vol + and –

changes your TV's volume

mute

turns your TV's sound off and on

tv guide

shows the TV Guide screen

box office

shows the Box Office screen

sets your remote control

to operate your TV

Your Sky+ remote control

Version 2.1 October 2002

Sky+

and

Sky Guide

are trademarks of British Sky Broadcasting Ltd.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorised by Macrovision, and is intended for home and other limited Pay Per View uses only, unless otherwise authorised by Macrovision. Reverse engineering or disassembly is prohibited.

You are not authorised to use your Sky+ set top box in a way which infringes the intellectual property rights of third parties. Copying programmes is unlawful under the Copyright, Designs and Patents Act 1988, except in a limited number of circumstances such as for the purpose of showing in schools (section 35) and timeshifting for private and domestic use (section 70).

The details in this Sky+ User’s Guide are correct at the time of going to print. The speciﬁcation and features of Sky+ are subject to change at any time without notice.

No responsibility can be accepted for any failure of your Sky+ set top box to receive, process or act on information transmitted to it, or any change in the performance of your Sky+ set top box as a result of the transmission of this information.

A product with the Dolby Digital audio coding system and Dolby Surround

Pro Logic: Manufactured under license from Dolby Laboratories.

Declaration of Conformity No. 2248

Trade Mark of the DVB Digital Video Broadcasting Project (1991 to 1996)

DOLBY

Welcome to Sky+ ! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

About this User’s Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

What is digital satellite TV? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Your Sky+ set top box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

What is Sky Guide? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

For your safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Using equipment safely . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Electrical information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Mains plug and its fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Connecting to the mains supply . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Your Sky+ remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Turning your Sky+ set top box on and off . . . . . . . . . . . . . . . . . . 7

Changing channel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Changing the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Using the Search & Scan banner . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Live Pause. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Using digital text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Using teletext. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Using Live Pause. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

TV Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Finding a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Choosing a programme to watch, and setting reminders . . . . 15

Choosing a programme to record . . . . . . . . . . . . . . . . . . . . . . . 15

Displaying A–Z listings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Displaying more information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Using your Sky+ Planner . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Sky+ Planner information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Using the colour option keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Removing a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Using reminders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Reminder clashes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Using Series Link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Box Ofﬁce . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Ordering a Box Ofﬁce programme. . . . . . . . . . . . . . . . . . . . . . . 27

Using Sky+ for recording satellite TV . . . . . . . . . . . . . . . . . . 29

Recording current programmes. . . . . . . . . . . . . . . . . . . . . . . . . . 29

Recording future programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Recording clashes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

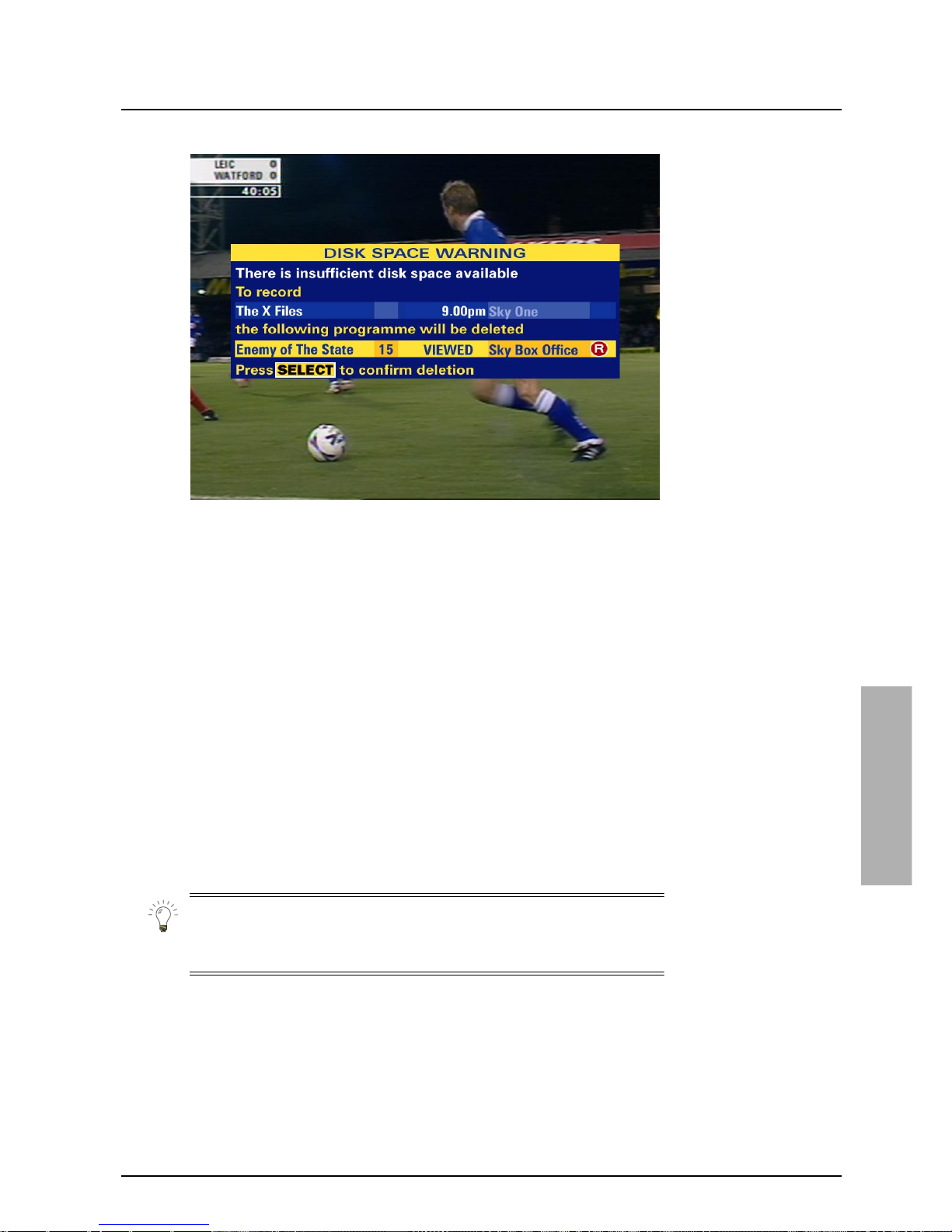

Capacity warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

➥

Contents

1Sky+ User’s Guide

Using Sky+ for recording radio channels . . . . . . . . . . . . . . . 34

Playing back recordings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

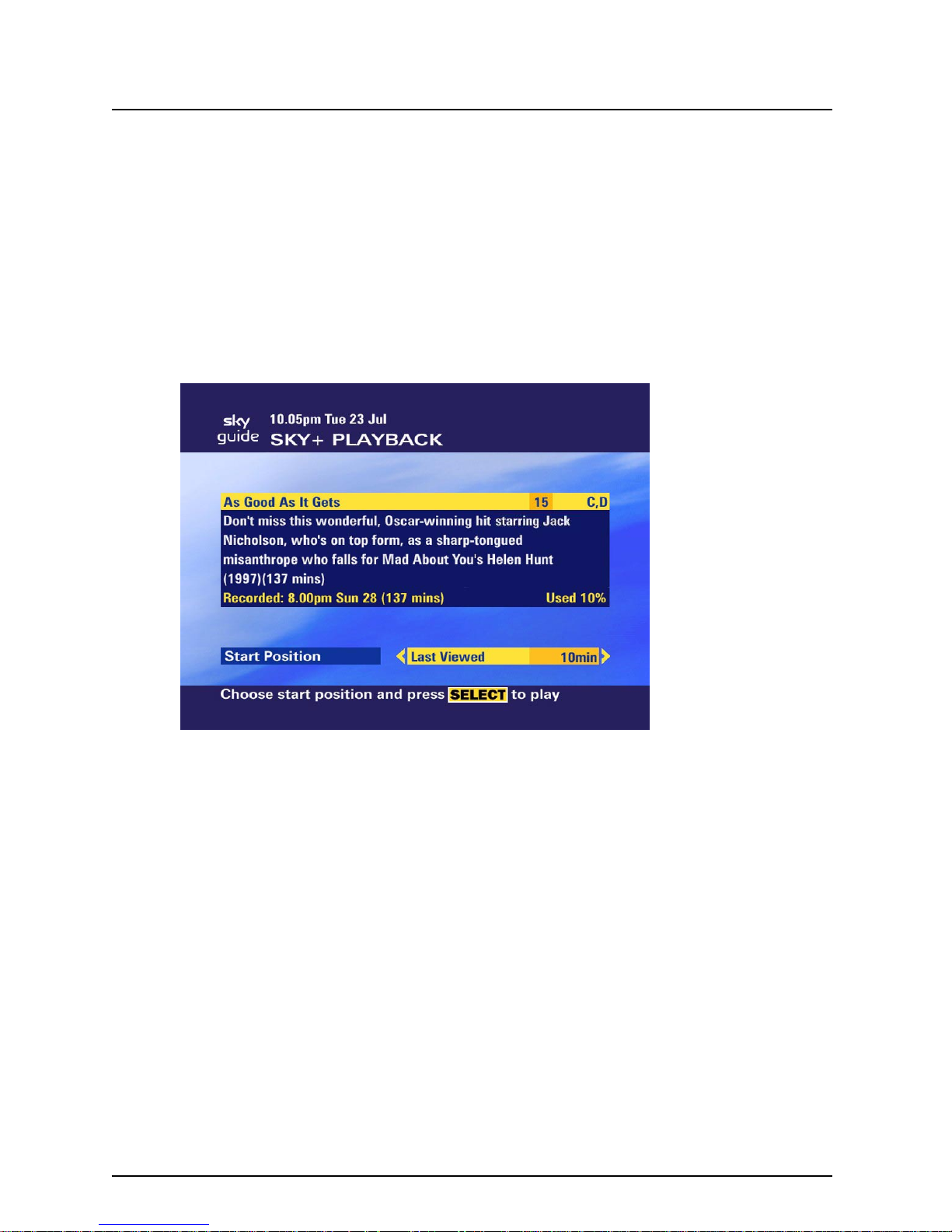

Playing back a recorded programme. . . . . . . . . . . . . . . . . . . . . . 36

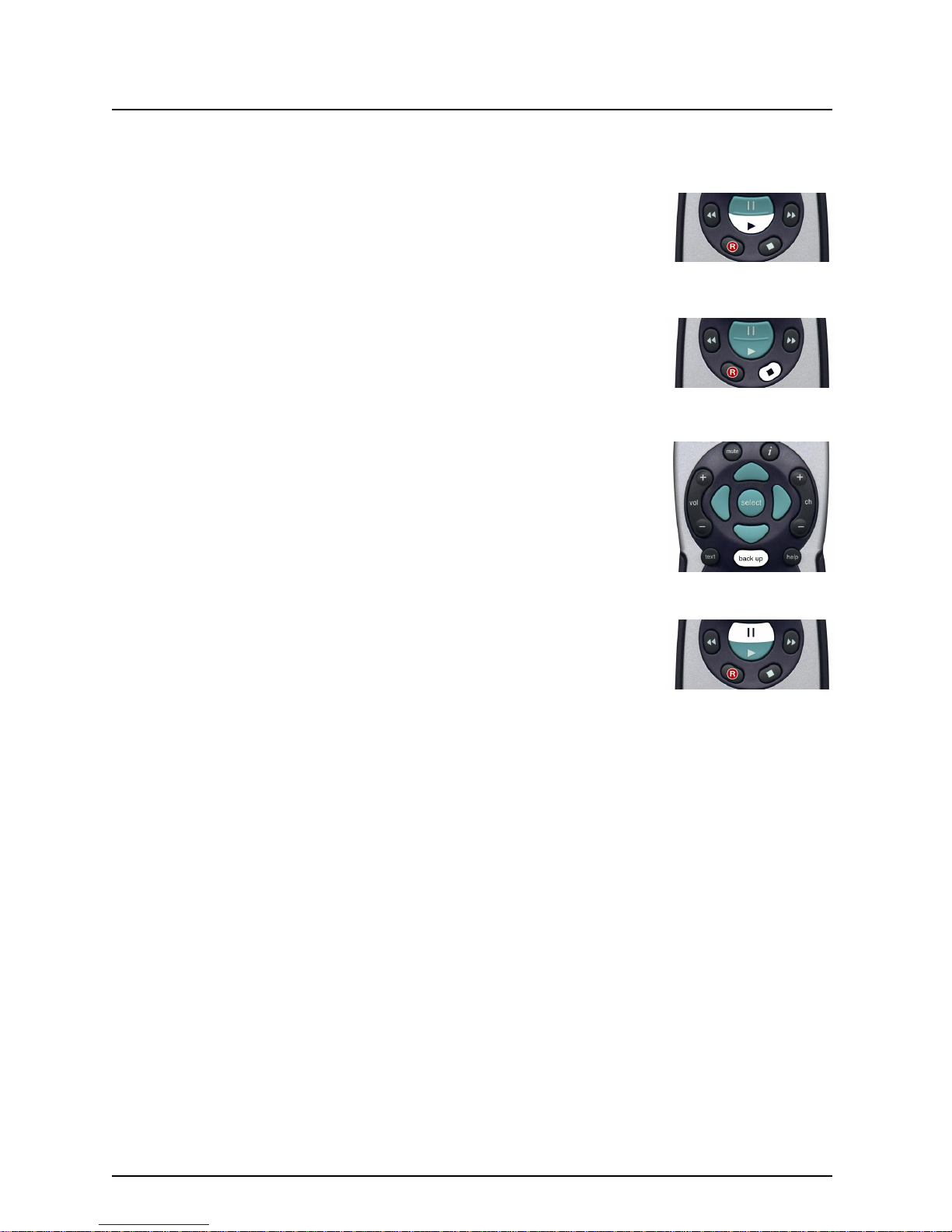

During playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Using Fast Forward / Rewind keys. . . . . . . . . . . . . . . . . . . . . . . . 39

Playing back in slow-motion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Stopping playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

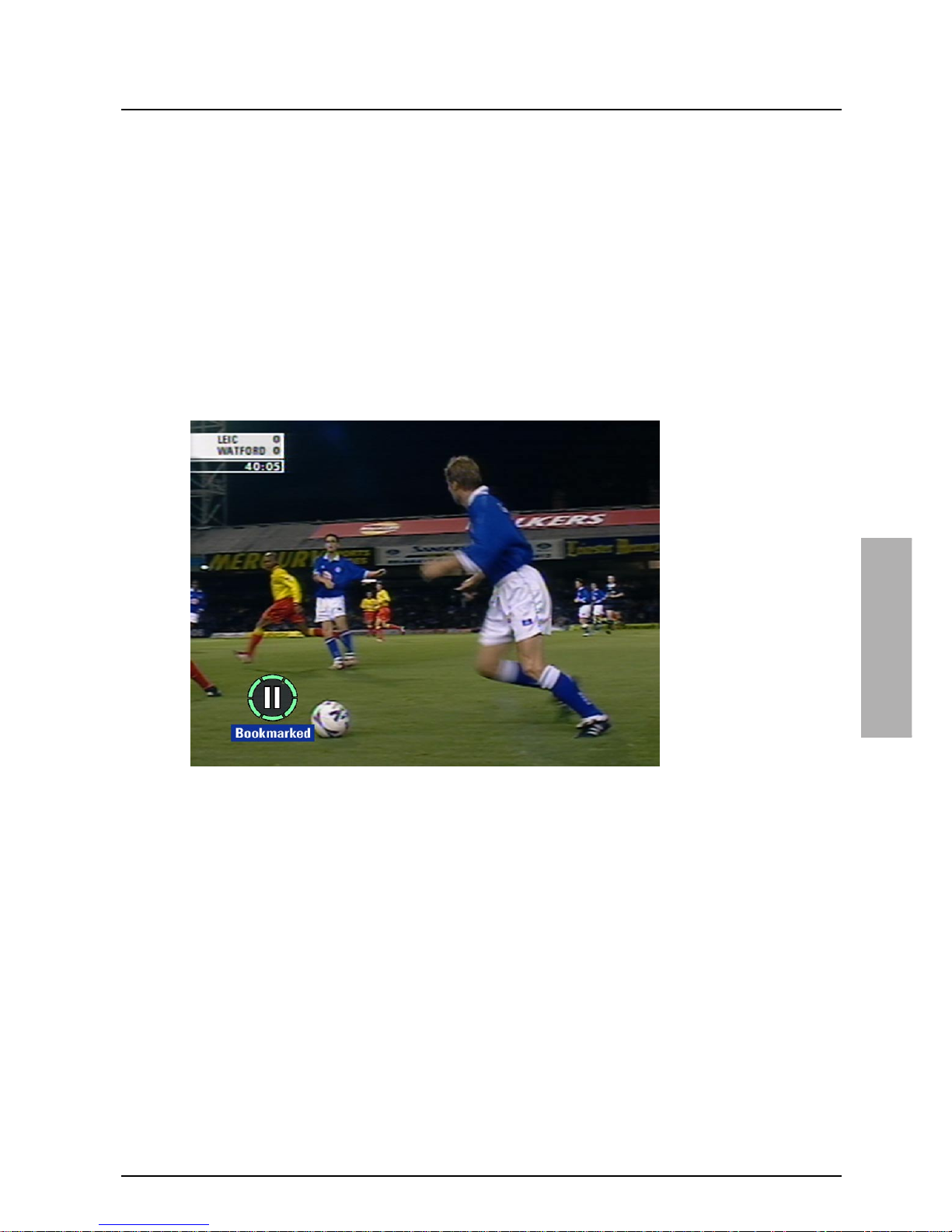

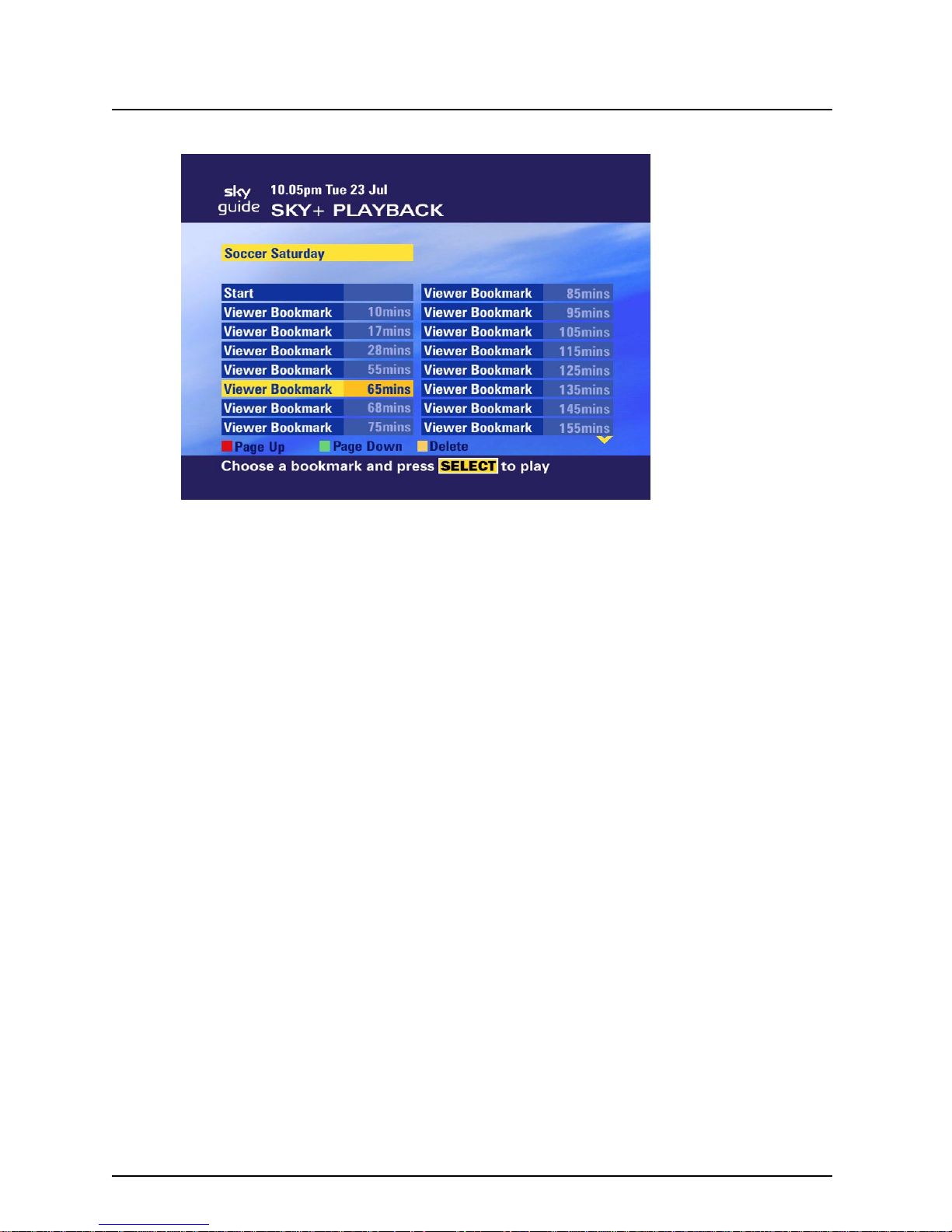

Using Bookmarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Understanding on-screen symbols . . . . . . . . . . . . . . . . . . . . . . . 43

Displaying programme information during playback . . . . . . . . . 44

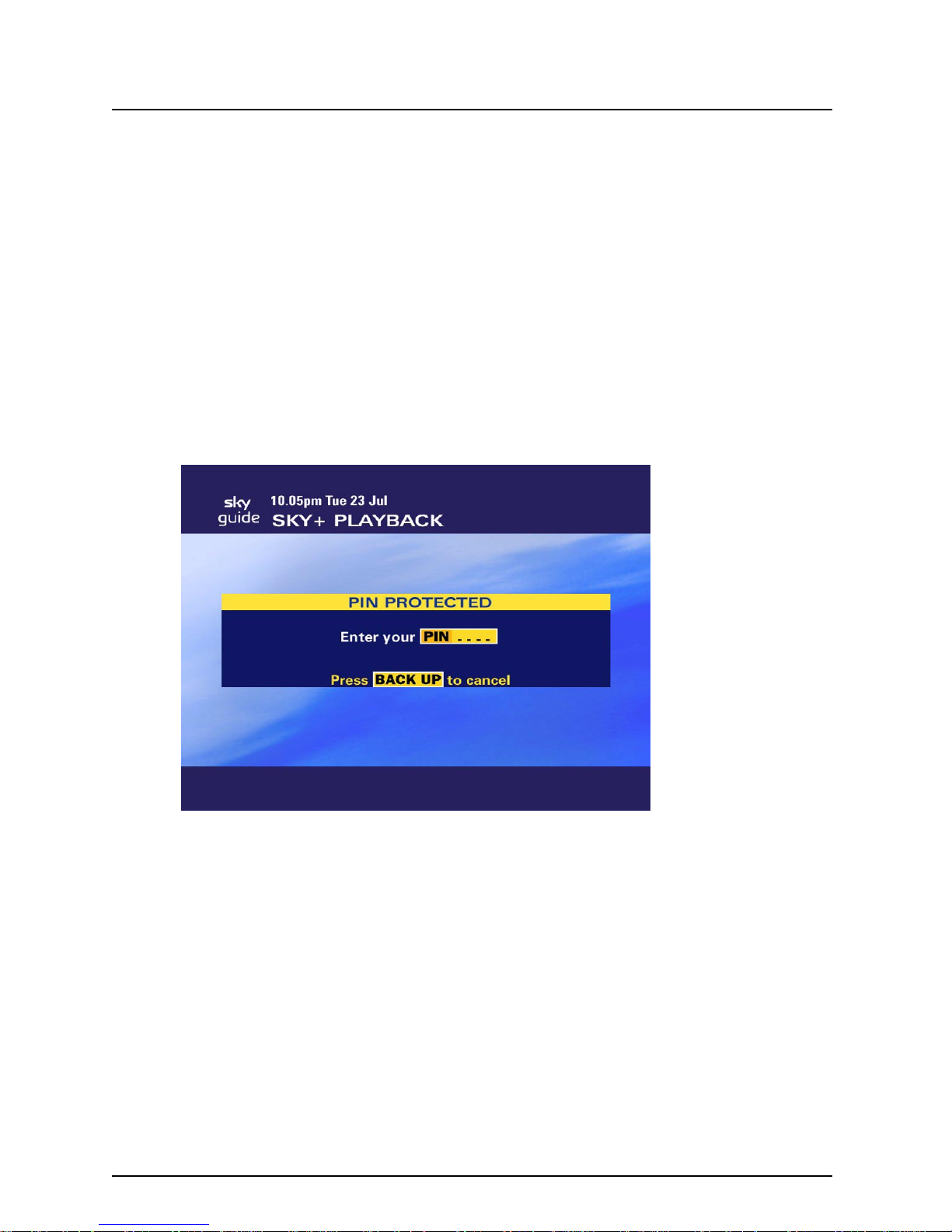

Playing back viewing-restricted programmes . . . . . . . . . . . . . . . 44

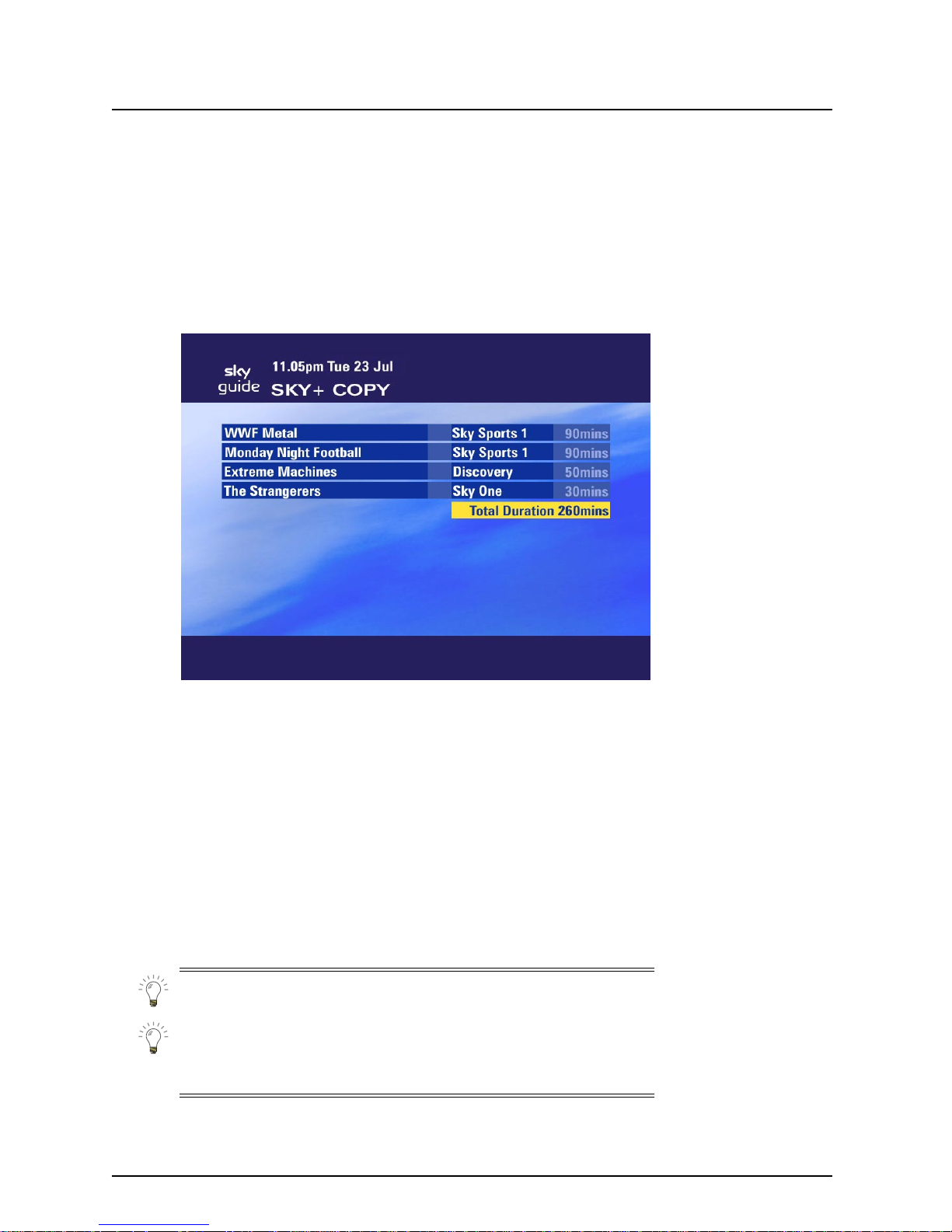

Using Copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Selecting a programme for copying. . . . . . . . . . . . . . . . . . . . . . . 45

Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

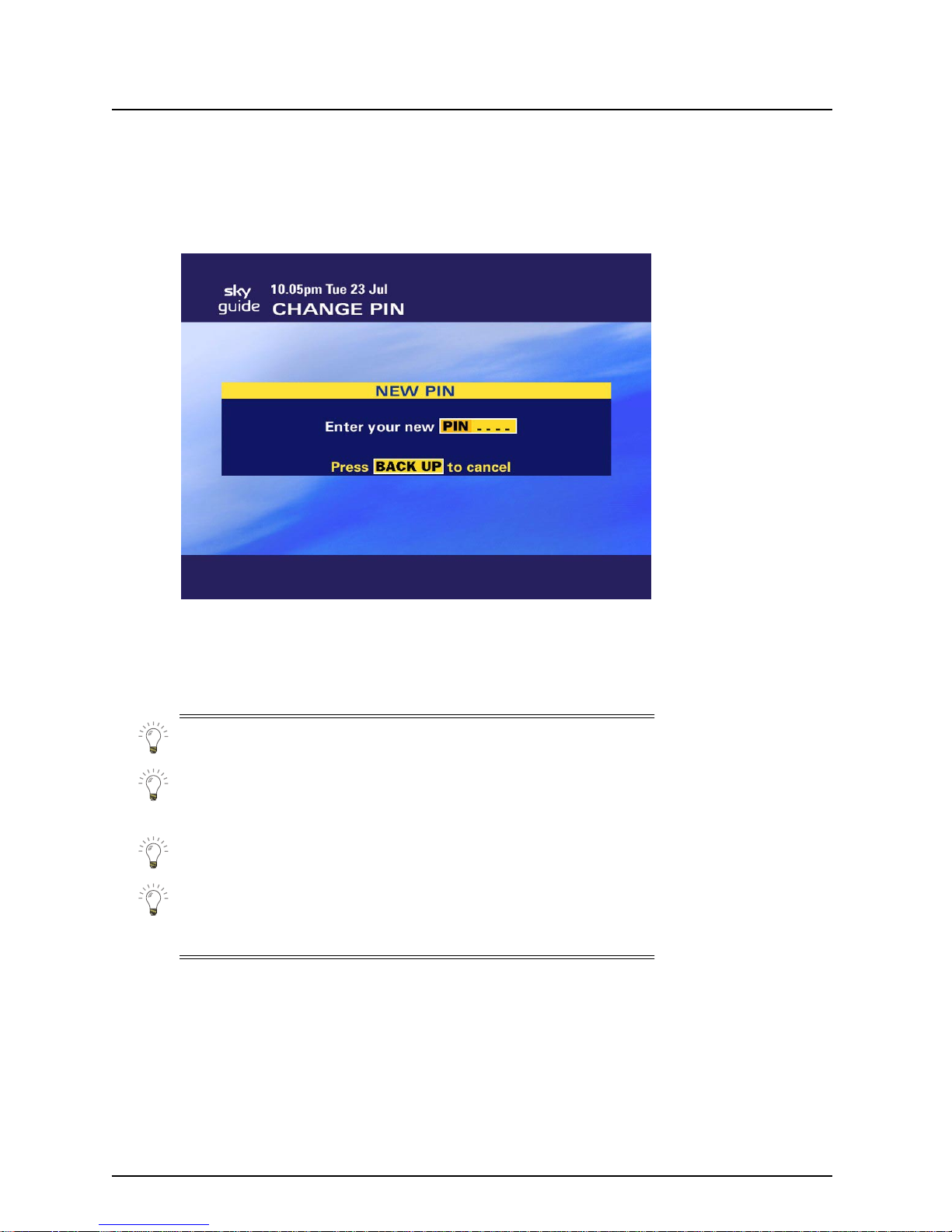

Parental Control and your PIN . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Favourite Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

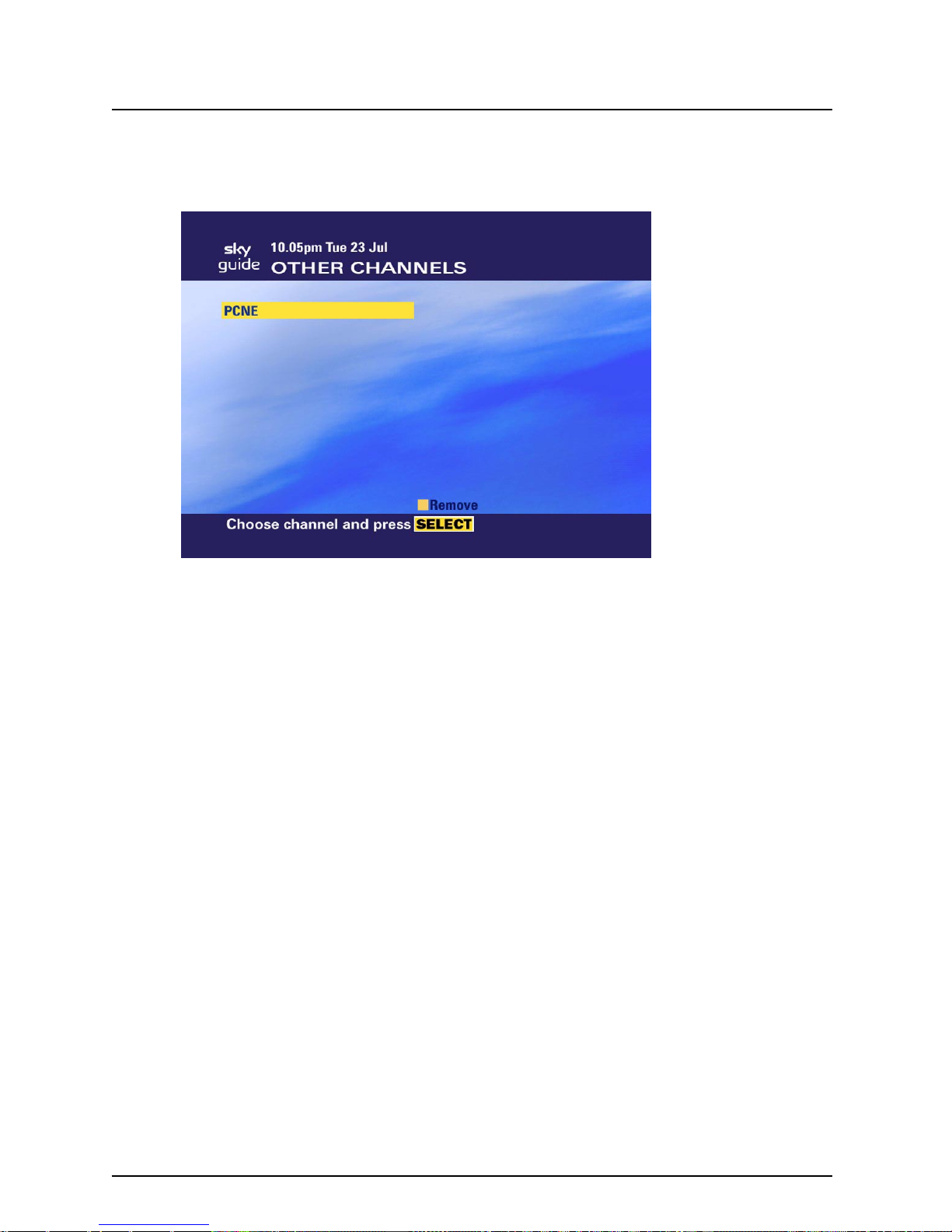

Other Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

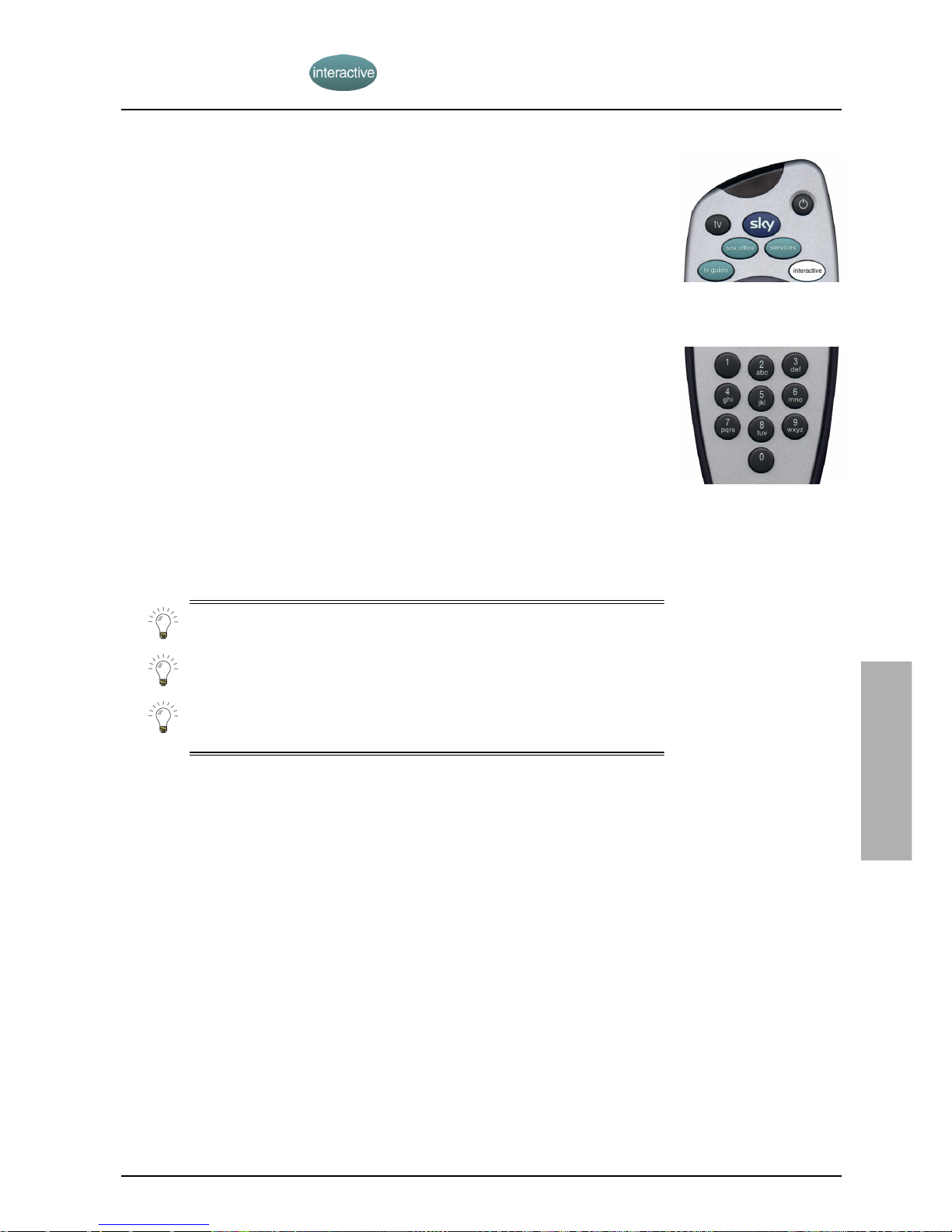

Interactive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Extra information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Setting your Sky+ remote control to operate your TV . . . . . . 58

Setting your Sky Active keypad to operate your Sky+ . . . . . . . 59

Replacing the batteries in your Sky+ remote control . . . . . . . . 60

System Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Optical digital-audio output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Adding Other Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

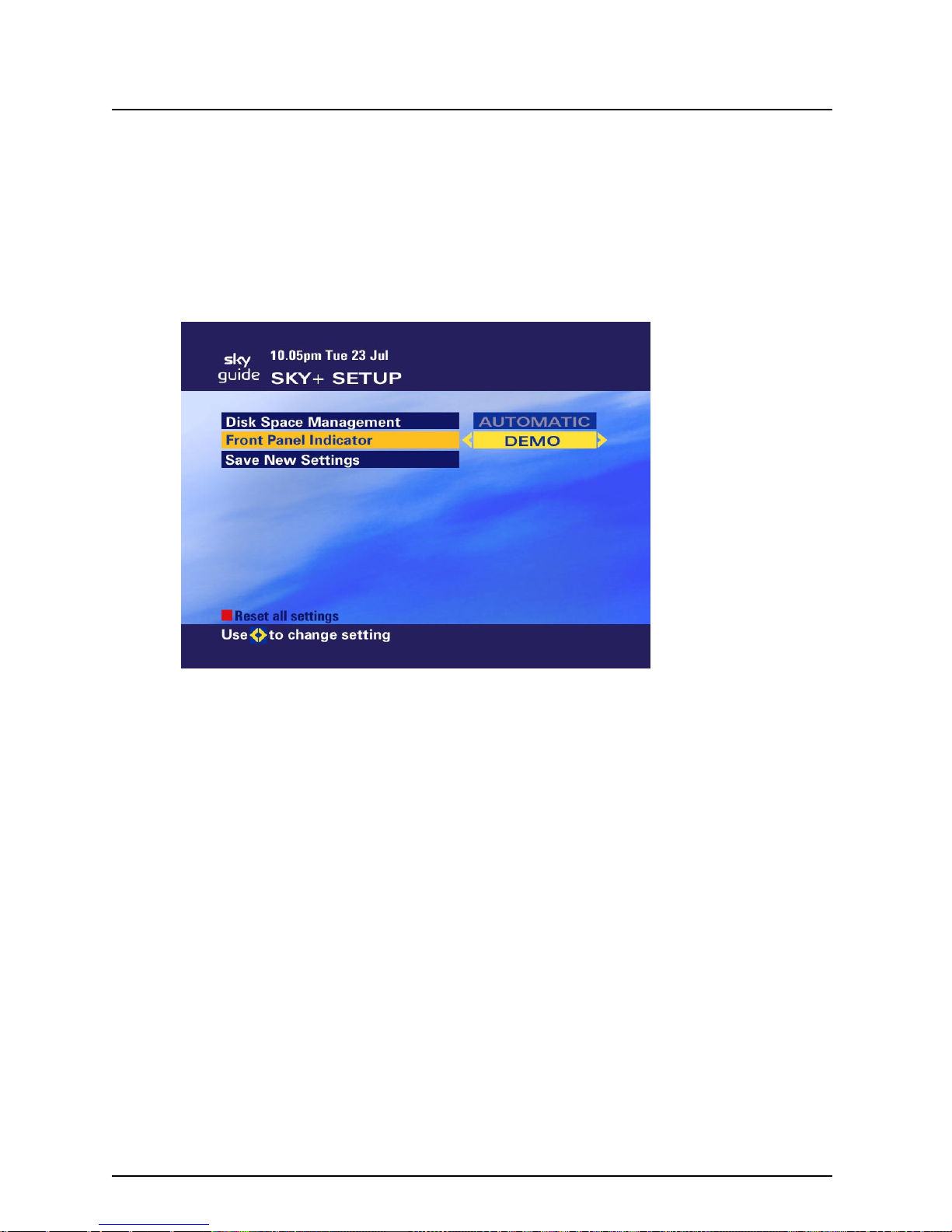

Sky+ Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Looking after your Sky Viewing Card . . . . . . . . . . . . . . . . . . . . . 68

Connecting your Sky+ set top box. . . . . . . . . . . . . . . . . . . . 69

Connecting to the telephone line . . . . . . . . . . . . . . . . . . . . . . . . 70

Digital interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Further help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Solving problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

On-screen messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

General problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Speciﬁcations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Remote control setup codes. . . . . . . . . . . . . . . . . . . . . . . . . 78

Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

2 Sky+ User’s Guide

❖

About this User’s Guide

This Sky+ User’s Guide contains all you need to know about how to watch and record digital satellite TV using your Sky+ set top box.

To use the recording and playback features of your Sky+ set top box, you must subscribe to Sky+.

To arrange a Sky+ subscription or to request a copy of the Sky+ Terms and Conditions, call Sky+ Customer Service. To ﬁnd the Sky+ Customer Service number, select the

Telephone Numbers

option from

the

Services

screen.

Look out for this symbol. It indicates useful and impor tant tips.

❖

What is digital satellite TV?

Digital satellite TV is the latest stage in the evolution of TV, giving you not only crystal-clear pictures and digital-quality stereo sound, but also the opportunity to receive many more channels and services.

❖

Your Sky+ set top box

Your Sky+ set top box receives digital information via satellite, decodes it and sends it through to your TV. You control your viewing preferences through the on-screen

Sky Guide

Providing you have a Sky+ subscription, then, as well as watching satellite TV, you can pause the viewing of a current programme, resume playback from the pause point and fast-forward to live TV. You can also record and play back satellite TV programmes, just as you would do with a video recorder.

Your Sky+ set top box has an internal hard disk that is used to record and play back TV programmes. It also has two inputs from your satellite dish, allowing you to view one programme while simultaneously recording a second programme.

Your Sky+ set top box comes with the Sky+ remote control. This controls both your TV and your Sky+ set top box. For more information see

Getting started

on page 6.

Welcome to Sky+ !

3Sky+ User’s Guide

❖

What is Sky Guide?

Sky Guide

is a helpful and easy to use on-screen guide to your digital satellite services. It is designed for people who want to get the most out of watching television.

All

Sky Guide

features are controlled using your Sky+ remote control.

Sky Guide

allows you to:

◆

see on-screen TV programme listings for up to seven days;

◆

set reminders for future programmes;

◆

select programmes for recording;

◆

select recordings for playback;

◆

see TV listings while you are watching a programme;

◆

set up and see your favourite channels;

◆

order

Box Office

movies, spor ts and events;

◆

use an ever-increasing range of interactive services;

◆

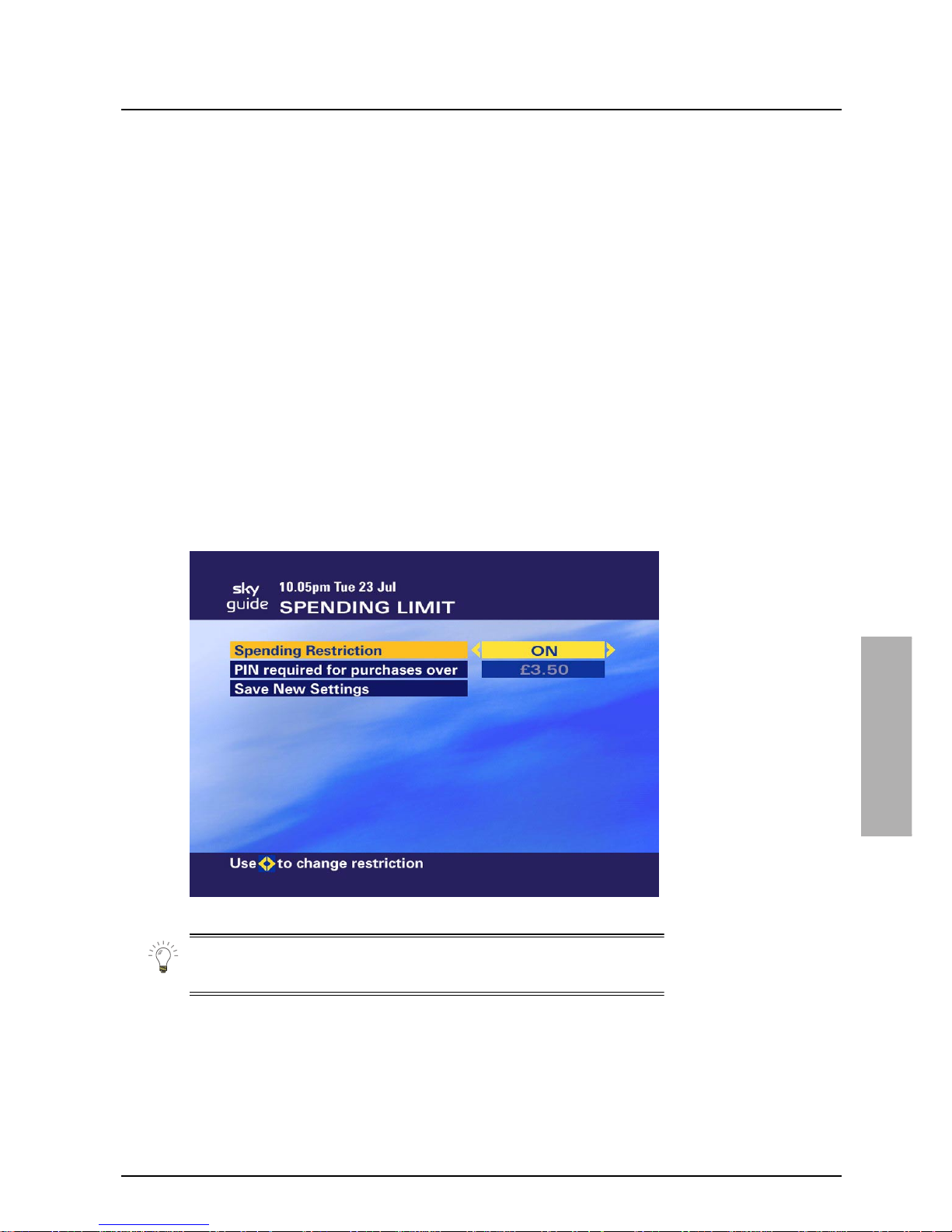

set parental-control viewing restrictions and a spending limit for programme purchases;

◆

modify your Sky+ settings.

Each of these features is described in detail in this User’s Guide.

Sky keeps you up-to-date

As digital television develops and as more features become available, Sky may occasionally update the

Sky Guide

software by loading it into your Sky+ set top box directly from the satellite. We will give you information on these additions and new features as they are added.

WELCOME TO SKY+

4 Sky+ User’s Guide

❖

Using equipment safely

Your Sky+ set top box has been manufactured to meet international safety standards, but you must take care if you want to obtain the best results and operate it safely. You must have your Sky+ digital satellite system installed by a qualiﬁed satellite-TV installer.

It is important that you read this booklet completely, especially the safety instructions below.

If you have any doubts about the installation,

operation or safety of your Sky+ set top box, please consult your dealer.

WARNING!

Remember that contact with 230 V AC mains can be lethal or can cause a severe electric shock. To avoid this risk:

Never remove the top cover from your Sky+ set top box. There are no user-serviceable parts inside it, but

there are some high-voltage live parts.

Make sure that all electrical connections are properly made.

Do not connect any of your equipment (Sky+ set top box, TV, video recorder etc.) to the mains supply until

you have properly connected all the other leads.

Disconnect your Sky+ set top box from the mains supply before you disconnect any other equipment

from its rear panel.

Never push anything into holes, slots or other openings in the casing of your Sky+ set top box

(except your Sky Viewing Card and Interactive card into their respective slots).

CAUTION!

✘

Do not use or store your Sky+ set top box in hot, cold, damp or dusty places.

✘

In order to ensure a free ﬂow of air around your Sky+ set top box, allow at least 10cm of space above and on all sides (especially between your Sky+ set top box and your TV).

✘

Do not cover any ventilation slots.

✘

Do not place your Sky+ set top box in an enclosed cabinet with more than one other piece of audio/video equipment e.g. VCR or DVD.

✘

Do not pick up or otherwise move your Sky+ set top box while it is connected to the mains supply. If you want to move your Sky+ set top box, ﬁrst disconnect it, then wait at least 30 seconds before continuing.

✘

Do not put anything on your Sky+ set top box which might drip or spill into it. Never stand objects ﬁlled with liquids, such as vases, on top of your Sky+ set top box.

For your safety

5Sky+ User’s Guide

❖

Mains plug and its fuse

The supplied mains plug may be a non-rewireable type or a rewireable type. Both types contain an approved 3A fuse. If you need to replace the fuse, you must use an ASTA- or BSI-approved BS1362 fuse, rated at 3A and marked:

The

non-rewireable plug

has its fuse beneath a fuse cover on its face. Use a screwdriver to lever off the fuse cover, replace the fuse with a new one and reﬁt its cover.

Never

use a plug if its fuse cover is missing.

The fuse is inside the

rewireable plug

. Use a screwdriver to remove the plug’s back cover, then lever out the fuse and replace it with a new one. Replace the plug’s back cover.

If the supplied mains plug is not suitable for your mains socket-outlet, remove its fuse and then cut the plug off the lead. Destroy the severed plug immediately to avoid the shock hazard which would exist if this were to be plugged into a mains socket.

Fit an appropriate mains plug on the lead. If this plug contains a fuse, it should be as described above. If you are using a non-fused plug, an external fuse must not exceed 5A.

❖

Connecting to the mains supply

Your Sky+ set top box operates with 230 Volts AC, 50Hz mains supplies.

Do not connect it to a DC power supply.

The supplied mains lead has a 2-way connector at one end and a mains plug at the other. Insert the 2-way connector into your Sky+ set top box

before

you insert the plug into the mains supply.

The only way to disconnect your Sky+ set top box from the mains is to remove the mains lead. Your Sky+ set top box must therefore be installed near to the mains socket-outlet, which should be easily accessible.

For information about the mains plug and its fuse, see above.

If you are in any doubt about the mains lead, its plug or its connection, consult a competent electrician.

3 AMP

FUSE of correct value

Electrical information

ELECTRICAL INFO.

6 Sky+ User’s Guide

This section gives you the basic information you need to start using your Sky+ set top box.

For more detailed information about using your Sky+ set top box, use the

Contents

Index

to ﬁnd the relevant section of this User’s Guide.

Before starting, make sure you insert your

Sky Viewing Card

the right way up in the slot located behind the ﬂap on the front of your Sky+ set top box.

To open the ﬂap, press brieﬂy on its top, right hand corner.

Hold your

Sky Viewing Card

with the

Sky digital

logo facing

upwards, and the arrow pointing towards the slot.

Insert your

Sky Viewing Card

into the slot, as far as it will go

without forcing it.

Close the ﬂap, then press brieﬂy on the top right of the ﬂap to secure it shut.

If you do not have a

Sky Viewing Card

, call Sky+ Customer Service.

To ﬁnd the Sky+ Customer Service number, select the

Telephone

Numbers

option from the

Services

screen.

So that you can watch all the channels and services you want, you must leave your

Sky Viewing Card

in your Sky+ set top box at all times.

You must subscribe to Sky+ to be able to record and play back programmes using your Sky+ set top box.

Getting started

7Sky+ User’s Guide

❖

Your Sky+ remote control

Your Sky+ remote control can operate your TV as well as your Sky+ set top box.

To use your Sky+ remote control to operate your Sky+ set top box, press

Sky

To use your Sky+ remote control to operate your TV, press tv.

For details of the functions of your Sky+ remote control keys, refer to the fold-out section at the front of this User’s Guide.

Your Sky+ remote control will always operate your Sky+ set top box. If your Sky+ remote control does not also operate your TV, see

Setting

your Sky+ remote control to operate your TV

on page 58.

❖

Turning your Sky+ set top box on and off

To turn your Sky+ set top box on, press

Sky

on your Sky+ remote

control. Make sure the standby light (S

) on the front of your Sky+ set top box

is green – this shows your Sky+ set top box is on.

To turn your Sky+ set top box off, press

Sky

on your Sky+ remote

control, then press

standby

().

The standby light (S

) is red when your Sky+ set top box is off, but still plugged into the mains. It is not necessar y to unplug your Sky+ set top box when it is not in use.

Your Sky+ remote control can also turn your TV on and off.

To turn on your TV, press tv then a channel number.

To turn off your TV, press tv then

standby ().

GETTING STARTED

8 Sky+ User’s Guide

❖ Changing channel

Using the ch button

Press ch + or – on your Sky+ remote control to change channel up or down, one at a time.

You can also use ch + or – to display the next or previous screens of listings in the TV Guide. For more information about TV Guide listings, see page 13.

Using the channel number

If you know the channel number, you can use the number keys to choose the channel you want to watch. Channel numbers are always three digits, for example 106.

Each time you change channel, the Search & Scan banner appears onscreen.

The banner will disappear automatically after a few seconds, or you can press back up to remove it immediately.

For more information on the Search & Scan banner, see Using the Search & Scan banner on page 9.

❖ Changing the volume

Press vol + or – on your Sky+ remote control to increase or decrease the volume of your TV.

Press mute to turn the TV sound off. To turn the TV sound back on, press mute again.

If your Sky+ remote control does not mute or control the volume on your TV, see Setting your Sky+ remote control to operate your TV on page 58.

9Sky+ User’s Guide

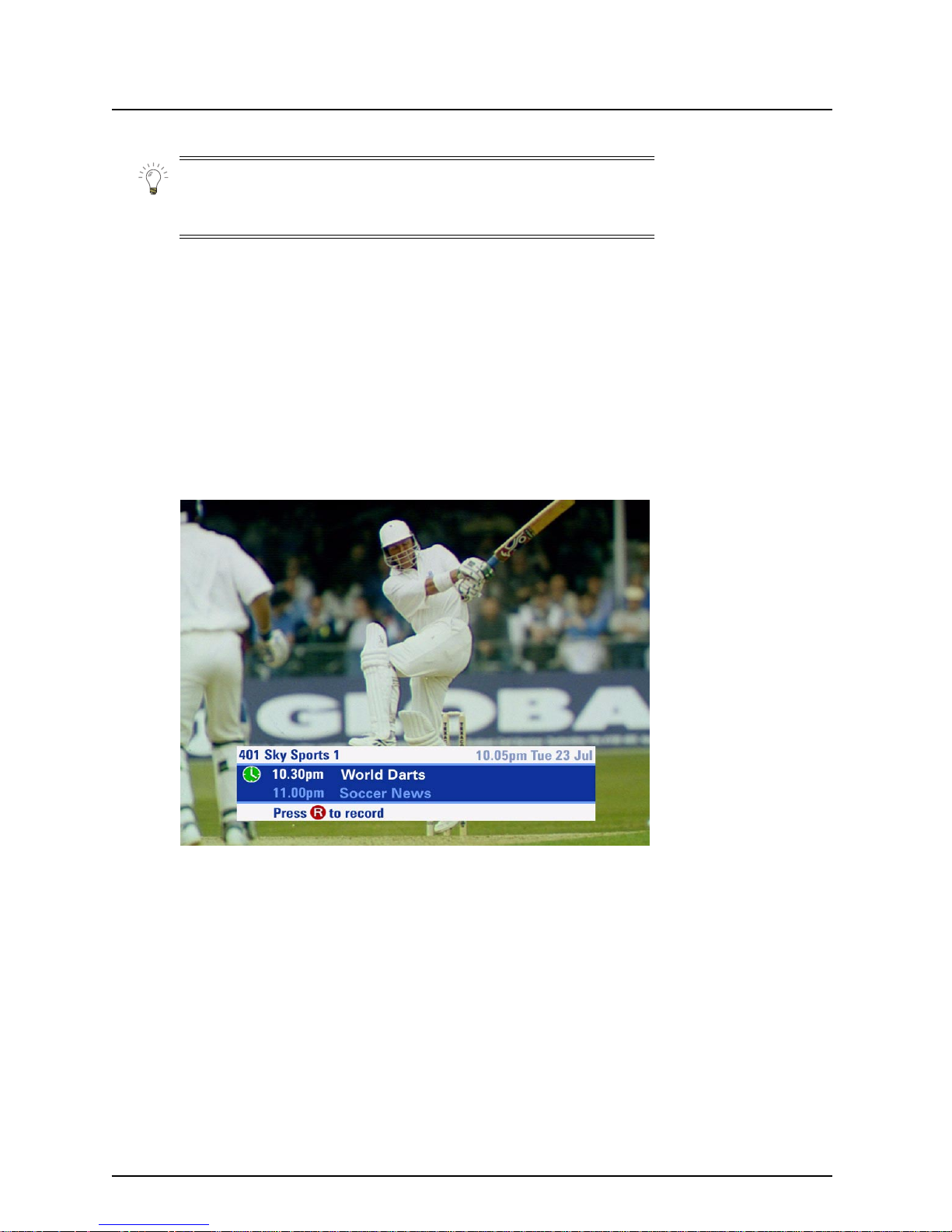

❖ Using the Search & Scan banner

When you are watching a satellite channel and want to ﬁnd out what else is on, either now or later, without interrupting the programme you are watching, press select to display the Search & Scan banner.

Use the left and right arrows to see what programmes are on at different times on the current channel.

Use the up and down arrows to see what is on other channels.

◆ If you see a programme you want to watch and it is on now,

press select; Sky Guide tunes your Sky+ set top box to the channel showing the programme.

◆ If you see a programme you want to watch and it is on later,

press select; Sky Guide will set a reminder.

◆ If you see a programme you want to record, press R; Sky Guide

will then record the programme.

If the channel shown in the Search & Scan banner is set as one of your Favourite Channels, this is indicated by a tick (✓).

To see what is on your Favourite Channels, press the Search Favourite (blue) key. Each time you press the Search Favourite (blue) key, programme information for another of your Favourite Channels is shown in the banner. If you see a programme you want to watch on one of your Favourite Channels, press select. If you see a programme you want to record, press R. For more details, see Favourite Channels on page 54.

You must have a Sky+ subscription to be able to record a programme using your Sky+ set top box.

GETTING STARTED

10 Sky+ User’s Guide

❖ Live Pause

Press pause to start recording live TV. The picture will ‘freeze’ on screen.

Press play or press pause again to resume the programme from the ‘frozen’ point.

For more information, see Using Live Pause on page 11.

You must have a Sky+ subscription to be able to use Live Pause.

❖ Using digital text

If you are watching a channel that has a digital text service, press text to use it. (If digital text is not available, you will see a banner informing you how to use teletext instead.)

Press Sky at any time to return to TV viewing.

❖ Using teletext

If your television has teletext features, press tv and then text on your Sky+ remote control to use them.

Use the number keys to choose the page you require. The table below shows the Sky+ remote control keys to use for teletext functions.

To return to satellite services, press back up, then press Sky.

To use teletext via your Sky+ remote control, your remote control must be set to work with your TV. For further information, see Setting your Sky+ remote control to operate your TV on page 58.

Key Function

text Enters text mode

(also exits text mode on some TVs)

back up Exits text mode

0–9 Page number entry

i Text reveal

select Page hold

colours Fastext functions

11Sky+ User’s Guide

Whenever you are watching a TV programme, you can pause it.

Press pause on your Sky+ remote control to freeze the picture and sound. Your Sky+ set top box will then record until the end of the programme.

As the programme is recorded, the Live Pause symbol will show the elapsed time in minutes relative to the live programme.

During Live Pause press play, fast forward, rewind and pause to move through the recording. If you reach the start of the recording, the picture and sound are frozen at that point. If you reach the end of the recording, Sky+ will take you straight into the live programme.

You can press Sky at any time to resume live TV viewing.

If you change channel your Live Pause recording is deleted.

Using Live Pause

USING LIVE PAUSE

12 Sky+ User’s Guide

If you attempt to view the full-screen listings, you must leave Live Pause.

To conﬁrm that you wish to leave Live Pause, press select. The Live Pause recording is then deleted.

To continue Live Pause, press back up.

During Live Pause you can use the arrow keys to display the Search & Scan banner to ﬁnd out what is on later or on other channels. For more information see Using the Search & Scan banner on page 9.

You must have a Sky+ subscription to be able to use Live Pause.

Programmes recorded using the Live Pause function are not saved for future playback.

During Live Pause, you cannot use an interactive application (see Interactive on page 57).

13Sky+ User’s Guide

Press tv guide on your remote control to see the TV Guide screen.

Here you can choose to see:

◆ All Channels – TV programmes scheduled for today and the

week ahead, listed by channel number.

◆ Entertainment, Movies, Sports, News &

Documentaries, Kids, Music & Radio and Specialist

– programmes scheduled for today and the week ahead, listed by channel type.

◆ A–Z Listings – an alphabetical listing of all programmes

showing for the next 24 hours.

◆ Sky+ Planner – your recordings and programmes selected for

future viewing.

For more information, see Using your Sky+ Planner on page 19.

TV Guide

TV GUIDE

14 Sky+ User’s Guide

❖ Finding a programme

To ﬁnd a programme from the full listings, press tv guide on your Sky+ remote control, highlight All Channels, then press select. The All Channels listings screen is shown.

Use the up and down arrows to move the highlight through the channels.

Use the right and left arrows to see programmes being shown at different times.

Times are shown at the top of the programme listing.

Use the Page Up (red) and Page Down (green) keys to see the preceding or next section of the channel listing.

Use the +24 Hours (yellow) key to move forwards 24 hours at a time. To move backwards 24 hours at a time, use the –24 Hours (blue) key.

15Sky+ User’s Guide

Use the number keys to go quickly to a particular channel. Enter the channel number, which is always three digits, for example 106.

Whenever you are using Sky Guide, if you see a screen you don’t want, press back up to redisplay the previous Sky Guide screen.

❖ Choosing a programme to watch, and

setting reminders

When you see a programme you want to watch, use the arrows to highlight it, then press select.

◆ If the programme is on now, your Sky+ set top box tunes to it.

◆ If the programme is on later, Sky Guide will set a reminder. Your

Sky+ Planner will also appear, showing the selected programme, together with a Remind symbol in the right-hand column.

◆ If you choose a Pay Per View programme, you will see the Box

Office screen showing the programme details and purchase price. For more information, see Ordering a Box Office programme on page 27.

◆ If you choose a programme that is on a channel to which you do

not currently subscribe, you will be given information on how to include this channel in your subscription.

❖ Choosing a programme to record

When you see a programme you want to record, highlight it, then press R.

◆ If the programme is on now, Sky Guide immediately starts

recording the programme, and adds it to your Sky+ Planner for future viewing.

◆ If the programme is on later, Sky Guide adds the programme to

your Sky+ Planner for future recording. Your Sky+ Planner will also appear, showing the selected programme, together with a Record symbol in the right-hand column.

For more information, see Using Sky+ for recording satellite TV on page 29.

TV GUIDE

16 Sky+ User’s Guide

❖ Displaying A–Z listings

If you are looking for a particular programme, a quick way to ﬁnd it is to use the A–Z listings. This lists all the day’s programmes in alphabetical order, so you can easily ﬁnd when and where the programme is on.

To ﬁnd a programme from the A–Z listings, press tv guide on your Sky+ remote control, highlight A–Z Listings, then press select.

Highlight the type of programme you are looking for, then press select. The A–Z Listings screen for that type of programme is shown.

You can use the number keys (which also have letters marked on them) to quickly ﬁnd programmes that start with a particular letter. Press once for the ﬁrst letter shown. Press the key again for the next letter, and so on. The listing updates after a short delay. To display the previous or next screen in the listing, you can also use ch + or – on your Sky+ remote control.

You can choose to see programmes of more speciﬁc types by pressing the colour option keys. The types of programmes listed are shown at the bottom of the screen. Use the left and right arrows to see what other types are available.

❖ Displaying more information

If you would like more information about a particular programme, use the arrows to highlight it, then press i on your Sky+ remote control. The programme information banner appears on your screen.

To remove the programme information banner and show the previous screen, press back up.

17Sky+ User’s Guide

The information banner for a programme includes a short programme summary and the programme start time.

The information banner for a recorded programme includes a short programme summary, the status of the recording (including the reason for any part-recording or recording failure), the time the recording was made, and the disk space used by the recording. For more information on recording status see Sky+ Planner information on page 19.

For Box Office recordings, the information banner also displays the time when the recording will be deleted.

TV GUIDE

18 Sky+ User’s Guide

Both information banners may also include letter codes giving more information about the programme. These codes have the following meanings:

Letter codes:

C Copy-protected. If you try to record this

programme it may not play back correctly.

DS Surround sound. If your TV has surround-

sound capability, you can hear this programme in surround sound.

DD Dolby Digital. If your TV is connected to a

home cinema system capable of decoding the signal, you can hear this programme in Dolby

Digital. For more information see Optical digital-audio output on page 63.

L Letterbox format. The programme is being

shown in letterbox format; i.e. in a wide ‘cinema-style’ picture with black borders across the top and bottom of the picture.

N Narrative. The programme is broadcast with a

descriptive audio soundtrack for the partially sighted.

T Subtitles. Language and/or subtitles for the

hard of hearing are available for the programme.

W Widescreen. The programme is being shown

in widescreen format.

Rating codes:

U Universal, suitable for all audiences, including

young children.

PG Parental guidance is recommended. Some

discretion may need to be applied as to the suitability of the ﬁlm for younger or impressionable children.

12 Suitable for viewers aged 12 years or over.

More mature themes or language make the ﬁlm unsuitable viewing for young children.

15 Suitable for viewers aged 15 years or over.

May contain stronger language, violence, or themes unsuitable for younger viewers.

18 Suitable only for adult viewers aged 18 years or

over.

Content codes:

s Sex or nudity.

l Strong language.

v Violent scenes.

Material which is intended for a mature audience.

19Sky+ User’s Guide

Your Sky+ Planner lists the programmes you have selected to watch or record, together with your recordings.

Whenever you select a future programme to watch or record, Sky Guide automatically adds it to your Sky+ Planner.

To view your Sky+ Planner, press tv guide on your Sky+ remote control, highlight Sky+ Planner, then press select.

❖ Sky+ Planner information

In addition to showing the programmes’ names and channels, your Sky+ Planner shows the following information for each programme:

◆ Rating code (for rated programmes);

◆ Date and time of transmission for future programmes;

◆ For recorded programmes:

Recording – indicates that the programme is currently being recorded.

Recorded – indicates that the programme was successfully recorded.

Part recorded – indicates that only part of the programme was successfully recorded. To see why the programme is only par t recorded, press i to display the programme information banner.

Using your Sky+ Planner

YOUR SKY+ PLANNER

20 Sky+ User’s Guide

Failed – indicates that a programme you selected for recording did not record. To see why the programme was not recorded, press i to display the programme information banner.

Viewed – indicates that you have played back a recorded or part recorded programme.

Copy – indicates that you have selected a recorded programme for copying to your video recorder. For more information, see Using Copy on page 45.

Your Sky+ Planner may also show one or more of the following symbols in the right-hand column:

Remind – indicates that a reminder will be displayed just before the programme starts.

Record – indicates that the programme will be recorded and is not marked for Keep.

Keep – indicates that the programme will be, or has been, recorded and is marked for Keep. For more information, see

Using the colour option keys on page 21.

Series Link – indicates that Series Link for the programme has

been turned on. For more information, see Using Series Link on page 25.

There is a space available indicator (a coloured line) above the programme list in your Sky+ Planner. This indicator tells you how much of the total capacity of the hard disk is free, as a percentage of the total available disk space.

The space available indicator also shows you the amount of disk space taken by each recorded, or part recorded, programme. When you highlight a recorded programme in your Sky+ Planner, the yellow portion of the indicator line represents the space used by that programme.

The space used by a recorded programme is also displayed in the programme information banner.

To see the programme information banner, press i on your Sky+ remote control.

You can use the ch + and – keys to display the next and previous pages of your Sky+ Planner.

21Sky+ User’s Guide

❖ Using the colour option keys

Depending on the programme you have highlighted in your Sky+ Planner, you may be able to use the colour option keys on your Sky+

remote control to select one or more of the following options:

◆ Press the Copy (red) key to copy a previously-recorded

programme to your video recorder. For more information, see Using Copy on page 45.

◆ Press the Series Link (green) key to ensure the next episode in a

series is automatically added to your Sky+ Planner when your Sky+ set top box tunes to the programme you have highlighted. For more information, see Using Series Link on page 25.

◆ Press the Delete (yellow) key to delete the highlighted

programme from your Sky+ Planner. For more information see Removing a programme on page 22.

◆ Press the Keep (blue) key to ensure that a recording of the

highlighted programme will not be automatically deleted.

YOUR SKY+ PLANNER

22 Sky+ User’s Guide

❖ Removing a programme

To remove a programme from your Sky+ Planner, highlight it, then press the Delete (yellow) key. The programme status will show deleting and the programme will be deleted immediately.

You may be asked to conﬁrm your intention to delete a highlighted programme (e.g. for programmes marked Keep); if so, the following banner will be shown.

To conﬁrm the deletion, press select. The highlighted programme is removed from your Sky+ Planner.

To cancel the deletion, press back up. The highlighted programme remains in your Sky+ Planner.

23Sky+ User’s Guide

❖ Using reminders

To set a reminder for a programme, highlight it within the Sky Guide listings, then press select.

One minute before the start of a programme for which you have set a reminder, you will see a reminder banner on the lower part of your screen.

To watch the programme described in the reminder banner, press select. Your Sky+ set top box will tune to the programme.

If the programme is not a Box Office programme then you can press R to record the programme. Sky Guide will check the amount of free disk space and, if there is enough space, will start recording. For more information, see Capacity warning on page 33.

To ignore the reminder and keep watching the programme you are currently viewing, press back up.

You will see the reminder only if you are watching programmes through your Sky+ set top box and not, for example, if you are watching terrestrial TV.

YOUR SKY+ PLANNER

24 Sky+ User’s Guide

❖ Reminder clashes

If you try to set a reminder for a programme that clashes with a programme you have previously selected to watch, Sky Guide will ask you what you want to do.

You can choose from two options:

◆ Press select to be reminded when each programme starts.

◆ Press back up to cancel the new selection and to be reminded

only when the previously-selected programme starts.

If you select a programme to record that clashes with a programme you have previously selected to record, you must choose one or other of the programmes. For more information, see Recording clashes on page 32.

If the broadcasters change their programming schedules, your Sky+ Planner will be updated automatically, and programme reminders will be adjusted accordingly. However, if a broadcaster moves a scheduled programme by more than six hours, the programme will be deleted from your Sky+ Planner and you will need to re-select the programme.

25Sky+ User’s Guide

❖ Using Series Link

If the Series Link option appears on-screen when you highlight a programme in your Sky+ Planner, this means the programme is identiﬁed as one episode of a series, on that channel.

Press the Series Link (green) key if you want to watch or record the next episode on the same channel.

The Series Link symbol is then shown next to the programme, indicating that the link is set.

When your Sky+ set top box tunes to the programme, the next episode will be added to your Sky+ Planner with the link set.

If you selected the programme for recording, the next episode will also be set for recording.

YOUR SKY+ PLANNER

26 Sky+ User’s Guide

This section of Sky Guide is where you can choose the Box Office programmes you want to watch or record.

Press box ofﬁce on your Sky+ remote control to see the Box Office screen.

The Box Office screen allows you to see listings of movies by start time, in alphabetical order or just the latest additions. You can also see listings for sports and events, as well as for specialist programmes.

To see the listing you want, use the arrows to highlight it, then press select.

To see free previews of Box Office programmes, highlight Free Previews, then press select.

Box Office

27Sky+ User’s Guide

❖ Ordering a Box Ofﬁce programme

You can order Box Office programmes to watch and record using your Sky+ remote control.

To order a Box Office programme, complete the following steps:

1. Use the arrows to highlight the programme you want to watch or record.

If you want to set a reminder for the programme, press select.

If you want to record the programme, press R.

Sky Guide will show the time the programme starts, the channel and the purchase price. Additional special offers may be advertised on-screen for particular programmes.

2. You may be able to choose what time you watch or record the programme. Use the left or right arrow to choose a suitable start time, then press select.

If you want to change your selection, press back up.

3. To conﬁrm your choice, press select again or enter your PIN (Personal Identiﬁcation Number) if requested. Your PIN will be required if the selected programme is subject to your parental viewing restrictions or costs more than your spending limit.

BOX OFFICE

28 Sky+ User’s Guide

Regardless of your parental viewing restrictions, you will need your PIN to watch or record any Box Office programme shown before its normal watershed time. PINs will be required as follows:

If you select a Box Office programme to watch, the programme will be added to your Sky+ Planner as a reminder.

If you select a Box Office programme for recording, the programme will be added to your Sky+ Planner and automatically recorded at the programme start time.

The Box Office programme will remain in your Sky+ Planner for a ﬁxed amount of time before it is deleted. For example, selected Box Office movies may remain in your Sky+ Planner for seven days. If you do not watch the programme, Sky Guide will automatically delete the recording of the Box Office programme at the speciﬁed time and you will not be charged.

Once you start playing back a Box Office recording, you will have a period of time in which you can watch it as many times as you like. For example, you may be allowed to play back a Box Office movie for 24 hours.

You will be charged for the programme when you begin playing back the recording. When the time period is up, Sky Guide will automatically delete the recording.

The amount of time you have left to watch, or begin watching, a recording is shown on the programme information banner.

If you select a Box Office programme to watch or record but then do not tune to the relevant channel at any time during the programme, or do not play back the recording, you will not be charged for it.

Programme rating When PIN is required

18 programme starts before 10.00 pm

15 programme starts before 8.00 pm

12 programme starts before 8.00 pm

29Sky+ User’s Guide

You can select programmes for recording from both the TV Guide listings and Box Office screens, or directly from satellite TV viewing. The recording of all programmes, including Box Office programmes, is subject to the approval of the individual channel provider. A warning banner will appear if recording is not allowed for any reason.

❖ Recording current programmes

To record a programme you are currently watching on satellite TV, simply press R on your Sky+ remote control. The Search & Scan banner appears on-screen with details of the programme to be recorded. Press R again to conﬁrm the recording.

The recording indicator on the front panel of your Sky+ set top box lights up whenever a recording is taking place.

If you want to record a programme currently showing on a channel other than the one you are watching, press select to display the Search & Scan banner. Use the up and down arrows to see what is on other channels.

When you see a programme you want to record, press R.

Programmes that you have selected for recording are indicated in the Search & Scan banner by the record symbol, which is a red circle containing a white R, against the selected programme.

To cancel the recording of a previously-selected programme, highlight the programme in the Search & Scan banner, then press R.

Using Sky+ for recording satellite TV

SKY+ RECORDINGS

30 Sky+ User’s Guide

When you cancel the recording of a current programme, the programme remains listed in your Sky+ Planner but is marked as Part recorded.

❖ Recording future programmes

If you want to record future programmes on the channel you are watching, press the right arrow to display the Search & Scan banner.

To see what programmes are on later on the current channel, press the right arrow again.

To record the programme highlighted in the Search & Scan banner, press R.

You can also select programmes to record from the TV Guide or Box Office listings. Use the arrow keys to highlight the programme you want to record, then press R.

31Sky+ User’s Guide

When you select a programme to record from the TV Guide or Box Office listings, your Sky+ Planner is displayed on-screen with the

programme highlighted and the record symbol displayed.

Press back up to return to the previous screen.

Your Sky+ set top box cannot record interactive applications.

SKY+ RECORDINGS

32 Sky+ User’s Guide

❖ Recording clashes

When you select a programme for recording, Sky Guide automatically checks to see whether it clashes with other programmes you have previously selected for recording. If it does clash, Sky Guide will ask you what you want to do.

To record the new programme, you must ﬁrst press select to cancel the previously selected recording. If there is more than one recording to be cancelled, all of these programmes are listed. Use the up and down arrows to view them all.

Press select to cancel the previously selected recording(s) and record the new programme.

Press back up to keep the previously selected recording(s) and cancel the recording of the new programme.

If the broadcasters change their programming schedules, your Sky+ Planner will automatically update, and programme recording times will be adjusted accordingly. However, if a broadcaster moves a programme by more than six hours, the programme will be deleted from your Sky+ Planner and you will need to reselect the programme.

Where recording clashes result from changes in the programme schedules, Sky Guide will record the earlier programme in its entirety, and will record only part or nothing at all of the later programme. You can choose to change this priority by marking the later programme as Keep.

33Sky+ User’s Guide

❖ Capacity warning

Whenever you select a programme to be recorded, Sky Guide anticipates whether there will be enough disk space available for you to record the programme.

If you have set your Disk Space Management setting to Manual and there isn’t enough disk space, Sky Guide asks you to manually delete existing recordings to make space for the new recording.

Press back up to cancel the new recording and return to the previous screen. To manually delete previously recorded programmes, see Removing a programme on page 22.

For information on Disk Space Management settings, see Disk Space Management on page 66.

SKY+ RECORDINGS

34 Sky+ User’s Guide

Radio channels do not have programme listings in Sky Guide, but you can record these channels using the Services menu.

Press services on your Sky+ remote control, highlight Manual Recording, then press select. The Manual Recording screen is shown.

To record a radio channel:

1. If you know the channel number, you can use the number keys to choose the channel you want to record. Channel numbers are always three digits, for example 851.

Alternatively, you can use the left and right arrow keys to choose the name of the channel you want to record.

2. Press the down arrow to highlight Day, then use the left and right arrow keys to choose the day on which you want to record the channel.

3. Next, highlight Start Time, then use the number keys to set the start time of the recording. Use the left and right arrow keys to choose whether the start time is AM or PM.

4. Highlight End Time, then set the end time of the recording, and choose whether the end time is AM or PM.

Using Sky+ for recording radio channels

35Sky+ User’s Guide

5. Press the down arrow to highlight Frequency. Use the left and right arrow keys to choose how many times you want to record the channel: once, daily, weekly or every weekday (Monday to Friday).

6. Highlight Add Manual Recording, then press select to conﬁrm your choices. Your Sky+ Planner is displayed on-screen with the manual recording highlighted and the record symbol displayed.

SKY+ RECORDINGS

36 Sky+ User’s Guide

❖ Playing back a recorded programme

To select a previously recorded programme for playback:

1. Display your Sky+ Planner (press tv guide on your Sky+ remote control, highlight Sky+ Planner, then press select).

2. Highlight a programme that is currently recording, or that has been recorded or part-recorded, then press either play or select.

Sky+ offers you a choice of playback start positions before playback starts.

Use the left and right arrows to choose:

◆ to play back from the beginning of the programme;

◆ to play back from the point at which playback previously

stopped;

◆ to play back from a point decided by yourself (viewer deﬁned);

Use the number keys to set the number of minutes from the beginning of the programme, from which playback is to start.

◆ to play back from any bookmarks you have set.

Press select or play to conﬁrm your choice and playback will start immediately from the selected position.

To select the most recently played-back programme (not a Live Pause recording) when either watching satellite TV, or when a TV Guide or Box Office listings screen is displayed, simply press play. This is useful if, for example, you had been unable to watch the whole programme previously.

When you have selected a programme for playback, the programme information banner is displayed. Press select to star t playback.

Playing back recordings

37Sky+ User’s Guide

❖ During playback

Whenever you are playing back a programme, you can display the play symbol by pressing play.

The elapsed time from the beginning of the programme is shown below the symbol.

The play symbol is displayed for 5 seconds. To remove the play symbol immediately, press back up.

The playback indicator on the front panel of your Sky+ set top box lights up if playback, rewind or fast-forward is in progress. If you want to turn off the playback indicator, see Front-panel recording/playback indicator on page 68.

During playback you can use the arrow keys to display the Search & Scan banner to ﬁnd out what else is on later or on other channels. The channel ﬁrst displayed in the Search & Scan banner is the lastviewed live channel.

When the programme you are playing back ends, a message will appear on-screen.

To return to your Sky+ Planner, press back up.

To return to live tv viewing, press stop.

If you press the Sky key while playing back a programme, Sky Guide re-tunes your Sky+ set top box to the channel you were previously watching. If you press the ch + or – keys, or enter a channel number, Sky Guide tunes your Sky+ set top box to the requested channel.

SKY+ PLAYBACK

38 Sky+ User’s Guide

To pause the programme while your Sky+ set top box is in play, fastforward or rewind, press pause.

To restart playback, press play or pause again.

39Sky+ User’s Guide

❖ Using Fast Forward / Rewind keys

To fast-forward a recorded programme when it is playing back or paused, press the fast forward key. The fast forward x2 symbol appears on the screen.

Fast forward and rewind are four-speed keys. To increase the fastforward speed a second, third and four th time (x6, x12, x30), press the fast forward key again. The appropriate fast forward symbol appears on the screen.

To decrease the fast-forward speed, press the rewind key. The speed reduces in reverse-order to the above steps, and the appropriate fast forward symbol appears on the screen, until normal playback speed is reached.

If you fast-forward to the end of a recording, playback is paused at that point. To return to the channel you were previously watching, press the stop key (see below).

The rewind key behaves similarly to the fast forward key, but in the opposite direction.

SKY+ PLAYBACK

40 Sky+ User’s Guide

❖ Playing back in slow-motion

To play back a programme in slow-motion, press and hold the play key for at least two seconds.

To resume normal playback speed, press play again.

❖ Stopping playback

To stop playback or pause, and return to the channel you were previously watching, press the stop key.

To stop playback and return to your Sky+ Planner, press the back up key.

To pause playback of a programme while it is being played back or fastforwarded, press the pause key.

41Sky+ User’s Guide

❖ Using Bookmarks

Bookmarks are points, within a recorded programme, to which you can quickly return.

To set a bookmark while playing back a recorded programme, ﬁrst press pause, then the Bookmark (red) key. The pause symbol is displayed with the message Bookmarked underneath.

To skip forward to the next bookmark, and then resume playback, press and hold fast forward for at least two seconds.

To skip backward to the previous bookmark, and then resume playback, press and hold rewind for at least two seconds.

To display a list of your bookmarked points press pause, then the green key. Each bookmark is displayed with its time, in minutes, relative to the start of the programme.

SKY+ PLAYBACK

42 Sky+ User’s Guide

The start and end of the recorded programme are always displayed as the ﬁrst and last bookmarks.

Use the arrows to highlight a bookmark, then press select to resume playback from the selected position.

If there are more bookmarks than can be displayed on the screen, you can display other parts of the list by using the Page Up (red) and Page Down (green) keys.

To remove a bookmark, highlight it, then press the Delete (yellow) key. The updated list is redisplayed with the bookmark removed.

43Sky+ User’s Guide

❖ Understanding on-screen symbols

In normal playback, the on-screen symbols are as follows:

Below all symbols, with the exception of the Bookmark symbol, is the time in minutes since the start of the programme.

No playback symbols appear on-screen while the Search & Scan banner or programme information banner is displayed.

play – a green ring rotating clockwise, containing a single, forward-facing arrow.

slow-motion – the same as the play symbol, but half the speed of rotation.

pause – a static green ring, containing two vertical lines.

fast forward – a green ring rotating clockwise at double-speed, containing the selected fastforward speed (x2, x6, x12 or x30).

rewind – a green ring rotating anti-clockwise at double-speed, containing the selected rewind speed (x2, x6, x12 or x30).

skip forward – a static green ring, containing a forward-facing arrow pointing to a vertical line.

skip back – a static green ring, containing a backward-facing arrow pointing to a vertical line.

bookmarked – a pause symbol with the word Bookmarked beneath it.

SKY+ PLAYBACK

44 Sky+ User’s Guide

❖ Displaying programme information during

playback

Press the i key at any time during playback to display the programme information banner.

See also Displaying more information on page 16.

❖ Playing back viewing-restricted

programmes

You must enter your PIN to play back a programme that is the subject of a viewing restriction. See Using Parental Control on page 49, and Viewing Restrictions on page 50.

45Sky+ User’s Guide

Providing you have a video recorder (VCR) connected to your Sky+ set top box, Sky Guide can copy recorded programmes directly to your video recorder, if, for example, you want to free up space on your hard disk.

❖ Selecting a programme for copying

To select a recorded programme for copying:

1. Press tv guide then 0 to display your Sky+ Planner.

2. Use the up and down arrows to highlight the programme you want to copy, then press the Copy (red) key.

The status of the highlighted programme changes to Copy.

If you want to select additional programmes for copying, repeat step 2.

If you decide you do not want to copy a selected programme, highlight the programme, then press the Copy (red) key again.

To start the copying process :-

1. When you have selected all of the programmes you want to copy, press play or select.

Sky Guide then checks to ensure that none of the programmes will be parentally-restricted when they play back. If any of the programmes are parentally-restricted, you must enter your PIN to proceed.

2. Ensure that your VCR is recording, then press play or select.

Using Copy

COPYING RECORDINGS

46 Sky+ User’s Guide

You will see a screen detailing the amount of videotape required to record the selected programmes and a list of the programmes to be copied. The programmes will be listed in the same order that they were marked for Copy in your Sky+ Planner.

This is a contents marker for your videotape. If there are more than ten programmes, a series of screens is displayed.

Each screen is displayed for ten seconds.

Each programme marked as

Copy

is then played back in turn from start to ﬁnish, preceded by its programme information screen (see page 17).

To stop the copying process at any time, press any key.

Some programmes are copy-protected and cannot be copied to your video recorder. Copy-protected programmes are marked with a C on the programme information banner. See Displaying more information on page 16.

Copying programmes to your video recorder happens at normal speed. This means if a programme is two hours long, it will take two hours to copy it to your video recorder.

Make sure you have sufﬁcient videotape before starting the copying process.

During the copying process, on-screen warnings about lack of disk space for recording (which are normally displayed if disk space management is set to Warn or Manual) will not be displayed.

47Sky+ User’s Guide

Some video recorders, when connected via a SCART cable to your Sky+ set top box, will star t recording automatically when you start copying programmes. For more information on whether this feature is supported, see the user guide that came with your video recorder.

It is advisable to start copying during a period when you can leave your Sky+ set top box and video recorder unattended, as you will be unable to watch other programmes via your Sky+ set top box while copying takes place. If the process is interrupted, by pressing any of your Sky+ remote control keys, the copying process will end.

COPYING RECORDINGS

48 Sky+ User’s Guide

Press services on your Sky+ remote control to see the Services screen.

Services allows you to:

◆ view information on using your Sky+ set top box;

◆ use the Parental Control facility;

◆ set up your Favourite Channels;

◆ add Other Channels;

◆ display a list of useful phone numbers;

◆ set up manual recordings. For more information see Using Sky+

for recording radio channels on page 34.

You can also see and modify the settings for your Sky+ set top box.

Use the arrows to move the highlight around the screen; use select and all the other keys just as you do elsewhere.

Services

49Sky+ User’s Guide

❖ Parental Control and your PIN

To display the Parental Control screen, press services on your Sky+ remote control. Highlight Parental Control, then press select. You will be asked to enter a PIN (Personal Identiﬁcation Number). Your initial PIN is the last four digits of the number that is on the back of your Sky Viewing Card.

Your PIN enables you to control which programmes are seen in your home. It also allows you to prevent recorded programmes from being deleted.

You can change your PIN at any time. For more information, see

Changing your PIN on page 52.

Parental Control lets you specify what categories of programme you

can view and how much you can spend on a programme you order before you need to use your PIN.

If your Sky+ set top box is not connected to your telephone line, or if you forget your PIN, you must call Sky Customer Service to change your PIN or spending limit (see page 51). To ﬁnd the Sky+ Customer Service number, select the Telephone Numbers option from the Services screen.

Using Parental Control

After you correctly enter your PIN, the Parental Control screen is shown.

SERVICES

50 Sky+ User’s Guide

Viewing Restrictions

To see the Viewing Restrictions screen, highlight Viewing Restrictions on the Parental Control screen, then press select.

The Viewing Restrictions screen lets you specify the programme categories that cannot be viewed or recorded unless your PIN is entered. Viewing restrictions can be applied only to programmes where the broadcaster provides category-restriction information.

To restrict a category of programme, highlight it, then press the Restrict (red) key. A cross marks a category you have restricted.

To remove a restriction, highlight the categor y, then press the Unrestrict (red) key. The cross is removed, indicating that the restriction has been removed.

When you have ﬁnished setting or changing viewing restrictions, press select.

You may watch programmes in restricted categories only if you ﬁrst enter your PIN.

51Sky+ User’s Guide

Spending Limit

To see the Spending Limit screen, highlight Spending Limit on the Parental Control screen, then press select.

The Spending Limit screen lets you specify how much a programme can cost before your PIN is required to order it. For example, if you set the limit at £3.50, you can order a programme costing £3.50 (or less) without using your PIN, but you would need your PIN for a programme costing £3.51 or more.

To set a spending limit, complete the following steps:

1. Highlight Spending Restriction and use the left or right arrow to set it to ON.

2. Highlight PIN required for purchases over and use the left or right arrow to set the maximum amount that a programme can cost before your PIN is needed.

3. Highlight Save New Settings and then press select.

If you set your spending limit at £0.00, your PIN will always be required when you order a Box Office programme.

SERVICES

52 Sky+ User’s Guide

Changing your PIN

To see the Change PIN screen, highlight Change PIN on the Parental Control screen, then press select.

The Change PIN screen lets you change your PIN any time you wish.

To change your PIN you must key in your new PIN twice.

Keep your PIN secret!

Choose a PIN you can remember. If you forget your PIN, call Sky+ Customer Service. To ﬁnd the Sky+ Customer Service number, select the Telephone Numbers option from the Services screen.

If you start to change your PIN but then decide not to, press back up. Your PIN will stay as it was.

If your Sky+ set top box is not connected to your telephone line, you will have to call Sky+ Customer Service to change your PIN or spending limits.

53Sky+ User’s Guide

Record Settings

To see the Record Settings screen, highlight Record Settings on the Parental Control screen, then press select.

The Record Settings screen lets you PIN-protect recorded programmes you have marked as Keep in your Sky+ Planner.

To PIN-protect programmes marked as Keep:

1. Highlight PIN Protect Kept Programmes and use the right arrow to select YES.

2. Highlight Save New Settings and then press select.

SERVICES

54 Sky+ User’s Guide

❖ Favourite Channels

You can create a list of the channels you watch most often, so that Sky Guide can tune to your favourite channels quickly. You can have up to

twenty favourite channels.

To see the Favourite Channels screen, press services, highlight Favourite Channels, then press select. The Favourite Channels screen is shown. This screen lists the available channels by channel number.

When you ﬁrst get your Sky+ set top box, the Favourite Channels screen has no favourite channels set.

Adding a Favourite Channel

You can use the Favourite Channels screen to tick (✓) the channels you watch most often. To do this:

1. Use the arrows or the Page Up (red) and Page Down (green) keys to move through the list.

2. To mark a channel as a favourite, highlight it, then press the Favourite (yellow) key. The channels you have selected as favourites are marked with a tick (✓) and added to your Favourite Channels list.

If you want to see more information about a channel, highlight it, then press i. Press back up to remove the information.

3. Press select when you have ﬁnished adding favourite channels.

55Sky+ User’s Guide

Removing a Favourite Channel

To remove a channel from your list of favourites, highlight it on the Favourite Channels screen, then press the Favourite (yellow) key.

The tick (✓) disappears and the selected channel is removed from your list of favourites.

Using a Favourite Channel

You can easily check what is on your favourite channels and tune to them whenever you are watching television, without interrupting the programme you are watching.

To search through your favourite channels:

1. Press select to display the Search & Scan banner.

2. Press the Search Favourite (blue) key. This will show you information about the ﬁrst of your favourite channels, which is indicated by a tick (✓) at the top of the Search & Scan banner.

Each time you press the Search Favourite (blue) key, programme information for another of your favourite channels is shown in the banner.

◆ If you see a programme you want to watch and it is on now,

press select; Sky Guide tunes your Sky+ set top box to the channel showing the programme.

◆ If you see a programme you want to watch and it is on later,

press select; Sky Guide will set a reminder.

◆ If you see a programme you want to record, press R; Sky Guide

will then record the programme.

SERVICES

56 Sky+ User’s Guide

❖ Other Channels

Other Channels include channels that your Sky+ set top box is capable of receiving but for which listings may not be available in Sky Guide, for example foreign-language channels. Your Sky+ set top box cannot record programmes that are not listed in Sky Guide.

To see the Other Channels screen, press services, highlight Other Channels, then press select. The Other Channels list is shown on your screen.

To watch one of these channels, highlight it, then press select.

When you ﬁrst get your Sky+ set top box, the

Other Channels

screen

is empty. For more information, see

Adding Other Channels

page 64.

57Sky+ User’s Guide

Interactive services are available through your Sky+ set top box. You can shop, bank, get information, play games and send and receive e-mails, simply by using your Sky+ remote control.

Press interactive on your Sky+ remote control to see the Interactive screen.

Choose the service you require by pressing the number on your Sky+ remote control that corresponds to the number of the service.

You can get most interactive services by using your Sky Viewing Card. However, some services may need a speciﬁc Interactive Card, which you insert into the Interactive Card slot in the front of your Sky+ set top box.

Some TV programmes are enhanced with interactive applications. These programmes have an on-screen symbol to indicate that there is an associated interactive application. Press the colour key indicated on the screen to start the application.

Only insert a card into the Interactive Card slot when an instruction to do so appears on the screen.

Use the arrows to move the highlight around the screen; use select and all the other keys just as you do elsewhere.

Your Sky+ set top box cannot record interactive services or applications.

Interactive

INTERACTIVE

58 Sky+ User’s Guide

❖ Setting your Sky+ remote control to

operate your TV

Your Sky+ remote control can operate both your Sky+ set top box and your TV.

Your Sky+ remote control should have been set up to work with your TV when your Sky+ set top box was installed.

If your Sky+ remote control is not correctly operating your TV, complete the following steps.

Before you start, look up the four-digit code for your brand of TV in this list.

If your brand of TV is not shown here, refer to Remote control setup codes on page 78.

1. Turn your TV on.

2. Press tv on your Sky+ remote control.

3. Hold down select and the red key together for about two seconds, until the red light on your Sky+ remote control blinks twice.

4. Press tv on your Sky+ remote control again.

5. Key in the four-digit code for your brand of TV. The light on your Sky+ remote control should blink twice.

If the light blinks once only, recheck the code for your brand of TV and start again at Step 1.

Brand Code Brand Code Brand Code

Akai 0098 Granada 0340 Panasonic 0051

Alba 0043 Grundig 0345 Philips 0081

Amstrad 0063 Hinari 0365 Saisho 0649

Bush 0157 Hitachi 0145 Samsung 0060

Decca 0244 JVC 0053 Sanyo 0159

Ferguson 0293 Matsui 0477 Sharp 0093

Fidelity 0294 Mitsubishi 0150 Sony 0000

Finlandia 0296 NEI 0514 Tatung 0049

Goodmans 0335 Nokia 0536 Toshiba 0156

Extra information

59Sky+ User’s Guide

6. Press the standby key ( ) on your Sky+ remote control.

If your TV switches off, press select. The light on your Sky+ remote control should blink twice.

If your TV does not switch off, press tv, then press the standby key ( ). Repeat this action (press tv, then the standby key)

until your TV turns off, then press select.

If the light on your Sky+ remote control blinks three times, it has checked all the possible settings for the code you used. Check that you have the correct four-digit code and start again at Step 1.

7. Turn your TV back on again and then press tv guide.

If you see the TV Guide screen, the remote control setup process is complete.

If you do not see the TV Guide screen, you must now complete the following steps.

8. Press tv on your Sky+ remote control.

9. Hold down select and the green key at the same time for about two seconds, until the red light on your Sky+ remote control blinks twice.

10. Key in the number of the channel on your TV that you use for watching satellite TV.

11. Press select on your Sky+ remote control. The red light should blink twice. The remote control setup process is now complete.

If after trying this, you still have problems, call Sky+ Customer Service. To ﬁnd the Sky+ Customer Service number, select the Telephone Numbers option from the Services screen.

❖ Setting your Sky Active keypad to operate

your Sky+

Your

Sky Active

keypad can be set up to operate your Sky+ set top box

for functions other than recording and playback. To set up your keypad:

1. Turn your TV on.

2. Press the TV/sat button on your keypad.

3. Hold down select and the blue key at the same time for about two seconds, until the red light on your keypad blinks twice.

4. Press 2 then select.

5. Press Sky on your keypad.

EXTRA INFORMATION

60 Sky+ User’s Guide

❖ Replacing the batteries in your Sky+

remote control

When the batteries in your Sky+ remote control need replacing, you will require two new AA (MN1500, LR6 or UM–3) batteries. A warning message will appear on-screen advising you that it is time to replace the batteries.

To replace the batteries:

1. Hold the upper, silver part, of your Sky+ remote control in one hand. With your other hand, push the catch on the battery cover upwards and remove the cover by pulling it outwards.

2. Remove the old batteries from the battery compartment.

3. Fit the new batteries, ensuring that you match the + and – marks on the batteries to their respective marks inside the battery compartment.

4. Reﬁt the battery cover, ensuring that the two lugs on the cover engage correctly in the casing, and that the bottom catch clicks into place.

Don’t leave ﬂat batteries in your remote control.

Replace both batteries at the same time.

If you leave your Sky+ remote control without batteries for more than 10 minutes, your remote control settings for operating your TV will be lost. In this case, after replacing the batteries, you will be able to control your Sky+ set top box as normal, but you will have to reset your Sky+ remote control to operate your TV. For more information, see Setting your Sky+ remote control to operate your TV on page 58.

61Sky+ User’s Guide

❖ System Setup

There should be no need for you to use the System Setup screens as your Sky+ set top box should have been correctly set up when it was installed.

However, the System Setup screens can be useful if, for example, you buy a new TV and you want to make sure your Sky+ set top box makes the best use of your new TV’s features.

To use the System Setup screens, press services on your Sky+ remote control. The Services screen appears on your TV. Highlight the System Setup option, then press select. The System Setup screen appears on your TV.

These System Setup options let you set the following:

◆ Picture Settings – to see and change the Sky+ set top box picture

format, video output type, contrast level and timeout for the Search & Scan banner. Select Save New Settings to conﬁrm any changes or press back up to cancel.

◆ Sound Settings – to see and change the type of sound output

and standard volume level, the optical digital-audio output setting (needed to receive a Dolby Digital 5.1 signal, see page 63) and to turn background music on or off. You can also turn the beep on or off. Select Save New Settings to conﬁrm any changes or press back up to cancel.

◆ Language and Subtitles – to see and change the preferred audio

language and to turn subtitles on or off, where available. Some programmes may offer a choice of language and/or subtitles. Select Save New Settings to conﬁrm any changes or press

back up to cancel.

EXTRA INFORMATION

62 Sky+ User’s Guide

You can easily reset the settings for your Sky+ set top box to the standard settings. Press the Reset (red) button when viewing the Picture Settings, Sound Settings and/or Language and Subtitles screens. Select Save New Settings to conﬁrm any changes you make or press back up to cancel.

◆ Add Channels – add Other Channels to your Sky Guide. For more

information, see Other Channels on page 56 and Adding Other Channels on page 64.

◆ System Details – to see details of your Sky+ set top box,

including your Sky+ set top box model number, manufacturer and your Sky Viewing Card number.

◆ Signal Test – to test the quality of the signals your Sky+ set top

box is receiving from the satellite via your satellite dish.

◆ System Test – to check that your Sky+ set top box is properly

connected to your telephone line.

The System Details, Signal Test and System Test can be useful if you ever have to call for technical help or repairs to your Sky+ set top box.

63Sky+ User’s Guide

❖ Optical digital-audio output

Your Sky+ set top box has an optical digital-audio output that can be connected using an optical cable (not supplied) to suitable hi-ﬁ / audio equipment that is capable of decoding a Dolby Digital signal.

If you are watching a programme that has a Dolby Digital soundtrack (indicated by the letters DD in the title bar of the programme synopsis), this connector will normally output a Dolby Surround Pro Logic signal. Within System Setup you can conﬁgure this connector to output a Dolby Digital signal, which can then be decoded by your hi-ﬁ/ audio equipment.

To turn on the Dolby Digital signal:

1. Highlight Sound Settings on the System Setup screen, then press select.

2. Highlight Optical Output and use the left or right arrow to change the setting to Dolby D.

3. Press the down arrow to highlight Save New Settings, then press select.

Dolby Digital audio is available only if the programme is broadcast with a Dolby Digital soundtrack.

EXTRA INFORMATION

64 Sky+ User’s Guide

❖ Adding Other Channels

There is normally no need for you to tune in satellite channels because Sky Guide tunes in all the available channels for you, including new channels as they are added to the digital satellite TV service.

Your Sky+ set top box is designed for receiving digital television signals transmitted at 28.2 or 28.5 degrees East, either unencrypted or encrypted using BSkyB’s encryption system. Reception of other digital satellite signals may be possible but is not guaranteed.

If you want to tune in other channels that are not listed in Sky Guide, for example foreign-language channels, complete the following steps:

1. Select the Add Channels option from the System Setup screen. The Add Channels screen appears on your TV.

2. Highlight Frequency and use the numbers to key in the transponder frequency.

3. Highlight Polarisation and use the left or right arrow to set the polarisation for the transponder.

4. Highlight Symbol Rate and use the left or right arrow to set the symbol rate for the transponder.

5. Highlight FEC and use the left or right arrow to set the FEC setting for the transponder.

6. Highlight Find Channels, then press select. Sky Guide checks the settings you entered and looks for any new channels at those settings.

65Sky+ User’s Guide

The New Channels screen appears on your TV. This is a list of the channels that your Sky+ set top box has found. You can select those you want to add to the Other Channels list.

7. To add a channel, highlight it, then press the Store Channel (yellow) key.

8. When you have ﬁnished adding Other Channels, press select. You will see a screen conﬁrming your new channel line-up.

To watch any of the Other Channels you have added, press services and select the Other Channels option. For more information, see Other Channels on page 56.

Your Sky+ set top box cannot record programmes listed on the Other Channels screen.

EXTRA INFORMATION

66 Sky+ User’s Guide

❖ Sky+ Setup

To display the Sky+ Setup screen, highlight Sky+ Setup on the Services screen and press select. Sky+ Setup allows you to:

◆ change the way in which Sky Guide manages your recordings;

◆ choose the way in which the front-panel indicator works.

Disk Space Management

To change the way in which Sky Guide manages your recordings:

1. Highlight Disk Space Management and use the left or right arrow to change the setting.

2. When you have selected your preferred setting, press the down arrow to highlight Save New Settings, then press select.

You can choose one of three settings:

◆ Automatic – recorded programmes will be deleted automatically

when there is insufﬁcient space to record new programmes.

Sky Guide will ﬁrst delete recorded programmes you have previously watched, then recorded programmes that you have not watched.

Sky Guide will not delete recorded programmes marked as Keep or viewed Box Office programmes.

◆ Warn – you will be notiﬁed shortly before your Sky+ set top

box runs out of disk space.

67Sky+ User’s Guide

Press select to continue the new recording and delete the old recording(s). Press back up to keep the old recording(s); the new recording will stop when there is no more disk space.

If you do not respond, the new recording will continue and the old recording(s) will be deleted automatically.

◆ Manual – you will be notiﬁed shortly before your Sky+ set top

box runs out of disk space. Recording(s) will never be deleted automatically.

Press select to continue the new recording and delete the old recording(s). Press back up to keep the old recording(s); the new recording will stop when there is no more disk space.

If you do not respond, the old recording(s) are not deleted and the new recording will stop when there is no more disk space.

If, despite deleting previous recordings, there is still insufﬁcient disk space available for a new recording, Sky Guide will only partially record your selected programme.

EXTRA INFORMATION

68 Sky+ User’s Guide

Front-panel recording/playback indicator

To choose the way in which the front-panel indicator works:

1. Highlight Front Panel Indicator and use the left or right arrow to change the setting.

2. When you have selected your preferred setting, press the down arrow to highlight Save New Settings and press select.

You can choose one of three settings:

◆ Standard – the recording, playback and/or circular playback

indicators light up if recording and/or playback is in progress.

◆ Off – the circular indicator is turned off, but the recording and/or

playback indicators light up if recording and/or playback are in progress.

◆ Demo – all of the indicators light up in a continuous sequence of

operation.

❖ Looking after your Sky Viewing Card

◆ Do not remove and re-insert your Sky Viewing Card

unnecessarily. There is no need to remove your Sky Viewing Card unless it is faulty or has expired.

◆ Do not bend your Sky Viewing Card.

◆ Keep your Sky Viewing Card away from heat and sunlight.

◆ Keep your Sky Viewing Card dry. Never clean it with ﬂuids – use

a soft, dry tissue.

◆ Keep your Sky Viewing Card away from small children and pets.

circular playback indicator

playback indicator

recording indicator

69Sky+ User’s Guide

This section shows you how your Sky+ set top box:

◆ can be connected to other equipment such as your hi-ﬁ / audio

system;

◆ can be reconnected after minor changes, for example, after you

have moved your TV or Sky+ set top box;

◆ settings can be updated.

WARNING!

You must disconnect your Sky+ set top box from the mains supply before you connect your Sky+ set top box to (or disconnect it from) any other equipment.

message remote command

online

back up

tv guide

stop

rew

play pause

rec

select

interactive card

message light

yellow when message waiting

online light

green when online (using the telephone line)

record key

records the programme

rewind key

rewinds the

standby key S

turns your Sky+ set top box

remote command light

red when receiving a command from the remote control

back up button

shows the previous screen

stop key

stops playback of the programme

pause key

pauses the programme or starts a ‘Live Pause’ recording

i key

shows information about the programme you have highlighted

tv guide key

shows the TV Guide screen

arrows

move the

recording/playback indicator

lights as appropriate when your Sky+ set top box is recording and playing back

play key

plays the programme

interactive card slot

insert your interactive card here when using interactive services and only when an instruction

Sky viewing card slot

(behind door) insert your Sky viewing card here

fast forward key

fast forwards the programme

select key

selects the option you have highlighted or confirms your choice

to do so appears on the screen

programmes

programme

on and off

standby light S

green when on red when off (standby)

highlight around the screen to select the option you want

Connecting your Sky+ set top box

CONNECTING YOUR SKY+ BOX

70 Sky+ User’s Guide

With the exceptions of the mains and the telephone line, all the interconnections between the rear panel of your Sky+ set top box and your other equipment are safe, extra-low voltage circuits.

❖ Connecting to the telephone line

The telephone lead (labelled in the diagram above) is intended for connection to standard analogue UK telephone lines. This lead and your Sky+ set top box have been speciﬁcally designed for this purpose. Do not attempt to connect the telephone lead to anything other than a standard UK telephone line.

❖ Digital interface

On the rear panel of your Sky+ set top box there is a plate, which covers a general-purpose interface. This is for future plug-in modules, which will have their own installation instructions. Only plug-in modules that are authorised by Sky must be used. You must

disconnect your Sky+ set top box from the mains before removing the plate or plugging in a module.

DOLBY

TELEPHONE

LINE

RS-232

VCR SCART

AUDIO

OUT

TV SCART

RF OUT - 1

AERIAL IN

230V 0.3A 50Hz

RF OUT - 2

9V DC 50mA max.

S-VIDEO

OPTICAL

AUDIO OUT

DISCONNECT FROM MAINS SUPPLY

BEFORE REMOVING COVER

NO USER SERVICEABLE PARTS INSIDE

WARNING!

FAN

DO NOT OBSTRUCT

AIR VENTS!

DIGITAL INTERFACES 5V DC 600mA max. 3V3 DC 1.2A max.

DIGITAL INTERFACES

DISCONNECT RECEIVER FROM THE

MAINS BEFORE REMOVING.

ACCURATELY FOLLOW THE MODULE

INSTALLATION INSTRUCTIONS.

WARNING!

13/18V DC 350mA max.

DISH INPUT 2

13/18V DC 350mA max. DISH INPUT 1

stereo hi-fi system and/or digital-audio decoder and amplifier/speakers

phono leads

optical digitalaudio lead

RF lead

SCART lead

RF lead

S-video lead satellite

dish

RF lead

terrestrial aerial

telephone lead

mains lead

second TV

Sky+ set

video recorder (VCR)

rear

top box

panel

71Sky+ User’s Guide

For further information and tips on getting the most out of your Sky+ set top box, tune to channel 999, the Sky Latest Channel, or 998, the Sky Welcome Channel.

If you need help or information about your TV or video recorder, please refer to the instruction books that came with them.

If you are having problems using your Sky+ set top box, see Solving problems on page 72.

You can also use Sky Guide to get help:

1. Press the interactive key on your Sky+ remote control.

2. Highlight Sky Customer Service, then press select. In a few moments the Sky Customer Service screen will appear.

3. Highlight Technical Assistance, then press select and use the onscreen menus to ﬁnd the help you need.

If you still have a problem, call Sky+ Customer Service. To ﬁnd the Sky+ Customer Service number, select the Telephone Numbers option from the Services screen.

Make sure you have your Sky Viewing Card number, Sky+ set top box brand and model number available before you call. You can ﬁnd this information on the System Details screen. To see this screen, press services on your Sky+ remote control, select the System Setup option, and then select System Details.

Further help

FURTHER HELP

72 Sky+ User’s Guide

❖ On-screen messages

Message Possible reason What to do now

Insert your Sky Viewing Card

There is no viewing card in the Sky Viewing Card slot in your Sky+ set top box.

Insert your viewing card into the Sky Viewing Card slot.

There is a problem with your Sky Viewing Card

Your Sky+ set top box cannot recognise your viewing card.

Check it is your Sky Viewing Card. Check it is in the right way up. Check that your card is not damaged.

If the problem continues, call Sky+ Customer Service. To ﬁnd the Sky+ Customer Service number, select the Telephone Numbers option from the Services screen.

Insert your new Sky Viewing Card

You have inserted your old Sky Viewing Card.

Remove your old Sky Viewing Card and insert your new Sky Viewing Card.

This viewing card is not authorised

Your Sky Viewing Card is not authorised.

Call the telephone number shown on your screen to get your Sky Viewing Card authorised.

There is a problem with your viewing card

Your Sky Viewing Card has developed a problem.

Call Sky+ Customer Service. To ﬁnd the Sky+ Customer Service number, select the Telephone

Numbers option from the Services screen.

This is the wrong card for this Sky+ set top box. Insert the correct Sky Viewing Card

You have more than one set top box and have put the wrong Sky Viewing Card in this Sky+ set top box.

Insert the correct Sky Viewing Card for this Sky+ set top box.

You cannot purchase this programme at the moment

You cannot buy this programme now.

You may be able to buy it later.

This programme has already started

The programme has already started and you cannot purchase it now.

Check the listings to ﬁnd out when it is next on.

The Sky+ Planner is full. You must delete an entry before another programme can be added.

You already have the maximum number of programmes in your Sky+ Planner. You must delete some.

Highlight the programmes you want to delete from your Sky+ Planner and press the Delete (yellow) key.

There is insufﬁcient credit left on your viewing card

There is not enough credit left on your Sky Viewing Card account to buy this programme.

First check that the telephone lead between your Sky+ set top box and the socket is properly plugged in. If the message persists, call the number shown on your screen so you can order this programme.

Solving problems

73Sky+ User’s Guide

Table 1:

Message Possible reason What to do now

There is insufﬁcient space left on your viewing card

There is not enough space on your Sky Viewing Card to store the information for this programme.

First check that the telephone lead between your Sky+ set top box and the socket is properly plugged in. If the message persists, call the number shown on your screen so you can order this programme.

You have entered your PIN incorrectly three times. PIN is now blocked for 10 minutes

Your PIN has been entered incorrectly three times in a row.

You will not be able to access anything that needs a PIN for 10 minutes. If you have forgotten your PIN, call Sky+ Customer Service. To ﬁnd the Sky+ Customer Service number, select the Telephone

Numbers option from the Services screen.

No satellite signal is being received

Your Sky+ set top box is not receiving a satellite signal.

Check the cables from your satellite dish are correctly plugged into the back of your Sky+ set top box. Always turn your Sky+ set top box off at the mains before plugging-in or unplugging any other equipment. If the problem continues, call Sky+ Customer Service. To ﬁnd the Sky+ Customer Service number, select the Telephone Numbers option from the Services screen.

Ensure that an operating telephone line is connected

Your Sky+ set top box is not connected to an operating telephone line.

Check that the telephone lead between your Sky+ set top box and the socket is properly plugged in. Always turn your Sky+ set top box off at the mains before plugging-in or unplugging any other equipment.

No signal found Your Sky+ set top box

was not able to ﬁnd a signal after you asked it to ﬁnd new channels.

Check the settings you entered were correct.

This programme is no longer available

You have selected a programme that is no longer available in your Sky+ Planner.

Select another programme.

Digital text is not available during playback

Your Sky+ set top box does not record digital text.

In order to view digital text, press Sky to return to live programmes, then press text.

You cannot record/ play back this programme

An unexpected error has occurred with your Sky+ set top box when you attempted to record or play back a programme.

Call Sky+ Customer Service.

To ﬁnd the Sky+ Customer Service number, select the Telephone Numbers option from the Services screen.

SOLVING PROBLEMS

74 Sky+ User’s Guide

Table 2:

Message Possible reason What to do now

System fault. Sky+ playback and recording are unavailable.

An unexpected error has occurred with your Sky+ set top box during system setup.

Call Sky+ Customer Service.

To ﬁnd the Sky+ Customer Service number, select the Telephone Numbers option from the Services screen.

Housekeeping. Please wait.

Your Sky+ set top box is attempting to resolve a system fault.

Wait for your Sky+ set top box to resolve the problem; if it is not resolved call Sky+ Customer Service. To ﬁnd the Sky+ Customer Service number, select the Telephone Numbers option from the Services screen.

Recording interrupted by loss of signal or cancellation. Please wait.

Your Sky+ set top box temporarily lost the satellite signal during recording, or recording was cancelled and restarted during the programme.

This message may be seen during playback of a recorded programme. After a few seconds your Sky+ set top box will continue playback from the point when the satellite signal returned or recording was turned on.

Play/Pause/Record are not available whilst in an interactive application

You have attempted to play, pause or record a programme while you are using an interactive application.

You cannot use these features while you are using an interactive application. Press Sky on your Sky+ remote control to leave the interactive application before using these keys.

You cannot record this programme

You have attempted to record a programme which cannot be recorded by your Sky+ set top box.

Select a different programme.

Recording/Live Pause is not available

Your Sky+ subscription has expired.

Call Sky+ Customer Service to renew your subscription. To ﬁnd the Sky+ Customer Service number, select the Telephone Numbers option from the Services screen.

The batteries in this remote control are low. Please replace within the next few days. (Or a battery symbol in the Search & Scan banner)

The batteries in the remote control need to be changed.

Change the batteries in your remote control as soon as possible.

75Sky+ User’s Guide

❖ General problems

Problem Possible reason What to do now

You’ve forgotten your PIN.

Call Sky+ Customer Service. To ﬁnd the Sky+ Customer Service number, select the Telephone Numbers option from the Services screen.

You can’t ﬁnd your Sky+ remote control.

Use the buttons on the front of your Sky+ set top box. You can perform most functions using these buttons.

Nothing is happening.

Your Sky+ set top box is not plugged into the mains.

Your Sky+ set top box is switched off (the standby light (S) is red).

Make sure the mains lead is properly plugged in and your Sky+ set top box is switched on.

Press Sky on your Sky+ remote control.

Your Sky+ remote control isn’t working.

The batteries are ﬂat or something is between your Sky+ remote control and your Sky+ set top box.

Make sure you point your Sky+ remote control directly at your Sky+ set top box, and that nothing is between it and your Sky+ set top box. The remote command light should ﬂash on your Sky+ set top box and on your Sky+ remote control each time you push a remote control key. If neither light ﬂashes, check the batteries in your Sky+ remote control.

Your Sky+ remote control works with your TV but not with your Sky+ set top box.

Someone has pressed tv on your Sky+ remote control.

Press tv then Sky on your Sky+ remote control.

Your Sky+ remote control isn’t working with your TV.

Someone has pressed Sky on your Sky+ remote control.

Press tv on your Sky+ remote control.

tv, vol and mute keys don’t work with your TV.

Your Sky+ remote control isn’t properly set to operate your TV.

Refer to Setting your Sky+ remote control to operate your TV on page 58.

You can’t ﬁnd a channel you have previously watched.

The channel only broadcasts for part of the day.

Check the TV Guide listings to see when the channel is available.

On-screen interference.

Your TV or video recorder is not correctly tuned.

Check that your TV and video recorder are correctly tuned to your Sky+ set top box. For further information, refer to your TV and video recorder instruction books. In some cases your Sky+ set top box may need re-tuning. Call Sky+ Customer Service for further advice. To ﬁnd the Sky+ Customer Service number, select the

Telephone Numbers

option from the

Services

screen.

SOLVING PROBLEMS

76 Sky+ User’s Guide

Due to continued product improvement, this speciﬁcation may change without notice.

General

Operating voltage: 230 V AC ±15%; 50 Hz

Power consumption: 60 W (max.); 45W (typical)

Weight: 8.4 kg (packed)

Dimensions (W x H x D): 422 mm x 76 mm x 355 mm

UHF modulator: CCIR PAL System I; Ch. 21 to 69 (factory setting is 68)

Operating temperature range: 0°C to +40°C

Storage temperature range: –20°C to +60°C

Rear-panel connectors

MAINS INPUT: IEC 320 2-pin

DISH INPUT 1: female F-type

DISH INPUT 2: female F-type

TV SCART: SCART (composite video out; RGB out)

VCR SCART: SCART (composite video in/out; RGB in)

S-VIDEO OUT 4-way mini-DIN

TELEPHONE LINE: RJ11

AERIAL IN: IEC 169-2 female

RF OUT - 1: IEC 165-2 male

RF OUT - 2: IEC 165-2 male

AUDIO OUT (LEFT and RIGHT): Phono sockets

OPTICAL AUDIO OUT Optical digital-audio socket (TOSLINK)

DIGITAL INTERFACE: General-purpose interface for future plug-in modules

RS-232: DB-9 female, data communications equipment (DCE)

EIA/TIA-232-E ITU-T V.28 115.2 kbit/s (max.)

If you connect earthed equipment to the RS-232 connector, you must use an approved screened cable.

The product complies with the following European Council Directives: – 73/23/EEC (the Low Voltage Directive) as amended; – 89/336/EEC (the EMC Directive) as amended; – 1999/5/EC (the R&TTE Directive) as amended.

Specifications

77Sky+ User’s Guide

System Setup screens (factory setting shown by *)

Picture settings:

Picture Format: *4:3; 16:9

Letterbox Mode: On; *Off

SCART Control: *On; Off

Video Output: *PAL (composite video); RGB (red, green, blue)

Contrast: Low; *Medium; High

Search & Scan Banner Time-out: 0 seconds; *5 seconds; 10 seconds

Sound settings:

Audio Output: *Stereo; Mono

Volume: Bar graph – *mid position

Optical Output: *Normal; Dolby D

Background Music: *On; Off

Beep: *On; Off

Languages and Subtitles:

Favourite Language: *English; French; German; Spanish; Irish; Scots; Welsh;

Punjabi; Hindi; Urdu; Chinese; Narrative

Subtitles: On; *Off

Sky+ Setup:

Disk Space Management: *Automatic; Warning; Manual

Front Panel Indicator: *Standard; Demo; Off

SPECIFICATIONS

78 Sky+ User’s Guide

You can use Sky Guide to get help on this topic:

1. Press the interactive key on your Sky+ remote control.

2. Highlight Sky Customer Service, then press select. In a few moments the Sky Customer Service screen will appear.

3. Highlight Technical Assistance, then press select and use the on-screen menus to ﬁnd the help you need.

If you still have a problem, call Sky+ Customer Service. To ﬁnd the Sky+ Customer Service number, select the Telephone Numbers option from the Services screen.

Brand Code Brand Code Brand Code

Akai 0098 Goldstar 0056 Protech 0595

Akura 0042 Goodmans 0335 Pye 0600

Alba 0043 Granada 0340 Roadstar 0625

Amstrad 0063 Grundig 0345 Saba 0645

BPL 0115 Harwood 0361 Saisho 0649

Bang & Olufsen 0118 Hinari 0365 Salora 0651

Baird 0117 Hitachi 0145 Samsung 0060

Beko 0125 ITT 0384 Sanyo 0159

Beon 0899 JVC 0053 Schneider 0665

Brionvega 0147 Loewe 0442 Seleco 0672

Bush 0157 Matsui 0477 Sharp 0093

Crown 0225 Memorex 0037 Siemens 0680

Daewoo 0092 Minoka 0921 Sony 0000

Decca 0244 Mitsubishi 0150 Soundwave 0702

Dual 0257 NEI 0514 Tandy 0741

Ferguson 0293 Nikkai 0528 Tatung 0049

Fidelity 0294 Nokia 0536 Technics 0250

Finlandia 0296 Nordmende 0537 Telefunken 0757

Finlux 0297 Orion 0549 Thomson 0771

Fisher 0154 Panasonic 0051 Thorn 0772

Funai 0179 Philips 0081 Thorn-Ferguson 0936

Genexxa 0330 Pioneer 0166 Toshiba 0156

Remote control setup codes

79Sky+ User’s Guide

About this User’s Guide . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Adding

Favourite Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Other Channels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Audio language

changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

A-Z listings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Banner

programme information . . . . . . . . . . . . . . . . . . . .16, 17

reminder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Search & Scan . . . . . . . . . . . . . . . . . . . . . . . . . .9, 29, 30

Batteries

replacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Bookmarks

deﬁning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

removing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

skipping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Box Ofﬁce. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Ordering a programme . . . . . . . . . . . . . . . . . . . . . . . 27

Capacity Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Card

Interactive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Sky Viewing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6, 68

Changing

channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

your PIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Channels

adding other. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

favourites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

found new . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

other . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Choosing

a programme to record . . . . . . . . . . . . . . . . . . . . . . . 15

a programme to watch. . . . . . . . . . . . . . . . . . . . . . . . 15

Clashing Programmes

recordings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Connecting

to the mains supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

to the telephone line . . . . . . . . . . . . . . . . . . . . . . . . . 70

your Sky+ set top box . . . . . . . . . . . . . . . . . . . . . . . . 69

Copy

selecting a programme . . . . . . . . . . . . . . . . . . . . . . . . 45

using . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Digital audio output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Digital interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Digital satellite TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Digital text. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Disk space management . . . . . . . . . . . . . . . . . . . . . . . . . 66

Dolby Digital. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18, 63

Index

INDEX

Favourite Channels

adding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

removing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

using . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Finding

a channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Front-panel recording/playback indicator . . . . . . . . . . . 68

Further help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Indicator

front-panel recording/playback . . . . . . . . . . . . . . . . . 68

Information

banner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 17

during playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Sky+ Planner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Interactive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Keep. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20, 21

PIN protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Keypad

setting to operate your Sky+. . . . . . . . . . . . . . . . . . . 59

Language

changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Live Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10, 11

Looking after your Sky Viewing Card . . . . . . . . . . . . . . . 68

Mains plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Optical digital-audio output . . . . . . . . . . . . . . . . . . . . . . 63

Ordering

Box Ofﬁce programmes. . . . . . . . . . . . . . . . . . . . . . . 27

Other Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

adding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Parental Control

accessing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

changing your PIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

during playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

removing a viewing restriction . . . . . . . . . . . . . . . . . . 50

setting a spending limit . . . . . . . . . . . . . . . . . . . . . . . . 51

setting a viewing restriction . . . . . . . . . . . . . . . . . . . . 50

using . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

PIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44, 49, 51, 52

changing your. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Playback

Bookmarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

choice of start position. . . . . . . . . . . . . . . . . . . . . . . . 36

during . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

fast forward / rewind. . . . . . . . . . . . . . . . . . . . . . . . . . 39

parental control of. . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

pausing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

in slow-motion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

stopping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

80 Sky+ User’s Guide

Playback

on-screen symbols . . . . . . . . . . . . . . . . . . . . . . . . 37, 43

Problem-Solving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Programme

ﬁnding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Record Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Recording

currently-showing programmes . . . . . . . . . . . . . . . . .29

future programmes . . . . . . . . . . . . . . . . . . . . . . . . . . .30

capacity warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

clashes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

radio channels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Remote control

replacing the batteries . . . . . . . . . . . . . . . . . . . . . . . . .60

setting to operate your TV . . . . . . . . . . . . . . . . . . . . .58

setup codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Removing

favourite channels. . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

viewing restrictions. . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Replacing the batteries . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Restrictions

Keep. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

spending . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

viewing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Search & Scan banner

timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

using. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Series Link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Services

parental control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Sky+ Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

system setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Set top box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Setting

disk space management. . . . . . . . . . . . . . . . . . . . . . . .66

front-panel recording/playback indicator. . . . . . . . . .68

spending limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

viewing restrictions. . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Settings

Sky+ set top box . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Sky Guide

Box Ofﬁce. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Interactive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

TV Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

What is it? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Sky Viewing Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6, 68

Sky+ Planner

removing a programme. . . . . . . . . . . . . . . . . . . . . . . .22

planner information . . . . . . . . . . . . . . . . . . . . . . . . . . .19

recording clashes . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Sky+ Planner

reminder clashes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

using reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

using Series Link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

using the colour keys . . . . . . . . . . . . . . . . . . . . . . . . . .21

Sky+ remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Sky+ set top box

connecting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

speciﬁcations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

system setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

turning on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Solving Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Speciﬁcations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

Spending Limit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Subtitles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Symbols

fast forward. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

pause (Bookmarked) . . . . . . . . . . . . . . . . . . . . . . . . . .41

play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Sky+ Planner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

understanding on-screen. . . . . . . . . . . . . . . . . . . . . . .43

System Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Sky+ Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Telephone line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Teletext . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Text

using digital text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

using teletext . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

TV Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Using

Box Ofﬁce. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

digital text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

equipment safely. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Interactive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Live Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Series Link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Sky+ Planner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

teletext . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

TV Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Viewing Restrictions

removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Volume

changing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Welcome to Sky+ !. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Pace Micro Technology plc

Victoria Road Saltaire Shipley

West Yorkshire BD18 3LF England

www.pace.co.uk

Pace® and

are trademarks of Pace Micro Technology plc.

502-2309502

Pace Sky plus User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
