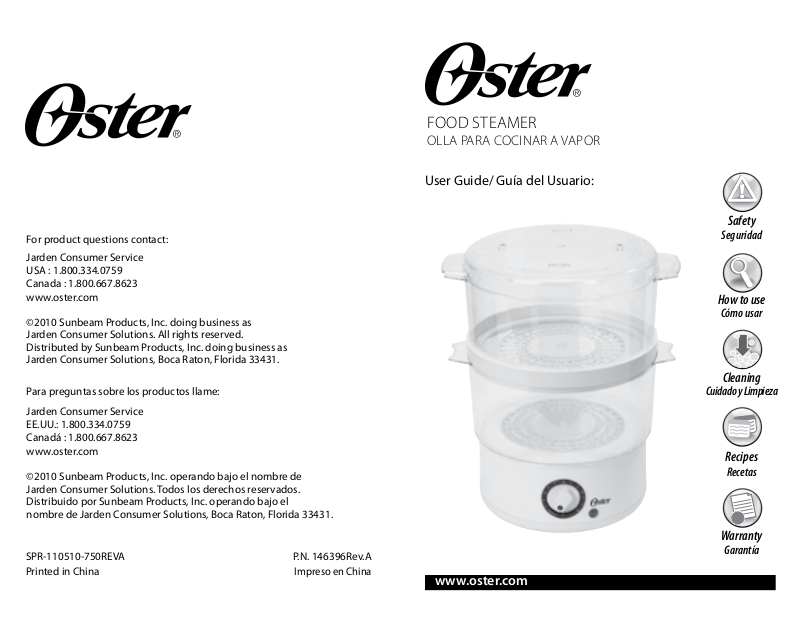

Oster CKSTSTMD5 User Guide

For product questions contact: Jarden Consumer Service

USA : 1.800.334.0759 Canada : 1.800.667.8623 www.oster.com

©2010 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions. All rights reserved. Distributed by Sunbeam Products, Inc. doing business as Jarden Consumer Solutions, Boca Raton, Florida 33431.

Para preguntas sobre los productos llame:

Jarden Consumer Service EE.UU.: 1.800.334.0759 Canadá : 1.800.667.8623 www.oster.com

©2010 Sunbeam Products, Inc. operando bajo el nombre de Jarden Consumer Solutions. Todos los derechos reservados. Distribuido por Sunbeam Products, Inc. operando bajo el nombre de Jarden Consumer Solutions, Boca Raton, Florida 33431.

SPR-110510-750REVA P.N. 146396Rev.A Printed in China

Impreso en China

FOOD STEAMER

OLLA PARA COCINAR A VAPOR

User Guide/ Guía del Usuario:

Safety

Seguridad

How to use

Cómo usar

Cleaning

Cuidado y Limpieza

Recipes

Recetas

Warranty

Garantía

www.oster.com

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions before using.

2. Do not touch hot surfaces. Use potholders when removing cover or handling hot containers to avoid steam burns. Lift and open cover carefully to avoid scalding and allow water to drip into steamer.

3. To protect against electrical shock, do not immerse cord, plug or base unit in water or other liquids.

4. Close supervision is necessary when any appliance is used by or near children.

5. Switch oﬀ and remove plug from outlet to disconnect steamer when not in use. Unplug before putting on or taking oﬀ parts, and allow to cool before cleaning.

6. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.

7. Do not use outdoors.

8. Do not let cord hang over edge of table or counter, or touch hot surfaces.

9. Do not operate appliance while empty or without water in the reservoir.

10. Do not place on or near a hot gas or electric burner, or in a heated oven.

11. Extreme caution must be used when moving an appliance containing hot food or water or other hot liquids.

12. Do not use appliance for other than intended use.

13. The use of accessory attachments not recommended by this appliance manufacturer may cause hazards.

This appliance has a polarized alternating current plug (one blade is wider than the other). To reduce the risk of electric shock, as a safety feature, this plug will ﬁt in a polarized outlet only one way. If the plug does not insert fully in the outlet, reverse the plug. If it still fails to ﬁt, contact a qualiﬁed electrician.

DO NOT ATTEMPT TO DEFEAT THIS SAFETY FEATURE.

EXTENSION CORD USE

A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. An extension cord may be used if care is exercised in its use. If an extension cord is used, the electrical rating of the cord must be at least as great as the electrical rating of the appliance. The extension cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

SAVE THESE INSTRUCTIONS

Thank you for purchasing the OSTER® Food Steamer.

Before you use this product for the ﬁrst time, please take a few moments to read these instructions and keep them for reference. Pay particular attention to the Safety Instructions provided. Please review the product service and warranty statements. Please do not return to the place of purchase. To learn more about Oster® products, please visit us at www.oster.com or call us at 1-800-334-0759.

THIS UNIT IS INTENDED FOR

HOUSEHOLD USE ONLY.

2 3

www.oster.com

LEARNING ABOUT YOUR OSTER® FOOD STEAMER

Lid

Upper steaming bowl

Separator ring

Lower steaming bowl

Water reservoir

Steaming base

Timer

Power Indicator Light

HOW TO:

Before The First Use

1 Thoroughly wash lid and both steaming bowls in warm,

soapy water, then rinse and dry carefully.

2 Wipe the inside of the water reservoir with a damp cloth.

Using Your Steamer

1 Place unit on a ﬂat, sturdy surface with adequate clearance

(i.e., do not place under wall cabinets). The steamer unit and components are not for use in ovens (microwave, convection or conventional) or on stovetop.

2 Fill water reservoir with clean water only (Fig. 1). Do not put

any other liquids or add any salt, pepper, etc., in the water reservoir. Make sure the water does not exceed the “MAX” ﬁll level or go lower than the “MIN” ﬁll level as indicated inside the water reservoir.

Fig 1

4 5

www.oster.com

3 Place vegetable, seafood or other

foods without sauce or liquid into the steaming bowl. Arrange food in center of bowl. Try not to block steam vents.

Note: Place the largest piece of food with longest cooking time in the lower steaming bowl.

For Single Tier Steamer

4 Place lower bowl on base. (Fig. 2).

Fig 2

For Double Tier Steamer

5 Place lower bowl on base, place

separator ring on top of lower bowl, then place upper bowl on top. (Fig 3).

Note: When handling and removing hot components, use POTHOLDERS to avoid burns from hot steam.

Timer Setting (Maximum 60 Minutes)

Set the timer to the recommended cooking time (experiment with adjusting steam times to achieve your desired results). The light turns on and steam will begin to generate. The light will turn oﬀ when cooking is completed and the timer will give a signal bell.

Note: Cooking times are estimates and depend on the quantity, size, required degree of cooking and temperature of food. Consider the cooking times given in the guide as suggested times for double tier steamer.

Fig 3

CARE & CLEANING

1 Unplug cord from outlet and allow Steamer to

cool before cleaning.

2 Never immerse the Base, Cord or Plug in water. 3 Empty the Water Reservoir. 4 Wash Lid and Steaming Bowls in hot, soapy water.

Rinse and dry all parts, or wash on top rack of dishwasher.

5 Clean Reservoir with soapy water then wipe with damp cloth. 6 Do not use abrasive cleaners. 7 In hard water areas, the scale may build up on the heating

element. If scale is allowed to accumulate, the steam could turn oﬀ before the food is cooked. After 7-10 uses, pour clear vinegar into the Water Reservoir to the “MIN” level, then ﬁll with water up to the “MAX” level. Do not place Lid and Steaming Bowls on base during this procedure.

8 Plug in and set timer to 20 minutes. When the timer is

complete, unplug cord from outlet. Allow the unit to cool completely before emptying the water reservoir. Use cold water to rinse the water reservoir several times.

www.oster.com

RECIPES

Vegetables

1 Clean vegetables thoroughly. Cut oﬀ stems; trim, peel or

chop if necessary. Smaller pieces steam faster than larger ones.

2 Frozen vegetables should not be thawed before steaming. 3 Quantity, quality, freshness, size/uniformity and temperature

of frozen food may aﬀect steam timing. Adjust water amounts and cooking time as desired.

4 The frozen foods should be separated or stirred after 10–12

minutes. Use a long-handled fork or spoon to separate or stir foods.

Vegetables

Variety

Artichokes, Whole 4 whole, tops trimmed 33 – 35

Asparagus, Spears 1 pound 13 – 17

Beans

Green/Wax 1/2 pound 13 – 17

Cut or Whole 1 pound 15 – 19

Beets 1 pound, cut 28 – 31

Broccoli, Spears 1 pound 13 – 17

Brussels Sprouts 1 pound 18 – 21

Cabbage 1 pound, sliced 19 – 21

Celery 1/2 pound, thinly sliced 17 – 19

Carrots 1 pound, thinly sliced 13 – 17

Cauliﬂower, Whole 1 pound 13 – 17

Corn on the Cob 3 – 5 ears 28 – 33

Eggplant 1 pound 19 – 21

Mushrooms, Whole 1 pound 28 – 33

Okra 1 pound 21 – 23

Onions 1/2 pound, thinly sliced 15 – 17

Parsnips 1/2 pound 13 – 17

Peas 1 pound shelled 15 – 16

Peppers, Whole Up to 4 medium (not stuﬀed) 15 – 16

Potatoes, Whole - Red 1 pound, about 6 small 38 – 48

Rutabaga 1 medium, diced 31 – 33

Spinach 1/2 pound 17 – 19

Squash

Summer Yellow and Zucchini 1 pound, sliced 15 – 17

Winter Acorn and Butternut 1 pound 25 – 27

Turnips 1 pound, sliced 23 – 25

All Frozen Vegetables 10 ounces 31 – 53

NOTE: Times are for reference. Experiment with steam times to achieve your desired results.

Wt. or Number of Piecess Approx. Time (Minutes))

www.oster.com
