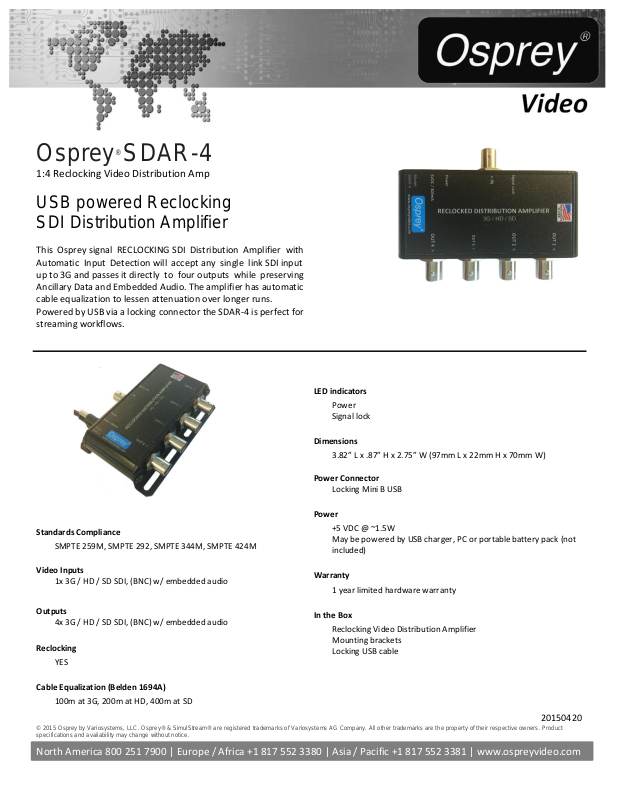

Osprey Video SDAR-4 Datasheet
Osprey
®
SDAR-4
1:4 Reclocking Video Distribution Amp
USB powered Reclocking
SDI Distribution Amplifier
This Osprey signal RECLOCKING SDI Distribution Amplifier with
Automatic Input Detection will accept any single link SDI input
up to 3G and passes it directly to four outputs while preserving
Ancillary Data and Embedded Audio. The amplifier has automatic
cable equalization to lessen attenuation over longer runs.
Powered by USB via a locking connector the SDAR-4 is perfect for
streaming workflows.
Standards Compliance
SMPTE 259M, SMPTE 292, SMPTE 344M, SMPTE 424M
Video Inputs
1x 3G / HD / SD SDI, (BNC) w/ embedded audio
Outputs
4x 3G / HD / SD SDI, (BNC) w/ embedded audio
Reclocking
YES
Cable Equalization (Belden 1694A)
100m at 3G, 200m at HD, 400m at SD
LED indicators
Power
Signal lock
Dimensions
3.82” L x .87” H x 2.75” W (97mm L x 22mm H x 70mm W)
Power Connector
Locking Mini B USB
Power
+5 VDC @ ~1.5W
May be powered by USB charger, PC or portable battery pack (not
included)
Warranty
1 year limited hardware warranty
In the Box
Reclocking Video Distribution Amplifier
Mounting brackets
Locking USB cable
© 2015 Osprey by Variosystems, LLC. Osprey® & SimulStream® are registered trademarks of Variosystems AG Company. All other trademarks are the property of their respective owners. Product
specifications and availability may change without notice.
North America 800 251 7900 | Europe / Africa +1 817 552 3380 | Asia / Pacific +1 817 552 3381 | www.ospreyvideo.com
20150420
