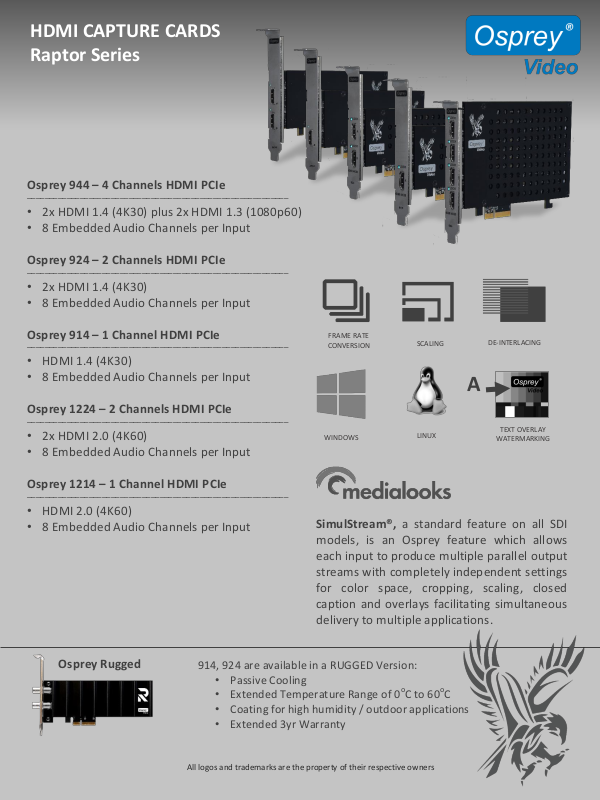

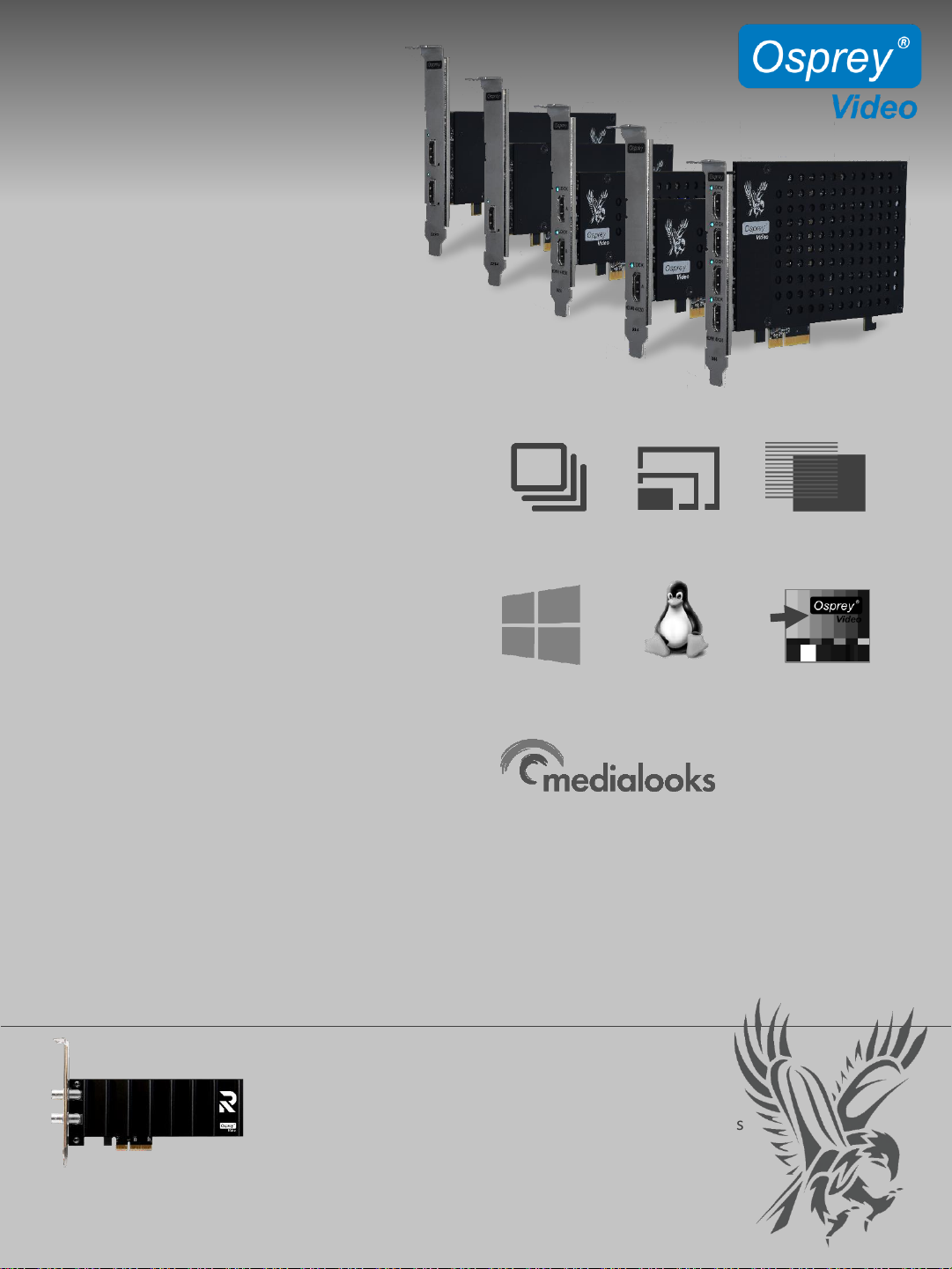

HDMI CAPTURE CARDS
Raptor Series

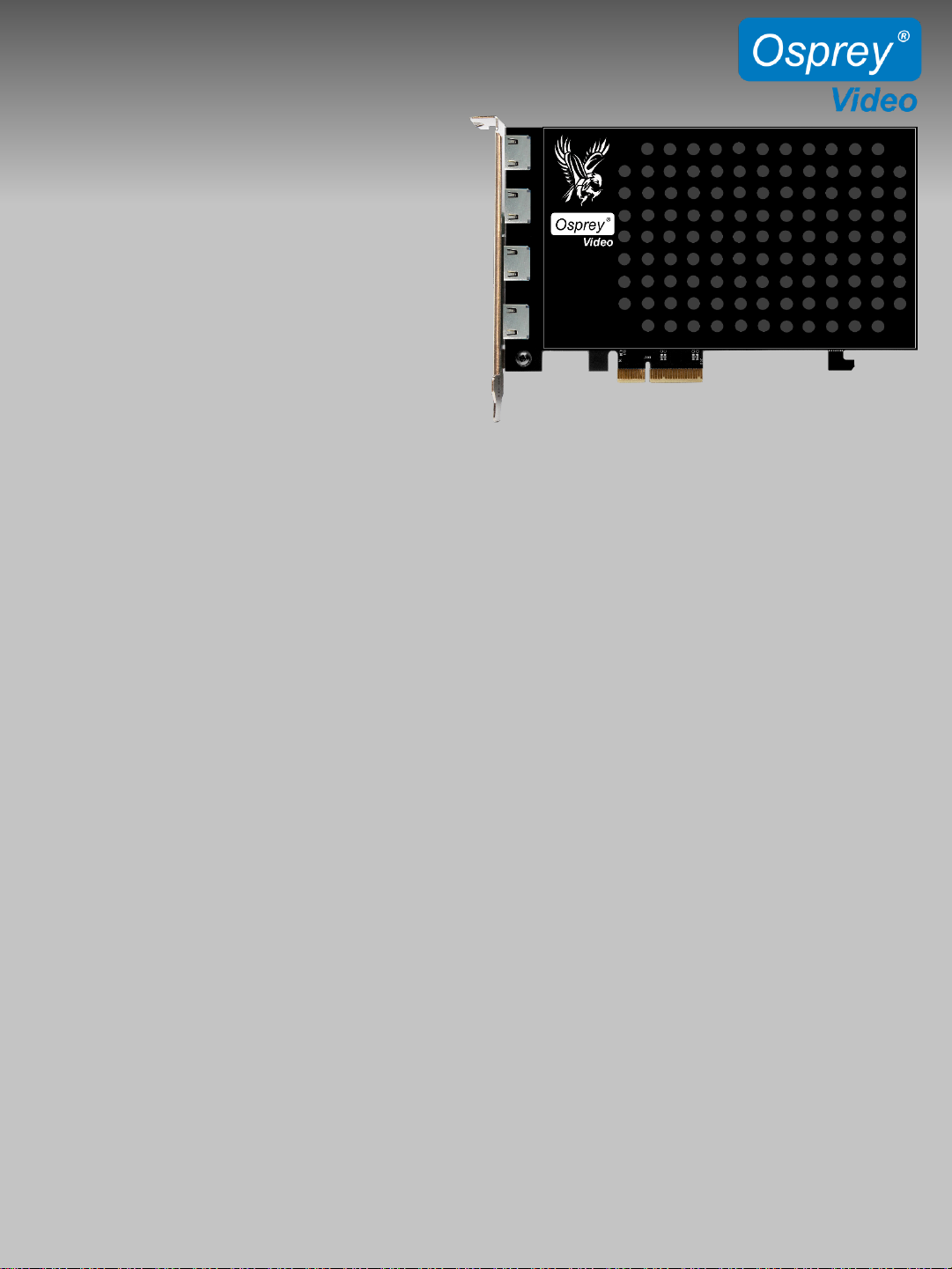

Osprey 944 – 4 Channels HDMI PCIe
___________________________________________________________
• 2x HDMI 1.4 (4K30) plus 2x HDMI 1.3 (1080p60)
• 8 Embedded Audio Channels per Input

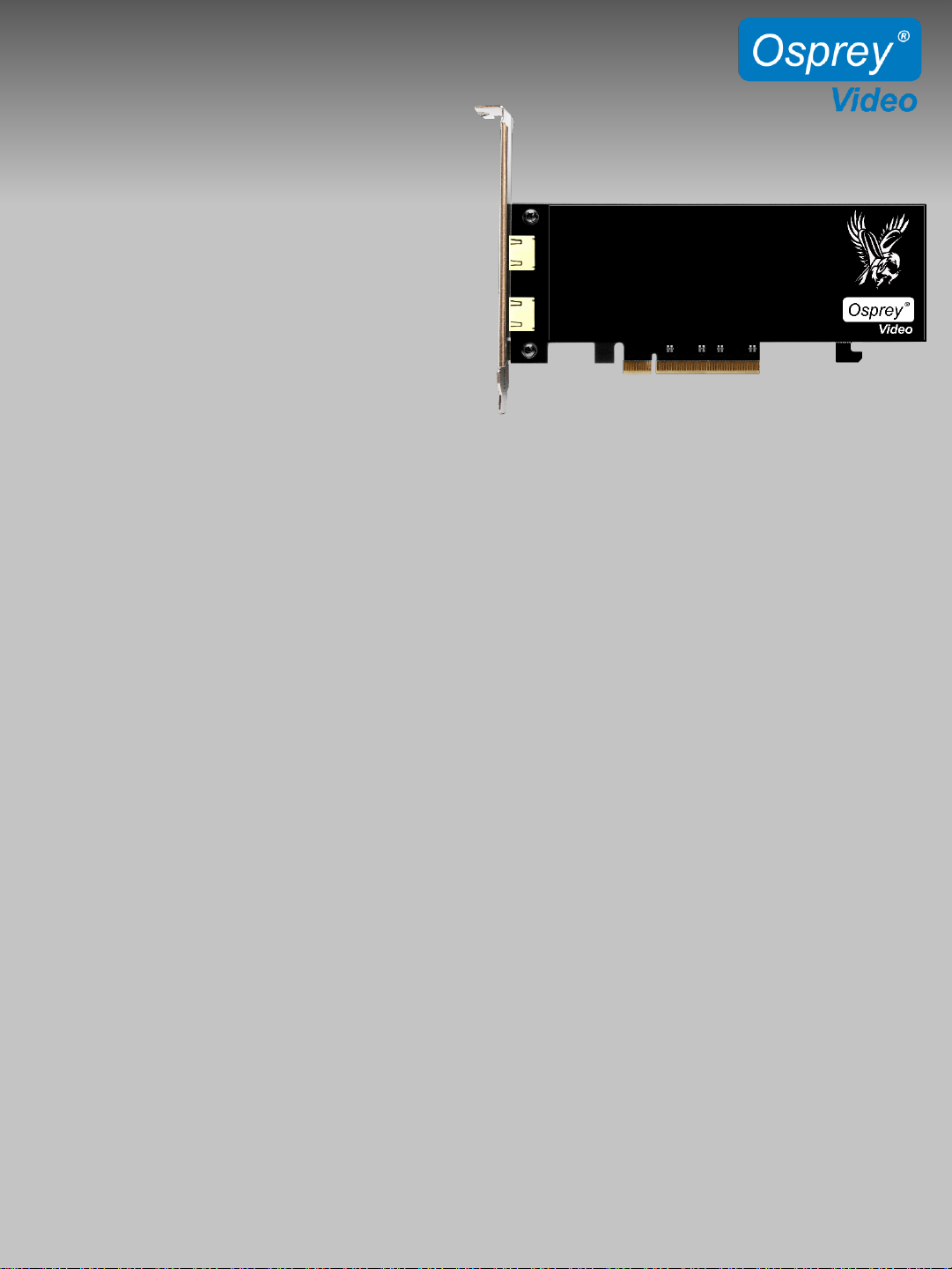

Osprey 924 – 2 Channels HDMI PCIe
___________________________________________________________
• 2x HDMI 1.4 (4K30)
• 8 Embedded Audio Channels per Input

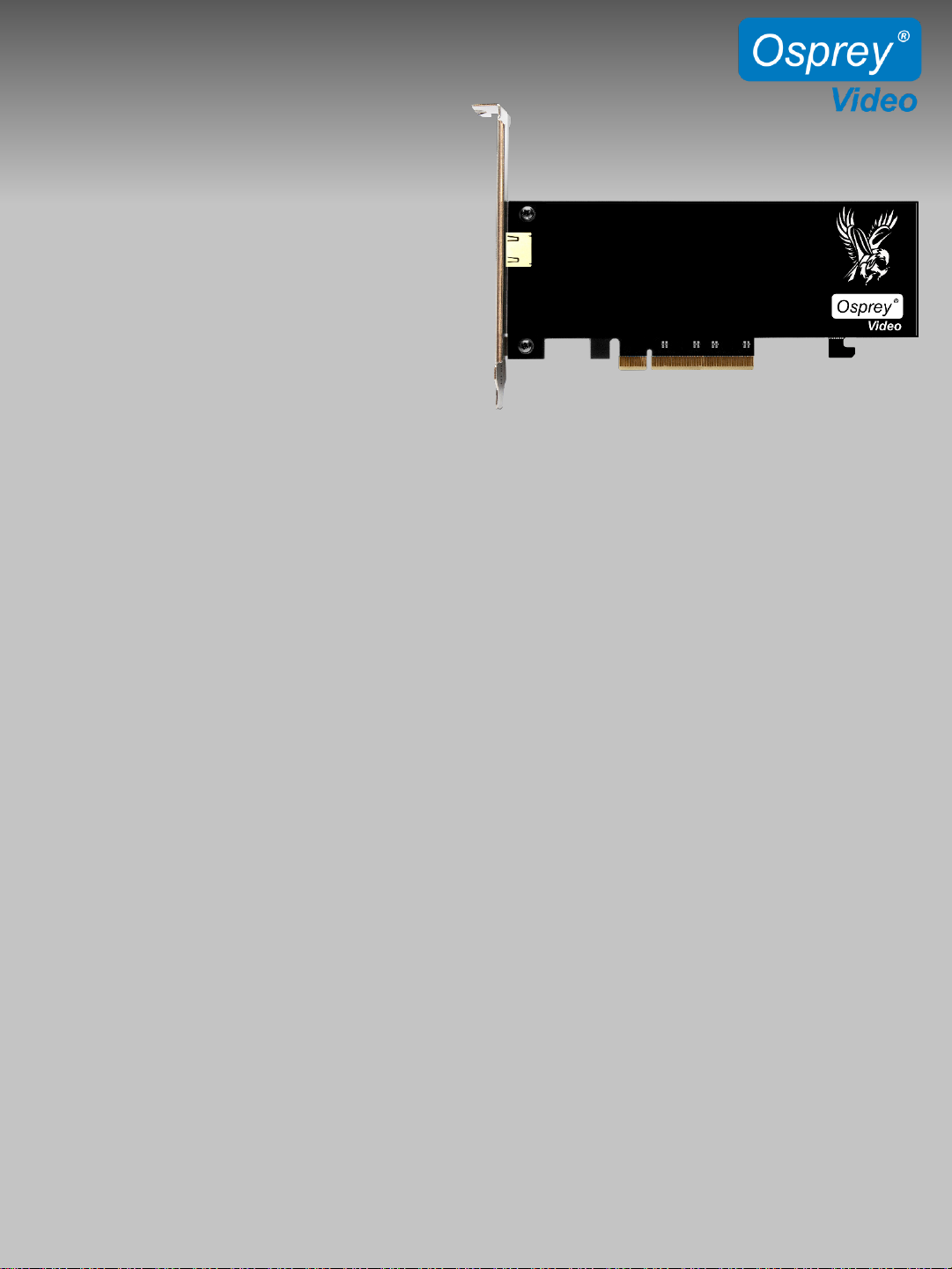

Osprey 914 – 1 Channel HDMI PCIe
___________________________________________________________
• HDMI 1.4 (4K30)
• 8 Embedded Audio Channels per Input

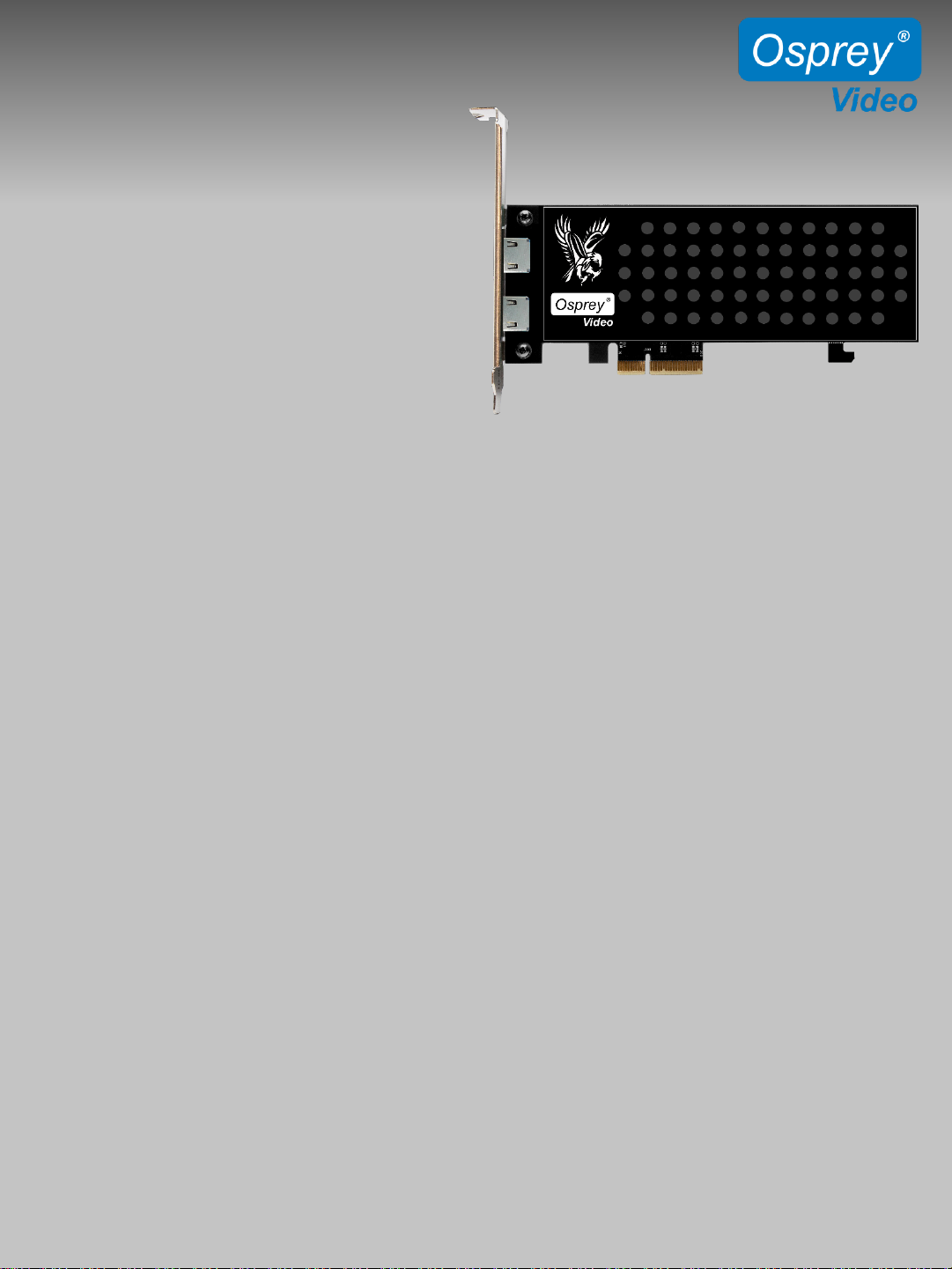

Osprey 1224 – 2 Channels HDMI PCIe
___________________________________________________________
• 2x HDMI 2.0 (4K60)
• 8 Embedded Audio Channels per Input

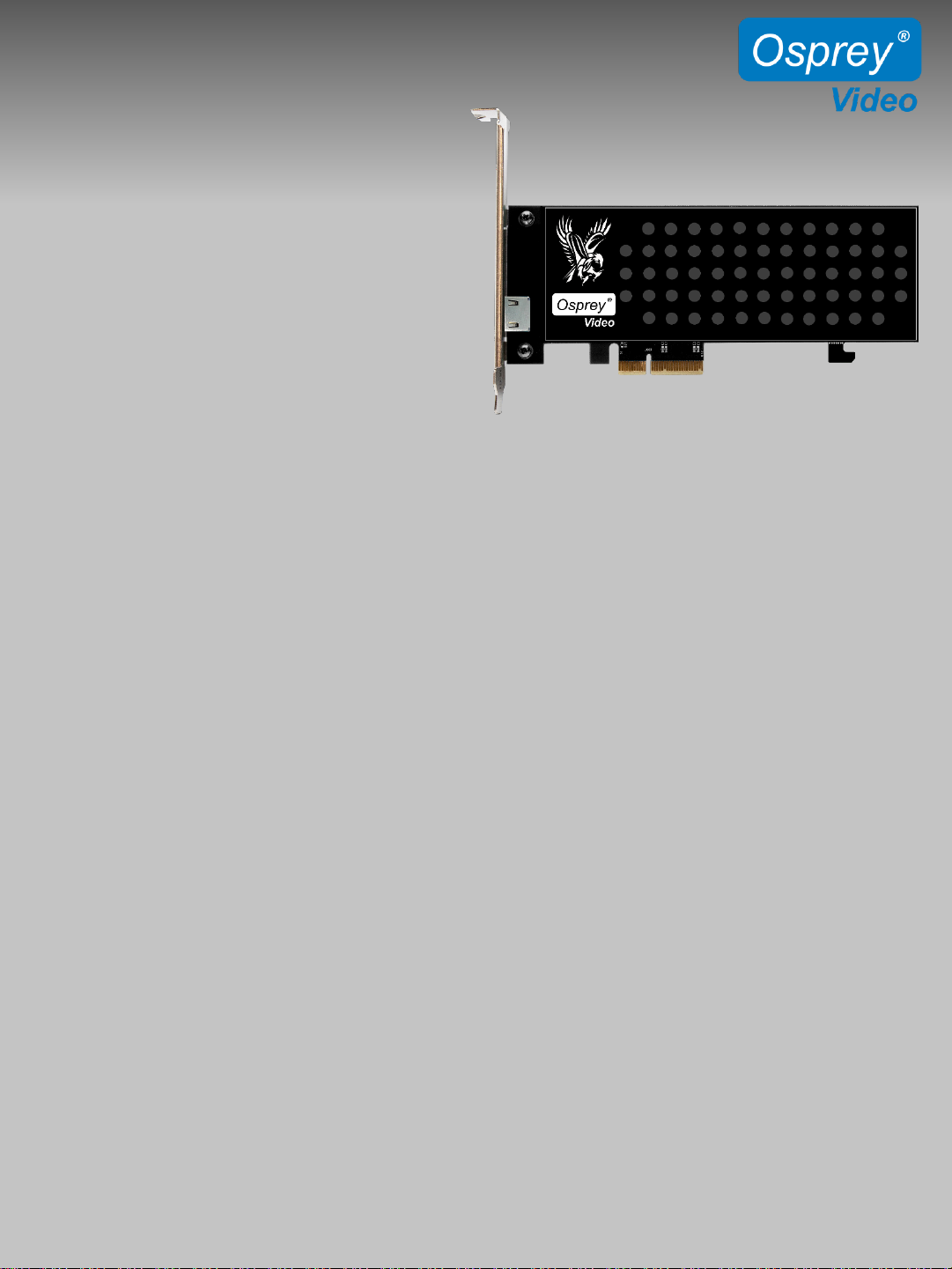

Osprey 1214 – 1 Channel HDMI PCIe
___________________________________________________________
• HDMI 2.0 (4K60)
• 8 Embedded Audio Channels per Input
SCALING
FRAME RATE
CONVERSION
DE-INTERLACING
WINDOWS
LINUX
A
TEXT OVERLAY
WATERMARKING
SimulStream®, a standard feature on all SDI
models, is an Osprey feature which allows
each input to produce multiple parallel output
streams with completely independent settings
for color space, cropping, scaling, closed
caption and overlays facilitating simultaneous
delivery to multiple applications.
914, 924 are available in a RUGGED Version:
• Passive Cooling
• Extended Temperature Range of 0oC to 60oC
• Coating for high humidity / outdoor applications
• Extended 3yr Warranty
Osprey Rugged
All logos and trademarks are the property of their respective owners
Page 2
Model:
95-00506 Osprey 944
Description
_________________________________________________________
• Two channels HDMI1.4 (4K30)
• Two channels HDMI1.3 (1080P60)
PCI Format
_________________________________________________________
• PCI Express Gen2 (x 4):
• Slots: x4, x 8, or x 16
Video Connectors
_________________________________________________________
• Full Size HDMI x4 (Type A)
Video Modes
_________________________________________________________
• UHD 3840x2160p 23.98, 24, 25, 29.97, 30
• DCI 4096x2160p 23.98, 24
• 1080i 50, 59.94, 60
• 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• 720p 50, 59.94, 60
• 576p, 480p
PC Video Standards
_________________________________________________________
• 1920x1200, 1600x1200, 1400x1050, 1200x1024
1280x960, 1360x768, 1280x768, 1024x768
800x600, 640x480
Audio
_________________________________________________________
• 4 Embedded Stereo Pairs for each HDMI input
Osprey® 944
Video capture card
Dimensions
_______________________________________________________
• 6.60” L x 4.38” H (16.76cm L x 11.13cm H)
• Full Height
In the Box
_______________________________________________________
• Capture Card
Weight
_______________________________________________________
• ~ 182 g
Power Consumption
_______________________________________________________
• ~ 4.8 W
Temperature Range
_______________________________________________________
• 0 to 40C Operating Temperature
• -40 to 75C Non-Operating Temperature
Humidity Range (non-condensing)
_______________________________________________________
• Between 5% and 80% Operating
• 95% RH, gradient 30% per hour Non-
Operating
Altitude Range
_______________________________________________________
• 0 to 3,048m (10,000ft) Operating
• 0 to 15,240m (50,000ft) Non-Operating
Technical Specifications
Page 3
Model:
95-00505 Osprey 924
Description
_________________________________________________________
• Two channels HDMI1.4 (4K30)
PCI Format
_________________________________________________________
• PCI Express Gen2 (x 4):
• Slots: x4, x 8, or x 16
Video Connectors
_________________________________________________________
• Full Size HDMI x2 (Type A)
Video Modes
_________________________________________________________
• UHD 3840x2160p 23.98, 24, 25, 29.97, 30
• DCI 4096x2160p 23.98, 24
• 1080i 50, 59.94, 60
• 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• 720p 50, 59.94, 60
• 576p, 480p
PC Video Standards
_________________________________________________________
• 1920x1200, 1600x1200, 1400x1050, 1200x1024
1280x960, 1360x768, 1280x768, 1024x768
800x600, 640x480
Audio
_________________________________________________________
• 4 Embedded Stereo Pairs for each HDMI input
Osprey® 924
Video capture card
Dimensions
_______________________________________________________
• 6.60” L x 2.71” H (16.76cm L x 6.88cm H)
• Full Height
In the Box
_______________________________________________________
• Capture Card with Full Height Bracket
• Half Height Bracket
Weight
_______________________________________________________
• ~ 146 g
Power Consumption
_______________________________________________________
• ~ 4.8 W
Temperature Range
_______________________________________________________
• 0 to 40C Operating Temperature
• -40 to 75C Non-Operating Temperature
Humidity Range (non-condensing)
_______________________________________________________
• Between 5% and 80% Operating
• 95% RH, gradient 30% per hour Non-
Operating
Altitude Range
_______________________________________________________
• 0 to 3,048m (10,000ft) Operating
• 0 to 15,240m (50,000ft) Non-Operating
Technical Specifications
Page 4
Model:
95-00504 Osprey 914
Description
_________________________________________________________
• Single Channel HDMI1.4 (4K30)
PCI Format
_________________________________________________________
• PCI Express Gen2 (x 4):
• Slots: x4, x 8, or x 16
Video Connectors
_________________________________________________________
• Full Size HDMI x1 (Type A)
Video Modes
_________________________________________________________
• UHD 3840x2160p 23.98, 24, 25, 29.97, 30
• DCI 4096x2160p 23.98, 24
• 1080i 50, 59.94, 60
• 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• 720p 50, 59.94, 60
• 576p, 480p
PC Video Standards
_________________________________________________________
• 1920x1200, 1600x1200, 1400x1050, 1200x1024
1280x960, 1360x768, 1280x768, 1024x768
800x600, 640x480
Audio
_________________________________________________________
• 4 Embedded Stereo Pairs
Osprey® 914
Video capture card
Dimensions
_______________________________________________________
• 6.60” L x 2.71” H (16.76cm L x 6.88cm H)
• Full Height
In the Box
_______________________________________________________
• Capture Card with Full Height Bracket
• Half Height Bracket
Weight
_______________________________________________________
• ~ 138 g
Power Consumption
_______________________________________________________
• ~ 4.8 W
Temperature Range
_______________________________________________________
• 0 to 40C Operating Temperature
• -40 to 75C Non-Operating Temperature
Humidity Range (non-condensing)
_______________________________________________________
• Between 5% and 80% Operating
• 95% RH, gradient 30% per hour Non-
Operating
Altitude Range
_______________________________________________________
• 0 to 3,048m (10,000ft) Operating
• 0 to 15,240m (50,000ft) Non-Operating
Technical Specifications
Page 5
Model:
95-00518 Osprey 1224
Description
_________________________________________________________
• Two channels HDMI2.0 (4K60)
PCI Format
_________________________________________________________
• PCI Express Gen2 (x 8):
• Slots: x4, x 8, or x 16
Video Connectors
_________________________________________________________
• Full Size HDMI x2 (Type A)
Video Modes
_________________________________________________________
• UHD 2160p 23.98, 24, 25, 29.97, 30, 50, 60
• 1080i 50, 59.94, 60
• 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• 720p 50, 59.94, 60
• 576p, 480p
Audio
_________________________________________________________
• 4 Embedded Stereo Pairs for each HDMI input
Osprey® 1224
Video capture card
Dimensions
_______________________________________________________
• 6.60” L x 2.71” H (16.76cm L x 6.88cm H)
• Full Height
In the Box
_______________________________________________________
• Capture Card with Full Height Bracket
• Half Height Bracket
Weight
_______________________________________________________
• ~ 146 g
Power Consumption
_______________________________________________________
• ~ 4.8 W
Temperature Range
_______________________________________________________
• 0 to 40C Operating Temperature
• -40 to 75C Non-Operating Temperature
Humidity Range (non-condensing)
_______________________________________________________
• Between 5% and 80% Operating
• 95% RH, gradient 30% per hour Non-
Operating
Altitude Range
_______________________________________________________
• 0 to 3,048m (10,000ft) Operating
• 0 to 15,240m (50,000ft) Non-Operating
Technical Specifications
Page 6
Model:
95-00517 Osprey 1214
Description
_________________________________________________________
• Single Channel HDMI2.0 (4K60)
PCI Format
_________________________________________________________
• PCI Express Gen2 (x 8):
• Slots: x 8, or x 16
Video Connectors
_________________________________________________________
• Full Size HDMI x1 (Type A)
Video Modes
_________________________________________________________
• UHD 2160p 23.98, 24, 25, 29.97, 30, 50, 60
• 1080i 50, 59.94, 60
• 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• 720p 50, 59.94, 60
• 576p, 480p
Audio
_________________________________________________________
• 4 Embedded Stereo Pairs
Osprey® 1214
Video capture card
Dimensions
_______________________________________________________
• 6.60” L x 2.71” H (16.76cm L x 6.88cm H)
• Full Height
In the Box
_______________________________________________________
• Capture Card with Full Height Bracket
• Half Height Bracket
Weight
_______________________________________________________
• ~ 138 g
Power Consumption
_______________________________________________________
• ~ 4.8 W
Temperature Range
_______________________________________________________
• 0 to 40C Operating Temperature
• -40 to 75C Non-Operating Temperature
Humidity Range (non-condensing)
_______________________________________________________
• Between 5% and 80% Operating
• 95% RH, gradient 30% per hour Non-
Operating
Altitude Range
_______________________________________________________
• 0 to 3,048m (10,000ft) Operating
• 0 to 15,240m (50,000ft) Non-Operating
Technical Specifications
Page 7

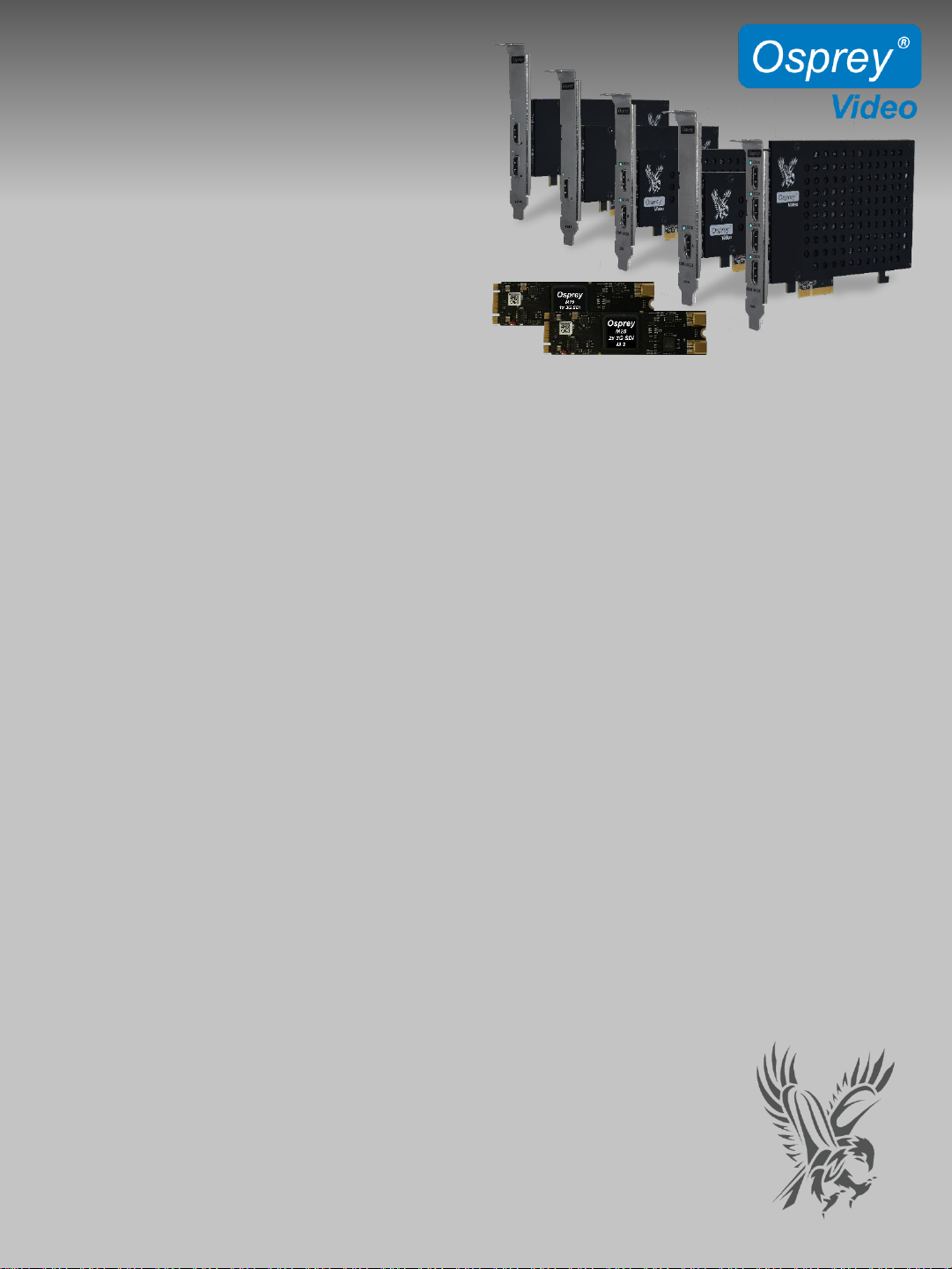

Raptor Series 12xx, 9xx ,Mxx
Common Technical Specifications
Operating Temp Range
_________________________________________________________
• 0 to 40 C
• 0 to 60 C for Rugged Version
Non-Operating Temp Range
_________________________________________________________
• -40 to +75 C
Relative Humidity Operating
_________________________________________________________
• Between 5% and 80% (noncondensing)
Relative Humidity Non-Operating
_________________________________________________________
• 95% RH (non-condensing); gradient 30% per
hour
Available Drivers
_________________________________________________________
• Microsoft Windows
• Linux
• For more information on the latest OS
compatibility please visit:
www.ospreyvideo.com
Operating Altitude Range
_______________________________________________________________
• 0 to 3,048 meters (10,000 feet)
Non-Operating Altitude Range
_______________________________________________________________
• 0 to 15,240 meters (50,000 feet)
System Recommendations
_______________________________________________________________
• High quality video capture requires a PCIe bus
with direct access to the CPU
Warranty
_______________________________________________________________
• 2 Years
• 3 Years for Rugged Version
Compliance
_______________________________________________________________
• CE, FCC, ROHS, WEEE
In the box
_______________________________________________________________
• Capture Card
• All applicable cables, adapters & brackets
Loading...
