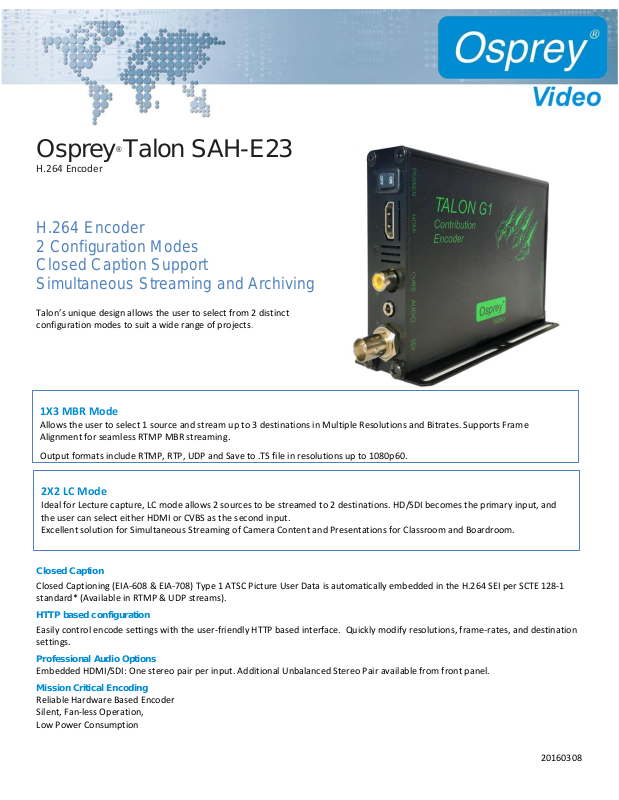

Page 1
20160308
Osprey
®
Talon SAH-E23
H.264 Encoder
H.264 Encoder
2 Configuration Modes
Closed Caption Support
Simultaneous Streaming and Archiving
Talon’s unique design allows the user to select from 2 distinct
configuration modes to suit a wide range of projects.
Closed Caption
Closed Captioning (EIA-608 & EIA-708) Type 1 ATSC Picture User Data is automatically embedded in the H.264 SEI per SCTE 128-1
standard* (Available in RTMP & UDP streams).
HTTP based configuration
Easily control encode settings with the user-friendly HTTP based interface. Quickly modify resolutions, frame-rates, and destination
settings.
Professional Audio Options
Embedded HDMI/SDI: One stereo pair per input. Additional Unbalanced Stereo Pair available from front panel.
Mission Critical Encoding
Reliable Hardware Based Encoder
Silent, Fan-less Operation,
Low Power Consumption
1X3 MBR Mode
Allows the user to select 1 source and stream up to 3 destinations in Multiple Resolutions and Bitrates. Supports Frame
Alignment for seamless RTMP MBR streaming.
Output formats include RTMP, RTP, UDP and Save to .TS file in resolutions up to 1080p60.
2X2 LC Mode
Ideal for Lecture capture, LC mode allows 2 sources to be streamed to 2 destinations. HD/SDI becomes the primary input, and
the user can select either HDMI or CVBS as the second input.
Excellent solution for Simultaneous Streaming of Camera Content and Presentations for Classroom and Boardroom.
Page 2
© 2016 Osprey Video. Osprey® & SimulStream® are registered trademarks of Variosystems AG Company. All other trademarks are the property of their respective owners. Product specifications and
availability may change without notice.
North America 800 251 7900 | Europe / Africa +1 817 552 3380 | Asia / Pacific +1 817 552 3381 | www.ospreyvideo.com
Specifications
Description:
2 channel Hardware Based Encoder
Software Control:
HTTP-Based GUI: Configuration and Software Update
Ethernet Connector:
1 GigE x 1
Video Input:
3G SMPTE 424M
HD SMPTE 292M
SD SMPTE 259M
HDMI 1080P/60
Composite (CVBS)
Video Connector:
Composite (RCA x 1)
SDI (BNC x 1)
HDMI (HDMI Type A x 1)
Audio Input:
Unbalanced stereo
Embedded SDI (1 stereo pair)
Embedded HDMI (1 stereo pair)
Audio Connector:
Unbalanced stereo (3.5mm x 1)
USB Connector:
USB Type A 2.0
Video Modes:
1080p 23.98, 24, 25, 29.97, 30, 50, 59.95, 60
1080i 50, 59.94, 60
720p 23.98, 24, 25, 29.97, 50, 59.94, 60
720 x 480 29.97, 30/i (NTSC)
720 x 576 25/i (PAL)
720 x 576 25, 50/p
Encoding:
Video Encoding: H.264 RTMP, RTP, MPEG-2 TS UDP, .TS File
Audio Encoding: AAC-LC & AAC-HE (32 to 320 kbps)
Closed Caption:
Closed Captioning (EIA-608 & EIA-708) Type 1 ATSC Picture
User Data is automatically embedded in the H.264 SEI per
SCTE 128-1 standard*
LED Indicators:
Power
Unit Ready
Unit Encoding
Signal Lock for SDI, HDMI, Composite
Dimensions:
93.1mm X 120.2mm X 24.75mm (Chassis only. Does not
include mounting brackets or connectors)
Weight:
260g
Power Consumption:
6W
Warranty:
1 year limited hardware warranty
*Server and player must support closed caption data in order
for the closed caption overlay to be available for display
