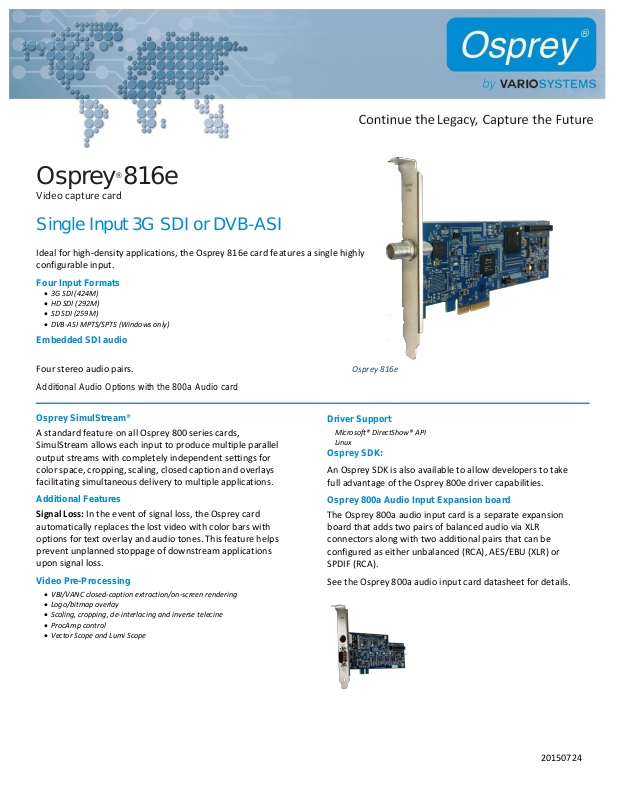

Osprey 816e
Osprey
®
816e
Video capture card
Single Input 3G SDI or DVB-ASI
Ideal for high-density applications, the Osprey 816e card features a single highly
configurable input.
Four Input Formats
3G SDI (424M)
HD SDI (292M)
SD SDI (259M)
DVB-ASI MPTS/SPTS (Windows only)
Embedded SDI audio
Four stereo audio pairs.
Additional Audio Options with the 800a Audio card
Osprey SimulStream®
A standard feature on all Osprey 800 series cards,
SimulStream allows each input to produce multiple parallel
output streams with completely independent settings for
color space, cropping, scaling, closed caption and overlays
facilitating simultaneous delivery to multiple applications.
Additional Features
Signal Loss: In the event of signal loss, the Osprey card
automatically replaces the lost video with color bars with
options for text overlay and audio tones. This feature helps
prevent unplanned stoppage of downstream applications
upon signal loss.
Video Pre-Processing
VBI/VANC closed-caption extraction/on-screen rendering
Logo/bitmap overlay
Scaling, cropping, de-interlacing and inverse telecine
ProcAmp control
Vector Scope and Lumi Scope
Driver Support
Microsoft® DirectShow® API
Linux
Osprey SDK:
An Osprey SDK is also available to allow developers to take
full advantage of the Osprey 800e driver capabilities.
Osprey 800a Audio Input Expansion board
The Osprey 800a audio input card is a separate expansion
board that adds two pairs of balanced audio via XLR
connectors along with two additional pairs that can be
configured as either unbalanced (RCA), AES/EBU (XLR) or
SPDIF (RCA).
See the Osprey 800a audio input card datasheet for details.
20150724
Page 2
Specifications
Description:
One channel SDI HD/SD DVB-ASI
Format:
PCI Express (x 4):
• Slots: x 4, x 8, or x 16
PCIe 1.1
Video Input:
3G SMPTE 424M
HD SMPTE 292M
SD SMPTE 259M
DVB-ASI
Video Connector:
SDI (BNC)
Video Modes:
1080i 50, 59.94, 60
1080p 23.98, 24, 25, 29.97, 30
720p 23.98, 24, 25, 29.97, 50, 59.94, 60
720 x 480 29.97, 30/i (NTSC)
720 x 576 25/i (PAL)
720 x 576 25, 50/p
3G SDI:
1080p 50, 59.94, 60
Audio Input:
Embedded SDI: 4 stereo pairs
Optional: 2 x stereo unbalanced RCA*
Optional: 2 x stereo balanced XLR*
Optional: 2 x stereo balanced XLR or AES/EBU or SPDIF*
*With available Osprey 800a audio card
Adapter:
None
Available Drivers:
Microsoft Windows
Linux
For more information on the latest OS compatibility, please visit
www.ospreyvideo.com
Dimensions:
6.60” L x 2.71” H (16.76cm L x 6.88 cm H)
Low profile
Weight:
≈70g
Power Consumption:
6.3 W
Environment
Operating Temp Range: 0° to 40° C
Storage Temp Range:-40° to +75° C
Rel Humidity Operating: Between 5 % and 80 % (noncondensing)
Rel Humidity Non-Operating: 95 % RH (non-condensing); gradient
30% per hour
System recommendations:
High quality video capture requires a PCIe bus with direct access to
the CPU
Warranty:
1 year limited hardware warranty
In the Box:
Low-profile bracket
