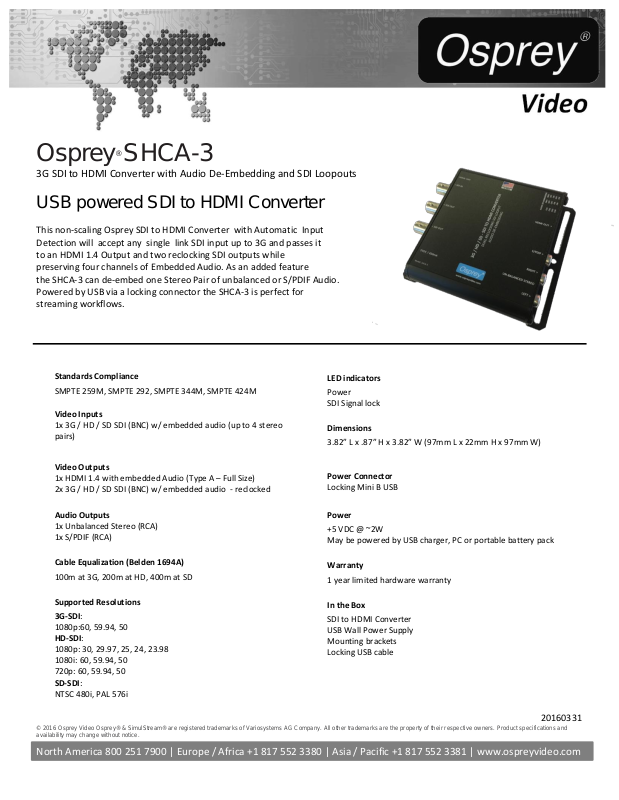

Osprey
®
SHCA-3
3G SDI to HDMI Converter with Audio De-Embedding and SDI Loopouts
USB powered SDI to HDMI Converter
This non-scaling Osprey SDI to HDMI Converter with Automatic Input
Detection will accept any single link SDI input up to 3G and passes it
to an HDMI 1.4 Output and two reclocking SDI outputs while
preserving four channels of Embedded Audio. As an added feature
the SHCA-3 can de-embed one Stereo Pair of unbalanced or S/PDIF Audio.
Powered by USB via a locking connector the SHCA-3 is perfect for
streaming workflows.
Standards Compliance
SMPTE 259M, SMPTE 292, SMPTE 344M, SMPTE 424M
Video Inputs
1x 3G / HD / SD SDI (BNC) w/ embedded audio (up to 4 stereo
pairs)
Video Outputs
1x HDMI 1.4 with embedded Audio (Type A – Full Size)
2x 3G / HD / SD SDI (BNC) w/ embedded audio - reclocked
Audio Outputs
1x Unbalanced Stereo (RCA)
1x S/PDIF (RCA)
Cable Equalization (Belden 1694A)
100m at 3G, 200m at HD, 400m at SD
Supported Resolutions
3G-SDI:
1080p:60, 59.94, 50
HD-SDI:
1080p: 30, 29.97, 25, 24, 23.98
1080i: 60, 59.94, 50
720p: 60, 59.94, 50
SD-SDI:
NTSC 480i, PAL 576i
LED indicators
Power
SDI Signal lock
Dimensions
3.82” L x .87” H x 3.82” W (97mm L x 22mm H x 97mm W)
Power Connector
Locking Mini B USB
Power
+5 VDC @ ~2W
May be powered by USB charger, PC or portable battery pack
Warranty
1 year limited hardware warranty
In the Box
SDI to HDMI Converter
USB Wall Power Supply
Mounting brackets
Locking USB cable
© 2016 Osprey Video Osprey® & SimulStream® are registered trademarks of Variosystems AG Company. All other trademarks are the property of their respective owners. Product specifications and
availability may change without notice.
North America 800 251 7900 | Europe / Africa +1 817 552 3380 | Asia / Pacific +1 817 552 3381 | www.ospreyvideo.com
20160331
