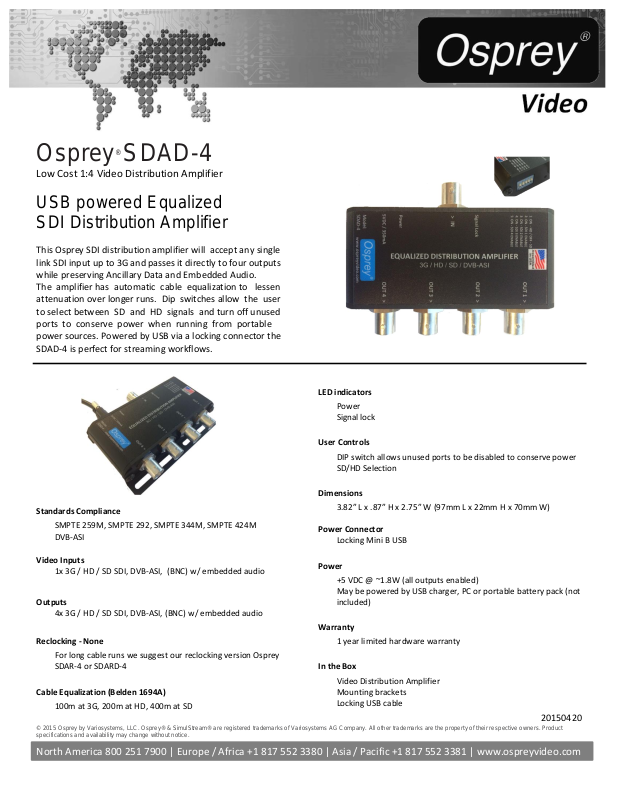

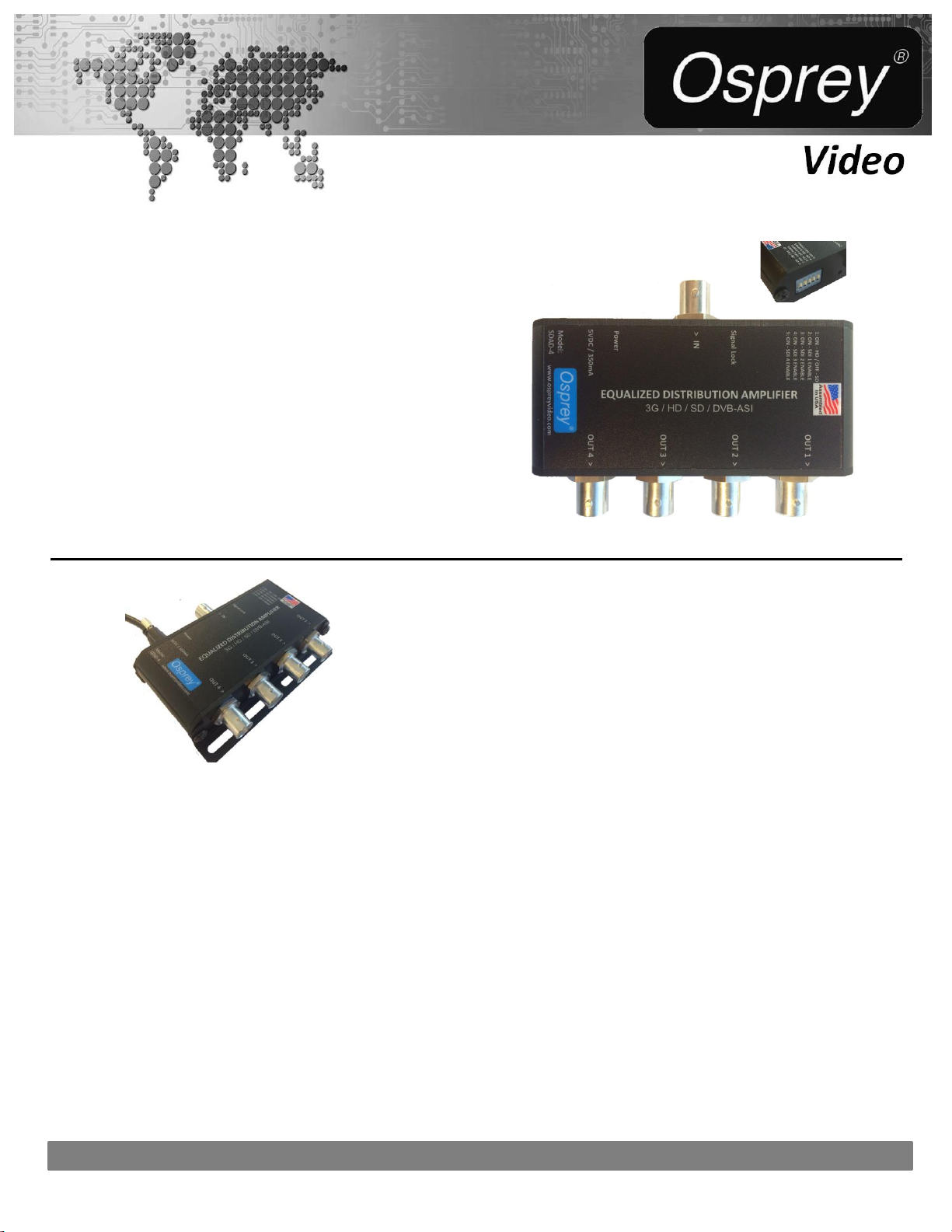

Osprey
®
SDAD-4
Low Cost 1:4 Video Distribution Amplifier
USB powered Equalized
SDI Distribution Amplifier
This Osprey SDI distribution amplifier will accept any single
link SDI input up to 3G and passes it directly to four outputs
while preserving Ancillary Data and Embedded Audio.
The amplifier has automatic cable equalization to lessen
attenuation over longer runs. Dip switches allow the user
to select between SD and HD signals and turn off unused
ports to conserve power when running from portable
power sources. Powered by USB via a locking connector the
SDAD-4 is perfect for streaming workflows.
Standards Compliance
SMPTE 259M, SMPTE 292, SMPTE 344M, SMPTE 424M
DVB-ASI
Video Inputs
1x 3G / HD / SD SDI, DVB-ASI, (BNC) w/ embedded audio
Outputs
4x 3G / HD / SD SDI, DVB-ASI, (BNC) w/ embedded audio
Reclocking - None
For long cable runs we suggest our reclocking version Osprey
SDAR-4 or SDARD-4
Cable Equalization (Belden 1694A)
100m at 3G, 200m at HD, 400m at SD
© 2015 Osprey by Variosystems, LLC. Osprey® & SimulStream® are registered trademarks of Variosystems AG Company. All other trademarks are the property of their respective owners. Product
specifications and availability may change without notice.
LED indicators
Power
Signal lock
User Controls
DIP switch allows unused ports to be disabled to conserve power
SD/HD Selection
Dimensions
3.82” L x .87” H x 2.75” W (97mm L x 22mm H x 70mm W)
Power Connector
Locking Mini B USB
Power
+5 VDC @ ~1.8W (all outputs enabled)
May be powered by USB charger, PC or portable battery pack (not
included)
Warranty
1 year limited hardware warranty
In the Box
Video Distribution Amplifier
Mounting brackets
Locking USB cable
20150420
