Opel Grandland X 2018 Owner's Manual

Download

Owner's Manual

Contents

Introduction .................................... 2

In brief ............................................ 6

Keys, doors and windows ............ 21

Seats, restraints ........................... 45

Storage ........................................ 69

Instruments and controls ............. 79

Lighting ...................................... 114

Climate control ........................... 124

Driving and operating ................. 134

Vehicle care ............................... 202

Service and maintenance .......... 240

Technical data ........................... 244

Customer information ................ 255

Index .......................................... 266

2 Introduction

Introduction

Introduction 3

Vehicle specific data

Please enter your vehicle's data on the previous page to keep it easily accessible. This information is available in the sections "Service and maintenance" and "Technical data" as well as on the identification plate.

Introduction

Your vehicle is a designed combination of advanced technology, safety, environmental friendliness and economy.

This Owner's Manual provides you with all the necessary information to enable you to drive your vehicle safely and efficiently.

Make sure your passengers are aware of the possible risk of accident and injury which may result from improper use of the vehicle.

You must always comply with the specific laws and regulations of the country that you are in. These laws may differ from the information in this Owner's Manual.

Disregarding the description given in this manual may affect your warranty.

When this Owner's Manual refers to a workshop visit, we recommend your Opel Service Partner.

All Opel Service Partners provide first-class service at reasonable prices. Experienced mechanics trained by Opel work according to specific Opel instructions.

The customer literature pack should always be kept ready to hand in the vehicle.

Using this manual

● This manual describes all options and features available for this model. Certain descriptions, including those for display and menu functions, may not apply to your vehicle due to model variant, country specifications, special equipment or accessories.

● The "In brief" section will give you an initial overview.

● The table of contents at the beginning of this manual and within each section shows where the information is located.

● The index will enable you to search for specific information.

● This Owner's Manual depicts lefthand drive vehicles. Operation is similar for right-hand drive vehicles.

● The Owner's Manual uses the engine identifier code. The corresponding sales designation and engineering code can be found in the section "Technical data".

● Directional data, e.g. left or right, or front or back, always relate to the direction of travel.

● Displays may not support your specific language.

● Display messages and interior labelling are written in bold letters.

4 Introduction

Danger, Warnings and Cautions

9 Danger

Text marked 9 Danger provides information on risk of fatal injury. Disregarding this information may endanger life.

9 Warning

Text marked 9 Warning provides information on risk of accident or injury. Disregarding this information may lead to injury.

Caution

Text marked Caution provides information on possible damage to the vehicle. Disregarding this information may lead to vehicle damage.

Symbols

Page references are indicated with 3. 3 means "see page".

Page references and index entries refer to the indented headings given in the section table of content.

We wish you many hours of pleasurable driving.

Your Opel Team

Introduction 5

6 In brief

In brief

Initial drive information

Vehicle unlocking

c to unlock the vehicle. Open

Press the doors by pulling the handles.

Press P to unlock the tailgate only.

Tailgate

After unlocking, press the tailgate button and open the tailgate.

Radio remote control 3 22. Central locking system 3 24. Electronic key system 3 23. Load compartment 3 30.

In brief 7

Seat adjustment

Longitudinal adjustment

Pull handle, slide seat, release handle. Try to move the seat back and forth to ensure that the seat is locked in place.

Seat position 3 46. Manual seat adjustment 3 47.

Backrests inclination

Turn handwheel. Do not lean on backrest when adjusting.

Seat position 3 46. Manual seat adjustment 3 47.

Seat height

Lever pumping motion up : seat higher

down : seat lower

Seat position 3 46. Manual seat adjustment 3 47.

8 In brief

Seat inclination

Press switch top : front end higher

bottom : front end lower

Seat position 3 46. Manual seat adjustment 3 47.

Head restraint adjustment

Press release button, adjust height, engage.

Head restraints 3 45.

Seat belt

Pull out the seat belt and fasten in belt buckle. The seat belt must not be twisted and must fit close against the body. The backrest must not be tilted back too far (maximum approx. 25°).

To unfasten belt, press red button on belt buckle.

Seat position 3 46. Seat belts 3 53. Airbag system 3 56.

In brief 9

Mirror adjustment

Interior mirror

To adjust the mirror, move the mirror housing in the desired direction.

Manual anti-dazzle interior mirror 3 39.

Automatic anti-dazzle interior mirror 3 39.

Exterior mirrors

Select the relevant exterior mirror by pushing the mirror button to the left or right. Adjust respective mirror by the four-way control.

Convex mirrors 3 38. Electric adjustment 3 38. Folding mirrors 3 38. Heated mirrors 3 39.

Steering wheel adjustment

Unlock lever, adjust steering wheel, then engage lever and ensure it is fully locked. Do not adjust steering wheel unless vehicle is stationary and steering wheel lock has been released.

Seat position 3 46. Ignition positions 3 135.

10 In brief

Instrument panel overview

In brief 11

1 Power windows ..................... 40

2 Exterior mirrors ..................... 38

3 Side air vents ...................... 132

4 Turn and lane-change

signals, headlight flash, low / high beam, high

beam assist ......................... 119

Exit lighting ......................... 123

Parking lights ...................... 121

Buttons for Driver

Information Centre .............. 101

5 Cruise control ..................... 158

Speed limiter ....................... 161

Heated steering wheel .......... 80

6 Instruments ........................... 90

Driver Information Centre .... 101

7 Buttons for Driver

Information Centre .............. 101

8 Windscreen wiper and

washer, rear wiper and

washer ................................. 81

9 Power button ....................... 136

10 Centre air vents .................. 132

11 Hazard warning flashers ....119

12 Info Display ........................ 103

13 Anti-theft alarm system

status LED ........................... 35

14 Central locking system .......... 24

15 Glovebox .............................. 69

16 Controls for Info Display

operation ............................. 103

17 Climate control system ........ 125

18 USB charging port ................ 85

19 Power outlet .......................... 85

20 Parking assist / Advanced

parking assist ..................... 175

Lane departure warning ..... 189

Eco button for stop-start

system ................................. 140

Electronic Stability Control

and Traction Control ........... 155

Sport mode ......................... 157

21 Manual transmission .......... 151

Automatic transmission ...... 148

22 Electric parking brake .........152

23 Selective ride control ..........156

24 Ignition switch ..................... 135

25 Steering wheel adjustment ..80

26 Horn ..................................... 81

27 Storage ................................. 69

28 Bonnet release lever .......... 204

29 Light switch ........................ 114

Headlight range

adjustment ......................... 116

Front / rear fog lights .......... 120

Instrument illumination ....... 121

12 In brief

In brief 13

Exterior lighting

AUTO : automatic light control

switches automatically between daytime running light and headlight

: sidelights

: headlights

Automatic light control 3 115.

Fog lights

Press button in light switch:

: front fog lights

: rear fog light

Headlight flash and high beam

pull stalk : headlight flash push stalk : high beam

High beam 3 115. High beam assist 3 116. Headlight flash 3 115. LED headlights 3 116.

Turn lights

lever up : right turn light lever down : left turn light

Turn lights 3 119. Parking lights 3 121.

14 In brief

Hazard warning flashers

Operated by pressing ¨. Hazard warning flashers 3 119.

Horn

Press j.

Washer and wiper systems

Windscreen wiper

HI : fast LO : slow INT : interval wiping

AUTO : automatic wiping with rain

sensor

OFF : off

For single wipe when the wiper is off, press stalk down to position 1x.

Windscreen wiper 3 81.

In brief 15

Windscreen washer

Pull stalk. Windscreen washer system 3 81. Washer fluid 3 207. Wiper blade replacement 3 209.

Rear window wiper

Turn outer cap to activate the rear window wiper:

OFF : off INT : intermittent operation ON : continuous operation

Rear window washer

Push stalk. Washer fluid is sprayed on the rear

window and the wiper wipes a few times.

Rear window wiper / washer 3 83.

16 In brief

Climate control

Heated rear window

Heating and ventilation system, air conditioning system

The heating is operated by pressing b.

Electronic climate control system

The heating is operated by pressing b.

Heated rear window 3 41.

Heated exterior mirrors

Pressing b also activates the heated exterior mirrors.

Heated exterior mirrors 3 39.

Demisting and defrosting the windows

Heating and ventilation system, air conditioning system

● press à, the air distribution is directed towards the windscreen

● set temperature controller £ to warmest level

● switch on air conditioning A/C, if required

● set fan speed Z to highest level

● switch on heated rear window b

In brief 17

● switch on heated windscreen ,

● open side air vents as required and direct them towards the door windows

Heating and ventilation system 3 124.

Air conditioning system 3 125. Heated windscreen 3 42.

Electronic climate control system

● press à, the LED in the button illuminates to indicate activation

● temperature and air distribution are set automatically and the fan runs at high speed

● switch on air conditioning by pressing A/C, if required

● switch on heated rear window b

● switch on heated windscreen ,

● to return to previous mode, press à again

● to return to automatic mode, press AUTO

Electronic climate control system 3 127.

18 In brief

Transmission

Manual transmission

To engage reverse on 6-speed transmission, depress the clutch pedal, pull the ring under the selector lever and move the selector lever quite to the left and front.

Manual transmission 3 151.

Automatic transmission

P : park position R : reverse N : neutral mode D : automatic mode M : manual mode

: upshift

: downshift

]

Automatic transmission 3 148.

Starting off

Check before starting off

● tyre pressure 3 222 and condition 3 254

● engine oil level and fluid levels 3 205

● all windows, mirrors, exterior lighting and number plates are free from dirt, snow and ice and are operational

● proper position of mirrors 3 38, seats 3 46 and seat belts 3 54

● brake function at low speed, particularly if the brakes are wet

In brief 19

Starting the engine

Ignition switch

● turn key to position 1

● move the steering wheel slightly to release the steering wheel lock

● manual transmission: operate clutch and brake pedal

● automatic transmission: operate brake pedal and move selector lever to P or N

● do not operate accelerator pedal

● turn key to position 2 and release after engine has been started

Diesel engine starts after control indicator ! for preheating extinguishes.

Starting the engine 3 138.

Start power button

● manual transmission: operate clutch and brake pedal

● automatic transmission: operate brake pedal and move selector lever to P or N

● do not operate accelerator pedal

● press Start/Stop button

● release button after starting procedure begins

20 In brief

Stop-start system

If the vehicle is at a low speed or at a standstill and certain conditions are fulfilled, an Autostop is activated.

An Autostop is indicated by control indicator D.

Manual transmission: to restart the engine, depress the clutch pedal again. Control indicator D extinguishes.

Automatic transmission: to restart the engine, release the brake pedal. Control indicator D extinguishes.

Stop-start system 3 140.

Parking

9 Warning

● Do not park the vehicle on an easily ignitable surface. The high temperature of the exhaust system could ignite the surface.

● Always apply the parking brake.

● If the vehicle is on a level surface or uphill slope, engage first gear or set the selector lever to position P. On an uphill slope, turn the front wheels away from the kerb.

If the vehicle is on a downhill slope, engage reverse gear or set the selector lever to position P. Turn the front wheels towards the kerb.

● Close the windows.

● Switch off the engine.

● Remove the ignition key from the ignition switch or switch off ignition on vehicles with power

button. Turn the steering wheel until the steering wheel lock is felt to engage.

●

Lock the vehicle with e on the radio remote control.

Activate the anti-theft alarm system 3 35.

● The engine cooling fans may run after the engine has been switched off 3 204.

Caution

After running at high engine speeds or with high engine loads, operate the engine briefly at a low load or run in neutral for approx. 30 seconds before switching off, in order to protect the turbocharger.

Keys, locks 3 21. Laying-up the vehicle for a long

period of time 3 203.

Keys, doors and windows 21

Keys, doors and windows

Keys, locks ................................... 21

Keys .......................................... 21

Radio remote control ................. 22

Electronic key system ................ 23

Central locking system .............. 24

Automatic locking ...................... 28

Child locks ................................. 29

Doors ........................................... 30

Load compartment .................... 30

Vehicle security ............................ 35

Anti-theft locking system ...........35

Anti-theft alarm system .............. 35

Immobiliser ................................ 37

Exterior mirrors ............................ 38

Convex shape ........................... 38

Electric adjustment .................... 38

Folding mirrors .......................... 38

Heated mirrors ........................... 39

Interior mirrors ............................. 39

Manual anti-dazzle .................... 39

Automatic anti-dazzle ................ 39

Windows ...................................... 40

Windscreen ............................... 40

Power windows ......................... 40

Heated rear window .................. 41

Heated windscreen .................... 42

Sun visors .................................. 43

Roller blinds ............................... 43

Roof ............................................. 43

Glass panel ............................... 43

Keys, locks

Keys

Caution

Do not attach heavy or bulky items to the ignition key.

Replacement keys

The key number is specified on a detachable tag.

The key number must be quoted when ordering replacement keys as it is a component of the immobiliser system.

Locks 3 236. Central locking 3 24. Starting the engine 3 138. Radio remote control 3 22. Electronic key 3 23. The code number of the adapter for

the locking wheel nuts is specified on a card. It must be quoted when ordering a replacement adapter.

Wheel changing 3 228.

22 Keys, doors and windows

Key with foldaway key section

Press button to extend. To fold the key, first press the button.

Radio remote control

Enables operation of the following functions via the use of the remote control buttons:

● central locking system 3 24

● anti-theft locking system 3 35

● anti-theft alarm system 3 35

● tailgate unlocking and opening

● power windows 3 40

● mirrors folding 3 38

The remote control has a range of up to 100 metres, but may also be much less due to external influences. The hazard warning flashers confirm operation.

Handle with care, protect from moisture and high temperatures and avoid unnecessary operation.

Replacing battery in radio remote control

Replace the battery as soon as the range reduces.

Batteries do not belong in household waste. They must be disposed of at an appropriate recycling collection point.

Keys, doors and windows 23

1. Remove the back cover from the remote control.

2. Extract the flat battery from its location.

3. Replace battery with a battery of the same type. Pay attention to the installation position.

4. Clip the back cover in place.

Fault

If the central locking system cannot be operated with the radio remote control, the cause may be one of the following:

● Fault in radio remote control.

● Electronic key is out of reception range.

● The battery voltage is too low.

● Overload of the central locking system by operating at frequent intervals, the power supply is interrupted for a short time.

● Interference from higher-power radio waves from other sources.

Manual unlocking 3 24.

Electronic key system

Enables a keyless operation of the following functions:

● central locking system 3 24

● power tailgate 3 30

● ignition switching on and starting the engine 3 138

The electronic key simply needs to be on the driver's person.

Additionally, the electronic key includes the functionality of the radio remote control 3 22.

Handle with care, protect from moisture and high temperatures and avoid unnecessary operation.

24 Keys, doors and windows

Replacing battery in electronic key

Replace the battery as soon as the system no longer operates properly or the range is reduced. The need for battery replacement is indicated by a message in the Driver Information Centre 3 105.

Batteries do not belong in household waste. They must be disposed of at an appropriate recycling collection point.

1. Remove the cover.

2. Extract the flat battery from its location.

3. Replace battery with a battery of the same type. Pay attention to the installation position.

4. Clip the cover in place.

Fault

If the central locking cannot be operated or the engine cannot be started, the cause may be one of the following:

● Fault in electronic key.

● Electronic key is out of reception range.

● The battery voltage is too low.

● Overload of the central locking system by operating at frequent intervals, the power supply is interrupted for a short time.

● Interference from higher-power radio waves from other sources.

To rectify the cause of the fault, change the position of the electronic key.

Manual unlocking 3 24.

Central locking system

Unlocks and locks doors, load compartment and fuel filler flap.

A pull on an interior door handle unlocks the respective door. Pulling the handle once more opens the door.

Note In the event of an accident in which airbags or belt pretensioners are deployed, the vehicle is automatically unlocked.

Note A short time after unlocking with the remote control the doors are locked automatically if no door has been

Keys, doors and windows 25

opened. A precondition is that the setting is activated in the vehicle personalisation 3 106.

Remote control operation

Unlocking

Press O.

Unlocking mode can be set in the vehicle personalisation menu in the Info Display. Two settings are selectable:

● All doors, load compartment and fuel filler flap will be unlocked by pressing O once.

● Only the driver's door, load compartment and fuel filler flap will be unlocked by pressing O once. To unlock all doors, press O twice.

Select the relevant setting in the Vehicle personalisation.

Vehicle personalisation 3 106.

Unlocking the tailgate Press P longer to unlock the tailgate only.

Unlocking and opening the tailgate 3 30.

Locking Close doors, load compartment and fuel filler flap.

Press N. If the driver's door is not closed

properly, the central locking system will not work.

Confirmation Operation of the central locking system is confirmed by the hazard warning flashers. A precondition is that the setting is activated in the vehicle personalisation 3 106.

26 Keys, doors and windows

Electronic key system operation

The electronic key must be outside the vehicle, within a range of approx. one metre of the relevant door side.

Unlocking

Pass a hand behind the door handle of one of the front doors to unlock the vehicle or press the tailgate button.

Keep the hand behind the door handle or keep the tailgate button pressed to open the windows.

Unlocking mode can be set in the vehicle personalisation menu in the Info Display. Two settings are selectable:

● Only the driver's door will be unlocked by passing a hand behind the driver's door handle.

● All doors, load compartment and fuel filler flap will be unlocked by passing a hand behind the passenger's door handle or by pressing the tailgate button.

● Only the tailgate will be unlocked by pressing the tailgate button.

Vehicle personalisation 3 106.

Locking

Press with a finger or thumb on one of the door handles (at the markings) or press the tailgate button.

All doors, load compartment and fuel filler flap will be locked.

Keys, doors and windows 27

The system locks if any door has been opened and all doors are now closed.

If the driver's door is not closed properly, the electronic key remains in the vehicle or the ignition is not off, locking will not be permitted and a warning chime sounds.

If there have been two or more electronic keys in the vehicle and the ignition was on once, the doors will be locked even if just one electronic key is taken out of the vehicle.

Unlocking and opening the tailgate The tailgate can be unlocked and opened hands-free by pushing the touchpad switch under the tailgate moulding when the electronic key is in range. The doors remain locked.

Load compartment 3 30.

Operation with buttons on the electronic key

The central locking system can also be operated with the buttons on the electronic key.

Press O to unlock. Press N to lock. Press P longer to unlock and open

only the power tailgate. Remote control operation 3 24.

Confirmation Operation of central locking system is confirmed by the hazard warning flashers. A precondition is that the setting is activated in the vehicle personalisation 3 106.

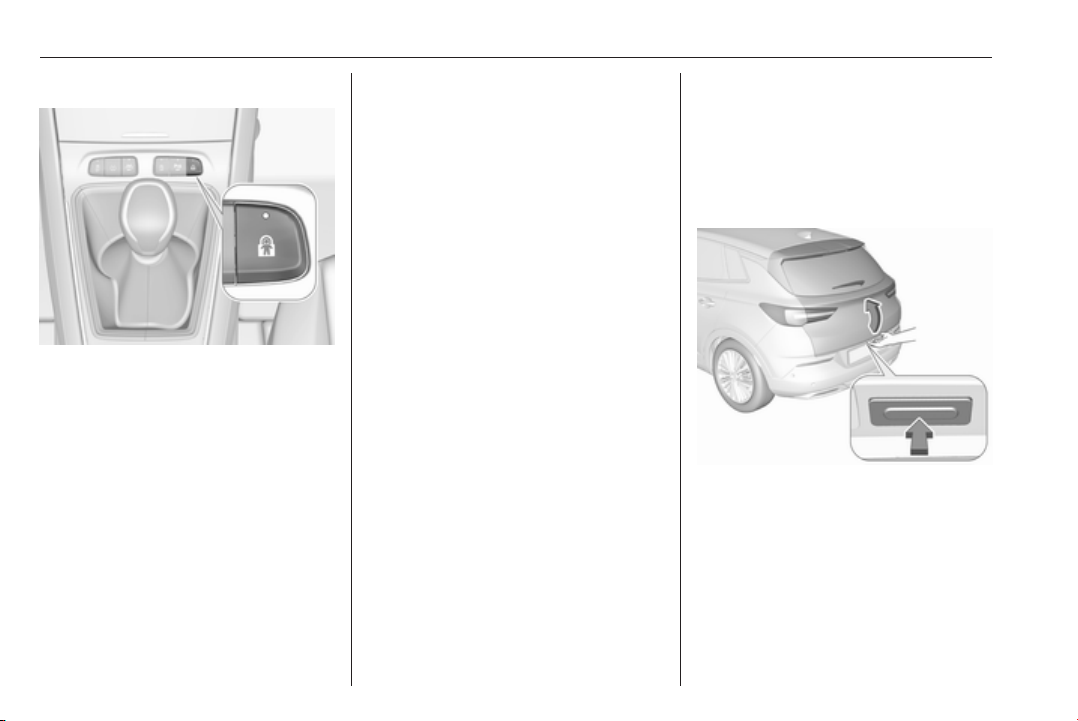

Central locking button

Locks or unlocks all doors, the load compartment and fuel filler flap from inside the passenger compartment.

Q to lock. The LED in the button

Press illuminates.

Press Q again to unlock. The LED in the button extinguishes.

28 Keys, doors and windows

Operation with the key in case of a central locking system fault

In case of a fault, e.g. vehicle battery or remote control / electronic key battery is discharged, the driver's door can be locked or unlocked with the mechanical key.

Manual unlocking Electronic key: press and hold the latch to extract the integral key.

Manually unlock the driver's door by inserting and turning the key in the lock cylinder.

The other doors can be opened by pulling the interior handle. The load compartment and fuel filler flap will possibly not be unlocked.

By switching on the ignition, the antitheft locking system is deactivated.

Manual locking

Manually lock the driver's door by inserting and turning the key in the lock cylinder.

To lock the other doors, remove the black cover by using a key.

Insert key carefully and move to the inner side of the door without turning the key.

Remove key and attach black cover. The fuel filler flap and tailgate are

possibly not locked.

Automatic locking

Automatic locking after driving off

This system allows automatic locking of the doors and tailgate as soon as the speed of the vehicle exceeds a certain speed.

Keys, doors and windows 29

If one of the doors or the tailgate is open, the automatic central locking does not take place. This is signalled by the sound of the locks rebounding, accompanied by illumination of h in the instrument cluster, an audible signal and the display of an alert message.

This function can be activated or deactivated at any time. With the ignition on, press Q until an audible signal starts and a corresponding message is displayed.

The state of the system stays in memory when switching off the ignition.

Automatic relock after unlocking

This feature automatically locks all doors, load compartment and fuel filler flap a short time after unlocking with the remote control or electronic key, provided no door has been opened.

Child locks

9 Warning

Use the child locks whenever children are occupying the rear seats.

Mechanical child locks

Turn the red child lock in the rear door to the horizontal position by using a key. The door cannot be opened from the inside.

To deactivate, turn the child lock to the vertical position.

30 Keys, doors and windows

Electric child locks

Remotely operated system to prevent opening of the rear doors via the interior door handles and the use of the rear power windows.

Switching on Press R. The indicator lamp in the button comes on, accompanied by a confirmation message. This indicator lamp remains on until the child lock is switched off.

Switching off Press R again. The indicator lamp on button goes off, accompanied by a confirmation message. This indicator lamp remains on while child lock is switched on.

Doors

Load compartment

Tailgate

Opening

After unlocking, press the tailgate button and open the tailgate.

Keys, doors and windows 31

Closing

Use the interior handle. Do not push the touchpad switch

whilst closing as this will unlock the tailgate again.

Central locking system 3 24.

Power tailgate

9 Warning

Take care when operating the power tailgate. Risk of injury, particularly to children.

Keep a close watch on the movable tailgate when operating. Ensure that nothing becomes trapped during operating and no one is standing within the moving area.

The power tailgate can be operated by:

● Pressing P longer on the electronic key.

● Hands-free operation with motion sensor below the rear bumper.

● The tailgate button and T in the open tailgate.

On vehicles with automatic transmission, the tailgate can only be operated when the vehicle is stationary and automatic transmission in P.

The turn signal lights flash and a chime sounds when the power tailgate is operating.

Note Operating the power tailgate does not operate the central locking system. To open the tailgate with the button on the electronic key, or with

the tailgate button or via hands-free operation, it is not necessary to unlock the vehicle. A precondition is that the electronic key is outside the vehicle, within a range of approx. one metre of the tailgate.

Do not leave the electronic key in the load compartment.

Lock the vehicle after closing if it was unlocked previously.

Central locking system 3 24.

Operation with the electronic key

Press P longer to open or close the tailgate.

32 Keys, doors and windows

Hands-free operation with motion sensor below the rear bumper

To open or close the tailgate move the foot below the rear bumper back and forth in the area below the number plate. The key must be within a range of 1 m. Do not hold the foot longer or move too slow below the bumper. The electronic key must be outside the vehicle, within a range of approx. 1 m of the tailgate.

Activation or deactivation of handsfree operation can be set in the menu Settings I Vehicle in the Info Display.

Info Display 3 103. Vehicle personalisation 3 106.

Danger

Do not touch any vehicle parts below the vehicle during handsfree operation. There is a risk of injury from hot engine parts.

Automatic locking after hands-free operation

Press button S in the open tailgate, the whole vehicle will be locked after hands-free closing of the tailgate.

Operation with the tailgate button

To open the tailgate, press the tailgate button until the tailgate starts to move. If the vehicle is locked, the electronic key must be outside the vehicle, within a range of approx. 1 m of the tailgate.

Keys, doors and windows 33

To close, press T in the open tailgate until the tailgate starts to move.

Stop or change direction of movement

Stop movement of the tailgate immediately:

● press P longer on the electronic key, or

● press the tailgate button, or

● press T on the open tailgate

Pressing one of the switches again will reverse the direction of movement.

Adjust reduced opening height

1. Open power tailgate with any operation switch.

2. Stop movement at the desired height by pressing T. If required, manually move the stopped tailgate to the desired position.

3. Press and hold the button T on the inside of the open tailgate for three seconds.

Note Adjusting opening height should be programmed at ground level.

A chime sound indicates the new setting and the turn signal lights will flash. The reduced height can only set at an opening angle of above 30°.

To delete reduced height position, open tailgate in half position and press T for 3 s.

The tailgate can only be held open if a minimum height is exceeded (minimum opening angle from 30°). The opening height cannot be programmed below that height.

Safety function If the power tailgate encounters an obstacle during opening or closing, the direction of movement will automatically be reversed slightly. Multiple obstacles in one power cycle will deactivate the function. In this case, close or open the tailgate manually.

The power tailgate has pinch sensors on the side edges. If the sensors detect obstacles between tailgate and chassis, the tailgate will open, until it is activated again or closed manually.

The safety function is indicated by a warning chime.

34 Keys, doors and windows

Remove all obstacles before resuming normal power operation.

If the vehicle is equipped with factoryfitted towing equipment and a trailer is electrically connected, the power tailgate can only be opened with the tailgate button or closed with T in the open tailgate. Ensure that there are no obstacles in the moving area.

Overload If the power tailgate is repeatedly operated at short intervals, the function is disabled for some time. Move tailgate manually into end position to reset the system.

Initialising power tailgate

If the power tailgate cannot be operated automatically (e.g. after disconnecting the vehicle battery), a warning message is displayed in the Driver Information Centre.

Activate electronics as follows:

1. Open tailgate manually.

2. Close tailgate manually.

3. Switch on ignition.

Seek the assistance of a workshop if the problem is not solved.

General hints for operating tailgate

9 Danger

Do not drive with the tailgate open or ajar, e.g. when transporting bulky objects, since toxic exhaust gases, which cannot be seen or smelled, could enter the vehicle. This can cause unconsciousness and even death.

Caution

Before opening the tailgate, check overhead obstructions, e.g. a garage door, to avoid damage to the tailgate. Always check the moving area above and behind the tailgate.

Note The installation of certain heavy accessories onto the tailgate may affect its ability to remain open.

Note The operation of the power tailgate is disabled under low vehicle battery conditions. In this case, the tailgate may not even by manually operable.

Note With the power tailgate disabled and all doors unlocked, the tailgate can only be operated manually. In this event, manually closing the tailgate requires significantly greater force.

Note At low outside temperatures the tailgate may not open fully by itself. In this case lift the tailgate manually to its normal end position.

Keys, doors and windows 35

Vehicle security

Anti-theft locking system

9 Warning

Do not use the system if there are people in the vehicle! The doors cannot be unlocked from the inside.

The system deadlocks all the doors. All doors must be closed otherwise the system cannot be activated.

Unlocking the vehicle disables the mechanical anti-theft locking system. This is not possible with the central locking button.

Activating

Press N on the radio remote control twice within five seconds.

Anti-theft alarm system

The anti-theft alarm system is combined with the anti-theft locking system.

It monitors:

● doors, tailgate, bonnet

● passenger compartment including adjoining load compartment

● vehicle inclination, e.g. if it is raised

● ignition

Activation

All doors must be closed and the electronic key must not remain in the vehicle. Otherwise the system cannot be activated.

● Radio remote control: selfactivated 30 seconds after locking the vehicle by pressing e once.

● Electronic key system: selfactivated 30 seconds after locking the vehicle by pressing with a finger or thumb on one of the front door handles at the markings.

36 Keys, doors and windows

● Radio remote control or electronic key: directly by pressing e twice within five seconds.

● Electronic key system with passive locking enabled: briefly activated after passive locking occurs.

Note Changes to the vehicle interior such as the use of seat covers and open windows, could impair the function of passenger compartment monitoring.

Activation without monitoring of passenger compartment and vehicle inclination

Switch off the monitoring of passenger compartment and vehicle inclination when animals are being left in the vehicle, because of high volume ultrasonic signals or movements triggering the alarm. Also switch off when the vehicle is on a ferry or train.

1. Close tailgate, bonnet, windows.

2. Press o. LED in the button o illuminates for a maximum of ten minutes.

3. Close doors.

4. Activate the anti-theft alarm system.

Status message is displayed in the Driver Information Centre.

Indication

LED in the central locking button flashes if the anti-theft alarm system is activated.

Seek the assistance of a workshop in the event of faults.

Deactivation

Radio remote control: Unlocking the vehicle by pressing c deactivates the anti-theft alarm system.

Keys, doors and windows 37

Electronic key system: Unlocking the vehicle by pressing on one of the front door handles at the markings deactivates the anti-theft alarm system.

The electronic key must be outside the vehicle, within a range of approx. one metre of the relevant door side.

The system is not deactivated by unlocking the driver's door with the key or with the central locking button in the passenger compartment.

Alarm

When triggered, the alarm horn sounds and the hazard warning lights flash simultaneously. The number and duration of alarm signals are stipulated by legislation.

The anti-theft alarm system can be deactivated by pressing c, by pressing on one of the front door handles at the markings with electronic key system or switching on the ignition.

A triggered alarm, which has not been interrupted by the driver, will be indicated by the hazard warning lights. They will flash quickly three times the next time the vehicle is unlocked with the radio remote control. Additionally a warning message is displayed in the Driver Information Centre after switching on the ignition.

Vehicle messages 3 105. If the vehicle's battery is to be

disconnected (e.g. for maintenance work), the alarm siren must be

deactivated as follows: switch the ignition on then off, then disconnect the vehicle's battery within 15 s.

Immobiliser

The system is part of the ignition switch and checks whether the vehicle is allowed to be started with the key being used.

The immobiliser is activated automatically after the key has been removed from the ignition switch.

Note Radio Frequency Identification (RFID) tags may cause interference with the key. Do not have it placed near the key when starting the vehicle.

Note The immobiliser does not lock the doors. Always lock the vehicle after leaving it 3 24 and switch on the antitheft alarm system 3 35.

38 Keys, doors and windows

Exterior mirrors

Convex shape

The shape of the mirror makes objects appear smaller, which will affect the ability to estimate distances.

Side blind spot alert 3 183.

Electric adjustment

Select the relevant exterior mirror by pushing the mirror button to the left or right.

Then swivel the control to adjust the mirror.

Folding mirrors

For pedestrian safety, the exterior mirrors will swing out of their normal mounting position if they are struck with sufficient force. Reposition the mirror by applying slight pressure to the mirror housing.

Electric folding

Pull mirror button rearwards. Both exterior mirrors will fold.

Pull mirror button rearwards again to return both exterior mirrors to their original position.

If an electrically folded mirror is manually extended, pulling mirror button rearwards will only electrically extend the other mirror.

Keys, doors and windows 39

Heated mirrors

Operated by pressing b. Heating works with the engine

running and is switched off automatically after a short time.

Heated rear window 3 41.

Interior mirrors

Manual anti-dazzle

To reduce dazzle, adjust the lever on the underside of the mirror housing.

Automatic anti-dazzle

Dazzle from following vehicles at night is automatically reduced.

40 Keys, doors and windows

Windows

Windscreen

Windscreen stickers

Do not attach stickers such as toll road stickers or similar on the windscreen in the area of the interior mirror. Otherwise the detection zone of the sensor and the view area of the camera in the mirror housing could be restricted.

Windscreen replacement

Caution

If the vehicle has a front-looking camera sensor for the driver assistance systems, it is very important that any windscreen replacement is performed accurately according to Opel specifications. Otherwise, these systems may not work properly and there is a risk of unexpected behaviour and / or messages from these systems.

Power windows

9 Warning

Take care when operating the power windows. Risk of injury, particularly to children.

If there are children on the rear seats, switch on the child safety system for the power windows.

Keep a close watch on the windows when closing them. Ensure that nothing becomes trapped in them as they move.

Switch on ignition to operate power windows.

Operate the switch for the respective window by pushing to open or pulling to close.

Pushing or pulling gently to the first detent: window moves up or down as long as the switch is operated.

Pushing or pulling firmly to the second detent then releasing: window moves up or down automatically with safety function enabled. To stop movement, operate the switch once more in the same direction.

Safety function

If the window glass encounters resistance above the middle of the window during automatic closing, it is immediately stopped and opened again.

Override safety function

In the event of closing difficulties due to frost or the like, switch on the ignition, then pull the switch to the first detent and hold. The window moves up without safety function enabled. To stop movement, release the switch.

Keys, doors and windows 41

Child safety system for rear windows

Press V to deactivate rear door power windows; the LED illuminates. To activate, press V again.

Operating windows from outside

The windows can be operated remotely from outside the vehicle.

Press and hold e to close windows. Release button to stop window

movement. If the windows are fully closed, the

hazard warning lights will flash twice.

Overload

If the windows are repeatedly operated within short intervals, the window operation is disabled for some time.

Initialising the power windows

If the windows cannot be closed automatically (e.g. after disconnecting the vehicle battery), a warning message is displayed in the Driver Information Centre.

Vehicle messages 3 105. Activate the window electronics as

follows:

1. Close doors.

2. Switch on ignition.

3. Pull switch until the window is closed and keep pulling for additional two seconds.

4. Push switch until the window is completely open and keep pushing for additional two seconds.

5. Repeat for each window.

Heated rear window

Operated by pressing b together with heated exterior mirrors.

Heating works with the engine running and is switched off automatically after a short time.

42 Keys, doors and windows

Depending on climate control system, b is located at a different position.

Vehicles with heating and ventilation system or air conditioning system

Vehicles with electronic climate control system

Heated windscreen

Operated by pressing ,. LED in button illuminates.

Heating works with the engine running and is switched off automatically after a short time.

Depending on climate control system, , is located at a different position.

Vehicles with electronic climate control system

Vehicles with air conditioning system

Keys, doors and windows 43

Sun visors

The sun visors can be folded down or swivelled to the side to prevent dazzling.

If the sun visors have integral mirrors, the mirror covers should be closed when driving.

A ticket holder is located on the backside of the sun visor.

Roller blinds

To reduce sunlight at the second row seats, pull the blind upwards using the grip and engage it at the top of the door frame.

Roof

Glass panel

Sunblind

Press N gently to the first detent at the rear: the sunblind is opened as long as the switch is operated.

Press N firmly to the second detent and then release at the rear: the sunblind is opened as long as the switch is operated.

Press N gently to the first detent at the front: the sunblind is closed as long as the switch is operated.

Press N firmly to the second detent and then release at the front: the sunblind is closed as long as the switch is operated.

Safety function

If the sunblind encounters resistance during automatic closing, it is immediately stopped and opened again.

Function standby

In ignition switch position 1 the sunblind is operational 3 135.

Initialising after a power failure

After a power failure, it may only be possible to operate the sunblind to a limited extent. Initialise the system as follows:

1. Turn key in ignition switch to position 1.

Press N twice gently to the first detent at the rear, the sunblind opens slightly.

Immediately press N twice gently to the first detent at the front, the sunblind closes slightly.

44 Keys, doors and windows

After step 3 the sunblind is in initialising mode without safety function.

Press N gently to the first detent at the rear until the sunblind is completely opened.

Press N gently to the first detent at the front until the sunblind is completely closed.

After this procedure, the sunblind is initialised with safety function activated.

When N is pressed firmly to the second detent during initialising, the procedure is cancelled.

Seats, restraints 45

Seats, restraints

Head restraints ............................ 45

Active head restraints ................ 46

Front seats ................................... 46

Seat position .............................. 46

Manual seat adjustment ............ 47

Power seat adjustment .............. 49

Armrest ...................................... 51

Heating ...................................... 51

Ventilating .................................. 52

Rear seats ................................... 52

Armrest ...................................... 52

Heating ...................................... 52

Seat belts ..................................... 53

Three-point seat belt ................. 54

Airbag system .............................. 56

Front airbag system ................... 59

Side airbag system .................... 59

Curtain airbag system ............... 60

Airbag deactivation .................... 61

Child restraints ............................. 62

Child restraint systems .............. 62

Child restraint installation

locations ................................... 65

Head restraints

Position

9 Warning

Only drive with the head restraint set to the proper position.

The upper edge of the head restraint should be at upper head level. If this is not possible for extremely tall people, set to highest position, and set to lowest position for small people.

Adjustment

Head restraints on front seats

Height adjustment Pull the head restraint upwards or press the catch to release and push the head restraint downwards.

46 Seats, restraints

Head restraints on rear seats

Height adjustment Pull the head restraint upwards or press the catch to release and push the head restraint downwards.

Removal Press catch, pull the respective head restraint upwards and remove.

Active head restraints

In the event of a rear-end impact, the front parts of the active head restraints are moved slightly

forwards. Thus the head is supported so that the risk of whiplash injury is reduced.

Note Approved accessories may only be attached if the seat is not in use.

Front seats

Seat position

9 Warning

Only drive with the seat correctly adjusted.

9 Warning

Never adjust seats while driving as they could move uncontrollably.

9 Danger

Do not sit closer than 25 cm to the steering wheel, to permit safe airbag deployment.

9 Warning

Never store any objects under the seats.

Seats, restraints 47

● Sit with buttocks as far back against the backrest as possible. Adjust the distance between the seat and the pedals so that legs are slightly angled when pressing the pedals. Slide the front passenger seat as far back as possible.

● Set seat height high enough to have a clear field of vision on all sides and of all display instruments. There should be at least one hand of clearance between head and the roof frame. Your thighs should rest lightly on the seat without pressing into it.

● Sit with shoulders as far back against the backrest as possible. Set the backrest rake so that it is possible to easily reach the steering wheel with arms slightly bent. Maintain contact between shoulders and the backrest when turning the steering wheel. Do not angle the backrest too far back. We recommend a maximum rake of approx. 25°.

● Adjust seat and steering wheel in a way that the wrist rests on top of the steering wheel while the arm is fully extended and shoulders are on the backrest.

● Adjust the steering wheel 3 80.

● Adjust the head restraint 3 45.

● Adjust the height of the seat belt 3 54.

● Adjust the thigh support so that there is a space approx. two fingers wide between the edge of the seat and the hollow of the knee.

● Adjust the lumbar support so that it supports the natural shape of the spine.

Manual seat adjustment

Drive only with engaged seats and backrests.

Longitudinal adjustment

Pull handle, slide seat, release handle. Try to move the seat back and forth to ensure that the seat is locked in place.

48 Seats, restraints

Backrest inclination

Turn handwheel. Do not lean on backrest when adjusting.

Seat height

Lever pumping motion up : seat higher

down : seat lower

Seat inclination

Press switch at the rear : front end higher

at the front : front end lower

Seats, restraints 49

Lumbar support

Adjust lumbar support using the fourway switch to suit personal requirements.

Moving support up and down: push switch up or down.

Increasing and decreasing support: push switch forwards or backwards.

Adjustable thigh support

Pull the lever and slide the thigh support.

Power seat adjustment

9 Warning

Care must be taken when operating the power seats. There is a risk of injury, particularly for children. Objects could become trapped.

Keep a close watch on the seats when adjusting them. Vehicle passengers should be informed accordingly.

Longitudinal adjustment

Move switch forwards / backwards.

50 Seats, restraints

Seat height

Move switch upwards / downwards.

Seat inclination

Move front of switch upwards / downwards.

Backrest inclination

Turn switch forwards / backwards. Lumbar support, adjustable thigh

support, see manual seat adjustment 3 47.

Memory function for power seat adjustment

Two different driver's seat settings can be stored.

Vehicle personalisation 3 106.

Storing memory position

● Adjust driver's seat to desired position.

● Press and hold M and 1 or 2 simultaneously until a chime sounds.

Recall of memory positions Press and hold 1 or 2 until the stored seat position has been reached. Releasing the button during seat movement cancels the recall.

Safety function If the driver's seat encounters resistance during movement, the recall may stop. After removing the

Seats, restraints 51

obstruction, press and hold the appropriate memory position button for two seconds. Try recalling the memory position again. If the recall does not operate, consult a workshop.

Overload If the seat setting is electrically overloaded, the power supply is automatically cut-off for a short time.

Note After an accident in which airbags have been deployed, the memory function for each position button will be deactivated.

Armrest

The armrest can be slid forwards by 10 cm. Pull the handle to slide the armrest. Under the armrest there is a storage compartment.

Heating

Adjust heating to the desired setting by pressing ß for the respective seat one or more times. The control indicator in the button indicates the setting.

Prolonged use of the highest setting for people with sensitive skin is not recommended.

Seat heating is operational when engine is running and during an Autostop.

Stop-start system 3 140.

52 Seats, restraints

Ventilating

Activate ventilation by pressing A for the respective front seat.

Ventilated seats are operational when engine is running and during an Autostop.

Stop-start system 3 140.

Rear seats

Armrest

Fold armrest down. The armrest contains cupholders.

Heating

Adjust seat heating by turning thumb wheel ß for the respective rear outer seat to the desired setting.

Prolonged use of the highest setting for people with sensitive skin is not recommended.

Seat heating is operational when engine is running and during an Autostop.

Seats, restraints 53

Seat belts

The seat belts are locked during heavy acceleration or deceleration of the vehicle, holding the occupants in the seat position. Therefore the risk of injury is considerably reduced.

9 Warning

Fasten seat belt before each trip. In the event of an accident, people

not wearing seat belts endanger their fellow occupants and themselves.

Seat belts are designed to be used by only one person at a time.

Child restraint system 3 62. Periodically check all parts of the belt

system for damage, soiling and proper functionality.

Have damaged components replaced. After an accident, have the belts and triggered belt pretensioners replaced by a workshop.

Note Make sure that the belts are not damaged by shoes or sharp-edged objects or trapped. Prevent dirt from

getting into the belt retractors.

Seat belt reminder

Each seat is equipped with a seat belt reminder, indicated by a control indicator X for the respective seat in the roof console 3 94.

Belt force limiters

Stress on the body is reduced by the gradual release of the belt during a collision.

Belt pretensioners

In the event of a head-on, rear-end or side-on collision of a certain severity, the front and rear seat belts are tightened. The front seat belts are tightened by two pretensioners per seat. The outer rear seat belts are tightened by one pretensioner per seat.

9 Warning

Incorrect handling (e.g. removal or fitting of belts) can trigger the belt pretensioners.

Deployment of the belt pretensioners is indicated by continuous illumination of control indicator v 3 95.

Triggered belt pretensioners must be replaced by a workshop. Belt pretensioners can only be triggered once.

Note Do not affix or install accessories or other objects that may interfere with the operation of the belt pretensioners. Do not make any

54 Seats, restraints

modifications to belt pretensioner components as this will invalidate the operating permit of your vehicle.

Three-point seat belt

Fasten

Withdraw the belt from the retractor, guide it untwisted across the body and insert the latch plate into the buckle. Tighten the lap belt regularly whilst driving by pulling the shoulder belt.

Loose or bulky clothing prevents the belt from fitting snugly. Do not place objects such as handbags or mobile phones between the belt and your body.

9 Warning

The belt must not rest against hard or fragile objects in the pockets of your clothing.

Seat belt reminder X 3 94, 3 101.

Height adjustment

1. Pull belt out slightly.

2. Press the button to disengage the height adjuster and push it upwards or downwards.

Seats, restraints 55

Adjust the height so that the belt lies across the shoulder. It must not lie across the throat or upper arm.

Do not adjust while driving.

Unfasten

To release belt, press red button on belt buckle.

Using seat belts while pregnant

9 Warning

The lap belt must be positioned as low as possible across the pelvis to prevent pressure on the abdomen.

56 Seats, restraints

Airbag system

The airbag system consists of a number of individual systems depending on the scope of equipment.

When triggered the airbags inflate within milliseconds. They also deflate so quickly that it is often unnoticeable during the collision.

9 Warning

The airbag system deploys in an explosive manner, repairs must be performed by skilled personnel only.

9 Warning

Adding accessories that change the vehicle's frame, bumper system, height, front end or side sheet metal, may keep the airbag system from working properly. The operation of the airbag system can also be affected by changing any parts of the front seats, seat belts,

airbag sensing and diagnostic module, steering wheel, instrument panel, inner door seals including the speakers, any of the airbag modules, ceiling or pillar trim, front sensors, side impact sensors or airbag wiring.

Note The airbag systems and belt pretensioner control electronics are located in the centre console area. Do not put any magnetic objects in this area.

Do not affix any objects onto the airbag covers and do not cover them with other materials. Have damaged

covers replaced by a workshop. Each airbag is triggered only once.

Have deployed airbags replaced by a workshop. Furthermore, it may be necessary to have the steering

wheel, the instrument panel, parts of the panelling, the door seals, handles and the seats replaced.

Do not make any modifications to the airbag system as this will invalidate the vehicle operating permit.

Control indicator v for airbag systems 3 95.

Child restraint systems on front passenger seat with airbag systems

Warning according to ECE R94.02:

NEVER use a rearward-facing

EN: child restraint on a seat protected by an ACTIVE AIRBAG in front of it; DEATH or SERIOUS INJURY to the CHILD can occur.

DE: Nach hinten gerichtete Kindersitze NIEMALS auf einem Sitz verwenden, der durch einen davor befindlichen AKTIVEN AIRBAG

Seats, restraints 57

geschützt ist, da dies den TOD oder SCHWERE VERLETZUNGEN DES KINDES zur Folge haben kann.

FR: NE JAMAIS utiliser un siège d'enfant orienté vers l'arrière sur un siège protégé par un COUSSIN GONFLABLE ACTIF placé devant lui, sous peine d'infliger des BLESSURES GRAVES, voire MORTELLES à l'ENFANT.

ES: NUNCA utilice un sistema de retención infantil orientado hacia atrás en un asiento protegido por un AIRBAG FRONTAL ACTIVO. Peligro de MUERTE o LESIONES GRAVES para el NIÑO.

RU: ЗАПРЕЩАЕТСЯ устанавливать детское удерживающее устройство лицом назад на сиденье автомобиля, оборудованном фронтальной подушкой безопасности, если ПОДУШКА НЕ ОТКЛЮЧЕНА! Это может привести к СМЕРТИ или СЕРЬЕЗНЫМ ТРАВМАМ РЕБЕНКА.

NL: Gebruik NOOIT een achterwaarts gericht kinderzitje op een stoel met een ACTIEVE AIRBAG ervoor, om DODELIJK of ERNSTIG LETSEL van het KIND te voorkomen.

DA: Brug ALDRIG en bagudvendt autostol på et forsæde med AKTIV AIRBAG, BARNET kan komme i LIVSFARE eller komme ALVORLIGT TIL SKADE.

SV: Använd ALDRIG en bakåtvänd barnstol på ett säte som skyddas med en framförvarande AKTIV AIRBAG. DÖDSFALL eller ALLVARLIGA SKADOR kan drabba BARNET.

FI: ÄLÄ KOSKAAN sijoita taaksepäin suunnattua lasten turvaistuinta istuimelle, jonka edessä on AKTIIVINEN TURVATYYNY, LAPSI VOI KUOLLA tai VAMMAUTUA VAKAVASTI.

NO: Bakovervendt barnesikringsutstyr må ALDRI brukes på et sete med AKTIV KOLLISJONSPUTE foran, da det kan føre til at BARNET utsettes for LIVSFARE og fare for ALVORLIGE SKADER.

PT: NUNCA use um sistema de retenção para crianças voltado para trás num banco protegido com um AIRBAG ACTIVO na frente do mesmo, poderá ocorrer a PERDA DE VIDA ou FERIMENTOS GRAVES na CRIANÇA.

IT: Non usare mai un sistema di sicurezza per bambini rivolto all'indietro su un sedile protetto da AIRBAG ATTIVO di fronte ad esso: pericolo di MORTE o LESIONI GRAVI per il BAMBINO!

EL: ΠΟΤΕ μη χρησιμοποιείτε παιδικό κάθισμα ασφαλείας με φορά προς τα πίσω σε κάθισμα που προστατεύεται από μετωπικό ΕΝΕΡΓΟ ΑΕΡΟΣΑΚΟ, διότι το παιδί μπορεί να υποστεί ΘΑΝΑΣΙΜΟ ή ΣΟΒΑΡΟ ΤΡΑΥΜΑΤΙΣΜΟ.

PL: NIE WOLNO montować fotelika dziecięcego zwróconego tyłem do kierunku jazdy na fotelu, przed którym znajduje się WŁĄCZONA PODUSZKA POWIETRZNA. Niezastosowanie się do tego zalecenia może być przyczyną ŚMIERCI lub POWAŻNYCH OBRAŻEŃ u DZIECKA.

58 Seats, restraints

TR: Arkaya bakan bir çocuk emniyet sistemini KESİNLİKLE önünde bir AKTİF HAVA YASTIĞI ile korunmakta olan bir koltukta kullanmayınız. ÇOCUK ÖLEBİLİR veya AĞIR ŞEKİLDE YARALANABİLİR.

UK: НІКОЛИ не використовуйте систему безпеки для дітей, що встановлюється обличчям назад, на сидінні з УВІМКНЕНОЮ ПОДУШКОЮ БЕЗПЕКИ, інакше це може призвести до СМЕРТІ чи СЕРЙОЗНОГО ТРАВМУВАННЯ ДИТИНИ.

HU: SOHA ne használjon hátrafelé néző biztonsági gyerekülést előlről AKTÍV LÉGZSÁKKAL védett ülésen, mert a GYERMEK HALÁLÁT vagy KOMOLY SÉRÜLÉSÉT okozhatja.

HR: NIKADA nemojte koristiti sustav zadržavanja za djecu okrenut prema natrag na sjedalu s AKTIVNIM ZRAČNIM JASTUKOM ispred njega, to bi moglo dovesti do SMRTI ili OZBILJNJIH OZLJEDA za DIJETE.

SL: NIKOLI ne nameščajte otroškega varnostnega sedeža, obrnjenega v nasprotni smeri vožnje, na sedež z

AKTIVNO ČELNO ZRAČNO BLAZINO, saj pri tem obstaja nevarnost RESNIH ali SMRTNIH POŠKODB za OTROKA.

SR: NIKADA ne koristiti bezbednosni sistem za decu u kome su deca okrenuta unazad na sedištu sa AKTIVNIM VAZDUŠNIM JASTUKOM ispred sedišta zato što DETE može da NASTRADA ili da se TEŠKO POVREDI.

MK: НИКОГАШ не користете детско седиште свртено наназад на седиште заштитено со АКТИВНО ВОЗДУШНО ПЕРНИЧЕ пред него, затоа што детето може ДА ЗАГИНЕ или да биде ТЕШКО ПОВРЕДЕНО.

BG: НИКОГА не използвайте детска седалка, гледаща назад, върху седалка, която е защитена чрез АКТИВНА ВЪЗДУШНА ВЪЗГЛАВНИЦА пред нея - може да се стигне до СМЪРТ или СЕРИОЗНО НАРАНЯВАНЕ на ДЕТЕТО.

RO: Nu utilizaţi NICIODATĂ un scaun pentru copil îndreptat spre partea din spate a maşinii pe un scaun protejat de un AIRBAG ACTIV în faţa sa;

acest lucru poate duce la DECESUL sau VĂTĂMAREA GRAVĂ a COPILULUI.

CS: NIKDY nepoužívejte dětský zádržný systém instalovaný proti směru jízdy na sedadle, které je chráněno před sedadlem AKTIVNÍM AIRBAGEM. Mohlo by dojít k VÁŽNÉMU PORANĚNÍ nebo ÚMRTÍ DÍTĚTE.

SK: NIKDY nepoužívajte detskú sedačku otočenú vzad na sedadle chránenom AKTÍVNYM AIRBAGOM, pretože môže dôjsť k SMRTI alebo VÁŽNYM ZRANENIAM DIEŤAŤA.

LT: JOKIU BŪDU nemontuokite atgal atgręžtos vaiko tvirtinimo sistemos sėdynėje, prieš kurią įrengta AKTYVI ORO PAGALVĖ, nes VAIKAS GALI ŽŪTI arba RIMTAI SUSIŽALOTI.

LV: NEKĀDĀ GADĪJUMĀ neizmantojiet uz aizmuguri vērstu bērnu sēdeklīti sēdvietā, kas tiek aizsargāta ar tās priekšā uzstādītu AKTĪVU DROŠĪBAS SPILVENU, jo pretējā gadījumā BĒRNS var gūt SMAGAS TRAUMAS vai IET BOJĀ.

Seats, restraints 59

ET: ÄRGE kasutage tahapoole suunatud lapseturvaistet istmel, mille ees on AKTIIVSE TURVAPADJAGA kaitstud iste, sest see võib põhjustada LAPSE SURMA või TÕSISE VIGASTUSE.

MT: QATT tuża trażżin għat-tfal li jħares lejn in-naħa ta’ wara fuq sit protett b’AIRBAG ATTIV quddiemu; dan jista’ jikkawża l-MEWT jew ĠRIEĦI SERJI lit-TFAL.

GA: Ná húsáid srian sábháilteachta linbh cúil RIAMH ar shuíochán a bhfuil mála aeir ag feidhmiú os a chomhair. Tá baol BÁIS nó GORTÚ DONA don PHÁISTE ag baint leis.

Beyond the warning required by ECE R94.02, for safety reasons a forward-facing child restraint system must only be used subject to the instructions and restrictions in the table 3 65.

The airbag label is located on both sides of the front passenger sun visor.

Airbag deactivation 3 61.

Front airbag system

The front airbag system consists of one airbag in the steering wheel and one in the instrument panel on the front passenger side. These can be identified by the word AIRBAG.

The front airbag system is triggered in the event of a front-end impact of a certain severity. The ignition must be switched on.

The inflated airbags cushion the impact, thereby reducing the risk of injury to the upper body and head of the front seat occupants considerably.

Warning

Optimum protection is only provided when the seat is in the proper position.

Seat position 3 46. Keep the area in which the airbag

inflates clear of obstructions. Fit the seat belt correctly and

engage securely. Only then is the airbag able to protect.

Side airbag system

60 Seats, restraints

The side airbag system consists of an airbag in each front seat backrest. This can be identified by the word AIRBAG.

The side airbag system is triggered in the event of a side impact of a certain severity. The ignition must be switched on.

The inflated airbags cushion the impact, thereby reducing the risk of injury to the upper body and pelvis in the event of a side-on collision considerably.

9 Warning

Keep the area in which the airbag inflates clear of obstructions.

Note Only use protective seat covers that

have been approved for the vehicle.

Be careful not to cover the airbags.

Curtain airbag system

The curtain airbag system consists of an airbag in the roof frame on each side. This can be identified by the word AIRBAG on the roof pillars.

The curtain airbag system is triggered in the event of a side-on impact of a certain severity. The ignition must be switched on.

The inflated airbags cushion the impact, thereby reducing the risk of injury to the head in the event of a side-on impact considerably.

9 Warning

Keep the area in which the airbag inflates clear of obstructions.

The hooks on the handles in the roof frame are only suitable for hanging up light articles of clothing, without coat hangers. Do not keep any items in these clothes.

Seats, restraints 61

Airbag deactivation

The front passenger airbag system must be deactivated for child restraint system on the passenger seat according to the instructions in the table 3 65. The side airbag and curtain airbag systems, the belt pretensioners and all driver airbag systems will remain active.

The front passenger airbag system can be deactivated via a keyoperated switch in the glovebox.

Use the ignition key to choose the position:

OFF*

ONV : front passenger airbag is

: front passenger airbag is

deactivated and will not inflate in the event of a collision, control indicator OFF* illuminates continuously in the centre console

active

9 Danger

Deactivate passenger airbag only in combination with the use of a child restraint system, subject to the instructions and restrictions in the table 3 65.

Otherwise, there is a risk of fatal injury for a person occupying a seat with a deactivated front passenger airbag.

If the control indicator Ó illuminates for approx. 60 seconds after the ignition is switched on, the front passenger airbag system will inflate in the event of a collision.

If the control indicator * illuminates after the ignition is switched on, the front passenger airbag system is deactivated. It stays on while the airbag is deactivated.

If both control indicators are illuminated at the same time, there is a system failure. The status of the system is not discernible, therefore no person is allowed to occupy the front passenger seat. Contact a workshop immediately.

62 Seats, restraints

Consult a workshop immediately if neither of the two control indicators are illuminated.

Change status only when the vehicle is stopped with the ignition off.

Status remains until the next change. Control indicator for airbag

deactivation 3 95.

Child restraints

Child restraint systems

9 Danger

If using a rear-facing child restraint system on the front passenger seat, the airbag system for the front passenger seat must be deactivated. This also applies to certain forward-facing child restraint systems as indicated in the tables 3 65.

Airbag deactivation 3 61. Airbag label 3 56. We recommend a child restraint

system which is tailored specifically to the vehicle. For further information, contact your workshop.

Before fastening a child seat adjust the head restraint 3 45.

When a child restraint system is being used, pay attention to the following usage and installation instructions and also those supplied with the child restraint system.

Always comply with local or national regulations. In some countries, the use of child restraint systems is forbidden on certain seats.

Child restraint systems can be fastened with:

● Three-point seat belt

● ISOFIX brackets

● Top-tether

Three-point seat belt

Child restraint systems can be fastened by using a three-point seat belt. After fastening the child restraint system the seat belt has to be tightened 3 65.

Seats, restraints 63

ISOFIX brackets

Fasten vehicle-approved ISOFIX child restraint systems to the ISOFIX mounting brackets. Specific vehicle ISOFIX child restraint system positions are marked in the ISOFIX table 3 65.

ISOFIX mounting brackets are indicated by a label on the backrest.

An i-size child restraint system is an universal ISOFIX child restraint system according UN Regulation No.

129. All i-size child restraint systems can

be used on any vehicle seat suitable for i-size, i-size table 3 65.

Either a Top-tether strap or a support leg must be used in addition to the ISOFIX mounting brackets.

i-size child seats and vehicle seats with i-size approval are marked with i-size symbol, see illustration.

Top-tether anchors

Top-tether anchors are marked with the symbol : for a child seat.

In addition to the ISOFIX mounting brackets, fasten the Top-tether strap to the Top-tether anchors.

ISOFIX child restraint systems of universal category positions are marked in the table by IUF 3 65.

Selecting the right system

The rear seats are the most convenient location to fasten a child restraint system.

Children should travel facing rearwards in the vehicle as long as possible. This makes sure that the child's backbone, which is still very weak, is under less strain in the event of an accident.

Suitable are child restraint systems that comply with valid UN ECE regulations. Check local laws and regulations for mandatory use of child restraint systems.

64 Seats, restraints

The following child restraints are recommended for the following weight classes:

● Group 0, Group 0+: Maxi Cosi Cabriofix with or without ISOFIX base for children up to 13 kg

● Group I: Duo Plus with ISOFIX and Top-tether for children from 9 kg to 18 kg

● Group II, Group III: Kidfix XP with or without ISOFIX for children from 15 kg to 36 kg

● Group III: Graco Booster for children from 22 kg to 36 kg

Ensure that the child restraint system to be installed is compatible with the vehicle type.

Ensure that the mounting location of the child restraint system within the vehicle is correct, see following tables.

Allow children to enter and exit the vehicle only on the side facing away from the traffic.

When the child restraint system is not in use, secure the seat with a seat belt or remove it from the vehicle.

Note Do not affix anything on the child restraint systems and do not cover them with any other materials.

A child restraint system which has been subjected to stress in an accident must be replaced.

Seats, restraints 65

Child restraint installation locations

Permissible options for fastening a child restraint system with a three-point seat belt

On front passenger seat

Weight class

Group 0: up to 10 kg X

Group 0+: up to 13 kg X

Group I: 9 to 18 kg X

Group II: 15 to 25 kg

Group III: 22 to 36 kg

U/L

1,2

U/L

1,2

U : universal suitability in conjunction with three-point seat belt L : suitable for particular child restraint systems of the 'specific-vehicle', 'restricted' or 'semi-universal' categories. The

child restraint system must be approved for the specific vehicle type (refer to the vehicle type list of the child restraint system)

X : no child restraint system permitted in this weight class

: move seat forwards as far as necessary and adjust seat backrest inclination as far as necessary to a vertical position

to ensure that the belt runs forwards from the upper anchorage point

: move seat height adjustment upwards as far as necessary and adjust seat backrest inclination as far as necessary

to a vertical position to ensure that the belt is tight on the buckle side

: move the respective front seat ahead of the child restraint system forwards as far as necessary

: adjust the respective headrest as necessary or remove if required

On rear outboard seats On rear centre seatactivated airbag deactivated airbag

U/L

3,4

66 Seats, restraints

Permissible options for fitting an ISOFIX child restraint system with ISOFIX brackets

On front passenger seat

Weight class Size class Fixture

On rear outboard seats

Group 0: up to 10 kg G ISO/L2 X X X X

F ISO/L1 X X X X

E ISO/R1 X IL

Group 0+: up to 13 kg E ISO/R1 X IL

D ISO/R2 X IL

C ISO/R3 X IL

Group I: 9 to 18 kg D ISO/R2 X IL

C ISO/R3 X IL

B ISO/F2 X IL, IUF

B1 ISO/F2X X IL, IUF

A ISO/F3 X IL, IUF

Group II: 15 to 25 kg X X

Group III: 22 to 36 kg X X

3,4

IL, IUF

3,4

On rear centre seatactivated airbag deactivated airbag

Seats, restraints 67

IL : suitable for particular ISOFIX restraint systems of the 'specific-vehicle', 'restricted' or 'semi-universal' categories.

The ISOFIX restraint system must be approved for the specific vehicle type (refer to the vehicle type list of the child

restraint system) IUF : suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this weight class X : no ISOFIX child restraint system approved in this weight class

: move seat forwards as far as necessary and adjust seat backrest inclination as far as necessary to a vertical position

to ensure that the belt runs forwards from the upper anchorage point

: move seat height adjustment upwards as far as necessary and adjust seat backrest inclination as far as necessary

to a vertical position to ensure that the belt is tight on the buckle side

: move the respective front seat ahead of the child restraint system forwards as far as necessary

: adjust the respective headrest as necessary or remove if required

ISOFIX size class and seat device A – ISO/F3 : forward-facing child restraint system for children of maximum size in the weight class 9 to 18 kg B – ISO/F2 : forward-facing child restraint system for smaller children in the weight class 9 to 18 kg B1 – ISO/F2X : forward-facing child restraint system for smaller children in the weight class 9 to 18 kg C – ISO/R3 : rear-facing child restraint system for children of maximum size in the weight class up to 18 kg D – ISO/R2 : rear-facing child restraint system for smaller children in the weight class up to 18 kg E – ISO/R1 : rear-facing child restraint system for young children in the weight class up to 13 kg F– ISO/L1 : left lateral facing position child restraint system (carry-cot) G – ISO/L2 : right lateral facing position child restraint system (carry-cot)

Permissible options for fitting an i-Size child restraint system with ISOFIX brackets

On front passenger seat

On rear outboard seats On rear centre seatactivated airbag deactivated airbag

i-Size child restraint systems X i - U i - U X

68 Seats, restraints

i - U : suitable for i-Size 'universal' forward and rearward facing child restraint systems X : seating position not suitable for i-Size 'universal' child restraint systems.

Storage 69

Storage

Storage compartments ................ 69

Glovebox ................................... 69

Cupholders ................................ 69

Centre console storage ............. 70

Load compartment ....................... 70

Load compartment cover ........... 72

Rear floor storage cover ............ 73

Lashing eyes ............................. 74

Safety net .................................. 74

Warning triangle ........................ 76

First aid kit ................................. 76

Roof rack system ......................... 76

Roof rack ................................... 76

Loading information ..................... 77

Storage compartments

9 Warning

Do not store heavy or sharp objects in the storage compartments. Otherwise, the storage compartment lid could open and vehicle occupants could be injured by objects being thrown around in the event of hard braking, a sudden change in direction or an accident.

Glovebox

On some versions the glovebox is ventilated. Air ventilation and temperature depend on the settings of the climate control system. The air vent in the glovebox can be closed 3 132.

Other versions may have a CD player in the glovebox.

The glovebox should be closed whilst driving.

Cupholders

Cupholders are located in the centre console.

70 Storage

Additional cupholders are located in the rear armrest. Fold down armrest.

Centre console storage

The storage container can be used to store small items.

Depending on the version, the storage compartment is located under a cover.

Load compartment

The rear seat backrest is divided into 2/3 to 1/3 parts. Both parts can be folded down individually to increase the size of the load compartment.

Before folding rear seat backrests, execute the following if necessary:

● Move front seats forward if necessary.

● Remove the load compartment cover 3 72.

● Press and hold the catch to push the head restraints down 3 45.

Load compartment extension

● Check that the outer seat belts are lying correctly on the backrests.

● Pull the release lever on one or both outer sides and fold down the backrests onto the seat cushion.

● Alternatively fold seat backrests from the load compartment: pull switch on left or right sidewall of the load compartment to fold the corresponding part of the rear seat backrest.

9 Warning

Take care when operating the rear backrests from the load compartment. The backrest is folded with considerable power. Risk of injury, particularly to children.

Ensure that nothing is attached to the rear seats or located on the seat cushion.

● To fold up, raise the backrests and guide them into an upright position until they engage audibly.

Storage 71

9 Warning

When folding up, ensure that backrests are securely locked in position before driving. Failure to do so may result in personal injury or damage to the load or vehicle in the event of hard braking or a collision.

72 Storage

Opening the pass through in the centre backrest

Fold down the rear armrest.

Suitable for loading long, narrow objects.

Load compartment cover

Do not place any objects on the cover.

Removing cover

Unhook retaining straps from tailgate.

Lift cover at the rear and push it upwards at the front.

Remove the cover.

Fitting cover

Engage cover in side guides and fold downwards. Attach the retaining straps to the tailgate.

Pull grip and open the cover.

Storage 73

Rear floor storage cover

The rear floor cover can be lifted and removed. Raise cover at the loop and remove.

To hold the load compartment cover in an upright positon, lift it up past the retractable stops.

Double load floor

The double load floor can be inserted in the load compartment in two positions:

● lower position above the spare wheel well cover

● upper position interlocked with the grab handle into back panel trim

To remove, press the handle to unlock the load floor and lift it up while using the handle.

If mounted in the upper position, the space between the load floor and the spare wheel well cover can be used as a storage compartment.

In this position, if the rear seat backrests are folded forwards, an almost completely flat load bay is created.

In the upper position, the double load floor is able to withstand a maximum load of 100 kg. In the lower position, the double load floor is able to withstand the maximum load of 150 kg.

74 Storage

Lashing eyes

The lashing eyes are designed to secure items against slippage, e.g. using lashing straps or luggage net.

Safety net

The safety net can be installed behind the rear seats or, if the rear seat backrests are folded, behind the front seats.

Passengers must not be transported behind the safety net.

Installation

Behind the rear seats

● There are installation openings on both sides in the roof frame above the rear seats: suspend and engage rod of net at one side, compress rod and suspend and engage at the other side.

● Attach the hooks of safety net straps in the lashing eyes behind the rear seats.

● Tension both straps by pulling at the loose end.

● Rear seat backrests must be raised up.

Storage 75

Behind the front seats

● There are installation openings on both sides in the roof frame above the front seats: suspend and engage rod of net at one side, compress rod and suspend and engage at the other side.

● Attach hooks of safety net straps to loops in the floor in front of the rear seats. To get access to the loops, push in the perforated parts in the floor cover on both sides.

● Tension both straps by pulling at the loose end.

● Push down head restraints and fold down rear seat backrests 3 70.

Removal

Pull the flap at the tightener on both sides to release the straps. Detach hooks from the loops.

Unhook the safety net rods from the installation openings in the roof frame.

Roll up the net and secure with a strap.

76 Storage

Warning triangle

Stow the warning triangle in the space on the inside of the tailgate and secure it with the velcro fastener.

First aid kit

Stow the first aid kit in the stowage compartment on the right side of the load compartment.

Roof rack system

Roof rack

For safety reasons and to avoid damage to the roof, the vehicleapproved roof rack system is recommended.

Follow the installation instructions and remove the roof rack when not in use.

Vehicles with roof railing

Fasten the roof rack in the roof railing above the mounting points located in each door frame of the vehicle body.

Storage 77

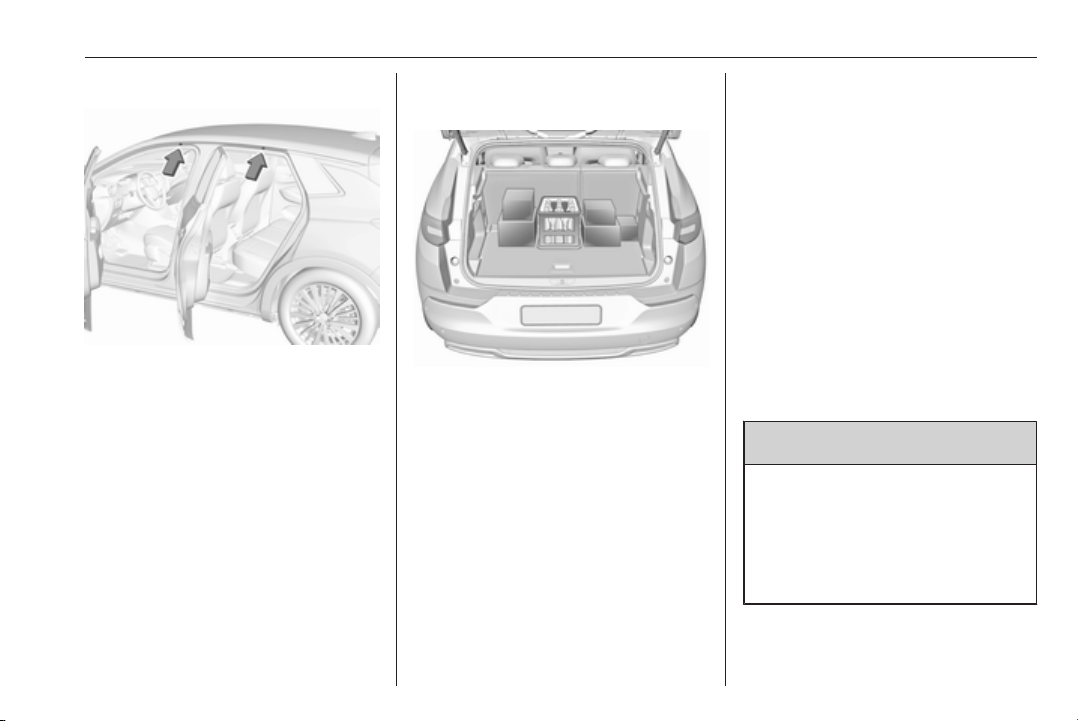

Vehicles without roof railing

Open all doors. Mounting points are located in each

door frame of the vehicle body. Detach the cover from each mounting

point and fasten the roof rack with the attached screws.

Loading information

● Heavy objects in the load compartment should be placed against the seat backrests. Make sure that the backrests are securely engaged. If objects can be stacked, heavier objects should be placed at the bottom.

● Secure objects with lashing straps attached to lashing eyes 3 74.

● Secure loose objects in the load compartment to prevent from sliding.

● Do not allow the load to protrude above the upper edge of the backrests.

● Do not place any objects on the load compartment cover or the instrument panel, and do not cover the sensor on top of the instrument panel.

● The load must not obstruct the operation of the pedals, parking brake and gear selector, or hinder the freedom of movement of the driver. Do not place any unsecured objects in the interior.

● Do not drive with an open load compartment.

9 Warning

Always make sure that the load in the vehicle is securely stowed. Otherwise objects can be thrown around inside the vehicle and cause personal injury or damage to the load or car.

● The payload is the difference between the permitted gross vehicle weight (see identification

78 Storage

plate 3 244) and the EC kerb weight.

To calculate the payload, enter the data for your vehicle in the weights table at the front of this manual.

The EC kerb weight includes weights for the driver (68 kg), luggage (7 kg) and all fluids (fuel tank 90% full).

Optional equipment and accessories increase the kerb weight.

● Driving with a roof load increases the sensitivity of the vehicle to cross-winds and has a detrimental effect on vehicle handling due to the vehicle's higher centre of gravity. Distribute the load evenly and secure it properly with retaining straps. Adjust the tyre pressure and vehicle speed according to the load conditions. Check and retighten the straps frequently.

Do not drive faster than 120 km/ h.

The permissible roof load is 85 kg. The roof load is the combined weight of the roof rack and the load.

Instruments and controls 79

Instruments and controls

Controls ....................................... 80

Steering wheel adjustment ........ 80

Steering wheel controls ............. 80

Heated steering wheel ............... 80

Horn ........................................... 81

Windscreen wiper and washer ..81 Rear window wiper and

washer ...................................... 83

Outside temperature .................. 83

Clock ......................................... 84

Power outlets ............................. 85

Inductive charging ..................... 87

Cigarette lighter ......................... 87

Ashtrays .................................... 88

Warning lights, gauges and indi‐

cators ........................................... 88

Instrument cluster ...................... 88

Speedometer ............................. 90

Odometer .................................. 91

Trip odometer ............................ 91

Tachometer ............................... 91

Fuel gauge ................................ 92

Engine coolant temperature

gauge ....................................... 92

Engine oil level monitor ............. 92

Service display .......................... 93

Control indicators ...................... 94

Turn lights .................................. 94

Seat belt reminder ..................... 94

Airbag and belt tensioners ......... 95

Airbag deactivation .................... 95

Charging system ....................... 95

Malfunction indicator light .......... 95

Stop engine ............................... 96

System check ............................ 96

Brake and clutch system ........... 96

Electric parking brake ................ 96

Electric parking brake fault ........ 96

Antilock brake system (ABS) ..... 97

Gear shifting .............................. 97

Lane departure warning ............ 97

Lane keep assist ....................... 97

Electronic Stability Control and

Traction Control system ........... 97

Engine coolant temperature ......97

Preheating ................................. 98

Diesel particle filter .................... 98

AdBlue ....................................... 98

Deflation detection system ........98

Engine oil pressure .................... 98

Low fuel ..................................... 99

Autostop .................................... 99

Exterior light .............................. 99

High beam ................................. 99

Low beam .................................. 99

High beam assist ....................... 99

LED headlights .......................... 99

Fog light ................................... 100

Rear fog light ........................... 100

Rain sensor ............................. 100

Cruise control .......................... 100

Adaptive cruise control ............ 100

Vehicle detected ahead ........... 100

Side blind spot alert ................. 100

Active emergency braking ....... 100

Speed limiter ........................... 101

Door open ................................ 101

Displays ..................................... 101

Driver Information Centre ........ 101

Info Display .............................. 103

Vehicle messages ...................... 105

Warning chimes ....................... 105

Battery voltage ........................ 105

Vehicle personalisation .............. 106

Telematics service ..................... 109

OnStar ..................................... 109

80 Instruments and controls

Controls

Steering wheel adjustment

Unlock lever, adjust steering wheel, then engage lever and ensure it is fully locked.

Do not adjust steering wheel unless vehicle is stationary and steering wheel lock has been released.

Steering wheel controls

Some driver assistance systems, Infotainment system and a connected mobile phone can be operated via the controls on the steering wheel.

Further information is available in the Infotainment manual.

Driver assistance systems 3 158.

Heated steering wheel

Activate heating by pressing *. Activation is indicated by the LED in the button.

Instruments and controls 81

The recommended grip areas of the steering wheel are heated quicker and to a higher temperature than the other areas.

Heating is operational when the engine is running and during an Autostop.

Stop-start system 3 140.

Horn

Press

Windscreen wiper and washer

Windscreen wiper with adjustable wiper interval

HI : fast LO : slow INT : interval wiping OFF : off

For a single wipe when the windscreen wiper is off, press the lever down to position 1x.

Do not use if the windscreen is frozen. Switch off in car washes.

Adjustable wiper interval

Wiper lever in position INT. Turn the adjuster wheel to adjust the

desired wipe interval.

82 Instruments and controls

Windscreen wiper with rain sensor

HI : fast LO : slow AUTO : automatic wiping with rain

sensor

OFF : off

In AUTO position, the rain sensor detects the amount of water on the windscreen and automatically regulates the frequency of the windscreen wiper. If ignition is switched off, automatic wiping mode is deactivated. To activate automatic wiping mode the next time ignition is

switched on, press the lever downwards to position OFF and back to AUTO.

For a single wipe when the windscreen wiper is off, press the lever downwards to position 1x.

Do not use if the windscreen is frozen. Switch off in car washes.

Adjustable sensitivity of the rain sensor

Keep the sensor free from dust, dirt and ice.

Control indicator < 3 81.

Windscreen washer

Turn the adjuster wheel to adjust the sensitivity.

Instruments and controls 83

Pull lever. Washer fluid is sprayed onto the windscreen and the wiper wipes a few times.

Washer fluid 3 207.

Rear window wiper and washer

Rear window wiper

Turn outer cap to activate the rear window wiper:

OFF : off INT : intermittent operation ON : continuous operation

Do not use if the rear window is frozen.

Switch off in car washes. The rear window wiper comes on

automatically when the windscreen wiper is switched on and reverse gear is engaged.

Activation or deactivation of this function can be changed in the Vehicle personalisation menu 3 106.

Rear window washer

Push lever. Washer fluid is sprayed onto the rear

window and the wiper wipes a few times.

The rear window washer system is deactivated when the fluid level is low.

Washer fluid 3 207.

Outside temperature

A drop in temperature is indicated immediately and a rise in temperature after a time delay.

Illustration shows an example. If outside temperature drops to 3 °C,

a warning message is displayed in the Driver Information Centre.

84 Instruments and controls

9 Warning

The road surface may already be icy even though the display indicates a few degrees above 0 °C.

Clock

Date and time are shown in the Info Display.

Info Display 3 103.

Graphic Info Display

Press MENU to open the menu page.

Select Display configuration. Select Date and time adjustment. Set successively the respective

values for date and time by using the four way switch. Confirm with OK.

7'' Colour Info Display

Press ; and then select Settings. Select Time and Date to display the

respective submenu.

Set Time Format To select the desired time format, touch 12 h or 24 h.

Set Date Format To select the desired date format, select Set Date Format and choose between the available options in the submenu.

Auto Set To choose whether time and date are to be set automatically or manually, select Auto Set.

For time and date to be set automatically, select On - RDS.

For time and date to be set manually, select Off - Manual. If Auto Set is set to Off - Manual, the submenu items Set Time and Set Date become available.

Set time and date To adjust the time and date settings, select Set Time or Set Date.

Touch + and - to adjust the settings.

8'' Colour Info Display

Press SET and then select the OPTIONS.

Select ˆ.

Instruments and controls 85

Select Setting the time-data. To change the time and date formats,

select the respective tabs and then select the desired formats.

By default the displayed time and date are automatically adjusted by the system.

To manually adjust the displayed time and date:

Select the Time tab. Set Synchronization with GPS

(UTC): to OFF and then select the Time field to set the desired time.

Select the Date tab and then select the Date: field to set the desired date.

Power outlets

A 12 V power outlet is located behind the storage cover. Press cover to open.

A 12 V power outlets is also located in the rear console.

At the left sidewall in the load compartment, another 12 V power outlet is located.

Do not exceed the maximum power consumption of 120 W.

86 Instruments and controls

Do not damage the outlet by using unsuitable plugs.

Stop-start system 3 140.

USB ports

A 230 V power outlet may also be located in the rear console.

Do not exceed the maximum power consumption of 150 W.

With ignition off, the power outlets are deactivated. Additionally the power outlets are deactivated in the event of low vehicle battery voltage.

Electrical accessories that are connected must comply with the electromagnetic compatibility requirements laid down in DIN VDE 40 839.

Do not connect any current-delivering accessories, e.g. electrical charging devices or batteries.

A USB port is located behind the storage cover. Press cover to open.

A further USB port may be located in the rear console.

The USB ports are prepared for charging external devices and provide a data connection to the Infotainment system. For further information, see Infotainment manual.

Note The sockets must always be kept clean and dry.

Instruments and controls 87

Inductive charging

9 Warning

Inductive charging can affect the operation of implanted pacemakers or other medical devices. If applicable, seek medical advice before using the inductive charging device.

9 Warning

Remove any metal objects from the charging device before charging a mobile phone, as these objects could become very hot.

To charge a device, the ignition must be switched on.

To charge a mobile phone:

1. Remove all objects from the charging device.

2. Place the mobile phone with the display facing upwards on the charging device in the storage. Use the elastic band to secure the mobile phone.

Charging status is indicated in the LED: illuminates green, when mobile phone is charging.

PMA or Qi compatible mobile phones can be charged inductively.

A back cover with an integrated coil (e.g. Samsung 4 and 5) or a jacket (e.g. some iPhone models) may be required to charge a mobile phone.

Protective cover for the mobile phone could have impact on the inductive charging.

In the event that the mobile device is not charging properly, rotate it 180° and place it on the charging device again.

Cigarette lighter

The cigarette lighter is located behind the storage cover. Press cover to open.

88 Instruments and controls

Press in cigarette lighter. It switches off automatically once the element is glowing. Pull out cigarette lighter.

Ashtrays

Caution

To be used only for ash and not for combustible rubbish.

A portable ashtray can be placed in the cupholders.

Warning lights, gauges and indicators

Instrument cluster

The following instrument cluster is available:

Instruments and controls 89

90 Instruments and controls

Overview

Turn signal 3 94

Seat belt reminder 3 94

Airbag and belt tensioners

3 95

Airbag deactivation 3 95 Charging system 3 95

Malfunction indicator light

3 95

Service vehicle soon 3 93

STOP Stop engine 3 96

System check 3 96 Brake and clutch system

3 96 Electric parking brake

3 96 Antilock brake system (ABS)

3 97

Gear shifting 3 97

)

Lane departure warning 3 97

Lane keep assist 3 97

Electronic Stability Control and Traction Control system 3 97

Preheating 3 98

Diesel particle filter 3 98

AdBlue 3 98 Deflation detection system

3 98 Engine oil pressure 3 98

Low fuel 3 99

Y o

Engine coolant temperature

W o

high 3 97

Autostop 3 99 Exterior light 3 99

Low beam 3 99

High beam 3 99

High beam assist 3 99 Fog light 3 100

Rear fog light 3 100

Rain sensor 3 100

Side blind spot alert 3 100

Cruise control 3 100

Speed limiter 3 101

Active emergency braking 3 171

Door open 3 101

Speedometer

Indicates vehicle speed.

Instruments and controls 91

Odometer

The total recorded distance is displayed in km.

Driver Information Centre

Trip odometer

The recorded distance since the last reset is displayed in the Driver Information Centre.

Trip odometer counts up to 9,999 km and then restarts at 0.

Press L for 2 s to reset trip odometer.

Two trip odometer pages are selectable in the trip / fuel information menu for different trips 3 101.

Tachometer

Displays the engine speed. Drive in a low engine speed range for

each gear as much as possible.

Caution

If the needle is in the red warning zone, the maximum permitted engine speed is exceeded. Engine at risk.

92 Instruments and controls

Fuel gauge

Displays the level in the fuel tank. Control indicator o illuminates if the

level in the tank is low. Never run the fuel tank dry. Because of the fuel remaining in the

tank, the top-up quantity may be less than the specified fuel tank capacity.

Engine coolant temperature gauge

Displays the coolant temperature. 50 : engine operating temperature

not yet reached 90 : normal operating temperature 130 : temperature too high

Control indicator o illuminates if coolant temperature is too high. Switch off engine immediately.

Caution

If engine coolant temperature is too high, stop vehicle, switch off engine. Danger to engine. Check coolant level.

Engine oil level monitor

The state of the engine oil level is displayed in the Driver Information Centre for a few seconds following the service information after switching on the ignition.

A proper state of oil level is indicated by the message Oil level correct.

If oil level is low, I flashes and Oil level incorrect is indicated, accompanied by the H indicator. Confirm oil level by using the oil dipstick and top up engine oil respectively.

Engine oil 3 205. A fault of measurement is indicated

by the message Oil level measurment invalid. Check oil level manually by using the dipstick.

Instruments and controls 93

Service display

The service system informs when to change the engine oil and filter or a vehicle service is required. Based on driving conditions, the interval at which an engine oil and filter change is required can vary considerably.

Service information 3 240.

A required service due is displayed in the Driver Information Centre for seven seconds after switching on the ignition.

If no service is required for the next 3000 km or more no service information appears in the display.

If service is required within the next 3000 km, the remaining distance or time duration is indicated for several seconds. Simultaneously symbol F lights up permanently as reminder.

If service is required in less than 1000 km, F flashes and then lights up permanently. Remaining distance or time duration is indicated for several seconds.

Overdued service is indicated by a message in the Driver Information Centre which indicates the overdued distance. F flashes and then lights up permanently until service is executed.

Reset of service interval

After each service, the service indicator must be reset to ensure proper functionality. It is recommended to seek the assistance of a workshop.

If service is executed by yourself, operate as following:

● switch off ignition

● press and hold button F or CHECK

● switch on ignition, the distance indication begins a countdown

● when the display indicates =0, release the button

F disappears

94 Instruments and controls

Retrieving service information

To retrieve the status of the service information at any time press button F or CHECK. The service information is displayed for a few seconds.

Service information 3 240.

Control indicators

The control indicators described are not present in all vehicles. The description applies to all instrument versions. Depending on the equipment, the position of the control indicators may vary. When the ignition is switched on, most control indicators will illuminate briefly as a functionality test.

The control indicator colours mean: red : danger, important reminder

yellow : warning, information, fault green : confirmation of activation blue : confirmation of activation white : confirmation of activation

See all control indicators on different instrument clusters 3 88.

Turn lights

O illuminates or flashes green.

Illuminates briefly

The parking lights are switched on.

Flashes

Turn lights or the hazard warning flashers are activated.

Rapid flashing: failure of a turn light or associated fuse, failure of turn light on trailer.

Bulb replacement 3 210. Turn lights 3 119.

Seat belt reminder

Seat belt reminder on all seats

X illuminates or flashes red in the instrument cluster together with the indication in the roof console for each seat belt.

● When the ignition is switched on,

X in the instrument cluster and the symbol for the respective seat in the roof console comes on, if the seat belt of any occupied seat has not been fastened.

●

After driving off, X in the instrument cluster and the symbol for the respective seat in the roof console flashes for a certain time together with a chime. After a certain time of driving X illuminates constantly until the seat belt of the

Instruments and controls 95

respective seat has been fastened or if any passenger has unfastened the seat belt.

Airbag and belt tensioners

v illuminates red. When the ignition is switched on, the

control indicator illuminates for approx. four seconds. If it does not illuminate, does not extinguish after four seconds or illuminates whilst driving, there is a fault in the airbag system. Seek the assistance of a workshop. The airbags and belt pretensioners may fail to trigger in the event of an accident.

Deployment of the belt pretensioners or airbags is indicated by continuous illumination of v.

9 Warning

Have the cause of the fault remedied immediately by a workshop.

Belt pretensioners 3 53. Airbag system 3 56.

Airbag deactivation

ÓON illuminates yellow. The front passenger airbag is

activated. *OFF illuminates yellow. The front passenger airbag is

deactivated. Airbag deactivation 3 61.

Charging system

p illuminates red. Illuminates when the ignition is

switched on and extinguishes shortly after the engine starts.

Illuminates when the engine is running

Stop, switch off engine. Vehicle battery is not charging. Engine cooling may be interrupted. The brake servo unit may cease to be effective. Seek the assistance of a workshop.

Malfunction indicator light

Z illuminates or flashes yellow. Illuminates when the ignition is

switched on and extinguishes shortly after the engine starts.

Illuminates when the engine is running

Fault in the emission control system. The permitted emission limits may be exceeded. Seek the assistance of a workshop immediately.

96 Instruments and controls

Flashes when the engine is running

Fault that could lead to catalytic converter damage. Ease up on the accelerator until the flashing stops. Seek the assistance of a workshop immediately.

Stop engine

Y illuminates red. Illuminates briefly when the ignition is

switched on. Illuminates together with other control

indicators, accompanied by a warning chime and a corresponding message in the Driver Information Centre.

Stop engine immediately and seek the assistance of a workshop.

System check

J illuminates yellow or red.

Illuminates yellow

A minor engine fault has been detected.

Illuminates red

A major engine fault has been detected.

Stop engine as soon as possible and seek the assistance of a workshop.

Brake and clutch system

R illuminates red. The brake and clutch fluid level is too

low.

9 Warning

Stop. Do not continue your journey. Consult a workshop.

Electric parking brake

m illuminates or flashes red.

Illuminates

Electric parking brake is applied 3 152.

Flashes

Electric parking brake is not applied automatically. The application or the release are faulty.

9 Warning

Have the cause of the fault remedied immediately by a workshop.

o illuminates yellow.

Illuminates

Automatic operation is deactivated or faulty. Activate automatic operation again or have the cause remedied by a workshop in the event of a fault.

Automatic operation 3 152.

Electric parking brake fault

E illuminates yellow.

Illuminates

Electric parking brake has a fault 3 152.

Instruments and controls 97

9 Warning

Have the cause of the fault remedied immediately by a workshop.

Antilock brake system (ABS)

u illuminates yellow. Illuminates for a few seconds after the

ignition is switched on. The system is ready for operation when the control indicator extinguishes.

If the control indicator does not extinguish after a few seconds, or if it illuminates while driving, there is a fault in the ABS. The brake system remains operational but without ABS regulation.

Antilock brake system 3 151.

Gear shifting

R with the number of a higher gear is indicated, when upshifting is recommended for fuel saving reasons.

Lane departure warning

) illuminates green or flashes yellow.

Illuminates green

System is switched on and ready to operate.

Flashes yellow

System recognizes an unintended lane change.

Lane keep assist

a illuminates green or yellow, or flashes yellow.

Illuminates green

The system is switched on and ready to operate.

Illuminates yellow

The system approaches a detected lane marking without using the turn signal in that direction.

Flashes yellow

The system recognizes that the lane is departed significantly.

Lane keep assist 3 190.

Electronic Stability Control and Traction Control system

b illuminates or flashes yellow.

Illuminates

A fault in the system is present. Continued driving is possible. Driving stability, however, may deteriorate depending on road surface conditions.

Have the cause of the fault remedied by a workshop.

Flashes

The system is actively engaged. Engine output may be reduced and the vehicle may be braked automatically to a small degree.

Electronic Stability Control and Traction Control system 3 155.

Selective ride control 3 156.

Engine coolant temperature

o illuminates red.

98 Instruments and controls

Illuminates when the engine is running

Stop, switch off engine.

Caution

Coolant temperature too high.

Check coolant level immediately 3 206.

If there is sufficient coolant, consult a workshop.

Preheating

! illuminates yellow. Preheating of diesel engine is

activated. Only activates when outside temperature is low. Start the engine when control indicator extinguishes.

Diesel particle filter

% or H illuminates yellow. The diesel particle filter requires

cleaning.

Continue driving until the control indicator extinguishes.

Illuminates temporarily

Start of saturation of the particle filter. Start cleaning process as soon as possible by driving at a vehicle speed of at least 60 km/h.

Illuminates constantly

Indication of a low additive level. Seek the assistance of a workshop.

Diesel particle filter 3 143.

AdBlue

Y flashes or illuminates yellow.

Illuminates yellow

The remaining driving range is between 600 km and 2400 km.

Have the AdBlue® topped-up as soon as possible by a qualified workshop. You can add up to 10 l of AdBlue to its tank.

Flashes yellow

The remaining driving range is between 0 km and 600 km.

Top-up the AdBlue as soon as possible to avoid a breakdown by a qualified workshop. You can add up to 10 l of AdBlue to its tank.

Deflation detection system

w illuminates or flashes yellow.

Illuminates

Tyre pressure loss in one or more wheels. Stop immediately and check tyre pressure.

Flashes

Fault in system. Consult a workshop. Deflation detection system 3 223.

Engine oil pressure

I illuminates red. Illuminates when the ignition is

switched on and extinguishes shortly after the engine starts.

Opel Grandland X 2018 Owner's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

In brief

Initial drive information

Vehicle unlocking

Tailgate

Seat adjustment

Longitudinal adjustment

Backrests inclination

Seat height

Seat inclination

Head restraint adjustment

Seat belt

Mirror adjustment

Interior mirror

Exterior mirrors

Steering wheel adjustment

Instrument panel overview

Exterior lighting

Fog lights

Headlight flash and high beam

Turn lights

Hazard warning flashers

Horn

Washer and wiper systems

Windscreen wiper

Windscreen washer

Rear window wiper

Rear window washer

Climate control

Heated rear window

Heating and ventilation system, air conditioning system

Heated exterior mirrors

Demisting and defrosting the windows

Electronic climate control system

Transmission

Manual transmission

Automatic transmission

Starting off

Check before starting off

Starting the engine

Ignition switch

Start power button

Stop-start system

Parking

Keys, doors and windows

Keys, locks

Keys

Replacement keys

Key with foldaway key section

Radio remote control

Replacing battery in radio remote control

Fault

Electronic key system

Replacing battery in electronic key

Fault

Central locking system

Remote control operation

Unlocking

Electronic key system operation

Unlocking

Locking

Operation with buttons on the electronic key

Central locking button

Operation with the key in case of a central locking system fault

Manual locking

Automatic locking

Automatic locking after driving off

Automatic relock after unlocking

Child locks

Mechanical child locks

Electric child locks

Doors

Load compartment

Tailgate

Opening

Closing
