Onkyo HT-S5700 Basic Manual

HT-R593

AV RECEIVER

Basic Manual

Advanced Manual found here

http://www.onkyo.com/manual/htr593/adv/en.html

Before Start

About the Basic Manual

The Basic Manual leads you through the fundamental steps to enjoy the AV Receiver from connections to TV, speaker system and playback devices, to necessary functions for playback. As well as that, Basic Manual informs you with the instructions on frequently used functions. Besides, there is another part of the manual called Advanced Manual to inform you with more detailed information, which we have decided to publish on the web from the ecological point of view.

Advanced Manual

Advanced Manual is always updated with the latest information and its user friendly interface, which does not matter whether you access from PC or Smartphone, helps you to understand more deeply about the AV Receiver. Advanced Manual is consisted of the following chapters.

r Details on AM/FM playback r Playing Music Files on a USB Storage Device r Listening to Internet Radio r Playing Music with DLNA r Playing Music Files in a Shared Folder r Operating Music Files with the Remote Controller r Using the Listening Modes r Advanced Settings r Operating Other Components with the Remote Controller r Connecting/Operating Onkyo product with RI jack. r Updating the Firmware r Details on Troubleshooting r Reference Information

Features

r Equipped with 5 channel amplifier r Equipped with 4K 60 Hz Passthrough-compatible HDMI

IN/OUT jacks

r Supports the HDMI Through function which allows

transmission from playback devices to the TV in standby state

r Supports ARC (Audio Return Channel) r Supports USB storage playback r Supports variety of network functions such as Internet

Radio, DLNA, etc.

r Supports Wi-Fi and Bluetooth r A/V Sync Function to correct deviation of audio and

video

r Multi-zone function which allows you to play a different

source in another room from the main room

r T-D (Theater-Dimensional) listening mode which allows

you to enjoy the virtual surround sound field

r 192 kHz/24 bit D/A converter r Automatic speaker setup available using supplied

calibrated microphone (AccuEQ Room Calibration)

r 32 bit DSP (Digital Signal Processor) with excellent

calculation performance

r Supports playback of MP3, WMA, WMA Lossless, FLAC,

WAV, Ogg Vorbis, Apple Lossless, DSD, Dolby TrueHD via network and USB storage device

Supplied Accessories

Indoor FM antenna --- (1)

AM loop antenna --- (1)

Speaker Cable

The number in parenthesis indicates the quantity. On packaging, the letter

¼

at the end of the product name indicates the color.

How to use the remote controller

Color labels for speaker cable (Not supplied with the Home Theater System.)--- (1)

Remote controller (RC-879M) --- (1) Batteries (AA/R6) --- (2)

Speaker setup microphone --- (1)

Remote control sensor

Batteries (AA/R6)

AV Receiver

#DQWV|HV

(5 m)

If you do not use the remote controller for a long time, remove the batteries

¼

to prevent leakage. Note that keeping consumed batteries inside may cause corrosion resulting

¼

Advanced Manual found here

http://www.onkyo.com/manual/htr593/adv/en.html

in damage of the remote controller.

Step 1:

Connections

Personal computer

HDMI cable

Game console

Connecting the TV and players

Set-top box/Digital

video recorder, etc.

Important: The power cord must be connected only after all other connections are completed.

HDMI cable connection

The unit has many HDMI jacks on its rear panel and each of them corresponds to an input selector button of the same name on the front panel. For example, a Blu-ray Disc player will be connected to the IN 1 jack and the BD/DVD button on the front panel will be used to listen to the playback sound (if the player is CEC compliant, input will be switched automatically). If you add another Blu-ray Disc player, you can use any other jack than IN 1. It is possible to change assignment of the input jacks and input selector buttons. For how to make settings, see the Advanced Manual.

To connect the TV and the unit, connect the HDMI OUT jack of the unit and the HDMI input jack of the TV with an HDMI cable. With this connection, it becomes possible to display the setting screen of the unit on the TV or transmit video/audio signals from the player to the TV. If your TV supports ARC (Audio Return Channel), it is possible to play the TV sound with the AV receiver's speakers with this connection only. If your TV does not support ARC, you need, in addition to the HDMI OUT jack connection, a digital optical cable connection between the digital audio out optical jack of the TV and the DIGITAL IN OPTICAL jack of the unit or an analog audio cable connection between the audio output jack of the TV and the TV/CD analog audio input jack of the unit.

To use the ARC function, connect to the ARC compatible HDMI jack of the TV and make an appropriate setting on the unit. See the section

4 "HDMI Setup" of "Step 2: Setting Up".

Blu-ray Disc/

DVD player

Satellite/Cable

set-top box, etc.

z

Connection with a TV not supporting ARC

AUDIO

OUT DIGITAL OPTICAL

OUT

Select an appropriate connection

¼

for your TV.

The unit supports the HDMI Through function that allows transmission from players to the TV even if the unit is in standby. You have to modify the settings to enable the input selection link with CEC compliant device, connection with

ARC compatible TV, and HDMI Through function. See the section 4 "HDMI Setup" of "Step 2: Setting Up".

r To play 4K or 1080p video, use the high speed HDMI

cable.

Connecting Components without HDMI

If your AV component does not have HDMI jack, use an available jack of your component for cable connection with this unit. Just as the HDMI jacks, other jacks on this unit have a preassigned input selector button on the front panel. See the name of the input selector button shown with the jack when connecting the device.

1 2 3 4

If the connected turntable does not have built-in audio equalizer, you need to install an external audio equalizer between the unit and the turntable. Contact the manufacturer for more information.



Audio signal connection

Digital connection: Use a digital optical cable

(OPTICAL) or digital coaxial cable (COAXIAL) for connection with a player.

Digital optical cable (OPTICAL)

As the digital in optical jack of the unit has a

¼

cover, push in the cable against the cover as it is turned inside.

Digital coaxial cable (COAXIAL)

Analog connection: Use an analog audio (RCA) cable

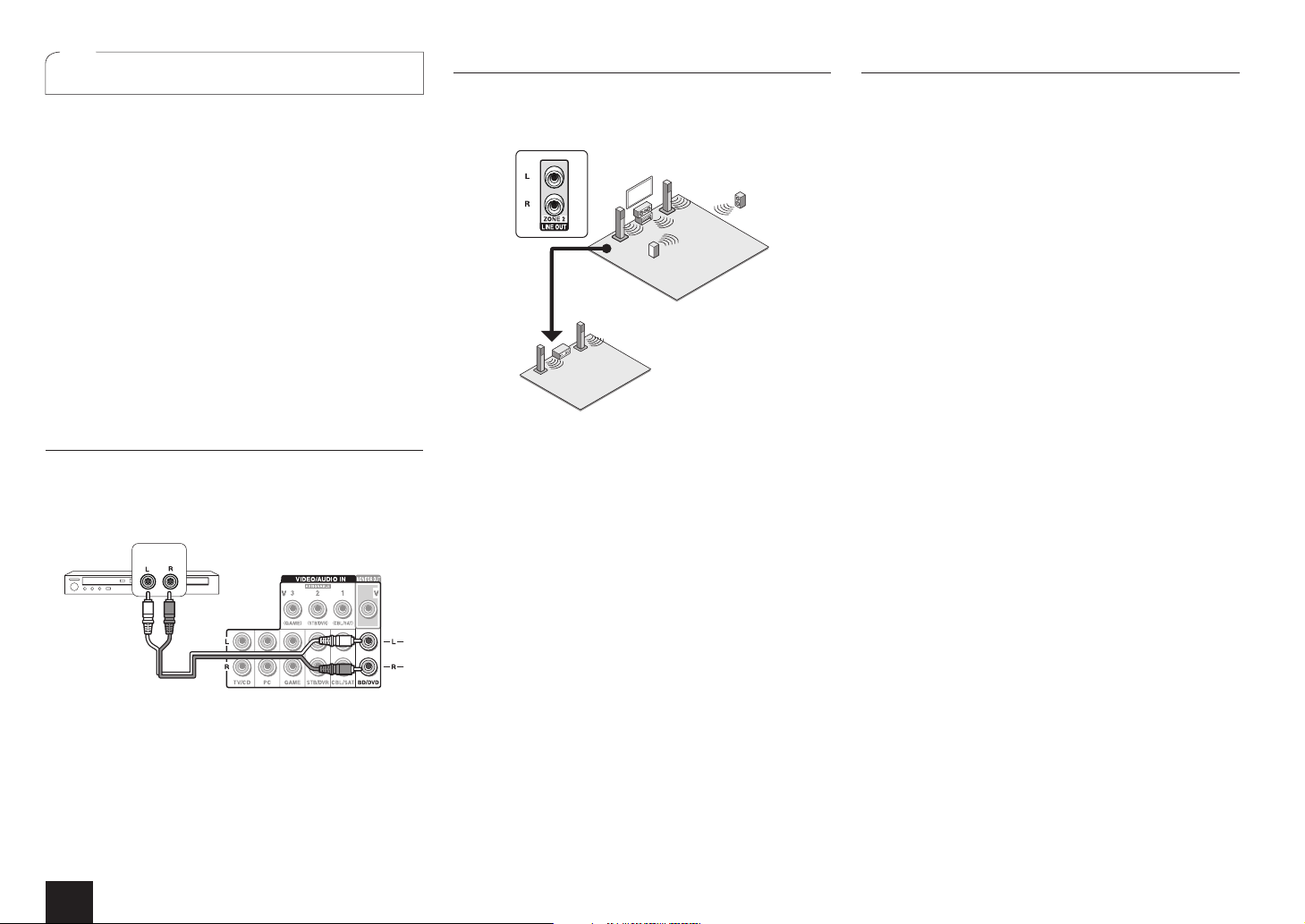

for connection with a player. To enjoy multi-zone playback of audio of a CD player or such other player without HDMI output jack, you need to use the analog audio (RCA) cable to connect the corresponding jacks of the player and this unit. For details on the multi-zone function, see the section 6 "Using the multi-zone function" of "Step 3: Playing Back".

Analog audio (RCA) cable



Video signal connection

Use a component video cable to connect a TV

with component video input jacks and a player with

component video output jacks.

r When a component video cable is used for

connecting the unit and the player, the unit and TV must also be connected with a component video cable.

Component video cable

Its transmitted video has higher quality than that

¼

of composite video cable.

Use a composite video cable to connect a TV with

composite video input jack or a player with composite

video output jack.

Composite video cable

Step 1:

Connections

Connecting speakers

Front R

Step 1:

Front L

Connections

Important: The power cord must be connected only after all other connections are completed.

Front speakers

Center speaker

Surround speakers

Subwoofer

r The position and size of the speakers is an image. r Up to two subwoofers can be connected. r To use the multi-zone function, refer to the section 6

"Using the multi-zone function" of "Step 3: Playing Back".

It is ideal to install the front speakers and center speaker at the height not too far from that of the screen. As for the surround speakers, it is recommended to install at the position slightly backward of the listening position and higher than the listener's ears, since it is preferable to obtain a diffused sound rather than a direct sound. As a bass sound reproduced by subwoofer is less directional, it is possible to place it at any position. Consider the best installation position where a bass sound can be clearly heard by listening to actual playback.

Surround R

1/2"-5/8"(12-15 mm)

Important%QPPGEVURGCMGTUYKVJŝVQŝKORGFCPEG

Using a speaker with less impedance than the supported value may result in failure.

Surround L

Center

Subwoofer with built-in

power amplifier

Cut and remove the plastic coating from the end of the speaker cable, twist the core and connect it to the terminal. Make correct connection between the unit's jacks and speaker's jacks (+ to + and - to -) for each channel. If connection is wrong, a bass sound may become poor due to reverse phase.

The positive (+) speaker terminals of Home Theater System are color



coded for identification purpose. Connect the colored cable to the positive (+) speaker terminal in the same color as the cable.

Connect LINE INPUT jack on the subwoofer and PRE OUT SUBWOOFER jack on this unit as described in the figure.

Up to two subwoofers can be connected. If the subwoofer has a cut-off



filter selection switch, set to DIRECT. If the subwoofer does not have a cut-off filter selection switch but has a cut-off frequency adjusting dial, turn it to the maximum frequency. If your subwoofer does not have built-in power amplifier, you can connect a power amplifier between the unit and the subwoofer.

r The speaker setting is 5.1 ch at the time of purchase. You

can change it manually or by using automatic speaker setting.

r Short-circuiting the + cable and - cable or contacting the

cable core to the rear panel of the unit may cause failure. Also do not connect two or more cables to one speaker jack or one speaker to several jacks.

Other connections

AM/FM antenna connections

Connect the antennas to listen to AM/FM broadcast. When listening to the broadcast for the first time, adjust the antenna position and orientation to get the best reception.

AM loop antenna (supplied)

Step 1:

Connections

Network connection

You can enjoy Internet radio and DLNA by connecting the unit to LAN. The unit can be connected to the router with an Ethernet cable or to the wireless LAN router with WiFi connection. In case of wired connection, connect the Ethernet cable to the Ethernet port. For Wi-Fi setup, see the section 3 of "Step 2: Setting Up".

Internet radio

When using commercially available banana plugs: tighten the speaker terminals to the end and then insert the banana plugs. Do not insert the cable core directly into the center hole of the speaker terminal. (North American model)

Indoor FM antenna (supplied)

Fix with a tack on the wall.

(North American model)

Assemble the AM loop antenna (supplied).

(Asian model)

Router

NAS

Headphones connection

Connect stereo headphones with a standard plug (1/4 inch or ø 6.3 mm) to the PHONES jack. Sound from the speakers will be off while you are using the headphones.

r If you selected any other listening mode than Pure Audio

(Asian model), Stereo, Mono and Direct, connecting headphones will switch the listening mode to Stereo.

Step 2:

Turning the power on

Connect the power cord to the outlet. Press zON/ STANDBY on the main unit or zRECEIVER on the remote controller to turn the unit on or to standby mode.

r When the unit is turned on, a large instantaneous current

may flow affecting functionality of the computer and other devices. It is recommended to use a separate outlet from that for the computer or such other sensitive devices.

Firmware update notification: If the unit is connected via LAN and there is firmware update available, the "Update New F/W" message will appear. Press the the remote controller to select whether to update or not and press ENTER to confirm your selection. For details on firmware update, see the Advanced Manual.

Setting Up

buttons on

S/T

Operation: You can set up by viewing the guidance

displayed on the TV screen. To display the guidance, you need to make HDMI connection between the unit and TV. Select the item with the cursor buttons of the remote controller and press ENTER to confirm your selection. To return to the previous screen, press RETURN. To return to the Home menu, press HOME.

Making automatic speaker setting

The AccuEQ Room Calibration function, our proprietary technology, collects the test tones coming from each speaker with the supplied speaker setup microphone and performs automatic setting of the number of speakers, volume level, each speaker's optimum crossover frequencies, and distance from the primary listening position. Distortion caused by difference of room acoustic environment will also be corrected to produce clear, wellbalanced sound.

Place the speaker setup microphone at the

measurement position .

r Correct measurement will not be possible if the

microphone is held by hand. It is desirable that the microphone be placed on a stand at the height of listener's ears. Measurement is not possible if headphones are being used.

: Listening area : Measurement position

Connect the speaker setup microphone to the

SETUP MIC jack on the unit.

SETUP MIC jack

with microphone

Speaker setup microphone
