Thank you for purchasing the ONKYO CD/MD
Receiver.
Please read this manual thoroughly before making
connections and turning on the power.
Following the instructions in this manual will enable
you to obtain optimum performance and listening
enjoyment from your new CD/MD Receiver.
Please retain this manual for future reference.
Advanced Operation
Additional Operation
26
45
Others
52
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to alert
the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
Important Safeguards
1.Read Instructions - All the safety and operating instructions should
be read before the appliance is operated.
2. Retain Instructions - The safety and oper ating instructions should
be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in the
operating instructions should be adhered to.
4. Follow Instructions - All operating and use instructions should
be followed.
5. Water and Moisture - The appliance should not be used near
water - for example , near a bathtub, washbowl, kitchen sink, laundry
tub, in a wet basement, or near a swimming pool, and the like.
6. Carts and Stands - The appliance should be used only with a
cart or stand that is recommended by the
manufacturer .
6A. An appliance and cart combination should
be moved with care. Quick stops,
excessive force , and uneven surf aces may
cause the appliance and cart combination
to overturn.
7. Wall or Ceiling Mounting - The appliance should be mounted to
a wall or ceiling only as recommended by the manufacturer.
8. Ventilation - The appliance should be situated so that its location
or position does not interfere with its proper ventilation. For e xample,
the appliance should not be situated on a bed, sofa, rug, or similar
surface that may block the ventilation openings; or if placed in a
built-in installation, such as a bookcase or cabinet that may impede
the flow of air through the ventilation openings, there should be
free space of at least 20 cm (8 in.) and an opening behind the
appliance.
9. Heat - The appliance should be situated aw a y from heat sources
such as radiators, heat registers, stoves, or other appliances
(including amplifiers) that produce heat.
10. Power Sources - The appliance should be connected to a power
supply only of the type described in the operating instructions or
as marked on the appliance.
2
PORTABLE CART WARNING
S3125A
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AVIS
RISQUE DE CHOC ELECTRIQUE
OUVRIR
NE PAS
11. Polarization - If the appliance is provided with a polarized plug
having one blade wider than the other, please read the following
information:
The polarization of the plug is a safety feature. The polarized plug
will only fit the outlet one way. If the plug does not fit fully into the
outlet, try reversing it. If there is still trouble, the user should seek
the services of a qualified electrician. Under no circumstances
should the user attempt to defeat the polarization of the plug.
12. Power-Cord Protection - Power-supply cords should be routed
so that they are not likely to be walked on or pinched by items
placed upon or against them, especially near plugs, convenience
receptacles, and the point where they exit from the appliance.
13. Cleaning - The appliance should be cleaned only as recommended
by the manufacturer.
14. Power Lines - An outdoor antenna should be located a w ay from
power lines.
15. Nonuse Periods - The power cord of the appliance should be
16. Object and Liquid Entry - Care should be taken so that objects
17. Damage Requiring Service - The appliance should be serviced
18. Servicing - The user should not attempt to service the appliance
19. Outdoor Antenna Grounding - If an outside antenna is connected
unplugged from the outlet when left unused for a long period of
time.
do not fall and liquids are not spilled into the enclosure through
openings.
by qualified service personnel when:
A.The power-supply cord or the plug has been damaged; or
B.Objects have f allen, or liquid has been spilled into the
appliance; or
C.The appliance has been e xposed to rain; or
D.The appliance does not appear to operate normally or
exhibits a marked change in performance; or
E.The appliance has been dropped, or the enclosure damaged.
beyond that described in the operating instructions. All other
servicing should be referred to qualified service personnel.
to the receiver, be sure the antenna system is grounded so as to
provide some protection against voltage surges and built up static
charges. Article 810 of the National Electrical Code, ANSI/NFPA
70, provides information with regard to proper grounding of the
mast and supporting structure, grounding of the lead-in wire to an
antenna-discharge unit, size of grounding conductors, location of
antenna-discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode. See Figure 1.
“CLASS 1 LASER
PRODUCT”
FIGURE 1:
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL
ELECTRICAL CODE
5. Do not touch this unit with wet hands
Do not handle this unit or power cord when your hands are wet or
damp. If w ater or any other liquid enters the case , take this unit to
an authorized service center for inspection.
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
Precautions
1. Warranty Claim
You can find the serial number on the rear panel of this unit. In
case of warranty claim, please report this number.
2. Recording Copyright
Recording of copyrighted material for other than personal use is
illegal without permission of the copyright holder.
3. AC Fuse
The fuse is located inside the chassis and is not user-serviceable.
If power does not come on, contact your Onkyo authorized service
station.
6. Location of this unit
Place this unit in a well-ventilated location.
Take special care to provide plenty of ventilation on all sides of
this unit especially when it is placed in an audio rack. If ventilation
is blocked, this unit may overheat and malfunction.
Do not expose this unit to direct sunlight or heating units as this
unit's internal temperature may rise and shorten the life of the
pickup.
Avoid damp and dusty places and places directly affected by
vibrations from the speakers. In particular, avoid placing the unit
on or above one of the speakers.
Be sure this unit is placed in a horizontal position. Never place it
on its side or on a slanted surface as it may malfunction.
Do not place near tuners or TV sets.
If placed next to a TV or tuner, it ma y cause reception interference
resulting in some noise in the TV or tuner output.
7. Care
From time to time you should wipe the front and rear panels and
the cabinet with a soft cloth. For heavier dirt, dampen a soft cloth
in a weak solution of mild detergent and water, wring it out dr y,
and wipe off the dirt. Following this, dry immediately with a clean
cloth.
Do not use rough material, thinners, alcohol or other chemical
solvents or cloths since these could damage the finish or remove
the panel lettering.
8. Points to remember
If this unit is brought from a cold environment to a warm one or is
in a cold room that is quickly heated, condensation may form on
the pickup, preventing proper operation. In this case, remove the
disc and leave the power ON for about one hour to remove the
condensation.
When transporting this unit, be careful not to bump it.
4. Power
WARNING
BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ
THE FOLLOWING SECTION CAREFULLY.
The voltage of the available power supply differs according to
country or region. Be sure that the power supply voltage of the
area where this unit will be used meets the required voltage (e.g.,
AC 230 V, 50 Hz or AC 120 V, 60 Hz) written on the rear panel.
Worldwide models are equipped with a voltage selector to conform
to local power supplies. Be sure to set this switch to match the
voltage of the power supply in your area before plugging in the
unit.
This unit contains a semiconductor laser system and is classified
as a “CLASS 1 LASER PRODUCT.” So , to use this model properly,
read this Instruction Manual carefully . In case of any trouble, please
contact the store where you purchased the unit. To prevent being
exposed to the laser beam, do not try to open the enclosure.
DANGER:
INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCK FAILED OR DEFEATED. AVOID DIRECT
EXPOSURE TO BEAM.
CAUTION:
THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS
OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED
HEREIN MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE.
The wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal
which is marked with the letter L or coloured red.
www.gardi.de
IMPORTANT
A 5 amp fuse is fitted in this plug. Should the fuse need to be replaced,
please ensure that the replacement fuse has a rating of 5 amps and
that it is approved by ASTA or BSI to BS1362. Check for the ASTA
mark or the BSI mark on the body of the fuse.
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE
SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE
REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY .
THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE
CUT OFF PLUG IS INSERTED INTO ANY 13 AMP SOCKET.
If in any doubt, please consult a qualified electrician.
• CD/MD Receiver with Simple and Easy Operation
• Easy Dubbing from CD to MD
• Discrete Amplifier for Good Sound Quality
• Three Source Inputs – TAPE, LINE-1, and LINE-2
• Optical Digital Source Input & Digital Input Signal
Sampling Frequency Rate Converter
• Signal Synchro Recording that is also associated
with the external sources connected to the unit.
Check that the following accessories are supplied
with your CD/MD Receiver.
The number of accessories is indicated in brackets.
• Remote controller – RC-378S [1]
Declaration of Conformity
Main features
Supplied accessories
We,
ONKYO EUROPE
ELECTRONICS GmbH
INDUSTRIESTRASSE 20
82110 GERMERING,
GERMANY
declare in own responsibility, that the ONKYO product described
in this instruction manual is in compliance with the corresponding
technical standards such as EN55013, EN55020, EN61000-3-2, -3-3
and EN60065
GERMERING, GERMANY
ONKYO EUROPE ELECTRONICS GmbH
Memory Preservation
This unit does not require memory preservation
batteries. A built-in memory power back-up system
preserves the contents of the memory during power
failures and even when the unit is unplugged. The unit
must be plugged in order to charge the back-up system.
The memory preservation period after the unit has been
unplugged varies depending on climate and placement
of the unit. On the average, memory contents are
protected over a period of a few weeks after the last time
the unit has been unplugged. This period is shorter when
the unit is exposed to a highly humid climate.
Antenna (aerial) connection is a must for auto clock setting. Do not connect the AC
power cord (mains lead) at this time. The AC power cord will be connected on page
While listening to the radio on page 20, move the
antenna (aerial) in various directions until the clearest
signal is received. Then secure the antenna (aerial)
with push pins in the position with the least distortion.
WARNING
Do not install the antenna (aerial) near power lines because
this could result in electrical shock.
Note
Keep the antenna (aerial) away from noise sources, such
as neon signs and busy roads.
Push the lever up.
The wire of the stripped
end of the cord should
appear slightly.
6
Notes
• Connecting the left and right speakers reversely or with
wrong polarities can cause unnatural or distorted sound.
• The load impedance of each speaker must be between 4
and 16 ohms. Connecting speakers with less than 4 ohms
impedance could cause damage to the unit amplifier.
• Do not connect the speaker cord to the L and R
connectors at the same time and do not connect more
than two speakers to the same speaker connectors.
The illustration below describes the connection with
an ONKYO stereo cassette tape deck.
To connect to other cassette tape deck, connect the TAPE
OUTPUT (REC) and INPUT (PLAY) jacks of the unit to the
INPUT (REC) and OUTPUT (PLAY) jacks of the cassette
tape deck, respectively.
What can you do with an ONKYO stereo cassette
tape deck by connecting with an
•
An ONKYO stereo cassette tape deck
with the supplied remote controller.
• Both the units can be turned on by turning on either unit.
• When you start playing a tape, the unit input selector will
automatically be switched to the stereo cassette tape deck
(TAPE).
• Synchro recording operations (see page 39).
L
R
Der Online-Treff zum Thema Onkyo!
Audio
connection
cable
cable supplied with
LINE IN
IN PUT
OUT PUT
(REC) (PLAY)
can be operated
REMOTE
CONTROL
: Signal flow
cable?
Analog connection is necessary in addition to the
optical digital audio connection. To connect to the
ONKYO DVD player, be sure to connect to the LINE
IN-1 jacks with the audio connection cable, not the
LINE IN-2 jacks.
www.gardi.de
About the OPTICAL DIGITAL INPUT
connector
An optical digital audio output equipped CD player,
satellite tuner, or DAT may be connected instead of a
DVD player with an optical fiber audio cable for digital
recording of them.
Protective cap for the optical digital audio
connector
Remove the protective cap before
you use the OPTICAL DIGITAL
INPUT connector. Please retain it
for future use. If you do not use
the optical digital audio connector,
make sure to replace the cap.
In addition to the above examples, a laser disc player,
satellite broadcast tuner, or VCR may be also
connected. Connect analog audio output jacks to the
unit LINE IN-1 or IN-2 with the audio connection
cable.
Notes
Do not place any object on the unit as this is dangerous
because the ventilation slot may be blocked.
• There are some rules for digital recording (see page 52).
cable must be connected securely.
Incomplete connection does not
Der Online-Treff zum Thema Onkyo!
reproduce the sound.
• Do not bundle the audio connection cables with the
speaker cords. This may impair the sound quality.
• If the TV screen and the unit interfere with each other, put
more distance between the speakers and TV set.
• When connecting the digital audio output of a DVD player
to the DIGITAL INPUT jack of the unit, set the DVD player
to PCM output. Some DVD players cannot be set to PCM;
in this case audio output is not possible, even when the
two units are connected.
www.gardi.de
NO
OK
Connecting a portable MD player
Cross-refer to the portable MD player’s Instruction Manual.
• Do not mix new batteries with old batteries or different
kinds of batteries.
• To avoid corrosion, remove the batteries if the remote
controller is not to be used for a long time.
• Remove dead batteries immediately to avoid damage from
corrosion. If the remote controller does not operate
smoothly, replace both the batteries at the same time.
• The life of the batteries supplied is about six months but
this will vary depending on usage.
Der Online-Treff zum Thema Onkyo!
sensor.
About 5 m (16 feet)
Notes
• Place the unit away from strong light such as direct
sunlight or inverted fluorescent light which can prevent
proper operation of the remote controller.
• Using another remote controller of the same type in the
same room or using the unit near equipment which uses
infrared rays may cause operational interference.
• Do not put any object such as a book on the remote
controller. The buttons of the remote controller may be
pressed by mistake and drain the batteries.
• Make sure the audio rack doors do not have colored glass.
Placing the unit behind such doors may prevent proper
remote controller operation.
• If there is any obstacle between the remote controller and
the remote control sensor, the remote controller will not
operate.
(Program Service Name) and RT (Radio Text) in
addition to the normal audio programs (see page
21).
RDS signals also carry the signals called CT
(clock time and data signal) regularly. Using CT,
the ACCUCLOCK function of the unit sets the
clock and adjusts time three times (2, 3, and 14
hours) a day.
Auto clock setting by ACCUCLOCK starts
automatically when you first turn on the power after
connecting the AC power cord (mains lead).
Checking the day and time
1Connect the AC power cord
(mains lead) to the wall outlet
(the mains).
2Press STANDBY/ON.
STANDBY / ON
The unit turns on, then auto clock
setting starts.
“Wait” flashes in the display while the
clock is being set. (It may take about
five minutes to set the clock.)
Whenever you want to check the day and time, press
CLOCK CALL on the remote controller. The time is
displayed in a 24-hour cycle. For example, 5:30 pm
will be displayed as “17:30.”
( To resume the normal display, press CLOCK CALL
again.)
If “Adjust” appears in the display
The clock setting was unsuccessful. There are a few
reasons for this:
• The antenna (aerial) connection is incomplete
or the radio signals are weak.
Check the antenna (aerial) connection or connect
the outdoor antenna (aerial) (see page 6), then try
“Setting the clock automatically by initiating
ACCUCLOCK manually” on the next page.
• The detected RDS broadcast does not have
ACCUCLOCK signals.
Some RDS broadcasting stations may not provide
CT. Try “Setting the clock automatically by initiating
ACCUCLOCK manually” on the next page.
If the wrong day or time appears in the display
The RDS broadcasting signals detected may contain
another country’s CT especially in a border area. Try
Der Online-Treff zum Thema Onkyo!
“Setting the clock automatically by initiating
ACCUCLOCK manually” on the next page.
What’s ACCUCLOCK? What’s RDS?
SOURCE SELECTOR
MD
CLOCK CALL
POWER
REPEAT
MODE
CLEAR SCROLL
– – / – – –
LINE-1SLEEPLINE-2 DIGITAL
TAPE
TAPE
MD
CD
312
645
8
97
CLOCK CALL
10 / 0

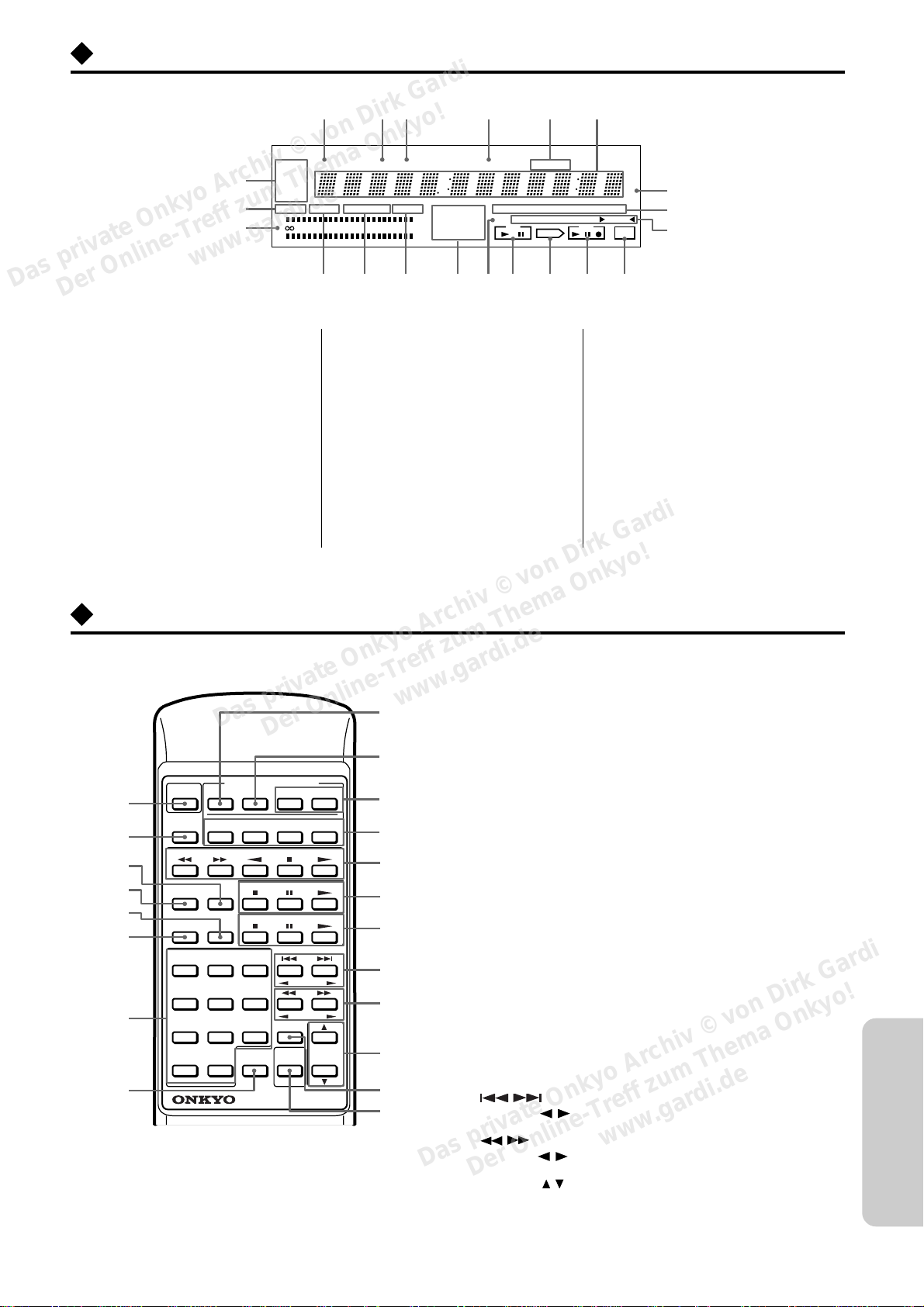

REMOTE CONTROLLER RC378S
FM AMCD
S.BASS
MUTING
PRESET
TUNING
VOLUME
www.gardi.de
Preparations
(Continued on the next page.)
11
Setting the clock (continued)
Setting the clock automatically by
initiating ACCUCLOCK manually
The RDS broadcasting station to be used for
obtaining CT can be detected automatically or set
selected; therefore, you may have the same
unsuccessful result as described in “Checking the day
and time” on the previous page. In such case, select
another RDS broadcasting station manually in step 4
below.
Display
4
AUTO / MONO
1
TIMER
ON/OFF
4
2,3,5
4
1Press TIMER PROGRAM.
TIMER
PROGRAM ON
“Clock” appears in the display.
If the clock is already set, the timer
program menu appears. In such case,
When setting the RDS
broadcasting station
automatically
Press MODE/AUTO/MONO.
The unit starts scanning for the
strongest RDS broadcasting station.
When detected, frequency search
stops and the RDS indicator lights.
SLEEP SOURCEC D TIMERM DM DCHC D
ONCE
W.DAY
W.END
REC
LEVEL - SYNC
S.BASS
MUTINGDIGITAL CHAIN
L
-40-20-
-
R
-6-
100 OVER
2
REPEAT
1 TR MEMORY
RANDOM
DISC TRACK ELAPSED REMAIN TITLE
MONO AUTO STEREO TUNED
RDS
C D
The RDS indicator lights.
If the RDS indicator has not lit, there is
no efficient RDS broadcasting station.
Set the clock manually (see next
page).
When setting a RDS
broadcasting station manually
Press TUNING / to select the
RDS broadcasting station.
When you have selected the RDS
broadcasting station, the RDS
indicator lights.
SLEEP SOURCEC D TIMERM DM DCHC D
ONCE
W.DAY
W.END
REC
LEVEL - SYNC
S.BASS
MUTINGDIGITAL CHAIN
L
-40-20-
-
R
-6-
100 OVER
2
REPEAT
1 TR MEMORY
RANDOM
DISC TRACK ELAPSED REMAIN TITLE
RDS MONO AUTO STEREO TUNED
C D
The RDS indicator lights.
The unit starts setting the clock by
getting CT. “Wait” flashes while
ACCUCLOCK is setting the clock.
When the clock setting has been
successfully completed, “Clock
Adjusted” will be scrolled in the displa y.
Then, the day and time appear for a
while and then the normal display
appears.
See “Checking the day and time” on
the previous page.
If the clock setting has been
unsuccessful
Start from the beginning, selecting
www.gardi.de
another RDS broadcasting station
manually in step 4, or set the clock
manually (see next page).
M D
DUBTOC
M D
DUBTOC
Disabling/enabling ACCUCLOCK function
SLEEP SOURCEC D TIMERM DM DCHC D
C D
ONCE
W.DAY
W.END
REC
L
R
S.BASS
-40-20-
100 OVER
-6-
2
MUTINGDIGITAL CHAIN
REPEAT
DISC TRACK ELAPSED REMAIN TITLE
RDS MONO AUTO STEREO TUNED
1 TR MEMORY
RANDOM
LEVEL - SYNC
-
M D
DUBTOC
If the time adjustment function is unnecessary, you
can disable ACCUCLOCK function. You can also
resume (enable) this function later after disabling it.
2Press MULTI JOG.
MULTI JOG
1 Execute steps 1 and 2 in “Setting the clock
automatically by initiating ACCUCLOCK
manually” on the previous page.
Check whether or not ACCUCLOCK function is
active.
Press STANDBY/ON, or press POWER on the
remote controller to turn on the unit.
If you press the same button again, the unit will turn
off and enter the standby mode.
Choosing the required source
You can choose CD, MD, tuner, or connected external
audio/video equipment (TAPE, LINE-1, LINE-2, and
DIGITAL) as the audio source.
Operating with the unit
ButtonsUsage
CD/MDEach time you press this button, CD
TUNERPress to choose the tuner
TAPE/LINEEach time you press this button,
Operating with the remote controller
Press the following SOURCE SELECTOR buttons:
CD, MD, FM for choosing the tuner, TAPE, LINE-1,
LINE-2, and DIGITAL.
Notes
• The AM button does not operate.
• If “D.In Unlock” appears or the DIGITAL indicator flashes
in the display when you have selected DIGITAL, no digital
equipment is connected or the connected digital
component is not turned on.
TAPE, LINE-1, LINE-2, DIGITAL will
be chosen in turn.
www.gardi.de

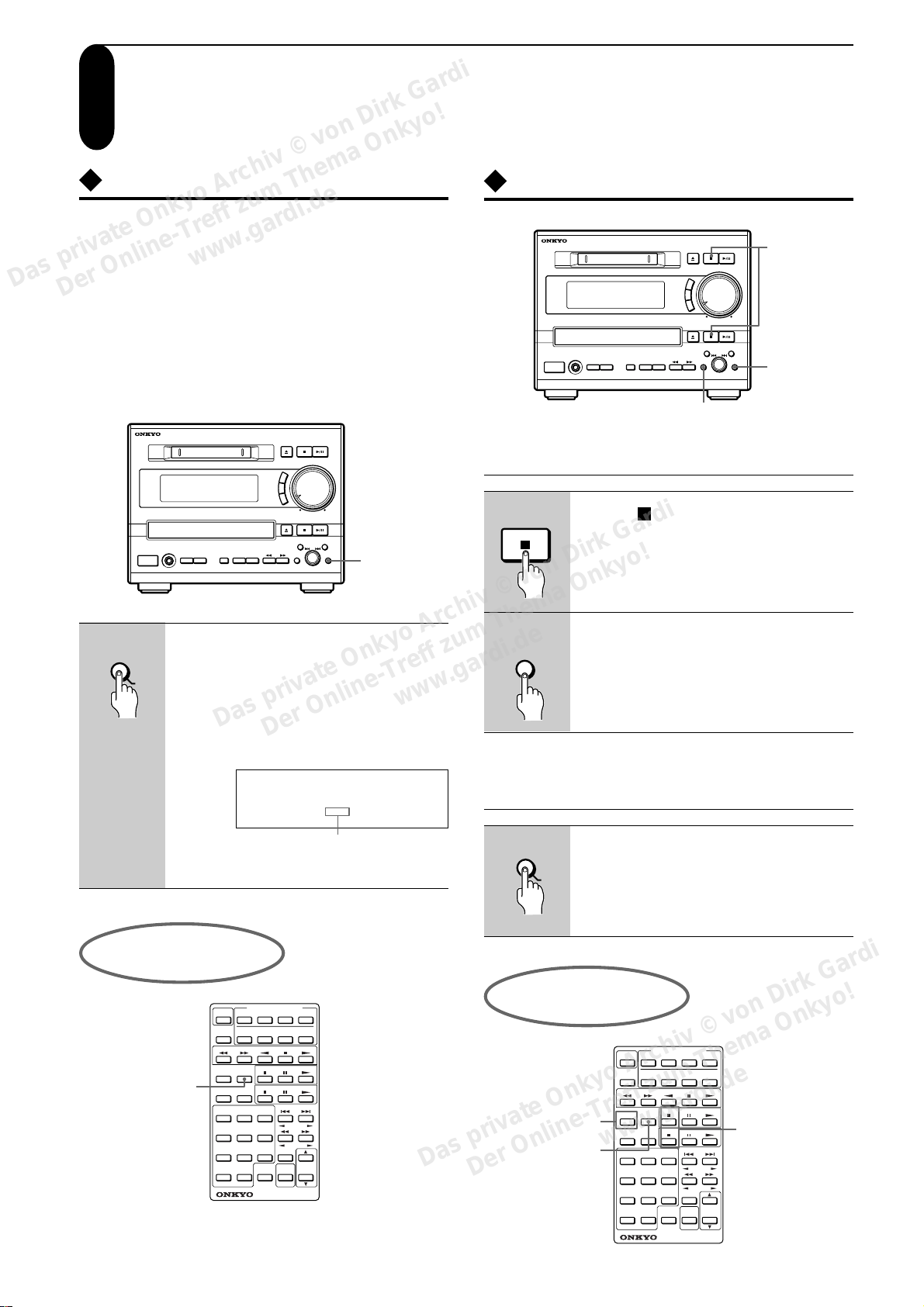

Operating with the unit
Turn VOLUME clockwise to increase the volume and
counterclockwise to decrease the volume.
Operating with the remote controller
Press VOLUME / on the remote controller.
Press MUTING on the remote controller. The
MUTING indicator lights in the display.
To restore the sound, press MUTING again.
Tip
During muting:
• if you press VOLUME
sound will be restored.
• if you turn off the unit, and turn on again, the sound will be
restored.
• if you press TONE on the unit, the sound will be restored.
Decrease the volume, then connect the stereo
headphones mini plug to the PHONES jack.
You can adjust the volume, and mute the sound as
described above.
The speakers will reproduce no sound while the
headphones are connected.
SOURCE SELECTOR
buttons
VOLUME
/
Adjusting the volume
Muting the sound
SLEEP SOURCEC D TIMERM DM D C D
ONCE
W.DAY
W.END
REC
LEVEL - SYNC
S.BASS
MUTINGDIGITAL CHAIN
L
-40-20-
-6-
-
100 OVER
R
2
REPEAT
1 TR MEMORY
RANDOM
DISC TRACK ELAPSED REMAIN TITLE
RDS MONO AUTO STEREO
before you start auto presetting, all the preset
channels will be replaced.
1
3
4,5

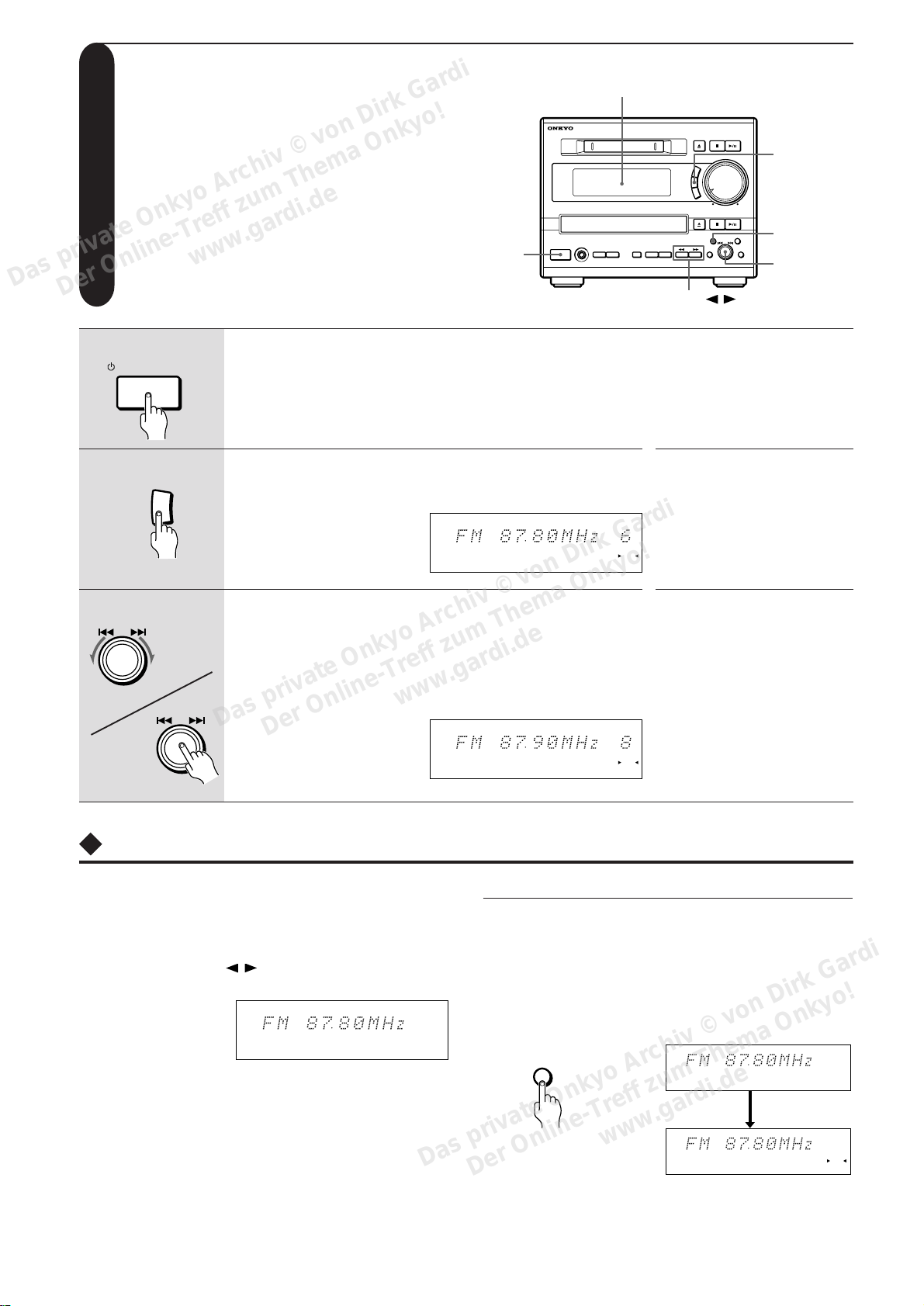

1Press STANDBY/ON to turn on
STANDBY / ON
the unit.
2Press TUNER to display “FM.”
TUNER
SLEEP SOURCEC D TIMERM DM DCHC D
ONCE
W.DAY
W.END
REC
LEVEL - SYNC
S.BASS
MUTINGDIGITAL CHAIN
L
-40-20-
-
R
-6-
100 OVER
2
REPEAT
1 TR MEMORY
RANDOM
DISC TRACK ELAPSED REMAIN TITLE
RDS MONO AUTO STEREO TUNED
C D
DUBTOC
M D
Note
Auto presetting may store noise to some preset channels
instead of radio stations depending on the area where you
live. In such case, erase them manually (see page 47).
If auto presetting is unsuccessful
Check the antenna (aerial) connection and position (see
page 6).
If you had a power failure or disconnected the AC
power cord (mains lead)
Memory will normally be preserved for two days after the
power supply has stopped. If the data in memory has
erased, repeat auto presetting.
• To locate the beginning of the playing
track, turn MULTI JOG
counterclockwise slightly.
If you turn it further, you can select the
former tracks in reverse order.
To select the next track in order, turn
MULTI JOG clockwise.
If you have selected the track while the
CD is stopped, press MULTI JOG to start
playback.
Note
It may take a while to start playing back CDs with many
tracks.
16
The playback ( ) indicator lights in the display.
SLEEP SOURCEC D TIMERM DM DCHC D
ONCE
W.DAY
W.END
REC
LEVEL - SYNC
S.BASS
MUTINGDIGITAL CHAIN
L
-40-20-
-6-
-
100 OVER
www.gardi.de
R
2
REPEAT
1 TR MEMORY
RANDOM
DISC TRACK ELAPSED REMAIN TITLE
RDS MONO AUTO STEREO TUNED
C D
DUBTOC
M D
Playing track number
SLEEP SOURCEC D TIMERM DM DCHC D
ONCE
W.DAY
W.END
REC
LEVEL - SYNC
S.BASS
MUTINGDIGITAL CHAIN
L
-40-20-
-
100 OVER
R
-6-
REPEAT
2
1 TR MEMORY
RANDOM
The elapsed
playing time
DISC TRACK ELAPSED REMAIN TITLE
RDS MONO AUTO STEREO TUNED
C D
DUBTOC
M D
To stop playback
Press CD .
Playback automatically stops
when the last track has been
played.
To take out the CD
Press CD to open the disc
tray.
To pause
Press CD . “ ” lights in the
display. To restart playback,
press CD
again.
MULTI JOG
• The CD track can also be selected and
played back by pressing MULTI JOG
while the CD is playing or stopped.
Each press shifts one track ahead.
The MD must be recorded.
Insert the end of the MD.
The arrow printed on the MD must face up and point
to the unit.
Then push lightly so that the MD will automatically be
loaded into the unit.
2Press CD/MD repeatedly until “MD” appears
in the display.
CD/MD
3Press MD to start playback.
MD
Selecting the track to play
• To locate the beginning of the playing
track, turn MULTI JOG
counterclockwise slightly.
If you turn it further, you can select the
former tracks in reverse order.
To select the next track in order, turn MULTI
JOG clockwise.
If you have selected the track while the
MD is stopped, press MULTI JOG to start
playback.
• The MD track can also be selected
and played back by pressing MULTI
Each press switches the source to MD or CD.
The following MD information appears in the display.
