Omron CS1G-CPU42H, CS1G-CPU43H Replacement Manual
Programmable Controller C200HS-series
Replacement Guide From C200HS to CS1
C200HS-CPU0□(-C)
C200HS-CPU2□
C200HS-CPU3□
CS1G-CPU42H
CS1G-CPU43H
P070-E1-0
About this document
This document provides the reference information for replacing C200H PLC systems with CS1 series PLC.
This document does not i nc lud e prec aut io ns and reminders ;please rea d an d und e r s tand the important precautions
and reminders described on the manuals of PLCs (both of PLC used in the existing system and PLC you will use to
replace the existing PLC) bef ore attem pting to star t op eratio n.
Company names and product names in this document are the trademarks or registered trademarks of their
respective companies.
Related Manuals
Man.No.
Model
Manual
NSJ□-□□□□(B)-□□□
NSJ□-□□□□(B)-□□□
NSJ□-□□□□(B)-□□□
CS1W-KS001
CS1G/H-CPU□□-V1
-CPU□□/CPU□□-Z
W303
C200HX/HG/HE
SYSMACα OPERATION MANUAL
C200HE-CPU□□-ZE
3G8F5
CPU Unit s
W394 CS1G/H-CPU□□H
CS1G/H-CPU□□-V1
CS1D-CPU□□H
CS1D-CPU□□S
CJ1H-CPU□□H-R
CJ1G/H-CPU□□H
CJ1G-CPU□□P
CJ1M/G-CPU□□
W474 CS1G/H-CPU□□H
CS1G/H-CPU□□-V1
CS1D-CPU□□H
CS1D-CPU□□S
CJ1H-CPU□□H-R
CJ1G/H-CPU□□H
CJ1G-CPU□□P
CJ1M/G-CPU□□
W342 CS1G/H-CPU□□H
CS1G/H-CPU□□-V1
CS1D-CPU□□H
CS1D-CPU□□S
CS1W-SCU□□-V1
CS1W-SCB□□-V1
CJ1H-CPU□□H-R
CJ1G/H-CPU□□H
CJ1G-CPU□□P
CJ1M/G-CPU□□
CJ1W-SCU□□-V1
CP1H-X□□□□-□
CP1H-XA□□□□-□
CP1H-Y□□□□-□
CS/CJ/NSJ Series PROGRAMMING MANUA L
CS/CJ/NSJ Series INSTRUCTIO NS REFERENCE MANUAL
CS/CJ/CP/NSJ Series Communications Commands REFERENCE MAN UAL
W341 CQM1H-PRO01
CQM1-PRO01
C200H-PRO27
W339 CS1G/H-CPU□□H
W302 C200HX/HG/HE
W322 C200HX-CPU□□-ZE
C200HG-CPU□□-ZE
W227 CV500/CV1000
C200H/C1000H/C2000H/
CS/CJ Series Programming Consoles OPERATION MANUAL
CS Series OPERATION MANUAL
SYSMACα INSTALLATION GUIDE
SYSMACα OPERATION MANUAL
FINS Commands Reference Manual
Special I/O Units
Man.No.
Model
Manual
CJ1W-NC□71(-MA)
CJ1W-MCH71
CJ1W-FLN22(100BASE-TX)
CJ1W-SCU□□-V1
CJ1W-MAD42
CJ1W-PH41U
W902
CS1W-CT021/041
CS Series High-speed Counter Units OPERATION MANUAL
CS1W-HCA12-V1
CS1W-HCA22
W376
CS1W-NC□□□
CS Series Position Control Units OPERATION MANUAL
W359
CS1W-MC□□□-V1
CS Series Motion Control Units OPERATION MANUAL
W124
C200H-TS001/002/101/102
C200H Temperature Sensor Units OPERATION MANUAL
W127
C200H-AD001/-DA001
C200H Analog I/O Units OPERATION GUIDE
W229
C200H-AD002/-DA002
C200H Analog I/O Units OPERATION MANUAL
C200H-MAD01
C200H-TC101/102/103
C200H-TV101/102/103
W241
C200H-PID01/02/03
C200H PID Control Unit OPERATION MANUAL
C200H-CT002
W311
C200H-CT021
C200H High-speed Counter Units OPERATION MANUAL
W224
C200H-CP114
C200H Cam Positioner Units OPERATION MANUAL
W334
C200HW-NC113/213/413
C200HW Position Control Units OPERATION MANUAL
W137
C200H-NC111
C200H Position Control Units OPERATION MANUAL
W128
C200H-NC112
C200H Position Control Units OPERATION MANUAL
W166
C200H-NC211
C200H Position Control Units OPERATION MANUAL
W314
C200H-MC221
C200H Motion Control Units OPERATION MANUAL:INTRODUCTION
W315
C200H-MC221
C200H Motion Control Units OPERATION MANUAL:DETAILS
W165
C200H-ASC02
C200H ASCII Units OPERATION MANUAL
W306
C200H-ASC11/21/31
C200H ASCII Units OPERATION MANUAL
W426 CS1W-NC□71
W435 CS1W-MCH71
W440 CS1W-FLN22
W336
W345 CS1W-AD0□□-V1/-AD161
W368 CS1W-PTS□□
CS1W-SCB□□-V1
CS1W-SCU□□-V1
CS1W-DA0□□
CS1W-MAD44
CJ1W-AD0□□-V1/-AD042
CJ1W-DA0□□/-DA042V
CS1W-PTW□□
CS1W-PDC□□
CS1W-PTR□□
CS1W-PPS□□
CS1W-PMV□□
CJ1W-PTS□□
CJ1W-PDC□□
CS/CJ Series Position Control Un it s OPE RATION MANUAL
CS/CJ series Motion Control Units OPERATION MANUAL
CS/CJ Series FL-net Units OPERATION MANUAL
CS/CJ Series Serial Communications Boards S eri al Communications Units
OPERATION MANUAL
CS/CJ Series Analog I/O Units OPERATION MANUAL
CS/CJ Series Analog I/O Units OPERATION MANUAL
W378
W384 CS1W-HIO01
W325 C200H-AD003
W225 C200H-TC001/002/003
W240 C200H-TV001/002/003
W141 C200H-CT001-V1
CS1W-HIO01-V1
CS1W-HCP22-V1
CS1W-HCA22-V1
CS1W-HCP22
C200H-DA003/-DA004
CS Series Customizable Counter Units OPERATION MANUAL
CS Series Customizable Counter Units PROGRAMMING MANUAL
C200H Analog I/O Units OPERATION MANUAL
C200H Temperature Control Units OPERATION MANUAL
C200H Heat/Cool Temperature Control Units OPERATION MANUAL
C200H High-speed Counter Units OPERATION MANUAL
Man.No.
Model
Manual
C200HW-COM06-EV1
W257
CVM1-PRS71
Teaching Box OPERATION MANUAL
Man.No.
Model
Manual
CS1W-RPT0□
CVM1-CLK52(GI Cable)
CJ2M-CPU3□
CJ1W-ETN21 (100Base-TX)
CJ1W-ETN21(100Base-TX)
CJ1W-CRM21
W457
CRT1
CRT1 Series CompoNet Slave Units and Repeater Unit OPERATION MANUAL
CJ1W-DRM21
CVM1
SRT1/SRT2
B500-I/O
3G8F6-CLK21
W304 C200HW-COM01
C200HW-COM02-V1 to
Network Communications Units
W309 CS1W-CLK23
CS1W-CLK21-V1
CJ1W-CLK23
CJ1W-CLK21-V1
C200HW-CLK21
CVM1-CLK21
CQM1H-CLK21
W370 CS1W-CLK13
CS1W-CLK12-V1
CVM1-CLK12(H-PCF Cable)
CS1W-CLK53
CS1W-CLK52-V1
W465 CS1W-EIP21
CJ1W-EIP21
CJ2H-CPU6□-EIP
C200HW Communication Boards OPERATION MANUAL
Controller Link Units OPERATION MANUAL
Optical Ring Controller Link Units OPERATION MANUAL
CS/CJ Series EtherNet/IP Units OPERATION MANUAL
W420 CS1W-ETN21
W421 CS1W-ETN21
W456 CS1W-CRM21
W380 CS1W-DRM21-V1
W267 CS1W/CJ1W/C200HW
DRT1/DRT2
GT1
W266 C200HW-SRM21-V1
CS1W-SRM21
CJ1W-SRM21
CQM1-SRM21-V1
W136 C500-RM001-(P)V1
C120-RM001(-P)
C500-RT001/RT002-(P)V1
C500/C120-LK010(-P)
C200H-RM001-PV1
C200H-RT001/002-P
CS/CJ Series Ethernet Units OPERATION MANUAL Construction of Networks
CS/CJ Series Ethernet Units OPERATION MANUAL Construction of Applications
CS/CJ Series Comp oNet Mast er Unit s O PE RATION MANUAL
CS/CJ Series DeviceNet Units OPERATIO N MA NUAL
DeviceNet OPERATION MANUAL
CompoBus/S OPERATION MANUAL
C series Rack PCs Optical Remote I/O SYSTEM MANUAL
W308 C200HW-ZW3DV2/ZW3PC2
3G8F5-CLK11/21
Controller Link Support Software OPERATION MANUAL
Man.No.
Model
Manual
S32-RS1
DRT1
Man.No.
Model
Manual
W463
CX-One FA Integrated Tool Package SETUP MANUAL
W446
CX-Programmer OPERATION MANUAL
W447
CX-Programmer OPERATION MANUAL : Function Blocks/Structured Text
W464
CX-Integrator OPERATION MANUAL
W344
CX-Protocol OPERATION MANUAL
W120 C500-RM201/RT201
C200H-RM201/RT201/202
G71-IC16/OD16
G72C-ID16/OD16
W379 CVM1-DRM21-V1
C200HW-DRM21-V1
W347 C200HW-DRT21
CQM1-DRT21
W135 C200H-LK401
C500-LK009-V1
Support Software
CXONE-AL□□C-V4
CXONE-AL□□D-V4
C series Rack PCs Wired Remote I/O SYSTEM MANUAL
DeviceNet Master Units OPERATION MANUAL
DeviceNet Slaves OPERATION MANUAL
C Series PC Link SYSTEM MANUAL
MEMO
Terms and Conditions Agreement
Warranties.
(a) Exclusive Warranty. Omron’s exclusive warranty is that the Products will be free from defects in
materials and workmanship for a period of twelve months from the date of sale by Omron (or such other
period expressed in writing by Omron). Omron disclaims all other warranties, express or implied.
(b) Limitations. OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED,
ABOUT NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OF
THE PRODUCTS. BUYER ACKNOWLEDGES THAT IT ALONE HAS DETERMINED THAT THE
PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR INTENDED USE.
Omron further disclaims all warranties and responsibility of any type for claims or expenses based on
infringement by the Products or otherwise of any intellectual property right.
(c) Buyer Remedy. Omron’s sole obligation hereunder shall be, at Omron’s election, to (i) replace (in the
form originally shipped with Buyer responsible for labor charges for removal or replacement thereof) the
non-complying Product, (ii) repair the non-complying Product, or (iii) repay or credit Buyer an amount equal
to the purchase price of the non-complying Product; provided that in no event shall Omron be responsible
for warranty, repair, indemnity or any other claims or expenses regarding the Products unless Omron’s
analysis confirms that the P rod ucts were properly handled, st or ed, i nst all ed a nd m ain t ain ed and n ot s ubje c t
to contamination, abuse, misuse or inappropriate modification. Return of any Products by Buyer must be
approved in writing by Omron before shipment. Omron Companies shall not be liable for the suitability or
unsuitability or the results from the use of Products in combination with any electrical or electronic
components, circuits, sy st em a sse mbl ie s or any ot h er m ater i a ls or su bst anc es or env ir o nm e nts. Any advic e,
recommendations or information given orally or in writing, are not to be construed as an amendment or
addition to the above warranty.
See http://www.omron.com/global/ or contact your Omron representative for published information.
Limitation on Liability; Etc.
OMRON COMPANIES SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY
WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED IN CONTRACT,
WARRANTY, NEGLIGENCE OR STRICT LIABILITY.
Further, in no event shall liability of Omron Companies exceed the individual price of the Product on which
liability is asserted.
Suitability of Use.
Omron Companies shall not be responsible for conformity with any standards, codes or regulations which
apply to the combination of the Product in the Buyer’s application or use of the Product. At Buyer’s request,
Omron will provide applicable third party certification documents identifying ratings and limitations of use
which apply to the Product. This information by itself is not sufficient for a complete determination of the
suitability of the Product in combination with the end product, machine, system, or other application or use.
Buyer shall be solely responsible for determining appropriateness of the particular Product with respect to
Buyer’s application, product or system. Buyer shall take application responsibility in all cases.
NEVER USE THE PRODUCT FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR
PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO
ADDRESS THE RISKS, AND THAT THE OMRON PRODUCT(S) IS PROPERLY RATED AND INSTALLED
FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.
Programmable Products.
Omron Companies shall not be responsible for the user’s programming of a programmable Product, or any
consequence thereof.
Performance Data.
Data presented in Omron Company websites, catalogs and other materials is provided as a guide for the
user in determining suitabil ity and doe s not con stitute a war ranty. It may represent the result of Omron ’s te st
conditions, and the user must correlate it to actual application requirements. Actual performance is subject
to the Omron’s Warranty and Limitations of Liability.
Change in Specifications.
Product specifications and accessories may be changed at any time based on improvements and other
reasons. It is our pr a cti ce to ch ange par t nu mbers when published r at ing s or features are ch anged , or when
significant construction changes are made. However, some specifications of the Product may be changed
without any notice. When in doubt, special part numbers may be assigned to fix or establish key
specifications for your application. Please consult with your Omron’s representative at any time to confirm
actual specifications of purchased Product.
Errors and Omissions.
Information presented by Omr on Com panies has be en che cked an d is be lieved to be ac curat e; how ever, no
responsibility is assumed for clerical, typographical or proofreading errors or omissions.
C200HS Replacement Gu ide
From C200HS to CS1
Table of Contents
Work flow ......................................................................................................................................................................................................................... 2
1.
2. Selecting the replacement method ...................................................................................................................................................................... 3
3. Selecting the model .................................................................................................................................................................................................... 7
4. Reading data from C200HS .................................................................................................................................................................................. 11
5. Converting the program for CS1 ........................................................................................................................................................................ 13

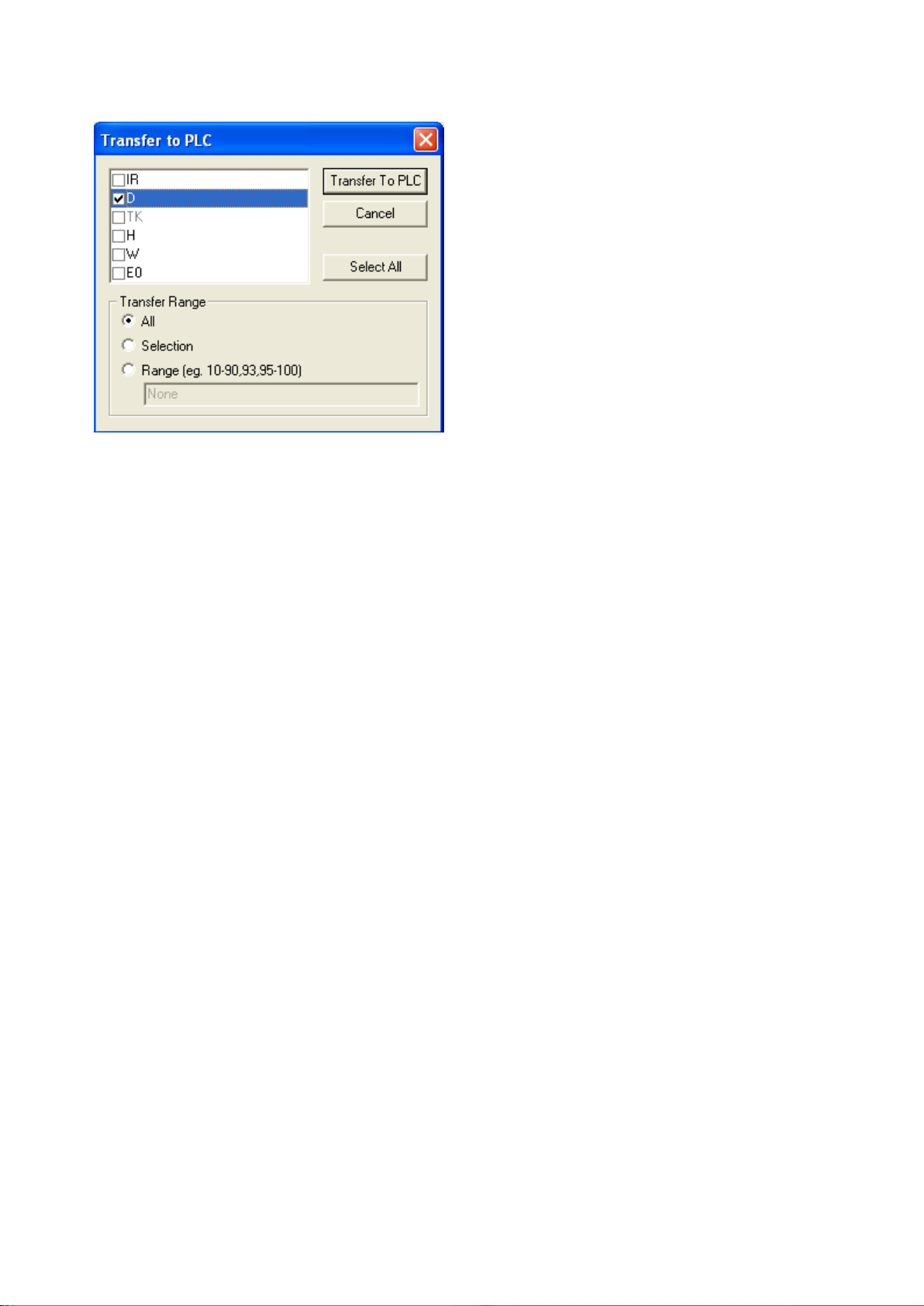

6. Writing data to CS1 ................................................................................................................................................................................................. 15
7. Appendix ....................................................................................................................................................................................................................... 17
Appendix A. Instructions converted by Change Model on CX-Programmer ......................................................................................... 17
Appendix B. Change of unit area allocation ........................................................................................................................................................ 18
Appendix C. Change in PLC Settings .................................................................................................................................................................... 18
Appendix D. Change of execution timing etc. .................................................................................................................................................... 18
Appendix E. Table of Input/Output Units ............................................................................................................................................................ 19
1
This replacement guide describes the procedure to rebuild the system which uses the C200HS-series PLC by
1. Work flow
Selecting the model
Reading PLC data
Description
Reference page
s
Select the units, programming software, and connecting
cables to replace C200HS with CS1.
Some C200HS-seires Units can be used with CS1. However,
some Units can
not be used with CS1. Read the reference
pages (recommended models and remarks) and sel ect the
models.
Load the program, I/O Memory and other settings from the
C200HS using the programming software and connecting
cable.
Converting and modifying data
Convert the data read from C200HS for CS1.
Most of the data can be automatically converted; however, some
instructions and some Unit data cannot be converted.
Refer to the reference pages and modify the data and program
separately.
3. Selecting the model
4. Reading data from C200HS
Preparing Units
Prepare the units, programming software
, and connecting
cables.
5. Converting the program for
CS1
Continue to actual replacement work
Start
Replacing Units
Writing the data to CS1
Description
Reference page
Install the prepared Units instead of C200H-series Units.
*Refer to the
CS1G/H-CPU□□H CS Series Programmable
Controllers OPERATION MANUAL (Cat. No. W339) and
user's manual
s for Special I/O U nit s and CPU Bu s Unit s for
details of installation.
Transfer the converted data to CS1.
To check the wiring, operate input and output bits to see if
they operate correctly.
Checking operation
Turn ON the power and check the operation.
Related Manuals
Wiring
Wiring for the installed Units.
*Refer to the CS1G/H
-CPU□□H CS Serie
s Programmable
Controllers OPERATION MANUAL (Cat. No. W339) and
user's manuals for S pec ial I/O Units and CPU Bus Units for
details of wiring.
6. Writing data to CS1
Replacement completion
1. If production is conducted between uploadin g the progr am a nd executing replacement
work, data handled by the program may change. If so, upload the data right before the
replacement work, modify data (if necessary), and download it to the new PLC.
2. The cycle time of C200HS and CS1 are different, which may affect system operation. If
so, it is necessary to adjust cycle time in the PLC Setup.
introducing the CS1-series PLC instead. The CS1-series PLC has functions which can replace the functions and
operation of the C200HS-series PLC. Follow the below work flow to replace your system. Refer to the reference
pages for details.
1) Preliminary Steps: Take the following steps before starting the replacement work.
2) Actual replacement work: Take the following steps to replace C200HS with CS1.
2
Loading...
