Bulletin E-90-OCN1

Series CN710, CN730, and CN740 Microprocessor Based Temperature Process Control

Specifications - Installation and Operating Instructions

OMEGA ENGINEERING, INC.

One Omega Drive PO Box 4047 Stamford, CT 06907 PH: 1 - 203 - 359 - 1660

TABLE OF CONTENTS

Model Number Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Panel Cutout Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Front Panel Key Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Security Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Control Operation Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Programming and Operation for PID Function. . . . . . . . . . . . . . . . . 9

Description of Menu Structure. . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Operation Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Regulation Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-12

Initial Setting Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-14

Alarm Output Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Communication Register List . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Communication Protocol. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Diagnostic Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Reset Factory Default Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Input Sensor Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

External Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Page 2

MODEL NUMBER IDENTIFICA TION

CN73

OUTPUT 1

2 = Voltage Pulse 3 = Relay 5 = Current

CN71

OUTPUT 1

2 = Voltage Pulse 3 = Relay 5 = Current

CN74

OUTPUT 1

2 = Voltage Pulse 3 = Relay 5 = Current

GETTING STARTED

1. Install the control as described on page 4.

2. Wire your control following the instructions on page 6. Please read the Precautions section located at the end of this manual before wiring the control.

3. For best results when programming changes are necessary, make all changes to the Initial Setting mode (Pages 13-14) before making changes to the Regulation Mode (Pages 11-12) or Operation Mode (Pages 10). If any error messages occur, check the Diagnostic Error Message Section (Page 18) for assistance.

Page 3

INSTALLATION

Mount the instrument in a location that will not be subject to excessive temperature, shock, or vibration. All models are designed for mounting in an enclosed panel.

Select the position desired for the instrument on the panel. Prepare the panel by cutting and deburring the required opening per the panel cut out dimensions listed below. Follow the mounting instructions listed on page 5. Lastly, wire the controller per the appropriate wiring diagram listed on page

PANEL CUTOUT DIMENSIONS

CN730 CN710

CN740

Page 4

MOUNTING METHOD

Step 1: From the front of the panel, slide the controller housing through

the cut out. The housing gasket should be against the housing flange before installing.

Step 2: Insert the mounting brackets into the mounting grooves on the

top and bottom of the controller.

Step 3: Push the mounting brackets forward until the bracket stops at

the panel wall.

Step 4: Insert and tighten the screws on the bracket to secure the

controller in place. (The screw torque should be 0.8 kgf-cm).

Mounting Bracket Installation

Mounting Method

Page 5

WIRING

Do not run thermocouple or other class 2 wiring in the same conduit as power leads. Use only the type of thermocouple or RTD probe for which the control has been programmed. Maintain separation between wiring of sensor, auxiliary in or out, and other wiring. See the Initial Setting Menu for input selection.

For thermocouple input always use extension leads of the same type designated for your thermocouple.

For supply connections use No. 16 AWG or larger wires rated for at least 75˚ C. Use conductors only. All line voltage output circuits must have a common disconnect and be connected to the same pole of the disconnect.

Input wiring for thermocouple, current, and RTD; and output wiring for current 14 VDC is rated CLASS 2.

Control wiring as show below:

Terminal Identification CN730 CN710

DATA+

RS-485

DATA-

8RTD 18

ALM2

COM

AC 100-240V 50/60 HZ 5VA

OUTPUT 1 5A

250VAC

140VDC 0R 4-20MA

OR 0-10V

DATA+

RS-485

DATA-

RTD

414

616

717

ALM2

COM

AC100-240V 50/60 HZ 5VA

OUTPUT1

5A 250VAC

14VDC OR 4-20MA

OR 0-10V

CN740

14VDC

4-20MA

0-10V

OUT1

COM

DATA+

RS-485

DATA-

RTD

ALM2

14 3A 250VAC

COM

ALM1

AC 100-24OV 50/60/HZ 5VA

3A 250VAC

Page 6

FRONT KEY FUNCTIONS

Key functions are as follows:

INDEX: Pressing the INDEX key advances the display to the next menu item.

UP ARROW: Increments a value or changes a menu item. If pressed during the Operation Mode, the set point value will be increased.

DOWN ARROW: Decrements a value or changes a menu item. If pressed during the Operation Mode, the set point value will be decreased.

ENTER: Stores the value or item change. If not pressed, the previously stored value or item will be retained. When pressed during the Operation Mode, the controller switches to the Regulation Mode. If held for more than 3 seconds during the Operation Mode, the controller switches to the Initial Setting Mode. If pressed during the Regulation Mode or

Initial Setting Mode, the controller will return to the Operation Mode.

SECURITY FEATURES

The CN Series controller has two built in security lock settings to prevent unauthorized personnel from changing parameter settings. These parameters are set in the Operation Mode.

The LoC1 setting affects all parameters in the controller. If LoC1 setting is enabled, the operator will have to unlock the controller to make any changes to the controller’s parameters.

The LoC2 setting affects all parameters except the set point. If LoC2 setting is enabled, the only parameter that the operator will be able to change is the set point. In order to change any other parameters, the operator will have to unlock the control before making a change.

In order to unlock the control, the operator must depress the ENTER and INDEX key simultaneously.

Page 7

CONTROL OPERATION DESCRIPTION

The HOME display is the normal display while the control is operating. If no errors or functions are active, the HOME display will indicate the Process Variable that is being measured on the top display and the Set Variable on the bottom display.

Error Messages are shown on page 18.

Heating or Cooling

Temperature Control can be achieved by either heating or cooling. Please refer to the following for the operation of each setting.

Control Modes are selected by changing the S-HC parameter in the Initial Setting Mode.

Select HEAt, for heating or reverse acting control for output 1. Select CooL, for cooling or direct acting control for output 1.

Page 8

PROGRAMMING AND OPERATION FOR PID

Theory of Operation

The PID method of control is based on the individual tuning of proportional band values, integral time values, and derivative time values to help a unit automatically compensate for changes in a control system. The proportional band is the range around the set point in which the control’s proportioning takes place. The control increases or decreases the output proportionately to the process temperature’s deviation from the set point. The integral time eliminates undershoot and overshoot of the set point by adjusting the proportioning control based on the amount of deviation from the set point during steady state operation. The derivative time eliminates undershoot and overshoot by adjusting the proportioning control based on the rate of rise or fall of the process temperature. The integral deviation offset corr ection (ioFn) improves the speed in which the process value reaches the set point value. If this parameter is set to zero, the output will be zero when the process value is equal to the set point value. If the integral time parameter is used only to eliminate steady state error, it may take a long time to reach the set point because it needs time to accumulate the error. This parameter defines the default output level on start up. When the integral time is set at 0, then the proportional derivative offset correction (PdoF) would r eplace the integral deviation offset correction, but serves the same function.

Program Set Up

In order to use the PID function in the CN Series controllers, the Control Mode will have to be set to PID in the Initial Setting Menu. After changing the Control Mode, the PID parameters can be accessed in the Regulation Menu. The PID parameters can either be programmed manually or they can be set by the controller using the auto tune function. The auto tune will use trial and error to tune the PID parameters to give the control the most precise control. Since the time to accurately tune the control may differ depending on the process, the controller can also be manually tuned to known PID values prior to running auto tune. The Run/Stop parameter must be set to run in order to start auto tuning.

Page 9

DESCRIPTION OF MENU STRUCTURE

The programming for the controller is broken down into three menus (Operation, Regulation, and Initial Setting). Upon normal operation, control will be in the Operation Menu.

OPERATION MENU

Pressing the INDEX key will cycle through the below menu items. The parameter will be displayed in the top display, while its value will be displayed in the bottom display, except for the set point which is displayed in the bottom display on the Home Display. The UP and DOWN arrows change the values of the parameters. The ENTER key must be pressed after any changes.

1234

r-S rUn StoP

AL1H

AL1L

AL2H

AL2L

LoC L0C1 L0C2

oUt1

Adjust the set point value - Can be any numerical value between the upper and lower limit of the temperature range.

Select Run - Stop Output Control. Activates outputs. De-activates outputs.

Alarm 1 High Set Point. May not appear depending on ALA1 setting in Initial Setting Menu.

Alarm 1 Low Set Point. May not appear depending on ALA1 setting in Initial Setting Menu.

Alarm 2 High Set Point. May not appear depending on ALA2 setting in Initial Setting Menu.

Alarm 2 Low Set Point. May not appear depending on ALA2 setting in Initial Setting Menu.

Set front panel security lock. Lock all settings. Lock all settings except the set point.

Display the % output value for output 1. In manual mode, this value can be changed using the up and down arrows.

Page 10

REGULATION MENU

oFF

P i d

PdoF

ioFn

HtS

CtS

Press the ENTER key while at the Home Display in order to access the Regulation Menu. Pressing the INDEX key will cycle through the below menu items. The parameter will be displayed in the top display, while its value will be displayed in the bottom display. The UP and DOWN arrows change the values of the parameters. The ENTER key must be pressed after any changes.

Auto Tune. The controller will evaluate the process and select the PID values to maintain good control. Only available when the control mode is set to PID.

Start learning the process. After the process has been learned the menu will revert to oFF. Disables Auto Tune.

Proportional Band Setting. Integral time (reset time). Derivative time (rate time).

PD Offset Correction Setting. only available when control mode is set to PID and integral time = 0. See Programming and Operation of PID function for moving information.

Integral Deviation Offset Correction associated with each PID Profile. (n = 0 to 4).

Heating Hysteresis (Differential) Setting. Sets the value for the amount of difference between the turn off point (set point) and the turn on point. Figure A shows the output behavior for a heating (reverse acting) application. Only available when control mode set to on/off control.

Cooling Hysteresis (Differential) Setting. Sets the value for the amount of difference between the turn off point (set point) and the turn on point. Figure A shows the output behavior for a cooling (direct acting) application. Only available when control mode set to on/off control.

Page 11

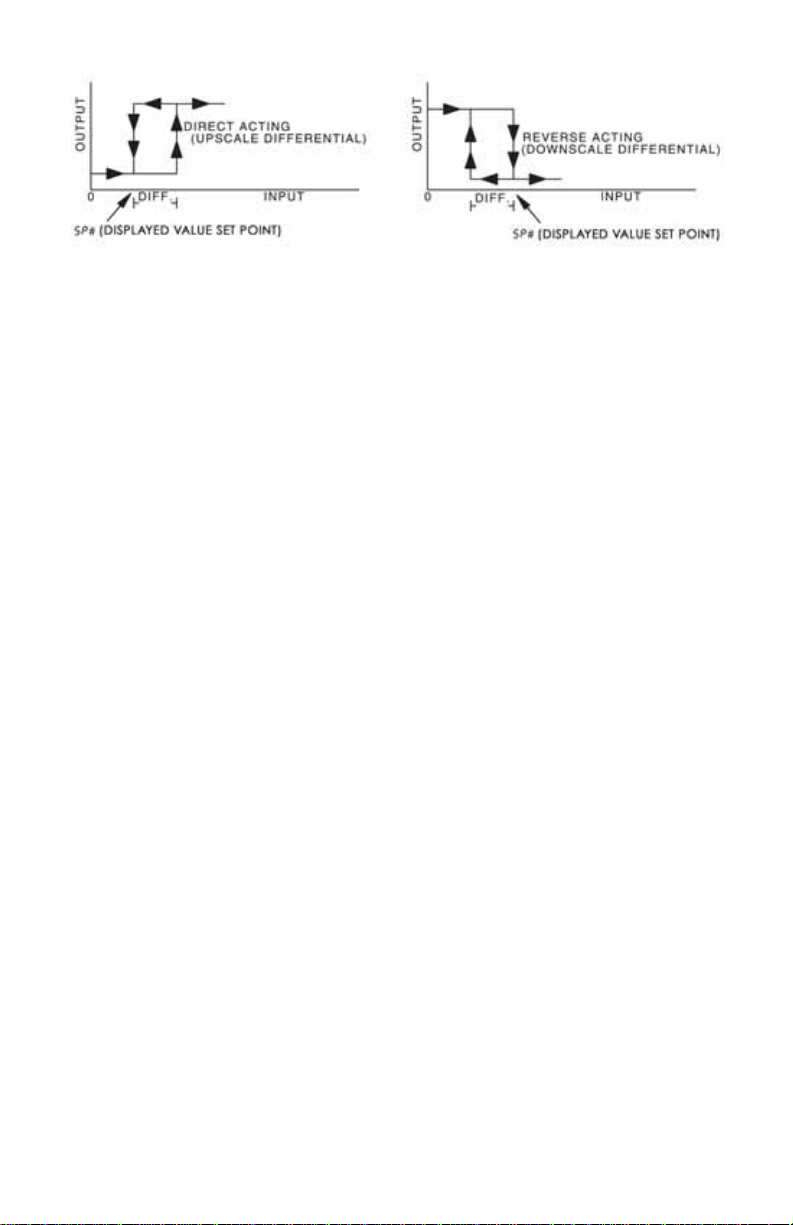

Figure A: Output behavior for Heating/Cooling On/Off Applications

HtPd

CLPd

tPoF

Crh

CrLo

Heating Control Cycle Setting. Defines the duration for one output period or cycle for output 1. Only available when control mode is set to PID and Output 1 is set for heating.

Cooling Control Cycle Setting. Defines the duration for one output period or cycle for output 1. Only available when control mode is set to PID and Output 1 is set for cooling.

Process Temperature Offset. This feature allows the input value to be changed to agree with an external reference or to compensate for sensor error.

Analog Output High Limit: Sets the actual upper limit of the analog output when the control’s output is operating at 100%. Only available for analog output models.

Analog Output Low Limit. Sets the actual lower limit of the analog output when the control’s output is operating at 0%. Only available for analog output models.

Page 12

INITIAL SETTING MENU

inPt

tPUn

tP-H

tP-L

CtrL

Press and hold the ENTER key for at least 3 seconds while at the Home Display in order to access the Initial Setting Menu. Pressing the INDEX key will cycle through the below menu items. The parameter will be displayed in the top display, while its value will be displayed in the bottom display. The UP and DOWN arrows change the values of the parameters. The ENTER key must be pressed after any changes.

Input Selection. Select one of the following input types from the below table.

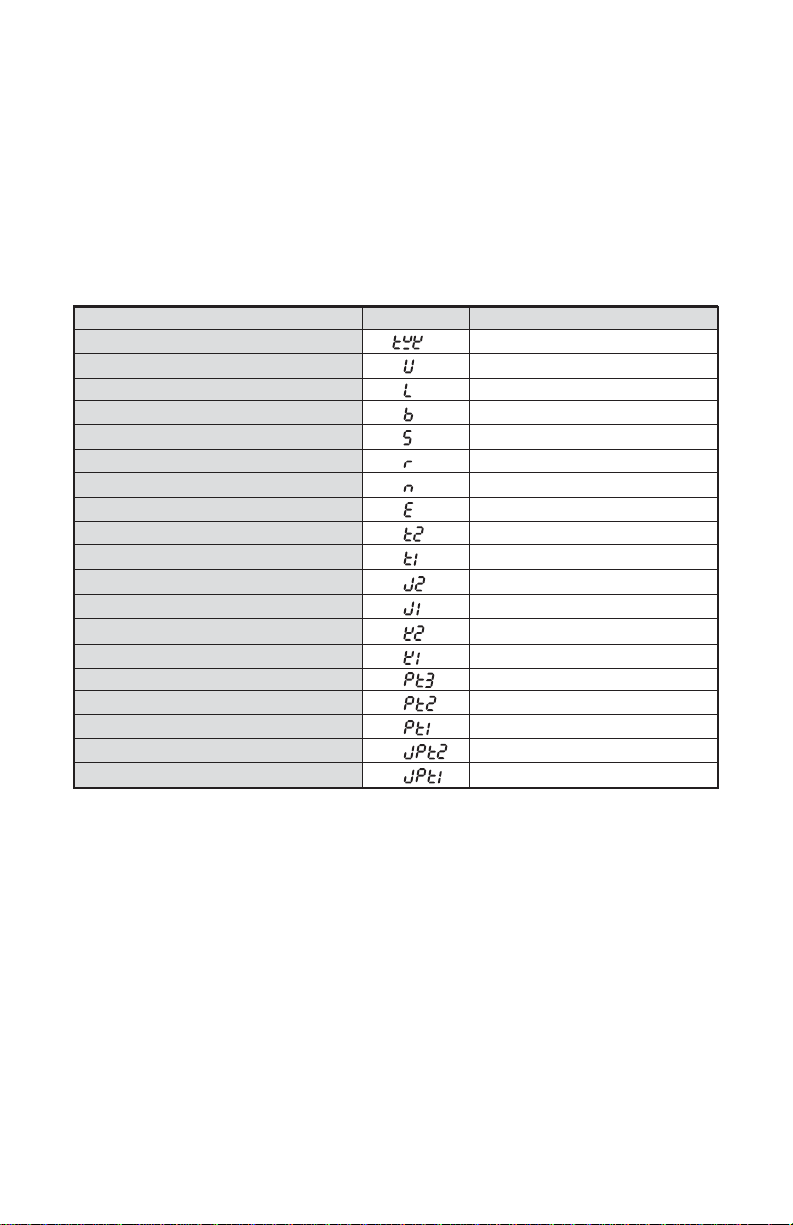

Input Temperature Sensor Type LED Display Temperature Range Thermocouple TXK type -328 ~ 1440°F (-200 ~ 800°C) Thermocouple U type -328 ~ 932°F (-200 ~ 500°C) Thermocouple L type -328 ~ 1562°F (-200 ~ 850°C) Thermocouple B type 212 ~ 3272°F (100 ~ 1800°C) Thermocouple S type 32 ~ 3092°F (0 ~ 1700°C) Thermocouple R type 32 ~ 3092°F (0 ~ 1700°C) Thermocouple N type -328 ~ 2340°F (-200 ~ 1300°C) Thermocouple E type 32 ~ 1112°F (0 ~ 600°C) Thermocouple T type2 -4 ~ 752°F (-20 ~ 400°C) Thermocouple T type1 -328 ~ 752°F (-200 ~ 400°C) Thermocouple J type2 -4 ~ 752°F (-20 ~ 400°C) Thermocouple J type1 -148 ~ 1562°F (-100 ~ 850°C) Thermocouple K type2 -4 ~ 932°F (-20 ~ 500°C) Thermocouple K type1 -328 ~ 2340°F (-200 ~ 1300°C) Platinum Resistance (Pt100) type 3 32 ~ 212°F (0 ~ 100°C) Platinum Resistance (Pt100) type 2 -4 ~ 932°F (-20 ~ 500°C) Platinum Resistance (Pt100) type 1 -328 ~ 1112°F (-200 ~ 600°C) Platinum Resistance (JPt100) type 2 32 ~ 212°F (0 ~ 100°C) Platinum Resistance (JPt100) type 1 -4 ~ 752°F (-20 ~ 400°C)

Temperature Units. This parameter is only available for thermocouple or RTD inputs.

Scale Height Limit. Sets the upper limit of the temperature range. If the process temperature exceeds this setting, the display will flash an error code.

Scale Low Limit. Sets the lower limit of the temperature range. If the process temperature exceeds this setting, the display will flash an error code.

Control Mode. Select method of control operation. Can be set to PID, On-Off, or Manual.

Page 13

ALA1

ALA2

CoSH

C-no

bP5

LEn

PrtY

StoP

S-HC

Heat/Cool Selection. Assigns output 1 to be either heat or cool.

HEAt = Output 1 = Heating CooL = Output 1 = Cooling

Alarm 1 Setting. Sets operation for Alarm 1. Please see selection on Alarm Outputs for description of the outputs.

Alarm 2 Setting. Sets operation for Alarm 2. Please see selection on Alarm Outputs for description of the outputs.

Communications Write Function Feature. Allows parameters to be changed via the RS-485 communications. Setting to oFF prevents any changes from remote users.

Controller Address: Set from 1 to 247. This value must match the controller address used by the host computer.

Baud Rate Setting. This value must match the communication baud rate of the host computer.

Communication Data Length. Choose either 7 or 8. This value must match the communication data length of the host computer.

Communication Parity Bit. Set this value to even, odd, or none. This value must match the communication parity bit of the host computer.

Communication Stop Bit. Set this value to 1 or 2. This value must match the communication stop bit of the host computer.

Page 14

Alarm Output Configuration and Operation Table.

Set Value Alarm Type Alarm Output Operation

0 Alarm function disabled Output is OFF 1 Deviation upper- and lower-limit:

2 Deviation upper-limit:

3 Deviation lower-limit:

4 Reverse deviation upper- and lower-limit:

5 Absolute value upper- and lower-limit:

6 Absolute value upper-limit:

7 Absolute value lower-limit:

8 Deviation upper- and lower-limit with standby sequence:

9 Deviation upper-limit with standby sequence:

10 Deviation lower-limit with standby sequence:

11 Hysteresis upper-limit alarm output:

12 Hysteresis lower-limit alarm output:

(Note: AL-H and AL-L include AL1H, AL2H, AL3H and AL1L, AL2L, AL3L)

This alarm output operates when PV value is higher than the setting value SV+(AL-H) or lower than the setting value SV-(AL-L).

This alarm output operates when PV value is higher than the setting value SV+(AL-H).

This alarm output operates when PV value is lower than the setting value SV-(AL-L).

This alarm output operates when PV value is in the range of the setting value SV+(AL-H) and the setting value SV-(AL-L).

This alarm output operates when PV value is higher than the setting value AL-H or lower than the setting value AL-L.

This alarm output operates when PV value is higher than the setting value AL-H.

This alarm output operates when PV value is lower than the setting value AL-L.

This alarm output operates when PV value reaches set point (SV value )and the value is higher than the setting value SV+(AL-H) or lower than the setting value SV-(AL-L).

This alarm output operates when PV value reaches set point (SV value) and the reached value is higher than the setting value SV+(AL-H).

This alarm output operates when PV value reaches the set point (SV value) and the reached value is lower than the setting value SV-(AL-L).

This alarm output operates if PV value is higher than the setting value SV+(AL-H). This alarm output is OFF when PV value is lower than the setting value SV+(AL-L).

This alarm output operates if PV value is lower than the setting value SV-(AL-H). This alarm output is OFF when PV value is higher than the setting value SV-(AL-L).

Page 15

Communication Register List

Communication Parameters List

Controller offers a RS-485 port for serial communication.

1. Supporting transmission speed: 2400, 4800, 9600, 19200, 38400 bps.

2. Communication protocol: Modbus (ASCII).

3. Non-supported formats: 7, N, 1 or 8, O, 2 or 8, E, 2.

4. Available communication address: 1 to 255, 0 is broadcast address.

5. Function code: 03H to read the contents of register (Max. 3 words).

6. 06H to write 1 (one) word into register.

Address Content Explanation

4700H (R) Process value (PV) Measuring unit is 0.1, updated one time 4701H Set point (SV) Unit is 0.1, oC or oF

4702H Upper-limit alarm 1 4703H Lower-limit alarm 1 4704H Upper-limit alarm 2 4705H Lower-limit alarm 2 4706H Upper-limit of temperature range The data content should not be higher than

4707H Lower-limit of temperature range The data content should not be lower than 4708H PB Proportional band 0.1 to 999.9, unit is 0.1

4709H Ti Integral time 0 to 9999 470AH Td Derivative time 0 to 9999 470BH Heating/Cooling hysteresis 0 to 9999 470CH ~ 470FH Reserved 4710H Input temperature sensor type Please refer to the contents of the

4711H Control method 0: PID (default), 1: ON/OFF, 2: manual tuning 4712H Heating/Cooling control cycle 1 to 99 second 4713H Proportional control 0% to 100%

offset error value 4714H Temperature regulation value -999 ~ 999, unit: 0.1 4715H Alarm 1 type Please refer to the contents of the “Alarm

4716H Alarm 2 type Please refer to the contents of the “Alarm 4717H Temperature unit display selection oC: 1 (default), oF: 0

4718H Heating/Cooling control Selection Heating: 0 (default), Cooling: 1 4719H Control Run/Stop setting Run: 1 (default), Stop: 0 471AH Communication write-in selection Communication write in disabled: 0 (default),

471BH Software version W1.00 indicates 0 x 100 4729H AT Setting OFF: 0 (default), ON:1

Code 0 Normal operation (No error)

Code 1 Initial process

Code 2 Initial status (Temperature is not stable)

Code 3 Temperature sensor is not connected 472BH (R) Code 4 Temperature sensor input error

Code 5 Measured temperature value exceeds

Code 6 No Int. error

Code 7 EEPROM Error 4733H CT monitor value Unit is 0.1A Note: R means “read only” value

in 0.5 second.

the temperature range the temperature range

“Temperature Sensor Type and Temperature Range” for detail

Outputs” for detail Outputs” for detail

Communication write in enabled: 1

the temperature range

Page 16

Communication Protocol

Command code to read N words: 03H. The maximum value of N is 3. For example, in order to read two words fr om controller 01 (address 01H) at starting data address 4700H, the command in ASCII mode is:

ASCII mode: Command message: Response message:

STX ADR1 ADR0 CMD1 CMD0

Starting data address

Number of data (count by word)

LRC CHK 1 LRC CHK 0 END 1 END 0

‘:’ ‘0’ ‘1’ ‘0’ ‘3’ ‘4’ ‘7’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘2’ ‘B’ ‘3’ CR LF

STX ADR1 ADR0 CMD1 CMD0 Number of data (count by byte)

Content of start address 4700H

LRC CHK 1 LRC CHK 0 END 1 END 0

‘:’ ‘0’ ‘1’ ‘0’ ‘3’ ‘0’ ‘4’ ‘0’ ‘1’ ‘9’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘6’ ‘7’ CR LF

LRC check: LRC check is the added sum from “Address” to Data content”. For example, 01H + 03H + 47H + 00H + 00H + 02H = 4DH, then take the complementary of 2, B3H. Command code to write 1 word: 06H For example, in order to write 1000 (03E8H) in controller 01 (comm. address 01H) at starting data address 4701H, the command is ASCII mode is:

ASCII mode: Command message: Response message:

STX ADR1 ADR0 CMD1 CMD0

Starting data address

Data Content

LRC CHK 1 LRC CHK 0 END 1 END 0

‘:’ ‘0’ ‘1’ ‘0’ ‘6’ ‘4’ ‘7’ ‘0’ ‘1’ ‘0’ ‘3’ ‘E’ ‘8’ ‘C’ ‘6’ CR LF

STX ADR1 ADR0 CMD1 CMD0

Starting data addresses

Data Content

LRC CHK 1 LRC CHK 0 END 1 END 0

‘:’ ‘0’ ‘1’ ‘0’ ‘6’ ‘4’ ‘7’ ‘0’ ‘1’ ‘0’ ‘3’ ‘E’ ‘8’ ‘C’ ‘6 CR LF

Page 17

DIAGNOSTIC ERROR MESSAGES

Display Error Messages

Display PV

SV PV SV

PV SV

Description Display on Start Up

b150 rr

No Input Probe Connection

No Cont

Input Error

Err inPt

Process Value Flashes

2001

when outside of range

0.0

Error EEPROM

Err Pron

Action Required No Action Required

Verify that sensor is wired to proper terminals. Next, check that the controller is programmed for the correct input type. Most commonly seen when controller is programmed for a RTD, while a thermocouple is connected. Verify that the input is wired to the proper terminals. Next check to see if the input type is set to the proper value. Most commonly seen when controller is programmed for a 4 to 20 mA input and 0 to 20 mA signal is wired to the controller. Input signals may normally go above or below range limits. If not check input and correct the process temperature or increase temperature range limits using tP-H and tP-L. Attempt to reset the factory default settings using the instructions in the next section. If still has error, call customer service for a return goods authorization number to have the controller evaluated at the factory.

Communication Error Messages

Error Status 102EH/4750H

0001H 0002H 0003H 0004H 0005H 0006H 0007H

PV read back 1000H/4700H

N/A 8002H 8003H 8004H N/A 8006H N/A

Error Status

PV Unstable Re-initialize, no temperature at this time Input sensor did not connect Input Signal Error Over Input Range ADC fail EEPROM read/write error

Page 18

Reset Factory Default Settings

Note: Resetting Factory Default Settings erases all of the values entered by the user. Record any necessary settings before proceeding.

Warning: Erasing the user entered values may result in a safety hazard and system malfunction.

The following instructions will reset the controller to the original factory default settings.

Step 1. Press the INDEX KEY while at the Home Display until the

controller reads LoC in the process display. Use the UP arrow to select LoC1. Press the ENTER KEY to save this value.

Step 2. Press and hold the UP and DOWN arrows

simultaneously for one second. Upon releasing the buttons, the display will read SHou in the PV display and oFF in the SV display.

Step 3. Press the INDEX key once and the controller will read

PASS in the PV display and a 4321 in the SV display. Adjust the value in the SV display to 1357 using the UP nd DOWN arrows. Press the ENTER KEY to save the value.

Step 4. Cycle the power on the controller. Upon power up, all of the

user set values have been erased.

Page 19

SPECIFICATIONS

Input Voltage Operation Voltage Range Power Consumption Memory Protection

Display Method

Sensor Type

Control Mode Control Output

Display Accuracy Sampling Range RS-485 Communication Vibration Resistance Shock Resistance Ambient Temperature Storage Temperature Altitude Relative Humidity

100 to 240VAC 50/60Hz. 85% to 110% of rated voltage. 5VA max. EEPROM 4K bit (non-volatile memory (number of writes: 100,000). 2 line x 4 character 7-segment LED display. Process value (PV): Red color, Set point (SV): Green color. Thermocouple: K, J, T, E, N, R, S, B, L, U, TXK. 3-wire Platinum RTD: Pt100, JPt100. PID, ON/OFF, or Manual. Relay output: SPDT (SPST: 1/16 DIN). Max.600. Voltage pulse output: DC 14V, Max. output current 40mA. Current output: DC 4 ~ 20mA output (Load resistance: Max. 600Ω).

0.1% of measuring range. Thermocouple or Platinum RTD: 500 msec/per scan. MODBUS ASCII communication protocol 10 to 55 Hz, 10 m/s2for 10 min, each in X, Y and Z direction. Max. 300 m/s2, 3 times in each 3 axes, 6 directions 32°F to 122°F (0°C to + 50°C)

-4°F to 150°F (-20°C + 65°C) 2000 m or less 0% to 80% (non-condensing)

Page 20

Thermocouple Type and Temperature Range

RTD Type and Temperature Range

Input Temperature Sensor Type LED Display Temperature Range Platinum Resistance (Pt100) type 3 32 ~ 212°F (0 ~ 100°C) Platinum Resistance (Pt100) type 2 -4 ~ 932°F (-20 ~ 500°C) Platinum Resistance (Pt100) type 1 -328 ~ 1112°F (-200 ~ 600°C) Platinum Resistance (JPt100) type 2 32 ~ 212°F (0 ~ 100°C) Platinum Resistance (JPt100) type 1 -4 ~ 752°F (-20 ~ 400°C)

Page 21

PRECAUTIONS

DANGER! Caution! Electric Shock!

1. Do not touch the AC terminals while the power is supplied to the controller to prevent an electric shock.

2. Make sure power is disconnected while checking the unit inside.

3. The symbol indicates that this Controller is protected throughout by DOUBLE INSULATION or REINFORCED INSULATION (equivalent to Class II of IEC 536).

WARNING! Mount the controller in a location that will not be subject to excessive temperature, shock, or vibration. All models are designed for mounting in an enclosed panel.

1. Always use recommended solder-less terminals: Fork terminals with isolation (M3 screw, width is 7.0mm (6.0mm for 32B Series), hole diameter 3.2mm). Screw size: M3 x 6.5 (With 6.8 x 6.8 square washer). Screw size for 32B Series: M3 x 4.5 (With 6.0 x 6.0 square washer). Recommended tightening torque: 0.4 N.m (4kgf.cm). Applicable wire: Solid/twisted wire of 2 mm

12AWG to 24AWG. Please be sure to tighten them properly.

2. Do not allow dust or foreign objects to fall inside the controller to prevent it from malfunctioning.

3. Never modify or disassemble the controller.

4. Do not connect anything to the “No used” terminals.

5. Make sure all wires are connected to the correct polarity of terminals.

6. Do not install and/or use the controller in places subject to: Dust or corrosive gases and liquid, high humidity and high radiation, vibration and shock, high voltage and high frequency.

7. Power must be off when wiring and changing a temperature sensor.

8. Be sure to use compensating wires that match the thermocouple types when extending or connecting the thermocouple wires.

9. Please use wires with resistance when extending or connecting a platinum resistance sensor (RTD).

10. Please keep the wire as short as possible when wiring a platinum resistance sensor (RTD) to the controller and please route power wires as far as possible from load wires to prevent interference and induce noise.

11. This controller is an open-type unit and must be placed in an enclosure away from high temperature, humidity, dripping water, corrosive materials, airborne dust and electric shock or vibration.

12. Please make sure power cables and signals from instruments are all installed properly before energizing the controller, otherwise serious damage may occur.

13. Please do not use acid or alkaline liquids for cleaning. Please use a soft, dry cloth to clean the controller.

14. Wait at least one minute after power is disconnected to allow capacitors to discharge, and please do not touch any internal circuit within this period.

15. This instrument is not furnished with a power switch or fuse. Therefore, if a fuse or power switch is required, install the protection close to the instrument. Recommended fuse rating: Rated voltage 250 V, Rated current 1 A. Fuse type: Time-lag fuse.

16. Note: This controller does not provide overcurrent protection. Use of the product requires that suitable overcurrent protection device(s) must be added to ensure compliance with all relevant electrical standards and codes. (Rated 250 V, 15 Amps max). A suitable disconnecting device should be provided near the controller in the end-use installation.

Page 22

CN730

External Dimensions

Dimensions are in millimeter (inch)

CN710

CN740

Page 23

OMEGA ENGINEERING, INC.

One Omega Drive PO Box 4047 Stamford, CT 06907 PH: 1 - 203 - 359 - 1660

Omega Products CN710 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
