Complete Programmable Features Matrix
USER Features Ignition on, off, then press Valet Switch 5 times (RED Status Light).
# Feature Default Setting Option 2nd Option 3rd Option
1 SecureCode 1 & 0 2 stages, of up to 9 presses each (total of 99 possible combinations)
2 Last Door Arming OFF (L) ON w/o doorlock (U) ON w/ doorlock (2)
3 Automatic Rearming OFF (L) ON w/o doorlock (U) ON w/ doorlock (2)
4 Starter Interrupt Functions Alarm only (L) Off (U) Automatic (2) Alarm+AntiGrind (3)
5 Ignition Activated Override OFF (U) ON (L)
6 Doors Lock With Ignition On ON (L) OFF (U)
7 Doors Unlock With Ignition Off ON (3) OFF (L) o/p 1 only (U) o/p 2 only (2)
8 Open Door Bypass to above ON (L) OFF (U)
9 Confirmation Chirps ON (L) OFF (U) exc. Valet (2) Valet only (3)
10 Confirmation Chirp Volume Medium Loud (2) Low (L) Med Lo (U) Loud (3)
11 Activated Alarm Cycle 30 Seconds (L) 60 Sec. (U) 90 Sec. (2) 120 Sec. (3)
12 Lights On Upon Disarm ON (L) OFF (U)
13 Disarm Upon Trunk Release ON (L) OFF (U)
14 Arming Delay 3 Seconds (L) 15 Seconds (U) 30 Seconds (2) 45 Seconds (3)
15 Steady Siren / Pulsed Horn Steady Siren (L) Pulsed Horn Lo (U) Pulsed Med. (2) Pulsed Hi (3)
16 Alarm Functions Bypass OFF (U) ON (L)
17 Ignition Anti-Carjacking OFF (U) ON (L)
18 Door Anti-Carjacking OFF (U) ON (L)
19 Remote Anti-Carjacking OFF (U) ON (L)
20 Open Door Warning at Arm OFF (U) ON (L)
21 III Button Operation Panic (L) 3rd Chan. (U) 4th Chan. (2) 5th Chan. (3)
22 Remote Start Run Time 10 Min. (U) 5 min. (L) 15 min. (2) 20 min. (3)
23 Steady/Flash Lights Rem. Start Steady (L) Flashing (U)
INSTALLER Features Ignition on, off, then press Valet Switch 10 times (GREEN Status Light).
1 Doorlock Functions .8 second (L) 3 Seconds (U) Double Unlock (2) Total Closure (3)
2 Light Relay Functions Dome Light (L) Lock (U) Ignition (2) Accessory (3)
3 Horn Relay Functions Horn, med. (L) Unlock (U) Ignition (2) Accessory (3)
4 Turbo Timer OFF (U) ON (L)
5 Manual Trans. Remote Start OFF (U) ON (L)
6 “Tach Wire” or “Tachless “ Tachless (L) Tach (U)
7 Ext. Starter Cranking Time .7 (minimum) ( L) 1.25 (U) 1.75 (2) 2.5 (maximum) (3)
8 Remote Start Relay Ignition (L) Accessory (U) Starter (2)
9 Arm/Disarm or Add. Chan. Arm/Disarm (L) Arm/Ch. 5 (U) Ch. 4 / Disarm (2) Ch. 4 / Ch. 5 (3)
10 Gasoline or Diesel Engine Gasoline (L) Diesel (U)
Page - 43
Time can be used for difficult-to-start engines. This feature should only be
programmed by the installer.
Note: “Base timing” is the maximum time period that the AL-2000-EDP will
engage the starter, but only if it does not detect the engine has started running.
Feature #8 Programmable Remote Start Relay
Factory Default Setting Ignition Output
(press “arm/lock” button to program)
Options:
Accessory Output (press “disarm/unlock” button to program)
Starter Output (press “II” button to program)
The Excalibur AL-2000-EDP features 4 dedicated remote start output relays, one
of which is programmable (this is the unit’s large blue output wire). Operation
choices are ignition, accessory or starter power output. This feature should only
be programmed by the installer.
Feature #9 Arm, Disarm or Additional Channels
Factory Default Setting Arm / Disarm
(press “arm/lock” button to program)
Options:
Arm / Channel 5 (press “disarm/unlock” button to program)
Channel 4 / Disarm (press “II” button to program)
Channel 4 / Channel 5 (press “III” button to program)
The AL-2000-EDP has outputs designed for arming and/or disarming a factoryequipped security system. These wires may be used instead to provide further
system outputs, which are remotely operated by the controller or transmitter. These
outputs are in addition to the 2nd channel and 3rd channel outputs, the operation of
all of these outputs is explained on page 17.
As shown in the programming assignment, the arm, disarm, channel 4 and
channel 5 are programmable as various combinations. For example, if the disarm
output is needed, but not the arm output, then channel 4 may be made available for
use.
Feature #10 Gasoline Or Diesel Engine
Factory Default Setting Gasoline (press “arm/lock” button to program)
Option: Diesel (press “disarm/unlock” button to program)
This feature changes the system's timing of the ignition and starter output sequence
for remotely starting vehicles with a diesel engine. This feature should only be
programmed by the installer.
This Booklet Contains
Introduction to the System ..................................................... 4- 6
Status Light, Valet Switch, Controller & Transmitter
System Versatility - An Important Note ........................................ 6
Using the Excalibur System.................................................... 7
Arming Using the Controller or Transmitter .......................... 7-8
Arming Bypass, Sensor Bypass
Automatic “Last Door Arming” of the System ...................... 8-9
While the System is Armed, and should it Trigger ................ 9-10
Prewarning
Disarming the System Using the Controller or Transmitter .. 10-11
Safety Disarm Feature; Activation Alert; Automatic Rearming
Disarming By Emergency Override ....................................... 11-12
Remote Panic Feature ............................................................. 12
Remote Engine Starting .......................................................... 13-16
Safety Features, Stick Shift Remote Starting; Pit-Stop; Turbo Timer
Other Controller and Transmitter Operations......................... 16-17
2nd Channel, 3rd Channel, Silent Arming & Disarming, Sensor Bypass
Using the Valet Switch ........................................................... 17-19
Alarm Valet Mode & Starting Valet Mode
SecureCode.............................................................................. 19-20
The Status Light ...................................................................... 20-21
2-Way Controller .................................................................... 22-24
Icons & Programming
Anti-Carjacking Protection ..................................................... 25
Controller and Transmitter Protection .................................... 26
How to Program Controller or Transmitters........................... 26-27
How to Program Features ....................................................... 28-29
User Programmable Features .................................................. 30-37
Installer Programmable Features ............................................ 38-42
Complete Programmable Features Matrix.............................. 43
Limited Lifetime Warranty .............................................. Back Cover
Page - 42
Page - 3
Introduction to the System
Congratulations for your choice of the most versatile, fully-featured vehicle
security and convenience system available today, the Excalibur AL-2000-EDP by
Omega Research and Development. To enjoy the most from your new system,
please take a few moments to learn about the principal user components, and the
basic operation of the system. These subjects are found in next several pages,
followed by more detailed specifics of complete operations and features.
One of the components, typically mounted on the windshield, is the Window Unit
module which contains the Status Lights and the Valet Switch. The window
unit also receives and transmits the Echo technology
communications for the system’s 2-way operation.
The multicolored Status Lights report the operational
status of the system at all times, and also serves as a visual
deterrent to break-ins and theft. Specific description of the
Status Light operation may be found on pages 20-21.
The Valet Switch has three main functions:
• The Valet Switch can be used to turn off the security
functions, including any automatic arming or locking
features (if used), and/or remote engine starting
functions of the system. The former is “Alarm Valet
Mode”; the later is “Starting Valet Mode” .
• The Valet Switch can also be used, in conjunction with
the vehicle’s ignition key, to perform an emergency disarming of the security
system in the event the transmitter or transceiver is lost or becomes inoperable.
This is referred to as “performing an Emergency Override”.
• The Valet Switch is used in the procedure of programming operational
features and also for encoding transmitters and transceivers to the system.
A complete description of the Valet Switch and its operations is on pages 17-19.
The system can operated by two types of devices: the 2-Way Controller and the
1-Way Transmitter. Your system comes with one of each of these, pre-learned
to operate the system. The controller, in addition to operating your system, also
receives signals from the system, and displays a variety of system conditions on its
LCD screen. This is the patented Echo 2-way technology. The transmitter will fully
operate the system, but it can not receive signals nor report events from the vehicle.
Your system can be operated by as many as four controllers and/or transmitters.
The controller and the transmitter both share the same four operational buttons, and
their use to operate the Excalibur system is the same. These buttons and a brief
description of what they do are:
Page - 4
Status
Light
Valet
Switch
this is done will the system accept a remote start command, and the vehicle must
remain undisturbed until that point. The complete instructions for remote starting,
including Stick Shift Remote Starting, starts on page 40.
This feature should only be programmed by the installer, and the operation of
this feature depends on the correct connection of the safety wire to the vehicle’s
parking brake. Please refer to the Installation Instructions manual for proper
connection of this wire.
Note: Feature #4, Turbo Timer, and Feature #5, Stick Shift Remote Starting, may
both be used together in the AL-2000-EDP.
Feature #6 “Tach Wire” or “Tachless” Starter Operation
Factory Default Setting Tachless (press “arm/lock” button to program)
Option: Tach Wire (press “disarm/unlock” button to program)
This feature selects the AL-2000-EDP processor’s method of determining the status
of the engine running during remote start operation. As explained in the previous
feature’s description, “Tachless” mode has an associated base starter output time
duration. However, if the voltage fluctuation is detectable, the processor adjusts the
starter output time accordingly. When this feature is set for “Tach Wire” operation,
the base starter output increases to 3 seconds, but the processor adjusts the actual
starter engagement time accordingly. Connecting and use of the “Tach Wire” is the
most reliable form of engine running information input, and its use is recommended. This feature should only be programmed by the installer.
Important: Before this feature is programmed, please refer to the “Installation
Manual” for proper wiring connection and the Tach Learning Procedure, both of
which are required for use of this feature.
Feature #7 Extended Starter Cranking Time
Factory Default Setting Minimum (.7 Second)
(press “arm/lock” button to program)
Options:
Medium Lo (1.25 Second) (press “disarm/unlock” button to program)
Medium Hi (1.75 Second) (press “II” button to program)
Maximum (2.5 Second) (press “III” button to program)
Extended Starter Cranking Time operates in conjunction with the previous feature’s
“Tachless” setting. The AL-2000-EDP processor is capable of detecting the
running engine by two separate methods- the use of the vehicle’s tachometer
(“tach”) wire for a direct engine RPM input, or by monitoring the vehicle’s
fluctuating voltage levels caused by the starting process. This feature sets the
duration of the starter output’s base timing for the voltage sensing type of starter
output operation. There are four different base starter output settings. While the
default-set minimum is sufficient for most vehicles; the Extended Starter Cranking
Page - 41
Feature #3 Horn Relay Functions
Factory Default Setting Horn Output
(press “arm/lock” button to program)
Options:
Door Unlock (press “disarm/unlock” button to program)
Ignition Output (press “II” button to program)
Accessory Output (press “III” button to program)
This is the second of two built-in relays which can be programmed to perform
several different functions. The primary function of this second relay, is that it is
available to operate the vehicle’s existing horn; either in conjunction with the
electronic siren, or in place of the siren. Using both the siren and the horn creates
an extremely effective security system.
Optionally, if desired or needed, this relay can be programmed to be a door
unlock relay, or as additional medium-capacity ignition or accessory outputs, if
needed for remote starting use.
Feature #4 Turbo Timer
Factory Default Setting Off
(press “arm/lock” button to program)
Options:
Run 1 Minute (press “disarm/unlock” button to program)
Run 2 Minutes (press “II” button to program)
Run 3 Minutes (press “III” button to program)
This feature, the operation of which is described on page 16, when turned on
configures the AL-2000-EDP to automatically keep the engine running briefly after
it is turned off. This operation is designed specifically for vehicles having
turbocharged engines (the user may temporarily bypass the feature if desired).
This feature should only be programmed by the installer, and the operation of
this feature depends on the correct connection of the safety wire to the vehicle’s
parking brake. Please refer to the Installation Instructions manual for proper
connection of this wire.
Feature #5 Stick Shift Remote Starting
Factory Default Setting Off (press “disarm/unlock” button to program)
Option: On (press “arm/lock” button to program)
This feature changes the parameters of the AL-2000-EDP’s remote start operation
to be suitable for manual transmission-equipped vehicles via a “setup” procedure
which must be followed upon exiting the vehicle. When this feature is turned on,
the operator must set the parking brake and then press the controller or transmitter’s
“arm/lock” and “disarm/unlock” buttons at the same time, which keeps the engine
running after removing the ignition key. After exiting, the user must then arm the
system, locking the vehicle doors, by pressing the “arm/lock” button. Only after
Page - 40
“III” button
“II” button
“P”rogram
button
“disarm/unlock”
button
“arm/lock”
button
The 2-Way Controller
The 1-Way Transmitter
“arm/lock”
button
“II” button
“arm/lock”
• Pressing and releasing the “arm/lock” button arms the security system and
locks the doors.
• Pressing and holding this button for three seconds will first arm, and then
activate the Panic feature, locking the doors.
“disarm/unlock”
• Pressing and releasing the “disarm/unlock” button disarms the system and
unlocks the doors unless the alarm is triggered, in which case it will disarm the
activated alarm, but not unlock the doors unless the button is pressed again.
• Pressing and holding this button for three seconds will first disarm, and then
activate the Panic feature, unlocking the doors.
• The unlock operation may be optionally configured during the system’s
installation so that pressing this button once disarms the system and unlocks
only the driver's door, and pressing a second time unlocks all of the doors.
• Pressing the “arm/lock” and “disarm/unlock” buttons together activates the
remote starting feature of the Excalibur AL-2000-EDP.
Page - 5
“disarm/unlock”
button
“III” button
“II” or “:”
• Pressing the “
II” button for two seconds can be used to activate an extra output,
known as the “2nd channel”, for an optional function such as trunk release.
• Pressing and releasing this button twice arms or disarms the system without the
confirmation chirps.
• Pressing this button immediately after arming will leave the alarm armed, but
with the shock sensor feature bypassed.
“III” or “ ”
• Pressing and holding the “
...
III” button for 3 seconds will activate the Panic
feature, but without locking or unlocking the doors.
• The “III” button can be reprogrammed so that it can operate an additional 3rd
channel output, instead of operating Panic.
• Pressing the “II” and “III” buttons together operates the 3rd channel output.
“P” on the controller
only.
• The controller has a fifth button, “P”, which will illuminate the LCD screen
when pressed. This is also the “Programming” button; it is used to customize
controller operations, which is explained on pages 22-24.
- IMPORTANT -
The AL-2000-EDP is the most versatile vehicle security system
made. It has many programmable features and includes built-in
programmable relays, which can offer more features and operations which are described in the basic system instructions.
To a large degree, these extra features and operations are configured at the installation of the system. Please read the sections of
this manual which explain programmable features, and please
consult your installer for specifics on how your system is configured, and for installation options which may have used, or can be
added to system after installation.
EXAMPLE- the AL-2000-EDP can sound the vehicle’s horn in place
of or in addition to the electronic siren which is included with it. But
the operations are described with the siren only.

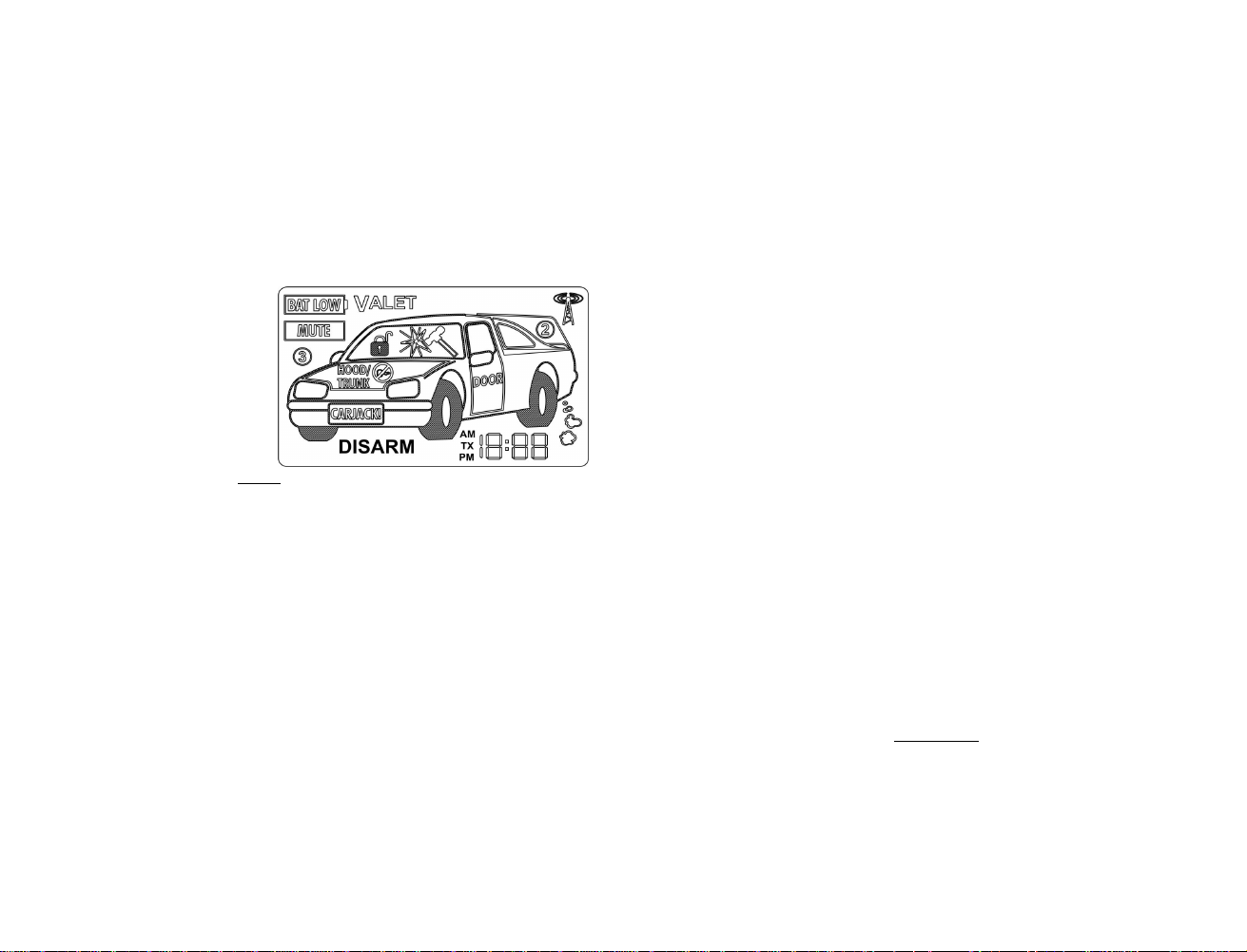

The “Echo” operation of the AL-2000-EDP the 2-Way Controller
receiving and reacting to signals from the system in the vehicle, is
included in the following general system operation descriptions;
the Echo’s icons and its programming are detailed on pages 22-24.
Page - 6
• The first setting (programmed by the “ arm/lock” button) has the system
produce both the lock and unlock outputs as .8 second in duration. This is the
most common form of output needed, which interfaces most vehicles.
• The second setting (programmed by the “disarm/unlock” button) changes the
lock and unlock outputs to be a longer 3 second pulse output. This is for certain
vehicles which require a longer output pulse from the system’s control unit;
typically cars having vacuum pump systems, although the longer setting is also
more suitable in some newer vehicles.
• Some newer vehicles require a double pulse output to remotely unlock the doors
and/or to disarm a factory-equipped security system, which is what the Double
Pulse Unlock setting provides (it is programmed by the “II” button ). The lock
output pulse, in this setting, is .8 second.
• The Total Closure Lock Output (programmed by the “III” button) may be used
with vehicles which are originally equipped with the total-closure feature.
Typically, a total closure feature is when locking the vehicle’s doors if the key
in the door is held to “lock” for a period of time the vehicle will close all
windows and the sunroof, in addition to locking the doors.
Selecting this feature setting changes the system’s door lock output pulse from
a .8 second to as long as a 28 second duration output. The unlock output is 3
seconds in this setting.
Note: When this feature is turned on, during the 28 second period after arming the system, the lock output can be stopped on demand by pressing the
“arm/lock” or “disarm/unlock” button. Only the output will stop- pressing
either button again will normally operate the system, and at any time after the
28 second lock output period ends.
If either of the programmable relays are set for lock or unlock operation (the next
two Installer Programmable Features), the settings if this feature will operate the
programmable relays accordingly, in addition to the primary system doorlocking
outputs.
Feature #2 Light Relay Functions
Factory Default Setting Dome Light Output
(press “arm/lock” button to program)
Options:
Door Lock (press “disarm/unlock” button to program)
Ignition Output (press “II” button to program)
Accessory Output (press “III” button to program)
The Excalibur AL-2000-EDP has two built-in relays, which can be programmed to
perform several different functions. The primary function of this relay, is to operate
the vehicle’s dome, or interior lighting as part of the system’s operations. Optionally, if desired or needed, this relay can be programmed to be a door lock relay, or
as medium-capacity ignition or accessory outputs, if needed for remote starting use.
Page - 39
The Installer Programmable Features
Installer Programmable Features should only be used by the original
or other qualified installer, AND individual Installer Features should
only be used, where applicable, with the correct wiring connections.
The second group of features, the Installer Programmable Features, are accessed as
the second level of features’ programming, which is pressing the Valet Switch 10
times instead of 5 times when entering Programming Mode (page 28). Caution:
These features have a critical affect upon the system’s operations, and in many
cases, also upon the system’s wiring connections. These features should
NEVER be changed, except by the installer or other qualified professional.
The companion Installation Instructions booklet should be consulted for wiring
connections associated with these features.
The Excalibur AL-2000-EDP’s 10
1 Doorlocking Functions
2 Light Relay Functions
3 Horn Relay Functions
4 Turbo Timer
5 Manual Transmission Remote Starting
6 “Tach Wire” or “Tachless” Starter Operations
7 Extended Starter Cranking Time
8 Programmable Remote Start Relay
9 Arm, Disarm or Additional Channels
10 Gasoline or Diesel Engine
Use the step-by-step instructions on pages 28-29 to change any of the Installer
Programmable Features, along with the feature’s option choices and related
programming controller/transmitter button assignment found in the following
individual feature descriptions.
Feature #1 Doorlocking Functions
Factory Default Setting .8 Second Lock & Unlock Output
Options:
3 Second Lock & Unlock Output (press “disarm/unlock” button to program)
Double Pulse Unlock Output (press “II” button to program)
Total Closure Lock Output (press “III” button to program)
This single feature gives the installer several needed options, to match the AL-2000EDP’s doorlocking outputs to suite different vehicle requirements.
Installer Programmable Features:
(press “arm/lock” button to program)
Page - 38
Using the Excalibur System
Your Excalibur system is designed to deter theft of both your vehicle and its
contents. “Arming” your system turns on its protection, disabling the vehicle’s
starter and locking the doors. Once the system is Armed, any intrusion attempt will
Activate it, sounding the electronic “Psyren” psycho siren and flashing the parking
and interior lights to attract attention. The unique and patented “2-in-1” Psyren
psycho siren actually produces the sounds of two different sirens at once, ensuring
that it won’t be ignored like all of the other “common” car alarms. Disarming the
system turns off the protection, unlocking the doors and turning on the parking and
interior lights, allowing lighted access to, and normal use of, the vehicle.
There are two methods of arming the Excalibur:
1- The first method is to use the controller* or transmitter, by pressing and
releasing the “arm/lock” button. The system must not already be armed or be
in Valet Mode, and the vehicle’s ignition key must be off.
2- The second method is Last Door Arming, which configures the system to
automatically arm itself every time you exit the vehicle. This method of arming
is programmable, and may be used or not used as desired.
Regardless of how it became armed, if the system is armed the window unit’s Status
Light flashes in the red color.
*If the 2-way controller is used to operate the system, it will receive a signal
back and confirm that the operation was performed.
Arming Using the Controller or Transmitter
The system can always be armed from the controller or transmitter, if the
ignition key is “off” and the system is not in the Valet Mode. To arm the system,
exit the vehicle, close all of the doors, and simply press and release the “arm/lock”
button once.
The system’s reaction: The parking and interior lights will flash once, the siren
will chirp once and the Status Light will begin to flash red, confirming that the
system is armed.* In addition, the doors will lock and the starter interrupt will
engage to prevent any attempt to start the vehicle. Your security system is now fully
armed, and is ready to respond if an intrusion attempt is detected.
If the controller was used: Immediately after the system responds the controller will chirp twice (or four times if a zone is bypassed), the “ARM” icon will
appear, the “locked lock” icon appears, confirming that doors have locked, and the
number of operating transmitters or transceivers is briefly displayed.
*The system is described in its most common and basic configuration, with
doorlocks connected, and he interior lights must be connected. The vehicle
horn may used in place of, or in addition to, the system’s electronic siren.
Page - 7
Loading...
