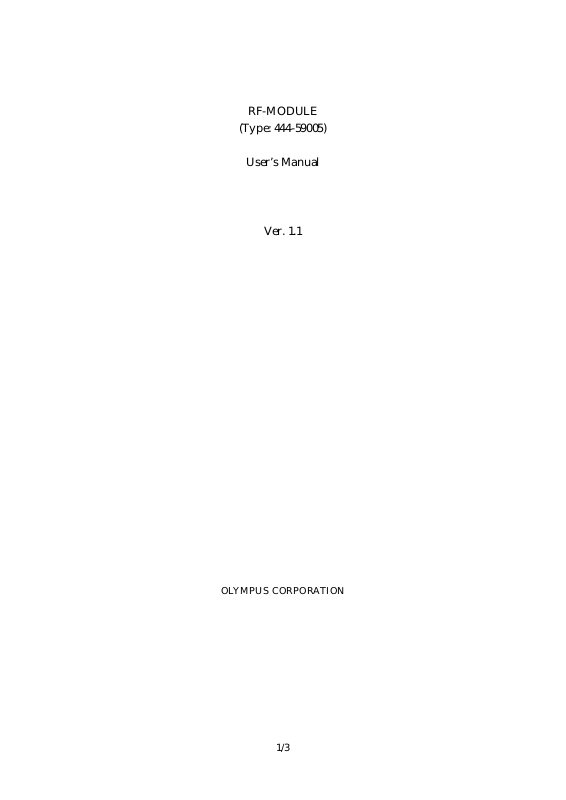

RF-MODULE

(Type: 444-59005)

User’s Manual

Ver. 1.1

OLYMPUS CORPORATION

1/3

This manual describes the use, the functions and the performance of the Radio
Frequency Identification System RF-MODULE. The system is so
manufactured that it can not be repaired or replaced by the user; and therefore,
if there are such needs, please contact Olympus Corporation or its agent. No
service work should be started before the service person has read this manual.

Features:
This product uses radio frequency of 13.56 MHz to communicate with the tags;
thus, it should conform to any relative laws and regulations of the country or
the region. Authorization of the module or the printer into which the module is
installed may be required in some countries or regions.

Cautions:

1. Use or store this product on the temperature and humidity conditions
mentioned below, so as to maintain its operational reliability.

2. Use or store this product in an environment free of explosive gases,
inflammable gases, corrosive gases, oils, organic solvents, dust, salt and
metal powders.

3. Keep this product free of direct shock, strong vibration or sunshine.

4. To communicate with the tags, this product uses 13.56 MHz radio frequency,
which may be interfered by radio waves (noises) emitted from a transceiver,
a motor, a monitor, a power supply (including a power supply IC), etc.
Please make sure that such interferences will not occur before using the
product in a place near to these devices.

5. Take proper measures to avoid any possible electrostatic discharge to the
product, which may damage the product.

6. After doing the wiring, make sure the connectors are fastened properly.

Warning:
Do not alter any part of the product.
Alteration of the printed wiring board, the antennas or the connecting cables of
the module may damage the control board of the printer, and is an illegal act if
it causes the modular transmitter emissions out of the limits provided by laws
or regulations.
