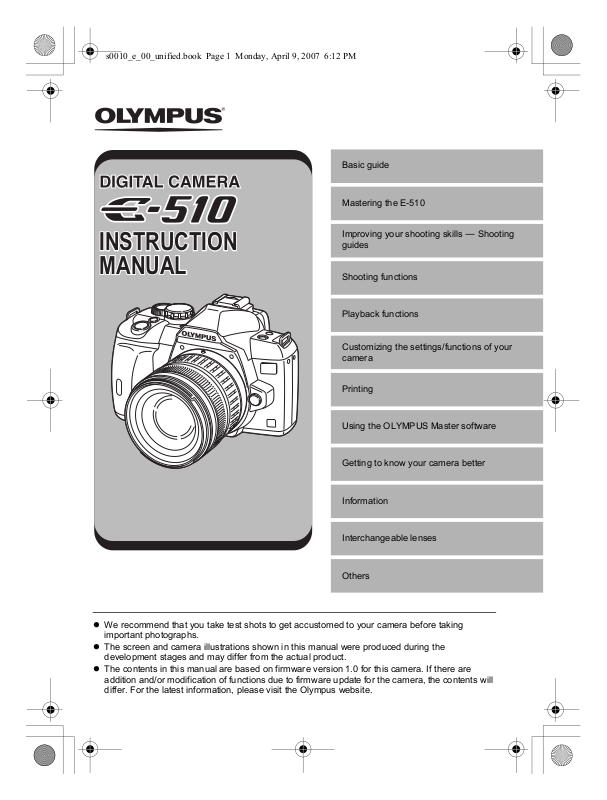

Olympus E-510 Instruction Manual
INSTRUCTION
MANUAL
INSTRUCTION
Basic guide
Mastering the E-510
Improving your shooting skills k Shooting
guides
MANUAL
Shooting functions
Playback functions
Customizing the settings/functions of your
camera
Printing
Using the OLYMPUS Master software
Getting to know your camera better
Information
Interchangeable lenses
Others
z We recommend that you take test shots to get accustomed to your camera before taking
important photographs.
z The screen and camera illustrations shown in this manual were produced during the
development stages and may differ from the actual product.
z The contents in this manual are based on firmware version 1.0 for this camera. If there are
addition and/or modification of functions due to firmware update for the camera, the contents will
differ. For the latest information, please visit the Olympus website.
Structure of this manual
Basic camera operation Basic guide
This section explains the preparations and settings for the camera, and basic camera
operation from easy techniques for shooting to playback and erase functions.
Attaching the strap ........................................... 3 Adjusting the viewfinder’s diopter .....................7
Preparing the battery........................................ 3 Setting the date/time.........................................8
Attaching a lens to the camera......................... 5 Shooting .........................................................10
Loading the card .............................................. 6 Playback/Erasing ............................................12
Power on.......................................................... 7
Mastering the E-510 P. 18
Read chapter 1 to master the basic camera operation before proceeding to use the various
functions available on this camera.
Operating the camera g “Mastering the E-510” (P. 18)
Learn how to use the functions in the shooting guides g “Improving your shooting
skills k Shooting guides” (P. 25)
Proceed to the pages on the various functions.
Locating the information you need
g “Shooting tips and information” (P. 97), “Menu directory” (P. 109), “Names of
parts” (P. 115), “Index” (P. 136)
Indications used in this manual
Important information on factors which may lead to a malfunction or
operational problems. Also warns of operations that should be
absolutely avoided.
TIPS Useful information and hints that will help you get the most out of your
g Reference pages describing details or related information.
2
EN
camera.
Basic guide
Attaching the strap
Thread the strap as indicated by the arrows (1, 2).
Lastly, pull the strap tight making sure that it is fastened securely (3).
Attach the other end of the strap to the other eyelet in the same way.
1
Basic guide
Preparing the battery
1 Charging the battery
Charging indicator
Red light: Charging in progress
Green light: Charging completed
(Charging time: Approx. 5 hours)
Lithium ion charger
(BCM-2)
2
Align the battery with
the arrow
AC cable
3
Lithium ion battery
(BLM-1)
Remove the protection
cap from the battery.
AC wall outlet
EN
3
2 Loading the battery
Direction indicating mark
Battery
Basic guide
compartment
cover
2
Battery compartment
lock
1
3
3 Close the battery compartment cover and slide the battery
compartment lock in the direction of E
Unloading the battery
Press the battery lock to unlock and remove the battery.
Battery lock
• It is recommended to set aside a backup battery for prolonged shooting in case the battery in use
drains.
4
EN
Attaching a lens to the camera
1 Remove the body cap from the camera and the rear cap from the lens
2
1
Rear cap
2
Body cap
2 Attaching a lens to the camera
• Align the lens attachment mark (red) on the camera
with the alignment mark (red) on the lens, then
insert the lens into the camera’s body (1). Rotate
the lens in the direction indicated by the arrow until
you hear it click (2).
• Do not press the lens release button.
Alignment mark (Red)
3 Remove the lens cap (3, 4)
4
Removing the lens from the camera
While pressing the lens release button (1), rotate the lens in
the direction of the arrow (2).
1
Lens attachment mark (Red)
3
3
2
Lens cap
1
Lens release button
2
Basic guide
1
EN
5
Loading the card
Open the card cover and insert the card.
CompactFlash/Microdrive xD-Picture Card
Basic guide
it can go.
Card access
lamp
W mark
Insert the card until it is locked into place.Insert the card’s contact area into the slot as far as
Card cover
CF card slot
xD-Picture Card slot
Removing the card
• Never open the card cover while the card access lamp is blinking.
CompactFlash/Microdrive xD-Picture Card
• Press the eject button all the way in and let it
pop out, then press it all the way in again to
eject the card.
• Pull out the card.
Eject button
• Press the inserted card lightly and it will be
ejected.
• Pull out the card.
6
EN
Power on
Set the camera’s power switch to ON.
To turn off the power, set the power switch to OFF.
Set the mode dial
to AUTO.
Basic guide
INFO button
2007.08.16
Control panel screen
SSWF indicator
LCD monitor
When the camera is turned on, the
control panel screen is displayed
on the monitor.
If the control panel screen does
not appear, press the INFO
button.
Dust reduction function operation
The dust reduction function is automatically activated when the camera is turned on.
Ultrasonic vibrations are used to remove dust and dirt from the image pickup device’s filter
surface. The SSWF (Super Sonic Wave Filter) indicator blinks while dust reduction is
working.
Adjusting the viewfinder’s diopter
Adjust the viewfinder’s diopter in accordance with your vision.
While looking through the viewfinder, rotate the diopter
adjustment dial little by little.
When you can see the AF frame clearly, adjustment is
complete.
Diopter adjustment dial
Viewfinder
AF frame
EN
7
Setting the date/time
Date and time information is recorded on the card together with the images. The file name is
also included with the date and time information. Be sure to set the correct date and time
before using the camera.
1 Press the MENU button
Basic guide
CUSTOM RESET
SETTING
MENU
button
2 Use ac to select [Z], then press d
a
d
c
EDIT FILENAME
3 Use ac to select [X], then press d
a
d
c
4 Use ac to select the year [Y], then press d
a
d
c
5 Repeat this procedure until the date and time are completely set
• The time is displayed in the 24-hour format.
a
d
c
8
EN
Y/M/D
Y/M/D
Y/M/D
6 Use ac to select the date format
a
c
7 Press the i button
i
8 Press the MENU button to exit
Y/M/D
Basic guide
EDIT FILENAME
EN
9
Shooting
1 Holding the camera
Keep your fingers and the strap away from the lens and the flash.
Basic guide
Horizontal grip Vertical grip
2 Place the AF frame on the subject while viewing through the viewfinder
3 Adjust the focus
Press the shutter button gently (halfway).
AF confirmation mark
• The focus is locked when a beep tone is output. The AF confirmation mark and the AF
focusing frame light up in the viewfinder.
• The shutter speed and aperture value that have been set automatically by the camera are
displayed.
• The control panel screen is not displayed when the shutter button is pressed.
Aperture value
2007.08.16
Shutter speed
Halfway down
Shutter button
Card access lamp
4 Release the shutter
Press the shutter button all the way (fully).
• The shutter sounds and the picture is taken.
• The card access lamp blinks and the camera starts
recording the picture.
• Never remove the battery or card while the card access lamp mark is blinking. Doing so could
destroy stored pictures and prevent storage of pictures you have just taken.
All the way down
10
EN
Taking a picture while viewing the monitor
It is possible to use the LCD monitor as a viewfinder and check the subject’s composition, or
shoot while viewing an enlarged display on the LCD monitor.
g “Live view” (P. 23)
1 Press the u (live view) button
• The subject is displayed on the LCD monitor.
u button
2 Press the shutter button all the way down
• The picture is taken with the focus adjusted.
When the camera stops operating
If no operations are performed for approximately 8 seconds while the camera is on, the
monitor backlight turns off to save battery power. If no operations are performed for
approximately one minute thereafter, the camera enters the sleep mode (stand-by) and stops
operating. The camera activates again when you touch any button (the shutter button, arrow
pad, etc.). g “Backlight timer” (P. 83), “Sleep timer” (P. 82)
Basic guide
EN
11
Playback/Erasing
Playing back images
Pressing the q (playback) button displays the last picture taken.
q button
Basic guide
Displays the frame
that is stored 10
frames back
Displays the
previous frame
Arrow pad
Displays the frame
that is stored 10
frames ahead
Displays the
next frame
Close-up playback
Each time you rotate the control dial towards U, the image is enlarged in steps of 2× - 14×.
Control dial
Erasing images
Playback the image you want to erase and press the S (erase) button.
Use ac to select [YES] and press the i button to erase.
12
S button
EN
Table of Contents
1 Mastering the E-510 ................................................................................18
Describes the camera’s functions and how to operate them.
How to use the mode dial ......................................................................................................18
How to set the functions ........................................................................................................19
Live view................................................................................................................................ 23
Basic function guides.............................................................................................................25
A guide to functions for different subjects..............................................................................26
Selecting the appropriate mode for shooting conditions
Scene mode ..........................................................................................................................30
P: Program shooting .............................................................................................................31
A: Aperture priority shooting.................................................................................................32
S: Shutter priority shooting....................................................................................................33
M: Manual shooting...............................................................................................................34
Preview function ....................................................................................................................35
Various shooting functions
Shooting with the image stabilizer function ...........................................................................36
If correct focus cannot be obtained (Focus lock)................................................................... 37
AE bracketing ........................................................................................................................37
Flash shooting .......................................................................................................................39
Easy shooting modes...........................................................................................18
Advanced shooting modes...................................................................................18
How to make function settings .............................................................................19
Setting functions using the control panel screen..................................................19
Setting functions using direct buttons ..................................................................20
Setting on the menu.............................................................................................21
Descriptions in this manual ..................................................................................22
Switching the information display......................................................................... 23
Enlarged display operation...................................................................................24
Ruled lines display ...............................................................................................24
2 Improving your shooting skills k Shooting guides..................................25
Describes the shooting methods suitable for individual situation.
Focus: Operating the shutter button.....................................................................25
Brightness: Exposure compensation....................................................................25
Color: White balance............................................................................................ 26
Taking landscape pictures ...................................................................................26
Taking flower pictures ..........................................................................................27
Taking night scene pictures .................................................................................29
3 Shooting functions ...................................................................................30
Categorizes and describes the shooting functions according to the shooting modes; shooting
functions; focusing; exposure, color and image.
Checking the image stabilizer effect on the monitor ............................................36
Flash mode ..........................................................................................................39
Manual flash.........................................................................................................40
Setting the flash mode .........................................................................................41
Using the built-in flash..........................................................................................42
Flash intensity control ..........................................................................................42
EN
13
Flash bracketing...................................................................................................43
External electronic flashes (optional) ...................................................................43
Using the external electronic flash .......................................................................43
Super FP flash .....................................................................................................44
Using commercially available flashes .................................................................. 44
Sequential shooting/Self-timer/Remote control .....................................................................45
Panorama shooting ...............................................................................................................48
Non-specified commercial flashes .......................................................................45
Setting the functions ............................................................................................45
Sequential shooting .............................................................................................45
Using the self-timer ..............................................................................................46
Using the remote control...................................................................................... 46
Focusing functions
AF frame selection ................................................................................................................49
Focus mode........................................................................................................................... 49
AF illuminator ........................................................................................................................51
Shutter release priority .......................................................................................................... 51
Simultaneous use of S-AF mode and MF mode (S-AF+MF) ...............................51
Simultaneous use of C-AF mode and MF mode (C-AF+MF)............................... 51
Exposure, image and color
Selecting the record mode ....................................................................................................52
Metering mode k Changing the metering system................................................................ 54
Exposure compensation k Varying the image brightness ...................................................55
AE lock k Locking the exposure ..........................................................................................56
ISO k Setting the desired sensitivity to light ........................................................................56
White balance k Adjusting the color tone ............................................................................ 57
Picture mode .........................................................................................................................61
Gradation............................................................................................................................... 62
Shading compensation..........................................................................................................62
Noise reduction .....................................................................................................................62
Noise filter .............................................................................................................................63
Color space ...........................................................................................................................63
Anti-shock.............................................................................................................................. 63
Types of record modes ........................................................................................ 52
RAW data.............................................................................................................52
How to select the record mode ............................................................................ 53
Setting the number of pixels and compression rate............................................. 53
Setting the auto/preset/custom white balance ..................................................... 58
WB compensation................................................................................................ 59
Setting the one-touch white balance.................................................................... 60
WB bracketing......................................................................................................60
4 Playback functions...................................................................................64
Describes the functions used when playing back images that have been taken.
Single-frame/Close-up playback ...........................................................................................64
Light box display.................................................................................................................... 65
Index display/Calendar display.............................................................................................. 66
Information display ................................................................................................................ 67
Slideshow ..............................................................................................................................68
Rotating images ....................................................................................................................68
Playback on TV .....................................................................................................................69
Editing still images................................................................................................................. 69
14
EN
Copying images..................................................................................................................... 71
Protecting images k Preventing accidental erasure ............................................................72
Erasing images...................................................................................................................... 73
Single-frame copy ................................................................................................71
Copying selected frames......................................................................................71
Copying all the frames .........................................................................................71
Single-frame protect.............................................................................................72
Protecting selected frames...................................................................................72
Canceling all protections ......................................................................................72
Single-frame erase...............................................................................................73
Erasing selected frames.......................................................................................74
All-frame erase.....................................................................................................74
5 Customizing the settings/functions of your camera .................................75
Describes the other different types of functions. The settings or functions can be changed to suit
the environment in which the camera is used.
Custom reset setting..............................................................................................................75
AEL/AFL mode ......................................................................................................................77
Other function settings...........................................................................................................78
AEL/AFL memo....................................................................................................78
AEL metering .......................................................................................................78
EV step ................................................................................................................78
ISO limit ...............................................................................................................78
Compensating all WB...........................................................................................78
Speed synchronization.........................................................................................78
Auto pop up..........................................................................................................79
; FUNCTION ...................................................................................................79
Live view boost ....................................................................................................79
Customizing the control dial’s function................................................................. 79
My Mode setting...................................................................................................80
Reset lens ............................................................................................................80
Focus ring ............................................................................................................80
Priority setting ......................................................................................................80
Quick erase..........................................................................................................81
Erasing RAW and JPEG files...............................................................................81
File name .............................................................................................................81
Rename file..........................................................................................................82
Rec view k Checking the picture immediately after shooting............................. 82
Setting the beep sound ........................................................................................82
Monitor brightness adjustment .............................................................................82
Sleep timer...........................................................................................................82
Backlight timer......................................................................................................83
USB mode............................................................................................................83
Changing the display language............................................................................83
Video output.........................................................................................................83
Button timer..........................................................................................................84
Auto power off......................................................................................................84
n (arrow pad) lock............................................................................................ 84
A.................................................................................................................84
Firmware ..............................................................................................................84
EN
15
6 Printing ....................................................................................................85
Describes how to print images that have been taken.
Print reservation (DPOF).......................................................................................................85
Direct printing (PictBridge) ....................................................................................................87
Print reservation................................................................................................... 85
Single-frame reservation...................................................................................... 85
All-frame reservation............................................................................................ 86
Resetting the print reservation data .....................................................................86
Connecting the camera to a printer......................................................................88
Easy printing ........................................................................................................88
Custom printing.................................................................................................... 89
7 Using the OLYMPUS Master software .................................................... 91
Describes how to transfer and store the camera’s images to your computer.
Flowchart...............................................................................................................................91
Using the provided OLYMPUS Master software ...................................................................91
Connecting the camera to a computer ..................................................................................92
Start up the OLYMPUS Master software............................................................................... 93
Displaying camera images on a computer ............................................................................93
Viewing still images ...............................................................................................................95
To increase the number of languages...................................................................................95
Transferring images to your computer without using OLYMPUS Master..............................96
What is OLYMPUS Master? ................................................................................91
Downloading and saving images ......................................................................... 93
Disconnecting the camera from your computer ...................................................94
8 Getting to know your camera better ........................................................97
Reference for help or when you wish to know more about the camera.
Shooting tips and information................................................................................................97
When error messages are displayed................................................................................... 103
Camera maintenance ..........................................................................................................105
Tips before you start taking pictures ....................................................................97
Shooting tips ........................................................................................................ 97
Additional shooting tips and information ............................................................100
Playback tips...................................................................................................... 102
Viewing pictures on a computer......................................................................... 102
Cleaning and storing the camera .......................................................................105
Cleaning mode k Removing dust..................................................................... 106
Pixel mapping k Checking the image processing functions............................. 106
9 Information.............................................................................................107
Describes how to handle the cards and rechargeable battery, and contains a directory of the camera’s
functions and displays.
Card basics .........................................................................................................................107
Battery and charger.............................................................................................................108
Menu directory..................................................................................................................... 109
Functions that can be set by shooting mode.......................................................................112
16
EN
Usable cards ......................................................................................................107
Formatting the card............................................................................................ 107
Using your charger abroad ................................................................................108
List of record modes ............................................................................................................114
Names of parts ....................................................................................................................115
Glossary ..............................................................................................................................122
Specifications ......................................................................................................................125
Camera ..............................................................................................................115
Viewfinder indications ........................................................................................117
Control panel screen ..........................................................................................118
LCD monitor indications (during live view).........................................................120
LCD monitor indications (during playback) ........................................................121
10 Interchangeable lenses .........................................................................128
Describes how to handle interchangeable lenses.
Lens..................................................................................................................................... 128
ZUIKO DIGITAL interchangeable lens ................................................................................128
11 Others ....................................................................................................130
Describes precautions regarding the use of the camera and accessories.
SAFETY PRECAUTIONS....................................................................................................130
Index.................................................................................................................................... 136
EN
17
1 Mastering the E-510
How to use the mode dial
The mode dial allows you to change the
camera settings easily according to the
subject.
1
Mastering the E-510
Easy shooting modes
• Select according to the shooting scene. The camera sets the appropriate shooting conditions
automatically.
• When rotating the mode dial or turning off the power in the easy shooting modes, functions with
changes made to their settings are restored to the factory default settings.
AUTO AUTO
i PORTRAIT Suitable for shooting a portrait-style image of a person.
l LANDSCAPE Suitable for shooting landscapes and other outdoor scenes.
& MACRO Suitable for taking close-up pictures (macro shooting).
j SPORT Suitable for capturing fast-moving action without blurring.
NIGHT+PORTRAIT
/
g Scene mode
Allows you to shoot using an optimum aperture and shutter speed that
the camera sets. The built-in flash pops up automatically in low-light
conditions.
Suitable for shooting both the main subject and background at night.
18 different scene modes are available to suit a wide range of shooting
situations. (gP. 30)
Advanced shooting modes
• For more advanced shooting and greater creative control, you can set the aperture value and
shutter speed.
• The settings made in the advanced shooting modes are retained even if the camera is turned off.
P Program shooting
A Aperture priority shooting
S Shutter priority shooting
M Manual shooting
18
EN
Allows you to shoot using an aperture and shutter speed that
the camera sets. (gP. 31)
Allows you to set the aperture manually. The camera sets the
shutter speed automatically. (gP. 32)
Allows you to set the shutter speed manually. The camera sets
the aperture automatically. (gP. 33)
Allows you to set the aperture and shutter speed manually.
(gP. 34)
How to set the functions
How to make function settings
There are three basic ways to make function settings with this camera.
• Setting while looking at the control panel screen (See below)
• Setting using direct buttons (gP. 20)
• Setting on the menu (gP. 21)
Setting functions using the control panel screen
Select an item on the control panel screen and
change the setting.
1 When the power switch is set to ON,
the control panel screen (shooting
information and setting screen) is
displayed on the LCD monitor.
• The display changes each time the INFO
button is pressed.
• You can also display the control panel screen
by pressing the i button and change the
setting when using live view.
Control panel screen
i button p Arrow padINFO button
Power switch
Control dial
1
Mastering the E-510
2007.08.16
Basic
2007.08.16
Detailed
Display off
2 Press the i button.
• The cursor (function being selected) on the control panel screen lights (1).
e.g.) When setting Sequential/Self-timer/Remote control shooting
123
Cursor
Direct menu
3 Use p to move the cursor to the function you want to set (2).
4 Turn the control dial to change the setting.
• Pressing the i button while the item is being selected displays the direct menu for that
function. You can also use the direct menu to change the setting (3). After changing the
setting, press the i button to confirm your setting. Or if you do not operate the control dial
within a few seconds, your setting will be confirmed and the control panel screen will be
restored. g “Button timer” (P. 84)
EN
19
Functions on the control panel screen
The functions that can be set on the basic display and detailed display vary.
2007.08.16
1
2
1
Mastering the E-510
3
4
765
Basic Detailed
No. Items Basic Detailed Ref. page
1ISO 33 P. 56
WB 33 P. 58
2
White balance compensation k 3 P. 59
3 Metering mode 33 P. 54
4Card 33 P. 107
5 Record mode 33 P. 52
6AF frame 33 P. 49
7 Focus mode 33 P. 49
Sequential shooting/Self-timer/
8
Remote control
Flash mode 33 P. 41
9
Flash intensity control k 3 P. 42
10 Picture mode 33 P. 61
Color space
Sharpness
11
Contrast
Saturation
Gradation
3: Can be set k: Cannot be set
10
9
8
2007.08.16
1
2
9
54
3,6,7,8
33 P. 45
P. 63
k 3
P. 61
P. 61
P. 61
P. 62
Setting functions using direct buttons
This camera is equipped with direct buttons where functions have been assigned and can be
set quickly.
1 Press the button for the function you want to set.
• The direct menu is displayed.
e.g.) Setting Sequential/Self-timer/
Remote control shooting
1
Control dial
6
2
10
10
11
7
8
20
EN
Direct menu
45
3
9
2 Turn the control dial to change the setting.
• Press the i button to confirm your setting. Or if you do not operate the control dial within a
few seconds, your setting will be confirmed and the previous screen will be restored.
g “Button timer” (P. 84)
List of direct buttons
The functions assigned to buttons are as shown below.
No. Direct buttons Function Ref. page
1 j/Y/<
2 F Exposure compensation button Exposure compensation P. 55
3 P AF frame button AF frame selection P. 49
4 o Image stabilizer button Sets image stabilizer P. 36
5 u Live view button Turns live view on or off P. 23
6 # Flash button
7 WB White balance button Sets white balance P. 57
8 AF Focus mode button Sets focus mode P. 49
9 ISO ISO button Sets ISO sensitivity P. 56
10 d Metering button Sets metering mode P. 54
Sequential shooting/Self-timer/
Remote control button
Sequential shooting/Self-timer/
Remote control
Pops up the flash and sets flash
mode
P. 45
P. 41
Setting on the menu
1 Press the MENU button.
• The menu is displayed on the LCD monitor.
CUSTOM RESET
SETTING
MENU button
1
Mastering the E-510
Operation guide is displayed at the bottom of the screen.
CANCEL
SELECT
GO
OK
MENU
: Press MENU to cancel the setting.
: Press dac to select the item.
The illustration displayed corresponds to the arrow pad shown
below.
: a : c : d : b
: Press i to confirm your settings.
p Arrow pad
i button
EN
21
2 Use p to set a function.
CUSTOM RESET
SETTING
NOISE FILTER STANDARD
NOISE REDUCT.
Tab The current setting is displayed
1
Function
Mastering the E-510
Moves to the functions under the
tab you have selected.
Types of tabs
W Sets shooting functions.
X Sets shooting functions.
q Sets playback functions.
Y Customizes shooting functions.
Z Sets functions that allow you to use the camera efficiently.
Select a function and go to the
setting screen.
3 Press i repeatedly until the menu disappears.
• The normal shooting screen is restored.
• For the menu lists, see “Menu directory” (g P. 109).
Descriptions in this manual
The operating instructions of the direct buttons, control panel screen and menu are described
as follows in this manual.
NOISE FILTER STANDARD
NOISE REDUCT.
Control panel setting screenDirect buttons setting screen Menu setting screen
Direct button
e.g.: When setting Sequential shooting/Self-timer/Remote control
j/Y/<Control dial
Control panel screen
e.g.: When setting Sequential shooting/Self-timer/Remote control
ip: j/</Yi
Menu
e.g.: When setting white balance
MENU[W][WB]
22
EN
Live view
It is possible to use the LCD monitor as a viewfinder. You can view the exposure or white
balance effect and the subject’s composition while you take the picture.
1 Press the u button.
• The subject is displayed on the LCD monitor.
Control dial
AEL/AFL button
1
Mastering the E-510
INFO button
u button
2 Press the shutter button all the way down to focus and shoot.
• To focus in advance, hold down the AEL/AFL button and press the shutter button. The focus
is locked when the AEL/AFL button is pressed.
• The image display on the monitor freezes as the mirror goes down during focusing. The
picture you just took is briefly displayed on the monitor so you can check the picture.
TIPS
To check the image stabilizer effect:
J Press and hold the o button. g “Checking the image stabilizer effect on the monitor” (P. 36)
To focus using MF:
J Set [AF MODE] to [MF]. g “Focus mode” (P. 49)
• Turn the focus ring and focus on the subject. For MF shooting method, refer to “MF (manual
focus)” (P. 50).
• You can also press the AEL/AFL button to activate auto focus.
Switching the information display
You can press the INFO button to switch the information displayed on the monitor.
Information display on
Information display off
*1
Displayed when [FRAME ASSIST] is set.
*2
For operation in the enlarged display, refer to “Enlarged display operation” on the next page.
Information display on
+ Ruled lines display
Enlarged display
*1
Information display on
+ Histogram
*2
EN
23
Enlarged display operation
It is possible to enlarge the subject 7 or 10 times for display. Enlarging the image during MF
makes focus confirmation and adjustment easier.
1 Use p to move the frame and press the i button.
• Area inside the frame is enlarged and displayed.
• Press and hold the i button to return the shifted enlargement frame to the center.
1
Mastering the E-510
2 Turn the control dial to change the magnification (7×/10×).
• Pressing i cancels enlarged display operation.
x Notes
• If there is a high-intensity light source within the screen, the image may be displayed darker
but will be recorded normally.
• If the live view function is used over a long period, the temperature of the image pickup device
rises causing images with high ISO sensitivity to appear noisy and unevenly colored. Either
lower the ISO sensitivity or turn off the camera for some time.
• Replacing the lens will cause live view to stop.
• The following functions are not available during live view.
C-AF/AE lock/[AEL/AFL]
Ruled lines display
You can display the ruled lines on the LCD monitor as a guide when confirming the
composition.
MENU[Y][FRAME ASSIST]
[OFF]/[GOLDEN SECTION]/[GRID]/[SCALE]
TIPS
Checking the subject on the monitor even in low light situations:
J Refer to “Live view boost” (g P. 79)
24
EN
2
Improving your shooting skills k Shooting guides
Basic function guides
To familiarize yourself with the camera, you can start off by taking pictures of surrounding
subjects, such as children, flowers and pets. If the pictures taken are not to your liking, try
adjusting some of the settings below. You can take more satisfying pictures simply by
familiarizing yourself with these basic camera functions.
Focus: Operating the shutter button
A picture can become out of focus when the focus in the
picture is on the foreground, background, or other objects in
the picture instead of on the subject. To prevent out-of-focus
pictures, be sure to focus on the subject you are trying to
capture. The shutter button can be pressed halfway down
(half-press) and all the way down (full press). Once you are
able to operate the shutter button effectively, you can focus
accurately even on moving subjects.
2
Improving your shooting skills k Shooting guides
Halfway
down:
g “Shooting” (P. 10), “If correct focus cannot be obtained
(Focus lock)” (P. 37)
Even when the subject is in focus, the picture can become
blurred if you move the camera while the shutter button is
being pressed. Make sure how to properly hold the camera.
The camera is particularly subject to shaking when using live
view to take pictures while viewing the subject on the monitor. You can reduce camera shake
by using the image stabilizer.
g “Holding the camera” (P. 10), “Shooting with the image stabilizer function” (P. 36)
In addition to incorrect focusing and camera shake problems, movement of the subject can
also cause blurring of the picture. In this case, use a shutter speed that matches the motion
of the subject. You can confirm the actual shutter speed and aperture on the displays of the
viewfinder and monitor by pressing the shutter button halfway.
g “How to use the mode dial” (P. 18), “Preview function” (P. 35), “Live view” (P. 23)
All the way
down:
Brightness: Exposure compensation
The camera automatically determines the aperture value and
shutter speed according to the brightness level. This is called
auto exposure. However, you may not be able to capture the
intended picture with auto exposure alone. In this case, you
can increase or decrease the auto exposure setting. Increase
the exposure to enhance the brightness of a summer beach or
the whiteness of snow. Decrease the exposure when the area
to be shot is brighter but smaller compared to its surrounding
area. If you are unsure of how much exposure compensation is
required, try taking several pictures at various settings and then compare the pictures.
g “Exposure compensation k Varying the image brightness” (P. 55), “AE
bracketing” (P. 37)
EN
25
Color: White balance
Besides sunlight, there are other sources for illuminating the subject, such as tungsten and
fluorescent lighting. These types of lighting contain particular colors; therefore, the same
white object shot under different lighting has slightly different colors. Even under the same
sunlight, the colors in the picture differ depending on the sky conditions, the shadows of trees
or buildings, and other factors. White balance automatically corrects the effects from these
types of lighting and enables shooting with the right colors. You can usually obtain the right
colors with the white balance set to [AUTO]. Depending on the shooting conditions, however,
you may not be able to obtain the intended colors. In this case, change the setting
accordingly.
g “White balance k Adjusting the color tone” (P. 57)
2
Fluorescent light
Tungsten light Shade of tree
Improving your shooting skills k Shooting guides
A guide to functions for different subjects
This section describes the functions suitable under different shooting conditions depending
on the subject.
Taking landscape pictures
This section describes how to take outdoor scenery pictures of forests, lakes and beaches in
daylight.
Changing shooting mode
The proper shooting method varies depending on whether you
are trying to capture the silence of a still scene or the
dynamism of a motion scene.
• To capture the depth of a forest, focus with a wider range of the
image. Use A (aperture priority shooting) mode and close the
aperture (increase the aperture value) as much as possible.
• To capture the waves crashing against the seashore, use S
(shutter priority shooting) mode and select a fast shutter speed.
To capture a flowing waterfall or river, shoot using a slow shutter
speed.
Exposure compensation can be used even under different shooting modes. Check the image
that you have shot and use + or – to adjust the exposure to obtain better results.
26
EN
Using white balance
The color of water in pictures appears different depending on
whether it is a lake reflecting nearby trees or a seashore
surrounded by a coral reef. To capture the subtle difference in
color, try changing the white balance setting. Change the
setting for different situations, such as by using [55300K] for
sunny days and [27500K] for outdoor shaded areas on
sunny days.
Changing metering mode
Depending on the depth of the water and the direction of the sun, the
brightness of the water can differ significantly in different areas of
the same composition. There is also a difference in the brightness of
forests depending on the way the trees overlap each other. If you
know which areas you want to emphasize the compensation in the
image composition, you can change the metering mode. When set
to [e] (Digital ESP metering), the camera automatically assesses
the brightness in the composition and determines the exposure. To
emphasize a specific partial exposure in the composition, change
the metering mode to [4] (center weighted metering) or [n] (spot
metering), adjust the AF frame to the locations that you want to
adjust the exposure and then measure the exposure.
Changing saturation
There may be times when you cannot reproduce the desired color even when using white
balance or exposure compensation. In this case, you can change the [SATURATION] setting
to achieve the desired color. The [SATURATION] setting includes two levels of high and low
settings. When the setting is high, a vivid color is used.
g “A: Aperture priority shooting” (P. 32), “S: Shutter priority shooting” (P. 33), “Metering
mode k Changing the metering system” (P. 54), “Exposure compensation k Varying the
image brightness” (P. 55), “White balance k Adjusting the color tone” (P. 57),
“[SATURATION] : Vividness of the color” (P. 61)
Taking flower pictures
The proper method for taking pictures of flowers differs depending on whether you want to
capture, for example, a single flower, a field of blooming flowers, a deep red rose, or the light
color of a sweet pea.
Using white balance
There are many colors of flowers ranging from light to vivid
ones. Depending on the colors of the flowers, subtle color
shades may not be captured as seen. In this case, you can
check the light conditions and change the white balance
setting. At [AUTO], the camera automatically determines the
type of light and shoots using the proper white balance.
However, you can bring out subtle color shades more
effectively by changing the setting according to shooting
conditions, such as by using [55300K] for sunny days and
[27500K] for outdoor shaded areas on sunny days.
2
Improving your shooting skills k Shooting guides
EN
27
Using exposure compensation
When shooting flowers against a background, select as
simple a background as possible to bring out the shape and
color of the flower. When shooting bright and whitish
flowers, adjust the exposure compensation to – (minus) so
that the flower stands out from the darker background.
Changing shooting mode
2
The proper shooting method when taking pictures of flowers differs
Improving your shooting skills k Shooting guides
depending on whether you want to emphasize a single flower or
capture a field of flowers. To change the focus area, set the camera
to A (aperture priority shooting) mode and select the aperture value.
• When you open the aperture (decrease the aperture value), the camera
focuses within a shorter range (with a shallow depth of field),
emphasizing the subject against a blurred background.
• When you close the aperture (increase the aperture value), the camera
focuses over a wider range (with more depth of field), producing a
picture with both the foreground and background in focus.
You can use the preview function to confirm the changes in the depth
of field when the aperture is changed.
Using live view
When using a conventional digital single-lens reflex camera with interchangeable lens
system, it was necessary to wait until after taking the picture to check the results of the
exposure compensation and white balance settings. With the live view function of this
camera, however, you can use the monitor to display and check the subject you want to
capture.
Changing lenses
When the blooming flowers are few and sparse, take the picture using a telephoto lens. With
a telephoto lens, you take pictures in which subjects at different distances appear closer
together, giving the impression of a more densely blooming flower field. Using the telescopic
feature of the zoom lens also achieves the same effect, but it is easier to achieve this effect
when the focal distance of the lens is longer, such as 150 mm or 200 mm, rather than 54 mm.
g “A: Aperture priority shooting” (P. 32), “Live view” (P. 23), “Preview function” (P. 35),
“Exposure compensation k Varying the image brightness” (P. 55),
“White balance k Adjusting the color tone” (P. 57)
28
EN
Taking night scene pictures
There are different types of night scenes, from the afterglow of a sunset and city lights at
night to special light displays and firework displays.
Using a tripod
Because a slow shutter speed is needed to capture night
scenes, a tripod is required to prevent camera shake. If a
tripod is not available, you should place the camera on a
stable surface to prevent camera shake. Even if the camera
is secured, camera shake may occur when pressing the
shutter button. Therefore, it is recommended to use the
remote control or self timer.
Changing shooting mode
Night scenes have different levels of brightness, and the balance of the brightness in the
composition is not uniform. Start by using A (aperture priority shooting) mode to take the
picture. Set the aperture to the medium setting (about F8 or F11) and allow the camera to
automatically select the shutter speed. When shooting a night scene, because the camera
sets the exposure to match the dark areas which occupy a majority of the composition and
the image often turns out whitish (overexposed), adjust the exposure compensation to -1 or
-1.5. Use [REC VIEW] to check the image and adjust the aperture and exposure
compensation as necessary.
Image noise can easily occur when shooting at slow shutter speeds. In this case, set [NOISE
REDUCT.] to [ON] to reduce noise.
Using manual focus
In cases where you cannot use AF (auto focus) to focus on the
subject because the subject is too dark or you cannot focus in time to
take pictures, such as during a fireworks display, set the focus mode
to [MF] (manual focus) and focus manually. To take pictures of night
scenes, turn the focus ring of the lens and check whether you can
see the lights of the night scene clearly. To take pictures of a
fireworks display, adjust the focus of the lens to infinite unless you
are using a long focus lens. If you know the approximate distance to
the subject, it is recommended that you focus on something that is at
the same distance in advance.
g “P: Program shooting” (P. 31), “A: Aperture priority
shooting” (P. 32), “Sequential shooting/Self-timer/Remote
control” (P. 45), “Focus mode” (P. 49), “Noise reduction” (P. 62), “Rec view k Checking the
picture immediately after shooting” (P. 82)
2
Improving your shooting skills k Shooting guides
EN
29
Selecting the appropri
a
3 Shooting functions
Scene mode
When you select a mode to suit the shooting situation, the camera optimizes the settings for
the shooting conditions. Unlike the mode dial’s scene mode, most functions cannot be
changed.
1 Set the mode dial to g.
• The scene menu is displayed.
2 Use ac to select the scene mode.
• The sample image followed by a description of the selected
mode is displayed.
PORTRAIT
1
For taking a
portrait-style
shot.
3 Press the i button.
• The camera enters the shooting stand-by mode.
3
• To change the setting, press the i button again. The scene menu is displayed.
Shooting functions k Selecting the appropriate mode for shooting conditions
Types of scene modes
Icon Mode Icon Mode
B 1 PORTRAIT q 10 DIS MODE
F 2 LANDSCAPE z 11 MACRO
D 3 LANDSCAPE+PORTRAIT r 12 NATURE MACRO
G 4 NIGHT SCENE W 13 CANDLE
U 5 NIGHT+PORTRAIT S 14 SUNSET
w 6 CHILDREN X 15 FIREWORKS
C 7 SPORT d 16 DOCUMENTS
x 8 HIGH KEY s 17 PANORAMA
y 9 LOW KEY g 18 BEACH & SNOW
30
EN
Loading...
