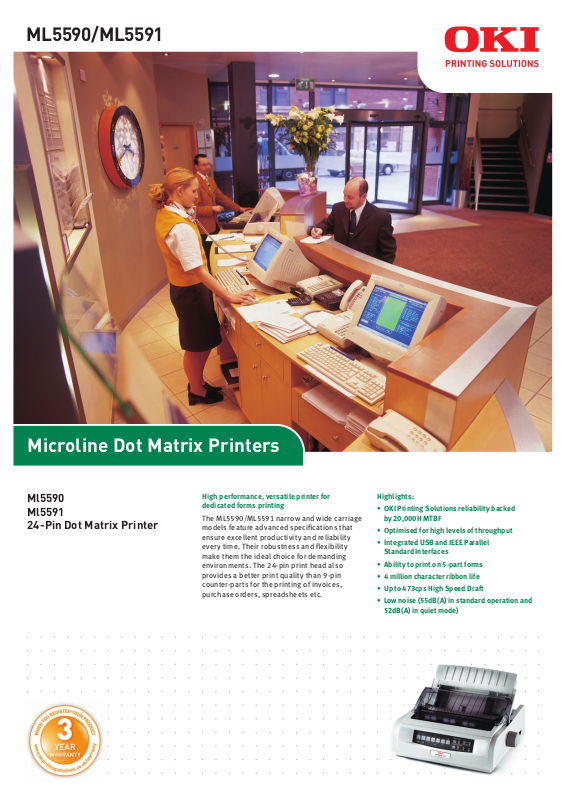

Oki ML5590, ML5591 DATASHEET

ML5590/ML5591

Microline Dot Matrix Printers

Ml5590 Ml5591 24-Pin Dot Matrix Printer

High performance, versatile printer for dedicated forms printing

The ML5590/ML5591 narrow and wide carriage mode

ls feature advanced speciﬁcations that ensure excellent productivity and reliabilit y every time. Their robustness and ﬂexibilit y make them the ideal choice for demanding environment s. The 24-pin print head also provides a better print qualit y than 9 -pin counter-parts for the printing of invoices, purchase orders, spreadsheets etc.

Highlights:

KI Printing Solutions reliability backed

• O by 2

0,000H MTBF

• Optimised for high levels of throughput

• Integrated USB and IEEE Parallel S

dard Interfaces

tan

• Ability to print on 5-part forms

• 4 million character ribbon life

• Up to 473cps High Speed Draft

• Low noise (55dB(A) in standard operation and 52dB(A) in quiet mode)

ML5590/ML5591

General

Speed and throughput

Font & print features

Emulations & Interfaces

Paper handling

Physical

Power

Reliabi

lity

ML5590 ML5591

Number of pins 24

No. of multi-p

Super speed (12cpi) 420cps

LQ (12cpi & 10cpi) 126cps; 105cps

Utility (12cpi &10cpi) 378cps; 315cps

Fast

Carriage width (10cpi) 80 columns 136 columns

Max. in compressed mode 160 columns 272 columns

Character pit

Graphics resolution Up to 360 x 360 dpi

Typeface & Font Courier (Scalable), Roman (Scalable), Swiss (Scalable), Prestige, Gothic, Utility,

Typestyle Emphasised, Enhanced, Double Width, Double Height, Italics, Outline, Shadow, Bold, Underline, Subscript, Superscript

Printer emulations Epson LQ, IBM Proprinter III/AGM

Standard interfaces Centronics Parallel + USB

Optional interfaces Serial RS 232C/RS 422/Current Loop

Continuous paper 76—254mm 76—406mm

Continuous en

First printable line (from top of page) Cut-sheet: 0.5mm, Continuous: 0.5mm

Standard Paper parking, Low tear off, Push tractors, Autoload single sheet

Optional Pul

Dimensions (HxWxD) 153 x 398 x 345mm 153 x 552 x 345mm

Weight 7.6kg 9.6kg

Memory 128KB

Noise level 56dB(A) norm

Power requirements 230V AC

Frequency 50/60Hz

Print head life 200 million characters

Ribbon life 4 million characters (re-inking cartridge)

MTBF 20,000 hours

art forms 5 (one original + 4 copies)

est print speed 473cps

ch 10/12/15/17.1/20 pitch & proportional

Swiss

Bold, Orator, HSD, OCR-A, OCR-B + Barcodes

velopes 165 x 92mm 241 x 105mm

l tractors, Single/dual bin sheet feeder, Roll paper stand (80 column only), Bottom push tractor

al operation / 52dB(A) in quiet mode

Consumables Information: Only use genuine OKI Printing Solutions Original consumables to ensure the best quality and perfomance from your hardware. Non OKI Printing Solutions Original products may damage your printer’s performance and invalidate your warranty. Speciﬁcations subject to change without notice. All trademarks acknowledged.
