USER'S MANUAL
CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Save this manual for future reference.
Serial Number Decal
Model No. NTL19920 Serial No.
Find the serial number in the location shown below. Write the serial number in the space above for reference.
QUESTIONS?
If you have questions, or if there are missing parts, we will guar­antee complete satisfaction through direct assistance from our factory.
TO AVOID DELAYS, PLEASE CALL DIRECT TO OUR TOLL­FREE CUSTOMER HOT LINE. The trained technicians on our Customer Hot Line will provide immediate assistance, free of charge to you.
CUSTOMER HOT LINE:
1-888-825-2588
Mon.–Fri., 6 a.m.–6 p.m. MST
Patent Pending
Visit our website at
www.nordictrack.com
new products, prizes,
fitness tips, and much more!
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: An EXPLODED DRAWING is attached in the center of this manual.
NordicTrack is a registered trademark of ICON Health & Fitness, Inc.
2
3
1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with at least eight feet of clearance behind it and two feet on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
4. Keep the treadmill indoors, away from mois­ture and dust. Do not put the treadmill in a garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
6. Keep children under the age of 12 and pets away from the treadmill at all times.
7. The treadmill should not be used by persons weighing more than 300 pounds.
8. Never allow more than one person on the treadmill at a time.
9. Wear appropriate exercise clothes when using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recommended for both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.
10. When connecting the power cord (see page 8), plug the power cord into a surge suppressor (not included) and plug the surge suppressor into a grounded circuit capable of carrying 15 or more amps. No other appliance should be on the same circuit. Do not use an extension cord.
11. Use only a single-outlet surge suppressor that meets all of the specifications described on page 8. To purchase a surge suppressor, see your local NordicTrack dealer or call 1-800­806-3651 and order part number 146148.
12. Failure to use a properly functioning surge suppressor could result in damage to the con­trol system of the treadmill. If the control sys­tem is damaged, the walking belt may change speed or stop unexpectedly, which may result in a fall and serious injury.
13. Keep the power cord and the surge suppres­sor away from heated surfaces.
14. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See BEFORE YOU BEGIN on page 5 if the tread­mill is not working properly.)
15. Never start the treadmill while you are stand­ing on the walking belt. Always hold the handrails while using the treadmill.
16. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.
17. The pulse sensor is not a medical device. Various factors, including the user's move­ment, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.
18. Never leave the treadmill unattended while it is running. Always remove the key and un­plug the power cord when the treadmill is not in use.
19. Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See ASSEMBLY on page 6, and HOW TO FOLD AND MOVE THE TREADMILL on page 25.) You must be able to safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill.
20. Do not change the incline of the treadmill by placing objects under the treadmill.
21. When folding or moving the treadmill, make sure that the storage latch is fully closed.
WARNING:To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
IMPORTANT PRECAUTIONS
22. When using iFIT.com CD’s and videos, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change. Always listen for the “chirp” and be prepared for speed and/or in­cline changes. In some instances, the speed and/or incline may change before the per­sonal trainer describes the change.
23. When using iFIT.com CD’s and videos, you can manually override the speed and incline settings at any time by pressing the speed and incline buttons. However, when the next “chirp” is heard, the speed and/or incline will change to the next settings of the CD or video program.
24. Always remove iFIT.com CD’s and videos from your CD player or VCR when you are not using them.
25. Inspect and properly tighten all parts of the treadmill regularly.
26. Never insert or drop any object into any opening.
27.
DANGER:Always unplug the power
cord immediately after use, before cleaning the treadmill, and before performing the main­tenance and adjustment procedures de­scribed in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.
28. This treadmill is intended for in-home use only. Do not use this treadmill in any commer­cial, rental, or institutional setting.
WARNING:Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
4
The decals shown have been placed on the treadmill. If a decal is missing or illegi­ble, please call our Customer Service Department, toll-free, to order a free replace­ment decal (see ORDERING REPLACEMENT PARTS on page 31). Apply the decal in the location shown.
Note: The decal shown at the right is 50% of actual size.
Thank you for selecting the revolutionary NordicTrack
®
E 3800 treadmill. The E 3800 treadmill combines ad­vanced technology with innovative design to help you get the most from your exercise program in the conve­nience of your home. And when you’re not exercising, the unique E 3800 treadmill can be folded up, requiring less than half the floor space of other treadmills.
For your benefit, read this manual carefully before using the treadmill. If you have additional questions,
please call our Customer Service Department toll-free
at 1-888-825-2588, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please note the product model number and serial number before calling. The model number of the treadmill is NTL19920. The serial num­ber can be found on a decal attached to the treadmill (see the front cover of this manual for the location).
Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.
BEFORE YOU BEGIN
Handrail
Console
Fan
Lock Knob
Book Holder
Key/Clip
Circuit Breaker
Walking Belt
Foot Rail
Power Cord
Adjustable Cushion
Rear Roller Adjustment Bolts
Water Bottle Holder*
Pulse Sensor
RIGHT SIDE
LEFT SIDE
*No water bottle is included.
5
ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench and your own phillips screwdriver , wire cutters , and rubber mallet .
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
1. With the help of a second person, carefully raise the Uprights (69) until the treadmill is in the position shown.
Refer to the inset drawing. Insert one of the Extension Legs (102) into the treadmill as shown. Make sure that the Extension Leg is turned so the Base Pad (99) is on the bottom. Note: It may be helpful to tip the Uprights (69) forward and tap on the Extension Leg with a rubber mal­let as you insert the Extension Leg.
Insert the other Extension Leg (not shown) in the same way.
3. With the help of a second person, carefully tip the
Uprights (69) down as shown. Make sure that the
Extension Legs (102) remain in the Uprights.
Attach each Extension Leg (102) with two 1” Screws (148) and a Base Pad (99) as shown. Note: Attach the lower Screw (without the Base Pad) first.
With the help of a second person, carefully tip the Uprights (69) back to the vertical position.
Note: One replacement Base Pad (99) may be included. Use the Base Pad to replace any Base Pad that becomes worn.
69
99
102
69
1
148
102
69
148
102
99
99
3
6
2. Press the Lock Knob Sleeve (70) into the left Upright (69). Remove the Lock Knob (68) from the Lock Pin (74). Make
sure that the Lock Pin Collar (72) and the Spring (71) are on the Lock Pin.
Insert the Lock Pin (74) into the Lock Knob Sleeve (70) and the left Upright (69).
Tighten the Lock Knob (68) back onto the Lock Pin (74).
69
70
68
71
72
74
2
7
5. Insert two Handrail Bolts (78) with Handrail Washers (77)
into the right Upright (69) and the right Handrail (66). Be
careful not to damage the Upright Wire Harness (not shown). Next, lift the right Handrail (66) slightly and align
the Bolts with the holes in the Handrail. Thread the Bolts into the Handrail. Do not tighten the Bolts yet.
Attach the left Handrail (not shown) in the same way. Tighten all four Handrail Bolts (78).
6. Make sure that all parts are properly tightened before
you use the treadmill. Place a mat beneath the tread­mill to protect the floor. For your benefit, familiarize
yourself with the information on pages 27 and 28.
5
78
69
77
4. Cut the plastic tie holding the Upright Wire Harness (98) in
the right Upright (69). Have a second person hold the Handrails (66) near the Uprights as shown. Connect the Upright Wire Harness (98) to the wire harness extending from the Console Base (81). Insert the connectors and the Upright Wire Harness into the hole in the right Upright.
Set the Handrails (66) on the Uprights (69), being careful not to pinch the Upright Wire Harness (98).
98
69
81
66
4
66
If you purchase the optional chest pulse sensor (see page 24), follow the steps below to install the receiver and the short jumper wire included with the chest pulse sensor.
1. Make sure that the power cord is unplugged. Remove the indicated screws from the Console Back (A).
Important: The screws may be different lengths. Keep track of which screws were removed from which holes.
Remove the Console Back.
2. Peel the paper off the pad on the bottom of the Receiver (B). Turn the Receiver so the cylinder is on the side shown, and press the Receiver into the bottom of the Console Base (D) in the indicated location.
A
C
Screws
1
2
D
B
Cylinder
3. Connect the included Short Jumper Wire (E) to the wire on the Receiver (B). Connect the other end of the Short Jumper Wire to the PLS2 jack on the back of the Console (C). If there is a wire already plugged into the PLS2 jack, unplug it. Note: The other wires included with the receiver may be discarded. The wire tie can be used to tie wires, if needed.
Make sure that no wires are pinched. See step 1. Reattach the Console (C) with the screws. Important: If the
screws are not put back into the same holes from which they were removed, the Console will be damaged.
C
B
E
PLS2
Jack
3
OPERATION AND ADJUSTMENT
THE PERFORMANT LUBETMWALKING BELT
Your treadmill features a walking belt coated with PERFORMANT LUBE
TM
, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking plat­form. Such substances will deteriorate the walking belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated electronic equipment, can be seriously damaged by sudden voltage changes in your home’s power. Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge suppressor with your treadmill (see drawing 1 at the right). To purchase a surge suppressor, see your local NordicTrack dealer or call 1-800-806­3651 and order part number 146148.
Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup­pressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indi­cate whether it is functioning properly. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed or stop unexpect­edly, which may result in a fall and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least resistance for electric current to reduce the risk of elec­tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. Important: The treadmill is not compatible with GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illus­trated in drawing 1 below. A temporary adapter that looks like the adapter illustrated in drawing 2 may be used to connect the surge suppressor to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available.
The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician.
The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used it must be held in place by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec­trician to determine if the outlet box cover is grounded before using an adapter.
DANGER:Improper connection
of the equipment-grounding conductor can result in an increased risk of electric shock. Check with a qualified electrician or service­man if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Surge Suppressor
Surge Suppressor
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet
Grounding Pin
8
9
FEATURES OF THE CONSOLE
The advanced console offers a selection of features designed to help you get the most from your exercise.
When the manual mode of the console is selected, the speed and incline of the treadmill can be changed with the touch of a button. As you exercise, the console will display continuous exercise feedback. You can even measure your heart rate using the handgrip pulse sen­sor. Note: For information about an optional chest
pulse sensor, see page 24.
Sixteen preset workout programs are also offered. Each program automatically controls the speed and incline of the treadmill to give you an effective workout. You can even create custom workout programs and store them in memory for future use.
In addition, the console offers two heart rate programs that automatically adjust the speed and incline of the treadmill to keep your heart rate near a target level while you exercise. Note: The heart rate programs re­quire the use of the optional chest pulse sensor.

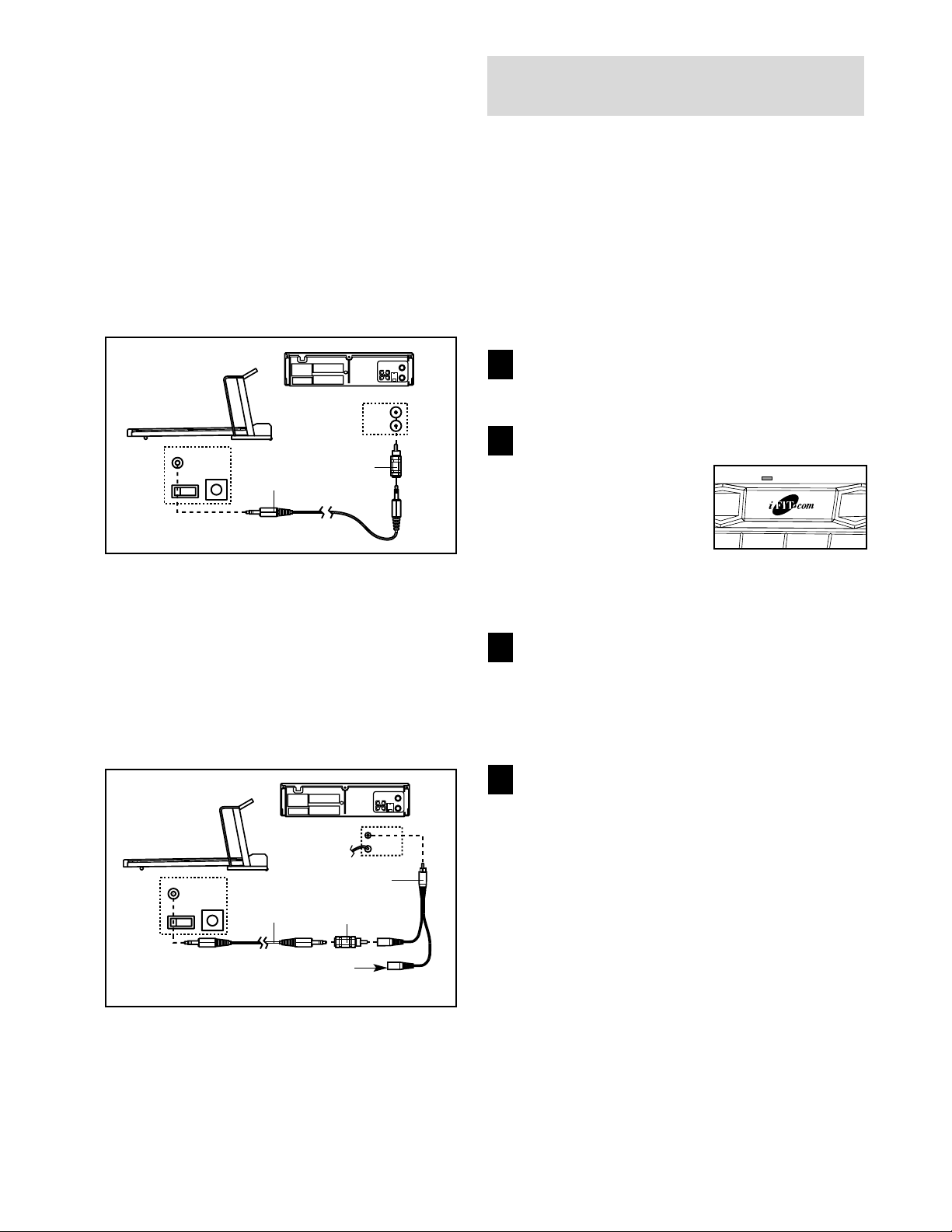

The console also features new iFIT.com interactive technology. Having iFIT.com technology is like having a
personal trainer right in your home. Using the included audio cable, you can connect the treadmill to your home stereo, portable stereo, or computer and play special iFIT.com CD programs (iFIT.com CD’s are available separately). IFIT.com CD programs automatically con­trol the speed and incline of the treadmill as a personal trainer guides you through every step of your workout. High-energy music provides added motivation. Each CD features two programs designed by certified per­sonal trainers.
In addition, you can connect the treadmill to your VCR and TV and play iFIT.com video programs (videocas­settes are available separately). Video programs offer the same benefits as iFIT.com CD programs, but add the excitement of working out with a class and an instructor—the hottest new trend at health clubs.
With the treadmill connected to your computer, you can also go to our Web site at www.iFIT.com and ac­cess programs directly from the internet. Additional op­tions are soon to be available. See www.iFIT.com for details.
To purchase iFIT.com CD’s or videocassettes, call toll-free 1-800-735-0768.
Pulse
Sensor
Pulse
Sensor
Clip
Key
Program
Display
Main
Display
Note: If there is a thin sheet of clear plastic on the face of the console, remove it.
10
GETTING STARTED
Attach the clip to the waistband of your clothes.
Stand on the foot rails of the treadmill. Find the clip attached to the key and slide the clip onto the waistband of your clothes. Next, in­sert the key into the console. Test the clip by carefully taking a few
steps backward until the key is pulled from the console. If the key is not pulled from the con­sole, adjust the position of the clip as needed.
Then, remove the key from the console.
Plug in the power cord.
See HOW TO PLUG IN THE POWER CORD on page 8.
Move the circuit breaker to the reset position.
Locate the circuit breaker on the treadmill near the power cord. Make sure the breaker is in the reset position.
Insert the key fully into the console. Stand on the foot rails of the treadmill. Attach the
clip securely to the waistband of your clothes.
Next, insert the key into the console. After a moment, the program display and the main display will light. Note: When the key is inserted, the treadmill incline system may automatically calibrate itself—the treadmill will rise to the highest incline level and then return to the lowest incline level. During calibration, the left side of the main display will show two dashes (– –) and the seg­ment time indicator will flash.
Enter your weight.
Although you can use the console without enter­ing your weight, the console will count your calorie expenditure more accurately if you enter your weight. To enter your weight, press either of the Age/Weight Set buttons. The words “ENTER WEIGHT” and the current weight setting will ap­pear in the main display. Press the Age/Weight Set buttons again to enter your weight. The but­tons can be held down to enter your weight quickly. Your weight will then be saved in memory.
To use the manual mode of the console, follow the steps beginning on page 11. To use a preset program, see page 13. To create and use a custom program, see pages 15 and 16. To use a heart rate program, see page 17. To use an iFIT.com CD or video pro-
gram, see page 21. To use an iFIT.com program di­rectly from our Web site, see page 23.
5
4
3
2
1
CAUTION:Before operating the
console, read the following precautions.
• Do not stand on the walking belt when turn­ing on the power.
• Always wear the clip (see the drawing below) while operating the treadmill.
• Adjust the speed in small increments in order to avoid sudden jumps in speed.
• The pulse sensor is not a medical device. Various factors may affect the accuracy of heart rate readings. The pulse sensor is in­tended only as an exercise aid in determin­ing heart rate trends in general.
• If you have heart problems, or if you are over 60 years of age and have been inactive, do not use the heart rate programs. If you are taking medication regularly, consult your physician to find whether the medication will affect your exercise hart rate.
• To reduce the possibility of electric shock, keep the console dry. Avoid spilling liquids on the console and place only a sealed water bottle in the water bottle holder.
Reset
Position
Clip
11
HOW TO USE THE MANUAL MODE
Insert the key fully into the console.
See GETTING STARTED on page 10.
Select the manual mode.
When the key is inserted, the manual mode will automatically be selected. If a program has been selected, press the Select Goal button repeatedly until the words “MANUAL MODE” appear in the main display.
Press the Start button or the Speed + button to start the walking belt.
A moment after the button is pressed, the walking belt will begin to move at 1 mph. Hold the handrails and begin walking. As you exercise, change the speed of the walking belt as desired by pressing the Speed + and – buttons. Each time a button is pressed, the speed set­ting will change by 0.1 mph; if a button is held down, the speed setting will change in increments of 0.5 mph. To change the speed setting quickly, press the 1-step Speed buttons. The speed range is 0.5 mph to 12 mph. Note: After the buttons are pressed, it may take a moment for the treadmill to reach the selected speed setting.
To stop the walking belt, press the Stop button. The time will begin to flash in the main display. To restart the walking belt, press the Start button or the Speed + button.
Note: The first time the treadmill is used, inspect the alignment of the walking belt, and align the walking belt if necessary (see page 28).
Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the Incline
and ▼buttons. Each time a button is pressed, the incline will
change by 0.5%. To change the incline quickly, press the 1-step Incline buttons. The incline range is 0% to 12%. Note: After the buttons are pressed, it may take a moment for the treadmill to reach the selected incline setting.
Follow your progress with the LED track, the Training Zone display, and the main display.
The LED track—When
the manual mode or the iFIT.com mode is se­lected, the program dis­play will show an LED track representing 1/4 mile. As you exercise, the indicators around the track will light, one at a time, until you have walked or run 1/4 mile. A new lap will then begin.
The Training Zone display—As you exercise, the Training Zone display will show the approximate intensity level of your exercise. For example, if four to six indicators in the display are lit, your intensity level is ideal for fat burning.
The main display—The main display will show the following information:
Incline—The left side of the main display shows the incline level of the treadmill.
Time/Pace—When the manual mode or the iFIT.com mode is se­lected, the next section of the main display will show the elapsed time and your current pace (pace is measured in min- utes per mile). The display will change from one number to the other every few seconds; the Pace indicator will light when your pace is shown. When a program is selected, the display will show the time remaining in the program, your current pace, and the time remaining in the current segment of the program.
5
4
3
2
1
12
Distance/Laps—The
center section of the main display shows the distance that you have walked and the number of 1/4-mile laps you have completed. The display will change from one number to the other every few seconds; the Laps indicator will light when the number of laps is shown.
Calories/Pulse— When you are not using the handgrip pulse sensor, the next section of the main dis­play will show the ap­proximate numbers of calories and fat calories you have burned (see FAT BURNING on page
29). The display will change from one number to the other every few seconds; the Fat indicator will light when the number of fat calories is shown. When you are using the handgrip pulse sensor, the display will show your heart rate (see step 6 at the right).
Speed—The right side of the main display shows the speed of the walking belt.
Note: The console can display speed and dis­tance in either miles or kilometers. To find which unit of measure­ment is selected, hold down the Stop button while inserting the key into the console. An “E” for English miles or an “M” for metric kilometers will appear on the right side of the main display. Press the Speed + button to change the unit of measurement. When the de­sired unit of measurement is selected, remove the key and then reinsert it. Note: For simplicity, all
instructions in this manual refer to miles.
To reset the main display, press the Stop button, remove the key, and then reinsert the key.
Measure your heart rate if desired.
To measure your heart rate, stand
on the foot rails
and place your hands on the metal contacts on the handrail. Your palms must be rest­ing on the upper contacts, and your fingers must be touching the lower contacts—avoid
moving your hands. When your pulse is detected, the Pulse in-
dicator will light and then your heart rate will be shown in the main display. For the most accurate
heart rate reading, continue to hold the con­tacts for about 15 seconds.
Turn on the fans if desired.
To turn on the fans at low speed, press the Fans button. To turn on the fans at high speed, press the Fans button a second time. To turn off the fans, press the Fans buttons a third time. Note: Any time that the walking belt is stopped for a few minutes, the fans will automatically turn off.
When you are finished exercising, stop the walking belt and remove the key.
Step onto the foot rails, press the Stop button, and adjust the incline of the treadmill to the lowest level.
The incline must be at the lowest level when the treadmill is raised to the storage position or the treadmill will be damaged. Next, remove the
key from the console and put it in a secure place.
Note: If the displays and indicators on the con­sole remain lit after the key is removed, the console is in the “demo” mode. See page 24 and turn off the demo mode.
When you are finished using the treadmill, move the on/off switch near the power cord to the off position and unplug the power cord.
8
7
6
Metal Contacts
13
HOW TO USE PRESET PROGRAMS
Insert the key fully into the console.
See GETTING STARTED on page 10.
Select the desired preset program.
The console offers sixteen preset programs—four programs that focus on weight loss, seven pro­grams designed for aerobic exercise, and five pro­grams for high-performance conditioning.
When the key is inserted, the manual mode will be selected. To select one of the preset programs, first press the Select Goal button repeatedly until the words “WEIGHT LOSS,” “AEROBIC,” or “PERFORMANCE” appear in the main display.
Next, press the Select Course button repeatedly to select one of the weight loss, aerobic, or perfor­mance programs. For example, if the words “WEIGHT LOSS” appear in the main display, you can select the 20-minute Pyramid, 35-minute Pyramid, 20-minute Fat Burn, or 20-minute Interval program.
Three seconds after a preset program is selected, the name of the selected program, the maximum speed setting for the program, the maximum in­cline setting for the program, and the total program time will begin to scroll across the main display.
The program dis­play will show the speed settings of the program you have selected. Note: If you have selected a program with more than seventeen segments, the display will show only the first sev­enteen speed settings.
Press the Start button or the Speed + button to start the program.
A moment after the button is pressed, the tread­mill will automatically adjust to the first speed and incline settings of the program. Hold the handrails and begin walking.
Each program is divided into several time seg­ments of different lengths. (The main display shows both the time remaining in the program and the time remaining in the current segment of the program.) One speed setting and one incline set­ting are programmed for each segment. (The same speed setting and/or incline setting may be programmed for consecutive segments.) The speed setting for the first segment is shown in the flash­ing Current Segment column of the program dis­play. (The incline settings are not shown in the program display.) The speed set­tings for the next several segments are shown in the columns to the right.
When only three seconds remain in the first seg­ment of the program, both the Current Segment column and the column to the right will flash and a series of tones will sound. In addition, if the speed and/or incline of the treadmill is about to change, the speed setting and/or incline setting will flash in the main display to alert you. When the first seg­ment is completed, all speed settings will move one column to the left. The speed setting for the second segment will then be shown in the flashing Current Segment column and the treadmill will au­tomatically adjust to the speed and incline settings for the second segment. Note: If all of the indica­tors in the Current Segment column are lit after the speed settings have moved to the left, the speed settings will move downward so that only the high­est indicators appear in the program display. If some of the indicators in the Current Segment col­umn are not lit when the speed settings move to the left again, the speed settings will move back up.
The program will continue in this way until the speed setting for the last segment is shown in the Current Segment column and no time remains in the program. The walking belt will then slow to a stop.
3
2
1
Current Segment
14
If the speed or incline setting is too high or too low during the program, you can manually override the setting by pressing the Speed or Incline but­tons on the console. Every few times one of the Speed buttons is pressed, an additional indicator will light or darken in the Current Segment column. (If any of the columns to the right of the Current Segment column have the same number of lit indi­cators as the Current Segment column, an addi­tional indicator may light or darken in those columns as well.) Note: If you manually adjust the speed setting so that all of the indicators in the Current Segment column are lit, the speed settings in the program display will not move downward as described above. Note: If you manually override
the speed or incline setting, when the next seg­ment begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.
To stop the program temporarily, press the Stop button. The time will begin to flash in the main dis­play. To restart the program, press the Start button or the Speed + button. The walking belt will begin to move at 1 mph. When the next segment begins, the treadmill will automatically adjust to the speed and incline settings for the next segment. To end the program, press the Stop button, remove the key, and then reinsert the key.
Follow your progress with the displays.
See step 5 on page 11.
Measure your heart rate if desired.
See step 6 on page 12.
Turn on the fans if desired.
See step 7 on page 12.
When the program has ended, remove the key. Step onto the foot rails and make sure that the in-
cline of the treadmill is at the lowest level. Next,
remove the key from the console and put it in a se­cure place. Note: If the displays and indicators
on the console remain lit after the key is re­moved, the console is in the “demo” mode. See page 24 and turn off the demo mode.
When you are finished using the treadmill, move the on/off switch near the power cord to the off position and unplug the power cord.
7
6
5
4
15
HOW TO CREATE CUSTOM PROGRAMS
Insert the key fully into the console.
See GETTING STARTED on page 10.
Select one of the custom programs.
When the key is inserted, the manual mode will be selected. To select a custom program, first press the Select Goal button repeatedly until the words “CUSTOM PROGRAM” appear in the main dis­play.
Next, press the Select Course button repeatedly to select the Learn 1 or Learn 2 program.
Three seconds after a custom program is selected, the name of the selected program and the total program time will begin to scroll across the main display.
Note: If the custom program has not yet been defined, one to three columns of indicators will be lit in the program display. If more than three columns of indicators are lit, see HOW TO USE CUSTOM PROGRAMS on page 16.
Press the Start button or the Speed + button and program the desired speed and incline settings.
A moment after the button is pressed, the walking belt will begin to move. Hold the handrails and begin walking.
Refer to the program display. Each custom pro­gram is divided into one-minute segments. One speed setting and one incline setting can be pro­grammed for each segment. The speed setting for the first segment will be shown in the flashing Current Segment column of the program dis­play. (The incline settings are not shown in the pro­gram display.) To program a speed setting and an incline setting for the first segment, simply adjust the speed and incline of the treadmill as desired by pressing the Speed and Incline buttons. Every few times one of the Speed buttons is pressed, an additional indicator will light or darken in the Current Segment column.
When the first segment of the program is com­pleted, the current speed setting and the current incline setting will be stored in memory. The three
columns of indicators will then move one column to the left, and the speed setting for the second
segment will be shown in the flashing Current Segment column. Program a speed setting and an incline setting for the second segment as de­scribed above. Note: After the third segment is completed, the columns of indicators in the pro­gram display will no longer move to the left. Instead, each time a segment is completed, the
flashing Current Segment column will move one column to the right. If the Current Segment col-
umn reaches the right side of the program display, when the current segment is completed all
columns of indicators in the program display will move three columns to the left.
Continue programming speed and incline settings for as many segments as desired; custom pro­grams can have up to forty segments. When you are finished with your workout, press the Stop but­ton twice. The speed and incline settings that you have programmed and the number of segments that you have programmed will then be saved in memory.
When the program has ended, remove the key.
See step 7 on page 14.
4
3
2
1
Current Segment
16
HOW TO USE CUSTOM PROGRAMS
Insert the key fully into the console.
See GETTING STARTED on page 10.
Select one of the custom programs.
When the key is inserted, the manual mode will be selected. To select a custom program, first press the Select Goal button repeatedly until the words “CUSTOM PROGRAM” appear in the main dis­play. Next, press the Select Course button repeat­edly to select the Learn 1 or Learn 2 program.
Three seconds after a custom program is se­lected, the name of the selected program and the total program time will begin to scroll across the main display.
The program display will show the first speed set­tings of the program you have selected (see the drawing below). Note: If only three columns of
indicators are lit in the program display, see HOW TO CREATE A CUSTOM PROGRAM on page 15.
Press the Start button or the Speed + button to start the program.
A moment after the button is pressed, the tread­mill will automatically adjust to the first speed and incline settings that you programmed previously. Hold the handrails and begin walking.
Each program is divided into several one-minute segments. (The main display shows both the time remaining in the program and the time remaining in the current segment of the program.) One speed setting and one incline setting are pro­grammed for each segment. The speed setting for the first segment is shown in the flashing Current Segment column of the program display. (The in­cline settings are not shown in the program display.) The speed set­tings for the next several segments will be shown in the columns to the right.
When only three seconds remain in the first seg­ment of the program, both the Current Segment column and the column to the right will flash, a se­ries of tones will sound, the speed setting and the incline setting will flash in the main display, and all
speed settings will move one column to the left.
The speed setting for the second segment will then be shown in the flashing Current Segment column and the treadmill will automatically adjust to the second speed and incline settings that you pro­grammed previously.
The program will continue until the speed setting for the last segment is shown in the Current Segment column and no time remains in the pro­gram. The walking belt will then slow to a stop.
If desired, you can redefine to the program while using it. To change the speed or incline setting during the current segment, simply press t h e Speed or Incline buttons. When the current segment is completed, the new setting will be saved in mem­ory. To increase the length of the program, first wait until the program is completed. Then, press the Start button, and program speed and incline settings for as many additional segments as desired. (Note: While you are adding segments to the program, the speed settings in the program display will not move to the left. Instead, each time a segment is completed, the flashing Current Segment column will move one column to the right. If the Current Segment column reaches the right side of the pro­gram display, when the current segment is com­pleted all columns of indicators in the program dis- play will move three columns to the left.) When you have added as many segments as desired, press the Stop button twice. To decrease the length of the program, press the Stop button twice at any time before the program is completed.
To stop the program temporarily, press the Stop button. The time will begin to flash in the main dis­play. To restart the program, press the Start but­ton or the Speed + button. To end the program, press the Stop button, remove the key, and then reinsert the key.
Follow your progress with the displays.
See step 5 on page 11.
When the program has ended, remove the key.
See step 7 on page 14.
5
4
3
2
1
Current Segment
17
HOW TO USE HEART RATE PROGRAMS
Heart rate programs automatically adjust the speed and incline of the treadmill to keep your heart rate near a target level while you exercise. Note: You must
wear the optional chest pulse sensor (see page 24) to use the heart rate programs.
Follow the steps below to use a heart rate program.
Put on the optional chest pulse sensor.
To put on the chest pulse sensor, see the instruc­tions included with the chest pulse sensor.
Insert the key fully into the console.
See GETTING STARTED on page 10.
Select a heart rate program.
When the key is inserted, the manual mode will be selected. To select a heart rate program, first press the Select Goal button repeatedly until the words “HEART RATE” appear in the main display.
Next, press the Select Course button until the words “PULSE DRIVEN 1” or “PULSE DRIVEN 2” appear.
During heart rate programs, the pro­gram display will show a graphic that represents your heart rate. Each time a heartbeat is detected, an additional peak will appear.
Enter your age and a maximum speed setting.
Three seconds after a heart rate program is se­lected, the words “ENTER AGE” and the current age setting will appear in the main display. You must enter your age to use a heart rate program. If you have already entered your age, press the Start button (pressing the button will not start the program at this time). If you have not entered your age, press the Age/Weight Set buttons to enter your age. The buttons can be held down to enter your age quickly. Then, press the Start button. Once you have entered your age, it will be saved in memory.
After you have entered your age, the words “ENTER MAX SPEED” and the maximum speed setting of the program will appear in the main dis­play. If desired, press the Speed buttons or the 1-step Speed buttons to change the maximum speed setting.
4
3
2
1
CAUTION:If you have heart prob-
lems, or if you are over 60 years of age and have been inactive, do not use the heart rate programs. If you are taking medication regu­larly, consult your physician to find whether the medication will affect your exercise heart rate.
18
Press the Start button or the Speed + button to start the program.
A moment after the button is pressed, the tread­mill will automatically adjust to the first speed and incline settings of the program. Hold the handrails and begin walking.
Each heart rate program is divided into several time segments of different lengths. (The main display shows both the time remaining in the program and the time remaining in the current segment of the program.) One target heart rate setting is pro­grammed for each segment.
During each segment, the console will regularly compare your heart rate to the current target heart rate setting. If your heart rate is too far below or above the target heart rate setting, the speed of the treadmill will automatically increase or de­crease to bring your heart rate closer to the target heart rate setting. If the speed reaches the maxi­mum speed setting of the program (see step 4 on page 17) and your heart rate is still too far below the current target heart rate setting, the incline of the treadmill will also increase to bring your heart rate closer to the target heart rate setting.
During the last three seconds of each segment, a series of tones will sound and the speed setting and/or the incline setting will flash in the main display.
The program will continue until no time remains in the program. The walking belt will then slow to a stop.
If the speed or incline setting is too high or too low during the program, you can adjust the setting with the Speed or Incline buttons. However, each time the console compares your heart rate to the current target heart rate setting, the speed and/or incline of the treadmill may automatically change to bring your heart rate closer to the target heart rate setting.
If your pulse is not detected during the program, the letters “PLS” will flash in the main display and the speed and incline of the treadmill may auto­matically decrease until your pulse is detected. If this occurs, refer to the instructions included with the optional chest pulse sensor.
To stop the program at any time, press the Stop button. Heart rate programs should not be stopped temporarily and then restarted. To use a heart rate program again, reselect the program and start it at the beginning.
Follow your progress with the displays.
See step 5 on page 11.
Turn on the fans if desired.
See step 6 on page 12.
When the program has ended, remove the key.
See step 7 on page 14.
8
7
6
5
19
HOW TO CONNECT THE TREADMILL TO YOUR CD PLAYER, VCR, OR COMPUTER
To use iFit.com CD’s, the treadmill must be connected
to your portable CD player, portable stereo, home stereo, or computer with CD player. See this page and page 20 for connecting instructions. To use iFIT.com videocassettes, the treadmill must be connected to your VCR. See page 21 for connecting instructions. To use iFIT.com programs directly from our Web site, the treadmill must be connected to your home com­puter. See page 20 for connecting instructions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and PHONES jacks, see instruction A below. If your CD player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your CD player. Plug your headphones into the PHONES jack.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into a 3.5mm Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your CD player. Plug your headphones into the other side of the Y-adapter.
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT jack, see instruction A below. If your stereo has a
3.5mm LINE OUT jack, see instruction B. If your stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into an AUDIO OUT jack on your stereo.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your stereo.
C. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into a 3.5mm Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your stereo. Plug your headphones into the other side of the Y-adapter.
Audio Cable
Head-
phones
A
Audio
Cable
Adapter
A
Audio Cable
B
Audio
Cable
C
Audio
Cable
3.5mm
Y-adapter
Headphones
B
3.5mm
Y-adapter
Headphones
LINE OUT
PHONES
LINE OUT
PHONES
PHONES
PHONES
AUDIO OUT
RIGHT LEFT
LINE OUT
PHONES
20
HOW TO CONNECT YOUR HOME STEREO
Note: If your stereo has an unused LINE OUT jack, see instruction A below. If the LINE OUT jack is being used, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into the LINE OUT jack on your stereo.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the LINE OUT jack on your stereo and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the LINE OUT jack on your stereo.
HOW TO CONNECT YOUR COMPUTER
Note: If your computer has a 3.5mm LINE OUT jack, see instruction A. If your computer has only a PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your computer.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into a 3.5mm Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your computer. Plug your headphones or speakers into the other side of the Y-adapter.
Audio Cable
Adapter
A
Audio Cable
A
Audio
Cable
RCA
Y-adapter
Wire removed from
LINE OUT jack
B
Adapter
Audio Cable
B
3.5mm
Y-adapter
Headphones/Speakers
CD
VCR
Amp
LINE OUT
LINE OUT
LINE OUT
PHONES
CD
VCR
Amp
LINE OUT
21
HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack, see instruction A below. If the AUDIO OUT jack is being used, see instruction B. If you have a TV with a built-in VCR, see instruction B. If your VCR is connected to your home stereo, see HOW TO CONNECT YOUR HOME STEREO on page 20.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into the AUDIO OUT jack on your VCR.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the AUDIO OUT jack on your VCR and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the AUDIO OUT jack on your VCR.
HOW TO USE IFIT.COM CD AND VIDEO PROGRAMS
To use iFIT.com CD’s or videocassettes, the treadmill must be connected to your portable CD player, portable stereo, home stereo, computer with CD player, or VCR. See HOW TO CONNECT THE TREADMILL TO YOUR CD PLAYER, VCR, OR COMPUTER on page
19. Note: To purchase iFIT.com CD’s or videocas-
settes, call toll-free 1-800-735-0768.
Follow the steps below to use an iFIT.com CD or video program.
Insert the key fully into the console.
See GETTING STARTED on page 10.
Select the iFIT.com mode.
When the key is in­serted, the manual mode will be selected. To use an iFIT.com CD or video program, press the iFIT.com button. The indicator above the button will light and the words “IFIT MODE” will appear in the main display.
Insert the iFIT.com CD or videocassette.
If you are using an iFIT.com CD, insert the CD into your CD player. If you are using an iFIT.com videocassette, insert the videocassette into your VCR.
Press the PLAY button on your CD player or VCR.
A moment after the button is pressed, your per­sonal trainer will begin guiding you through your workout. Simply follow your personal trainer’s instructions. Note: If the time is flashing in the main display, press the Start button or the Speed + button on the console. The treadmill will not re­spond to a CD or video program while the time is flashing.
During the CD or video program, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change.
CAUTION: Always listen for the “chirp” and be prepared for speed and/or incline changes. In some instances, the speed and/or incline may change before the personal trainer describes the change.
4
3
2
1
Audio Cable
Adapter
A
Audio Cable
Adapter
B
Wire removed from
AUDIO OUT jack
RCA
Y-adapter
VIDEO AUDIO
IN
CH 34
OUT
AUDIO OUT
RIGHT LEFT
ANT. IN
RF OUT
ANT. IN
VIDEO AUDIO
IN
RF OUT CH 34
OUT
22
If the speed or incline settings are too high or too low, you can manually override the settings at any time by pressing the Speed or Incline buttons on the console. However, when the next “chirp” is
heard, the speed and/or incline will change to the next settings of the CD or video program.
To stop the walking belt at any time, press the Stop button on the console. The time will begin to flash in the main display. To restart the program, press the Start button or the Speed + button. After a moment, the walking belt will begin to move.
When the next “chirp” is heard, the speed and incline will change to the next settings of the CD or video program.
When the CD or video program is completed, the walking belt will stop and the time will begin to flash in the main display. Note: To use another CD or video program, press the Stop button or remove the key and go to step 1 on page 21.
Note: If the speed or incline of the treadmill does not change when a “chirp” is heard:
• Make sure that the iFIT.com indicator is lit and that the time is not flashing in the main dis­play. If the time is flashing, press the Start button or the Speed + button on the console.
• Adjust the volume of your CD player or VCR. If the volume is too high or too low, the con­sole may not detect the program signals.
• Make sure that the audio cable is properly connected, that it is fully plugged in, and that it is not wrapped around a power cord.
• If you are using your portable CD player and the CD skips, set the CD player on the floor or another flat surface instead of on the console.
Follow your progress with the displays.
See step 5 on page 11.
Measure your heart rate if desired.
See step 6 on page 12.
Turn on the fans if desired.
See step 7 on page 12.
When the program is completed, remove the key.
See step 7 on page 14.
8
7
6
5
23
HOW TO USE PROGRAMS DIRECTLY FROM OUR WEB SITE
Our Web site at www.iFIT.com allows you to access basic programs, audio programs, and video programs directly from the internet. Additional options are soon to be available. See www.iFIT.com for details.
To use programs from our Web site, the treadmill must be connected to your home computer. See HOW TO CONNECT YOUR COMPUTER on page 20. In addition, you must have an internet connection and an internet service provider. A list of specific system requirements is found on our Web site.
Follow the steps below to use a program from our Web site.
Insert the key fully into the console.
See GETTING STARTED on page 10.
Select the iFIT.com mode.
When the key is in­serted, the manual mode will be selected. To use a program from our Web site, press the iFIT.com button. The in­dicator above the button will light and the words “IFIT MODE” will appear in the main display.
Go to your computer and start an internet connection.
Start your web browser, if necessary, and go to our Web site at www.iFIT.com.
Follow the desired links on our Web site to se­lect a program.
Read and follow the on-line instructions for using a program.
Follow the on-line instructions to start the program.
When you start the program, an on-screen count­down will begin.
Return to the treadmill and stand on the foot rails. Find the clip attached to the key and slide the clip onto the waistband of your clothes.
When the on-screen countdown ends, the program will begin and the walking belt will begin to move. Hold the handrails, step onto the walking belt, and begin walking. During the program, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change.
CAUTION: Always listen for the “chirp” and be prepared for speed and/or incline changes.
If the speed or incline settings are too high or too low, you can manually override the settings at any time by pressing the Speed or Incline buttons on the console. However, when the next “chirp” is
heard, the speed and/or incline will change to the next settings of the program.
To stop the walking belt at any time, press the Stop button on the console. The time will begin to flash in the main display. To restart the program, press the Start button or the Speed + button. After a moment, the walking belt will begin to move at 1 mph. When the next “chirp” is heard, the speed
and incline will change to the next settings of the program.
When the program is completed, the walking belt will stop and the time will begin to flash in the time display. Note: To use another program, press the Stop button and go to step 5.
Note: If the speed or incline of the treadmill does not change when a “chirp” is heard, make sure that the iFIT.com indicator is lit and that the Time display is not flashing. In addition, make sure that the audio cable is properly con­nected, that it is fully plugged in, and that it is not wrapped around a power cord.
When the program has ended, remove the key.
See step 7 on page 14.
8
7
6
5
4
3
2
1
24
THE INFORMATION MODE/DEMO MODE
The console features an information mode that keeps track of the total number of hours that the treadmill has been operated and the total number of miles that the walking belt has moved. The information mode also allows you to switch the console from miles per hour to kilometers per hour. In addition, the information mode allows you to turn on and turn off the demo mode.
To select the information mode, hold down the Stop button while inserting the key into the console. When the information mode is selected, the main display will show the following information:
The left side of the main display will show the total number of hours that the treadmill has been used.
The center of the main display will show the total number of miles that the walking belt has moved.
An “E” for English miles or an “M” for metric kilometers will appear on the right side of the main display. Press the Speed + button to change the unit of measure­ment.
IMPORTANT: Make sure that there is not a letter “D” in the main display. If
a “D” appears in the display, the console is in the “demo” mode. This mode is intended to be used only when a treadmill is displayed in a store. When the console is in the demo mode, the power cord can be plugged in, the key can be removed from the console, and the displays and indicators on the console will automatically light in a preset sequence, although the buttons on the console will not operate. If a “D” ap-
pears in the display when the information mode is selected, press the Speed – button so that it disap­pears.
To exit the information mode, remove the key from the console.
HOW TO ADJUST THE CUSHIONING SYSTEM
The treadmill features a cushioning system that re­duces the impact as you walk or run on the treadmill. To increase the firmness of the walking platform, turn the adjust­ment knob coun­terclockwise. To decrease the firmness, turn the knob clockwise.
Note: The faster you run on the treadmill, or the more you weigh, the firmer the cushioning system should be.
THE OPTIONAL CHEST PULSE SENSOR
An optional chest pulse sensor adds even more features to the console. The chest pulse sensor provides hands-free operation and enables you to use the con­sole’s heart rate programs. To purchase the
optional chest pulse sensor, call toll-free 1-800­734-2377.
Adjustable
Cushion
25
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may be­come damaged. Remove the key and unplug the power cord. CAUTION: You must be able to safely lift 45 pounds (20 kg) to raise, lower, or move the treadmill.
1. Hold the treadmill with your hands in the locations shown at the right. CAUTION: To decrease the possibility of in-
jury, bend your legs and keep your back straight. As you raise the treadmill, make sure to lift with your legs rather than your back. Raise the treadmill about halfway
to the vertical position.
2. Move your right hand to the position shown and hold the treadmill firmly. Using your left hand, pull the lock knob to the left and hold it. Raise the treadmill until the lock pin is aligned with the hole in the housing. Insert the lock pin into the housing. Make sure that the lock pin is fully in- serted into the housing. Note: If the adjustment knob (not shown) hits the upright, press on the knob.
To protect the floor or carpet from damage, place a mat under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the stor­age position in temperatures above 85° Fahrenheit.
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the stor­age position as described above. Make sure that the lock
pin is fully inserted into the housing.
1. Hold the handrails as shown and place one foot against a
wheel.
2. Tilt the treadmill back until it rolls freely on the front wheels.
Carefully move the treadmill to the desired location. Never
move the treadmill without tipping it back. To reduce the risk of injury, use extreme caution while moving the treadmill. Do not attempt to move the treadmill over an uneven surface.
3. Place one foot on wheel, and carefully lower the treadmill
until it is resting in the storage position.
Base
Front Wheels
Knob
Housing
26
HOW TO LOWER THE TREADMILL FOR USE
1. Hold the upper end of the treadmill with your right hand as
shown. Using your left hand, pull the lock knob to the left and hold it. Pivot the treadmill down until the frame is past the lock pin.
2. Hold the treadmill firmly with both hands, and lower the
treadmill to the floor. CAUTION: To decrease the possi-
bility of injury, bend your legs and keep your back straight.
Knob
27
TROUBLESHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department toll­free at 1-888-825-2588, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).
PROBLEM: The power does not turn on SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 8). Use only a single-outlet surge suppressor that meets all of the specifications described on page 8. Important: The treadmill is not compatible
with GFCI-equipped outlets. b. After the power cord has been plugged in, make sure that the key is fully inserted into the console. c. Check the circuit breaker located on the treadmill
near the power cord. If the switch protrudes as shown, the circuit breaker has tripped. To reset the circuit breaker, wait for five minutes and then press the switch back in.
PROBLEM: The power turns off during use SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see c. above). If the
circuit breaker has tripped, wait for five minutes and then press the switch back in. b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for five
minutes, and then plug it back in. c. Remove the key from the console. Reinsert the key fully into the console. d. If the treadmill still will not run, please call our Customer Service Department, toll-free.
PROBLEM: The displays of the console do not function properly SOLUTION: a. Remove the key from the console and unplug the
power cord. Carefully tip the treadmill down as shown
in drawing a. Remove the 1” Screws (33) and 2”
Screws (3) from the hood. Raise the Uprights (69) and
carefully remove the hood.
Locate the Reed Switch (10) and the Magnet (7) on
the left side of the Pulley (8). Turn the Pulley until the
Magnet is aligned with the Reed Switch. Make sure
that the gap between the Magnet and the Reed
Switch is about 1/8”. If necessary, loosen the Screw
(27) and move the Reed Switch slightly. Retighten the
Screw. Re-attach the hood, making sure the screw are
in their same holes. Run the treadmill for a few min-
utes to check for a correct speed reading.
7
33
3
69
a
8
27
1/8”
Top
View
10
Tripped
c
Reset
28
PROBLEM: The walking belt slows when walked on SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 8.
b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may be-
come damaged. Remove the key and UNPLUG THE
POWER CORD. Using the allen wrench, turn both
rear roller adjustment bolts counterclockwise, 1/4 of a
turn. When the walking belt is properly tightened, you
should be able to lift each side of the walking belt 3 to
4 inches off the walking platform. Be careful to keep
the walking belt centered. Plug in the power cord, in-
sert the key, and run the treadmill for a few minutes.
Repeat until the walking belt is properly tightened. c. If the walking belt still slows when walked on, please call our Customer Service Department, toll-
free.
PROBLEM: The walking belt is off-center or slips when walked on SOLUTION: a. If the walking belt is off-center, remove the key and UN-
PLUG THE POWER CORD. If the walking belt has
shifted to the left, use the allen wrench to turn the left
rear roller bolt clockwise 1/2 of a turn; if the walking belt
has shifted to the right, turn the left rear roller bolt coun-
terclockwise 1/2 of a turn. Be careful not to overtighten the
walking belt. Plug in the power cord, insert the key, and
run the treadmill for a few minutes. Repeat until the walk-
ing belt is centered. b. If the walking belt slips when walked on, first remove the
key and UNPLUG THE POWER CORD. Using the allen
wrench, turn both rear roller bolts clockwise, 1/4 of a turn.
When the walking belt is correctly tightened, you should
be able to lift each side of the walking belt 3 to 4 inches off
the walking platform. Be careful to keep the walking belt
centered. Plug in the power cord, insert the key, and care-
fully walk on the treadmill for a few minutes. Repeat until
the walking belt is properly tightened.
PROBLEM: The incline of the treadmill does not change correctly or does not change when iFIT.com
CD’s and videos are played
SOLUTION: a. With the key in the console, press one of the Incline buttons. While the incline is changing, re-
move the key. After a few seconds, re-insert the key. The treadmill will automatically rise to the
maximum incline level and then return to the minimum level. This will recalibrate the incline.
Rear Roller Adjustment Bolts
3”–4”
b
a
b
29
CONDITIONING GUIDELINES
The following guidelines will help you to plan your ex­ercise program. For more detailed exercise informa­tion, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recom­mended heart rates for fat burning and aerobic exercise.
To find the proper heart rate for you, first find your age near the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age. The three numbers define your “train­ing zone.” The lower two numbers are recommended heart rates for fat burning; the higher number is the recommended heart rate for aerobic exercise.
To measure your heart rate during exercise, use the pulse sensor. If your heart rate is too high or too low, adjust the speed and incline of the treadmill.
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses easily accessible carbohydrate calories for en-
ergy. Only after the first few minutes does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the speed and incline of the tread­mill until your heart rate is near the lowest number in your training zone.
For maximum fat burning, adjust the speed and incline of the treadmill until your heart rate is near the middle number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys­tem, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the speed and incline of the treadmill until your heart rate is near the highest number in your training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts: A Warm-up—Start each workout with 5 to 10 minutes
of stretching and light exercise. A proper warm-up in­creases your body temperature, heart rate and circula­tion in preparation for exercise.
Training Zone Exercise—After warming up, increase the intensity of your exercise until your pulse is in your training zone for 20 to 60 minutes. (During the first few weeks of your exercise program, do not keep your pulse in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise—never hold your breath.
A Cool-down—Finish each workout with 5 to 10 min­utes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent post-ex­ercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three workouts each week, with at least one day of rest be­tween workouts. After a few months, you may com­plete up to five workouts each week if desired. The key to success is to make exercise a regular and enjoyable part of your everyday life.
WARNING:
Before beginning this or any exercise program, consult your physi­cian. This is especially important for individu­als over the age of 35 or individuals with pre­existing health problems.
The pulse sensor is not a medical device. Various factors, including your movement, may affect the accuracy of heart rate readings. The sensor is intended only as an exercise aid in determining heart rate trends in general.
PART LIST—Model No. NTL19920 R0103A
To locate the parts listed below, refer to the EXPLODED DRAWING attached in the center of this manual.
Key No. Qty. Description Key No. Qty. Description
1 2 Foot Rail Insert 2 1 Left Foot Rail 3 2 2” Hood Screw 4 1 Front Left Endcap 5 2 Frame Pivot Bolt 6 2 Frame Pivot Spacer 7 1 Magnet 8 1 Front Roller/Pulley
9 5 Frame Pivot Nut 10 1 Reed Switch/Sensor Wire 11 4 U-nut 12 1 Reed Switch Clip 13 1 Lift Frame 14 1 Walking Belt 15 10 Foot Rail Screw 16 1 Motor 17 1 Pulley/Flywheel/Fan 18 1 Motor Belt 19 6 Endcap Screw 20 5 Incline Pivot Nut 21 1 Top Incline Bolt 22 1 Motor Belt 23 1 Hood 24 1 Incline Motor Bolt 25 2 Motor Bushing 26 4 Cushion Adj. Housing Screw 27 12 Electronic Screw 28 2 Foam Pad 29 1 Controller 30 1 Left Outside Housing 31 1 Motor Controller Wire 32 1 Front Roller Adj. Bolt 33 6 1” Screw 34 6 Roller Washer 35 1 Left Roller Guard 36 1 Incline Motor 37 1 Incline Motor Stop 38 1 Motor Belly Pan 39 1 Audio Wire Nut 40 2 Static Decal 41 1 Circuit Breaker 42 1 Power Cord 43 1 Right Roller Guard 44 4 Spring Bolt 45 4 Belt Guide Screw 46 2 Belt Guide 47 2 Isolator 48 2 Motor Star Washer 49 4 Spring Washer 50 4 Spring Nut 51 1 Front Right Endcap
52 1 Walking Platform 53 2 Front Platform Screw 54 2 Rear Platform Screw 55 2 Spring Pad 56 2 Spring 57 1 Ground Wire 58 1 Rear Endcap (Right) 59 2 Rear Roller Adj. Bolt 60 1 Warning Decal 61 1 Allen Wrench 62 1 Rear Roller 63 1 Audio Wire 64 1 Catch 65 1 Left Fan Housing 66 1 Handrail 67 2 Spring Pad Screw 68 1 Lock Knob 69 1 Upright 70 1 Lock Knob Sleeve 71 1 Spring 72 1 Lock Pin Collar 73 1 Pin Clip 74 1 Lock Pin 75 1 Filter Wire 76 2 Pulse Grip 77 4 Handrail Washer 78 4 Handrail Bolt 79 2 Upright Endcap 80* 1 Latch Assembly 81 1 Console Base 82 1 Console 83 2 Upright Cap 84 1 Key/Clip 85 1 IFIT.com Wire 86 1 Jack 87 4 Handrail Endcap 88 1 Console Back 89 1 Releaseable Tie 90 23 Console Screw 91 2 Cable Tie Clamp 92 5 8” Cable Tie 93 2 Lift Pivot Bolt 94 2 Wheel Bolt 95 2 Wheel 96 1 Rear Endcap (Left) 97 1 Grommet 98 1 Upright Wire Harness
99 4 Base Pad 100 16 3/4” Screw 101 2 Wheel Endcap 102 2 Extension Leg
30
Key No. Qty. Description Key No. Qty. Description
103 2 Extension Cap 104 2 Incline Warning Decal 105 1 Idler Arm Bolt 106* 1 Extension Leg Assembly 107 2 Fan 108 1 Book Holder 109 1 Power Cord Grommet 110 1 Frame 111* 1 Idler Arm Assembly 112 2 Roller Star Washer 113 2 Spring Plate 114* 2 Cushion Assembly 115 1 Left Cup Holder 116 1 Right Cup Holder 117 1 Left Inside Housing 118 1 Right Inside Housing 119 1 Right Outside Housing 120 2 Cushion Adj. Pin 121 2 Cushion Adj. Gear 122 2 Cushion Adj. Wheel 123 2 Cushion Adj. Rod 124 1 Cushion Adj. Knob 125 5 Cushion Adj. Screw 126 1 Idler Pulley Bolt 127 1 Electronic Bracket 128 2 Spring Plate Spacer 129 2 Gear Rack
130 1 Right Fan Housing 131 1 Belly Pan Plug 132 1 Motor Isolator 133 1 Idler Arm 134 1 Idler Spring 135 1 Idler Arm Nylon Washer 136 1 Pulley Nut 137 1 Pulley Washer 138 1 Idler Pulley 139 1 Pulley Spacer 140 1 Left Rear Foot 141 1 Right Rear Foot 142 1 Shock 143 1 Transformer 144 1 Controller Bracket 145 1 Right Foot Rail 146 2 Walking Platform Nut 147 2 Front Incline Pivot Nut 148 4 1” Screw
# 1 16” Blue Wire, 2F # 1 4” Blue Wire, 2F # 1 8” Green Wire, F/2 Ring # 1 7” Green Wire, M/Ring # 1 8” Black Wire, 2 Ring
# 1 User's Manual * Includes all parts shown in box # These parts are not illustrated
ORDERING REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-888-825-2588, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give the following information:
• the MODEL NUMBER OF THE PRODUCT (NTL19920)
• the NAME OF THE PRODUCT (NordicTrack
®
E 3800 treadmill)
• the SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)
• the KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the PART LIST on pages 30 and 31 and the EXPLODED DRAWING attached in the center of this manual)
31
EXPLODED DRAWING—Model No. NTL19920 R0103A
33
42
31
75
29
143
27
27
27
27
22
16
17
22
135
134
133
105
111*
19
15
144
21
48
27
137
138
9
13
12
10
2
15
22
25
48
147
136
9
139
136
4
1
147
32
36
132
37
19
51
1
20
6
15
8
7
5
53
47
5
6
20
24
145
15
45
46
64
26
129
109
41
131
39
40
33
63
120
100
38
100
24
3
123
122
9
53
90
117
26
120
121
47
46
45
119
118
52
28
15
28
54
54
43
14
35
100
3
125
124
121
122
113
128
50
114*
128
50
56
26
129
110
62
34
140
56
125
146
58
100
44
49
67
55
113
49
44
55
67
141
100
19
112
59
125
30
15
60
146
96
61
34
19
112
59
57
27
EXPLODED DRAWING—Model No. NTL19920 R0103A
86
85
78
79
84
79
82
77
108
115
90
83
90
107
78
69
116
90
33
90
90
90
100
80*
77
83
74
73
71
70
68
90
90
40
90
33
88
81
90
23
94
101
95
9
100
98
95
101
72
93
107
90
87
33
9
99
94
90
130
33
90
90
100
104
102
87
106*
90
90
90
99
97
148
142
99
103
11
90
76
90
100
89
91
100
93
100
104
102
11
87
106*
148
92
99
100
103
76
65
11
66
87
Part No. 192854 R0103A Printed in USA © 2003 ICON Health & Fitness, Inc.
LIMITED WARRANTY
WHAT IS COVERED—The entire NordicTrack®E 3800 treadmill (“Product”) is warranted to be free of all defects in ma­terial and workmanship.
WHO IS COVERED—The original purchaser or any person receiving the Product as a gift from the original purchaser. HOW LONG IS IT COVERED—ICON Health & Fitness, Inc. (“ICON”), warrants the motor for three years after the date
of purchase. The belt and deck are covered for two years after the date of purchase. All mechanical components are covered for two years after the date of purchase. All electrical components are covered for two years after the date of purchase. Labor is covered for one year. The hood, covers, belly pan, and decals are covered for six months after the date of purchase.
WHAT WE DO TO CORRECT COVERED DEFECTS—We will ship to you, without charge, any replacement part or component, providing the repairs are authorized by ICON first and are performed by an ICON trained and authorized service provider, or, at our option, we will replace the Product.
WHAT IS NOT COVERED—Any failures or damage caused by unauthorized service, misuse, accident, negligence, im­proper assembly or installation, alterations, modifications without our written authorization or by failure on your part to use, operate, and maintain as set out in your User’s Manual (“Manual”). This warranty does not extend to products used for commercial or rental purposes or to products used as store display modules.
WHAT YOU MUST DO—Always retain proof of purchase, such as your bill of sale; store, operate, and maintain the Product as specified in the Manual; notify our Customer Service Department of any defect within 10 days after discov­ery of the defect; as instructed, return any defected part for replacement or, if necessary, the entire product, for repair.
USER’S MANUAL—It is VERY IMPORTANT THAT YOU READ THE MANUAL before operating the Product. Remember to do the periodic maintenance requirements specified in the Manual to assure proper operation and your continued satisfaction.
HOW TO GET PARTS AND SERVICE—Simply call our Customer Service Department at 1-888-825-2588 and tell them your name and address and the serial number of your Product. They will tell you how to get a part replaced, or if neces­sary, arrange for service where your Product is located or advise you how to ship the Product for service. Before ship­ping, always obtain a Return Authorization Number (RA No.) from our Customer Service Department; securely pack your Product (save the original shipping carton if possible); put the RA No. on the outside of the carton and insure the product. Include a letter explaining the product or problem and a copy of your proof of purchase if you believe the ser­vice is covered by warranty.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above lim­itation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
No one is authorized to change, modify or extend the terms of this limited warranty. This warranty gives you specific legal rights and you may have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Loading...
