NordicTrack NTL19806.5 User Manual
Model No. NTL19806.5
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
Visit our website at
www.healthrider.com
new products, prizes,
fitness tips, and much more!
Visit our website at
www.nordictrack.com
new products, prizes,
fitness tips, and much more!
Serial No.
Write the serial number in the space
above for reference.
Serial Number Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete customer satisfaction. If you have
questions, or if parts are missing,
PLEASE DO NOT CONTACT THE
STORE; please contact
Customer Care.
USER'S MANUAL
IMPORTANT: You must note the
product model number and
serial number (see the drawing
above) before contacting us:
CALL TOLL-FREE:
1-888-825-2588
Mon.–Fri. 6 a.m.–6 p.m. MST
Sat. 8 a.m.–4 p.m. MST
ON THE WEB:
www.nordictrackservice.com
CAUTION
Read all precautions and instruc
tions in this manual before using
this equipment. Save this manual
for future reference.
-
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
MPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
I
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

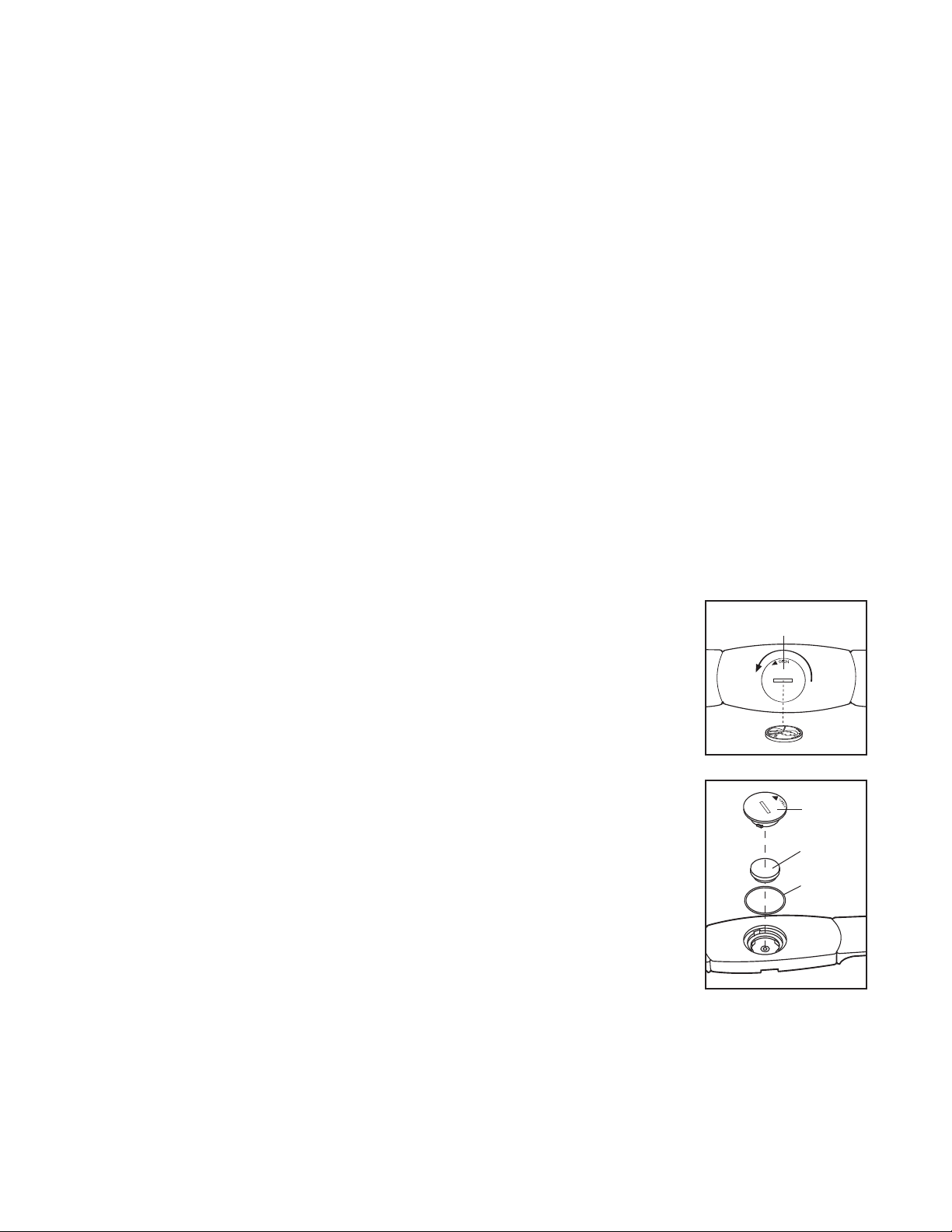

HOW TO USE THE CHEST PULSE SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: An EXPLODED DRAWING is attached in the center of this manual.
WARNING DECAL PLACEMENT
The decals shown here have been applied in
the locations shown. If a decal is missing
or illegible, call the telephone number on
the front cover of this manual and request a free replacement decal. Apply the
decal in the location shown. Note: The de-
cals may not be shown at actual size.
NordicTrack is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and in-
tructions in this manual and all warnings on your treadmill before using your treadmill. ICON as-
s
sumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
1. Before beginning any exercise program, consult your physician. This is especially important for persons over the age of 35 or persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
5. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under the age of 12 and pets
away from the treadmill at all times.
8. The treadmill should not be used by persons
weighing more than 350 lbs. (159 kg).
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women.
Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
11. When connecting the power cord (see page 13),
plug the power cord into a surge suppressor
(not included). Plug the surge suppressor into
a grounded circuit capable of carrying 15 or
more amps. No other appliance should be on
the same circuit. Do not use an extension cord.
12. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 13. To purchase a surge suppressor, see
your local NORDICTRACK dealer or call the
telephone number on the front cover of this
manual and order part number 146148, or see
your local electronics store.
Failure to use a properly functioning surge
13.
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change
speed, accelerate, or stop unexpectedly,
which may result in a fall and serious injury.
14. Keep the power cord and the surge suppressor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See
TROUBLESHOOTING on page 26 if the treadmill is not working properly.)
16. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 15).
17. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
18. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
The pulse sensors are not medical devices.
19.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensors are intended
only as exercise aids in determining heart
rate trends in general.
3
20. Never leave the treadmill unattended while it
is running. Always remove the key, unplug the
power cord, and switch the reset/off circuit
reaker to the “off” position when the tread-
b
mill is not in use. (See the drawing on page 6
or the location of the reset/off circuit breaker.)
f
21. Do not attempt to raise, lower, or move the
readmill until it is properly assembled. (See
t
ASSEMBLY on page 7, and HOW TO FOLD
AND MOVE THE TREADMILL on page 25.) You
must be able to safely lift 45 lbs. (20 kg) to
raise, lower, or move the treadmill.
22. Do not change the incline of the treadmill by
placing objects under the treadmill.
23. When folding or moving the treadmill, make
sure that the frame is held securely in the
storage position.
24. Inspect and properly tighten all parts of the
treadmill regularly.
25. Never insert or drop any object into any
opening on the treadmill.
DANGER: Always unplug the power
26.
cord immediately after use, before cleaning
the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
epresentative only.
r
27. The treadmill is intended for in-home use
only. Do not use the treadmill in any commercial, rental, or institutional setting.
28. To reduce the risk of electric shock, do not remove the cover or the back of the television.
There are no user serviceable parts inside.
Refer servicing to qualified service personnel.
29. To protect the treadmill and TV during lightning storms, unplug the power cord from the
wall outlet and disconnect the cable system.
This will prevent damage due to lightning and
power line surges.
30. Upon completion of any service or repairs to
the treadmill or the television, ask the service
technician to perform safety checks to confirm that the unit is in proper operating condition.
Note to CATV system installer: This reminder
is provided to call the CATV system installer’s
attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in
particular, specifies that the cable ground
shall be connected to the grounding system
of the building, as close to the point of cable
entry as practical.
4
ower Lines
P
Service
Entrance
Conductors
Service
Entrance
Equipment
Power Service Grounding
Electrode System (e.g.
Interior Metal Water Pipe)
SAVE THESE INSTRUCTIONS
75 ohm Terminal
Ground
Clamps
5
BEFORE YOU BEGIN
Thank you for selecting the revolutionary NORDICT
mill offers an impressive selection of features designed
to make your workouts at home more enjoyable and
effective. And when you’re not exercising, the unique
E
than half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill
®
RACK
LITE 4200 treadmill can be folded up, requiring less
LITE 4200 treadmill. The ELITE 4200 tread-
E
. If you have questions after read-
Personal Television/Console
Accessory Tray
Handrail
Pulse Sensor
ing this manual, please see the front cover of this man-
al. To help us assist you, note the product model
u
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Fan
Book Holder
Key/Clip
Walking Belt
Foot Rail
Rear Roller
Adjustment Bolts
Reset/Off
Circuit Breaker
Power Cord
Platform Cushion
6
ASSEMBLY
1
/2” Silver Screw
(48)–1
3
/4” Tek Screw (58)–4
Spacer Screw (60)–2
4
1/2” Bolt (78)–4
Washer (96)–8
Star Washer
(90)–10
Upright Bolt (72)–4
3/4" Screw (4)–4
Handrail Bolt (64)–6
ssembly requires two persons.Set the treadmill in a cleared area and remove all packing materials. Do not
A
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to
the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.
Assembly requires the included hex key and your own Phillips screwdriver .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly.
one of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assembly.
Extra hardware may be included.
Note: If a part is not in the parts bag, check to see if it is preattached to
1. Make sure that the power cord is unplugged.
With the help of a second person, raise the front
of the treadmill and insert the crossbar on the
Base (83) into the cutout in the cardboard stand
as shown. Have the second person hold the
treadmill to prevent it from moving forward
or backward until assembly step 2 is completed.
1
83
Cardboard
Stand
7
2. Identify the Left Upright (73) and the Right
Upright (74). Hold the Right Upright near the
ight Base Cover (77) as shown. Insert the
R
Upright Wire Harness (75) up through the rec-
angular hole in the bottom of the Right Upright
t
and out of the top of the Right Upright.
2
9
49
7
Gently pull up on the Upright Wire Harness (75)
as you set the Right Upright (74) on the Base
(83) inside the Right Base Cover (77). Be care-
ful not to pinch the Upright Wire Harness.
Attach the Right Upright (74) to the Base (83)
with two Upright Bolts (72) and two Star
Washers (90). Note: It may be necessary to tip
the tops of the Uprights forward slightly as you
thread the Upright Bolts (72) into the Uprights.
Hold Left Upright (73) near the Left Base Cover
(76), and insert the TV Cable (49) and the AV
Wire (97) up through the rectangular hole in the
bottom of the Left Upright and out of the top of
the Left Upright. Attach the Left Upright to the
Base (83) with two Upright Bolts and two Star
Washers (not shown).
With the help of a second person, lower the
treadmill off the cardboard stand.
3. Identify the Right Upright Sleeve (96) and the
Left Upright Sleeve (95). Slide the Right Upright
Sleeve onto the Right Upright (74), and slide the
Left Upright Sleeve onto the Left Upright (73).
75
73
74
76
77
83
90
72
3
95
73
“Left”
“Right”
96
74
8
4. With the help of a second person, hold the console assembly near the Uprights (73, 74).
Connect the Upright Wire Harness (75) to the
onsole Wire Harness (71). S
C
ing). The connectors should slide together
easily and snap into place.
one connector and try again. IF THE CONNECTORS ARE NOT CONNECTED PROPERLY,
THE CONSOLE MAY BE DAMAGED WHEN
THE POWER IS TURNED ON.
ee the inset draw-
If they do not, turn
4
Console
Assembly
73
71
75
5. Connect the TV Cable (49) and the AV Wire (97)
to the cables extending from the console assembly. Then, insert the connectors down into the
Uprights (73, 74).
Next, insert the brackets on the Handrails (99)
into the Right Upright (74) and the Left Upright
(73). Make sure that no wires are pinched.
75
71
5
99
97
73
49
74
74
99
6. Finger tighten three Handrail Bolts (64) with
three Star Washers (90) into the Right Upright
(74). Next, finger tighten three Handrail Bolts
with three Star Washers (not shown) into the
Left Upright (73). Then, firmly tighten the six
Handrail Bolts.
6
73
64
90
74
90
64
9
7. Slide the Right Upright Sleeve (96) up against
the console assembly. Attach the Right Upright
leeve with two 3/4" Screws (4).
S
ttach the Left Upright Sleeve (not shown) to the
A
Left Upright (73) as described above.
7
3
7
4
6
9
4
8. Note the location of the 75 ohm terminal and the
audio/video input jack on the treadmill. For the
television to operate, the included Audio/Video
Wire Harness (115) and your DVD player or VCR
must be connected to the audio/video input jack
on the treadmill, a personal audio/video player
must be connected to the audio/video jack on the
console, or a CATV cable must be connected to
the 75 ohm terminal (see page 11).
9. Make sure that all parts are properly tightened before you use the treadmill. Keep the included hex key
in a secure place; the hex key is used to adjust the walking belt (see page 27). To protect the floor or carpet
from damage, place a mat under the treadmill.
8
74
Audio/
Video
Input
Jack
75 Ohm
Terminal
115
10
Before operating the television, you must connect a 75 ohm CATV cable to the 75 ohm terminal on the
treadmill, a VCR or DVD player to the audio/video input jacks, or a personal audio/video player to the
udio/video jack below the television on the console. N
a
source such as a cable box, analog cable, satellite TV box, or VCR. No CATV cable is included.
ote: Use a CATV cable to connect to an external
OW TO CONNECT A 75 OHM CATV CABLE
H
1. Connect a 75 ohm
CATV cable to the 75
ohm terminal on the
treadmill frame near
the power cord.
HOW TO CONNECT AN EXTERNAL SOURCE
USING A CATV CABLE
1. Connect one end of a 75 ohm CATV cable to the 75
ohm output jack on your VCR.
2. Plug in the power cord of your VCR. See your VCR
user’s manual for proper grounding instructions.
3. Connect the 75 ohm CATV cable to the 75 ohm ter-
minal on the treadmill frame near the power cord.
75 Ohm CATV Cable
75 Ohm Terminal
OW TO CONNECT A DVD PLAYER OR VCR
H
USING THE AUDIO/VIDEO INPUT JACK
1. Connect the threepronged end of the included Audio/Video
Wire Harness (115) to
your DVD player or
VCR.
2. Plug in the power cord of your DVD player or VCR.
See your DVD player or VCR user’s manual for
proper grounding instructions.
3. Connect the Audio/Video Wire Harness to the
audio/video input jack on the treadmill frame near
the power cord.
HOW TO CONNECT A PERSONAL AUDIO/VIDEO
PLAYER DIRECTLY TO THE CONSOLE
Locate the audio/video jack below the television on the
console, and plug it into a jack on your MP3 player, CD
player, or personal video player.
115
1
1
Loading...
