Nokia 2720 fold
RM-519 / RM-520
Service Manual Level 1&2
SERVICE MANUAL
Level 1&2
RM-519 / RM-520
Transceiver characteristics
Band:
GSM 900/1800 (RM-519)
GSM 850/1900 (RM-520)
Main Display:
128x160 TFT 1.8", 65 000 colors
Secondary Display:
128x160 TFT 1.36", black and white
Camera:
1.3 mpix (1024 x 1280 pixel )
Operating System:
S40
Connections:
Bluetooth 2.1 +EDR
Nokia 2.5 mm audio connector
Charging plug, 2 mm
EF III for SW Flashing
Transceiver with 850mAh BL-4CTbattery pack
Talk time Standby Note
GSM:
Up to5 hours
1
Confidential
Copyright © 2009 NOKIA All rights reserved
GSM:
Up to 390 hours
Talk times are
dependant on
network
parameters and
phone settings
Version 1.0 ISSUE 1
Nokia 2720 fold
RM-519 / RM-520
Service Manual Level 1&2
Table of contents
1. Change history ............................................................................................................................................................................... 3
2. Copyright .......................................................................................................................................................................................... 4
3. Warnings and cautions ............................................................................................................................................................... 5
3.1 Warnings ................................................................................................................................................................................ 5
3.2 Cautions .................................................................................................................................................................................. 5
4. ESD protection ................................................................................................................................................................................ 6
5. Care and maintenance ................................................................................................................................................................ 7
6. Battery information ..................................................................................................................................................................... 8
7. Exploded view ................................................................................................................................................................................ 9
8. Service devices .............................................................................................................................................................................10
9. SW-update .....................................................................................................................................................................................11

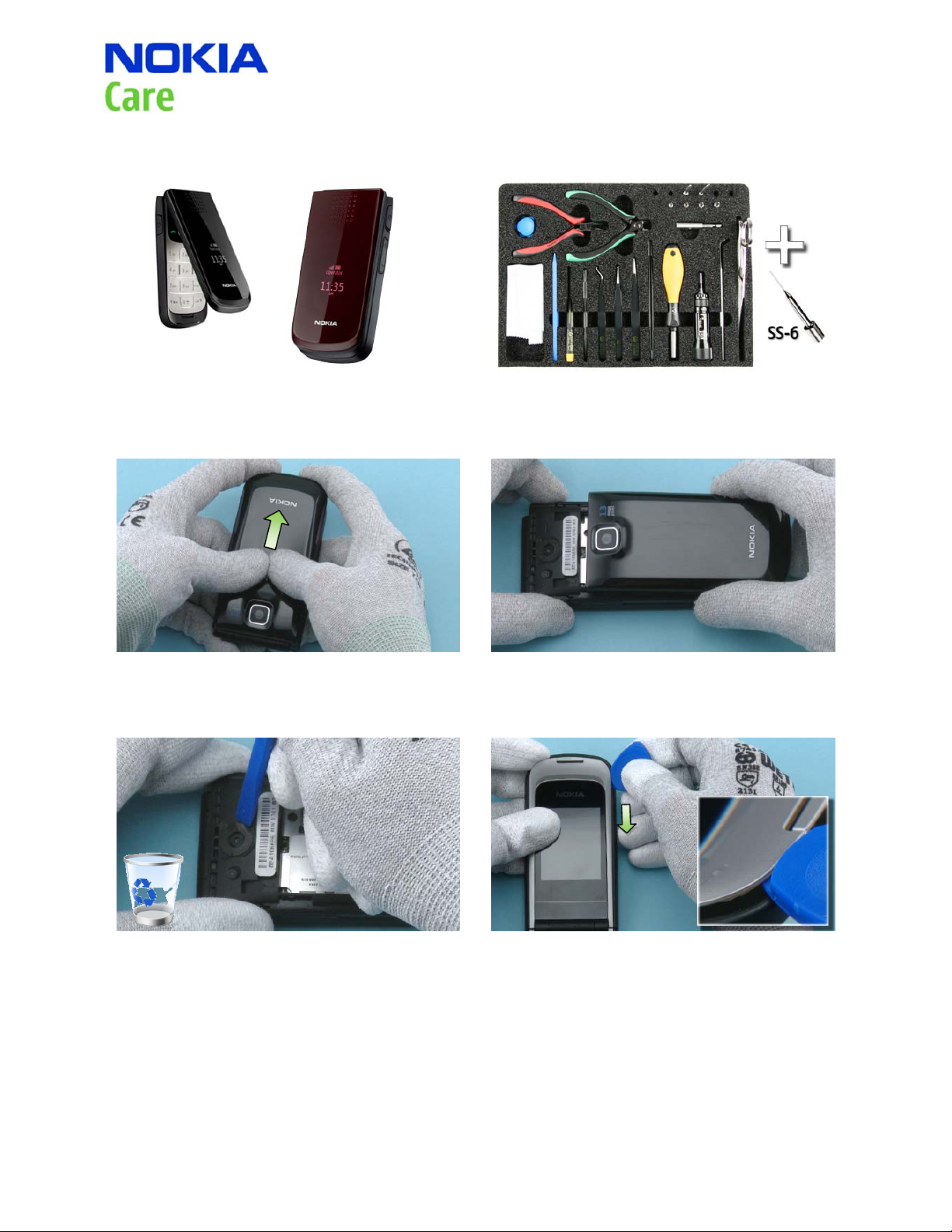

10. Disassembly instructions .....................................................................................................................................................12
11. Assembly hints ........................................................................................................................................................................18
12. Solder components ................................................................................................................................................................19
2
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 1.0 ISSUE 1
Nokia 2720 fold
RM-519 / RM-520
Service Manual Level 1&2
1. CHANGE HISTORY
Status Version No. Date Comments
Approved 1.0 14.06.2009 First approved version
The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to
carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA
service suppliers, and the content of it is confidential. Please note that NOKIA provides also other
guidance documents (e.g. Service Bulletins) for service suppliers, follow these regularly and
comply with the given instructions.
While every endeavor has been made to ensure the accuracy of this document, some errors may
exist. If you find any errors or if you have further suggestions, please notify NOKIA using the
address below:
CMO Operation & Logistics
Training and Vendor Development
Multimedia Creation & Support
mailto:Service.Manuals@nokia.com
Please keep in mind also that this documentation is continuously being updated and modified,
so watch always out for the newest version.
3
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 1.0 ISSUE 1
Nokia 2720 fold
RM-519 / RM-520
2. COPYRIGHT
Copyright © 2009 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this document in
any form without the prior written permission of Nokia is prohibited.
Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered trademarks of
Nokia Corporation. Other product and company names mentioned herein may be trademarks or
tradenames of their respective owners.
Nokia operates a policy of continuous development. Nokia reserves the right to make changes
and improvements to any of the products described in this document without prior notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any special,
incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided “as is”. Except as required by applicable law, no
warranties of any kind, either express or implied, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. Nokia reserves the right to revise this
document or withdraw it at any time without prior notice.
The availability of particular products may vary by region.
IMPORTANT
This document is intended for use by qualified service personnel only.
Service Manual Level 1&2
4
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 1.0 ISSUE 1
Nokia 2720 fold
RM-519 / RM-520
3. WARNINGS AND CAUTIONS
Please refer to the phone’s user guide for instructions relating to operation, care and
maintenance including important safety information. Note also the following:
3.1 Warnings
1. CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE
MANAGEMENT SYSTEMS AND ANTI–SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS,
EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE
DEALER/MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF
ENERGY.
2. THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN
POTENTIALLY EXPLOSIVE ATMOSPHERES, EG PETROL STATIONS (SERVICE STATIONS), BLASTING
AREAS ETC.
3. OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY
INTERFERE WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT
A PHYSICIAN OR THE MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS.
OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO INTERFERENCE.
Service Manual Level 1&2
3.2 Cautions
1. Servicing and alignment must be undertaken by qualified personnel only.
2. Ensure all work is carried out at an anti–static workstation and that an anti–static wrist
3. Use only approved components as specified in the parts list.
4. Ensure all components, modules screws and insulators are correctly re–fitted after servicing
5. Ensure all cables and wires are repositioned correctly
strap is worn.
and alignment.
5
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 1.0 ISSUE 1
Nokia 2720 fold
RM-519 / RM-520
4. ESD PROTECTION
Service Manual Level 1&2
Nokia requires that service points have sufficient ESD protection (against static
electricity) when servicing the phone.
Any product of which the covers are removed must be handled with ESD
protection. The SIM card can be replaced without ESD protection if the product
is otherwise ready for use.
To replace the covers ESD protection must be applied.
All electronic parts of the product are susceptible to ESD. Resistors, too, can be
damaged by static electricity discharge.
All ESD sensitive parts must be packed in metallized protective bags during
shipping and handling outside any ESD Protected Area (EPA).
Every repair action involving opening the product or handling the product
components must be done under ESD protection.
ESD protected spare part packages MUST NOT be opened/closed out of an ESD
Protected Area.
For more information and local requirements about ESD protection and ESD
Protected Area, contact your local Nokia After Market Services representative.
6
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 1.0 ISSUE 1
Nokia 2720 fold
RM-519 / RM-520
5. CARE AND MAINTENANCE
This product is of superior design and craftsmanship and should be treated with care. The
suggestions below will help you to fulfil any warranty obligations and to enjoy this product for
many years.
Keep the phone and all its parts and accessories out of the reach of small children.
Keep the phone dry. Precipitation, humidity and all types of liquids or moisture can
contain minerals that will corrode electronic circuits.
Do not use or store the phone in dusty, dirty areas. Its moving parts can be
damaged.
Do not store the phone in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
Do not store the phone in cold areas. When it warms up (to its normal temperature),
moisture can form inside, which may damage electronic circuit boards.
Do not drop, knock or shake the phone. Rough handling can break internal circuit
boards.
Service Manual Level 1&2
Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the
phone.
Do not paint the phone. Paint can clog the moving parts and prevent proper
operation.
Use only the supplied or an approved replacement antenna. Unauthorised antennas,
modifications or attachments could damage the phone and may violate regulations
governing radio devices.
All of the above suggestions apply equally to the product, battery, charger or any accessory.
7
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 1.0 ISSUE 1
Nokia 2720 fold
RM-519 / RM-520
6. BATTERY INFORMATION
Note: A new battery’s full performance is achieved only after two or three complete charge and
discharge cycles! The battery can be charged and discharged hundreds of times but it will
eventually wear out.
When the operating time (talk-time and standby time) is noticeably shorter than normal, it is
time to buy a new battery. Use only batteries approved by the phone manufacturer and
recharge the battery only with the chargers approved by the manufacturer.
Unplug the charger when not in use. Do not leave the battery connected to a charger for longer
than a week, since overcharging may shorten its lifetime.
If left unused a fully charged battery will discharge itself over time Temperature extremes can
affect the ability of your battery to charge.
For good operation times with Ni-Cd/NiMh batteries, discharge the battery from time to time by
leaving the product switched on until it turns itself off (or by using the battery discharge facility
of any approved accessory available for the product).
Do not attempt to discharge the battery by any other means Use the battery only for its
intended purpose.
Never use any charger or battery which is damaged.
Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object
(coin, clip or pen) causes direct connection of the + and - terminals of the battery (metal strips
on the battery) for example when you carry a spare battery in your pocket or purse.
Shortcircuiting the terminals may damage the battery or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions,
will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C
and 25°C (59°F and 77°F).
A phone with a hot or cold battery may temporarily not work, even when the battery is fully
charged. Batteries’ performance is particularly limited in temperatures well below freezing.
Do not dispose batteries in a fire! Dispose of batteries according to local regulations (e.g.
recycling).
Do not dispose as household waste.
Service Manual Level 1&2
8
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 1.0 ISSUE 1
Nokia 2720 fold
RM-519 / RM-520
7. EXPLODED VIEW
A2=B-COVER ASSY
(I0005 - I0008, I0101)
IHF SPEAKER
I0005
UI FLEX ASSY
I0101
SCREW SCREW RF1.4X3.0
I0003
Service Manual Level 1&2
A-COVER ASSY
I0004
LCD AM TFT a-Si
128x160 COG Catalina
I0009
EARPIECE
I0006
EARPIECE Adhesive
I0007
B-COVER
I0008
LCD AM 128x160 COG Baffin
I0002
IMD WINDOW
I0001
SLIDE VOLUME KEY
I0206
EF III CAP
I0207
AV JA CK CAP
I0205
SCREW RF1.4X4.0
I0208
A4=LIGHT SWAP PACKAGE
(I0209 - I0216, I9998)
BT LID
I0213
HWA LID
I0212
DOME SHEET & LG ASSY
I0215
ANTENNA MODULE
I0218
CAMERA ASSY
I0217
A1=B-/D-COVER ASSY
(A2, I0201 - I0202)
D-COVER ASSY
I0201
CAMERA GASKET
I0202
A3=C-COVER ASSY
(I0203 - I0207
KEYMAT
I0204
C-COVER
I0203
RF SHIELDING LID
I0210
BB SHIELDING LID
I0214
FEM SHIELDING LID
I0211
LIGHT SWAP PWB
I0209
TYPE LABEL
I0216
SCREW RF1.4X4.0
BATTERY COVER ASSY
Ver. 1.0
I0220
Only available as
assembly
I0219
These parts can not be
reused after removal
9
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 1.0 ISSUE 1
Nokia 2720 fold
RM-519 / RM-520
8. SERVICE DEVICES
FLS-5 Flash Device
Service Manual Level 1&2
BL-4CT Battery
AC-3 Travel Charger
NMP standard toolkit (v2)
For more information, refer to the
Service Bulletin (SB-011) on NOKIA
Online. Supplier or manufacturer
contacts for tool re-order can be
CA-149DS
SS-6
found in “Recommended service
equipment” document on NOKIA
Online.
10
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 1.0 ISSUE 1
Nokia 2720 fold
RM-519 / RM-520
9. SW-UPDATE
Flash concept- (Point of Sales)
To use the FLS-5 Flash Dongle, follow the user guide inside the sales package.
Please check always for the latest version of flash software, wich is available on Nokia Online.
Service Manual Level 1&2
EF III Flash concept
11
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 1.0 ISSUE 1
Nokia 2720 fold
RM-519 / RM-520
Service Manual Level 1&2
10. DISASSEMBLY INSTRUCTIONS
1) Nokia 2720fold disassembly. 2) You must use the Nokia Standard Toolkit version
2. You will also need the SS-6.
3) To remove the BATTERY COVER, press and push it
in to the direction shown.
4) Use the SS-93 to release the CAMERA GASKET and
remove it with the tweezers. The CAMERA GASKET
cannot be used again.
4) Remove the BATTERY COVER. If there is a battery
inserted, remove it also.
6) Open the phone and insert the SRT-6 between
the IMD WINDOW and the B-COVER. Slide the SRT-6
along the window edges to loosen the adhesive.
12
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 1.0 ISSUE 1
Nokia 2720 fold
RM-519 / RM-520
7) Remove the IMD window. The window cannot be
used again.
Service Manual Level 1&2
8) Remember to protect the BAFFIN LCD with
protective film.
9) Unscrew the two TORX + size 4 screws in the
order shown. Do not use them again.
11) Slide the SRT-6 along the phone sides to release
all the clips holding the A-COVER.
10) Fold the phone and start releasing the A-cover
with the SRT-6 from the hinge side.
12) Remove the A-COVER.
13
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 1.0 ISSUE 1
Nokia 2720 fold
RM-519 / RM-520
13) Remember to protect the CATALINA LCD with
protective film.
Service Manual Level 1&2
14) Lift up the IHF SPEAKER with the SS-93 and
remove the speaker.
15) Use the dental tool to carefully lift up the FLEX
CAN. Be aware of the sharp point of the dental tool be careful not to injure yourself!
17) Disconnect the LCD connector with the SS-93. Be
careful with the components around the connector!
16) Carefully bend the Flex foil as shown and lift up
the EARPIECE with the dental tool. The EARPIECE and
the EARPIECE ADHESIVE cannot be reused.
18) Use the SRT-6 to carefully lift up the CATALINA
LCD. And then remove the LCD.
14
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 1.0 ISSUE 1
Nokia 2720 fold
RM-519 / RM-520
19) Disconnect the BAFFIN LCD connector with the
SS-93. While opening the connector, be careful not
to damage it!
Service Manual Level 1&2
20) Open the phone and carefully lift up the BAFFIN
LCD with the SRT-6.
21) Pull the LCD flex carefully through the gap and
remove the LCD.
23) Open the phone and release the C-COVER with
the SS-93.
22) Fold the phone and unscrew these two TORX+
size 4 screws in the order shown.
24) Turn the phone and detach the C-COVER in the
direction shown.
15
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 1.0 ISSUE 1
Nokia 2720 fold
RM-519 / RM-520
25) Unscrew the four TORX+ size 4 screws in the
order shown.
Service Manual Level 1&2
26) Carefully release the two clips holding the
engine board with the SS-93.
27) Carefully lift up the engine board with the SS-93
and turn it as shown.
28) Before the engine board can be removed, the UI
connector has to be disconnected from the engine
board. Be careful with the components around the
connector!
29) Remove the engine board. 30) Disconnect the camera connector with the SS-
93. Be careful with the components around the
connector!
16
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 1.0 ISSUE 1
Nokia 2720 fold
RM-519 / RM-520
31) Carefully detach the frame holding the camera
with the dental tool. Then release the camera with
the dental tool.
Service Manual Level 1&2
32) Release the DOMESHEET with the dental tool and
peel it off. The DOMESHEET cannot be reused.
33) Use the sharp end of the SS-93 to detach the
ANTENNA and then remove it.
35) While separating the covers, be careful not to
damage the flex!
34) Insert the SS-6 in the hole and push the tool
until the HINGE is released.
36) Nokia 2720fold disassembly is now complete.
-END OF DISASSEMBLY-
17
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 1.0 ISSUE 1
Nokia 2720 fold
RM-519 / RM-520
11. ASSEMBLY HINTS
1) Tighten the four TORX + size 4 screws to the
torque of 8 Ncm in the order shown.
Service Manual Level 1&2
2) Tighten the two TORX + size 4 screws to the
torque of 8 Ncm in the order shown.
3) Tighten the two TORX + size 4 screws to the
torque of 8 Ncm in the order shown.
18
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 1.0 ISSUE 1
Nokia 2720 fold
RM-519 / RM-520
12. SOLDER COMPONENTS
V2410 S2431
TOP
Service Manual Level 1&2
F2000
X3301
X7801 X2003
V2411
BOTTOM
X2410
Ver. 1.0
19
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 1.0 ISSUE 1
Introduction
Service Schematics
IMPORTANT:
This document is intended for use by authorized NOKIA service centers only.
“Service Schematics” was created with focus on customer care.
The purpose of this document is to provide further technical repair information for
NOKIA mobile phones on Level 3/4 service activities.
It contains additional information such as e.g. “Component finder”.
Saving process time and improving the repair quality is the aim of this document.
It is to be used additionally to the service manual and other training
or service information such as Service Bulletins.
RM-519
Table of Contents
Front page
UPP, LITEPLUS, Audio
UPPHWA, Keyboard
BTFM
RF part
Component Finder
1
2
3
4
5
6
While every endeavour has been made to ensure the accuracy of this document, some
errors may exist. If the reader finds any errors, NOKIA shall be notified in writing.
Please send E-Mail to: TrainingAndVendor.Development@nokia.com
Customer Care / GTM / Competence Management
Confidential Copyright © 2009 NOKIA Only for training and service purposes
Copyright © NOKIA
This material, including documentation and any related computer programs is protected
by copyright, controlled by NOKIA. All rights are reserved. Copying, including reproducing,
modifying, storing, adapting or translating any or all of this material requires the prior
written consent of NOKIA. This material also contains companyconfidential information,
which may not be disclosed t
Version: 1.0 | 25.06.2009 | 2720 Fold/RM-519 | Board version: 2VV_40c | Front Page | Page 1 (6)
o others without the prior written consent of NOKIA.
D3000
COMBO 16Mx16 NOR
F-_WP/P-_CS
NOR/
NOR
ADDRESS/DATA I/O
A5,B1,D8=VIO
A7=VPP
A3,B10,C1,D3=GND
A
A21/P-_LB
A22/P-_UB
F-_RST
GND
2/2 10k R2205
R1
R2
R3
C2223
1u5
GENIO(31:0)
HAC_AMP_EN
LCDUI(2:0)
VBAT
X2005
1
+
GND2
BSI3
GND
R2000
C2330
33p
GND
18V/30V
VFLASH1
R22051/2 10k
C2700
100n
GND GND GND GND GND
C2000
27p
GNDGND
VANA
R2203
R2204
100k
100k
C2242
C2220
C2240
10n
C2710
15p
1n0
GND
GND
CLK
3
RST
2
VSIM
1
10n
GND
C2007
470n
GND
RFCONV(9:0)
0
1
2
9 9
4
5
C2230
1u5
6
7
GND
3
2
0
1
2
3
5
1u5
220R R2151
1/2 2k2 R2153
120R/100MHz
L2180
9
VR1
C6043
R21532/2 2k2
10n
VR2
VR3
GND
6
4
25
2
0
1
C2151
2/2 33n
C2151
1/2 33n
L2181
120R/100MHz
RFAUXCONV(2:0)
UEMGENIO(5:0)
VR4
VR5
VBAT
R2156
2k2
IHF+
IHF-
C2
GND
R2206
100k
A2
X2700
LCD_RESX
LCD_CS2X
LCD_CS1X
LCD_SCL
LCD_SDA
C2149
47p
C2157
4u7
R2014
47k
GND
K
V2000
A
GND
VSIM
GND
L2401
600R/100MHz
L2400
IND
EN
A1,A3,C3=GND
600R/100MHz
0
1
R2020
GND
7
8
R2202
100k
0
1
2
3
5
6
C2241
1n0
L2000
120R/100MHz
IO
7
6
5
GND
F2000
2.0A
A1
A3
GNDB2
C1
C3
R2003
R2005
R2002
100R
R2004
100R
100R
100R
C2003
22p
GND
X2002
GND
6
5
4
3
GND
Center
GND
C2005
C2004
22p
22p
GND
GND
GND
SLOWAD(8:0)
0
C2006
22p
R2403
10k
5
6
C2402
C2400
22uH
N2400
VDD
VOUT
FB
2u2
GND
B1
C1
B3
100RR2456
R2455 100R
C2401
1u0
GND
V2410
10n
GND
V2411
C2419
C2418
10n
GND
10n
GND
R2402
27R
GND
GND
LED-
R2454 100R
R2452
100R
100R
R2450
100R
R2451
GND
IHF+
IHF-
EARP
EARN
C2159
C2158
22p
22p
L2170
B2100
+
-
C2152
47p
GNDGND
GND
4
N2401
13 2
GND
X2410
GND
30
LED+
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
GND
VFLASH1
VIO
C2411
100n
GND
C2410
100n
GND
HAC+
HAC-
VBAT
C1211
C1210
1u0
100n
GND
GND
N1210
C2
_SHDN
C3
Vo+
A3
Vo-
B1
VDD
B2
PVDD
A1
IN+
C1
IN-
A2,B3=GND
VBATRF
C2002
MIC3RP
MIC3RN
VBB1RING
BTEMP
VCXOTEMP
PATEMP
FBUSRXO
VCHARIN1
VCHARIN2
SIMDAO
SIMCLKO
SIMRST
RXIINP
RXIINN
RXQINP
TXIOUTP
TXIOUTN
TXQOUTP
TXQOUTN
RXQINN
AFCOUT
AUXOUT
GENIO1
GENIO2
GENIO3
GENIO5
OSCIN
OSCOUT
GNDREGS1
KDLIGHT
VIBRA
MICB1
MIC1N
MIC1P
150u_6V3
GND GND
P8
N8
F9
J12
BSI
J13
N11
M11
L12
K12
R2027
E3
10k
G6
H6
A2
VSIM
FLYN
EARP
EARN
C2208
1u5
A3
C3
B2
F13
E13
F14
M6
VREF
H14
H13
G14
G13
E14
F12
G12
B14
C13
C14
D12
L1
VR1
N3
VR2
K3
VR3
J3
VR4
P4
VR5
C2225
1u5
GND GND GND GND GND
M1
M2
M5
VBG
N4
H2
N12
N13
FLYP
G1
C2017
33p
GND
P12
P11
P5
N6
P7
VBAT
D2800
T6
GND
J13
H13
J15
C12
E11
F11
C13
B14
B10
C10
E10
B12
F10
P16
T12
R16
N13
K16
N10
N12
T15
R15
M12
M13
K12
M10
R13
R14
N15
P15
L13
M16
K13
T11
N11
R11
L12
K15
L2001
600R/100MHz
RFClk
M8
VSSA
RFBusClk
RFBusDa
RFBusEn1X
B7
LCDCamClk
E8
LCDCamTxDa
E9
LCDCSX
P00
P01
P02
P03
P04
P10
P11
P12
P13
P14
B9
P15
FlsRstX
ExtWrX
N9
ExtRdX
N8
Fls2CSX
R8
FlsBAAX
FlsAVDX
FlsClk
T8
FlsCSX
FlsRdy
R9
0
1
2
3
4
5
6
7
T9
8
9
10
11
12
13
14
15
16
17
18
19
20
21
T7
22
B8,B11,C6,D2,E12,G2,H16,J5,L2,
L5,L16,M6,R12,T10=GND
C2012
10n
GND
C2009
10n
GND
C2010
10n
GND
GND
C2011
1u0
GND
R2077
100R
GND
GND
SleepX
SleepClk
EarData
MicData
UEMint
CBusClk
CBusDa
CBusEnX
GenIO31
GenIO30
GenIO29
MBusTx
MBusRx
FBusTx
FBusRx
DBusClk
DBusDa
DBusEn1X
RFConvClk
AuxDa
GenIO18
GenIO16
GenIO17
GenIO14
GenIO26
GenIO15
GenIO12
GenIO11
GenIO10
GenIO9
GenIO8
GenIO7
GenIO6
GenIO5
GenIO13
GenIO25
GenIO28
GenIO4
GenIO27
GenIO19
GenIO20
GenIO21
GenIO22
GenIO23
GenIO24
GenIO0
GenIO1
GenIO2
GenIO3
VDDRAM1
VDDLMM
VDDLMM
VDDRAM2
VDDRAM2
VDDRAM3
VDDRAM3
VDDPLL
VDD18
C2037
27p
C2016
27p
PURX
IrTx
IrRx
RxID
RxQD
TxID
TxQD
VDD
VDD
VDD
VDDA
VDDS
VDDS
VDDS
VDDS
R2007
18V/30V
R2011
R2012
R2087
R2088
J2800
L6
J2801
M5
K5
F2
H3
M2
J2
J6
H5
G5
D3
G6
K3
J3
H6
E3
H2
F3
N3
P3
K6
N6
R5
N7
N5
T3
P2
T4
M7
R6
R3
C2
R4
F16
G16
G15
G12
G13
F15
E15
F13
H12
J16
C7
C9
B6
E13
C16
D15
D16
R2
M15
C14
B15
F12
C15
J2802
J2803
J2808
J2809
J2810
J2823
GENIO(31:0)
F7
F5
G3
M9
R10
C11
F9
L3
L15
M3
J12
R7
M11
K2
C8
H15
F7
C2038
27p
GNDGND
47R
47R
100R
100R
C2884
C2883
C2882
100n
10n
10n
GND
C2887
10n
XMIC
GND
GNDGNDGND
C2885
C2886
10n
100n
GND
GND
R2152
10k
C2881
100n
0
1
2
0
1
0
1
2
2
3
GND
0
2
1
0
1
2
3
4
5
0
1
2
0
1
2
3
4
5
18 18
16
17
14
26
15
12
11
10
9
8
7
6
5
13
25
28
4
27
19
20
21
22
23
24
0
1
2
3
24
R2015
18V/30V
C2880
10n
GND
C3031
C3030
100n
10n
GND
GND
C2160
100n
GND
R2150
2
C2031
27p
GND
R2171
C2171
2u2
GND
R2154
2k
C2200
PUSL(3:0)
AUDIODATA(3:0)
AUDUEMCTRL(3:0)
AUDUEMCTRL(3:0)
ISIMIF(2:0)
IACCDIF(5:0)
RFCONVCTRL(2:0)
RFCONVDA(5:0)
N2000
VDD
GND
OUT
220R
2/2 2k2
1/2 2k2R2154
1u0
GND
C2332
4u7
1
C2030 100n
3
C2203
VBAT
C2331
GND
18V/30V
GNDGND
VANA
1u5
GND
VIO
C2155
1/2 33n
RFCLK
RFCLKGND
RFICCNTRL(2:0)
LCDUI(2:0)
KEY(10:0)
2
5
0
1
6
9
7
8
GENIO(31:0)
R3030
3
4k7
MEMCONT(9:0)
B7
A10
16
A2
B3
A8
20
B8
A9
B2
B5
A23
B4
ADV
A6
_WE
C10
_OE
A4
CLK
B6
B9
F-_CE
A1
WAIT
D10
D9
C7
C6
D5
D4
C3
C2
C9
C8
D7
D6
C5
C4
D2
D1
23
22
21
20
19
18
17
16
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
0
1
2
0
1
2
0
1
2
3
4
5
6
7
8
9
10
VPP
C3032
100n
GND
9
J2814
0
1
2
3
5
6
7
8
J2815
J2817
J2818
MEMADDA(24:0)
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
FMANT
X2003
L2004
C2019
18p
68nH
J2102
600R/100MHz
600R/100MHz
C2018
18p
2
4
5
3
1
6
7
8
J2103
GND
L2002
L2003
C2013
10n
GND
C2020
6p8
GND
R2006
18V/30V
GND
R2009
18V/30V
GND
C2269
100n
GND
R2010
100k
R2200
0R22
0
1
2
2
0
1
0
1
2
3
0
1
2
2
3
4
5
0
1
2
0
1
2
3
4
5
C2268
C2267
100n
4u7
GND
GND
S2420
not_assembled
R2463
18V/30V
GND
C2264
R2008
C2287
C2261
4u7
4u7
GND
GND
GND
VFLASH1
C2202
1u5
GND
GND
C2235
C2237
100n
1u5
100n
GND
GND
GND
1u0
C2155
2/2 33n
C2239
C2204
C2205
C2236
K1
M4
A8
A9
A7
B6
B9
B7
B4
A4
B5
A6
A5
C10
B10
B8
A12
B13
A13
B11
C11
C12
A10
P10
P13
G2
H1
C2403
47p
D1
N2
C2266
1u0
B1
GND
K2
P3
N14
M13
H3
H3
J14
M3
N1
100n
GND
P9
1u5
N5
GND
H9
E12
P2
D14
100n
GND
G9
D3
1u5
GND
K13
P11
M7
N7
M10
M8
M9
N10
K14
M14
L14
VCHAROUT1
J1
VCHAROUT2
VBATREGS
PURX
SLEEPX
SLEEPCLK
EARDATAR
C6
EARDATAL
C7
MICDATA
C9
UEMINT
C8
CBUSCLK
CBUSDATA
CBUSENX
SIMIODAI
SIMCLKI
C4
SIMIOCTRL
MBUSTX
C5
MBUSRX
FBUSTXI
FBUSRXI
DBUSCLK
DBUSDATA
DBUSENX
RFCONVCLK
RXID
RXQD
TXID
TXQD
AUXD
ACLKEXT
VSSDRIVER
VSSPUMP
VSADRIV1
VSADRIV2
C2
PWRONX
L3
VBATVANA
E1
VBATVIO
VBATVCORE
VBATVBB1
F3
VBATDIG
VBATVSIM
VBATVR3
J2
VBATVR4
VBATVR5
VBATCP
VBATIHF
VBATDRIV
VBATREGSADC
L2
VBATVR1
VBATVR2
VBB1
F1
VDD28
C1
VCORE
J8
VDAADC
VDAAUD2
VDAAUD1
VDACONVTX
VDACONVRX
VANA
VSACONVRX
VSACONVTX
VIO
HOOKINT
MICB2
MIC2P
MIC2N
HFR
HFL
SENSEL
SENSER
HEADINT
IHFP
IHFN
A11,B12,D13,F6,F8,G7,G8,H7,
H8,H12,J6,J7,J9,L13,M12=GND
D2200
KEYB1(Mic3LP)
KEYB2(Mic3LN)
C2001
GND
GND
C2226
1u5
B2200
32.768kHz
C2265
2u2
GND
6p8
C2233
J2013
L2388
28R/100MHz
R2700
C2222
C2227
1u5
1u5
GND
M2000
M
+
Customer Care / GTM / Competence Management
Confidential Copyright © 2009 NOKIA Only for training and service purposes
Version: 1.0 | 25.06.2009 | 2720 Fold/RM-519 | Board version: 2VV_40c | UPP, LITEPLUS, Audio | Page 2 (6)
VFLASH1
GENIO(31:0)
R3324
4k7
R1
R0
S1
R2
R4
R3
S2
S0
S4
S3
L3300
600R/100MHz
A2
A1
B2
B1
C2
C1
D2
D1
E2
E1
C3323
27p
GND
X3301
10
11
12
13
14
15
16
GND
Z2400
Input1
Input2
Input3
Input4
Input5
Input6
Input7
Input8
Input9
Input10
A3,C3,D3,E3=GND
C3324
100n
1
2
3
4
5
6
7
8
9
GND
C3359
VCAP
XSHUTDOWN
EXTCLK
CCISCL
CCISDA
CCPCLKN
CCPCLKP
CCPDATAN
CCPDATAP
Output2
Output1
Output4
Output6
Output5
Output3
Output7
Output10
Output9
Output8
C3325
220n4u7
S2421
COL3
Send
Down
Left
S2414
Soft left
S2413
9
S2412
8
S2411
7
COL4
S2418
S2417
4
1
05
18V/30V
S2416S2401
*
S2415S2410S2405
18V/30V
R2462
R2461
S2430
3
2
Volume+
GND
4
1
S2431
3
2
Volume-
GND
R2460
18V/30V
COL0
GND
Right
ROW0
Soft right
ROW1
3
ROW2
2
ROW3
1
A4
ROW0
A5
ROW1
ROW2
B4
ROW3
C4
ROW4
C5
COL1
B5
COL2
D5
COL3
E4
COL4
E5
COL0
D4
ROW4
COL1
Action
S2404 S2419
Up
S2403
S2402
S2400
COL2
S2408
6 #
S2407
S2406
4
VBAT
GND
EN
NR
IN
N3301
GND
GND
R3327
4k7
R3328
4k7
C3317 100n
C3316
100n
C3315
2u2
VOUT
C3307
C3308
F10
SUP14
E8
SUP13
D8
CLK
A10
XSHYTDOWN
H8
CSX
G8
TXDA
F8
CAP1
K8
CAP2
H6
CAPLDO
A1,A4,A5,A7,A8,B1,B10,C4,
C5,C6,C8,E10,H1,H4,H5,J10,
K1,K2,K3,K9=GND
C3322
100n
GND
LCDUI(2:0)
R3323
4k7
6
5
1
7
9
8
2
0
4
3
4u7
N3303
MSCL
MSDA
RXDA
DACLK
J1
K4
G3
RQN
F3
RQP
G1
RDN
F1
RDP
A9
VDD
C3
VDD
D10
VDD
H3
VDD
H7
VDD
K6
VDD
K10
VDD
C3350
G10
H10
100n
C3351
100n
R3317
100R
R3316
100R
J3341
J3342
J3343
J3344
C3352
100n
C3353
100n
C3321
27p
GND
1
0
J3347
2
J3350
26
3
J3351
28
27
REG_VEN
C3304
100n
XSHUTDOWN
EXTCLK
HWA_CSX
HWA_TXDA
C3305
C3306
4u7
10n 100n
R3315
100R
R3318
100R
KEY(10:0)
Customer Care / GTM / Competence Management
Confidential Copyright © 2009 NOKIA Only for training and service purposes
Version: 1.0 | 25.06.2009 | 2720 Fold/RM-519 | Board version: 2VV_40c | UPPHWA, Keyboard | Page 3 (6)
RFCLK
BT(23:0)
PUSL(3:0)
GENIO(31:0)
AUDUEMCTRL(3:0)
C6038
100p
R6043
100k
D6030
1
1 3
4= VR2
2=
GND
2
12
22
8
19
20
11
21
16
15
17
14
1
T6007
C6007
C6017
220n
GND
Z6000
2450MHz
OUTIN
GND
L6002
100nH
27p
GND
GND
C6018
C6013
220n
220n
GND
C6005
C6020
2u2
10n
GND
GND
FM_AUDIO_NL
FM_AUDIO_NR
FM_AUDIO_PL
FM_AUDIO_PR
C6014
220n
C6002
2u2
L6003
100nH
C6004
15p
GND
GND
J6006
BT Antenna
J6007
GND
FMANT
FMRADIO(20:0)
SLOWAD(8:0)
9
9
7
7
8
8
6
6
C6001
C6012
2u2
100n
GND
GND
KeyB2
MIC3N
KeyB1
MIC3P
C6019
3
8
2
7
VBAT
2u2
GND
C6044
2p2
R6042
2k7
C6008
47p
SYS_CLK
SLEEP_CLK
UART_WAKE
BTH_CLK_REQ
BT_WAKEUP
BT_RESETX
UART_TX
UART_RX
UART_RTS
UART_CTS
I2S/PCM_OUT
I2S/PCM_IN
I2S/PCM_SYNC
I2S/PCM_CLK
A3
H5
H4
G3
H6
F4
D7
D6
E6
E7
H7
G6
F5
G5
SYS_CLK
SLEEP_CLK
UART_WAKE
CLK_REQ(HOST_WAKE)
BT_WAKEUP
VREG_ENABLE_RST
UART_TX
UART_RX
UART_RTS
UART_CTS
I2S/PCM_OUT
I2S/PCM_IN
I2S/PCM_SYNC
I2S/PCM_CLK
R6041
10k
GND
21
21
11
2
2
1
1
0
0
4
4
5
5
3
3
6
6
9
9
8
8
10
10
7
7
N6000
SPKR_L
SPKR_R
HVREGIN_H
HVREGOUT_H
VDD_FM_TX
VDD_ANA
VDD_BT_LO
VDD_BT_RADIO
VDD_FM
VDD_DIG
VDD_AUX
VDD_HOST
A1,A2,C1,C4,D2,F2,F6,H3=GND
VDD_PADS
BT_RF
FM_RX
B1
C6006
FM_ANT
GND
VIO
C6003
C6011
2u2
0u47
10n
GND
GND
F1
E2
E1
A4
A5
H2
B3
B2
D3
G2
F7
C3
C7
G7
Customer Care / GTM / Competence Management
Confidential Copyright © 2009 NOKIA Only for training and service purposes
Version: 1.0 | 25.06.2009 | 2720 Fold/RM-519 | Board version: 2VV_40c | BTFM | Page 4 (6)
SLOWAD(8:0)
GENIO(31:0)
6
5
X7801
R2207
L2481
2n2H
N7700
C7714
27p
R7704
1k0
R7705
1k0
R7706
1k0
870R 870R
GND
870R 870R
GND
C7725
120p
GND
C7715
1n0
GNDGNDGNDGNDGND
not_assembled
GND
GND
GND
C7716
15p
5R77
5R77
C7700
33p
C7701
33p
C7702
33p
R7732
R7734
10R
R7714
GND
R7711
GND
TXC
10k
C7726
22p
0
C7728
0p5
GNDGND
28
VC1
29
VC2
30
VC3
33p
R7635
GND
1k0
R7733
100R
X7800
C7727
R7720
1k0
C7637
1n0
IN
10p
GND
not_assembled
2OUT
1
VBATRF
2
R7633
47k
15
25
5
4
C7711
2u2
GND
15p for EU RFMD3283
PA_ID
ANT
TXP
OL2
OL1
C7712
5p6
PAID
1k0
VCXO_temp
TXP
5
C7720
C7638
33p
GND GND GND
C2482
2p7
GNDGND
TXIN_LB
TXIN_HB
RXOOUT_LB
RXOUT_HB
VREG
VBAT_LB
VBAT_HB
VBAT_PC
C7713
27p
22
3
12
10
26
VPC
23
18
7
27
TXRXCTRL1
TXRXCTRL2
TXRXCTRL3
TXIN_LB
TXIN_HB
RXOUT_LB
RXOUT_HB
C7706
C7704
2
L7709
4n7H
R7709
0R
C7707
1p01p0
GNDGND
L7710
1n8H
R7703
0R
C7705
1p01p0
GNDGND
R7606
0R
RFAUXCONV(2:0)
AFC
not_assembled
not_assembled
R7631
18k
C7635
100n
VR3
Z7603
IN2
VCC
OUT
OUT
GND GND
IN
R7630
100k
Z7602
942.5MHz
In
GND
Z7600
1842.5MHz
GND
VR4
GND
VCC
GND
BalOut
BalOut
GND
Z7604
OUT
OUT
IN1
IN2
IN1
C7636
1p8
R7700
1k0
R7701
1k0
R7707
1k0
C7656
C7655
100n
C7607
1p2
C7604
0p5
B7600
26MHz
V7600
C7643
100n
10p
GND
L7602
10nH
L7603
10nH
L7604
1n8H
L7605
1n8H
R7632
39R
C7630
C7623
22p
22p
GND
GND
GND
GND
N7600
39
TXRXCTRL1
38
TXRXCTRL2
37
TXRXCTRL3
40
TX1
41
TX1X
42
TX2
43
TX2X
30
RX2X
29
RX2
35
RX4X
34
RX4
7
VCXO
8
VCXOX
15
VCCPRE
2
VCCSC
3
VDDSC
13
VDDPLL
1
VCCBB
4,11,17,49,50,51,52,53,54,
55,56,57,58,59,60,61=GND
PLLREFR
LOFISW
CPLO
VREG
VCCTX
VCCLOGEN
VCCFE
VCCVCXO
VCXOEN
VCCVCO
FSYS
RFICCNTRL(2:0)
GND
GND
GND
C7668
22p
2u2
GND
GND
C7641
270p
R2900
330R
GND
C7624
100n
R7615
100R
R7616
100R
R7617
100R
R7611
1/2 5k6
R7610
1/2 5k6
R7663
R7619
4k7
3k3
C7669
3n9
GND
GND
R7605
22R
C2900
1n0
C7625
22p
C7634
100n
GND
C7659
22p
GND
26
EN
C7610
10p
25
DA
C7611
10p
24
CLK
C7612
10p
46
A
C7627
56p
45
AX
48
B
BX
VT
C1X
C1
C2X
C2
C7628
56p
47
R7609
5
12k
4p7
C7639
270p
GND
C7657
22p
C7644
560p
C7645
560p
GND
C7613
GND
GND
1u0
GND
C7658
22p
GND
GND
C7620
12
14
16
18
C7614
44
36
33
9
6
19
21
20
23
22
10
VR1
VR2
VR5
R7611
2/2 5k6
R7610
2/2 5k6
RFCLK
RFBUSX
RFBUSDA
RFBUSCLK
TXQM
TXQP
TXIM
TXIP
RXIP
RXIM
RXQP
RXQM
2
1
0
RFCONV(9:0)
7
6
5
4
0
1
2
3
Customer Care / GTM / Competence Management
Confidential Copyright © 2009 NOKIA Only for training and service purposes
Version: 1.0 | 25.06.2009 | 2720 Fold/RM-519 | Board version: 2VV_40c | RF part | Page 5 (6)
Bottom
A
C2240 L3 C6006 H4 C7728 N8 R2087 F8 R7705 M7
A7002 O4 C2241 L2 C6007 H3 R2088 F9 R7706 M7
A7003 N7 C2242 L2 C6008 G3 D2200 K3 R2150 L2 R7707 N4
A7004 G5 C2261 J2 C6011 G4 D2800 J5 R2151 J2 R7711 N6
A7005 G3 C2264 L2 C6012 H3 D3000 L5 R2152 L2 R7714 N8
A7006 K4 C2265 L2 C6013 H3 D6030 G3 R2153 K2 R7720 N6
B
C2266 L2 C6014 H3 R2154 K2 R7732 M8
B2100 E3 C2267 K2 C6017 H3 F2000 D3 R2156 J2 R7733 M8
B2200 I3 C2268 K2 C6018 H3 R2171 L2 R7734 N8
B7600 N2 C2269 F8 C6019 G4 L2000 F4 R2200 I3
C
C2287 L4 C6020 H3 L2001 D9 R
C2000 P6 C2330 P8 C6038 G3 L2002 F8 R2203 L3 S2431 I2
C2001 P8 C2331 J4 C6043 G3 L2003 F8 R2204 L3
C2002 Q6 C2332 J3 C6044 G4 L2004 F7 R2205 L3 V2000 F4
C2003 D3 C2400 M4 C7604 O5 L2170 F3 R2206 L2 V2410 Q4
C2004 C3 C2401 M3 C7607 P5 L2180 L3 R2207 M3 V2411 Q7
C2005 D4 C2402 M3 C7610 P5 L2181 L3 R2402 L3 V7600 O2
C2006 C3 C2403 F4 C7611 P5 L2388 P6 R2403 M2
C2007 F4 C2410 C7 C7612 P5 L2400 M4 R2450 C7 X2000 F7
C2009 G8 C2411 C7 C7613 P4 L2401 M4 R2451 C7 X2002 D2
C2010 G8 C2418 Q3 C7614 P3 L2
C2011 D7 C2419 Q8 C7620 P2 L3300 D4 R2454 D7 X2005 P7
C2012 D9 C2482 Q9 C7623 P3 L6002 H3 R2455 D7 X2410 C8
C2013 D9 C2700 I6 C7624 P4 L6003 H3 R2456 D7 X2700 I8
C2016 G8 C2710 I6 C7625 O3 L7602 O4 R2460 H2 X3301 C4
C2017 F4 C2880 I5 C7627 N3 L7603 P4 R2461 H2 X7800 P9
C2018 F7 C2881 I5 C7628 N3 L7604 O4 R2462 G2 X7801 R8
C2019 F8 C2882 L4 C7630 O3 L7605 O4 R2463 F3
C2020 F7 C2883 I4 C7634 P5 L7709 N4 R2700 I6 Z2400 I5
C2030 G9 C2884 I4 C7635 O2 L7710 N3 R2900 P2 Z6000 G3
C2031 G9 C28
C2037 G8 C2886 I5 C7637 M8 M2000 E5 R3315 H5 Z7602 P5
C2038 D9 C2887 L4 C7638 M8 R3316 H5 Z7603 N4
C2149 F3 C2900 P2 C7639 P3 N2000 G9 R3317 H5 Z7604 N3
C2151 K2 C3030 M5 C7641 P3 N2400 M3 R3318 H5
C2152 F3 C3031 M5 C7643 N3 N2401 M3 R3323 F5
C2155 K2 C3032 L4 C7644 P4 N3301 F6 R3324 G5
C2157 J2 C3304 F6 C7645 P4 N3303 G5 R3327 H5
C2158 G6 C3305 F6 C7655 N4 N6000 G3 R3328 H6
C2159 G6 C3306 F6 C7656 N3 N7600 O3 R6041 G4
C2160 L2 C3307 F5 C7657 P2 N7700 O7 R6042 G4
C2171 L2 C330
C2200 J2 C3315 G5 C7659 O4 R2000 P7 R7605 P2
C2202 J3 C3316 H5 C7668 O4 R2002 C3 R7606 P5
C2203 J2 C3317 H6 C7669 P2 R2003 D3 R7609 O2
C2204 I4 C3321 D4 C7700 M7 R2004 C3 R7610 L3
C2205 J4 C3322 D4 C7701 M7 R2005 D3 R7611 L3
C2208 I4 C3323 C4 C7702 M7 R2006 F8 R7615 P5
C2220 M3 C3324 C4 C7704 N3 R2007 D9 R7616 P5
C2222 J2 C3325 C4 C7705 N3 R2008 G9 R7617 P5
C2223 J3 C3350 H6 C7706 N4 R2009 F8 R7619 P3
C2225 J2 C3351 H5 C7707 N4 R2010 D7 R7630 O2
C2226 I3 C3352 G5 C7711 O8 R2011 G8 R7631
C2227 I2 C3353 F6 C7713 O8 R2012 G8 R7632 P2
C2230 J2 C3359 D4 C7714 M7 R2014 L2 R7633 N8
C2233 J2 C6001 G3 C7716 O6 R2015 G9 R7635 M8
C2235 K2 C6002 G3 C7720 N6 R2020 D3 R7663 P3
C2236 L4 C6003 G4 C7725 M8 R2027 F9 R7700 N4
C2237 L4 C6004 G3 C7726 N8 R2068 F9 R7701 N4
C2239 J3 C6005 H3 C7727 M8 R2077 F9 R7704 M7
85 I5 C7636 O2 R3030 L4 Z7600 O5
8 F5 C7658 P4 R6043 G3
D
F
L
S
2202 L2 S2430 G2
V
X
481 Q9 R2452 C7 X2003 E8
Z
M
N
R
P2
Top
Customer Care / GTM / Competence Management
Confidential Copyright © 2009 NOKIA Only for training and service purposes
Version: 1.0 | 25.06.2009 | 2720 Fold/RM-519 | Board version: 2VV_40c | Component Finder | Page 6 (6)
Loading...
