Nokia 2700 classic RM-561
Service Manual Level 1&2
SERVICE MANUAL
Level 1&2
RM-561
Transceiver characteristics
Sales Name: 2700c-2 (global)
2700c (China mainland)
Band:
RM-561: GSM 850/900/1800/1900
Display:
2’’ (240x320 pixels) QVGA up to 16M colours
Camera:
2 megapixel camera
Operating System:
Series 40 5th Edition, Feature Pack 1
Connections:
Bluetooth 2.0
3.5 mm AV connector
2.0 mm charger connector
Micro USB
USB 2.0 (high speed)
MicroSD card (hot swap)
Battery Performance: BL-5C (1020 mAh) Global
Ectel Standby Ectel Talk Time
356 hours 4.4 hours
Battery Performance: BL-5CA (700 mAh) China
Ectel Standby Ectel Talk Time
244 hours 3 hours
Note: Talk time and Standby time depends on network parameters and phone settings.
Best Standby
Up to 17 days
Music 11 hours
Best Standby
Up to 12 days
Music 7.7 hours
Best Talk Time
Up to 7 hours
Best Talk Time
Up to 4.8 hours
1
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 2.0 ISSUE 1
Nokia 2700 classic RM-561
Service Manual Level 1&2
Table of contents
1. Change history ............................................................................................................................................................................... 3
2. Copyright .......................................................................................................................................................................................... 4
3. Warnings and cautions ............................................................................................................................................................... 5
3.1 Warnings ................................................................................................................................................................................ 5
3.2 Cautions .................................................................................................................................................................................. 5
4. ESD protection ................................................................................................................................................................................ 6
5. Care and maintenance ................................................................................................................................................................ 7
6. Battery information ..................................................................................................................................................................... 8
7. Exploded view ................................................................................................................................................................................ 9
8. Service devices .............................................................................................................................................................................10
9. SW-update .....................................................................................................................................................................................11
10. Disassembly instructions .....................................................................................................................................................12
11. Assembly hints ........................................................................................................................................................................16
12. Solder components ................................................................................................................................................................17
2
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 2.0 ISSUE 1
Nokia 2700 classic RM-561
Service Manual Level 1&2
1. CHANGE HISTORY
Status Version No. Date Comments
Approved 1.0 11.5.2009
Approved 2.0 25.5.2009
The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to
carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA
service suppliers, and the content of it is confidential. Please note that NOKIA provides also other
guidance documents (e.g. Service Bulletins) for service suppliers, follow these regularly and
comply with the given instructions.
While every endeavor has been made to ensure the accuracy of this document, some errors may
exist. If you find any errors or if you have further suggestions, please notify NOKIA using the
address below:
CMO Operation & Logistics
Training and Vendor Development
Multimedia Creation & Support
mailto:Service.Manuals@nokia.com
Please keep in mind also that this documentation is continuously being updated and modified,
so watch always out for the newest version.
Exploded view updated
3
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 2.0 ISSUE 1
2. COPYRIGHT
Copyright © 2009 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this document in
any form without the prior written permission of Nokia is prohibited.
Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered trademarks of
Nokia Corporation. Other product and company names mentioned herein may be trademarks or
tradenames of their respective owners.
Nokia operates a policy of continuous development. Nokia reserves the right to make changes
and improvements to any of the products described in this document without prior notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any special,
incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided “as is”. Except as required by applicable law, no
warranties of any kind, either express or implied, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. Nokia reserves the right to revise this
document or withdraw it at any time without prior notice.
The availability of particular products may vary by region.
IMPORTANT
This document is intended for use by qualified service personnel only.
Nokia 2700 classic RM-561
Service Manual Level 1&2
4
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 2.0 ISSUE 1
3. WARNINGS AND CAUTIONS
Please refer to the phone’s user guide for instructions relating to operation, care and
maintenance including important safety information. Note also the following:
3.1 Warnings
1. CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE
MANAGEMENT SYSTEMS AND ANTI–SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS,
EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE
DEALER/MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF
ENERGY.
2. THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN
POTENTIALLY EXPLOSIVE ATMOSPHERES, EG PETROL STATIONS (SERVICE STATIONS), BLASTING
AREAS ETC.
3. OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY
INTERFERE WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT
A PHYSICIAN OR THE MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS.
OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO INTERFERENCE.
Nokia 2700 classic RM-561
Service Manual Level 1&2
3.2 Cautions
1. Servicing and alignment must be undertaken by qualified personnel only.
2. Ensure all work is carried out at an anti–static workstation and that an anti–static wrist
3. Use only approved components as specified in the parts list.
4. Ensure all components, modules screws and insulators are correctly re–fitted after servicing
5. Ensure all cables and wires are repositioned correctly
strap is worn.
and alignment.
5
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 2.0 ISSUE 1
4. ESD PROTECTION
Nokia 2700 classic RM-561
Service Manual Level 1&2
Nokia requires that service points have sufficient ESD protection (against static
electricity) when servicing the phone.
Any product of which the covers are removed must be handled with ESD
protection. The SIM card can be replaced without ESD protection if the product
is otherwise ready for use.
To replace the covers ESD protection must be applied.
All electronic parts of the product are susceptible to ESD. Resistors, too, can be
damaged by static electricity discharge.
All ESD sensitive parts must be packed in metallized protective bags during
shipping and handling outside any ESD Protected Area (EPA).
Every repair action involving opening the product or handling the product
components must be done under ESD protection.
ESD protected spare part packages MUST NOT be opened/closed out of an ESD
Protected Area.
For more information and local requirements about ESD protection and ESD
Protected Area, contact your local Nokia After Market Services representative.
6
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 2.0 ISSUE 1
5. CARE AND MAINTENANCE
This product is of superior design and craftsmanship and should be treated with care. The
suggestions below will help you to fulfil any warranty obligations and to enjoy this product for
many years.
Keep the phone and all its parts and accessories out of the reach of small children.
Keep the phone dry. Precipitation, humidity and all types of liquids or moisture can
contain minerals that will corrode electronic circuits.
Do not use or store the phone in dusty, dirty areas. Its moving parts can be
damaged.
Do not store the phone in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
Do not store the phone in cold areas. When it warms up (to its normal temperature),
moisture can form inside, which may damage electronic circuit boards.
Nokia 2700 classic RM-561
Service Manual Level 1&2
Do not drop, knock or shake the phone. Rough handling can break internal circuit
boards.
Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the
phone.
Do not paint the phone. Paint can clog the moving parts and prevent proper
operation.
Use only the supplied or an approved replacement antenna. Unauthorised antennas,
modifications or attachments could damage the phone and may violate regulations
governing radio devices.
All of the above suggestions apply equally to the product, battery, charger or any accessory.
7
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 2.0 ISSUE 1
6. BATTERY INFORMATION
Note: A new battery’s full performance is achieved only after two or three complete charge and
discharge cycles! The battery can be charged and discharged hundreds of times but it will
eventually wear out.
When the operating time (talk-time and standby time) is noticeably shorter than normal, it is
time to buy a new battery. Use only batteries approved by the phone manufacturer and
recharge the battery only with the chargers approved by the manufacturer.
Unplug the charger when not in use. Do not leave the battery connected to a charger for longer
than a week, since overcharging may shorten its lifetime.
If left unused a fully charged battery will discharge itself over time Temperature extremes can
affect the ability of your battery to charge.
For good operation times with Ni-Cd/NiMh batteries, discharge the battery from time to time by
leaving the product switched on until it turns itself off (or by using the battery discharge facility
of any approved accessory available for the product).
Do not attempt to discharge the battery by any other means Use the battery only for its
intended purpose.
Never use any charger or battery which is damaged.
Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object
(coin, clip or pen) causes direct connection of the + and - terminals of the battery (metal strips
on the battery) for example when you carry a spare battery in your pocket or purse.
Shortcircuiting the terminals may damage the battery or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions,
will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C
and 25°C (59°F and 77°F).
A phone with a hot or cold battery may temporarily not work, even when the battery is fully
charged. Batteries’ performance is particularly limited in temperatures well below freezing.
Do not dispose batteries in a fire! Dispose of batteries according to local regulations (e.g.
recycling).
Do not dispose as household waste.
Nokia 2700 classic RM-561
Service Manual Level 1&2
8
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 2.0 ISSUE 1
7. EXPLODED VIEW
A1=UI SHIELDING ASSY (I0003-I0005)
Nokia 2700 classic RM-561
Service Manual Level 1&2
A-COVER ASSY
I0001
KEYMAT ASSY
I0002
SCREW M1.6X5
TORX+ 6IP
I0006
UI SHIELDING
I0004
CONNECTOR GASKET
LCD
I0005
EARPIECE
I0003
A2=LIGHT SWAP PACKAGE (I0008-I0013)
MULLIGAN
SHIELDING LID
I0012
RAPS
SHIELDING LID
I0011
SHIELDING LID
CAMERA MODULE
BT
I0010
I0014
A4=D-COVER ASSY (I0019-I0021)
SD COVER
I0020
DC JACK
I0019
LCD AM TFT
I0007
DOME SHEET
I0008
LIGHT SWAP PWB
I0009
POWER LID
I0015
A3=ANTENNA MODULE ASSY (I0016-I0018)
MICROPHONE
I0017
IHF SPEAKER
I0016
ANTENNA MODULE
I0018
D-COVER
I0021
TYPE LABEL
I0013
Ver. 2.0
USB COVER
I0022
Only available as
assembly
B-COVER ASSY
I0023
These parts cannot be
reused after removal
9
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 2.0 ISSUE 1
8. SERVICE DEVICES
FLS-5 Flash Device
Nokia 2700 classic RM-561
Service Manual Level 1&2
CA-101 Service Cable
RJ-230 Universal soldering jig
AC-3 for global
BL-5C Battery
AC-8C & CA-100c for China
SS-88 Camera removal tool
NMP standard toolkit (v2)
For more information, refer to the
Service Bulletin (SB-011) on NOKIA
Online. Supplier or manufacturer
contacts for tool re-order can be
found in “Recommended service
equipment” document on NOKIA
Online.
10
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 2.0 ISSUE 1
9. SW-UPDATE
Flash concept- (Point of Sales)
To use the FLS-5 Flash Dongle, follow the user guide inside the sales package.
Please check always for the latest version of flash software, wich is available on Nokia Online.
Nokia 2700 classic RM-561
Service Manual Level 1&2
11
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 2.0 ISSUE 1
Nokia 2700 classic RM-561
Service Manual Level 1&2

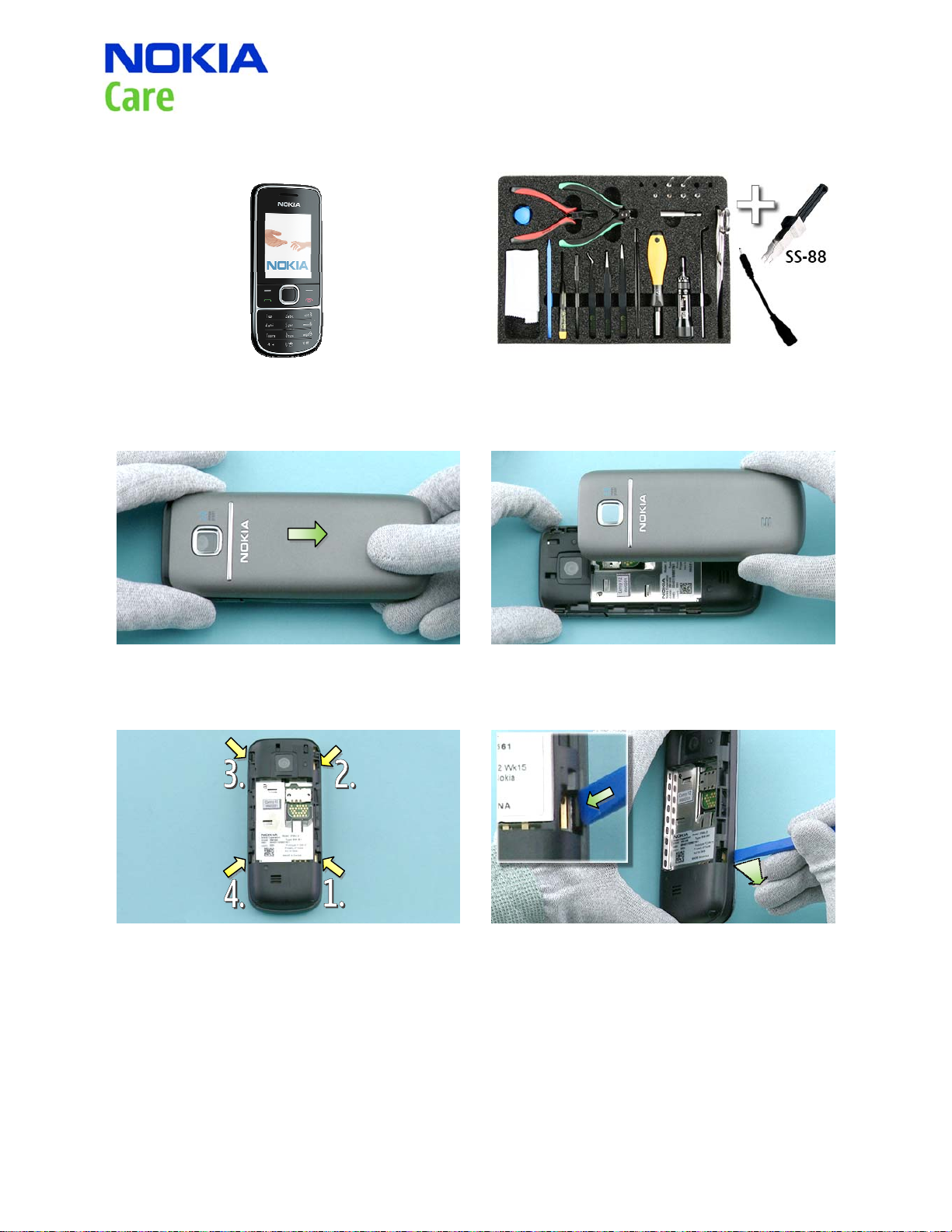

10. DISASSEMBLY INSTRUCTIONS
1) Nokia 2700 classic disassembly. 2) You must use the Nokia Standard Toolkit version.
You will also need the SS-88 camera removal tool
and the 2 mm charger plug.
3) To remove the B-COVER ASSY, press and push it in
to the direction shown.
4) Detach the four A-COVER ASSY hooks with the SS-
93.
4) Remove the B-COVER ASSY. If there is a battery
inserted, remove it also.
6) Start releasing the clips by first pressing the clip
inside as shown in the small picture. Then place the
SS-93 between the A-COVER ASSY and B-COVER ASSY.
Detach the clip by pushing the SS-93 downwards.
12
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 2.0 ISSUE 1
Nokia 2700 classic RM-561
Service Manual Level 1&2

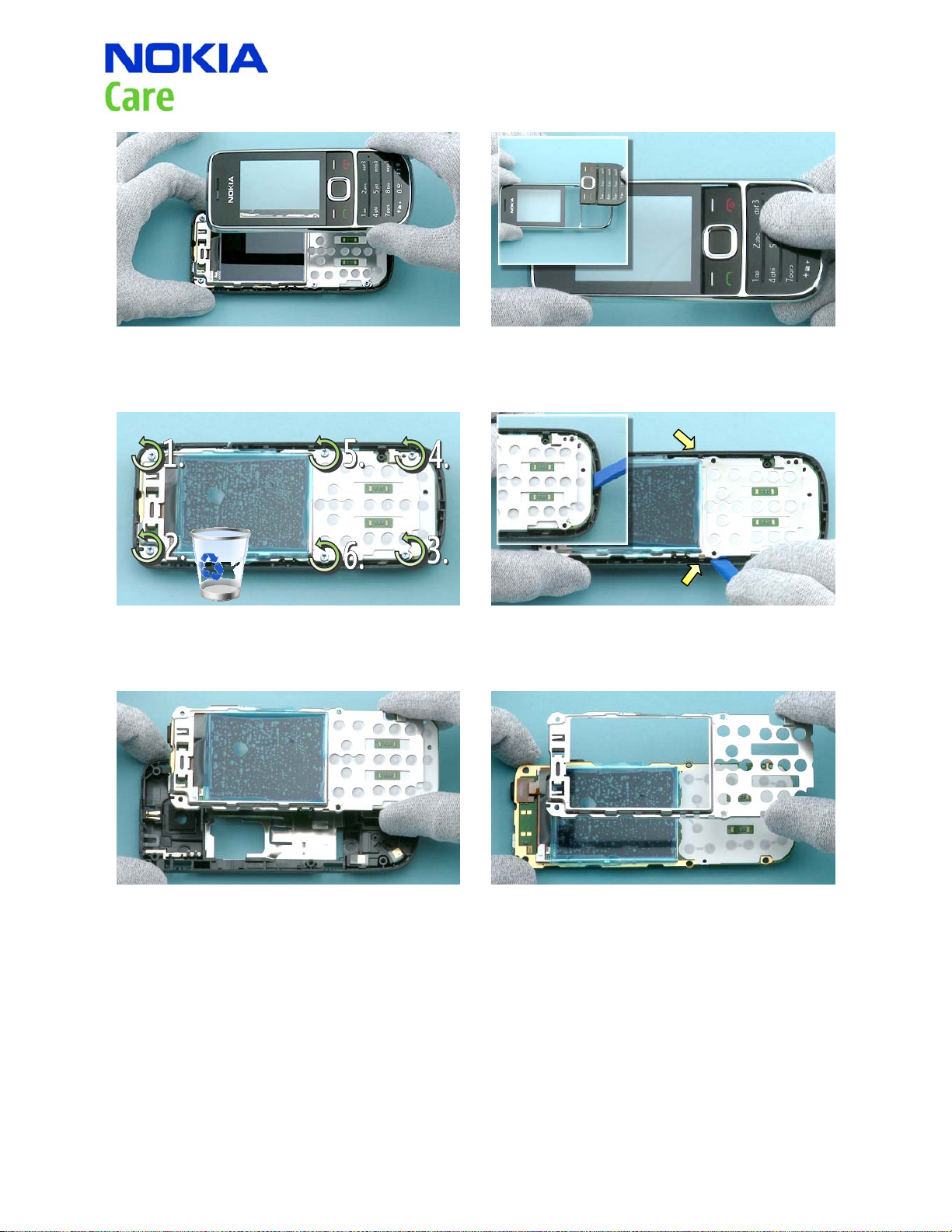

7)Remove the A-COVER ASSY. Make sure that the LCD
is protected with protective film after removing the
A-COVER ASSY.
9) Unscrew the six TORX + size 6 screws in the order
shown. Do not use it again.
8) Separate the KEYMAT ASSY from the A-COVER by
pressing the keymat lightly. When the keymat is
separated protect both sides of the window with
protective film to avoid scratches.
10) Release the clips holding the UI SHIELDING ASSY
with the SS-93. Then lift up the assy as shown in the
small picture.
11) Remove the UI SHIELDING ASSY and the LIGHT
SWAP PWB.
13
Confidential
Copyright © 2009 NOKIA All rights reserved
12) Separate the UI SHIELDING ASSY and the LIGHT
SWAP PWB..
Version 2.0 ISSUE 1
Nokia 2700 classic RM-561
Service Manual Level 1&2
13) Detach the EARPIECE PIONEER and the EARPIECE
NXP with the dental tool. Be aware of the sharp
point of the dental tool!
15) Use the SS-93 to open the LCD connector. Be
careful not to damage the connector - or
components nearby!
14) Detach the LCD CONNECTOR GASKET with the
dental tool.
16) Remove the LCD AM TFT.
.
17) Remove the CAMERA MODULE with the SS-88.
18) Use the SS-93 to lift up the ANTENNA MODULE
from the D-COVER ASSY and then separate the
module.
14
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 2.0 ISSUE 1
Nokia 2700 classic RM-561
Service Manual Level 1&2

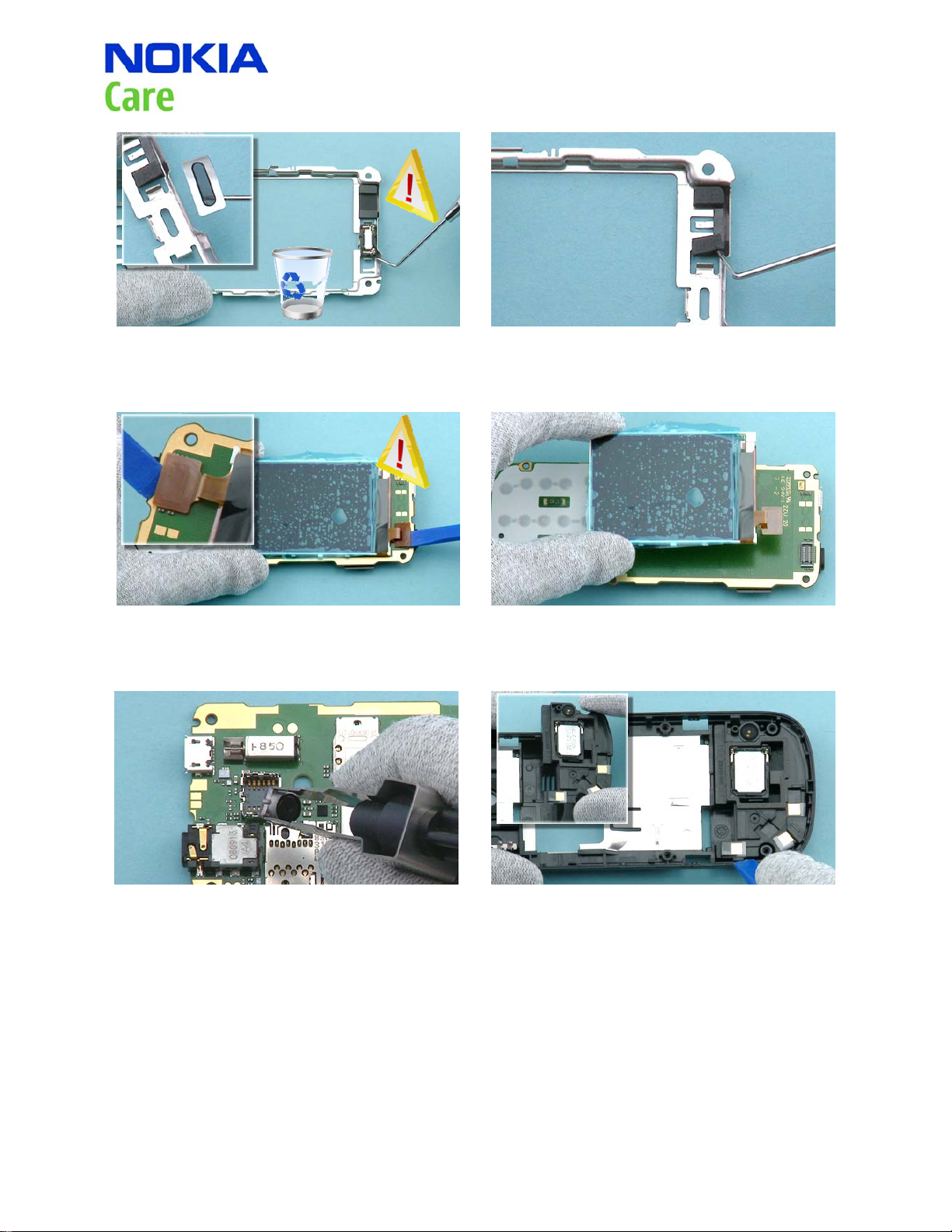

19) Remove the MICROPHONE with the dental tool.
Detach the IHF SPEAKER with the dental tool and
remove the speaker with the tweezers.
21) Release the AV jack with the charger plug and
then remove the AV jack. Then remove the SD COVER
by pulling it to the direction shown.
20) Remove the USB COVER by pulling it to the
direction shown.
22) Detach the DOMESHEET with the dental tool. The
domesheet cannot be reused.
23) Use the dental tool to lever out the BT
SHIELDING LID, RAPS SHIELDING LID, and the
MULLIGAN SHIELDING LID. Be careful not to damage
nearby components!
24) Nokia 2700 classic disassembly is now
complete.
-END OF DISASSEMBLY-
15
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 2.0 ISSUE 1
11. ASSEMBLY HINTS
Nokia 2700 classic RM-561
Service Manual Level 1&2
1) Tighten the six TORX + size 6 screws to the
torque of 18 Ncm in the order shown.
16
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 2.0 ISSUE 1
12. SOLDER COMPONENTS
Nokia 2700 classic RM-561
Service Manual Level 1&2
X1001 V2400
TOP
V2401
BOTTOM
E7702 E7710
V2402
V2403
E7701
Ver. 1.0
17
Confidential
Copyright © 2009 NOKIA All rights reserved
Version 2.0 ISSUE 1
Loading...
