Nokia 2690, RM-635 Service Manual

Download

Nokia Customer Care

Service Manual

RM-635 (Nokia 2690)

Mobile Terminal

Part No: 9219028 (Issue 1)

COMPANY CONFIDENTIAL

Amendment Record Sheet

Amendment No Date Inserted By Comments

Original issue 12/2009 Jeff Zhao

RM-635

Page ii COMPANY CONFIDENTIAL Issue 1

RM-635 Copyright

Copyright

without the prior written permission of Nokia is prohibited. Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered trademarks of Nokia

Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners.

Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice.

Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.

The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice.

The availability of particular products may vary by region.

IMPORTANT

This document is intended for use by qualified service personnel only.

Issue 1 COMPANY CONFIDENTIAL Page iii

RM-635

Warnings and cautions

Warnings

•

IF THE DEVICE CAN BE INSTALLED IN A VEHICLE, CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE MANAGEMENT SYSTEMS AND ANTI-SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS, EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE DEALER/ MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF ENERGY.

•

THE PRODUCT MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN POTENTIALLY EXPLOSIVE ATMOSPHERES, FOR EXAMPLE, PETROL STATIONS (SERVICE STATIONS), BLASTING AREAS ETC.

•

OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY INTERFERE WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT A PHYSICIAN OR THE MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS. OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO INTERFERENCE.

•

BEFORE MAKING ANY TEST CONNECTIONS, MAKE SURE YOU HAVE SWITCHED OFF ALL EQUIPMENT.

Cautions

•

Servicing and alignment must be undertaken by qualified personnel only.

•

Ensure all work is carried out at an anti-static workstation and that an anti-static wrist strap is worn.

•

Ensure solder, wire, or foreign matter does not enter the telephone as damage may result.

•

Use only approved components as specified in the parts list.

•

Ensure all components, modules, screws and insulators are correctly re-fitted after servicing and alignment.

•

Ensure all cables and wires are repositioned correctly.

•

Never test a mobile phone WCDMA transmitter with full Tx power, if there is no possibility to perform the measurements in a good performance RF-shielded room. Even low power WCDMA transmitters may disturb nearby WCDMA networks and cause problems to 3G cellular phone communication in a wide area.

•

During testing never activate the GSM or WCDMA transmitter without a proper antenna load, otherwise GSM or WCDMA PA may be damaged.

Page iv COMPANY CONFIDENTIAL Issue 1

RM-635 For your safety

For your safety

QUALIFIED SERVICE

Only qualified personnel may install or repair phone equipment.

ACCESSORIES AND BATTERIES

Use only approved accessories and batteries. Do not connect incompatible products.

CONNECTING TO OTHER DEVICES

When connecting to any other device, read its user’s guide for detailed safety instructions. Do not connect incompatible products.

Issue 1 COMPANY CONFIDENTIAL Page v

RM-635

Care and maintenance

This product is of superior design and craftsmanship and should be treated with care. The suggestions below will help you to fulfil any warranty obligations and to enjoy this product for many years.

•

Keep the phone and all its parts and accessories out of the reach of small children.

•

Keep the phone dry. Precipitation, humidity and all types of liquids or moisture can contain minerals that will corrode electronic circuits.

•

Do not use or store the phone in dusty, dirty areas. Its moving parts can be damaged.

•

Do not store the phone in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.

•

Do not store the phone in cold areas. When it warms up (to its normal temperature), moisture can form inside, which may damage electronic circuit boards.

•

Do not drop, knock or shake the phone. Rough handling can break internal circuit boards.

•

Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the phone.

•

Do not paint the phone. Paint can clog the moving parts and prevent proper operation.

•

Use only the supplied or an approved replacement antenna. Unauthorised antennas, modifications or attachments could damage the phone and may violate regulations governing radio devices.

All of the above suggestions apply equally to the product, battery, charger or any accessory.

Page vi COMPANY CONFIDENTIAL Issue 1

RM-635 ESD protection

ESD protection

Nokia requires that service points have sufficient ESD protection (against static electricity) when servicing the phone.

Any product of which the covers are removed must be handled with ESD protection. The SIM card can be replaced without ESD protection if the product is otherwise ready for use.

To replace the covers ESD protection must be applied. All electronic parts of the product are susceptible to ESD. Resistors, too, can be damaged by static electricity

discharge. All ESD sensitive parts must be packed in metallized protective bags during shipping and handling outside

any ESD Protected Area (EPA). Every repair action involving opening the product or handling the product components must be done under

ESD protection. ESD protected spare part packages MUST NOT be opened/closed out of an ESD Protected Area. For more information and local requirements about ESD protection and ESD Protected Area, contact your local

Nokia After Market Services representative.

Issue 1 COMPANY CONFIDENTIAL Page vii

RM-635

Battery information

Note: A new battery's full performance is achieved only after two or three complete charge and

discharge cycles!

The battery can be charged and discharged hundreds of times but it will eventually wear out. When the operating time (talk-time and standby time) is noticeably shorter than normal, it is time to buy a new battery.

Use only batteries approved by the phone manufacturer and recharge the battery only with the chargers approved by the manufacturer. Unplug the charger when not in use. Do not leave the battery connected to a charger for longer than a week, since overcharging may shorten its lifetime. If left unused a fully charged battery will discharge itself over time.

Temperature extremes can affect the ability of your battery to charge. For good operation times with Ni-Cd/NiMh batteries, discharge the battery from time to time by leaving the

product switched on until it turns itself off (or by using the battery discharge facility of any approved accessory available for the product). Do not attempt to discharge the battery by any other means.

Use the battery only for its intended purpose. Never use any charger or battery which is damaged. Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object (coin, clip or

pen) causes direct connection of the + and - terminals of the battery (metal strips on the battery) for example when you carry a spare battery in your pocket or purse. Short-circuiting the terminals may damage the battery or the connecting object.

Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions, will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C and 25°C (59°F and 77° F). A phone with a hot or cold battery may temporarily not work, even when the battery is fully charged. Batteries' performance is particularly limited in temperatures well below freezing.

Do not dispose of batteries in a fire! Dispose of batteries according to local regulations (e.g. recycling). Do not dispose as household waste.

Page viii COMPANY CONFIDENTIAL Issue 1

RM-635 Company policy

Company policy

Our policy is of continuous development; details of all technical modifications will be included with service bulletins.

While every endeavour has been made to ensure the accuracy of this document, some errors may exist. If any errors are found by the reader, NOKIA MOBILE PHONES Business Group should be notified in writing/email.

Please state:

•

Title of the Document + Issue Number/Date of publication

•

Latest Amendment Number (if applicable)

•

Page(s) and/or Figure(s) in error

Please send to:

NOKIA CORPORATION Nokia Mobile Phones Business Group Nokia Customer Care PO Box 86 FIN-24101 SALO Finland E-mail: Service.Manuals@nokia.com

Issue 1 COMPANY CONFIDENTIAL Page ix

RM-635

Company policy

(This page left intentionally blank.)

Page x COMPANY CONFIDENTIAL Issue 1

RM-635 Nokia 2690 Service Manual Structure

Nokia 2690 Service Manual Structure

1 General Information 2 Service Devices and Service Concepts 3 BB Troubleshooting and Manual Tuning Guide 4 RF troubleshooting 5 System Module 6 LCD flex bending instruction Glossary

Issue 1 COMPANY CONFIDENTIAL Page xi

RM-635

Nokia 2690 Service Manual Structure

(This page left intentionally blank.)

Page xii COMPANY CONFIDENTIAL Issue 1

Nokia Customer Care

1 — General Information

Issue 1 COMPANY CONFIDENTIAL Page 1 – 1

RM-635

General Information

(This page left intentionally blank.)

Page 1 – 2 COMPANY CONFIDENTIAL Issue 1

RM-635 General Information

Table of Contents

Product selection................................................................................................................................................... 1–5

Phone features ...................................................................................................................................................... 1–5

User interface and software features.................................................................................................................. 1–6

Accessories............................................................................................................................................................. 1–6

Technical Specifications........................................................................................................................................ 1–7

General specifications...................................................................................................................................... 1–7

Battery endurance............................................................................................................................................ 1–7

List of Tables

Table 1 Battery and chargers ............................................................................................................................... 1–6

Table 2 Headsets ................................................................................................................................................... 1–7

Table 3 Data cables ............................................................................................................................................... 1–7

List of Figures

Figure 1 RM-635 (Nokia 2690) product picture.................................................................................................. 1–5

Issue 1 COMPANY CONFIDENTIAL Page 1 – 3

RM-635

General Information

(This page left intentionally blank.)

Page 1 – 4 COMPANY CONFIDENTIAL Issue 1

RM-635 General Information

Product selection

RM-635 (Nokia 2690) is a GSM quad band phone, supporting GSM850/900/1800/1900 bands.

Figure 1 RM-635 (Nokia 2690) product picture

Phone features

Display and keypad features

•

1.8' 128x160 pixel, 262k true colour display

•

5-way , navi-key (2 soft-keys, call and end keys)

Hardware features

•

0.3-megapixel camera with 4x digital zoom

•

3.5mm AV connector for stereo headset

•

Micro USB port for data transfer (USB 2.0)

•

Bluetooth (version 3.0)

•

RDS Stereo radio and music player

•

Internal vibrator and antenna

•

Plug-in SIM (1.8 V and 3.0 V)

•

MicroSD card hot swap slot (up to 8GB)

RF features

•

GSM850/900/1800/1900

•

EGPRS: MSC 32 (MSC 31 in China)

•

GPRS: MSC 32 (MSC 31 in China)

Issue 1 COMPANY CONFIDENTIAL Page 1 – 5

General Information

•

HSCDS

•

CSD

User interface and software features

Selection of software applications and services

•

Audio messages

•

XHTML browsing over TCP/IP

•

Themes (wallpapers, icons, colors)

•

Music Player supporting MP3, AAC, ACC+, eAAC+ and WMA

•

Nokia Xpress audio messaging (AMS)

•

OMA DRM 2.0 (Digital Right Management)

•

OMA MMS 1.2, MMS Conformance 3.0, AMR and SMIL

•

OMA Client Provisioning v1.1

•

Java

•

MP3 ringing tones, true tones and MIDI ringing, alert and gaming tones with support of 64 polyphony

•

Video ringing tones

•

WAP 2.0, XHTML browser over HTTP/TCP/IP stack

•

SyncML (local and remote)

•

TWIN PC Suite

RM-635

Accessories

Sales package contents

•

Nokia 2690 phone

•

Nokia Battery BL-4C

•

Nokia Charger: AC-3 (AC-8C and CA-100C for China)

•

Nokia wired stereo headset: WH-102

•

CD rom

•

User Guide

Table 1 Battery and chargers

Type Name

Note: This phone is charged through the smaller charger Nokia standard interface (2.mm plug). The

standard 3.5mm standard charger can be used together with the CA-44 charger adapter. AC-3 Charger AC-8 Charger BL-4C Battery 860 mAh Li-Ion

Page 1 – 6 COMPANY CONFIDENTIAL Issue 1

RM-635 General Information

Type Name

WH-102 Stereo headset (wired)

Type Name

CA-101 Micro USB cable

Technical Specifications

General specifications

Unit Dimension (mm) Weight (g) Volume (cc)

Table 2 Headsets

Table 3 Data cables

Transceiver with BL-4C

107.5*45.5*13.8" 80.72 58.81 860 mAh Li-Ion battery pack

Battery endurance

Battery Capacity

mAh

BL-4C 860 Up to 6.6 hours 3.2 hours Up to 16 days

Note: Variation in operation times will occur depending on SIM card, network settings and usage.

Best Talk Time ECTEL Talk Time Best Stand-by

Time

Music 9.8 hours

ECTEL Stand-by

Time

309 hours

Issue 1 COMPANY CONFIDENTIAL Page 1 – 7

RM-635

General Information

(This page left intentionally blank.)

Page 1 – 8 COMPANY CONFIDENTIAL Issue 1

Nokia Customer Care

2 — Service Devices and

Service Concepts

Issue 1 COMPANY CONFIDENTIAL Page 2 – 1

RM-635

Service Devices and Service Concepts

(This page left intentionally blank.)

Page 2 – 2 COMPANY CONFIDENTIAL Issue 1

RM-635 Service Devices and Service Concepts

Table of Contents

Service devices....................................................................................................................................................... 2–5

Product specific devices................................................................................................................................... 2–5

FS-144........................................................................................................................................................... 2–5

MJ-267 .......................................................................................................................................................... 2–5

General devices................................................................................................................................................. 2–5

CU-4............................................................................................................................................................... 2–6

FLS-5 ............................................................................................................................................................. 2–7

FPS-21........................................................................................................................................................... 2–7

PK-1............................................................................................................................................................... 2–8

RJ-230 ........................................................................................................................................................... 2–8

SB-6............................................................................................................................................................... 2–8

SPS-2............................................................................................................................................................. 2–8

SRT-6............................................................................................................................................................. 2–8

SS-108........................................................................................................................................................... 2–9

SS-46............................................................................................................................................................. 2–9

SS-62............................................................................................................................................................. 2–9

SS-93............................................................................................................................................................. 2–9

SX-4............................................................................................................................................................... 2–9

Cables................................................................................................................................................................. 2–9

CA-101 ....................................................................................................................................................... 2–10

CA-89DS ..................................................................................................................................................... 2–10

DAU-9S....................................................................................................................................................... 2–10

PCS-1.......................................................................................................................................................... 2–11

XRE-2.......................................................................................................................................................... 2–11

Service concepts ................................................................................................................................................. 2–12

POS (Point of Sale) flash concept ................................................................................................................. 2–12

BB5 Basic Flash Concept with FS-101 .......................................................................................................... 2–13

BB5 Basic Flash Concept with SS-62 ............................................................................................................ 2–14

BB5 Basic RF & BB Tune Concept with FS-101............................................................................................. 2–15

BB5 Basic RF&BB Tune Concept with MJ-267 .............................................................................................. 2–16

List of Figures

Figure 2 POS flash concept ................................................................................................................................ 2–12

Figure 3 BB5 Basic Flash Concept with FS-101 ................................................................................................ 2–13

Figure 4 BB5 Basic Flash Concept with SS-62 .................................................................................................. 2–14

Figure 5 BB5 Basic RF & BB Tune Concept with FS-101................................................................................... 2–15

Figure 6 BB5 Basic RF&BB Tune Concept with MJ-267 .................................................................................... 2–16

Issue 1 COMPANY CONFIDENTIAL Page 2 – 3

RM-635

Service Devices and Service Concepts

(This page left intentionally blank.)

Page 2 – 4 COMPANY CONFIDENTIAL Issue 1

RM-635 Service Devices and Service Concepts

Service devices

Product specific devices

The table below gives a short overview of service devices that can be used for testing, error analysis, and repair of product RM-635. For the correct use of the service devices, and the best effort of workbench setup, please refer to various concepts.

FS-144 Flash adapter

•

FS-144 is equipped with a clip interlock system

•

provides standardised interface towards Control Unit

•

provides RF connection using coupler

•

multiplexing between USB and FBUS media, controlled by VUSB

MJ-267 Module jig MJ-267 is meant for component level troubleshooting.

The jig includes an RF interface for GSM and Bluetooth. In addition, it has the following features:

•

Provides mechanical interface with the engine module

•

Provides galvanic connection to all needed test pads in module

•

Multiplexing between USB and FBUS media, controlled by Vusb

•

MMC interface

•

Duplicated SIM connector

•

Connector for control unit

•

Access for AV- and USB connectors

•

CA-128RS cable is used together with this jig for RF testing.

General devices

Issue 1 COMPANY CONFIDENTIAL Page 2 – 5

RM-635

Service Devices and Service Concepts

CU-4 Control unit CU-4 is a general service tool used with a module jig and/or a flash

adapter. It requires an external 12 V power supply. The unit has the following features:

•

software controlled via USB

•

EM calibration function

•

Forwards FBUS/Flashbus traffic to/from terminal

•

Forwards USB traffic to/from terminal

•

software controlled BSI values

•

regulated VBATT voltage

•

2 x USB2.0 connector (Hub)

•

FBUS and USB connections supported

When using CU-4, note the special order of connecting cables and other service equipment:

Instructions

1 Connect a service tool (jig, flash adapter) to CU-4. 2 Connect CU-4 to your PC with a USB cable. 3 Connect supply voltage (12 V) 4 Connect an FBUS cable (if necessary). 5 Start Phoenix service software.

Note: Phoenix enables CU-4 regulators via USB when it is

started. Reconnecting the power supply requires a Phoenix restart.

Page 2 – 6 COMPANY CONFIDENTIAL Issue 1

RM-635 Service Devices and Service Concepts

FLS-5 Flash device FLS-5 is a dongle and flash device incorporated into one package,

developed specifically for POS use.

Note: FLS-5 can be used as an alternative to PK-1.

FPS-21 Flash prommer

FPS-21 sales package:

•

FPS-21 prommer

•

AC-35 power supply

•

CA-31D USB cable

FPS-21 interfaces:

Front

•

Service cable connector Provides Flashbus, USB and VBAT connections to a mobile device.

•

SmartCard socket A SmartCard is needed to allow DCT-4 generation mobile device

programming.

Rear

•

DC power input For connecting the external power supply (AC-35).

•

Two USB A type ports (USB1/USB3) Can be used, for example, for connecting external storage memory

devices or mobile devices

•

One USB B type device connector (USB2) For connecting a PC.

•

Phone connector Service cable connection for connecting Flashbus/FLA.

•

Ethernet RJ45 type socket (LAN) For connecting the FPS-21 to LAN.

Inside

•

Four SD card memory slots For internal storage memory.

Note: In order to access the SD memory card slots inside

FPS-21, the prommer needs to be opened by removing the front panel, rear panel and heatsink from the prommer body.

Issue 1 COMPANY CONFIDENTIAL Page 2 – 7

RM-635

Service Devices and Service Concepts

PK-1 Software protection

key

PK-1 is a hardware protection key with a USB interface. It has the same functionality as the PKD-1 series dongle.

PK-1 is meant for use with a PC that does not have a series interface. To use this USB dongle for security service functions please register

the dongle in the same way as the PKD-1 series dongle. RJ-230 Common jig

RJ-230 is a jig used for soldering and as a rework jig for the engine module.

SB-6 Bluetooth tester The SB-6 test box is a generic device to perform Bluetooth bit error

rate testing and doing cordless FBUS connection via Bluetooth.

SPS-2 Soldering paste

spreader

Note: Existing solder paste stencils and component holder

jigs will be supported until January 2009. For all new parts needing solder paste support after January 1, 2009, please contact your solder machine manufacturer for the universal solutions for solder paste application for rework purposes.

SRT-6 Opening tool SRT-6 is used to open phone covers.

Note: The SRT-6 is included in the Nokia Standard Toolkit.

Page 2 – 8 COMPANY CONFIDENTIAL Issue 1

RM-635 Service Devices and Service Concepts

SS-108 Peeling tool The peeling tool SS-108 is used to peel off the shielding.

SS-46 Interface adapter SS-46 acts as an interface adapter between the flash adapter and

FPS-21.

SS-62 Generic flash adapter

base for BB5

•

generic base for flash adapters and couplers

•

SS-62 equipped with a clip interlock system

•

provides standardised interface towards Control Unit

•

provides RF connection using galvanic connector or coupler

•

multiplexing between USB and FBUS media, controlled by VUSB

SS-93 Blue stick tool SS-93 is used for general disassembly and assembly tasks.

SX-4 Smart card SX-4 is a BB5 security device used to protect critical features in tuning

and testing. SX-4 is also needed together with FPS-21 when DCT-4 phones are

flashed.

Cables

Issue 1 COMPANY CONFIDENTIAL Page 2 – 9

RM-635

Service Devices and Service Concepts

CA-101 Micro USB cable The CA-101 is a USB-to-microUSB data cable that allows connections

between the PC and the phone.

CA-89DS Cable Provides VBAT and Flashbus connections to mobile device

programming adapters.

DAU-9S MBUS cable The MBUS cable DAU-9S has a modular connector and is used, for

example, between the PC's serial port and module jigs, flash adapters or docking station adapters.

Note: Docking station adapters valid for DCT4 products.

Page 2 – 10 COMPANY CONFIDENTIAL Issue 1

RM-635 Service Devices and Service Concepts

PCS-1 Power cable The PCS-1 power cable (DC) is used with a docking station, a module

jig or a control unit to supply a controlled voltage.

XRE-2 Bluetooth cable The bluetooth cable connects the bluetooth connector of the module

jig to the bluetooth test box JBT-9.

Issue 1 COMPANY CONFIDENTIAL Page 2 – 11

Service concepts

POS (Point of Sale) flash concept

RM-635

Service Devices and Service Concepts

Figure 2 POS flash concept

Type Description

Product specific tools

BL-4C Battery

Other tools

FLS-5 POS flash dongle

PC with Phoenix service software

Cables

CA-101 USB connectivity cable

Page 2 – 12 COMPANY CONFIDENTIAL Issue 1

RM-635 Service Devices and Service Concepts

BB5 Basic Flash Concept with FS-101

Figure 3 BB5 Basic Flash Concept with FS-101

Issue 1 COMPANY CONFIDENTIAL Page 2 – 13

BB5 Basic Flash Concept with SS-62

RM-635

Service Devices and Service Concepts

Figure 4 BB5 Basic Flash Concept with SS-62

Page 2 – 14 COMPANY CONFIDENTIAL Issue 1

RM-635 Service Devices and Service Concepts

BB5 Basic RF & BB Tune Concept with FS-101

Figure 5 BB5 Basic RF & BB Tune Concept with FS-101

Issue 1 COMPANY CONFIDENTIAL Page 2 – 15

BB5 Basic RF&BB Tune Concept with MJ-267

RM-635

Service Devices and Service Concepts

Figure 6 BB5 Basic RF&BB Tune Concept with MJ-267

Page 2 – 16 COMPANY CONFIDENTIAL Issue 1

Nokia Customer Care

3 — BB Troubleshooting and

Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 – 1

RM-635

BB Troubleshooting and Manual Tuning Guide

(This page left intentionally blank.)

Page 3 – 2 COMPANY CONFIDENTIAL Issue 1

RM-635 BB Troubleshooting and Manual Tuning Guide

Table of Contents

Baseband self tests in Phoenix ............................................................................................................................ 3–5

Power and charging troubleshooting................................................................................................................. 3–7

Dead or jammed device troubleshooting...................................................................................................... 3–7

General power checking.................................................................................................................................. 3–8

Charging troubleshooting ............................................................................................................................... 3–9

Interface troubleshooting ................................................................................................................................. 3–11

Flash programming fault troubleshooting................................................................................................. 3–11

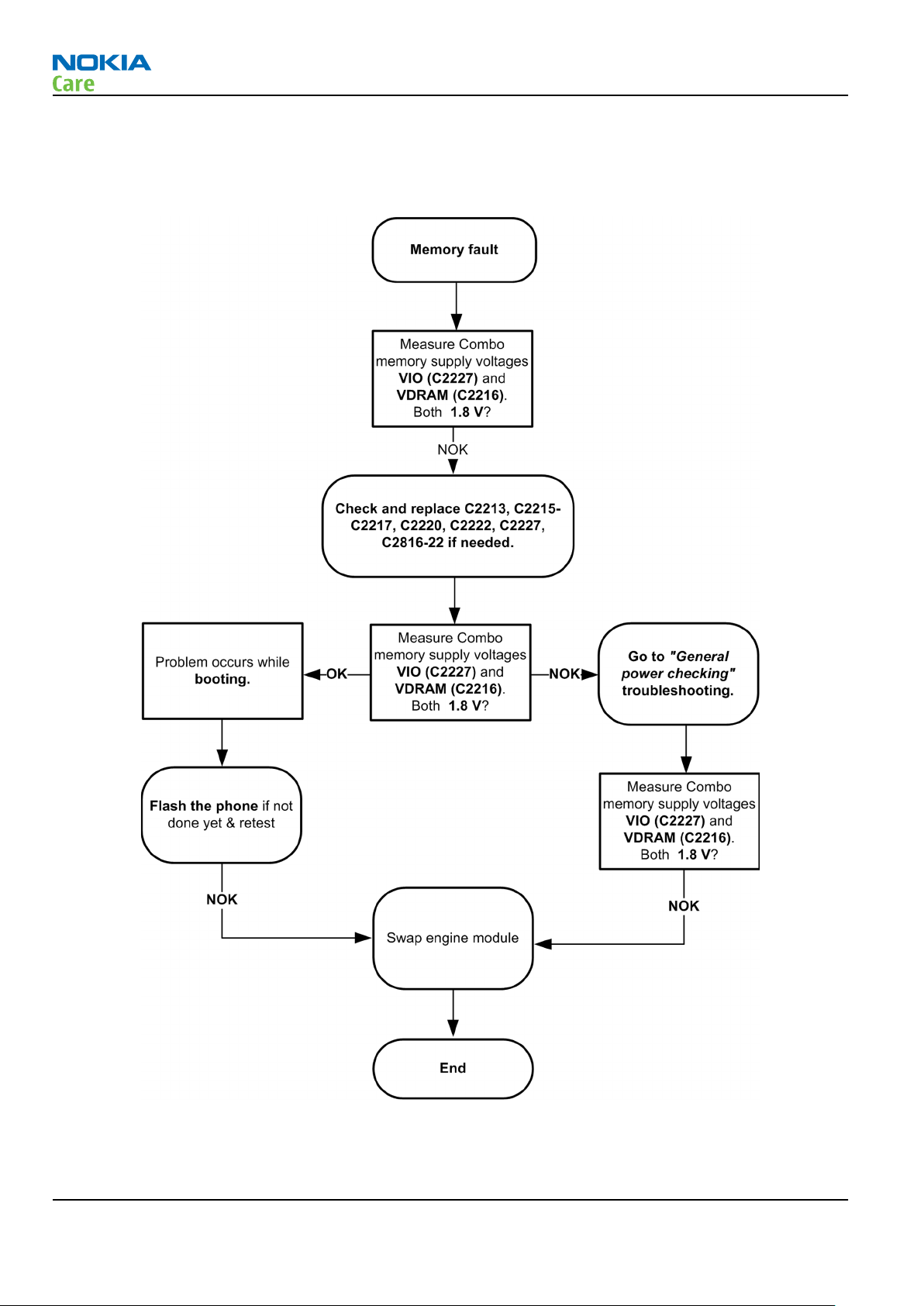

Combo memory troubleshooting ................................................................................................................ 3–14

USB interface troubleshooting..................................................................................................................... 3–14

SIM card troubleshooting ............................................................................................................................. 3–16

User interface troubleshooting......................................................................................................................... 3–18

Keypad troubleshooting............................................................................................................................... 3–18

Display module troubleshooting................................................................................................................. 3–20

General instructions for display troubleshooting................................................................................. 3–20

Display troubleshooting .......................................................................................................................... 3–21

Keyboard backlight troubleshooting ..................................................................................................... 3–21

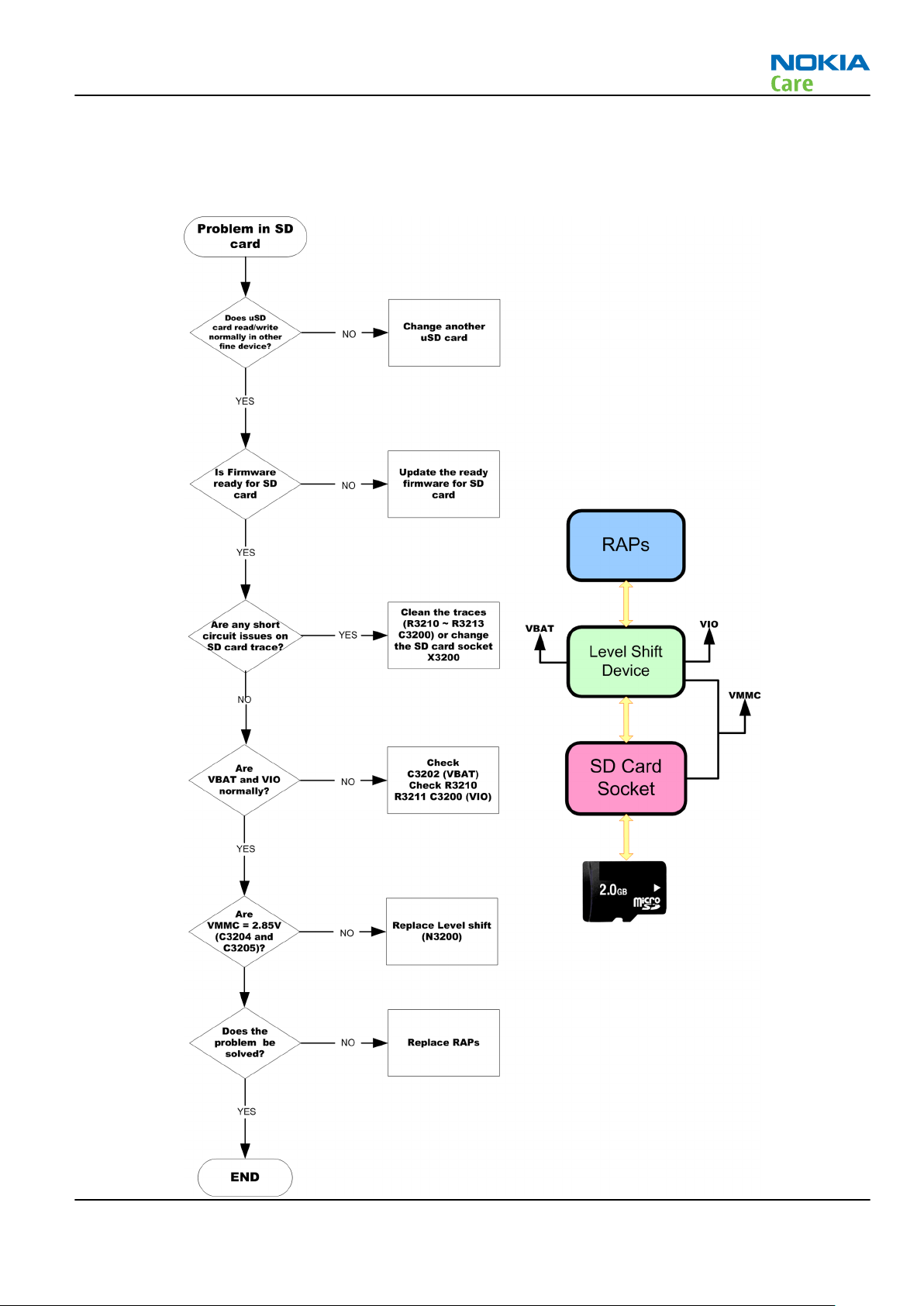

SD card troubleshooting.......................................................................................................................... 3–23

Camera troubleshooting.................................................................................................................................... 3–24

Camera troubleshooting............................................................................................................................... 3–24

Audio troubleshooting....................................................................................................................................... 3–26

Audio troubleshooting test instructions..................................................................................................... 3–26

Internal earpiece troubleshooting .............................................................................................................. 3–30

Internal microphone troubleshooting........................................................................................................ 3–30

Internal handsfree (IHF) troubleshooting................................................................................................... 3–31

External earpiece troubleshooting.............................................................................................................. 3–32

External microphone troubleshooting........................................................................................................ 3–32

Vibra troubleshooting................................................................................................................................... 3–33

Baseband manual tuning guide........................................................................................................................ 3–34

Certificate restoring for BB5 products......................................................................................................... 3–34

Energy management calibration................................................................................................................. 3–38

List of Tables

Table 4 Display module troubleshooting cases............................................................................................... 3–20

Table 5 Pixel defects .......................................................................................................................................... 3–20

Table 6 Calibration value limits ........................................................................................................................ 3–38

List of Figures

Figure 7 Flashing pic 1. Take single trig measurement for the rise of the BSI signal................................. 3–12

Figure 8 Flashing pic 2. Take single trig measurement for the rise of the BSI signal................................. 3–13

Figure 9 Single-ended output waveform of the Ext_in_HP_out measurement when earpiece is

connected. ................................................................................................................................................ 3–28

Figure 10 Differential output waveform of the Ext_in_IHF_out out loop measurement when speaker is

connected. ................................................................................................................................................ 3–28

Figure 11 Single-ended output waveform of the HP_in_Ext_out loop when microphone is connected....

3–29

Issue 1 COMPANY CONFIDENTIAL Page 3 – 3

RM-635

BB Troubleshooting and Manual Tuning Guide

(This page left intentionally blank.)

Page 3 – 4 COMPANY CONFIDENTIAL Issue 1

RM-635 BB Troubleshooting and Manual Tuning Guide

Baseband self tests in Phoenix

Context

Always start the troubleshooting procedure by running the Phoenix self tests. If a test fails, please follow the diagram below.

If the phone is dead and you cannot perform the self tests, go to

Dead or jammed device troubleshooting.

Issue 1 COMPANY CONFIDENTIAL Page 3 – 5

Troubleshooting flow

RM-635

BB Troubleshooting and Manual Tuning Guide

Page 3 – 6 COMPANY CONFIDENTIAL Issue 1

RM-635 BB Troubleshooting and Manual Tuning Guide

Power and charging troubleshooting

Dead or jammed device troubleshooting

Troubleshooting flow

Issue 1 COMPANY CONFIDENTIAL Page 3 – 7

Troubleshooting flow

RM-635

BB Troubleshooting and Manual Tuning Guide

Page 3 – 8 COMPANY CONFIDENTIAL Issue 1

RM-635 BB Troubleshooting and Manual Tuning Guide

General power checking

Check the following voltages:

Signal name Regulator Sleep Idle Nominal

voltage

VIO AVILMA ON ON 1.82 Memory, I/Os,

VSIM1 AVILM ON ON 1.8/3.0 SIM card VDRAM AVILMA ON ON 1.82 SDRAM VAUX AVILMA OFF OFF 2.8 Camera,

VR1 AVILMA OFF ON 2.5 Crystal

VRFC AVILMA OFF ON 1.8 RAPs

VRCP1 AVILMA 4.75 To RF parts RF active VREF AVILMA ON ON 1.35 RF reference VCORE BETTY ON ON 1.05

1.25

1.35

1.40

Main user Notes

Display

oscillators, RFIC

converters

Combo memory

VOUT BETTY OFF OFF 2.5 Accessory

connected

Charging troubleshooting

Troubleshooting flow

Issue 1 COMPANY CONFIDENTIAL Page 3 – 9

RM-635

BB Troubleshooting and Manual Tuning Guide

Page 3 – 10 COMPANY CONFIDENTIAL Issue 1

RM-635 BB Troubleshooting and Manual Tuning Guide

Interface troubleshooting

Flash programming fault troubleshooting

Part 1

Issue 1 COMPANY CONFIDENTIAL Page 3 – 11

Part 2

RM-635

BB Troubleshooting and Manual Tuning Guide

Figure 7 Flashing pic 1. Take single trig measurement for the rise of the BSI signal.

Page 3 – 12 COMPANY CONFIDENTIAL Issue 1

RM-635 BB Troubleshooting and Manual Tuning Guide

Figure 8 Flashing pic 2. Take single trig measurement for the rise of the BSI signal.

Issue 1 COMPANY CONFIDENTIAL Page 3 – 13

Combo memory troubleshooting

Troubleshooting flow

RM-635

BB Troubleshooting and Manual Tuning Guide

Page 3 – 14 COMPANY CONFIDENTIAL Issue 1

RM-635 BB Troubleshooting and Manual Tuning Guide

USB interface troubleshooting

Troubleshooting flow

Issue 1 COMPANY CONFIDENTIAL Page 3 – 15

SIM card troubleshooting

Troubleshooting flow

RM-635

BB Troubleshooting and Manual Tuning Guide

Page 3 – 16 COMPANY CONFIDENTIAL Issue 1

RM-635 BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 – 17

RM-635

BB Troubleshooting and Manual Tuning Guide

User interface troubleshooting

Keypad troubleshooting

Context

There are two possible failure modes in the keyboard module:

•

One or more keys are stuck, so that the key does not react when a keydome is pressed. This kind of failure is caused by mechanical reasons (dirt, rust, mechanical damage, etc.)

•

Malfunction of several keys at the same time; this happens when one or more rows or columns in the key matrix are failing (shortcut or open connection).

If the failure mode is not clear, start with the Keyboard test in Phoenix.

Page 3 – 18 COMPANY CONFIDENTIAL Issue 1

RM-635 BB Troubleshooting and Manual Tuning Guide

Troubleshooting flow

Issue 1 COMPANY CONFIDENTIAL Page 3 – 19

RM-635

BB Troubleshooting and Manual Tuning Guide

Display module troubleshooting

General instructions for display troubleshooting

Context

•

The display is in a normal mode when the phone is in active use.

•

Display is in a partial idle mode when the phone is in the screen saver mode.

•

The operating modes of the display can be controlled with the help of

Table 4 Display module troubleshooting cases

Display blank There is no image on the display. The display looks

the same when the phone is on as it does when the phone is off. The backlight can be on in some cases.

Image on the display not correct Image on the display can be corrupted or a part of

the image can be missing. If a part of the image is missing, change the display module. If the image is otherwise corrupted, follow the appropriate troubleshooting diagram.

Phoenix

Visual defects (pixel) Pixel defects can be checked by controlling the

display with Phoenix. Use both colours, black and white, on a full screen.

The display may have some random pixel defects that are acceptable for this type of display. The criteria when pixel defects are regarded as a display failure, resulting in a replacement of the display, are presented the following table.

Table 5 Pixel defects

Item White dot defect Black dot

defect

1 Defect

counts

2 Combine

d defect counts

R G B White

Dot

Total 1 1 1 1 Not allowed.

Two single dot defects that are within 5 mm of each other should be interpreted as combined dot defect.

1 1

Total

Page 3 – 20 COMPANY CONFIDENTIAL Issue 1

RM-635 BB Troubleshooting and Manual Tuning Guide

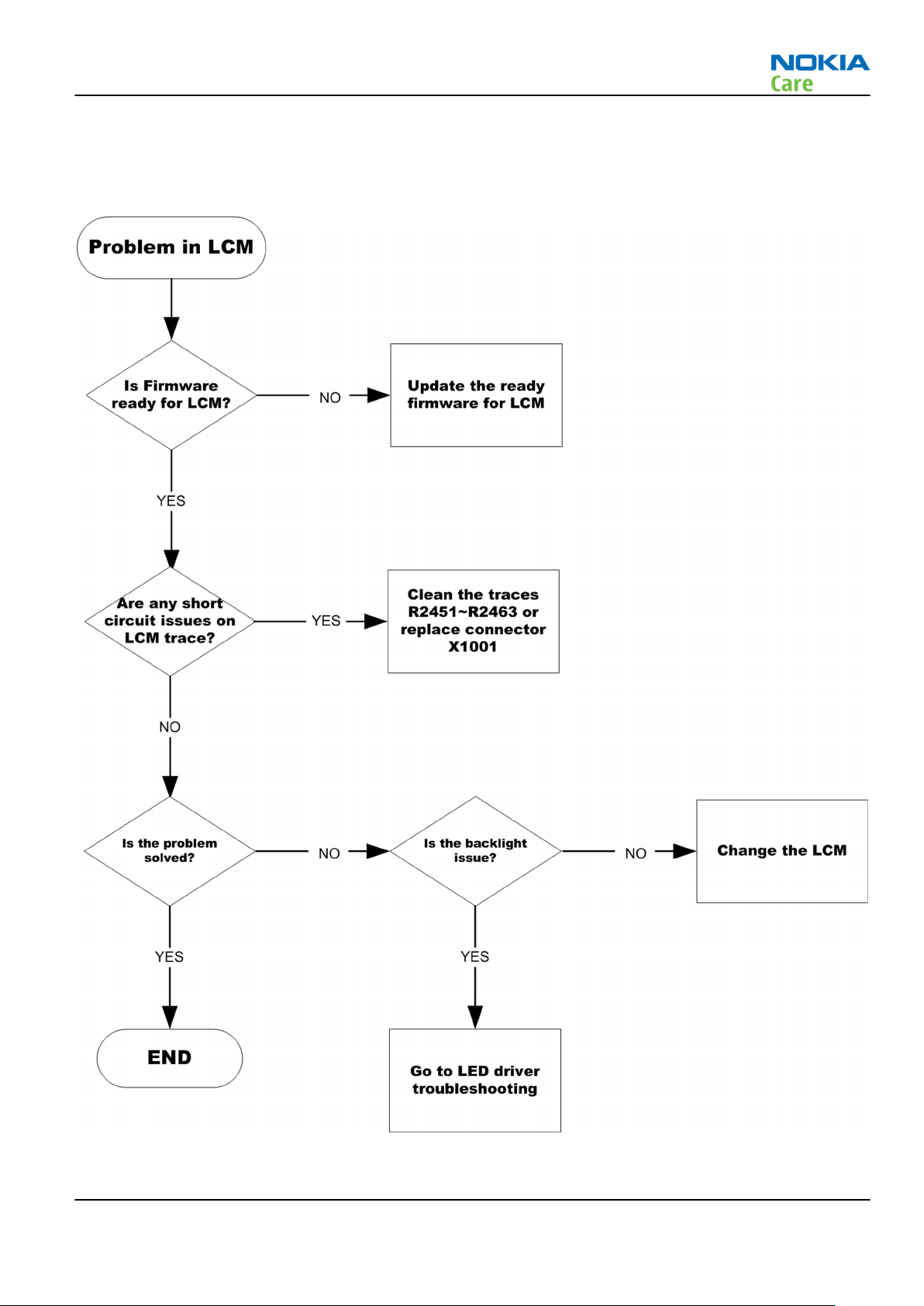

Display troubleshooting

Troubleshooting flow

Issue 1 COMPANY CONFIDENTIAL Page 3 – 21

Keyboard backlight troubleshooting

Troubleshooting flow

RM-635

BB Troubleshooting and Manual Tuning Guide

Page 3 – 22 COMPANY CONFIDENTIAL Issue 1

RM-635 BB Troubleshooting and Manual Tuning Guide

SD card troubleshooting

Troubleshooting flow

Issue 1 COMPANY CONFIDENTIAL Page 3 – 23

Camera troubleshooting

Troubleshooting flow

RM-635

BB Troubleshooting and Manual Tuning Guide

Page 3 – 24 COMPANY CONFIDENTIAL Issue 1

RM-635 BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 – 25

RM-635

BB Troubleshooting and Manual Tuning Guide

Audio troubleshooting

Audio troubleshooting test instructions

Differential external earpiece and internal earpiece outputs can be measured either with a single-ended or a differential probe.

When measuring with a single-ended probe each output is measured against the ground. Internal handsfree output is measured using a current probe, if a special low-pass filter designed for

measuring a digital amplifier is not available. Note also that when using a current probe, the input signal frequency must be set to 2kHz.

The input signal for each loop test can be either single-ended or differential.

Required equipment

The following equipment is needed for the tests:

•

Oscilloscope

•

Function generator (sine waveform)

•

'Active speaker' or 'speaker and power amplifier'

•

Sound level meter

•

Current probe (Internal handsfree DPMA output measurement)

•

Phoenix service software

•

Battery voltage 3.7V

Test procedure

Audio can be tested using the Phoenix audio routings option. Three different audio loop paths can be activated:

•

External microphone to Internal earpiece

•

External microphone to Internal handsfree speaker

•

Internal microphone to External earpiece

Each audio loop sets routing from the specified input to the specified output enabling a quick in-out test. Loop path gains are fixed and they cannot be changed using Phoenix. Correct pins and signals for each test are presented in the following table.

Phoenix audio loop tests and test results

The results presented in the table apply when no accessory is connected and battery voltage is set to 3.7V. Earpiece, internal microphone and speaker are in place during measurement. Applying a headset accessory

during measurement causes a significant drop in measured quantities. The gain values presented in the table apply for a differential output vs. single-ended/differential input.

Page 3 – 26 COMPANY CONFIDENTIAL Issue 1

RM-635 BB Troubleshooting and Manual Tuning Guide

Loop test Input

External Mic to External Earpiece

External Mic to Internal Earpiece

terminal

XMICP and GND

XMICN and GND

XMICP and GND

Output

terminal

HSEAR R P, HSEAR R N and GND

HSEAR P, HSEAR N and GND

HSEAR R P, HSEAR R N and GND

HSEAR P, HSEAR N and GND

EarP and GND

EarN and GND

Path

gain [dB]

(fixed)

-2.9 1000 720 1.2 NA

-4.5 1000 600 1.2 NA

Input

voltage

[mVp-p]

Differential

output

voltage

[mVp-p]

Output

DC level

[V]

Output

current

[mA]

External Mic to Internal handsfree

Internal Mic to External Earpiece

XMICN and GND

XMICP and GND

XMICN and GND

B2150 (OUT/GND)

EarP and GND

EarN and GND

B2152 pads -5 1000 560 0 25mA

(calc.)

B2152 pads

HSEAR R P, HSEAR R N and GND

HSEAR P, HSEAR N and GND

HSEAR R P, HSEAR R N and GND

HSEAR P, HSEAR N and GND

22.7 100 1360 1.2 NA

Issue 1 COMPANY CONFIDENTIAL Page 3 – 27

Measurement data

RM-635

BB Troubleshooting and Manual Tuning Guide

Figure 9 Single-ended output waveform of the Ext_in_HP_out measurement when earpiece is connected.

If a special low-pass filter designed for measuring digital amplifiers is unavailable, the measurement must be performed with a current probe and the input signal frequency must be 2kHz.

Figure 10 Differential output waveform of the Ext_in_IHF_out out loop measurement when speaker is connected.

Page 3 – 28 COMPANY CONFIDENTIAL Issue 1

RM-635 BB Troubleshooting and Manual Tuning Guide

Figure 11 Single-ended output waveform of the HP_in_Ext_out loop when microphone is connected.

Issue 1 COMPANY CONFIDENTIAL Page 3 – 29

Internal earpiece troubleshooting

Troubleshooting flow

RM-635

BB Troubleshooting and Manual Tuning Guide

Page 3 – 30 COMPANY CONFIDENTIAL Issue 1

RM-635 BB Troubleshooting and Manual Tuning Guide

Internal microphone troubleshooting

Troubleshooting flow

Internal handsfree (IHF) troubleshooting

Troubleshooting flow

Issue 1 COMPANY CONFIDENTIAL Page 3 – 31

External earpiece troubleshooting

Troubleshooting flow

RM-635

BB Troubleshooting and Manual Tuning Guide

External microphone troubleshooting

Troubleshooting flow

Page 3 – 32 COMPANY CONFIDENTIAL Issue 1

RM-635 BB Troubleshooting and Manual Tuning Guide

Vibra troubleshooting

Troubleshooting flow

Issue 1 COMPANY CONFIDENTIAL Page 3 – 33

BB Troubleshooting and Manual Tuning Guide

Baseband manual tuning guide

Certificate restoring for BB5 products

Context

This procedure is performed when the device certificate is corrupted for some reason. All tunings (RF & Baseband, UI) must be done after performing the certificate restoring procedure. The procedure for certificate restoring is the following:

•

Flash the phone with the latest available software using FPS-21.

Note: USB flashing does not work for a dead BB5 phone.

•

Create a request file.

•

Send the file to Nokia by e-mail. Use the following addresses depending on your location:

•

APAC: sydney.service@nokia.com

•

CHINA: repair.ams@nokia.com

•

E&A: salo.repair@nokia.com

•

AMERICAS: fls1.usa@nokia.com

•

When you receive a reply from Nokia, carry out certificate restoring.

•

Tune the phone completely.

Note: SX-4 smart card is needed.

•

If the phone resets after certificate restoring, reflash the phone again.

Required equipment and setup:

•

Phoenix

•

The latest phone model specific

•

PKD-1 dongle

•

SX-4 smart card (Enables BB5 testing and tuning features)

•

External smart card reader

•

Activated FPS-21 flash prommer

•

Flash update package 09.23.12.4 or newer for FPS-21 flash prommer

•

CU-4 control unit

•

USB cable from PC USB Port to CU-4 control unit

•

Phone model specific adapter for CU-4 control unit

•

PCS-1 cable to power CU-4 from external power supply

•

XCS-4 modular cable between flash prommer and CU-4.

service software v 2009.20 or newer

Phoenix

Note: CU-4 must be supplied with +12 V from an external power supply in all steps of certificate

restoring.

data package

RM-635

Steps

1. Program the phone software. i Start ii Update the phone MCU software to the latest available version.

Page 3 – 34 COMPANY CONFIDENTIAL Issue 1

Phoenix

If the new flash is empty and the phone cannot communicate with

and login. Make sure the connection has been managed correctly for FPS-21.

Phoenix

, reflash the phone.

RM-635 BB Troubleshooting and Manual Tuning Guide

iii Choose the product manually from File → Open Product , and click OK.

Wait for the phone type designator (e.g. “RM-381” ) to be displayed in the status bar.

iv Go to Flashing → Firmware update and wait until

following picture.

v To continue, click Refurbish.

Progress bars and messages on the screen show actions during phone programming, please wait.

Phoenix

reads the product data as shown in the

Programming is completed when Flashing Completed message is displayed. The product type designator and MCU SW version are displayed in the status bar.

vi Close the

2. Create a

For this procedure, you must supply +12 V to CU-4 from an external power supply. i To connect the phone with ii Choose Tools → Certificate Restore .

SW Update

Request

file.

window and then choose File → Close Product .

Phoenix

, choose File → Scan Product .

Issue 1 COMPANY CONFIDENTIAL Page 3 – 35

BB Troubleshooting and Manual Tuning Guide

iii To choose a location for the request file, click Browse.

iv Name the file so that you can easily identify it, and click Open.

RM-635

The name of the file and its location are shown.

v To create the vi When the file for certificate restore has been created, send it to Nokia as an e-mail attachment.

3. Restore certificate. For this procedure, you must supply +12 V to CU-4 from an external power supply. i Save the reply file sent by Nokia to your computer. ii Start iii Choose File → Scan Product .

Phoenix

Request

service software.

file, click Start.

Page 3 – 36 COMPANY CONFIDENTIAL Issue 1

RM-635 BB Troubleshooting and Manual Tuning Guide

iv From the Tools menu, choose Certificate Restore and select Process a response file in the

pane.

v To choose the location where response file is saved, click Browse. vi Click Open.

Action

The name of the file and the path where it is located are shown.

vii To write the file to phone, click Start.

Next actions

After a successful rewrite, you must retune the phone completely by using

Important: Perform all tunings: RF, BB, and UI.

Issue 1 COMPANY CONFIDENTIAL Page 3 – 37

Phoenix

tuning functions.

RM-635

BB Troubleshooting and Manual Tuning Guide

Energy management calibration

Prerequisites

Energy Management (EM) calibration is performed to calibrate the setting (gain and offset) of AD converters in several channels (that is, battery voltage, BSI, battery current) to get an accurate AD conversion result.

Hardware setup:

•

An external power supply is needed.

•

Supply 12V DC from an external power supply to CU-4 to power up the phone.

•

The phone must be connected to a CU-4 control unit with a product-specific flash adapter.

Steps

1. Place the phone to the docking station adapter (CU-4 is connected to the adapter).

2. Start

3. Choose File → Scan Product.

4. Choose Tuning → Energy Management Calibration.

5. To show the current values in the phone memory, click Read, and check that communication between

6. Check that the CU-4 used check box is checked.

7. Select the item(s) to be calibrated.

8. Click Calibrate.

Phoenix

the phone and CU-4 works.

Note: ADC calibration has to be performed before other item(s). However, if all calibrations are

selected at the same time, there is no need to perform the ADC calibration first.

The calibration of the selected item(s) is carried out automatically. The candidates for the new calibration values are shown in the

calibration values seem to be acceptable (please refer to the following "Calibration value limits" table), click Write to store the new calibration values to the phone permanent memory.

service software.

Calculated values

column. If the new

Table 6 Calibration value limits

Parameter Min. Max.

ADC Offset -20 20 ADC Gain 12000 14000 BSI Gain 1100 1300 VBAT Offset 2400 2650 VBAT Gain 19000 23000 VCHAR Gain N/A N/A IBAT (ICal) Gain 7750 12250

9. Click Read, and confirm that the new calibration values are stored in the phone memory correctly. If the

values are not stored to the phone memory, click Write and/or repeat the procedure again.

10. To end the procedure, close the

Page 3 – 38 COMPANY CONFIDENTIAL Issue 1

Energy Management Calibration

window.

Nokia Customer Care

4 — RF troubleshooting

Issue 1 COMPANY CONFIDENTIAL Page 4 – 1

RM-635

RF troubleshooting

(This page left intentionally blank.)

Page 4 – 2 COMPANY CONFIDENTIAL Issue 1

RM-635 RF troubleshooting

Table of Contents

General RF troubleshooting ................................................................................................................................. 4–5

Introduction to RF troubleshooting ............................................................................................................... 4–5

RF key components .......................................................................................................................................... 4–6

Auto tuning for RF ................................................................................................................................................. 4–6

General voltage checking ..................................................................................................................................... 4–7

Selftest troubleshooting....................................................................................................................................... 4–7

RF selftests ....................................................................................................................................................... 4–7

Fatal selftests troubleshooting....................................................................................................................... 4–9

Receiver troubleshooting .................................................................................................................................. 4–13

Introduction to receiver (RX) troubleshooting........................................................................................... 4–13

GSM RX chain activation for manual measurements/GSM RSSI measurement ....................................... 4–13

Transmitter troubleshooting ............................................................................................................................ 4–14

General instructions for transmitter (TX) troubleshooting....................................................................... 4–14

GSM transmitter troubleshooting................................................................................................................ 4–14

Bluetooth and FM radio troubleshooting ........................................................................................................ 4–17

Bluetooth troubleshooting .......................................................................................................................... 4–17

FM radio troubleshooting............................................................................................................................. 4–18

List of Figures

Figure 12 RF key components .............................................................................................................................. 4–6

Figure 13 Auto tuning concept with CMU200..................................................................................................... 4–6

Figure 14 General voltage checking test points (main board, both sides) ..................................................... 4–7

Figure 15 Testpoints used after fatal self tests.................................................................................................. 4–9

Figure 16 Settings: Time 1ns/d + 0.1Vpp/d ..................................................................................................... 4–10

Figure 17 Settings: Time 1ns/d + 0.3Vpp/d ..................................................................................................... 4–11

Figure 18 Frequency ~ 100kHz.......................................................................................................................... 4–12

Figure 19 Typical readings ................................................................................................................................ 4–16

Figure 20 Troubleshooting diagram: Bluetooth ............................................................................................. 4–17

Issue 1 COMPANY CONFIDENTIAL Page 4 – 3

RM-635

RF troubleshooting

(This page left intentionally blank.)

Page 4 – 4 COMPANY CONFIDENTIAL Issue 1

RM-635 RF troubleshooting

General RF troubleshooting

Introduction to RF troubleshooting

Troubleshooting process

RF troubleshooting is performed in this order: 1 Autotuning 2 General power checking 3 Selftests 4 RX and TX troubleshootings

Most RF semiconductors are static discharge sensitive

ESD protection must be applied during repair (ground straps and ESD soldering irons).

Pre-baking

These parts are moisture sensitive and must be pre-baked prior to soldering:

•

RFIC N1001

•

Front End Module (FEM) N1002

Discrete components

In addition to the two key-components, there are few number of discrete components (capacitors and inductors) for which troubleshooting is done mainly by

Capacitors: check for short circuits.

Note: In-circuit measurements should be evaluated carefully

visual inspection

Measuring equipment

All measurements should be done using:

•

An oscilloscope for low frequency and DC measurements. Recommended probe: 10:1, 10Mohm//8pF.

•

A radio communication tester including RF generator and spectrum analyser, for example Rohde & Schwarz CMU200. (Alternatively a spectrum analyser and an RF generator can be used. Some tests in this guide are not possible to perform if this solution is chosen).

Note: All measurements with an RF coupler should be performed in an RF-shielded environment

because nearby base stations can disturb sensitive receiver measurements. If there is no possibility to use RF shielded environment, testing at frequencies of nearby base stations should be avoided.

Level of repair

The scope of this guideline is to enable repairs at key-component level. Please refer to the troubleshooting instructions for further information.

Issue 1 COMPANY CONFIDENTIAL Page 4 – 5

RF key components

Auto tuning for RF

RM-635

RF troubleshooting

Figure 12 RF key components

This phone can be tuned automatically. Autotune is designed to align the phone's RF part easier and faster. It performs calibrations, tunings and

measurements of RX and TX. The results are displayed and logged in a result file, if initiated.

Hardware set up

Hardware requirements for auto tuning:

•

PC (Windows 2000/XP) with GPIB card

•

Power supply

•

Product specific module jig

•

Cables: XRS-6 (RF cable), USB cable, GBIP cable and DAU-9S

•

Signal analyser (TX), signal generator (RX) and RF-splitter or one device including all.

Figure 13 Auto tuning concept with CMU200

Phoenix preparations

Install the phone specific data package, for example specific settings.

Page 4 – 6 COMPANY CONFIDENTIAL Issue 1

RM-495_dp_1.78_sw_sh3.26.exe

. This defines phone

RM-635 RF troubleshooting

Auto tuning procedure

1 Make sure the phone (in the jig) is connected to the equipment. Else, some menus will not be shown in

Phoenix. 2 To go to autotune, select

Tuning (Alt-U)

Auto-Tune (Alt-A)

from the menu.

3 Start autotuning, clicking the

Tune

button.

General voltage checking

Steps

1. Set up the main board in the module jig. The phone should be in local mode.

2. Check the following:

# Signal name Test point Voltage (all bands)

1 Vbat at N1002 (FEM) J2903 3.0-4.7 V 2 Vbat at N1001 (Transceiver) C1002 3.0-4.7 V 3 VCCXO supply C2213 2.4-2.6 V

Figure 14 General voltage checking test points (main board, both sides)

Selftest troubleshooting

RF selftests

Prerequisites

Do a hardware initialization before you start the selftests: Testing → GSM → RF Controls → RX and then press Stop.

Issue 1 COMPANY CONFIDENTIAL Page 4 – 7

RF troubleshooting

Context

Note: The RF connector should be terminated to 50 Ohms or connected to the antenna. Check this

carefully before performing the self tests.

Note: The phone should be in local mode when performing Self tests

Steps

1. Check the tests shown in the figure below: Testing → Self Tests , and press the Start button.

RM-635

Page 4 – 8 COMPANY CONFIDENTIAL Issue 1

RM-635 RF troubleshooting

2. A test is either Passed or Fatal. If Fatal continue the selftest troubleshooting. If Passed continue with the

other RF troubleshootings.

3. If Fatal, press Details to see error codes

Error codes will now show up in the right most column marked

Detailed

Note: The Error Code contains the two first words:

0x00

and

0xC0

Fatal selftests troubleshooting

If a self test is fatal, check the Details → Error code and follow the instructions below.

Note: If ST_CDSP_RF_BB_IF_TEST is fatal, the other self tests will also be fatal. Always start

troubleshooting ST_CDSP_RF_BB_IF_TEST.

Figure 15 Testpoints used after fatal self tests

Issue 1 COMPANY CONFIDENTIAL Page 4 – 9

RM-635

RF troubleshooting

ST_CDSP_RF_BB_IF_TEST is fatal

This test is checking the communication between baseband and RF. It will show in what part the problem is located.

Error code Test Action

ST_RFBUS_WRITE_READ_FAIL (0x00, 0x40) or combination (0x00, 0xC0)

In Phoenix Testing → GSM → RF Controls →

Probe: 1 J2805 SDATA (Ch1) [1] 2 J2806 ENX (Ch2) [2] 3 J2804 SCLK (Ch3) [3] The result should look like this:

All OK: replace N1001 NOK : go to BB

troubleshooting

Figure 16 Settings: Time 1ns/d + 0.1Vpp/d

Page 4 – 10 COMPANY CONFIDENTIAL Issue 1

RM-635 RF troubleshooting

Error code Test Action

ST_TXFIFO_WRITE_READ_FAIL (0x00, 0x80)

In Phoenix: Testing → GSM → RF Controls →

Probe: 1 J2210 TXBB_CLK (Ch1) [4] 2 J2212 TXBB_DATA (Ch2) [5] 3 J2902 STROBE (Ch3) [6] The result should look like this:

All OK: replace N1001 NOK : go to BB

troubleshooting

Figure 17 Settings: Time 1ns/d + 0.3Vpp/d

ST_CDSP_GSM_TX_POWER_TEST is fatal

This test is checking power amplifier functionality.

Error code Test Action

ST_GSM1800_TX_PWR_LOW (0x00, 0x02)

ST_GSM850_TX_PWR_LOW (0x00, 0x08)

Or combination (0x00, 0x0A) ST_TXDAC_FAIL (0x00, 0x10)

Or combination (0x00, 0x1A), (0x00, 0x12), (0x00, 0x18)

- Replace N1002

- Replace N1001

ST_CDSP_TX_PLL_PHASE_LOCK_TEST is fatal

This test is checking if phase lock loop is working.

Error code Test Action

ST_TX_PLL_FAIL (0x00, 0x08) Replace N1001

Issue 1 COMPANY CONFIDENTIAL Page 4 – 11

ST_CDSP_RX_IQ_LOOP_BACK_TEST is fatal

This test is checking the analogue RX communication between baseband and RF.

Error code Test Action

RM-635

RF troubleshooting

ST_FIMRCAL_FAIL (0x00, 0x40) or combination (0x00, 0x50) and (0x00, 0x60)

ST_IQ_POWER_TOO_SMALL (0x00, 0x10)

ST_IQ_POWER_TOO_HIGH (0x00, 0x20)

In Phoenix: Testing → GSM → RF Controls →

Apply -80dBm signal at 948.06771 MHz Probe during RX operation: 1 J2810 RXIP [7] 2 J2811 RXIN [8] 3 J2812 RXQP (Ch1) [9] 4 J2813 RXQN [10] 5 J2814 ADC_ref [11] Check voltage level between 0.7-0.8V The result should look like this:

Replace N1001

All OK : go to BB troubleshooting

NOK: replace N1001

Figure 18 Frequency ~ 100kHz

ST_CDSP_RF_SUPPLY_TEST is fatal

This test is checking internal voltage regulators.

Page 4 – 12 COMPANY CONFIDENTIAL Issue 1

RM-635 RF troubleshooting

Error code Test Action

ST_VREG_LDO2 (0x20, 0x00) ST_VREG_VCCXO (0x80, 0x00) Or combination (0xA0, 0x00)

Check 1 VCCXO value at testpoint C2213 = 2 .4 – 2.6 V

[12]

2 2. VBat = 3.0 – 4.7 V

All OK: replace N1001 NOK : go to power

troubleshooting

Receiver troubleshooting

Introduction to receiver (RX) troubleshooting

RX can be tested by making a phone call or in local mode. For the local mode testing, use Phoenix service software.

The main RX troubleshooting measurement is RSSI reading. This test measures the signal strength of the received signal. For GSM RSSI measurements, see

RSSI measurement

GSM RX chain activation for manual measurements/GSM

GSM RX chain activation for manual measurements/GSM RSSI measurement

Prerequisites

Make the following settings in Phoenix service software and in the signal generator:

Setting GSM850 GSM900 GSM1800 GSM1900

Phoenix Channel 190 37 700 661 Signal generator

to antenna connector

881.66771 MHz (67.71kHz offset) at -60dBm

942.46771 MHz (67.71kHz offset) at -60dBm

1842.86771 MHz (67.71kHz offset) at -60dBm

Steps

1. Set the phone to local mode.

2. Activate RSSI reading in Phoenix ( Testing → GSM → RSSI reading )

1960.06771 MHz (67.71kHz offset) at -60dBm

Issue 1 COMPANY CONFIDENTIAL Page 4 – 13

RF troubleshooting

Results

With the losses) +/- 5 dB.

When varying the level in the range -30 to -102 dBm the reading should then follow within +/-5 dB.

Measuring mode

set to

Sum vector

, the reading should reflect the level of the signal generator (-

RM-635

Now select the measuring mode to the signal generator level.

Q branch

and

I Branch

. In each case the reading should be 3 dB below

Next actions

RSSI-reading AND TX troubleshooting is failing: replace N1002. TX is OK and RX is failing: replace N1001.

Transmitter troubleshooting

General instructions for transmitter (TX) troubleshooting

Please note the following before performing transmitter tests:

•

TX troubleshooting requires TX operation.

•

Do not transmit on frequencies that are in use!

•

The transmitter can be controlled in local mode for diagnostic purposes.

•

The most useful Phoenix tool for GSM transmitter testing is “RF Controls”.

•

Remember that re-tuning is not a fix! Phones are tuned correctly in production

Note: Never activate the GSM transmitter without a proper antenna load. Always connect a 50 Ω

load to the RF connector (antenna, RF-measurement equipment or at least a 2 W dummy load); otherwise the power amplifier may be damaged.

GSM transmitter troubleshooting

Steps

1. Set the phone to local mode.

2. Activate RF controls in Phoenix ( Testing → GSM → Rf Controls ).

Make settings as shown in the picture:

Page 4 – 14 COMPANY CONFIDENTIAL Issue 1

RM-635 RF troubleshooting

3. Check the basic TX parameters (i.e. power, phase error, modulation and switching spectrum), using a

communication analyser (for example CMU200).

Issue 1 COMPANY CONFIDENTIAL Page 4 – 15

RM-635

RF troubleshooting

Figure 19 Typical readings

4. Change power level (RF controls) and make sure the power reading follows accordingly.

Page 4 – 16 COMPANY CONFIDENTIAL Issue 1

RM-635 RF troubleshooting

Next actions

TX is failing and RX is OK: replace N1002 If you want to troubleshoot the other bands, change band with RF controls and set the communication

analyzer accordingly.

Bluetooth and FM radio troubleshooting

Bluetooth troubleshooting

Troubleshooting flow

Figure 20 Troubleshooting diagram: Bluetooth

Issue 1 COMPANY CONFIDENTIAL Page 4 – 17

FM radio troubleshooting

Troubleshooting flow

RM-635

RF troubleshooting

Page 4 – 18 COMPANY CONFIDENTIAL Issue 1

Nokia Customer Care

5 — System Module

Issue 1 COMPANY CONFIDENTIAL Page 5 – 1

RM-635

System Module

(This page left intentionally blank.)

Page 5 – 2 COMPANY CONFIDENTIAL Issue 1

RM-635 System Module

Table of Contents

Introduction........................................................................................................................................................... 5–5

Phone description ............................................................................................................................................ 5–5

Energy management............................................................................................................................................. 5–8

Battery and charging ....................................................................................................................................... 5–8

Normal and extreme voltages ........................................................................................................................ 5–9

Power key and system power-up................................................................................................................ 5–10

Modes of operation....................................................................................................................................... 5–10

USB, SIM, µSD....................................................................................................................................................... 5–10

Micro USB interface ....................................................................................................................................... 5–10

SIM interface .................................................................................................................................................. 5–11

µSD card interface ......................................................................................................................................... 5–11

User interface...................................................................................................................................................... 5–12

Display module.............................................................................................................................................. 5–12

Keyboard ........................................................................................................................................................ 5–12

Backlight and illumination........................................................................................................................... 5–12

Audio concept..................................................................................................................................................... 5–12

AV connector....................................................................................................................................................... 5–13

RF description ..................................................................................................................................................... 5–14

Receiver (RX).................................................................................................................................................. 5–14

Transmitter (TX) ............................................................................................................................................ 5–15

Bluetooth ....................................................................................................................................................... 5–15

Technical specifications..................................................................................................................................... 5–16

Main RF characteristics for GSM band phone.............................................................................................. 5–16

Environmental conditions ............................................................................................................................ 5–17

List of Tables

Table 7 Nominal voltages..................................................................................................................................... 5–9

Table 8 Key signal matrix .................................................................................................................................. 5–12

Table 9 AV connector pins ................................................................................................................................. 5–14

List of Figures

Figure 21 Battery pin order.................................................................................................................................. 5–8

Figure 22 Battery connector................................................................................................................................. 5–9

Figure 23 SIM interface ...................................................................................................................................... 5–11

Figure 24 Audio block diagram......................................................................................................................... 5–13

Figure 25 Bluetooth interface........................................................................................................................... 5–16

Issue 1 COMPANY CONFIDENTIAL Page 5 – 3

RM-635

System Module

(This page left intentionally blank.)

Page 5 – 4 COMPANY CONFIDENTIAL Issue 1

RM-635 System Module

Introduction

Phone description

RAP is the main digital baseband ASIC in the phone. It contains functionality for GSM EDGE. The hardware accelerator is used as a camera accelerator.

N2200 (AVILMA) is mainly the audio ASIC in the phone and N2300 (BETTY) is basically the energy management controller for the phone.

Key components

Function Description Item ref

Main board 3FH Energy management ASIC AVILMA

BETTY RF ASIC RF IC N1001 Processor RAPS_V3.03-PA D2800 PA GSM Front end module (FEM), quad band N1002 Memory 512 Mbit NOR + 256 Mbit DRAM Combo (Stacked with RAP) D3000 Bluetooth BL6450 N6001 Battery BL-4C 860 mAh Battery connector Lynx interface X2070 µUSB connector For data, support USB full speed AV flex:

N2200 N2300

X2002

Issue 1 COMPANY CONFIDENTIAL Page 5 – 5

Key component placement

RM-635

System Module

Page 5 – 6 COMPANY CONFIDENTIAL Issue 1

RM-635 System Module

System module block diagram

Board and module connections

Issue 1 COMPANY CONFIDENTIAL Page 5 – 7

RM-635

System Module

Energy management

Battery and charging

BL-4C battery

The phone is powered by a 3-pole BL-4C 860 mAh battery. The three poles are named VBAT, BSI and GND where the BSI line is used to recognize the battery capacity. This is done by means of an internal battery pull down resistor.

Figure 21 Battery pin order

Page 5 – 8 COMPANY CONFIDENTIAL Issue 1

Nokia 2690, RM-635 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Amendment Record Sheet

Copyright

Warnings and cautions

For your safety

Care and maintenance

ESD protection

Battery information

Company policy

Nokia 2690 Service Manual Structure

Product selection

Phone features

User interface and software features

Accessories

Technical Specifications

General specifications

Battery endurance

Service devices

Product specific devices

FS-144 Flash adapter

MJ-267 Module jig MJ-267 is meant for component level troubleshooting.

General devices

CU-4 Control unit CU-4 is a general service tool used with a module jig and/or a flash

FLS-5 Flash device FLS-5 is a dongle and flash device incorporated into one package,

FPS-21 Flash prommer

PK-1 Software protection

SB-6 Bluetooth tester The SB-6 test box is a generic device to perform Bluetooth bit error

SPS-2 Soldering paste

SRT-6 Opening tool SRT-6 is used to open phone covers.

SS-108 Peeling tool The peeling tool SS-108 is used to peel off the shielding.

SS-46 Interface adapter SS-46 acts as an interface adapter between the flash adapter and

SS-62 Generic flash adapter

SS-93 Blue stick tool SS-93 is used for general disassembly and assembly tasks.

SX-4 Smart card SX-4 is a BB5 security device used to protect critical features in tuning

Cables

CA-101 Micro USB cable The CA-101 is a USB-to-microUSB data cable that allows connections

CA-89DS Cable Provides VBAT and Flashbus connections to mobile device

DAU-9S MBUS cable The MBUS cable DAU-9S has a modular connector and is used, for

PCS-1 Power cable The PCS-1 power cable (DC) is used with a docking station, a module

XRE-2 Bluetooth cable The bluetooth cable connects the bluetooth connector of the module

Service concepts

POS (Point of Sale) flash concept

BB5 Basic Flash Concept with FS-101

BB5 Basic Flash Concept with SS-62

BB5 Basic RF & BB Tune Concept with FS-101

BB5 Basic RF&BB Tune Concept with MJ-267

Baseband self tests in Phoenix

Power and charging troubleshooting

Dead or jammed device troubleshooting

General power checking

Charging troubleshooting

Interface troubleshooting

Flash programming fault troubleshooting

Combo memory troubleshooting

USB interface troubleshooting

SIM card troubleshooting

User interface troubleshooting

Keypad troubleshooting

Display module troubleshooting

General instructions for display troubleshooting

Display troubleshooting

Keyboard backlight troubleshooting

SD card troubleshooting

Camera troubleshooting

Camera troubleshooting

Audio troubleshooting

Audio troubleshooting test instructions

Internal earpiece troubleshooting

Internal microphone troubleshooting

Internal handsfree (IHF) troubleshooting

External earpiece troubleshooting

External microphone troubleshooting

Vibra troubleshooting

Baseband manual tuning guide

Certificate restoring for BB5 products

Energy management calibration

General RF troubleshooting
