Nissan Z33-D User Manual

Download

2006.5 350Z

OWNER'S MANUAL

(For vehicles equipped with NISSAN Advanced Air Bag System)

For your safety, read carefully and keep in this vehicle.

Foreword

Welcome to the growing family of new NISSAN owners. This vehicle is delivered to you with confidence. It was produced using the latest techniques and strict quality control.

This manual was prepared to help you understand the operation and maintenance of your vehicle so that you may enjoy many miles of driving pleasure. Please read through this manual before operating your vehicle.

A separate Warranty Information Booklet explains details about the warranties covering your vehicle. The NISSAN Service and Maintenance Guide explains details about maintaining and servicing your vehicle. Additionally, a separate Customer Care/Lemon Law Booklet (U.S. only) will explain how to resolve any concerns you may have with your vehicle, as well as clarify your rights under your state’s lemon law.

Your NISSAN dealer knows your vehicle best. When you require any service or have any questions, we will be glad to assist you with the extensive resources available to us.

READ FIRST — THEN DRIVE SAFELY

Before driving your vehicle please read your Owner’s Manual carefully. This will ensure familiarity with controls and maintenance requirements, assisting you in the safe operation of your vehicle.

WARNING

IMPORTANT SAFETY INFORMATION REMINDERS FOR SAFETY!

Follow these important driving rules to help ensure a safe and comfortable trip for you and your passengers!

쐌 NEVER drive under the influence of

alcohol or drugs.

쐌 ALWAYS observe posted speed limits

and never drive too fast for conditions.

쐌 ALWAYS give your full attention to

driving and avoid using vehicle features or taking other actions that could distract you.

쐌 ALWAYS use your seat belts. Refer to

“Child safety” and “Child restraints” in the “Safety — Seats, seat belts and supplemental restraint system” section for precautions regarding children.

쐌 ALWAYS provide information about

the proper use of vehicle safety fea-

tures to all occupants of the vehicle.

쐌 ALWAYS review this Owner’s Manual

for important safety information.

MODIFICATION OF YOUR VEHICLE

This vehicle should not be modified. Modification could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from modification may not be covered under NISSAN warranties.

WHEN READING THE MANUAL

This manual includes information for all options available on this model. Therefore, you may find some information that does not apply to your vehicle.

All information, specifications and illustrations in this manual are those in effect at the time of printing. NISSAN reserves the right to change specifications or design at any time without notice.

IMPORTANT INFORMATION ABOUT THIS MANUAL

You will see various symbols in this manual. They are used in the following ways:

CALIFORNIA PROPOSITION 65 WARNING

WARNING

This is used to indicate the presence of a hazard that could cause death or serious personal injury. To avoid or reduce the risk, the procedures must be followed precisely.

CAUTION

This is used to indicate the presence of a hazard that could cause minor or moderate personal injury or damage to your vehicle. To avoid or reduce the risk, the procedures must be followed carefully.

SIC0697

If you see this symbol, it means “Do not do this” or “Do not let this happen”.

If you see a symbol similar to these in an illustration, it means the arrow points to the front of the vehicle.

Arrows in an illustration that are similar to these indicate movement or action.

Arrows in an illustration that are similar to these call attention to an item in the illustration.

Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CALIFORNIA PERCHLORATE ADVISORY

Some vehicle parts, such as lithium batteries, may contain perchlorate material. The following advisory is provided: “Perchlorate Material — special handling may apply. See www.dtsc.ca.gov/hazardouswaste/ perchlorate.”

All rights reserved. No part of this Owner’s Manual may be reproduced or stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Nissan Motor Co., Ltd.

TOKYO, JAPAN

NISSAN CUSTOMER CARE PROGRAM

NISSAN CARES ...

Both NISSAN and your NISSAN dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your NISSAN dealer are our primary concerns. Your NISSAN dealer is always available to assist you with all your automobile sales and service needs.

However, if there is something that your NISSAN dealer cannot assist you with or you would like to provide NISSAN directly with comments or questions, please contact the NISSAN Consumer Affairs Department using our toll-free number:

For U.S. customers

1-800-NISSAN-1 (1-800-647-7261)

For Canadian customers

1-800-387-0122

We appreciate your interest in NISSAN and thank you for buying a quality NISSAN vehicle.

The Consumer Affairs Department will ask for the following information: — Your name, address, and telephone

number

— Vehicle identification number (attached to the

top of the instrument panel on the driver’s

side) — Date of purchase — Current odometer reading — Your NISSAN dealer’s name — Your comments or questions OR

You can write to NISSAN with the information on the left at:

For U.S. customers

Nissan North America, Inc. Consumer Affairs Department P.O. Box 685003 Franklin, TN 37068-5003

For Canadian customers

Nissan Canada Inc. 5290 Orbitor Drive Mississauga, Ontario L4W 4Z5

Table of

Illustrated table of contents

Contents

Safety — Seats, seat belts and supplemental restraint system

Instruments and controls

Pre-driving checks and adjustments

Display screen, heater, air conditioner and audio systems

Starting and driving

In case of emergency

Appearance and care

Maintenance and do-it-yourself

Technical and consumer information

Index

0 Illustrated table of contents

Air bags, seat belts and child restraints .......................... 0-2

Exterior front ........................................................................... 0-3

Exterior rear ............................................................................ 0-4

Coupe models .................................................................. 0-4

Roadster models .............................................................. 0-5

Passenger compartment ...................................................... 0-6

Coupe models .................................................................. 0-6

Roadster models .............................................................. 0-8

Instrument panel ................................................................. 0-10

Engine compartment ......................................................... 0-11

AIR BAGS, SEAT BELTS AND CHILD RESTRAINTS

1. Supplemental front-impact air bags (Page 1-28)

2. Supplemental curtain side-impact air bags* (P.1-28)

3. Seat belts (P.1-10)

4. Seats (P.1-2) — Child restraints (P.1-17)

5. Head restraints (P.1-9)

6. Child restraint anchor point* (for top tether strap child restraint) (P.1-24)

7. Occupant classification sensor (pattern sensor) — Advanced air bag system (P.1-35)

8. Supplemental side air bags* (P.1-28)

9. Pre-tensioner seat belt system (P.1-42)

*: if so equipped

0-2 Illustrated table of contents

SSI0255

EXTERIOR FRONT

1. Hood (P.3-8)

2. Windshield wiper and washer — Switch (P.2-22) — Wiper replacement (P.8-20) — Washer fluid (P.8-14)

3. Power windows (P.2-39) — Automatic adjusting function (P.2-41,

P.8-15)

4. Recovery hook installation (P.6-12) License plate installation (P.9-13)

5. Headlight, park and turn signal lights — Switch (P.2-25) — Bulb (P.8-27)

6. Tires — Wheels and tires (P.8-30, P.9-9) — Flat tire (P.6-2) — Tire pressure monitoring system (TPMS)

(P.2-14, P.5-3)

7. Outside mirrors (P.3-27)

8. Doors — Keys (P.3-2) — Door locks (P.3-3) — Keyfob (P.3-5)

SSI0151

Illustrated table of contents 0-3

EXTERIOR REAR

COUPE MODELS

1. Antenna (P.4-30)

2. Rear hatch release switch (P.3-9)

3. Rear window defroster (P.2-24)

4. High-mounted stop light (Bulb) (P.8-28)

5. Satellite radio antenna* (P.4-13)

6. Rear window wiper and washer — Switch (P.2-23) — Washer fluid (P.8-14)

7. License plate lights (Bulb) (P.8-28)

8. Rear hatch release (secondary) (P.3-10)

9. Luggage compartment light (P.2-42, P.8-28)

10. Back-up, Turn signal light (Bulb) (P.8-28)

11. Side marker, Stop/Tail light (Bulb) (P.8-28)

12. Fuel

— Fuel-filler door (P.3-23) — Fuel recommendation (P.9-3)

*: if so equipped

0-4 Illustrated table of contents

SSI0152

SSI0003

ROADSTER MODELS

1. Antenna (P.4-30)

2. Trunk lid release switch (P.3-10)

3. Trunk light (P.2-43, P.8-28)

4. High-mounted stop light (Bulb) (P.8-28)

5. Rear window defroster (P.2-24)

6. Soft top (P.3-13)

7. Interior trunk lid release (P.3-11)

8. License plate lights (Bulb) (P.8-28)

9. Back-up, Turn signal light (Bulb) (P.8-28)

10. Side marker, Stop/Tail light (Bulb) (P.8-28)

11. Fuel

— Fuel-filler door (P.3-23) — Fuel recommendation (P.9-3)

Illustrated table of contents 0-5

PASSENGER COMPARTMENT

0-6 Illustrated table of contents

SSI0256

COUPE MODELS

1. Coat hook (P.2-39)

2. Seat belts (P.1-10)

3. Seats — Manual seats adjustment (P.1-3) — Power seats adjustment (P.1-3)

4. Passenger seat — Tilt lever for passenger seat (seatback)

(P.1-7)

5. Power window switch (P.2-39)/Power door lock switch (P.3-4)

6. Outside mirror remote control switch (P.3-27)

7. Sun visor (P.3-25)

8. Interior light (P.2-41)

9. Sunglasses holder (P.2-34)

10. Inside mirror (P.3-26)

— Automatic anti-glare inside mirror*

(P.3-26)

— HomeLink

(P.2-43)

11. Front passenger air bag status light

(P.1-37)

12. Rear parcel box (P.2-37)

13. Rear parcel box or Navigation system*1

14. Rear floor box (P.2-36)

15. Power outlet (P.2-32)

16. Console box (P.2-36)

17. Parking brake

— Operation (P.5-15) — Parking/Parking on hills (P.5-19)

universal transceiver*

— Checking (P.8-21)

18. Selector lever or shift lever — Automatic transmission (P.5-9) — Manual transmission (P.5-13)

19. Cargo net (P.2-34)

*: if so equipped *1: Refer to the separate Navigation System

Owner’s Manual.

Illustrated table of contents 0-7

0-8 Illustrated table of contents

SSI0257

ROADSTER MODELS

1. Seat belts (P.1-11)

2. Seats — Power seats adjustment (P.1-4) — Ventilated net seats* (P.1-6)

3. Passenger seat — Power seatback tilt switch (P.1-7) — Cancel switch (P.1-8)

4. Power window switch (P.2-39)/Power door lock switch (P.3-4)

5. Outside mirror remote control switch (P.3-27)

6. Soft top latch lever (P.3-16)

7. Safety switch for soft top latch lever (P.3-16)

8. Interior light (P.2-41)

9. Front passenger air bag status light (P.1-37)

10. Inside mirror (P.3-26)

— Automatic anti-glare inside mirror*

(P.3-26)

— HomeLink

(P.2-43)

11. Rear parcel box (P.2-37)

12. Rear parcel box or Navigation system*1

13. Rear floor box (P.2-36)

— Trunk lid cancel switch (P.3-11) — Secondary trunk lid release (P.3-12)

14. Power outlet (P.2-32)

15. Console box (P.2-36)

16. Parking brake

— Operation (P.5-15) — Parking/Parking on hills (P.5-19) — Checking (P.8-21)

universal transceiver*

17. Selector lever or shift lever — Automatic transmission (P.5-9) — Manual transmission (P.5-13)

18. Cargo net (P.2-34)

*: if so equipped *1: Refer to the separate Navigation System

Owner’s Manual.

Illustrated table of contents 0-9

INSTRUMENT PANEL

1. Headlight/turn signal switch (P.2-25)

2. Instrument brightness control switch

(P.2-27)

3. Steering wheel switch for audio control*

(P.4-29)

SIC3266

4. Driver supplemental air bag (P.1-28)/Horn (P.2-28)

5. Meters/gauges (P.2-3)

6. Cruise control main/set switch* (P.5-16)

7. Trip computer mode/setting switch (P.2-8)

8. Wiper/washer switch (P.2-22)

9. Center ventilator (P.4-8)

10. Passenger supplemental air bag (P.1-28)

11. Side ventilators (P.4-8)

12. Soft top operating switch (for Roadster models) (P.3-13)

13. VDC (Vehicle dynamic control) OFF switch* (P.2-29) or TCS (Traction control system) OFF switch* (P.2-30)

14. Fuel-filler door opener switch (P.3-23)

15. Hood lock release handle (P.3-8)

16. Fuse box (P.8-24)

17. Tilting steering wheel lock lever (P.3-25)

18. Ignition switch (P.5-6)

19. Navigation system display (P.4-2)*1 or Instrument pocket (P.2-33)

20. Audio system (P.4-12)/Clock (P.2-31)

21. Rear window and outside mirror defroster switch (P.2-24)

22. Hazard warning flasher switch (P.2-28)

23. Cup holder (P.2-35)

24. Heated seat switch* (P.2-29)

25. Heater/air conditioner control (P.4-9)

26. Power outlet (P.2-32)

*: if so equipped *1: Refer to the separate Navigation System

Owner’s Manual.

0-10 Illustrated table of contents

ENGINE COMPARTMENT

1. Fuse/fusible link holder (P.8-23)

2. Battery (P.8-15)

3. Engine oil filler cap (P.8-10)

4. Brake fluid reservoir (P.8-13)

5. Clutch fluid reservoir (M/T models) (P.8-13)

6. Window washer fluid reservoir (P.8-14)

7. Power steering fluid reservoir (P.8-13)

8. Engine coolant reservoir (P.8-8)

9. Radiator filler cap (P.8-9)

10. Engine oil dipstick (P.8-10)

11. Air cleaner (P.8-18)

Do not tamper with the strut tower bar

쎻

adjustment

. The strut tower bar has been adjusted to the most suitable position at the factory.

SDI1519

Illustrated table of contents 0-11

MEMO

0-12 Illustrated table of contents

1 Safety — Seats, seat belts and supple-

mental restraint system

Seats ........................................................................................ 1-2

Front manual seat adjustment

(for Coupe models) ........................................................ 1-3

Front power seat adjustment

(for Coupe models — if so equipped) ...................... 1-3

Front power seat adjustment

(for Roadster models) .................................................... 1-4

Seat lifter (for driver’s seat) ......................................... 1-6

Tilting and reclining passenger’s seat from driver’s

seat ..................................................................................... 1-7

Head restraint adjustment ............................................ 1-9

Active head restraint (except for ventilated net

seats) ................................................................................ 1-10

Seat belts ............................................................................. 1-10

Precautions on seat belt usage ................................ 1-10

Child safety .................................................................... 1-12

Pregnant women .......................................................... 1-13

Injured persons ............................................................. 1-14

Three-point type seat belt with retractor ............... 1-14

Seat belt extenders ...................................................... 1-16

Seat belt maintenance ................................................ 1-16

Child restraints ................................................................... 1-17

Precautions on child restraints ................................. 1-17

Child restraint installation on front passenger

seat (Coupe models only) .......................................... 1-20

Top tether strap child restraint

(Coupe models only) ................................................... 1-24

Booster seats ....................................................................... 1-25

Precautions on booster seats .................................... 1-25

Booster seat installation on front passenger

seat.................................................................................... 1-27

Supplemental restraint system ....................................... 1-28

Precautions on supplemental restraint system ..... 1-28

Supplemental air bag warning labels ...................... 1-43

Supplemental air bag warning light ......................... 1-43

SEATS

side the vehicle. They could unknowingly activate switches or controls. Unattended children could become involved in serious accidents.

SSS0133

WARNING

쐌 Do not ride in a moving vehicle when

the seatback is reclined. This can be dangerous. The shoulder belt will not be against your body. In an accident, you could be thrown into it and receive neck or other serious injuries. You could also slide under the lap belt and receive serious internal injuries.

쐌 For the most effective protection

when the vehicle is in motion, the seat should be upright. Always sit well back in the seat with both feet on the floor and adjust the seat belt properly. See “Precautions on seat belt usage” later in this section.

쐌 After adjustment, gently rock in the

seat to make sure it is securely locked.

쐌 Do not leave children unattended in-

1-2 Safety — Seats, seat belts and supplemental restraint system

FRONT MANUAL SEAT ADJUSTMENT (for Coupe models)

쎻

Forward and backward

Pull the lever up while you slide the seat forward or backward to the desired position. Release the lever to lock the seat in position.

When sliding the passenger’s seat backward, be careful not to crush items in the seatback pocket against the rear floor box.

SSS0394

쎻

Reclining

To recline the seatback, pull the lever up and lean back. To bring the seatback forward again, pull the lever and move your body forward. The seatback will move forward.

The reclining feature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat belt fit. See “Precautions on seat belt usage” later in this section. The seatback may also be reclined to allow occupants to rest when the vehicle is parked.

FRONT POWER SEAT ADJUSTMENT (for Coupe models — if so equipped)

Operating tips

쐌 The seat motor has an auto-reset overload

protection circuit. If the motor stops during operation, wait 30 seconds, then reactivate the switch.

쐌 Do not operate the power support seat

for a long period of time when the engine is off. This will discharge the battery.

Safety — Seats, seat belts and supplemental restraint system 1-3

쎻

Forward and backward

Moving the sliding switch forward or backward will slide the seat forward or backward to the desired position.

When sliding the passenger’s seat backward, be careful not to crush items in the seatback pocket against the rear floor box.

쎻

Reclining (for driver’s seat)

Move the reclining switch backward until the desired angle is obtained. To bring the seatback forward, move the switch forward and move your body forward. The seatback will move forward.

SPA1793

쎻

Reclining (for passenger’s seat)

The passenger’s seat is equipped with a manual lever for reclining. See “Front manual seat adjustment” earlier in this section.

FRONT POWER SEAT ADJUSTMENT (for Roadster models)

Operating tips

쐌 The seat motor has an auto-reset overload

protection circuit. If the motor stops during operation, wait 30 seconds, then reactivate the switch.

쐌 Do not operate the power support seat

for a long period of time when the engine is off. This will discharge the battery.

1-4 Safety — Seats, seat belts and supplemental restraint system

쎻

Forward and backward

Moving the sliding switch forward or backward will slide the seat forward or backward to the desired position.

When sliding the passenger’s seat backward, be careful not to crush items in the seatback pocket against the rear floor box.

쎻

Reclining

Move the reclining switch backward until the desired angle is obtained. To bring the seatback forward, move the switch forward and move your body forward. The seatback will move forward.

cancel switch to the CANCEL position. For more information about operation conditions, see “Soft top” in the “3. Pre-driving checks and adjustments” section. For the cancel switch, see “Tilting and reclining passenger’s seat from driver’s seat” later in this section.

SSS0472

Automatic passenger seatback tilt function

The passenger seatback will automatically tilt forward and backward during the soft top open/close operation. If you need to cancel this function or when a child restraint is installed in the passenger’s seat, push the seatback tilt

Safety — Seats, seat belts and supplemental restraint system 1-5

쐌 When using these seats, avoid wear-

ing clothing with soft fabrics (wool, etc.). Clothing may be damaged as it rubs against the netted material.

SSS0272 SPA1715

Ventilated net seats (if so equipped)

The ventilated net seats are designed for good ventilation while driving. Net cloth is used on the surface of the seatback and the cushion as shown.

CAUTION

쐌 The seat is made of netted materials.

Be careful not to snag your jewelry, such as a ring, bracelet or watch, on the seat.

1-6 Safety — Seats, seat belts and supplemental restraint system

SEAT LIFTER (for driver’s seat)

Type A

Type A (except for ventilated net seat)

Turn either dial to adjust the angle and height of the seat cushion to the desired position.

Type B

SSS0202

Type B (for ventilated net seat)

Turn the dial and adjust the angle of the seat cushion to the desired position.

Coupe models

SSS0203

TILTING AND RECLINING PASSENGER’S SEAT FROM DRIVER’S SEAT

The passenger seatback can be adjusted from the driver’s seat to make it easier for the driver to use the rear parcel box or rear floor box, or to help the passenger get in the vehicle.

Coupe models (manual type)

To tilt or recline the passenger seatback, pull up the lever move the seatback forward or backward.

쎻

located on the back side of it, and

Safety — Seats, seat belts and supplemental restraint system 1-7

Roadster models — Type A

SSS0273

Roadster models (power type)

The power seatback tilt switch 쎻Band the seatback tilt cancel switch back side of the passenger seatback as shown.

Tilting/reclining operation:

To tilt the passenger seatback forward, push the top (

switch

side) of the power seatback tilt

쎻

for more than 0.5 second. The seatback will automatically tilt forward. To stop the movement, push the top or bottom of the switch.

To tilt or adjust the seatback backward, push and hold the bottom (

쎻

are located on the

side) of the power

switch” later in this section.)

쐌 when the passenger seat belt is fastened.

쐌 when the vehicle speed reaches 4 MPH (7

km/h) and more.

The automatic tilting/reclining movement will be stopped:

쐌 when any of the above 4 conditions occur.

쐌 when the power seatback tilt switch (top or

bottom) is pushed again.

쐌 when the seatback is moved with the soft top

open/close operation.

Roadster models — Type B

SSS0274

seatback tilt switch. While the switch is held down, the seatback will move backward to the original position that was last selected using the reclining switch (located on the seat cushion).

When this interruption occurs, you cannot move the seatback backward from the stopped position with the power seatback tilt switch. Use the reclining switch (on the seat cushion) to select the seatback position.

Release the switch to stop the movement.

Operation conditions:

The power seatback tilt switch does not activate under the following conditions.

쐌 when the passenger seat sliding/reclining

switches on the seat cushion are being operated.

쐌 when the seat tilt cancel switch is in the

CANCEL position. (See “Seatback tilt cancel

1-8 Safety — Seats, seat belts and supplemental restraint system

SSS0275

Seatback tilt cancel switch:

When the seatback tilt cancel switch

쎻

pushed to the CANCEL position, the tilting/reclining operation using the power seatback tilt switch

쎻

will be cancelled. Only the sliding/reclining switches (located on the seat cushion) are operational. Push the seatback tilt cancel switch to the AUTO position to reactivate the power seatback tilt switch.

This cancel switch is linked with the automatic passenger seatback tilt function of the soft top operation. See “Soft top” in the “3. Pre-driving checks and adjustments” section.

CAUTION

When a child restraint is installed in the passenger seat, be sure to turn the seatback tilt cancel switch to the CANCEL position. Otherwise, the child restraint may be damaged.

SSS0204 SSS0178A

HEAD RESTRAINT ADJUSTMENT

To raise the head restraint, just pull it up. To lower, push the lock knob restraint down.

The ventilated net seats (if so equipped for Roadster models) have non-adjustable head restraints.

쎻

and push the head

Adjust the head restraints so the center is level with the center of your ears.

WARNING

Head restraints should be adjusted properly as they may provide significant protection against injury in an accident. Do not remove them. Check the adjustment after someone else uses the seat.

Safety — Seats, seat belts and supplemental restraint system 1-9

SEAT BELTS

SSS0508

ACTIVE HEAD RESTRAINT (except for ventilated net seats)

WARNING

쐌 Always adjust the head restraints

properly as specified in the previous section. Failure to do so can reduce the effectiveness of the active head restraint.

쐌 Active head restraints are designed

to supplement other safety systems.

Always wear seat belts. No system can prevent all injuries in any accident.

쐌 Do not attach anything to the head

restraint stalks. Doing so could impair active head restraint function.

The head restraint moves forward utilizing the force that the seatback receives from the occupant in a rear-end collision. The movement of the head restraint helps support the occupant’s head by reducing its backward movement and helping absorb some of the forces that may lead to whiplash type injuries.

Active head restraints are effective for collisions at low to medium speeds in which it is said that whiplash injury occurs most.

Active head restraints operate only in certain rear-end collisions. After the collision, the head restraints return to their original positions.

Properly adjust the active head restraints as described in the previous section.

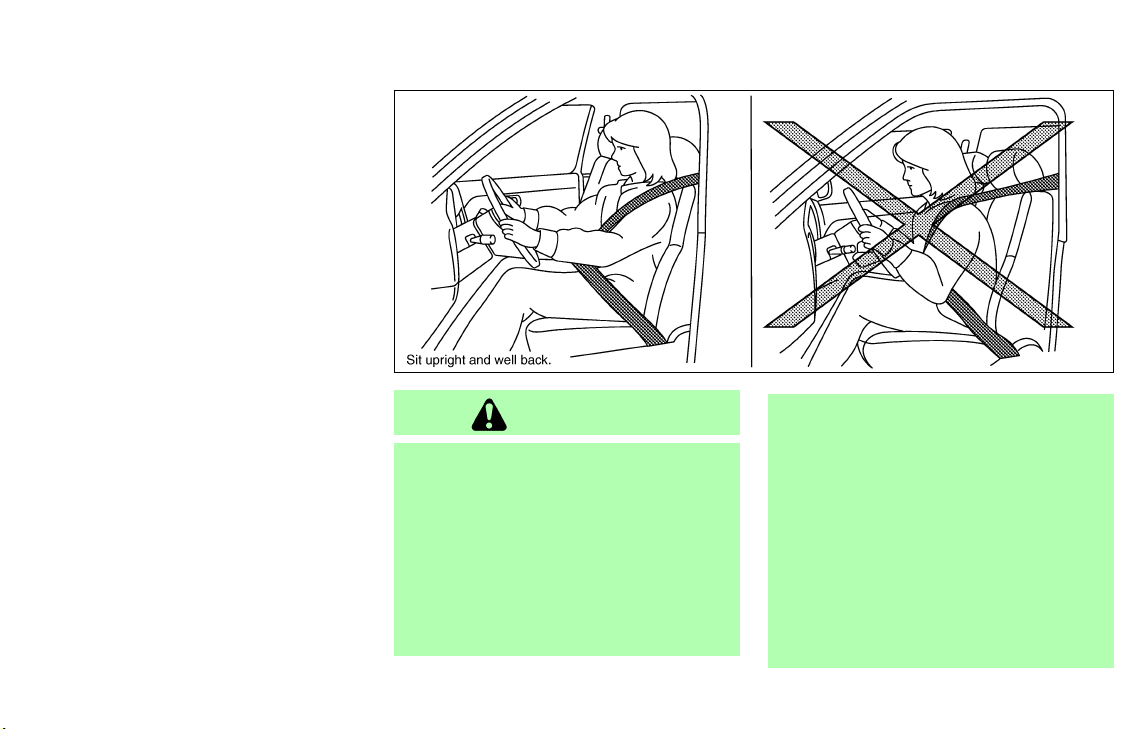

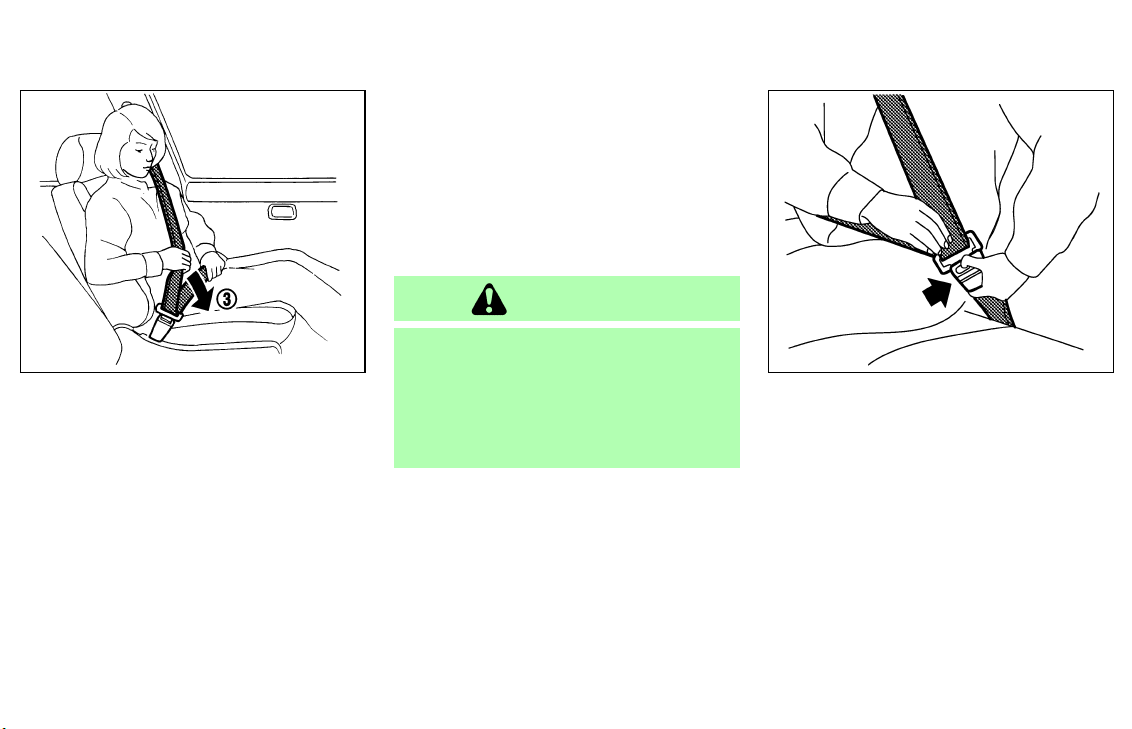

PRECAUTIONS ON SEAT BELT USAGE

If you are wearing your seat belt properly adjusted and you are sitting upright and well back in your seat with both feet on the floor, your chances of being injured or killed in an accident and/or the severity of injury may be greatly reduced. NISSAN strongly encourages you and all of your passengers to buckle up every time you drive, even if your seating position includes a supplemental air bag.

Most U.S. states and Canadian provinces or territories require that seat belts be worn at all times when a vehicle is being driven.

1-10 Safety — Seats, seat belts and supplemental restraint system

WARNING

쐌 Every person who drives or rides in

this vehicle should use a seat belt at all times.

쐌 The seat belt should be properly ad-

justed to a snug fit. Failure to do so may reduce the effectiveness of the entire restraint system and increase the chance or severity of injury in

SSS0136

an accident. Serious injury or death can occur if the seat belt is not worn properly.

쐌 Always route the shoulder belt over

your shoulder and across your chest. Never run the belt behind your back, under your arm or across your neck. The belt should be away from your face and neck, but not falling off your shoulder.

쐌 Position the lap belt as low and snug

as possible AROUND THE HIPS, NOT THE WAIST. A lap belt worn too high could increase the risk of internal injuries in an accident.

쐌 Be sure the seat belt tongue is se-

curely fastened to the proper buckle.

쐌 Do not wear the seat belt inside out

or twisted. Doing so may reduce its effectiveness.

쐌 Do not allow more than one person

to use the same seat belt.

쐌 Never carry more people in the ve-

hicle than there are seat belts. This vehicle has only two seating positions. Never allow anyone to ride in the luggage area.

쐌 If the seat belt warning light glows

continuously while the ignition is turned ON with all doors closed and all seat belts fastened, it may indicate a malfunction in the system. Have the system checked by a NISSAN dealer.

Safety — Seats, seat belts and supplemental restraint system 1-11

쐌 Once the pre-tensioner seat belt has

activated, it cannot be reused and must be replaced together with the retractor. See a NISSAN dealer.

쐌 Removal and installation of the pre-

tensioner seat belt system components should be done by a NISSAN dealer.

쐌 All seat belt assemblies, including

retractors and attaching hardware, should be inspected after any collision by a NISSAN dealer. NISSAN recommends that all seat belt as-

SSS0134

semblies in use during a collision be replaced unless the collision was minor and the belts show no damage and continue to operate properly. Seat belt assemblies not in use during a collision should also be inspected and replaced if either damage or improper operation is noted.

CHILD SAFETY

Children need adults to help protect them. They need to be properly restrained.

In addition to the general information in this manual, child safety information is available from many other sources, including doctors, teachers, government traffic safety offices, and community organizations. Every child is different, so be sure to learn the best way to transport your child.

There are three basic types of child restraint systems:

쐌 Rear facing child restraint (should not be

installed in this vehicle)

쐌 Front facing child restraint (should not be

installed in the Roadster models)

쐌 Booster seat

WARNING

쐌 Never let an infant who requires the

use of a rear facing child restraint ride in this vehicle. Do not attempt to hold a child in your lap or arms.

쐌 Roadster models do not have an an-

chor for a top tether strap required

1-12 Safety — Seats, seat belts and supplemental restraint system

for most front facing child restraints. Never let children who require the use of a front facing child restraint ride in Roadster models.

쐌 Children need special protection. The

vehicle’s seat belts may not fit them properly. The shoulder belt may come too close to the face or neck. The lap belt may not fit over their small hip bones. In an accident, an improperly fitting seat belt could cause serious or fatal injury. Always use appropriate child restraints.

쐌 Never let a child stand or kneel on

any seat and do not allow a child in the cargo areas while the vehicle is moving. The child could be seriously injured or killed in an accident or sudden stop.

Your vehicle is equipped with a supplemental front impact air bag system for the front passenger. See “Supplemental restraint system” later in this section. The passenger seat is not suitable for use with a rear facing child restraint needed for infants. Therefore, infants should not be

transported in this vehicle.

All US states and provinces of Canada require the use of approved child restraints for infants and small children. (See “Child restraints” later in this section.)

Also, there are other types of child restraints available for larger children for additional protection.

Infants

Infants up to at least 1 year old should be placed in a rear facing child restraint. Because a rear facing child restraint is not suitable for use in this vehicle, infants should not be transported in it.

Small children

Children that are over 1 year old and weigh at least 20 lbs (9 kg) can be placed in a forward facing child restraint (except Roadster models). Refer to the manufacturer’s instructions for minimum and maximum weight and height recommendations. NISSAN recommends that small children be placed in child restraints that comply with Federal Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards. You should choose a child restraint that fits your vehicle and always follow the manufacturer’s instructions for installation and use.

Safety — Seats, seat belts and supplemental restraint system 1-13

Larger children

Children who are too large for child restraint systems should be seated and restrained by the seat belts which are provided. The seat belt may not fit properly if the child is less than 4 ft 9 in (142.5 cm) tall and weighs between 40 lbs (18 kg) and 80 lbs (36 kg). A booster seat should be used to obtain proper seat belt fit.

NISSAN recommends that a child be placed in a commercially available booster seat if the shoulder belt in the child’s seating position fits close to the face or neck or if the lap portion of the seat belt goes across the abdomen. The booster seat should raise the child so that the shoulder belt is properly positioned across the top, middle portion of the shoulder and the lap belt is low on the hips. A booster seat can only be used in seating positions that have a three-point type seat belt. The booster seat should fit the vehicle seat and have a label certifying that it complies with Federal Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards. Once the child has grown so the shoulder belt is no longer on or near the face and neck, use the shoulder belt without the booster seat.

PREGNANT WOMEN

NISSAN recommends that pregnant women use seat belts. The seat belt should be worn snug, and always position the lap belt as low as

possible around the hips, not the waist. Place the shoulder belt over your shoulder and across your chest. Never run the lap/shoulder belt over your abdominal area. Contact your doctor for specific recommendations.

INJURED PERSONS

NISSAN recommends that injured persons use seat belts, depending on the injury. Check with your doctor for specific recommendations.

belt and receive serious internal injuries.

쐌 For the most effective protection

when the vehicle is in motion, the seat should be upright. Always sit well back in the seat with both feet on the floor and adjust the seat belt properly.

THREE-POINT TYPE SEAT BELT WITH RETRACTOR

WARNING

쐌 Every person who drives or rides in

this vehicle should use a seat belt at all times.

쐌 Do not ride in a moving vehicle when

1-14 Safety — Seats, seat belts and supplemental restraint system

SSS0292A

Fastening the seat belts

1. Adjust the seat. See “Seats” earlier in this

section.

2. Slowly pull the seat belt out of the retractor

and insert the tongue into the buckle until it clicks.

쐌 The retractor is designed to lock during

a sudden stop or on impact. A slow pulling motion will permit the belt to move, and allow you some freedom of movement in the seat.

쐌 If the seat belt cannot be pulled from its

fully retracted position, firmly pull the

belt tongue is detached from the buckle and fully retracted. For additional information, see “Child restraints” later in this section.

The automatic locking mode should be used only for child restraint installation. During normal seat belt use by a passenger, the locking mode should not be activated. If it is activated it may cause uncomfortable seat belt tension.

WARNING

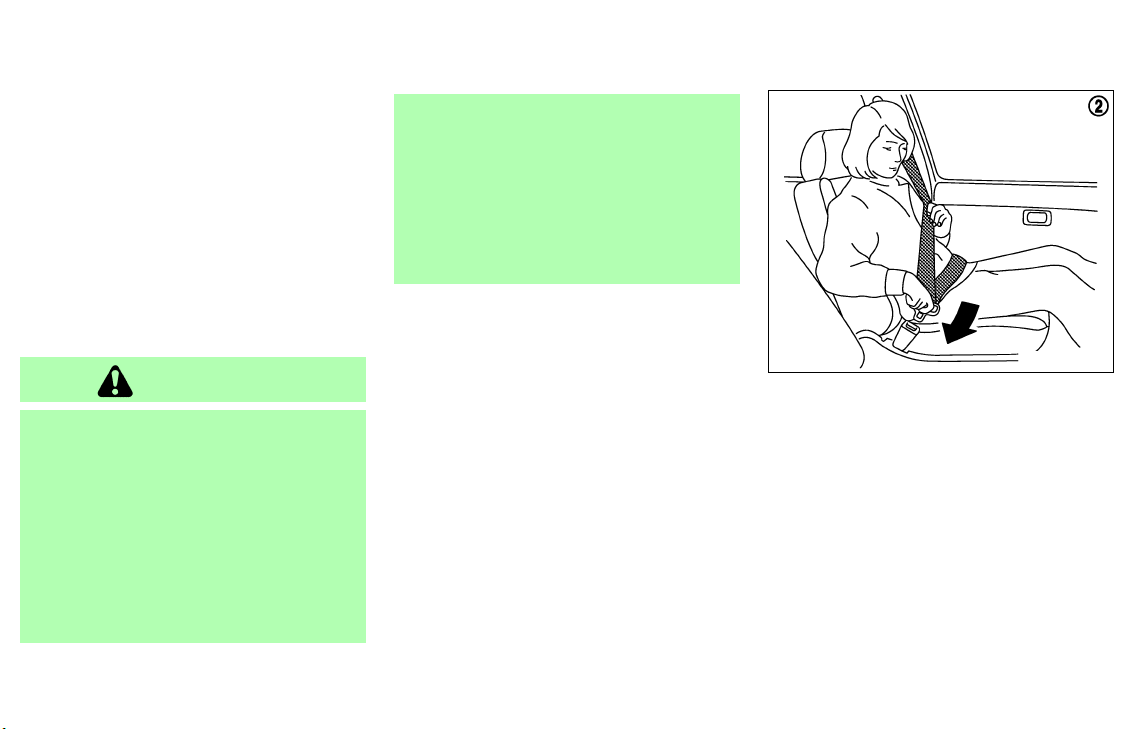

SSS0290A SSS0326

belt and release it. Then smoothly pull the belt out of the retractor.

3. Position the lap belt portion low and snug on the hips as shown.

4. Pull the shoulder belt portion toward the retractor to take up extra slack. Be sure the shoulder belt is routed over your shoulder and across your chest.

The front passenger seat belt has a locking mechanism for child restraint installation. It is referred to as the automatic locking mode.

When the locking mechanism is activated the seat belt cannot be extended again until the seat

When fastening the seat belts, be certain that the seatbacks are completely secured in the latched position. If they are not completely secured, passengers may be injured in an accident or sudden stop.

Safety — Seats, seat belts and supplemental restraint system 1-15

Unfastening the seat belts

To unfasten the belt, push the button on the buckle. The seat belt will automatically retract.

Checking seat belt operation

Your seat belt retractors are designed to lock belt movement using two separate methods:

쐌 when the belt is pulled quickly from the

retractor.

쐌 when the vehicle slows down rapidly.

You can check their operation as follows:

쐌 grasp the shoulder belt and pull quickly for-

ward. The retractor should lock and restrict further belt movement.

If the retractor does not lock during this check or if you have any questions about belt operation, see a NISSAN dealer.

Shoulder belt arm

The shoulder belt arm should be adjusted to the position best for you. (See “Precautions on seat belt usage” earlier in this section.)

To adjust, pull the shoulder belt arm. Pulling the arm forward will allow an easy access to the belt.

SEAT BELT EXTENDERS

If, because of body size or driving position, it is not possible to properly fit the lap-shoulder belt and fasten it, an extender is available. The extender adds approximately 8 in (200 mm) of length and may be used for either the driver or passenger seating position. See a NISSAN

1-16 Safety — Seats, seat belts and supplemental restraint system

SSS0588

dealer for assistance if the extender is required.

WARNING

쐌 Only NISSAN seat belt extenders,

made by the same company which made the original equipment seat belts, should be used with NISSAN seat belts.

쐌 Persons who can use the standard

seat belt should not use an extender. Such unnecessary use could result in serious personal injury in the event of an accident.

쐌 Never use seat belt extenders to in-

stall child restraints. If the child restraint is not secured properly, the child could be seriously injured in a collision or a sudden stop.

SEAT BELT MAINTENANCE

쐌 To clean the seat belt webbings, apply a

mild soap solution or any solution recommended for cleaning upholstery or carpets. Then brush the webbing, wipe it with a cloth and allow it to dry in the shade. Do not allow

CHILD RESTRAINTS

the seat belts to retract until they are completely dry.

쐌 If dirt builds up in the shoulder belt guide of

the seat belt anchors, the seat belts may retract slowly. Wipe the shoulder belt guide with a clean, dry cloth.

쐌 Periodically check to see that the seat

belt and the metal components such as

buckles, tongues, retractors, flexible wires and anchors work properly. If loose parts, deterioration, cuts or other damage on the webbing is found, the entire belt assembly should be replaced.

the strongest adult to resist the forces of a severe accident. The child could be crushed between the adult and parts of the vehicle. Also, do not put the same seat belt around both your child and yourself.

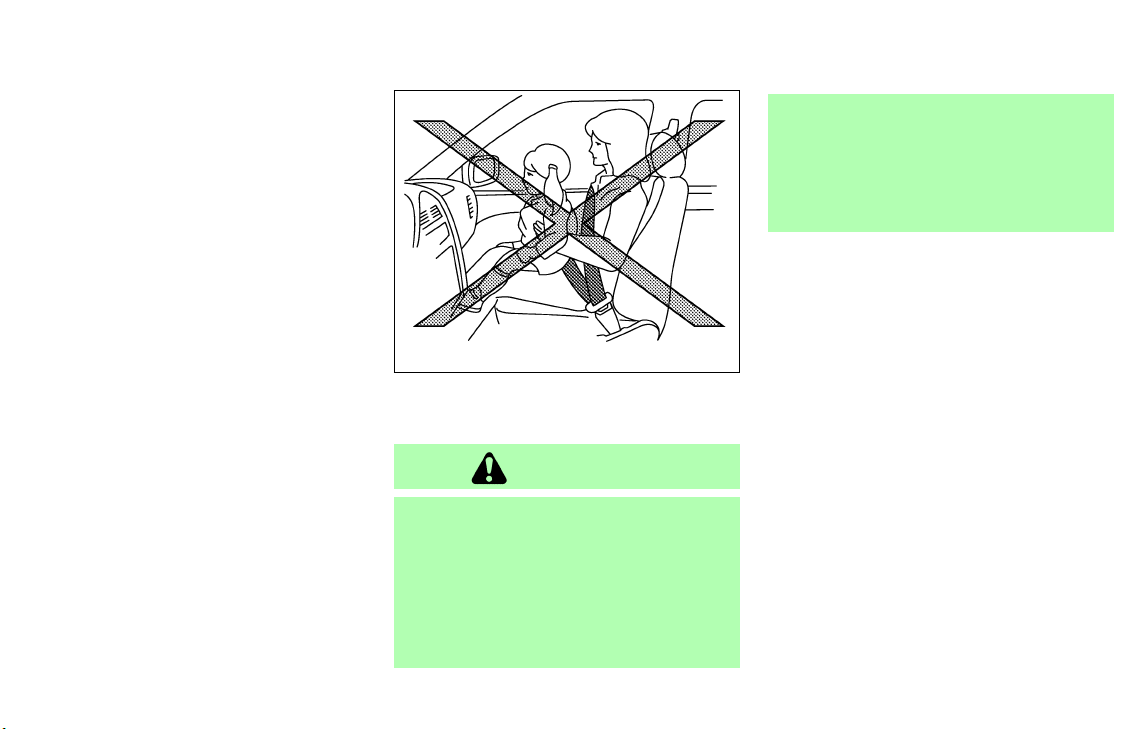

SSS0099

PRECAUTIONS ON CHILD RESTRAINTS

WARNING

쐌 Children should always be placed in

an appropriate child restraint while riding in the vehicle. Failure to use a child restraint can result in serious injury or death.

쐌 Children should never be carried on

your lap. It is not possible for even

Safety — Seats, seat belts and supplemental restraint system 1-17

Never let children who require the use of a front facing child restraint ride in Roadster models.

쐌 An improperly installed child re-

straint could lead to serious injury or death in an accident.

CAUTION

SSS0100

쐌 Even with the NISSAN Advanced Air

Bag System, never install a rearfacing child restraint in the front seat. An inflating supplemental air bag could seriously injure or kill your child.

쐌 Never let an infant who requires the

use of a rear facing child restraint ride in this vehicle.

쐌 Roadster models do not have an an-

chor for a top tether strap required for most front facing child restraints.

1-18 Safety — Seats, seat belts and supplemental restraint system

For Roadster models, when installing a booster seat, be sure to turn off the automatic passenger seatback tilt function with the seatback tilt cancel switch (located on the back of the passenger seatback). Otherwise, the booster seat may be damaged. See “Tilting and reclining passenger’s seat from driver’s seat” earlier in this section for detailed information.

In general, child restraints are designed to be installed with the lap portion of a lap/shoulder seat belt.

Child restraints for children of various sizes are offered by several manufacturers. When select-

ing any child restraint, keep the following points in mind:

쐌 choose only a restraint with a label certifying

that it complies with Federal Motor Vehicle Safety Standard 213 or Canadian Motor Vehicle Safety Standard 213.

쐌 check the child restraint in your vehicle to be

sure it is compatible with the vehicle’s seat and seat belt system.

쐌 if the child restraint is compatible with your

vehicle, place your child in the child restraint and check the various adjustments to be sure the child restraint is compatible with your child. Choose a child restraint that is designed for your child’s height and weight. Always follow all recommended procedures.

The passenger seat is not suitable for use with a rear facing child restraint for infants. Therefore, infants should not be transported in this vehicle.

All U.S. states and Canadian provinces require that infants and small children be restrained in approved child restraints at all times while the vehicle is being operated.

WARNING

쐌 Improper use of a child restraint can

increase the risk or severity of injury for both the child and other occupants of the vehicle.

쐌 Follow all of the child restraint manu-

facturer’s instructions for installation and use. When purchasing a child restraint, be sure to select one which will fit your child and vehicle. It may not be possible to properly install some types of child restraints in your vehicle.

쐌 If the child restraint is not anchored

properly, the risk of a child being injured in a collision or a sudden stop greatly increases.

쐌 Adjustable seatbacks should be po-

sitioned to fit the child restraint, but as upright as possible.

쐌 After attaching the child restraint,

test it before you place the child in it. Push it from side to side. Try to tug it

forward and check to see if the belt holds the restraint in place. If the restraint is not secure, tighten the belt as necessary. You may need to try a different child restraint. Not all child restraints fit in all types of vehicles.

쐌 If you install a front facing child re-

straint in the front seat, see “Child restraint installation on front passenger seat” later in this section.

쐌 When your child restraint is not in

use, keep it secured with a seat belt to prevent it from being thrown around in case of a sudden stop or accident.

CAUTION

Remember that a child restraint left in a closed vehicle can become very hot. Check the seating surface and buckles before placing your child in the child restraint.

Safety — Seats, seat belts and supplemental restraint system 1-19

SSS0261

쐌 The three-point seat belt in your ve-

hicle is equipped with an automatic locking mode retractor which must be used when installing a child restraint.

쐌 Failure to use the retractor’s locking

mode will result in the child restraint not being properly secured. The restraint could tip over or otherwise be unsecured and cause injury to the child in a sudden stop or collision.

CHILD RESTRAINT INSTALLATION ON FRONT PASSENGER SEAT (Coupe models only)

WARNING

쐌 Even with the NISSAN Advanced Air

Bag System, never install a rearfacing child restraint in the front passenger seat. Supplemental front air bags inflate with great force. A rearfacing child restraint could be struck

by the supplemental front air bag in a crash and could seriously injure or kill your child.

쐌 If you must install a forward facing

child restraint in the front passenger seat, move the passenger seat to the rearmost position. Also, be sure the front passenger air bag status light is illuminated to indicate the passenger air bag is OFF. See “Front passenger air bag and status light” in this section for details.

1-20 Safety — Seats, seat belts and supplemental restraint system

CAUTION

Turn off the automatic passenger seatback tilt function by turning the seatback tilt cancel switch to the CANCEL position. (Roadster models)

essary, adjust or remove the head restraint to obtain the correct child restraint fit. See “Head restraint adjustment” earlier in this section. If the head restraint is removed, store it in a secure place. Be sure to install the head restraint when the child restraint is removed. If the seating position does not have an adjustable head restraint and it is interfering with the proper child restraint fit, try a different child restraint.

Front facing — step 2

SSS0301D

Front facing

If you must install a child restraint in the front seat, follow these steps:

1. Turn the seatback tilt cancel switch to the CANCEL position. (Roadster models only)

2. Position the child restraint on the front passenger seat. Move the seat to the rear- most position. Adjust the head restraint to its highest position (if so equipped). Always follow the restraint manufacturer’s instructions.

The back of the child restraint should be secured against the vehicle seatback. If nec-

Front facing — step 3

SSS0360B

3. Route the seat belt tongue through the child restraint and insert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manufacturer’s instructions for belt routing.

Safety — Seats, seat belts and supplemental restraint system 1-21

4. Pull the shoulder belt until the belt is fully

Front facing — step 4

extended. At this time, the seat belt retractor

SSS0651

5. Allow the seat belt to retract. Pull up on the

Front facing — step 5

shoulder belt to remove any slack in the belt. is in the automatic locking mode (child restraint mode). It reverts to emergency locking mode when the seat belt is fully retracted.

1-22 Safety — Seats, seat belts and supplemental restraint system

SSS0652

Front facing — step 6

SSS0653

6. Remove any additional slack from the seat belt; press downward and rearward firmly in the center of the child restraint with your knee to compress the vehicle seat cushion and seatback while pulling up on the seat belt.

7. If the child restraint is equipped with a top tether strap, route the top tether strap and secure the tether strap to the tether anchor point. See “Top tether strap child restraint” in this section.

retractor is in the automatic locking mode.

10. Check to make sure the child restraint is properly secured prior to each use. If the seat belt is not locked, repeat steps 3 through 8.

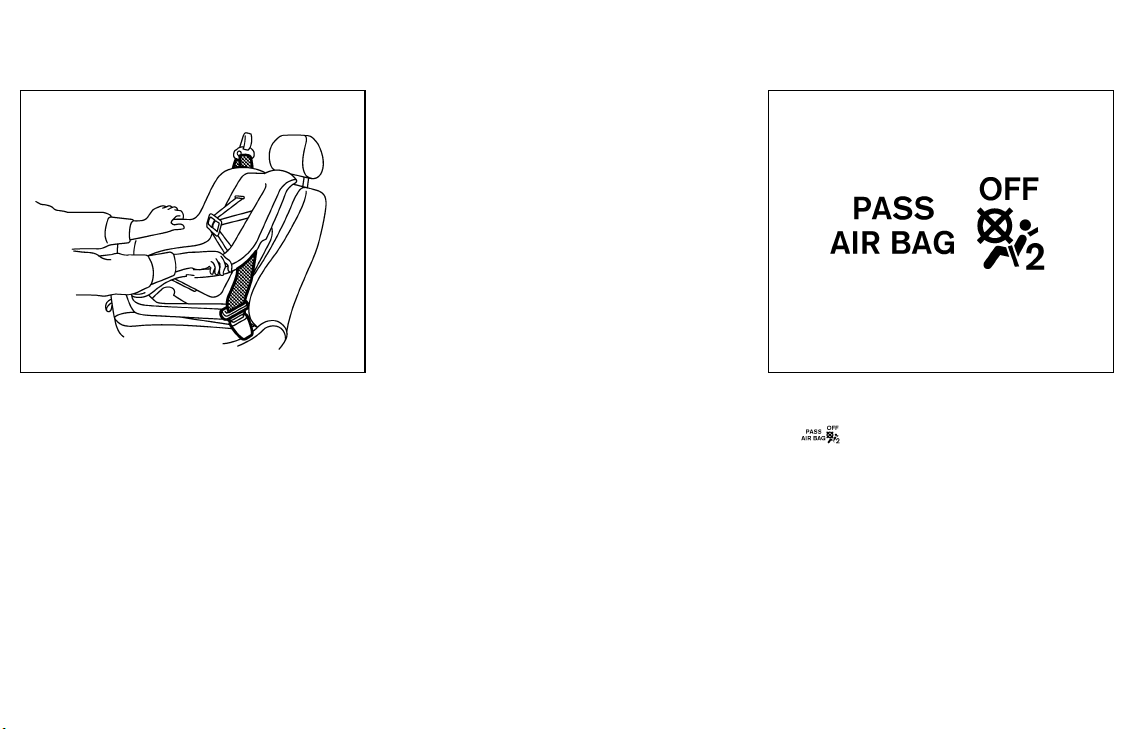

Front facing — step 8

SSS0641

8. Before placing the child in the child restraint, hold the child restraint near the seat belt path and use force to push the child restraint from side to side, and tug it forward to make sure that it is securely held in place. It should not move more than 1 in (25 mm). If it does move more than 1 in (25 mm), pull again on the shoulder belt to further tighten the child restraint. If you are unable to properly secure the restraint, try a different child restraint. Not all child restraints fit in all types of vehicles.

9. Check that the retractor is in the automatic locking mode by trying to pull more seat belt out of the retractor. If you cannot pull any more belt webbing out of the retractor, the

Front facing — step 11

SSS0681

11. Turn the ignition switch to the ON position. The front passenger air bag status light

should illuminate. If this light is not illuminated, see “Front passenger air bag and status light” in this section. Try a different child restraint. Have the system checked by a NISSAN dealer.

After the child restraint is removed and the seat belt is fully retracted, the automatic locking mode (child restraint mode) is canceled.

Safety — Seats, seat belts and supplemental restraint system 1-23

WARNING

Child restraint anchor point is designed to withstand only those loads imposed by correctly fitted child restraints. Under no circumstance is it to be used for adult seat belts or harnesses.

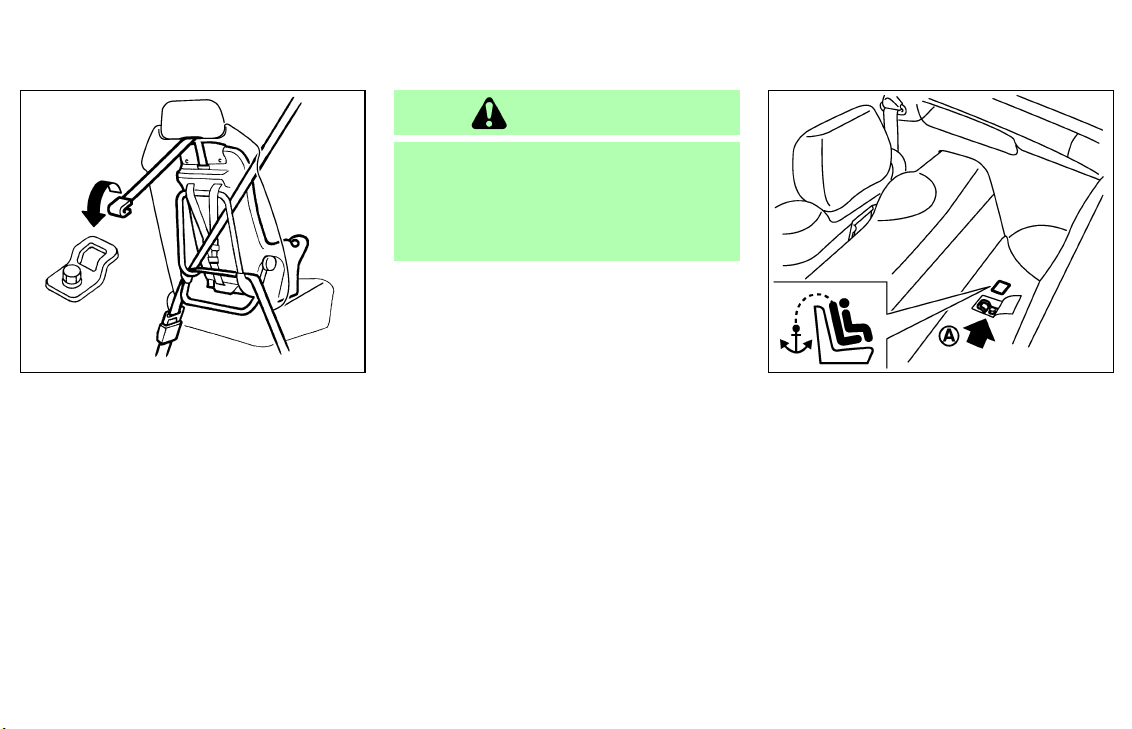

SSS0207 SPA1644

TOP TETHER STRAP CHILD RESTRAINT (Coupe models only)

An anchor for a child restraint with a top tether is provided in this vehicle.

If your child restraint has a top tether strap, it must be secured to the provided anchor point. Secure the child restraint with the seat belt. Guide the top tether strap under the head restraint as illustrated, and secure it to the anchor bracket. Tighten the strap according to manufacturer instructions to remove any slack.

1-24 Safety — Seats, seat belts and supplemental restraint system

Anchor point location

The anchor point 쎻Ais located on the luggage area floor.

A flap is provided in the carpet for easy access and is marked with the label shown.

If you have any questions when installing a top tether strap child restraint on the passenger seat, consult a NISSAN dealer for details.

BOOSTER SEATS

PRECAUTIONS ON BOOSTER SEATS

WARNING

쐌 Children should always be placed in

an appropriate child restraint while riding in the vehicle. Failure to use a child restraint or booster seat can result in serious injury or death.

쐌 Children should never be carried on

your lap. It is not possible for even the strongest adult to resist the forces of a severe accident. The child could be crushed between the adult and parts of the vehicle. Also, do not put the same seat belt around both your child and yourself.

쐌 A booster seat must only be installed

in a seating position that has a lap/shoulder belt. Failure to use a three-point type seat belt with a booster seat can result in a serious injury in sudden stop or collision.

쐌 An improperly installed booster seat

could lead to serious injury or death in an accident.

LRS0455

WARNING

Do not use towels, books, pillows or other items in place of a booster seat. Items such as these may move during normal driving or a collision and result in serious injury or death. Booster seats are designed to be used with a lap/shoulder belt. Booster seats are designed to properly route the lap and shoulder portions of the seat belt over the strongest portions of a child’s body

Safety — Seats, seat belts and supplemental restraint system 1-25

SSS0363 LRS0454

to provide the maximum protection during a collision.

Booster seats of various sizes are offered by several manufacturers. When selecting any booster seat, keep the following points in mind:

쐌 Choose only a booster seat with a label

certifying that it complies with Federal Motor Vehicle Safety Standard 213 or Canadian Motor Vehicle Safety Standard 213.

쐌 Check the booster seat in your vehicle to be

sure it is compatible with the vehicle’s seat and seat belt system.

쐌 Make sure the child’s head will be properly

supported by the booster seat or vehicle seat. The seatback must be at or above the center of the child’s ears. For example, if a low back booster seat vehicle seatback must be at or above the center of the child’s ears. If the seatback is lower than the center of the child’s ears, a high back booster seat

쐌 If the booster seat is compatible with your

vehicle, place your child in the booster seat and check the various adjustments to be sure the booster seat is compatible with your child. Always follow all recommended procedures.

1-26 Safety — Seats, seat belts and supplemental restraint system

is chosen, the

쎻

should be used.

쎻

All U.S. states and Canadian provinces or territories require that infants and small children be restrained in an approved child restraint at all times while the vehicle is being operated.

WARNING

쐌 Improper use of a booster seat can

increase the risk or severity of injury for both the child and other occupants of the vehicle.

쐌 Follow all of the booster seat manu-

facturer’s instructions for installation and use. When purchasing a booster seat, be sure to select one which will fit your child and vehicle. It may not be possible to properly install some types of booster seats in your vehicle.

쐌 If the booster seat and seat belt are

not used properly, the risk of a child being injured in a collision or a sudden stop greatly increases.

쐌 Adjustable seatbacks should be po-

sitioned to fit the booster seat, but as

upright as possible.

쐌 After placing the child in the booster

seat and fastening the seat belt, make sure the shoulder portion of the belt is away from the child’s face and neck and the lap portion of the belt does not cross the abdomen.

쐌 Do not put the shoulder belt behind

the child or under the child’s arm. If you must install a booster seat in the front seat, see “Booster seat installation on front passenger seat” later in this section.

쐌 When your booster seat is not in use,

keep it secured with a seat belt to prevent it from being thrown around in case of a sudden stop or accident.

CAUTION

before placing your child in the booster seat.

LRS0454

BOOSTER SEAT INSTALLATION ON FRONT PASSENGER SEAT

CAUTION

Do not use the lap/shoulder belt automatic locking mode when using a booster seat with the seat belts.

Remember that a booster seat left in a closed vehicle can become very hot. Check the seating surface and buckles

Follow these steps to install a booster seat in the front passenger seat:

If you must install a booster seat in the front passenger seat, move the passenger

Safety — Seats, seat belts and supplemental restraint system 1-27

seat to the rearmost position.

1. Turn the seatback tilt cancel switch to the CANCEL position. (Roadster models only)

2. Position the booster seat on the seat. Only place it in a front facing direction. Always follow the booster seat manufacturer’s instructions.

3. The booster seat should be positioned on the vehicle seat so that it is stable. If necessary, adjust or remove the head restraint to obtain the correct booster seat fit. See “Head restraint adjustment” earlier in this section. If the head restraint is removed, store it in a secure place. Be sure to install the head restraint when the booster seat is removed. If the seating position does not have an adjustable head restraint and it is interfering with the proper booster seat fit, try a different booster seat.

4. Position the lap portion of the seat belt low and snug on the child’s hips. Be sure to follow the booster seat manufacturer’s instructions for adjusting the belt routing.

5. Pull the shoulder belt portion of the seat belt toward the retractor to take up extra slack. Be sure the shoulder belt is positioned across the top, middle portion of the child’s shoulder. Be sure to follow the booster seat manu-

facturer’s instructions for adjusting the belt routing.

6. Follow the warnings, cautions and instructions for properly fastening a seat belt shown in the “Three-point type seat belt with retractor” earlier in this section.

7. If the booster seat is installed in the front passenger seat, turn the ignition switch to the ON position. The front passenger air bag status light

depending on the size of the child and the type of booster seat used. See “Front passenger air bag and status light” later in this section.

1-28 Safety — Seats, seat belts and supplemental restraint system

may or may not illuminate

SUPPLEMENTAL RESTRAINT SYSTEM

PRECAUTIONS ON SUPPLEMENTAL RESTRAINT SYSTEM

This Supplemental Restraint System (SRS) section contains important information concerning the driver and passenger front impact supplemental air bags (NISSAN Advanced Air Bag System), front seat side-impact supplemental air bags, curtain side-impact air bags and front seat pre-tensioner seat belts.

Supplemental front-impact air bag system:

NISSAN advanced air bag system can help cushion the impact force to the head and chest of the driver and front passenger in certain frontal collisions.

Supplemental side-impact air bag system (if so equipped): This system can help cushion

the impact force to the chest area of the driver and front passenger in certain side impact collisions. The front seat side-impact supplemental air bags are designed to inflate on the side where the vehicle is impacted.

Supplemental curtain side-impact air bag system (if so equipped for Coupe models):

This system can help cushion the impact force to the head of occupants in certain side impact collisions. The curtain side-impact air bags are designed to inflate on the side where the vehicle is impacted.

The supplemental restraint system is designed to supplement the crash protection provided by the driver and passenger seat belts and is not a substitute for them. Seat belts should always be correctly worn and the occupant seated a suitable distance away from the steering wheel, instrument panel, door finishers and side roof rails. (See “Seat belts” earlier in this section for instructions and precautions on seat belt usage.)

The supplemental air bags operate only when the ignition switch is in the ON or START position.

After turning the ignition key to the ON position, the supplemental air bag warning light illuminates. The supplemental air bag warning light will turn off after about 7 seconds if the systems are operational.

WARNING

쐌 The supplemental front air bags ordi-

narily will not inflate in the event of a side impact, rear impact, rollover, or lower severity frontal collision. Always wear your seat belts to help reduce the risk or severity of injury in various kinds of accidents.

쐌 The front passenger air bag will not

inflate if the passenger air bag status

SSS0131

light is lit or if the front passenger seat is unoccupied. See “Front passenger air bag and status light” later in this section.

쐌 The seat belts and the supplemental

front air bags are most effective when you are sitting well back and upright in the seat. The front air bags inflate with great force. Even with the NISSAN advanced air bag system, if you are unrestrained, leaning forward, sitting sideways or out of posi-

Safety — Seats, seat belts and supplemental restraint system 1-29

tion in any way, you are at greater risk of injury or death in a crash. You may also receive serious or fatal injuries from the supplemental front air bag if you are up against it when it inflates. Always sit back against the seatback and as far away as practical from the steering wheel or instrument panel. Always use the seat belts.

쐌 The driver and front passenger seat

belt buckles are equipped with sensors that detect if the seat belts are fastened. The advanced air bag system monitors the severity of a collision and seat belt usage then inflates the air bags. Failure to properly wear seat belts can increase the risk or severity of injury in an accident.

쐌 The front passenger seat is equipped

with an occupant classification sensor (pattern sensor) that turns the front passenger air bag OFF under some conditions. This sensor is only used in this seat. Failure to be prop-

erly seated and wearing the seat belt can increase the risk or severity of injury in an accident. See “Front Passenger air bag and status light” later in this section.

쐌 Keep hands on the outside of the

steering wheel. Placing them inside the steering wheel rim could increase the risk that they are injured when the supplemental front air bag inflates.

1-30 Safety — Seats, seat belts and supplemental restraint system

SSS0132 SSS0016

SSS0006

Safety — Seats, seat belts and supplemental restraint system 1-31

SSS0007

SSS0008

1-32 Safety — Seats, seat belts and supplemental restraint system

SSS0009

SSS0099

SSS0100

WARNING

쐌 Never let an infant who requires the

use of a rear facing child restraint ride in this vehicle. Do not attempt to hold a child in your lap or arms. Some examples of dangerous riding positions are shown in the previous illustrations.

쐌 Roadster models do not have an an-

chor for a top tether strap required

for most front facing child restraints. Never let children who require the use of a front facing child restraint ride in Roadster models.

쐌 Children may be severely injured or

killed when the supplemental front air bags or side air bags or curtain side-impact air bags inflate if they are not properly restrained.

쐌 Even with the NISSAN Advanced Air

Bag System, never install a rearfacing child restraint in the front seat. An inflating supplemental front air bag could seriously injure or kill your child. See “Child restraints” earlier in this section for details.

SSS0101

WARNING

Supplemental side air bag and curtain side-impact air bag (if so equipped):

쐌 The supplemental side air bag and

curtain side-impact air bag ordinarily will not inflate in the event of a frontal impact, rear impact, rollover or lower severity side collision. Always wear your seat belts to help reduce the risk or severity of injury in various kinds of accidents.

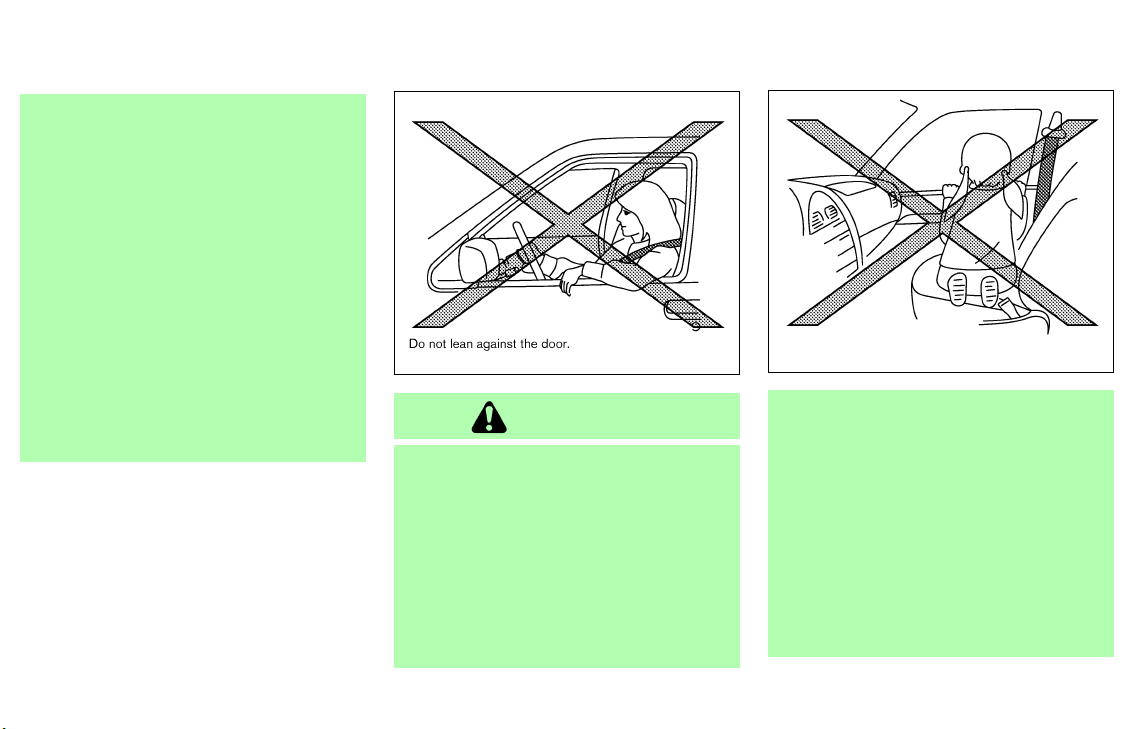

SSS0159

쐌 The seat belts, the supplemental side

air bags and curtain side-impact air bags are most effective when you are sitting well back and upright in the seat. The side air bag and curtain side-impact air bag inflate with great force. Do not allow anyone to place their hand, leg or face near the side air bag on the side of the seatback of the front seat or near the side roof rails. Do not allow anyone sitting in the front seat to extend their hand

Safety — Seats, seat belts and supplemental restraint system 1-33

SSS0162

out of the window or lean against the door. Some examples of dangerous riding positions are shown in the previous illustrations.

쐌 Do not use seat covers on the front

seatbacks. They may interfere with supplemental side air bag inflation.

1-34 Safety — Seats, seat belts and supplemental restraint system

1. Crash zone sensor

2. Supplemental front air bag modules

3. Supplemental curtain side-impact air bag modules (if so equipped for Coupe models)

SSS0680

4. Occupant classification sensor (pattern sensor)

5. Occupant classification system control unit

6. Supplemental side air bag modules (if so equipped)

Safety — Seats, seat belts and supplemental restraint system 1-35

7. Diagnosis sensor unit

8. Satellite sensors

9. Seat belt pre-tensioner retractor

NISSAN advanced air bag system

This vehicle is equipped with the NISSAN advanced air bag system for the driver and front passenger seats. This system is designed to meet certification requirements under U.S. regulations. It is also permitted in Canada. However,

all of the information, cautions and warnings in this manual still apply and must be followed.

The driver supplemental front air bag is located in the center of the steering wheel. The front passenger supplemental front air bag is mounted in the instrument panel. The supplemental front air bags are designed to inflate in higher severity frontal collisions, although they may inflate if the forces in another type of collision are similar to those of a higher severity frontal impact. They may not inflate in certain frontal collisions. Vehicle damage (or lack of it) is not always an indication of proper supplemental air bag system operation.

The NISSAN advanced air bag system has dual stage air bag inflators. It also monitors information from the crash zone sensor, the diagnosis sensor unit, seat belt buckle sensors and the

occupant classification sensor (pattern sensor). Inflator operation is based on the severity of a collision and seat belt usage for the driver. For the front passenger, the occupant classification sensor is also monitored. Based on information from the sensors, only one front air bag may inflate in a crash, depending on the crash severity and whether the front occupants are belted or unbelted. Additionally, the front passenger air bag may be automatically turned OFF under some conditions, depending on the information provided by the occupant classification sensor. If the front passenger air bag is OFF, the passenger air bag status light will be illuminated (if the seat is unoccupied, the light will not be illuminated, but the air bag will be off.). See “Front passenger air bag and status light” later in this section for further details. One front air bag inflating does not indicate improper performance of the system.

If you have any questions about your air bag system, contact NISSAN or a NISSAN dealer. If you are considering modifications of your vehicle due to a disability, you may also contact NISSAN. Contact information is contained in the front of this Owner’s Manual.

When a front air bag inflates, a fairly loud noise may be heard, followed by release of smoke. This smoke is not harmful and does not indicate

a fire. Care should be taken not to inhale it, as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly.

Supplemental front air bags, along with the use of seat belts, help to cushion the impact force on the head and chest of the front occupants. They can help save lives and reduce serious injuries. However, an inflating front air bag may cause facial abrasions or other injuries. Front air bags do not provide restraint to the lower body.

Even with NISSAN advanced air bags, seat belts should be correctly worn and the driver and passenger seated upright as far as practical away from the steering wheel or instrument panel. The supplemental front air bags inflate quickly in order to help protect the front occupants. Because of this, the force of the front air bag inflating can increase the risk of injury if the occupant is too close to, or is against, the air bag module during inflation.

The air bag will deflate quickly after a collision.

The supplemental front air bags operate only when the ignition switch is in the ON or START position.

After turning the ignition key to the ON position, the supplemental air bag warning light illuminates. The supplemental air bag

1-36 Safety — Seats, seat belts and supplemental restraint system

warning light will turn off after about 7 seconds if the system is operational.

Front passenger air bag status light

SSS0681

Front passenger air bag and status light

WARNING

The front passenger air bag is designed to automatically turn OFF under some conditions. Read this section carefully to learn how it operates. Proper use of the seat, seat belt and child restraints is necessary for most effective protection.

Failure to follow all instructions in this manual concerning the use of seats, seat belts and child restraints can increase the risk or severity of injury in an accident.

Status light:

The front passenger air bag status light located on the overhead console. The light operates as follows:

쐌 Unoccupied passenger seat: The

OFF and the front passenger air bag is OFF and will not inflate in a crash.

쐌 Passenger seat occupied by a small adult,

child or child restraint as outlined in this section: The the front passenger air bag is OFF and will not inflate in a crash.

쐌 Occupied passenger seat and the passenger

meets the conditions outlined in this section: The passenger air bag is operational.

Front passenger air bag:

The front passenger air bag is designed to automatically turn OFF when the vehicle is operated under some conditions as described

illuminates to indicate that

is OFF to indicate that the front

Safety — Seats, seat belts and supplemental restraint system 1-37

below in accordance with U.S. regulations. If the front passenger air bag is OFF, it will not inflate in a crash. The driver air bag and other air bags in your vehicle are not part of this system.

The purpose of the regulation is to help reduce the risk of injury or death from an inflating air bag to certain front passenger seat occupants, such as children, by requiring the air bag to be automatically turned OFF.

The occupant classification sensor (pattern sensor) is in the front passenger seat cushion and is designed to detect an occupant and objects on

the seat. For example, if a child is in the front passenger seat, the advanced air bag system is designed to turn the passenger air bag OFF in accordance with the regulations. Also, if a child restraint of the type specified in the regulations is on the seat, the occupant classification sensor can detect it and cause the air bag to turn OFF.

Front passenger seat adult occupants who are properly seated and using the seat belt as outlined in this manual should not cause the passenger air bag to be automatically turned OFF. For small adults it may be turned OFF, however, if the occupant does not sit in the seat properly (for example, by not sitting upright, by sitting on an edge of the seat, or by otherwise being out of position), this could cause the sensor to turn the air bag OFF. Always be sure to

be seated and wearing the seat belt properly for the most effective protection by the seat belt and supplemental air bag.

The occupant classification sensor is designed to operate as described above to turn the front passenger air bag OFF for specified child restraints as required by the regulations. Failing to properly secure child restrains and to use the automatic locking mode (child restraint mode) may allow the restraint to tip or move in an accident or sudden stop. This can also result in the passenger air bag inflating in a crash instead of being OFF. See “Child restraints” earlier in this section for proper use and installation.

If the front passenger seat is not occupied, the passenger air bag is designed not to inflate in a crash. However, heavy objects placed on the seat could result in air bag inflation, because of the object being detected by the occupant classification sensor. Other conditions could also result in air bag inflation, such as if a child is standing on the seat, or if two children are on the seat, contrary to the instructions in this manual. Always be sure that you and all vehicle occupants are seated and restrained properly.

Using the passenger air bag status light, you can monitor when the front passenger air bag is automatically turned OFF with the seat occupied. The light will not illuminate when the front

passenger seat is unoccupied.

If an adult occupant is in the seat but the passenger air bag status light is illuminated (indicating that the air bag is OFF), it could be that the person is a small adult, or is not sitting on the seat properly.

If a child restraint must be used in the front seat, the passenger air bag status light may or may not be illuminated, depending on the size of the child and the type of child restraint being used. If the air bag status light is not illuminated (indicating that the air bag might inflate in a crash), it could be that the child restraint or seat belt is not being used properly. Make sure that the child restraint is installed properly, the seat belt is used properly and the occupant is positioned properly. If the air bag status light is still not illuminated, try a different child restraint.

If the passenger air bag status light will not illuminate even though you believe that the child restraint, the seat belts and the occupant are properly positioned, the system may be sensing an unoccupied seat (in which case the air bag is OFF). A NISSAN dealer can check that the system is OFF by using a special tool. However, until you have confirmed with your dealer that your air bag is working properly, do not transport a child in this vehicle.

The air bag system and passenger air bag status

1-38 Safety — Seats, seat belts and supplemental restraint system

light will take a few seconds to register a change in the passenger seat status. However, if the seat becomes unoccupied, the air bag status light will remain off.

If a malfunction occurs in the front passenger air bag system, the supplemental air bag warning light

area, will blink. Have the system checked by a NISSAN dealer.

, located in the meter and gauges

Other supplemental front air bag precautions

WARNING

쐌 Do not place any objects on the

steering wheel pad or on the instrument panel. Also, do not place any objects between any occupant and the steering wheel or instrument panel. Such objects may become dangerous projectiles and cause injury if the supplemental front air bag inflates.

쐌 Do not place objects with sharp

edges on the seat. Also, do not place heavy objects on the seat that will leave permanent impressions in the seat. Such objects can damage the seat or occupant classification sensor (pattern sensor). This can affect the operation of the air bag system and result in serious personal injury.

쐌 Do not use water or acidic cleaners

(hot steam cleaners) on the seat. This can damage the seat or occupant

classification sensor. This can also affect the operation of the air bag system and result in serious personal injury.

쐌 Immediately after inflation, several

front air bag system components will be hot. Do not touch them; you may severely burn yourself.

쐌 No unauthorized changes should be

made to any components or wiring of the supplemental air bag system. This is to prevent accidental inflation of the supplemental air bag or damage to the supplemental air bag system.

쐌 Do not make unauthorized changes

to your vehicle’s electrical system, suspension system or front end structure. This could affect proper operation of the supplemental front air bag system.

쐌 Tampering with the supplemental

front air bag system may result in serious personal injury. Tampering includes changes to the steering

wheel and the instrument panel assembly by placing material over the steering wheel pad and above the instrument panel or by installing additional trim material around the air bag system.

쐌 Modifying or tampering with the front

passenger seat may result in serious personal injury. For example, do not change the front seats by placing material on the seat cushion or by installing additional trim material, such as seat covers, on the seat that are not specifically designed to assure proper air bag operation. Additionally, do not stow any objects under the front passenger seat or the seat cushion and seatback. Such objects may interfere with the proper operation of the occupant classification sensor.

쐌 No unauthorized changes should be

made to any components or wiring of the seat belt system. This may affect the supplemental front air bag sys-

Safety — Seats, seat belts and supplemental restraint system 1-39

tem. Tampering with the seat belt system may result in serious personal injury.

쐌 Work on and around the supplemen-

tal front air bag system should be done by a NISSAN dealer. Installation of electrical equipment should also be done by a NISSAN dealer. The Supplemental Restraint System (SRS) wiring should not be modified or disconnected. Unauthorized electrical test equipment and probing devices should not be used on the air bag system.

쐌 A cracked windshield should be re-

placed immediately by a qualified repair facility. A cracked windshield could affect the function of the supplemental air bag system.

쐌 The SRS wiring harness connectors

are yellow and orange for easy identification.

When selling your vehicle, we request that you inform the buyer about the supplemental front air bag system and guide the buyer to the appropriate sections in this Owner’s Manual.

Supplemental side air bag and curtain side-impact air bag system (if so equipped)

This section includes the information about both the supplemental side air bag system supplemental curtain side-impact air bag system

쎻

. Curtain side-impact air bags are not avail-

able on Roadster models.

The supplemental side air bags are located in the outside of the seatback of the front seats. The supplemental curtain side-impact air bags are located in the side roof rails. These systems are designed to meet voluntary guidelines to help reduce the risk of injury to out-of-position

1-40 Safety — Seats, seat belts and supplemental restraint system

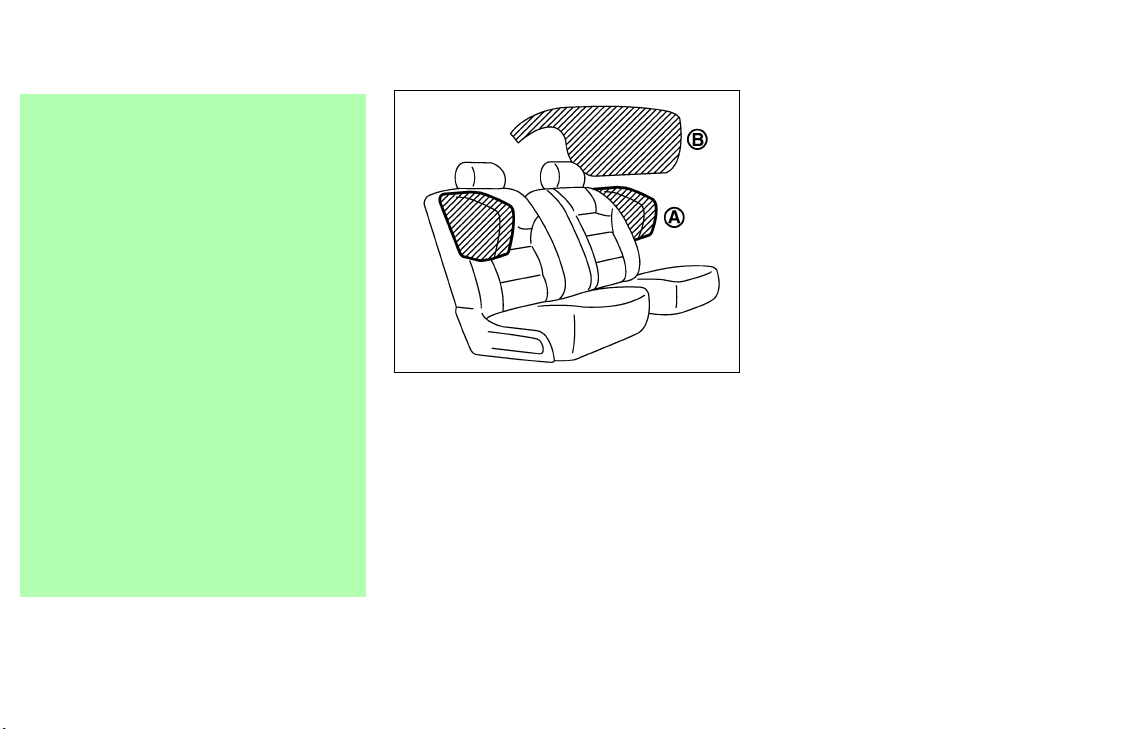

SSS0209A

쎻

and the

occupants. However, all of the information,

cautions and warnings in this manual still apply and must be followed. The supplemen-

tal side air bags and curtain side-impact air bags are designed to inflate in higher severity side collisions, although they may inflate if the forces in another type of collision are similar to those of a higher severity side impact. They are designed to inflate on the side where the vehicle is impacted. They may not inflate in certain side collisions.

Vehicle damage (or lack of it) is not always an indication of proper supplemental side air bag and curtain side-impact air bag operation.

When the supplemental side air bag and curtain side-impact air bag inflate, a fairly loud noise may be heard, followed by release of smoke. This smoke is not harmful and does not indicate a fire. Care should be taken not to inhale it, as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly.

Supplemental side air bags, along with the use of seat belts, help to cushion the impact force on the chest of the front occupants. Curtain sideimpact air bags help to cushion the impact force to the head of occupants. They can help save lives and reduce serious injuries. However, an inflating side air bag and curtain side-impact air bag may cause abrasions or other injuries.

Supplemental side air bags and curtain sideimpact air bags do not provide restraint to the lower body.

The seat belts should be correctly worn and the driver and passenger seated upright as far as practical away from the supplemental side air bag, and seated as far away as practical from the door finishers and side roof rails. The side air bags and curtain side-impact air bag inflate quickly in order to help protect the front occupants. Because of this, the force of the side air bag and curtain side-impact air bag inflating can increase the risk of injury if the occupant is too close to, or is against these air bag modules during inflation. The side air bag and curtain side-impact air bag will deflate quickly after the collision is over.

The supplemental side air bags and curtain side-impact air bags operate only when the ignition switch is in the ON or START position.

After turning the ignition key to the ON position, the supplemental air bag warning light illuminates. The air bag warning light will turn off after about 7 seconds if the systems are operational.

WARNING

쐌 Do not place any objects near the

seatback of the front seats. Also, do not place any objects (an umbrella, bag, etc.) between the front door finisher and the front seat. Such objects may become dangerous projectiles and cause injury if the side air bag inflates.

쐌 Right after inflation, several side air

bag and curtain side-impact air bag system components will be hot. Do not touch them; you may severely burn yourself.

쐌 No unauthorized changes should be

made to any components or wiring of the side air bag and curtain sideimpact air bag system. This is to prevent accidental inflation of the side air bag and curtain side-impact air bag or damage to the side air bag and curtain side-impact air bag system.

쐌 Do not make unauthorized changes

to your vehicle’s electrical system, suspension system or side panel. This could affect proper operation of the supplemental side air bag and curtain side-impact air bag system.

쐌 Tampering with the supplemental

side air bag system may result in serious personal injury. For example, do not change the front seats by placing material near the seatback or by installing additional trim material, such as seat covers, around the side air bag.

쐌 Work around and on the side air bag

and curtain side-impact air bag system should be done by a NISSAN dealer. Installation of electrical equipment should also be done by a NISSAN dealer. The SRS wiring harnesses* should not be modified or disconnected. Unauthorized electrical test equipment and probing devices should not be used on the side air bag system.

* The SRS wiring harnesses are cov-

Safety — Seats, seat belts and supplemental restraint system 1-41

ered with yellow insulation either just before the harness connectors or over the complete harness for easy identification.

When selling your vehicle, we request that you inform the buyer about the side air bag and curtain side-impact air bag system and guide the buyer to the appropriate sections in this Owner’s Manual.

Pre-tensioner seat belt system

WARNING

쐌 The pre-tensioner seat belt cannot be

reused after activation. It must be replaced together with the retractor and buckle as a unit.

쐌 If the vehicle becomes involved in a

frontal collision but the pre-tensioner is not activated, be sure to have the pre-tensioner system checked and, if necessary, replaced by a NISSAN dealer.

쐌 No unauthorized changes should be

made to any components or wiring of the pre-tensioner seat belt system. This is to prevent accidental activation of the pre-tensioner seat belt or damage to the pre-tensioner seat belt operation. Tampering with the pre-tensioner seat belt system may result in serious personal injury.

쐌 Work around and on the pre-

tensioner system should be done by a NISSAN dealer. Installation of electrical equipment should also be done by a NISSAN dealer. Unauthorized electrical test equipment and probing devices should not be used on the pre-tensioner seat belt system.

쐌 If you need to dispose of the pre-

tensioner or scrap the vehicle, contact a NISSAN dealer. Correct pretensioner disposal procedures are set forth in the appropriate NISSAN Service Manual. Incorrect disposal procedures could cause personal injury.

The front seat pre-tensioner seat belt system

1-42 Safety — Seats, seat belts and supplemental restraint system

activates in conjunction with the front supplemental air bag systems. Working with the seat belt retractor, it helps tighten the seat belt when the vehicle becomes involved in certain types of collisions, helping to restrain front seat occupants.

The pre-tensioner is encased with the seat belt’s retractor. These seat belts are used the same as conventional seat belts.

When the pre-tensioner seat belt activates, smoke is released and a loud noise may be heard. The smoke is not harmful and does not indicate a fire. Care should be taken not to inhale it as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly.

If any abnormality occurs in the pre-tensioner seat belt system, the supplemental air bag warning light mittently or will turn on for 7 seconds and remain on after the ignition key has been turned to the ON or START position. In this case, the pretensioner seat belt may not function properly. They must be checked and repaired. Take your vehicle to a NISSAN dealer.

When selling your vehicle, we request that you inform the buyer about the pre-tensioner seat belt system and guide the buyer to the appropriate sections in this Owner’s Manual.

will not come on, will flash inter-

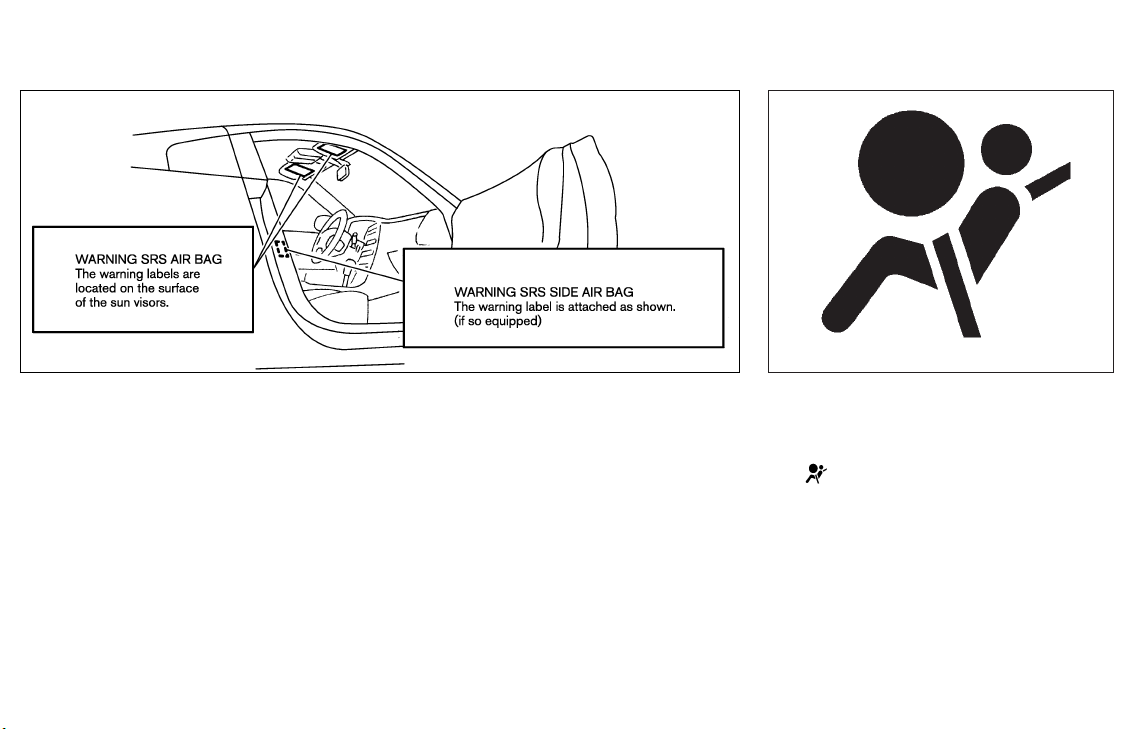

SSS0206 SPA1097

SUPPLEMENTAL AIR BAG WARNING LABELS

Warning labels about the supplemental air bag system are placed in the vehicle as shown in the illustration.

SUPPLEMENTAL AIR BAG WARNING LIGHT

The supplemental air bag warning light, displaying

circuits of the supplemental front air bag, supplemental side air bag (if so equipped) and curtain side-impact air bag (if so equipped for Coupe models) systems, and pre-tensioner seat belt. The circuits monitored by the air bag warning light are the diagnosis sensor unit, crash zone sensor, satellite sensors, front air bag modules, side air bag modules, curtain sideimpact air bag modules, pre-tensioner seat belt and all related wiring.

Safety — Seats, seat belts and supplemental restraint system 1-43

in the instrument panel, monitors the

If any of the following conditions occur, the supplemental front air bag, supplemental side air bag and curtain side-impact air bag systems, and pre-tensioner seat belt need servicing:

쐌 The supplemental air bag warning light re-

mains on after approximately 7 seconds.

쐌 The supplemental air bag warning light

flashes intermittently.

쐌 The supplemental air bag warning light does

not come on at all.

Under these conditions, the supplemental front air bags, supplemental side air bags, curtain side-impact air bags and/or pre-tensioner seat belt may not operate properly. They must be checked and repaired. Take your vehicle to a NISSAN dealer.

WARNING

If the supplemental air bag warning light is on, it could mean that the

supplemental front air bag, supplemental side air bag, curtain side-impact air bag systems and/or pre-tensioner seat belt systems will not operate in an accident. To help avoid injury to yourself or others, have your vehicle checked by a NISSAN dealer as soon as possible.

Repair and replacement procedure

The supplemental front air bags, supplemental side air bags (if so equipped), curtain sideimpact air bags (if so equipped for Coupe models) and pre-tensioner seat belt are designed to inflate on a one-time-only basis. As a reminder, unless it is damaged, the supplemental air bag warning light will remain illuminated after inflation has occurred. Repair and replacement of these systems should be done only by a NISSAN dealer.

When maintenance work is required on the vehicle, the supplemental front air bags, side air bags, curtain side-impact air bags, related parts and pre-tensioner seat belt should be pointed out to the person conducting the maintenance. The ignition key should always be in the LOCK position when working under the hood or inside the vehicle.

WARNING

쐌 Once a supplemental front air bag,

supplemental side air bag or curtain side-impact air bag has inflated, the air bag module will not function again and must be replaced. Additionally, if any of the supplemental front air bags inflate, the activated pre-tensioner seat belts must also be replaced. The air bag module and pre-tensioner seat belt system should be replaced by a NISSAN dealer. The air bag module and pretensioner seat belt system cannot be repaired.

쐌 The supplemental front air bag and

side air bag, curtain side-impact air bag systems and pre-tensioner seat belt system should be inspected by a NISSAN dealer if there is any damage to the front end or side portion of the vehicle.

쐌 If you need to dispose of these

supplemental systems or scrap the vehicle, contact a NISSAN dealer.

1-44 Safety — Seats, seat belts and supplemental restraint system

Correct disposal procedures are set forth in the appropriate NISSAN Service Manual. Incorrect disposal procedures could cause personal injury.

Safety — Seats, seat belts and supplemental restraint system 1-45

2 Instruments and controls

Instrument panel ................................................................... 2-2

Meters and gauges .............................................................. 2-3

Speedometer and odometer ........................................ 2-4

Tachometer ....................................................................... 2-5

Engine coolant temperature gauge ............................ 2-6

Fuel gauge ........................................................................ 2-6

Engine oil pressure gauge ........................................... 2-7

Volt meter ......................................................................... 2-8

Trip computer .................................................................. 2-8

Warning/indicator lights and audible reminders ........ 2-12

Checking bulbs ............................................................. 2-12

Warning lights ............................................................... 2-12

Indicator lights ............................................................... 2-16

Audible reminders ........................................................ 2-18

Security systems ................................................................ 2-19

Vehicle security system .............................................. 2-19

NISSAN Vehicle Immobilizer System ...................... 2-20

Windshield wiper and washer switch ........................... 2-22

Rear window wiper and washer switch

(Coupe models) .................................................................. 2-23

Rear window and outside mirror defroster switch .... 2-24

Headlight and turn signal switch ................................... 2-25

Xenon headlights .......................................................... 2-25

Headlight switch ........................................................... 2-25

Daytime running light system (Canada only) ........ 2-26

Turn signal switch ........................................................ 2-27

Instrument brightness control ................................... 2-27

Hazard warning flasher switch ....................................... 2-28

Horn ....................................................................................... 2-28

Heated seats (if so equipped) ........................................ 2-29

Vehicle dynamic control (VDC) off switch

(if so equipped) .................................................................. 2-30

Traction control system (TCS) off switch

(if so equipped) .................................................................. 2-30

Clock ..................................................................................... 2-31

Adjusting the time ........................................................ 2-31

Power outlet ........................................................................ 2-32

Storage ................................................................................. 2-33

Instrument pocket (except for navigation system

equipped models) ........................................................ 2-33

Sunglasses holder (Coupe models) ........................ 2-34

Cargo net......................................................................... 2-34

Cup holders ................................................................... 2-35

Console box .................................................................. 2-36

Rear floor box ................................................................ 2-36

Rear parcel box ............................................................ 2-37

Stowing golf bags ......................................................... 2-37

Coat hook (Coupe models) .............................................. 2-39

Windows .............................................................................. 2-39

Power windows ............................................................ 2-39

Automatic adjusting function ...................................... 2-41

Interior lights ........................................................................ 2-41

Room light ...................................................................... 2-41

Map lights ...................................................................... 2-41

Vanity mirror light ............................................................... 2-42

Luggage compartment light (Coupe models) ............. 2-42

Trunk light (Roadster models).......................................... 2-43

HomeLink universal transceiver (if so equipped) .... 2-43

Programming HomeLink Programming HomeLink

........................................... 2-44

for Canadian

customers ....................................................................... 2-45

Operating the HomeLink

universal transceiver.... 2-45

Programming trouble-diagnosis ............................... 2-45

Clearing the programmed information .................... 2-46

Reprogramming a single HomeLink

button ........ 2-46

If your vehicle is stolen ............................................... 2-46

INSTRUMENT PANEL

1. Headlight/turn signal switch

2. Instrument brightness control switch

3. Steering wheel switch for audio control (if so equipped)

4. Driver supplemental air bag/Horn

5. Meters/gauges

2-2 Instruments and controls

6. Cruise control main/set switch (if so equipped)

7. Trip computer mode/setting switch

8. Wiper/washer switch

9. Center ventilator

10. Passenger supplemental air bag

SIC3266

11. Side ventilator

12. Soft top operating switch (for Roadster models)

13. VDC (Vehicle dynamic control) OFF switch or TCS (Traction control system) OFF switch

14. Fuel-filler door opener switch

15. Hood lock release handle

16. Fuse box

17. Tilting steering wheel lock lever

18. Ignition switch/steering lock

19. Navigation system display* or Instrument pocket

20. Audio system/Clock

21. Rear window and outside mirror defroster switch

22. Hazard warning flasher switch

23. Cup holder

24. Heated seat switch (if so equipped)

25. Heater/air conditioner control

26. Power outlet

*: Refer to the separate Navigation System

Owner’s Manual.

METERS AND GAUGES

Combination meter:

1. Warning/Indicator lights

2. Turn signal/hazard indicator lights

3. Tachometer

4. Speedometer

8. Automatic transmission position indicator or

Manual transmission shift up indicator (See “Driving the vehicle” in the “5. Starting and driving” section.)

9. Reset knob for trip odometer

10. Odometer (Total/Twin trip)

11. Trip computer setting switch (See “Trip computer” later in this section.)

12. Trip computer mode switch (See “Trip computer” later in this section.)

SIC2233

5. Instrument brightness control switch (See “Headlight and turn signal switch” later in this section.)

6. Fuel gauge

7. Engine coolant temperature gauge

Instruments and controls 2-3

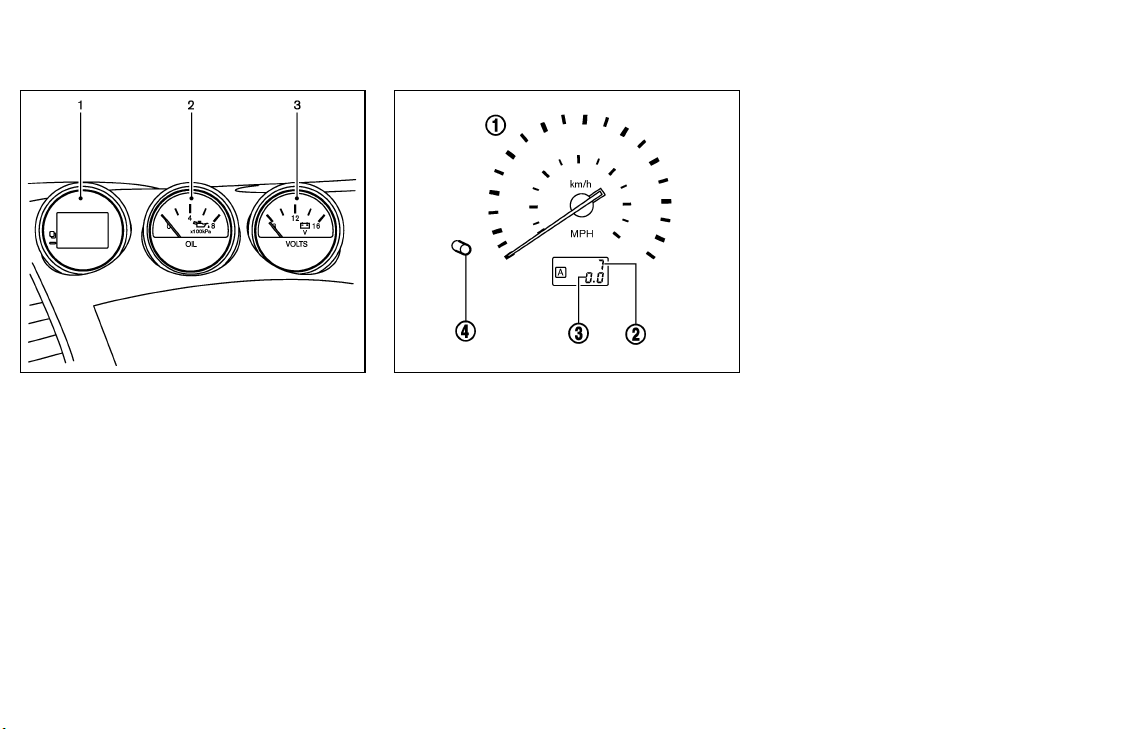

Triple meter:

1. Trip computer

2. Engine oil pressure gauge

3. Volt meter

2-4 Instruments and controls

SIC1948 SIC1949A

Speedometer

쎻

Odometer

쎻

Twin trip odometer

쎻

Reset knob for trip odometer

쎻

SPEEDOMETER AND ODOMETER

Speedometer

The speedometer indicates vehicle speed in miles per hour (MPH) and kilometers per hour (km/h).

Odometer/Twin trip odometer

The odometer/twin trip odometer are displayed when the ignition switch is in the ON position.

The odometer records the total distance the vehicle has been driven.

The twin trip odometer records the distance of individual trips.

Changing the display:

Pushing the reset knob changes the display as follows:

TRIP A → TRIP B → TRIP A

Resetting the trip odometer:

Pushing the reset knob for more than 1 second resets the trip odometer to zero.

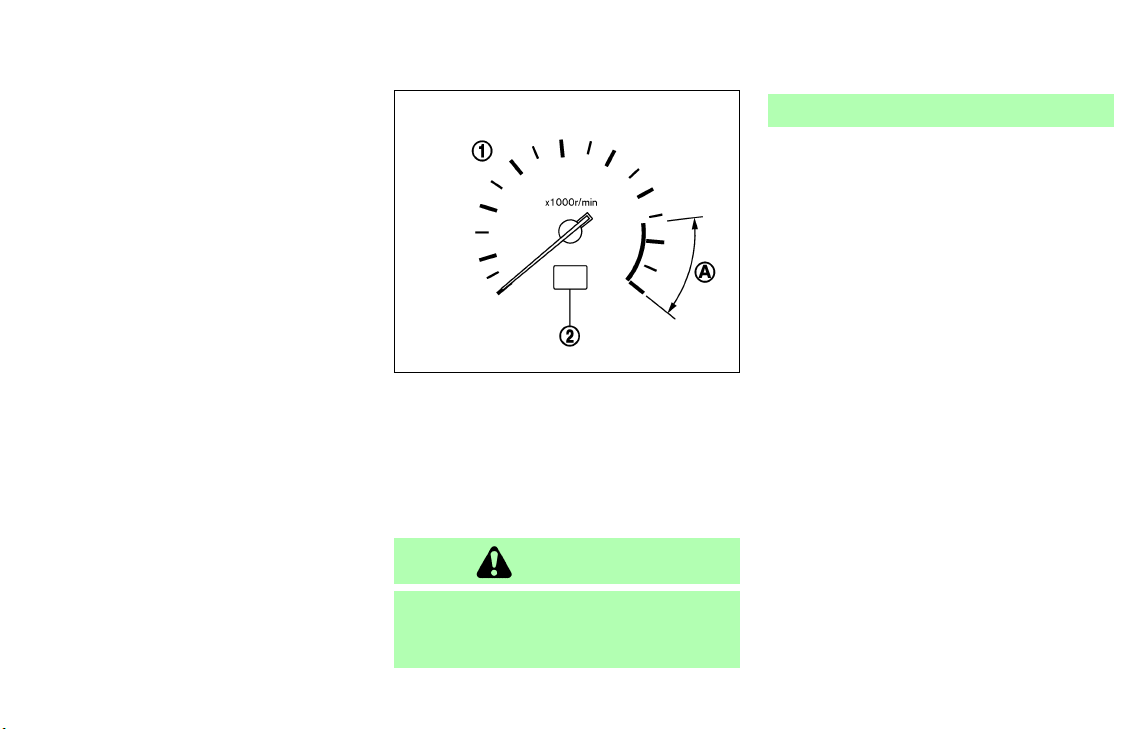

SIC1950A

Tachometer

쎻

Transmission indicator

쎻

TACHOMETER

The tachometer indicates engine speed in revolutions per minute (rpm). Do not rev engine into the red zone

쎻

CAUTION

When engine speed approaches the red zone, shift to a higher gear. Operating the engine in the red zone may cause

serious engine damage.

Instruments and controls 2-5

SIC2371A SIC2556

ENGINE COOLANT TEMPERATURE GAUGE

The gauge indicates the engine coolant temperature.

The engine coolant temperature is within the normal range within the zone shown in the illustration.

The engine coolant temperature will vary with the outside air temperature and driving conditions.

쎻

when the gauge needle points

CAUTION

If the gauge indicates engine coolant temperature near the hot (H) end of the normal range, reduce vehicle speed to decrease temperature. If the gauge is over the normal range, stop the vehicle as soon as safely possible. If the engine is overheated, continued operation of the vehicle may seriously damage the engine. See “If your vehicle overheats” in the “6. In case of emergency” section for immediate action required.

FUEL GAUGE

The gauge indicates the approximate fuel level in the tank.

The gauge may move slightly during braking, turning, acceleration, or going up or down hill.

The gauge needle is designed to move to the E (Empty) position when the ignition key is turned to the OFF position.

Refill the fuel tank before the gauge registers the E (Empty) position.

2-6 Instruments and controls

The low fuel warning light comes on when the fuel tank is getting low. Refuel as soon as it is convenient, preferably before the gauge reaches the E position. There will be a small reserve of fuel in the tank when the fuel gauge needle reaches the E position.

The located on the passenger’s side of the vehicle.

indicates that the fuel-filler door is

CAUTION

쐌 If the vehicle runs out of fuel, the

malfunction indicator lamp (MIL) may come on. Refuel as soon as possible. After a few driving trips, the lamp remains on after a few driving trips, have the vehicle inspected by a NISSAN dealer.

쐌 For additional information, see “Mal-

function indicator lamp (MIL)” later in this section.

lamp should turn off. If the

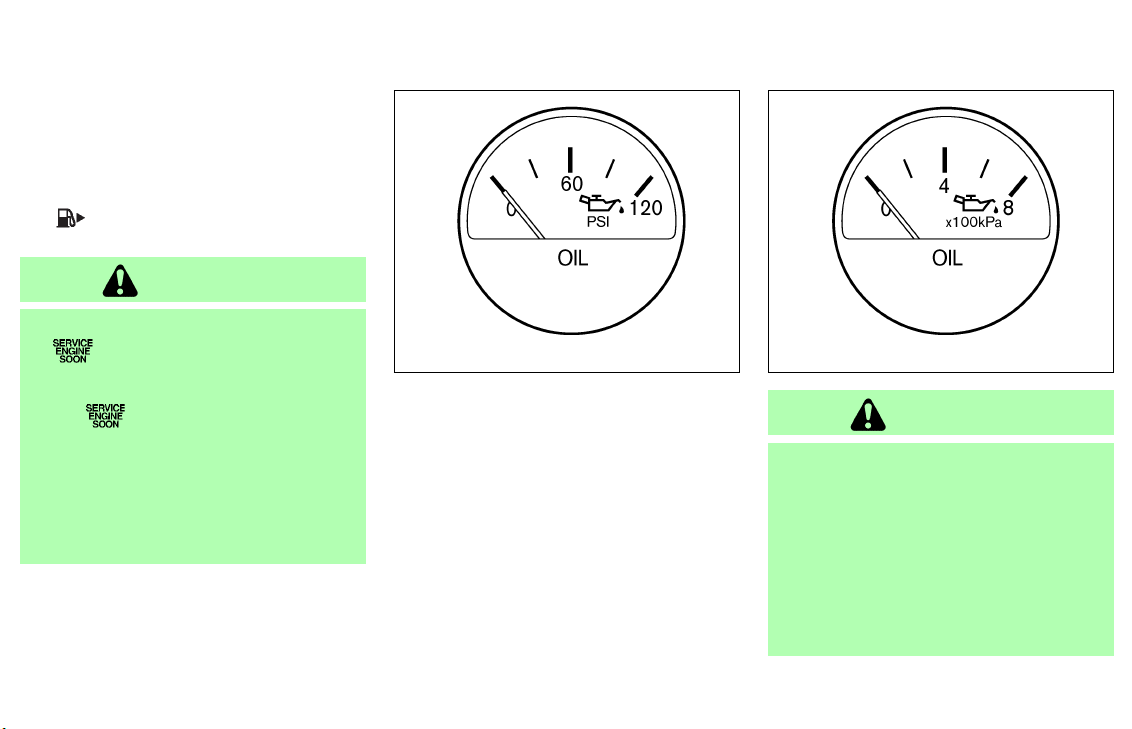

Type A

SIC1954A

ENGINE OIL PRESSURE GAUGE

The gauge indicates the engine lubrication system oil pressure while the engine is running. When the engine speed is high, the engine oil pressure is also high. When it is low, the gauge indicates the low oil pressure.

Type B

SIC1953A

CAUTION

쐌 This gauge is not designed to indi-

cate low engine oil level. Use the dipstick to check the oil level. (See “Engine oil” in the “8. Maintenance and do-it-yourself” section.)

쐌 If the gauge needle does not move

with the proper amount of engine oil, have the vehicle checked by a NISSAN dealer. Continued vehicle

Instruments and controls 2-7

operation in such a condition could cause serious damage to the engine.

SIC1955 SIC2234

2-8 Instruments and controls

VOLT METER

When the ignition switch is turned to the ON position, the volt meter indicates the battery voltage; while the engine is running, it indicates the alternator voltage of 11 - 15 volts (normal

range

쎻

the volts drop below the normal range.

If the needle is not in the normal range the engine is running, it may indicate that the charging system is not functioning properly. Have the system checked by a NISSAN dealer.

). However, while cranking the engine,

쎻

while

TRIP COMPUTER

The display of the trip computer is situated in the triple meter. When the ignition switch is turned to ON, the display scrolls all the modes of the trip computer and then shows the mode chosen before the ignition switch is turned OFF.

SIC2997

Switches for the trip computer are located on the side of the combination meter panel. To operate the trip computer, push the side of the switches as shown above.

쎻

: Trip computer mode switch

쎻

: Trip computer setting switch

When the ignition switch is turned to ON, modes of the trip computer can be selected by pushing the trip computer mode switch

Each time the mode switch display will change as follows:

Speed indicator → Outside air temperature (ICY) → Distance to empty (dte) → Average fuel

쎻

is pushed, the

consumption and speed → Elapsed time and trip odometer → Stopwatch → Tire pressure indicator (PSI) → Up-shift indicator setting (for M/T models) → Speed indicator

Speed indicator (mph or km/h)

The vehicle speed is displayed in MPH or km/h while driving.

The speed indicator in the trip computer indicates the reference speed. The actual speed indicated by the speedometer (combination meter) may differ from the one in the trip computer.

Outside air temperature (ICY—°For°C)

The outside air temperature is displayed in °F or °C in the range of −22 to 131°F (−30 to 55°C).

The outside air temperature mode includes a low temperature warning feature: below 37°F (3°C), the outside air temperature mode is automatically selected and the ICY indicator will illuminate in order to draw the driver’s attention. Push the mode switch mode that was selected before the warning occurred. The ICY indicator will continue blinking as long as the temperature remains below 39°F (4°C).

The ambient temperature sensor is located in

쎻

if you wish to return to the

front of the radiator. The sensor may be affected by road or engine heat, wind directions and other driving conditions. The display may differ from the actual ambient temperature or the temperature displayed on various signs or billboards.

Distance to empty (dte — mls or km)

The distance to empty (dte) mode provides you with an estimation of the distance that can be driven before refueling. The dte is constantly being calculated, based on the amount of fuel in the fuel tank and the actual fuel consumption.

The display is updated every 30 seconds.

The dte mode includes a low range warning feature: when the fuel level is low, the dte mode is automatically selected and the digits blink in order to draw the driver’s attention. Press the mode switch that was selected before the warning occurred. The dte indicator will remain blinking until the vehicle is refuelled.

When the fuel level drops even lower, the dte display will change to (----).

NOTE:

쐌 If the amount of fuel added while the

ignition switch is OFF is small, the display just before the ignition switch is

쎻

if you wish to return to the mode

Instruments and controls 2-9

turned OFF may continue to be displayed.

쐌 When driving uphill or rounding curves,

the fuel in the tank shifts, which may momentarily change the display.

Average fuel consumption (mpg or l (liter)/100 km) and speed (av. mph or av. km/h)

Fuel consumption:

The average fuel consumption mode shows the average fuel consumption since the last reset. Resetting is done by pushing the trip computer setting switch second. (The average speed is also reset at the same time.)

The display is updated every 30 seconds. At about the first 1/3 miles (500 m) after a reset, the display shows (----).

Speed:

The average speed mode shows the average vehicle speed since the last reset. Resetting is done by pushing the setting switch than approximately 1 second. (The average fuel consumption is also reset at the same time.)

The display is updated every 30 seconds. The

쎻

for more than approximately 1

쎻

for more

2-10 Instruments and controls

first 30 seconds after a reset, the display shows (----).

Elapsed time (h:m:s) and trip odometer (mls or km)

Elapsed time:

The elapsed time mode shows the time since the last reset. The displayed time can be reset by pushing the trip computer setting switch more than approximately 1 second. (The trip odometer is also reset at the same time.)

Trip odometer:

The trip odometer mode shows the total distance the vehicle has been driven since the last reset. Resetting is done by pushing the setting

switch

쎻

(The elapsed time is also reset at the same time.)

for more than approximately 1 second.

쎻

for

Stopwatch (h:m:s)

You can use the trip computer as a stopwatch. Each time the trip computer setting switch pushed, the stopwatch will be operated as follows:

After 100 hours, the time will start from the reset display again.

쎻

Even if the display is switched to the other mode while the time is starting, the stopwatch continues to advance until you stop the time in the stopwatch mode. When the ignition switch is turned to the OFF position, the time is reset.

Tire pressure indicator (PSI)

The tire pressure indicator shows tire pressure (0 - 63 psi) of all tires (except the spare tire) by sending a signal from a sensor that is installed in each wheel. Push the trip computer setting

switch

쎻

(rear).

The tire pressure sensor will activate only when the vehicle is driven at speeds above 16 MPH (25 km/h). If the tire pressure signal cannot be received correctly, the display shows (----).

The tire pressure indicator mode includes a low tire pressure warning feature. If the vehicle is being driven with low tire pressure, the tire pressure indicator mode is automatically selected and the PSI indicator will blink in order to

attract the driver’s attention. Push the trip computer mode switch mode that was selected before the warning occurred. The PSI indicator will continue blinking until the tire pressure of each tire is properly adjusted.

to change the display to F (front) or R

쎻

if you wish to return to the

For additional information, see “Tire pressure monitoring system (TPMS)” in the “5. Starting and driving” section and “Flat tire” in the “6. In case of emergency” section.

Tire pressure shown in the display may rise or fall while driving depending on the driving conditions (heat, etc.) and/or the outside temperature. This does not indicate a system malfunction.

WARNING

The TPMS is not a substitute for the regular tire pressure check. Be sure to check the tire pressure regularly and adjust it to the COLD tire pressure shown in the tire placard.

Up-shift indicator setting (rpm) (for manual transmission models)

The up-shift indicator setting mode is used to set the desired engine speed (rpm) for the up-shift indicator (situated in the tachometer) to illuminate. When the engine speed approaches or reaches the set figure, the up-shift indicator will flash or illuminate to show the driver the timing for shifting into a higher gear. See “Driving the vehicle” in the “5. Starting and driving”

section for the use of the up-shift indicator.

When the up-shift indicator setting mode is selected, the rpm indicator blinks and the engine speed currently set is displayed. (The initial factory setting is 6,600 rpm.) The figure can be changed between 2,000 and 8,000 rpm by pushing trip computer setting switch ing the switch for less than approximately 1 second will add the figure by 100 rpm. If pushing for more than approximately 1 second, the figure will increase by 500 rpm.

If the battery cable is disconnected, the set engine speed will be returned to the initial figure (6,600 rpm).

쎻

. Press-

Display priority

If a low outside air temperature warning, low dte (distance to empty) range warning and low tire pressure warning occur simultaneously, other display modes switch automatically to the outside air temperature display.

When trip computer mode switch pressed, the display switches to the mode chosen before the warning display, but the ICY indicator will continue blinking.

쎻

Instruments and controls 2-11

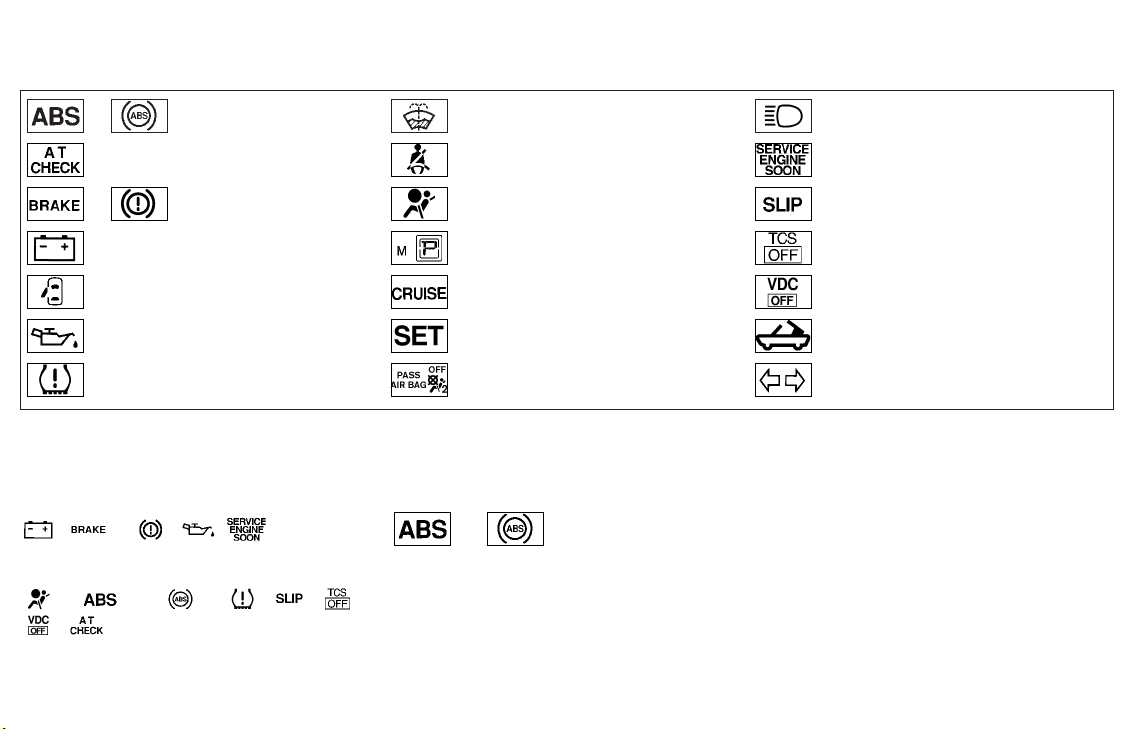

WARNING/INDICATOR LIGHTS AND AUDIBLE REMINDERS

Automatic transmission check warning

light (A/T models)

or Brake warning light Supplemental air bag warning light Slip indicator light

Charge warning light

Door open warning light

Engine oil pressure warning light

Low tire pressure warning light Front passenger air bag status light Turn signal/hazard indicator lights

Anti-lock brake warning light Low washer fluid warning light High beam indicator light (Blue)

CHECKING BULBS

Apply the parking brake and turn the ignition key to ON without starting the engine. The following lights will come on:

, or , ,

The following lights come on briefly and then go off:

, or , , , , ,

If any light fails to come on, it may indicate a burned-out bulb or an open circuit in the elec-

2-12 Instruments and controls

Seat belt warning light Malfunction indicator lamp (MIL)

Automatic transmission position indicator light (A/T models)

Cruise main switch indicator light (if so equipped)

Cruise set switch indicator light (if so equipped)

trical system. Have the system repaired promptly.

WARNING LIGHTS

or Anti-lock brake

warning light

When the ignition switch is turned to the ON position, the anti-lock brake warning light will illuminate and then turn off. This indicates the anti-lock brake system (ABS) is operational.

If the light comes on while the engine is running,

Traction control system (TCS) off indicator light (if so equipped)

Vehicle dynamic control (VDC) off indicator light (if so equipped)

Soft top indicator light (Roadster models)

it may indicate the anti-lock brake system is not functioning properly. Have the system checked by a NISSAN dealer.

If a malfunction occurs in the system, the antilock function of the brake will cease operation but the ordinary brakes will continue to operate. See “Anti-lock brake system (ABS)” in the “5. Starting and driving” section for further details.

If the light comes on while you are driving, contact a NISSAN dealer for repair.

Automatic transmission check warning light (A/T models)

When the ignition switch is turned to the ON position, the automatic transmission check warning light comes on and then turns off. This indicates that the automatic transmission system is operational.

If the light comes on while the engine is running or while driving, it may indicate that the automatic transmission system is not functioning properly. Have a NISSAN dealer check and repair the transmission.

or Brake warning light

This light functions for both the parking brake and the foot brake systems.

Parking brake indicator:

When the ignition switch is in the ON position, the light comes on when the parking brake is applied.

Low brake fluid warning light:

The light warns of a low brake fluid level. If the light comes on while the engine is running with the parking brake not applied, stop the vehicle and perform the following:

1. Check the brake fluid level. Add brake fluid as necessary. See “Brake and clutch fluid” in the “8. Maintenance and do-it-yourself” section.

WARNING

쐌 Your brake system may not be work-

ing properly if the warning light is on. Driving could be dangerous. If you judge it to be safe, drive carefully to the nearest service station for repairs. Otherwise, have your vehicle towed because driving it could be dangerous.

쐌 Pressing the brake pedal with the

engine stopped and/or a low brake fluid level may increase your stopping distance and braking will require greater pedal effort as well as pedal travel.

쐌 If the brake fluid level is below the

MINIMUM or MIN mark on the brake fluid reservoir, do not drive until the brake system has been checked at a NISSAN dealer.

2. If the brake fluid level is correct, have the warning system checked by a NISSAN dealer.

Anti-lock brake system warning indicator:

When the parking brake is released and the brake fluid level is sufficient, if both the brake warning light and the anti-lock brake warning light illuminate, it may indicate the anti-lock brake system is not functioning properly. Have the brake system checked by a NISSAN dealer. See “Anti-lock brake warning light” earlier in this section.

Charge warning light

If the light comes on while the engine is running, it may indicate that the charging system is not functioning properly. Turn the engine off and check the alternator belt. If the belt is loose, broken, missing or if the light remains on, see a NISSAN dealer immediately.

CAUTION

Do not continue driving if the belt is loose, broken or missing.

Door open warning light

This light comes on when any of the doors and/or rear hatch are not closed securely while the ignition switch is in the ON position.

Instruments and controls 2-13

Engine oil pressure warning light

This light warns of low engine oil pressure. If the light flickers or comes on during normal driving, pull off the road in a safe area, stop the engine immediately and call a NISSAN dealer or other authorized repair shop.

The engine oil pressure warning light is not designed to indicate a low oil level. Use the dipstick to check the oil level. See “Engine

oil” in the “8. Maintenance and do-it-yourself” section.

CAUTION

Running the engine with the engine oil pressure warning light on could cause serious damage to the engine almost immediately. Turn off the engine as soon as it is safe to do so.

Low tire pressure warning light

Your vehicle is equipped with a tire pressure monitoring system (TPMS) that monitors the tire pressure of all tires except the spare.

The low tire pressure warning light warns of low

2-14 Instruments and controls

tire pressure or indicates that the TPMS is not functioning properly.

After the ignition switch is turned ON, this light illuminates for about 1 second and turns off.

Low tire pressure warning:

If the vehicle is being driven with low tire pressure, the warning light will illuminate. The PSI indicator will also flash in the trip computer display.

When the low tire pressure warning light illuminates, you should stop and adjust the tire pressure to the recommended COLD tire pressure shown on the Tire and Loading Information label. The low tire pressure warning light does not automatically turn off when the tire pressure is adjusted. After the tire is inflated to the recommended pressure, the vehicle must be driven at speeds above 16 MPH (25 km/h) to activate the TPMS and turn off the low tire pressure warning light. Use a tire pressure gauge to check the tire pressure.

For additional information, see “Tire pressure monitoring system (TPMS)” in the “5. Starting and driving” section and in the “6. In case of emergency” section.

TPMS malfunction:

If the TPMS is not functioning properly, the low

tire pressure warning light will flash for approximately 1 minute when the ignition switch is turned ON. The light will remain on after the 1 minute. Have the system checked by a NISSAN dealer.

For additional information, see “Tire pressure monitoring system (TPMS)” in the “5. Starting and driving” section.

WARNING

쐌 If the light does not illuminate with

the ignition switch turned ON, have the vehicle checked by a NISSAN dealer as soon as possible.

쐌 If the light illuminates while driving,

avoid sudden steering maneuvers or abrupt braking, reduce vehicle speed, pull off the road to a safe location and stop the vehicle as soon as possible. Serious vehicle damage could occur and may lead to an accident and could result in serious personal injury. Check the tire pressure for all four tires. Adjust the tire pressure to the recommended COLD tire pressure shown on the Tire and Loading

Information label to turn the low tire pressure warning light OFF. If the light still comes on while driving after adjusting the tire pressure, a tire may be flat. If you have a flat tire, replace it with a spare tire as soon as possible.

쐌 When a spare tire is mounted or a

wheel is replaced, tire pressure will not be indicated, the TPMS will not function and the low tire pressure warning light will flash. Contact your NISSAN dealer as soon as possible for tire replacement and/or system resetting.

쐌 Replacing tires with those not origi-

nally specified by NISSAN could affect the proper operation of the TPMS.

CAUTION

쐌 The TPMS is not a substitute for the

regular tire pressure check. Be sure

to check the tire pressure regularly.

쐌 If the vehicle is being driven at

speeds of less than 16 MPH (25 km/h), the TPMS may not operate correctly.

쐌 Be sure to install the specified size of

tires to the front and rear.

Low washer fluid warning light

This light comes on when the washer fluid is at a low level. Add washer fluid as necessary. See “Window washer fluid” in the “8. Maintenance and do-it-yourself” section.

Seat belt warning light

The seat belt warning light and chime remind you to fasten seat belts. The light illuminates whenever the ignition key is turned to ON, and will remain illuminated until the driver’s seat belt is fastened.

The seat belt warning light may also illuminate if the front passenger’s seat belt is not fastened when the front passenger’s seat is occupied. For 5 seconds after the ignition switch is in the ON position, the system does not activate the warning light for the front passenger.

See “Seat belts” in the “1. Safety — Seats, seat belts and supplemental restraint system” section for precautions on seat belt usage.

Supplemental air bag warning light

After turning the ignition key to the ON position, the supplemental air bag warning light will illuminate. The supplemental air bag warning light will turn off after about 7 seconds if the system is operational.

If any of the following conditions occur, the supplemental front air bag, supplemental side air bag (if so equipped) and curtain side-impact air bag (if so equipped), and pre-tensioner seat belt systems need servicing and your vehicle must be taken to a NISSAN dealer.

쐌 The supplemental air bag warning light re-

mains on after approximately 7 seconds.

쐌 The supplemental air bag warning light

flashes intermittently.

쐌 The supplemental air bag warning light does

not come on at all.

Unless checked and repaired, the supplemental restraint system (air bag system) and/or the pre-tensioner seat belt may not function properly. For additional information, see “Supplemental restraint system” in the “1. Safety — Seats,

Instruments and controls 2-15

seat belts and supplemental restraint system” section.

WARNING

If the supplemental air bag warning light is on, it could mean that the supplemental front air bag, supplemental side air bag, curtain side-impact air bag systems and/or pre-tensioner seat belt systems will not operate in an accident. To help avoid injury to yourself or others, have your vehicle checked by a NISSAN dealer as soon as possible.

INDICATOR LIGHTS

Automatic transmission position indicator light (A/T models)

When the ignition key is turned to the ON position, the indicator in the tachometer shows the automatic transmission selector lever position. See “Driving the vehicle” (automatic transmission) in the “5. Starting and driving” section.

2-16 Instruments and controls

Cruise main switch indicator light (if so equipped)

The light comes on when the cruise control main switch is pushed. The light goes out when the main switch is pushed again. When the cruise main switch indicator light comes on, the cruise control system is operational.

Cruise set switch indicator light (if so equipped)

The light comes on while the vehicle speed is controlled by the cruise control system. If the light blinks while the engine is running, it may indicate the cruise control system is not functioning properly. Have the system checked by a NISSAN dealer.

Front passenger air bag status light

The front passenger air bag status light

) will be lit and the passenger front air bag

( will be OFF depending on how the front passenger seat is being used.

For front passenger air bag status light operation, see “NISSAN advanced air bag system” in the “1. Safety — Seats, seat belts and supplemental restraint system” section of this manual.

High beam indicator light (Blue)

This light comes on when the headlight high beam is on and goes out when the low beam is selected.

Malfunction indicator lamp (MIL)

If the malfunction indicator lamp (MIL) comes on steady or blinks while the engine is running, it may indicate a potential emission control malfunction.

The malfunction indicator lamp may also come on steady if the fuel-filler cap is loose or missing, or if the vehicle runs out of fuel. Check to make sure the fuel-filler cap is installed and closed tightly, and that the vehicle has at least 3 US gallons (14 liters) of fuel in the fuel tank.

After a few driving trips, the turn off if no other potential emission control system malfunction exists.

If this indicator lamp comes on steady for 20 seconds and then blinks for 10 seconds when the engine is not running, it indicates that the vehicle is not ready for an emission control system inspection/maintenance test. See “Readiness for inspection/maintenance (I/M) test” in the “9. Technical and consumer informa-

lamp should

tion” section of this manual.

Operation

The malfunction indicator lamp will come on in one of two ways:

쐌 Malfunction indicator lamp on steady — An

emission control system malfunction has been detected. Check the fuel-filler cap. If the fuel-filler cap is loose or missing, tighten or install the cap and continue to drive the vehicle. The few driving trips. If the turn off after a few driving trips, have the vehicle inspected by a NISSAN dealer. You do not need to have your vehicle towed to the dealer.

쐌 Malfunction indicator lamp blinking — An

engine misfire has been detected which may damage the emission control system. To reduce or avoid emission control system damage:

a) Do not drive at speeds above 45 MPH

(72 km/h). b) Avoid hard acceleration or deceleration. c) Avoid steep uphill grades. d) If possible, reduce the amount of cargo

being hauled or towed.

The malfunction indicator lamp may stop blinking and come on steady.

lamp should turn off after a

lamp does not

Have the vehicle inspected by a NISSAN dealer. You do not need to have your vehicle towed to the dealer.

CAUTION

Continued vehicle operation without having the emission control system checked and repaired as necessary could lead to poor driveability, reduced fuel economy, and possible damage to the emission control system.

Slip indicator light

The light will blink when the vehicle dynamic control (VDC) system or the traction control system (TCS) is operating, thus alerting the driver to the fact that the road surface is slippery and the vehicle is nearing its traction limits.

This light also comes on when the ignition switch is turned to the ON position. The light will turn off if the VDC or TCS is operational.

Traction control system (TCS) off indicator light (if so equipped)

The light comes on when the traction control

system (TCS) off switch is pushed to OFF. This indicates the traction control system is not operating.

This light also comes on when the ignition key is turned to the ON position. The light will turn off if the traction control system (TCS) is operational.

When the traction control system off indicator light and slip indicator light come on with the traction control system turned on, this light alerts the driver to the fact that the traction control system’s fail-safe mode is operating, that is the system may not be functioning properly. Have the system checked by a NISSAN dealer. If a malfunction occurs in the system, the traction control function will be canceled but the vehicle is still driveable. For additional information, see “Traction control system (TCS)” in the “5. Starting and driving” section of this manual.

Vehicle dynamic control (VDC) off indicator light (if so equipped)

The light comes on when the vehicle dynamic control (VDC) off switch is pushed to OFF. This indicates the vehicle dynamic control system and traction control system are not operating.

This light also comes on when the ignition key is turned to the ON position. The light will turn off

Instruments and controls 2-17

if the vehicle dynamic control (VDC) system is operational.

When the vehicle dynamic control off indicator light and slip indicator light come on with the vehicle dynamic control system turned on, this light alerts the driver to the fact that the vehicle dynamic control system’s fail-safe mode is operating, that is the system may not be functioning properly. Have the system checked by a NISSAN dealer. If a malfunction occurs in the system, the vehicle dynamic control system function will be canceled but the vehicle is still driveable. For additional information, see “Vehicle dynamic control (VDC) system” in the “5. Starting and driving” section of this manual.

Soft top indicator light (Roadster models)

This light illuminates when the soft top is being operated or it is stopped before reaching a full open/close state. When the top is fully opened, the light will turn off. When the top is fully closed, the light will flash.

The soft top can be moved with the soft top operating switch only under all of the following conditions:

쐌 When the vehicle is stopped.

쐌 When the foot brake pedal is depressed.

2-18 Instruments and controls

쐌 When the ignition switch is ON.

CAUTION

Operate the soft top with the engine running to prevent a discharged battery.

When the soft top is in motion, and any of the above conditions are discontinued or the passenger power seat switches (on the cushion or the seatback) are operated, the top will stop moving. Remove your hand from the operating switch, and push it again under the above conditions until the top is fully opened or closed. The soft top indicator light will turn off when the top open operation is completely finished. When closing the top, the light, which is illuminated, will begin to flash when the top close operation is completely finished. Securely engage the top to the vehicle by operating the top latch lever. The light will turn off.

If the soft top indicator light flashes with the ignition switch ON (whether the top is operated or not, and when the top is engaged), it may indicate the electric soft top control unit is not functioning properly. Have your vehicle checked by a NISSAN dealer as soon as possible.

For more details about the electric soft top

operation, see “Soft top” in the “3. Pre-driving checks and adjustments” section.

Turn signal/hazard indicator lights

The light flashes when the turn signal switch lever or hazard switch is turned on.

AUDIBLE REMINDERS Key reminder chime

The chime will sound if the driver’s side door is opened while the key is left in the ignition switch (ignition switch is turned off). Remove the key and take it with you when leaving the vehicle.

Light reminder chime

The chime will sound when the driver’s door is opened with the headlight switch on unless the key is in the ignition switch. Make sure to turn the light switch off when you leave the vehicle.

Seat belt warning chime

The chime will sound for about 6 seconds unless the driver’s seat belt is securely fastened.

Brake pad wear warning

The disc brake pads have audible wear warnings. When a brake pad requires replacement, it will make a high pitched scraping sound when

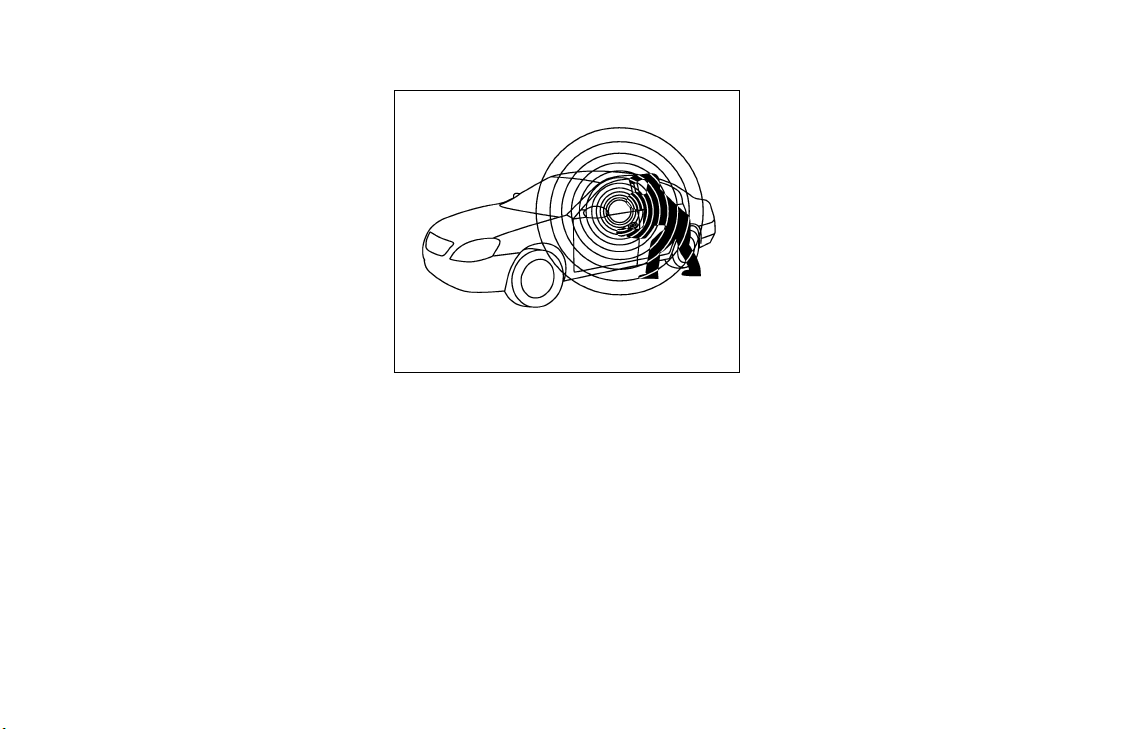

SECURITY SYSTEMS

the vehicle is in motion whether or not the brake pedal is depressed. Have the brakes checked as soon as possible if the warning sound is heard.

SIC2132

Your vehicle has two types of security systems, as follows:

쐌 Vehicle Security System

쐌 NISSAN Vehicle Immobilizer System

The security condition will be shown by the security indicator light.

VEHICLE SECURITY SYSTEM

The vehicle security system provides visual and audible alarm signals if someone opens the doors or rear hatch/trunk lid when the system is armed. It is not, however, a motion detection type system that activates when a vehicle is

moved or when a vibration occurs.

The system helps deter vehicle theft but cannot prevent it, nor can it prevent the theft of interior or exterior vehicle components in all situations. Always secure your vehicle even if parking for a brief period. Never leave your keys in the vehicle, and always lock the vehicle when unattended. Be aware of your surroundings, and park in secure, well-lit areas whenever possible.

Many devices offering additional protection, such as component locks, identification markers, and tracking systems, are available at auto supply stores and specialty shops. A NISSAN dealer may also offer such equipment. Check with your insurance company to see if you may be eligible for discounts for various theft protection features.

Instruments and controls 2-19

SIC1699A

Security indicator light

This light 쎻Ablinks whenever the ignition switch is in the LOCK, OFF or ACC position. This is normal.

How to arm the vehicle security system

1. Close all windows.

The system can be activated even if the windows are open.

2. Remove the key from the ignition switch.

2-20 Instruments and controls

3. Close and lock all doors and rear hatch/trunk lid.

Lock all doors by using the key or the keyfob. When using the keyfob, the hazard indicators flash twice to indicate all doors are locked.

4. Confirm that the security indicator light comes on. The security indicator light glows for about 30 seconds and then blinks. The system is now activated. If, during this 30 second time period, the door is unlocked by the key or the keyfob, or the ignition key is turned to ACC or ON, the system will not activate.

Even when the driver and/or passengers are in the vehicle, the system will activate with all doors and rear hatch/trunk lid locked and ignition key off. Turn the ignition key to ACC to turn the system off.

Vehicle security system activation

The security system will give the following alarm:

쐌 The headlights blink and the horn sounds

intermittently.

쐌 The alarm automatically turns off after ap-

proximately 50 seconds. However, the alarm reactivates if the vehicle is tampered with again. The alarm can be shut off by unlocking a door with the key, or by pushing the

UNLOCK

The alarm is activated by:

쐌 Opening the door without using the key or

keyfob.

쐌 Opening the rear hatch or the trunk lid with-

out using the keyfob.

button on the keyfob.

How to stop an activated alarm

The alarm will stop only by unlocking a door with the key, or by pushing the UNLOCK ton on keyfob. The alarm will not stop if the ignition key is turned to ACC or ON.

If the system does not operate as described above, have it checked by a NISSAN dealer.

but-

NISSAN VEHICLE IMMOBILIZER SYSTEM

The NISSAN Vehicle Immobilizer System will not allow the engine to start without the use of the registered key.

If the engine fails to start using the registered key (for example, when interference is caused by another registered key, an automated toll road device or automated payment device on the key ring), restart the engine using the following procedures:

1. Leave the ignition switch in the ON position for approximately 5 seconds.

2. Turn the ignition switch to the OFF or LOCK position and wait approximately 10 seconds.

3. Repeat steps 1 and 2.

4. Restart the engine while holding the device (which may have caused the interference) separate from the registered key.

If this procedure allows the engine to start, NISSAN recommends placing the registered key on a separate key ring to avoid interference from other devices.

Statement related to section 15 of FCC rules for NISSAN Vehicle Immobilizer System (CONT ASSY-BCM, ANT ASSYIMMOBILIZER)

This device complies with part 15 of the FCC Rules and RSS-210 of Industry Canada. Operation is subject to the following two conditions;

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RE-

SPONSIBLE FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

SIC1699A

Security indicator light

This light 쎻Ablinks whenever the ignition switch is in the LOCK, OFF or ACC position. This function indicates the security system equipped on the vehicle is operational.

If the NISSAN Vehicle Immobilizer System is malfunctioning, this light will remain on while the ignition switch is in the ON position.

If the light still remains on and/or the engine will not start, see a NISSAN dealer for NISSAN Vehicle Immobilizer System service as soon as possible. Bring all registered keys that you have when visiting a

Instruments and controls 2-21

NISSAN dealer for service.

2-22 Instruments and controls

WINDSHIELD WIPER AND WASHER SWITCH

SIC2998

The windshield wiper and washer operates when the ignition switch is in the ON position.

Push the lever down to operate the wiper at the following speed:

Intermittent (INT) — intermittent operation

쎻

can be adjusted by turning the knob toward

쎻

(Slower) or 쎻B(Faster).

The intermittent operation speed varies in accordance with the vehicle speed. (For example, when the vehicle speed is high, the intermittent operation speed will be faster.)

Low (LO) — continuous low speed operation

쎻

High (HI) — continuous high speed operation

쎻

Push the lever up operation (MIST) of the wiper.

Pull the lever toward you washer. Then the wiper will also operate several times.

to have one sweep

쎻

to operate the

쎻

WARNING

In freezing temperatures the washer solution may freeze on the windshield and obscure your vision which may lead to an accident. Warm the windshield with the defroster before you wash the windshield.

CAUTION

쐌 Do not operate the washer continu-

ously for more than 30 seconds.

쐌 Do not operate the washer if the

reservoir tank is empty.

쐌 Do not fill the window washer reser-

voir tank with washer fluid concentrates at full strength. Some methyl

REAR WINDOW WIPER AND WASHER SWITCH (Coupe models)

alcohol based washer fluid concentrates may permanently stain the grille if spilled while filling the window washer reservoir tank.

쐌 Pre-mix washer fluid concentrates

with water to the manufacturer’s recommended levels before pouring the fluid into the window washer reservoir tank. Do not use the window washer reservoir tank to mix the washer fluid concentrate and water.

SIC3297

The rear window wiper and washer operate when the ignition switch is in the ON position.

Turn the switch clockwise from the OFF position to operate the wiper.

Intermittent (INT) — intermittent operation

쎻

(not adjustable)

Low (ON) — continuous low speed operation

쎻

Push the switch forward washer. Then the wiper will also operate several times.

to operate the

쎻

WARNING

In freezing temperatures the washer solution may freeze on the rear window and obscure your vision. Warm the rear window with the defroster before you wash the rear window.

CAUTION

쐌 If the rear window wiper operation is

interrupted by snow or ice, the wiper may stop moving to protect its motor. If this occurs, turn the wiper switch to OFF and remove the snow or ice on and around the wiper arms. After about 1 minute, turn the switch ON again to operate the wiper.

쐌 Do not operate the washer continu-

ously for more than 30 seconds.

쐌 Do not operate the washer if the

reservoir tank is empty.

쐌 Do not fill the window washer reser-

Instruments and controls 2-23

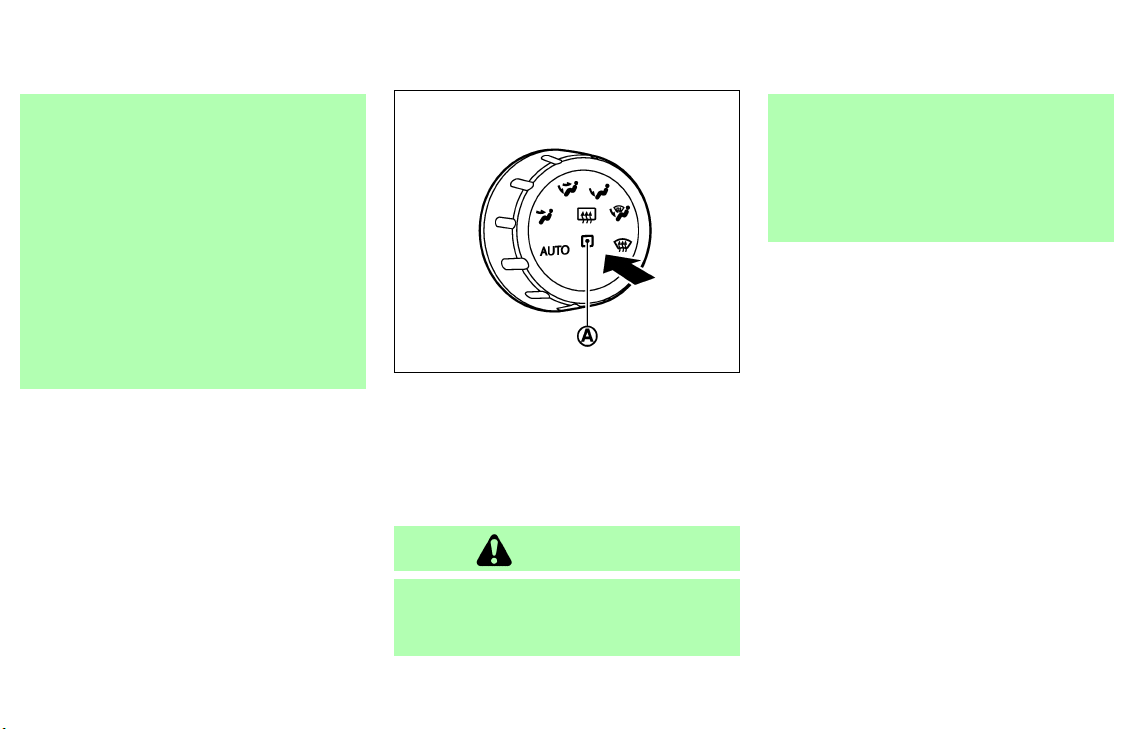

REAR WINDOW AND OUTSIDE MIRROR DEFROSTER SWITCH

voir tank with washer fluid concentrates at full strength. Some methyl alcohol based washer fluid concentrates may permanently stain the grille if spilled while filling the window washer reservoir tank.

쐌 Pre-mix washer fluid concentrates

SIC3000

To defog/defrost the rear window glass and outside mirrors, start the engine and push the switch on. The indicator light Push the switch again to turn the defroster off.

It will automatically turn off in approximately 15 minutes.

쎻

will come on.

CAUTION

쐌 When cleaning the inner side of the

rear window, be careful not to scratch or damage the rear window de-

froster.

쐌 Do not use the rear window defroster

switch while the soft top is being operated or fully opened. The heat may damage the top material and/or components. (for Roadster models)

2-24 Instruments and controls

HEADLIGHT AND TURN SIGNAL SWITCH

XENON HEADLIGHTS

WARNING

HIGH VOLTAGE

쐌 When xenon headlights are on, they

produce a high voltage. To prevent an electric shock, never attempt to modify or disassemble. Always have your xenon headlights replaced at a NISSAN dealer.

쐌 Xenon headlights provide consider-

ably more light than conventional headlights. If they are not correctly aimed, they might temporarily blind an oncoming driver or the driver ahead of you and cause a serious accident. If headlights are not aimed correctly, immediately take your vehicle to a NISSAN dealer and have the headlights adjusted correctly.

When the xenon headlight is initially turned on, its brightness or color varies slightly. However, the color and brightness will soon stabilize.

쐌 The life of xenon headlights will be

shortened by frequent on-off operation. It is generally desirable not to turn off the headlights for short intervals (for example, when the vehicle stops at a traffic signal). Even when the daytime running lights are active (Canada only), the xenon headlights do not turn on. This way the life of the xenon headlights is not reduced.

쐌 If the xenon headlight bulb is close to

burning out, the brightness will drastically decrease, the light will start blinking, or the color of the light will become reddish. If one or more of the above signs appear, contact a NISSAN dealer.

HEADLIGHT SWITCH Lighting

Turn the switch to the position:

쎻

The front park, side marker, tail, license plate and instrument lights will come on.

Turn the switch to the position:

쎻

Headlights will come on and all the other lights remain on.

SIC3291

Instruments and controls 2-25

CAUTION

Use the headlights with the engine running to avoid discharging the vehicle battery.

2-26 Instruments and controls

SIC3315

Headlight beam select

To select the high beam, push the lever

쎻

forward. The high beam lights come on and the high beam indicator light nates.

Pull the lever back to select the low beam.

쎻

Pulling the lever toward you will flash the

쎻

headlight high beam.

illumi-

Battery saver system

쐌 When the headlight switch is in the or

position while the ignition switch is in

the ON position, the lights will automatically

turn off 5 minutes after the ignition switch has been turned to the OFF position.

쐌 After the headlights automatically turn off with

the headlight switch in the sition, the headlights will illuminate again for 5 minutes if the headlight switch is turned to the OFF position and then turned to the

or position.

or po-

CAUTION

Even though the battery saver feature automatically turns off the headlights after a period of time, you should turn the headlight switch to the OFF position when the engine is not running to avoid discharging the vehicle battery.

DAYTIME RUNNING LIGHT SYSTEM (Canada only)

The headlights automatically illuminate at a reduced intensity when the engine is started with the parking brake released. The daytime running lights operate with the headlight switch in the OFF position or in the headlight switch to the illumination when driving at night.

position. Turn the

position for full

If the parking brake is applied before the engine is started, the daytime running lights do not illuminate. The daytime running lights illuminate once the parking brake is released. The daytime running lights will remain on until the ignition switch is turned off.

WARNING

When the daytime running light system is active, tail lights on your vehicle are not on. It is necessary at dusk to turn on your headlights. Failure to do so could cause an accident injuring yourself and others.

SIC3316 SIC3001

TURN SIGNAL SWITCH

쎻

Turn signal

Move the lever up or down to signal the turning direction. When the turn is completed, the turn signals cancel automatically.

쎻

Lane change signal

To indicate a lane change, move the lever up or down to the point where lights begin flashing.

INSTRUMENT BRIGHTNESS CONTROL

The instrument brightness control operates when the light switch is in the

position and the ignition switch is in the

ON position.

To adjust the brightness of instrument panel lights, press the control switches located on the left side of the meter panel. Pressing the upper switch switch ing the lower switch will turn the lights off.

쎻

will brighten the lights. The lower

쎻

will dim the lights. Repeatedly press-

Instruments and controls 2-27

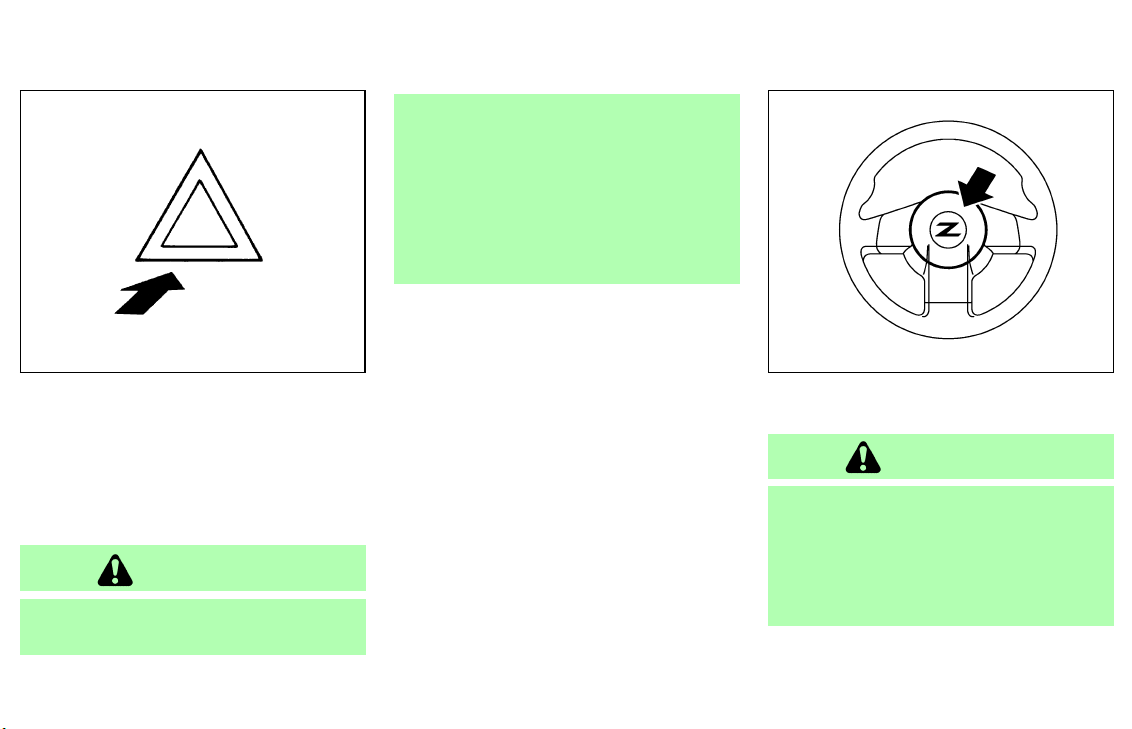

HAZARD WARNING FLASHER SWITCH

SIC2475 SIC2195

Push the switch (located on the front part of the center console) on to warn other drivers when you must stop or park under emergency conditions. All turn signal lights will flash.

Some state or provincial laws may prohibit the use of the hazard warning flasher switch while driving.

WARNING

쐌 If stopping for an emergency, be sure

to move the vehicle well off the road.

HORN

쐌 Do not use the hazard warning flash-

ers while moving on the highway unless unusual circumstances force you to drive so slowly that your vehicle might become a hazard to other traffic.

쐌 Turn signals do not work when the

hazard warning flasher lights are on.

The flasher will operate with the ignition switch in any position.

To sound the horn, push the center pad area of the steering wheel.

WARNING

Do not disassemble the horn. Doing so could affect proper operation of the supplemental front air bag system. Tampering with the supplemental front air bag system may result in serious personal injury.

2-28 Instruments and controls

HEATED SEATS (if so equipped)

SIC3002

The seats are warmed by built-in heaters. The switches are located on the center console.

1. Start the engine.

2. Select heat range.

For high heat, push the (High) side

쎻

of the switch.

For low heat, push the (Low) side of

쎻

the switch.

For no heat, the switch has a center OFF

쎻

position between low and high.

쎻

The indicator light illuminate when low or high is selected.

in the switch will

The heater is controlled by a thermostat, automatically turning the heater on and off. The indicator light will remain on as long as the switch is on.

3. When the vehicle’s interior is warmed, or before you leave the vehicle, be sure to turn the switch to the OFF position

An optional ventilated net seat has this built-in heater only in the seat cushion part, not in the seatback.

쎻

CAUTION

쐌 The battery could be discharged if

the seat heater is operated while the engine is not running.

쐌 Do not use the seat heater for ex-

tended periods or when no one is using the seat.

쐌 Do not put anything on the seat

which insulates heat, such as a blanket, cushion, seat cover, etc. Otherwise, the seat may become overheated.

쐌 Do not place anything hard or heavy

on the seat or pierce it with a pin or similar object. This may result in damage to the heater.

쐌 Any liquid spilled on the heated seat

should be removed immediately with a dry cloth.

쐌 When cleaning the seat, never use

gasoline, benzine, thinner, or any similar materials.

쐌 If any abnormalities are found or the

heated seat does not operate, turn the switch off and have the system checked by a NISSAN dealer.

Instruments and controls 2-29

VEHICLE DYNAMIC CONTROL (VDC) OFF SWITCH (if so equipped)

SIC1881 SIC1967

The vehicle should be driven with the Vehicle Dynamic Control (VDC) system on for most driving conditions.

If the vehicle is stuck in mud or snow, the VDC system reduces the engine output to reduce wheel spin. The engine speed will be reduced even if the accelerator is depressed to the floor. If maximum engine power is needed to free a stuck vehicle, turn the VDC system off.

To turn off the Vehicle Dynamic Control (VDC) system, push the VDC OFF switch (located on the lower side of the instrument panel). The

indicator light will come on.

Push the VDC OFF switch again or restart the

2-30 Instruments and controls

engine to turn on the system. See “Vehicle dynamic control (VDC) system” in the “5. Starting and driving” section.

TRACTION CONTROL SYSTEM (TCS) OFF SWITCH (if so equipped)

The vehicle should be driven with the Traction Control System (TCS) on for most driving conditions.

If the vehicle is stuck in mud or snow, the TCS reduces the engine output to reduce wheel spin. The engine speed will be reduced even if the accelerator is depressed to the floor. If maximum engine power is needed to free a stuck vehicle, turn the TCS off.

To turn off the Traction Control System (TCS), push the TCS OFF switch (located on the lower side of the instrument panel). The light will come on. Push it again or restart the engine to turn the system back on.

indicator

CLOCK

See “Traction control system (TCS)” in the “5. Starting and driving” section.

The digital clock (in the audio unit) displays time when the ignition switch is in the ACC or ON position.

If the battery cable is disconnected, the clock will reset its time and the correct time will not be indicated. Readjust the time.

SIC3003

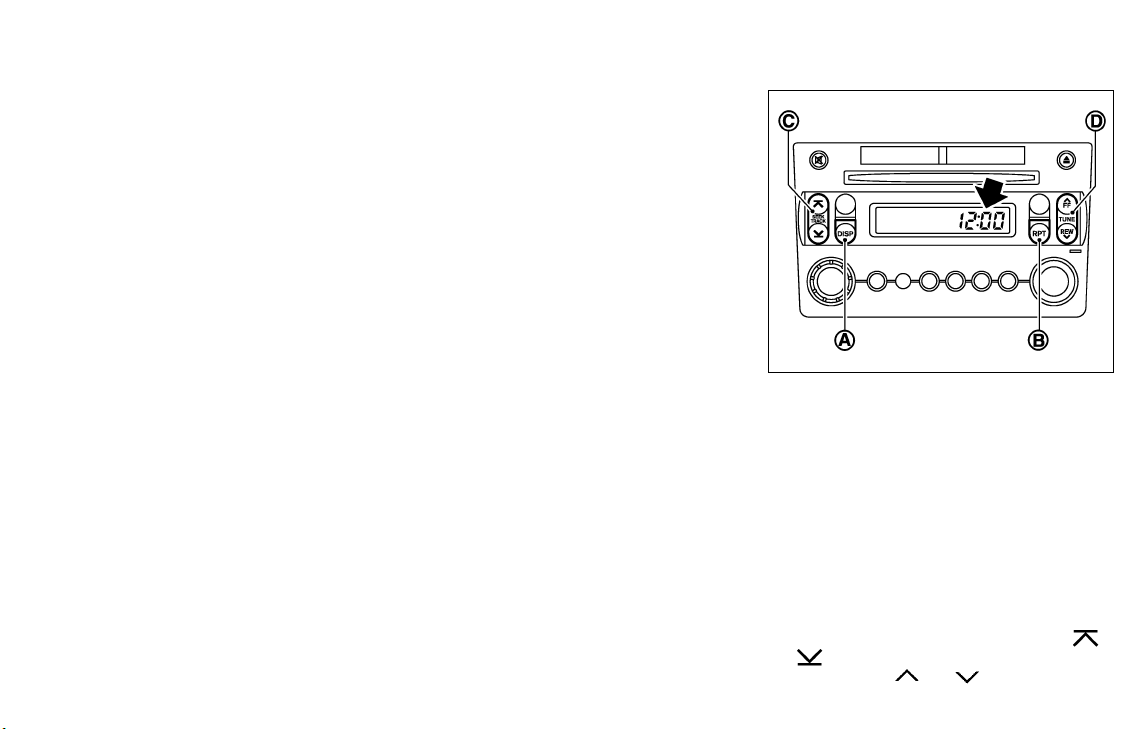

ADJUSTING THE TIME

Adjust the time in the following steps:

1. Switch the display to the clock adjusting mode. Type A (audio with 1 CD player): Push and hold the DISP (Clock) button until the clock display starts to flash.

Type B (audio with 6 CD changer): Push and hold the RPT button clock display starts to flash.

2. Push the SEEK/TRACK button

) to adjust the hour. Push the TUNE

button

쎻

( , ) to adjust the

Instruments and controls 2-31

쎻

until the

( ,

쎻

minute. Pushing the or side will

advance the time and the

or side

will turn back the time.

3. Push the DISP button

쎻

button (Type B) to finish the adjustment.

쎻

(Type A), or RPT

Resetting

Type A (audio with 1 CD player): Push the DISP

Type B (audio with 6 CD changer): Push the RPT

The time will be set to a time signal.

For example, if these buttons are pushed while the time is between 8:00 and 8:29, the display will be reset to 8:00. If pushed while it is between 8:30 and 8:59, the display will be reset to 9:00. At the same time the display will return to the previous audio mode.

쎻

and TUNE 쎻Dbuttons.

쎻

and TUNE 쎻Dbuttons.

POWER OUTLET

The power outlet is for powering electrical ac-

Front

cessories such as cellular telephones.

SIC2258

CAUTION

쐌 The outlet and plug may be hot dur-

ing or immediately after use.

쐌 This power outlet is not designed for

use with a cigarette lighter unit.

쐌 Do not use accessories that exceed a

combined power draw of 12 volt, 120W (10A) for both the front and

Rear

SIC1968

rear power outlets. Do not use double adapters or more than one accessory with a single power outlet.

쐌 Use power outlet with the engine

running to avoid discharging the vehicle battery.

쐌 Avoid using power outlets when the

air conditioner, headlights or rear window defroster is on.

쐌 Before inserting or disconnecting a

plug, be sure to turn off the power switch of electrical accessory being

2-32 Instruments and controls

STORAGE

used or the ACC power of the vehicle.

쐌 Push the plug in as far as it will go. If

good contact is not made, the plug may overheat or the internal temperature fuse may open.

쐌 Do not allow water to contact the

outlet. When not in use, be sure to close the lid.

SIC3004

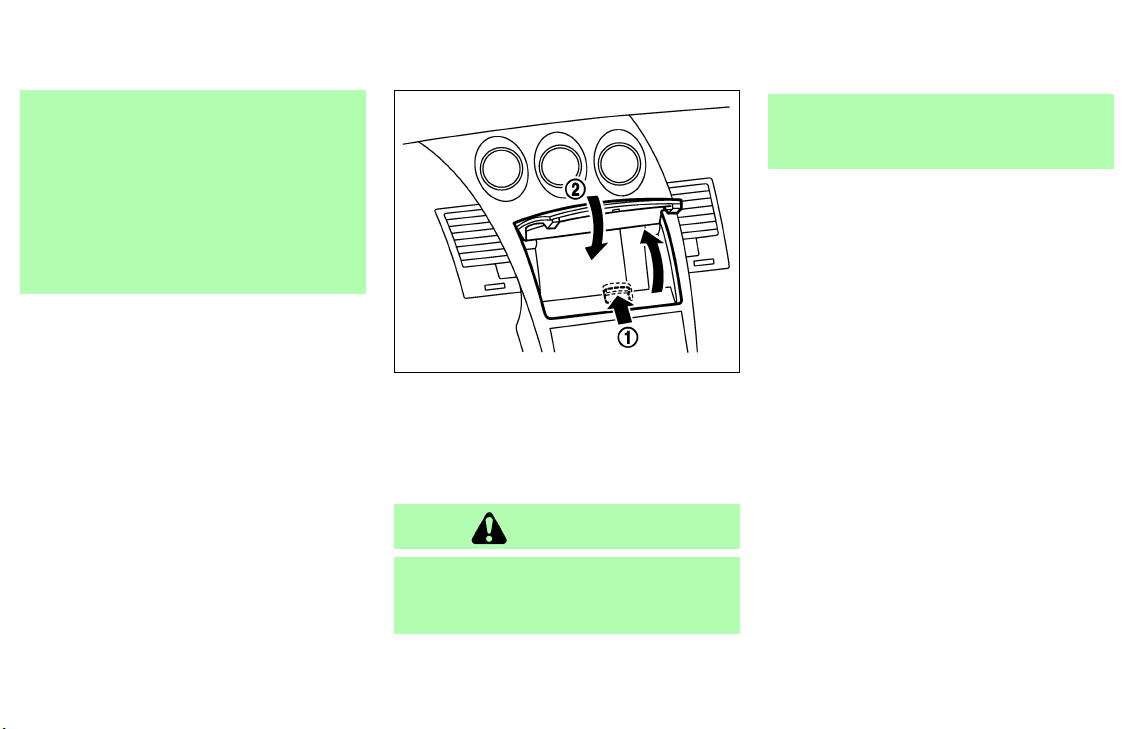

INSTRUMENT POCKET (except for navigation system equipped models)

To open the lid, push the knob up

To close, pull the lid down

쎻

WARNING

쐌 The instrument pocket should not be

used while driving so full attention may be given to vehicle operation.

쐌 Keep the pocket lid closed while driv-

ing to help prevent injury in an accident or a sudden stop.

Instruments and controls 2-33

CAUTION

쐌 Do not use for anything other than

glasses.

쐌 Do not leave sunglasses in the sun-

glasses holder while parking in direct sunlight. The heat may damage the sunglasses.

SIC2317 SIC3006

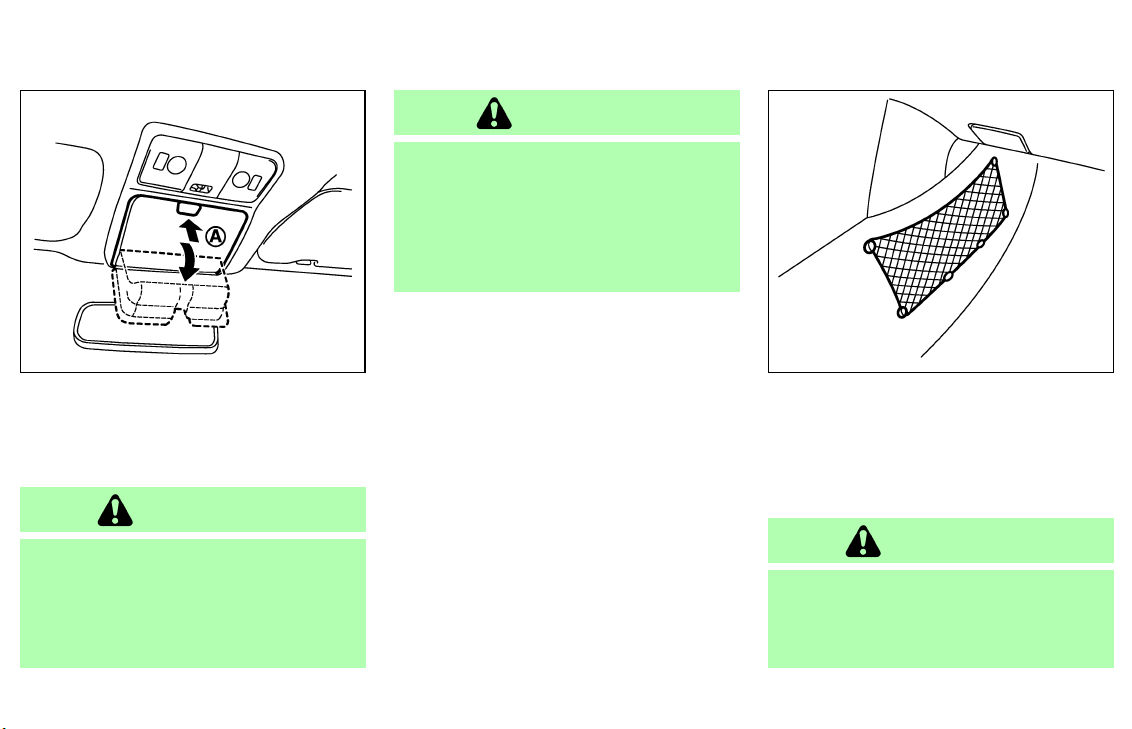

SUNGLASSES HOLDER (Coupe models)

The sunglasses holder can be opened by pushing the button

쎻

WARNING

쐌 The sunglasses holder should not be

used while driving so full attention may be given to vehicle operation.

쐌 Keep the sunglasses holder closed

while driving to prevent an accident.

2-34 Instruments and controls

CARGO NET

The net located under the instrument panel (passenger’s side) can be used to hold small objects.

The net can be removed when necessary.

WARNING

쐌 Do not place sharp objects in the net.

Such objects may become dangerous projectiles and cause injury when the vehicle is moving or if the vehicle is

involved in a collision.

쐌 The cargo restrained in the net must

not exceed 4 lb (2 kg) or the net may not stay secured.

CUP HOLDERS

WARNING

The cup holder should not be used while driving so full attention may be given to vehicle operation.

CAUTION

쐌 Avoid abrupt starting and braking

when the cup holder is being used to prevent spilling the drink. If the liquid is hot, it can scald you or your passenger.

쐌 Use only soft cups in the cup holder.

Hard objects can injure you in an accident.

Front

To open the cup holder, slide the lid

Install the partition plate into the slit

SIC3007 SIC3008

Soft bottle holder

쎻

쐌 Do not use bottle holder for any other

objects that could be thrown about in the vehicle and possibly injure people during sudden braking or an accident.

쐌 Do not use bottle holder for open

liquid containers.

CAUTION

Instruments and controls 2-35

SIC3009 SIC3010 SIC1975A

CONSOLE BOX

Pushing the button then pull up the lid manually console box is equipped with a card holder

will open the lid slightly,

쎻

. The center

쎻

WARNING

The center console box should not be used while driving so full attention may be given to vehicle operation.

2-36 Instruments and controls

If objects (coins, etc.) fall into the rear section of the center console box, remove the rear wall of the box as shown, and pick up the objects.

쎻

Be careful not to pinch your fingers when removing the rear wall

CAUTION

쎻

REAR FLOOR BOX

쎻

The rear floor box is located behind the passenger’s seat. Fold the seat to use the rear floor box.

The rear floor box may be opened by pulling the handle. The rear floor box light illuminates when the box lid is opened with the headlight switch

ON.

When locking box, use the master key.

or unlocking

쎻

the rear floor

쎻

Nissan Z33-D User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
