Nilfisk NEPTUNE E User Manual

NEPTUNE E

english Operating Instructions................................3-16

deutsch Betriebsanleitung......................................17-30

français Notice d’utilisation ....................................31-44

nederlands Gebruiksaanwijzing ..................................45-58

italiano Istruzioni sull’uso......................................59-72

norsk Driftsinstruks.............................................73-86

svensk Bruksanvisning .......................................87-100

dansk Driftsvejledning .....................................101-114

suomi Käyttöohje.............................................. 115-128

9 uêê ...............................129-142

ê |êê .......................................143-156

Uê w5Uê5..................................157-170

:Uê wBê5........................................ 171-184

ê pê.................................... 185-198

ê r>êB5 .....................................199-212

русский Руководство по эксплуатации ...............213-226

español Instrucciones de manejo ...................... 227-240

português Instruções de operação........................241-254

İȜȜȘȞȚțȐ ȅįȘȖȓİȢȜİȚIJȠȣȡȖȓĮȢ..............................255-268

türkçe Ýþletme kýlavuzu.....................................269-282

301002408 - 2005-08-16

NEPTUNE E

1

2

3

4

5

22

6

21

20
19

18

17

7

8

9

10
11

psi

bar

301002352

12
13
14
15
16

NEPTUNE E

Contents

1 Important safety

instructions

2 Description

3 Before starting the cleaner

4 Control / Operation

5 Applications and methods

6 After using the cleaner

7 Maintenance

8 Troubleshooting

9 Further information

english

............................................................................................4

2.1 Purpose ................................................................................6

2.2 Operating elements ..............................................................6

3.1 Transport and assembly.......................................................7

3.2 Set the brake ........................................................................7

3.3 Fill up detergent tanks ..........................................................7

3.4 Connecting the high pressure hose......................................7

3.5 Connecting the water supply ................................................8

3.6 Electrical connection ............................................................8

3.7 Antifreeze - before first use ..................................................8

4.1 Connecting the spray lance to the spray gun .......................8

4.2 Switching on the cleaner ......................................................9

4.3 Using cleaning agents ..........................................................9

5.1 Techniques.........................................................................10

5.1.1 Soaking ..............................................................................10

5.1.2 Detergent and Foam ..........................................................10

5.1.3 Temperature .......................................................................10

5.1.4 Mechanical Effect...............................................................10

5.1.5 High Water Flow or High Pressure .....................................10

5.2 Some typical cleaning tasks ...............................................11

5.2.1 Agriculture ..........................................................................11

5.2.2 Vehicle................................................................................11

5.2.3 Buildings and Equipment....................................................12

6.1 Switching off the cleaner ....................................................12

6.2 Disconnecting supply lines .................................................12

6.3 Storing the cleaner (below 0°C (32°F)) ..............................12

7.1 Maintenance Schedule.......................................................13

7.2 Maintenance work ..............................................................13

7.2.1 Water filters ........................................................................13

7.2.2 Checking the pump oil quality ............................................13

7.2.3 Changing the pump oil .......................................................14

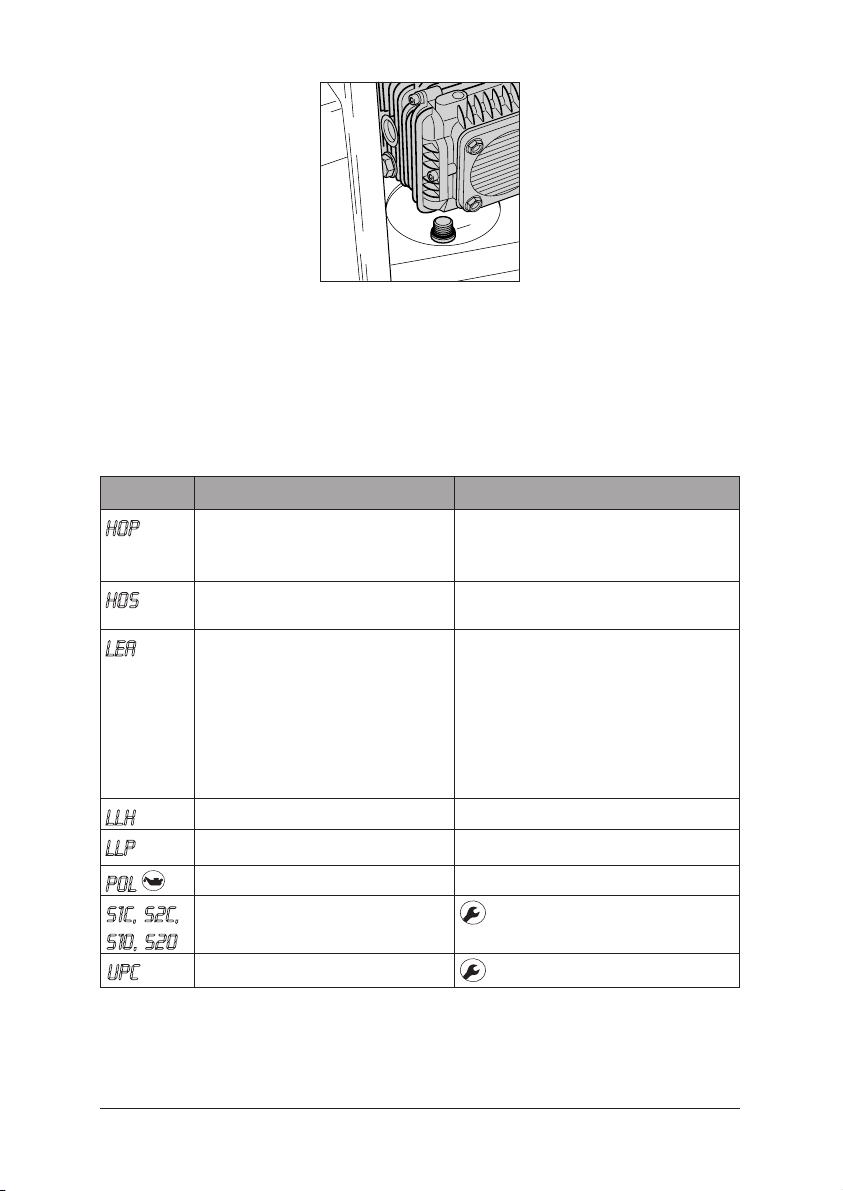

8.1 Indications on Display ........................................................14

8.2 Indication lights on control panel ........................................15

8.3 Other Faults........................................................................15

9.1 Recycling the cleaner .........................................................15

9.2 Guarantee ..........................................................................16

9.3 Technical data ....................................................................16

9.4 EU Declaration of Conformity.............................................16

1)

Accessories / model variants

3

NEPTUNE E

english

Symbols used to mark
instructions

Safety instructions

in these operating

instructions which

must be observed

to prevent risks
to persons are marked with this
danger symbol.

Before using the

high-pressure
cleaner, be sure
to also read the

enclosed operat-

ing instructions

This symbol is used to

mark safety instruc-

tions that must be

observed to prevent

damage to the machine

and its performance.
and keep them within reach at
all times.

1 Important safety instructions

Use only detergents approved
by Nilfisk-Alto.

For your own safety

The high-pressure cleaner
should only be used by author­ized persons who have been
instructed in its use.

Although extremely easy to
operate, children should not be
allowed to use the cleaner.

General

Use of the high-pressure cleaner
is subject to the applicable local
regulations.
Besides the operating instruc­tions and the binding accident
prevention regulations valid in
the country of use, observe rec­ognized regulations for safety
and proper use.
Do not use any unsafe work
techniques.

Transport

Transport of the high-pressure
cleaner is easy on its large
wheels.

For safe transport in and on ve­hicles we recommend preventing
the equipment from sliding and
tilting. Secure it with tie-downs
and apply the parking brake on
the castor wheel.

For transport at temperatures
around or below freezing 0°C
(32°F), anti-freeze should be
drawn into the pump beforehand
(see chapter 6).

Before starting the cleaner

Before use, check that the high­pressure cleaner is safe and in
proper condition.
Regularly check whether the
power cord is damaged or shows
signs of ageing.

This indi­cates tips

and instructions

to simplify work

a n d to ensure safe opera-

tion.

Operations

marked with this
symbol should
only be carried

out by Nilfisk-

Alto Service

Technicians.

Use the high-pressure cleaner
only when the power cord is in
a safe condition. (risk of electric
shock using damaged cord!).

Check the rated voltage of the
high-pressure cleaner before
connecting it to the mains power
supply. Ensure that the voltage
shown on the rating plate cor­responds to the voltage of the
power supply.
We strongly recommend that the
power supply to the high pres­sure cleaner be connected via a
residual current circuit breaker.
This device stops the supply of
electricity if the leakage current
to the ground exceeds 30 mA for
30 ms or it has an ground tester
circuit.

Please observe the regulations
and provisions applicable in your
area. Before putting the high­pressure cleaner into service,
carry out a visual check of all
the major components.

CAUTION!
High-pressure water jets can
be dangerous if misused. The

1)

4

Accessories / model variants

5

english

1)

Accessories / model variants

NEPTUNE E

jet must not be directed at
persons, animals, live electri­cal equipment or the cleaner
itself.
Wear appropriate protective
clothing and eye protection.

Do not direct the jet towards
yourself or towards other per­sons in order to clean clothes or
footwear.

During operation of the cleaner,
recoil forces are produced at the
gunvalve and spray lance and,
when the spray lance is held at
an angle, a torque is also created.
The gunvalve and spray lance­must therefore be held firmly in
both hands.

Do not use the cleaner when
other people without protective
clothing are in the working area.

Check that cleaning will not
result in dangerous substances
(e.g. asbestos, oil) being washed
off the object to be cleaned and
harming the environment.

Do not clean delicate parts
made of rubber, fabric, etc. with
the 0° jet. Keep some distance
between high pressure nozzle
and surface in order to prevent
the surface from damage.

Do not use the high-pressure
hose for lifting loads.

NOTE!
The maximum permissible work­ing pressure and temperature
are printed on the high-pressure
hose.

Do not use the cleaner if the
power cord or high-pressure
hose is damaged.

Ensure adequate air circulation.
Do not cover the cleaner or oper­ate it in inadequately ventilated
rooms!

Store thecleaner where
it will not be exposed

to frost!

Never operate the cleaner with­out water. Even brief shortages of
water result in severe damage to
the pump seals.

Operation

Keep cabinetand servicedoor
closed during operation.

Connect the machine directly to
a plug socket. Do not use exten­sion cords.

Do not damage the power cord
(e.g. by driving over it, pulling or
crushing it).

Disconnect the power cord by
grasping the plug only (do not
pull or tug the power cord).

Electrical equipment

CAUTION!
Never spray electrical equip­ment with water: risk of elect­trical shock and short-circuit.

The cleaner may only be con­nected to a correctly installed
plug socket.

Switching on the cleaner may
cause voltage fluctuations.
Voltage fluctuations should not
occur if the impedance at the
transfer point is less than 0.15:
If in doubt ask your local electric­ity supplier.

Maintenance and repair

CAUTION!
Always remove the plug from
the powersupply before clean­ing or carrying out mainte­nance work on the cleaner.

Carry out only the maintenance
operations described in the op­erating instructions. Use only
original Nilfisk-Alto spare parts.

Do not make any technical
modifications to the high-pres­sure cleaner.

Ensure that the machine is
regularly serviced by authorized
Nilfisk-Alto dealers in accordance
with the maintenace plan. Failure
to do so will void the warranty.

CAUTION!

High-pressure hoses, fittings
and couplings are important for
the safety of the cleaner. Use
only high-pressure parts ap­proved by the manufacturer!

The power cord must not differ
from the version specified by the
manufacturer and may only be
changed by an electrician.
Please contact your local au­thorized Nilfisk-Alto equipment
distributor for all other mainte­nance or repair needs!

Testing

The cleaner conforms to the Ger­man „Guidelines for Liquid Spray
Jet Devices“. The high-pressure
cleaner must be subjected to a
safety examination in accord­ance with the „Accident Preven­tion Regulations for Working
with Liquid Spray Jet Devices“
as required, but at least every
12 months, by an authorised
inspector.

After all repairs or modifications
to electrical equipment, the pro­tective conductor resistance, the
insulation resistance and the leak­age current must be measured.
Furthermore, a visual inspection
of the mains power lead, a volt­age and current measurement
and a function test must be car­ried out. Our after-sales service
technicians are at your disposal
as authorised inspectors.

The complete „Accident Preven­tion Regulations for Working
with Liquid Spray Jet Devices“
are available from the Carl Hey­manns Verlag KG, Luxemburger
Strasse 449, 50939 Cologne or

NEPTUNE E

english

from the appropriate associa­tion of employers’ liability insur­ances.

The pressure-bearing parts of
this high-pressure cleaner have
been manufactured in accord­ance with § 9 of the German
Pressure Vessels Ordinance
and successfully subjected to a
pressure test.

2 Description

2.1 Purpose

Safety devices

Unloadar valve

Pump pressure is reduced by
means of an "unloader valve"
which returns water to the inlet
side of the pump at a minimum
pressure.

Safety temperature limiter

When exceeding max. permis­sible water temperature in the
boiler the heating is completely
switched off.

This high-pressure cleaner has
been designed for professional
use in

– Agriculture
– Industry
– Transport industry
– Automotive
– Municipal Facilities
– Janitorial
– Construction
– Food Industry
etc.

Level monitoring in the boiler

If the water level in the boiler
sinks under a certain level, the
equipment is switched off. The
boiler is protected against over­heating. The pump is protected
against water shortage.

The safety devices are set and
sealed at the factory and must
not be adjusted.

Chapter 5 describes the use of
the high-pressure cleaner for
various cleaning jobs.

Always use the cleaner as
described in these operating
instructions. Any other use may
damage the cleaner or the sur­face to be cleaned or may result
in severe injury to persons.

2.2 Operating elements



See fold-out page at front of these
operating instructions.

6

1 Spray lance
2 Spray lance storage

3 Control panel

4 Detergent level gauge
5 Tank filler for detergent A

6 Top cover release
7 Service door release
8 High pressure hose con-

nection

9 Main switch ON/OFF

10 Display (Temperature or

Codes)

11 Temperature control

12 Boiler heating operating
13 Working temperature

reached
14 Service interval due/expired
15 Pump oil low
16 Detergent metering knob
17 Pressure gauge
18 Power ON
19 Castor with parking brake
20 Water supply connection
21 Canister for detergent B
22 Grip for top cover

1)

Accessories / model variants

1)

7

english

1)

Accessories / model variants

NEPTUNE E

3 Before starting the cleaner

3.1 Transport and
assembly

3.2 Set the brake

1. The safest way to lift the ma­chine is to use a fork-lift truck
The arrows in the illustration
indicate the best places to po­sition the fork.

2. It is also possible to lift the
machine by hand from the pal­let. Due to the weight this work
should be done by at least
three persons.

CAUTION!

Do not hold the plastic tank to lift
the machine as it could become
detached from the frame.

The best places to hold the ma-

– on the handle
– on the frame between the front

1. Before using the cleaner for

2. Run the machine only when

3. Set the brake.

chine are

wheels and the guide rollers.

the first time, check it carefully
for any faults or damage.

it is in perfect working condi­tion.

3.3 Fill up detergent tanks

3.4 Connecting the high
pressure hose

AB

1. Fill up detergent tanks (A)
and (B)

1)

with prediluted de-

tergent.

3
0
1
0
0
2
3
5
2

Capacity see chapter 9.3
Technical Data

1. Connect the high pressure
hose quick connector to the
high pressure nipple.

NEPTUNE E

english

3.5 Connecting the water
supply



NOTE!

See chapter 9.3 Technical Data for
required quantity of water and water
pressure.
In the case of poor water quality
(sand, etc.), it is recommended that
an inlet water filter be installed.

3.6 Electrical connection

3.7 Antifreeze - before first
use

Water supply hose should be a re­inforced hose and have a minimum
inside diameter of 3/4" (19 mm).

CAUTION!

The cleaner should only be con­nected to a correctly installed
electrical supply.

The machine is flushed with anti­freeze at the factory to protect it
against freezin; this mixture (ap-

1. Attach quick connect adapter
found with Owners Manual to
the water supply hose.

2. Rinse the water supply hose
briefly in order to prevent sand
an other dirt particles entering
into the machine.

3. Attach water supply hose with
adapter to inlet quick connec­tor.

4. Open water supply faucet.

1. Observe specifications in
chapter 9.3.

2. Observe safety instructions in
chapter 1.

3. Insert the plug into the electri­cal socket.

prox. 3 l) may be captured in a
suitable container for reuse.

4 Control / Operation

4.1 Connecting the spray
lance to the spray gun

A

C



NOTE!

Always remove any dirt from the
nipple before connecting the spray
lance to the spray gun.

8

B

1. Pull the blue quick-release
grip (A) of the spray gun for­wards and lock it by turning it
to the left.

2. Insert the nipple of the spray
lance (C) into the quick-re­lease connection and turn
the blue quick-release grip to
the right (B).

3. Pull the spray lance (or other
accessory) forwards to check
that it is securely attached to
the spray gun.

1)

Accessories / model variants

9

english

1)

Accessories / model variants

NEPTUNE E

4.2 Switching on the
cleaner



Automatic temperature control

The electronically controlled mix­ing valve regulates the preselected
work temperature, while sufficiently
hot water is in the boiler. If the water
temperature in the boiler drops un­der the preselected work tempera­ture, the indicator lamp
out.

1. Wait until the boiler has heated

the water to preselected tem­perature (the indicator lamp
blinks during heating-up).

or:

2. Operate the machine with lower

than preselected working tem-

perature.
During continuous operation the
work temperature oscillates itself on
the following values:

goes



The cleaner switches off automati­cally twenty seconds after the spray
gun has been closed. To start the
cleaner again, squeeze the trigger
and the machine will start automati­cally.

B

A

60

NEPTUNE

E 12 34°C
E 24 46°C

The specified values refer to a water
inlet temperature of 12°C. If warmer
water is supplied (permissible up
to max. 70°C) higher values are
reached.

0

I

M

Working

temperature

1. Turn the main switch to posi­.

tion
Control electronics accomplishes
a self check.
The Display shows for approx. 1
second „---“.
The motor starts.

is ON.

Cold water operation:

2. Turn temperture selector

switch (A) fully anticlockwise.

3. Turn the main switch (B) to

position

.

Hot water operation:

2. Turn temperature selector

switch (A) to desired water

temperature.

The indication lamp

blinks during water is heated.

If water has reached the

preselected temperature, the

indication lamp

lights.

3. Turn the main switch (B) to

position

.

4. Unlock the spray gun and

squeeze trigger.

5. Lock the spray gun even dur-

ing short working pauses.

4.3 Using cleaning agents

3
0
1
0
0
2
3
5
2

A

B

NOTE!

Never allow clean­ing agent to dry on
the surface to be

,

cleaned. The sur­face may be dam­aged.

1%1%

3%

5%

3%

5%

ca. ca.

The percentage shown in the illus­tration are only approximate data.

For special applications such as dis­infection, the exact detergent con­centration has to be determined by

1. Select desired detergent (A)

or (B) and amount by turning

the knob to desired percent-

age.

2. Spray the object to be

cleaned.

3. Allow the cleaning agent to

work, depending on the de-

gree of soiling. Then rinse off

with high pressure.

using a graduated measuring con­tainer. For water outlet volume of
the machine see chapter 9.3 techni­cal data.

NEPTUNE E

english

5 Applications and methods

5.1 Techniques

5.1.1 Soaking

5.1.2 Detergent and Foam

5.1.3 Temperature

5.1.4 Mechanical Effect

5.1.5 High Water Flow or
High Pressure

Efficient high pressure cleaning is achieved by following a few guide­lines, combined with your own personal experience of specific clean­ing tasks. Accessories and detergents, when correctly chosen, can
increase the efficiency of your pressure washer. Here is some basic
information about cleaning.

Encrusted or thick layers of dirt can be loosened or softened up by a
period of soaking. This is for example an ideal method within agricul­ture – for example, within pig sties. The ideal soaking method can be
achieved by using foam or simple alkaline detergent. Let the product
lie on the dirty surfaces for about 30 minutes before pressure washing.
The result will be a much quicker high pressure cleaning process.

Foam or detergent should be applied onto dry surfaces so that the
chemical product is in direct contact with the dirt. Detergents are ap­plied from bottom to top, for example on a automobile bodywork, in
order to avoid “super clean” areas, where the detergent may collect
in higher concentrations and streams downwards. Let the detergent
work for several minutes before rinsing before rinsing and never let
it dry on the surface being cleaned.

Detergents are more effective at higher temperatures. Greases, oils
and fats can be broken down more effectively at higher temperatures
also. Proteins can be cleaned at temperatures of around 60°C (140°F).
Oils and traffic film around 70°C (158°F), and grease can be cleaned
at 80°-90°C (176-194°F).

In order to break down tough layers of dirt, additional mechanical
effect may be required. Special lances and rotary or wash brushes
offer this supplementary effect that cuts through dirt.

High pressure is not always the best solution and may also damage
surfaces. The cleaning effect also depends upon water flow. Pres­sure levels of around 100 bar (1450 psi) may be sufficient for vehicle
cleaning (in association with hot water) and higher flow levels give
the ability to rinse and flush away large amounts of dirt easily.

1)

10

Accessories / model variants

11

english

1)

Accessories / model variants

NEPTUNE E

5.2 Some typical cleaning tasks

5.2.1 Agriculture

Task Accessories Method

Stables
Pig Pens, Sties

Cleaning of
walls, floors and
equipment

Disinfectant

Machinery
Tractors
ploughs etc.

Chemical Foam
Injectors
Foam lance
Powerspeed lance
Floor Cleaner

Detergents
Universal
Alkafoam

Disinfectant
DES 3000

Detergent injection
Powerspeed lances
Curved lances and
underchassis washers
Brushes

1. Soaking – apply foam to all surfaces (bottom to top)
and wait for approx. 30 minutes.

2. Remove the dirt from surfaces with the high pressure
lance or chosen accessory. Again, clean from bottom
to top on vertical surfaces.

3. To flush away large quantities of dirt, change to low
pressure mode and use the higher flow to push away
the dirt.

4. Use recommended disinfectant products and methods
to ensure hygiene. Apply DES 3000 disinfectant once
the surfaces are perfectly clean.

1. Apply detergent to vehicle or equipment surfaces in
order to soften up dirt and grime. Apply from bottom
to top.

2. Proceed with cleaning using the high pressure lance.
Clean again from bottom to top. Use accessories to
clean in difficult to reach places.

3. Clean fragile areas such as motors, rubber at lower
pressure levels to avoid damage.

5.2.2 Vehicle

Task Accessories Method

Vehicle bodywork Standard lance

Detergent injection
Curved lances and
underchassis washers
brushes

Detergents
Aktive Shampoo
Aktive Foam
Sapphire
Super Plus
Aktive Wax
Allosil
RimTop

1. Apply detergent to vehicle or equipment surfaces in
order to soften up dirt and grime. Apply from bottom
to top. In cases of particularly dir ty vehicles, pre-spray
with a product such as Allosil in order to remove traces
of insects etc, then rinse at low pressure and apply
normal car cleaning detergent. Let detergents settle
for 5 minutes before cleaning off. Metallic surfaces can
be cleaned using RimTop.

2. Proceed with cleaning using the high pressure lance.
Clean again from bottom to top. Use accessories to
clean in difficult to reach places. Use brushes in order
to add a mechanical cleaning effect. Short lances can
help for cleaning of motors and wheel arches. Curved
lances or undercarriage washers can be valuable for
the cleaning of car underchassis and wheel arches.

3. Clean fragile areas such as motors, rubber at lower
pressure levels to avoid damage.

4. Apply a liquid wax using the pressure washer in order
to protect the bodywork from pollution.

NEPTUNE E

english

5.2.3 Buildings and Equipment

Task Accessories Method

General surfaces

Metallic equipment

Foam injectors
Standard lance
Curved lances
Tank cleaning
head

Detergents
Intensive
J25 Multi
Combi Aktive
Alkafoam

Disinfectant
DES 3000

1. Apply thick foam over the surfaces to be cleaned. Ap­ply on dry surfaces. Apply from top to bottom on ver­tical surfaces. Let the foam act for up to 30 minutes
for the optimal effect.

2. Proceed with cleaning using the high pressure lance.
Use applicable accessories. Use high pressure to
dislodge large amounts of incrusted dirt or grime.
Use lower pressure and high water volume in order
to rapidly flush away loose dirt and rinse surfaces.

3. Apply DES 3000 disinfectant once the surfaces are
perfectly clean.

Areas covered by amounts of loose dirt, such as animal
remains in slaughterhouses, can be removed by using
high water flow to flush away the dirt to evacuation pits
or drains.
Tank cleaning heads can be used to clean barrels, vats,
mixing tanks etc. Cleaning heads may be hydraulically
or electrically powered and give the possibility for auto­matic cleaning without a constant user.

Rusted or
damages surfaces
prior to treatment

Wet Sandblasting
equipment

1. Connect the sandblasting lance to the pressure
washer and place the suction tube in the sand.

2. Always wear protective equipment during sandblast­ing.

3. Spray the surfaces to be treated with the mix of water
and sand. Rust, paint etc will be stripped off.

These are merely several examples of cleaning tasks that can be solved by a pressure washer in asso­ciation with accessories and detergents. Each cleaning task is different. Please consult your local dealer
or Nilfisk-Alto representative in order to discuss the best solution for your own cleaning tasks.

6 After using the cleaner

6.1 Switching off the
cleaner

6.2 Disconnecting supply
lines

6.3 Storing the cleaner
(below 0°C (32°F))

12

0

I

M

1. Turn off water supply at
faucet.

2. Remove the water supply
hose from the cleaner.

6. To prevent accidents, always

1. Turn the main switch to posi-

tion „OFF“.

2. Turn off water supply at
faucet.

3. Squeeze the spray gun trig­ger until the pressure has bled
off.

4. Slide trigger lock to the locked
position.

carefully roll up the power
cord and the high pressure
hose.

1. Store the cleaner in a dry
heated location to protect
against freezing.

1)

Accessories / model variants

13

english

1)

Accessories / model variants

NEPTUNE E

7 Maintenance

7.1 Maintenance Schedule

7.2.1 Water filters

7.2.2 Checking the pump oil quality

7.2.3

Changing the pump oil

7.2 Maintenance work

7.2.1 Water filters

Weekly

Q

After the first 50
operating hours

months or

500 operating

hours

QQ

Water filters are fitted at the water
and pump inlets to prevent large
particles of dirt from entering into
the system.

1. Unscrew quick coupling.

2. Remove filter with tool and
clean it.

3. Also clean filter at pump in­let.

Every six

As

required

Q

7.2.2 Checking the pump oil
quality

1. Check color of pump oil.
If the oil has a grey or white
shade, change the oil (see
chapter 7.2.3)

2. Top off oil level with fresh oil
if necessary.
Oil type see chapter 9.3
Technical Data.

NEPTUNE E

english

7.2.3 Changing the pump oil

8 Troubleshooting

8.1 Indications on Display

1. Unscrew the oil drain plug (A)
and drain oil into a suitable
container.

2. Check that the drain plug
gasket is in place and reinstall
drain plug.

3. Fill pump with proper grade
and amount of oil.

A

Oil grade and capacity see
chapter ‘9.3 Technical Data’.

Anzeige am

Display

Hop

HOS

LEA

LLH
LLP

POL
S1C, S2C,

S10, S20

UPC

Ursache Behebung

> Motor overheated • Turn main switch in position „OFF“, let ma-

> Boiler overheated

> Leakage • Turn main switch to position “OFF“, then

> Spray gun leaking

> High pressure hose, coupling or line

system leaking

> Detergent tank empty • Fill detergent tank or set detergent meter-

> Water inlet filter dirty
> High-pressure pump drawing in air

> No water in the boiler

>

Water supply turned off or inadequate
supply to machine

> Pump oil low

>

Temperature sensor damaged Contact Nilfisk-Alto Service

>

Microprocessor failure Contact Nilfisk-Alto Service

chine cool down

• Possible phase failure; have electrical con­nections checked

Let appliance cool down; if the failure

•

comes up repeatedly, contact Nilfisk-Alto­Service, cold water operation possible

start again.

Repair Spray gun

•

• Replace high-pressure hose, retighten
screw fittings

ing to „OFF“

Clean filter (see chapter 7.2.1)

•

Repair leaks

•

Check water inlet

•

• Required volume flow and pressure see
chapter 9.3 Technical Data

Fill to proper level (see chapter 7.2.2)

•

Cold water operation possible

1)

14

Accessories / model variants

15

english

1)

Accessories / model variants

NEPTUNE E

8.2 Indication lights on control panel

Indication light Cause Remedy

flashing

flashing

ON

flashing

ON

ON

>

see LLP

> Boiler operating • Normal operation

> Water has reached preselected

temperature

> Service interval: Service due in

20 hours

> Service interval expired

> Pump oil low • Fill to proper level

8.3 Other Faults

Fault Cause Remedy

not ON

Pressure too low > High pressure nozzle worn

Machine is running with
pulsating pressure and
makes knocking noise

No detergents drawn in > Detergent tank empty • Fill detergent tank

Power cord not properly

>

connected to power supply

out

> Detergent tank empty • Fill detergent tank or set detergent metering

> Pump has drawn in air due

to detergent tank being
empty

> Dirt in detergent tank • Clean detergent tank

> Suction valve at cleaning

agent inlet soiled

• Check power cord connetction

• Check fuse (see chapter 9.3 Technical Data)

• Replace nozzle

to „OFF“

• Close detergent valve. Remove lance from gun.
Operate spray gun and let machine run until
air in pump is gone and the machine is running
normally/calm again.

• Remove suction valve and clean or replace

•

see LLP

• Normal operation

Contact Nilfisk-Alto Service

Contact Nilfisk-Alto Service

9 Further information

9.1 Recycling the cleaner

Make the old cleaner unusable
immediately.

1. Unplug the cleaner and cut
the power cord.

Do not discard of electrical ap­pliances with household waste.

As specified in European Direc­tive 2002/96/EC on old electrical
and electronic appliances, used
electrical goods must be col­lected separately and recycled
ecologically.
Contact your local authorities or
your nearest dealer for further
information.

NEPTUNE E

english

9.2 Guarantee

9.3 Technical data

Voltage 400 V / 3~/ 50Hz

Fuse (slow)
Power rating
Heating
Working pressure
Permissible pressure
Volume flow (max)
Volume flow Q
Permissible temperature

IEC

Max. water inlet temperature
Max. water inlet pressure
Dimensions l x w x h
Weight
Noise level at a distance of 1 m EN

60704-1
Sound power level LW
Vibration

A

Recoil forces
Boiler
Detergent tank A / B
Oil quantity
Oil type

Our general conditions of busi­ness are applicable with regard
to the guarantee. Subject to
change as a result of technical
advances.

The guarantee is invalidated if the
machine is not operated in ac­cordance with these instructions
or otherwise abused. The guaran­tee is invalidated if the machine is
not serviced as described.

E 12 E24

EU EU
A25 50
kW 16 28
kW 12 24
bar/MPa 150/15
bar/MPa 250/25
l/h 750
l/h 720
°C 80
°C 70
bar/MPa 10/1
mm 1150 x 702 x 987
kg 131,5 134,5
dB(A) 70,4

dB(A) 85,4
m/s² <2,5
N36
l74
l 35 / 10
l 1,0

NEPTUNE

SAE 15W-40

9.4 EU Declaration of
Conformity

16

EU Declaration of Conformity

Product:
Type:

Description:
The design of the unit corresponds to the

following pertinent regulations:

Applied harmonised standards:

Applied national standards and technical
specifications:

Dipl. Ing. Wolfgang Nieuwkamp
Tests and approvals Bellenberg, 18.04.2005

High Pressure Cleaner
NEPTUNE E

400 V 3~, 50 Hz, IP X5
EC Machine Directive 98/37/EC

EC Low-voltage Directive 73/23/EC
EC EMC Directive 2004/108/EC

EN 12100-1, EN 12100-2, EN 60335-2-79
EN 55014-1, EN 55014-2, EN 61000-3-2

DIN EN 60335-2-79

ALTO Deutschland GmbH
Guido-Oberdorfer-Straße 2-8
D-89287 Bellenberg

1)

Accessories / model variants

www.nilfisk-alto.com

HEADQ UARTER

DENMARK

Nilfisk-Advance Group
Sognevej 25
2605 Brøndby
Denmark
Tel.: [phone]
Fax: [phone]
E-mail: [e-mail]

SALES COMPANIES

AUSTRALI A

Nilfisk-ALTO
48 Egerton St.
PO box 6046
Silverwater NSW 2128
Australia
Tel.: [phone]
Fax: [phone]

AUSTRIA

Nilfisk-Advance GmbH.
Nilfisk-ALTO
Metzgerstrasse 68
A-5101 Bergheim bei Salzburg
Tel.: [phone]
Fax: [phone]
E-mail: [e-mail]
www.nilfisk-alto.at

BRASIL

Wap do Brasil Ltda.
Rua das Palmeiras, 350
Capela Velha

83.705-500 – Araucária - PR
Brasil
Tel.: [phone]
Fax: [phone]
E-mail: [e-mail]

CANADA

ALTO Canada
24 Constellation Road
Rexdale
Ontario M9W 1K1
Canada
Tel.: [phone]
Fax: [phone]

CZECH REPUBLIC

ALTO Ceskà republika s.r.o.
Zateckých 9
14000 Praha 4
Czech Republic
Tel.: [phone]
Fax: [phone]
E-mail: [e-mail]

DENMARK

Nilfisk-ALTO
Division of Nilfisk-Advance A/S
Industrivej 1
9560 Hadsund
Denmark
Tel.: [phone]
Fax: [phone]
E-mail: [e-mail]
E-mail: [e-mail]
www.nilfisk-alto.dk

Nilfisk-ALTO Food Division
Division of Nilfisk-Advance A/S
Blytækkervej 2,
9000 Aalborg
Denmark
Tel.: [phone]
Fax: [phone]
E-mail: [e-mail]
www.nilfisk-alto.com

FRANCE

Nilfisk-ALTO
ALTO France SA
Aéroparc 1
19 rue Icare
67960 Entzheim
France
Tel.: [phone]
Fax: [phone]
E-mail: info@nilfisk-alto-fr
www.nilfisk-alto.com

GERMANY

Nilfisk-Advance AG
Nilfisk-ALTO Business Unit
Guido-Oberdorfer-Str. 10
89287 Bellenberg
Germany
Tel.: (+49) (0) 180 5 37 37 37
Fax: (+49) (0) 180 5 37 37 38
E-mail: [e-mail]
www.nilfisk-alto.de

HOLLAND

Nilfisk-ALTO
Division of Nilfisk-Advance BV
Camerastraat 9
NL-1322 BB Almere
Tel.: [phone]
Fax: [phone]

[e-mail]

E-mail:
www.nilfisk-alto.nl

HONG KONG

Nilfisk-Advance Ltd.
2001 HK Worsted Mills Ind'l Bldg.,
31-39 Wo Tong Tsui St.
Kwai Chung, Hong Kong
Tel.: [phone]
Fax: [phone]

HUNGARY

Kvantor-Itb Kft
II. Rákóczi Ferenc út 10
2310 Szigetszentmiklos-Lakihegy
Hungary
Tel.: [phone]
Fax: [phone]
E-mail: [e-mail]

JAPAN

Nilfisk-Advance, Inc.
1-6-6 Kita-shinyokohama, Kouhoku-ku,
Yokohama, 223-0059
Japan
Tel.: [phone]
Fax: [phone]

MALAYSIA

Nilfisk-Advance Sdn Bhd
No. 1011, Block A4
Leisure Commerce Square
No. 9, Jalan PJS 8/9
46150 Petaling Jaya
Selangor, Malaysia
Tel.: [phone]
Fax: [phone]

PEOPLE’S REPUBLIC OF CHINA

Nilfisk-Advance (Shenzhen) Ltd
Blok 3, Unit 130, 1001 Honghua Road
Int. Commercial & Trade Center
Fuitian Free Trade Zone
518038 Shenzhen
P.R. China
Tel.: [phone]
Fax: [phone]

POLAND

Nilfisk-ALTO
Division of Nilfisk-Advance A/S
05-800 Pruszków
ul. 3-go MAJA 8
Poland
Tel.: [phone]
Fax: [phone]
[e-mail]
www.nilfisk-alto.pl

NORWAY

ALTO Norge AS
Bjørnerudveien 24

1266 Oslo
Norway
Tel.: [phone]
Fax: [phone]
E-mail: [e-mail]
www.nilfisk-alto.no

PORTUGAL

Nilfisk-ALTO
Division of Nilfisk-Advance Lda.
Sintra Business Park
Zona Industrial Da Abrunheira

o

Edificio 1, 1
P-2710-089 Sintra
Tel.: [phone]
Fax: [phone]
E-mail: [e-mail]
www.nilfisk-alto.com

SINGAPORE

Nilfisk-Advance Pte. Ltd.
Nilfisk-ALTO Division
40 Loyang Drive
Singapore 508961
[e-mail]
Tel.: [phone]
Fax: [phone]

SPAIN

Nilfisk-ALTO
Division of Nilfisk-Advance S.A.
Torre DAra
Paseo del Rengle, 5 Pl. 10
E-08302 Mataró
Tel.: [phone]
Fax: [phone]
E-mail: [e-mail]
www.nilfisk-alto.com

SWEDEN

ALTO Sverige AB
Member of Nilfisk-Advance Group
Aminogatan 18, Box 4029
S-431 04 Mölndal
Sweden
Tel.: [phone]
Fax: [phone]
E-mail: [e-mail]
www.nilfisk-alto.se

TAIWAN

Nilfisk-Advance Ltd.
Taiwan Branch (H.K.)
1F, No. 193, Sec.2
Xing Long Rd., Taipei
Taiwan, R.O.C.
Tel.: [phone]
Fax: [phone]

THAILAND

Nilfisk-Advance Co. Ltd.
89 Soi Chokechai-Ruammitr
Viphavadee-Rangsit Road
Ladyao, Jatuchak, Bangkok 10900
Thailand
Tel.: [phone]
Fax: [phone]

UNITED KINGDOM

Nilfisk-ALTO
Division of Nilfisk-Advance Ltd.
Bowerbank Way
Gilwilly Industrial Estate
Penrith Cumbria CA11 9BQ
Great Britain
Tel.: (+44) (0) 1768 868995
Fax: (+44) (0) 1768 864713
E-mail: [e-mail]
www.nilfisk-alto.co.uk

USA

ALTO Cleaning Systems Inc.
Part of the Nilfisk-Advance Group
12249 Nations Ford Road
Pineville, NC 28134
USA
Tel.: [phone]
Fax: [phone]
E-mail: [e-mail]
www.nilfisk-alto.com

A
