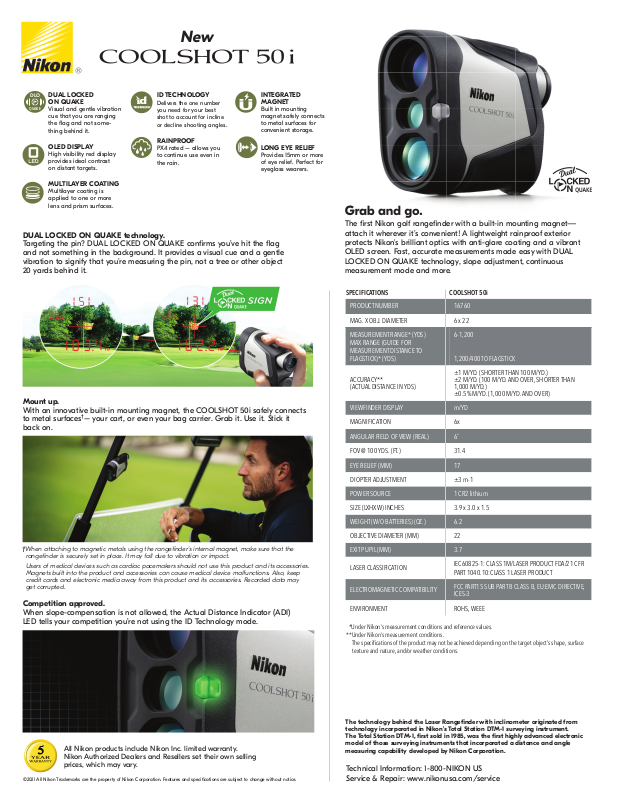

Nikon COOLSHOT 50i Specification Sheet
New
Grab and go.
DUAL LOCKED
DLO
ON QUAKE
QUAKE
Visual and gentle vibration
cue that you are ranging
the fl ag and not something behind it.
OLED DISPLAY
High visibility red display
provides ideal contrast
on distant targets.
MULTILAYER COATING
Multilayer coating is
applied to one or more
lens and prism surfaces.
ID TECHNOLOGY
Delivers the one number
you need for your best
shot to account for incline
or decline shooting angles.
RAINPROOF
PX4 rated – allows you
to continue use even in
the rain.
INTEGRATED
MAGNET
Built in mounting
magnet safely connects
to metal surfaces for
convenient storage.
LONG EYE RELIEF
Provides 15mm or more
of eye relief. Perfect for
eyeglass wearers.
DUAL LOCKED ON QUAKE technology.
Targeting the pin? DUAL LOCKED ON QUAKE confi rms you’ve hit the fl ag
and not something in the background. It provides a visual cue and a gentle
vibration to signify that you’re measuring the pin, not a tree or other object
20 yards behind it.
Mount up.
With an innovative built-in mounting magnet, the COOLSHOT 50i safely connects
to metal surfaces
†
– your cart, or even your bag carrier. Grab it. Use it. Stick it
back on.
†When attaching to magnetic metals using the rangefi nder’s internal magnet, make sure that the
rangefi nder is securely set in place. It may fall due to vibration or impact.
Users of medical devices such as cardiac pacemakers should not use this product and its accessories.
Magnets built into the product and accessories can cause medical device malfunctions. Also, keep
credit cards and electronic media away from this product and its accessories. Recorded data may
get corrupted.
Competition approved.
When slope-compensation is not allowed, the Actual Distance Indicator (ADI)
LED tells your competition you’re not using the ID Technology mode.
Grab and go.
The fi rst Nikon golf rangefi nder with a built-in mounting magnet—
attach it wherever it’s convenient! A lightweight rainproof exterior
protects Nikon's brilliant optics with anti-glare coating and a vibrant
OLED screen. Fast, accurate measurements made easy with DUAL
LOCKED ON QUAKE technology, slope adjustment, continuous
measurement mode and more.
SPECIFICATIONS COOLSHOT 50i
PRODUCT NUMBER 16760
MAG. X OBJ. DIAMETER 6 x 22
MEASUREMENT RANGE* (YDS)
MAX RANGE (GUIDE FOR
MEASUREMENT DISTANCE TO
FLAGSTICK)* (YDS)
ACCURACY**
(ACTUAL DISTANCE IN YDS)
VIEWFINDER DISPLAY m/YD
MAGNIFICATION 6x
ANGULAR FIELD OF VIEW (REAL) 6˚
FOV @ 100 YDS. (FT.) 31.4
EYE RELIEF (MM) 17
DIOPTER ADJUSTMENT ±3 m-1
POWER SOURCE 1 CR2 lithium
SIZE (LXHXW) INCHES 3.9 x 3.0 x 1.5
WEIGHT (W/O BATTERIES) (OZ.) 6.2
OBJECTIVE DIAMETER (MM) 22
EXIT PUPIL (MM) 3.7
LASER CLASSIFICATION
ELECTROMAGNETIC COMPATIBILITY
ENVIRONMENT ROHS, WEEE
*Under Nikon’s measurement conditions and reference values.
**Under Nikon’s measurement conditions.
The specifi cations of the product may not be achieved depending on the target object’s shape, surface
texture and nature, and/or weather conditions.
6-1,200
1,200/400 TO FLAGSTICK
±1 M/YD. (SHORTER THAN 100 M/YD.)
±2 M/YD. (100 M/YD. AND OVER, SHORTER THAN
1,000 M/YD.)
±0.5% M/YD. (1,000 M/YD. AND OVER)
IEC60825-1: CLASS 1M/LASER PRODUCT FDA/21 CFR
PART 1040.10:CLASS 1 LASER PRODUCT
FCC PART15 SUB PART B CLASS B, EU:EMC DIRECTIVE,
ICES-3
SPECIFICATIONS
All Nikon products include Nikon Inc. limited warranty.
Nikon Authorized Dealers and Resellers set their own selling
prices, which may vary.
©2021 All Nikon Trademarks are the property of Nikon Corporation. Features and specifications are subject to change without notice.
The technology behind the Laser Rangefi nder with inclinometer originated from
technology incorporated in Nikon’s Total Station DTM-1 surveying instrument.
The Total Station DTM-1, fi rst sold in 1985, was the fi rst highly advanced electronic
model of those surveying instruments that incorporated a distance and angle
measuring capability developed by Nikon Corporation.
Technical Information: 1-800-NIKON US
Service & Repair: www.nikonusa.com/service
