Nikon COOLPIX L340 Quick Start Guide

DIGITAL CAMERA

Quick Start Guide

Introduction ii

Preparing for Shooting 1

Basic Shooting and Playback Operations 6

Using Menus 12

Technical Notes 14

Introduction

Read This First

To get the most from this Nikon product, be sure to read “For Your Safety”
(Avii-ix), and all other instructions thoroughly and keep them where they will
be read by all who use the camera.

• If you want to start using the camera right away, see “Preparing for

Shooting” (A1) and “Basic Shooting and Playback Operations” (A6).

Downloading the “Reference Manual”

The Reference Manual (PDF format) provides more details in various languages
on how to use this camera. Download the Reference Manual from the Nikon
website and refer to it along with this manual.

http://nikonimglib.com/manual/

• The Reference Manual can be viewed using Adobe Reader, available for free
download from the Adobe website.

Downloading ViewNX 2

ViewNX 2 is free software that enables you to transfer images and movies to
your computer so that you can view, edit, or share them.
To install ViewNX 2, download the ViewNX 2 installer from the Nikon website
and follow the on-screen installation instructions.
http://nikonimglib.com/nvnx/

Nikon User Support

Visit the site below to register your camera and keep up-to-date with the latest
product information. You will find answers to frequently asked questions
(FAQs) and can contact us for technical assistance.

http://www.europe-nikon.com/support

ii

Introduction

Confirming the Package Contents

Attach them at two
places.

In the event that any items are missing, please contact the store where you
purchased the camera.

COOLPIX L340
Digital Camera

USB Cable
UC-E16

* The included batteries are for trial use only.

NOTE: A memory card is not included with the camera. SD, SDHC, and SDXC
memory cards are referred to as “memory cards” in this manual.

Camera Strap LR6/L40 (AA-

Quick Start Guide (this manual)

Warranty (printed on the back cover of this manual)

size) alkaline
batteries (×4)*

Lens Cap
LC-CP25
(with cord)

Attaching the Camera Strap and Lens Cap

Attach the lens cap to the camera strap, and then attach the strap to the camera.

B Lens Cap

When the camera is not in use, protect the lens by attaching the lens cap.

Introduction

iii

Information and Precautions

Life-Long Learning

As part of Nikon’s “Life-Long Learning” commitment to ongoing product support
and education, continually updated information is available online at the following
websites:

• For users in the U.S.A.: http://www.nikonusa.com/

• For users in Europe and Africa: http://www.europe-nikon.com/support/

• For users in Asia, Oceania, and the Middle East: http://www.nikon-asia.com/

Visit these websites to keep up-to-date with the latest product information, tips,
answers to frequently asked questions (FAQs), and general advice on digital imaging
and photography. Additional information may be available from the Nikon
representative in your area. Visit the website below for contact information.

http://imaging.nikon.com/

Use Only Nikon Brand Electronic Accessories

Nikon COOLPIX cameras are designed to the highest standards and include complex
electronic circuitry. Only Nikon brand electronic accessories (including battery
chargers, batteries, and AC adapters) certified by Nikon specifically for use with this
Nikon digital camera are engineered and proven to operate within the operational
and safety requirements of this electronic circuitry.

THE USE OF NON-NIKON ELECTRONIC ACCESSORIES COULD DAMAG E THE CAMERA

AND MAY VOID YOUR

For more information about Nikon brand accessories, contact a local authorized
Nikon dealer.

Before Taking Important Pictures

Before taking pictures on important occasions (such as at weddings or before taking
the camera on a trip), take a test shot to ensure that the camera is functioning
normally. Nikon will not be held liable for damages or lost profits that may result from
product malfunction.

NIKON WARRANTY.

iv

Introduction

About the Manuals

• No part of the manuals included with this product may be reproduced,

transmitted, transcribed, stored in a retrieval system, or translated into any
language in any form, by any means, without Nikon’s prior written permission.

• Illustrations and monitor content shown in this manual may differ from the actual

product.

• Nikon reserves the right to change the specifications of the hardware and software

described in these manuals at any time and without prior notice.

• Nikon will not be held liable for any damages resulting from the use of this

product.

• While every effort was made to ensure that the information in these manuals is

accurate and complete, we would appreciate it were you to bring any errors or
omissions to the attention of the Nikon representative in your area (address
provided separately).

Notice Concerning Prohibition of Copying or Reproduction

Note that simply being in possession of material that was digitally copied or
reproduced by means of a scanner, digital camera or other device may be
punishable by law.

• Items prohibited by law from being copied or reproduced

Do not copy or reproduce paper money, coins, securities, gove rnment bonds or local
government bonds, even if such copies or reproductions are stamped “Sample.” The
copying or reproduction of paper money, coins, or securities which are circulated in a
foreign country is prohibited. Unless the prior permission of the government was
obtained, the copying or reproduction of unused postage stamps or post cards
issued by the government is prohibited.

The copying or reproduction of stamps issued by the government and of certified
documents stipulated by law is prohibited.

• Cautions on certain copies and reproductions

The government has issued cautions on copies or reproductions of securities issued
by private companies (shares, bills, checks, gift certificates, etc.), commuter passes, or
coupon tickets, except when a minimum of necessary copies are to be provided for
business use by a company. Also, do not copy or reproduce passports issued by the
government, licenses issued by public agencies and private groups, ID cards and
tickets, such as passes and meal coupons.

• Comply with copyright notices

The copying or reproduction of copyrighted creative works such as books, music,
paintings, woodcut prints, maps, drawings, movies, and photographs is governed by
national and international copyright laws. Do not use this product for the purpose of
making illegal copies or to infringe copyright laws.

Introduction

v

Disposing of Data Storage Devices

Please note that deleting images or formatting data storage devices such as memory
cards or built-in camera memory does not completely erase the original image data.
Deleted files can sometimes be recovered from discarded storage devices using
commercially available software, potentially resulting in the malicious use of personal
image data. Ensuring the privacy of such data is the user’s responsibility.

Before discarding a data storage device or transferring ownership to another person,
erase all data using commercial deletion software, or format the device and then
completely refill it with images containing no private information (for example,
images of empty sky). Care should be taken to avoid injury or damage to property
when physically destroying data storage devices.

vi

Introduction

For Your Safety

To prevent damage to your Nikon product or injury to yourself or to others,
read the following safety precautions in their entirety before using this
equipment. Keep these safety instructions where all those who use the product
will read them.

This icon marks warnings, information that should be read before using
this Nikon product, to prevent possible injury.

WARNINGS

Turn off in the event of malfunction

Should you notice smoke or an unusual smell coming from the camera or AC
adapter, unplug the AC adapter and remove the batteries immediately, taking
care to avoid burns. Continued operation could result in injury. After removing
or disconnecting the power source, take the equipment to a Nikon-authorized
service representative for inspection.

Do not disassemble

Touching the internal parts of the camera or AC adapter could result in injury.
Repairs should be performed only by qualified technicians. Should the camera
or AC adapter break open as the result of a fall or other accident, take the
product to a Nikon-authorized service representative for inspection, after
unplugging the product and/or removing the batteries.

Do not use the camera or AC adapter in the presence of flammable
gas

Do not use electronic equipment in the presence of flammable gas, as this
could result in explosion or fire.

Handle the camera strap with care

Never place the strap around the neck of an infant or child.

Keep out of reach of children

Particular care should be taken to prevent infants from putting the batteries or
other small parts into their mouths.

Do not remain in contact with the camera, battery charger, or AC
adapter for extended periods while the devices are on or in use

Parts of the devices become hot. Leaving the devices in direct contact with the
skin for extended periods may result in low-temperature burns.

Introduction

vii

Do not leave the product where it will be exposed to extremely
high temperatures, such as in an enclosed automobile or in direct
sunlight

Failure to observe this precaution could cause damage or fire.

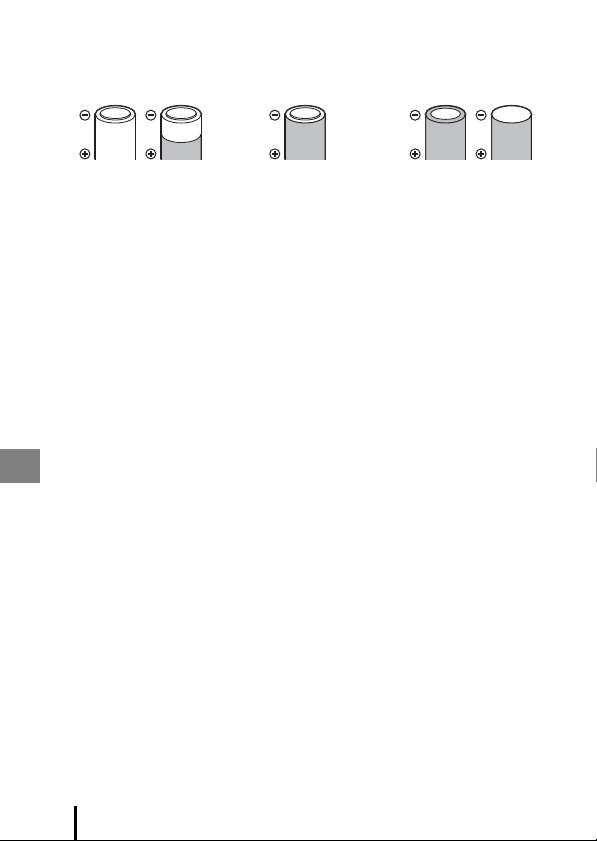

Observe caution when handling batteries

Batteries may leak or explode if improperly handled. Observe the following
precautions when handling batteries for use in this product:

• Before replacing the batteries, turn the product off. If you are using an AC
adapter, be sure it is unplugged.

• Use only the batteries approved for use in this product (A1). Do not
combine old and new batteries or batteries of different makes or types.

• When charging Nikon EN-MH2 rechargeable Ni-MH batteries, use only the
specified charger and charge the batteries four at a time. When replacing
the batteries with EN-MH2-B2 batteries (available separately), purchase two
sets (total of four batteries).

• The EN-MH2 rechargeable batteries are for use with Nikon digital cameras
only, and are compatible with COOLPIX L340.

• Insert batteries in the correct orientation.

• Do not short or disassemble batteries or attempt to remove or break battery

insulation or casing.

• Do not expose batteries to flame or to excessive heat.

• Do not immerse in or expose to water.

• Do not transport or store with metal objects such as necklaces or hairpins.

• Batteries are prone to leakage when fully discharged. To avoid damage to

the product, be sure to remove the batteries when no charge remains.

• Discontinue use immediately should you notice any change in the batteries,
such as discoloration or deformation.

• If liquid from damaged batteries comes in contact with clothing or skin,
rinse immediately with plenty of water.

Observe the following precautions when handling the Battery
Chargers (available separately)

• Keep dry. Failure to observe this precaution could result in fire or electric
shock.

• Dust on or near the metal parts of the plug should be removed with a dry
cloth. Continued use could result in fire.

• Do not handle the power cable or go near the battery charger during
lightning storms. Failure to observe this precaution could result in electric
shock.

• Do not damage, modify, forcibly tug or bend the power cable, place it under
heavy objects, or expose it to heat or flames. Should the insulation be
damaged and the wires become exposed, take it to a Nikon-authorized
service representative for inspection. Failure to observe these precautions
could result in fire or electric shock.

viii

Introduction

• Do not handle the plug or battery charger with wet hands. Failure to
observe this precaution could result in electric shock.

• Do not use with travel converters or adapters designed to convert from one
voltage to another or with DC-to-AC inverters. Failure to observe this
precaution could damage the product or cause overheating or fire.

Use appropriate cables

When connecting cables to the input and output jacks, use only the cables
provided or sold by Nikon for the purpose, to maintain compliance with
product regulations.

Do not touch the moving parts of the lens

Failure to observe this precaution could result in injury.

Handle moving parts with care

Be careful that your fingers or other objects are not pinched by the lens cover
or other moving parts.

Using the flash close to your subject’s eyes could cause temporary
visual impairment

The flash should be no less than 1 meter (3 ft 4 in.) from the subject. Particular
care should be observed when photographing infants.

Do not operate the flash with the flash window touching a person
or object

Failure to observe this precaution could result in burns or fire.

Avoid contact with liquid crystal

Should the monitor break, care should be taken to avoid injury caused by
broken glass and to prevent liquid crystal from the monitor touching the skin
or entering the eyes or mouth.

Follow the instructions of airline and hospital personnel

Introduction

ix

Notices

Notices for Customers in Europe

This symbol indicates that electrical and electronic equipment is to
be collected separately.

The following apply only to users in European countries:

• This product is designated for separate collection at an
appropriate collection point. Do not dispose of as household
waste.

• Separate collection and recycling helps conserve natural resources and
prevent negative consequences for human health and the environment
that might result from incorrect disposal.

• For more information, contact the retailer or the local authorities in charge
of waste management.

This symbol on the batteries indicates that the batteries are to be
collected separately.
The following apply only to users in European countries:

• All batteries, whether marked with this symbol or not, are
designated for separate collection at an appropriate collection
point. Do not dispose of as household waste.

• For more information, contact the retailer or the local authorities in charge
of waste management.

x

Introduction

Preparing for Shooting

1

2

3

4

5

7

8

6

Memory card slot

Insert the Batteries and Memory Card

• Hold the camera upside down to prevent the batteries from falling out,
confirm that the positive (+) and negative (–) terminals of the batteries are
oriented correctly, and insert the batteries.

• Slide the memory card in until it clicks into place (5).

• Be careful not to insert the batteries or memory card upside-down or

backward, as this could cause a malfunction.

• When closing the cover, slide it while securely holding down the area
marked 7.

B Formatting a Memory Card

The first time you insert a memory card that has been used in another device into
this camera, make sure to format it with this camera. Insert the memory card into the
camera, press the d button, and select Format card in the setup menu (A12).

Applicable Batteries

• Four LR6/L40 (AA-size) alkaline batteries (included batteries)

• Four FR6/L91 (AA-size) lithium batteries

• Four EN-MH2 rechargeable Ni-MH (nickel metal hydride) batteries

* EN-MH1 rechargeable Ni-MH batteries cannot be used.

Preparing for Shooting

1

B Notes About the Batteries

Batteries with insulation
that does not cover the
area around the
negative terminal

Batteries with peeling Batteries with a flat

negative terminal

• Do not combine old and new batteries or batteries of different makes or types.

• Batteries with the following defects cannot be used:

B Notes About EN-MH2 Rechargeable Ni-MH Batteries

When using EN-MH2 batteries with the camera, charge four batteries at a time using
Battery Charger MH-73 (A15).

C Alkaline Batteries

Performance of alkaline batteries may vary greatly depending on the manufacturer.

Removing the Batteries or Memory Card

Turn the camera off and make sure that the power-on lamp and monitor have
turned off, and then open the battery-chamber/memory card slot cover.

• Gently push the memory card into the camera to partially eject the memory
card.

• Be careful when handling the camera, batteries, and memory card
immediately after using the camera, as they may become hot.

Memory Cards and Internal Memory

Camera data, including images and movies, can be saved either on a memory
card or in the camera’s internal memory. To use the camera’s internal memory,
remove the memory card.

2

Preparing for Shooting

Turn the Camera On and Set the Display

Cancel

Language

Back

London, Casablanca

Language, Date, and Time

When the camera is turned on for the first time, the language-selection screen
and the date and time setting screen for the camera clock are displayed.

1 Remove the lens cap, and then

press the power switch to turn on
the camera.

• The monitor turns on.

• To turn the camera off, press the power

switch again.

2 Use the multi selector

HI to select the desired
language and press the
k button.

3 Select Yes and press the k button.
4 Select your home time

zone and press the
k button.

• Press H to display W above

the map and enable
daylight saving time. Press
I to disable it.

5 Use HI to select the date format and press the k button.

Preparing for Shooting

3

6 Set the date and time, and press

1 50 0

2 5m 0s

Battery level indicator

Number of exposures

remaining

the k button.

• Use JK to select a field and then use HI

to set the date and time.

• Select the minute field and press the

k button to confirm the setting.

Date and time

YMDhm

01 00 00

201501

7 When the confirmation dialog is displayed, use HI to

select Yes and press the k button.

8 Press the A (shooting

mode) button.

• The lens extends.

Date and time

Press this button in
shooting mode for
shooting-mode
selection menu.

Edit

Edit

9 Select Scene auto

selector and press the k

button.

• The shooting screen is displayed, and you
can take pictures in scene auto selector
mode. The camera automatically selects the
optimum scene mode.

• Battery level indicator

b: The battery level is high.
B: The battery level is low.

• Number of exposures remaining

C is displayed when no memory card is
inserted in the camera, and images are
saved in the internal memory.

4

Preparing for Shooting

Scene auto selector

25m 0s

1500

C Changing the Language or the Date and Time Setting

• You can change these settings using the Language and Time zone and date

settings in the z setup menu (A12).

• You can enable or disable daylight saving time in the z setup menu by selecting

Time zone and date followed by Time zone. Press the multi selector K and then
H to enable daylight saving time and move the clock forward one hour, or I to

disable daylight saving time and move the clock back one hour.

C The Clock Battery

• The camera’s clock is powered by a built-in backup battery.
The backup battery charges when the main batteries are inserted into the camera
or when the camera is connected to an optional AC adapter, and it can run the
clock for several days after about 10 hours of charging.

• If the camera’s backup battery becomes exhausted, the date and time setting
screen is displayed when the camera is turned on. Set the date and time again
(A3).

Raising and Lowering the Flash

Press the m (flash pop-up) button to raise the flash.

• Push the flash down gently to lower the flash until it clicks into place when

not in use.

Preparing for Shooting

5

Basic Shooting and Playback

Zoom out Zoom in

1 50 0

2 5m 0s

Shooting mode icon

Operations

Shooting with Scene Auto Selector Mode

1 Hold the camera steady.

• Keep fingers and other objects away from
the lens, flash, AF-assist illuminator,
microphone, and speaker.

2 Frame the picture.

• Move the zoom control to change the
zoom lens position.

• When the camera recognizes the shooting
scene, the shooting mode icon changes
accordingly.

6

Basic Shooting and Playback Operations

25m 0s

1500

3 Press the shutter-release button

F 3.1

1 /2 5 0

halfway.

• When the subject is in focus, the focus area
or focus indicator is displayed in green.

• When you are using digital zoom, the
camera focuses in the center of the frame
and the focus area is not displayed.

• If the focus area or focus indicator flashes,
the camera is unable to focus. Modify the
composition and try pressing the shutter­release button halfway again.

1/250

F 3.1

4 Without lifting your finger, press

the shutter-release button the rest
of the way down.

B Notes About Saving Images or Movies

The indicator showing the number of exposures remaining or the indicator showing
the remaining recording time flashes while images or movies are being saved. Do

not open the battery-chamber/memory card slot cover or remove the
batteries or memory card while an indicator is flashing. Doing this could result in

loss of data, or in damage to the camera or the memory card.

C The Auto Off Function

• When no operations are performed for about 30 seconds, the monitor turns off,
the camera enters standby mode, and then the power-on lamp flashes. The
camera turns off after remaining in standby mode for about three minutes.

• To turn the monitor back on while the camera is in standby mode, perform an
operation such as pressing the power switch or shutter-release button.

C When Using a Tripod

• We recommend using a tripod to stabilize the camera in the following situations:

- When the flash is lowered in dark locations or when using a shooting mode in

which the flash does not fire

- When the zoom is at a telephoto position

• When using a tripod to stabilize the camera during shooting, set Vibration
reduction to Off in the setup menu (A12) to prevent potential errors caused by

this function.

Basic Shooting and Playback Operations

7

Play Back Images

Display the previous image

Display the next image

4 /44/4

15/ 11 / 20 1 5 1 5: 3 015/11/2015 15:30

0 00 4 . J PG0004. JPG

3. 03.0

1 Press the c (playback) button to

enter playback mode.

• If you press and hold down the c button

while the camera is turned off, the camera
turns on in playback mode.

2 Use the multi selector to select an

image to display.

• Press and hold down HIJK to scroll

through the images quickly.

• To return to shooting mode, press the

A button or shutter-release button.

• When e is displayed in full-frame

playback mode, you can press the
k button to apply an effect to the image.

• Move the zoom control toward

g (i) in full-frame playback
mode to zoom in on an image.

• In full-frame playback mode,
move the zoom control toward
f (h) to switch to thumbnail

8

playback mode and display
multiple images on the screen.

Basic Shooting and Playback Operations

1/20

Delete Images

1 Press the l (delete) button to

delete the image currently
displayed in the monitor.

2 Use the multi selector HI to

select the desired deletion
method and press the k button.

• To exit without deleting, press the d
button.

Delete

Current image

Erase selected images

All images

3 Select Yes and press the

k button.

• Deleted images cannot be recovered.

C Deleting the Image Captured While in Shooting Mode

When using shooting mode, press the l button to delete the last image that was
saved.

Erase 1 image?

Yes

No

Basic Shooting and Playback Operations

9

Changing the Shooting Mode

The shooting modes described below are available.

• x Scene auto selector

The camera automatically recognizes the shooting scene when you frame a
picture, making it easier to take pictures using settings that suit the scene.

• b Scene mode

Camera settings are optimized according to the scene that you select.

• E Special effects

Effects can be applied to images during shooting.

• F Smart portrait

When the camera detects a smiling face, the shutter is released
automatically without you pressing the shutter-release button (smile timer).
You can also use the skin softening option to smooth the skin tones of
human faces.

• A Auto mode

Used for general shooting. Settings can be changed to suit the shooting
conditions and the type of shot that you want to capture.

1 When the shooting screen is

displayed, press the A (shooting
mode) button.

2 Use the multi selector

HI to select a
shooting mode and
press the k button.

• When scene mode or
special effects mode is
selected, press K to select
a scene mode or effect
before pressing the k button.

10

Basic Shooting and Playback Operations

Scene auto selector

Using the Flash, Self-timer, Etc.

When the shooting screen is displayed, you can press the multi selector H (m)
J (n) I (p) K (o) to set the functions described below.

• m Flash mode

You can select a flash mode to match the shooting conditions when the
flash is raised.

• n Self-timer

The camera releases the shutter 10 seconds after you press the shutter­release button.

• p Macro mode

Use macro mode when you take close-up pictures.

• o Exposure compensation

You can adjust overall image brightness.

The functions that can be set vary depending on the shooting mode.

Recording Movies

Display the shooting screen and press the
b (e movie-record) button to start recording
a movie. Press the b (e) button again to end
recording.

• To play back a movie, select a movie in full-

frame playback mode and press the k button.

Basic Shooting and Playback Operations

11

Using Menus

Menu icons

You can set the menus listed below by pressing the d (menu) button.

• A Shooting menu

Available by pressing the d button when the shooting screen is
displayed.
Allows you to change image size and quality, continuous shooting settings,
etc.

• G Playback menu

Available by pressing the d button when viewing images in full-frame
playback mode or thumbnail playback mode.
Allows you to edit images, play slide shows, etc.

• D Movie menu

Available by pressing the d button when the shooting screen is
displayed.
Allows you to change movie recording settings.

• z Setup menu

Allows you to adjust basic camera functions such as date and time, display
language, etc.

1 Press the d (menu) button.

• The menu is displayed.

2 Press the multi

selector J.

• The current menu icon is
displayed in yellow.

12

Using Menus

Shooting menu

Image mode

White balance

Continuous

ISO sensitivity

AF area mode

3 Select a menu icon and

press the k button.

• The menu options become
selectable.

Set up

Time zone and date

Monitor settings

Date stamp

Vibration reduction

AF assist

Sound settings

4 Select a menu option

and press the k button.

• Certain menu options cannot
be set depending on the
current shooting mode or the
state of the camera.

5 Select a setting and

press the k button.

• The setting you selected is
applied.

• When you are finished using
the menu, press the d
button.

• When a menu is displayed, you
can switch to shooting mode by pressing the shutter-release button,
A button, or b (e) button.

Time zone and date

Monitor settings

Date stamp

Vibration reduction

AF assist

Sound settings

Date stamp

Date

Date and time

O

Using Menus

13

Technical Notes

Caring for the Product

Observe the precautions described below in addition to the warnings in “For
Your Safety” (Avii–ix) when using or storing the device.

The Camera

Do Not Apply Strong Impact to the Camera

The product may malfunction if subjected to strong shock or vibration. In addition,
do not touch or apply force to the lens.

Keep Dry

The device will be damaged if immersed in water or subjected to high humidity.

Avoid Sudden Changes in Temperature

Sudden changes in temperature, such as when ent ering or le aving a heated building
on a cold day, can cause condensation to form inside the device. To prevent
condensation, place the device in a carrying case or a plastic bag before exposing it
to sudden changes in temperature.

Keep Away from Strong Magnetic Fields

Do not use or store this device in the vicinity of equipment that generates strong
electromagnetic radiation or magnetic fields. Doing so could result in loss of data or
camera malfunction.

Do Not Point the Lens at Strong Light Sources for Extended Periods

Avoid pointing the lens at the sun or other strong light sources for extended periods
when using or storing the camera. Intense light may cause the image sensor to
deteriorate or produce a white blur effect in photographs.

Turn the Product Off Before Removing or Disconnecting the Power
Source or Memory Card

Do not remove the batteries while the product is on, or while images are being saved
or deleted. Forcibly cutting power in these circumstances could result in loss of data
or in damage to product memory or internal circuitry.

Notes About the Monitor

• Monitors and electronic viewfinders are constructed with extremely high precision;
at least 99.99% of pixels are effective, with no more than 0.01% being missing or
defective. Hence while these displays may contain pixels that are always lit (white,
red, blue, or green) or always off (black), this is not a malfunction and has no effect
on images recorded with the device.

• Images in the monitor may be difficult to see under bright lighting.

14

Technical Notes

• Do not apply pressure to the monitor, as this could cause damage or malfunction.
Should the monitor break, care should be taken to avoid injury caused by broken
glass and to prevent the liquid crystal from the display touching the skin or
entering the eyes or mouth.

Notes About Smear

White or colored streaks may be visible when bright subjects are framed in the monitor.
This phenomenon, known as “smear,” occurs when extremely bright light strikes the
image sensor; it is characteristic of image sensors and does not indicate a malfunction.
Smear may also take the form of partial discoloration in the monitor during shooting.
It does not appear in images saved with the camera except in the case of movies.
When shooting movies, we recommend that you avoid bright subjects such as the
sun, reflected sunlight, and electric lights.

Batteries

Precautions for Use

• Note that the batteries may become hot after use.

• Do not use batteries beyond their recommended expiration date.

• Do not turn the camera on and off repeatedly if discharged batteries ar e inserted in

the camera.

Carrying Spare Batteries

We recommend carrying spare batteries depending on where you are shooting. It
may be difficult to purchase batteries in certain areas.

Charging Batteries

If using optional rechargeable batteries, charge the batteries before taking pictures.
Batteries are not fully charged at the time of purchase.
Be sure to read and follow the warnings noted in the operating instructions included
with the battery charger.

Charging Rechargeable Batteries

• Do not mix batteries with different amounts of charge remaining, or batteries of a
different make or model.

• When using EN-MH2 batteries with this camera, charge four batteries at a time using
Battery Charger MH-73. Use only Battery Charger MH-73 to charge EN-MH2 batteries.

• When using Battery Charger MH-73, only charge EN-MH2 batteries.

• EN-MH1 rechargeable Ni-MH batteries cannot be used.

Notes About Rechargeable Ni-MH Batteries

• If you repeatedly charge rechargeable Ni-MH batteries while they still have some
charge remaining, the message Battery exhauste d. may be displayed prematurely
when using the batteries. This is due to the “memory effect,” in which the amount of
charge the batteries can hold decreases temporarily. Use the batteries until there is
no charge remaining and they will return to their normal behavior.

• Rechargeable Ni-MH batteries discharge even when not being used. We
recommend charging the batteries just before using them.

Technical Notes

15

Using the Batteries When Cold

On cold days, the capacity of batteries tends to decrease. If exhausted batteries are used at
a low temperature, the camera may not turn on. Keep spare batteries in a warm place and
exchange as necessary. Once warmed, cold batteries may recover some of their charge.

Battery Terminals

Dirt on the battery terminals may prevent the camera from functioning. Should the
battery terminals become dirty, wipe them off with a clean, dry cloth before use.

Remaining Battery Charge

If you insert discharged batteries into the camera, the camera may indicate that the
batteries have adequate charge remaining. This is a characteristic of batteries.

Recycling Used Batteries

Replace the batteries when they no longer hold a charge. Used batteries are a
valuable resource. Please recycle used batteries in accordance with local regulations.

Cleaning and Storage

Cleaning

Do not use alcohol, thinner, or other volatile chemicals.

Avoid touching glass parts with your fingers. Remove dust or lint with
a blower (typically a small device with a rubber bulb attached to one
end that is pumped to produce a stream of air out the other end). To

Lens

Monitor

Body

remove fingerprints or other stains that cannot be removed with a
blower, wipe the lens with a soft cloth, using a spiral motion that
starts at the center of the lens and working toward the edges. If this
fails, clean the lens using a cloth lightly dampened with commercial
lens cleaner.

Remove dust or lint with a blower. To remove fingerprints and other
stains, clean the monitor with a soft, dry cloth, being careful not to
apply pressure.

Use a blower to remove dust, dirt, or sand, then wipe gently with a
soft, dry cloth. After using the camera at the beach or other sandy or
dusty environment, wipe off any sand, dust, or salt with a dry cloth
lightly dampened with fresh water and dry thoroughly. Note that

foreign matter inside the camera could cause damage not
covered by the warranty.

16

Technical Notes

Storage

Remove the batteries if the camera will not be used for an extended period. To
prevent mold or mildew, take the camera out of storage at least once a month.
Turn the camera on and release the shutter a few times before putting the
camera away again. Do not store the camera in any of the following locations:

• Places that are poorly ventilated or subject to humidity of over 60%

• Exposed to temperatures above 50°C (122°F) or below –10°C (14°F)

• Next to equipment that produces strong electromagnetic fields, such as

televisions or radios

Troubleshooting

If the camera fails to function as expected, check the list of common problems below
before consulting your retailer or Nikon-authorized service representative. Also, refer to
the Reference Manual (PDF format) for further details on how to use this camera (Aii).

Problem Cause/Solution A

Wait for recording to end.
If the problem persists, turn the camera off.

The camera is on
but does not
respond.

The camera cannot
be turned on.

The camera turns
off without
warning.

The monitor is
blank.

The camera
becomes hot.

If the camera does not turn off, remove and reinsert
the battery or batteries or, if you are using an AC
adapter, disconnect and reconnect the AC adapter.
Note that although any data currently being
recorded will be lost, data that have already been
recorded will not be affected by removing or
disconnecting the power source.

The batteries are exhausted. 1, 15

• The camera automatically turns off to save power
(auto off function).

• The camera and batteries may not work properly
at low temperatures.

• The inside of the camera has become hot. Leave
the camera off until the inside of the camera has
cooled, and then try turning it on again.

• The camera is off.

• The camera automatically turns off to save power

(auto off function).

• The flash lamp flashes while the flash is charging.
Wait until charging is complete.

• The camera is connected to a TV or computer.

The camera may become hot when used for an
extended period of time to shoot movies or when
used in a hot environment; this is not a malfunction.

Technical Notes

–

7

16

–

3
7

–

–

–

17

Approved Memory Cards

The following Secure Digital (SD) memory cards have been tested and
approved for use in this camera.

• Memory cards with an SD Speed Class rating of 6 or faster are
recommended for recording movies. When using a memory card with a
lower Speed Class rating, movie recording may stop unexpectedly.

SD memory card SDHC memory card

SanDisk – 4 GB, 8 GB, 16 GB, 32 GB 64 GB, 128 GB

TOSHIBA – 4 GB, 8 GB, 16 GB, 32 GB 64 GB

Panasonic 2 GB 4 GB, 8 GB, 16 GB, 32 GB 64 GB

Lexar – 8 GB, 16 GB, 32 GB 64 GB, 128 GB

• Contact the manufacturer for details on the above cards. We cannot guarantee

camera performance when using memory cards made by other manufacturers.

• If you use a card reader, make sure that it is compatible with your memory card.

Trademark Information

• Windows is either a registered trademark or trademark of Microsoft
Corporation in the United States and/or other countries.

• Adobe, the Adobe logo, and Reader are either trademarks or registered
trademarks of Adobe Systems Incorporated in the United States and/or
other countries.

• SDXC, SDHC, and SD Logos are trademarks of SD-3C, LLC.

• PictBridge is a trademark.

• All other trade names mentioned in this manual or the other

documentation provided with your Nikon product are the trademarks or
registered trademarks of their respective holders.

SDXC memory

card

18

Technical Notes

AVC Patent Portfolio License

This product is licensed under the AVC Patent Portfolio License for the personal
and non-commercial use of a consumer to (i) encode video in compliance with
the AVC standard (“AVC video”) and/or (ii) decode AVC video that was encoded
by a consumer engaged in a personal and non-commercial activity and/or was
obtained from a video provider licensed to provide AVC video. No license is
granted or shall be implied for any other use. Additional information may be
obtained from MPEG LA, L.L.C.

See http://www.mpegla.com.

FreeType License (FreeType2)

Portions of this software are copyright © 2012 The FreeType Project
(http://www.freetype.org). All rights reserved.

MIT License (HarfBuzz)

Portions of this software are copyright © 2015 The HarfBuzz Project
(http://www.freedesktop.org/wiki/Software/HarfBuzz). All rights reserved.

Technical Notes

19

Warranty Terms - Nikon Europe Service
Warranty

Dear Nikon Customer,
We thank you for your purchasing this Nikon product. Should your
Nikon product require warranty service, please contact the dealer
from whom it was purchased or a member of our authorized service
network within the sales territory of Nikon Europe B.V. (e.g. Europe/
Russia/others). See details under:
http://www.europe-nikon.com/support
In order to avoid any unnecessary inconvenience, we advise you to
read the user manuals carefully before contacting the dealer or our
authorized service network.
Your Nikon equipment is guaranteed against any manufacturing
defects for one full year from the date of original purchase. If during
this period of guarantee the product proves defective due to
improper material or workmanship, our authorized service network
within the sales territory of Nikon Europe B.V. will, without charge for
labor and parts, repair the product in the terms and conditions set as
below. Nikon reserves the right (at its sole discretion) to replace or
repair the product.

1. This warranty is only provided upon presentation of the completed
warranty card and original invoice or purchase receipt indicating
the date of purchase, product type and dealer’s name, together
with the product. Nikon reserves the right to refuse free-of-charge
warranty service if the above documents cannot be presented or if
the information contained in it is incomplete or illegible.

2. This warranty will not cover:

• necessary maintenance and repair or replacement of parts due

to normal wear and tear.

• modifications to upgrade the product from its normal purpose

as described in user manuals, without the prior written consent
of Nikon.

• transport costs and all risks of transport relating directly or

indirectly to the warranty of the products.

20

Technical Notes

• any damage resulting from modifications or adjustments which

may be made to the product, without the prior written consent
of Nikon, in order to comply with local or national technical
standards in force in any other country than the ones for which
the product was originally designed and/or manufactured.

3. The warranty will not be applicable in the case of:

• damage caused by misuse including but not limited to failure to

use the product for its normal purpose or according to the user
instructions on the proper use and maintenance, and to
installation or use of the product inconsistent with the safety
standards in force in the country where it is used.

• damage caused by accidents including but not limited to

lightning, water, fire, misuse or neglect.

• defacing, illegibility or removal of the model or serial number on

the product.

• damage resulting from repairs or adjustments which have been

conducted by unauthorized service organizations or persons.

• defects in any system into which the product is incorporated or

with which it is used.

4. This service warranty does not affect the consumer’s statutory
rights under applicable national laws in force, nor the consumer’s
right against the dealer arising from their sales/purchase contract.

Notice: An overview of all authorized Nikon Service Stations can be

found online by following this Link (URL = http://
www.europe-nikon.com/service/ ).

Technical Notes

21

No reproduction in any form of this manual, in whole or in part
(except for brief quotation in critical articles or reviews), may be
made without written authorization from NIKON CORPORA­TION.

CT5A01(11)

6MN51711-01
