NEXCOM NISE 103 User Manual

Download
NEXCOM International Co., Ltd.
Industrial Computing Solutions
Fanless Computer NISE 103
User Manual
NEXCOM International Co., Ltd.
Published April 2011
www.nexcom.com
Contents
Contents
Preface
Copyright ............................................................................................. iv
Disclaimer ............................................................................................. iv
Acknowledgements .............................................................................. iv
Regulatory Compliance Statements ....................................................... iv
Declaration of Conformity ...................................................................... iv
RoHS Compliance ................................................................................... v
Warranty and RMA ................................................................................ vi
Safety Information ................................................................................vii
Installation Recommendations ................................................................vii
Safety Precautions .................................................................................viii
Technical Support and Assistance ........................................................... ix
Conventions Used in this Manual ........................................................... ix
Global Service Contact Information ......................................................... x
Package Contents ..................................................................................xii
Ordering Information ............................................................................xiii
Chapter 1: Product Introduction
Overview ................................................................................................1
Key Features .........................................................................................1
Hardware Specifications .......................................................................... 2
Getting to Know NISE 103 ......................................................................4
Front Panel ...........................................................................................4
Rear Panel ............................................................................................5
Mechanical Dimensions ...........................................................................6
Chapter 2: Jumpers And Connectors
Before You Begin ....................................................................................7
Precautions .............................................................................................7
Jumper Settings ...................................................................................... 8
Locations of the Jumpers and Connectors ...............................................9
Jumpers ..............................................................................................11
LVDS Backlight Power Select .............................................................11
Clear CMOS Select ...........................................................................11

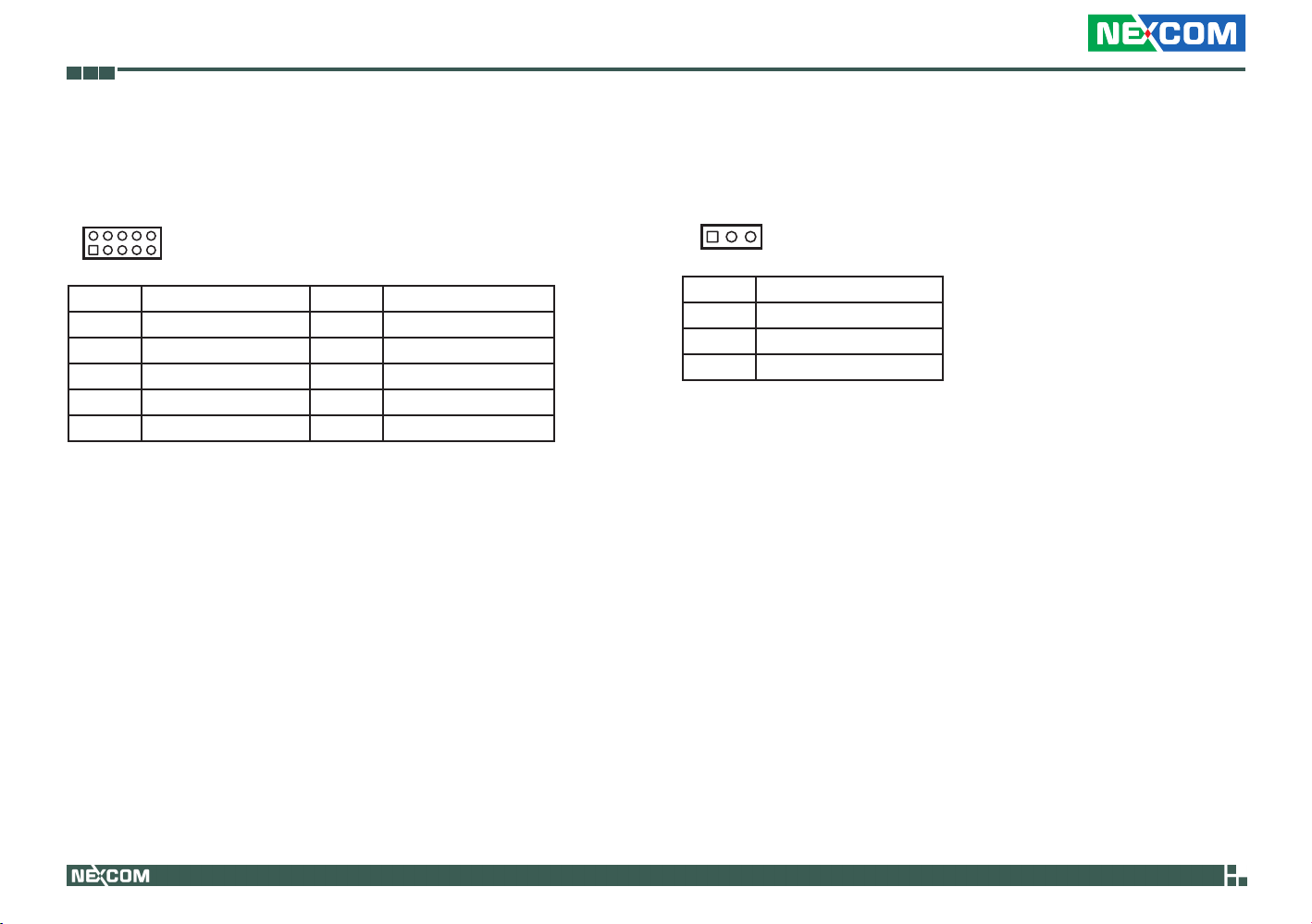

Connector Pin Definitions ...................................................................12
External I/O Interface - Front .............................................................12
ATX Power On/Off Switch ..............................................................12
Status Indicators .............................................................................12
Speaker-out Jack ............................................................................ 13
Mic-in Jack ..................................................................................... 13

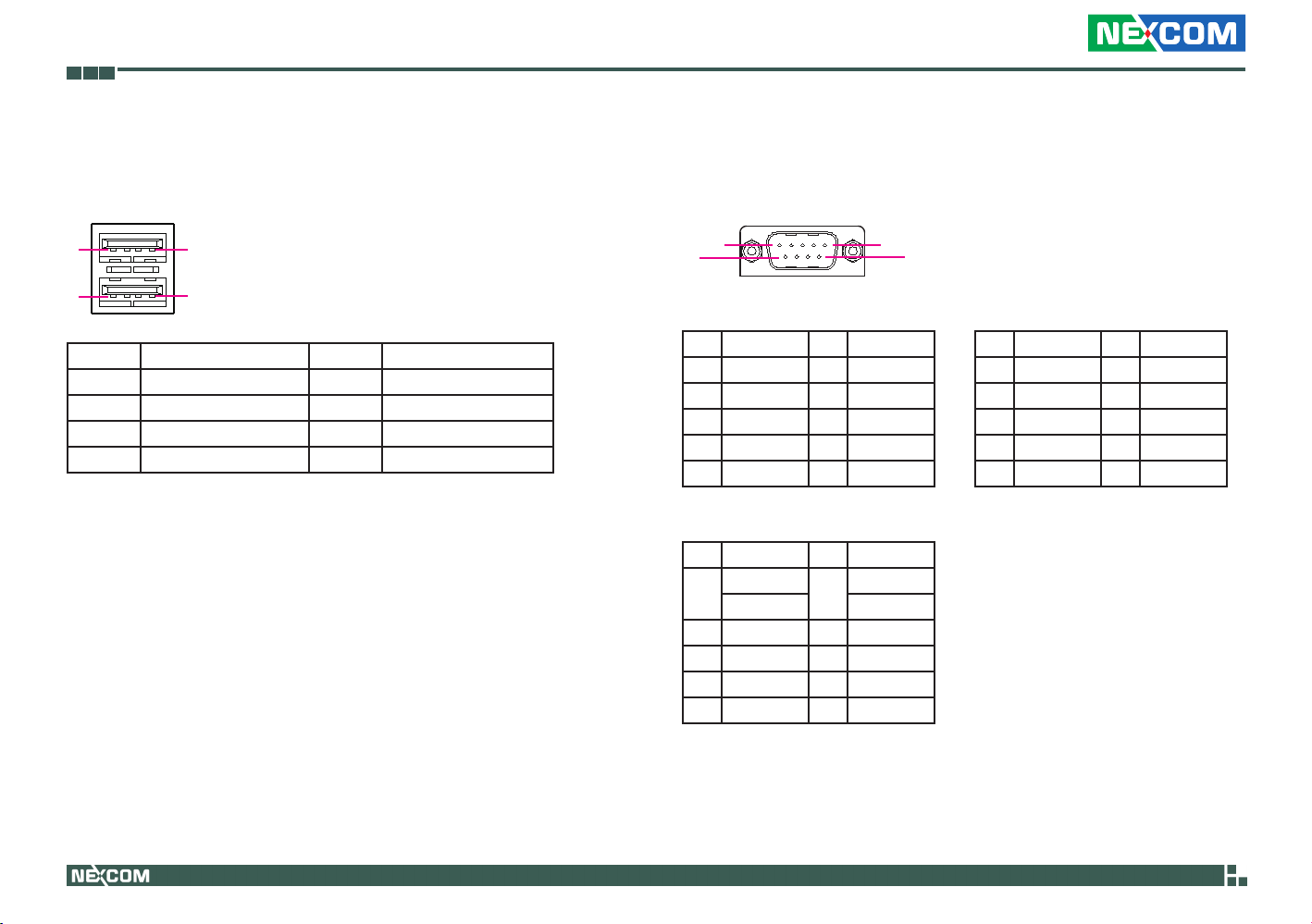

USB Ports .......................................................................................14

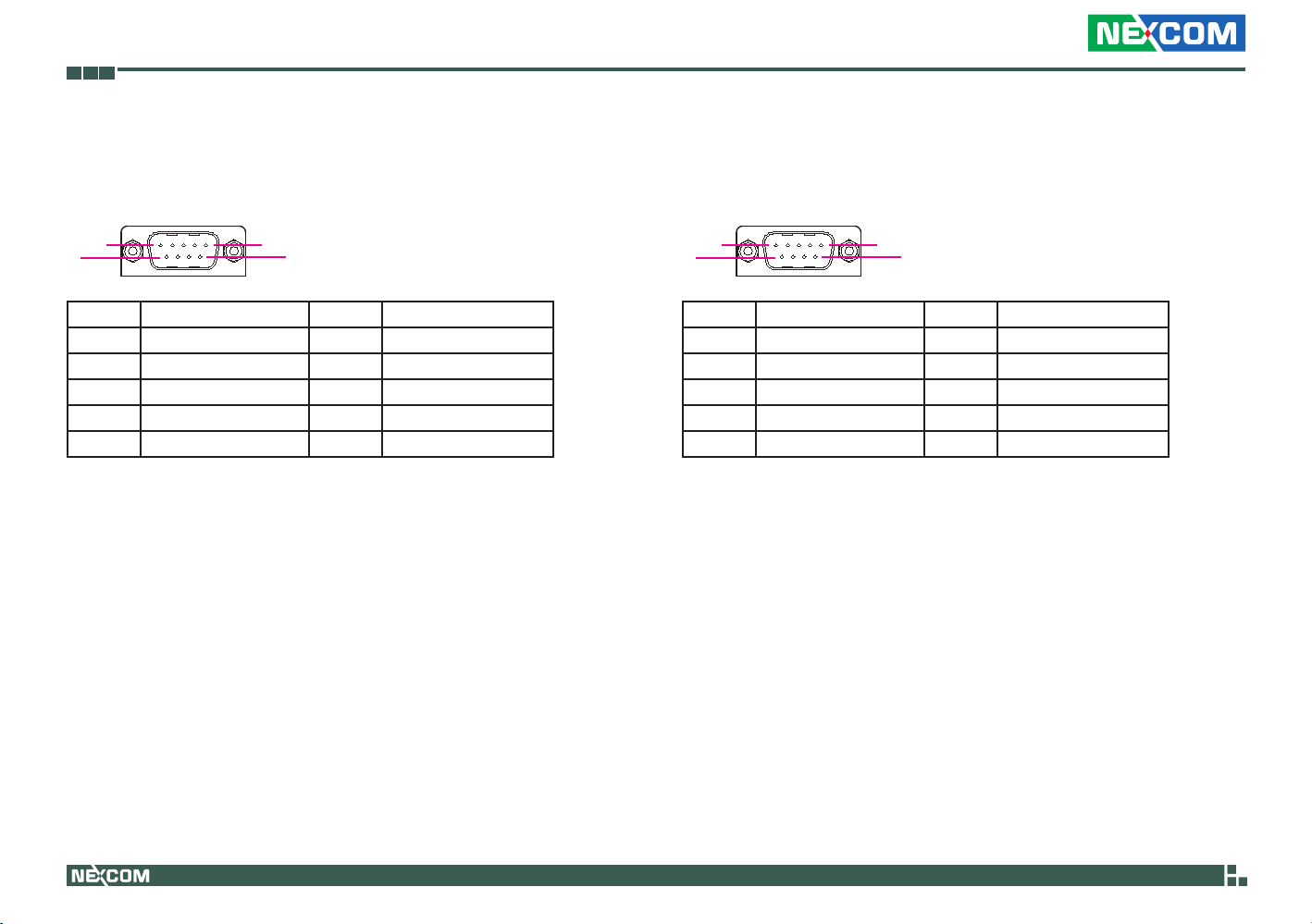

COM2 Port (RS232/422/485) ..........................................................14
COM3 Port (RS232) ........................................................................15
COM4 Port (RS232) ........................................................................15
External I/O Interface - Rear ..............................................................16

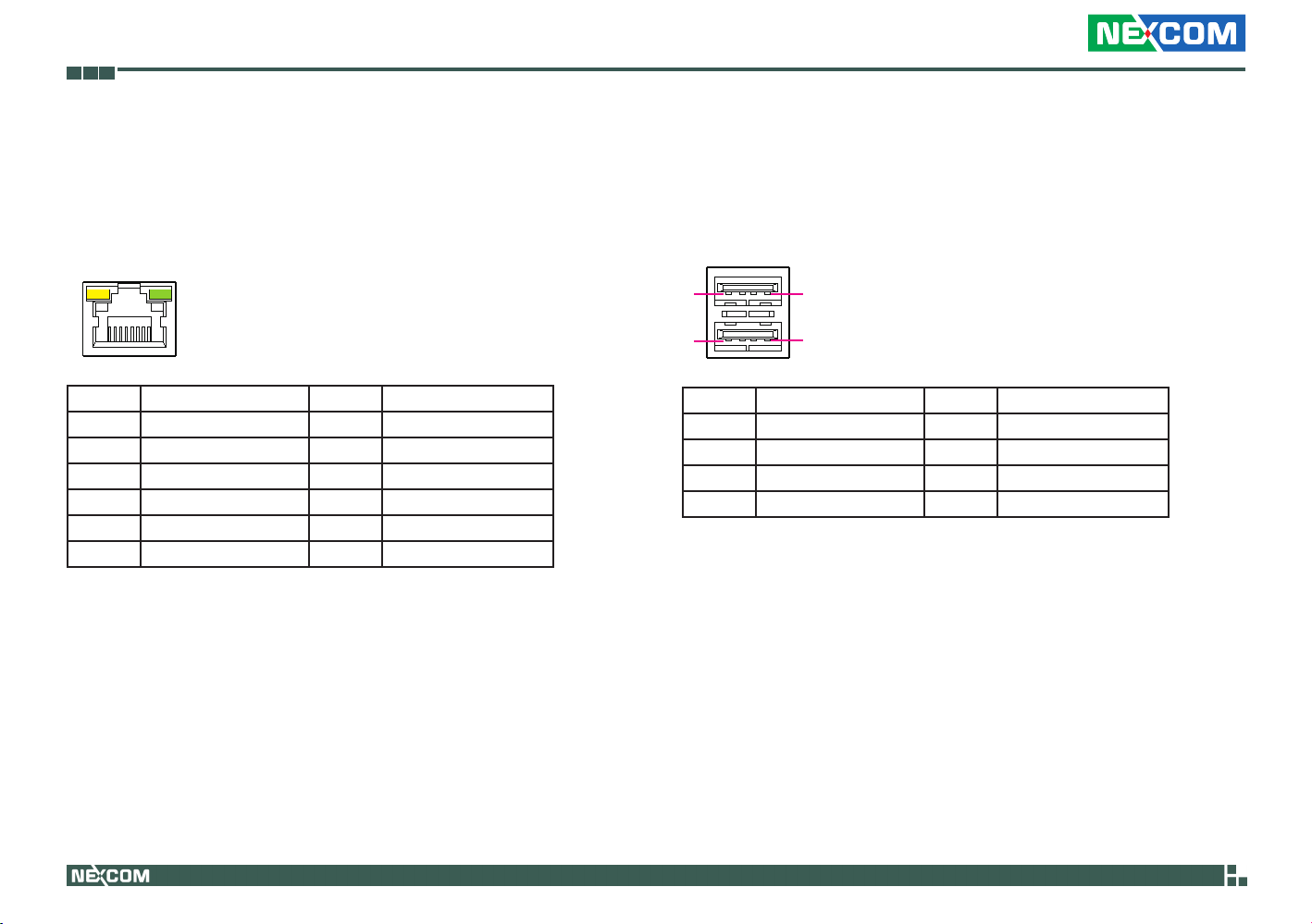

LAN Ports ....................................................................................... 16
USB Ports .......................................................................................16

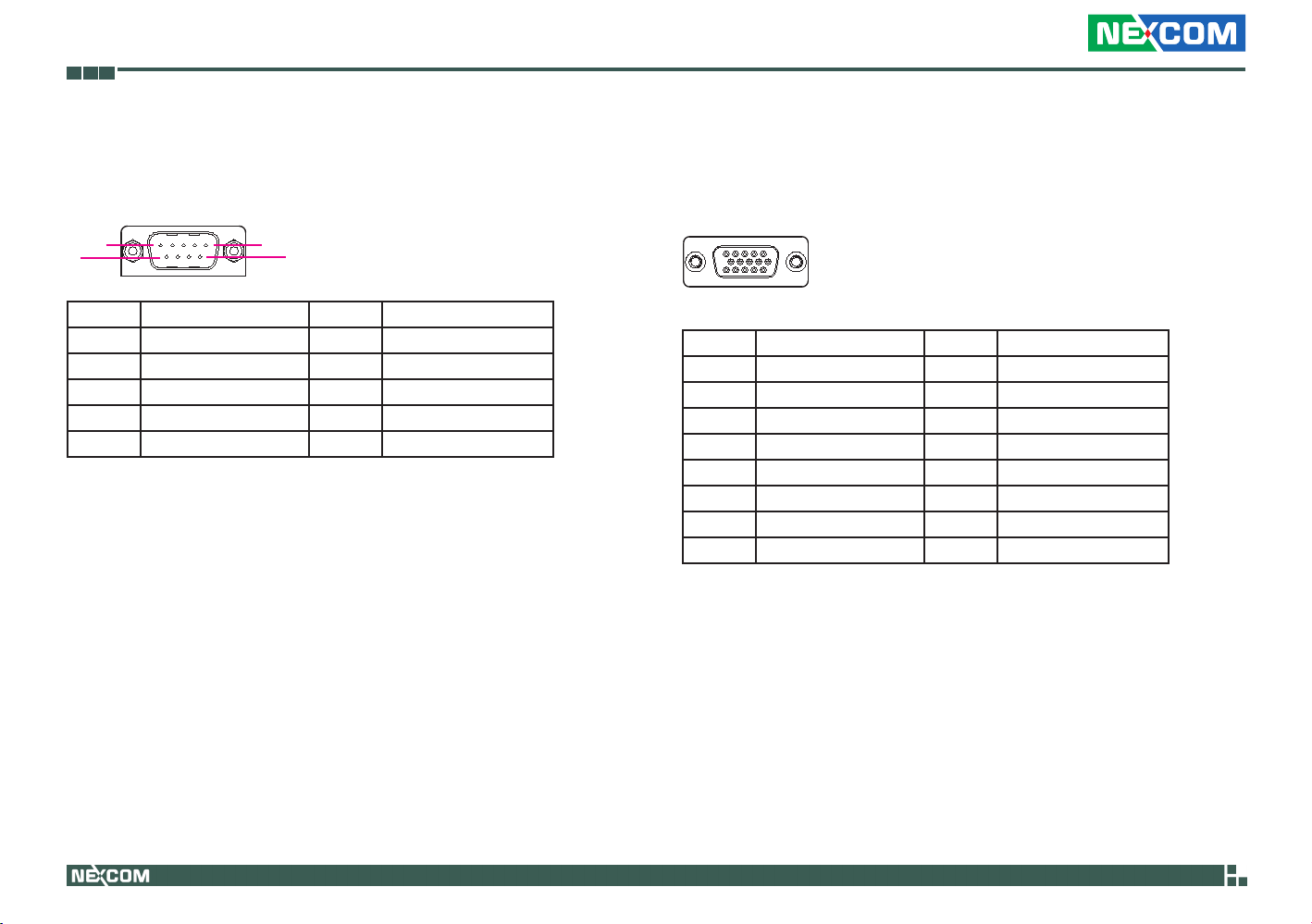

COM1 Port (RS232) ........................................................................17

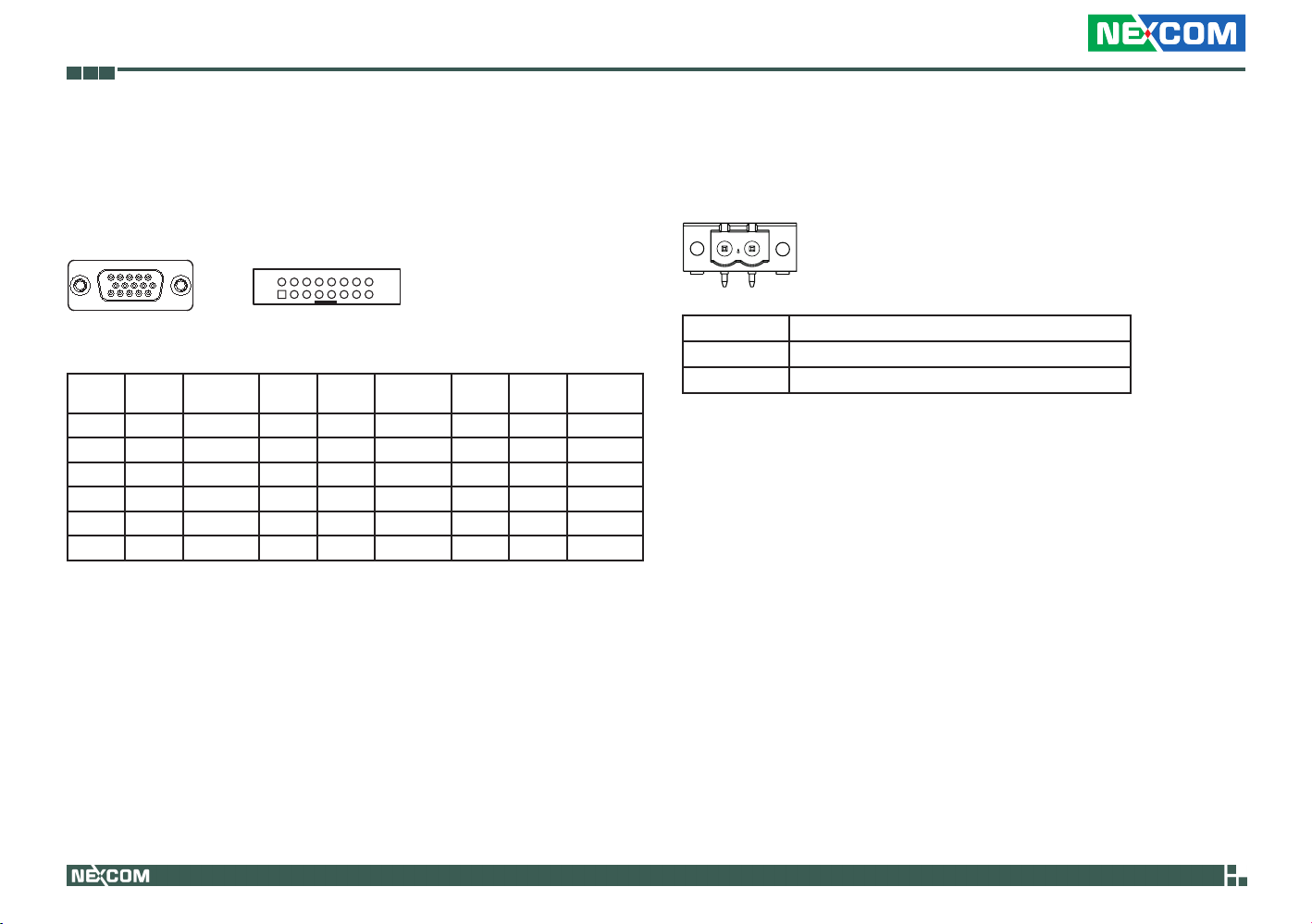

VGA Port .......................................................................................17
ii
NISE 103 User Manual
Contents
DIO Port ......................................................................................... 18
DC Power Input

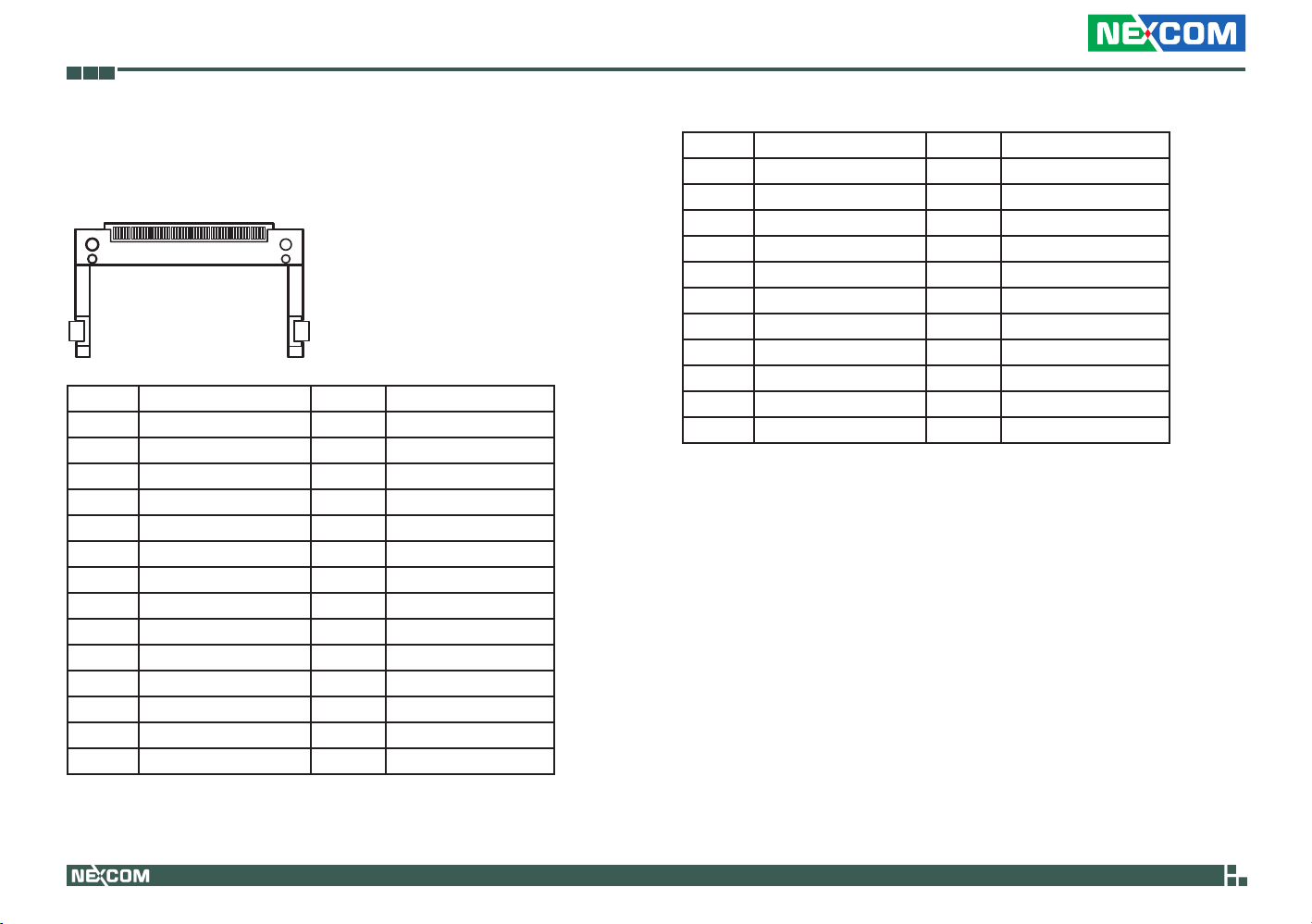

Internal Connectors

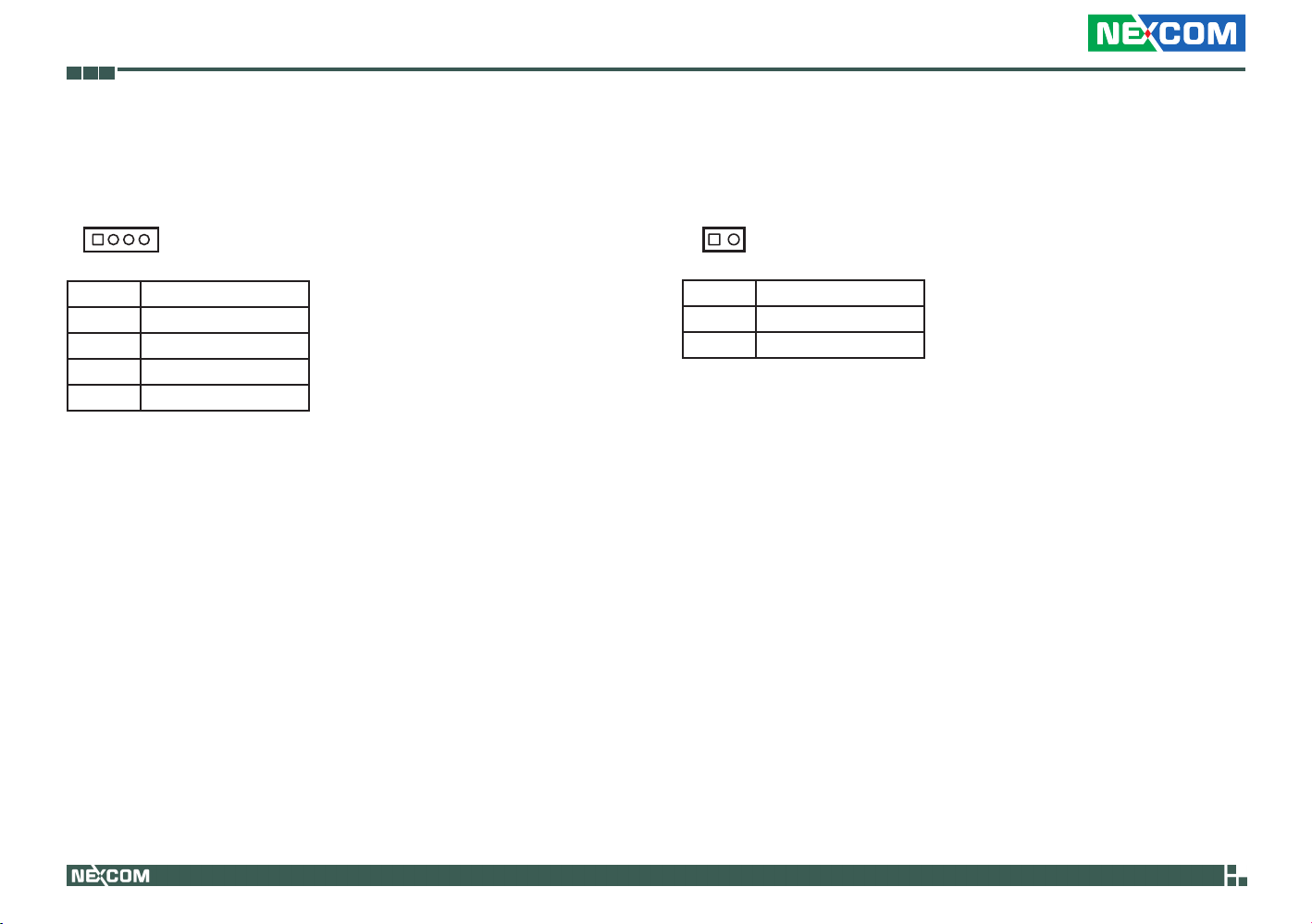

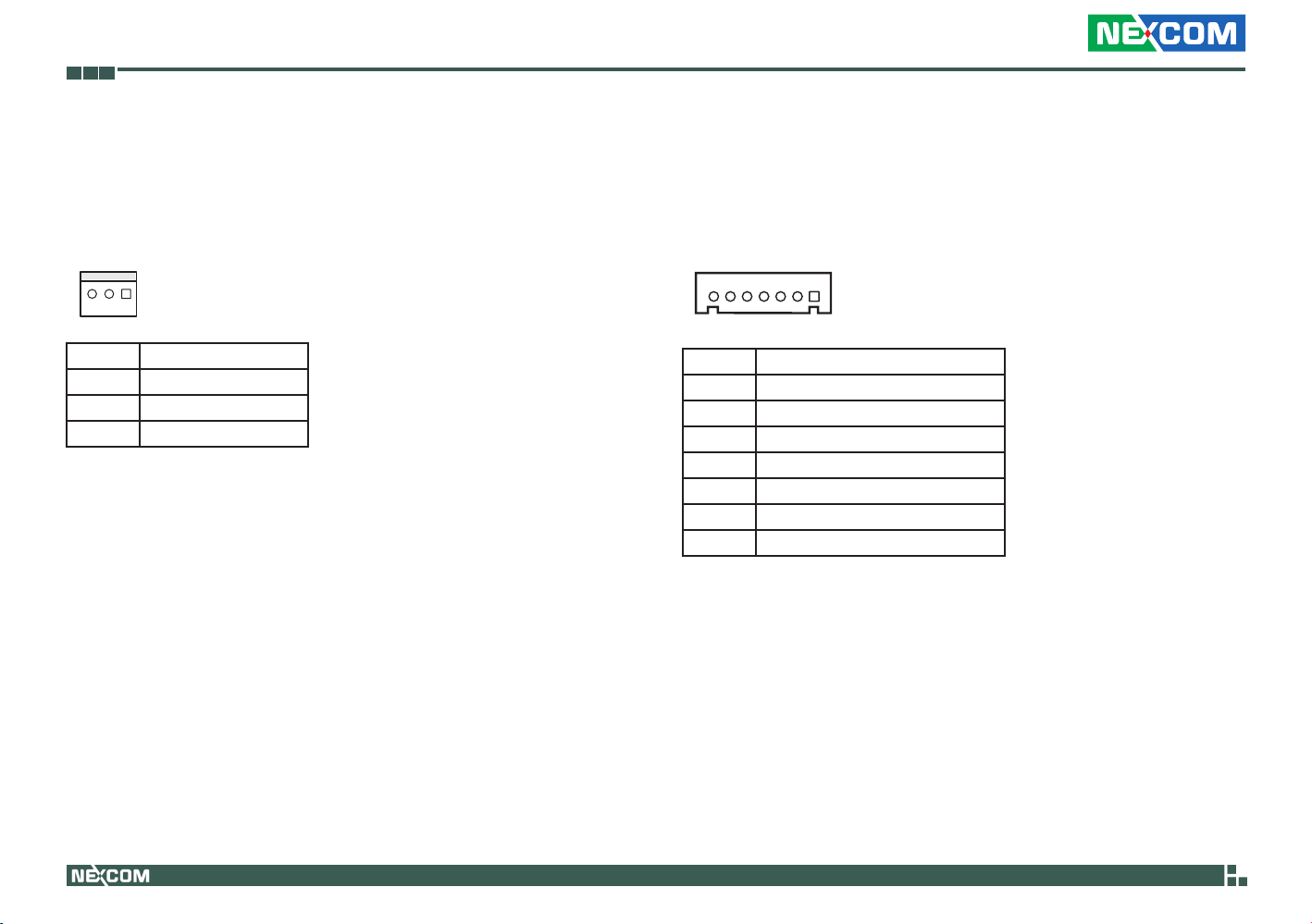

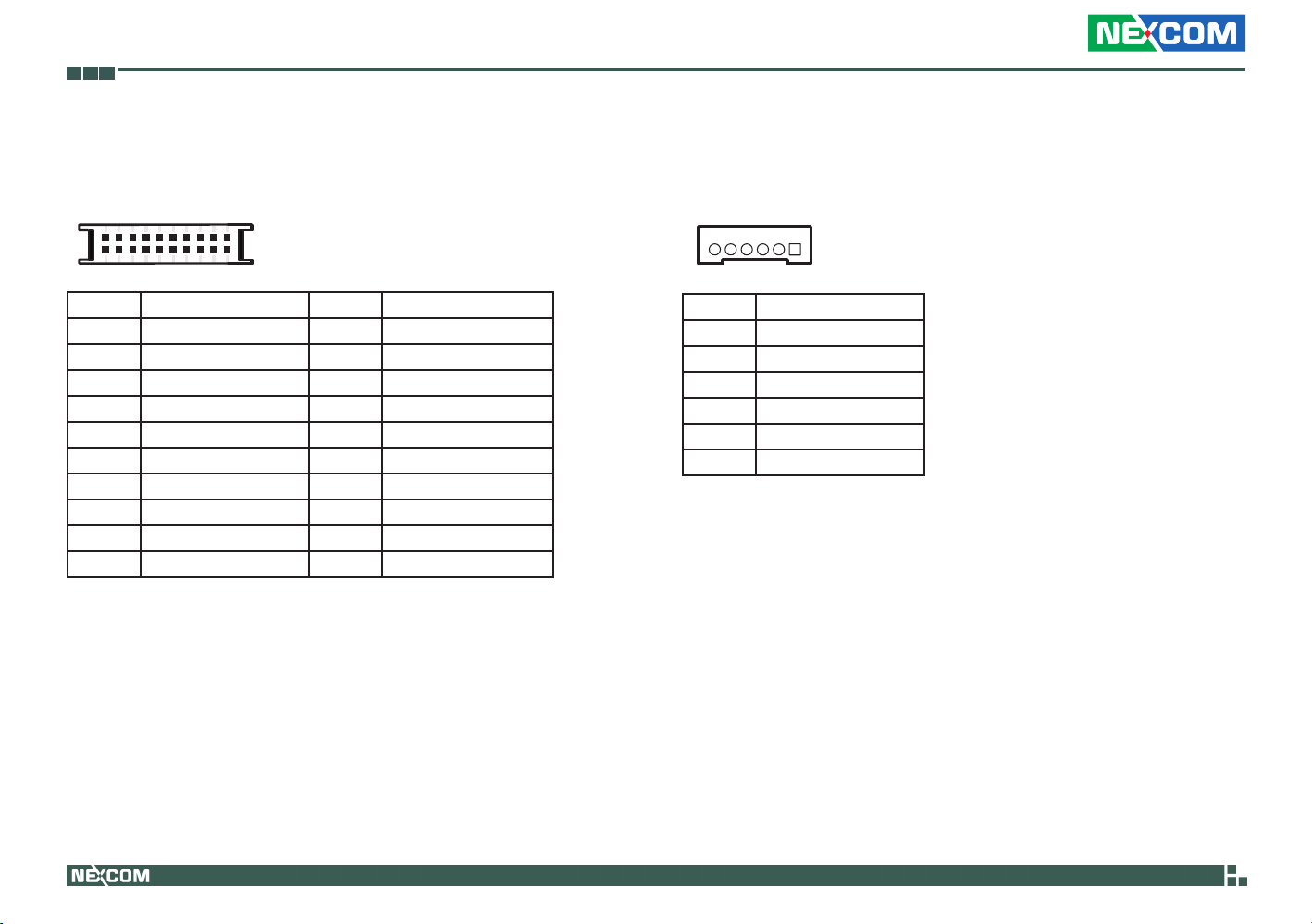

Fan Connector LVDS Panel Backlight Connector LVDS Connector (CN8) LVDS Connector (CN9) LVDS Connector (CN10) USB Connector GPIO Connector Power Button LED Connector Mic-in
............................................................................................ 23

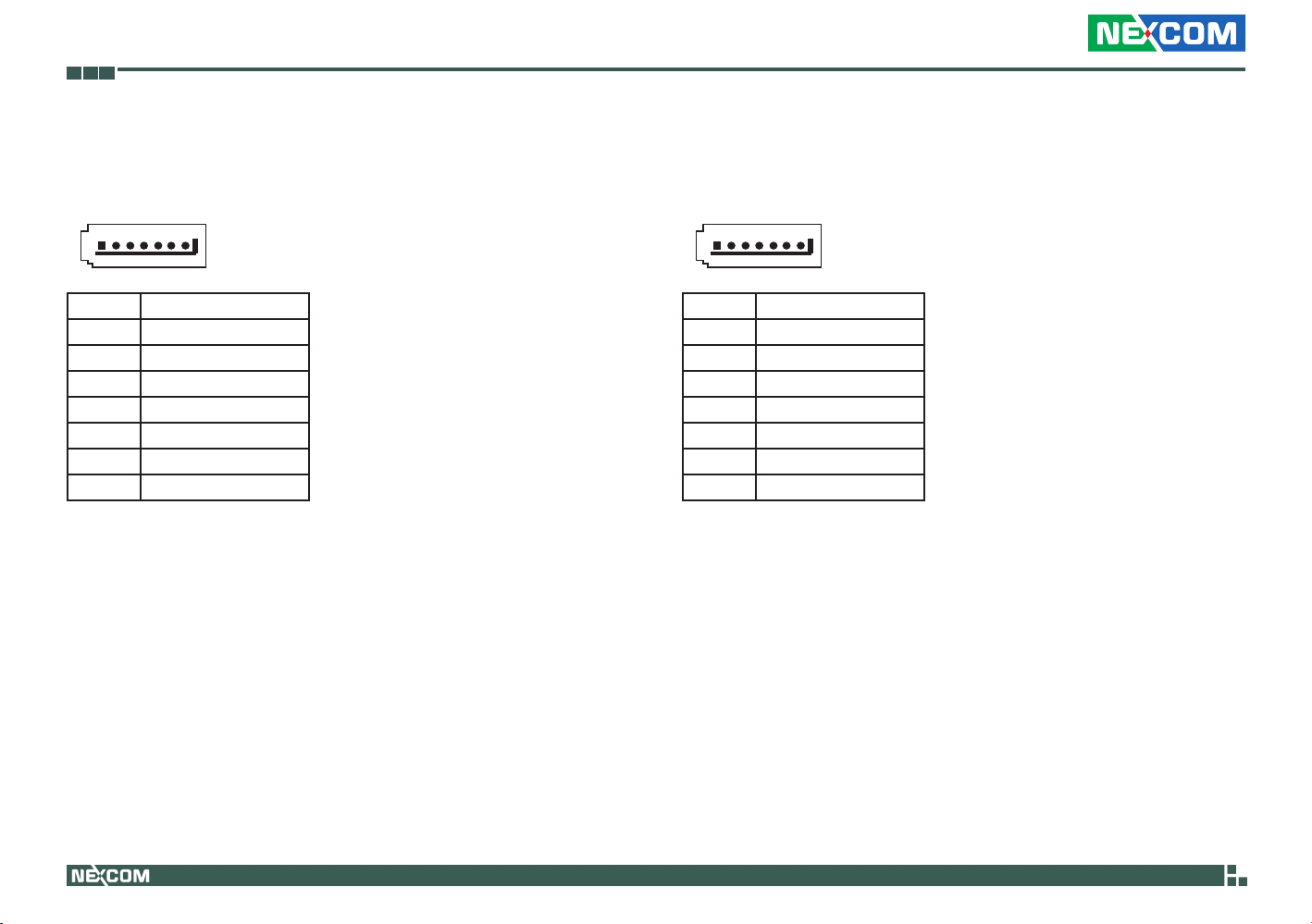

SATA Connector (J2) SATA Connector (J6) SATA Power Connector SATA DOM Power Connector Mini PCIe Slots SIM Card Connector PS/2 Keyboard/Mouse Connector CompactFlash
.............................................................................18
.......................................................................... 19
............................................................................... 19
.....................................................19
...................................................................20
...................................................................20
.................................................................21
..............................................................................21
............................................................................. 22
................................................................................. 22
............................................................................... 23
......................................................................24
......................................................................24
..................................................................25
.........................................................25
...............................................................................26
......................................................................27
...................................................27
................................................................................ 28

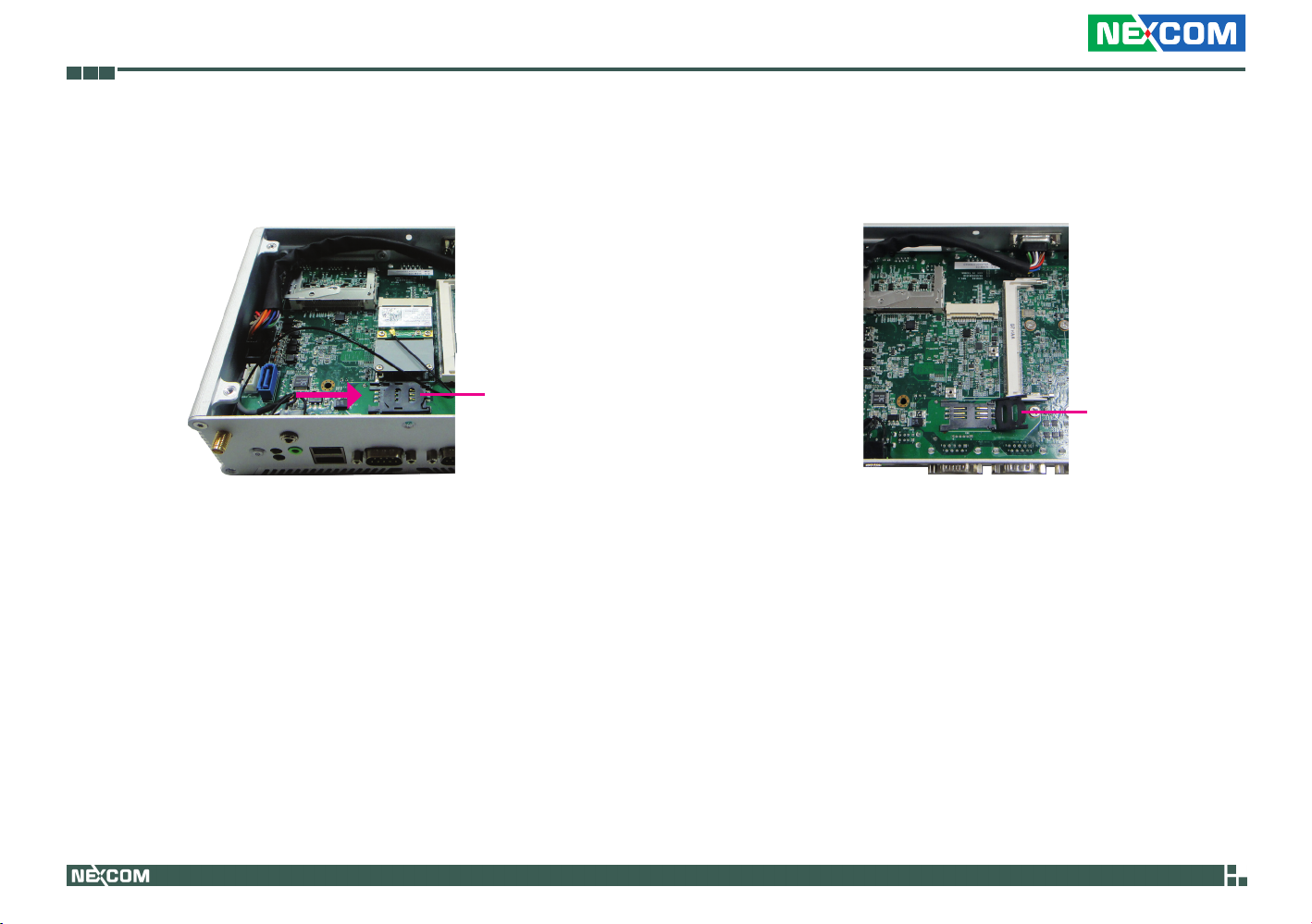

Chapter 3: System Setup
Removing the Chassis Cover ................................................................ 29

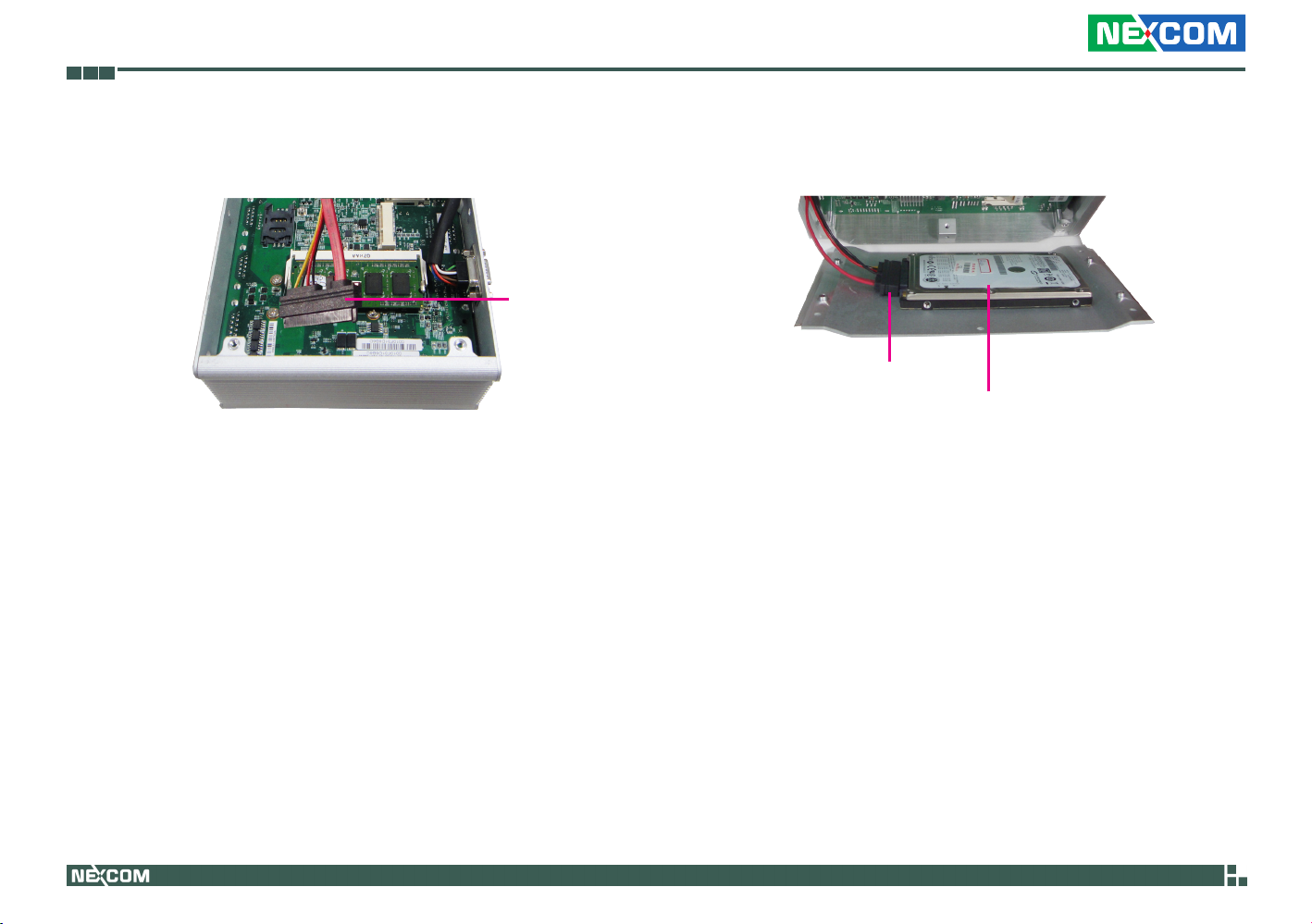

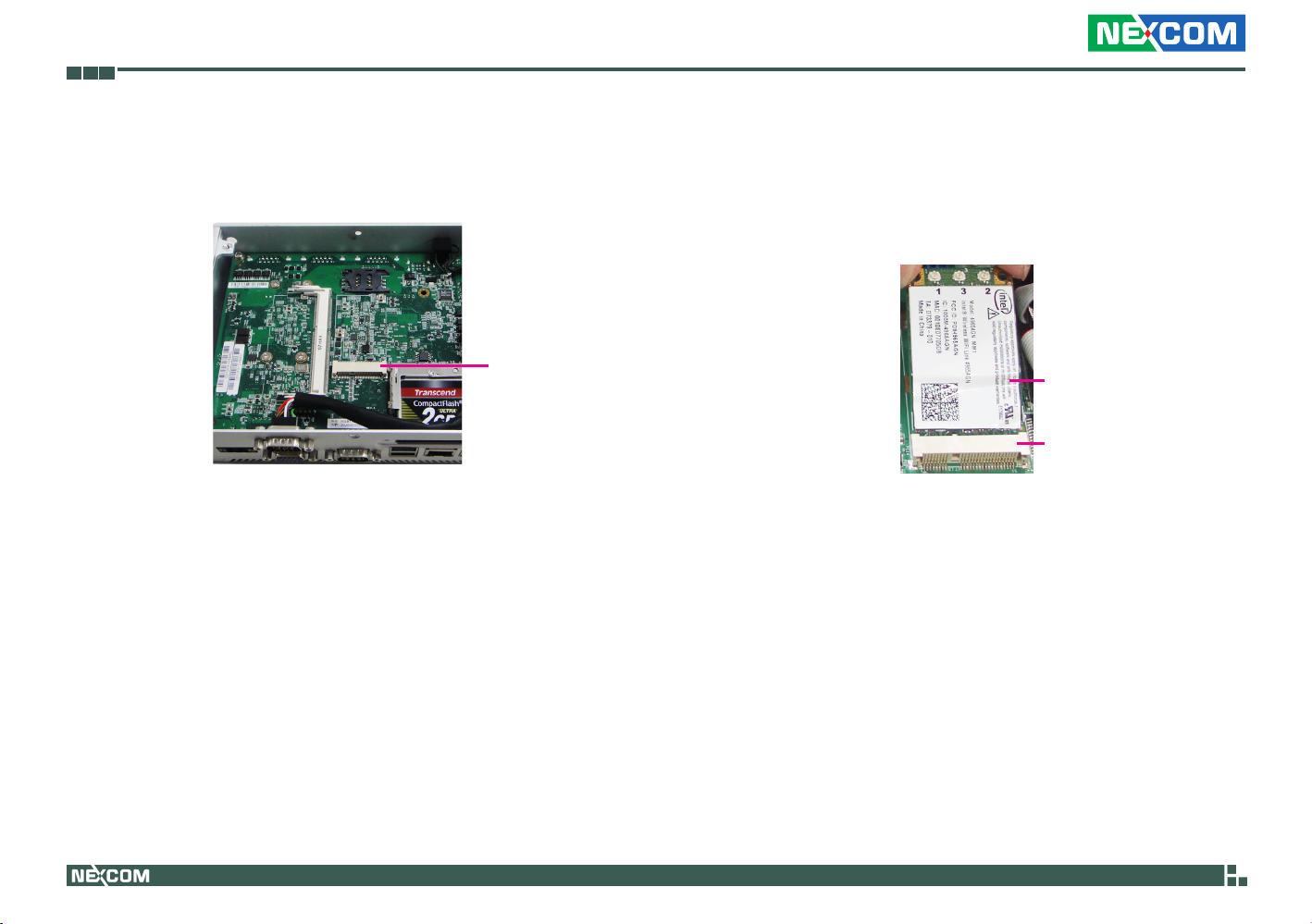

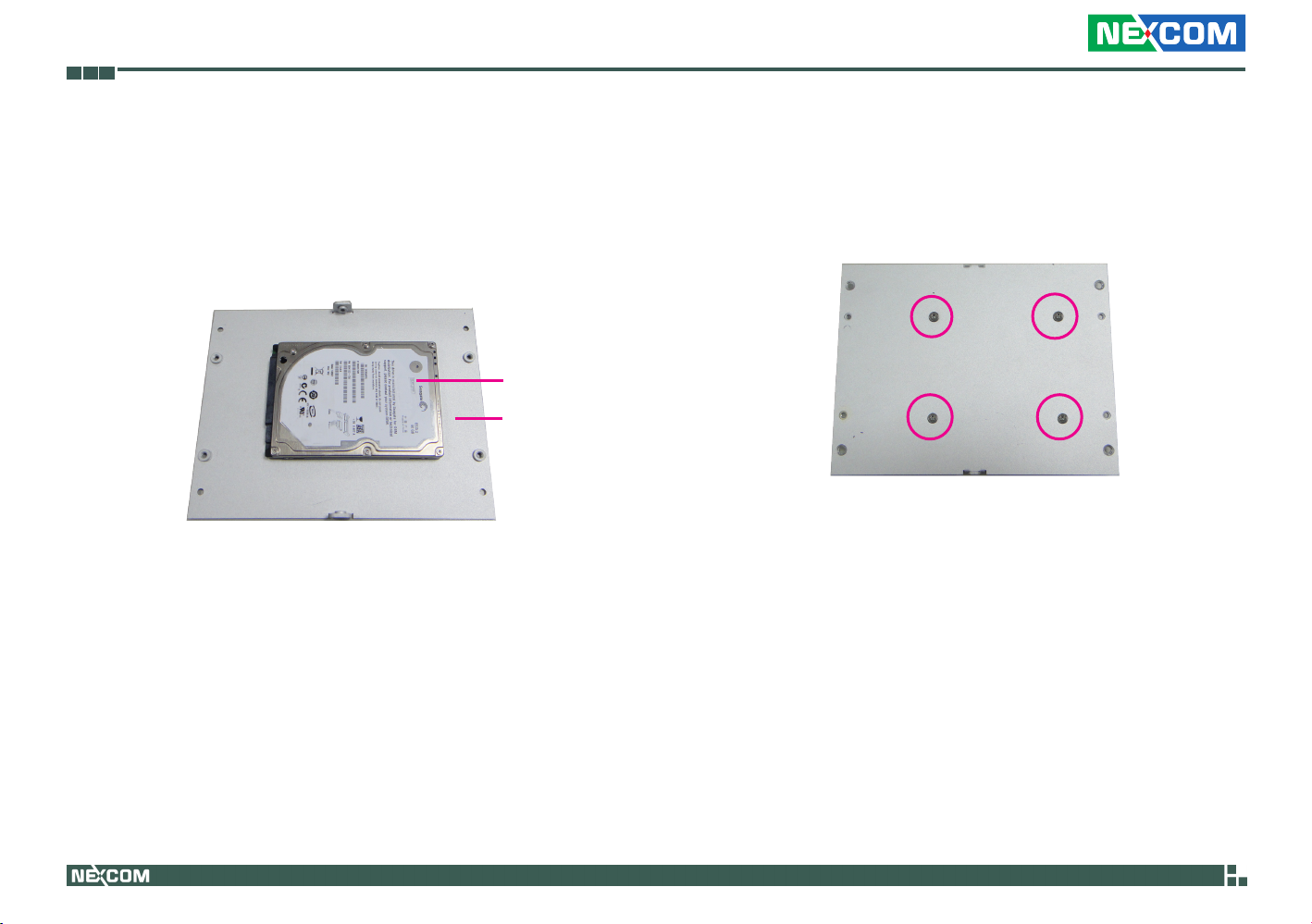

Installing the SODIMM Installing a SATA Hard Drive Installing a CompactFlash Card Installing a Wireless LAN Module Inserting the SIM Card
..........................................................................30
.................................................................. 32
.............................................................34
..........................................................37
..........................................................................41
Chapter 4: BIOS Setup
About BIOS Setup .................................................................................43
When to Configure the BIOS Entering Setup BIOS Setup Utility
Main
..................................................................................................45
Advanced Boot
...................................................................................................55
Chipset PCIPnP Security Exit
.....................................................................................................63
......................................................................................44
.................................................................................. 45
...........................................................................................46
...............................................................................................58
................................................................................................61
..............................................................................................62
.................................................................43
Appendix A: Digital I/O Programming Guide
CN15 - Digital I/O Connector ................................................................ 64
DIO Programming Sample Code
............................................................65
Appendix B: GPI/O Programming Guide
J8 - GPIO Connector ............................................................................. 66
GPIO Programming Sample Code
..........................................................67
Appendix C: Watchdog Timer Setting
ITE8783 Watchdog Programming Guide ............................................... 68
Appendix D: Power Consumption
Test Configuration ................................................................................69
Power Consumption Measurement
.......................................................70
iii
NISE 103 User Manual
Preface
Preface
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.
Disclaimer
The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by con­stantly checking its manual posted on our website: http://www.nexcom. com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.
Acknowledgements
NISE 103 is a trademark of NEXCOM International Co., Ltd. All other prod­uct names mentioned herein are registered trademarks of their respective owners.
Regulatory Compliance Statements
This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.
Declaration of Conformity
FCC
This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equip­ment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interfer­ence, in which case the user will be required to correct the interference (take adequate measures) at their own expense.
CE
The product(s) described in this manual complies with all applicable Euro­pean Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.
iv
NISE 103 User Manual
Preface
RoHS Compliance
NEXCOM RoHS Environmental Policy and Status Update
NEXCOM is a global citizen for building the digital infra­structure. We are committed to providing green products
and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2002/95/EU, to be your trusted green partner and to protect our environment.
RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <
0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.
In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.
The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.
How to recognize NEXCOM RoHS Products?
For existing products where there are non-RoHS and RoHS versions, the suf­fix “(LF)” will be added to the compliant product name.
All new product models launched after January 2006 will be RoHS compli­ant. They will use the usual NEXCOM naming convention.
v
NISE 103 User Manual
Preface
Warranty and RMA
NEXCOM Warranty Period
NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.
NEXCOM Return Merchandise Authorization (RMA)
? Customers shall enclose the “NEXCOM RMA Service Form” with the
returned packages.
? Customers must collect all the information about the problems encoun-
tered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.
? Customers can send back the faulty products with or without acces-
sories (manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the prob­lems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.
? Customers are responsible for the safe packaging of defective products,
making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”
? Any products returned by NEXCOM to other locations besides the cus-
tomers’ site will bear an extra charge and will be billed to the customer.
Repair Service Charges for Out-of-Warranty Products
NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.
System Level
? Component fee: NEXCOM will only charge for main components such
as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.
? Items will be replaced with NEXCOM products if the original one cannot
be repaired. Ex: motherboard, power supply, etc.
? Replace with 3rd party products if needed.
? If RMA goods can not be repaired, NEXCOM will return it to the cus-
tomer without any charge.
Board Level
? Component fee: NEXCOM will only charge for main components, such
as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.
? If RMA goods can not be repaired, NEXCOM will return it to the cus-
tomer without any charge.
vi
NISE 103 User Manual
Preface
Warnings
Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are incon­sistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.
Cautions
Electrostatic discharge (ESD) can damage system components. Do the de­scribed procedures only at an ESD workstation. If no such station is avail­able, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.
Safety Information
Before installing and using the device, note the following precautions:
▪ Read all instructions carefully. ▪ Do not place the unit on an unstable surface, cart, or stand. ▪ Follow all warnings and cautions in this manual. ▪ When replacing parts, ensure that your service technician uses parts
specified by the manufacturer.
▪ Avoid using the system near water, in direct sunlight, or near a heating
device.
▪ The load of the system unit does not solely rely for support from the
rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.
▪ The computer is provided with a battery-powered real-time clock circuit.
There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufactur-
er. Discard used batteries according to the manufacturer’s instructions.
Installation Recommendations
Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.
Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:
• A Philips screwdriver
• A flat-tipped screwdriver
• A grounding strap
• An anti-static pad
Using your fingers can disconnect most of the connections. It is recom­mended that you do not use needlenose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.
vii
NISE 103 User Manual
Preface
Safety Precautions
1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a
damp cloth. Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near
the equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a stable surface during installation. Dropping
it or letting it fall may cause damage.
7. Do not leave this equipment in either an unconditioned environment
or in a above 40oC storage temperature as this may damage the equipment.
8. The openings on the enclosure are for air convection to protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
9. Make sure the voltage of the power source is correct before connect-
ing the equipment to the power outlet.
10. Place the power cord in a way so that people will not step on it. Do
not place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.
11. All cautions and warnings on the equipment should be noted.
12. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.
13. Never pour any liquid into an opening. This may cause fire or electri­cal shock.
14. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.
15. If one of the following situations arises, get the equipment checked by service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work
according to the user’s manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
16. Do not place heavy objects on the equipment.
17. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.
18. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTER­IES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.
19. The computer is provided with CD drives that comply with the ap­propriate safety standards including IEC 60825.
viii
NISE 103 User Manual
Preface
Technical Support and Assistance
1. For the most updated information of NEXCOM products, visit NEX­COM’s website at www.nexcom.com.
2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling:
– Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,
version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages
Warning!
1. Handling the unit: carry the unit with both hands and handle it with care.
2. Maintenance: to keep the unit clean, use only approved cleaning prod­ucts or clean with a dry cloth.
3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.
Conventions Used in this Manual
Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.
Caution: Information to avoid damaging components or losing data.
Note: Provides additional information to complete a task easily.
ix
NISE 103 User Manual
Preface
Global Service Contact Information
Headquarters Taiwan
18F, No. 716, Chung-Cheng Rd. Chung-Ho City, Taipei County 235, Taiwan, R.O.C. Tel: +886-2-8228-0606 Fax: +886-2-8228-0501 http://www.nexcom.com.tw
USA
3758 Spinnaker Court, Fremont, CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 http://www.nexcom.com
France
Z.I. des Amandiers, 17, Rue des entrepreneurs 78420 Carrières sur Seine, France Tel: +33 (0)1 71 51 10 20 Fax: +33 (0)1 71 51 10 21 http://www.nexcom.eu
Germany
Leopoldstrase Business Centre, Leopoldstrase 244 80807 Munich, Germany Tel: +49-89-208039-278 Fax: +49-89-208039-279 http://www.nexcom.eu
Italy
Via Gaudenzio Ferrari 29, 21047 Saronno (VA) Italia Tel: +39 02 9628 0333 Fax: +39 02 9619 8846 http://www.nexcom.eu
United Kingdom
10 Vincent Avenue, Crownhill Business Centre Milton Keynes, Buckinghamshire, MK8 0AB United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 http://www.nexcom.eu
x
NISE 103 User Manual
Preface
China-Beijing
Room 301, Block E, Power Creative Building, No. 1 Shangdi East Rd. Haidian Dist., Beijing, 100085, China Tel: +86-10-5885-6655 Fax: +86-10-5885-1066 http://www.nexcom.cn
China-Shanghai Office
Room 1505, Greenland He Chuang Building, No. 450 Caoyang Rd. Shanghai, 200063, China Tel: +86-21-6150-8008 Fax: +86-21-3251-6358 http://www.nexcom.cn
China-Nanjing Office
Room 1206, Hongde Building, No. 20 Yunnan Rd. Nanjing, 210018, China Tel: +86-25-8324-9606 Fax: +86-25-8324-9685 http://www.nexcom.cn
China-Shenzhen Office
Western Room 708, Block 210, Tairan Industry & Trading Place, Futian Area, Shenzhen, China 518040 TEL: +86-755-833 27203 FAX: +86-755-833 27213 http://www.nexcom.cn
Japan
9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku Tokyo, Japan 108-0014 Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 http://www.nexcom-jp.com
xi
NISE 103 User Manual
Preface
Package contents
Before continuing, verify that the NISE 103 package that you received is complete. Your package should have all the items listed in the following table.
Item P/N Description Qty
1 19J00010300X0 NISE103 ASSY 1
2 4NCPF00204X00 TERMINAL BLOCKS 2P PHOENIX CONTACT:1777989 5.08 FEMALE DIP GREEN 1
3 6012200053X00 PE ZIPPER BAG #3 100x70mm,W/China RoHS SYMBOL 1
4 6012200052X00 PE ZIPPER BAG #8 170x240mm,W/China RoHS SYMBOL 1
5 60177A0225X00 (N)NISE103 QUICK REFERENCE GUIDE VER:A 1
6 602DCD0353X00 (N)NISE103 CD DRIVER VER:2.0 1
7 50311F0110X00 (H)FLAT HEAD SCREW LONG FEI:F3x5ISO+NYLOK NIGP F3x5 NI NYLOK 4
xii
NISE 103 User Manual
Preface
ordering information
The following provides ordering information for NISE 103.
• Barebone
NISE 103 (P/N: 10J00010300X0)
- Intel® Atom™ D425 Fanless System
• 12V, 60W AC/DC power adapter w/o power cord
(P/N: 7400060009X00)
xiii
NISE 103 User Manual
Chapter 1: Product Introduction
Chapter 1: produCt IntroduCtIon
Overview
Front
Key Features
®
• Onboard Intel
®
• Intel
• Dual Intel 10/100/1000 Mbps LAN ports
• 4 x USB 2.0 ports
• 1 x RS232/422/485 and 3 x RS232 ports
• 1 x Mini PCIe with two antenna holes and 1 x SIM card
ICH8M chipset
holder
Atom™ D425 processor, 1.8GHz
Rear
• 1 x VGA port
• 1 x DB15 Digital Input & Output
• Onboard DC to DC power designed to support
+12V DC power input
• Supports ATX Power Mode, WOL, LAN Teaming and PXE functions
1
NISE 103 User Manual
Chapter 1: Product Introduction
Hardware Specifications
CPU
• Onboard Intel® Atom™ D425 processor, 1.8GHz
• Intel® ICH8M chipset
Main Memory
• One DDR3 SODIMM socket
• Single channel
• Supports up to 2GB DDR3 800 SDRAM, unbuffered, non-ECC
I/O Interface - Front
• ATX power on/off switch
• HDD Access / Power Status LEDs
• 1 x Speaker-out
• 1 x Mic-in
• 2 x USB 2.0 ports
• 3 x COM ports
COM2: RS232/422/485 COM3 and COM4: RS232
• 2 x antenna holes
I/O Interface - Rear
• 2 x Intel GbE LAN ports
• 2 x USB 2.0 ports
• 1 x RS232 COM1 port
• 1 x DB15 VGA port
• 1 x DB15 male digital input & output
• +12V DC power input
• 1 CompactFlash card socket
Digital Input and Output
• 4 x Digital Input (Source type)
- Input Voltage (Dry Contact) Logic 0: Close to GND Logic 1: Open
- Input Voltage: Logic 0: 3V max Logic 1: +5V ~ +30V
• 4x Digital Output (Sink type) Output Voltage: 3.6V ~ 5V Sink current: 200 mA max. per channel
Device
• 1 x 2.5” HDD drive bay
• 1 x external CF card socket
• 1 x SATA DOM
Power Requirements
• DC to DC power designed for onboard support of +12V DC
• 1 x optional 12V, 60W power adapter
Dimensions
• 185mm (W) x 131mm (D) x 54mm (H) (7.28” x 5.2” x 2.13”)
Construction
• Aluminum chassis with fanless design
2
NISE 103 User Manual
Chapter 1: Product Introduction
Environment
• Operating temperature: Ambient with airflow: -5°C to 55°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
• Storage temperature: -20°C to 80°C
• Relative humidity: 10% to 93% (Non-Condensing)
Certifications
• CE approval
• FCC Class A
3
NISE 103 User Manual
Chapter 1: Product Introduction

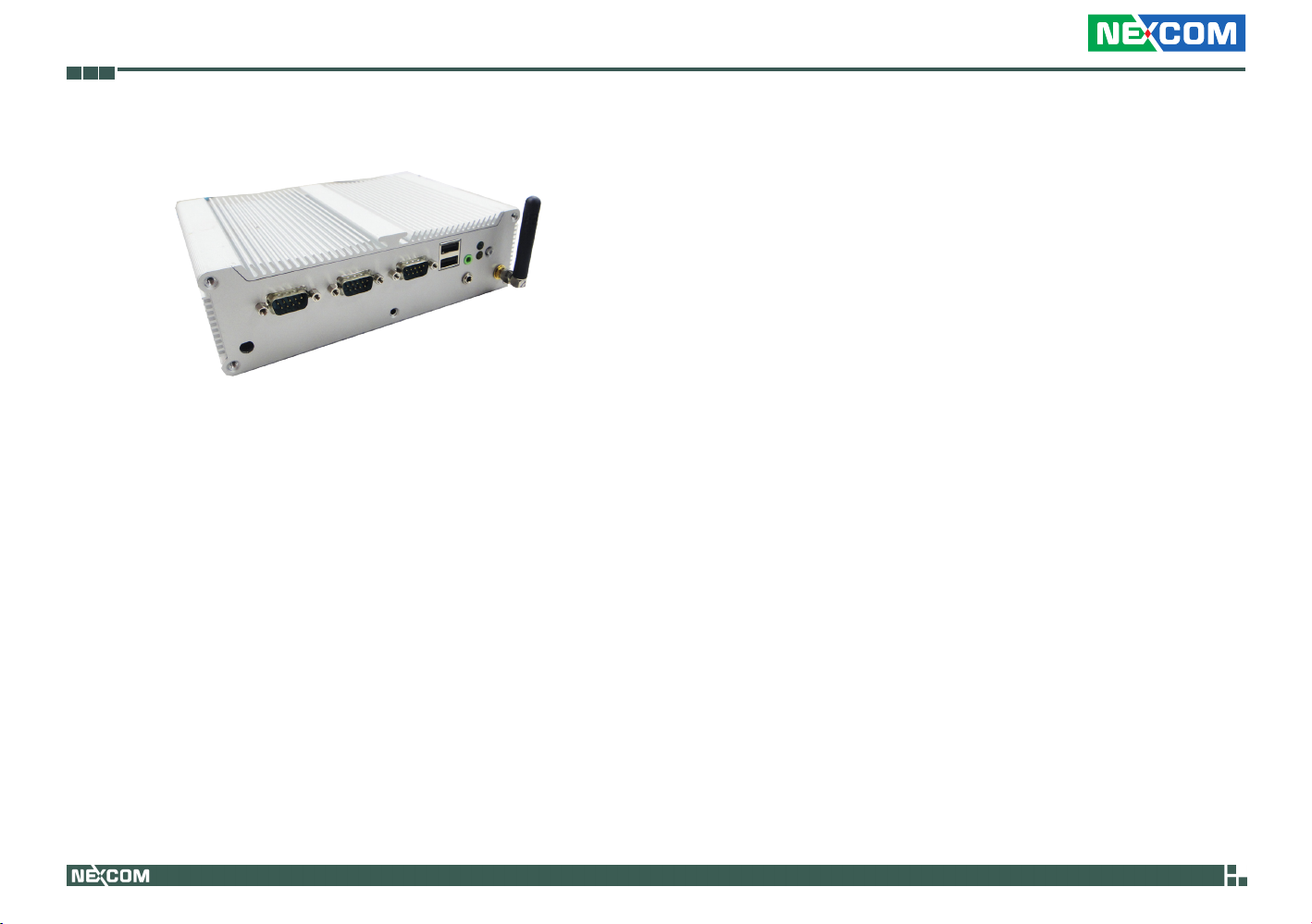

Getting to Know NISE 103
Front Panel
Speaker-out
Power LED
Power switch
Antenna hole
Antenna hole
COM3
(RS232)
COM2
(RS232/422/485)
USB
COM4
(RS232)
Power Switch
Press to power-on or power-off the system.
Power Status LED
Indicates the power status of the system.
HDD Access LED
Indicates the status of the hard drive.

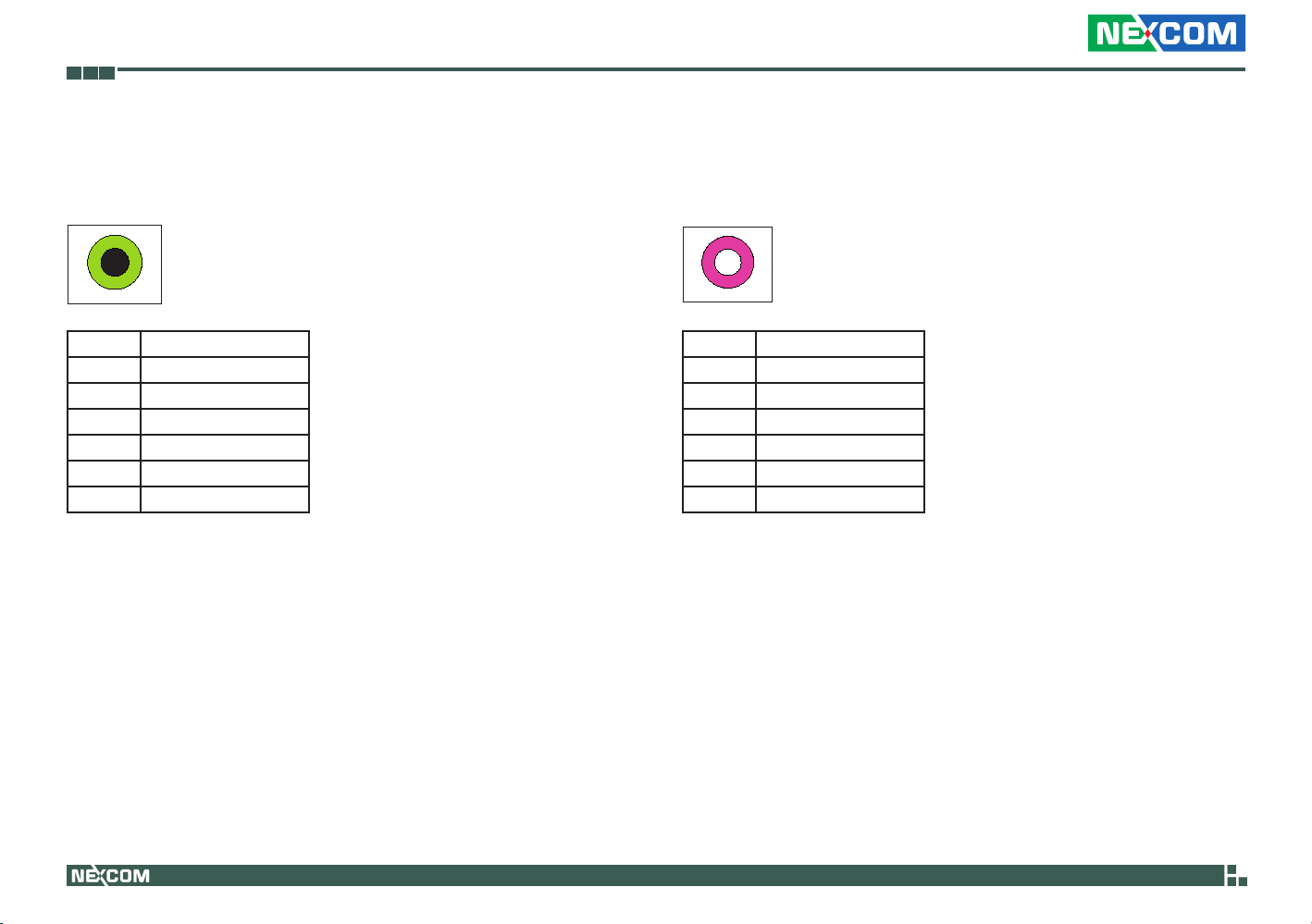

Speaker-out Jack
Used to connect a headphone or a speaker.
Mic-in Jack
Used to connect an external microphone.
Mic-in
HDD LED
USB Ports
Used to connect USB 2.0/1.1 devices.
COM Ports
COM2 supports RS232/422/485 while COM3 and COM4 support RS232 compatible serial devices.

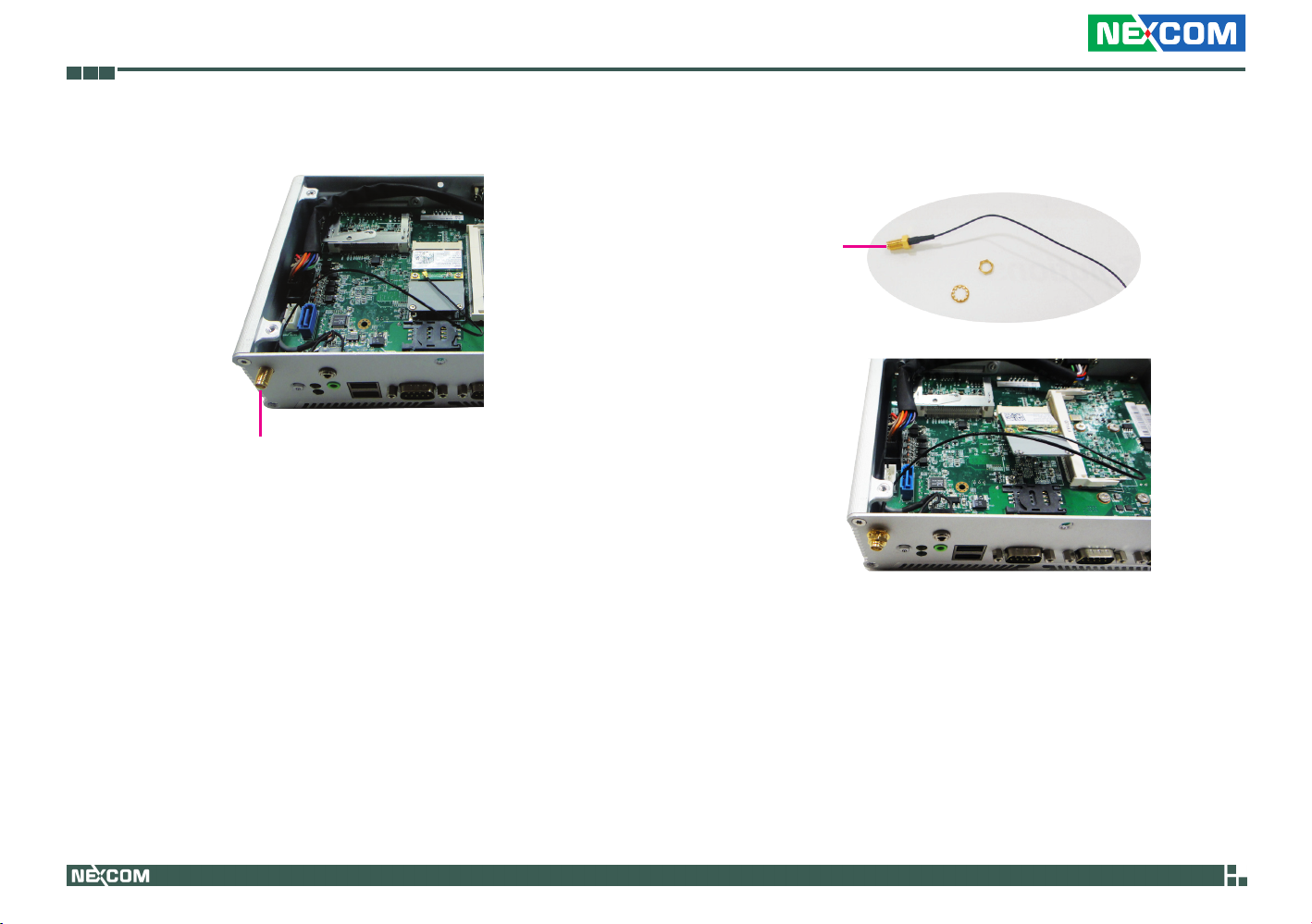

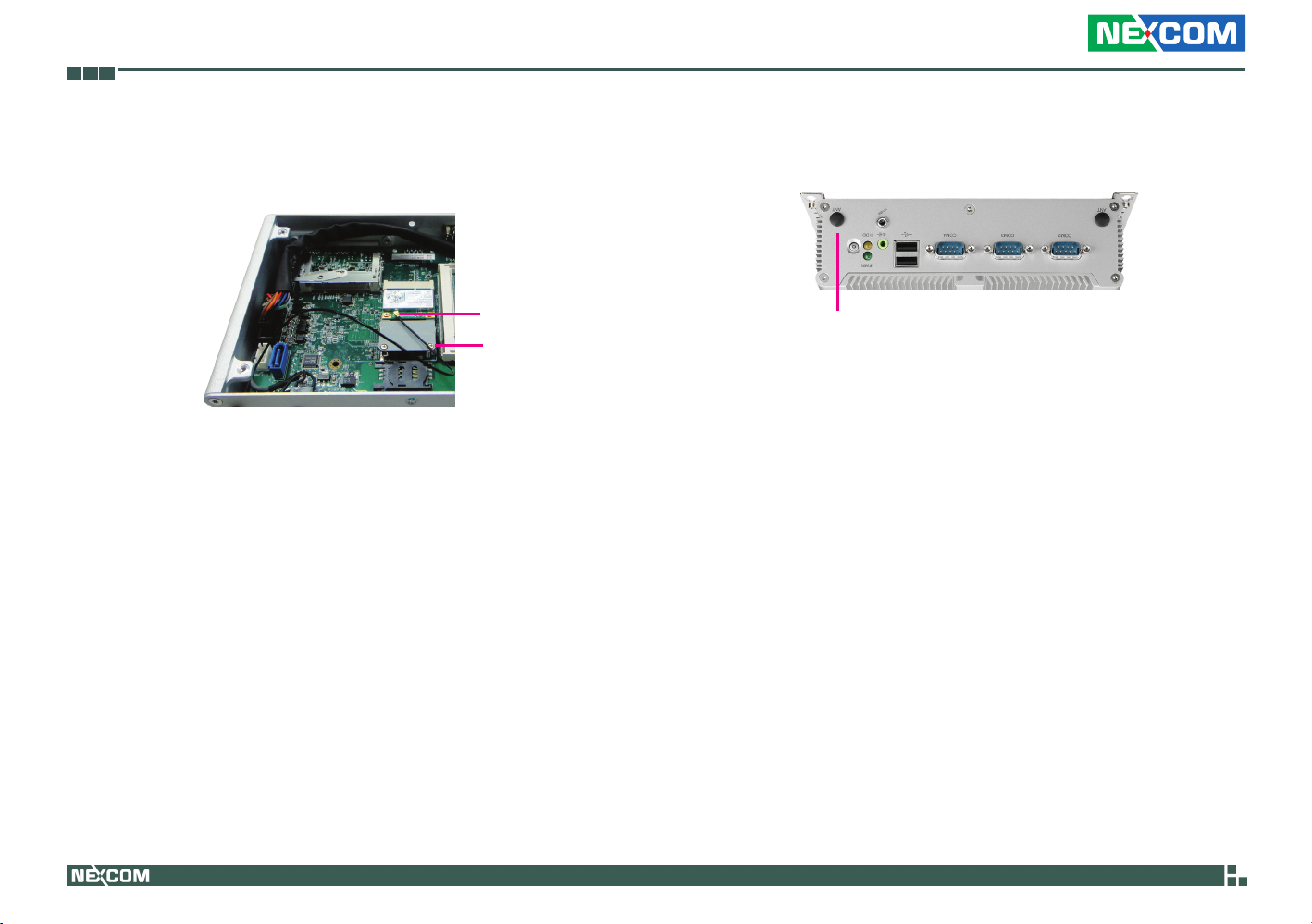

Antenna Hole for Optional WiFi
Used to connect an optional Mini-PCIe WiFi module.
4
NISE 103 User Manual
Chapter 1: Product Introduction
Rear Panel
LAN USB
COM1
(RS232)
VGALAN
+12V DCCF
Digital I/O
LAN Ports
Used to connect the system to a local area network.
USB Ports
Used to connect USB 2.0/1.1 devices.
COM Port
The COM1 port supports RS232 compatible serial devices.
VGA Port
Used to connect an analog VGA monitor.
Digital I/O
The Digital I/O connector supports 4 digital input and 4 digital output.
+12V DC Input
Used to plug a DC power cord.

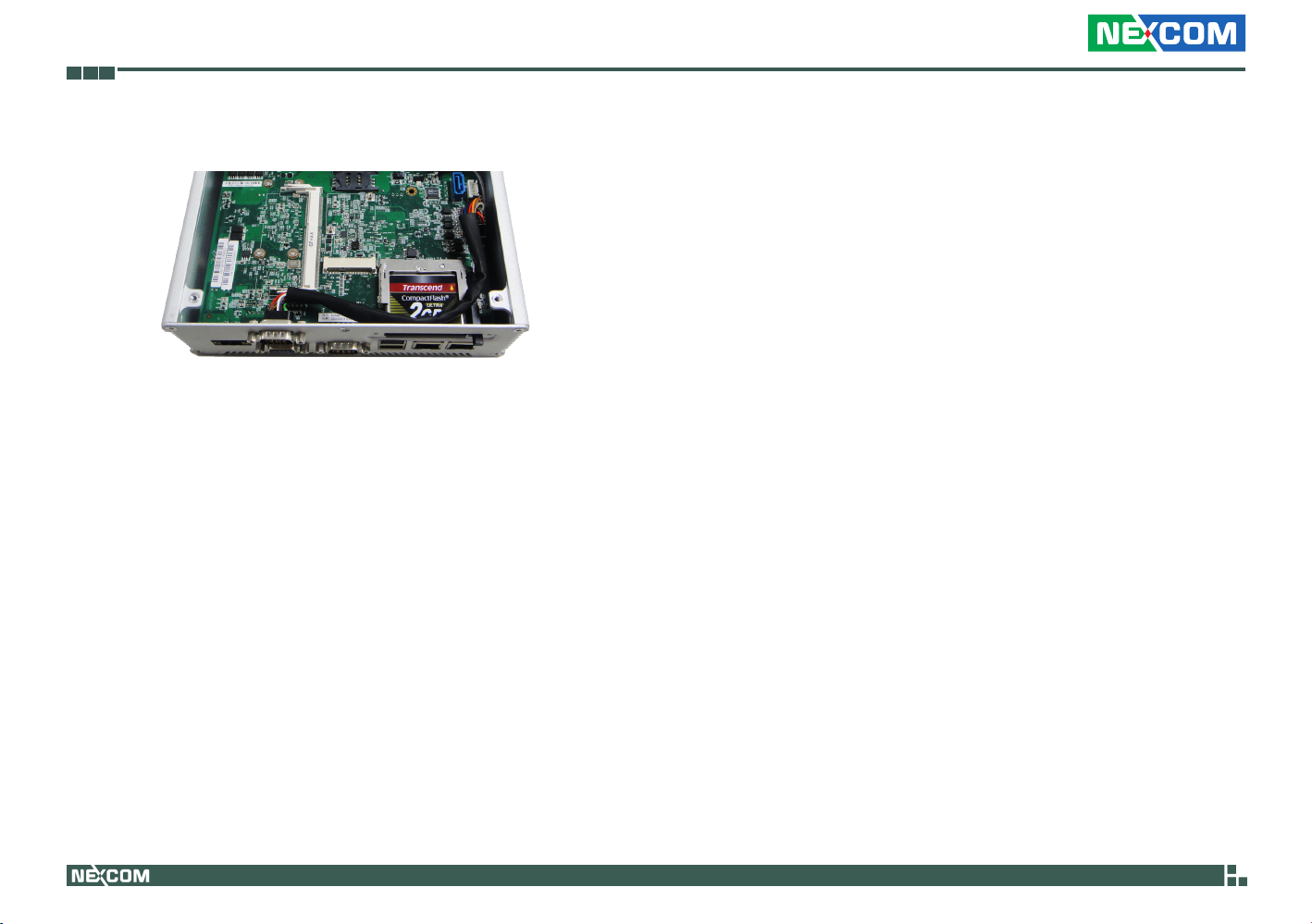

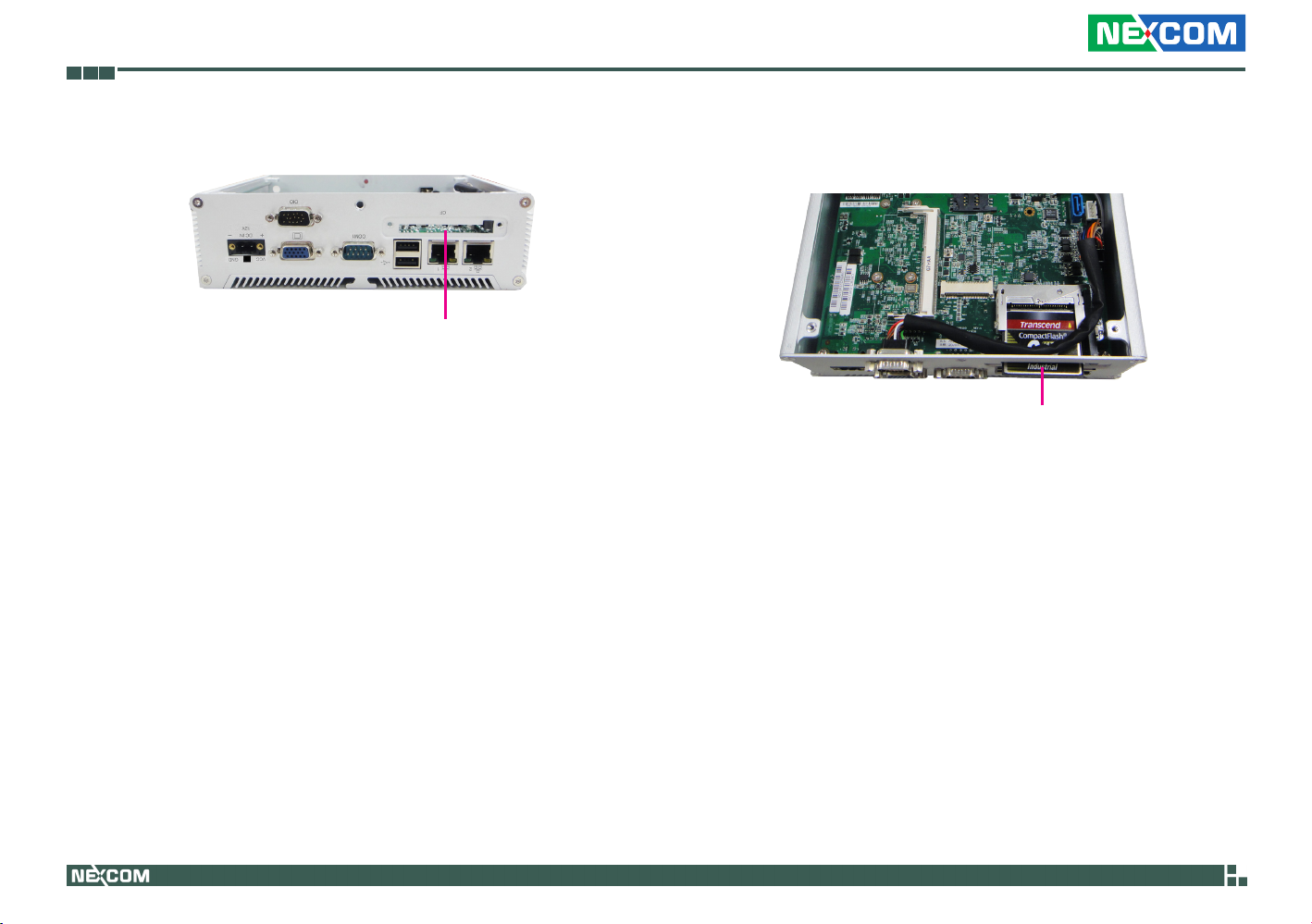

CF
Used to insert a CompactFlash card.
5
NISE 103 User Manual
Chapter 1: Product Introduction
Mechanical Dimensions
12.50
60.00
94.00
115.00
131.00
185.00
194.00
206.00
54.00
60.00
6
NISE 103 User Manual
Chapter 2: Jumpers and Connectors
Chapter 2: Jumpers and ConneCtors
This chapter describes how to set the jumpers and connectors on the motherboard.
Before You Begin
• Ensure you have a stable, clean working environment. Dust and dirt can
get into components and cause a malfunction. Use containers to keep small components separated.
• Adequate lighting and proper tools can prevent you from accidentally
damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:
• A Philips screwdriver
• A flat-tipped screwdriver
• A set of jewelers Screwdrivers
• A grounding strap
• An anti-static pad
• Using your fingers can disconnect most of the connections. It is recom-
mended that you do not use needle-nosed pliers to disconnect connec­tions as these can damage the soft metal or plastic parts of the connec­tors.
• Before working on internal components, make sure that the power
is off. Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the elec-
tronic components. Humid environment tend to have less static electric­ity than dry environments. A grounding strap is warranted whenever danger of static electricity exists.
Precautions
Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on the computers that are still con­nected to a power supply can be extremely dangerous.
Follow the guidelines below to avoid damage to your computer or your­self:
• Always disconnect the unit from the power outlet whenever you are
working inside the case.
• If possible, wear a grounded wrist strap when you are working inside
the computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.
• Hold electronic circuit boards by the edges only. Do not touch the com-com-
ponents on the board unless it is necessary to do so. Don’t flex or stress the circuit board.
• Leave all components inside the static-proof packaging that they
shipped with until they are ready for installation.
• Use correct screws and do not over tighten screws.
7
NISE 103 User Manual
Chapter 2: Jumpers and Connectors
Jumper Settings
A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.
Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).
Two-Pin Jumpers: Open (Left) and Short (Right)
Three-Pin Jumpers: Pins 1 and 2 Are Short
8
NISE 103 User Manual
Chapter 2: Jumpers and Connectors
Locations of the Jumpers and Connectors
The figure below is the NISB 103 main board which is used in the NISE 103 system. It shows the locations of the jumpers and connectors.
Top View
J1 SATA DOM PWR
JP6
7
8
2
10
2 1
J3
CN8
CN9
3
COM2
6
FAN1
H7
3
1
5
1
1 2
3 4 5
7 8 9 10
11 12
13
14 16 18
19
21
29
1
19
20
2
1
19
20
2
1
19
20
2
J7
FB22
7
2
1
CN16
COM4
SW1
LED1
1
4
1
JP11
1
12
5
CN14
4
3
1
JP1
USB2
6
4
2
1
A
5
1
5
6
J4
69
9
1
5
CP6
1
BAT1
17
J2
103
102
65
64
JP8
1
RT1
COM3
CP5
9
6
GPIO
1
9
KB/MS
BZ1
14
JP7
1
13
U11
1011
9
11
CN2
12
2
8
1
7
CN4
12
8
7
5
10
9
2
1
8
1
4
USB1
JP13
1
1
JP12
1
6 9
COM1
JP5
1
5
5
CN10
JP10
6
1 1
1
14
10
3
8
6
1115
VGA1
9
NISE 103 User Manual
Chapter 2: Jumpers and Connectors
Bottom View
J6
SATA PWR
7
2
CN7
1
4
1
25
36
24
1
48
13
1
12
IDE1
DIMM1
2
1
DIO
16
15
CN15
CN12
3
12
11
8
7
71
72
73
74
CN11
52
51
16
18
17
1
15
204
1
10
81214 3
6
5
15
11
10
NISE 103 User Manual
Chapter 2: Jumpers and Connectors
Jumpers
LVDS Backlight Power Select
Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP10
1
2 3
3.3V
(default)
Pin Definition
1-2 3.3V (default)
2-3 5V
1 2
3
5V
Clear CMOS Select
Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP8
1
2 3
Normal
(default)
Pin Definition
1-2 Normal (default)
2-3 Clear CMOS
1 2
3
Clear CMOS
11
NISE 103 User Manual
Chapter 2: Jumpers and Connectors
Connector Pin Definitions

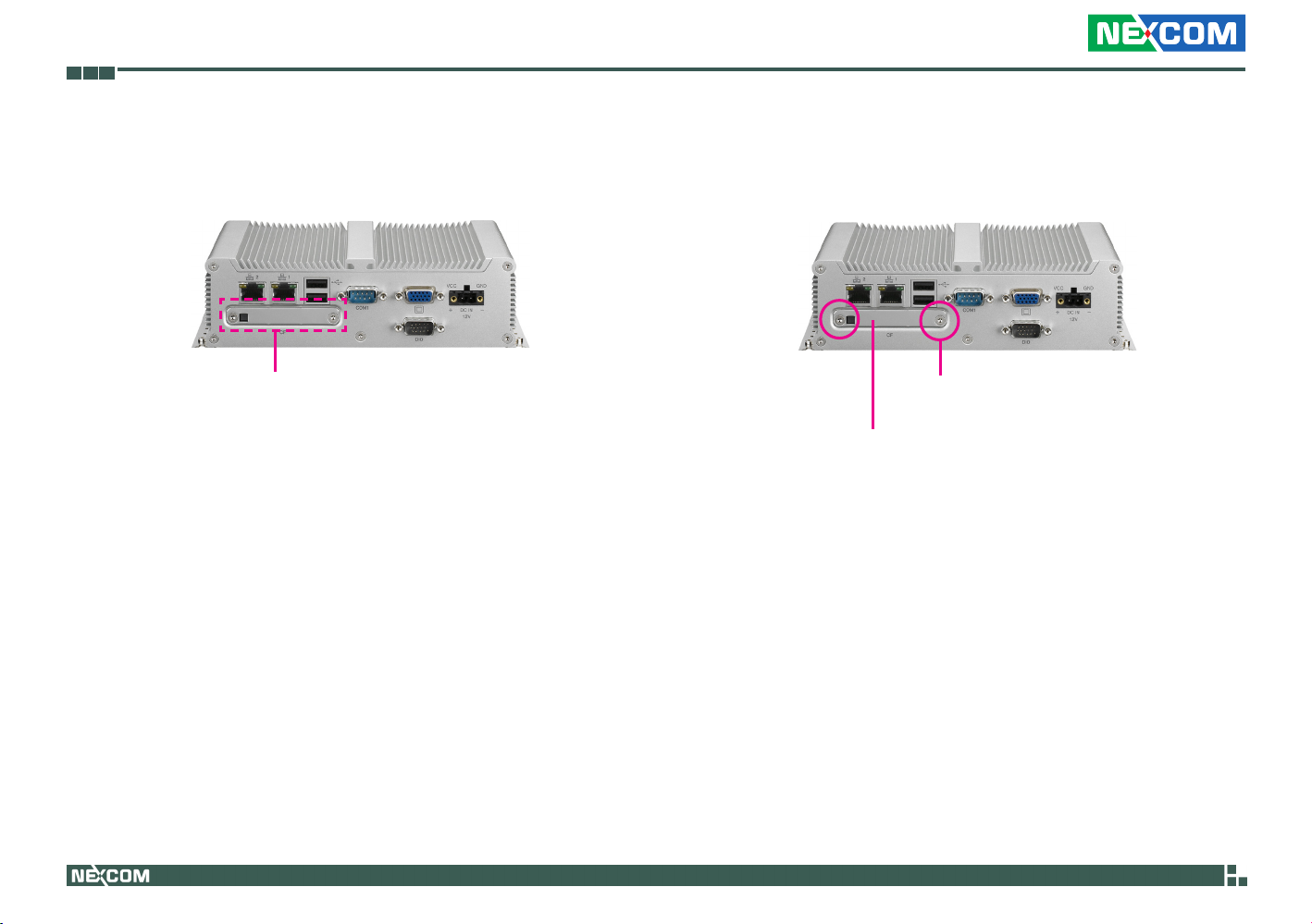

External I/O Interface - Front
ATX Power On/Off Switch
Connector location: SW1
Pin Definition
1 GND
2 PBT_PU
3 PBT_PU
4 GND
A1 PWRLED_N
C1 PWRLED_P
MH1 NC
MH2 NC
Status Indicators
HDD Access LED Power Status LED
PWR
HDD
Status LED Color
PWR Green
HDD Yellow
12
NISE 103 User Manual
Chapter 2: Jumpers and Connectors
Speaker-out Jack
Connector type: 5-pin jack Connector location: Speaker-out connector
Pin Definition
1 OUT_R
2 LOUT_JD
3 NC
4 OUT _L
5 GND
6 GND
Mic-in Jack
Connector type: 6-pin jack, 25.9x12.6x17.0mm Connector location: Mic-in connector
Pin Definition
1 MIC_R
2 MIC_JD
3 NC
4 MIC_L
5 GND
6 GND
13
NISE 103 User Manual
Chapter 2: Jumpers and Connectors
USB Ports
Connector type: Dual USB port, Type A Connector location: USB2
1
5
Pin Definition Pin Definition
1 +5V 5 +5V
2 Data 0- 6 Data 1-
3 Data 0+ 7 Data 1+
4 GND 8 GND
4
8
COM2 Port (RS232/422/485)
Connector type: DB-9 Connector location: COM2
1 5
9
RS232 Pin Definition
Pin Definition Pin Definition
1 DCD2 2 RXD2
3 TXD2 4 DTR2
5 GND 6 DSR2
7 RTS2 8 CTS2
9 RI2
RS485 Pin Definition
Pin Definition Pin Definition
1 TXD- 2 TXD+
RXD- RXD+
3 Reserved 4 Reserved
5 Reserved 6 Reserved
7 Reserved 8 Reserved
9 Reserved
6
RS422 Pin Definition
Pin Definition Pin Definition
1 TXD- 2 TXD+
3 RXD+ 4 RXD-
5 GND 6 RTS-
7 RTS# 8 CTS+
9 CTS-
14
NISE 103 User Manual
Chapter 2: Jumpers and Connectors
COM3 Port (RS232)
Connector type: DB-9 Connector location: COM3
1 5
9
Pin Definition Pin Definition
1 DCD3 2 RXD3
3 TXD3 4 DTR3
5 GND 6 DSR3
7 RTS3 8 CTS3
9 RI3
6
COM4 Port (RS232)
Connector type: DB-9 Connector location: COM4
1 5
9
Pin Definition Pin Definition
1 DCD4 2 RXD4
3 TXD4 4 DTR4
5 GND 6 DSR4
7 RTS4 8 CTS4
9 RI4
6
15
NISE 103 User Manual
Chapter 2: Jumpers and Connectors
External I/O Interface - Rear
LAN Ports
Connector type: RJ45 port with LEDs Connector location: CN2 and CN4
Act Link
18
Pin Definition Pin Definition
1 M0+ 7 M3+
2 M0- 8 M3-
3 M1+ 9 LEDLINK
4 M2+ 10 +3VSB
5 M2- 11 LEDACT#
6 M1- 12 +3VSB
USB Ports
Connector type: Dual USB port, Type A Connector location: USB1
1
5
Pin Definition Pin Definition
1 +5V 5 +5V
2 Data 0- 6 Data 1-
3 Data 0+ 7 Data 1+
4 GND 8 GND
4
8
16
NISE 103 User Manual
Chapter 2: Jumpers and Connectors
COM1 Port (RS232)
Connector type: DB-9 Connector location: COM1
1 5
9
Pin Definition Pin Definition
1 DCD1 2 RXD1
3 TXD1 4 DTR1
5 GND 6 DSR1
7 RTS1 8 CTS1
9 RI1
6
VGA Port
Connector type: DB-15 port, 15-pin D-Sub Connector location: VGA1
15
1115
Pin Definition Pin Definition
1 Red 9 +5V
2 Green 10 GND
3 Blue 11 N/C
4 N/C 12 DDC Data
5 GND 13 HSYNC
6 VGADET 14 VSYNC
7 GND 15 DDC Clock
8 GND
17
NISE 103 User Manual
Chapter 2: Jumpers and Connectors
DIO Port
Connector type: DB15 port, 15-pin header Connector location: DB15 (DIO port) CN15 (2x8 15-pin boxed header, 2.54mm)
15
2 1
1115
CN15
DB15
Pin
(CN15)
Pin
(DB15)
1 01 DI1 3 02 DI2 5 03 DI3
7 04 DI4 13 05 GND 11 06 DC INPUT
9 07 NC 10 8 NC 2 09 DO1
4 10 DO2 6 11 DO3 8 12 DO4
14 13 GND 15 14 GND 16 15 GND
12 N/A
Definition
Pin
(CN15)
Pin
(DB15)
15
Definition
Pin
(CN15)
Pin
(DB15)
Definition
DC Power Input
Connector type: Phoenix 1x2 2-pin Connector location: CN16
Pin No. Function Description
1 GND
2 +12VIN
18
NISE 103 User Manual
Chapter 2: Jumpers and Connectors
Internal Connectors
Fan Connector
Connector type: 1x3 3-pin Wafer, 2.54mm pitch Connector location: FAN1
3 1
Pin Definition
1 GND
2 +12V
3 Sense
LVDS Panel Backlight Connector
Connector type: 1x7 7-pin JST, 2.5mm pitch Connector location: J7
7
Pin Definition
1 +5V
2 +12V
3 +12V
4 Panel Backlight Brightness Control
5 GND
6 GND
7 Panel Backlight Enable
1
19
NISE 103 User Manual
Chapter 2: Jumpers and Connectors

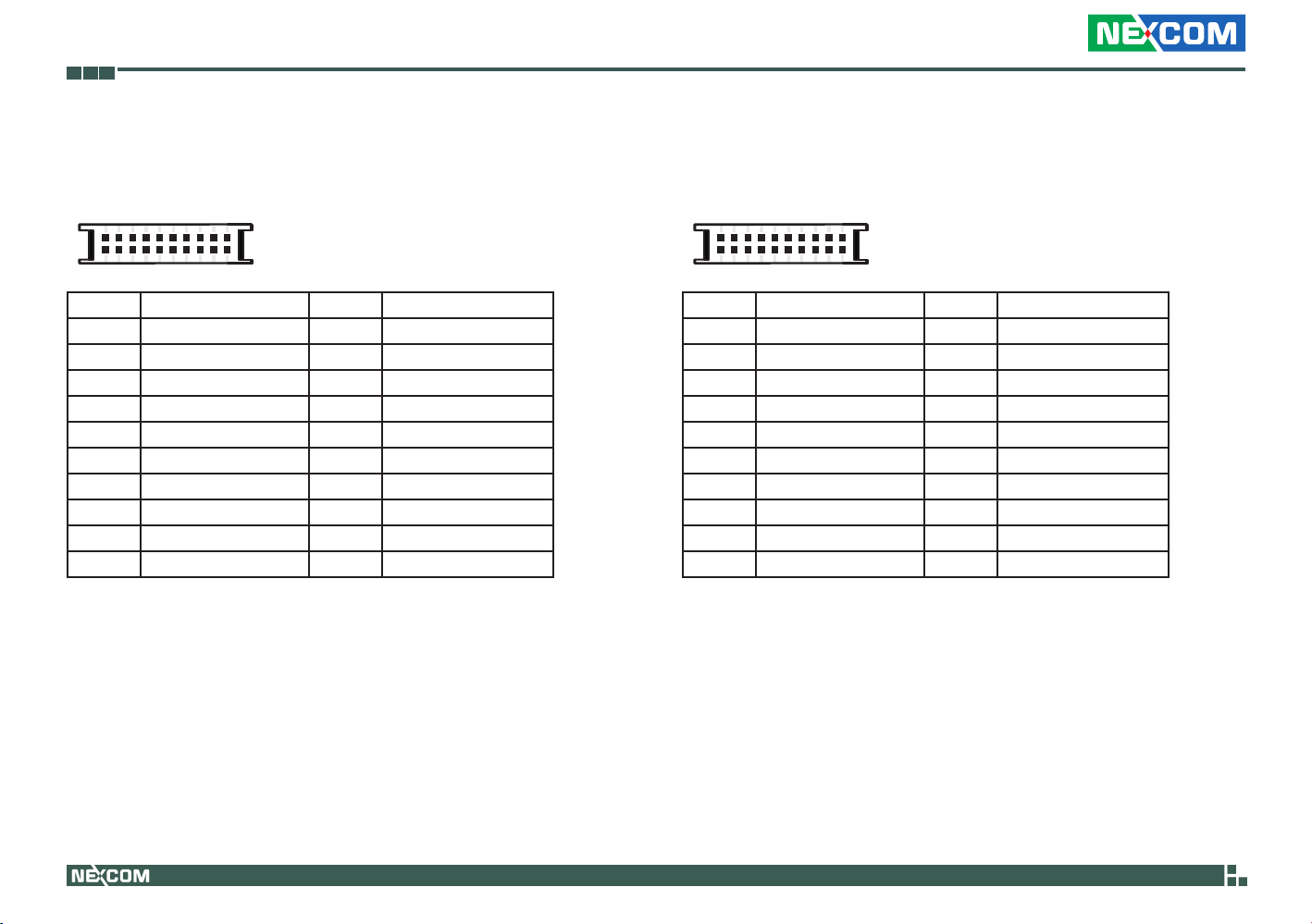

LVDS Connector
Connector type: 2x10 20-pin, 1.25 mm pitch Connector location: CN8
1 2
Pin Definition Pin Definition
1 DDC_CLK 11 RXCLK+
2 DDC_DATA 12 RX1-
3 VCC_LCD 13 RXCLK-
4 RX0+ 14 GND
5 N/A 15 GND
6 RX0- 16 V_INV
7 N/A 17 RX2+
8 VCC_LCD 18 V_INV
9 GND 19 RX2-
10 RX1+ 20 GND
19 20
LVDS Connector
Connector type: 2x10 20-pin, 1.25 mm pitch Connector location: CN9
1 2
Pin Definition Pin Definition
1 DDC_CLK 11 RXCLK+
2 DDC_DATA 12 RX1-
3 VCC_LCD 13 RXCLK-
4 RX0+ 14 GND
5 RX3+ 15 GND
6 RX0- 16 V_INV
7 RX3- 17 RX2+
8 VCC_LCD 18 V_INV
9 GND 19 RX2-
10 RX1+ 20 GND
19 20
20
NISE 103 User Manual
Chapter 2: Jumpers and Connectors
LVDS Connector
Connector type: 2x10 20-pin, 1.25 mm pitch Connector location: CN10
1 2
Pin Definition Pin Definition
1 DDC_CLK 11 RXCLK+
2 DDC_DATA 12 RX1-
3 VCC_LCD 13 RXCLK-
4 RX0+ 14 GND
5 RX3+ 15 GND
6 RX0- 16 V_INV
7 RX3- 17 RX2+
8 VCC_LCD 18 V_INV
9 GND 19 RX2-
10 RX1+ 20 GND
19 20
USB Connector
Connector type: 1x6 6-pin JST, 2.0 mm pitch Connector location: J4
6
Pin Definition
1 +5V
2 Data 4-
3 Data 4+
4 Data 5-
5 Data 5+
6 GND
1
21
NISE 103 User Manual
Chapter 2: Jumpers and Connectors
GPIO Connector
Connector type: 2x5 10-pin, 2.0mm Connector location: J3
2 1
Pin Definition Pin Definition
1 +5V 2 GND
3 GPIO24(Pin58) 4 GPIO20(Pin52)
5 GPIO25(Pin59) 6 GPIO21(Pin54)
7 GPIO26(Pin60) 8 GPIO22(Pin56)
9 GPIO27(Pin61) 10 GPIO23(Pin57)
10
9
Power Button
Connector type: 1x3 3-pin, 2.54mm pitch Connector location: JP11
1
Pin Definition
3
1 GND
2 PBT_PU
3 I_SLPS3#
22
NISE 103 User Manual
Chapter 2: Jumpers and Connectors

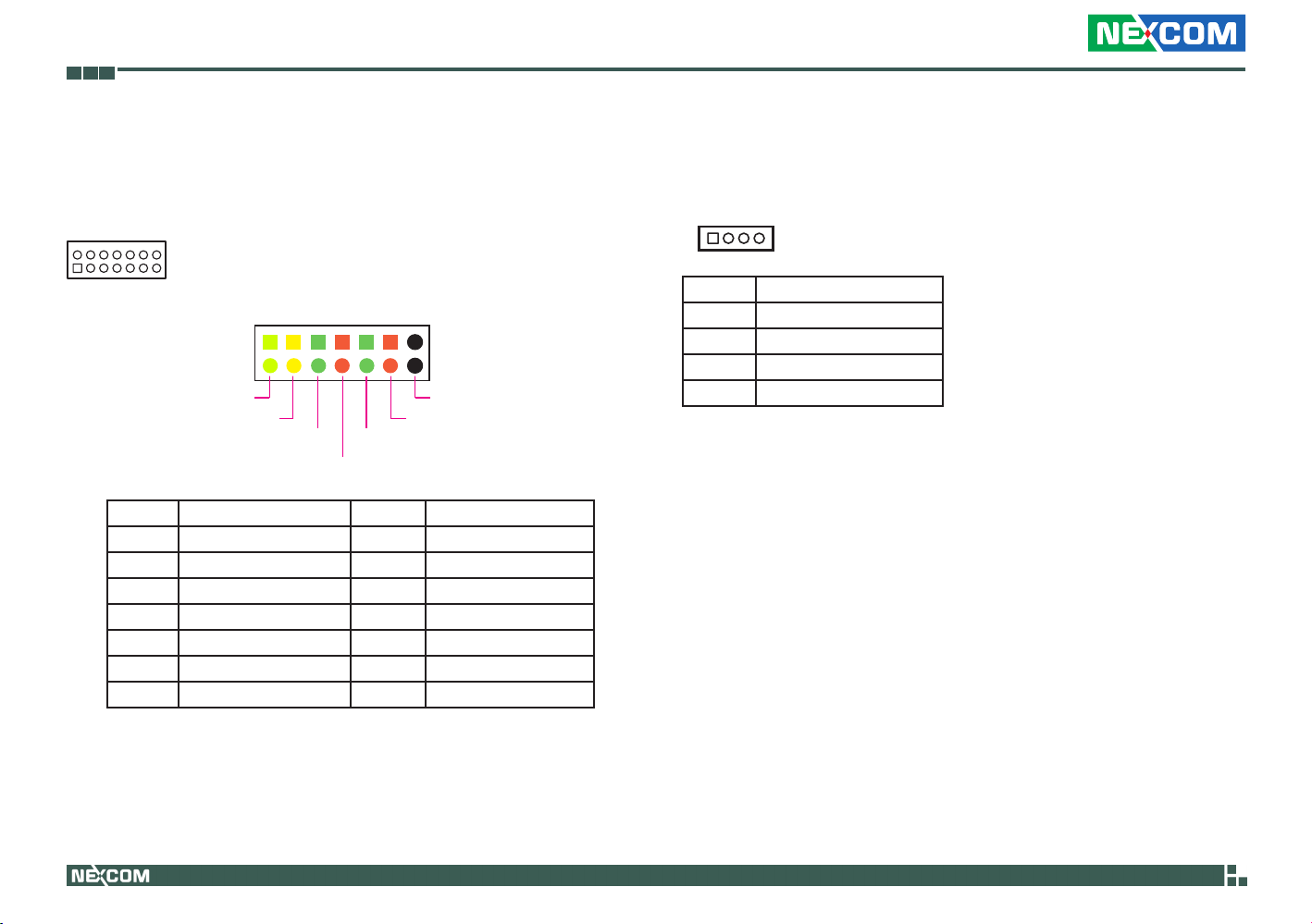

LED Connector
Connector type: 2x7 14-pin header, 2.0mm-M-180 Connector location: JP7
2
1
14
13
Power LED
HDD LED
LAN1 LINK LED
LAN1 ACT LED
Pin Description Pin Description
1 PWR_LED_N 2 PWR_LED_P
3 HDD_LED_N 4 HDD_LED_P
5 LAN1_LEDACT# 6 LAN1_ACT
7 LAN1_LINK# 8 LAN1_LINK
9 LAN2_LEDACT# 10 LAN2_ACT
11 LAN2_LINK# 12 LAN2_LINK
13 I_RESET#JP 14 GND
LAN2 LINK LED
LAN2 ACT LED
H/W RESET
Mic-in
Connector type: 1x4 4-pin, 2.0mm pitch Connector location: JP1
1
Pin Definition
1 MIC1-L
2 MIC_JD
3 GND
4 MIC1-R
4
23
NISE 103 User Manual
Chapter 2: Jumpers and Connectors
SATA Connector
Connector size: 7-pin standard Serial ATAII (1.27mm) Connector location: J2
1
Pin Definition
1 GND
2 SATA_TXP0
3 SATA_TXN0
4 GND
5 SATA_RXN0
6 SATA_RXP0
7 GND
7
SATA Connector
Connector size: 7-pin standard Serial ATAII (1.27mm) Connector location: J6
1
Pin Definition
1 GND
2 SATA_TXP1
3 SATA_TXN1
4 GND
5 SATA_RXN1
6 SATA_RXP1
7 GND
7
24
NISE 103 User Manual
Chapter 2: Jumpers and Connectors
SATA Power Connector
Connector size: 1x4 4-pin, 2.5mm pitch Connector location: CN7
1
Pin Definition
1 +12V
2 GND
3 GND
4 VCC5
4
SATA DOM Power Connector
Connector size: 1x2 2-pin, 2.5 mm pitch Connector location: J1
2
1
Pin Definition
1 VCC5
2 GND
25
NISE 103 User Manual
Chapter 2: Jumpers and Connectors

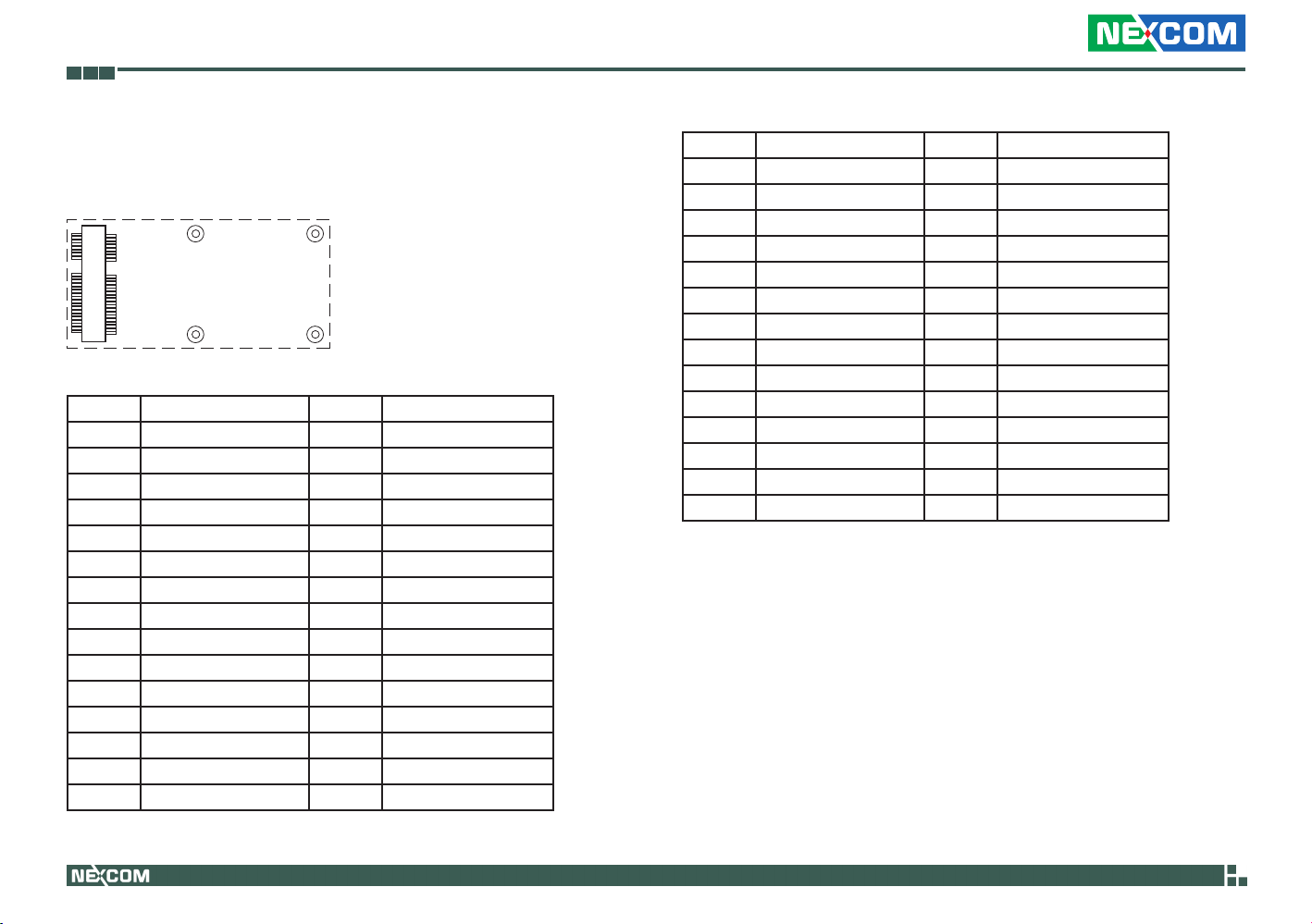

Mini PCIe Slots
Connector location: CN11
2
51152
Pin Definition Pin Definition
1 MIC_R 27 GND
2 +3VSB 28 +1.5V
3 MIC_L 29 GND
4 GND 30 SMBCLK
5 LOUT_R 31 PCIETX3-
6 +1.5V 32 SMBDATA
7 LOUT_L 33 PCIETX3+
8 UIM_PWR 34 GND
9 GND 35 GND
10 UIM_DATA 36 USB_D-
11 REF CLK- 37 GND
12 UIM_CLK 38 USB_D+
13 REF CLK+ 39 +3VSB
14 UIM_RESET 40 GND
15 GND 41 +3VSB
Pin Definition Pin Definition
16 UIM_VPP 42 N/A
17 N/A 43 GND
18 GND 44 N/A
19 N/A 45 N/A
20 Disable# 46 N/A
21 GND 47 N/A
22 PERST# 48 +1.5V
23 PCIERX3- 49 N/A
24 +3VSB 50 GND
25 PCIERX3+ 51 N/A
26 GND 52 +3VSB
MH1 GND MH4 GND
MH2 GND MH5 GND
MH3 GND MH6 GND
26
NISE 103 User Manual
Chapter 2: Jumpers and Connectors

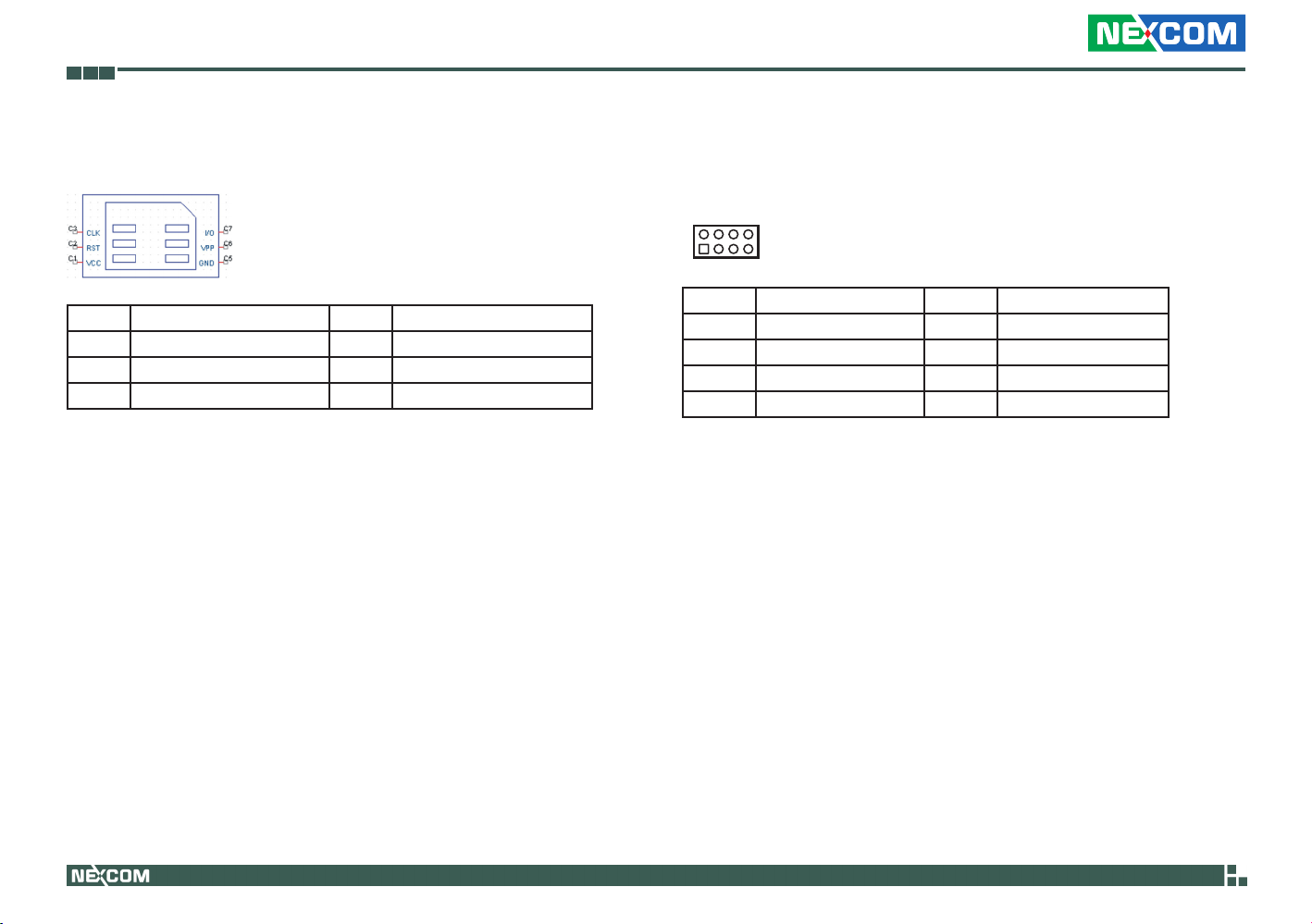

SIM Card Connector
Connector location: IDE1
Pin Definition Pin Definition
C1 UIM_PWR C2 UIM_RESET
C3 UIM_CLK C5 GND
C6 UIM_VPP C7 UIM_DATA
PS/2 Keyboard/Mouse Connector
Connector size: 2x4 8-pin header, 2.54 mm Connector location: JP6
2 1
8 7
Pin Definition Pin Definition
1 KBMSVCC 5 LKBCLK
2 KBMSVCC 6 LMCLK
3 LKBDAT 7 GND
4 LMDAT 8 GND
27
NISE 103 User Manual
Chapter 2: Jumpers and Connectors
CompactFlash
Connector type: CompactFlash Type 2 Connector location: CN12
Pin Description Pin Description
1 GND 15 GND
2 IDE Data3 16 GND
3 IDE Data4 17 GND
4 IDE Data5 18 IDEAddress2
5 IDE Data6 19 IDEAddress1
6 IDE Data 7 20 IDEAddress0
7 -PCS1 21 IDE Data0
8 GND 22 IDE Data1
9 GND 23 IDE Data2
10 GND 24 NC
11 GND 25 GND
12 GND 26 GND
13 +5V 27 IDE Data11
14 GND 28 IDE Data12
Pin Description Pin Description
29 IDE Data13 40 NC
30 IDE Data14 41 CF_RESET#
31 IDE Data15 42 CF_PHDRDY
32 -DCS3 43 PDDREQ
33 NC 44 IDEDDACK
34 -IDEDIOR 45 +5V
35 -IDEDIOW 46 CFPATADET
36 +5V 47 IDE Data8
37 IRQ14 48 IDE Data9
38 +5V 49 IDE Data10
39 GND 50 GND
28
NISE 103 User Manual
Chapter 3: System Setup
Chapter 3: SyStem Setup

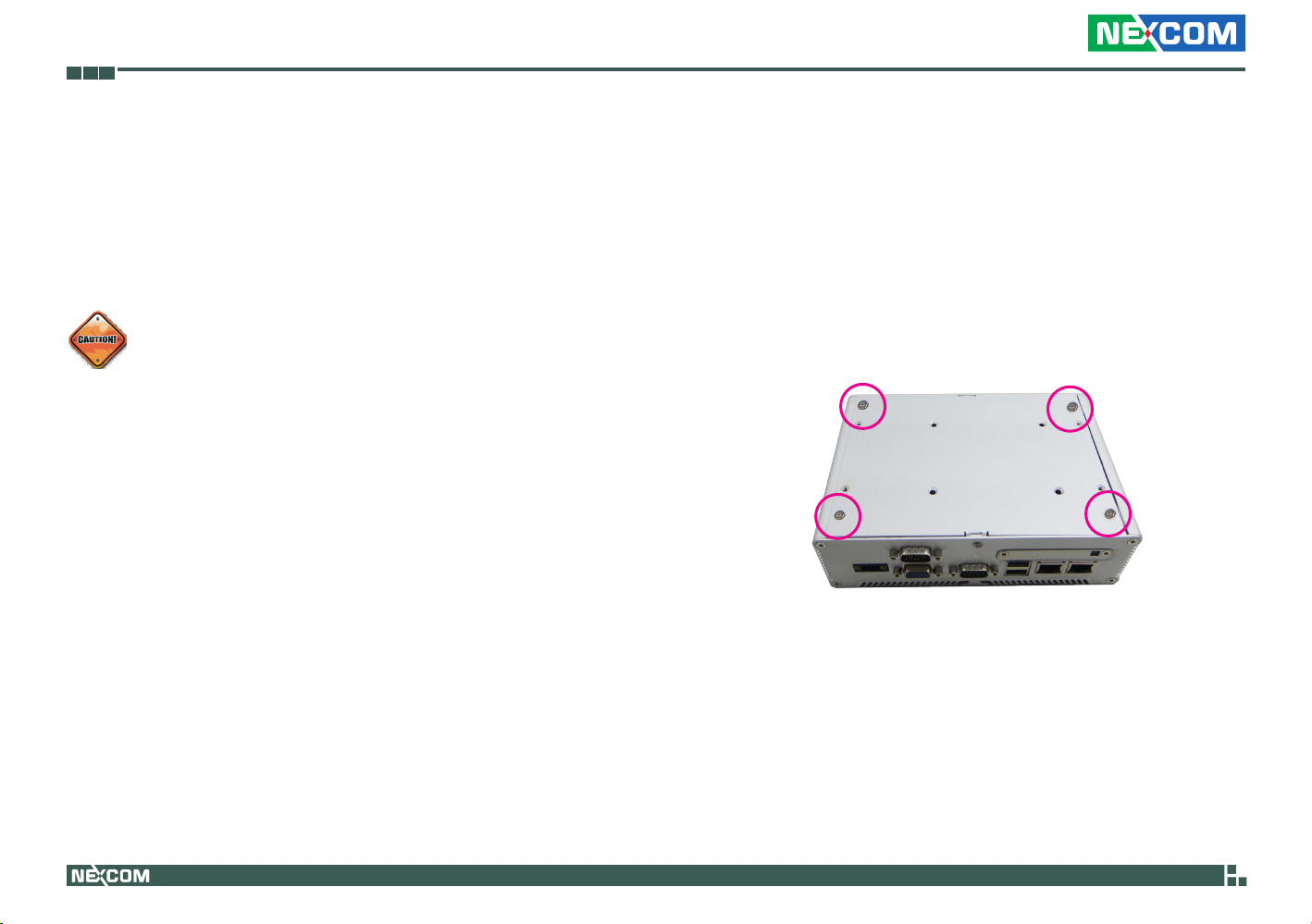

Removing the Chassis Cover
Prior to removing the chassis cover, make sure the unit’s power is off and disconnected from the power sources to prevent electric shock or system damage.

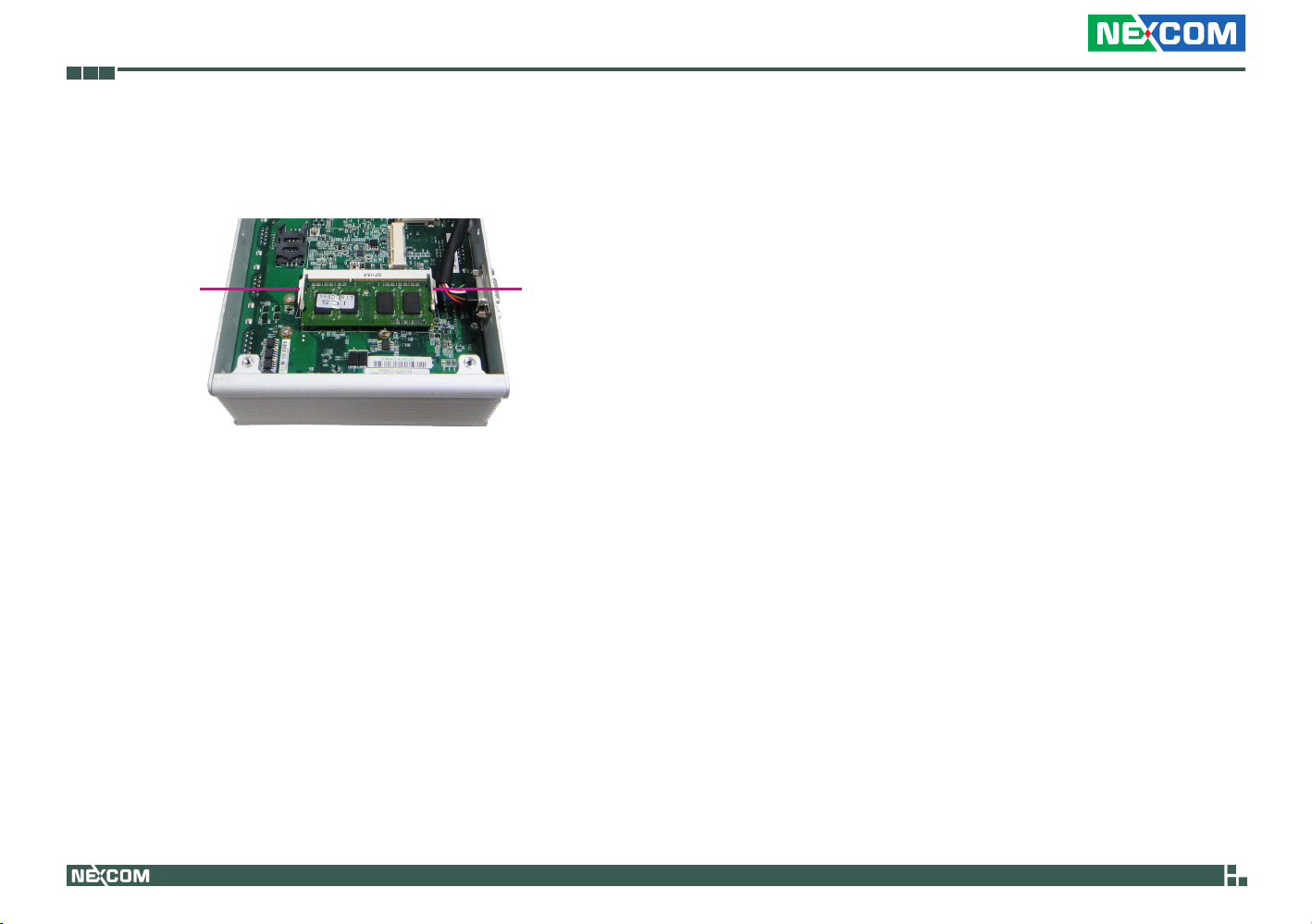

This chapter will guide you on installing the SODIMM, SATA drive, Wire­less LAN module and CompactFlash card. You need to remove the bot­tom cover to access the SODIMM socket, SATA cables, Mini PCIe slot and CompactFlash socket.
1. With the bottom side of the chassis facing up, remove the mounting screws of the bottom cover and then put them in a safe place for later use.
2. Lift up the cover and remove it from the chassis.
29
NISE 103 User Manual
Chapter 3: System Setup
Installing the SODIMM
1. Locate the SODIMM socket on the board.
SODIMM socket
2. Insert the module into the socket at an approximately 30 degrees angle. Apply firm even pressure to each end of the module until it slips into the socket. The gold-plated connector on the edge of the module will almost completely disappear inside the socket.
SODIMM
socket
SODIMM
30
NISE 103 User Manual
Chapter 3: System Setup
3. Push the module down until the clips on both sides of the socket lock into position. You will hear a distinctive “click”, indicating the module is correctly locked into position.
Clip
Clip
31
NISE 103 User Manual
Chapter 3: System Setup
Installing a SATA Hard Drive
1. The inner side of the bottom cover is where you will install the SATA drive.
Align the mounting holes of the SATA drive with the mounting holes
on the cover.
SATA drive
Cover
Inner Side of the Cover
2. While supporting the SATA drive, turn the cover to the other side. This will be the outer side of the cover. Use the provided screws to secure the drive in place.
Outer Side of the Cover
32
NISE 103 User Manual
Chapter 3: System Setup
3. The SATA data/power cable is readily accessible upon removing the chassis cover.
SATA data/power cable
4. Connect the SATA data/power cable to the connectors on the SATA drive.
SATA data/power cable
SATA drive
33
NISE 103 User Manual
Chapter 3: System Setup
Installing a CompactFlash Card
1. The CompactFlash socket is located at the rear side of the chassis.
CompactFlash
socket
2. Remove the mounting screws of the CompactFlash socket’s cover.
Mounting screw
CompactFlash
socket cover
34
NISE 103 User Manual
Chapter 3: System Setup
3. Remove the socket’s cover to access the CompactFlash socket.
CompactFlash
socket
4. With the CompactFlash card’s label facing up, position the card to the socket.
CompactFlash
card
35
NISE 103 User Manual
Chapter 3: System Setup
5. Insert the card until it is completely seated in the socket.
36
NISE 103 User Manual
Chapter 3: System Setup
Installing a Wireless LAN Module

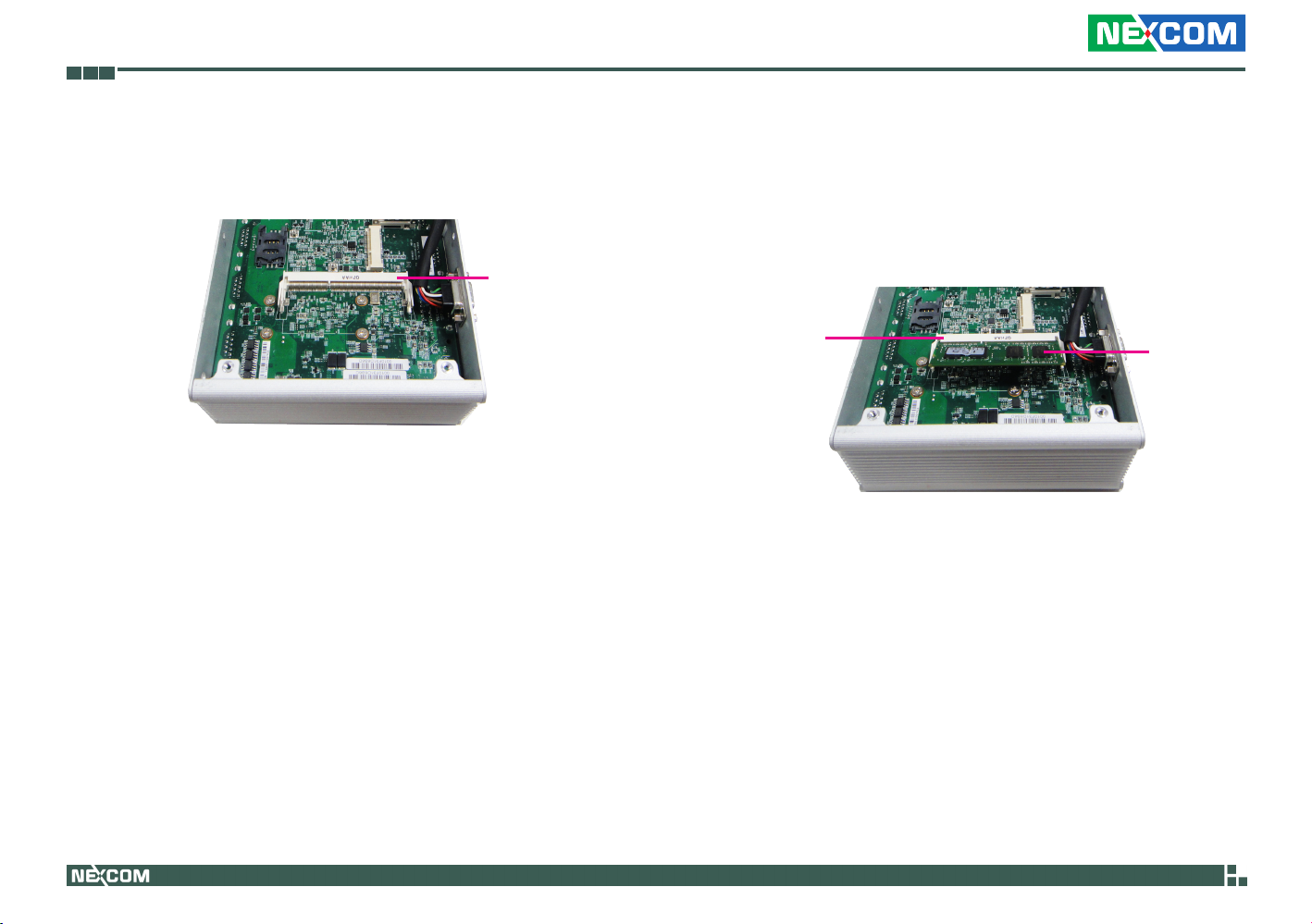

1. Locate for the Mini PCI Express slot on the board.
Mini PCI Express slot
2. Insert the wireless LAN module into the Mini PCI Express slot at a 45 degrees angle until the gold-plated connector on the edge of the mod­ule completely disappears inside the slot.
Wireless LAN module
Mini PCI Express slot
37
NISE 103 User Manual
Chapter 3: System Setup
3. Push the module down and then secure it with mounting screws.
Attach one end of the RF cable onto the module.
RF cable
Mounting screws
4. Remove the antenna hole cover that is located at the front panel of the chassis.
Antenna hole cover
38
NISE 103 User Manual
Chapter 3: System Setup
5. Insert the antenna jack end of the cable through the antenna hole.
Jack end of the cable
6. Insert the 2 rings (ring 1 and then ring 2) onto the antenna jack end of the cable.
Antenna jack
Ring 2
Ring 1
39
NISE 103 User Manual
Chapter 3: System Setup
7. Connect an external antenna to the antenna jack.
40
NISE 103 User Manual
Chapter 3: System Setup

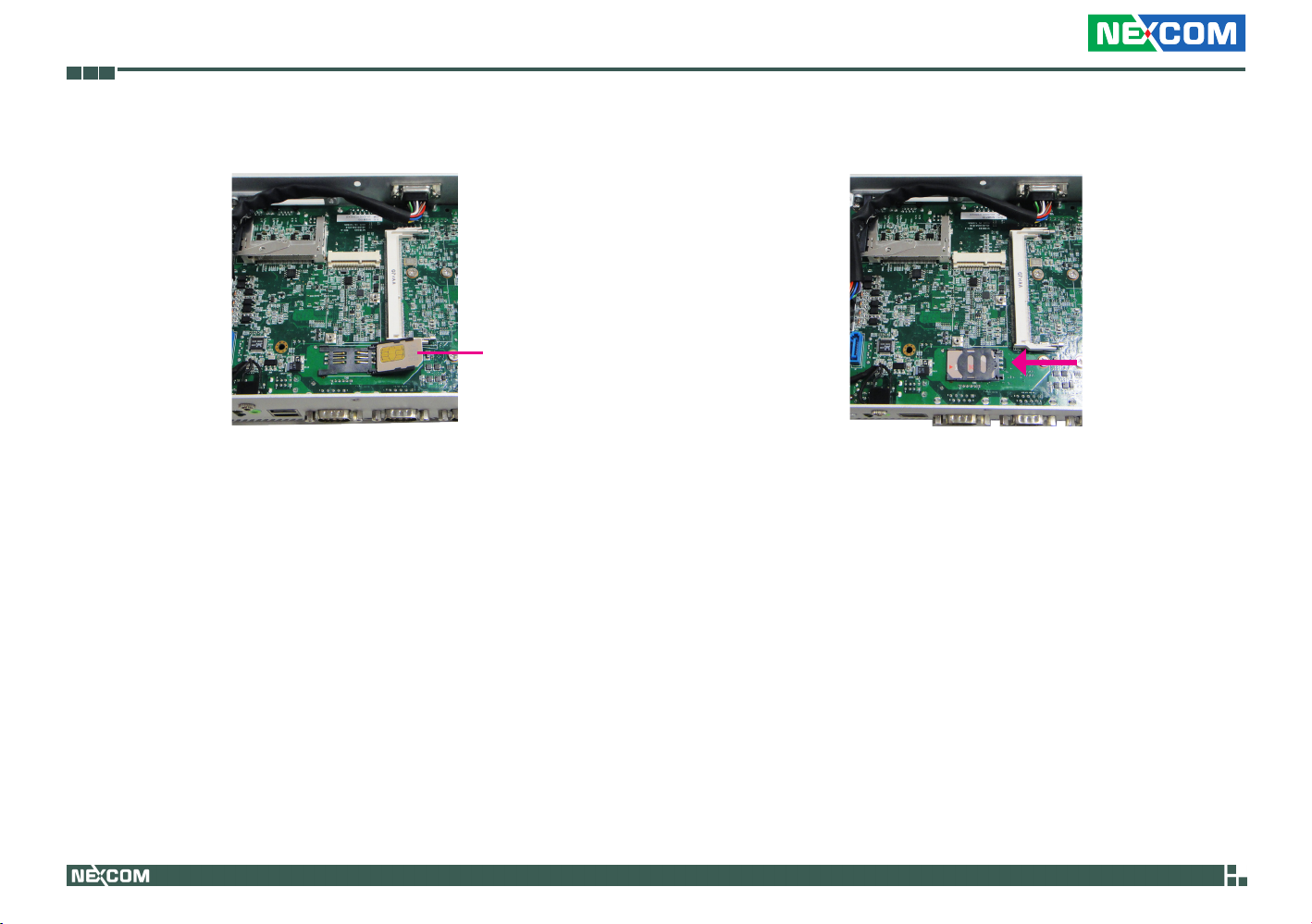

Inserting the SIM Card
1. Slide the SIM card holder to the “OPEN” position.
SIM card holder
2. Lift the card holder.
SIM card holder
41
NISE 103 User Manual
Chapter 3: System Setup
4. Move the holder down and then slide it to the “LOCK” position.3. Slide the SIM card into the SIM card holder.
SIM card
42
NISE 103 User Manual
Chapter 4: BIOS Setup
Chapter 4: BIOS Setup
This chapter describes how to use the BIOS setup program for NISE 103. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.
To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.
About BIOS Setup
The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.
These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.
With easy-to-use pull down menus, you can configure such items as:
▪ Hard drives, diskette drives, and peripherals ▪ Video display type and display options ▪ Password protection from unauthorized use ▪ Power management features
The settings made in the setup program affect how the computer per­forms. It is important, therefore, first to try to understand all the Setup options, and second, to make settings appropriate for the way you use the computer.
When to Configure the BIOS
This program should be executed under the following conditions:
▪ When changing the system configuration ▪ When a configuration error is detected by the system and you are
prompted to make changes to the Setup program
▪ When resetting the system clock ▪ When redefining the communication ports to prevent any conflicts ▪ When making changes to the Power Management configuration ▪ When changing the password or making other changes to the security
setup
Normally, CMOS setup is needed when the system hardware is not con­sistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.
43
NISE 103 User Manual
Chapter 4: BIOS Setup
Default Configuration
Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are auto­matically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.
Entering Setup
When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:
▪ If the error occurs before the display device is initialized, a series of
beeps will be transmitted.
▪ If the error occurs after the display device is initialized, the screen will
display the error message.
Powering on the computer and immediately pressing <Del> allows you to enter Setup. Another way to enter Setup is to power on the computer and wait for the following message during the POST:
TO ENTER SETUP BEFORE BOOT PRESS <CTRL-ALT-ESC> Press the <Del> key to enter Setup:
Legends
Key Function
Right and Left arrows Moves the highlight left or right to select a
menu.
Up and Down arrows Moves the highlight up or down between sub-
menus or fields.
<Esc> Exits to the BIOS Setup Utility.
+ (plus key) Scrolls forward through the values or options of
the highlighted field.
- (minus key) Scrolls backward through the values or options of the highlighted field.
Tab Selects a field.
<F1> Displays General Help.
<F10> Saves and exits the Setup program.
<Enter> Press <Enter> to enter the highlighted sub-
menu.
Scroll Bar
When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.
Submenu
When “u“ appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>.
44
NISE 103 User Manual
Chapter 4: BIOS Setup
BIOS Setup Utility
Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from six setup functions and one exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the submenu.
Main
The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.
Advanced Boot Chipset PCIPnPMain
System Overview
AMIBIOS
Version : 08.00.15 Build Date : 12/29/10 ID : N210A009
Processor
Intel(R) Atom(TM) CPU D525 Speed : 1800MHz
System Memory
Size : 2039MB
System Time
System Date
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
BIOS SETUP UTILITY
@ 1.80GHz
[14:06:01]
[Fri 04/22/2011]
Use [ENTER], [TAB] or [SHIFT-TAB] to
select a eld.
Use [+] or [-] to
congure system Time.
← → Select Screen ↑↓ Select Item
+- Change Field
Tab Select Field F1 General Help F10 Save and Exit ESC Exit
ExitSecurity
Processor
Displays the detected processor information.
System Memory
Displays the detected system memory information.
System Time
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second dis­plays seconds from 00 to 59.
System Date
The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to De­cember. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.
AMI BIOS
Displays the detected BIOS information.
45
NISE 103 User Manual
Chapter 4: BIOS Setup
Advanced
The Advanced menu allows you to configure your system for basic opera­tion. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.
Setting incorrect field values may cause the system to malfunc­tion.
BIOS SETUP UTILITY
Advanced Settings
WARNING: Setting wrong values in below sections
u
u u u u
Onboard LAN 1Onboard LAN 2LAN Boot ROM
LVDS Mode Conguration
may cause system to malfunction.
IDE Conguration
USB CongurationACPI CongurationSuperIO CongurationHardware Health Conguration
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
[Enabled] [Enabled] [Disabled]
[Mode 0]
IDE Configuration
This section is used to configure the IDE drives.
Congure the IDE devices(s).
← → Select Screen ↑↓ Select Item
Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit
ExitSecurityAdvanced Boot Chipset PCIPnPMain
USB Configuration
This section is used to configure USB devices.
ACPI Configuration
This section is used to configure the Advanced ACPI configuration.
Super IO Configuration
This section is used to configure the I/O functions supported by the on­board Super I/O chip.
Hardware Health Configuration
This section is used to configure the hardware monitoring events such as temperature, fan speed and voltages.
Onboard LAN 1 and Onboard LAN 2
Enables or disables the onboard LAN.
LAN Boot ROM
Enable this field if you wish to use the boot ROM (instead of a disk drive) to boot-up the system and access the local area network directly. If you wish to change the boot ROM’s settings, type the <Shift> and <F10> keys simultaneously when prompted during boot-up. Take note: you will be able to access the boot ROM’s program (by typing <Shift> + <F10>) only when this field is enabled.
LVDS Mode Configuration
Configures the LVDS mode.
46
NISE 103 User Manual
Chapter 4: BIOS Setup
IDE Configuration
This section is used to configure the IDE drives.
Advanced
IDE Conguration
ATA/IDE Conguration [Enhanced]
Congure SATA as [IDE]
u
Primary IDE Master : [Not Detected]
u
Secondary IDE Master : [Not Detected]
u
Third IDE Master : [Not Detected]
IDE Detect Time Out (Sec) [35]
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
BIOS SETUP UTILITY
Disabled Compatible Enhanced
← → Select Screen ↑↓ Select Item
+- Change Option
F1 General Help F10 Save and Exit ESC Exit
ATA/IDE Configuration
This field is used to configure the IDE drives. The options are Disabled, Compatible and Enhanced.
Configure SATA As
Primary IDE Master to Third IDE Master
When you enter the BIOS Setup Utility, the BIOS will auto detect the ex­isting IDE devices then displays the status of the detected devices. To con­figure an IDE drive, move the cursor to a field then press <Enter>.
Advanced
Primary IDE Master
Device :Not Detected
Type
LBA/Large Mode Block (Multi-Sector Transfer) PIO Mode DMA Mode S.M.A.R.T. 32Bit Data Transfer
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
BIOS SETUP UTILITY
[Auto]
[Auto] [Auto] [Auto] [Auto] [Auto] [Disabled]
Select the type of device connected to the system.
← → Select Screen ↑↓ Select Item
+- Change Option
F1 General Help F10 Save and Exit ESC Exit
IDE This option configures the Serial ATA drives as Parallel ATA physi-
cal storage device.
AHCI This option configures the Serial ATA drives to use AHCI (Ad-
vanced Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance.
47
NISE 103 User Manual
Chapter 4: BIOS Setup
Type
Selects the type of IDE drive connected to the system.
LBA/Large Mode
Auto The LBA mode will automatically be enabled, that is, if the
LBA mode was not previously disabled.
Disabled Disables the LBA mode.
Block (Multi-Sector Transfer)
Auto Data transfer to and from the device occurs multiple sectors at
a time.
Disabled Data transfer to and from the device occurs one sector at a
time.
PIO Mode
Selects the data transfer mode. PIO means Programmed Input/Output. Rather than have the BIOS issue a series of commands to effect a transfer to or from the disk drive, PIO allows the BIOS to tell the controller what it wants and then let the controller and the CPU perform the complete task by themselves. Your system supports five modes, 0 (default) to 4, which primarily differ in timing. When Auto is selected, the BIOS will se­lect the best available mode after checking your drive.
DMA Mode
Selects the DMA mode.
Auto Automatically detects the DMA mode. SWDMAn SingleWord DMAn. MWDMAn MultiWord DMAn. UDMAn Ultra DMAn.
S.M.A.R.T.
The system board supports SMART (Self-Monitoring, Analysis and Report­ing Technology) hard drives. SMART is a reliability prediction technology for ATA/IDE and SCSI drives. The drive will provide sufficient notice to the system or user to backup data prior to the drive’s failure. SMART is supported in ATA/33 or later hard drives. The options are Auto (default), Enabled and Disabled.
32Bit Data Transfer
Enables or disables 32-bit data transfer.
IDE Detect Time Out (Sec)
Selects the time out value for detecting ATA/ATAPI devices.
Auto The BIOS will automatically set the system according to your
hard disk drive’s timing.
Mode 0-4 You can select a mode that matches your hard disk drive’s
timing. Caution: Do not use the wrong setting or you will have drive errors.
48
NISE 103 User Manual
Chapter 4: BIOS Setup
USB Configuration
This section is used to configure USB devices.
Advanced
USB Conguration
Module Version - 2.24.3-13.4
USB Devices Enabled:
1 Keyboard
Legacy USB Support [Enabled]
USB 2.0 Controller Mode [HiSpeed] BIOS EHCI Hand-Off [Enabled] Hotplug USB FDD Support [Auto]
u
USB Mass Storage Device Conguration
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
BIOS SETUP UTILITY
Enables support for legacy USB. AUTO option disables legacy support if no USB devices are connected.
← → Select Screen ↑↓ Select Item
+- Change Option
F1 General Help F10 Save and Exit ESC Exit
Legacy USB Support
Due to the limited space of the BIOS ROM, the support for legacy USB keyboard (in DOS mode) is by default set to Disabled. With more BIOS ROM space available, it will be able to support more advanced features as well as provide compatibility to a wide variety of peripheral devices.
USB 2.0 Controller Mode
Sets the USB 2.0 controller mode to HiSpeed (480 Mbps) or FullSpeed (12 Mbps).
BIOS EHCI Hand-Off
Enable this field when using operating systems without the EHCI hand­off support.
Hotplug USB FDD Support
Enables support for USB FDD hot plug.
If a PS/2 keyboard is not available and you need to use a USB keyboard to install Windows (installation is performed in DOS mode) or run any program under DOS, set this field to Enabled.
49
NISE 103 User Manual
Chapter 4: BIOS Setup
USB Mass Storage Device Configuration
Configures the USB mass storage class devices.
Advanced
USB Mass Storage Device Conguration
USB Mass Storage Reset Delay [20 Sec]
Device #1 USB Hotplug FDD
Emulation Type [Auto]
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
BIOS SETUP UTILITY
Number of seconds POST waits for the USB mass storage device after start unit command.
← → Select Screen ↑↓ Select Item
+- Change Option
F1 General Help F10 Save and Exit ESC Exit
USB Mass Storage Reset Delay
Selects the number of seconds POST will wait for the USB mass storage device after the system starts.
Device #1
Displays the connected device.
Emulation Type
Auto USB devices that are less than 530MB will be emulated as
a floppy drive and the remaining as hard drives.
Forced FDD Forces an HDD formatted drive to boot as FDD (e.g. ZIP
drive)
50
NISE 103 User Manual
Chapter 4: BIOS Setup
ACPI Configuration
This section is used to configure the ACPI configuration.
Advanced
ACPI Settings
ACPI APIC Support [Enabled]
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
BIOS SETUP UTILITY
Include ACPI APIC table pointer to RSDT pointer list.
← → Select Screen ↑↓ Select Item
+- Change Option
F1 General Help F10 Save and Exit ESC Exit
ACPI APIC Support
Enables or disables the ACPI APIC function. It includes the ACPI APIC table pointer to RSDT pointer list.
51
NISE 103 User Manual
Chapter 4: BIOS Setup
Super IO Configuration
This section is used to configure the I/O functions supported by the on­board Super I/O chip.
Advanced
Congure ITE8783 Super IO Chipset
Serial Port1 Address [3F8]
Serial Port1 IRQ [3] Serial Port2 Address [2F8] Serial Port2 IRQ [4] Serial Port2 Frequency Mode [RS232] Serial Port3 Address [3E8] Serial Port3 IRQ [11] Serial Port4 Address [2E8] Serial Port4 IRQ [10]
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
BIOS SETUP UTILITY
Allows BIOS to select Serial Port1 Base Address.
← → Select Screen ↑↓ Select Item
+- Change Option
F1 General Help F10 Save and Exit ESC Exit
Serial Port1 Address to Serial Port4 Address
Auto The system will automatically select an I/O address for the on-
board serial port.
3F8, 2F8, 3E8, 2E8, 2F0, 2E0 Allows you to manually select an I/O ad-
dress for the onboard serial port.
Disabled Disables the onboard serial port.
Serial Port1 IRQ to Serial Port4 IRQ
These fields are used to select an IRQ for the onboard serial port.
Serial Port2 Frequency Mode
Advanced
Congure ITE8783 Super IO Chipset
Serial Port1 Address [3F8] Serial Port1 IRQ [3] Serial Port2 Address [2F8] Serial Port2 IRQ [4]
Serial Port2 Frequency Mode [RS232]
Serial Port3 Address [3E8] Serial Port3 IRQ [10] Serial Port4 Address [2E8] Serial Port4 IRQ [11]
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
BIOS SETUP UTILITY
Options
RS232
RS422 RS485
Allows BIOS to select Serial Port1 Base Address.
← → Select Screen ↑↓ Select Item
+- Change Option
F1 General Help F10 Save and Exit ESC Exit
This field is used to select the frequency mode of serial port 2. The op­tions are RS232, RS422 and RS485.
52
NISE 103 User Manual
Chapter 4: BIOS Setup
If you selected RS422 or RS485 in the “Serial Port2 Frequency Mode” field, the “Serial Port2 Frequency Select” field will appear prompting you to select the frequency setting. The options are 115200 bps and 921600 bps.
Advanced
Congure ITE8783 Super IO Chipset
Serial Port1 Address [3F8] Serial Port1 IRQ [3] Serial Port2 Address [2F8] Serial Port2 IRQ [4] Serial Port2 Frequency Mode [RS232]
Serial Port2 Frequency Select [
Serial Port3 Address Serial Port3 IRQ Serial Port4 Address Serial Port4 IRQ
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
BIOS SETUP UTILITY
Options
115200 bps
921600 bps
Allows BIOS to select Serial Port1 Base Address.
← → Select Screen ↑↓ Select Item
+- Change Option
F1 General Help F10 Save and Exit ESC Exit
53
NISE 103 User Manual
Chapter 4: BIOS Setup
Hardware Health Configuration
This section is used to configure the hardware monitoring events such as temperature, fan speed and voltages.
Advanced
Hardware Health Conguration
H/W Health Function [Enabled]
CPU Temperature : 79oC/174oF System Temperature : 34oC/93oF
Fan1 Speed : N/A
CPU Core : 1.040 V +3.3V : 3.224 V +5.00V : 5.096 V +12.0V : 11.968 V
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
BIOS SETUP UTILITY
Enables Hardware Health Monitoring Device.
← → Select Screen ↑↓ Select Item
+- Change Option F1 General Help F10 Save and Exit ESC Exit
H/W Health Function
Enables or disables the hardware monitoring function.
CPU Temperature and System Temperature
Fan1 Speed
Detects and displays the speed of the cooling fan.
CPU Core to +12.0V
Detects and displays the output voltages.
Detects and displays the current temperature of the CPU and the internal temperature of the system.
54
NISE 103 User Manual
Chapter 4: BIOS Setup
Boot
BIOS SETUP UTILITY
Boot Settings
u
Boot Settings Conguration
u
Boot Device Priority
u
Removable Drives
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
Congure settings during system boot.
← → Select Screen ↑↓ Select Item
Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit
Boot Settings Configuration
This section is used to configure settings during system boot.
Boot Device Priority
This section is used to select the boot priority sequence of the devices.
Removable Drives
This section is used to select the boot priority sequence of the removable drives.
ExitSecurityAdvanced Boot Chipset PCIPnPMain
Boot Settings Configuration
This section is used to configure settings during system boot.
BIOS SETUP UTILITY
Boot
Boot Settings Conguration
Quick Boot
Quiet Boot Bootup Num-Lock PS/2 Mouse Support System Keyboard Hit ‘DEL’ Message Display Interrupt 19 Capture
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
[Enabled]
[Disabled] [On] [Enabled]
[Present]
[Enabled] [Disabled]
Allows BIOS to skip certain tests while boot­ing. This will decrease the time needed to boot the system.
← → Select Screen ↑↓ Select Item
+- Change Option F1 General Help F10 Save and Exit ESC Exit
Quick Boot
When Enabled, the BIOS will shorten or skip some check items during POST. This will decrease the time needed to boot the system.
Quiet Boot
Enabled Displays OEM logo instead of the POST messages. Disabled Displays normal POST messages.
55
NISE 103 User Manual
Chapter 4: BIOS Setup
Bootup Num-Lock
This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the func­tion of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.
PS/2 Mouse Support
The options are Auto, Enabled and Disabled.
System Keyboard
Detects the system keyboard.
Hit ‘DEL’ Message Display
When enabled, the system displays the “Press DEL to run Setup” message during POST.
Interrupt 19 Capture
When enabled, it allows the optional ROM to trap interrupt 19.
Boot Device Priority
This section is used to select the boot priority sequence of the devices.
BIOS SETUP UTILITY
Boot
Boot Device Priority
1st Boot Device
2nd Boot Device 3rd Boot Device
[USB:USB Hotplug FD]
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
Species the boot sequence from the available devices.
A device enclosed in parenthesis has been disabled in the corresponding type menu.
← → Select Screen ↑↓ Select Item
+- Change Option F1 General Help F10 Save and Exit ESC Exit
1st Boot Device to 3rd Boot Device
Selects the drive to boot first, second and third in the “1st Boot De­vice”, “2nd Boot Device” and “3rd Boot Device” fields respectively. The BIOS will boot the operating system according to the sequence of the drive selected.
56
NISE 103 User Manual
Chapter 4: BIOS Setup
Removable Drives
This section is used to select the boot priority sequence of the hard drives.
Boot
BIOS SETUP UTILITY
Removable Drives
1st Drive [USB:USB Hotplug FD]
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
Species the boot sequence from the available devices.
← → Select Screen ↑↓ Select Item
+- Change Option
F1 General Help F10 Save and Exit ESC Exit
57
NISE 103 User Manual
Chapter 4: BIOS Setup
Chipset
This section is used to configure the system based on the specific features of the chipset.
Setting incorrect field values may cause the system to malfunc­tion.
BIOS SETUP UTILITY
Advanced Chipset Settings
WARNING: Setting wrong values in below sections may cause system to malfunction.
u
North Bridge Conguration
u
South Bridge Conguration
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
Congure North Bridge features.
← → Select Screen ↑↓ Select Item
Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit
ExitSecurityAdvanced Boot Chipset PCIPnPMain
North Bridge Configuration
This section is used to configure the north bridge features.
BIOS SETUP UTILITY
North Bridge Chipset Conguration
PCI MMIO Allocation: 4GB to 3072MB
Initiate Graphic Adapter [IGD]
Internal Graphics Mode Select [Enabled, 8MB]
PEG Port Conguration
DVMT Mode Select [DVMT Mode] DVMT/FIXED Memory [256MB]
Boot Display Device [CRT + LVDS] Flat Panel Type [1024x768 18bit]
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
Chipset
Select which graphics controller to use as the primary boot device.
← → Select Screen ↑↓ Select Item
+- Change Option
F1 General Help F10 Save and Exit ESC Exit
Initiate Graphic Adapter
Selects the graphics controller to use as the primary boot device.
Internal Graphics Mode Select
Selects the amount of system memory used by the internal graphics de­vice.
58
NISE 103 User Manual
Chapter 4: BIOS Setup
DVMT Mode Select
The options are Fixed mode and DVMT mode.
DVMT/Fixed Memory
This field is used to select the graphics memory size used by DVMT/Fixed mode.
Boot Display Device
This field is used to select the type of display to use when the system boots.
Flat Panel Type
BIOS SETUP UTILITY
North Bridge Chipset Conguration
PCI MMIO Allocation: 4GB to 3072MB
Initiate Graphic Adapter [IGD] Internal Graphics Mode Select [Enabled, 8MB]
DVMT Mode Select DVMT/FIXED Memory
Boot Display Device
Flat Panel Type
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
Options
640x480 18bit S 800x600 18bit S
1024x768 18bit S
1280x800 18bit S
Chipset
Select which graphics controller to use as the primary boot device.
← → Select Screen ↑↓ Select Item
+- Change Option
F1 General Help F10 Save and Exit ESC Exit
Selects the type of flat panel connected to the system. The supported LVDS are 640x480 18bit, 800x600 18bit, 1024x768 18bit and 1280x800 18bit.
South Bridge Configuration
This section is used to configure the south bridge features.
BIOS SETUP UTILITY
South Bridge Chipset Conguration
USB Functions [8 USB Ports]
USB 2.0 Controller [Enabled] HDA Controller [Enabled] SMBUS Controller [Enabled]
Restore on AC Power Loss [Power On]
Power Type [ATX]
PCIE Ports Conguration
MINI PCIE Port [Auto]
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
Chipset
Disabled
2 USB Ports
4 USB Ports 6 USB Ports 8 USB Ports 10 USB Ports
← → Select Screen ↑↓ Select Item
+- Change Option
F1 General Help F10 Save and Exit ESC Exit
USB Functions
Enables or disables USB devices.
USB 2.0 Controller
This field is used to enable or disable the Enhanced Host Controller Inter­face (USB 2.0).
HDA Controller
Enables or disables the onboard audio.
59
NISE 103 User Manual
Chapter 4: BIOS Setup
SMBUS Controller
Enables or disables the SMBUS.
Restore On AC Power Loss
BIOS SETUP UTILITY
South Bridge Chipset Conguration
USB Functions [10 USB Ports]
USB 2.0 Controller [Enabled]
HDA Controller [Enabled] SMBUS Controller [Enabled]
Restore on AC Power Loss [Power On]
Power Type [ATX]
PCIE Ports Conguration
MINI PCIE Port [Auto]
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
Power Off
Power On
Last State
Options
Chipset
Disabled 2 USB Ports 4 USB Ports 6 USB Ports 8 USB Ports 10 USB Ports
← → Select Screen ↑↓ Select Item
+- Change Option F1 General Help F10 Save and Exit ESC Exit
Power Off When power returns after an AC power failure, the system’s
power is off. You must press the Power button to power-on the system.
Power On When power returns after an AC power failure, the system
will automatically power-on.
Last State When power returns after an AC power failure, the system
will return to the state where you left off before power failure occurs. If the system’s power is off when AC power failure occurs, it will remain off when power returns. If the system’s power is on when AC power failure occurs, the system will power-on when power returns.
Power Type
Selects the type of power used.
Mini PCIE Port
Configures the PCIE port.
60
NISE 103 User Manual
Chapter 4: BIOS Setup
PCIPnP
This section is used to configure settings for PCI/PnP devices.
Setting incorrect field values may cause the system to malfunc­tion.
BIOS SETUP UTILITY
Advanced PCI/PnP Settings
WARNING: Setting wrong values in below sections may cause system to malfunction.
Plug & Play O/S [No]
PCI Latency Timer [64]
IRQ3 [Available] IRQ4 [Available] IRQ5 [Available] IRQ7 [Available] IRQ9 [Available] IRQ10 [Available] IRQ11 [Available] IRQ14 [Available] IRQ15 [Available]
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
NO: let the BIOS congure all the devices in the system. YES: lets the operating system congure Plug and Play (PnP) devices not required for boot if your system has a Plug and Play operating system.
← → Select Screen ↑↓ Select Item
+- Change Option
F1 General Help F10 Save and Exit ESC Exit
Plug & Play O/S
Yes Configures Plug and Play (PnP) devices that are not required to boot in
a Plug and Play supported operating system.
No The BIOS configures all the devices in the system.
ExitSecurityAdvanced Boot Chipset PCIPnPMain
PCI Latency Timer
This feature is used to select the length of time each PCI device will con­trol the bus before another takes over. The larger the value, the longer the PCI device can retain control of the bus. Since each access to the bus comes with an initial delay before any transaction can be made, low values for the PCI Latency Timer will reduce the effectiveness of the PCI bandwidth while higher values will improve it.
IRQ3 to IRQ15
Available The specified IRQ is available for PCI/PnP devices. Reserved The specified IRQ is reserved for Legacy ISA devices.
61
NISE 103 User Manual
Chapter 4: BIOS Setup
Security
BIOS SETUP UTILITY
Security Settings
Supervisor Password : Not Installed User Password : Not Installed
Change Supervisor Password
Change User Password
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
Install or Change the password.
← → Select Screen ↑↓ Select Item
Enter Change F1 General Help F10 Save and Exit ESC Exit
Change Supervisor Password
This field is used to set or change the supervisor password.
To set a new password:
1. Select the Change Supervisor Password field then press <Enter>.
2. Type your password in the dialog box then press <Enter>. You are lim­ited to eight letters/numbers.
3. Press <Enter> to confirm the new password.
4. When the Password Installed dialog box appears, select OK.
ExitSecurityAdvanced Boot Chipset PCIPnPMain
To clear the password, select Change Supervisor Password then press <En­ter>. The Password Uninstalled dialog box will appear.
If you forgot the password, you can clear the password by erasing the CMOS RTC (Real Time Clock) RAM using the RTC Clear jumper. Refer to chapter 2 for more information.
Change User Password
This field is used to set or change the user password.
To set a new password:
1. Select the Change User Password field then press <Enter>.
2. Type your password in the dialog box then press <Enter>. You are lim­ited to eight letters/numbers.
3. Press <Enter> to confirm the new password.
4. When the Password Installed dialog box appears, select OK.
To change the password, repeat the same steps above.
To change the password, repeat the same steps above.
62
NISE 103 User Manual
Chapter 4: BIOS Setup
Exit
BIOS SETUP UTILITY
Exit Options
Save Changes and Exit
Discard Changes and Exit Discard Changes
Load Optimal Defaults Load Failsafe Defaults
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
Exit system setup after saving the changes.
F10 key can be used for this operation.
← → Select Screen ↑↓ Select Item
Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit
Save Changes and Exit
To save the changes and exit the Setup utility, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes. You can also press <F10> to save and exit Setup.
Discard Changes and Exit
To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting. You can also press <ESC> to exit without saving the changes.
ExitSecurityAdvanced Boot Chipset PCIPnPMain
Discard Changes
To discard the changes, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes to discard all changes made and restore the previously saved settings.
Load Optimal Defaults
Loads the optimal default values from the BIOS ROM.
Load Failsafe Defaults
Loads the fail-safe default values from the BIOS ROM.
63
NISE 103 User Manual
Appendix A: Digital I/O Programming Guide
Appendix A: digitAl i/O prOgrAmming guide
Digital I/O (Digital Input/Output) pins are provided for custom system design. This appendix provides definitions and its default setting for the ten Digital I/O pins in the NISE 103 series. The pin definition is shown in the following table:
CN15 - Digital I/O Connector
Pin No. GPI/O Mode
1 DI High 281h (Bit0) 2 DO Low 281h (Bit4)
3 DI High 281h (Bit1) 4 DO Low 281h (Bit5)
5 DI High 281h (Bit2) 6 DO Low 281h (Bit6)
7 DI High 281h (Bit3) 8 DO Low 281h (Bit7)
PowerOn
Default
Address Pin No. GPI/O Mode
Control the DO pin (2/4/6/8) level from I/O port 281h bit (4/5/6/7).
PowerOn
Default
Address
The bit is Set/Clear indicated output High/Low.
64
NISE 103 User Manual
Appendix A: Digital I/O Programming Guide
DIO Programming Sample Code
#define DIO_PORT 0x281 #define DO1 (0x01 << 4) #define DO2 (0x01 << 5) #define DO3 (0x01 << 6) #define DO4 (0x01 << 7)
#define DO1_HI outportb(DIO_PORT, 0x10) #define DO1_LO outportb(DIO_PORT, 0x00) #define DO2_HI outportb(DIO_PORT, 0x20) #define DO2_LO outportb(DIO_PORT, 0x00) #define DO3_HI outportb(DIO_PORT, 0x40) #define DO3_LO outportb(DIO_PORT, 0x00) #define DO4_HI outportb(DIO_PORT, 0x80) #define DO4_LO outportb(DIO_PORT, 0x00) void main(void) { DO1_HI; DO2_LO; DO3_HI; DO4_LO; }
65
NISE 103 User Manual
Appendix B: GPI/O Programming Guide
Appendix B: Gpi/O prOGrAmminG Guide
GPI/O (General Purpose Input/Output) pins are provided for custom system design. This appendix provides definitions and its default setting for the ten GPI/O pins in NISE 103. The pin definition is shown in the following table:
J3 - GPIO Connector
Pin No. GPI/O Mode
1 VCC - - 2 GND - -
3 GPO Low 284h (Bit4) 4 GPI High 284h (Bit0)
5 GPO Low 284h (Bit5) 6 GPI High 284h (Bit1)
7 GPO Low 284h (Bit6) 8 GPI High 284h (Bit2)
9 GPO Low 284h (Bit7) 10 GPI High 284h (Bit3)
PowerOn
Default
Address Pin No. GPI/O Mode
Control the GPO pin (3/5/7/9) level from I/O port 284h bit (4/5/6/7).
PowerOn
Default
Address
The bit is Set/Clear indicated output High/Low.
66
NISE 103 User Manual
Appendix B: GPI/O Programming Guide
GPIO Programming Sample Code
#define GPIO_PORT 0x284 #define GPO3 (0x01 << 4) #define GPO5 (0x01 << 5) #define GPO7 (0x01 << 6) #define GPO9 (0x01 << 7)
#define GPO3_HI outportb(GPIO_PORT, 0x10)
#define GPO3_LO outportb(GPIO_PORT, 0x00)
#define GPO5_HI outportb(GPIO_PORT, 0x20)
#define GPO5_LO outportb(GPIO_PORT, 0x00)
#define GPO7_HI outportb(GPIO_PORT, 0x40)
#define GPO7_LO outportb(GPIO_PORT, 0x00)
#define GPO9_HI outportb(GPIO_PORT, 0x80)
#define GPO9_LO outportb(GPIO_PORT, 0x00)
void main(void)
{
GPO3_HI;
GPO5_LO;
GPO7_HI;
GPO9_LO;
}
67
NISE 103 User Manual
Appendix C: Watchdog Timer Setting
Appendix C: WAtChdog timer Setting
ITE8783 WatchDog Programming Guide
#define SUPERIO_PORT 0x2E #define WDT_SET 0x72 #define WDT_VALUE 0x73
void main(void) { #Enter SuperIO Configuration outportb(SUPERIO_PORT, 0x87); outportb(SUPERIO_PORT, 0x01); outportb(SUPERIO_PORT, 0x55); outportb(SUPERIO_PORT, 0x55);
# Set LDN outportb(SUPERIO_PORT,0x07); outportb(SUPERIO_PORT+1 ,0x07);
# Set WDT setting outportb(SUPERIO_PORT, WDT_SET); outportb(SUPERIO_PORT+1 , 0xC0); # Use the Second to come down # If choose the Minute, change value to 0x40
# Set WDT sec/min outportb(SUPERIO_PORT, WDT_VALUE); outportb(SUPERIO_PORT+1 , 0x05); #Set 5 seconds }
68
NISE 103 User Manual
Appendix D: Power Consumption
Appendix d: power Consumption
Test Configuration
System Configuration Sys#1
Chassis CHASSIS NISE103 VER:B
CPU Intel® Atom™ D425 processor, 1.8GHz
Memory APACER SODIMM 1G
HDD HITACHI 2.5 SATA HDD 80G
Power Supply FSP060-1AD101C 12V/60W
Keyboard LEMEL B-5201-P
Mouse GENIUS EASY MOUSE PS/2
69
NISE 103 User Manual
Appendix D: Power Consumption
Power Consumption Measurement
Test Equipment
PROVA CM-07 AC/DC CLAMP METER
Test Procedure
1. Power up the DUT and then boot Windows XP.
2. Enter the standby mode (HDD power down).
3. Measure the power consumption and record it.
4. Run the Burn-in test program to apply 100% full loading.
5. Measure the power consumption and record it.
Test Data
Sys #1
+12V
Full-Loading Mode 1.85A
Total 22.2W
Standby Mode 0.75A
Total 9W
70
