Nexcom NCb-231, NCr-303-VHR, NCb-221, NCr-302-VHR User Manual

NEXCOM International Co., Ltd.

Published May 2014

www.nexcom.com

Intelligent Digital Security

IP Camera NCb-231

User Manual

ii

NCb-231 User Manual

Content

Contents

Preface

Copyright .............................................................................................. v

Disclaimer ............................................................................................... v

Acknowledgements ................................................................................ v

Regulatory Compliance Statements ......................................................... v

Declaration of Conformity ....................................................................... v

RoHS Compliance .................................................................................. vi

Safety Information .................................................................................vii

Installation Recommendations ................................................................vii

Safety Precautions .................................................................................viii

Technical Support and Assistance ........................................................... ix

Conventions Used in this Manual ........................................................... ix

Package Contents ................................................................................... x

Chapter 1: Product Introduction

Overview ................................................................................................1

Key Features ........................................................................................... 1

Hardware Specifications .......................................................................... 2

Hardware Installation ..............................................................................3

Chapter 2: Camera Configuration

Accessing the Camera’s Configuration Menu (Graphical User Interface) ..4

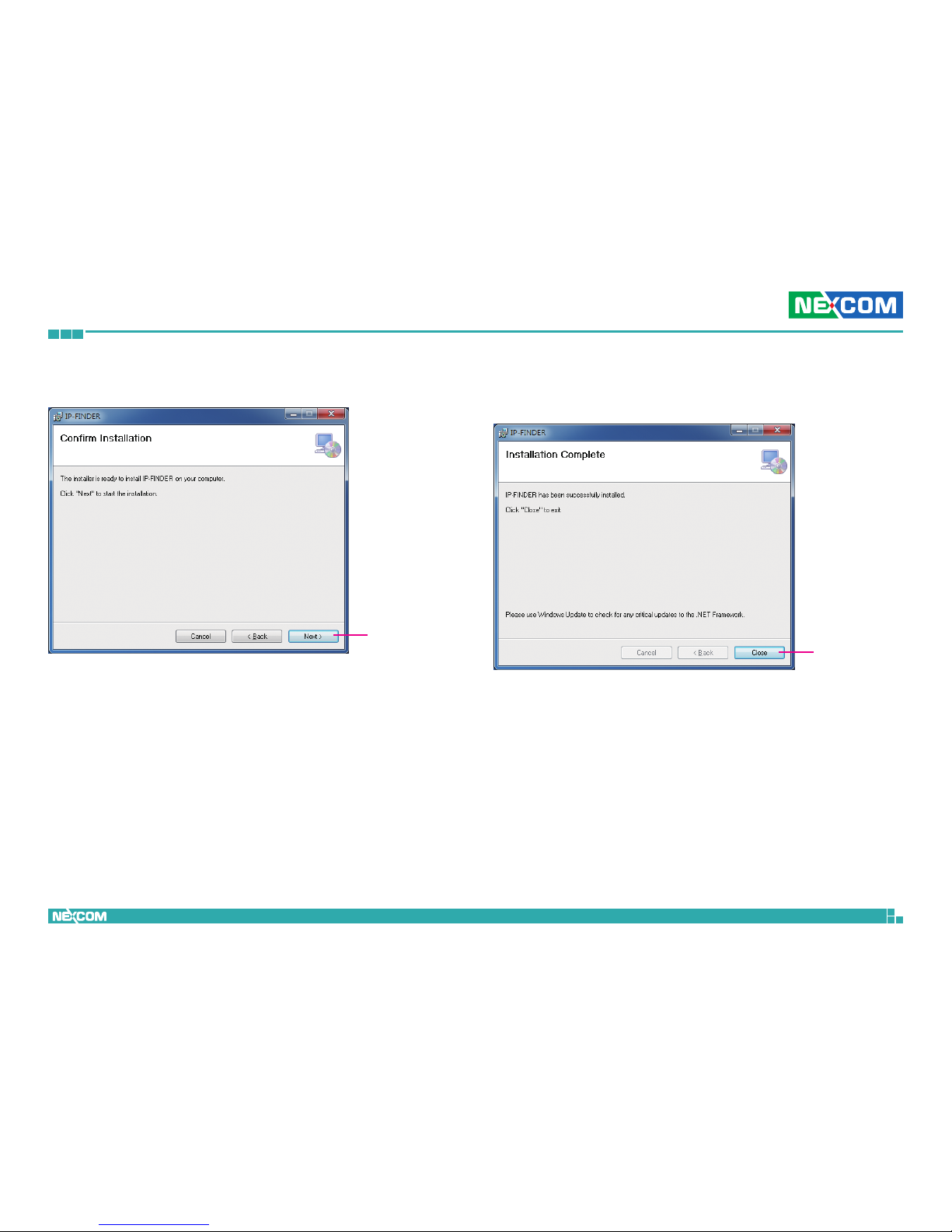

Installing IP-FINDER ..........................................................................4

IP-FINDER .........................................................................................7

Web Browser (Internet Explorer) ....................................................... 9

Configuring the Camera’s Setting .........................................................10

Browsing Through the Configuration Menu .......................................11

Video .................................................................................................... 12

Video Stream .....................................................................................12

Stream 1 ........................................................................................12

Stream 2 ........................................................................................13

Stream 3 ........................................................................................13

Camera Settings ................................................................................14

Image Adjustments ........................................................................ 14

Mirror & Flip ...................................................................................15

Wide Dynamic Range (WDR) .......................................................... 15

Camera Settings Cont. ......................................................................16

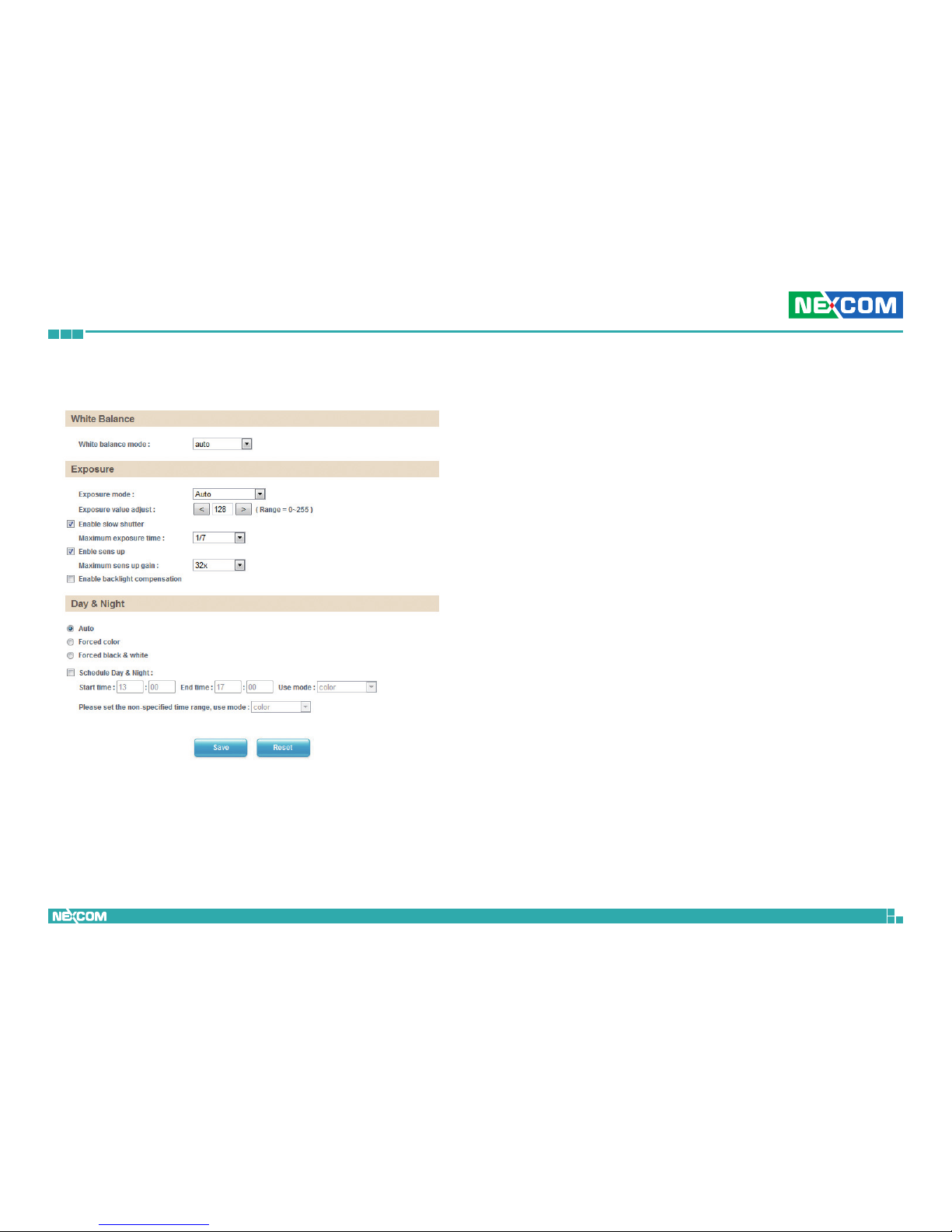

White Balance ................................................................................ 16

Exposure ........................................................................................16

Day & Night ................................................................................... 17

Overlay Settings .................................................................................18

Contents ........................................................................................ 18

Privacy Mask ......................................................................................19

Settings ..........................................................................................19

Mask Zones ....................................................................................20

Network ...............................................................................................21

TCP/IP ................................................................................................21

IP Address Configuration ................................................................21

Current Network Settings ...............................................................21

FTP ....................................................................................................22

FTP Server ...................................................................................... 22

Login Information ..........................................................................22

Test Remote FTP Server ................................................................... 22

SMTP .................................................................................................23

SMTP Server ................................................................................... 23

iii

NCb-231 User Manual

Content

Login Information ..........................................................................23

To Mail Address .............................................................................. 23

Ports ..................................................................................................24

HTTP ..............................................................................................24

RTSP ..............................................................................................24

Events ................................................................................................... 25

Motion Detection .............................................................................. 25

Settings ..........................................................................................25

Detection Zones .............................................................................26

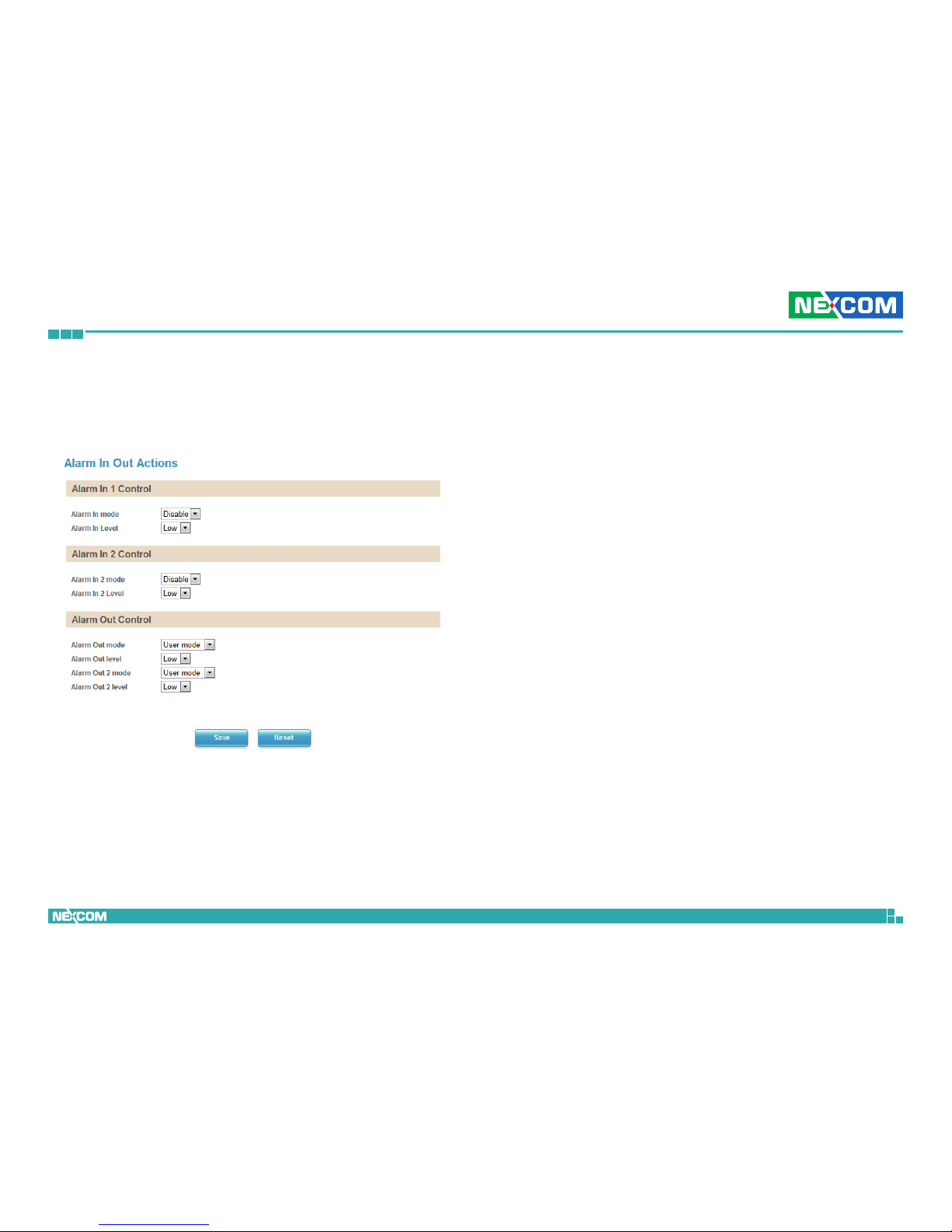

Alarm In/Out Trigger .......................................................................... 27

Alarm In 1 Control and Alarm In 2 Control ..................................... 27

Alarm Out Control ...........................................................................27

Event Actions ....................................................................................28

When Motion Detection Triggered .................................................28

When Alarm In Triggered ...............................................................28

System .................................................................................................. 30

Audio ................................................................................................30

Audio Settings ...............................................................................30

Recording Settings .............................................................................31

AVI File Setting ...............................................................................31

User Management ............................................................................. 32

Add/Modify User Accounts .............................................................32

User List .........................................................................................32

SD Card Management .......................................................................33

SD Card Information ...................................................................... 33

File List ........................................................................................... 33

Date & Time ...................................................................................... 34

Current Camera Time .....................................................................34

Time Settings ................................................................................. 34

Date & Time Format .......................................................................35

NTP Server .....................................................................................35

Firmware Upgrade ............................................................................. 36

Firmware Version ........................................................................... 36

Update ...........................................................................................36

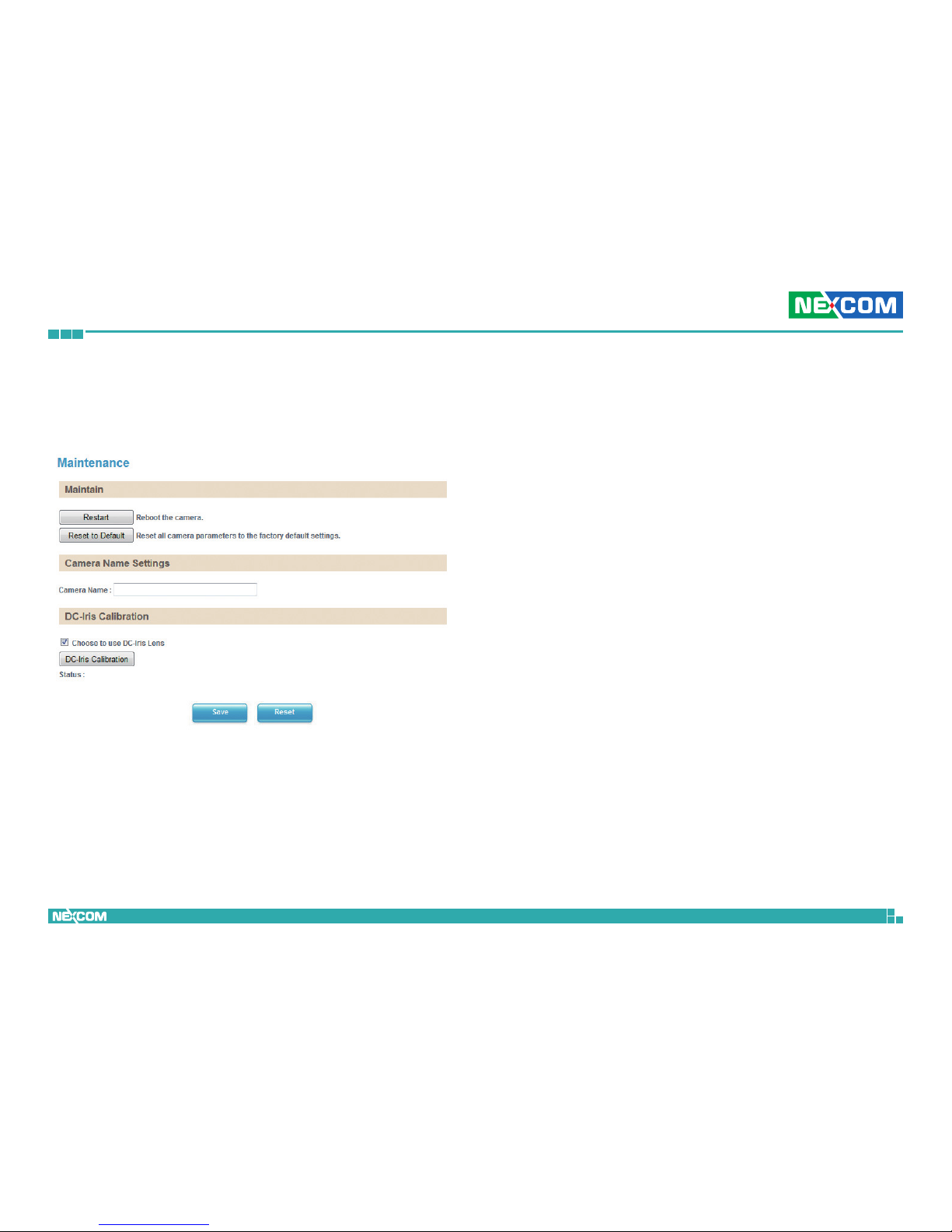

Maintenance ..................................................................................... 37

Maintain ........................................................................................ 37

Camera Name Settings ...................................................................37

DC-Iris Calibration .......................................................................... 37

Advanced Settings ................................................................................ 38

Video .................................................................................................... 39

Camera Settings (Advanced) .............................................................. 39

Chroma & Sharpness Suppression .................................................. 39

Manual White Balance ................................................................... 39

Manual Exposure & Gain ................................................................ 39

Camera Settings (Advanced) Cont. .................................................... 40

Auto Exposure Configuration .........................................................40

DC-Iris Control ...............................................................................40

IR Cut Filter (ICR) Control ............................................................... 41

Gamma Control .............................................................................41

Color Filter .....................................................................................41

TV System ......................................................................................41

ROI .................................................................................................... 42

Auto Exposure Weights ..................................................................... 43

Network ...............................................................................................44

DDNS ................................................................................................ 44

DDNS Settings ................................................................................44

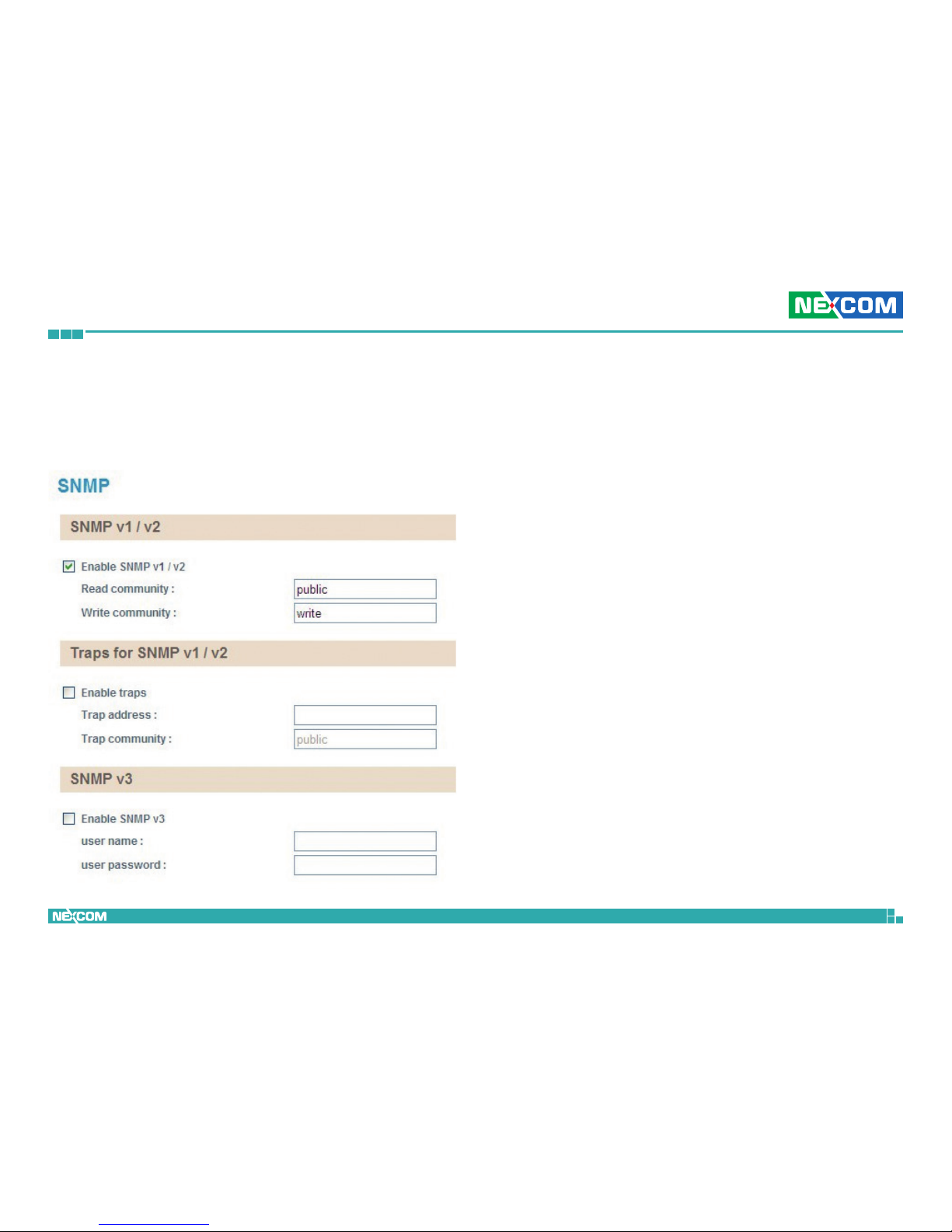

SNMP ................................................................................................45

SNMP v1/v2 ...................................................................................45

Traps for SNMP v1/v2 .....................................................................45

SNMP v3 ........................................................................................45

Multicast ........................................................................................... 46

Settings ..........................................................................................46

Events ................................................................................................... 47

Ethernet Lost Detection ..................................................................... 47

iv

NCb-231 User Manual

Content

Settings ..........................................................................................47

Face Detection ...................................................................................48

Tampering Detection .........................................................................49

Settings ..........................................................................................49

Event Actions (Advanced) .................................................................. 50

When Motion Detection Triggered .................................................50

When Tampering Detection Triggered .............................................50

System .................................................................................................. 51

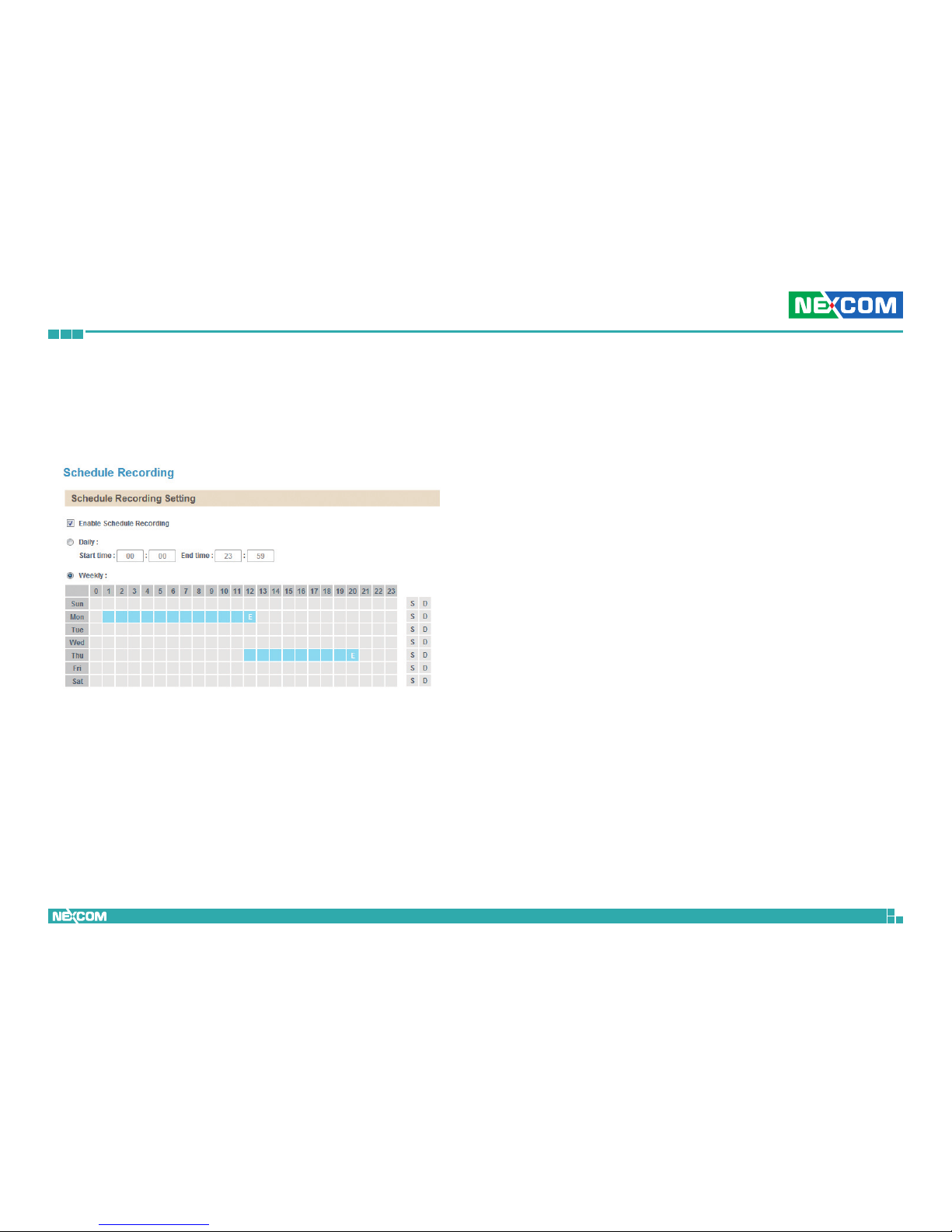

Schedule Recording ...........................................................................51

Schedule Recording Setting ............................................................ 51

COM Port .......................................................................................... 52

RS-232 Control .............................................................................. 52

RS-485 Control .............................................................................. 52

Chapter 3:

Viewing Live Video via VLC Media Player.............53

v

NCb-231 User Manual

Preface

PrefaCe

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

NCb-231 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class B devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

vi

NCb-231 User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

This publication, including all photographs, illustrations and software, is protected under international copyright

laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2006 will be RoHS compliant. They will use the usual NEXCOM naming convention.

vii

NCb-231 User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully. ▪ Do not place the unit on an unstable surface, cart, or stand. ▪ Follow all warnings and cautions in this manual. ▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The network camera is provided with a battery-powered real-time clock

circuit. There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

▪ A Philips screwdriver ▪ A flat-tipped screwdriver ▪ A grounding strap ▪ An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

viii

NCb-231 User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any power sources before cleaning. Use

a damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the

equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it or

letting it fall may cause damage.

7. Make sure the voltage of the power source is correct before connecting

the equipment to the power source.

8. All cautions and warnings on the equipment should be noted.

9. If the equipment is not used for a long time, disconnect it from the

power source to avoid damage by transient overvoltage.

10. Never pour any liquid into an opening. This may cause fire or electrical

shock.

11. Never open the equipment. For safety reasons, the equipment should be

opened only by qualified service personnel.

12. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work

according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.

13. Do not place heavy objects on the equipment.

14. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

ix

NCb-231 User Manual

Preface

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

CAUTION!

CAUTION!CAUTION!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

x

NCb-231 User Manual

Preface

Package Contents

The NCb-231 package contains the following accessories:

Screw Kit Quick guide

User Manual

1

NCb-231 User Manual

Chapter 1: Product Introduction

ChaPter 1: ProduCt IntroduCtIon

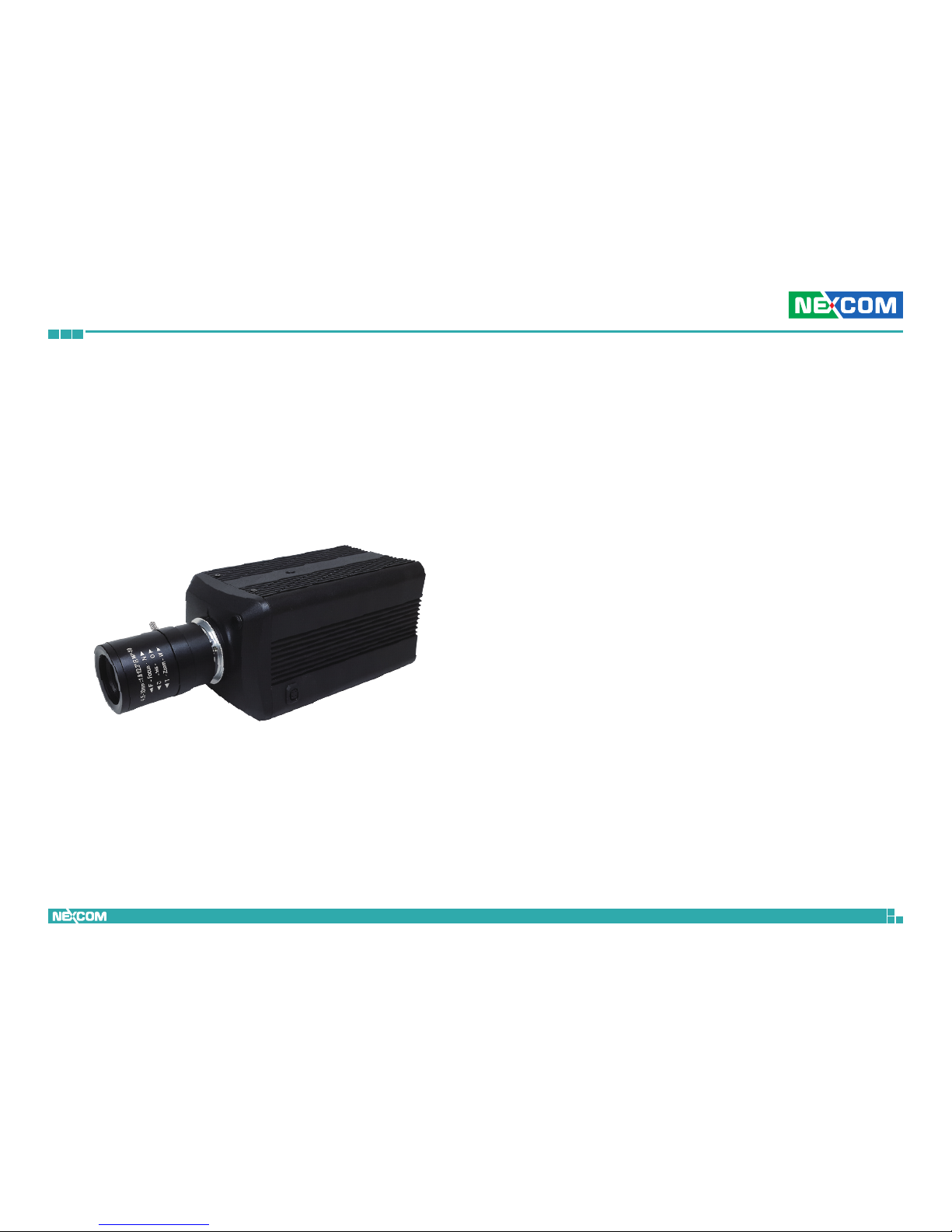

Overview Key Features

▪ LPC box camera

▪ Full HD1080P @30fps

▪ 2/3” Image sensor

▪ Global shutter

▪ Support -20°C ~ 60°C/-4°F ~ 140°F

▪ Lens optional

2

NCb-231 User Manual

Chapter 1: Product Introduction

Hardware Specifications

Camera

▪ Image sensor: 2/3” Full HD progressive scan CMOS image sensor ▪ Minimum Illumination: 0.003 lux ▪ Lens: CS mount ▪ Iris type: DC-iris ▪ Day and night: Yes (with ICR & light sensor) ▪ ICR: Yes ▪ WDR: Yes ▪ Image Enhancement

– Brightness, Contrast, Saturation, Sharpness, Mirror, Flip, Day/Night,

Anti-flicker and AWB

Video

▪ Video compression: H.264/MJPEG ▪ Video streaming: triple streaming ▪ Video resolution: 1920 x 1080 to 320 x 240 ▪ Video quality

– VBR/ CBR

▪ Frame rate

– 1920 x 1080 @ 30 fps – 1280 x 720 @ 30 fps – 720 x 576 @ 30 fps – 720 x 480 @ 30 fps – 640 x 480 @ 30 fps – 320 x 240 @ 30 fps

Audio

▪ Audio Streaming: Two-way ▪ Audio Compression: G.711 8KHz/ 16bit ▪ Audio Input: Line in ▪ Audio Output: Line out

Network

▪ Interface: 10/100/1000 Mbps Ethernet, RJ-45

▪ Supported protocols: HTTP, TCP/IP, UDP, RTP, RTSP, FTP, SMTP, DHCP, DNS,

DDNS, NTP, uPnP, ONVIF, IPv4/v6

▪ Security: Multi-level passwords/ HTTP encryption

I/O Connector

▪ Audio in/ out Port: 2x 3.5mm phone jack ▪ D I/O: 2x DI, 2x DO ▪ RS485: Yes ▪ Micro SD slot: Yes ▪ RJ45: Yes ▪ RS232: Yes ▪ Flash Strobe Out: Yes (event trigger) ▪ IR LED Strobe Out: Yes (Frequently) ▪ Reset Button: 2x (for HW reset and back to default setting) ▪ Pre Recording: Yes

Event Management

▪ Event trigger: Motion detection, Alarm in ▪ Notifications: Trigger alarm output, email/ FTP and record video to FTP

server or SD card ▪ Post-recording: Yes ▪ Pre-recording: Yes

Power

▪ DC: DC 12V/AC 24V terminal block ▪ PoE: Yes/ IEEE 802.3af

General

▪ Power consumption: Up to 6W max. ▪ Weight: Up to 500g ▪ Dimension: 120mm (D) X 70mm (W) X 55mm (H) ▪ Operating Temp.: -20°C~60°C (-4°F ~ 140°F) ▪ Humidity: 90% RH (no condensation) ▪ Certification: CE/ FCC ▪ Weatherproof: With housing ▪ Application: SDK available for application development

3

NCb-231 User Manual

Chapter 1: Product Introduction

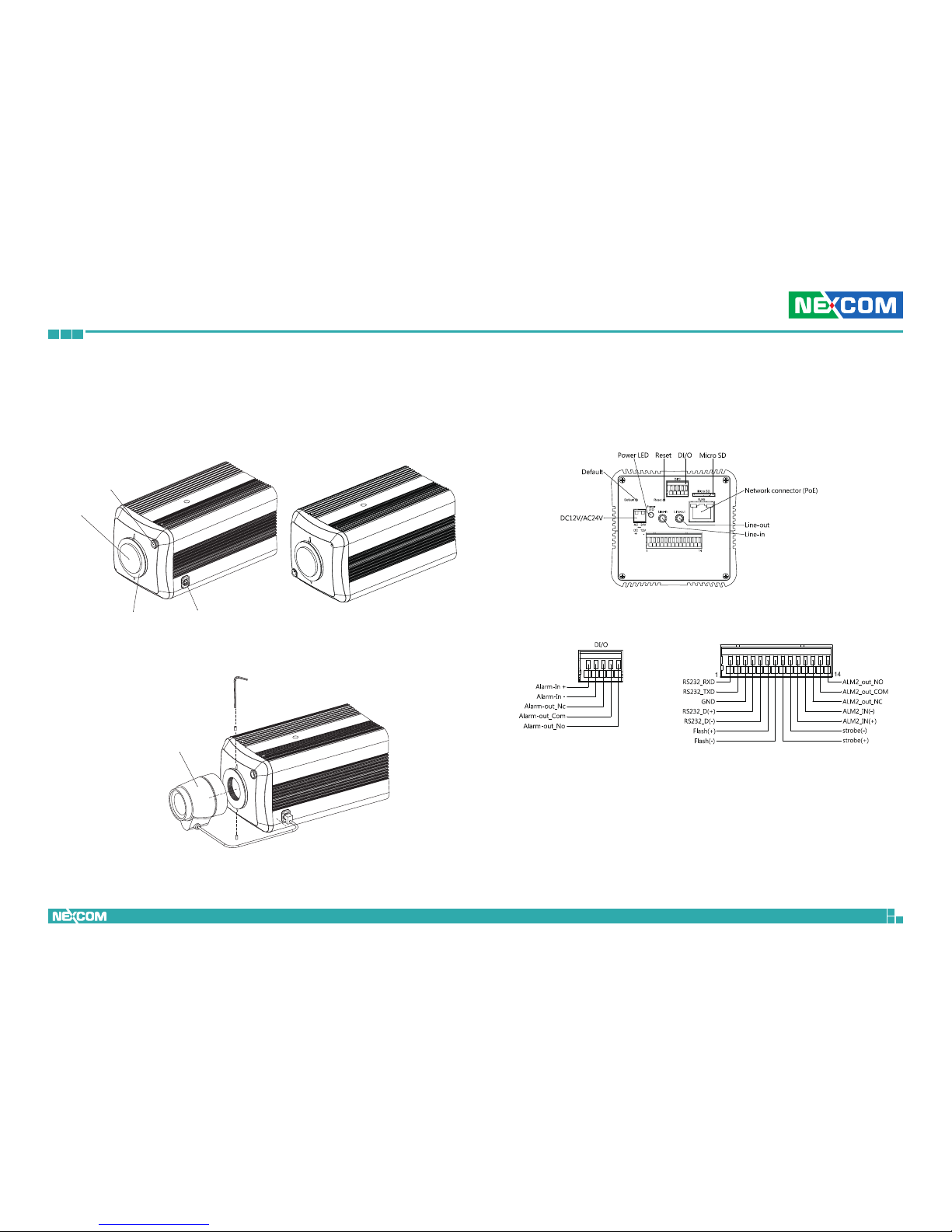

Physical Descriptions

Light Sensor

Lens Cover

Aluminum Focus Ring

Iris Connector

Lens(Purchased Separately)

DI/O Pinout Assignment

4

NCb-231 User Manual

Chapter 2: Camera Configuration

ChaPter 2: Camera ConfIguratIon

Accessing the Camera’s Configuration Menu (Graphical User Interface)

The camera’s default IP address is 192.168.1.168, make sure the IP address of the computer accessing the camera is on the same network subnet before proceeding.

You can access the camera via a web browser or NexCam Assistant software included with the camera. The following information outlines the instructions for each method.

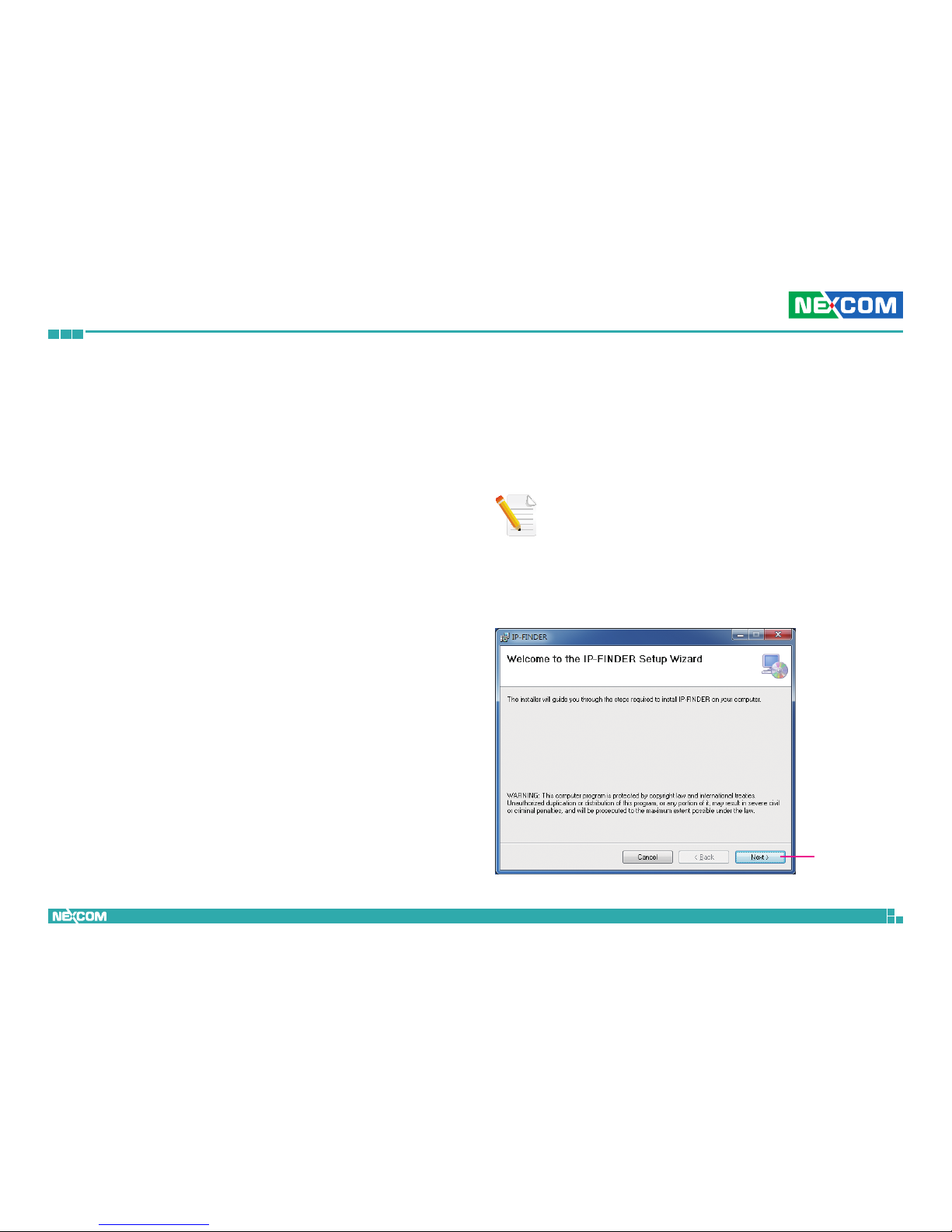

Installing IP-FINDER

1. Locate the installation file IP-FINDER-Setup.msi on the CD.

2. Once located, double click on the file to start the installation program.

3. Click the Next button on the welcome screen to continue.

Next button

Note: If IP-FINDER is already installed, you can skip this section and continue to the next section IP-FINDER on page 8.

5

NCb-231 User Manual

Chapter 2: Camera Configuration

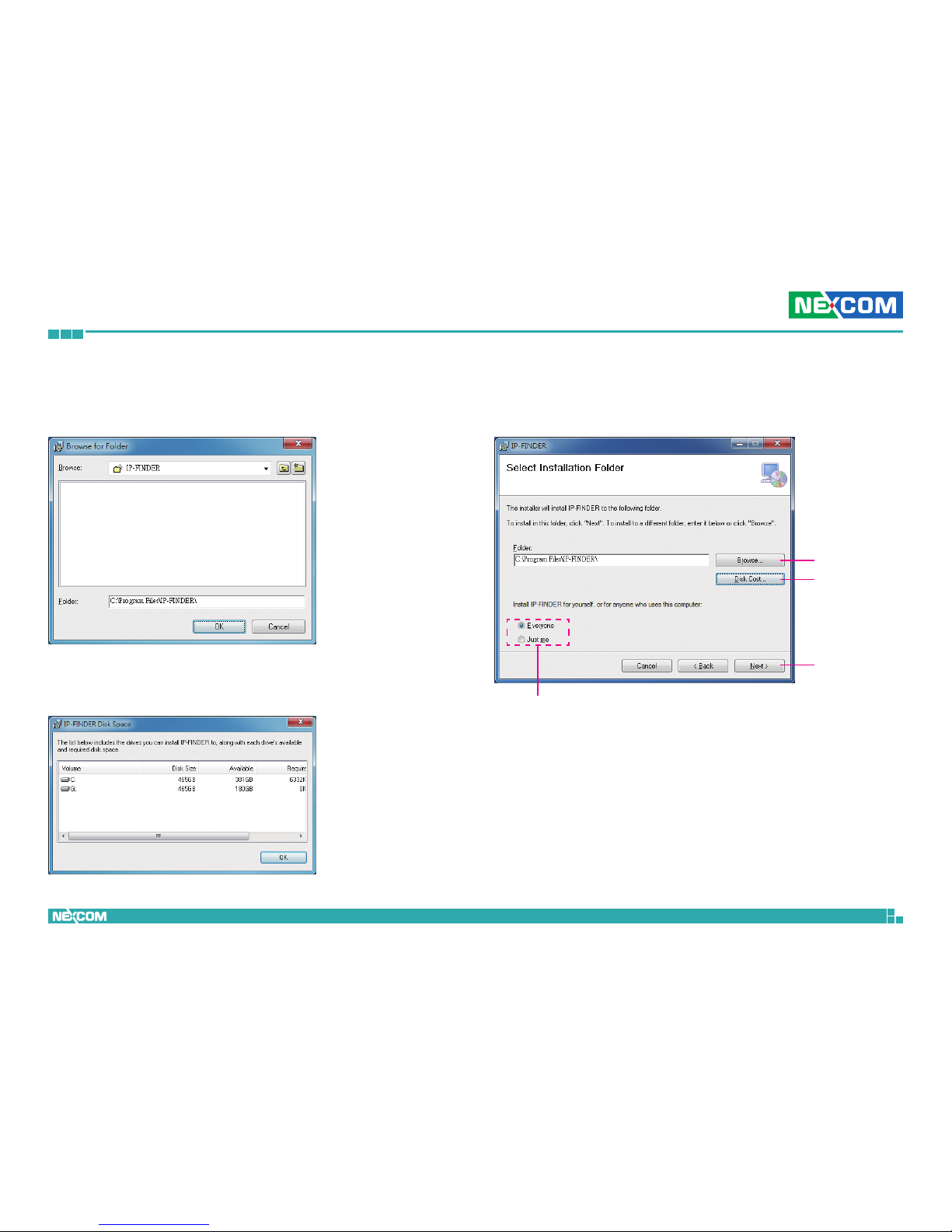

4. Confirm the directory that the program will be installed on. To specify a different folder, please click on the Browse button and locate the desired installation folder.

Next button

Browse button

Disk Cost button

User accounts

7. Click on the Next button to continue.

5. To check the available drives you can install the software to and their available and required disk space, please click on the Disk Cost button.

6. Specify which user accounts on the computer can access the program, the options are Everyone and Just me.

6

NCb-231 User Manual

Chapter 2: Camera Configuration

Next button

8. Click on the Next button to begin installation.

Close button

9. Once the installation process is complete, click on the Close button to finish. A shortcut will be created on the desktop.

7

NCb-231 User Manual

Chapter 2: Camera Configuration

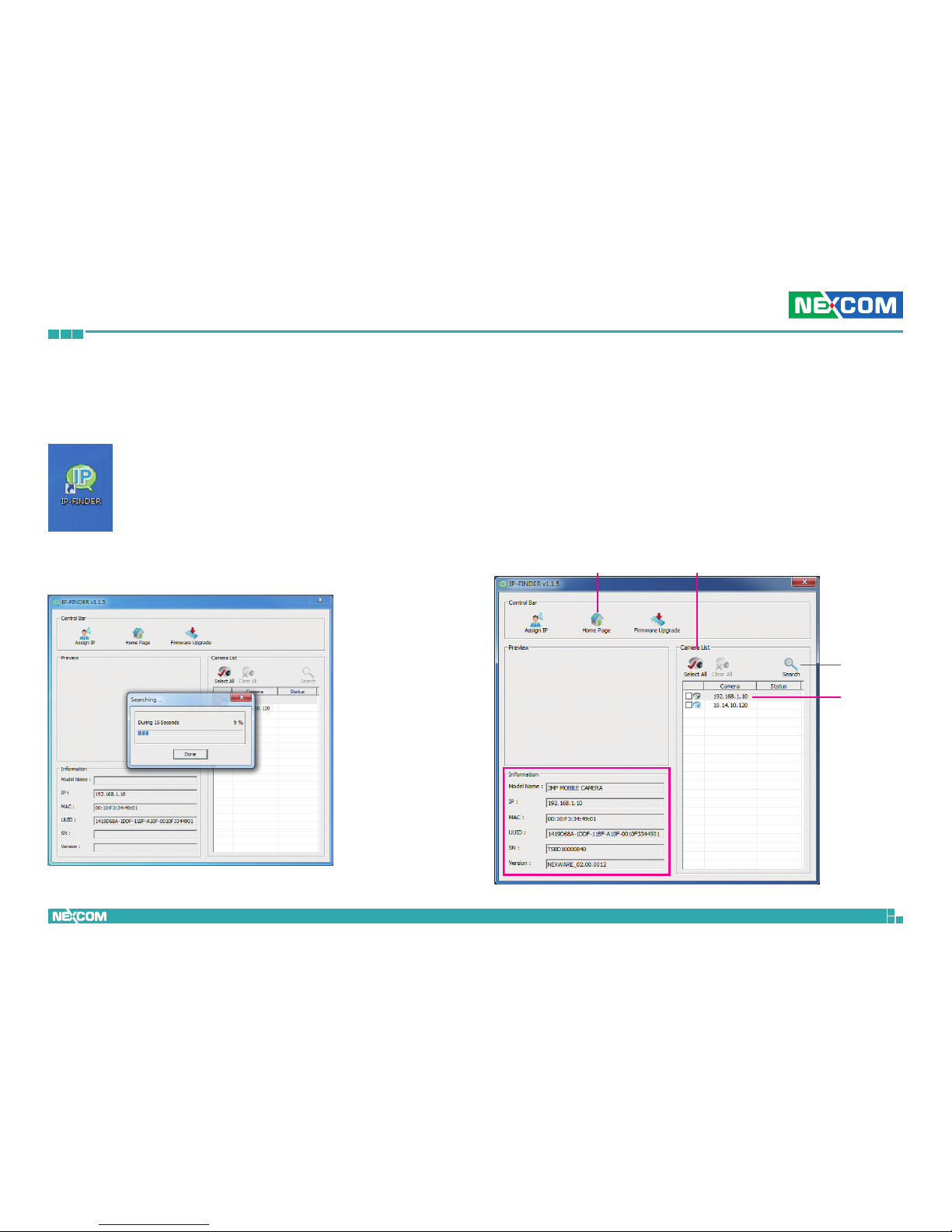

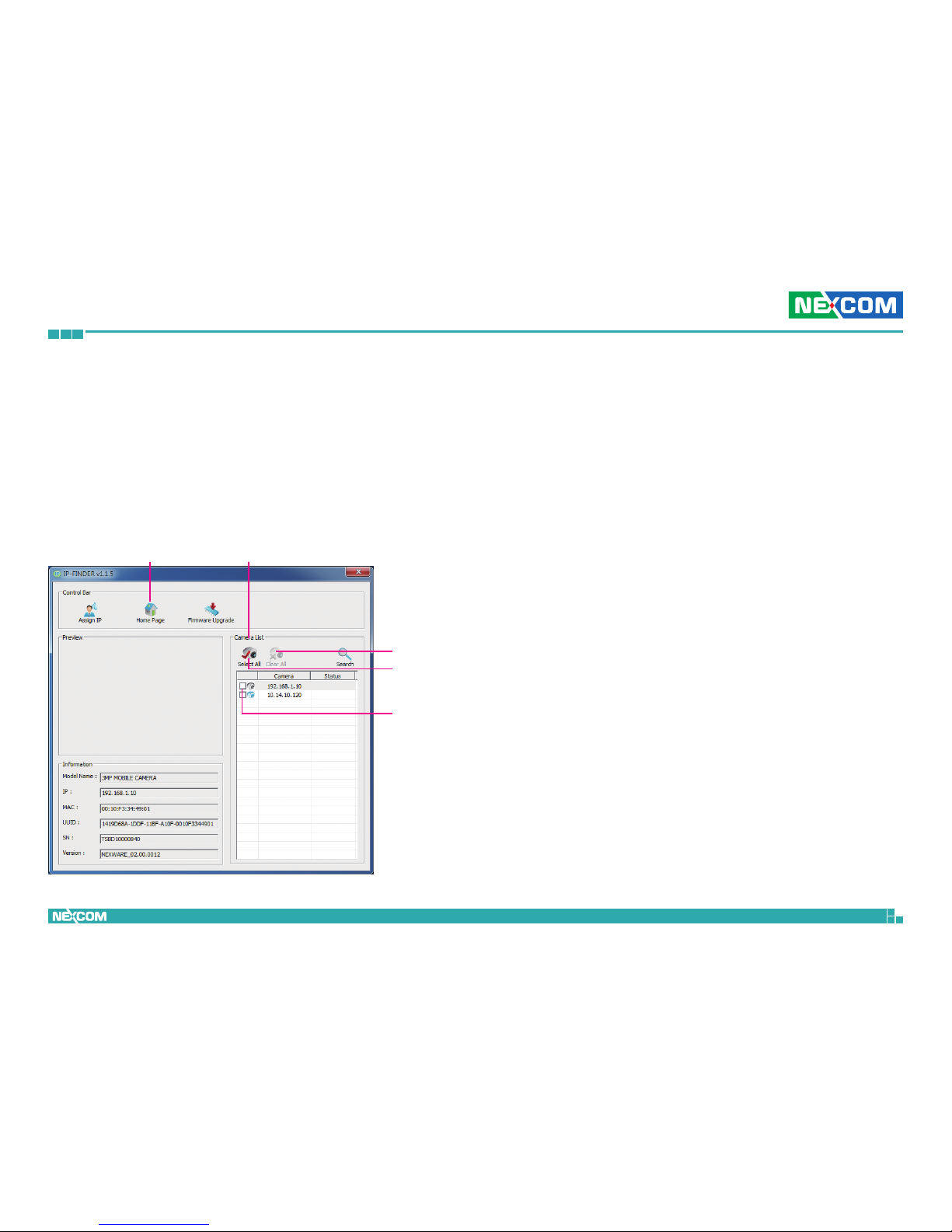

IP-FINDER

1. Locate and open the IP-FINDER software shortcut on the desktop.

Home Page

IP Address

Camera List

Search

4. Click on the Home Page button and it will launch the camera’s

configuration menu via Internet Explorer. You can also access the menu by double clicking the camera’s IP address under Camera List.

2. When the program is launched, it will begin searching the network for the IP camera automatically (the search will last for up to 90 seconds). You can also manually search cameras by clicking on the Search button.

3. Once the camera is discovered, it will show the following information: ▪ Model name ▪ IP address ▪ MAC address ▪ UUID ▪ Serial number ▪ Version

Note: Manual search will last for up to 90 seconds.

8

NCb-231 User Manual

Chapter 2: Camera Configuration

Multiple Cameras

If more than one IP camera are detected, the Camera List will show all the available cameras on the network. To access all the cameras’ configuration menu simultaneously, click on the Select All button to select all the cameras in the list, then click the Home Page button. Similarly, you can access specific ones by ticking the camera’s checkbox.

To deselect, press the Clear All button to remove all the selection, or specific ones by unchecking the checkbox.

Home Page Camera List

Select All

Checkbox

Clear All

9

NCb-231 User Manual

Chapter 2: Camera Configuration

SetupViewerSnapshot Start/StopLive view

1. Locate and open the Internet Explorer (IE) shortcut on the desktop.

2. In the address bar, type 192.168.1.168 (default IP address of the camera) and then press the Enter button.

3. You will be prompted with a pop-up window asking for login information, type in “admin” (default login name) and

“9999” (default password)

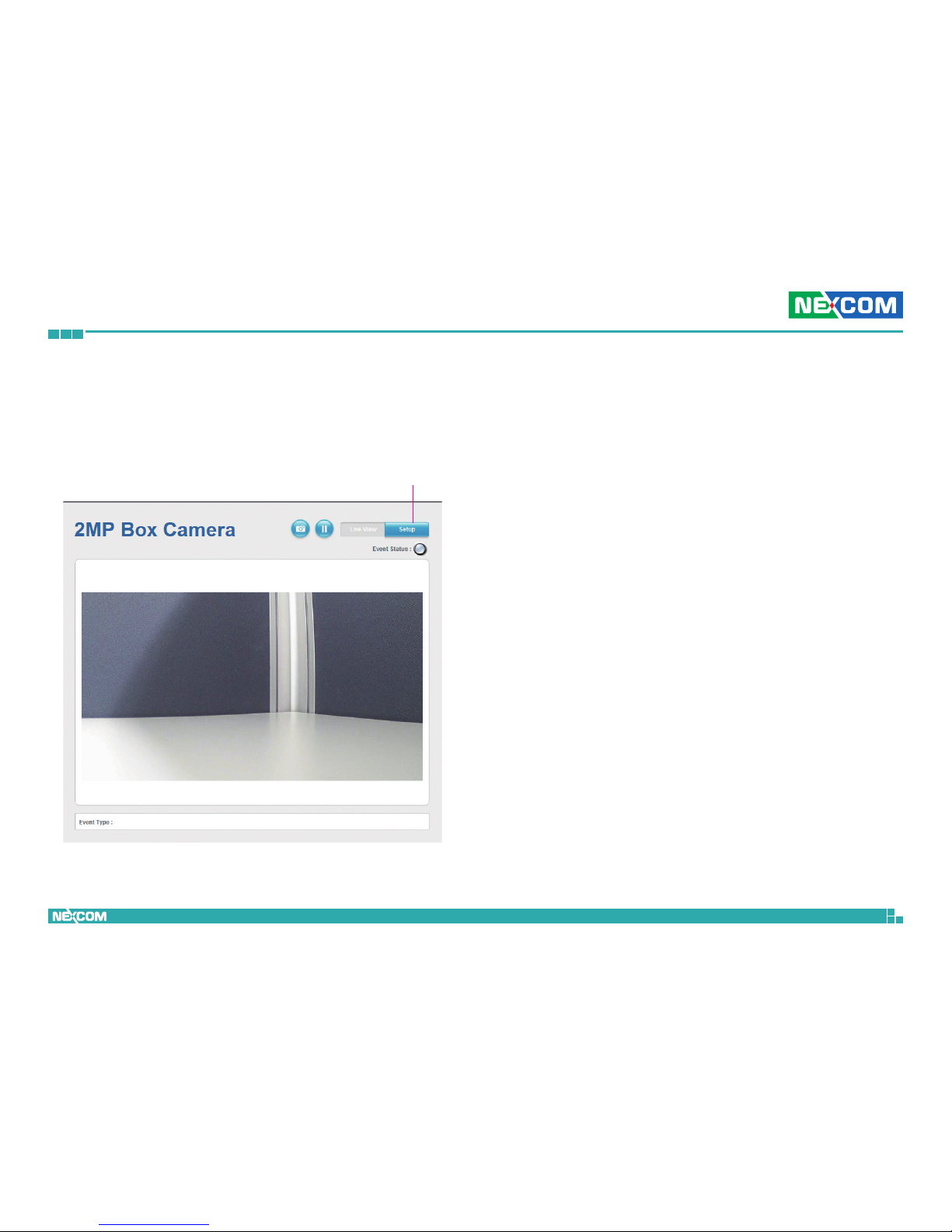

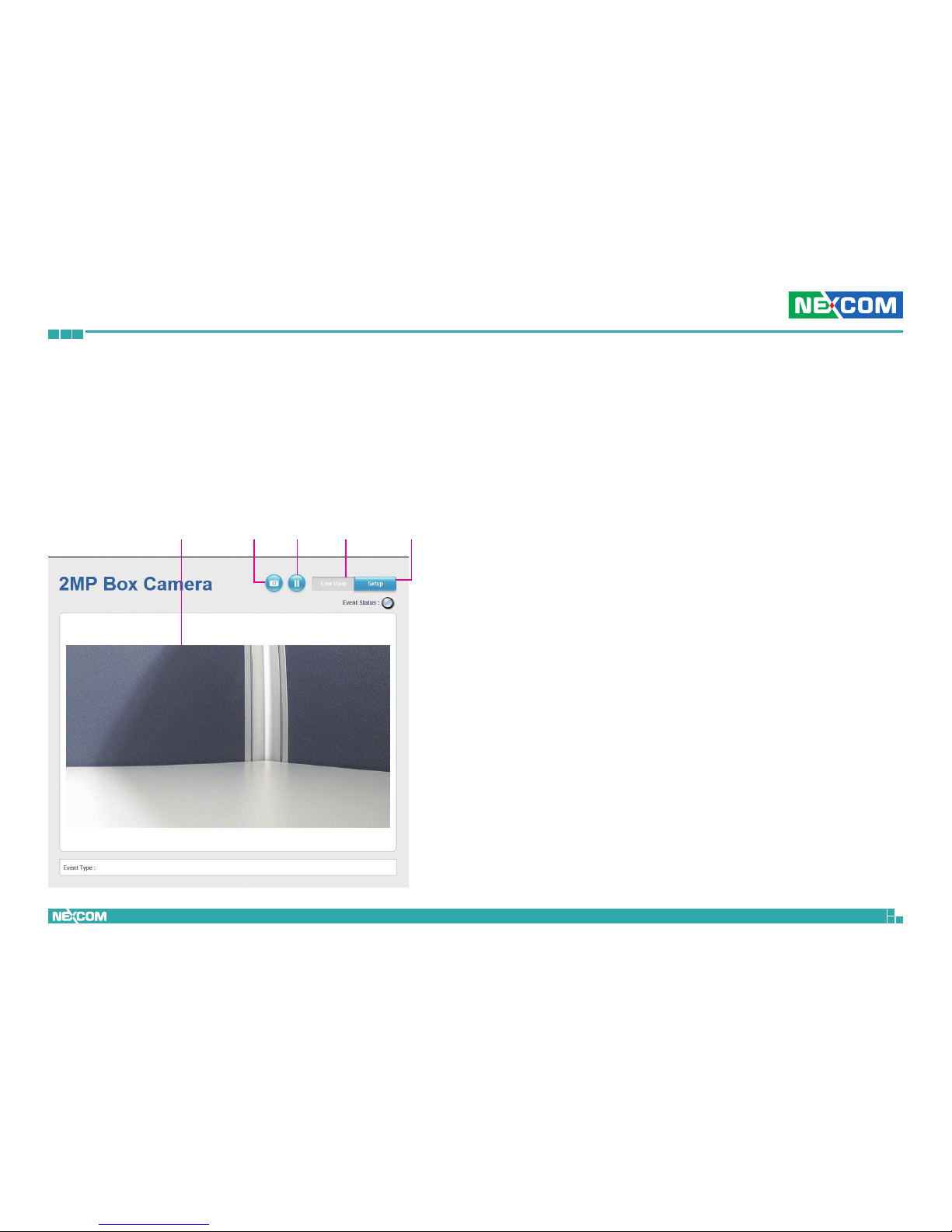

4. Once logged in, you will see the main screen with video stream [stream 3]

Web Browser (Internet Explorer)

Snapshot

Takes a image snapshot from the camera, you will be prompted to store the image file onto the computer’s hard drive.

Start/Stop

Press to stop the live video, press again to restart.

Viewer

Views the live video of the camera.

Setup

Options for configuring the IP camera.

10

NCb-231 User Manual

Chapter 2: Camera Configuration

Configuring the Camera’s Setting

1. To configure the camera’s setting, click on the Setup button on the main screen to enter the configuration menu.

Setup

11

NCb-231 User Manual

Chapter 2: Camera Configuration

Browsing Through the Configuration Menu

The layout of the configuration menu is split into two sections. All the camera settings are located on the left hand side of the interface, clicking it will open their corresponding sub-menu on the right.

The following are the camera settings available on the left hand side:

▪ Video

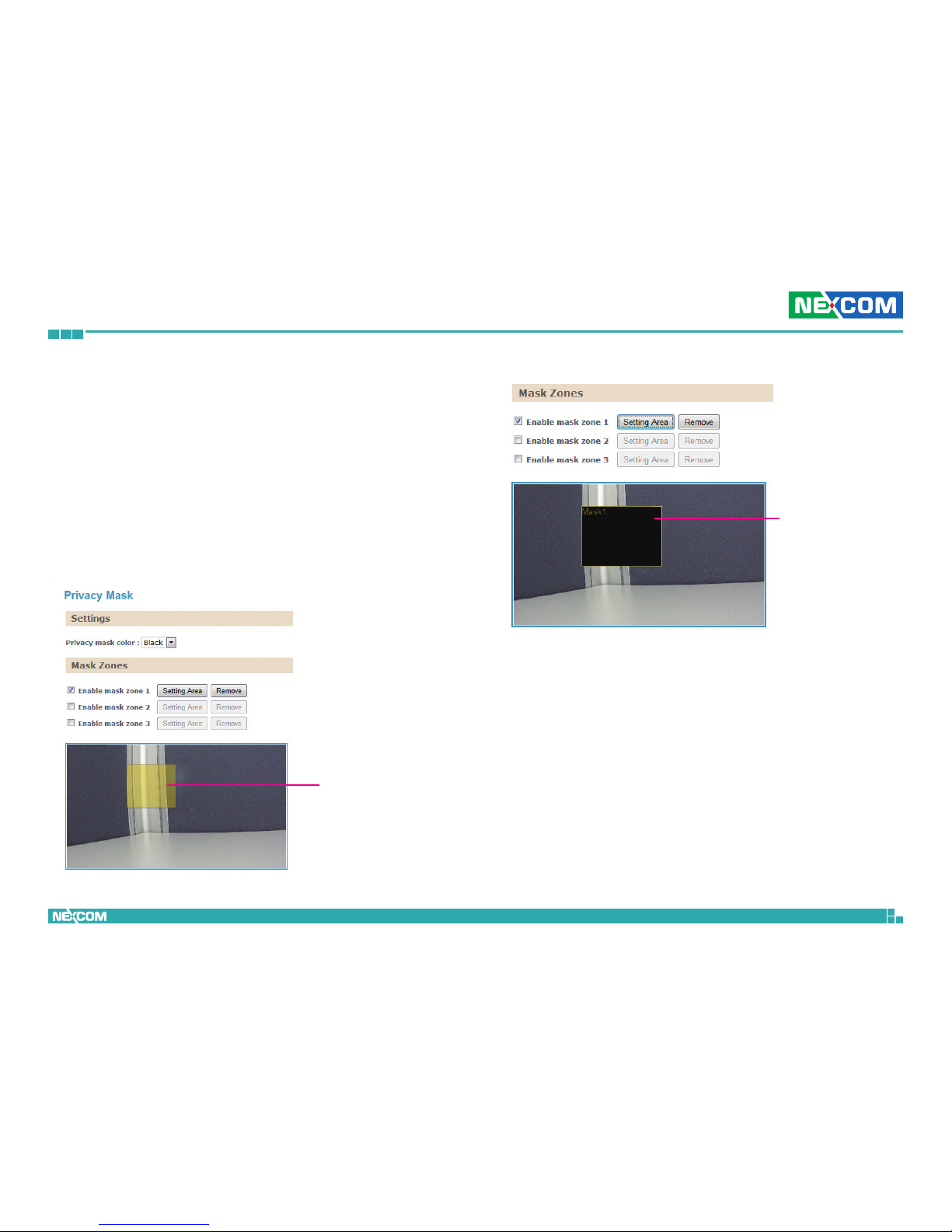

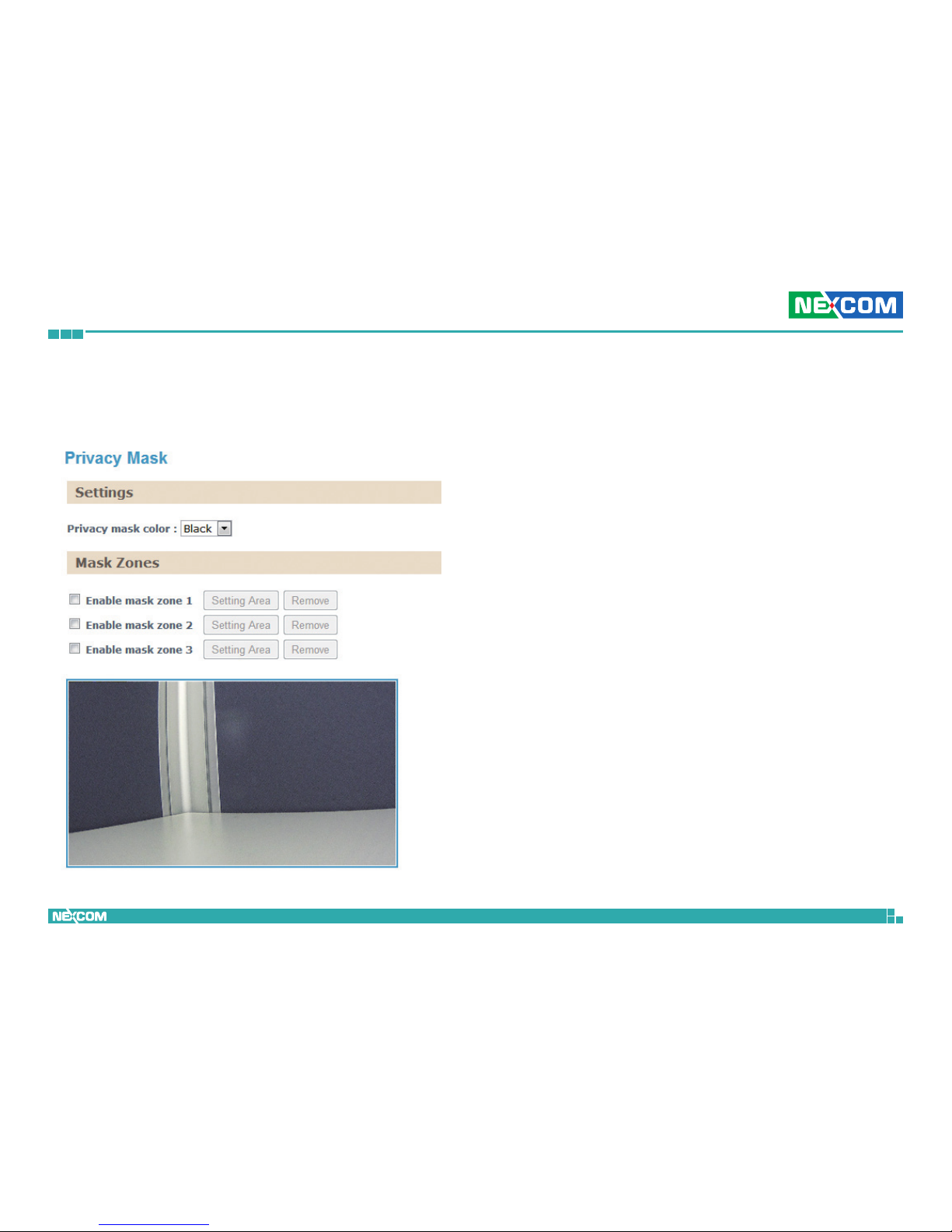

– Video Stream – Camera Settings – Overlay Settings – Privacy Mask

▪ Network

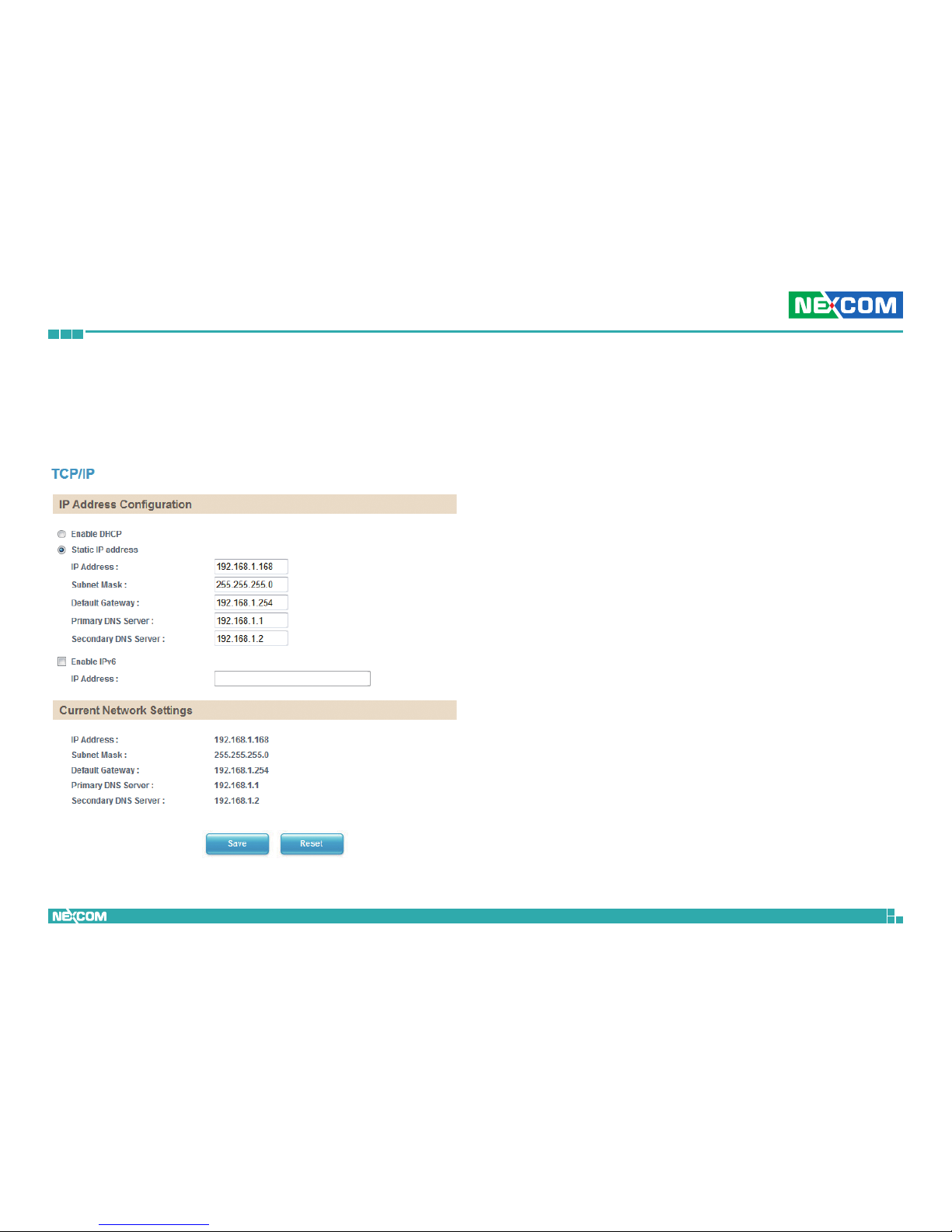

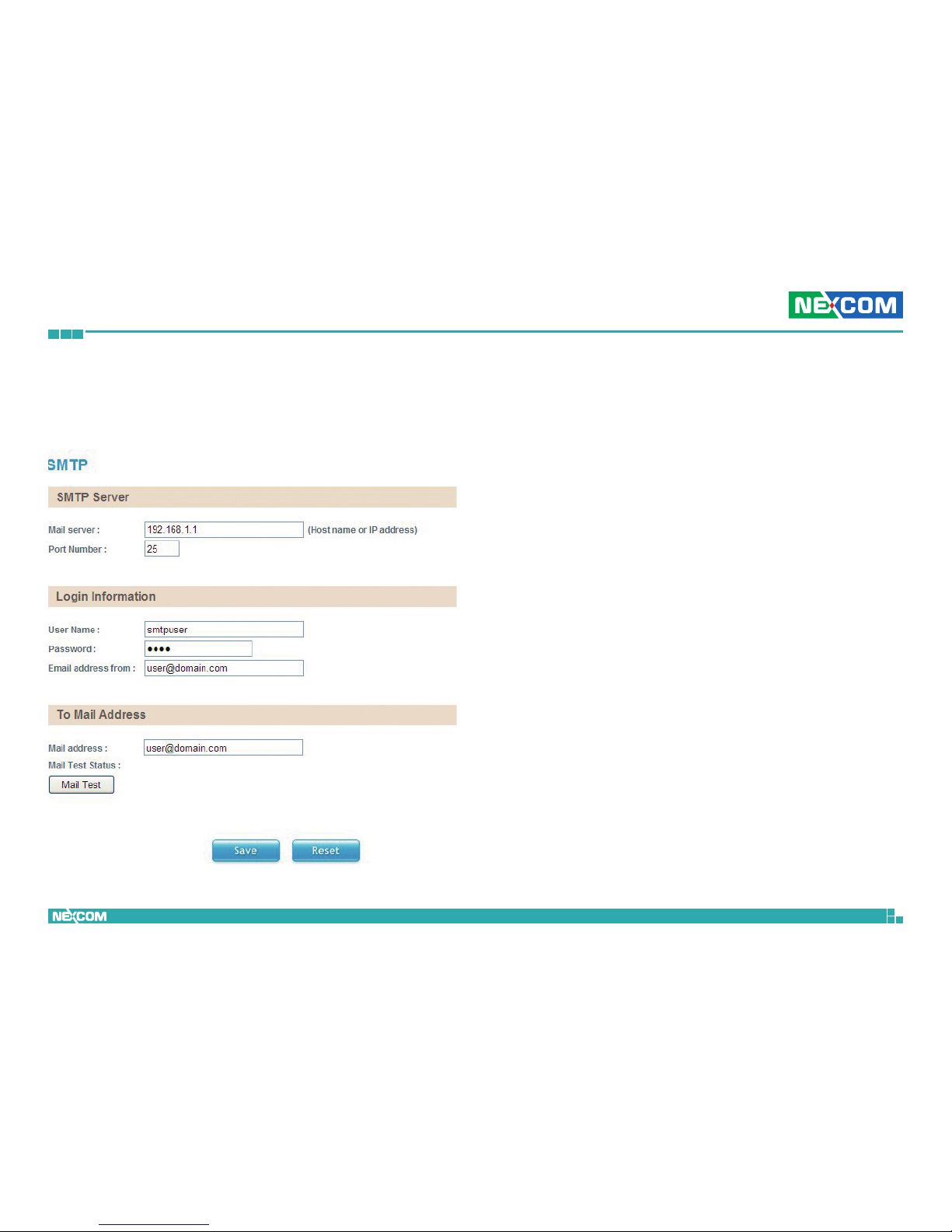

– TCP/IP – FTP – SMTP – Ports

▪ Events

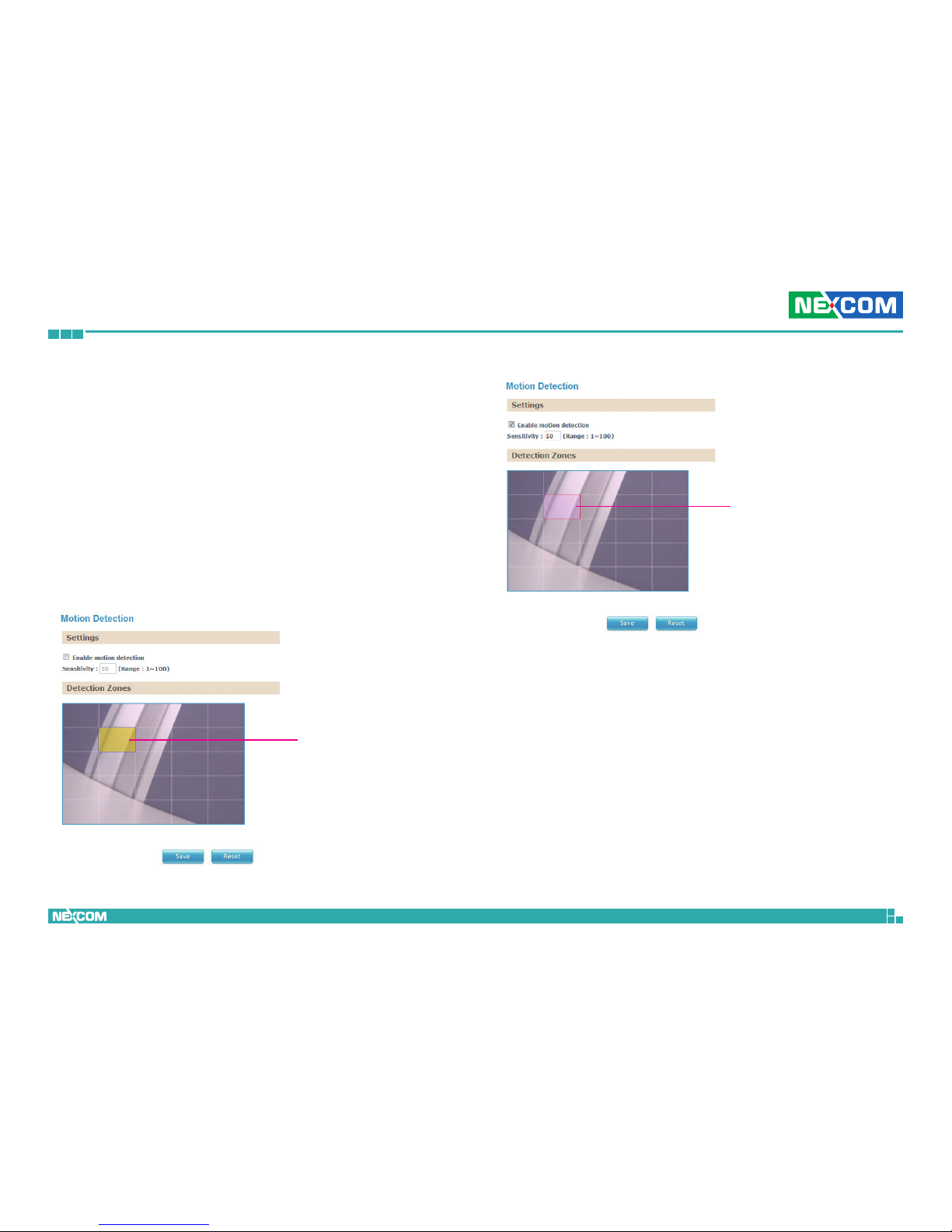

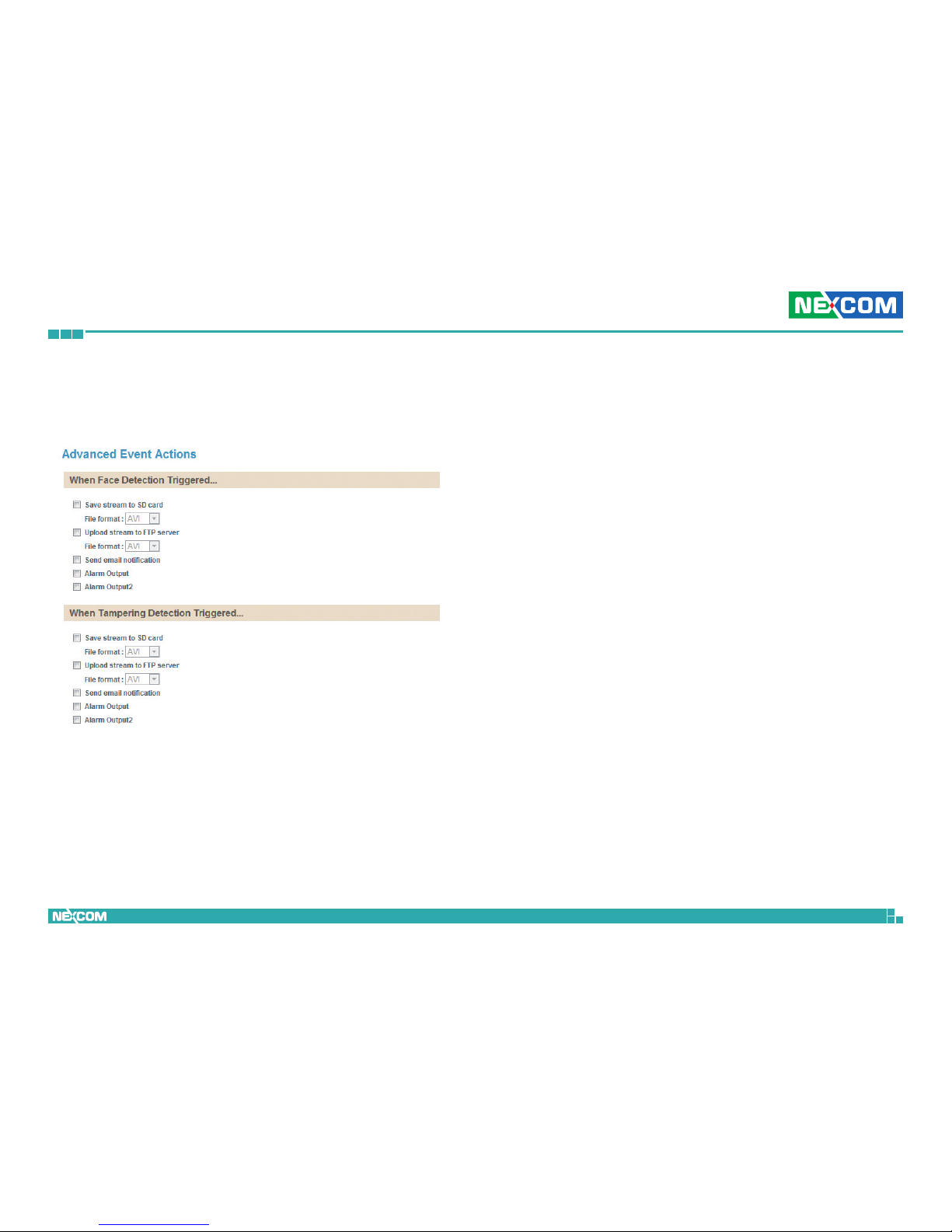

– Motion Detection – Alarm In/Out Trigger – Event Actions

▪ System

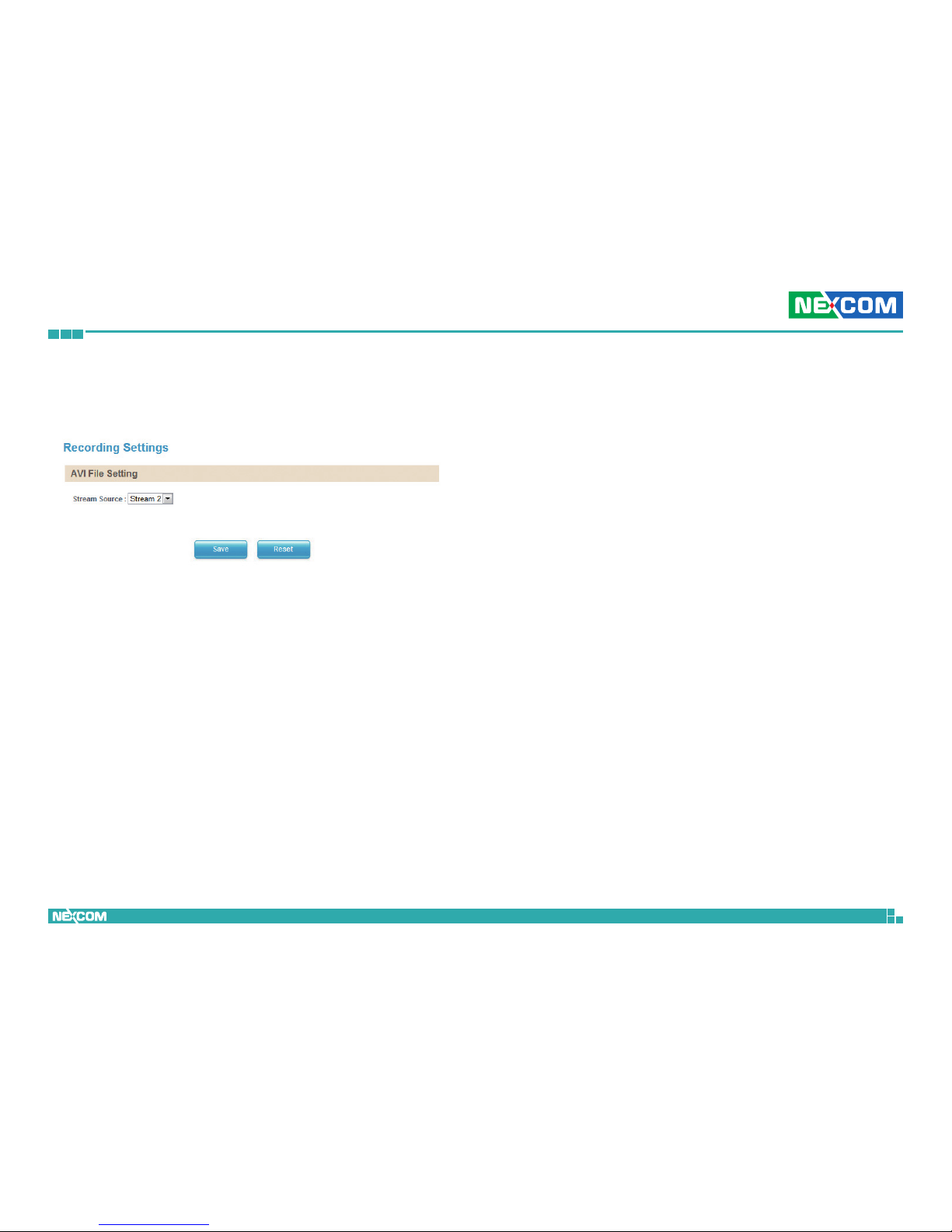

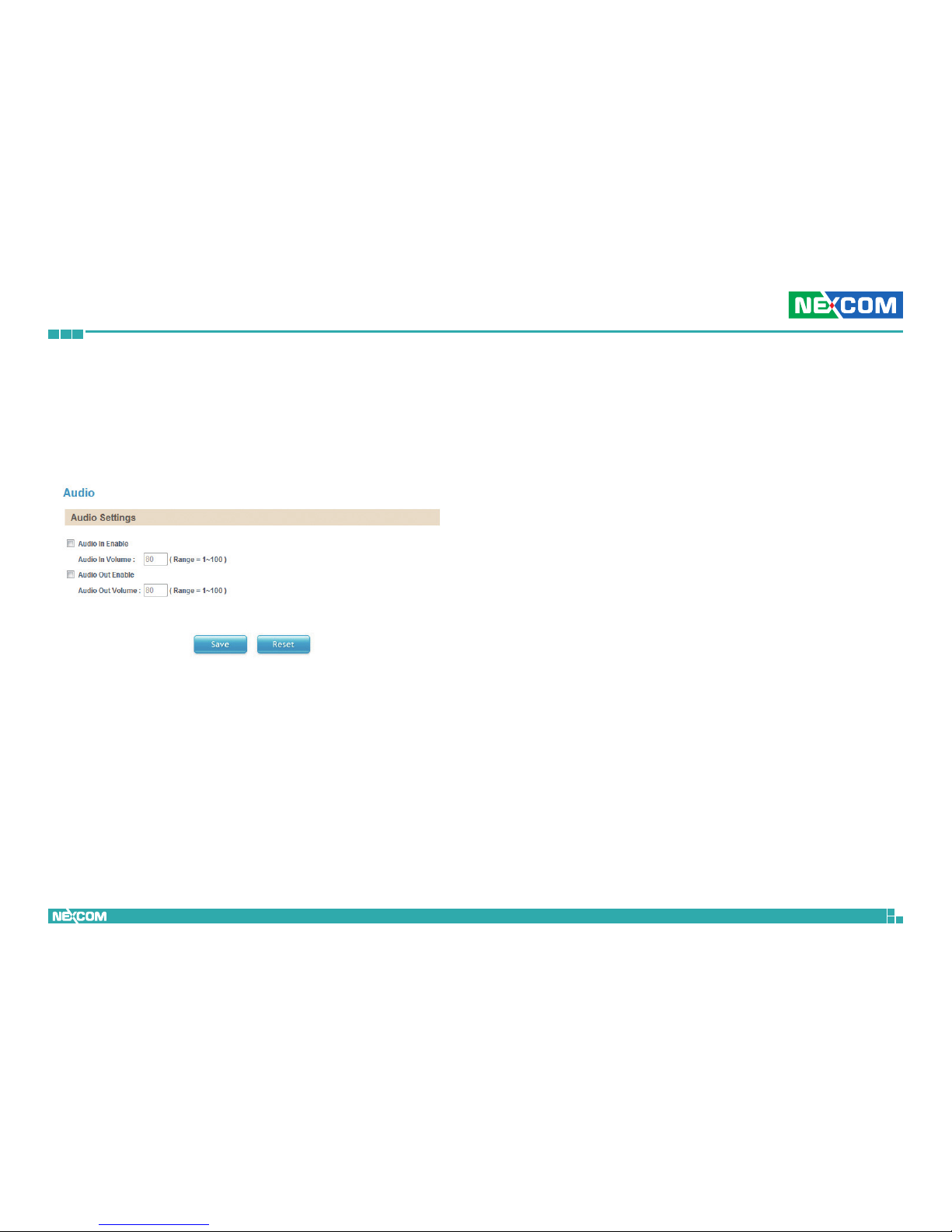

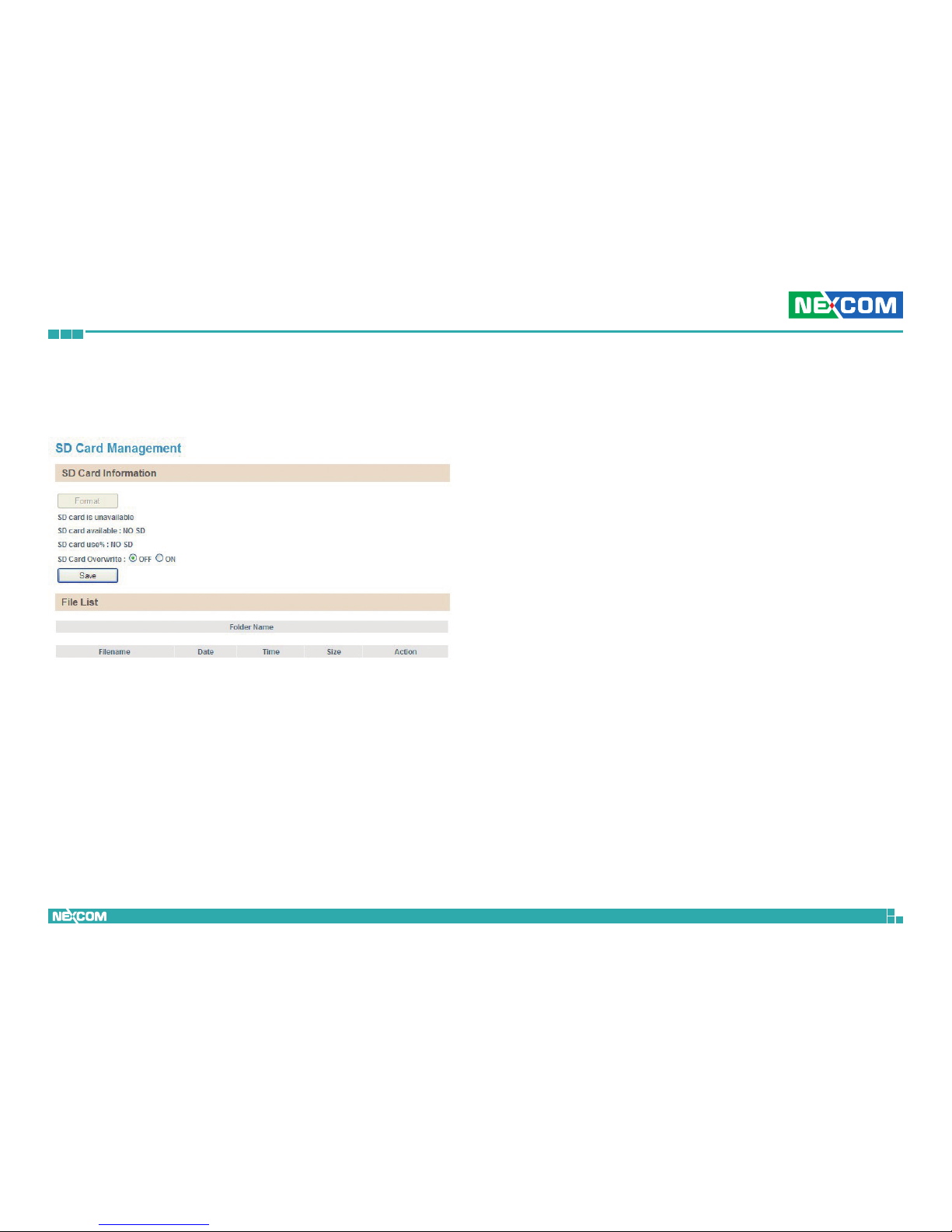

– Audio Settings – Recording Settings – User Management – SD Card Management – Date & Time – Firmware Upgrade – Maintenance

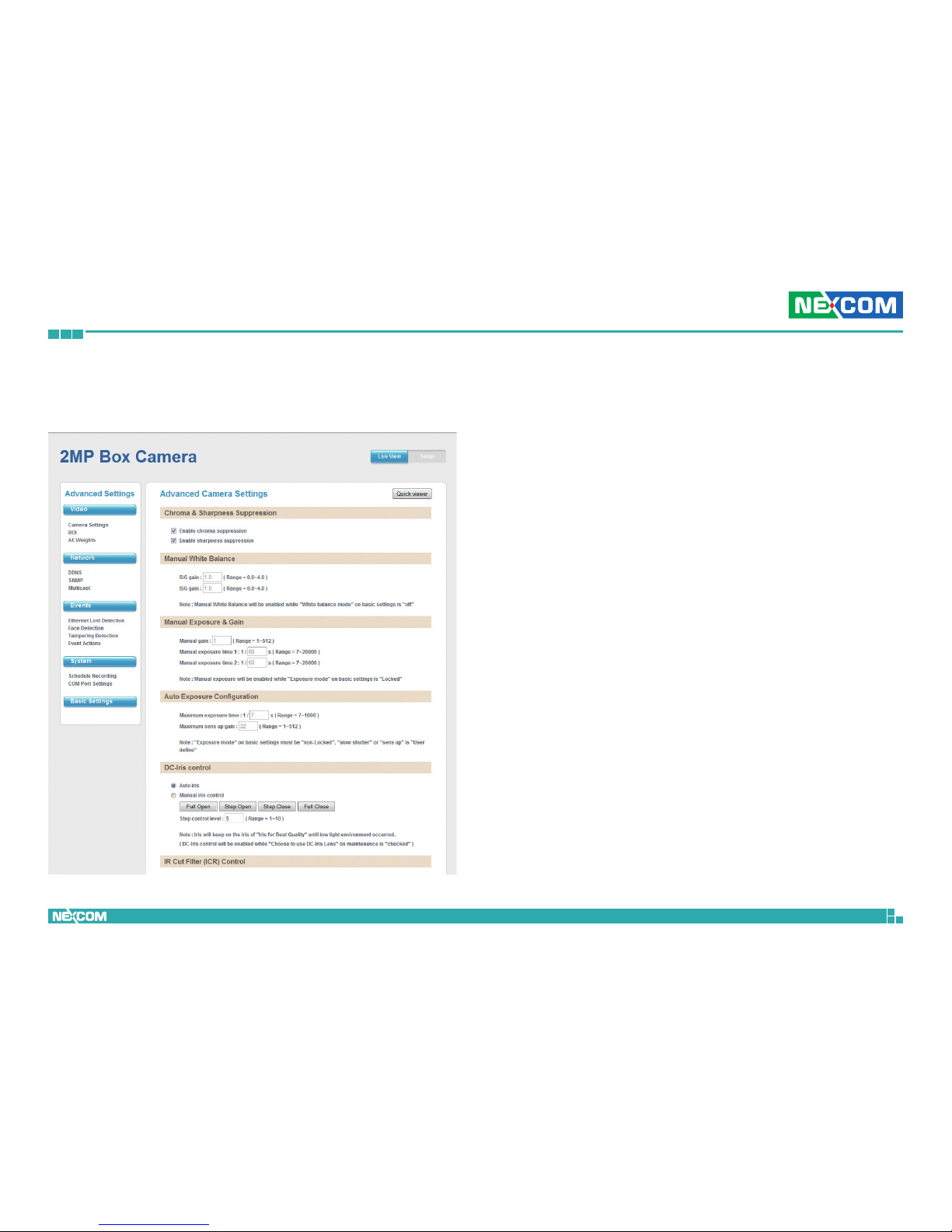

▪ Advanced Settings

12

NCb-231 User Manual

Chapter 2: Camera Configuration

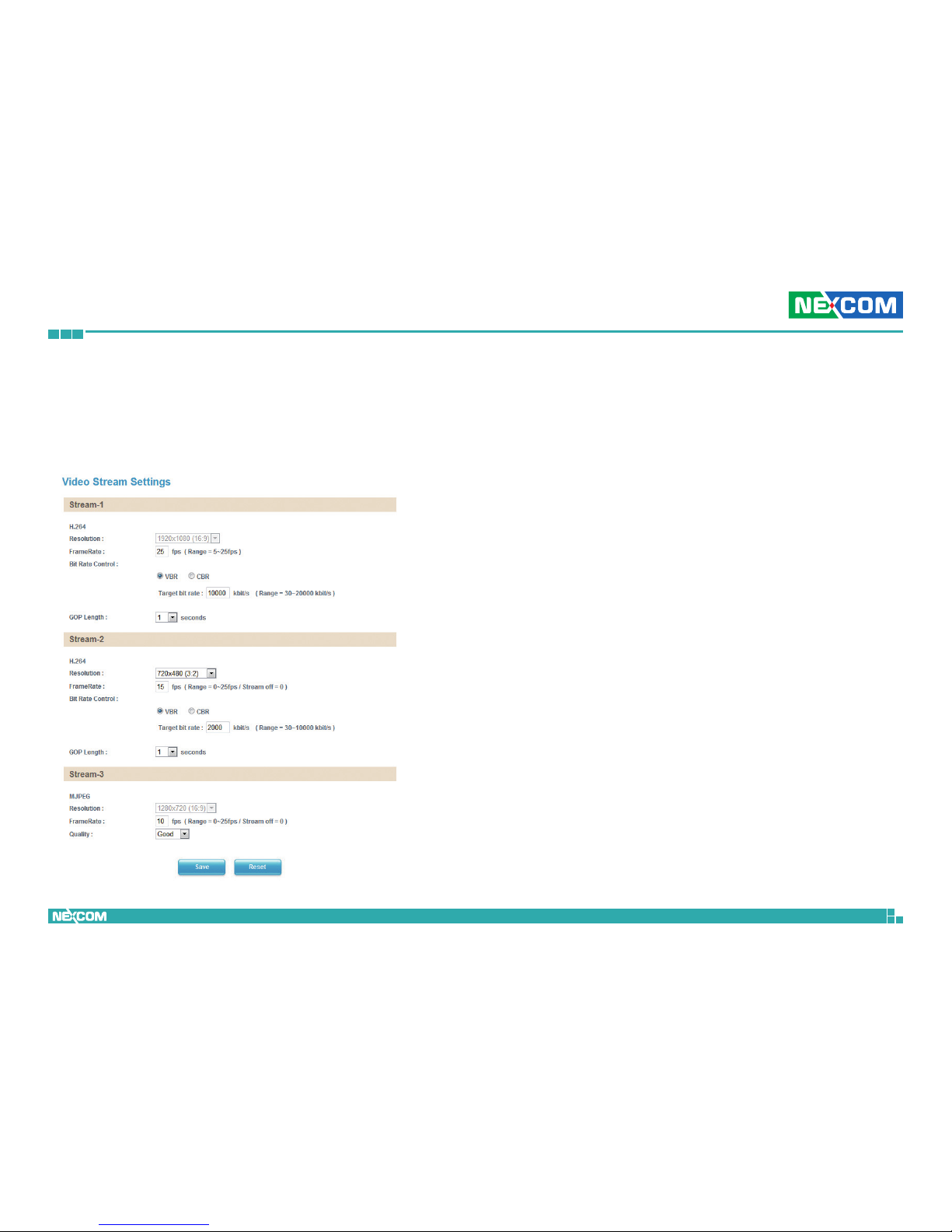

Stream 1

Resolution

Displays the resolution of the video stream.

FrameRate

Adjusts the frame rate of the video stream, the range is 5~25FPS.

Bit Rate Control

Configures the Bit Rate Control mode as VBR (variable bit rate), or CBR (constant bit rate) for the stream.

Target Bit Rate

If the Bit Rate Control is set to CBR, you can manually set the bit rate in this field, the range is 30~20000kbit/s.

GOP Length

Configures the GOP length of the stream. The options are 0.5, 1, 2, 3 and 4, setting “0.5 seconds” will yield the best video quality.

Video

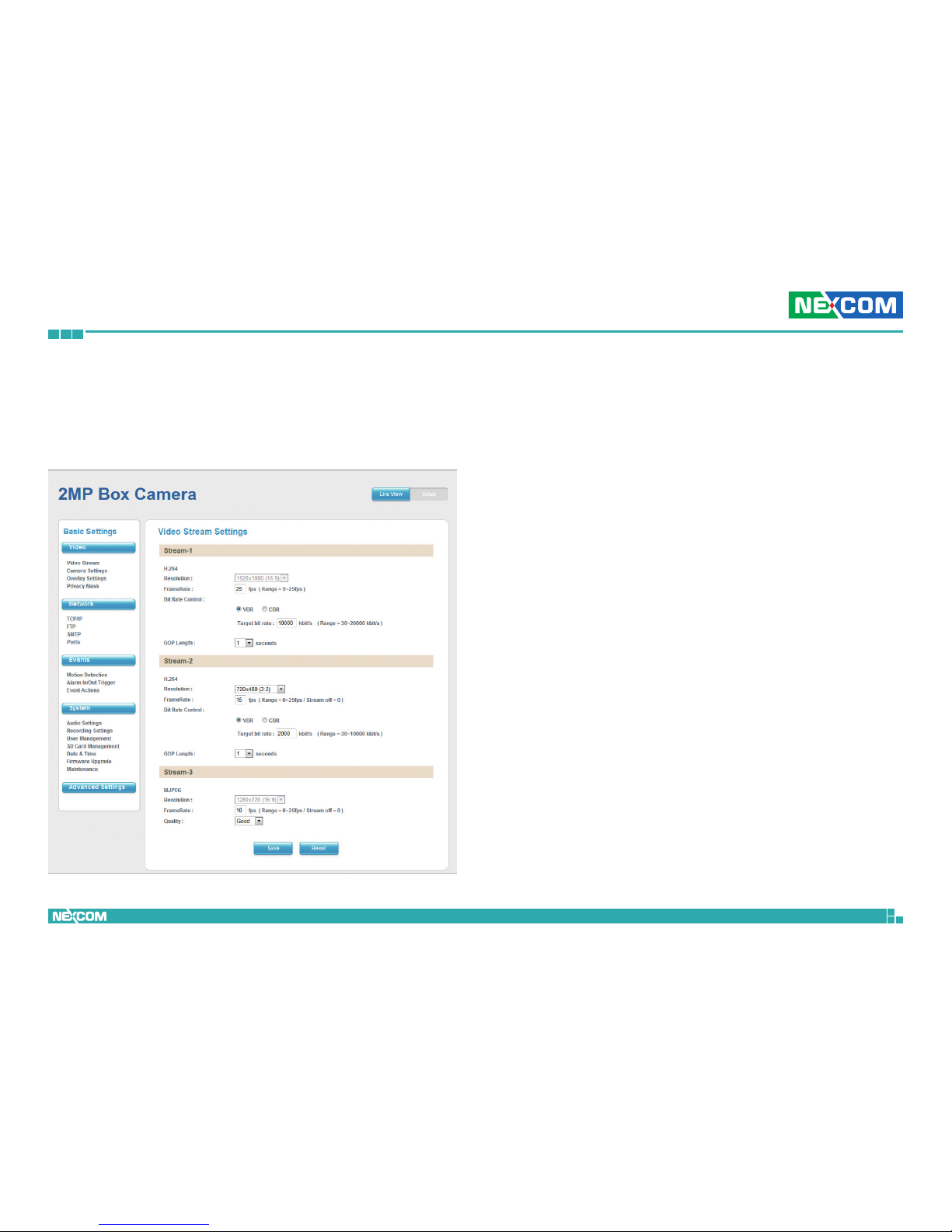

Video Stream

This section configures the settings of the video stream. There are 3 video streams available, the live video from the main screen Viewer is stream 1.

13

NCb-231 User Manual

Chapter 2: Camera Configuration

Stream 2

Resolution

Configures the resolution of the video stream. The available options are 1280x720(16:9), 720x480(3:2), 720x576(5:4), 640x480(4:3) and

320x240(4:3).

FrameRate

Adjusts the frame rate of the video stream. Setting 0 will disable the stream.

Bit Rate Control

Configures the Bit Rate Control mode as VBR (variable bit rate), or CBR (constant bit rate) for the stream.

Target Bit Rate

If the Bit Rate Control is set to CBR, you can manually set the bit rate in this field, the range is 30~10000kbit/s.

GOP Length

Configures the GOP length of the stream. The options are 0.5, 1, 2, 3 and 4, setting “0.5 seconds” will yield the best video quality.

Stream 3

Resolution

Displays the resolution of the video stream.

FrameRate

Adjusts the frame rate of the video stream. Setting 0 will disable the stream.

Quality

Configures the video quality of the stream. The options are Best, Good and Normal.

Save

Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect.

Reset

Reset button to discard all the settings applied.

14

NCb-231 User Manual

Chapter 2: Camera Configuration

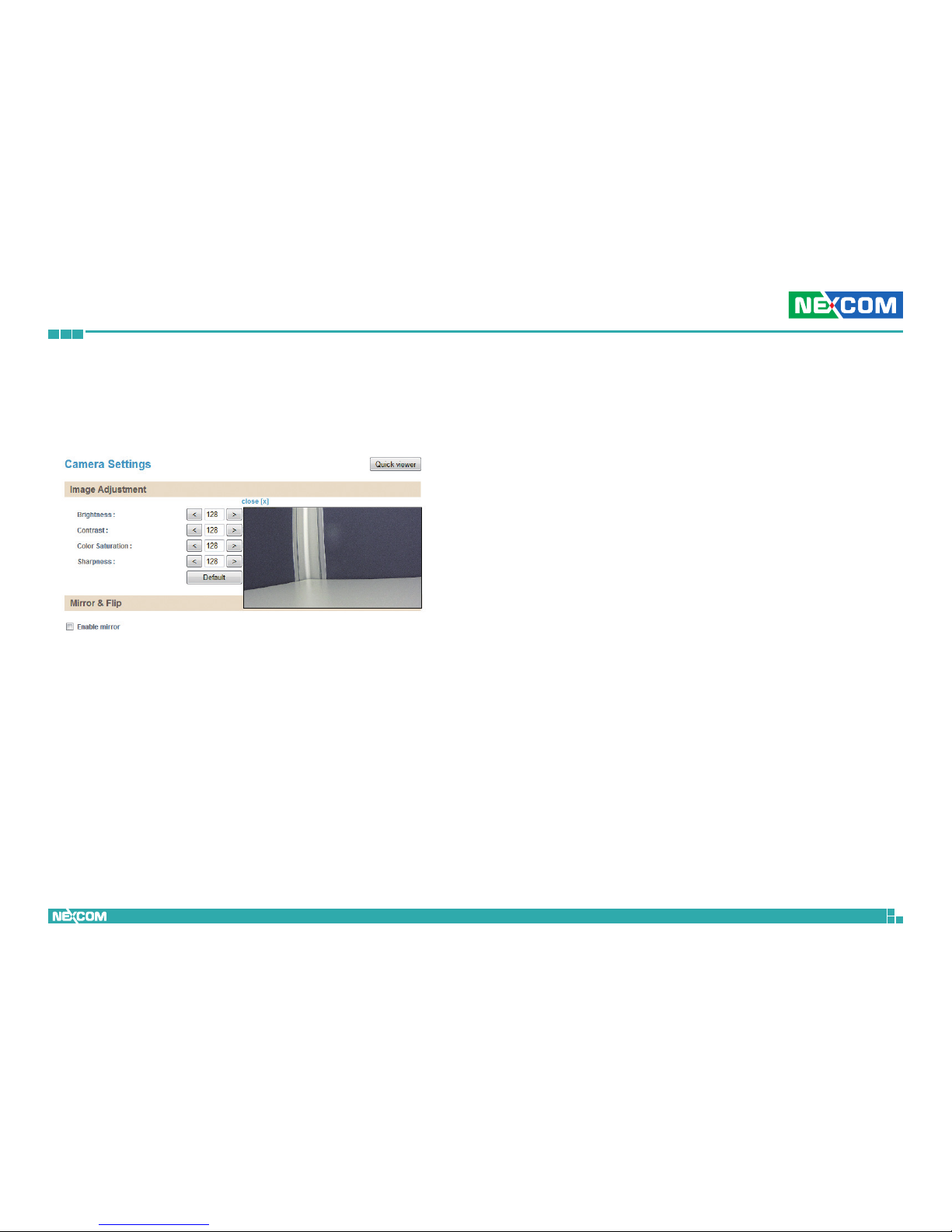

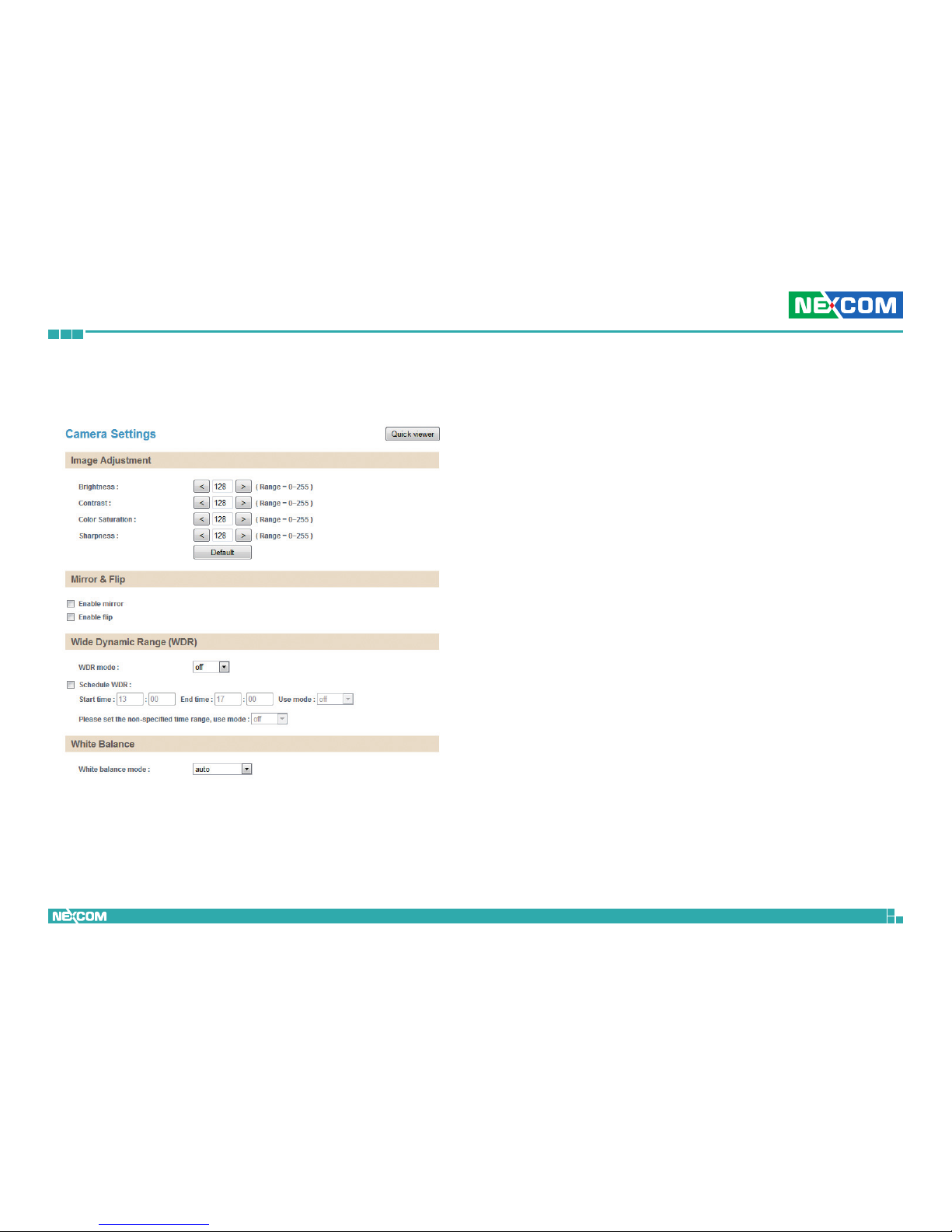

Camera Settings

This section adjusts the camera’s image settings.

Image Adjustments

Brightness

Configures the brightness of the image, the range is 0 ~ 255, with 0 being the lowest brightness. Press the < button to decrease the value, or > button to increase the value. The default value is 128.

Contrast

Configures the contrast of the image, the range is 0 ~ 255, with 0 being the lowest contrast. Press the < button to decrease the value, or > button to increase the value. The default value is 128.

Color Saturation

Configures the color saturation of the image, the range is 0 ~ 255, with 0 being the lowest saturation. Press the < button to decrease the value, or > button to increase the value. The default value is 128.

Sharpness

Configures the sharpness of the image, the range is 0 ~ 255, with 0 being the lowest sharpness. Press the < button to decrease the value, or > button to increase the value. The default value is 128.

Default

Default button to discard all the settings applied to Image Adjustments.

15

NCb-231 User Manual

Chapter 2: Camera Configuration

Wide Dynamic Range (WDR)

WDR Mode

Enables or disables WDR function, enable this option if the camera is exposed to bright backlight, glare or high contrast lighting. You can specifiy the WDR constrast level as low, middle or high. Selecting high will produce the best image quality.

Schedule WDR

Enables or disables WDR function to activate at the specified time. You can configure the Start Time and End Time in 24-hour format.

Use Mode (During Scheduled Hours)

Selects the WDR constrast level to use during the scheduled time.

Use Mode (Outside of the Scheduled Hours)

Selects the WDR constrast level to use outside of the scheduled time.

Mirror & Flip

Enable Mirror

Flip the camera image horizontally.

Enable Flip

Flip the camera image vertically.

QuickViewer

Click this button to open up a small preview window of the live video, you can view the image as you make image adjustments. Click the Save button for the changes to take effect.

16

NCb-231 User Manual

Chapter 2: Camera Configuration

White Balance

White Balance Mode

Enables or disables the white balance function on the camera. White balance allows the camera to produce more accurate colors under different lighting conditions. The following modes can be selected:

Off: Disables white balance function. Auto: Automatically adjusts the white balance to suit the current lighting condition. Fixed Outdoor: Adjusts the white balance for outdoor daylight. Incandescent: Adjusts the white balance for indoor light. Fluorescent: Adjusts the white balance for fluorescent light.

Exposure

Exposure Mode

This option configures the anti-flickering function of the camera. If the image is suffering from flickering under fluorescent light, selecting Auto will allow the camera to automatically adjust the light frequency to match the current fluorescent lighting condition and prevent flickering. You can also manually set it to Anti-Flicker 50Hz, Anti-Flicker 60Hz or Locked.

Exposure Value Adjust

Adjusts the exposure value on the camera, the range is 0 ~ 255. Press the < button to decrease the value, or > button to increase the value. The default value is 128.

Camera Settings Cont.

17

NCb-231 User Manual

Chapter 2: Camera Configuration

Enable Slow Shutter

Enables or disables slow shutter on the camera, you can select the shutter speed in drop the list. The options are 1/7, 1/15, 1/30. Selecting a slower shutter speed will improve image quality in low light conditions, but will increase motion blur.

Enable Sens Up

Enables or disables gain setting on the camera, you can select the maximum level of amplification in the drop down list. The options are 4x, 8x, 16x and 32x. A higher value will produce brighter images, but may also increase image noise.

Enable Backlight Compensation

Enables or disables backlight compensation function, enable this option if an image in the camera is too dark.

Day & Night

Configures the day and night mode of the camera.

Auto: Allows the camera to automatically sense the current lighting level and determine what type of color range it should display.

Forced Color: Forces the camera to display color regardless of the current lighting level.

Forced Black & White: Forces the camera to display black & white images regardless of the current lighting level.

Schedule Day & Night

Enables day and night mode to activate at the specified time. You can configure the Start Time and End Time in 24-hour format.

Use Mode (During Scheduled Hours)

Selects the color mode to use during the scheduled time.

Use Mode (Outside of the Scheduled Hours)

Selects the color mode to use outside of the scheduled time.

Save

Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect.

Reset

Reset button to discard all the settings applied.

18

NCb-231 User Manual

Chapter 2: Camera Configuration

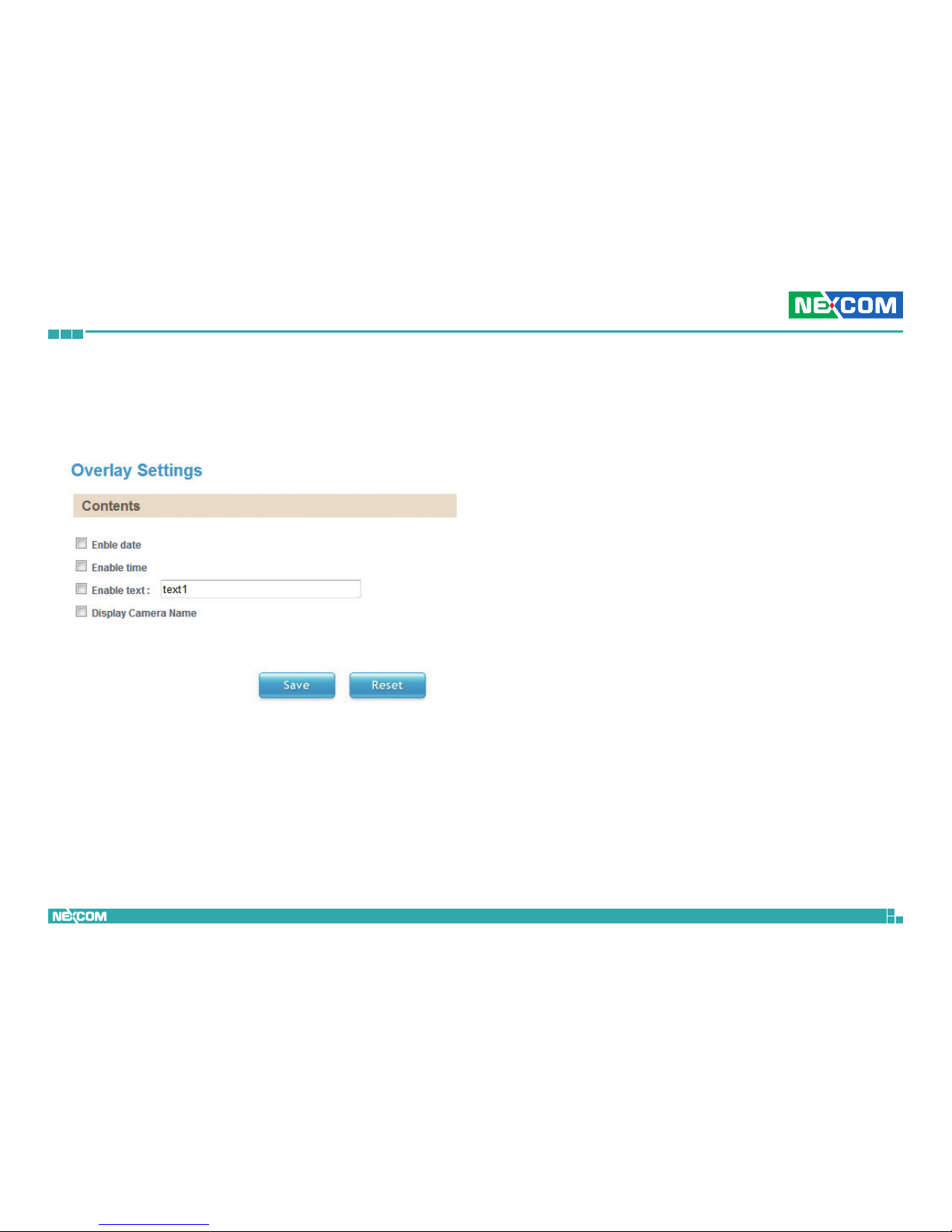

Overlay Settings

This section configures the text displayed on the live video in Viewer.

Contents

Enable Date

Enables or disables the Viewer to display the current date on the bottom right corner.

Enable Time

Enables or disables the Viewer to display the current time on the bottom right corner.

Enable Text

Enables or disables the Viewer to display text on the upper right corner. The text displayed can be configured in the field box.

Display Camera Name

Enables or disables the Viewer to display the camera’s name on the upper left corner. The name displayed can be configured in the Maintenance menu. For information on Maintenance menu, please refer to page 37.

Save

Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect.

Reset

Reset button to discard all the settings applied.

19

NCb-231 User Manual

Chapter 2: Camera Configuration

Privacy Mask

This section configures which area of the live video in Viewer will be masked for privacy. A total of 3 privacy masks can be configured.

Settings

Privacy Mask Color

Selects the color of the privacy mask. The available colors are Black and White.

20

NCb-231 User Manual

Chapter 2: Camera Configuration

Mask Zones

You can configure up to 3 privacy masks, the instructions below illustrate how to setup 3 privacy masks.

1. Select the color of the mask in the drop down list.

2. To create the first mask, check the Enable mask zone 1, and on the

live video screen below, select the area to mask by holding down the mouse button and drag to make a rectangular square, release the button once the desired area is covered.

3. Press the Setting Area button in Enable mask zone 1 to set this area

as mask.

4. You will see the selected area turn black or white, depending on which

color was chosen (This example uses black as the mask color).

Rectangular square

Mask area

5. To create the second and third mask, check the Enable mask zone 2 and Enable mask zone 3 options, then repeat steps 2 to 3 outlined earlier.

To delete a mask, check the zone number you like to remove, and press the Remove button.

21

NCb-231 User Manual

Chapter 2: Camera Configuration

Network

TCP/IP

This section configures the network settings of the camera.

IP Address Configuration

Enable DHCP

Enables DHCP, use this feature if the camera is connected to a network with DHCP server.

Static IP Address

To manually configure an IP address, select this option and input the IP address, subnet mask, default gateway, primary and secondary DNS server address.

Enable IPv6

To manually configure an IPv6 address, select this option and input the IPv6 address.

Current Network Settings

Displays the current IP address, subnet mask, default gateway, primary and secondary DNS server address of the camera.

Save

Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect.

Reset

Reset button to discard all the settings applied.

22

NCb-231 User Manual

Chapter 2: Camera Configuration

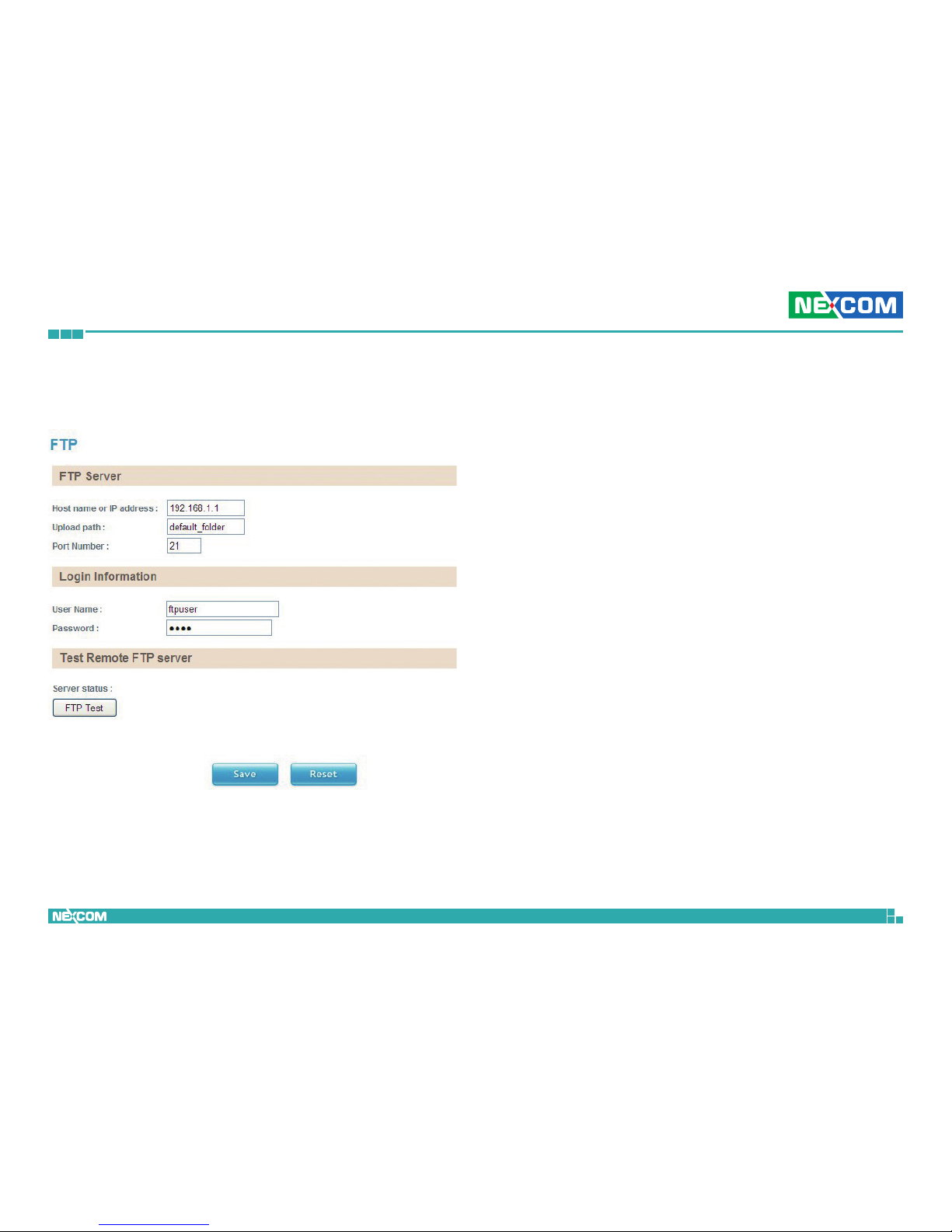

FTP

This section configures the FTP server address that the camera will connect to.

Upload Path

Specify the directory that the camera will upload data to.

Port Number

Specify the port number of the FTP server.

Login Information

Username

Specify the login username for the FTP server.

Password

Specify the login password for the FTP server.

Test Remote FTP Server

Server Status:

Displays the status of the test connection.

FTP Test

Tests the network connection between the camera and FTP server.

Save

Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect.

Reset

Reset button to discard all the settings applied.

FTP Server

Host Name or IP Address

Specify the host name or IP address of the FTP server.

23

NCb-231 User Manual

Chapter 2: Camera Configuration

SMTP

This section configures the SMTP mail server address that the camera will use for sending emails.

SMTP Server

Mail Server

Specify the host name or IP address of the SMTP mail server.

Port Number

Specify the port number of the SMTP mail server.

Login Information

Username

Specify the login username for the SMTP mail server.

Password

Specify the login password for the SMTP mail server.

Email Address From

Specify the email address of the sender.

To Mail Address

Mail Address

Specify the email address to send the email when an event is triggered by motion detection.

Mail Test Status

Displays the status of the test connection.

Mail Test

Tests the network connection between the camera and mail address.

Save

Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect.

Reset

Reset button to discard all the settings applied.

24

NCb-231 User Manual

Chapter 2: Camera Configuration

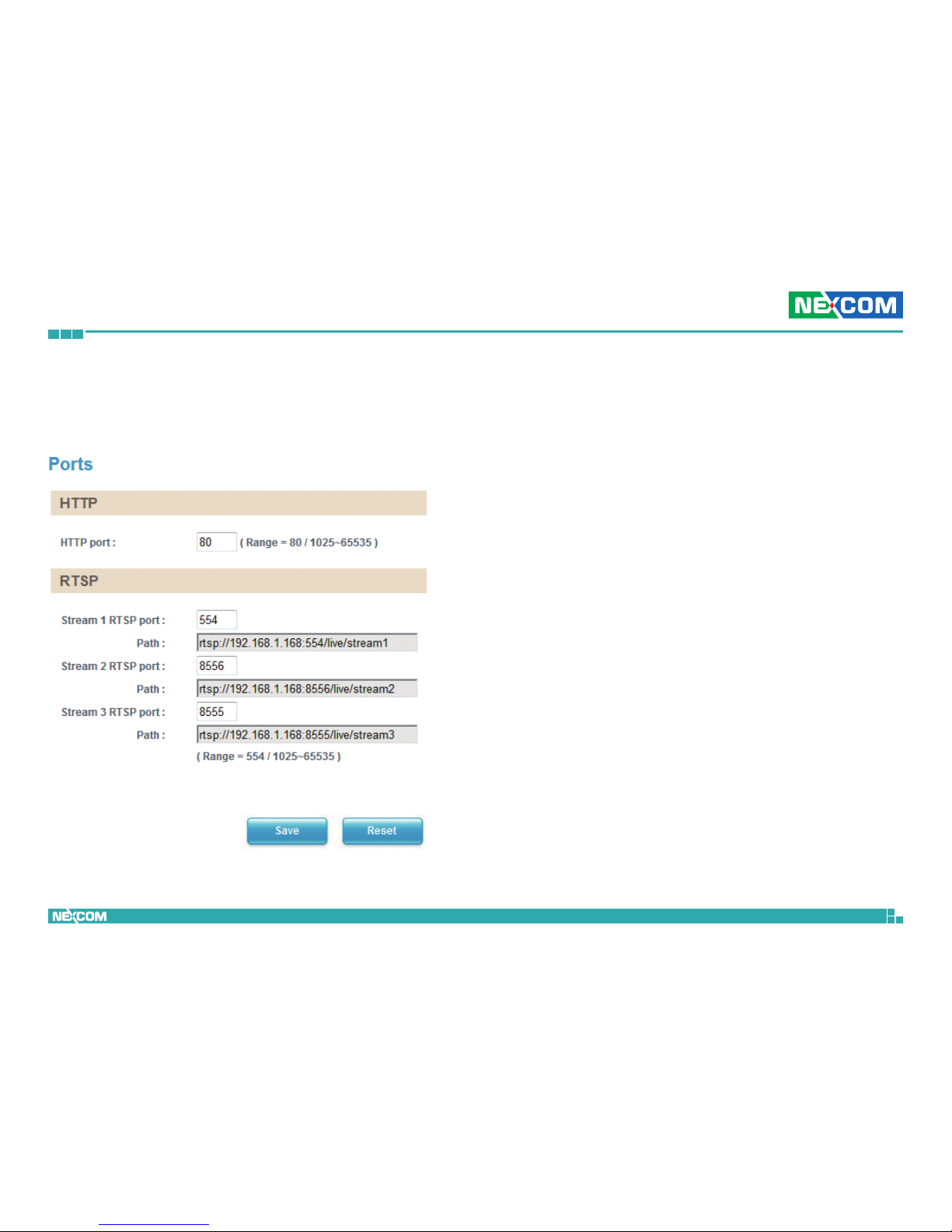

Ports

This section configures the HTTP port number of the web configuration menu and RTSP port number of stream 1 to 3.

HTTP

HTTP Port

Configures the HTTP port number of the web configuration menu.

RTSP

Stream 1 to 3 RTSP Port

Configures the RTSP port number of stream 1 to 3, and displays the URL of stream 1 to 3. The range is 554/1025~65535.

Default URL of Stream 1: rtsp://cameraIP:554/live/stream1 Default URL of Stream 2: rtsp://cameraIP:8556/live/stream2 Default URL of Stream 3: rtsp://cameraIP:8555/live/stream3

Save

Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect.

Reset

Reset button to discard all the settings applied.

25

NCb-231 User Manual

Chapter 2: Camera Configuration

Events

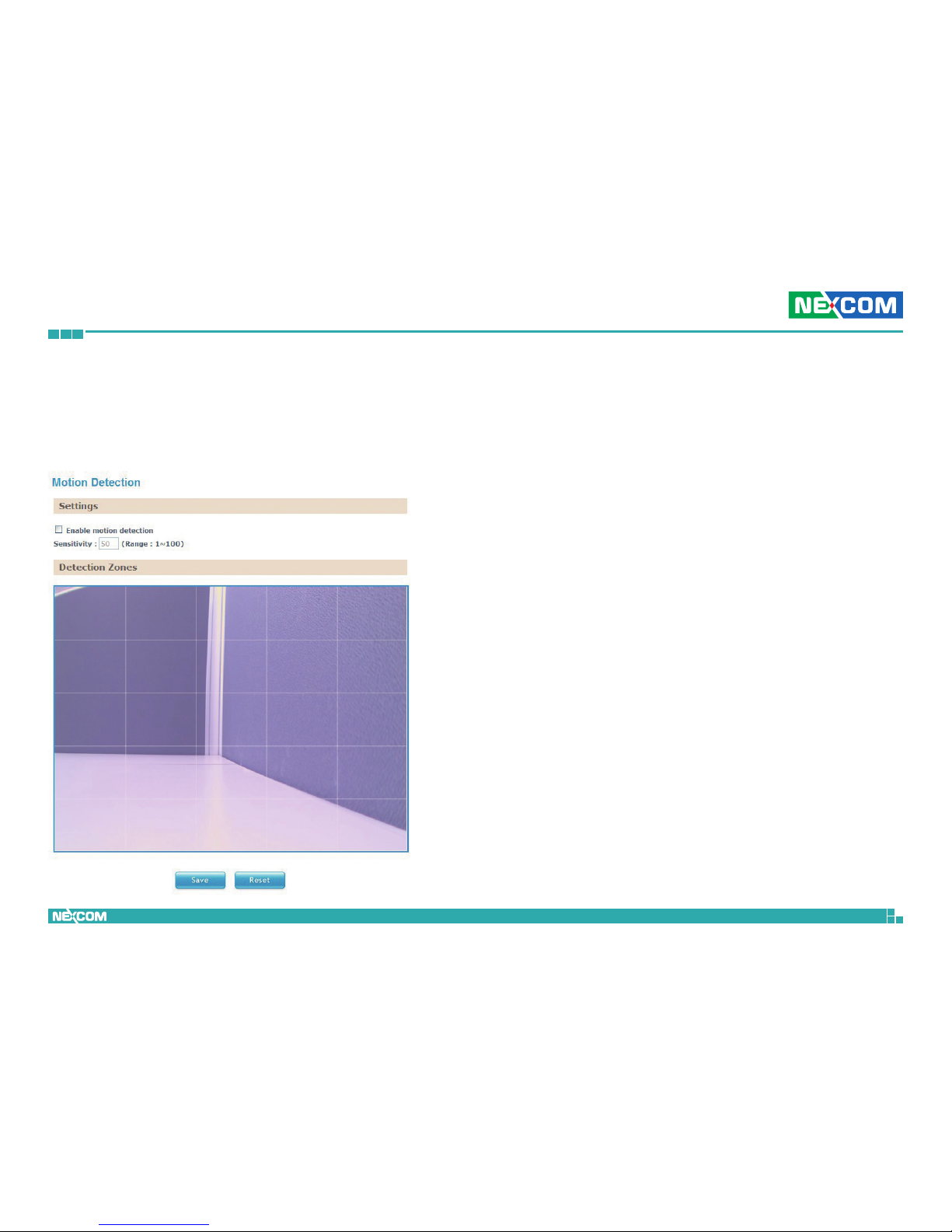

Motion Detection

This section configures which area of the live video in Viewer will be monitored for detecting motion.

Settings

Enable Motion Detection

Enables or disables motion detection function.

Sensitivity

Configures the sensitivity of motion detection, the sensitivity determines the amount of motion required to trigger an event, the range is 1 to 100, with 1 being the least sensitive. For more information on event, please refer to Event Actions on page 28.

26

NCb-231 User Manual

Chapter 2: Camera Configuration

Detection Zones

This section shows the live video from the camera, the screen is divided into 5x5 rectangular boxes, to setup motion detection, please follow the instructions below.

1. Check the Enable motion detection option, and specify the sensitivity level.

2. In the live video screen below, select the desired area for motion detection by clicking on the rectangular box. The border of the box will turn red indicating that it is selected. You can select multiple boxes, up to 5x5 boxes can be selected.

3. Press the Save button once all the desired areas are selected for the changes to take effect.

Highlighted box

Area with motion detect enabled

To remove motion detection from an area, click the box to deselect it, then press the Save button for the changes to take effect.

27

NCb-231 User Manual

Chapter 2: Camera Configuration

Alarm In/Out Trigger

This section configures the IP camera to work with external alarm in/out devices.

Alarm In 1 Control and Alarm In 2 Control

Alarm In Mode and Alarm In 2 Mode

Enables or disables monitoring of alarm input1 and alarm input2. Enable this option if an external sensor device connected to the alarm input1 and alarm input2 requires monitoring.

Alarm In Level and Alarm In 2 Level

Specify the signal level required for triggering the alarm device connected to the alarm output1 and alarm output2. The options are Low and High.

Alarm Out Control

Alarm Out Mode and Alarm Out 2 Mode

Specify the alarm out mode, the options are User Mode and Event Mode. When User Mode is selected, the alarm output will be triggered based on user configurations. When Event Mode is selected, the alarm output will be triggered based on the configurations set in Event Actions. For more information on Event Actions, please refer to page 28.

Alarm Out Level and Alarm Out 2 Level

Specify the alarm output action to perform when it is triggered. The options are Low and High.

Save

Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect.

Reset

Reset button to discard all the settings applied.

28

NCb-231 User Manual

Chapter 2: Camera Configuration

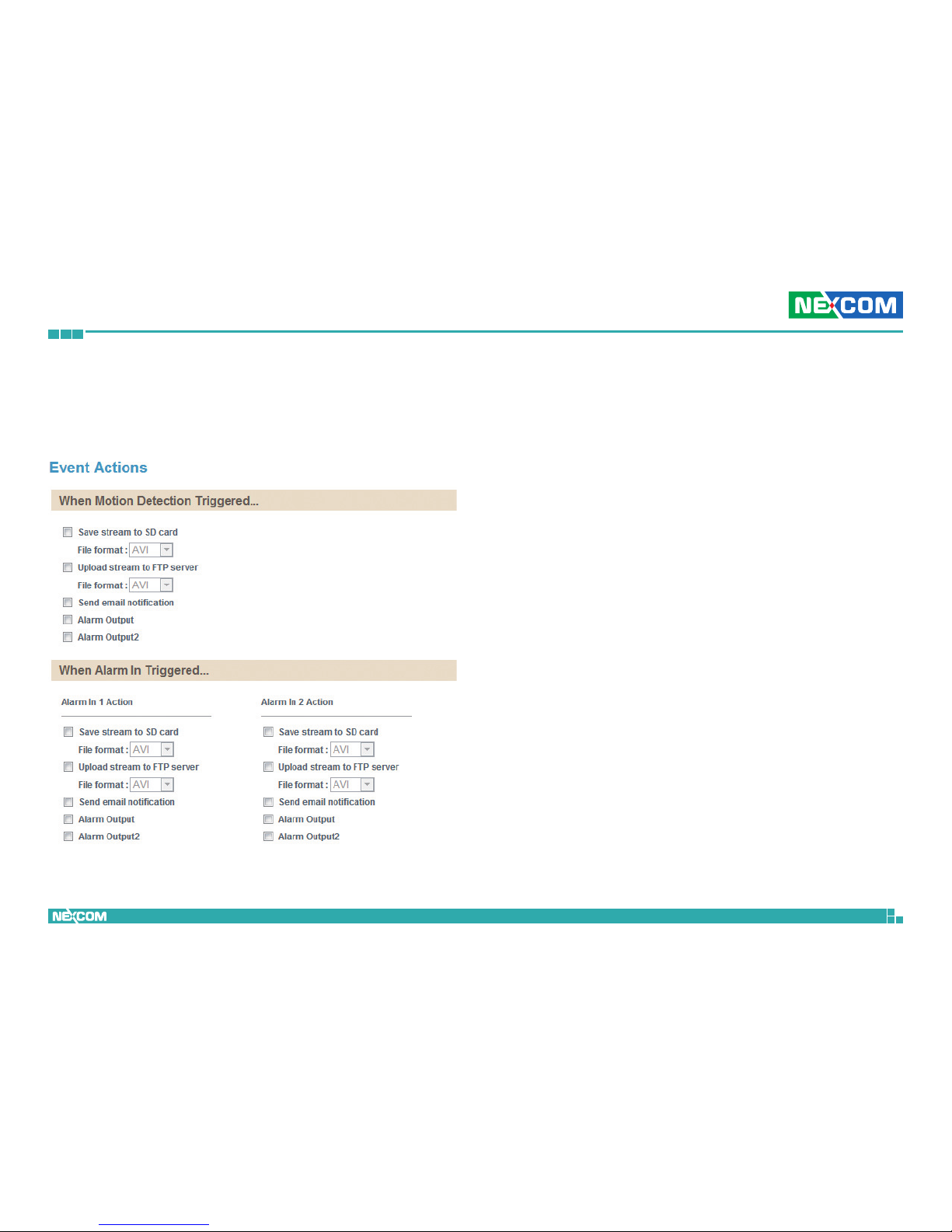

Event Actions

This section configures what actions to perform when an event is triggered from motion detection.

When Motion Detection Triggered

Save Stream to SD Card

Check this option to store the video stream onto the SD card. Select the desired file format in the drop down menu, the options are AVI and JPEG.

Upload Stream to FTP Server

Check this option to upload the video stream to a FTP server. Select the desired file format in the drop down menu, the options are AVI and JPEG. For information on configuring the FTP server, please refer to FTP on page 22.

Send Email Notification

Check this option to send an email notifying the event, for more information on configuring the email address, please refer to SMTP on page 23.

Alarm Output and Alarm Output2

Check this option to activate the device connected to alarm output and alarm output2 when motion detection is triggered.

When Alarm In Triggered

Save Stream to SD Card

Check this option to store the video stream onto the SD card. Select the desired file format in the drop down menu, the options are AVI and JPEG.

Upload Stream to FTP Server

Check this option to upload the video stream to a FTP server. Select the desired file format in the drop down menu, the options are AVI and JPEG. For information on configuring the FTP server, please refer to FTP on page 22.

29

NCb-231 User Manual

Chapter 2: Camera Configuration

Send Email Notification

Check this option to send an email notifying about the alarm event, for more information on configuring the email address, please refer to SMTP on page 23.

Alarm Output and Alarm Output2

Check this option to activate the device connected to alarm output and alarm output2 when alarm in is triggered.

Save

Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect.

Reset

Reset button to discard all the settings applied.

30

NCb-231 User Manual

Chapter 2: Camera Configuration

System

Audio

This section is used to configure the audio settings.

Audio Settings

Audio In Enable

Enables or disables audio-in on the camera. When enabled, specify the volume in the Audio In Volume textbox. The range is 1~100.

Audio Out Enable

Enables or disables audio-out on the camera. When enabled, specify the volume in the Audio Out Volume textbox. The range is 1~100.

Save

Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect.

Reset

Reset button to discard all the settings applied.

31

NCb-231 User Manual

Chapter 2: Camera Configuration

Recording Settings

This section is used to configure the recording settings of the IP camera.

AVI File Setting

Stream Source

Selects which video stream number to record, the options are Stream 1 and Stream 2.

Save

Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect.

Reset

Reset button to discard all the settings applied.

32

NCb-231 User Manual

Chapter 2: Camera Configuration

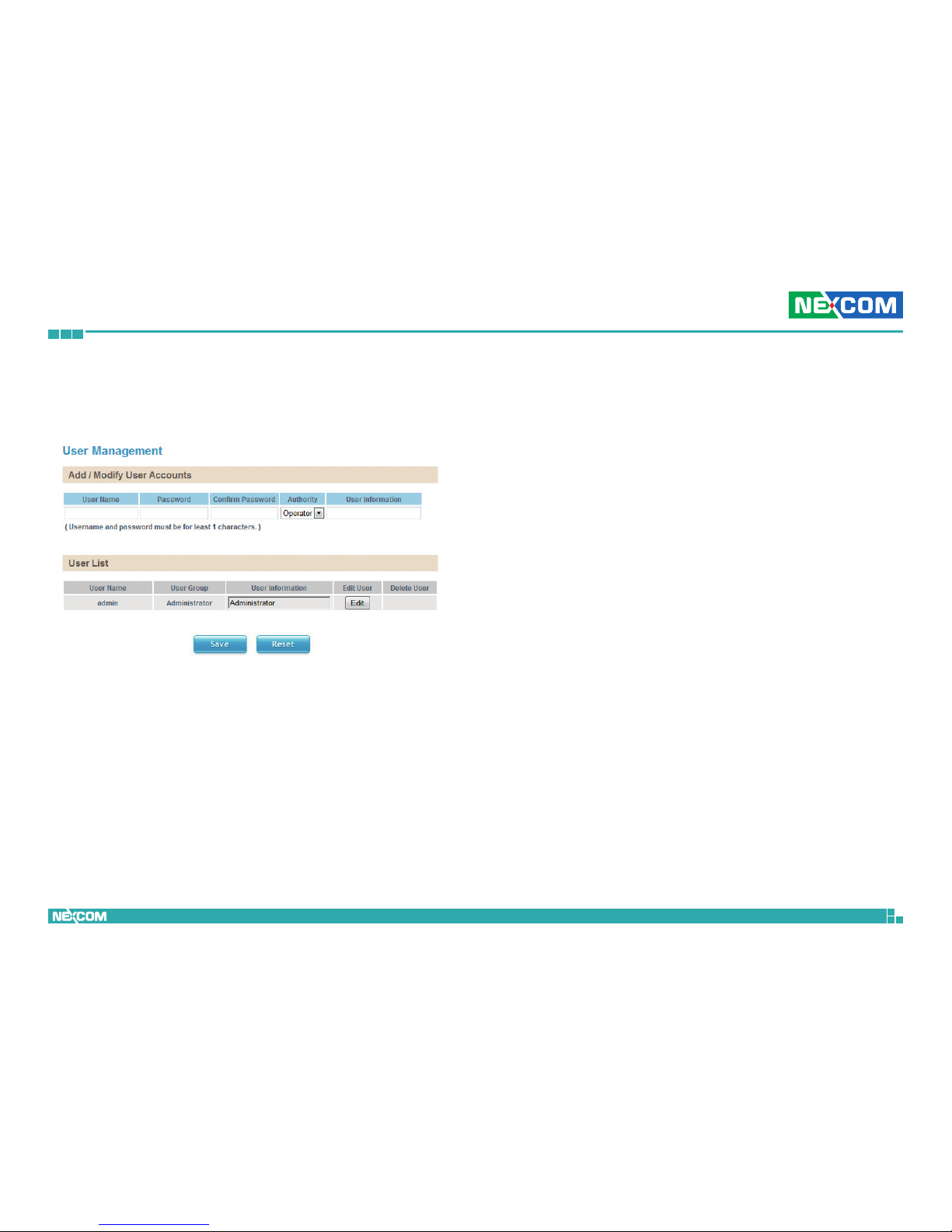

User Management

This section is used to manage user accounts for accessing the IP camera’s web configuration menu.

Add/Modify User Accounts

To add a user account, type in the username and password (username and password must be at least 1 character), retype the password to confirm, then choose the access level for the account in the Authority drop down list. You can also provide a description for the account under the User

Information field.

Access Level

Administrator: Has full control (read/write) over every configuration menu item.

Operator: Has full control (read/write) over every configuration menu item in Video and Event only.

Viewer: Only has access (read) to the live view of the camera (main screen).

User List

Displays user accounts available on the camera, to edit an account’s password, click the Edit button, then retype the new password in the

Password and Confirm Password fields.

Save

Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect.

Reset

Reset button to discard all the settings applied.

33

NCb-231 User Manual

Chapter 2: Camera Configuration

SD Card Management

This section is used to manage the SD card.

SD Card Information

If a SD card is installed, this section will display information on the availability of the SD card, and the percentage of the total storage used.

Format

Formats the SD card, all data stored on the SD card will be erased if this option is used.

SD Card Overwrite

Enables or disables overwrite protection for the SD card. Press the Save button to apply the setting.

File List

Displays the information of the folders and files stored in the SD card.

34

NCb-231 User Manual

Chapter 2: Camera Configuration

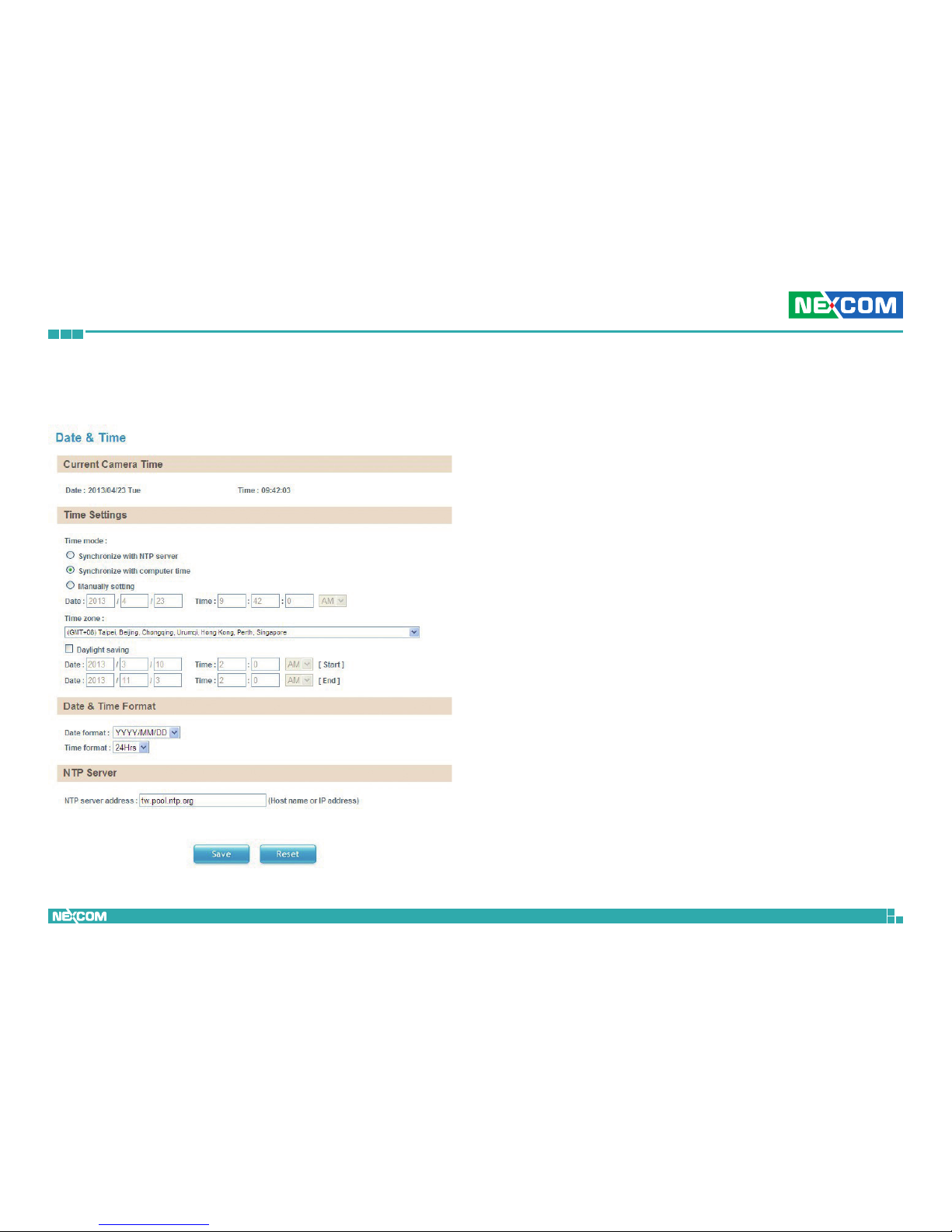

Date & Time

This section configures the date and time on the camera.

Current Camera Time

Displays the current date and time on the camera.

Time Settings

Synchronize with NTP Server

Select this option to synchronize the date and time with a NTP server.

Synchronize with Computer Time

Select this option to synchronize the date and time to the computer connected to the camera.

Manually Setting

Select this option to manually configure the date and time.

Time Zone

Select the time zone relevant to your location in the drop down list.

Daylight Saving

Select this option to enable daylight saving. The Start/End date and time for daylight saving can be manually configured in the text boxes beneath the

option.

35

NCb-231 User Manual

Chapter 2: Camera Configuration

Date & Time Format

Date Format

Configures the format that the date will be displayed in. The options are

YYYY/MM/DD, MM/DD/YYYY and DD/MM/YYYY.

Time Format

Configures the format that the time will be displayed in. The options are

12Hrs and 24Hrs.

NTP Server

NTP Server Address

If Synchronize with NTP Server is selected as the time mode, type in the host name or IP address of the NTP server.

Save

Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect.

Reset

Reset button to discard all the settings applied.

36

NCb-231 User Manual

Chapter 2: Camera Configuration

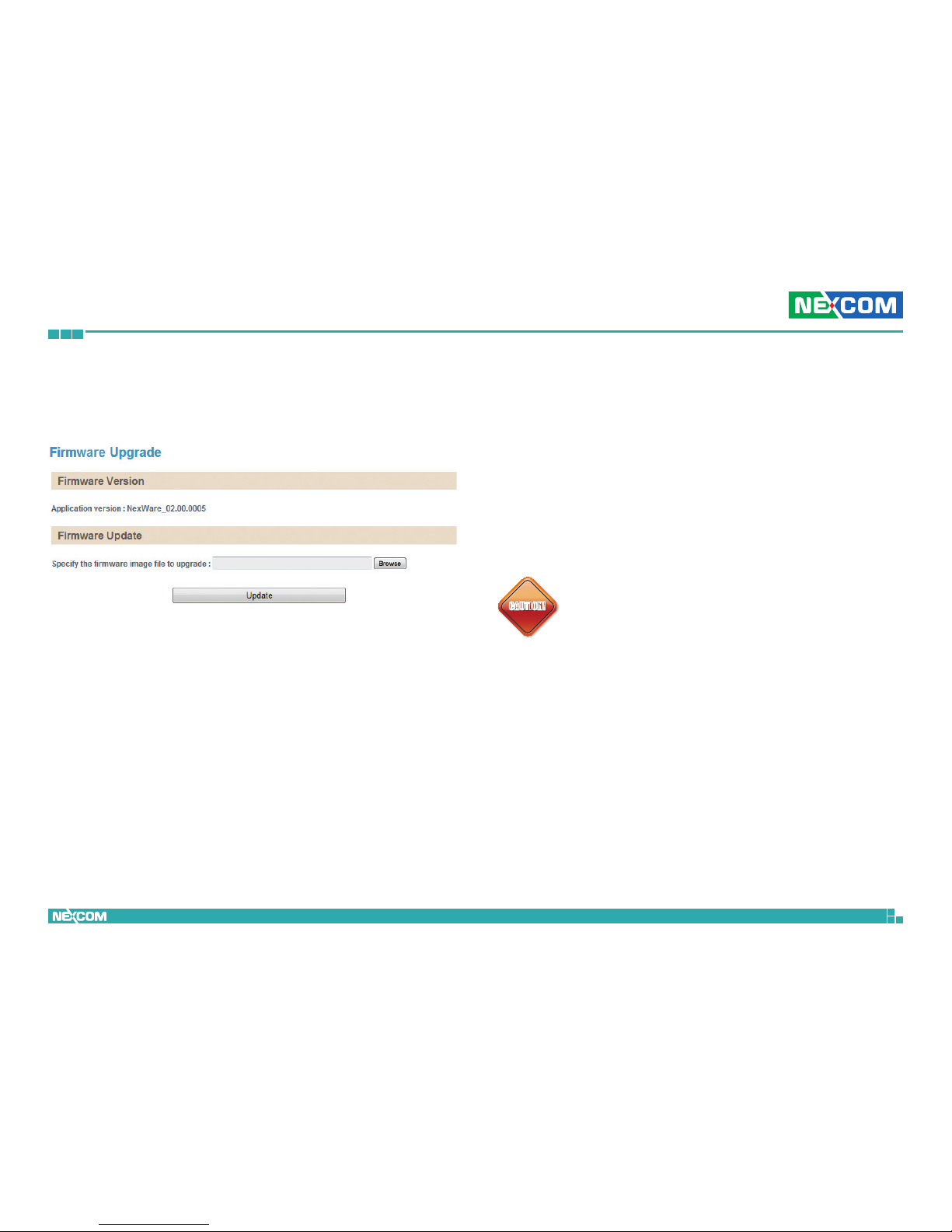

Firmware Upgrade

This section is used to update the IP camera’s firmware.

Firmware Version

Application Version

Displays the current firmware version.

Update

Specify the Firmware Image File to Upgrade

To update the camera’s firmware, click on the Browse button and locate the firmware image file, once the file is selected, press the Update button to begin.

CAUTION!

CAUTION!CAUTION!

The firmware update process will take around 15 minutes to complete, during this time, do not disconnect the network cable, reset or power off the IP camera, as you may damage the device.

37

NCb-231 User Manual

Chapter 2: Camera Configuration

Maintenance

This section is used to restart the IP camera, or restore it to factory default settings.

Maintain

Restart

Click this button to reboot the camera.

Reset to Default

Click this button to restore all the camera’s setting back to factory default.

Camera Name Settings

Camera Name

Specify a name for the camera. The name will be displayed in the upper left corner on the live video stream of the camera. To enable this, make sure the option Display Camera Name in the Overlay Settings menu is checked. For information on the Overlay Settings menu, please refer to page 18.

DC-Iris Calibration

To calibrate the DC-Iris lens, check the option Choose to use DC-Iris Lens and press the DC-Iris Calibration button.

Save

Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect.

Reset

Reset button to discard all the settings applied.

38

NCb-231 User Manual

Chapter 2: Camera Configuration

Advanced Settings

This section is used to configure advanced settings of the IP camera.

The following are the advanced settings available on the left hand side:

▪ Video

– Camera Settings – ROI – AE Weights

▪ Network

– DDNS – SNMP – Multicast

▪ Events

– Ethernet Lost Detection – Face Detection – Tampering Detection – Event Actions

▪ System

– Schedule Recording

▪ Basic Settings

39

NCb-231 User Manual

Chapter 2: Camera Configuration

Video

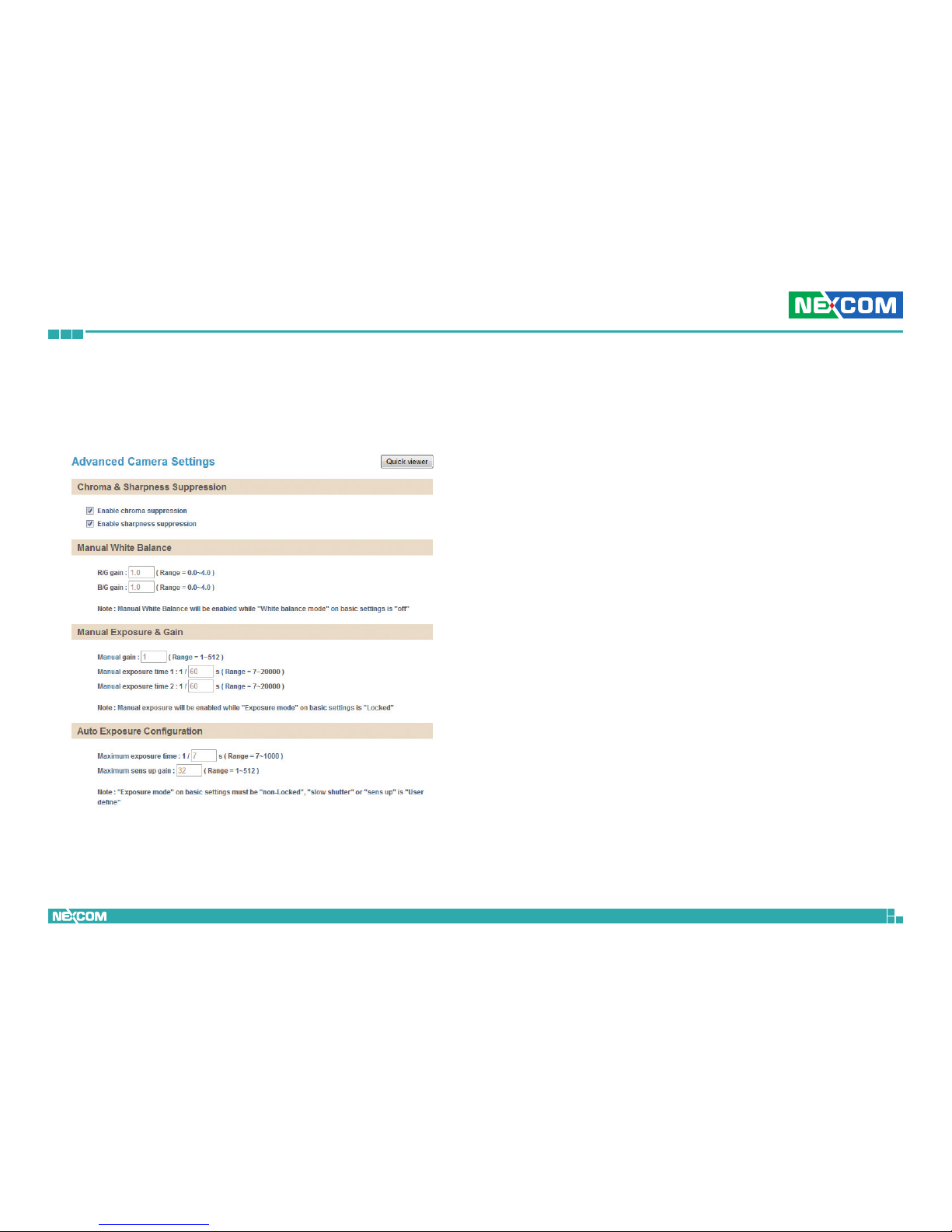

Camera Settings (Advanced)

This section is used to adjust the camera’s advanced image settings.

Chroma & Sharpness Suppression

Enable Chroma Suppression

Enables or disables chroma suppression. Enabling chroma suppression will reduce the image noise captured from low-light environments.

Enable Sharpness Suppression

Enables or disables sharpness suppression. Enabling sharpness suppression will minimize the sharpness caused by noise in low-light captures.

Manual White Balance

Note: To adjust the white balance manually, please set the White Balance Mode to Off in Basic Settings.

R/G Gain

Adjusts the warm white balance, the range is 0.0 ~ 4.0 (from yellow to red).

B/G Gain

Adjusts the cold white balance, the range is 0.0 ~ 4.0 (from green to blue).

Manual Exposure & Gain

Note: To adjust the exposure and gain manually, please set the Exposure Mode to Locked in Basic Settings.

Manual Gain

Adjusts the camera’s gain manually, the range is 1 ~ 512. Setting a higher value will increase the camera’s signal and produce brighter images for lowlight environments.

Manual Exposure Time 1:1 and 2:1

Adjusts the camera’s exposure manually, the range is 1:1/7 ~ 1:1/20000 and 2:1/7 ~ 2:1/20000, with 1/20000 being the shortest exposure length.

40

NCb-231 User Manual

Chapter 2: Camera Configuration

Auto Exposure Configuration

Maximum Exposure Time

Specifies the maximum exposure time when operating in Auto Exposure mode, the range is 1/7 ~ 1/1000, with 1/1000 being the shortest exposure length.

Maximum Sens Up Gain

Specifies the maximum gain when operating in Auto Exposure mode, the range is 1 ~ 512, with 1 being the lowest gain.

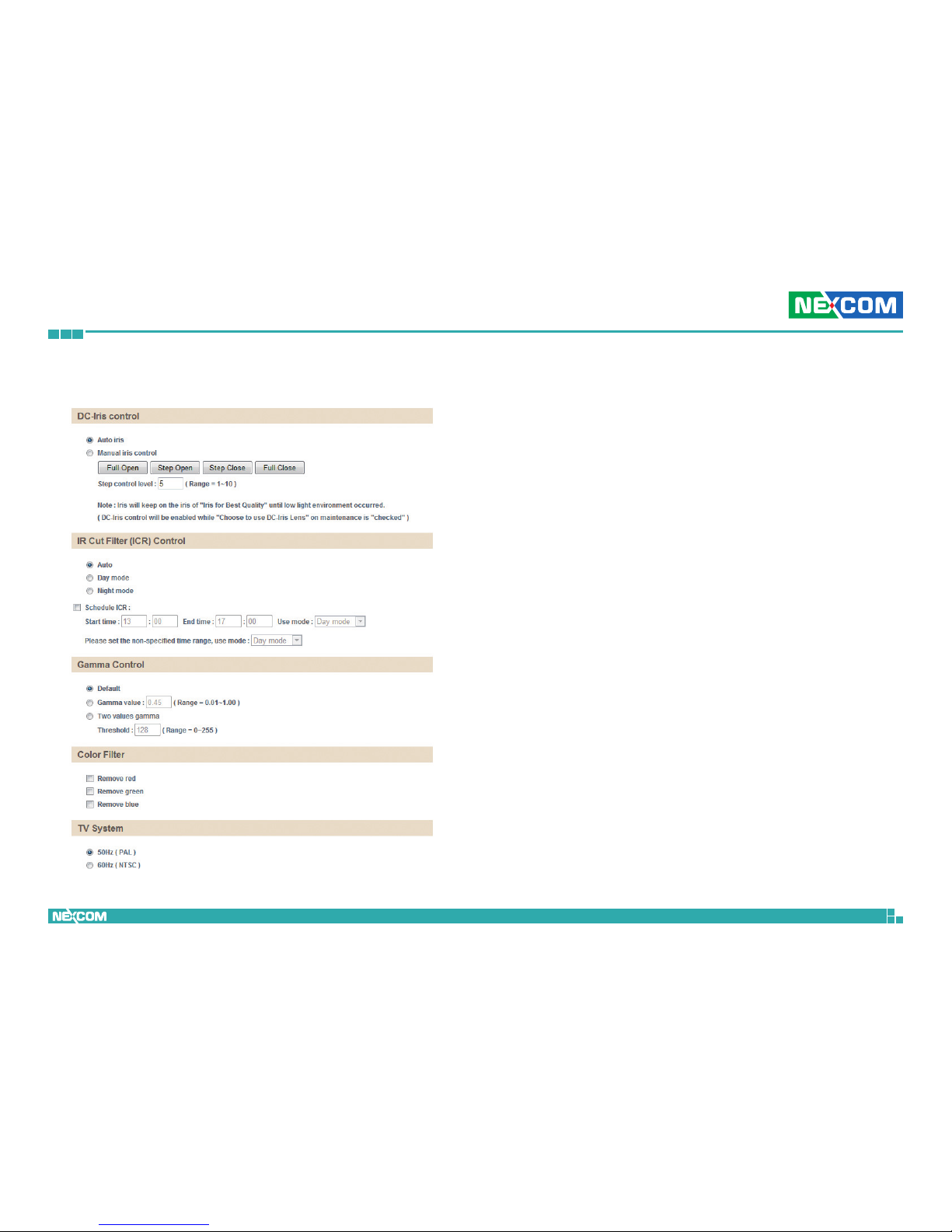

DC-Iris Control

Auto Iris

When enabled, the DC-Iris will adjust the opening automatically based on the lighting levels in the environment.

Manual Iris Control

Enables manual control of the iris, there are 4 control options to choose from.

Full Open: Opens the iris to the maximum aperture. Full Close: Closes the iris to the smallest aperture Step Open: Opens the iris according to the step levels specified in the Step Control Level. Step Close: Closes the iris according to the step levels specified in Step Control Level. Step Control Level: Configures the step control level, the range is 1 to 10.

Note: Only available when a DC-iris lens is installed.

Camera Settings (Advanced) Cont.

41

NCb-231 User Manual

Chapter 2: Camera Configuration

IR Cut Filter (ICR) Control

Auto

When enabled, the camera will automatically turn the infrared lights on or off based on the lighting levels in the environment.

Day Mode

Enables day mode and turns the IR cut filter control off.

Night Mode

Enables night mode and turns the IR cut filter control on.

Schedule ICR

Enables or disables IR cut filter control function to activate at the specified time. You can configure the Start Time and End Time in 24-hour format.

Use Mode (During Scheduled Hours)

Selects the IR cut filter control mode to use during the scheduled time.

Use Mode (Outside of the Scheduled Hours)

Selects the IR cut filter control mode to use outside of the scheduled time.

Gamma Control

Default

Activates the default gamma state.

Gamma

Adjusts the gamma manually, the range is 0.01 ~ 1.00, with 0.01 being the lowest value.

Color Filter

Remove Red

Adds red filters to the camera’s view.

Remove Green

Adds green filters to the camera’s view.

Remove Blue

Adds blue filters to the camera’s view.

TV System

50Hz (PAL)

Configures the camera to 50Hz (PAL) mode. Select this when using in 50Hz (PAL) countries to reduce flicker.

60Hz (NTSC)

Configures the camera to 60Hz (NTSC) mode. Select this when using in 60Hz (NTSC) countries to reduce flicker.

Save

Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect.

Reset

Reset button to discard all the settings applied.

42

NCb-231 User Manual

Chapter 2: Camera Configuration

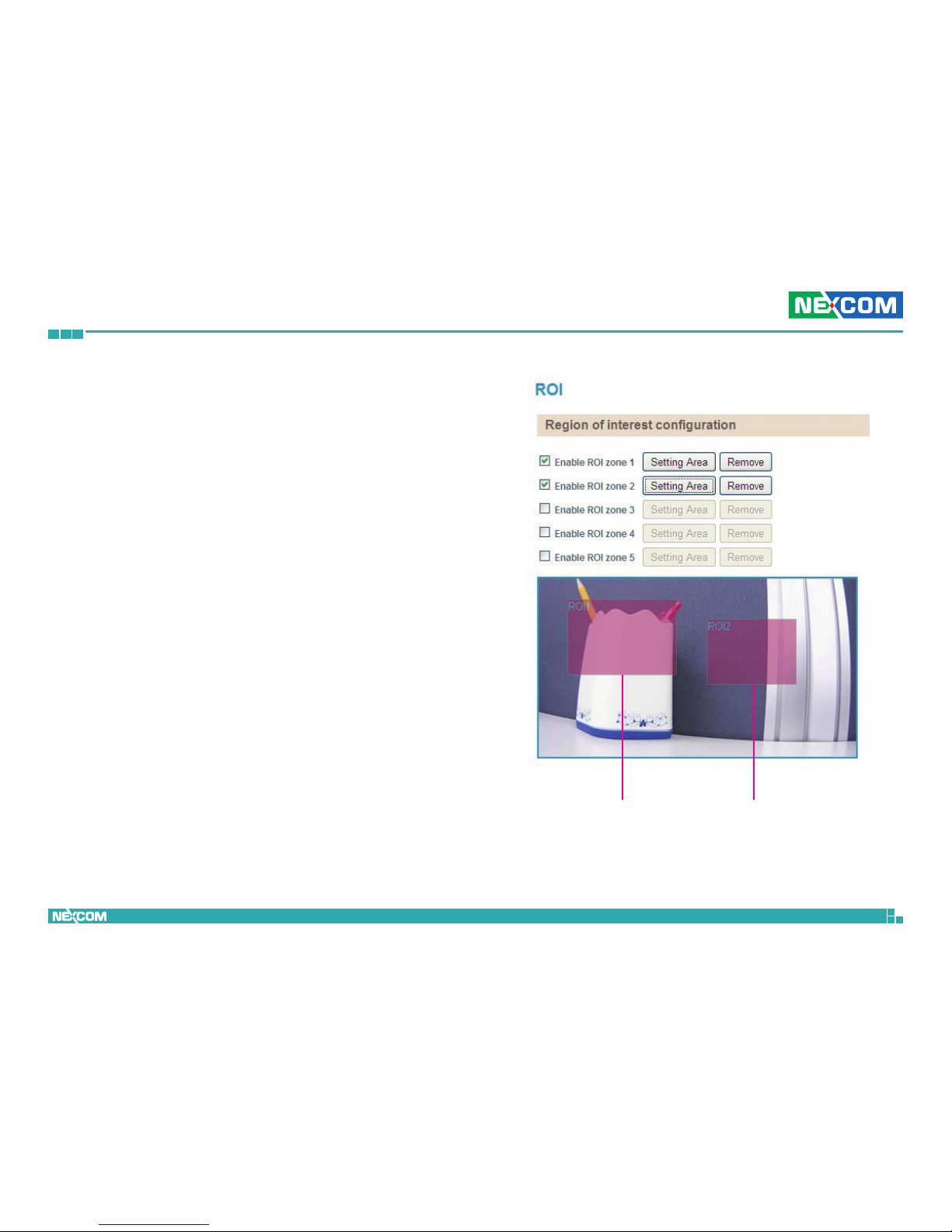

ROI

You can configure up to 5 ROI zones. ROI is used to select which areas will be monitored and recorded with higher image quality while using lower image quality for other non-ROI zones to save bandwidth and storage. The instructions below illustrate how to setup 5 ROI zones.

1. To create ROI zone 1, check the Enable ROI zone 1, and on the live video screen, select the area to set the ROI by holding down the mouse button and drag to make a rectangular square, release the button once the desired area is covered.

2. Press the Setting Area button in Enable ROI zone 1 to set this area as the ROI.

3. Repeat the above steps to create ROI for zones 2 to 5.

To delete an area, check the ROI zone number you like to remove, and press the Remove button.

ROI zone 1 ROI zone 2

43

NCb-231 User Manual

Chapter 2: Camera Configuration

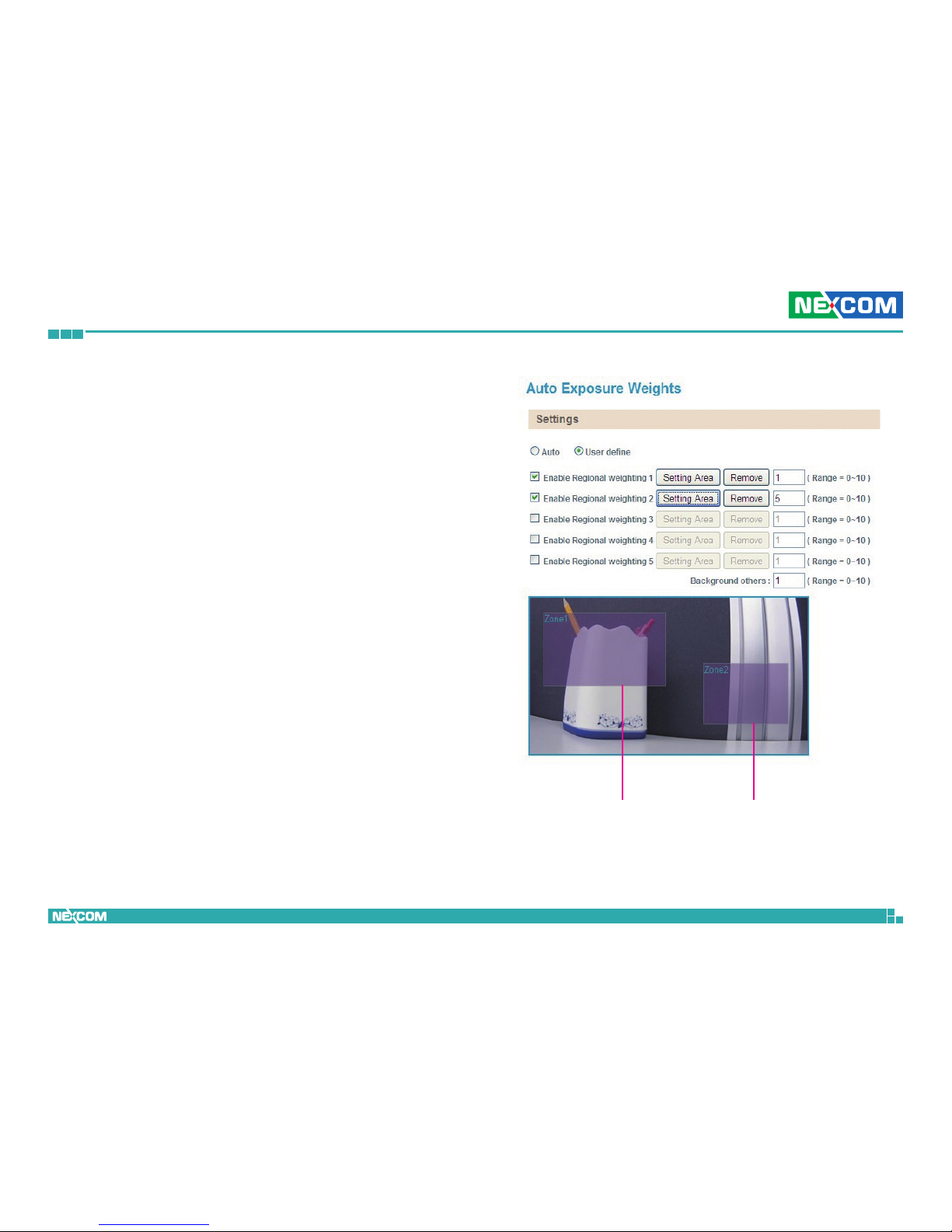

Auto Exposure Weights

You can select up to 5 areas and configure the exposure weighting for each area manually. The weighting determines the importance of the area captured, a higher weighting value will increase the sensitivity of the auto exposure.

1. To create an auto exposure area, select User Define and check the Enable Regional weighting 1.

2. On the live video screen, select the area by holding down the mouse button and drag to make a rectangular square, release the button once the desired area is covered.

3. Press the Setting Area button in Enable Regional weighting 1.

4. Configure the weighting value in the corresponding textbox, the range is 0 ~ 10.

5. Repeat the above steps to create auto exposure weightings for zones 3 to 5.

To delete an area, check the zone number you like to remove, and press the Remove button.

To allow the camera to adjust the exposure automatically, select the Auto option.

Background Others

Configures the weighting value of the area outside of the selected zones.

Zone 1 Zone 2

44

NCb-231 User Manual

Chapter 2: Camera Configuration

Network

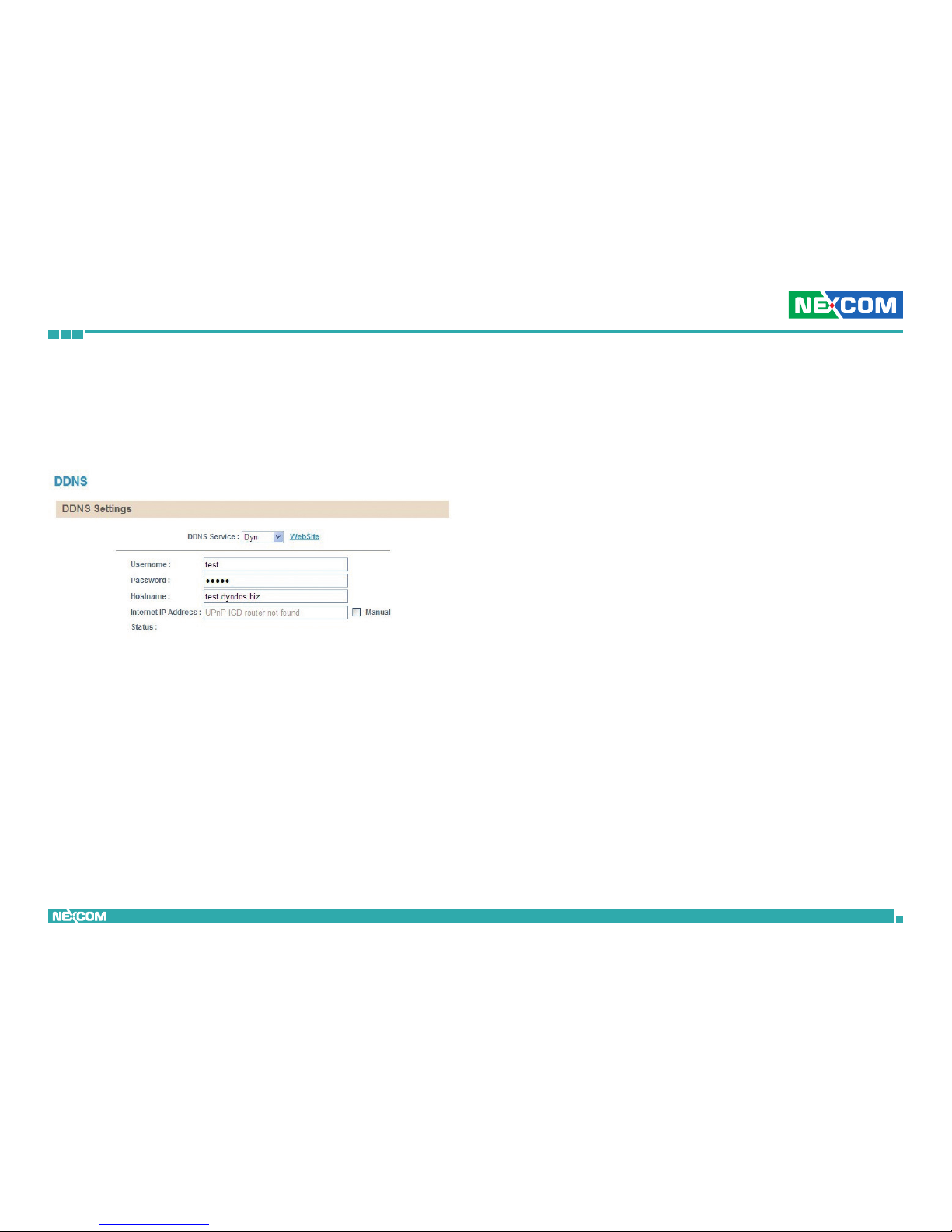

DDNS

This section is used to configure DDNS (Dynamic DNS). Note: Different DDNS service provider may have different input fields.

DDNS Settings

DDNS Service

Select the DDNS service provider from the drop down list, the available providers are Dyn, NO-IP, dnsExit and DtDNS.

Web Site

URL link to the selected DDNS service provider's web site.

Username

Username of the DDNS account.

Password

Password of the DDNS account.

Hostname

Hostname of the DDNS account.

Internet IP Address

Displays the IP address assigned when the connection is established.

Manual

Used to manually specify an IP address of a DDNS server.

Status

Displays the connection status of the DDNS service.

45

NCb-231 User Manual

Chapter 2: Camera Configuration

SNMP

Simple Network Management Protocol (SNMP) is a protocol that can be used to manage and monitor SNMP-enabled devices over a network. The SNMPv1, SNMPv2 and SNMPv3 settings for the IP camera can be configured in this page.

SNMP v1/v2

Enable SNMP v1/v2

Enables or disables SNMPv1 and SNMPv2 support.

Read Community

Used to configure the read community string.

Write Community

Used to configure the write community string.

Traps for SNMP v1/v2

Enable Traps

Enables the IP camera to send SNMP trap messages.

Trap Address

Specifies the IP address of the trap server to receive the trap messages.

Trap Community

Used to configure the trap community string.

SNMP v3

Enable SNMP v3

Enables or disables SNMPv3 support.

User name

Used to configure the SNMPv3 username.

User password

Used to configure the SNMPv3 password.

46

NCb-231 User Manual

Chapter 2: Camera Configuration

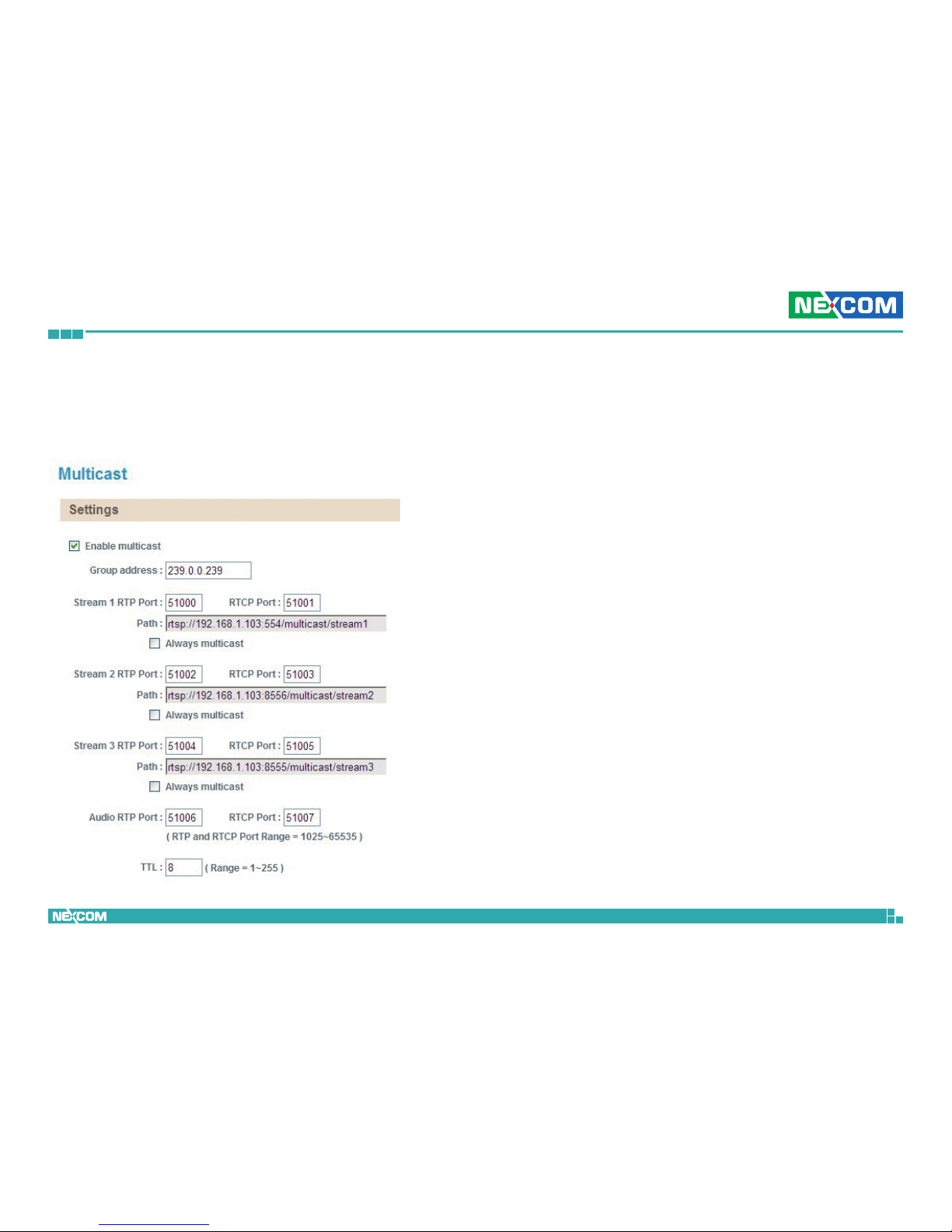

Multicast

The IP camera's video streams can be sent to a multicast IP address group for one-to-many streaming. The multicast settings for the IP camera can be configured in this page.

Settings

Enable Multicast

Enables or disables multicast streaming.

Group Address

Configures the IP address of the multicast group.

RTP Port

Configures the RTP port of the multicast address, this port is used for streaming video and audio data.

RTCP Port

Configures the RTCP port of the multicast address, this port is used for controlling RTP streams.

Path

Configures the URL address of the video stream.

Always Multicast

Check this option to enable the video stream to start multicast streaming without using RTCP.

Audio RTP Port and RTCP Port

Configures the port numbers for RTP audio and RTCP, the range is 1025 ~

65535.

TTL

Configures the time-to-live threshold of the multicast datagram before it is discarded by the router.

47

NCb-231 User Manual

Chapter 2: Camera Configuration

Events

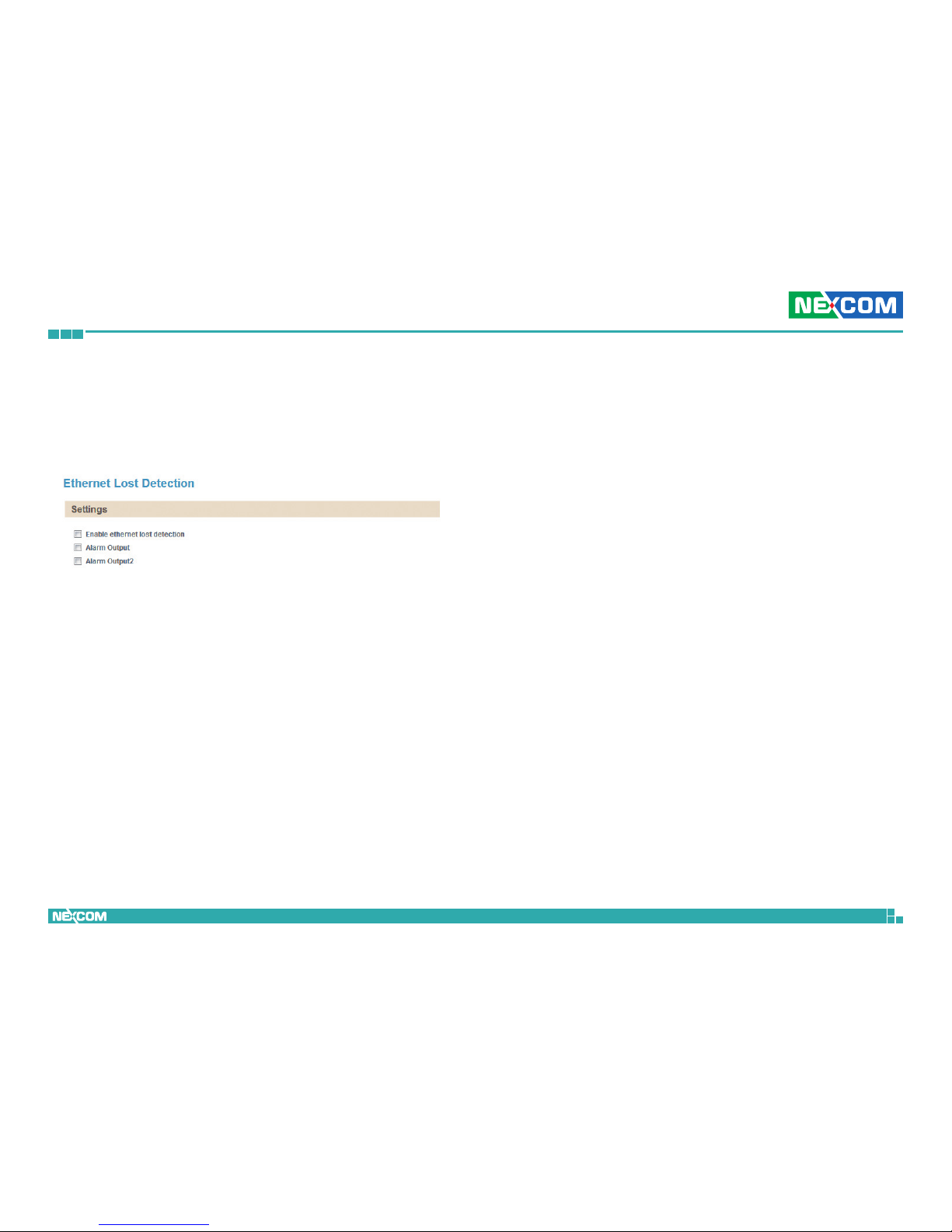

Ethernet Lost Detection

This page is used to configure link failure detection for Ethernet.

Settings

Enable Ethernet Lost Detection

Enables link failure detection of the Ethernet connection.

Alarm Output and Alarm Output2

Enables the camera to trigger the device connected to alarm output and alarm output2 upon detecting failure of the Ethernet connection.

48

NCb-231 User Manual

Chapter 2: Camera Configuration

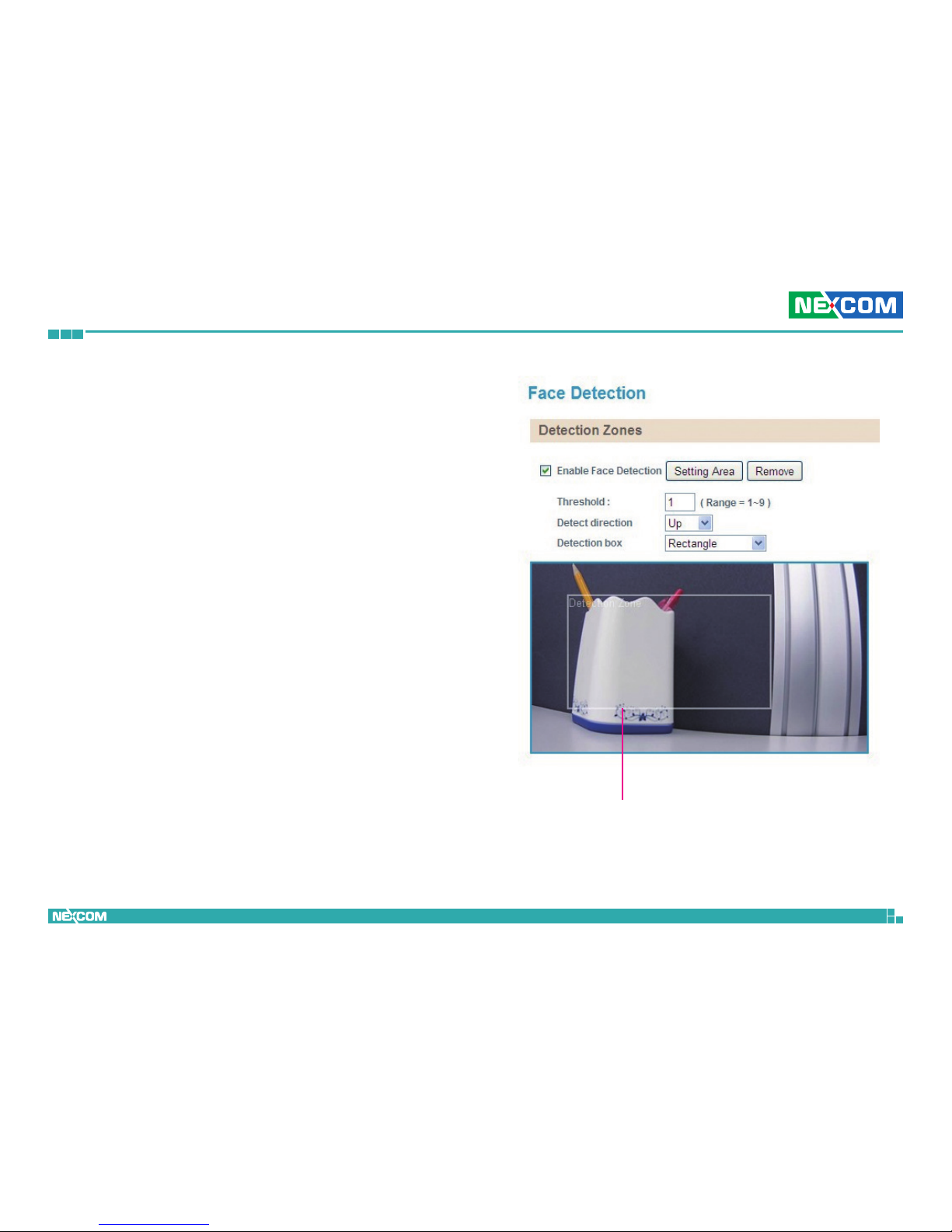

Face Detection

You can configure the camera to detect faces and trigger the events enabled in the Event Actions menu on page 50. The instructions below illustrate how to setup face detection.

1. Check the Enable Face Detection and on the live video screen below, select the area for face recognition by holding down the mouse button and drag to make a rectangular square, release the button once the desired area is covered.

2. Press the Setting Area button to set this area for face recognition.

To delete the area, press the Remove button.

Threshold

Configures the sensitivity of the face recognition, the range is 1~9, with 1 being the least sensitive.

Detect Direction

Configures the direction to detect faces.

Up: Detect faces on the top (90 degrees from the front). Right: Detect faces on the right (180 degrees from the front). Left: Detect faces on the left (-180 degrees from the front). Down: Detect faces on the bottom (-90 degrees from the front).

Detection Box

Configures which detection zones are used for face recognition, the options are Rectangle, ROI and Rectangle + ROI.

Detection Zone

49

NCb-231 User Manual

Chapter 2: Camera Configuration

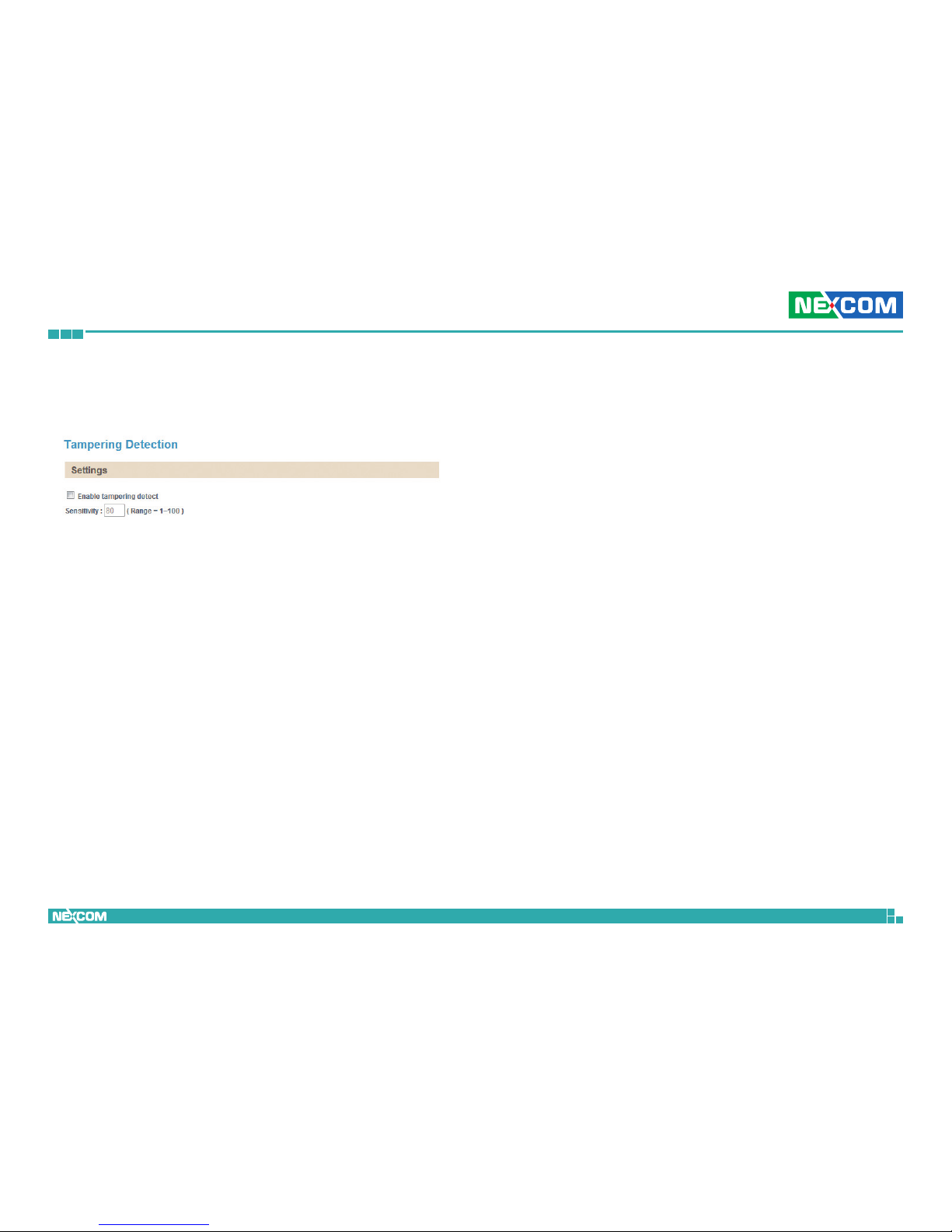

Tampering Detection

This section is used to configure tamper detection settings.

Settings

Enable Tampering Detect

Enables or disables tamper detection. When enabled, the camera will trigger actions enabled in the Event Actions menu upon detecting image blurs.

Sensitivity

Configures the sensitivity of the tamper detection, the range is 1~100, with 1 being the least sensitive.

50

NCb-231 User Manual

Chapter 2: Camera Configuration

Event Actions (Advanced)

This section configures what actions to perform when an event is triggered from face detection and tampering detection.

When Motion Detection Triggered

Save Stream to SD Card

Check this option to store the video stream onto the SD card. Select the desired file format in the drop down menu, the options are AVI and JPEG.

Upload Stream to FTP Server

Check this option to upload the video stream to a FTP server. Select the desired file format in the drop down menu, the options are AVI and JPEG. For information on configuring the FTP server, please refer to FTP on page 22.

Send Email Notification

Check this option to send an email notifying the event, for more information on configuring the email address, please refer to SMTP on page 23.

Alarm Output and Alarm Output2

Check this option to activate the device connected to alarm output and alarm output2 when face detection is triggered.

When Tampering Detection Triggered

Save Stream to SD Card

Check this option to store the video stream onto the SD card. Select the desired file format in the drop down menu, the options are AVI and JPEG.

Upload Stream to FTP Server

Check this option to upload the video stream to a FTP server. Select the desired file format in the drop down menu, the options are AVI and JPEG. For information on configuring the FTP server, please refer to FTP on page 22.

Send Email Notification

Check this option to send an email notifying about the alarm event, for more information on configuring the email address, please refer to SMTP on page 23.

Alarm Output and Alarm Output2

Check this option to activate the device connected to alarm output and alarm output2 when tampering detection is triggered.

51

NCb-231 User Manual

Chapter 2: Camera Configuration

System

Schedule Recording

This section is used to schedule the recording of the video streams.

Schedule Recording Setting

Enable Schedule Recording

Enables or disables recording of the video stream.

Daily

Configures the camera to record at the specified Start Time and End Time.

Weekly

Configures the camera to record on the specified day and time of the week.

S

Select this to set full-day recording.

D

Select this to cancel full-day recording.

E

Displays the end time of the recording, clicking E will allow you to configure the start time and end time.

52

NCb-231 User Manual

Chapter 2: Camera Configuration

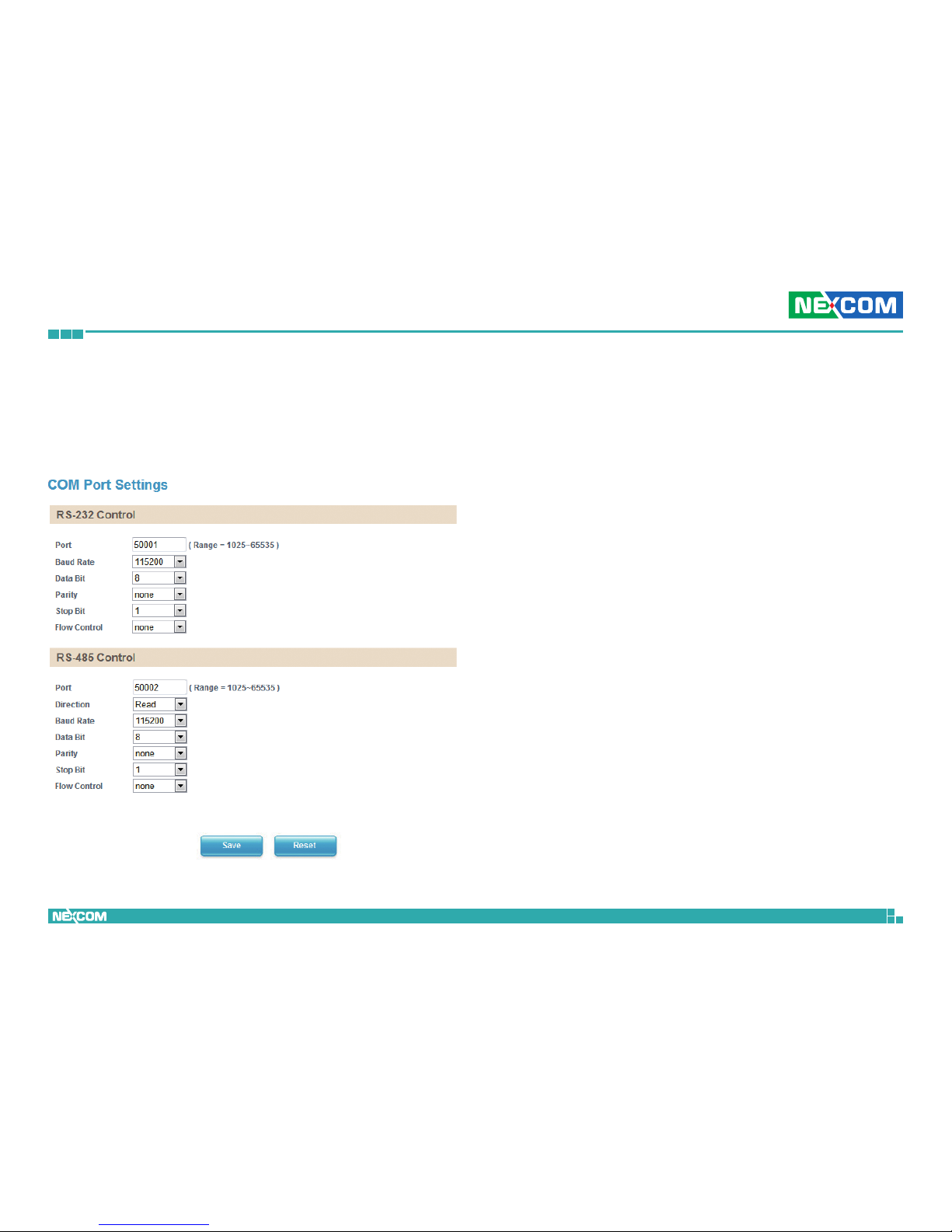

COM Port

This page provides the COM port configuration for RS-232 control and RS485 control. Serial settings including Baud Rate, Direction, Data Bit, Parity, Stop Bit and Flow Control can be configured here.

RS-232 Control

Port

Configures the port number to access the RS-232 device connected to the COM port over the network, the range is 1025~65535.

Baud Rate/Data Bit/Parity/Stop Bit/Flow Control

Configures the serial settings baud rate, data bit, parity, stop bit and flow control. Please make sure the serial settings match the RS-232 device’s serial settings.

RS-485 Control

Port

Configures the port number to access the RS-485 device connected to the COM port over the network, the range is 1025~65535.

Direction/Baud Rate/Data Bit/Parity/Stop Bit/Flow Control

Configures the serial settings, baud rate, data bit, parity, stop bit, flow control and direction of data transfer. Please make sure the serial settings match the RS-485 device’s serial settings.

53

NCb-231 User Manual

Chapter 3: Viewing Live Video via VLC Media Player

ChaPter 3: VIewIng LIVe VIdeo VIa VLC medIa PLayer

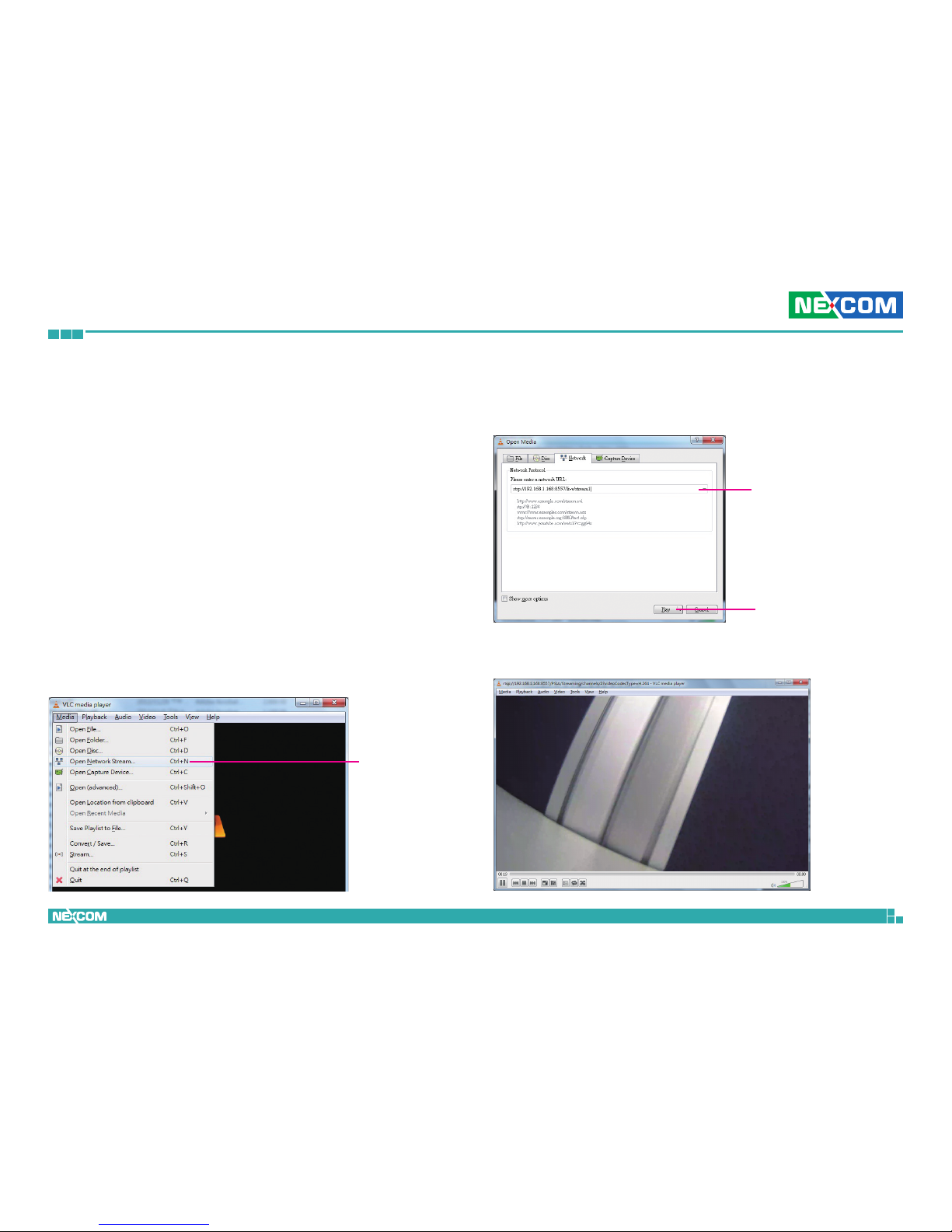

The IP camera’s live video can be viewed by third party media players such as VLC media player by VideoLAN project. To stream the live video from the camera to VLC media player through the network, please follow the instructions below.

1. Locate and open VLC media player.

2. Go to Media -> Open Network Stream.

3. Enter the following RTSP URL:

rtsp://192.168.1.168:554/live/stream1

Note: RTSP URL of stream 1, similarly you can view stream 2 and 3 of the camera by entering their corresponding URLs. Please refer to Ports on page 24 for more information on the URL link.

4. Press the Play button to start streaming.

Open Network Stream

RTSP URL

Play

4. You will be prompted with a pop-up window asking for login information, type in “admin” (default login name) and “9999” (default password)
