Page 1
NEXCOM International Co., Ltd.
Industrial Computing Solutions
COM Express Type 2 ICEK 268-T2 (ICES 268 and ICEB 8050C)
Starter Kit User Manual
NEXCOM International Co., Ltd.
Published May 2013
www.nexcom.com
Page 2
Content
Contents
Preface
Copyright ............................................................................................. iv
Disclaimer .............................................................................................. iv
Acknowledgements ............................................................................... iv
Regulatory Compliance Statements ........................................................ iv
Declaration of Conformity ...................................................................... iv
RoHS Compliance ................................................................................... v
Warranty and RMA ................................................................................ vi
Safety Information ................................................................................viii
Installation Recommendations ...............................................................viii
Safety Precautions .................................................................................. ix
Technical Support and Assistance ............................................................ x
Conventions Used in this Manual ............................................................ x
Global Service Contact Information ........................................................ xi
Package Contents ................................................................................. xiii
Ordering Information ............................................................................xiv
Chapter 1: Product Introduction
Overview - ICES 268 ...............................................................................1
Key Features ...........................................................................................1
Hardware Specifications ..........................................................................2
Knowing Your ICES 268 .......................................................................... 3
Overview - ICEB 8050C ........................................................................... 4
Key Features ...........................................................................................4
Hardware Specifications ..........................................................................5

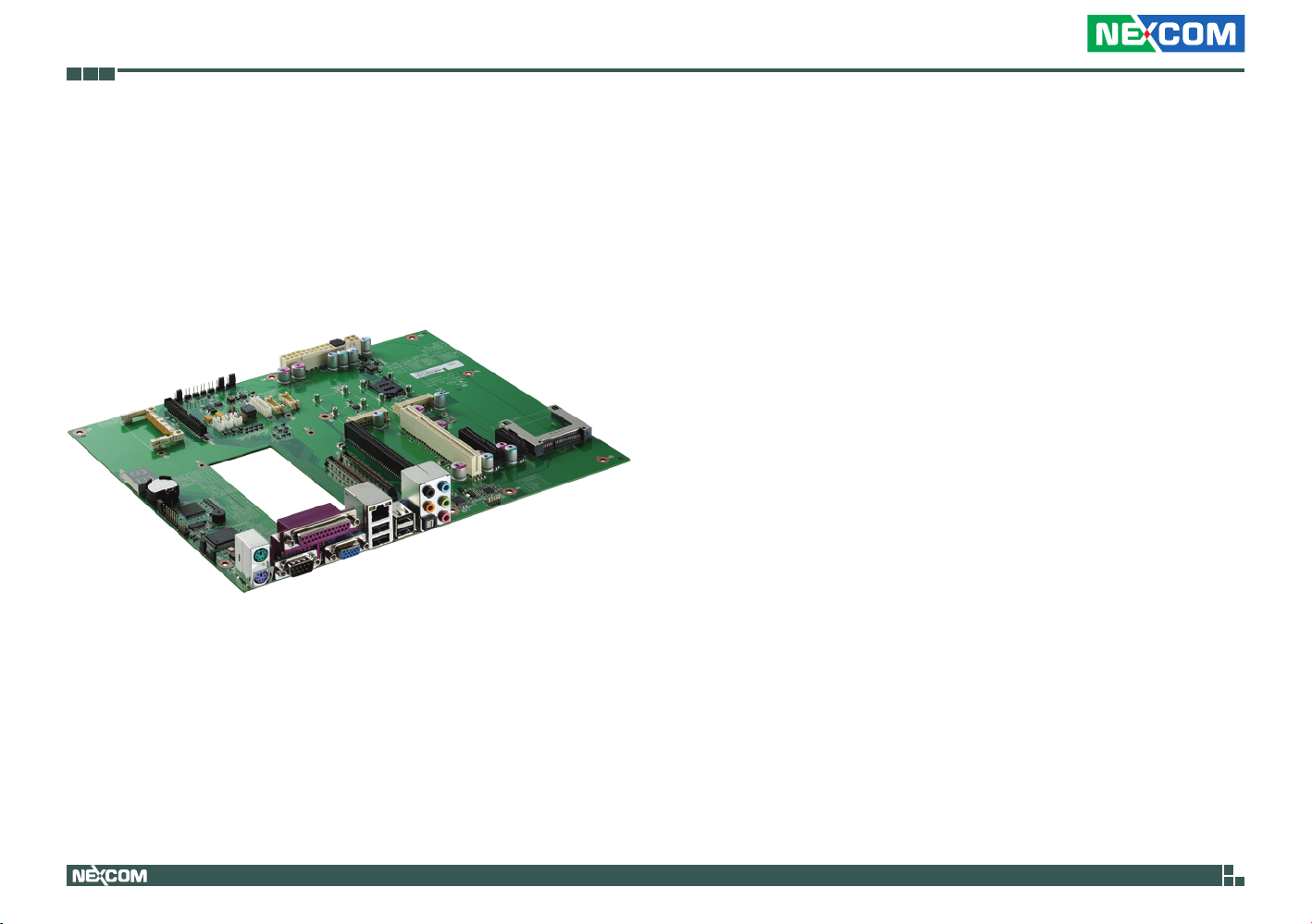

Knowing Your ICEB 8050C .....................................................................7
Block Diagram ........................................................................................8
ICES 268 .............................................................................................8
ICEB 8050C ......................................................................................... 9
Chapter 2: Jumpers and Connectors
Before You Begin ..................................................................................10
Precautions ..........................................................................................10
Jumper Settings ....................................................................................11
Locations of the Jumpers and Connectors for ICES 268 ......................... 12
Connector Pin Definitions .....................................................................13
Internal Connectors ........................................................................... 13
PCIe DIP Switch .............................................................................. 13
CPU Fan Connector ........................................................................13
High Speed Board-to-Board Connector:
Row A and B, Row C and D ...........................................................14

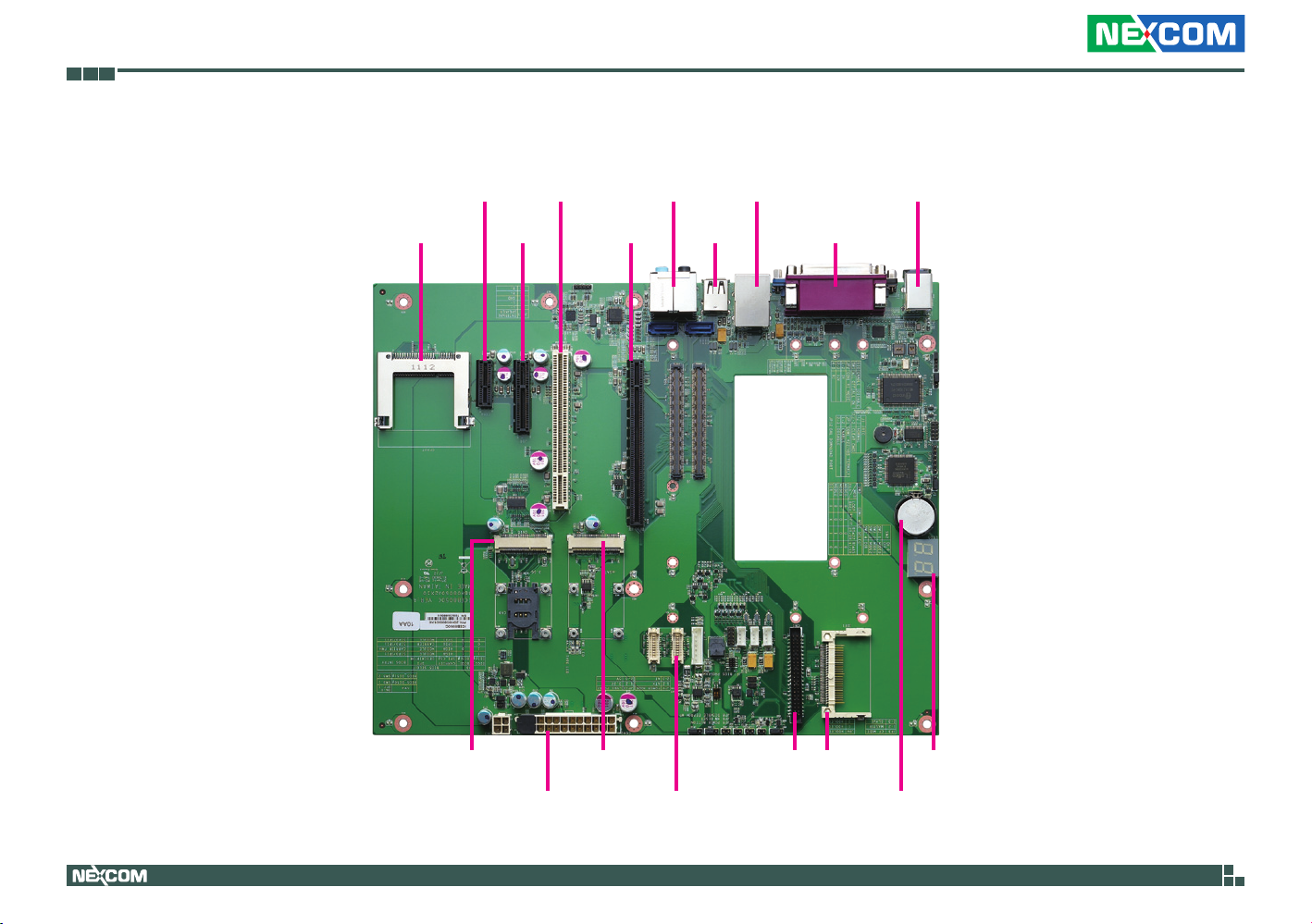

Locations of the Jumpers and Connectors for ICEB 8050C ....................19
Jumpers ................................................................................................ 20
AT/ATX Power Type Select ..................................................................20
RTC Clear .......................................................................................... 20
LVDS Backlight Power Select .............................................................. 21
COM1 RS232 RI# Pin Power Select ....................................................21
Termal R ............................................................................................22
CF Mode Select .................................................................................22
mPCIe Select .....................................................................................23
DIP Switch Settings ...............................................................................24
ii
ICEK 268-T2 Starter Kit User Manual
Page 3
Content
Close to Net LPC_SIO1_CLK ..............................................................24
RS232/ RS422/ RS485 Mode Select .................................................... 24
BIOS Select ........................................................................................ 25
Connector Pin Definitions .....................................................................26
External Connectors ..........................................................................26
PS2 Keyboard and Mouse ..............................................................26
Parallel Port .................................................................................... 26
COM1 Port ....................................................................................27
VGA Port .......................................................................................27
LAN and USB1/2 Ports .................................................................... 28
USB2/3 Ports .................................................................................. 28
Audio Connectors .......................................................................... 29
Internal Connectors ........................................................................... 30
HDD LED ........................................................................................ 30
Internal Speaker ............................................................................. 30
USB 5 Port .....................................................................................31
USB 6 Port .....................................................................................31
USB 7 Port .....................................................................................32
COM2 RS232 ................................................................................. 32
GPIO .............................................................................................. 33
CCFL .............................................................................................. 33
LVDS Channel A ............................................................................. 34
LVDS Channel B .............................................................................34
GAL Download Port .......................................................................35
SPI .................................................................................................35
Disable EEPROM .............................................................................36
HW Reset Function .........................................................................36
Power Button ................................................................................. 37
4-Pin Power Connector ..................................................................37
ATX Power Connector ....................................................................38
High Speed Board-to-Board Connector:
Row A and B, Row C and D ...........................................................39
PCIe x16 ........................................................................................44
PCIe x4 ..........................................................................................46
PCIe x1 ..........................................................................................47
Mini-PCIe Slot (3G) .........................................................................48
Mini-PCIe Slot (mSATA) ..................................................................49
SIM Card Slot .................................................................................50
SATA Connectors ...........................................................................50
CFast Slot .......................................................................................51
CF-Master ...................................................................................... 52
IDE-Slave ........................................................................................ 53
PCI Slot .......................................................................................... 54
Chapter 3: System Setup

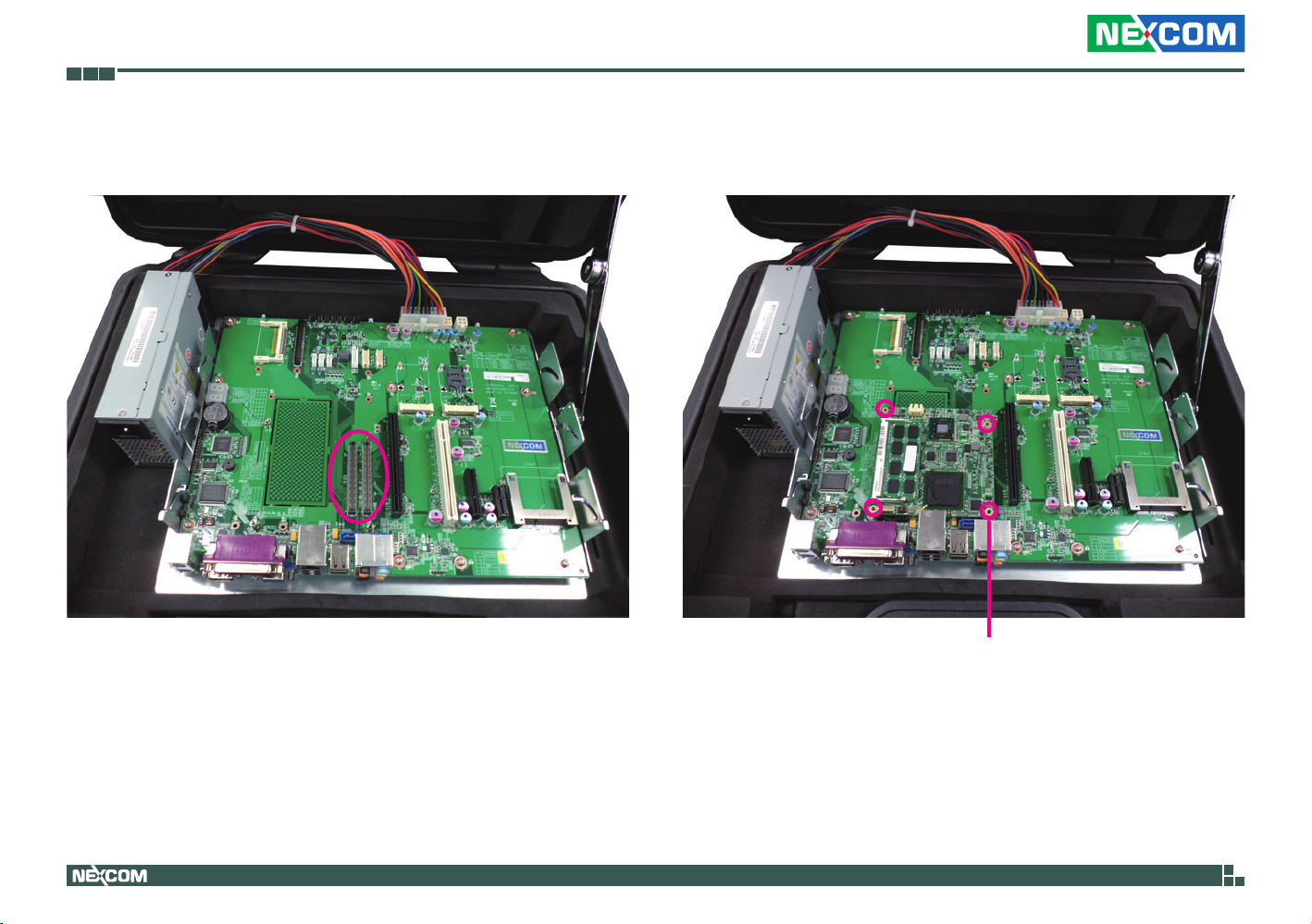

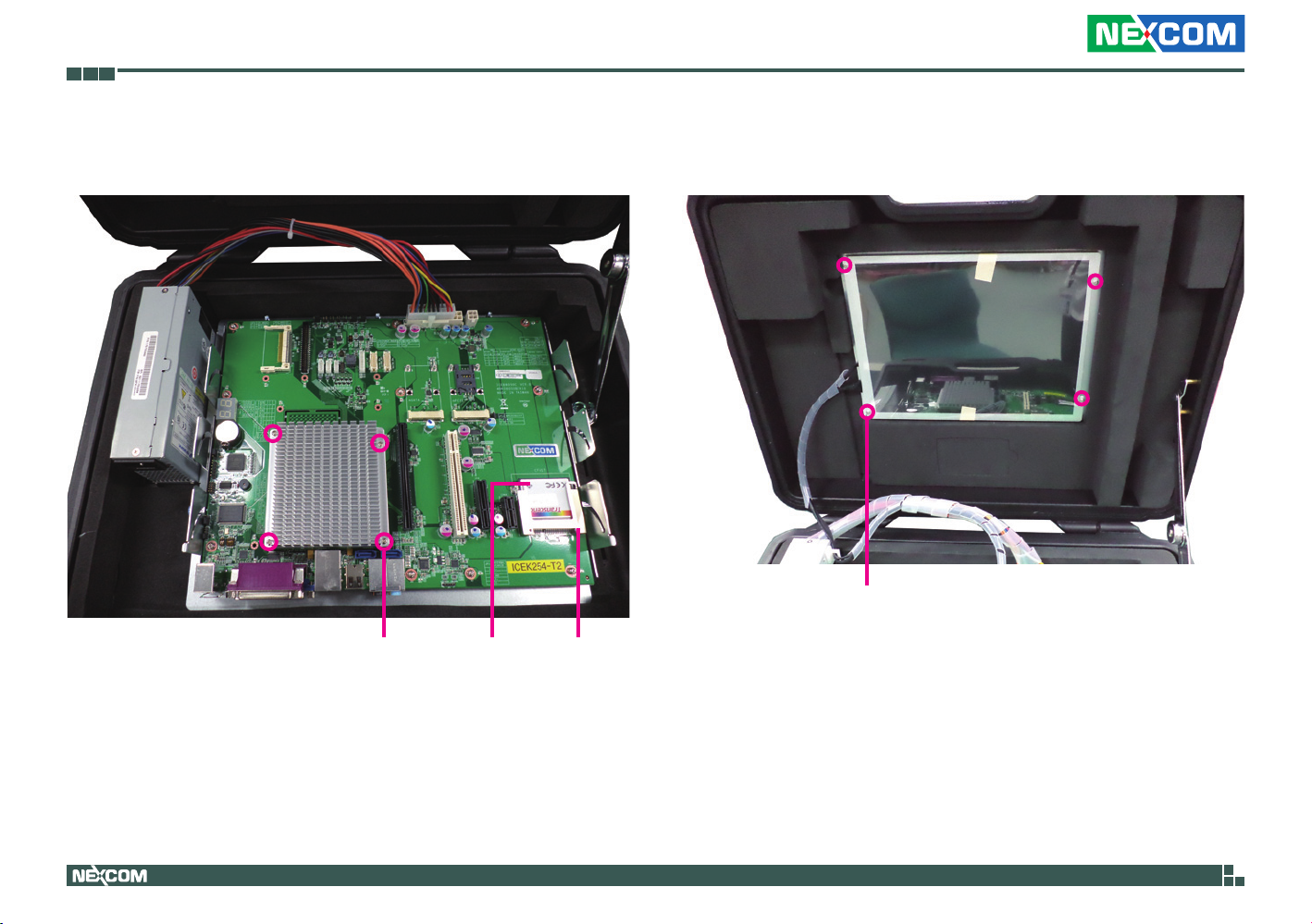

Setting up the System ........................................................................... 56

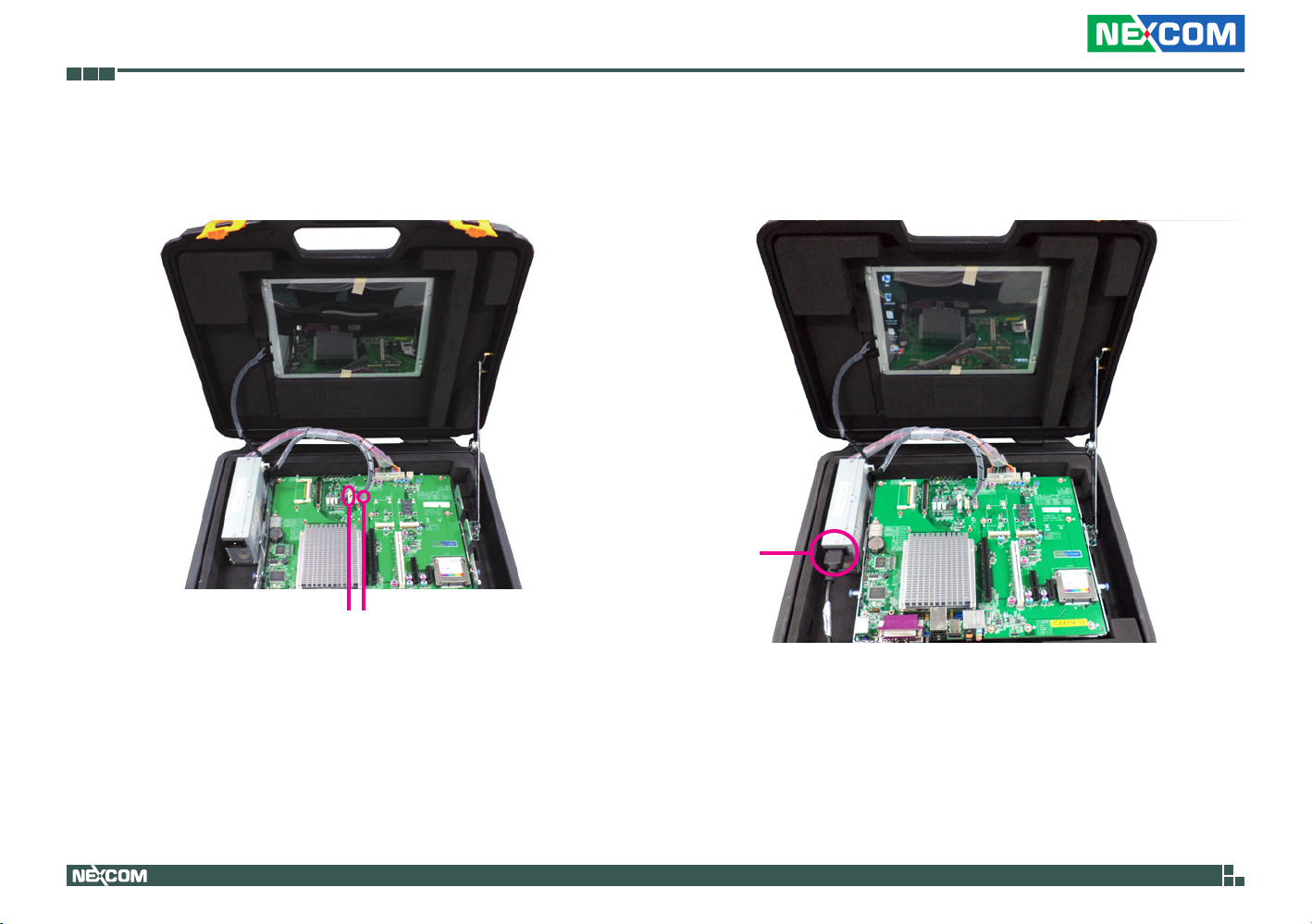

External Soft-Power On/Off and Hardware Reset Switches.....................62

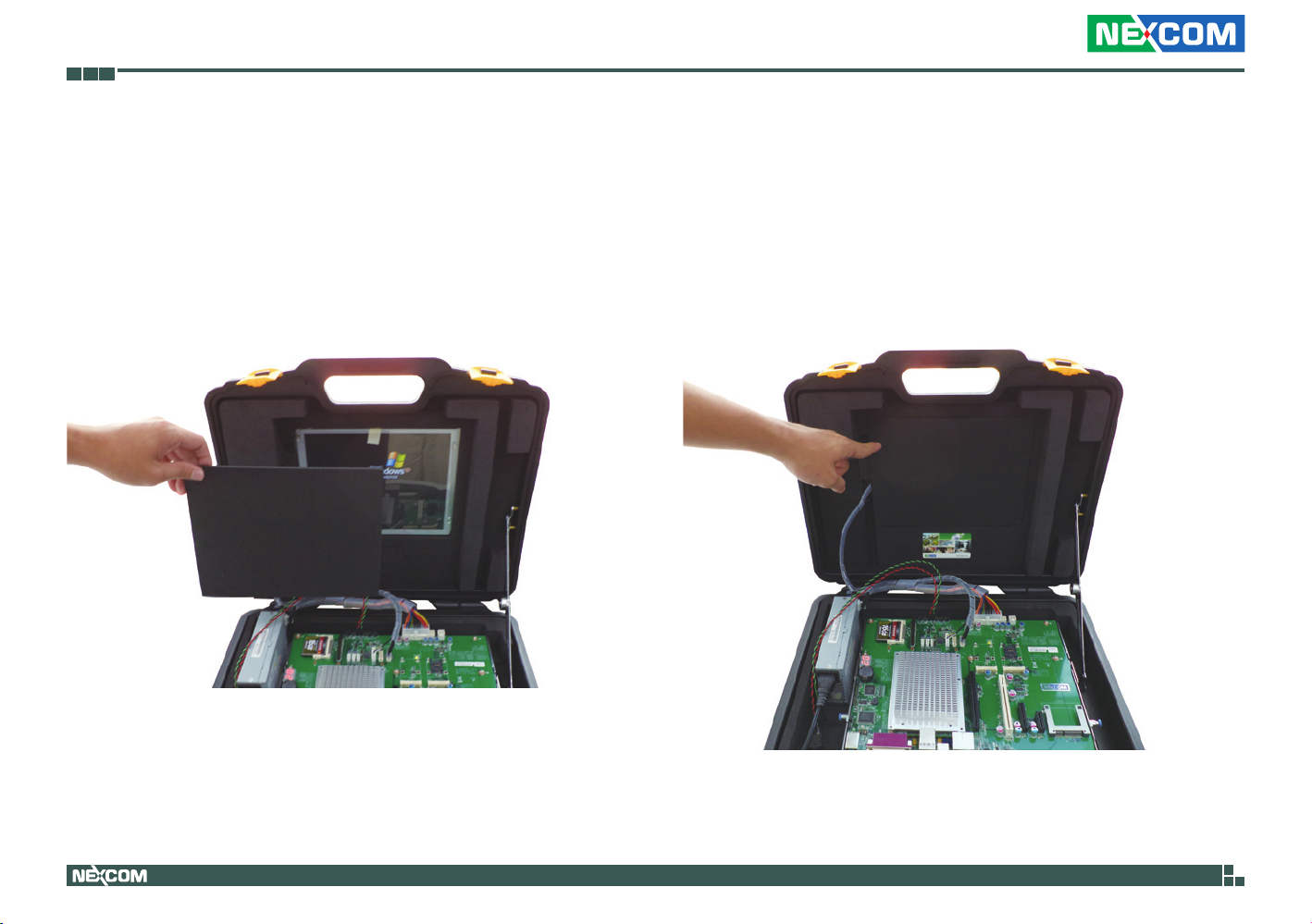

Closing the Case ................................................................................... 63
Chapter 4: BIOS Setup
About BIOS Setup ................................................................................. 64
When to Configure the BIOS .................................................................64
Default Configuration ........................................................................... 65
Entering Setup ...................................................................................... 65
Legends ................................................................................................ 65
BIOS Setup Utility .................................................................................. 67
Main .................................................................................................67
Advanced .......................................................................................... 68
Chipset ..............................................................................................76
Boot .................................................................................................. 79
Security .............................................................................................80
Save & Exit ........................................................................................80
Appendix A: Watchdog Timer................................81
WDT Programming Guide .....................................................................81
iii
ICEK 268-T2 Starter Kit User Manual
Page 4
Preface
Preface
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.
Disclaimer
The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.
Acknowledgements
ICEK 268-T2 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.
Regulatory Compliance Statements
This section provides the FCC compliance statement for Class B devices and describes how to keep the system CE compliant.
Declaration of Conformity
FCC
This equipment has been tested and verified to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.
CE
The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.
iv
ICEK 268-T2 Starter Kit User Manual
Page 5
Preface
RoHS Compliance
NEXCOM RoHS Environmental Policy and Status Update
This publication, including all photographs, illustrations and software, is protected under international copyright
laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.
RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.
In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.
The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.
How to recognize NEXCOM RoHS Products?
For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.
All new product models launched after January 2006 will be RoHS compliant. They will use the usual NEXCOM naming convention.
v
ICEK 268-T2 Starter Kit User Manual
Page 6
Preface
Warranty and RMA
NEXCOM Warranty Period
NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.
NEXCOM Return Merchandise Authorization (RMA)
▪ Customers shall enclose the “NEXCOM RMA Service Form” with the
returned packages.
▪ Customers must collect all the information about the problems
encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.
▪ Customers can send back the faulty products with or without accessories
(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.
▪ Customers are responsible for the safe packaging of defective products,
making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”
▪ Any products returned by NEXCOM to other locations besides the
customers’ site will bear an extra charge and will be billed to the customer.
Repair Service Charges for Out-of-Warranty Products
NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.
Repair Service Charges for Out-of-Warranty Products
NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.
System Level
▪ Component fee: NEXCOM will only charge for main components such as
SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.
▪ Items will be replaced with NEXCOM products if the original one cannot
be repaired. Ex: motherboard, power supply, etc.
▪ Replace with 3rd party products if needed.
▪ If RMA goods can not be repaired, NEXCOM will return it to the customer
without any charge.
Board Level
▪ Component fee: NEXCOM will only charge for main components, such
as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.
▪ If RMA goods can not be repaired, NEXCOM will return it to the customer
without any charge.
vi
ICEK 268-T2 Starter Kit User Manual
Page 7
Preface
Warnings
Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.
Cautions
Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.
vii
ICEK 268-T2 Starter Kit User Manual
Page 8
Preface
Safety Information
Before installing and using the device, note the following precautions:
▪ Read all instructions carefully.
▪ Do not place the unit on an unstable surface, cart, or stand.
▪ Follow all warnings and cautions in this manual.
▪ When replacing parts, ensure that your service technician uses parts
specified by the manufacturer.
▪ Avoid using the system near water, in direct sunlight, or near a heating
device.
▪ The load of the system unit does not solely rely for support from the
rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.
▪ The computer is provided with a battery-powered real-time clock circuit.
There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.
Installation Recommendations
Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.
Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:
▪ A Philips screwdriver
▪ A flat-tipped screwdriver
▪ A grounding strap
▪ An anti-static pad
Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.
viii
ICEK 268-T2 Starter Kit User Manual
Page 9
Preface
Safety Precautions
1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a
damp cloth. Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the
equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a stable surface during installation. Dropping it or
letting it fall may cause damage.
7. The openings on the enclosure are for air convection to protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting
the equipment to the power outlet.
9. Place the power cord in a way so that people will not step on it. Do not
place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.
13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.
14. If one of the following situations arises, get the equipment checked by service personnel:
a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work
according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.
15. Do not place heavy objects on the equipment.
16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.
17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.
ix
ICEK 268-T2 Starter Kit User Manual
Page 10
Preface
CAUTION!
Technical Support and Assistance
1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.
2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,
version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages
Warning!
1. Handling the unit: carry the unit with both hands and handle it with care.
2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.
3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.
Conventions Used in this Manual
Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.
CAUTION!CAUTION!
Caution: Information to avoid damaging components or losing data.
Note: Provides additional information to complete a task easily.
x
ICEK 268-T2 Starter Kit User Manual
Page 11
Preface
Global Service Contact Information
Headquarters
NEXCOM International Co., Ltd.
15F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com
America
USA NEXCOM USA
2883 Bayview Drive,Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: [email protected] www.nexcom.com
Asia
Taiwan Central Taiwan Office
16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: [email protected] www.nexcom.com.tw
Japan NEXCOM Japan
9F, Tamachi Hara Bldg.,4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: [email protected] www.nexcom-jp.com
China NEXCOM China
2F, Block 4, Venus Plaza, Bldg. 21, ZhongGuanCun Software Park, No. 8, Dongbeiwang West Rd., Haidian District, Beijing, 100193, China Tel: +86-10-8282-5880 Fax: +86-10-8282-5955 Email: [email protected] www.nexcom.cn
Shanghai Office
Room 1505, Greenland He Chuang Bldg., No. 450 Caoyang Rd., Shanghai, 200062, China Tel: +86-21-6150-8008 Fax: +86-21-3251-6358 Email: [email protected] www.nexcom.cn
Nanjing Office
Hall C, Block 17, Tian Xing Cui Lang Bldg., No. 49 Yunnan North Rd., Nanjing, 210018, China Tel: +86-25-8315-3486 Fax: +86-25-8315-3489 Email: [email protected] www.nexcom.cn
Shenzhen Office
Western Room 708, Block 210, Tairan Industry & Trading Place, Futian Area, Shenzhen, 518040, China Tel: +86-755-8332-7203 Fax: +86-755-8332-7213 Email: [email protected] www.nexcom.cn
Wuhan Office
1-C1804/ 1805, Mingze Liwan, No. 519 South Luoshi Rd., Hongshan District, Wuhan, 430070, China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 Email: [email protected] www.nexcom.cn
xi
ICEK 268-T2 Starter Kit User Manual
Page 12
Preface
Chengdu Office
9F, Shuxiangxie, Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061, China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 Email: [email protected] www.nexcom.cn
Europe
France NEXCOM France
La Grande Arche-Paroi Nord, 92044 Paris La Défense, France Tel: +33 (0) 1 40 90 33 35 Fax: +33 (0) 1 40 90 31 01 Email: [email protected] www.nexcom.eu
Germany
NEXCOM GmbH Leopoldstraße Business Centre, Leopoldstraße 244, 80807 Munich, Germany Tel: +49-89-208039-278 Fax: +49-89-208039-279 Email: [email protected] www.nexcom.eu
Italy
NEXCOM ITALIA S.r.l Via Gaudenzio Ferrari 29, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9286 9215 Email: [email protected] www.nexcomitalia.it
United Kingdom NEXCOM EUROPE
10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: [email protected] www.nexcom.eu
xii
ICEK 268-T2 Starter Kit User Manual
Page 13
Preface
Package Contents
Before continuing, verify that the ICEK 268-T2 package that you received is complete. Your package should have all the items listed in the following table.
Item Description Qty
1 ICES 268 1 2 ICEB 8050C 1 3 Built-in 10.4” LED LCD Panel 1 4 Built-in 150W Flex-ATX power supply for AC 110V/220V input 1 5 NEXCOM USB card containing ICEK 268-T2 Design-in documentation 1
xiii
ICEK 268-T2 Starter Kit User Manual
Page 14
Preface
Ordering Information
The following information below provides ordering information for ICEK 268-T2.
ICES 268 (P/N: 10K00026800X0)
COM Express type 2, basic Module QM77 support Intel® 3rd Generation Core™ rPGA988 embedded processors, non-ECC DDR3/ 2x SO-DIMMs
ICES 268 F-kit (P/N: 10K00026801X0)
COM Express Active fan kits with heat-spreader, heat-sink and cooling fan for ICES 268
ICEB 8050C (P/N: 10KB0805001X0)
COM Express Type 2, COM.0 Rev. 2.0 Evaluation CRB, VGA/ LVDS/ 8x USB 2.0/ 2x COM/ GbE/ LPT/ 5.1 HD/ SPDIF, CF/ IDE/ mSATA/ CFast/ PCIe x16/ PCIe x4 PCIe x1/ PCI/ mPCIe, ATX power input
ICEK 8050C-T2 (P/N: MISC by Project Registered)
COM Express Type 2 Starter Kit ready for NEXOM COM Express compact/ basic modules assembly SO-DIMM system memory with passive/ active fan-sink onto Type 2 carrier ICEB8050C with bootable Mini-SATA/ CFast-SSD pre-load Win 7 trial version OS with 10.4” LCD/ LVDS display and built-in Flex-ATX PSU AC 110/220V Input
xiv
ICEK 268-T2 Starter Kit User Manual
Page 15
Chapter 1: Product Introduction
Chapter 1: Product Introduction
Overview - ICES 268
Key Features
▪ Intel® 3rd generation Intel® Embedded Core™ rPGA988 embedded
processors family
®
QM77 PCH (HM76) chipset support PICMG COM.0 Rev. 2.0 Type
▪ Intel
2, pin-outs
▪ Support two DDR3 SO-DIMMs 1333/1600 non-ECC up to 16GB
▪ Support PCIex16 (Gen3.0), 5x PCIex1, 12x USB2.0, 2x SATA3.0/
2x SATA2.0 and 1x GbE
▪ Support VGA, dual channels 18/24-bit LVDS and optional 1x DDI/SDVO
by PEG
▪ Dimension: 95mm (W) x 125mm (L)
1
ICEK 268-T2 Starter Kit User Manual
Page 16
Chapter 1: Product Introduction
Hardware Specifications
CPU Support
▪ Support Intel® 3rd generation Core™ i7/i5/i3 embedded rPGA988
processors
®
Core™ i7-3610QE (4x 2.3GHz/ 6MB cache/ Max. TDP 45W)
– Intel
®
Core™ i7-3610ME (2x 2.7GHz/ 3MB cache/ Max. TDP 35W)
– Intel
®
Celeron® B810 (2x 1.6GHz/ 2MB cache/ Max. TDP 35W)
– Intel
Main Memory
▪ Two DDR3 SO-DIMMs, 1333/1600 MHz SDRAM non-ECC up to 16GB
Platform Control Hub
▪ Intel® QM77 PCH (optional HM76) chipset
BIOS
▪ AMI UEFI System BIOS ▪ Plug and play support ▪ Advanced Power Management and ACPI support
Display
▪ Intel® HD graphics with DX11 support and supports triple independent
displays ▪ One PCI Express x16 Lane (Gen 3.0) down to the carried board ▪ Supports VGA, single/dual channels LVDS 18/24-bit interfaces ▪ Optional 1x DDI port B support HDMI, DVI, DisplayPort and SDVO by PEG
with EBK-A2HDMI
Audio
▪ HD audio interface
On-board LAN
▪ Intel® 82579LM Gigabit Ethernet, support iAMT 8.0 (supported by QM77
only) ▪ Support boot from LAN, wake on LAN function ▪ Signals down to I/O board
COM Express Connector
▪ AB
VGA/ LVDS/ 8x USB 2.0, HD Audio/ 2x SATA3.0, 2x SATA 2.0/ GbE/
GPIO/ LPC bus/ 5 x PCIex1/ SMBus (I2C)/ SPI BIOS / SPK out ▪ CD
PCIex16 (Gen. 3.0) / PCI (v2.3)/ IDE
Power Requirements
▪ +12V, +5VSB, +3.3V RTC power
Dimensions
▪ 95mm (W) x 125mm (L)
Environment
▪ Board level operating temperatures: -15°C to 60°C ▪ Storage temperatures: -20°C to 80°C ▪ Relative humidity: ▪ 10% to 90% (operating, non-condensing) ▪ 5% to 95% (non-operating, non-condensing)
Certifications
▪ CE approval ▪ FCC Class A
2
ICEK 268-T2 Starter Kit User Manual
Page 17
Chapter 1: Product Introduction
Knowing Your ICES 268
PCIe DIP
switch
CPU Fan
CPU socket
Support DDR3/ SO-DIMM
3
ICEK 268-T2 Starter Kit User Manual
Page 18
Chapter 1: Product Introduction
Overview - ICEB 8050C
Key Features
▪ COM Express COM.0, Rev2.0 evaluation carrier, ATX form-factor
▪ Support Type 2 pin-outs, COMe Extended/ Basic/ Compact Module
▪ Display: VGA & dual channels 18/24-bit LVDS
▪ Bootable CFAST or mini-SATA, CF and shared IDE
▪ PCIe x16, PCIe x4, PCIe x1, PCIx 1 and mini-PCIe for Wi-Fi
▪ PS2/KB/Mouse, LPT/ RS232/422/485, VGA/GbE/4USB/ 5.1, S/PDIF
4
ICEK 268-T2 Starter Kit User Manual
Page 19
Chapter 1: Product Introduction
Hardware Specifications
Form Factor
▪ ATX Carrier MB, dimension: 305mm x 244mm (12” x 9.9”) ▪ COM Express Evaluation CRB: PICMB COM Express board-to-board
interconnectors, type 2 pin-puts, female, 8mm stack-up height, COM.0 Rev. 2.0
NEXCOM Computer-on-Modules Support List
▪ Compact Size (95x 95mm) : ICES 251/ ICES 251X, ICES 253, ICES 254 ▪ Basic Size (125x 95mm) : ICES 270, ICES 267/ ICES 267S
Expansion
▪ 1x PCIe x16 slot, support PEG interfaces ▪ 1x PCIe x4 slot, optional 4x PCIe x1 signals ▪ 1x PCIe x1 slot and 1x PCI (v2.3) slot ▪ 1x mini-PCIe slot for Wi-Fi with SIM tray
Graphic Interfaces
▪ Graphic Chip: from Type 2 pin-out, COM Express module ▪ CRT: support analog VGA with DB15 connector on the I/O edge ▪ LVDS: dual channels 18/24-bit LVDS connector (dual DF-13-20P) ▪ PCIe x16: optional EBK-A2HDMI (ICES254 only) riser card for HDMI or DP
Super I/O
▪ Winbond W83627DHG-PT
I/O Interface
▪ Serial COM: 2 ports
– 1x edge DB9 connector to support RS232/ 422/ 485 (+5/ +12V by
Ring)
– 1x internal box-header 2.0 pitch to support RS232
▪ USB 2.0: 8 ports
– 4x USB 2.0 ports by stack Type A on edge – 3x USB 2.0 by 4-pins JST 2.0mm JST connector, – 1x internal USB 2.0 to mini-PCIe slot for external Wi-Fi module
▪ SATA 2.0: 4 ports
– 2x SATA 2.0 ports – 1x mini-SATA by mini-PCIe slot for half-/ full size mSATA-SSD
– 1x CFAST slot for CFAST/ SATA 2.0 ▪ CF: 1x CF/ shared IDE slot onboard (default master-mode) ▪ IDE: 1x 44pins box-header for legacy IDE-HDD ▪ PS/2: 2x PS/2 connectors on edge for Keyboard/ Mouse ▪ Printer Port: 1x DB25 on edge for legacy printer interface ▪ GPIO ports: 8x pins GPIO signals from COMe
(default 5V TTL/ option 3.3V)
Network
▪ LAN chip: from COMe CPU module ▪ Support 1x RJ45/ GbE port on the edge I/O
Audio
▪ HD Audio AL886 with 5.1 channels ▪ Support external S/PDIF interface ▪ Support internal pin-header for L/R speaker-out 2W/ 4 Ohm
5
ICEK 268-T2 Starter Kit User Manual
Page 20
Chapter 1: Product Introduction
EEPROM
▪ 1x 2K EEPROM to record PCI Express Lane configuration ▪ ATMEL AT24C32 (or C02) and address 0x57 or (0xAE)
Watchdog Timer
▪ Watchdog timeout can be programmed by software from 1 second to 255
seconds and from 1 minute to 255 minutes (Tolerance 15% temperature 25°C)
On-board RTC
▪ On-chip RTC with battery BR2032
Power Input
▪ Standard ATX 24 pins and AUX 4-pins with 12V
Dimensions
▪ ATX form factor, 305x 244mm (Lx W, 12”x9.6”)
Environment
▪ Operating temperatures: -20°C to 60°C ▪ Storage temperature: -40°C to 85°C ▪ Relative humidity: Operating 10% to 90%, non-condensing
Certifications
▪ CE approval ▪ FCC Class A
6
ICEK 268-T2 Starter Kit User Manual
Page 21
Chapter 1: Product Introduction
Knowing Your ICEB 8050C
CFast/ SSD
PCIe x1
PCI (v2.3)
PCIe x4
Audio, S/PDIF
PCIe x16
HD 5.1
2USB
GbE LAN/2USB
RS232/422/485
LPT/ VGA
PS/2/ KB & Mouse
mPCIe/ Wi-Fi
Option SIM
mSATA/SSD
ATX Power
18/24-bit LVDS
7
CF SlotIDE (44pins)
Port 80
Battery RTC
ICEK 268-T2 Starter Kit User Manual
Page 22
Chapter 1: Product Introduction
Block Diagram
ICES 268
COM Express connector A and B
TYPE 2
IMVP 7
VGA BUS
HDA BUS
PORT:0-3 SATA BUS
PORT:A.B
PORT:0-7 USB2.0 BUS
PCI-E*1 BUS PORT:1,2,3,4,5,
MDI BUS
INTEL WG82579LM
GbE PHY
LVDS BUS
LPC BUS
PCI-E*1 BUS PORT:8
Vcore
GFXCORE
Ivy Bridge
37.5 x 37.5 mm Socket
CORE POWER
(rPGA989)
Flexible Display Interface
VGA
Panther Point
HDA
SATA
QM77/HM76
25 x 25 mm FCBGA(Mobile only)
USB (14) LV DS
LPC
PCIE BUS
SMBUS
DDR3 CH A
DMIFDI
DMIFDI
HWM NCT7802Y
DDR3 Channel A
DDR3 1600 MHz NON-ECC SO-DIMM
DDR3 Channel B
DDR3 CH BPCIex16
DMI(X4)
DISPLAY
PORT D
DISPLAY
PORT C
DISPLAY PORT B
DISPLAY
PORT B
USB3.0
PCIE*1 PORT:6
PCIE*1 PORT:7
PCIE BUS
SPI
DDR3 1600 MHz NON-ECC SO-DIMM
PCIex16 BUS
PCIE TO PATA 88SE6101
PCIE TO PCI IT8892
BIOS
iAMT
SPI ROM
COM Express connector C and D
PATA
PCI
TYPE 2
SMBUS
SPI BUS
8
ICEK 268-T2 Starter Kit User Manual
Page 23
Chapter 1: Product Introduction
COM Express connector C and D
TYPE 2TYPE 2
IDE 44PIN
PATA 100/66/33
Box header
Master
Slave
33MHz/32bit
PCI SLOT
PCI BUS
IDSEL=AD20 IRQ=A B C D
PCI-E x16
SLOT
x16 PEG BUS
VGA
Connector
R/G/B
LVDS A
(18/24 bit)LVDS Channel A
Audio CodecHD Audio interface
Audio Connector
EEPROM
I2C BUS
Line IN / Line OUT / MIC IN
SATA *2
SATA x2 BUS
Connector
USB 2.0 *7
USB BUS
Connector
Connector
PCI-E x1
PCI-E x4 BUS
SLOT
PCI-E x4
PCI-E x1 BUS
SLOT
LPC BUS
SUPER I/O
KB/MS
COM 1
CF Socket
COM Express connector A and B
LPT
COM 2
(ALC886)
(W83627DHG-PT)
Connector
Connector
Connector
Connector
Page 3
GPI *4
GPIO BUS
GPO *4
TTL LEVLE
232/422/485
RJ45
Giga LAN
Connector
LVDS B (18/24 bit)LVDS Channel B
Connector
232
MiniPCIE
SLOT
PCI-E x1 BUS
USB x1
mSATA
Connector
Connector
CFAST
SATA x1 BUS
SATA x1 BUS
CEN OUT / SIDE OUT / SPDIF
AMP
Line OUT
SPEAKER
PIN
HEARD
ICEB 8050C
9
ICEK 268-T2 Starter Kit User Manual
Page 24
Chapter 2: Jumpers and Connectors
Chapter 2: Jumpers and Connectors
This chapter describes how to set the jumpers and connectors on the ICES 268 and ICEB 8050C motherboard.
Before You Begin
▪ Ensure you have a stable, clean working environment. Dust and dirt can
get into components and cause a malfunction. Use containers to keep small components separated.
▪ Adequate lighting and proper tools can prevent you from accidentally
damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: – A Philips screwdriver – A flat-tipped screwdriver – A set of jewelers screwdrivers – A grounding strap – An anti-static pad
▪ Using your fingers can disconnect most of the connections. It is
recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.
▪ Before working on internal components, make sure that the power is off.
Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environments tend to have less static electricity than
dry environments. A grounding strap is warranted whenever danger of static electricity exists.
Precautions
Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.
Follow the guidelines below to avoid damage to your computer or yourself:
▪ Always disconnect the unit from the power outlet whenever you are
working inside the case.
▪ If possible, wear a grounded wrist strap when you are working inside the
computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.
▪ Hold electronic circuit boards by the edges only. Do not touch the
components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.
▪ Leave all components inside the static-proof packaging that they shipped
with until they are ready for installation.
▪ Use correct screws and do not over tighten screws.
10
ICEK 268-T2 Starter Kit User Manual
Page 25
Chapter 2: Jumpers and Connectors
Jumper Settings
A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.
Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).
Two-Pin Jumpers: Open (Left) and Short (Right)
Three-Pin Jumpers: Pins 1 and 2 are Short
3
2
1
1
3
2
11
ICEK 268-T2 Starter Kit User Manual
Page 26
Chapter 2: Jumpers and Connectors
Locations of the Jumpers and Connectors for ICES 268
The figure below shows the locations of the jumpers and connectors on the top and bottom of ICES 268.
H1
SW1
FAN1
1
3
H3
AT AR AP AN AM AL AK
RT1
J2
1
10
AJ AH AG
AF AE AD AC AB
AA
Y W V U T R
P
N M L K J H G F E D C B A
35333432303129282724252622231920211816171314151211
BJ
BG
BE
BC
BAAWAU
ARANAL
AGAEAJ
2
U14
4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48
AC
BH
BBBDBF
ATAYAV
APAMAK
AHADAF
AB
C20
C21C31
C22
C25
C28
C29
C30C33C47
C32C46
C40C52C60 C57
C41
C45 C39C51
C53
C59 C56
C61 C58
789456231
W
AA
Y
VTP
10
NRU
LGJ
AEC
1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43 45 47 49
KMH
DFB
ICES268 4BKS0268A1X10 MADE IN TAIWAN
U3
VER:A
H4
204
DIMM1
H2
DIMM2
203
VER:A ICES268
4BKS0268A1X10
MADE IN TAIWAN
73
71
72 74
D1
2
1
H5
C1
B1
A1
J3
D110
C110
B110
A110
203
73
71
1
FB4
204
C402
74
72
2
12
ICEK 268-T2 Starter Kit User Manual
Page 27
Chapter 2: Jumpers and Connectors
Connector Pin Definitions
Internal Connectors
PCIe DIP Switch
Connector type: 1x4 4-pin DIP switch Connector location: SW1
N
O
1
2
Pin Definition Pin Definition
1 CFG5 2 CFG6 3 GND 4 GND
PCI Express Bifurcation (CFG6) (CFG5)
CFG6 CFG5
0 0 1 x8, 2 x4 PCI Express
0 1 reserved
1 0 2 x8 PCI Express
1 1 1 x16 PCI Express (Default)
CPU Fan Connector
Connector type: 1x3 3-pin header Connector location: FAN1
1 3
Pin Definition Pin Definition
1 GND 2 VCC12 3 VCC5_S
13
ICEK 268-T2 Starter Kit User Manual
Page 28
Chapter 2: Jumpers and Connectors
High Speed Board-to-Board Connector: Row A and B, Row C and D
Connector location: J3
Com Express A&B Connector
Com Express C&D Connector
Pin Definition Pin Definition Pin Definition Pin Definition
A1 GND(FIXED) B1 GND(FIXED) C1 GND(FIXED) D1 GND(FIXED) A2 GBE0_MDI3- B2 GBE0_ACT# C2 IDE_D7 D2 IDE_D5 A3 GBE0_MDI3+ B3 LPC_FRAME# C3 IDE_D6 D3 IDE_D10 A4 GBE0_LINK100# B4 LPC_AD0 C4 IDE_D3 D4 IDE_D11 A5 GBE0_LINK1000# B5 LPC_AD1 C5 IDE_D15 D5 IDE_D12 A6 GBE0_MDI2- B6 LPC_AD2 C6 IDE_D8 D6 IDE_D4 A7 GBE0_MDI2+ B7 LPC_AD3 C7 IDE_D9 D7 IDE_D0 A8 GBE0_LINK# B8 LPC_DRQ0# C8 IDE_D2 D8 IDE_REQ#
A9 GBE0_MDI1- B9 LPC_DRQ1# C9 IDE_D13 D9 IDE_IOW# A10 GBE0_MDI1+ B10 LPC_CLK C10 IDE_D1 D10 IDE_ACK# A11 GND(FIXED) B11 GND(FIXED) C11 GND(FIXED) D11 GND(FIXED) A12 GBE0_MDI0- B12 PWRBTN# C12 IDE_D14 D12 IDE_IRQ# A13 GBE0_MDI0+ B13 SMB_CK C13 IDE_IORDY D13 IDE_A0
14
ICEK 268-T2 Starter Kit User Manual
Page 29
Chapter 2: Jumpers and Connectors
Pin Definition Pin Definition Pin Definition Pin Definition
A14 GBE0_CTREF B14 SMB_DAT C14 IDE_IOR# D14 IDE_A1 A15 SUS_S3# B15 SMB_ALERT# C15 PCI_PME# D15 IDE_A2 A16 SATA0_TX+ B16 SATA1_TX+ C16 PCI_GNT2#- D16 IDE_CS1# A17 SATA0_TX- B17 SATA1_TX- C17 PCI_REQ2# D17 IDE_CS3# A18 SUS_S4# B18 SUS_STAT# C18 PCI_GNT1# D18 IDE_RST# A19 SATA0_RX+ B19 SATA1_RX+ C19 PCI_REQ1# D19 PCI_GNT3# A20 SATA0_RX- B20 SATA1_RX- C20 PCI_GNT0# D20 PCI_REQ3# A21 GND(FIXED) B21 GND(FIXED) C21 GND(FIXED) D21 GND(FIXED) A22 SATA2_TX+ B22 SATA3_TX+ C22 PCI_REQ0# D22 PCI_AD1 A23 SATA2_TX- B23 SATA3_TX- C23 PCI_RST# D23 PCI_AD3 A24 SUS_S5# B24 PWR_OK C24 PCI_AD0 D24 PCI_AD5 A25 SATA2_RX+ B25 SATA3_RX+ C25 PCI_AD2 D25 PCI_AD7 A26 SATA2_RX- B26 SATA3_RX- C26 PCI_AD4 D26 PCI_CBE#0 A27 BATLOW# B27 NC C27 PCI_AD6 D27 PCI_AD9 A28 (S)ATA_ACT# B28 AC/HDA_SDIN2 C28 PCI_AD8 D28 PCI_AD11 A29 AC/HDA_SYNC B29 AC/HDA_SDIN1 C29 PCI_AD10 D29 PCI_AD13 A30 AC/HDA_RST# B30 AC/HDA_SDIN0 C30 PCI_AD12- D30 PCI_AD15 A31 GND(FIXED) B31 GND(FIXED) C31 GND(FIXED) D31 GND(FIXED) A32 AC/HDA_BITCLK B32 SPKR C32 PCI_AD14 D32 PCI_PAR A33 AC/HDA_SDOUT B33 I2C_CK C33 PCI_CBE#1- D33 PCI_SERR# A34 BIOS_DIS0# B34 I2C_DAT C34 PCI_PERR# D34 PCI_STOP# A35 THRMTRIP# B35 NC C35 PCI_LOCK# D35 PCI_TRDY# A36 USB6- B36 USB7- C36 PCI_DEVSEL# D36 PCI_FRAME# A37 USB6+ B37 USB7+ C37 PCI_IRDY# D37 PCI_AD16 A38 USB_6_7_OC# B38 USB_4_5_OC# C38 PCI_CBE#2 D38 PCI_AD18 A39 USB4- B39 USB5- C39 PCI_AD17 D39 PCI_AD20 A40 USB4+ B40 USB5+ C40 PCI_1D19 D40 PCI_AD22 A41 GND(FIXED) B41 GND(FIXED) C41 GND(FIXED) D41 GND(FIXED)
15
ICEK 268-T2 Starter Kit User Manual
Page 30
Chapter 2: Jumpers and Connectors
Pin Definition Pin Definition Pin Definition Pin Definition
A42 USB2- B42 USB3- C42 PCI_AD21 D42 PCI_AD24 A43 USB2+ B43 USB3+ C43 PCI_AD23 D43 PCI_AD26 A44 USB_2_3_OC# B44 USB_0_1_OC# C44 PCI_CBE#3 D44 PCI_AD28 A45 USB0- B45 USB1- C45 PCI_AD25 D45 PCI_AD30 A46 USB0+ B46 USB1+ C46 PCI_AD27 D46 PCI_IRQ#C A47 VCC_RTC B47 EXCD1_PERST# C47 PCI_AD29 D47 PCI_IRQ#D A48 EXCD0_PERST# B48 NC C48 PCI_AD31 D48 NC A49 NC B49 SYS_RESET# C49 PCI_IRQ#A D49 PCI_M66EN A50 LPC_SERIRQ B50 CB_RESET# C50 PCI_IRQ#B D50 PCI_CLK A51 GND(FIXED) B51 GND(FIXED) C51 GND(FIXED) D51 GND(FIXED) A52 NC B52 NC C52 SDVO_TVCLKP/PEG_RX0+ D52 PEG_TX0+/SDVO_RP A53 NC B53 NC- C53 SDVO_TVCLKN/PEG_RX0- D53 PEG_TX0-/SDVO_RN A54 GPI0 B54 GPO1 C54 TYPE0# D54 PEG_LANE_RV# A55 PCIE_TX4+ B55 PCIE_RX4+ C55 SDVO_INTP/PEG_RX1+ D55 PEG_TX1+/SDVO_GP A56 PCIE_TX4- B56 PCIE_RX4- C56 SDVO_INTN/PEG_RX1- D56 PEG_TX1-/SDVO_GN A57 GND B57 GPO2 C57 TYPE1# D57 TYPE2# A58 PCIE_TX3+ B58 PCIE_RX3+ C58 SDVO_FLDSTALP/PEG_RX2+ D58 PEG_TX2+/SDVO_BP A59 PCIE_TX3- B59 PCIE_RX3- C59 SDVO_FLDSTALN/PEG_RX2- D59 PEG_TX2-/SDVO_BN A60 GND(FIXED) B60 GND(FIXED) C60 GND(FIXED) D60 GND(FIXED) A61 PCIE_TX2+ B61 PCIE_RX2+ C61 PEG_RX3+ D61 PEG_TX3+/SDVO_CLKP A62 PCIE_TX2- B62 PCIE_RX2- C62 PEG_RX3- D62 PEG_TX3-/SDVO_CLKN A63 GPI1 B63 GPO3 C63 RSVD D63 RSVD A64 PCIE_TX1+ B64 PCIE_RX1+ C64 RSVD D64 RSVD A65 PCIE_TX1- B65 PCIE_RX1- C65 PEG_RX4+ D65 PEG_TX4+ A66 GND B66 WAKE0# C66 PEG_RX4- D66 PEG_TX4­A67 GPI2 B67 WAKE1# C67 RSVD D67 GND A68 PCIE_TX0+ B68 PCIE_RX0+ C68 PEG_RX5+ D68 PEG_TX5+ A69 PCIE_TX0- B69 PCIE_RX0- C69 PEG_RX5- D69 PEG_TX5-
16
ICEK 268-T2 Starter Kit User Manual
Page 31
Chapter 2: Jumpers and Connectors
Pin Definition Pin Definition Pin Definition Pin Definition
A70 GND(FIXED) B70 GND(FIXED) C70 GND(FIXED) D70 GND(FIXED) A71 LVDS_A0+ B71 LVDS_B0+ C71 PEG_RX6+ D71 PEG_TX6+ A72 LVDS_A0- B72 LVDS_B0- C72 PEG_RX6- D72 PEG_TX6­A73 LVDS_A1+ B73 LVDS_B1+ C73 SDVO_DATA D73 GND A74 LVDS_A1- B74 LVDS_B1- C74 PEG_RX7+ D74 PEG_TX7+ A75 LVDS_A2+ B75 LVDS_B2+ C75 PEG_RX7- D75 PEG_TX7­A76 LVDS_A2- B76 LVDS_B2- C76 GND D76 GND A77 LVDS_VDD_EN B77 LVDS_B3+ C77 RSVD D77 IDE_CBLID# A78 LVDS_A3+ B78 LVDS_B3- C78 PEG_RX8+ D78 PEG_TX8+ A79 LVDS_A3- B79 LVDS_BKLT_EN C79 PEG_RX8- D79 PEG_TX8­A80 GND(FIXED) B80 GND(FIXED) C80 GND(FIXED) D80 GND(FIXED) A81 LVDS_A_CK+ B81 LVDS_B_CK+ C81 PEG_RX9+ D81 PEG_TX9+ A82 LVDS_A_CK- B82 LVDS_B_CK- C82 PEG_RX9- D82 PEG_TX9­A83 LVDS_I2C_CK B83 LVDS_BKLT_CTRL C83 RSVD D83 RSVD A84 LVDS_I2C_DAT B84 VCC_5V_SBY C84 GND D84 GND A85 GPI3 B85 VCC_5V_SBY C85 PEG_RX10+ D85 PEG_TX10+ A86 RSVD(KBD_RST#) B86 VCC_5V_SBY C86 PEG_RX10- D86 PEG_TX10­A87 RSVD(A20GATE) B87 VCC_5V_SBY C87 GND D87 GND A88 PCIE_CLK_REF+ B88 BIOS_DIS1# C88 PEG_RX11+ D88 PEG_TX11+ A89 PCIE_CLK_REF- B89 VGA_RED C89 PEG_RX11- D89 PEG_TX11­A90 GND(FIXED) B90 GND(FIXED) C90 GND(FIXED) D90 GND(FIXED) A91 SPI_POWER B91 VGA_GRN C91 PEG_RX12+ D91 PEG_TX12+ A92 SPI_MISO B92 VGA_BLUE C92 PEG_RX12- D92 PEG_TX12­A93 GPO0 B93 VGA_HSYNC C93 GND D93 GND A94 SPI_CLK B94 VGA_VSYNC C94 PEG_RX13+ D94 PEG_TX13+ A95 SPI_MOSI B95 VGA_I2C_CK C95 PEG_RX13- D95 PEG_TX13­A96 GND B96 VGA_I2C_DAT C96 GND D96 GND A97 TYPE10# B97 SPI_CS# C97 RSVD D97 PEG_EN#
17
ICEK 268-T2 Starter Kit User Manual
Page 32
Chapter 2: Jumpers and Connectors
Pin Definition Pin Definition Pin Definition Pin Definition
A98 NC B98 RSVD C98 PEG_RX14+ D98 PEG_TX14+ A99 NC B99 RSVD C99 PEG_RX14- D99 PEG_TX14-
A100 GND(FIXED) B100 GND(FIXED) C100 GND(FIXED) D100 GND(FIXED) A101 NC B101 NC C101 PEG_RX15+ D101 PEG_TX15+ A102 NC B102 NC C102 PEG_RX15- D102 PEG_TX15­A103 NC B103 NC C103 GND D103 GND A104 VCC_12V B104 VCC_12V C104 VCC_12V D104 VCC_12V A105 VCC_12V B105 VCC_12V C105 VCC_12V D105 VCC_12V A106 VCC_12V B106 VCC_12V C106 VCC_12V D106 VCC_12V A107 VCC_12V B107 VCC_12V C107 VCC_12V D107 VCC_12V A108 VCC_12V B108 VCC_12V C108 VCC_12V D108 VCC_12V A109 VCC_12V B109 VCC_12V C109 VCC_12V D109 VCC_12V A110 GND(FIXED) B110 GND(FIXED) C110 GND(FIXED) D110 GND(FIXED)
18
ICEK 268-T2 Starter Kit User Manual
Page 33
Chapter 2: Jumpers and Connectors
JP5
JP8
JP3
Locations of the Jumpers and Connectors for ICEB 8050C
The figure below shows the location of the jumpers and connectors for ICEB 8050C.
1
21
2 1
31
2 1
LED5
1
3
1
6
1
910
JP1
H3
RaRfRbLbLfLaLg
H2
2
1
5
6 4
Rg
1
3
JP2
12 10
J1
JP12
J2
103
128
U2
C14
KM1
1 26
25 50
44
2
VGA1
43
1
CN1
H8
H9
3 1
JP4
JP6
J3
J4
J5
1
1
1
4
4
4
CN2
21
22
18
Y
17
1 14
5 1
1
CF MODEJP3
DIR
MODE2
SW2.4
SW2.3
COM1 MODE SELECT
SW2
65
64
39
38
25
HDDLEDJP4 1 HDDLED+ 2 HDDLED-
H4
1
00
1T/1R
RS485
00
0
1
1
2T/2R
RS422
10
X0
RS232
X
0
0
0
BACK
LOOP
MODE
REG
MODE0
MODE2
MODE1
DIR
H21
RTC
COM1 422/485 TERMALR
J1
1-2 NORMAL
2-3 CLEAR CMOS
2-3 DISABLE
1-2 ENABLE
JP1
ALL ONALL OFF
DISABLEENABLESIO
COM1 RI MODEJP2
SW1
1-2 5V
2-3 12V
H5
PRT1
13
5 9
IDE1
H6
JP12 GAL DOWNLOAD PORT
4-5 RI
H7
5
15 11
1-2 MASTER 2-3 SLAVE
H1
OFF:1
MODE1
MODE0
ON:0
SW2
SW2.2
SW2.1
Lc Le Ld cm1cm2 Rd Re Rc
BAT1
76
U21
100
75
1
51
25
5026
102
1
11 9
7
8
1
2
5 3
1 6
COM1
2
JP5 POWER BUTTON JP6 HW RESET JP8 DISABLE EEPROM WP
JP7 BIOS PROGRAM
2
8
J6
1
9
20
19
10
G/R
9
5
8
1
4
JP9
1
JP7
7
2
10
CON1
J7
1
7
D1 C1
CN3
7
31
8 4
C110
1
45
55
JP10
CN4
2
20
B110J8D110
B1 A1
41
BAC
CN5
12
24
CN9CN8
MH3MH4
mPCIE
2
16
18
15
17
1
CN10
B62
J10
B32
B31
A32
A2
A1
B1
B2
B2
1
19
JP9 1-2 ATX 2-3 AT
H10
H11
H12
A110
H13
POWER MODE
CN7
2
20
1
19
A2
H14
JP10 LVDS POWER 1-2 3.3V 2-3 5V
H15
J9
B81
A82
A81
B2
A1
B1
13
B82
C131 C129
1
CON2
MH3
mSATA
2
1
MH6
MH5
MH4
52
18
16
17
15
51
J11
A61
A1
CN6
1
7
32
42
35
52
22
25
3
2
45
1
H16
JP11
5
1
INTERNAL
JP11
SPEAKER 1 L+ 2 L­3 GND 4 R+
H17
5 R-
1
2
CON3
3
52
51
MH6MH5
4
JP13
SW3 BIOS_ DIS1#
1 1 001 0
ICEB8050C 4BK08050B2X10 MADE IN TAIWAN
3
JP13
1-2
1
2-3
BIOS_ DIS0#
CARRIER SPI_CS#
1
0
mPCIESELECT
WIFI
3.5G
SPI0 SPI1
BIOS SELECT
DESCRIPTOR
MODULEHIGH CARRIER MODULE
VER:B
H20
ON:0
SW3
OFF:1 SW3.1
BIOS_DIS0#
SW3.2
BIOS_DIS1#
SPI
BIOS ENTRY
SIP0/SPI1MODULEHIGH CARRIER FWH SIP0/SPI1 SIP0/SPI1
H18
CFAST
CON4
B18
B17
A18
A17
R350
A2A1B1
B2
S1
S7
PC1
CN11
P17
H19
19
ICEK 268-T2 Starter Kit User Manual
Page 34
Chapter 2: Jumpers and Connectors
Jumpers
AT/ATX Power Type Select
Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP9
1 3 1 3
Pin Settings
1-2 On ATX 2-3 On AT
1-2 On: default
RTC Clear
Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: J1
Pin Settings
1-2 On Normal 2-3 On Clear CMOS
1-2 On: default
20
ICEK 268-T2 Starter Kit User Manual
Page 35
Chapter 2: Jumpers and Connectors
15
LVDS Backlight Power Select
Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP10
1 3
Pin Settings
1-2 On +3.3V 2-3 On +5V
1-2 On: default
COM1 RS232 RI# Pin Power Select
Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP2
Pin Settings
1-2 On +5V 2-3 On +12V 4-5 On RI
4-5 On: default
21
ICEK 268-T2 Starter Kit User Manual
Page 36
Chapter 2: Jumpers and Connectors
Termal R
Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP1
1 3
Pin Settings
1-2 On Enable COM1 422/485 Termal R 2-3 On Disable COM1 422/485 Termal R
2-3 On: default
CF Mode Select
Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP3
1 3
Pin Settings
1-2 On Master 2-3 On Slave
1-2 On: default
22
ICEK 268-T2 Starter Kit User Manual
Page 37
Chapter 2: Jumpers and Connectors
mPCIe Select
Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP13
1 3
Pin Settings
1-2 On Wi-Fi 2-3 On 3.5G
1-2 On: default
23
ICEK 268-T2 Starter Kit User Manual
Page 38
Chapter 2: Jumpers and Connectors
DIP Switch Settings
Close to Net LPC_SIO1_CLK
Connector type: 2x2 4-pin DIP switch Connector location: SW1
N
O
1
2
Pin Settings
1-2 Off Enable 1-2 On Disable
RS232/ RS422/ RS485 Mode Select
Connector type: 2x4 8-pin DIP switch Connector location: SW2
N
O
3
1
MODE0 0 1 0 0
MODE1 0 0 0 1
MODE2 0 0 1 0
MODE3 X X 1 0
4
2
SW2 ON:0 OFF:1
SW2.1 MODE0
SW2.2 MODE1
SW2.3 MODE2
SW2.4 DIR
Loop Back RS232 RS422 RS485
24
ICEK 268-T2 Starter Kit User Manual
Page 39
Chapter 2: Jumpers and Connectors
BIOS Select
Connector type: 2x2 4-pin DIP switch Connector location: SW3
N
O
1
2
SW3 ON:0 OFF:1
SW3.1 BIOS_DIS0#
SW3.2 BIOS_DIS1#
BIOS_DIS1# BIOS_DIS0#
1 1 High Module SPI0/SPI1
1 0 High Module Carrier FWH
0 1 SPI0 CARRIER SPI0/SPI1
0 0 SPI1 MODULE SPI0/SPI1
Carrier
SPI_CS#
SPI
Descriptor
BIOS Entry
25
ICEK 268-T2 Starter Kit User Manual
Page 40
Chapter 2: Jumpers and Connectors
Connector Pin Definitions
External Connectors
PS2 Keyboard and Mouse
Connector type: PS/2, Mini-DIN-6 Connector location: KM1
Mouse
Keyboard
Pin Definition Pin Definition
1 KDAT 2 NC 3 GND 4 +5V 5 KCLK 6 NC 7 MDAT 8 NC 9 GND 10 +5V
11 MCLK 12 NC MH1 GND MH2 GND MH3 GND MH4 GND MH5 GND
Parallel Port
Connector type: 26-pin D-Sub, 2x13 (2.0mm) Connector location: PRT1
Pin Definition Pin Definition
1 RP_-STB 2 RP_PRD0 3 RP_PRD1 4 RP_PRD2 5 RP_PRD3 6 RP_PRD4 7 RP_PRD5 8 RP_PRD6
9 RP_PRD7 10 ACK# 11 BUSY 12 PE 13 SLCT 14 AFD# 15 ERR# 16 INIT# 17 SLIN# 18 GND 19 GND 20 GND 21 GND 22 GND 23 GND 24 GND 25 GND MH1 GND
MH2 GND MH3 GND
26
ICEK 268-T2 Starter Kit User Manual
Page 41
Chapter 2: Jumpers and Connectors
COM1 Port
Connector type: DB-9 port, 9-pin D-Sub Connector location: COM1
Pin Definition Pin Definition
1 SP_DCD1 2 SP_RXD1 3 SP_TXD1 4 SP_DTR1 5 GND 6 SP_DSR1 7 SP_RTS1 8 SP_CTS1 9 SP_RI1_T MH1 GND
MH2 GND
VGA Port
Connector type: DB-15 port, 15-pin D-Sub (VGA) Connector location: VGA1
Pin Definition Pin Definition
1 VGA_R 2 VGA_G 3 VGA_B 4 NC 5 GND 6 VGADET 7 GND 8 GND
9 +5V 10 GND 11 NC 12 VGA_DAT 13 VGA_HSYNC 14 VGA_VSYNC 15 VGA_CLK MH1 GND
MH2 GND
27
ICEK 268-T2 Starter Kit User Manual
Page 42
Chapter 2: Jumpers and Connectors
LAN and USB1/2 Ports
Connector type: RJ45 port with LEDs and dual USB 2.0 ports, Type A Connector location: CN2A (USB) and CN2B (LAN)
ACT LINK
Pin Definition Pin Definition
1 +5V_USB 2 USB_0N 3 USB_0P 4 GND 5 +5V_USB 6 USB_1N
7 USB_1P 8 GND MH1 GND MH2 GND MH3 GND MH4 GND
9 V25_LA1 10 LAN_MDI0P
11 LAN_MDI0N 12 LAN_MDI1P 13 LAN_MDI1N 14 LAN_MDI2P 15 LAN_MDI2N 16 LAN_MDI3P 17 LAN_MDI3N 18 GND 19 LAN_SPEED100# 20 LAN_SPEED1000# 21 LAN_ACTLED# 22 +3.3VSBY
MH5 GND MH6 GND
MH7 GND MH8 GND
USB2/3 Ports
Connector type: Dual USB 2.0 ports, Type A Connector location: CON1
Pin Definition Pin Definition
1 +5V_USB 2 USB_2N 3 USB_2P 4 GND 5 +5V_USB 6 USB_3N
7 USB_3P 8 GND MH1 GND MH2 GND MH3 GND MH4 GND
28
ICEK 268-T2 Starter Kit User Manual
Page 43
Chapter 2: Jumpers and Connectors
Audio Connectors
Connector type: 5x 3.5mm TRS, 1x S/PDIF Connector location: CN5
Rear Surround
Center Subwoofer
S/PDIF
Line-in
Line-out
Mic-in
Pin Definition Pin Definition
1 GND 2 MIC_L 3 MIC_JD1 4 GND
5 MIC_R 22 FRONT_L2 23 FRONT_JD 24 GND 25 FRONT_R2 32 LINEIN_L 33 LINE1_JD 34 GND 35 LINEIN_R 41 GND 42 CEN_OUT 43 CEN_JD 44 GND 45 LEF_OUT 52 SIDE_L 53 SIDESURR_JD 54 GND 55 SIDE_R
A SPDIFO B +5V
C GND MH1 GND
MH2 GND MH3 GND MH4 GND
29
ICEK 268-T2 Starter Kit User Manual
Page 44
Chapter 2: Jumpers and Connectors
12
15
Internal Connectors
HDD LED
Connector type: 1x2 2-pin header, 2.54mm pitch Connector location: JP4
Pin Definition
1 +5V
2 GND
Internal Speaker
Connector type: 1x5 5-pin header, 2.0mm pitch Connector location: JP11
Pin Definition
1 SPKR_L+ 2 SPKR_L­3 GND 4 SPKR_R+ 5 SPKR_R-
30
ICEK 268-T2 Starter Kit User Manual
Page 45
Chapter 2: Jumpers and Connectors
USB 5 Port
Connector type: 1x4 4-pin header, 2.0mm pitch Connector location: J3
4 1
Pin Definition
1 +5V_USB
2 USB_5N
3 USB_5P
4 GND
USB 6 Port
Connector type: 1x4 4-pin header, 2.0mm pitch Connector location: J4
4 1
Pin Definition
1 +5V_USB 2 USB_6N 3 USB_6P 4 GND
31
ICEK 268-T2 Starter Kit User Manual
Page 46
Chapter 2: Jumpers and Connectors
19
21
USB 7 Port
Connector type: 1x4 4-pin header, 2.0mm pitch Connector location: J5
4 1
Pin Definition
1 +5V_USB
2 USB_7N
3 USB_7P
4 GND
COM2 RS232
Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: J2
0
Pin Definition Pin Definition
1 SP_DCD2 2 SP_RXD2 3 SP_TXD2 4 SP_DTR2 5 GND 6 SP_DSR2 7 SP_RTS2 8 SP_CTS2 9 SP_RI2 10 NC
32
ICEK 268-T2 Starter Kit User Manual
Page 47
Chapter 2: Jumpers and Connectors
19
21
GPIO
Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: J6
0
Pin Definition Pin Definition
1 +5V 2 GND
3 ICH_GPO0_OUT 4 ICH_GPI0_IN
5 ICH_GPO1_OUT 6 ICH_GPI1_IN
7 ICH_GPO2_OUT 8 ICH_GPI2_IN
9 ICH_GPO3_OUT 10 ICH_GPI3_IN
CCFL
Connector type: 1x7 7-pin header, 2.0mm pitch Connector location: J7
7 1
Pin Definition Pin Definition
1 +5V 2 GND 3 ICH_GPO0_OUT 4 ICH_GPI0_IN 5 ICH_GPO1_OUT 6 ICH_GPI1_IN 7 ICH_GPO2_OUT 8 ICH_GPI2_IN
9 ICH_GPO3_OUT 10 ICH_GPI3_IN
33
ICEK 268-T2 Starter Kit User Manual
Page 48
Chapter 2: Jumpers and Connectors
11 22
11 22
LVDS Channel A
Connector type: 2x10 20-pin header, 1.25mm pitch Connector location: CN7
9 0
Pin Definition Pin Definition
1 LVDS_DDC_CLK 2 LVDS_DDC_DATA
3 Panel_VDD 4 LVDSA_DATA0
5 LVDSA_DATA3 6 LVDSA_DATA#0
7 LVDSA_DATA#3 8 Panel_VDD
9 GND 10 LVDSA_DATA1 11 LVDSA_CLK 12 LVDSA_DATA#1 13 LVDSA_CLK# 14 GND 15 GND 16 Panel_backlight 17 LVDSA_DATA2 18 Panel_backlight 19 LVDSA_DATA#2 20 GND
MH1 GND MH2 GND
LVDS Channel B
Connector type: 2x10 20-pin header, 1.25mm pitch Connector location: CN4
9 0
Pin Definition Pin Definition
1 LVDS_DDC_CLK 2 LVDS_DDC_DATA 3 Panel_VDD 4 LVDSB_DATA0 5 LVDSB_DATA3 6 LVDSB_DATA#0 7 LVDSB_DATA#3 8 Panel_VDD
9 GND 10 LVDSB_DATA1 11 LVDSB_CLK 12 LVDSB_DATA#1 13 LVDSB_CLK# 14 GND 15 GND 16 Panel_backlight 17 LVDSB_DATA2 18 Panel_backlight 19 LVDSB_DATA#2 20 GND
MH1 GND
34
ICEK 268-T2 Starter Kit User Manual
Page 49
Chapter 2: Jumpers and Connectors
16
17
28
GAL Download Port
Connector type: 1x6 6-pin header, 2.54mm pitch Connector location: JP12
Pin Definition Pin Definition
1 +3.3V 2 GND 3 TCK 4 TDO 5 TDI 6 TMS
SPI
Connector type: 2x4 8-pin header, 1.27mm pitch Connector location: JP7
Pin Definition Pin Definition
1 SPI_CS 2 ISPIMISO
3 ISPIWP# 4 GND
5 SPI_MOSI 6 SPI_CLK
7 SPI_POWER 8 SPI_POWER
35
ICEK 268-T2 Starter Kit User Manual
Page 50
Chapter 2: Jumpers and Connectors
12
12
Disable EEPROM
Connector type: 1x2 2-pin header, 2.54mm pitch Connector location: JP8
Pin Definition
1 EEPROM_WP 2 GND
HW Reset Function
Connector type: 1x2 2-pin header, 2.54mm pitch Connector location: JP6
Pin Definition
1 +3.3V
2 GND
36
ICEK 268-T2 Starter Kit User Manual
Page 51
Chapter 2: Jumpers and Connectors
12
12
34
Power Button
Connector type: 1x2 2-pin header, 2.54mm pitch Connector location: JP5
Pin Definition
1 +3.3VSBY 2 GND
4-Pin Power Connector
Connector type: 2x2 4-pin header Connector location: CON3
Pin Definition
1 GND
2 GND
3 +12V
4 +12V
37
ICEK 268-T2 Starter Kit User Manual
Page 52
Chapter 2: Jumpers and Connectors
11
ATX Power Connector
Connector type: 2x12 24-pin header, 4.2mm pitch Connector location: CON2
2
13 24
Pin Definition Pin Definition
1 +3.3V 2 +3.3V 3 GND 4 +5V 5 GND 6 +5V 7 GND 8 PS_PWRGD
9 +5VSBY 10 +12V 11 +12V 12 +3.3V 13 +3.3V 14 -12V 15 GND 16 PSON# R 17 GND 18 GND 19 GND 20 -5V 21 +5V 22 +5V 23 +5V 24 GND
38
ICEK 268-T2 Starter Kit User Manual
Page 53
Chapter 2: Jumpers and Connectors
High Speed Board-to-Board Connector: Row A and B, Row C and D
Connector location: J8
Com Express A&B Connector
Com Express C&D Connector
Pin Definition Pin Definition Pin Definition Pin Definition
A1 GND(FIXED) B1 GND(FIXED) C1 GND(FIXED) D1 GND(FIXED) A2 LAN_MDI3N B2 LAN_ACTLED# C2 ICH_IDE_DD7 D2 ICH_IDE_DD5 A3 LAN_MDI3P B3 LPC_FRAME# C3 ICH_IDE_DD6 D3 ICH_IDE_DD10 A4 LAN_SPEED100# B4 LPC_AD0 C4 ICH_IDE_DD3 D4 ICH_IDE_DD11 A5 LAN_SPEED1000# B5 LPC_AD1 C5 ICH_IDE_DD15 D5 ICH_IDE_DD12 A6 LAN_MDI2N B6 LPC_AD2 C6 ICH_IDE_DD8 D6 ICH_IDE_DD4 A7 LAN_MDI2P B7 LPC_AD3 C7 ICH_IDE_DD9 D7 ICH_IDE_DD0 A8 LAN_LINK B8 LPC_DRQ0# C8 ICH_IDE_DD2 D8 ICH_IDE_DDREQ A9 LAN_MDI1N B9 LPC_DRQ1# C9 ICH_IDE_DD13 D9 ICH_IDE_DIOW#
A10 LAN_MDI1P B10 LPC_CLK C10 ICH_IDE_DD1 D10 ICH_IDE_DDACK# A11 GND(FIXED) B11 GND(FIXED) C11 GND(FIXED) D11 GND(FIXED) A12 LAN_MDI0N B12 PM_PWRBTN# C12 ICH_IDE_DD14 D12 ICH_IDE_IRQ A13 LAN_MDI0P B13 SMB_CLK C13 ICH_IDE_IORDY D13 ICH_IDE_DA0
39
ICEK 268-T2 Starter Kit User Manual
Page 54
Chapter 2: Jumpers and Connectors
Pin Definition Pin Definition Pin Definition Pin Definition
A14 LAN_CTREF B14 SMB_DATA C14 ICH_IDE_DIOR# D14 ICH_IDE_DA1 A15 PM_SLP_S3# B15 SMB_ALERT# C15 PCI_PME# D15 ICH_IDE_DA2 A16 SATA_TXP0 B16 SATA_TXP1 C16 PCI_GNT#2 D16 ICH_IDE_DCS1# A17 SATA_TXN0 B17 SATA_TXN1 C17 PCI_REQ#2 D17 ICH_IDE_DCS3# A18 PM_SLP_S4# B18 SUS_STAT# C18 PCI_GNT#1 D18 IDE_RST# A19 SATA_RXP0 B19 SATA_RXP1 C19 PCI_REQ#1 D19 PCI_GNT#3 A20 SATA_RXN0 B20 SATA_RXN1 C20 PCI_GNT#0 D20 PCI_REQ#3 A21 GND(FIXED) B21 GND(FIXED) C21 GND(FIXED) D21 GND(FIXED) A22 SATA_TXP2 B22 SATA_TXP3 C22 PCI_REQ#0 D22 ICH_PCI_AD1 A23 SATA_TXN2 B23 SATA_TXN3 C23 ICH_PCI_RST# D23 ICH_PCI_AD3 A24 PM_SLP_S5# B24 PS_PWRGD C24 ICH_PCI_AD0 D24 ICH_PCI_AD5 A25 SATA_RXP2 B25 SATA_RXP3 C25 ICH_PCI_AD2 D25 ICH_PCI_AD7 A26 SATA_RXN2 B26 SATA_RXN3 C26 ICH_PCI_AD4 D26 PCI_CBE#0 A27 PM_BATLOW# B27 GAL_WDT# C27 ICH_PCI_AD6 D27 ICH_PCI_AD9 A28 ICH_SATA_LED# B28 HDA_SDIN2 C28 ICH_PCI_AD8 D28 ICH_PCI_AD11 A29 HDA_SYNC B29 HDA_SDIN1 C29 ICH_PCI_AD10 D29 ICH_PCI_AD13 A30 HDA_RST# B30 HDA_SDIN0 C30 ICH_PCI_AD12 D30 ICH_PCI_AD15 A31 GND(FIXED) B31 GND(FIXED) C31 GND(FIXED) D31 GND(FIXED) A32 HDA_BIT_CLK B32 HDA_SPKR C32 ICH_PCI_AD14 D32 PCI_PAR A33 HDA_SDOUT B33 I2C_CLK C33 PCI_CBE#1 D33 PCI_SERR# A34 BIOS_DIS0# B34 I2C_DAT C34 PCI_PERR# D34 PCI_STOP# A35 PM_THRMTRIP# B35 PM_THRM# C35 PCI_LOCK# D35 PCI_TRDY# A36 USB_6N B36 USB_7N C36 PCI_DEVSEL# D36 PCI_FRAME# A37 USB_6P B37 USB_7P C37 PCI_IRDY# D37 ICH_PCI_AD16 A38 USB_OC67# B38 USB_OC45# C38 PCI_CBE#2 D38 ICH_PCI_AD18 A39 USB_4N B39 USB_5N C39 ICH_PCI_AD17 D39 ICH_PCI_AD20 A40 USB_4P B40 USB_5P C40 ICH_PCI_AD19 D40 ICH_PCI_AD22 A41 GND(FIXED) B41 GND(FIXED) C41 GND(FIXED) D41 GND(FIXED)
40
ICEK 268-T2 Starter Kit User Manual
Page 55
Chapter 2: Jumpers and Connectors
Pin Definition Pin Definition Pin Definition Pin Definition
A42 USB_2N B42 USB_3N C42 ICH_PCI_AD21 D42 ICH_PCI_AD24 A43 USB_2P B43 USB_3P C43 ICH_PCI_AD23 D43 ICH_PCI_AD26 A44 USB_OC23# B44 USB_OC01# C44 PCI_CBE#3 D44 ICH_PCI_AD28 A45 USB_0N B45 USB_1N C45 ICH_PCI_AD25 D45 ICH_PCI_AD30 A46 USB_0P B46 USB_1P C46 ICH_PCI_AD27 D46 PCI_IRQ#C A47 +VBAT B47 EXCD1_PERST# C47 ICH_PCI_AD29 D47 PCI_IRQ#D A48 EXCD0_PERST# B48 EXCD1_CPPE# C48 ICH_PCI_AD31 D48 PM_CLKRUN# A49 EXCD0_CPPE# B49 HW_RST# C49 PCI_IRQ#A D49 PCI_M66EN A50 INT_SERIRQ B50 CB_RESET# C50 PCI_IRQ#B D50 CLK_PCI A51 GND(FIXED) B51 GND(FIXED) C51 GND(FIXED) D51 GND(FIXED) A52 PCIE_TXP5 B52 PCIE_RXP5 C52 PEG_RXP0 D52 PEG_TXP0 A53 PCIE_TXN5 B53 PCIE_RXN5 C53 PEG_RXN0 D53 PEG_TXN0 A54 ICH_GPI0 B54 ICH_GPO1 C54 TYPE0# D54 PEG_LANE_RV# A55 PCIE_TXP4 B55 PCIE_RXP4 C55 PEG_RXP1 D55 PEG_TXP1 A56 PCIE_TXN4 B56 PCIE_RXN4 C56 PEG_RXN1 D56 PEG_TXN1 A57 GND(FIXED) B57 ICH_GPO2 C57 TYPE1# D57 TYPE2# A58 PCIE_TXP3 B58 PCIE_RXP3 C58 PEG_RXP2 D58 PEG_TXP2 A59 PCIE_TXN3 B59 PCIE_RXN3 C59 PEG_RXN2 D59 PEG_TXN2 A60 GND(FIXED) B60 GND(FIXED) C60 GND(FIXED) D60 GND(FIXED) A61 PCIE_TXP2 B61 PCIE_RXP2 C61 PEG_RXP3 D61 PEG_TXP3 A62 PCIE_TXN2 B62 PCIE_RXN2 C62 PEG_RXN3 D62 PEG_TXN3 A63 ICH_GPI1 B63 ICH_GPO3 C63 NC D63 NC A64 PCIE_TXP1 B64 PCIE_RXP1 C64 NC D64 NC A65 PCIE_TXN1 B65 PCIE_RXN1 C65 PEG_RXP4 D65 PEG_TXP4 A66 GND(FIXED) B66 PCIE_WAKE# C66 PEG_RXN4 D66 PEG_TXN4 A67 ICH_GPI2 B67 WAKE1# C67 NC D67 GND A68 PCIE_TXP0 B68 PCIE_RXP0 C68 PEG_RXP5 D68 PEG_TXP5 A69 PCIE_TXN0 B69 PCIE_RXN0 C69 PEG_RXN5 D69 PEG_TXN5
41
ICEK 268-T2 Starter Kit User Manual
Page 56
Chapter 2: Jumpers and Connectors
Pin Definition Pin Definition Pin Definition Pin Definition
A70 GND(FIXED) B70 GND(FIXED) C70 GND(FIXED) D70 GND(FIXED) A71 LVDSA_DATA0 B71 LVDSB_DATA0 C71 PEG_RXP6 D71 PEG_TXP6 A72 LVDSA_DATA#0 B72 LVDSB_DATA#0 C72 PEG_RXN6 D72 PEG_TXN6 A73 LVDSA_DATA1 B73 LVDSB_DATA1 C73 SDVO_CTRLDATA D73 SDVO_CTRLCLK A74 LVDSA_DATA#1 B74 LVDSB_DATA#1 C74 PEG_RXP7 D74 PEG_TXP7 A75 LVDSA_DATA2 B75 LVDSB_DATA2 C75 PEG_RXN7 D75 PEG_TXN7 A76 LVDSA_DATA#2 B76 LVDSB_DATA#2 C76 GND D76 GND A77 LVDS_VDD_EN B77 LVDSB_DATA3 C77 NC D77 IDE_PATADET A78 LVDSA_DATA3 B78 LVDSB_DATA#3 C78 PEG_RXP8 D78 PEG_TXP8 A79 LVDSA_DATA#3 B79 L_BKLT_EN C79 PEG_RXN8 D79 PEG_TXN8 A80 GND(FIXED) B80 GND(FIXED) C80 GND(FIXED) D80 GND(FIXED) A81 LVDSA_CLK B81 LVDSB_CLK C81 PEG_RXP9 D81 PEG_TXP9 A82 LVDSA_CLK# B82 LVDSB_CLK# C82 PEG_RXN9 D82 PEG_TXN9 A83 LVDS_DDC_CLK B83 L_BKLT_CTRL C83 NC D83 NC A84 LVDS_DDC_DATA B84 +5VSBY C84 GND D84 GND A85 ICH_GPI3 B85 +5VSBY C85 PEG_RXP10 D85 PEG_TXP10 A86 KBD_RST# B86 +5VSBY C86 PEG_RXN10 D86 PEG_TXN10 A87 H_A20GATE B87 +5VSBY C87 GND D87 GND A88 PCIE0_CK_REF+ B88 BIOS_DIS1# C88 PEG_RXP11 D88 PEG_TXP11 A89 PCIE0_CK_REF- B89 CRT_RED C89 PEG_RXN11 D89 PEG_TXN11 A90 GND(FIXED) B90 GND(FIXED) C90 GND(FIXED) D90 GND(FIXED) A91 SPI_POWER B91 CRT_GREEN C91 PEG_RXP12 D91 PEG_TXP12 A92 SPI_MISO B92 CRT_BLUE C92 PEG_RXN12 D92 PEG_TXN12 A93 ICH_GPO0 B93 CRT_HSYNC C93 GND D93 GND A94 SPI_CLK B94 CRT_VSYNC C94 PEG_RXP13 D94 PEG_TXP13 A95 SPI_MOSI B95 CRT_DDC_CLK_MCH C95 PEG_RXN13 D95 PEG_TXN13 A96 GND(FIXED) B96 CRT_DDC_DATA_MCH C96 GND D96 GND A97 TYPE10# B97 SPI_CS# C97 NC D97 PEG_ENABLE#
42
ICEK 268-T2 Starter Kit User Manual
Page 57
Chapter 2: Jumpers and Connectors
Pin Definition Pin Definition Pin Definition Pin Definition
A98 NC B98 NC C98 PEG_RXP14 D98 PEG_TXP14
A99 NC B99 CD1#_R C99 PEG_RXN14 D99 PEG_TXN14 A100 GND(FIXED) B100 GND(FIXED) C100 GND(FIXED) D100 GND(FIXED) A101 NC B101 NC C101 PEG_RXP15 D101 PEG_TXP15 A102 NC B102 NC C102 PEG_RXN15 D102 PEG_TXN15 A103 NC B103 NC C103 GND D103 GND A104 +12V B104 +12V C104 +12V D104 +12V A105 +12V B105 +12V C105 +12V D105 +12V A106 +12V B106 +12V C106 +12V D106 +12V A107 +12V B107 +12V C107 +12V D107 +12V A108 +12V B108 +12V C108 +12V D108 +12V A109 +12V B109 +12V C109 +12V D109 +12V A110 GND(FIXED) B110 GND(FIXED) C110 GND(FIXED) D110 GND(FIXED)
43
ICEK 268-T2 Starter Kit User Manual
Page 58
Chapter 2: Jumpers and Connectors
PCIe x16
Connector location: J9
Pin Definition Pin Definition
A1 NC B1 +12V A2 +12V B2 +12V A3 +12V B3 +12V A4 GND B4 GND A5 GND B5 SMB_CLK A6 +3.3V B6 SMB_DATA A7 NC B7 GND A8 +3.3V B8 +3.3V
A9 +3.3V B9 GND A10 +3.3V B10 +3.3VSBY A11 CB_RESET# B11 PCIE_WAKE# A12 GND B12 NC A13 PCIE_X16_CLKP B13 GND A14 PCIE_X16_CLKN B14 PEG_TXP0 A15 GND B15 PEG_TXN0 A16 PEG_RXP0 B16 GND A17 PEG_RXN0 B17 SDVO_CTRLCLK A18 GND B18 GND
44
Pin Definition Pin Definition
A19 NC B19 PEG_TXP1 A20 GND B20 PEG_TXN1 A21 PEG_RXP1 B21 GND A22 PEG_RXN1 B22 GND A23 GND B23 PEG_TXP2 A24 GND B24 PEG_TXN2 A25 PEG_RXP2 B25 GND A26 PEG_RXN2 B26 GND A27 GND B27 PEG_TXP3 A28 GND B28 PEG_TXN3 A29 PEG_RXP3 B29 GND A30 PEG_RXN3 B30 NC A31 GND B31 SDVO_CTRLDATA A32 NC B32 GND A33 NC B33 PEG_TXP4 A34 GND B34 PEG_TXN4 A35 PEG_RXP4 B35 GND A36 PEG_RXN4 B36 GND
ICEK 268-T2 Starter Kit User Manual
Page 59
Chapter 2: Jumpers and Connectors
Pin Definition Pin Definition
A37 GND B37 PEG_TXP5 A38 GND B38 PEG_TXN5 A39 PEG_RXP5 B39 GND A40 PEG_RXN5 B40 GND A41 GND B41 PEG_TXP6 A42 GND B42 PEG_TXN6 A43 PEG_RXP6 B43 GND A44 PEG_RXN6 B44 GND A45 GND B45 PEG_TXP7 A46 GND B46 PEG_TXN7 A47 PEG_RXP7 B47 GND A48 PEG_RXN7 B48 NC A49 GND B49 GND A50 NC B50 PEG_TXP8 A51 GND B51 PEG_TXN8 A52 PEG_RXP8 B52 GND A53 PEG_RXN8 B53 GND A54 GND B54 PEG_TXP9 A55 GND B55 PEG_TXN9 A56 PEG_RXP9 B56 GND A57 PEG_RXN9 B57 GND A58 GND B58 PEG_TXP10 A59 GND B59 PEG_TXN10
Pin Definition Pin Definition
A60 PEG_RXP10 B60 GND A61 PEG_RXN10 B61 GND A62 GND B62 PEG_TXP11 A63 GND B63 PEG_TXN11 A64 PEG_RXP11 B64 GND A65 PEG_RXN11 B65 GND A66 GND B66 PEG_TXP12 A67 GND B67 PEG_TXN12 A68 PEG_RXP12 B68 GND A69 PEG_RXN12 B69 GND A70 GND B70 PEG_TXP13 A71 GND B71 PEG_TXN13 A72 PEG_RXP13 B72 GND A73 PEG_RXN13 B73 GND A74 GND B74 PEG_TXP14 A75 GND B75 PEG_TXN14 A76 PEG_RXP14 B76 GND A77 PEG_RXN14 B77 GND A78 GND B78 PEG_TXP15 A79 GND B79 PEG_TXN15 A80 PEG_RXP15 B80 GND A81 PEG_RXN15 B81 NC A82 GND B82 NC
45
ICEK 268-T2 Starter Kit User Manual
Page 60
Chapter 2: Jumpers and Connectors
PCIe x4
Connector location: J10
Pin Definition Pin Definition
A1 GND B1 12V
A2 12V B2 12V
A3 12V B3 12V
A4 GND B4 GND
A5 NC B5 SMB_CLK
A6 NC B6 SMB_DATA
A7 NC B7 GND
A8 NC B8 +3.3V
A9 +3.3V B9 NC
A0 +3.3V B10 +3.3VSBY A11 CB_RESET# B11 PCIE_WAKE# A12 GND B12 NC A13 PCIE_X4_CLKP B13 GND A14 PCIE_X4_CLKN B14 PCIE_TXP0 A15 GND B15 PCIE_TXN0 A16 PCIE_RXP0 B16 GND
46
Pin Definition Pin Definition
A17 PCIE_RXN0 B17 NC A18 GND B18 GND A19 NC B19 PCIE_TXP1 A20 GND B20 PCIE_TXN1 A21 PCIE_RXP1 B21 GND A22 PCIE_RXN1 B22 GND A23 GND B23 PCIE_TXP2 A24 GND B24 PCIE_TXN2 A25 PCIE_RXP2 B25 GND A26 PCIE_RXN2 B26 GND A27 GND B27 PCIE_TXP3 A28 GND B28 PCIE_TXN3 A29 PCIE_RXP3 B29 GND A30 PCIE_RXN3 B30 NC A31 GND B31 NC A32 NC B32 GND
ICEK 268-T2 Starter Kit User Manual
Page 61
Chapter 2: Jumpers and Connectors
PCIe x1
Connector location: CON4
Pin Definition Pin Definition
A1 NC B1 +12V
A2 +12V B2 +12V
A3 +12V B3 +12V
A4 GND B4 GND
A5 NC B5 SMB_CLK
A6 NC B6 SMB_DATA
A7 NC B7 GND
A8 NC B8 +3.3V
A9 +3.3V B9 NC A10 +3.3V B10 +3.3VSBY A11 CB_RESET# B11 PCIE_WAKE# A12 GND B12 NC A13 PCIE_X1_CLKP0 B13 GND A14 PCIE_X1_CLKN0 B14 PCIE_TXP4 A15 GND B15 PCIE_TXN4 A16 PCIE_RXP4 B16 GND A17 PCIE_RXN4 B17 NC A18 GND B18 GND
47
ICEK 268-T2 Starter Kit User Manual
Page 62
Chapter 2: Jumpers and Connectors
12
Mini-PCIe Slot (3G)
Connector location: CN10
51 52
Pin Definition Pin Definition
1 PCIE_WAKE# 2 3VSB_MINI 3 NC 4 GND 5 NC 6 1V5 7 3VSB_MINI 8 UIM_PWR
9 GND 10 UIM_DATA 11 PCIE_X1_CLKN1 12 UIM_CLK 13 PCIE_X1_CLKP1 14 UIM_RESET 15 GND 16 UIM_VPP 17 NC 18 GND 19 NC 20 3VSB_MINI 21 GND 22 CB_RESET# 23 PCIE_RXN5 24 3VSB_MINI 25 PCIE_RXP5 26 GND
48
Pin Definition Pin Definition
27 GND 28 1V5 29 GND 30 SMB_CLK 31 PCIE_TXN5 32 SMB_DATA 33 PCIE_TXP5 34 GND 35 GND 36 USB_4N 37 GND 38 USB_4P 39 3VSB_MINI 40 GND 41 3VSB_MINI 42 NC 43 GND 44 NC 45 NC 46 NC 47 NC 48 1V5 49 NC 50 GND 51 NC 52 3VSB_MINI
ICEK 268-T2 Starter Kit User Manual
Page 63
Chapter 2: Jumpers and Connectors
12
Mini-PCIe Slot (mSATA)
Connector location: CN8
51 52
Pin Definition Pin Definition
1 NC 2 +3.3V
3 NC 4 GND
5 NC 6 1V5_MSATA
7 NC 8 NC
9 GND 10 NC 11 NC 12 NC 13 NC 14 NC 15 GND 16 NC 17 NC 18 GND 19 NC 20 NC 21 GND 22 NC 23 SATA_RXN3 24 +3.3V 25 SATA_RXP3 26 GND
49
Pin Definition Pin Definition
27 GND 28 1V5_MSATA 29 GND 30 SMBCLK_MAIN 31 SATA_TXN3 32 SMBDATA_MAIN 33 SATA_TXP3 34 GND 35 GND 36 NC 37 GND 38 NC 39 +3.3V 40 GND 41 +3.3V 42 NC 43 GND 44 NC 45 TEST POINT 46 NC 47 TEST POINT 48 1V5_MSATA 49 NC 50 GND 51 +3.3V 52 +3.3V
ICEK 268-T2 Starter Kit User Manual
Page 64
Chapter 2: Jumpers and Connectors
SIM Card Slot
Connector location: CN9
C3 C2 C1
Pin Definition Pin Definition
C1 UIM_PWR C5 GND C2 UIM_RESET C6 UIM_VPP C3 UIM_CLK C7 UIM_DATA
C7 C6 C5
SATA Connectors
Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180) Connector location: CN6 and CN3
1 7
CN6
Pin Definition Pin Definition
1 GND 2 SATA_TXP0 3 SATA_TXN0 4 GND 5 SATA_RXN0 6 SATA_RXP0 7 GND
CN3
50
Pin Definition Pin Definition
1 GND 2 SATA_TXP1 3 SATA_TXN1 4 GND 5 SATA_RXN1 6 SATA_RXP1 7 GND
ICEK 268-T2 Starter Kit User Manual
Page 65
Chapter 2: Jumpers and Connectors
CFast Slot
Connector location: CN11
S7P17
Pin Definition Pin Definition
S1 GND S2 SATA_TXP2 S3 SATA_TXN2 S4 GND S5 SATA_RXN2 S6 SATA_RXP2 S7 GND P1 GND P2 GND P3 NC P4 NC P5 NC P6 NC P7 GND P8 TEST POINT P9 NC P10 NC
P11 NC P12 NC P13 +3.3V P14 +3.3V P15 GND P16 GND P17 NC MH1 GND
MH2 GND
51
ICEK 268-T2 Starter Kit User Manual
Page 66
Chapter 2: Jumpers and Connectors
CF-Master
Connector location: IDE1
Pin Definition Pin Definition
1 GND 2 ICH_IDE_DD3
3 ICH_IDE_DD4 4 ICH_IDE_DD5
5 ICH_IDE_DD6 6 NC
7 ICH_IDE_DCS1# 8 GND
9 GND 10 GND 11 GND 12 GND 13 +5V 14 GND 15 GND 16 GND 17 GND 18 ICH_IDE_DA2 19 ICH_IDE_DA1 20 ICH_IDE_DA0 21 ICH_IDE_DD0 22 ICH_IDE_DD1 23 ICH_IDE_DD2 24 NC 25 GND 26 CD1#_R
52
Pin Definition Pin Definition
27 ICH_IDE_DD11 28 ICH_IDE_DD12 29 ICH_IDE_DD13 30 ICH_IDE_DD14 31 ICH_IDE_DD15 32 ICH_IDE_DCS3# 33 NC 34 ICH_IDE_DIOR# 35 ICH_IDE_DIOW# 36 +5V 37 ICH_IDE_IRQ 38 +5V 39 IDE_CABLE 40 NC 41 IDE_RST# 42 +5V 43 GND 44 ICH_IDE_DDACK# 45 IDEACTP# 46 GND 47 ICH_IDE_DD8 48 ICH_IDE_DD9 49 ICH_IDE_DD10 50 GND
ICEK 268-T2 Starter Kit User Manual
Page 67
Chapter 2: Jumpers and Connectors
IDE-Slave
Connector type: 2x22 44-pin header, 2.0mm pitch Connector location: CN1
2 1
44 43
Pin Definition Pin Definition
1 IDE_RST# 2 GND
3 ICH_IDE_DD7 4 ICH_IDE_DD8
5 ICH_IDE_DD6 6 ICH_IDE_DD9
7 ICH_IDE_DD5 8 ICH_IDE_DD10
9 ICH_IDE_DD4 10 ICH_IDE_DD11 11 ICH_IDE_DD3 12 ICH_IDE_DD12 13 ICH_IDE_DD2 14 ICH_IDE_DD13 15 ICH_IDE_DD1 16 ICH_IDE_DD14 17 ICH_IDE_DD0 18 ICH_IDE_DD15 19 GND 20 NC 21 ICH_IDE_DDREQ 22 GND
Pin Definition Pin Definition
23 ICH_IDE_DIOW# 24 GND 25 ICH_IDE_DIOR# 26 GND 27 ICH_IDE_IORDY 28 GND 29 ICH_IDE_DDACK# 30 GND 31 ICH_IDE_IRQ 32 NC 33 ICH_IDE_DA1 34 IDE_PATADET 35 ICH_IDE_DA0 36 ICH_IDE_DA2 37 ICH_IDE_DCS1# 38 ICH_IDE_DCS3# 39 IDEACTP# 40 GND 41 +5V 42 +5V 43 GND 44 NC
53
ICEK 268-T2 Starter Kit User Manual
Page 68
Chapter 2: Jumpers and Connectors
PCI Slot
Connector location: J11
Pin Definition Pin Definition
A1 NC B1 -12V A2 +12V B2 NC A3 NC B3 GND A4 NC B4 NC A5 +5V B5 +5V A6 PCI_IRQ#A B6 +5V A7 PCI_IRQ#C B7 PCI_IRQ#B A8 +5V B8 PCI_IRQ#D A9 NC B9 NC
A10 +5V B10 PCI_REQ#1 A11 PCI_GNT#1 B11 NC A12 GND B12 GND A13 GND B13 GND A14 +3.3VSBY B14 CLK_PCI_SIOT2 A15 ICH_PCI_RST# B15 GND A16 +5V B16 CLK_PCI_SIOT1 A17 PCI_GNT#0 B17 GND
54
Pin Definition Pin Definition
A18 GND B18 PCI_REQ#0 A19 PCI_PME# B19 +5V A20 ICH_PCI_AD30 B20 ICH_PCI_AD31 A21 +3.3V B21 ICH_PCI_AD29 A22 ICH_PCI_AD28 B22 GND A23 ICH_PCI_AD26 B23 ICH_PCI_AD27 A24 GND B24 ICH_PCI_AD25 A25 ICH_PCI_AD24 B25 +3.3V A26 ICH_PCI_AD20 B26 PCI_CBE#3 A27 +3.3V B27 ICH_PCI_AD23 A28 ICH_PCI_AD22 B28 GND A29 ICH_PCI_AD20 B29 ICH_PCI_AD21 A30 GND B30 ICH_PCI_AD19 A31 ICH_PCI_AD18 B31 +3.3V A32 ICH_PCI_AD16 B32 ICH_PCI_AD17 A33 +3.3V B33 PCI_CBE#2 A34 PCI_FRAME# B34 GND
ICEK 268-T2 Starter Kit User Manual
Page 69
Chapter 2: Jumpers and Connectors
Pin Definition Pin Definition
A35 GND B35 PCI_IRDY# A36 PCI_TRDY# B36 +3.3V A37 GND B37 PCI_DEVSEL# A38 PCI_STOP# B38 GND A39 +3.3V B39 PCI_LOCK# A40 SMB_CLK B40 PCI_PERR# A41 SMB_DATA B41 +3.3V A42 GND B42 PCI_SERR# A43 PCI_PAR B43 +3.3V A44 ICH_PCI_AD15 B44 PCI_CBE#1 A45 +3.3V B45 ICH_PCI_AD14 A46 ICH_PCI_AD13 B46 GND A47 ICH_PCI_AD11 B47 ICH_PCI_AD12 A48 GND B48 ICH_PCI_AD10 A49 ICH_PCI_AD9 B49 PCI_M66EN A52 PCI_CBE#0 B52 ICH_PCI_AD8 A53 +3.3V B53 ICH_PCI_AD7 A54 ICH_PCI_AD6 B54 +3.3V A55 ICH_PCI_AD4 B55 ICH_PCI_AD5 A56 GND B56 ICH_PCI_AD3 A57 ICH_PCI_AD2 B57 GND A58 ICH_PCI_AD0 B58 ICH_PCI_AD1 A59 +5V B59 +5V A60 +3.3V B60 +3.3V A61 +5V B61 +5V A62 +5V B62 +5V
55
ICEK 268-T2 Starter Kit User Manual
Page 70
Chapter 3: System Setup
CAUTION!
Chapter 3: System Setup
The starter kit is preconfigured and assembled. No addtional setup is required. However, if installation is needed, please refer to the instructions below.
Setting up the System
Make sure the power supply is switched off and disconnected
CAUTION!CAUTION!
from the power sources to prevent electric shock or system damage before installing.
1. Place the case on a stable surface and pull the yellow clasp to release the lock.
Clasp
56
ICEK 268-T2 Starter Kit User Manual
Page 71
Chapter 3: System Setup
2. Open the case. 3. Align the mounting holes on the ICEB 8050C mainboard to the mounting holes inside the case.
ATX Connector
Mounting holes
4. Tighten screws onto the holes to secure the mainboard, and plug the ATX power supply connector to the ATX connector on the motherboard.
57
ICEK 268-T2 Starter Kit User Manual
Page 72
Chapter 3: System Setup
5. Locate the COM Express connector on the mainboard. 6. Install the ICES 268 module onto the COM Express connector.
Mounting holes
7. Align the mounting holes on the ICES 268 to the heatsink mounting holes on the mainboard.
58
ICEK 268-T2 Starter Kit User Manual
Page 73
Chapter 3: System Setup
8. Once the holes are aligned, place the heatsink on top and tighten mounting screws to secure the heatsink.
Mounting screws CFast slotCFast card
10. Align the mounting holes on the LCD panel to the mounting holes on top of the case.
Mounting holes
11. Tighten screws onto the mounting holes to secure the LCD panel.
9. Insert the CFast card into the CFast slot.
59
ICEK 268-T2 Starter Kit User Manual
Page 74
Chapter 3: System Setup
12. Connect the LVDS and CCFL cables to the LVDS and CCFL connector on the mainboard.
CCFL LVDS
13. Plug the AC power cord to the power supply and connect the other end to a power outlet. Then switch on the system.
AC Power
60
ICEK 268-T2 Starter Kit User Manual
Page 75
Chapter 3: System Setup
There is a metal plate supporting the mainboard that can be lifted up or lowered down. The instructions below illustrate the step-by-step procedures.
NOTE: Before lifting up or lowering down, make sure the two spring-nuts located on the left and right side of the metal support plate are inserted/ closed to the end-position as depicted in the diagram below.
Left spring-nut Right spring-nut
1. Hold on the left and right spring-nuts using both hands, and pull out
the spring-nuts to lift up or lower down.
2. After lifting up the mainboard, make sure the two spring-nuts are
inserted and closed to the end-position before plugging any connectors and I/O cards, then power on the system.
3. After lowering down the mainboard, make sure the two spring-nuts
are inserted and closed to the end position before powering off the system and closing the cover.
61
ICEK 268-T2 Starter Kit User Manual
Page 76
Chapter 3: System Setup
External Soft-Power On/Off and Hardware Reset Switches
There are two special switches included inside the case to connect to JP5 and JP6 connectors for soft-power on/off and hardware reset function.
JP5: Soft-power on/off (red and black)
JP6: Hardware reset switch (green and black)
62
ICEK 268-T2 Starter Kit User Manual
Page 77
Chapter 3: System Setup
Closing the Case
1. After lowering down the mainboard, make sure the two spring-nuts are inserted and closed to the end position before powering off.
2. Make sure to place the LCD cover protector onto the LCD panel before closing the case.
63
ICEK 268-T2 Starter Kit User Manual
Page 78
Chapter 4: BIOS Setup
Chapter 4: BIOS Setup
This chapter describes how to use the BIOS setup program for the ICEK 268-T2. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.
To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.
About BIOS Setup
The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.
These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.
With easy-to-use pull down menus, you can configure such items as:
▪ Hard drives, diskette drives, and peripherals
▪ Video display type and display options
▪ Password protection from unauthorized use
▪ Power management features
The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the setup options, and second, to make settings appropriate for the way you use the computer.
When to Configure the BIOS
▪ This program should be executed under the following conditions:
▪ When changing the system configuration
▪ When a configuration error is detected by the system and you are
prompted to make changes to the setup program
▪ When resetting the system clock
▪ When redefining the communication ports to prevent any conflicts
▪ When making changes to the Power Management configuration
▪ When changing the password or making other changes to the security
setup
Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.
64
ICEK 268-T2 Starter Kit User Manual
Page 79
Chapter 4: BIOS Setup
Default Configuration
Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.
Entering Setup
When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:
▪ If the error occurs before the display device is initialized, a series of beeps
will be transmitted.
▪ If the error occurs after the display device is initialized, the screen will
display the error message.
Powering on the computer and immediately pressing <Del> allows you to enter Setup. Another way to enter Setup is to power on the computer and wait for the following message during the POST:
Legends
Key Function
Moves the highlight left or right to select a menu.
Moves the highlight up or down between sub¬menus or fields.
Exits the BIOS Setup Utility.
Scrolls forward through the values or options of the highlighted field.
Scrolls backward through the values or options of the highlighted field.
Selects a field.
Displays General Help.
Load previous values.
Load optimized default values.
TO ENTER SETUP BEFORE BOOT PRESS
Press the
key to enter Setup:
Ctrl
+
Alt
+
65
Saves and exits the Setup program.
Press <Enter> to enter the highlighted sub¬menu
ICEK 268-T2 Starter Kit User Manual
Page 80
Chapter 4: BIOS Setup
Scroll Bar
When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.
Submenu
When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press .
66
ICEK 268-T2 Starter Kit User Manual
Page 81
Chapter 4: BIOS Setup
BIOS Setup Utility
Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from several setup functions and one exit. Use arrow keys to select among the items and press to accept or enter the submenu.
Main
The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced Chipset Boot SecurityMain
BIOS Information BIOS Vendor Core Version Compliancy Project Version Build Date and Time
Memory Information Memory Frequency Total Memory DIMM#0 DIMM#2
ME Firmware Information ME FW Version ME Firmware Mode ME Firmware SKU
System Date
System Time
American Megatrends
4.6.5.3 UEFI 2.3; PI 1.2 I268-004 01/02/2013 11:15:17
1600 Mhz 16384 MB (DDR3) 8192 MB (DDR3) 8192 MB (DDR3)
8.0.0.1351 Normal Mode 5MB
[Tue 03/05/2013] [14:26:53]
Save & Exit
Intel Reference Code version
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
System Date
The date format is <day>, <month>, <date>, <year>. Day displays a day, from Monday to Sunday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.
System Time
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
67
ICEK 268-T2 Starter Kit User Manual
Page 82
Chapter 4: BIOS Setup
Advanced
The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.
Setting incorrect field values may cause the system to malfunction.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced Chipset Boot SecurityMain
ACPI Settings
RTC Wake Settings
CPU Conguration SATA Conguration AMT Conguration USB Conguration
H/W Monitor
W83627DHG Super IO Conguration CPU PPM Conguration
Save & Exit
System ACPI Parameters
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
ACPI Settings
This section is used to configure ACPI Settings.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Main
ACPI Settings
Enable Hibernation [Enabled]
ACPI Sleep State [S3 only(Suspend to. . .)]
Advanced Chipset PCIPnP Security
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Exit
Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Enable Hibernation
Enables or disables system ability to hibernate (OS/S4 Sleep State). This option may not be effective with some OS.
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
ACPI Sleep State
Select the highest ACPI sleep state the system will enter when the suspend button is pressed.
68
ICEK 268-T2 Starter Kit User Manual
Page 83
Chapter 4: BIOS Setup
RTC Wake Settings
This section is used to configure RTC Wake settings.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Wake system with Fixed Time
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Disabled]
Enable or disable System wake on alarm event. When enabled, System will wake on the
hr::min::sec specied
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Wake System with Fixed Time
Enables or disables system wake on alarm event. When enabled, system will wake on the hr::min::sec specified.
CPU Configuration
This section is used to configure the CPU.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
CPU Conguration
Intel(R) Core(TM) i5-3610ME CPU @ 2.70GHz CPU Signature Microcode Patch CPU Speed Processor Cores Intel HT Technology Intel VT-x Technology Intel SMX Technology 64-bit
Hyper-Threading
Intel Virtualization Technology
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
306a9 12 2700 MHz 2 Supported Supported Supported Supported
[Enabled]
[Disabled]
Enabled for Windows XP and Linux (OS optimized for Hyper­Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology). When Disabled only one thread per enabled core is enabled.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Hyper-Threading
This field is used to enable or disable hyper-threading.
Intel® Virtualization Technology
When this field is set to Enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.
69
ICEK 268-T2 Starter Kit User Manual
Page 84
Chapter 4: BIOS Setup
SATA Configuration
This section is used to configure the SATA drives.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
SATA Controller(s) [Enabled]
SATA Mode Selection [IDE]
Serial ATA Port 0 Hitachi HTE725 (250.0 Software Preserve SUPPORTED Serial ATA Port 1 Empty Software Preserve Unknown Serial ATA Port 2 Empty Software Preserve Unknown Serial ATA Port 3 Empty Software Preserve Unknown
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
SATA Controller(s)
Enables or disables the SATA controller.
Enable or disable SATA Device.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
SATA Mode Selection
Configures the SATA as IDE, AHCI or RAID mode.
IDE This option configures the Serial ATA drives as Parallel ATA physical storage device.
RAID This option allows you to create RAID or Intel Matrix Storage configuration on Serial ATA devices.
AHCI This option configures the Serial ATA drives to use AHCI (Advanced Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance.
70
ICEK 268-T2 Starter Kit User Manual
Page 85
Chapter 4: BIOS Setup
AMT Configuration
This section is used to configure Active Management Technology (AMT) options.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Intel AMT
BIOS Hotkey Pressed MEBx Selection Screen
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Enabled]
[Disabled] [Disabled]
Enable/Disable Intel (R) Active Management Technology BIOS Extension. Note : iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled, this requires
additional rmware in the SPI
device
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Intel® AMT
Enables or disables Intel® Active Management Technology.
BIOS Hotkey Pressed
Enables or disables BIOS hotkey press.
MEBx Selection Screen
Enables or disables MEBx selection screen.
USB Configuration
This section is used to configure the USB.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
USB Conguration
USB Devices: 1 Keyboard, 1 Mouse, 2 Hubs
Legacy USB Support
Port 60/64 Emulation
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Enabeld]
[Enabled]
Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Legacy USB Support
Enable Enables Legacy USB. Auto Disables support for Legacy when no USB devices are connected. Disable Keeps USB devices available only for EFI applications.
Port 60/64 Emulation
Enables the 60h/64h I/O port emulation. You must enable this to fully support USB keyboard legacy for non-USB OSes.
71
ICEK 268-T2 Starter Kit User Manual
Page 86
Chapter 4: BIOS Setup
H/W Monitor
This section is used to monitor hardware status such as temperature, fan speed and voltages.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Pc Health Status
cpu temperature System temperature1 Fan1 Speed VCORE 5V
3.3V
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
: +30.75 C : +40.125 C : 4054 RPM : +0.936 V : +5.018 V : +3.354 V
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
CPU Temperature
Detects and displays the current CPU temperature.
VCORE
Detects and displays the Vcore CPU voltage.
+5V
Detects and displays 5V voltage.
+3.3V
Detects and displays 3.3V voltage.
System Temperature1
Detects and displays the current system temperature.
Fan1 Speed
Detects and displays the speed of fan1.
72
ICEK 268-T2 Starter Kit User Manual
Page 87
Chapter 4: BIOS Setup
W83627DHG Super IO Configuration
This section is used to configure serial ports 0 and 1, floppy disk and parallel port.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
W83627DHG Super IO Conguration
W83627DHG Super IO Chip
Floppy Disk Controller Conguration
Serial Port 0 Conguration
Serial Port 1 Conguration
Parallel Port Conguration
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
W83627DHG
Set Parameters of Floppy Disk Controller (FDC)
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
W83627DHG Super IO Chip
Displays the Super I/O chip used on the board.
Floppy Disk Controller Configuration
This section is used to configure the floppy disk controller.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Floppy Disk Controller Conguration
Floppy Disk Controller
Device Settings
Change Settings Device Mode
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Enabled]
IO=3F0h; IRQ=6; DMA=2
[Auto] [Read Write]
Enable or Disable Floppy Disk Controller
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Serial Port
Enables or disables the floppy disk controller.
Change Settings
Selects an optimal setting for the Super IO device.
Device Mode
Changes the mode of the floppy disk controller. Select ‘Read Write’ for normal operation. Select ‘Write Protect’ mode for read only operation.
73
ICEK 268-T2 Starter Kit User Manual
Page 88
Chapter 4: BIOS Setup
Serial Port 0 Configuration
This section is used to configure serial port 0.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Serial Port 0 Conguration
Serial Port
Device Settings
Change Settings
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Enabled]
IO=3F8h; IRQ=4;
[Auto]
Serial Port
Enables or disables the serial port.
Enable or Disable Serial Port (COM)
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Serial Port 1 Configuration
This section is used to configure serial port 1.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Serial Port 1 Conguration
Serial Port
Device Settings
Change Settings Device Mode
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Enabled]
IO=2F8h; IRQ=3;
[Auto] [Standard Serial Po. . .]
Serial Port
Enables or disables the serial port.
Enable or Disable Serial Port (COM)
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Change Settings
Selects an optimal setting for the Super IO device.
Change Settings
Selects an optimal setting for the Super IO device.
Device Mode
Changes the serial port mode.
74
ICEK 268-T2 Starter Kit User Manual
Page 89
Chapter 4: BIOS Setup
Parallel Port Configuration
This section is used to configure the parallel port.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Parallel Port Conguration
Parallel Port
Device Settings
Change Settings Device Mode
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Enabled]
IO=378h; IRQ=5;
[Auto] [STD Printer Mode]
Parallel Port
Enables or disables the parallel port.
Enable or Disable Parallel Port (LPT/LPTE)
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
CPU PPM Configuration
This section is used to configure the Processor Power Management (PPM) configuration.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
CPU PPM Conguration
EIST
CPU C3 Report CPU C6 report CPU C7 report
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Disabled]
[Disabled] [Disabled] [Disabled]
Enable/Disable Intel SpeedStep
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
EIST
Enables or disables Intel® SpeedStep.
Change Settings
Selects an optimal setting for the Super IO device.
Device Mode
Configures the operating mode of the parallel port.
CPU C3 Report
Enables or disables C3 report to the operating system.
CPU C6 Report
Enables or disables C6 report to the operating system.
CPU C7 Report
Enables or disables C7 report to the operating system.
75
ICEK 268-T2 Starter Kit User Manual
Page 90
Chapter 4: BIOS Setup
Chipset
This section gives you functions to configure the system based on the specific features of the chipset. The chipset manages bus speeds and access to system memory resources.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
PCH-IO Conguration
System Agent (SA) Conguration
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Chipset Boot SecurityMain
Save & Exit
PCH Parameters
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
PCH-IO Configuration
This section is used to configure PCH-IO configuration.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Intel PCH RC Version Intel PCH SKU Name Intel PCH Rev ID
USB Conguration
PCH Azalia Conguration
PCH LAN Controller Wake on LAN
Restore AC Power Loss RTC RAM Lock
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Chipset Boot SecurityMain
1.5.0.0 QM77 04/C1
[Enabled] [Enabled]
[Always ON] [Enabled]
Save & Exit
USB Conguration settings
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
PCH LAN Controller
Enables or disables onboard NIC.
Setting incorrect field values may cause the system to malfunction.
Wake on LAN
Enables or disables integrated LAN to wake the system.
Restore AC Power Loss
Select AC power state when power is re-applied after a power failure.
RTC RAM Lock
Enables or disables RTC RAM lock.
76
ICEK 268-T2 Starter Kit User Manual
Page 91
Chapter 4: BIOS Setup
System Agent (SA) Configuration Graphics Configuration
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
VT-d
Graphics Conguration
►
NB PCIe Conguration
►
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Chipset Boot SecurityMain
[Enabled]
VT-d
Enables or disables VT-d function on MCH.
Graphics Configuration
Configures the graphic chip settings.
NB PCIe Configuration
Configures the NB PCI Express settings.
Save & Exit
Check to enable VT-d function on MCH.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Graphics Conguration
Primary Display
Internal Graphics DVMT Total Gfx Mem LCD Control
►
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Chipset Boot SecurityMain
[Auto]
[Auto] [256M]
Save & Exit
Select which of IGFX/PEG/PCI Graphics device should be Primary Display Or select SG for Switch­able Gfx.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Primary Display
Select which of IGFX/PEG/PCI graphics device should be primary display or select SG for switchable Gfx.
Internal Graphics
Keep IGD enabled based on the setup options.
DVMT Total Gfx Mem
Select DVMT5.0 Total Graphic Memory size used by the Internal Graphics Device.
77
ICEK 268-T2 Starter Kit User Manual
Page 92
Chapter 4: BIOS Setup
NB PCIe Configuration
This section is used to configure Northbridge PCI Express settings.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
NB PCIe Conguration
PEG0
PEG - Gen X
Enable PEG
Chipset Boot SecurityMain
x8 Gen2
[Auto]
[256M]
Save & Exit
Congure PEG0 B0:D1:F0
Gen1-Gen3
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
PEG0 - Gen X
Configure PEG0 B0:D1:F0 Gen1-Gen3.
Enable PEG
Enables or disables the PEG slot.
78
ICEK 268-T2 Starter Kit User Manual
Page 93
Chapter 4: BIOS Setup
Boot
This section is used to configure the boot features.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Quiet Boot
Launch PXE OpROM policy
Boot Option Priorities
Boot Option #1
Hard Drive BBS Priorities
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Quiet Boot
Enabled Displays OEM logo instead of the POST messages. Disabled Displays normal POST messages.
Chipset
Boot
[Disabled]
[Disabled]
[SATA PM: Hitachi . . .]
SecurityMain
Save & Exit
Enables or disables Quiet Boot option
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Hard Drive BBS Priorities
Sets the order of the legacy devices in this group.
Launch PXE OpROM Policy
Controls the execution of UEFI and legacy PXE OpROM.
Boot Option Priorities
Adjust the boot sequence of the system. Boot Option #1 is the first boot device that the system will boot from, next will be #2 and so forth.
79
ICEK 268-T2 Starter Kit User Manual
Page 94
Chapter 4: BIOS Setup
Security
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced Chipset Boot SecurityMain
Password Description
If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User Will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20
Administrator Password
User Password
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Administrator Password
Select this to reconfigure the administrator’s password.
User Password
Select this to reconfigure the user’s password.
Save & Exit
Set Administrator Password
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Save & Exit
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Save Changes and Reset
Discard Changes and Reset
Restore Defaults
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Save Changes and Reset
To save the changes and reset, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.
Discard Changes and Reset
To exit the Setup utility and reboot the system without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting.
Chipset
Boot SecurityMain
Save & Exit
Exit systm setup after saving the changes.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Restore Defaults
To restore the BIOS to default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.
80
ICEK 268-T2 Starter Kit User Manual
Page 95
Appendix A: Watchdog Timer
Appendix A: Watchdog Timer
WDT Programming Guide
ICES 268 Watch Dog Function Configuration Sequence Description:
Start
Step1. See “SetupWDT” procedure #Setup Watchdog Timer Environment
Step2. See “TimeBaseWDT” procedure #Initial Watchdog Timer. Users can select second or minute.
Step3. See “TimeCountWDT” procedure #Set Watchdog Timer Time-out Value. Users can set time-out value.
Step4: See ExitSetup procedure #Exit Setup Environment
End
81
ICEK 268-T2 Starter Kit User Manual
Page 96
Appendix A: Watchdog Timer
=============================================== SetupWDT PROC mov dx, 2eh mov al, 087h out dx, al nop nop out dx, al ;Write operations to special address port (2E) for entering MB PnP Mode. mov al, 07h out 2eh, al mov al, 08h ;Select logical device for Watch Dog. out 2fh, al ret SetupWDT ENDP =============================================== TimeBaseWDT PROC mov al, 0F5h out 2eh, al mov al, 04h ; Here!! set 04h for second, set 0Ch for minute(WDT output through WDTO) out 2fh, al ret TimeBaseWDT ENDP =============================================== TimeCountWDT PROC mov al, 0F6h ;WDT Time-out register. out 2eh, al mov al, 03h ;Here!! Set count 3. out 2fh, al ret
TimeCountWDT ENDP =============================================== ExitSetup PROC mov al, 0AAh out 2eh, al ret ExitSetup ENDP ===============================================
82
ICEK 268-T2 Starter Kit User Manual
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
