Page 1
NEXCOM International Co., Ltd.
Industrial Computing Solutions
COM Express Type 6 ICEK 667-T6 (ICES 667 Series and ICEB 8060)
Starter Kit User Manual
NEXCOM International Co., Ltd.
Published April 2013
www.nexcom.com
Page 2
Content
Contents
Preface
Copyright ............................................................................................. iv
Disclaimer .............................................................................................. iv
Acknowledgements ............................................................................... iv
Regulatory Compliance Statements ........................................................ iv
Declaration of Conformity ...................................................................... iv
RoHS Compliance ................................................................................... v
Warranty and RMA ................................................................................ vi
Safety Information ................................................................................viii
Installation Recommendations ...............................................................viii
Safety Precautions .................................................................................. ix
Technical Support and Assistance ............................................................ x
Conventions Used in this Manual ............................................................ x
Global Service Contact Information ........................................................ xi
Package Contents ................................................................................. xiii
Ordering Information ............................................................................xiv
Chapter 1: Product Introduction

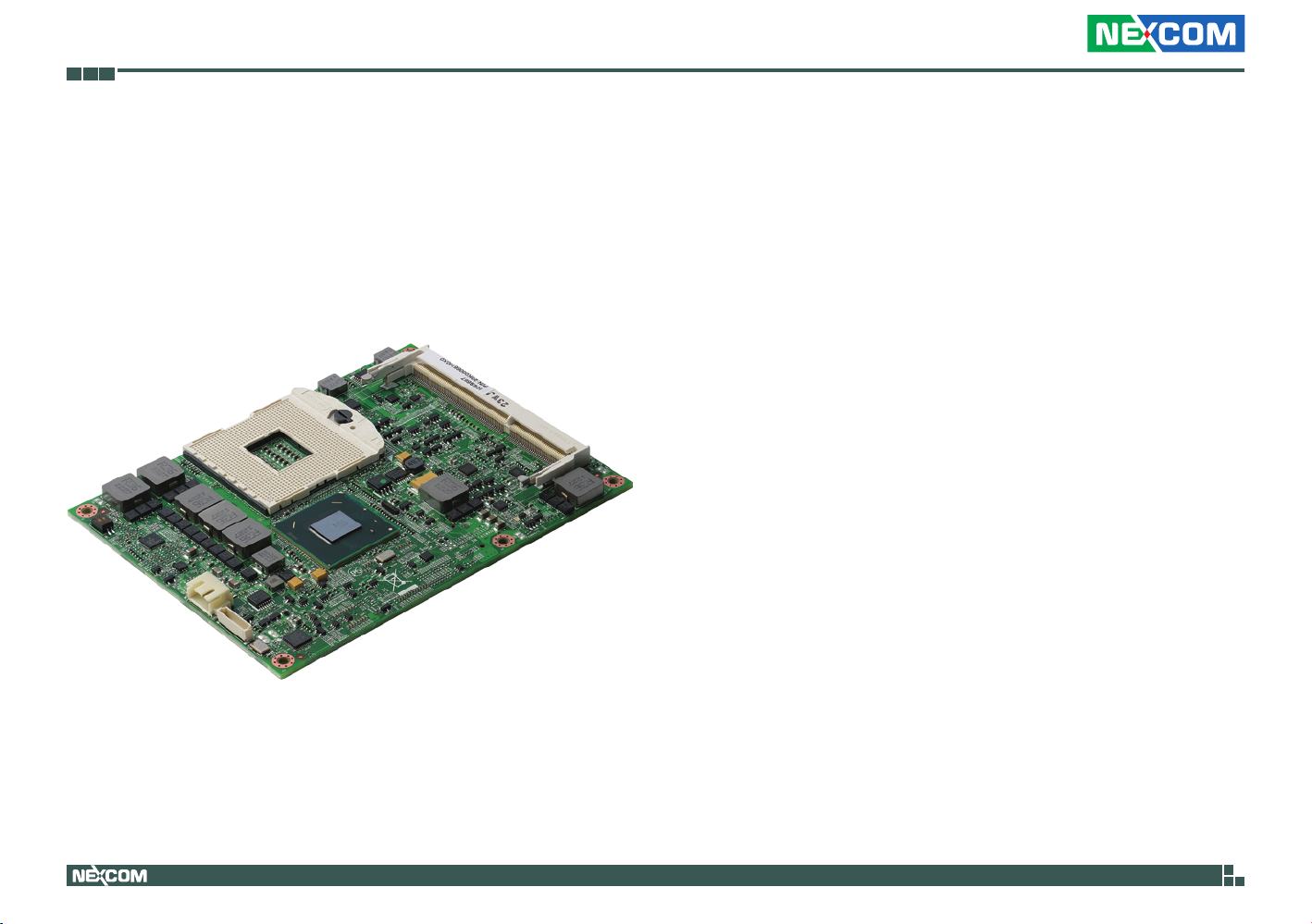

Overview - ICES 667 ...............................................................................1
Key Features ...........................................................................................1
Hardware Specifications ..........................................................................2
Knowing Your ICES 667 .......................................................................... 3

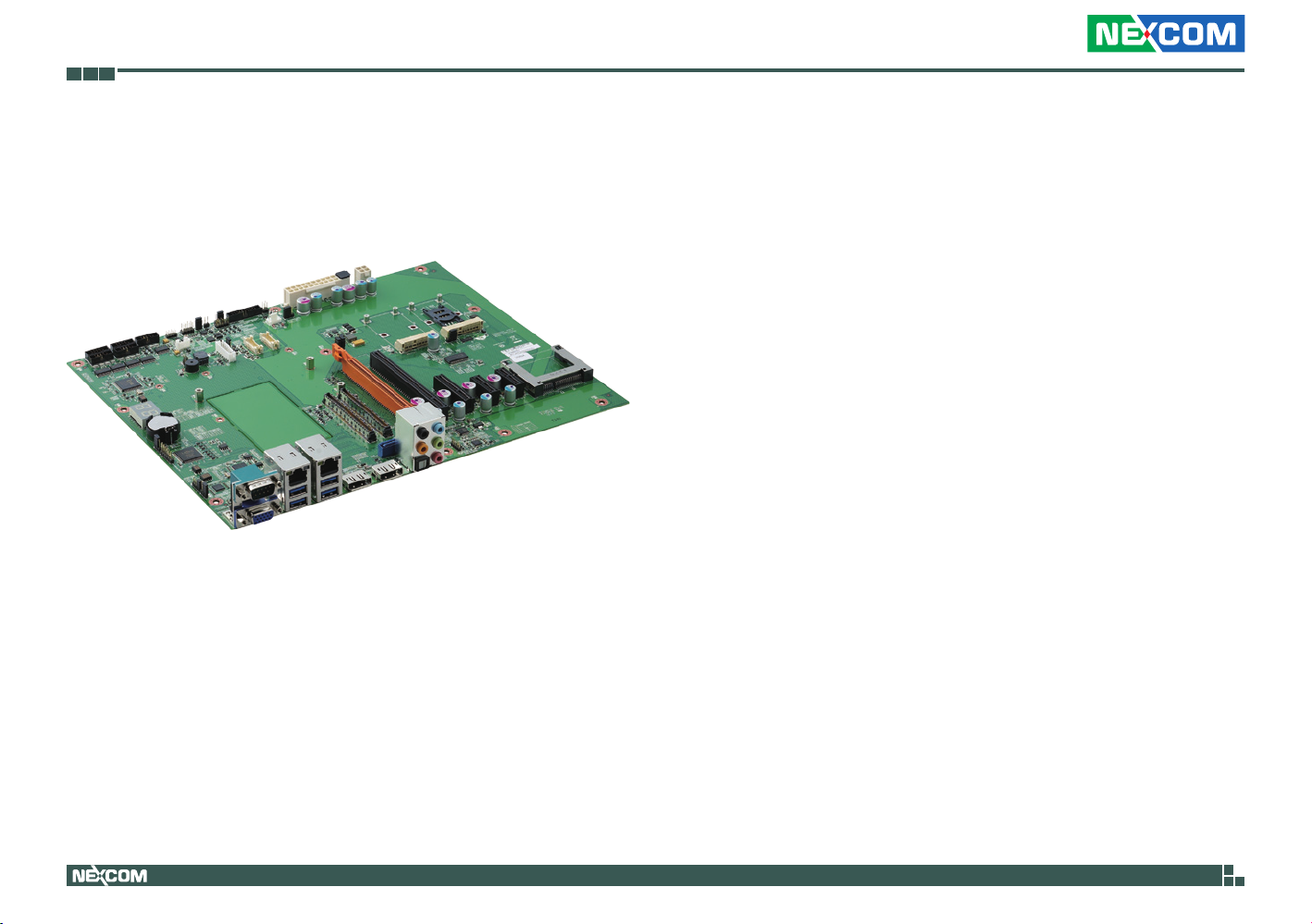

Overview - ICEB 8060 .............................................................................4
Key Features ...........................................................................................4
Hardware Specifications ..........................................................................5
Knowing Your ICEB 8060 ........................................................................ 7
Block Diagram ........................................................................................8
ICES 667 .............................................................................................8
ICEB 8060 ...........................................................................................9
Chapter 2: Jumpers and Connectors
Before You Begin ..................................................................................10
Precautions ..........................................................................................10
Jumper Settings ....................................................................................11

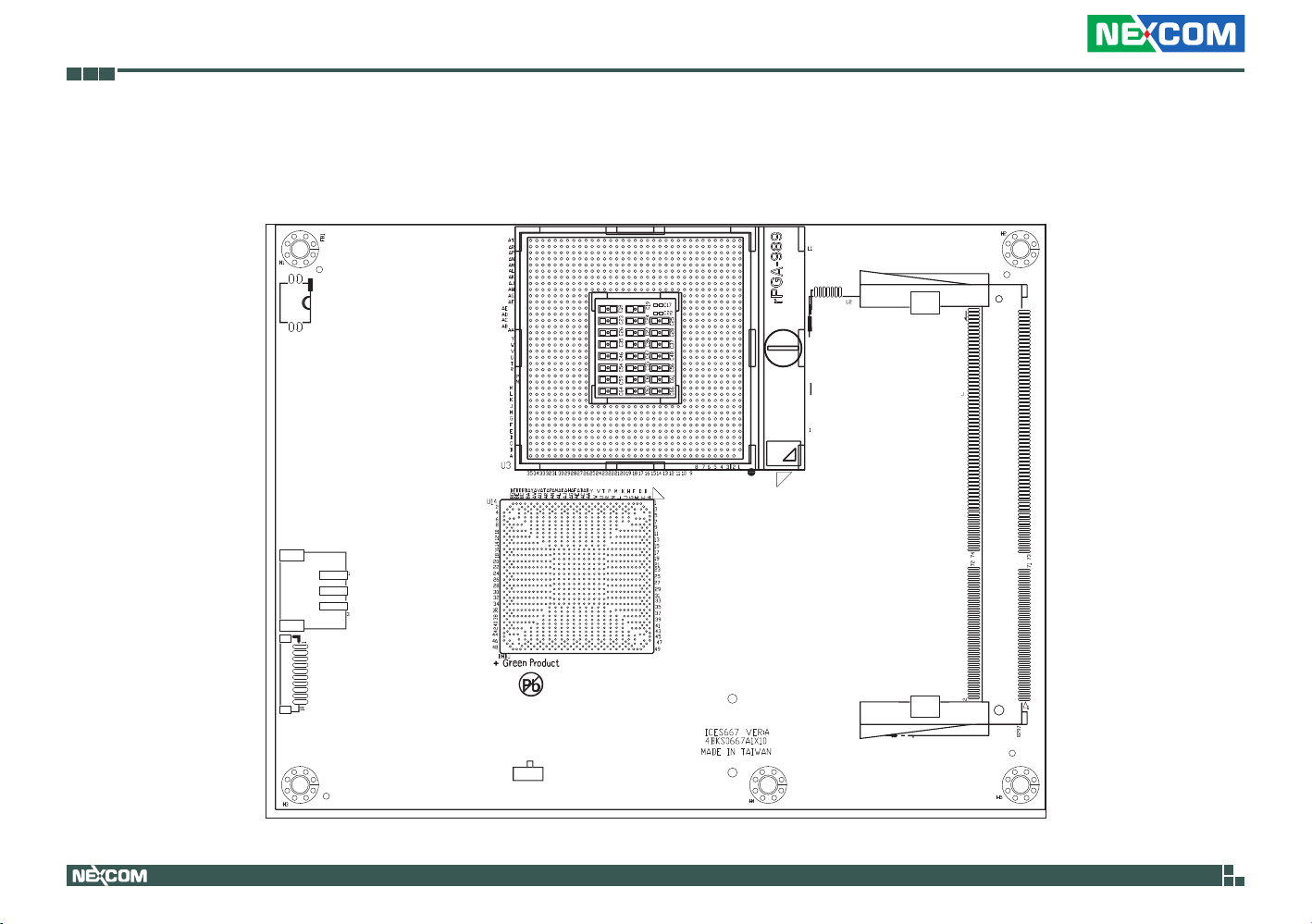

Locations of the Jumpers and Connectors for ICES 667 ......................... 12
Connector Pin Definitions .....................................................................13
Internal Connectors ........................................................................... 13
PCIe DIP Switch .............................................................................. 13
CPU Fan Connector ........................................................................13
High Speed Board-to-Board Connector:
Row A and B, Row C and D ...........................................................14

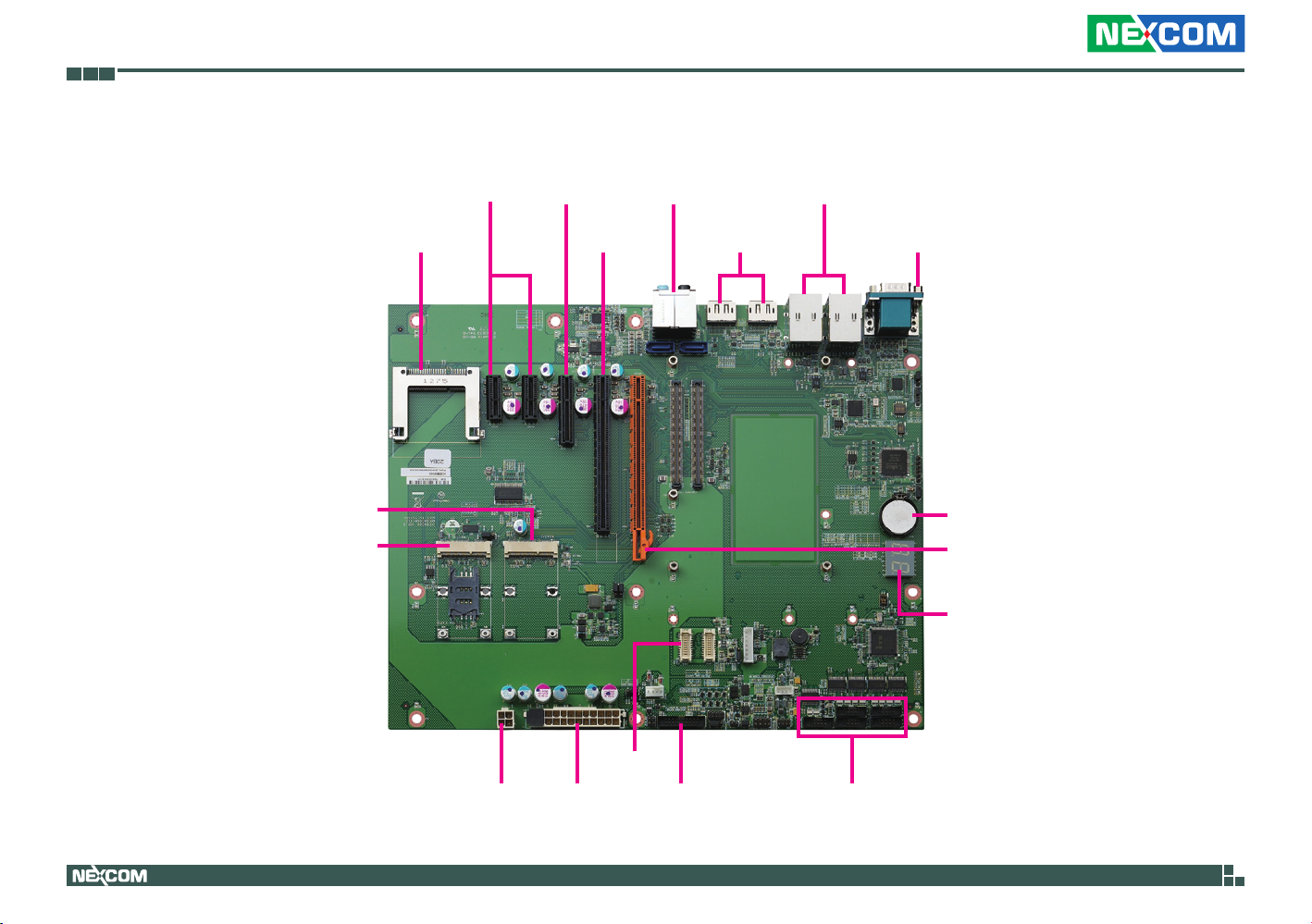

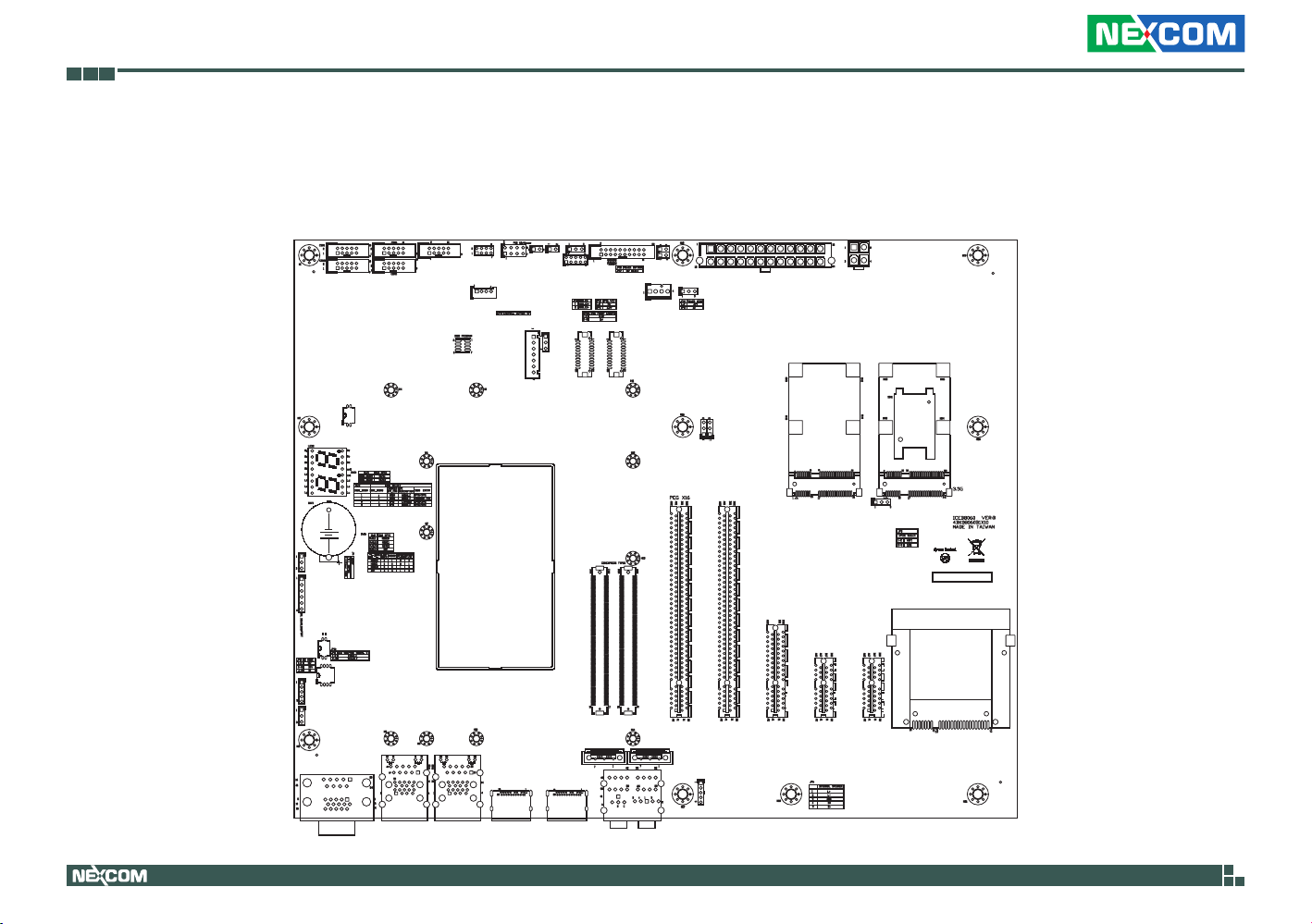

Locations of the Jumpers and Connectors for ICEB 8060 ....................... 19
Jumpers ................................................................................................ 20
3.5G Module ..................................................................................... 20
LVDS Power Select (3.3V/5V)..............................................................20
Termal Select .....................................................................................21
GPIO Power Select ............................................................................. 21
Power Mode Select ............................................................................22
RTC Clear .......................................................................................... 22
Fintek TX/RX Pin Header ....................................................................23
DIP Switch Settings ...............................................................................24
Close to U4 .......................................................................................24
RS232/ RS422/ RS485 Mode Select .................................................... 24
ii
ICEK 667-T6 Starter Kit User Manual
Page 3
Content
BIOS Select ........................................................................................ 25
Connector Pin Definitions .....................................................................26
External Connectors ..........................................................................26

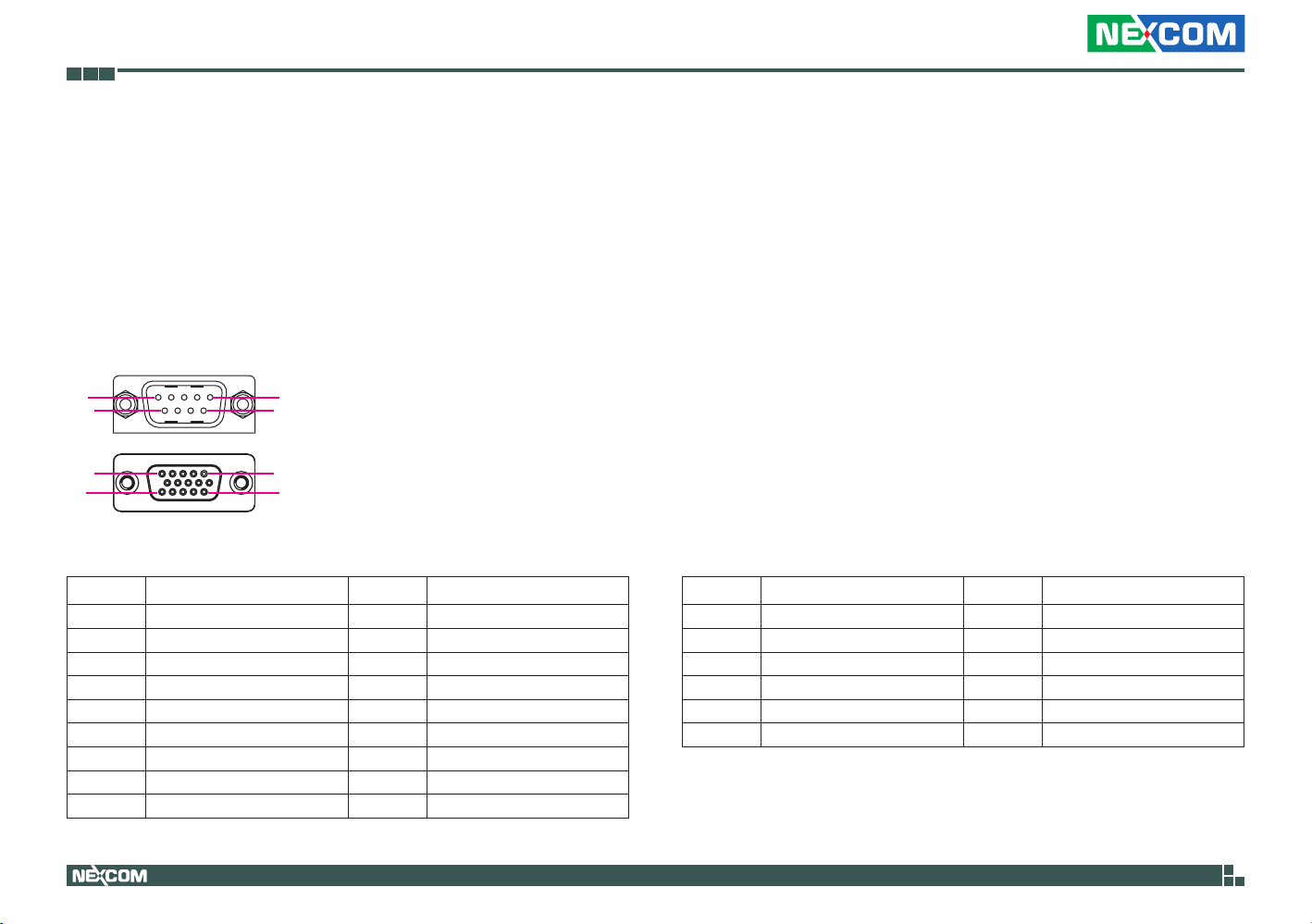

VGA and COM2 Ports .................................................................... 26

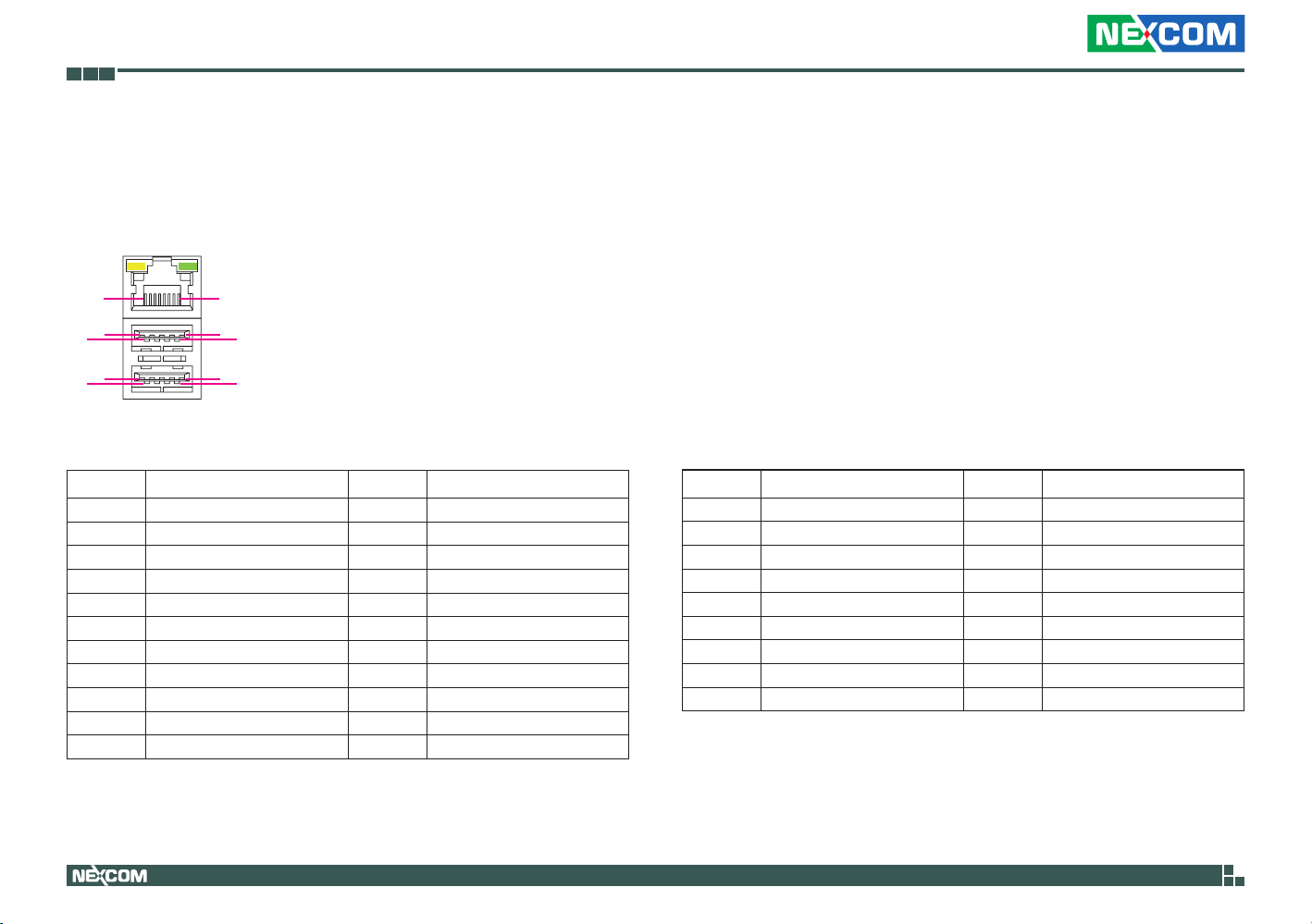

LAN and USB Ports ......................................................................... 27
DisplayPort ..................................................................................... 28

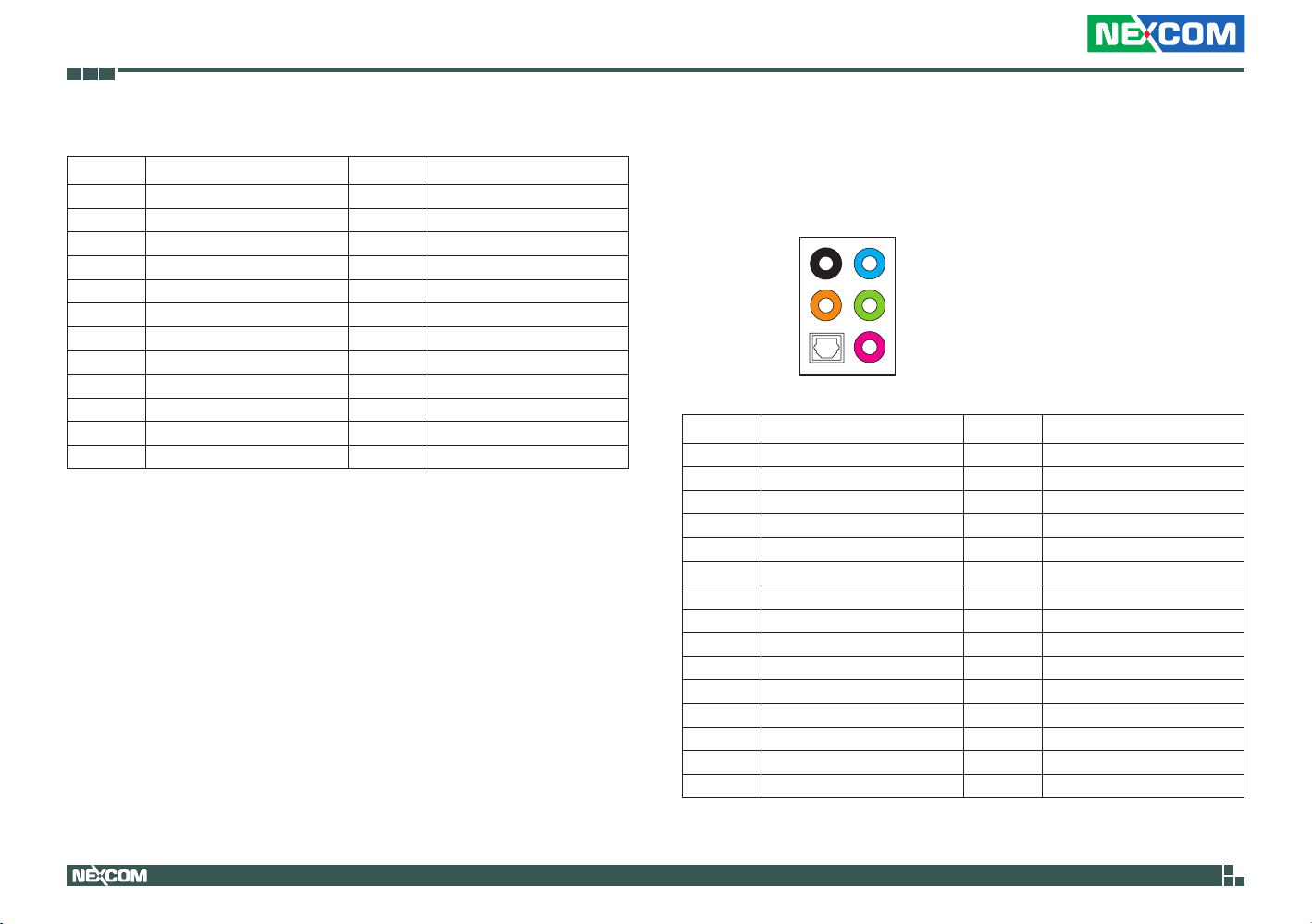

Audio Connectors .......................................................................... 29
Internal Connectors ........................................................................... 30
HDD LED ........................................................................................ 30
Internal Speaker ............................................................................. 30
COM2 RS232 RI# Pin Power Select ................................................. 31
GAL Download Port .......................................................................31
SPI .................................................................................................32
Disable EEPROM .............................................................................32
Keyboard and Mouse Pin Header ...................................................33
HW Reset Function .........................................................................33
Power Button ................................................................................. 34
GPIO .............................................................................................. 34
USB Port 6 and 7 ............................................................................35
USB Port 5 .....................................................................................35
CCFL .............................................................................................. 36
LVDS Channel A ............................................................................. 36
LVDS Channel B .............................................................................37
COM1 Port Box Header .................................................................. 37
COM3 Port Box Header .................................................................. 38
COM4 Port Box Header .................................................................. 38
COM5 Port Box Header .................................................................. 39
COM6 Port Box Header .................................................................. 39
Battery Charger ..............................................................................40
Fan Connector ...............................................................................40

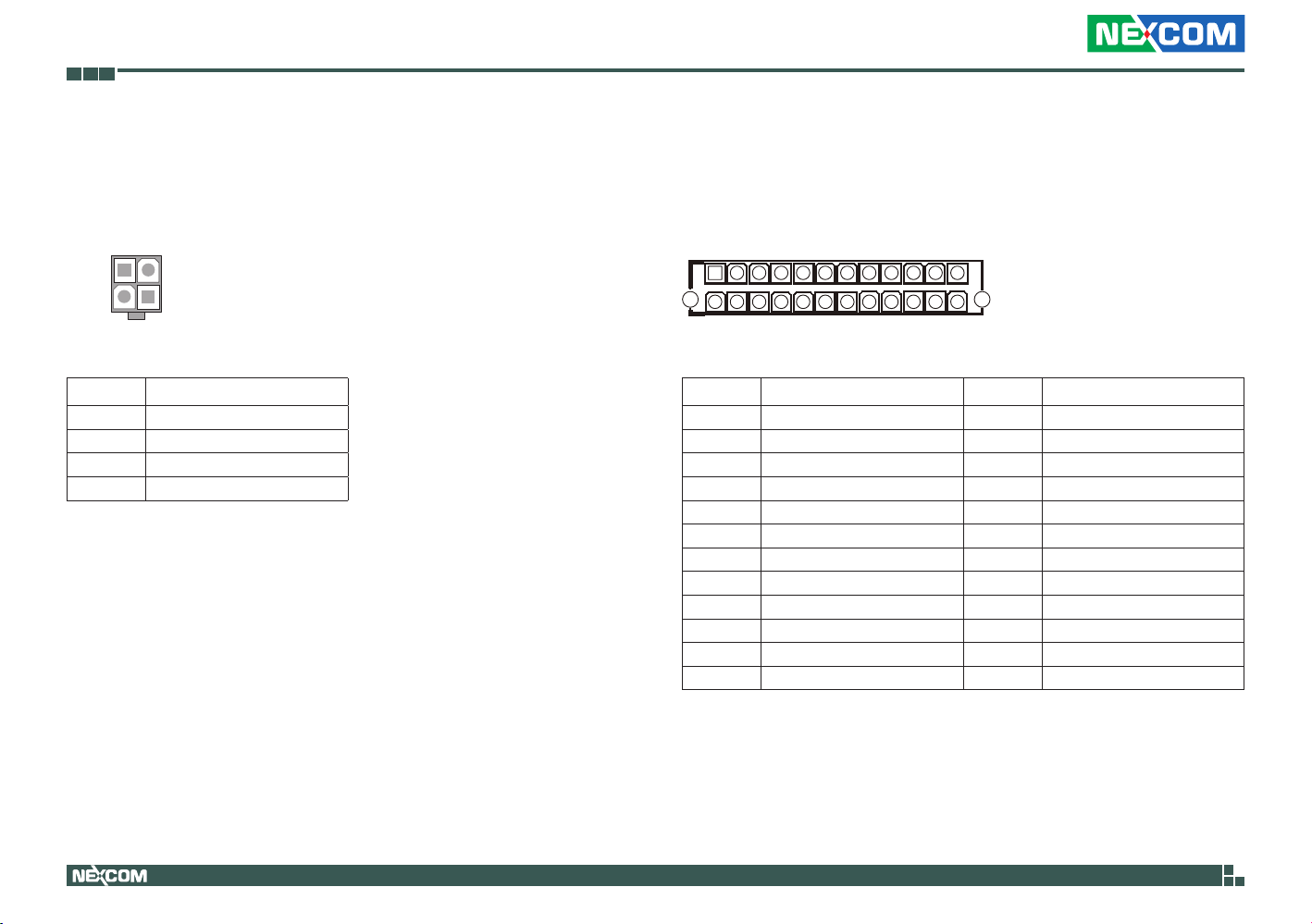

4-Pin Power Connector ..................................................................41
ATX Power Connector ....................................................................41
SATA3.0 Connectors ......................................................................42
CFast Slot .......................................................................................42
PEG x16 Slot ..................................................................................43
Digital Display Interface (Port B/ DDI #1) ......................................... 45
PCIe x4 ..........................................................................................47
PCIe x1 Slots ..................................................................................48
Mini-PCIe Slot (Wi-Fi and 3G) ......................................................... 49
Mini-PCIe Slot (mSATA) ..................................................................50
SIM Card Slot .................................................................................51
High Speed Board-to-Board Connector:
Row A and B, Row C and D ...........................................................52
Chapter 3: System Setup

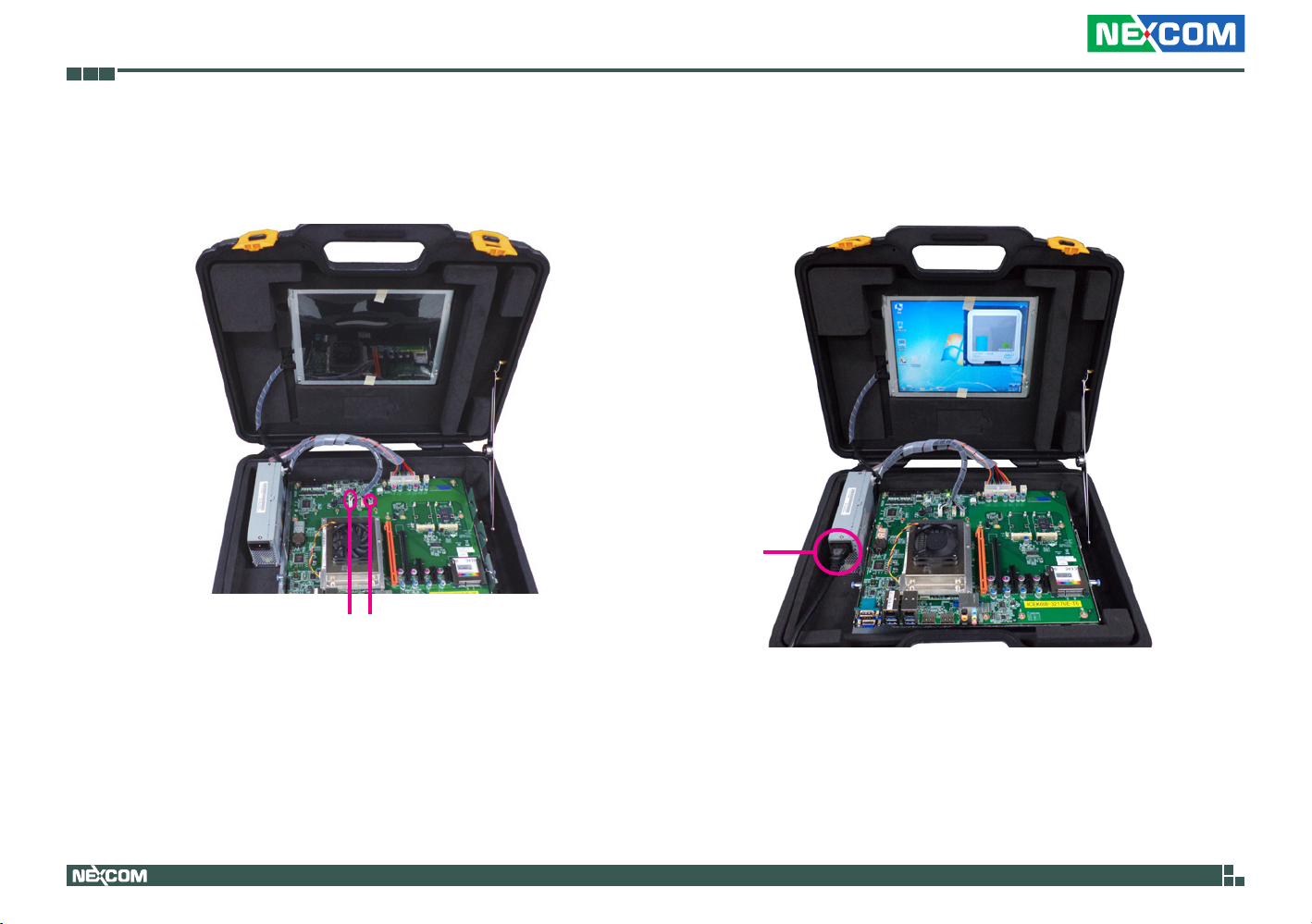

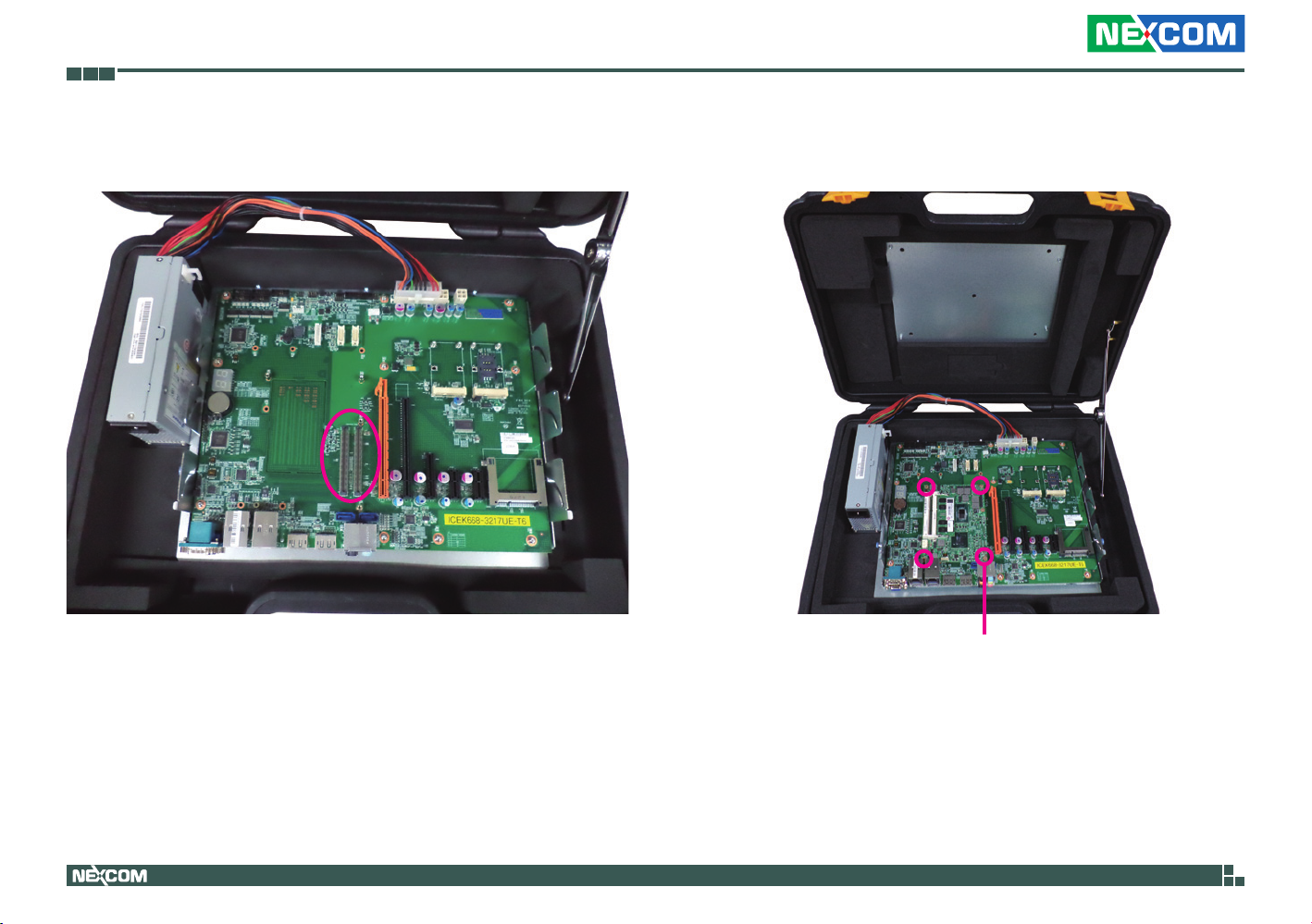

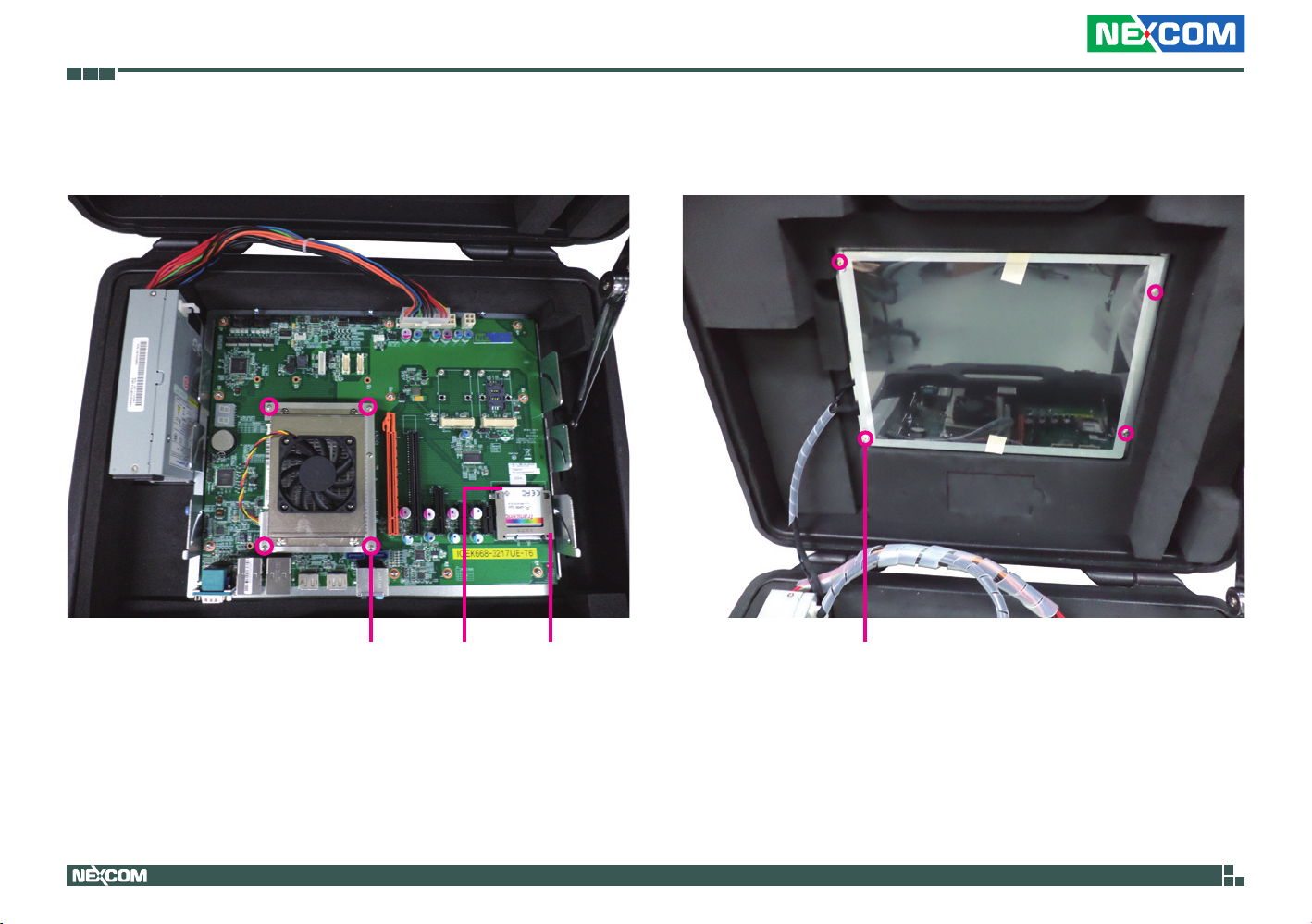

Setting up the System ........................................................................... 57

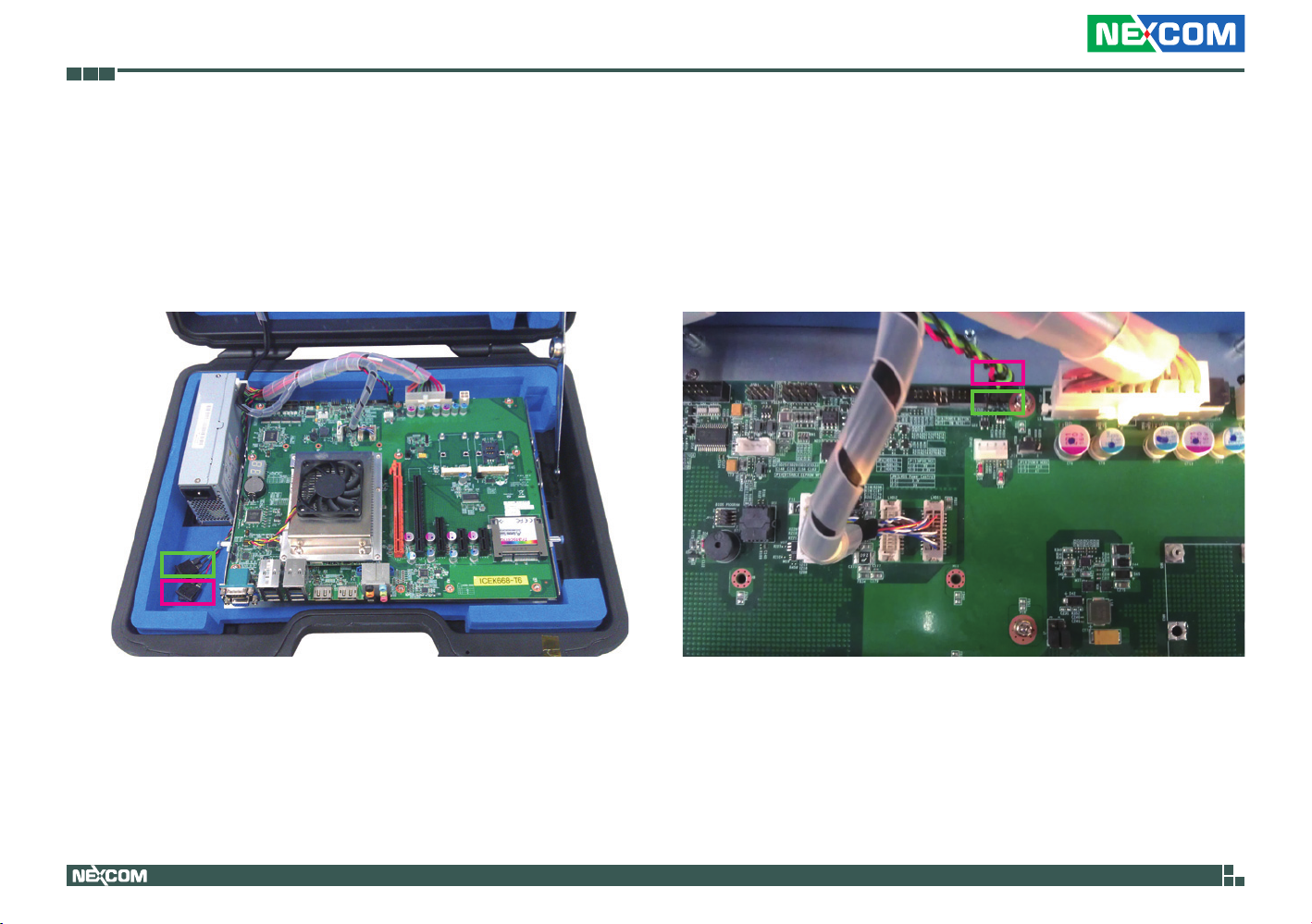

External Soft-Power On/Off and Hardware Reset Switches.....................63

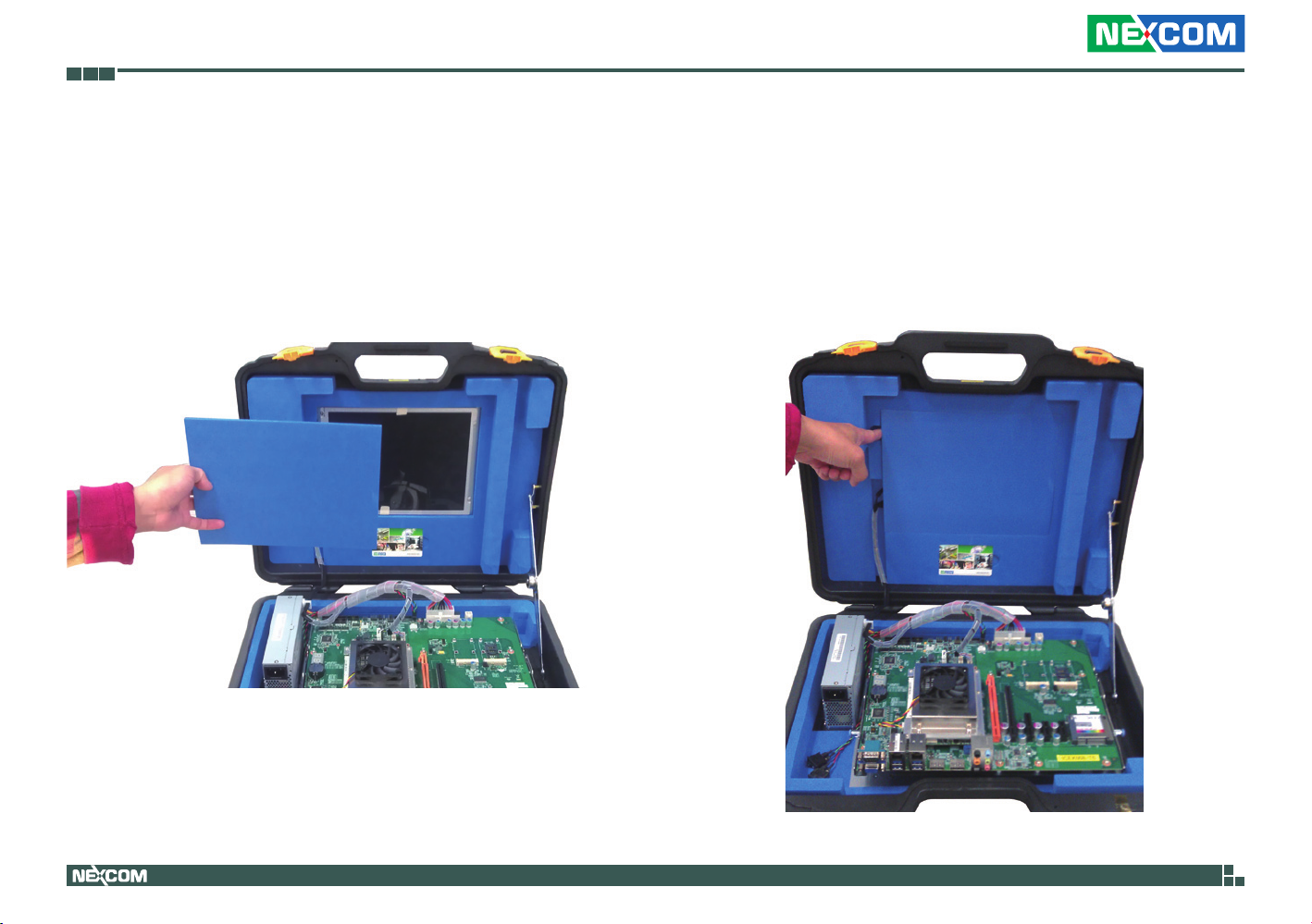

Closing the Case ................................................................................... 64
Chapter 4: BIOS Setup
About BIOS Setup ................................................................................. 65
When to Configure the BIOS .................................................................65
Default Configuration ........................................................................... 66
Entering Setup ...................................................................................... 66
Legends ................................................................................................ 66
BIOS Setup Utility .................................................................................. 68
Main .................................................................................................68
Advanced .......................................................................................... 69
Chipset ..............................................................................................79
Boot .................................................................................................. 83
Security .............................................................................................83
Save & Exit ........................................................................................84
Appendix A: Watchdog Timer
WDT Programming Guide .....................................................................85
iii
ICEK 667-T6 Starter Kit User Manual
Page 4
Preface
Preface
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.
Disclaimer
The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.
Acknowledgements
ICEK 667-T6 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.
Regulatory Compliance Statements
This section provides the FCC compliance statement for Class B devices and describes how to keep the system CE compliant.
Declaration of Conformity
FCC
This equipment has been tested and verified to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.
CE
The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.
iv
ICEK 667-T6 Starter Kit User Manual
Page 5
Preface
RoHS Compliance
NEXCOM RoHS Environmental Policy and Status Update
This publication, including all photographs, illustrations and software, is protected under international copyright
laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.
RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.
In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.
The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.
How to recognize NEXCOM RoHS Products?
For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.
All new product models launched after January 2006 will be RoHS compliant. They will use the usual NEXCOM naming convention.
v
ICEK 667-T6 Starter Kit User Manual
Page 6
Preface
Warranty and RMA
NEXCOM Warranty Period
NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.
NEXCOM Return Merchandise Authorization (RMA)
▪ Customers shall enclose the “NEXCOM RMA Service Form” with the
returned packages.
▪ Customers must collect all the information about the problems
encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.
▪ Customers can send back the faulty products with or without accessories
(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.
▪ Customers are responsible for the safe packaging of defective products,
making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”
▪ Any products returned by NEXCOM to other locations besides the
customers’ site will bear an extra charge and will be billed to the customer.
Repair Service Charges for Out-of-Warranty Products
NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.
Repair Service Charges for Out-of-Warranty Products
NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.
System Level
▪ Component fee: NEXCOM will only charge for main components such as
SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.
▪ Items will be replaced with NEXCOM products if the original one cannot
be repaired. Ex: motherboard, power supply, etc.
▪ Replace with 3rd party products if needed.
▪ If RMA goods can not be repaired, NEXCOM will return it to the customer
without any charge.
Board Level
▪ Component fee: NEXCOM will only charge for main components, such
as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.
▪ If RMA goods can not be repaired, NEXCOM will return it to the customer
without any charge.
vi
ICEK 667-T6 Starter Kit User Manual
Page 7
Preface
Warnings
Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.
Cautions
Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.
vii
ICEK 667-T6 Starter Kit User Manual
Page 8
Preface
Safety Information
Before installing and using the device, note the following precautions:
▪ Read all instructions carefully.
▪ Do not place the unit on an unstable surface, cart, or stand.
▪ Follow all warnings and cautions in this manual.
▪ When replacing parts, ensure that your service technician uses parts
specified by the manufacturer.
▪ Avoid using the system near water, in direct sunlight, or near a heating
device.
▪ The load of the system unit does not solely rely for support from the
rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.
▪ The computer is provided with a battery-powered real-time clock circuit.
There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.
Installation Recommendations
Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.
Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:
▪ A Philips screwdriver
▪ A flat-tipped screwdriver
▪ A grounding strap
▪ An anti-static pad
Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.
viii
ICEK 667-T6 Starter Kit User Manual
Page 9
Preface
Safety Precautions
1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a
damp cloth. Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the
equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a stable surface during installation. Dropping it or
letting it fall may cause damage.
7. The openings on the enclosure are for air convection to protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting
the equipment to the power outlet.
9. Place the power cord in a way so that people will not step on it. Do not
place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.
13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.
14. If one of the following situations arises, get the equipment checked by service personnel:
a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work
according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.
15. Do not place heavy objects on the equipment.
16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.
17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.
ix
ICEK 667-T6 Starter Kit User Manual
Page 10
Preface
CAUTION!
Technical Support and Assistance
1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.
2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,
version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages
Warning!
1. Handling the unit: carry the unit with both hands and handle it with care.
2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.
3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.
Conventions Used in this Manual
Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.
CAUTION!CAUTION!
Caution: Information to avoid damaging components or losing data.
Note: Provides additional information to complete a task easily.
x
ICEK 667-T6 Starter Kit User Manual
Page 11
Preface
Global Service Contact Information
Headquarters
NEXCOM International Co., Ltd.
15F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com
America
USA NEXCOM USA
2883 Bayview Drive,Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: [email protected] www.nexcom.com
Asia
Taiwan Central Taiwan Office
16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: [email protected] www.nexcom.com.tw
Japan NEXCOM Japan
9F, Tamachi Hara Bldg.,4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: [email protected] www.nexcom-jp.com
China NEXCOM China
2F, Block 4, Venus Plaza, Bldg. 21, ZhongGuanCun Software Park, No. 8, Dongbeiwang West Rd., Haidian District, Beijing, 100193, China Tel: +86-10-8282-5880 Fax: +86-10-8282-5955 Email: [email protected] www.nexcom.cn
Shanghai Office
Room 1505, Greenland He Chuang Bldg., No. 450 Caoyang Rd., Shanghai, 200062, China Tel: +86-21-6150-8008 Fax: +86-21-3251-6358 Email: [email protected] www.nexcom.cn
Nanjing Office
Hall C, Block 17, Tian Xing Cui Lang Bldg., No. 49 Yunnan North Rd., Nanjing, 210018, China Tel: +86-25-8315-3486 Fax: +86-25-8315-3489 Email: [email protected] www.nexcom.cn
Shenzhen Office
Western Room 708, Block 210, Tairan Industry & Trading Place, Futian Area, Shenzhen, 518040, China Tel: +86-755-8332-7203 Fax: +86-755-8332-7213 Email: [email protected] www.nexcom.cn
Wuhan Office
1-C1804/ 1805, Mingze Liwan, No. 519 South Luoshi Rd., Hongshan District, Wuhan, 430070, China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 Email: [email protected] www.nexcom.cn
xi
ICEK 667-T6 Starter Kit User Manual
Page 12
Preface
Chengdu Office
9F, Shuxiangxie, Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061, China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 Email: [email protected] www.nexcom.cn
Europe
France NEXCOM France
La Grande Arche-Paroi Nord, 92044 Paris La Défense, France Tel: +33 (0) 1 40 90 33 35 Fax: +33 (0) 1 40 90 31 01 Email: [email protected] www.nexcom.eu
Germany
NEXCOM GmbH Leopoldstraße Business Centre, Leopoldstraße 244, 80807 Munich, Germany Tel: +49-89-208039-278 Fax: +49-89-208039-279 Email: [email protected] www.nexcom.eu
Italy
NEXCOM ITALIA S.r.l Via Gaudenzio Ferrari 29, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9286 9215 Email: [email protected] www.nexcomitalia.it
United Kingdom NEXCOM EUROPE
10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: [email protected] www.nexcom.eu
xii
ICEK 667-T6 Starter Kit User Manual
Page 13
Preface
Package Contents
Before continuing, verify that the ICEK 667-T6 package that you received is complete. Your package should have all the items listed in the following table.
Item Description Qty
1 ICES 667 1 2 ICEB 8060 1 3 Built-in 10.4” LED LCD Panel 1 4 Built-in 150W Flex-ATX power supply for AC 110V/220V input 1 5 NEXCOM USB card containing ICEK 667-T6 Design-in documentation 1
xiii
ICEK 667-T6 Starter Kit User Manual
Page 14
Preface
Ordering Information
The following information below provides ordering information for ICEK 667-T6.
ICES 667 (P/N: 10K00066700X0)
COM Express type 6, basic Module QM77 support 3rd Generation Intel® Core™ rPGA988 embedded processors, non-ECC DDR3/ 2x SO-DIMMs
ICES 667F-kit (P/N: 10K00066702X0)
COM Active fan kits with heat-spreader, heat-sink and cooling fan for ICES 667
ICEB 8060 (P/N: 10KB086000X0)
COM Express type 6, COM.0 Rev. 2.0 Evaluation Carrier Board, 3x DDI/ VGA/ LVDS/ 4x USB3.0/ 8x USB2.0/ 6x COM/ 2x GbE/ 5.1HD, SPDIF/ 2x SATA3.0/ mSATA CFast/ PCIe x16/ PCIE x4/ 2x PCIe x1/ mPCIe, ATX power input
ICEK 8060-T6 (P/N: MISC by Project Registered)
COM Express Type 6 Starter Kit ready for NEXOM COM Express Type 6 Basic modules assembly SO-DIMM system memory with passive/ active fan-sink onto Type 6 carrier ICEB 8060 with bootable Mini-SATA/ CFast-SSD, pre-load Win 7 trial version OS with 10.4” LCD/ LVDS display and build-in Flex-ATX PSU AC 110/ 220V Input
xiv
ICEK 667-T6 Starter Kit User Manual
Page 15
Chapter 1: Product Introduction
Chapter 1: Product Introduction
Overview - ICES 667
Key Features
▪ 3rd generation Intel® Embedded Core™ rPGA988 embedded processors
family
▪ Intel® QM77 PCH (HM76 ) chipset support PICMG COM.0 Rev. 2.0 Type
6 pin-outs
▪ Support two DDR3 SO-DIMMs 1333/ 1600 non-ECC up to 16GB
▪ Support PCIe x16 (Gen3.0) 7x PCIEx1, 4x USB3.0/ 8x USB2.0, 2x SATA3.0/
2x SATA2.0 and GbE
▪ Up to 3x DDI (DP/ HDMI/ DVI) multiple displays, VGA, dual channels 18/
24-bit LVDS
▪ Dimension: 95mm (W) x 125mm (L)
1
ICEK 667-T6 Starter Kit User Manual
Page 16
Chapter 1: Product Introduction
Hardware Specifications
CPU Support
▪ Support 3rd generation Intel® Core™ i7/ i5/ i3 embedded rPGA988
processors
®
Core™ i7-3610QE (4 x 2.3GHz/ 6MB cache/ Max. TDP 45W)
– Intel
®
– Intel
Core™ i7-3610ME (2 x 2.7GHz/ 3MB cache/ Max. TDP 35W)
®
– Intel
Celeron® B810 (2x 1.6GHz/ 2MB cache/ Max. TDP 35W)
Main Memory
▪ Two DDR3 SO-DIMMs, 1333/ 1600 MHz SDRAM non-ECC up to 16GB
Platform Control Hub
▪ Intel® QM77 PCH (option HM76) chipset
BIOS
▪ AMI System UEFI BIOS ▪ Plug and play support
▪ Advanced Power Management and ACPI support
Display
▪ Intel® HD graphics with DX11 support and supports triple independent
displays ▪ One PCI Express x16 Lane (Gen. 3.0) down to the carried board ▪ Supports VGA, single/ dual channels LVDS 18/ 24-bit interfaces
▪ 3x DDI supports HDMI, DVI, DisplayPort and SDVO (only by Port B/ DDI #1)
On-board LAN
▪ Intel® 82579LM Gigabit Ethernet, support iAMT 8.0
(supported with QM77 only)
▪ Support boot from LAN, wake on LAN function ▪ Signals down to I/O board
COM Express Connector
▪ AB
VGA/ LVDS/ 8x USB 2.0, HD Audio/ 4x SATA2.0/ 3.0, GbE/ GPIO/ LPC bus, 1x PCIe x4/ 2x PCIe x1/ SMBus (I2C)/ SPI BIOS /SPK out
▪ CD
PCIe x16(Gen. 3.0)/ 3x DDI/ 4x USB 3.0/ PCIe x1
Power Requirements
▪ +12V, +5VSB, +3.3V RTC power
Dimensions
▪ 95mm (W) x 125mm (L)
Environment
▪ Board level operating temperature: -15°C to 60°C ▪ Storage temperature: -20°C to 80°C ▪ Relative humidity:
10% to 90% (operating, non-condensing) 5% to 95% (non-operating, non-condensing)
Audio
▪ HD audio interface
Certifications
▪ Meet CE ▪ FCC Class A
2
ICEK 667-T6 Starter Kit User Manual
Page 17
Chapter 1: Product Introduction

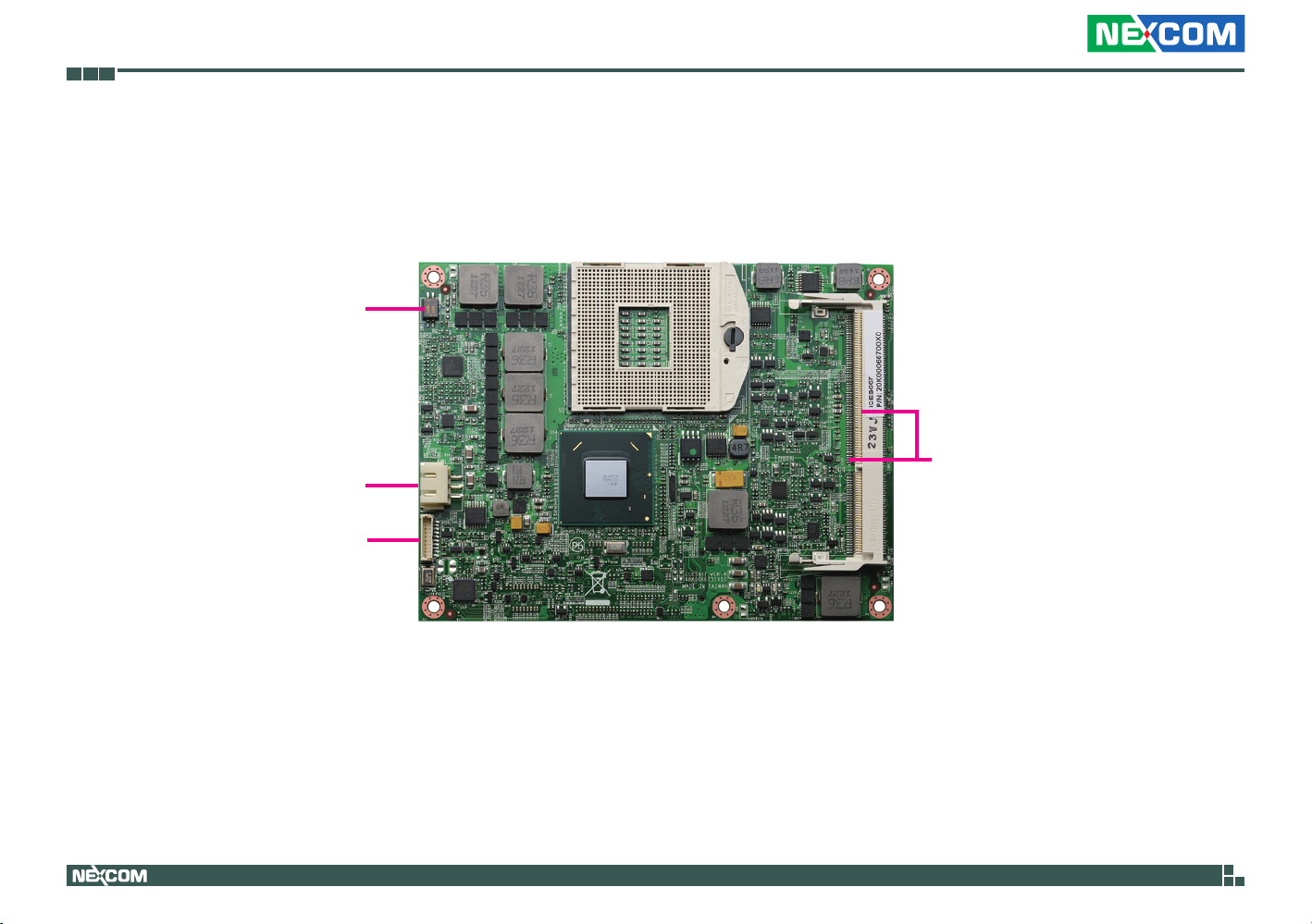

Knowing Your ICES 667
PCIe DIP
switch
CPU FAN
Debug port
Support DDR3/ SO-DIMM
Only up to 16GB (2x 8GB)
3
ICEK 667-T6 Starter Kit User Manual
Page 18
Chapter 1: Product Introduction
Overview - ICEB 8060
Key Features
▪ COM Express COM.0, Rev 2.0 Evaluation CRB, ATX form-factor
▪ Support Type 6 pin-out, COMe Extended/ Basic/ Compact Module
▪ Display: 3x DDI (2DP/HDMI), VGA & dual channels 18/24-bit LVDS
▪ 4x USB 3.0/ 2x SATA3.0, PCIe Gen 3.0, Bootable CFast or mini-SATA
▪ PCIe x 16, DDI (PCIex16), PCIe x4, PCIe x1 and mini-PCIe for Wi-Fi
▪ VGA/ RS232/ 422/ 485/ 5COM, Dual GbE/ 12USB/ 5.1, S/PDIF
4
ICEK 667-T6 Starter Kit User Manual
Page 19
Chapter 1: Product Introduction
Hardware Specifications
Form Factor
▪ ATX Carrier MB, dimension: 305mm x 244mm (12” x 9.6”) ▪ COM Express Evaluation CRB: PICMB COM Express board-to-board
interconnectors, type 6 pin-put, female, 8mm stack-up height, COM.0
Rev. 2.0
NEXCOM Computer-on-Modules Support List
▪ Basic Size (125x 95mm) : ICES 667 and ICES 668
Expansion
▪ 1x PCIe x16 slot, support PEG interfaces ▪ 1x DDI (SDVO/ HDMI/ DP by orange color PCIe x16 slot) ▪ 1x PCIe x4 slot, optional 4x PCIe x1 signals ▪ 1x PCIe x1 slot and 1x mini-PCIe slot for Wi-Fi with SIM tray
Graphic Interfaces
▪ Graphic Chip: from Type 6 pin-out, COM Express module ▪ CRT: support analog VGA with DB15 connector on the I/O edge ▪ LVDS: dual channels 18/ 24-bit LVDS connector (dual DF-13-20P) ▪ DDI (in PCIe x16): optional EBK-A2HDMI riser card for HDMI or DP
Super I/O
▪ ITE8783
I/O Interface
▪ Serial COM: 6 ports
– 1x edge DB9 connector to support RS232/ 422/ 485
(+5/ +12V by Ring)
– 5x internal box-header 2.0 pitch to support RS232
▪ USB: 12 ports 4x USB 3.0 and 8x USB2.0 ports
– 4x USB 3.0/ 4x USB 2.0 ports by stack Type A on edge – 3x USB 2.0 by 4-pins JST2.0mm JST connector, – 1x internal USB 2.0 to mini-PCIe slot for external Wi-Fi module
▪ SATA: 4 ports
– 2x SATA 3.0 ports – 1x mini-SATA by mini-PCIe slot for half/ full size mini-SATA/ SSD
– 1x CFAST slot for CFAST/ SATA 2.0 ▪ PS/2: internal 2x 4-pins header for Keyboard/ Mouse ▪ GPIO ports: 2x + 8x pins GPIO signals from COMe
(default 5V TTL/ option 3.3V)
Network
▪ ETH0: LAN port Connected from COMe CPU module (ICES 668) ▪ ETH0: Support 1x RJ45/ GbE LAN port on the edge I/O ▪ ETH1: Support 2nd RJ45/ GbE LAN port by Intel 82574L on the edge I/O ▪ ETH0 and ETH1 support Boot from LAN (PXE) ▪ ETH0 and ETH1 support Wake-on-LAN (when +5Vsb power available)
Audio
▪ HD Audio AL886 with 5.1 channels ▪ Support external S/PDIF interface ▪ Support internal pin-header for L/R speaker-out 2W/ 4 Ohm ▪ Onboard buzzer
5
ICEK 667-T6 Starter Kit User Manual
Page 20
Chapter 1: Product Introduction
EEPROM
▪ 1x 2K EEPROM to record PCI Express Lane configuration ▪ ATMEL AT24C32 (or C02) and address 0x57 or (0xAE)
Watchdog Timer
▪ Watchdog timeout can be programmed by Software from 1 second
to 255 seconds and from 1 minute to 255 minutes (tolerance 15% temperature 25°C)
On-board RTC
▪ On-chip RTC with battery BR2032
Power Input
▪ Standard ATX 24 pins and AUX 4-pins with 12V
Dimensions
▪ ATX form factor, 305x 244mm (Lx W, 12”x9.6”)
Environment
▪ Operating temperatures: -20°C to 60°C ▪ Storage temperature: -40°C to 85°C ▪ Relative humidity: Operating 10% to 90%, non-condensing
Certifications
▪ CE approval ▪ FCC Class A
6
ICEK 667-T6 Starter Kit User Manual
Page 21
Chapter 1: Product Introduction
Knowing Your ICEB 8060
CFast1
PCIe x1 PCIe x4
(Port B/ DDI#1)
HD 5.1
Audio, S/PDIF
DDI
DisplayPort
GbE LAN/2USB
VGA & COM2
mSATA/SSD
mPCIe/ Wi-Fi
Option SIM
4P ATX
LVDS
Battery charger
7
Battery RTC
PEG x16 Slot
Port 80
COM Port box headerATX Power
ICEK 667-T6 Starter Kit User Manual
Page 22
Chapter 1: Product Introduction
Block Diagram
ICES 667
DDR3 Channel A
COM Express connector A and B
PORT:0-3 SATA BUS
PORT:A.B
PORT:0-7 USB2.0 BUS
SERIAL PORT:1.2
PCI-E*1 BUS PORT:1,2,3,4,5,6
TYPE 6
MDI BUS
LPC TO COM
F81216
INTEL WG82579LM
GbE PHY
IMVP 7
VGA BUS
HDA BUS
LVDS BUS
LPC BUS
PCI-E*1 BUS PORT:8
SMBUS
Vcore
GFXCORE
Ivy Bridge
CORE POWER
Flexible Display Interface
VGA
HDA
SATA
USB (12) LVDS
LPC
PCIE BUS
31 x 24 mm (BGA1023)
Panther Point
QM77
25 x 25 mm FCBGA(Mobile only)
SMBUS
HWM
NCT7802Y
DDR3 CH A
DMIFDI
DMIFDI
SPI
DMI(X4)
DDR3 1066/1333 MHz ECC DIMM0
DDR3 Channel B
DDR3 CH BPCIex16
DISPLAY PORT D
DISPLAY
PORT D
DISPLAY PORT C
DISPLAY
PORT C
DISPLAY PORT B
DISPLAY
PORT B
USB3.0 BUS PORT:0-3
USB3.0
PCIE*1 BUS PORT:7
PCIE BUS
DDR3 1066/1333 MHz ECC DIMM1
PCIex16 BUS
BIOS
iAMT
SPI ROM
COM Express connector C and D
TYPE 6
SPI BUS
8
ICEK 667-T6 Starter Kit User Manual
Page 23
Chapter 1: Product Introduction
ICEB 8060
WIFI/3G
KB/MS Pin Header
COM 2
RS232/422/485
rear IO Connector
COM 1,3~6 RS232
box header X5
SATA X 2
Connector
mSATA X1
Connector
CFAST X1
Connector
USB 2.0 X 2 USB2.0 BUS
Pin Header
USB 2.0 X 4
(rear IO)
USB 2.0 X 1
(box header)
PCI-E x4
SLOT X1
PCI-E x1
SLOT X1
MiniPCIE X1 USB 2.0 X 1
SUPER I/O
IT8783E/AX-L
SLOT
SATA x2 BUS
SATA x1 BUS
SATA x1 BUS
USB2.0 BUS
USB2.0 BUS
PCI-E x4 BUS
PCI-E x1 BUS
PCI-E x1 BUS USB2.0 BUS
LPC BUS
COM Express connector A and B
TYPE 6
R/G/B
LVDS Channel A
LVDS Channel B
HD Audio interface
I2C BUS
GPIO BUS
Giga LAN
VGA
DB-15 rear IO Connector
LVDS A
(18/24 bit)
Connector
LVDS B (18/24 bit)
Connector
Audio Codec chip
(ALC886)
Audio Rear IO Connector Line IN / Line OUT / MIC IN
CEN OUT / SIDE OUT / SPDIF
EEPROM
GPI *4
GPO *4TTL LEVLE
RJ45
Rear IO Connector
SPEAKER
PIN
HEARD
AMP
Line OUT
COM Express connector C and D
TYPE 6
DDI1
DDI1 (PEGx16 SLOT)
DDI2
DDI2 (Display port rear IO connector)
DDI3
DDI3 (Display port rear IO connector)
USB3.0 BUS
PCI-E x1 BUS
PCI-E x1 BUS
x16 PEG BUS
USB3.0 X 4
Rear IO connector
PCIEX1 (LAN2) Giga LAN
Rear IO connector
PCI-E x1
SLOT X1
PEG x16
SLOT X1
9
ICEK 667-T6 Starter Kit User Manual
Page 24
Chapter 2: Jumpers and Connectors
Chapter 2: Jumpers and Connectors
This chapter describes how to set the jumpers and connectors on the ICES 667 and ICEB 8060 motherboard.
Before You Begin
▪ Ensure you have a stable, clean working environment. Dust and dirt can
get into components and cause a malfunction. Use containers to keep small components separated.
▪ Adequate lighting and proper tools can prevent you from accidentally
damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: – A Philips screwdriver – A flat-tipped screwdriver – A set of jewelers screwdrivers – A grounding strap – An anti-static pad
▪ Using your fingers can disconnect most of the connections. It is
recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.
▪ Before working on internal components, make sure that the power is off.
Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environments tend to have less static electricity than
dry environments. A grounding strap is warranted whenever danger of static electricity exists.
Precautions
Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.
Follow the guidelines below to avoid damage to your computer or yourself:
▪ Always disconnect the unit from the power outlet whenever you are
working inside the case.
▪ If possible, wear a grounded wrist strap when you are working inside the
computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.
▪ Hold electronic circuit boards by the edges only. Do not touch the
components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.
▪ Leave all components inside the static-proof packaging that they shipped
with until they are ready for installation.
▪ Use correct screws and do not over tighten screws.
10
ICEK 667-T6 Starter Kit User Manual
Page 25
Chapter 2: Jumpers and Connectors
Jumper Settings
A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.
Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).
Two-Pin Jumpers: Open (Left) and Short (Right)
Three-Pin Jumpers: Pins 1 and 2 are Short
3
2
1
1
3
2
11
ICEK 667-T6 Starter Kit User Manual
Page 26
Chapter 2: Jumpers and Connectors
Locations of the Jumpers and Connectors for ICES 667
The figure below shows the location of the jumpers and connectors for ICES 667.
SW1
FAN1
DIMM1
J1
12
ICEK 667-T6 Starter Kit User Manual
Page 27
Chapter 2: Jumpers and Connectors
Connector Pin Definitions
Internal Connectors

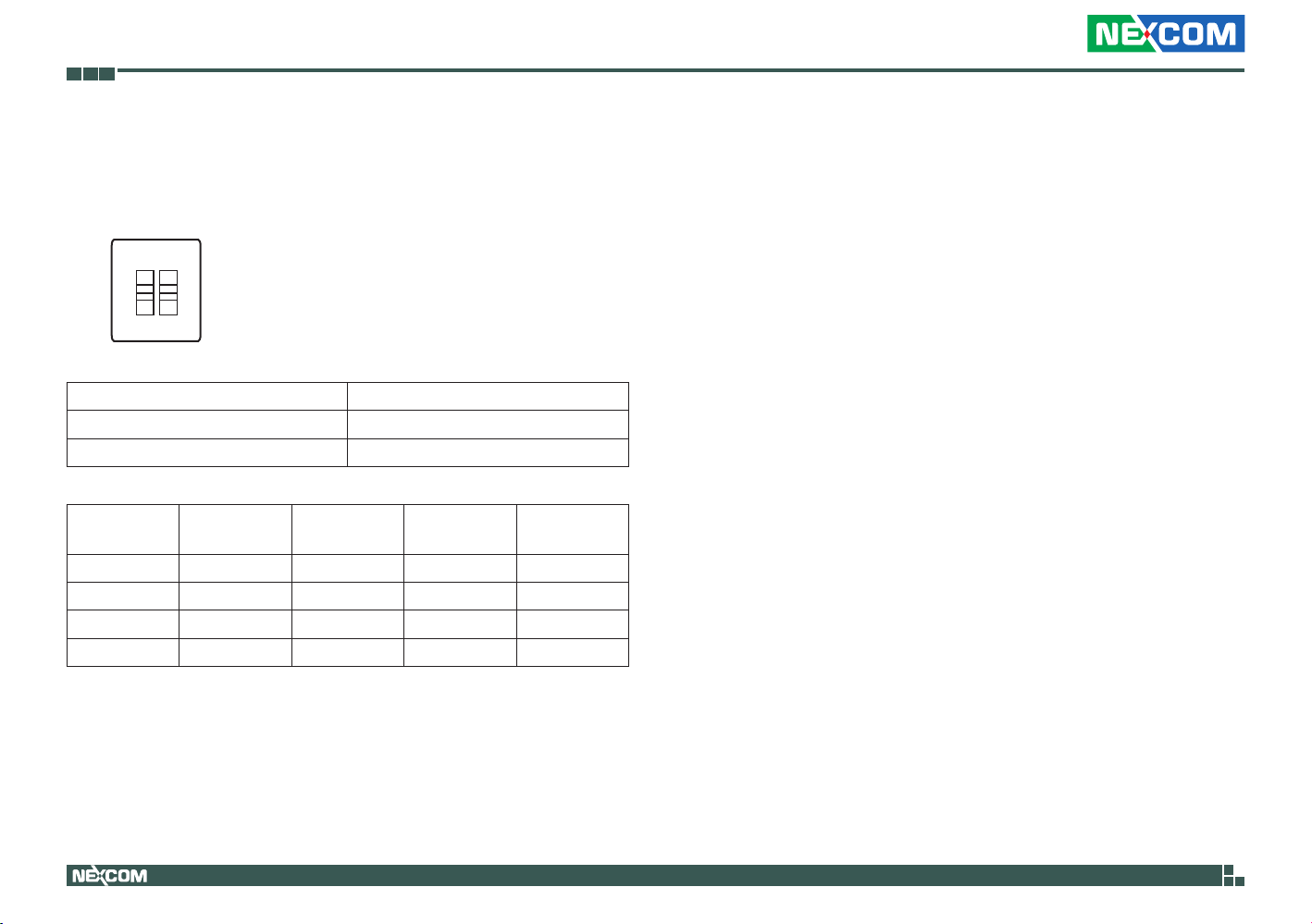

PCIe DIP Switch
Connector type: 2x2 2-pin DIP switch Connector location: SW1
N
O
1
2
Pin Definition Pin Definition
1 CFG5 2 CFG6 3 GND 4 GND
PCI Express Bifurcation (CFG6) (CFG5)
CFG6 CFG5
0 0 1 x8, 2 x4 PCI Express
0 1 reserved
1 0 2 x8 PCI Express
1 1 1 x16 PCI Express (Default)
CPU Fan Connector
Connector type: 1x3 3-pin header Connector location: FAN1
1 3
Pin Definition Pin Definition
1 GND 2 VCC12 3 VCC5_S
13
ICEK 667-T6 Starter Kit User Manual
Page 28
Chapter 2: Jumpers and Connectors

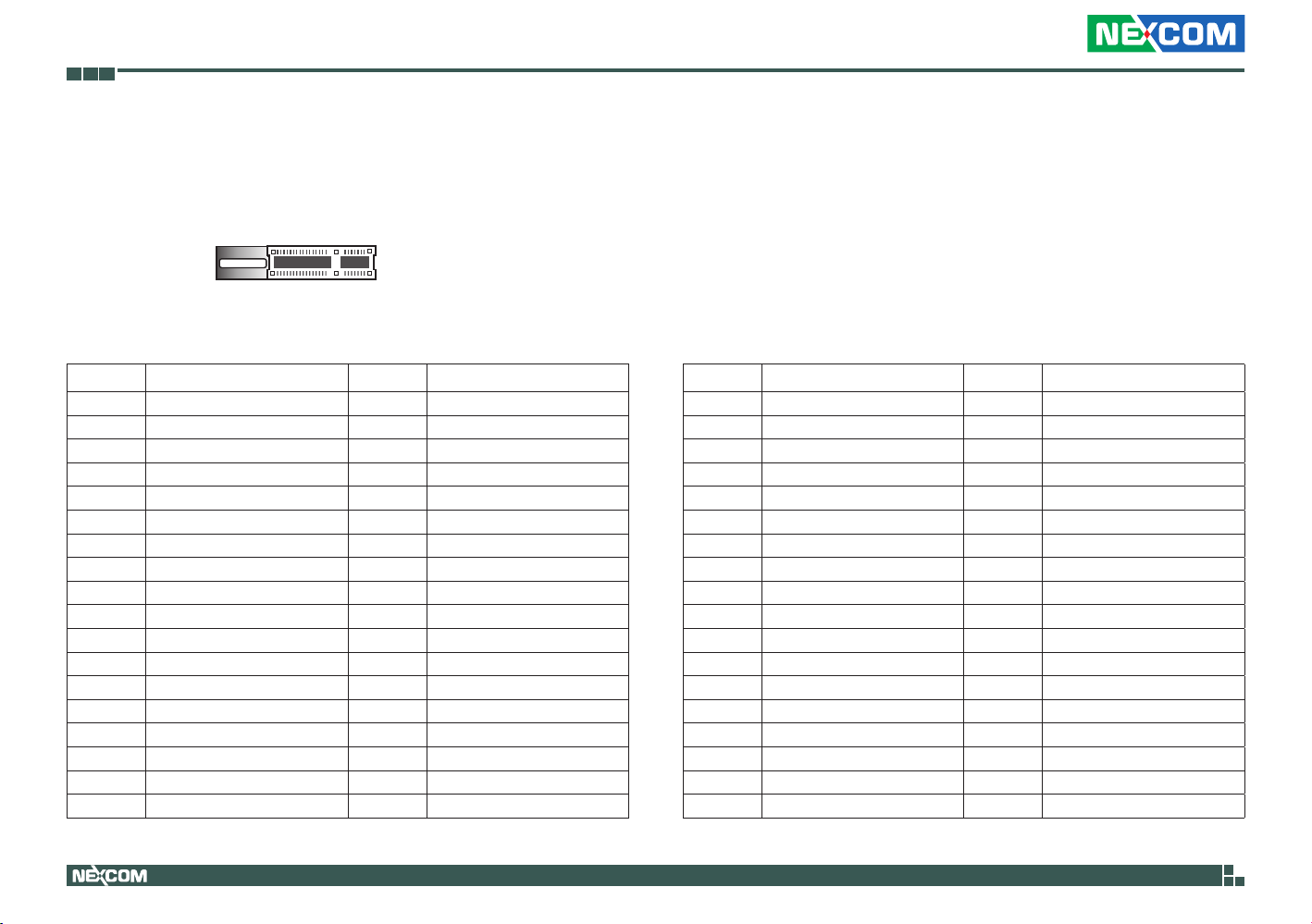

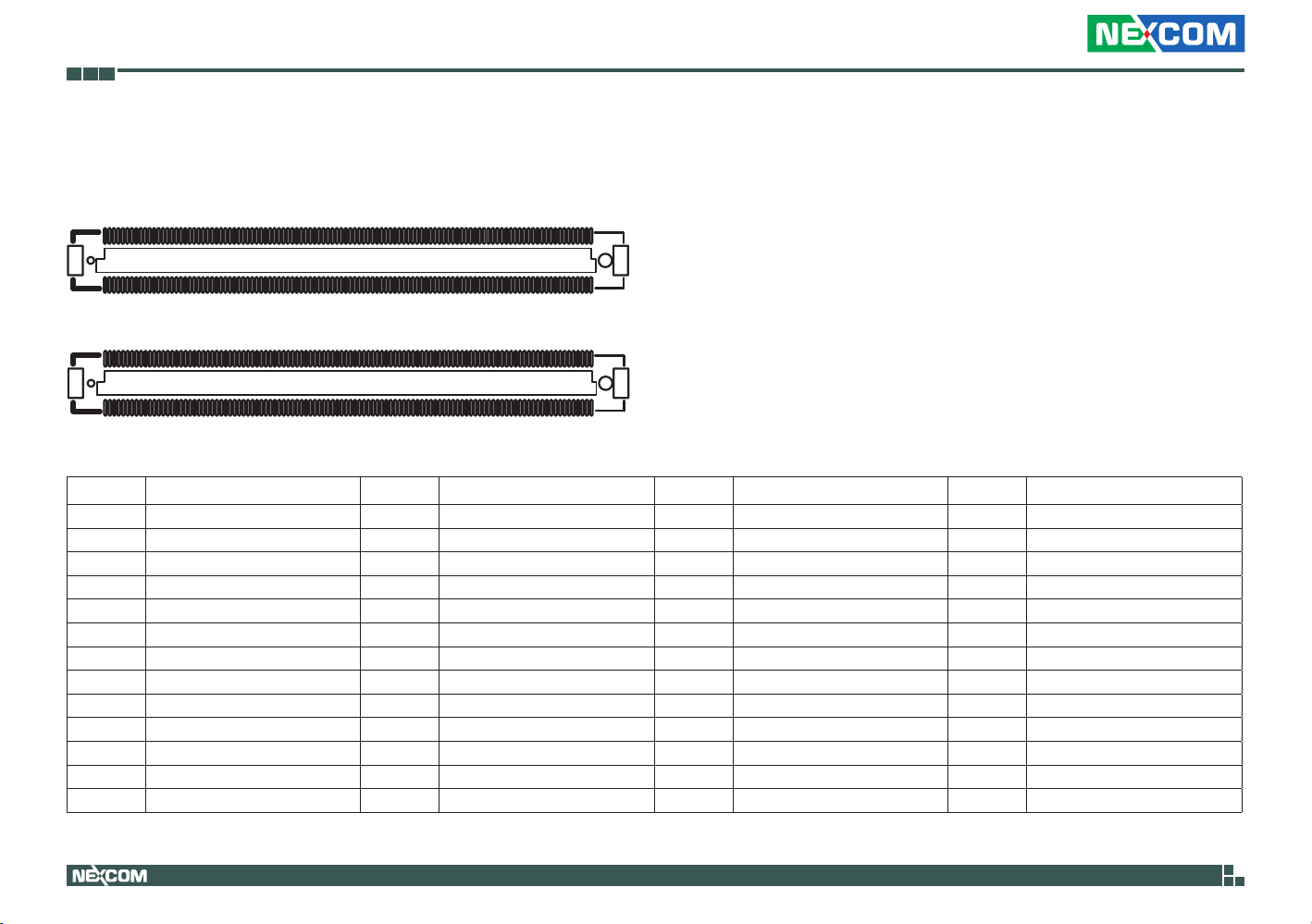

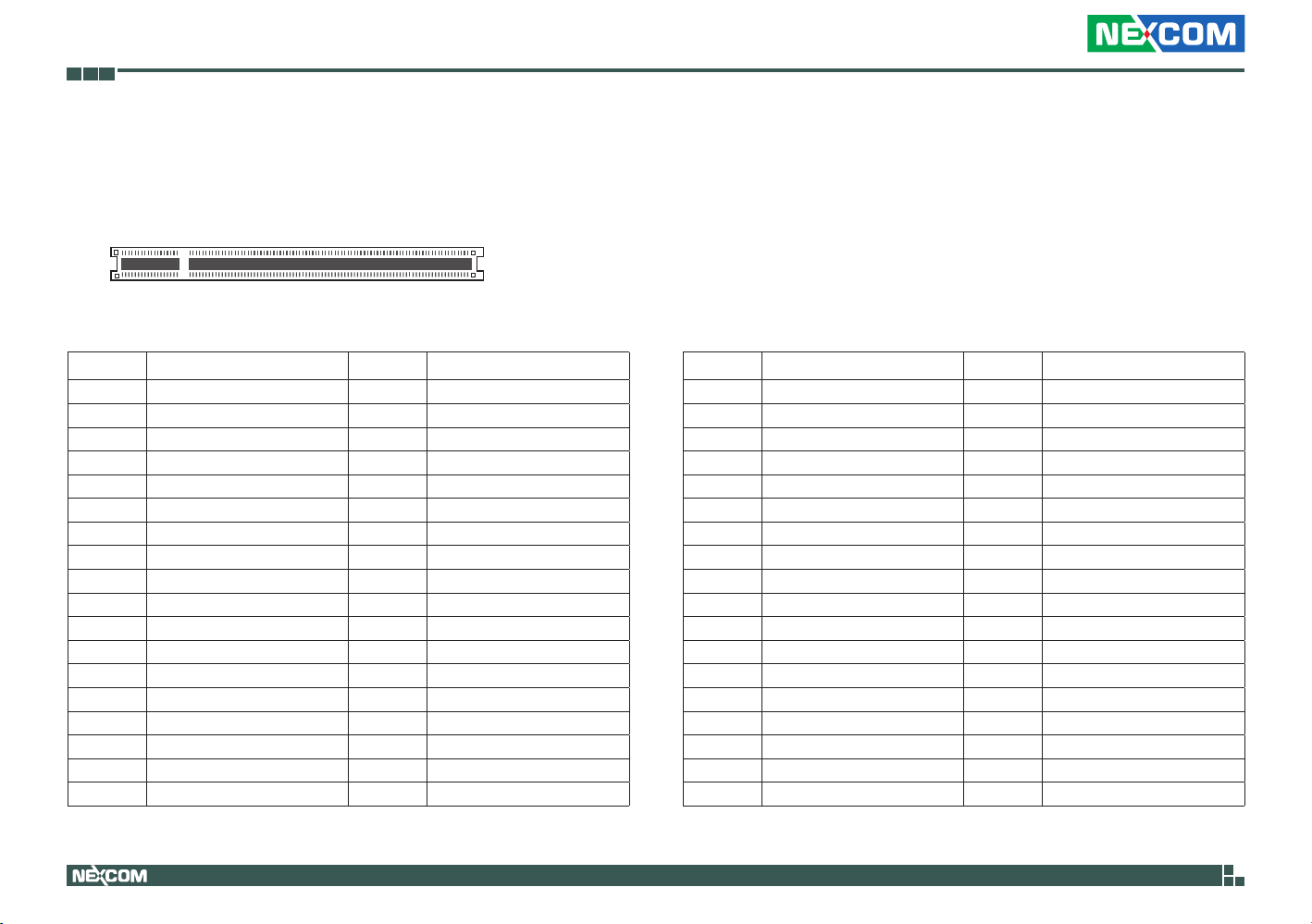

High Speed Board-to-Board Connector: Row A and B, Row C and D
Connector location: J2
Com Express A&B Connector
Com Express C&D Connector
Pin Definition Pin Definition Pin Definition Pin Definition
A1 GND(FIXED) B1 GND(FIXED) C1 GND(FIXED) D1 GND(FIXED) A2 GBE0_MDI3- B2 GBE0_ACT# C2 GND D2 GND A3 GBE0_MDI3+ B3 LPC_FRAME# C3 USB_SSRX0- D3 USB_SSTX0­A4 GBE0_LINK100# B4 LPC_AD0 C4 USB_SSRX0+ D4 USB_SSTX0+ A5 GBE0_LINK1000# B5 LPC_AD1 C5 GND D5 GND A6 GBE0_MDI2- B6 LPC_AD2 C6 USB_SSRX1- D6 USB_SSTX1­A7 GBE0_MDI2+ B7 LPC_AD3 C7 USB_SSRX1+ D7 USB_SSTX1+ A8 GBE0_LINK# B8 LPC_DRQ0# C8 GND D8 GND
A9 GBE0_MDI1- B9 LPC_DRQ1# C9 USB_SSRX2- D9 USB_SSTX2­A10 GBE0_MDI1+ B10 LPC_CLK C10 USB_SSRX2+ D10 USB_SSTX2+ A11 GND(FIXED) B11 GND(FIXED) C11 GND(FIXED) D11 GND(FIXED) A12 GBE0_MDI0- B12 PWRBTN# C12 USB_SSRX3- D12 USB_SSTX3­A13 GBE0_MDI0+ B13 SMB_CK C13 USB_SSRX3+ D13 USB_SSTX3+
14
ICEK 667-T6 Starter Kit User Manual
Page 29
Chapter 2: Jumpers and Connectors
Pin Definition Pin Definition Pin Definition Pin Definition
A14 GBE0_CTREF B14 SMB_DAT C14 GND D14 GND A15 SUS_S3# B15 SMB_ALERT# C15 SDVO_FLDSTAL+ D15 DDI11_CTRL_CLK_AUX+ A16 SATA0_TX+ B16 SATA1_TX+ C16 SDVO_FLDSTAL- D16 DDI11_CTRL_DATA_AUX­A17 SATA0_TX- B17 SATA1_TX- C17 RSVD D17 RSVD A18 SUS_S4# B18 SUS_STAT# C18 RSVD D18 RSVD A19 SATA0_RX+ B19 SATA1_RX+ C19 PCIE_RX6+ D19 PCIE_TX6+ A20 SATA0_RX- B20 SATA1_RX- C20 PCIE_RX6- D20 PCIE_TX6­A21 GND(FIXED) B21 GND(FIXED) C21 GND(FIXED) D21 GND(FIXED) A22 SATA2_TX+ B22 SATA3_TX+ C22 NC D22 NC A23 SATA2_TX- B23 SATA3_TX- C23 NC D23 NC A24 SUS_S5# B24 PWR_OK C24 DDI1_HPD D24 RSVD A25 SATA2_RX+ B25 SATA3_RX+ C25 SDVO_INT+ D25 RSVD A26 SATA2_RX- B26 SATA3_RX- C26 SDVO_INT-- D26 DDI1_PAIR0+ A27 BATLOW# B27 NC C27 RSVD D27 DDI1_PAIR0­A28 (S)ATA_ACT# B28 AC/HDA_SDIN2 C28 RSVD D28 RSVD A29 AC/HDA_SYNC B29 AC/HDA_SDIN1 C29 SDVO_CLK+ D29 DDI1_PAIR1+ A30 AC/HDA_RST# B30 AC/HDA_SDIN0 C30 SDVO_CLK- D30 DDI1_PAIR1­A31 GND(FIXED) B31 GND(FIXED) C31 GND(FIXED) D31 GND(FIXED) A32 AC/HDA_BITCLK B32 SPKR C32 DDI2_CTRL_CLK_AUX+ D32 DDI1_PAIR2+ A33 AC/HDA_SDOUT B33 I2C_CK C33 DDI2_CTRL_DATA_AUX- D33 DDI1_PAIR2­A34 BIOS_DIS0# B34 I2C_DAT C34 DDI2_DDC_AUX_SEL D34 DDI1_DDC_AUX_SEL A35 THRMTRIP# B35 TNC C35 RSVD D35 RSVD A36 USB6- B36 USB7- C36 DDI3_CTRL_CLK_AUX+ D36 DDI1_PAIR3+ A37 USB6+ B37 USB7+ C37 DDI3_CTRL_DATA_AUX- D37 DDI1_PAIR3­A38 USB_6_7_OC# B38 USB_4_5_OC# C38 DDI3_DDC_AUX_SEL D38 RSVD A39 USB4- B39 USB5- C39 DDI3_PAIR0+ D39 DDI2_PAIR0+ A40 USB4+ B40 USB5+ C40 DDI3_PAIR0- D40 DDI2_PAIR0­A41 GND(FIXED) B41 GND(FIXED) C41 GND(FIXED) D41 GND(FIXED)
15
ICEK 667-T6 Starter Kit User Manual
Page 30
Chapter 2: Jumpers and Connectors
Pin Definition Pin Definition Pin Definition Pin Definition
A42 USB2- B42 USB3- C42 DDI3_PAIR1+ D42 DDI2_PAIR1+ A43 USB2+ B43 USB3+ C43 DDI3_PAIR1- D43 DDI2_PAIR1­A44 USB_2_3_OC# B44 USB_0_1_OC# C44 DDI3_HPD D44 DDI2_HPD A45 USB0- B45 USB1- C45 RSVD D45 RSVD A46 USB0+ B46 USB1+ C46 DDI3_PAIR2+ D46 DDI2_PAIR2+ A47 VCC_RTC B47 EXCD1_PERST# C47 DDI3_PAIR2- D47 DDI2_PAIR2­A48 EXCD0_PERST# B48 NC C48 RSVD D48 RSVD A49 NC B49 SYS_RESET# C49 DDI3_PAIR3+ D49 DDI2_PAIR3+ A50 LPC_SERIRQ B50 CB_RESET# C50 DDI3_PAIR3- D50 DDI2_PAIR3­A51 GND(FIXED) B51 GND(FIXED) C51 GND(FIXED) D51 GND(FIXED) A52 PCIE_TX5+ B52 PCIE_RX5+ C52 PEG_RX0+ D52 PEG_TX0+ A53 PCIE_TX5- B53 PCIE_RX5- C53 PEG_RX0- D53 PEG_TX0­A54 GPI0 B54 GPO1 C54 TYPE0# D54 PEG_LANE_RV# A55 PCIE_TX4+ B55 PCIE_RX4+ C55 PEG_RX1+ D55 PEG_TX1+ A56 PCIE_TX4- B56 PCIE_RX4- C56 PEG_RX1- D56 PEG_TX1­A57 GND B57 GPO2 C57 TYPE1# D57 TYPE2# A58 PCIE_TX3+ B58 PCIE_RX3+ C58 PEG_RX2+ D58 PEG_TX2+ A59 PCIE_TX3- B59 PCIE_RX3- C59 PEG_RX2- D59 PEG_TX2­A60 GND(FIXED) B60 GND(FIXED) C60 GND(FIXED) D60 GND(FIXED) A61 PCIE_TX2+ B61 PCIE_RX2+ C61 PEG_RX3+ D61 PEG_TX3+ A62 PCIE_TX2- B62 PCIE_RX2- C62 PEG_RX3- D62 PEG_TX3­A63 GPI1 B63 GPO3 C63 RSVD D63 RSVD A64 PCIE_TX1+ B64 PCIE_RX1+ C64 RSVD D64 RSVD A65 PCIE_TX1- B65 PCIE_RX1- C65 PEG_RX4+ D65 PEG_TX4+ A66 GND B66 WAKE0# C66 PEG_RX4- D66 PEG_TX4­A67 GPI2 B67 WAKE1# C67 RSVD D67 GND A68 PCIE_TX0+ B68 PCIE_RX0+ C68 PEG_RX5+ D68 PEG_TX5+ A69 PCIE_TX0- B69 PCIE_RX0- C69 PEG_RX5- D69 PEG_TX5-
16
ICEK 667-T6 Starter Kit User Manual
Page 31
Chapter 2: Jumpers and Connectors
Pin Definition Pin Definition Pin Definition Pin Definition
A70 GND(FIXED) B70 GND(FIXED) C70 GND(FIXED) D70 GND(FIXED) A71 LVDS_A0+ B71 LVDS_B0+ C71 PEG_RX6+ D71 PEG_TX6+ A72 LVDS_A0- B72 LVDS_B0- C72 PEG_RX6- D72 PEG_TX6­A73 LVDS_A1+ B73 LVDS_B1+ C73 SDVO_DATA D73 GND A74 LVDS_A1- B74 LVDS_B1- C74 PEG_RX7+ D74 PEG_TX7+ A75 LVDS_A2+ B75 LVDS_B2+ C75 PEG_RX7- D75 PEG_TX7­A76 LVDS_A2- B76 LVDS_B2- C76 GND D76 GND A77 LVDS_VDD_EN B77 LVDS_B3+ C77 RSVD D77 RSVD A78 LVDS_A3+ B78 LVDS_B3- C78 PEG_RX8+ D78 PEG_TX8+ A79 LVDS_A3- B79 LVDS_BKLT_EN C79 PEG_RX8- D79 PEG_TX8­A80 GND(FIXED) B80 GND(FIXED) C80 GND(FIXED) D80 GND(FIXED) A81 LVDS_A_CK+ B81 LVDS_B_CK+ C81 PEG_RX9+ D81 PEG_TX9+ A82 LVDS_A_CK- B82 LVDS_B_CK- C82 PEG_RX9- D82 PEG_TX9­A83 LVDS_I2C_CK B83 LVDS_BKLT_CTRL C83 RSVD D83 RSVD A84 LVDS_I2C_DAT B84 VCC_5V_SBY C84 GND D84 GND A85 GPI3 B85 VCC_5V_SBY C85 PEG_RX10+ D85 PEG_TX10+ A86 RSVD(KBD_RST#) B86 VCC_5V_SBY C86 PEG_RX10- D86 PEG_TX10­A87 RSVD(A20GATE) B87 VCC_5V_SBY C87 GND D87 GND A88 PCIE_CLK_REF+ B88 BIOS_DIS1# C88 PEG_RX11+ D88 PEG_TX11+ A89 PCIE_CLK_REF- B89 VGA_RED C89 PEG_RX11- D89 PEG_TX11­A90 GND(FIXED) B90 GND(FIXED) C90 GND(FIXED) D90 GND(FIXED) A91 SPI_POWER B91 VGA_GRN C91 PEG_RX12+ D91 PEG_TX12+ A92 SPI_MISO B92 VGA_BLUE C92 PEG_RX12- D92 PEG_TX12­A93 GPO0 B93 VGA_HSYNC C93 GND D93 GND A94 SPI_CLK B94 VGA_VSYNC C94 PEG_RX13+ D94 PEG_TX13+ A95 SPI_MOSI B95 VGA_I2C_CK C95 PEG_RX13- D95 PEG_TX13­A96 TPM_PP B96 VGA_I2C_DAT C96 GND D96 GND A97 TYPE10# B97 SPI_CS# C97 RSVD D97 RSVD
17
ICEK 667-T6 Starter Kit User Manual
Page 32
Chapter 2: Jumpers and Connectors
Pin Definition Pin Definition Pin Definition Pin Definition
A98 NC B98 RSVD C98 PEG_RX14+ D98 PEG_TX14+ A99 NC B99 RSVD C99 PEG_RX14- D99 PEG_TX14-
A100 GND(FIXED) B100 GND(FIXED) C100 GND(FIXED) D100 GND(FIXED) A101 NC B101 FAN_PWMOUT C101 PEG_RX15+ D101 PEG_TX15+ A102 NC B102 FAN_TACHIN C102 PEG_RX15- D102 PEG_TX15­A103 NC B103 NC C103 GND D103 GND A104 VCC_12V B104 VCC_12V C104 VCC_12V D104 VCC_12V A105 VCC_12V B105 VCC_12V C105 VCC_12V D105 VCC_12V A106 VCC_12V B106 VCC_12V C106 VCC_12V D106 VCC_12V A107 VCC_12V B107 VCC_12V C107 VCC_12V D107 VCC_12V A108 VCC_12V B108 VCC_12V C108 VCC_12V D108 VCC_12V A109 VCC_12V B109 VCC_12V C109 VCC_12V D109 VCC_12V A110 GND(FIXED) B110 GND(FIXED) C110 GND(FIXED) D110 GND(FIXED)
18
ICEK 667-T6 Starter Kit User Manual
Page 33
Chapter 2: Jumpers and Connectors
Locations of the Jumpers and Connectors for ICEB 8060
The figure below shows the location of the jumpers and connectors for ICEB 8060.
J4
JP12
JP10
JP11
COM1
COM3
SW3
SW2
CN9
SW1
COM4
COM5
COM6
USB1USB2
JP13
JUSB1
JUSB2
JP16
DDI2
JP14
JCCFL1
JP4
JP15
JP6
LVDS2
DDI3
J3
SATA2
CFAN1
LVDS1
J1
AUDIO1
JP18CN15
JP17
JPCIE1
SATA1
ATX1
JP19
J6
J5
JPCIE2JDDI1
JP1
MSATA1
JPCIE3
ATX12
JPCIE4
JP3
SIM
MPCIE1
CFAST1
19
ICEK 667-T6 Starter Kit User Manual
Page 34
Chapter 2: Jumpers and Connectors

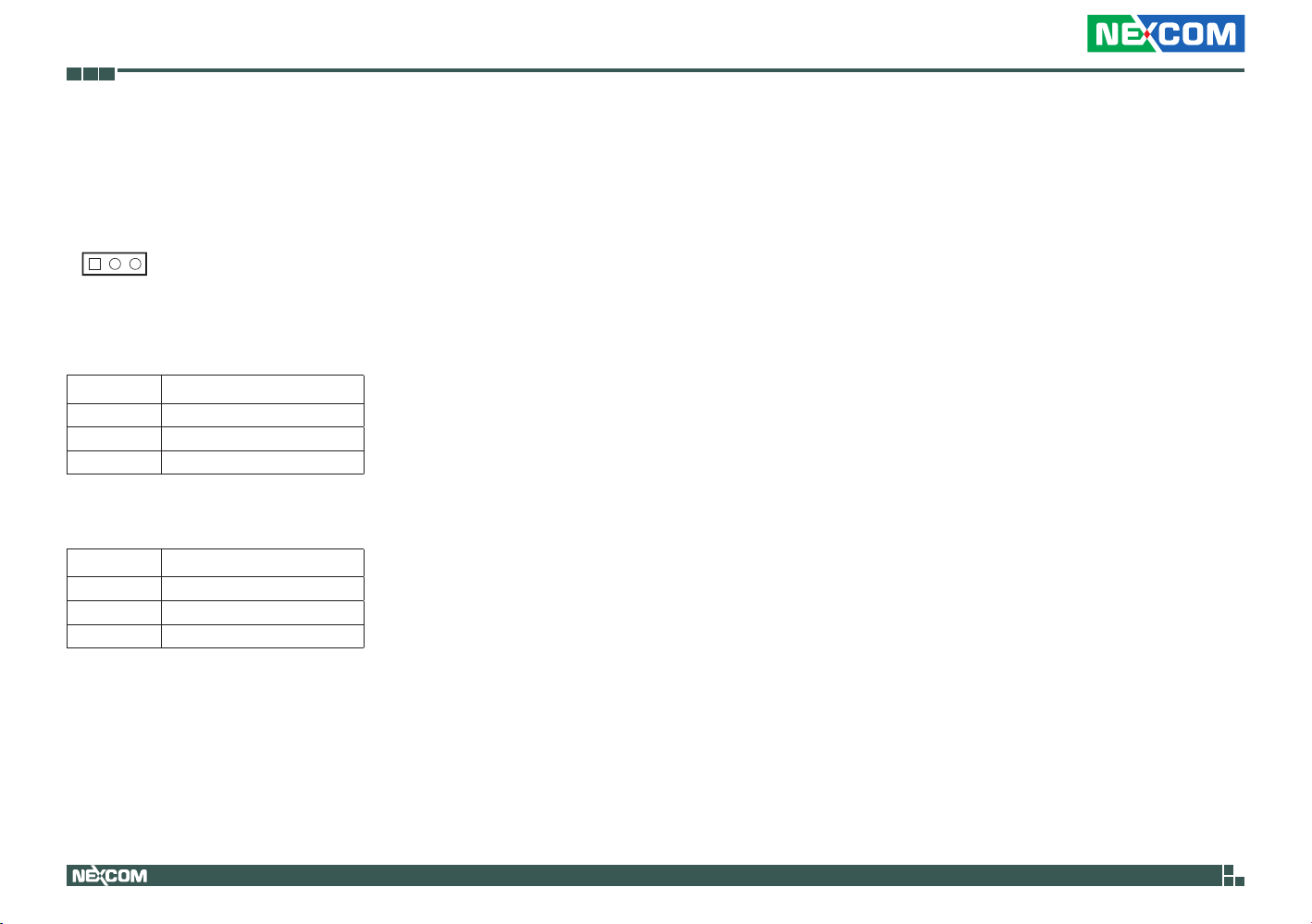

Jumpers
3.5G Module
Connector type: 1x3 3-pin header, 2.0mm pitch Connector location: JP3
1 3 1 3
Pin Settings
1-2 On Wi-Fi 2-3 On 3.5G
2-3 On: default
LVDS Power Select (3.3V/5V)
Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP6
Pin Settings
1-2 On +3.3V 2-3 On +5V
2-3 On: default
20
ICEK 667-T6 Starter Kit User Manual
Page 35
Chapter 2: Jumpers and Connectors
Termal Select
Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP11
1 3
Pin Settings
1-2 On Enable 2-3 On Disable
2-3 On: default
GPIO Power Select
Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP15
1 3
Pin Settings
1-2 On +5V 2-3 On +3.3V
2-3 On: default
21
ICEK 667-T6 Starter Kit User Manual
Page 36
Chapter 2: Jumpers and Connectors
Power Mode Select
Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP19
1 3
Pin Settings
1-2 On ATX 2-3 On AT
1-2 On: default
RTC Clear
Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: J4
1 3
Pin Settings
1-2 On Normal 2-3 On Clear CMOS
1-2 On: default
22
ICEK 667-T6 Starter Kit User Manual
Page 37
Chapter 2: Jumpers and Connectors
Fintek TX/RX Pin Header
Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: J5 and J6
1 3
J6
Pin Settings
1 SER0TX1 2 SER0RX1 3 GND
J5
Pin Settings
1 SER1TX1 2 SER1RX1 3 GND
23
ICEK 667-T6 Starter Kit User Manual
Page 38
Chapter 2: Jumpers and Connectors

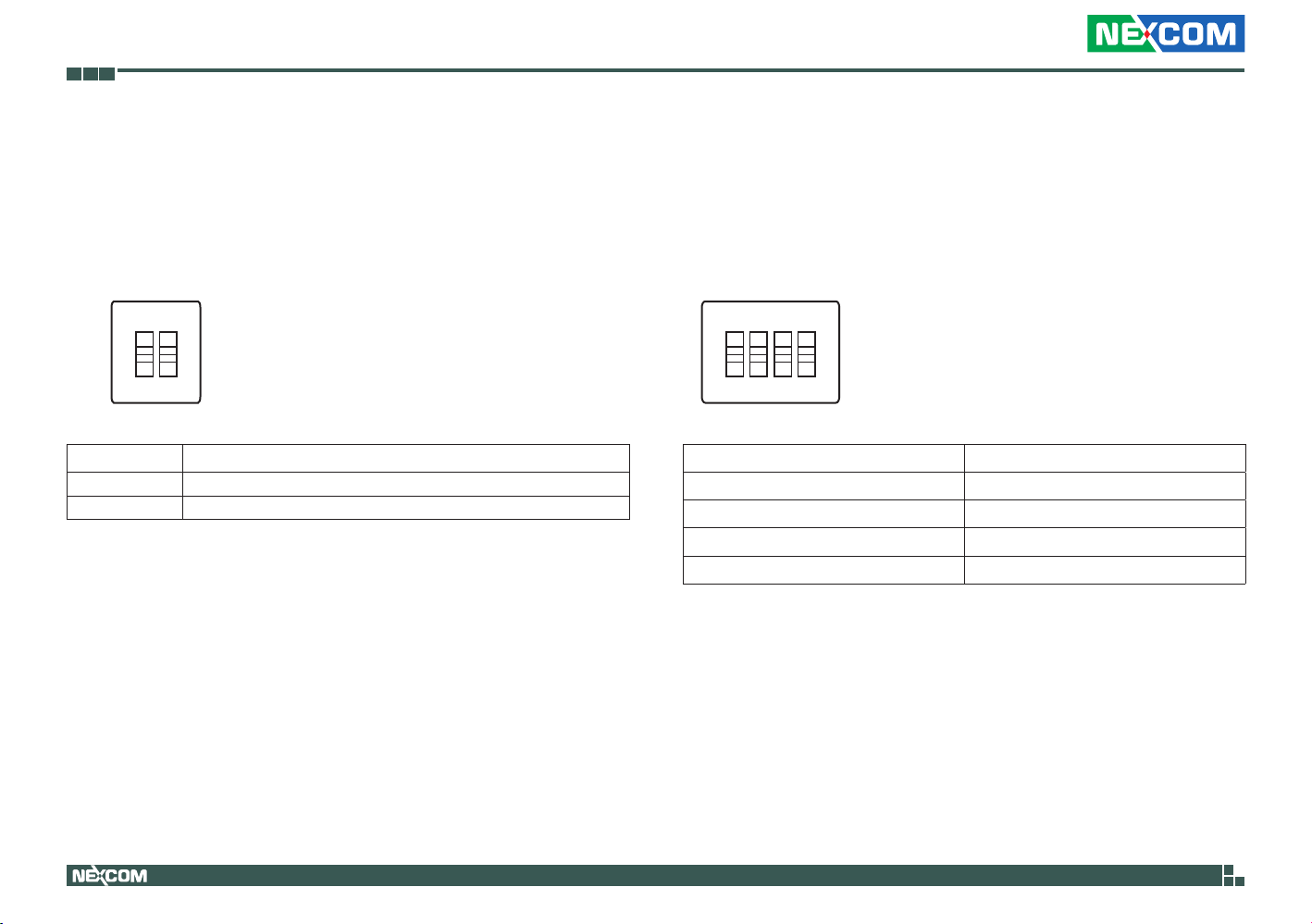

DIP Switch Settings
Close to U4
Connector type: 2x2 4-pin DIP switch Connector location: SW1
N
O
1
2
Pin Settings
1-2 Off Enable 1-2 On Disable
RS232/ RS422/ RS485 Mode Select
Connector type: 2x4 8-pin DIP switch Connector location: SW2
N
O
3
1
4
2
SW2 ON:0 OFF:1
SW2.1 MODE0
SW2.2 MODE1
SW2.3 MODE2
SW2.4 DIR
24
ICEK 667-T6 Starter Kit User Manual
Page 39
Chapter 2: Jumpers and Connectors
BIOS Select
Connector type: 2x2 4-pin DIP switch Connector location: SW3
N
O
1
2
SW3 ON:0 OFF:1
SW3.1 BIOS_DIS0#
SW3.2 BIOS_DIS1#
BIOS_DIS1# BIOS_DIS0#
1 1 High Module SPI0/SPI1
1 0 High Module Carrier FWH
0 1 SPI0 Carrier SPI0/SPI1
0 0 SPI1 Module SPI0/SPI1
Carrier
SPI_CS#
SPI
Descriptor
BIOS Entry
25
ICEK 667-T6 Starter Kit User Manual
Page 40
Chapter 2: Jumpers and Connectors
Connector Pin Definitions
External Connectors
VGA and COM2 Ports
Connector type: DB-15 port, 15-pin D-Sub (VGA) DB-9 port, 9-pin D-Sub Connector location: CN9
COM2
16
21
5
15
VGA
20
24
1
11
VGA
Pin Definition Pin Definition
1 VGA_R 2 GND 3 VGA_B 4 NC 5 GND 6 VGADET 7 GND 8 GND
9 +5V 10 GND 11 NC 12 VGA_DAT 13 VGA_HSYNC 14 VGA_VSYNC 15 VGA_CLK MH1 RGND
MH1 RGND
26
COM2
Pin Definition Pin Definition
16 COM_DCD#2 17 COM_RXD2 18 COM_TXD2 19 COM_DTR#2 20 GND 21 COM_DSR#2 22 COM_RTS#2 23 COM_CTS#2 24 COM_RI#2_con MH3 RGND
MH4 RGND
ICEK 667-T6 Starter Kit User Manual
Page 41
Chapter 2: Jumpers and Connectors
LAN and USB Ports
Connector type: RJ45 port with LEDs and dual USB 3.0/2.0 ports, Type A Connector location: USB1 and USB2
ACT LINK
2027
9
1
10 13
5
4
1418
USB1
Pin Definition Pin Definition
1 +5V_USB 2 USB_0N_C
3 USB_0P_C 4 GND
5 USB3_RX0_N_C 6 USB3_RX0_P_C
7 GND 8 USB3_TX0_N_C
9 USB3_TX0_P_C 10 +5V_USB 11 USB_1N_C 12 USB_1P_C 13 GND 14 USB3_RX1_N_C 15 USB3_RX1_P_C 16 GND 17 USB3_TX1_N_C 18 USB3_TX1_P_C
MH1 RGND MH2 RGND MH3 RGND MH4 RGND
LAN1
Pin Definition Pin Definition
19 V25_LA1 20 LAN1_MDI0P 21 LAN1_MDI0N 22 LAN1_MDI1P 23 LAN1_MDI1N 24 LAN1_MDI2P 25 LAN1_MDI2N 26 LAN1_MDI3P 27 LAN1_MDI3N 28 GND 29 +3.3VSBY 30 LAN1_LED_ACT#
31 LAN1_LED_LINK100# 32 LAN1_LED_LINK1G#O MH5 RGND MH6 RGND MH7 RGND MH8 RGND
27
ICEK 667-T6 Starter Kit User Manual
Page 42
Chapter 2: Jumpers and Connectors
USB2
Pin Definition Pin Definition
1 +5V_USB 2 USB_2N_C 3 USB_2P_C 4 GND 5 USB3_RX2_N_C 6 USB3_RX2_P_C 7 GND 8 USB3_TX2_N_C
9 USB3_TX2_P_C 10 +5V_USB 11 USB_3N_C 12 USB_3P_C 13 GND 14 USB3_RX3_N_C 15 USB3_RX3_P_C 16 GND 17 USB3_TX3_N_C 18 USB3_TX3_P_C
MH1 RGND MH2 RGND MH3 RGND MH4 RGND
LAN2
Pin Definition Pin Definition
19 V25_LA1 20 LAN2_MDI0P 21 LAN2_MDI0N 22 LAN2_MDI1P 23 LAN2_MDI1N 24 LAN2_MDI2P 25 LAN1_MDI2N 26 LAN2_MDI3P 27 LAN1_MDI3N 28 GND 29 +3.3VSBY 30 LAN2_LED_ACT# 31 LAN2_LED_LINK100# 32 LAN2_LED_LINK1G#O
MH5 RGND MH6 RGND MH7 RGND MH8 RGND

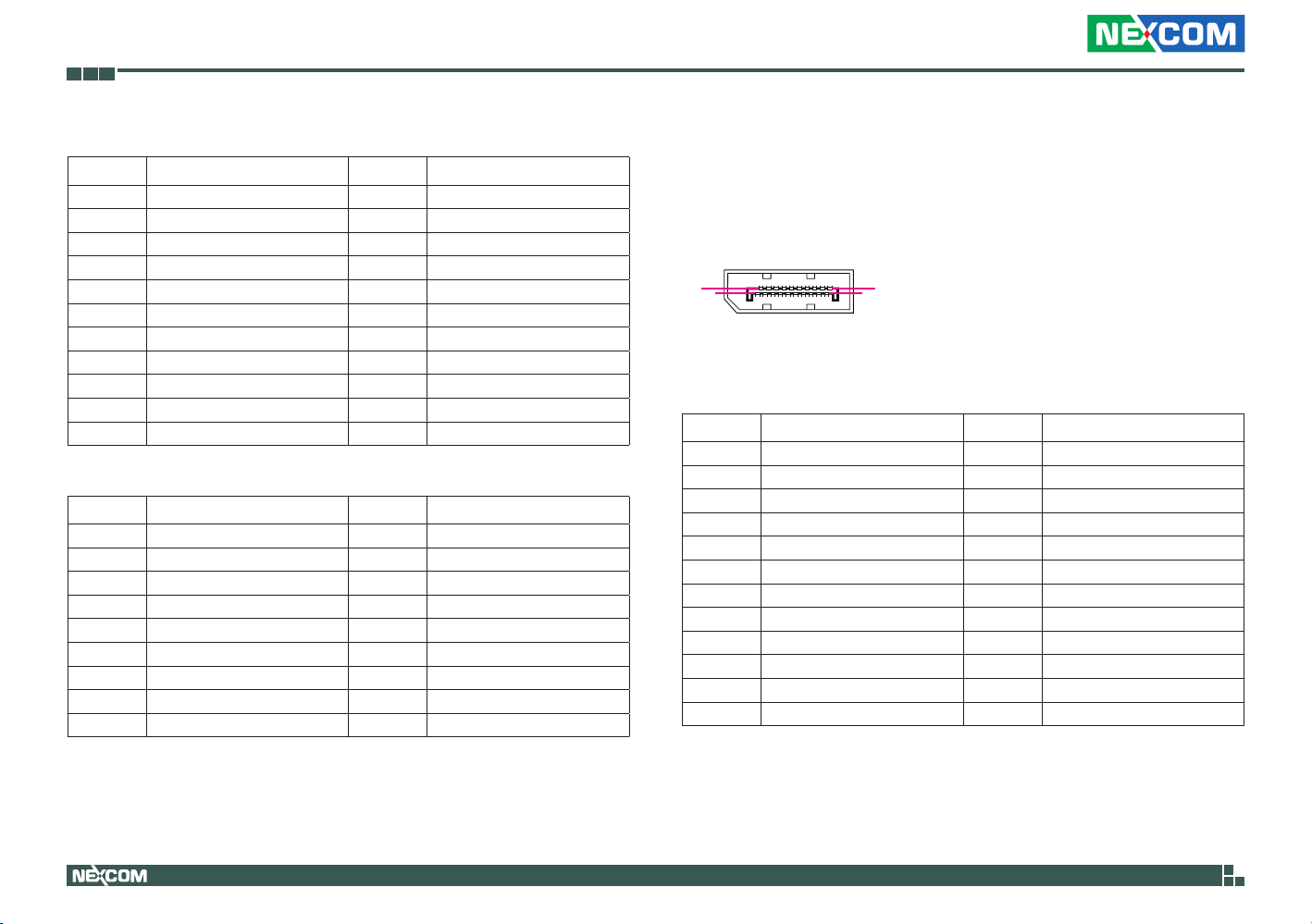

DisplayPort
Connector type: DisplayPort Connector location: DDI2 and DDI3
19
20
DDI2
Pin Definition Pin Definition
1 DP2_CN_LANE0P 2 GND 3 DP2_CN_LANE0N 4 DP2_CN_LANE1P 5 GND 6 DP2_CN_LANE1N 7 DP2_CN_LANE2P 8 GND
9 DP2_CN_LANE2N 10 DP2_CN_LANE3P 11 GND 12 DP2_CN_LANE3N 13 DP2_CONFIG1 14 DP2_CONFIG2 15 DDI2_CTRLCLK_AUXP 16 GND 17 DDI3_CTRLDATA_AUXN 18 DP2_HPD_C 19 GND 20 +3.3V
MH1 RGND MH2 RGND MH3 RGND MH4 RGND
1
2
28
ICEK 667-T6 Starter Kit User Manual
Page 43
Chapter 2: Jumpers and Connectors
DDI3
Pin Definition Pin Definition
1 DP3_CN_LANE0P 2 GND 3 DP3_CN_LANE0N 4 DP3_CN_LANE1P 5 GND 6 DP3_CN_LANE1N 7 DP3_CN_LANE2P 8 GND
9 DP3_CN_LANE2N 10 DP3_CN_LANE3P 11 GND 12 DP3_CN_LANE3N 13 DP3_CONFIG1 14 DP3_CONFIG2 15 DDI3_CTRLCLK_AUXP 16 GND 17 DDI3_CTRLDATA_AUXN 18 DP3_HPD_C 19 GND 20 +3.3V
MH1 RGND MH2 RGND MH3 RGND MH4 RGND

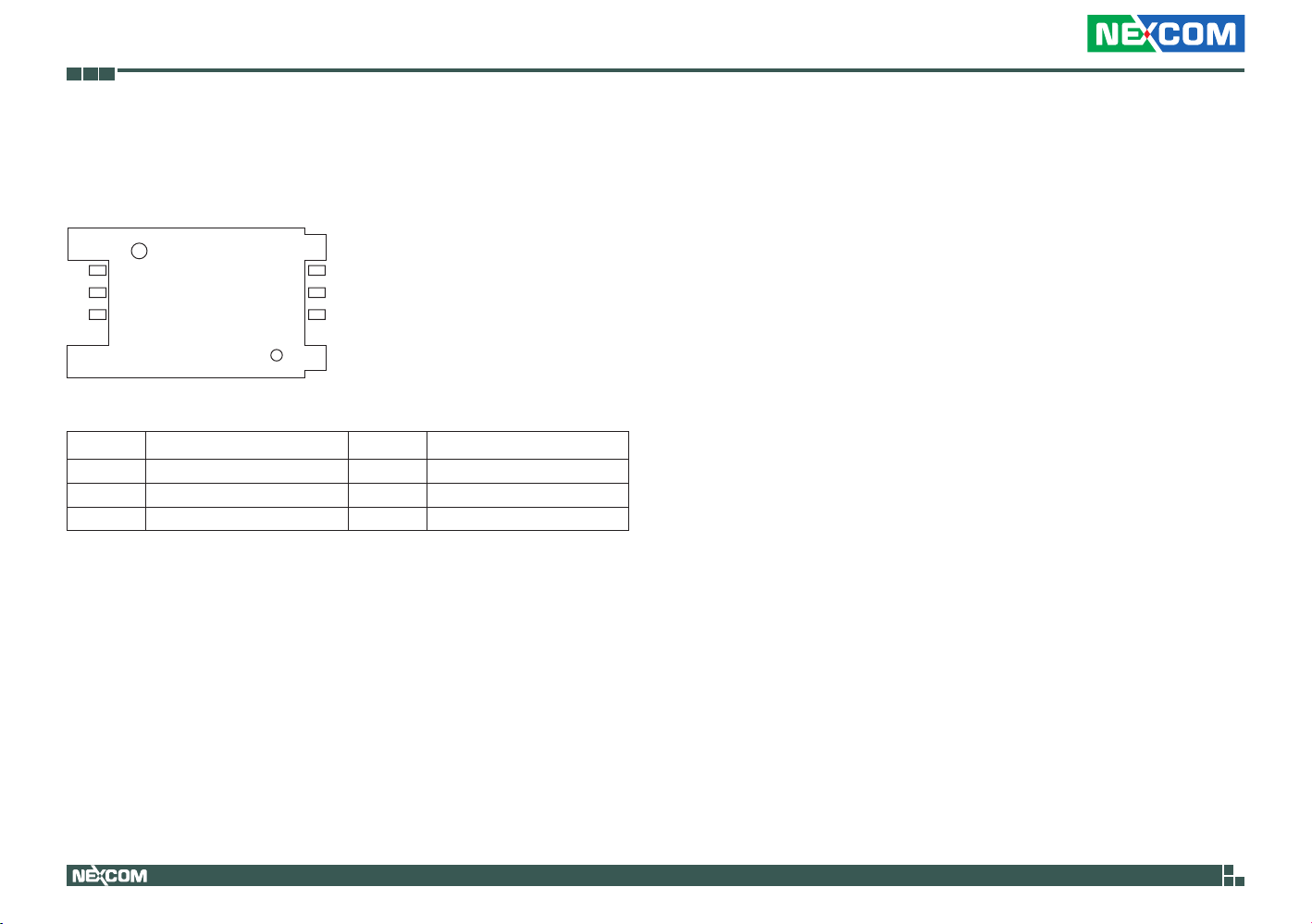

Audio Connectors
Connector type: 5x 3.5mm TRS, 1x S/PDIF Connector location: AUDIO1
Rear Surround
Center Subwoofer
S/PDIF
Pin Definition Pin Definition
1 AGND 2 MIC_L 3 MIC_JD1 4 AGND
5 MIC_R 22 FRONT_L2 23 FRONT_JD 24 AGND 25 FRONT_R2 32 LINEIN_L 33 LINE1_JD 34 AGND 35 LINEIN_R 41 AGND 42 CEN_OUT 43 CEN_JD 44 AGND 45 LEF_OUT 52 SIDE_L 53 SIDESURR_JD 54 AGND 55 SIDE_R
A SPDIFO B +5V
C GND MH1 RGND MH2 RGND MH3 RGND MH4 RGND
Line-in
Line-out
Mic-in
29
ICEK 667-T6 Starter Kit User Manual
Page 44
Chapter 2: Jumpers and Connectors
12
15
Internal Connectors
HDD LED
Connector type: 1x2 2-pin header, 2.54mm pitch Connector location: JP4
Pin Definition
1 +5V 2 GND

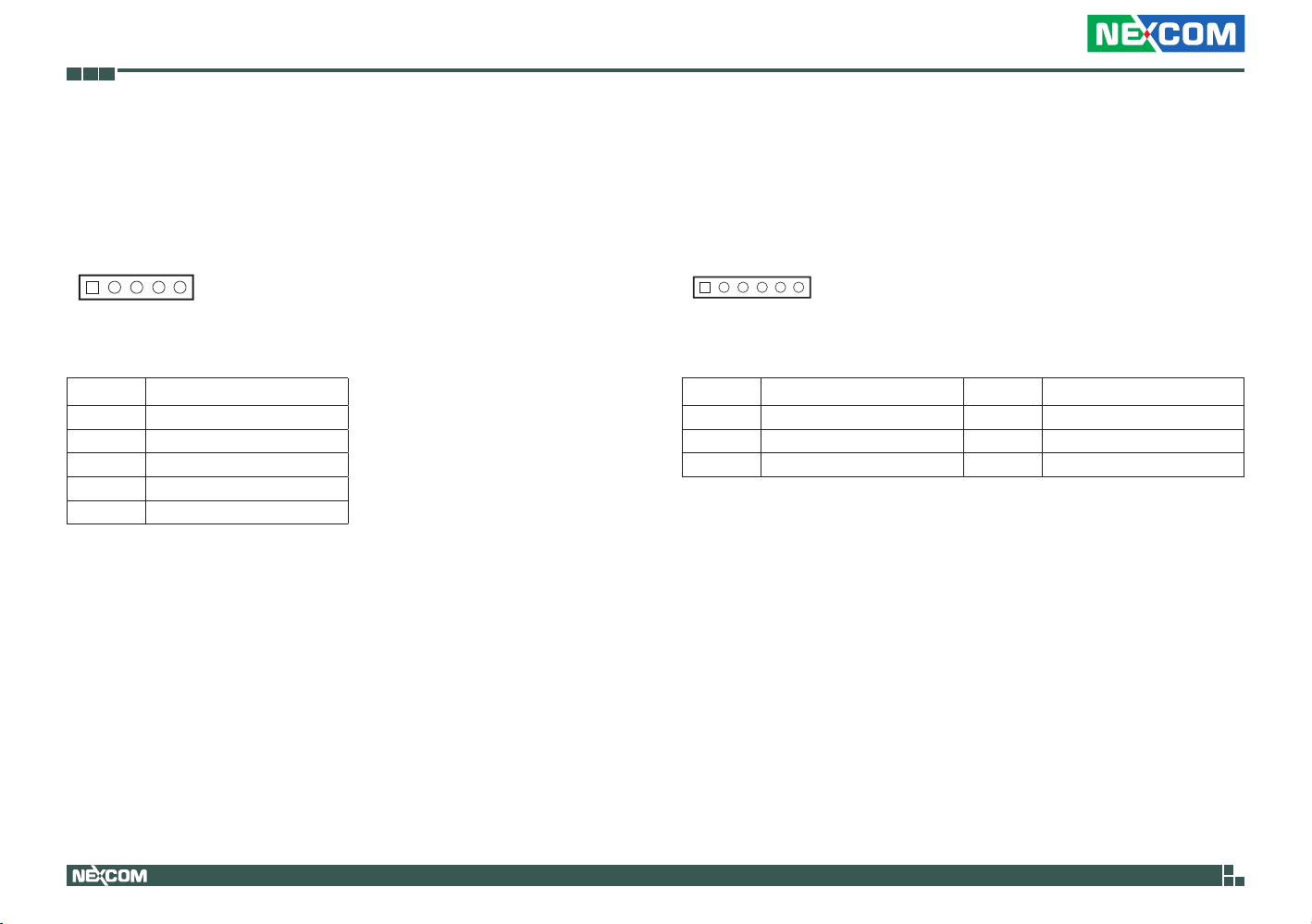

Internal Speaker
Connector type: 1x5 5-pin header, 2.0mm pitch Connector location: JP1
Pin Definition
1 SPKR_L+ 2 SPKR_L­3 AGND 4 SPKR_R+ 5 SPKR_R-
30
ICEK 667-T6 Starter Kit User Manual
Page 45
Chapter 2: Jumpers and Connectors
15
16
COM2 RS232 RI# Pin Power Select
Connector type: 1x5 5-pin header, 2.0mm pitch Connector location: JP10
Pin Definition
1 SPKR_L+ 2 SPKR_L­3 AGND 4 SPKR_R+ 5 SPKR_R-
GAL Download Port
Connector type: 1x6 6-pin header, 2.54mm pitch Connector location: JP12
Pin Definition Pin Definition
1 +3.3V 2 GND 3 TCK 4 TDO 5 TDI 6 TMS
31
ICEK 667-T6 Starter Kit User Manual
Page 46
Chapter 2: Jumpers and Connectors
17
28
12

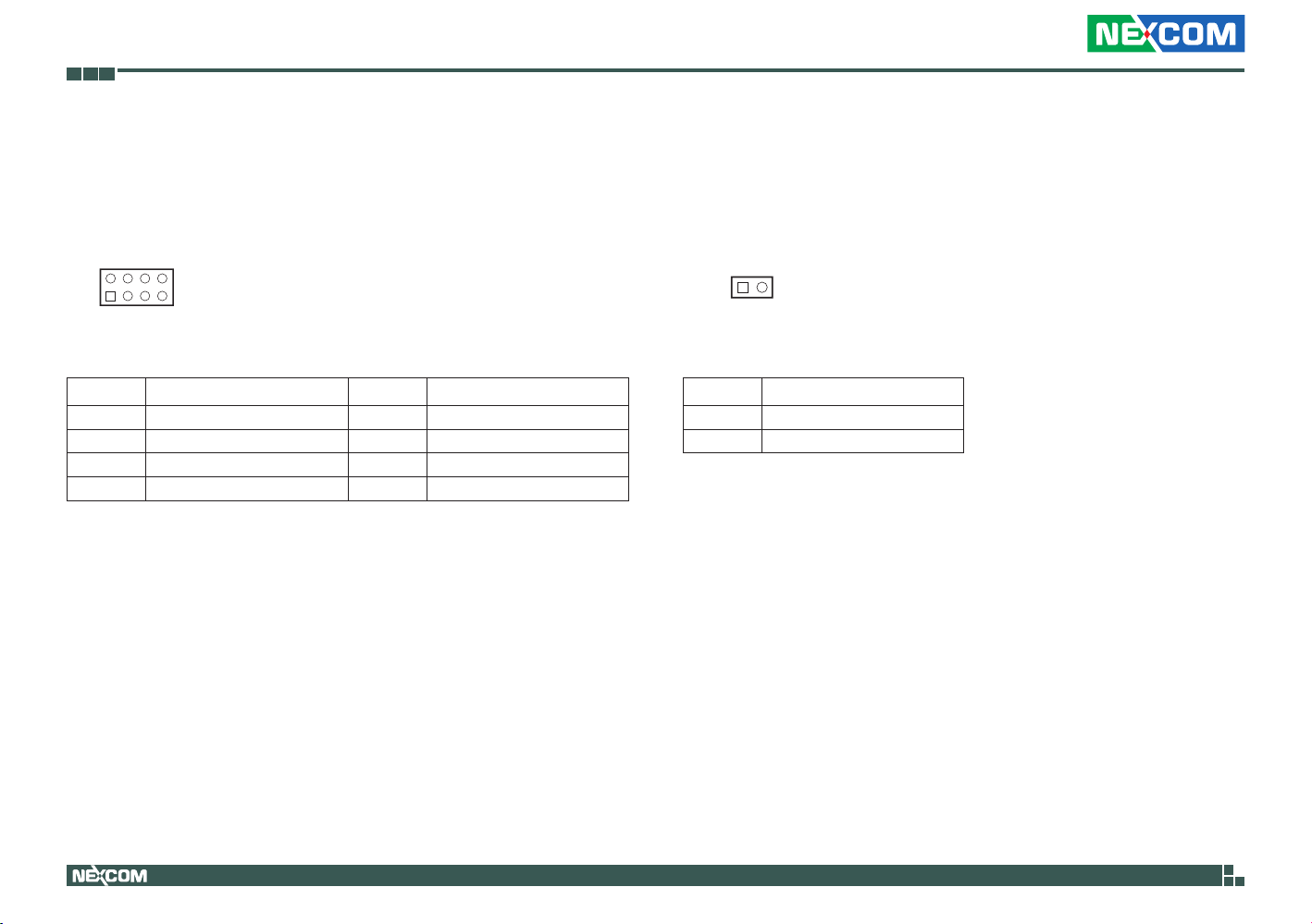

SPI
Connector type: 2x4 8-pin header, 1.27mm pitch Connector location: JP13
Pin Definition Pin Definition
1 SPI_CS 2 SPI_MISO 3 SPI_POWER 4 GND 5 SPI_MOSI 6 SPI_CLK 7 SPI_POWER 8 SPI_POWER
Disable EEPROM
Connector type: 1x2 2-pin header, 2.54mm pitch Connector location: JP14
Pin Definition
1 EEPROM_WP 2 GND
32
ICEK 667-T6 Starter Kit User Manual
Page 47
Chapter 2: Jumpers and Connectors
17
28
12
Keyboard and Mouse Pin Header
Connector type: 2x4 8-pin header, 2.54mm pitch Connector location: JP16
Pin Definition Pin Definition
1 +5VSBY 2 +5VSBY 3 KDAT_R 4 MDAT_R 5 KCLK_R 6 MCLK_R 7 KB_GND 8 KB_GND
HW Reset Function
Connector type: 1x2 2-pin header, 2.54mm pitch Connector location: JP17
Pin Definition
1 HW_R_RST# 2 GND
33
ICEK 667-T6 Starter Kit User Manual
Page 48
Chapter 2: Jumpers and Connectors
12
19
21

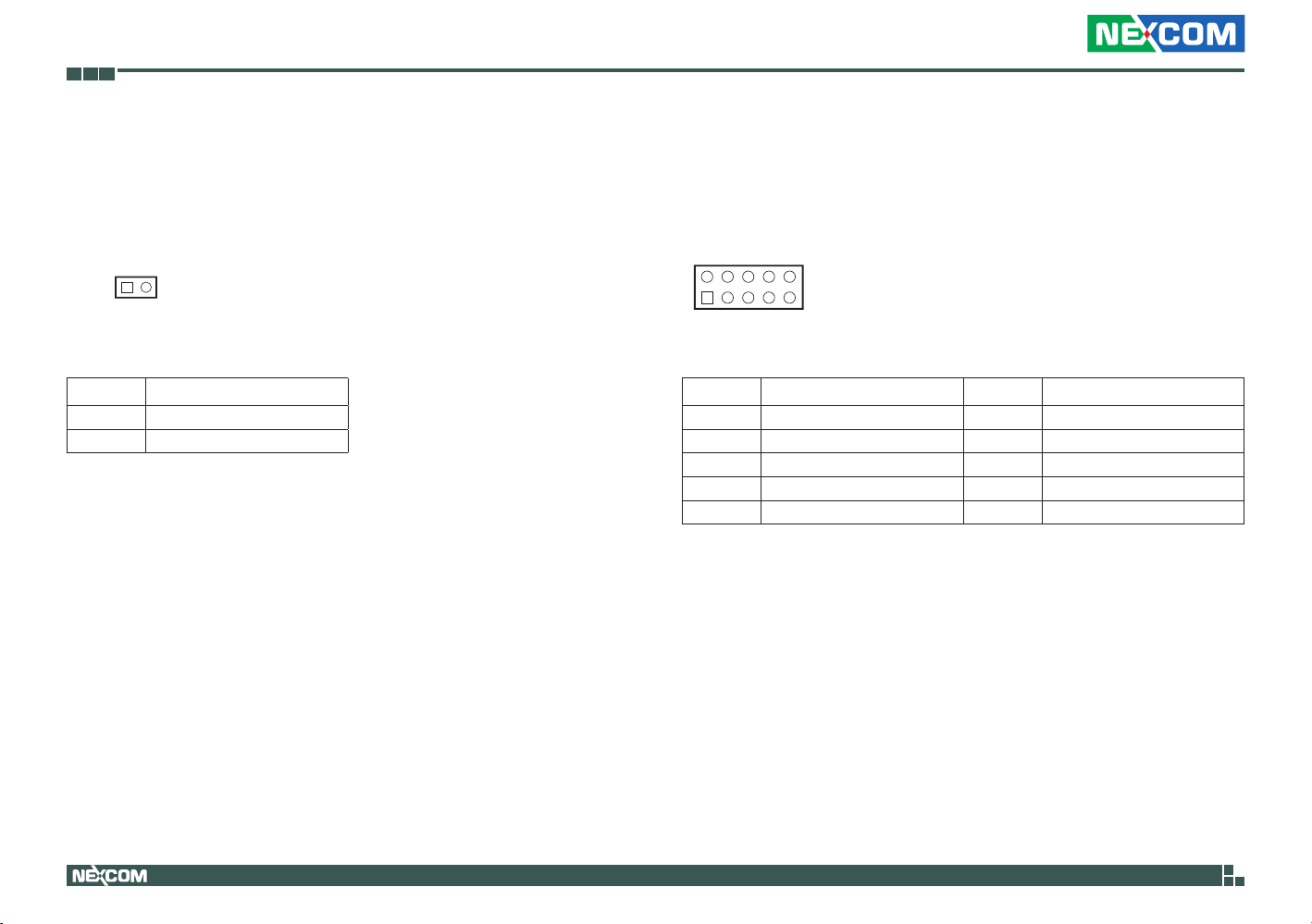

Power Button
Connector type: 1x2 2-pin header, 2.54mm pitch Connector location: JP18
Pin Definition
1 PWRBTN 2 GND
GPIO
Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: J3
0
Pin Definition Pin Definition
1 GP_VCC 2 GND 3 ICH_GPO0_OUT 4 ICH_GPI0_IN 5 ICH_GPO1_OUT 6 ICH_GPI1_IN 7 ICH_GPO2_OUT 8 ICH_GPI2_IN 9 ICH_GPO3_OUT 10 ICH_GPI3_IN
34
ICEK 667-T6 Starter Kit User Manual
Page 49
Chapter 2: Jumpers and Connectors
17
28
USB Port 6 and 7
Connector type: 2x4 8-pin header, 2.0mm pitch Connector location: JUSB1
Pin Definition Pin Definition
1 +5V_USB 2 GND 3 USB6N_C 4 USB7P_C 5 USB6P_C 6 USB7N_C 7 GND 8 +5V_USB
USB Port 5
Connector type: 1x4 4-pin header, 2.0mm pitch Connector location: JUSB2
4 1
Pin Definition
1 +5V_USB 2 USB_5N 3 USB_5P 4 GND
35
ICEK 667-T6 Starter Kit User Manual
Page 50
Chapter 2: Jumpers and Connectors
11 22

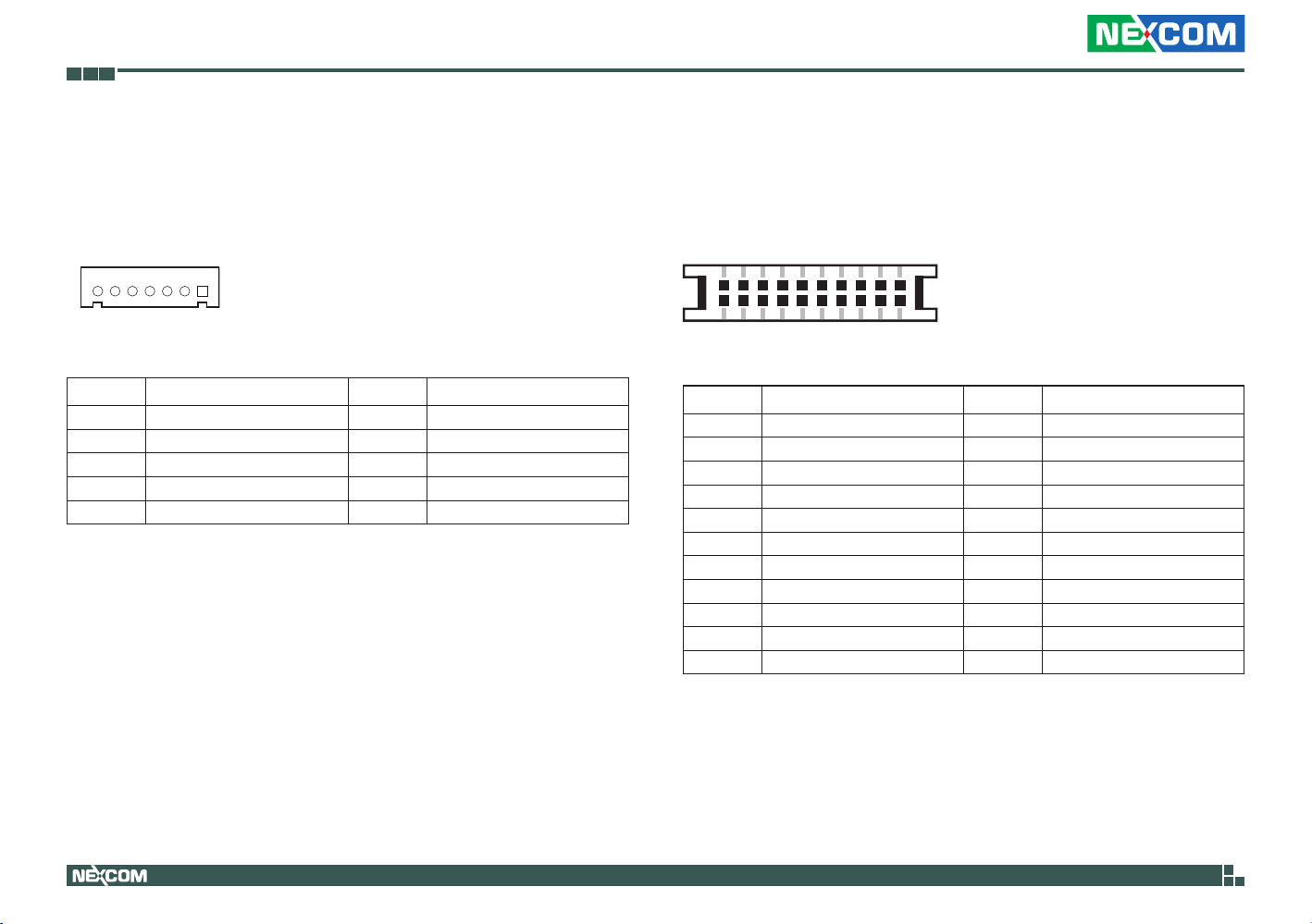

CCFL
Connector type: 1x7 7-pin header, 2.0mm pitch Connector location: JCCFL1
7 1
Pin Definition Pin Definition
1 +5V 2 GND 3 ICH_GPO0_OUT 4 ICH_GPI0_IN 5 ICH_GPO1_OUT 6 ICH_GPI1_IN 7 ICH_GPO2_OUT 8 ICH_GPI2_IN 9 ICH_GPO3_OUT 10 ICH_GPI3_IN
LVDS Channel A
Connector type: 2x10 20-pin header, 1.25mm pitch Connector location: LVDS1
9 0
Pin Definition Pin Definition
1 LVDS_DDC_CLK 2 LVDS_DDC_DATA 3 Panel_VDD 4 LVDSA_DATA0 5 LVDSA_DATA3 6 LVDSA_DATA#0 7 LVDSA_DATA#3 8 Panel_VDD
9 GND 10 LVDSA_DATA1 11 LVDSA_CLK 12 LVDSA_DATA#1 13 LVDSA_CLK# 14 GND 15 GND 16 Panel_backlight 17 LVDSA_DATA2 18 Panel_backlight 19 LVDSA_DATA#2 20 GND
MH1 GND MH2 GND
36
ICEK 667-T6 Starter Kit User Manual
Page 51
Chapter 2: Jumpers and Connectors
11 22

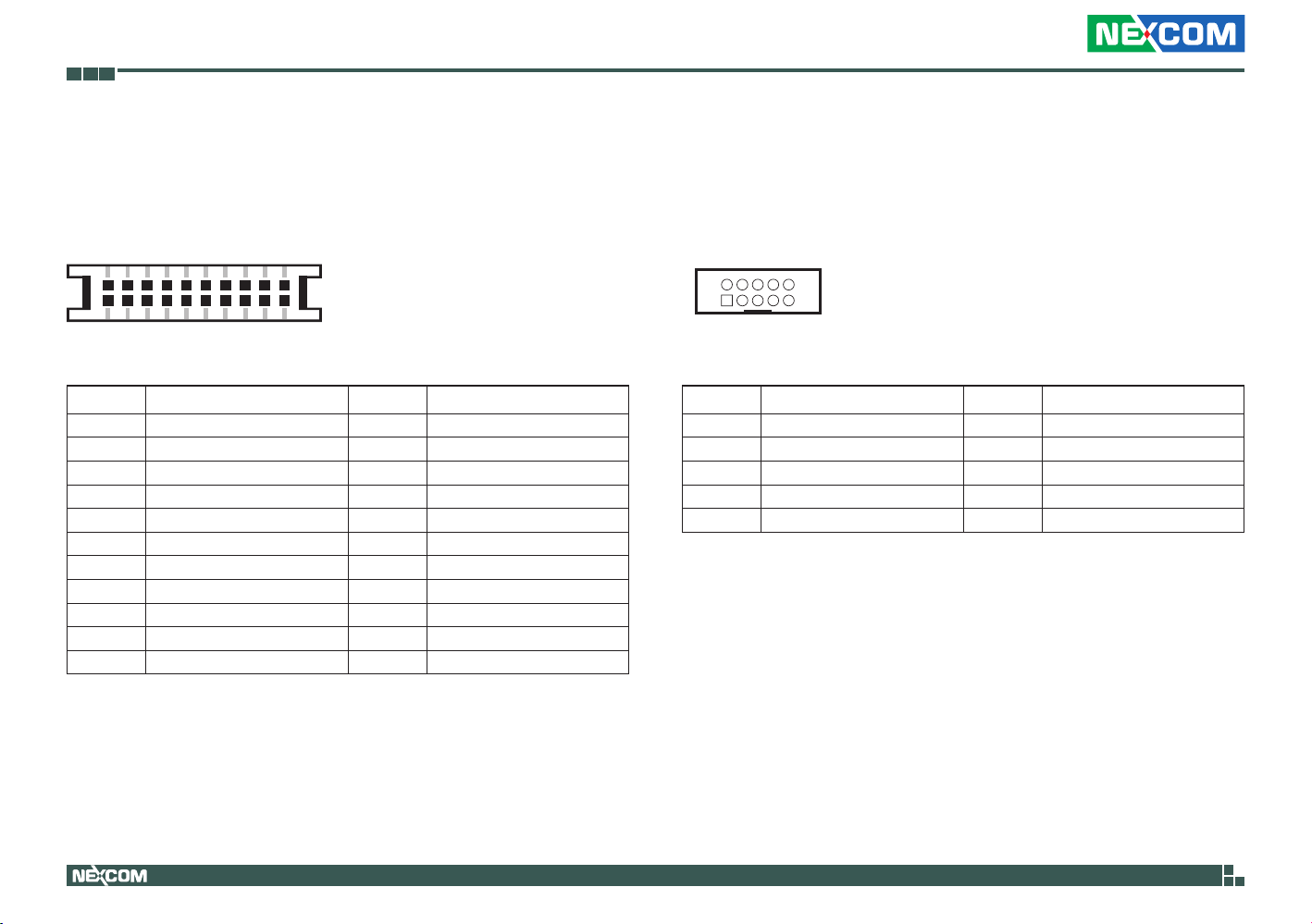

LVDS Channel B
Connector type: 2x10 20-pin header, 1.25mm pitch Connector location: LVDS2
9 0
Pin Definition Pin Definition
1 LVDS_DDC_CLK 2 LVDS_DDC_DATA 3 Panel_VDD 4 LVDSB_DATA0 5 LVDSB_DATA3 6 LVDSB_DATA#0 7 LVDSB_DATA#3 8 Panel_VDD
9 GND 10 LVDSB_DATA1 11 LVDSB_CLK 12 LVDSB_DATA#1 13 LVDSB_CLK# 14 GND 15 GND 16 Panel_backlight 17 LVDSB_DATA2 18 Panel_backlight 19 LVDSB_DATA#2 20 GND
MH1 GND MH2 GND
COM1 Port Box Header
Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: COM1
2 1
Pin Definition Pin Definition
1 COM_DCD#1 2 COM_RXD1 3 COM_TXD1 4 COM_DTR#1 5 GND 6 COM_DSR#1 7 COM_RTS#1 8 COM_CTS#1 9 COM_RI#1 10 GND
10
9
37
ICEK 667-T6 Starter Kit User Manual
Page 52
Chapter 2: Jumpers and Connectors
COM3 Port Box Header
Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: COM3
2 1
Pin Definition Pin Definition
1 COM_DCD#3 2 COM_RXD3
3 COM_TXD3 4 COM_DTR#3
5 GND 6 COM_DSR#3
7 COM_RTS#3 8 COM_CTS#3
9 COM_RI#3 10 GND
10
9

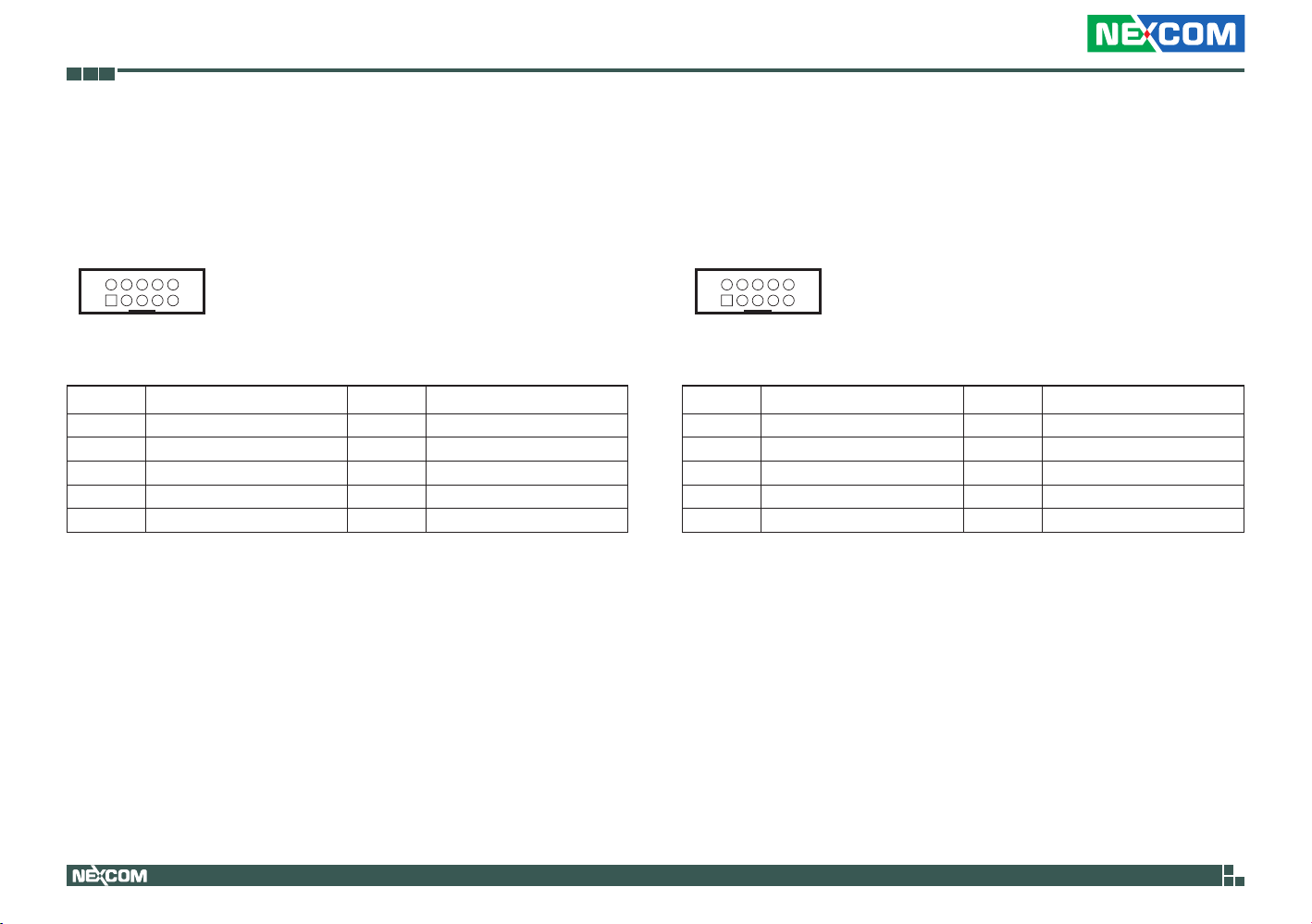

COM4 Port Box Header
Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: COM4
2 1
Pin Definition Pin Definition
1 COM_DCD#4 2 COM_RXD4 3 COM_TXD4 4 COM_DTR#4 5 GND 6 COM_DSR#4 7 COM_RTS#4 8 COM_CTS#4 9 COM_RI#4 10 GND
10
9
38
ICEK 667-T6 Starter Kit User Manual
Page 53
Chapter 2: Jumpers and Connectors
COM5 Port Box Header
Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: COM5
2 1
Pin Definition Pin Definition
1 COM_DCD#5 2 COM_RXD5
3 COM_TXD5 4 COM_DTR#5
5 GND 6 COM_DSR#5
7 COM_RTS#5 8 COM_CTS#5
9 COM_RI#5 10 GND
10
9
COM6 Port Box Header
Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: COM6
2 1
Pin Definition Pin Definition
1 COM_DCD#6 2 COM_RXD6 3 COM_TXD6 4 COM_DTR#6 5 GND 6 COM_DSR#6 7 COM_RTS#6 8 COM_CTS#6 9 COM_RI#6 10 GND
10
9
39
ICEK 667-T6 Starter Kit User Manual
Page 54
Chapter 2: Jumpers and Connectors
14

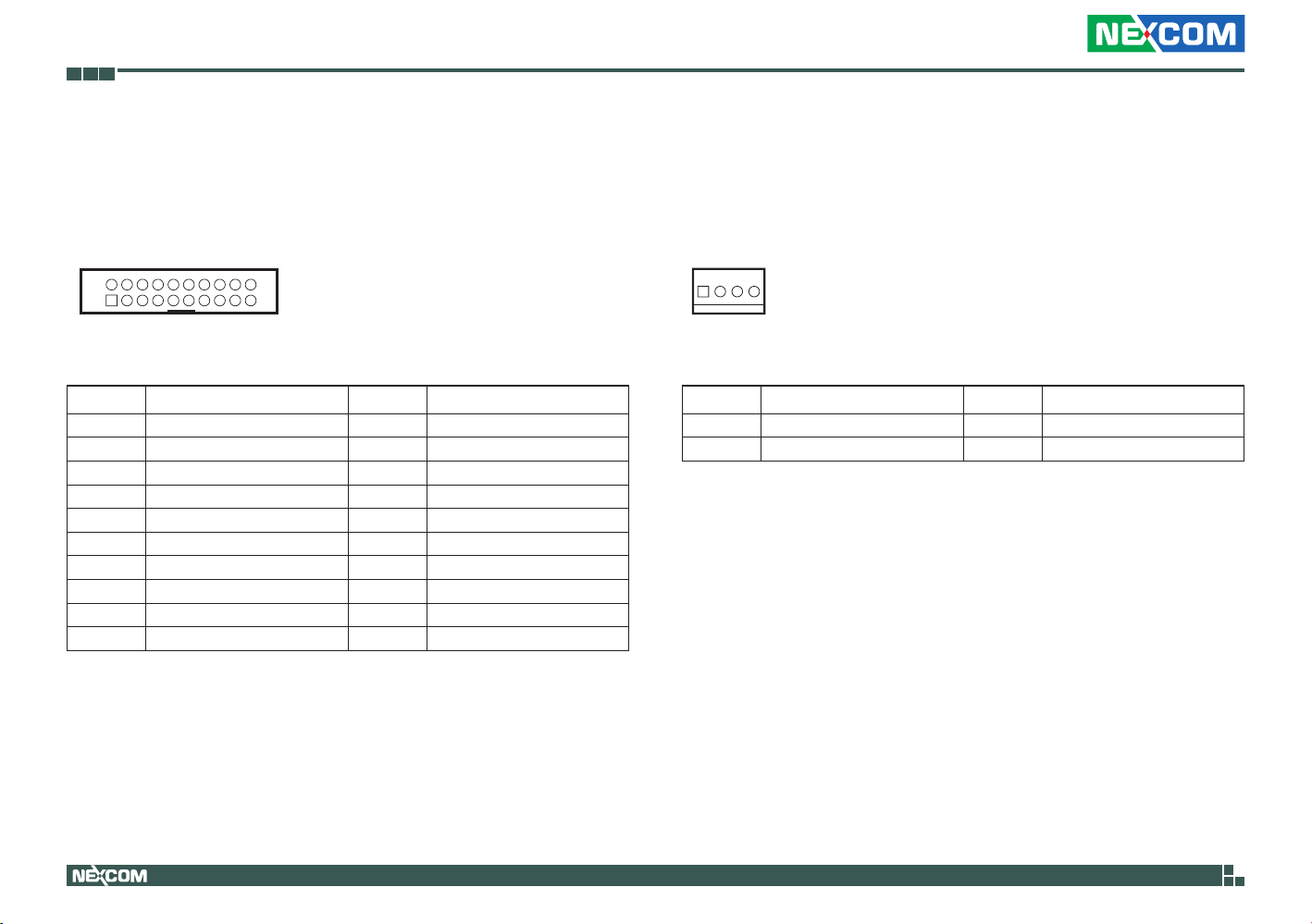

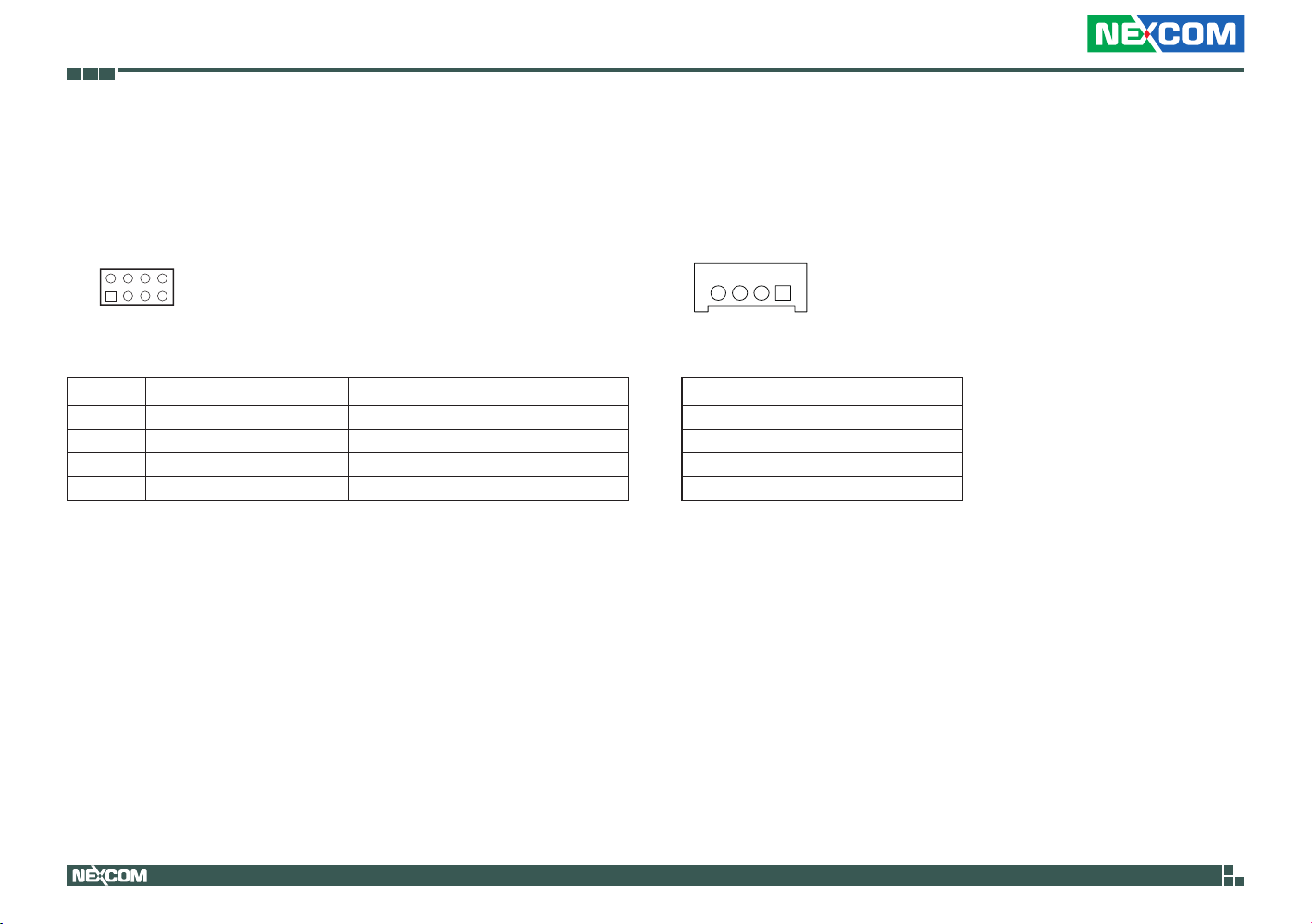

Battery Charger
Connector type: 2x10 20-pin header, 2.0mm pitch Connector location: CN15
2 1
Pin Definition Pin Definition
1 LPC_AD0 2 SMBCLK_MAIN
3 LPC_AD1 4 SMBDATA_MAIN
5 LPC_AD2 6 SIO1_RSMRST#
7 LPC_AD3 8 PM_SLP_S3#
9 INT_SERIRQ 10 PM_SLP_S4# 11 LPC_FRAME# 12 PM_SLP_S5# 13 LPC_BAT_CLK 14 PM_PWRBTN# 15 GND 16 PM_BATLOW# 17 GND 18 CB_RESET# 19 GND 20 PM_THRM#
20 19
Fan Connector
Connector type: 1x4 4-pin header, 2.54mm pitch Connector location: CFAN1
Pin Definition Pin Definition
1 GND 2 +12V 3 FANIN 4 FANOUT
* Preliminary box-header reserved for NEXCOM use only, above pins defined are subject to change without further notices. *
40
ICEK 667-T6 Starter Kit User Manual
Page 55
Chapter 2: Jumpers and Connectors
112
13 24
12
34
4-Pin Power Connector
Connector type: 2x2 4-pin header Connector location: ATX12
Pin Definition
1 GND
2 GND
3 +12V
4 +12V
ATX Power Connector
Connector type: 2x12 24-pin header, 4.2mm pitch Connector location: ATX1
Pin Definition Pin Definition
1 +3.3V 2 +3.3V 3 GND 4 +5V 5 GND 6 +5V 7 GND 8 PS_PWRGD
9 +5VSBY 10 +12V 11 +12V 12 +3.3V 13 +3.3V 14 -12V 15 GND 16 PSON# R 17 GND 18 GND 19 GND 20 -5V 21 +5V 22 +5V 23 +5V 24 GND
41
ICEK 667-T6 Starter Kit User Manual
Page 56
Chapter 2: Jumpers and Connectors

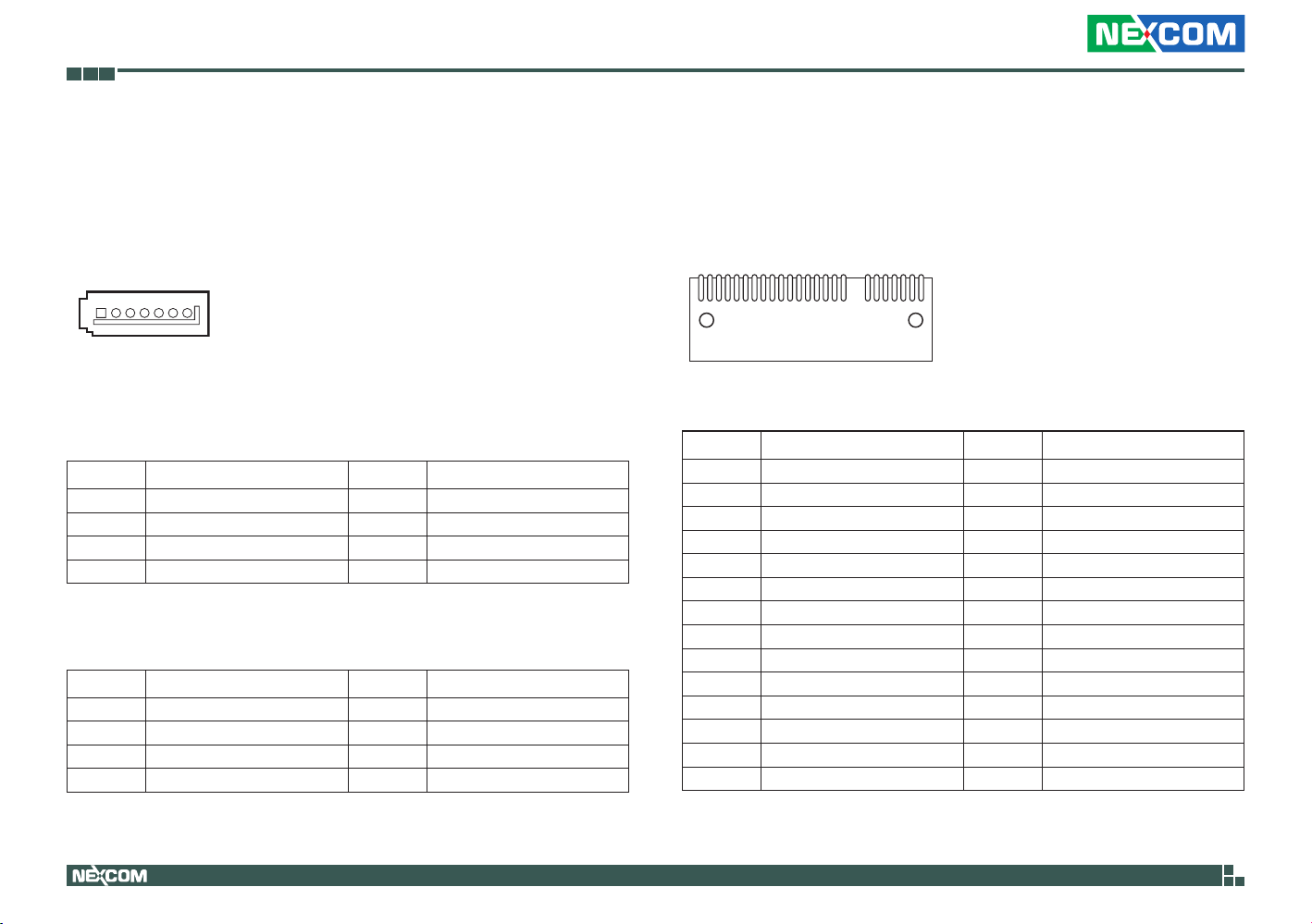

SATA3.0 Connectors
Connector type: Standard Serial ATAIII 7P (1.27mm, SATA-M-180) Connector location: SATA1 and SATA2
1 7
SATA1
Pin Definition Pin Definition
1 GND 2 SATA_TXP0 3 SATA_TXN0 4 GND 5 SATA_RXN0 6 SATA_RXP0 7 GND
SATA2
Pin Definition Pin Definition
1 GND 2 SATA_TXP1 3 SATA_TXN1 4 GND 5 SATA_RXN1 6 SATA_RXP1 7 GND
CFast Slot
Connector location: CFAST1
S7P17
Pin Definition Pin Definition
S1 GND S2 SATA_TXP2 S3 SATA_TXN2 S4 GND S5 SATA_RXN2 S6 SATA_RXP2 S7 GND P1 GND P2 GND P3 NC P4 NC P5 NC P6 NC P7 GND P8 TEST POINT P9 NC P10 NC
P11 NC P12 NC P13 +3.3V P14 +3.3V P15 GND P16 GND P17 NC MH1 GND
MH2 GND
42
ICEK 667-T6 Starter Kit User Manual
Page 57
Chapter 2: Jumpers and Connectors
PEG x16 Slot
Connector location: JPCIE1
Pin Definition Pin Definition
A1 NC B1 +12V A2 +12V B2 +12V A3 +12V B3 +12V A4 GND B4 GND A5 GND B5 SMB_CLK A6 +3.3V B6 SMB_DATA A7 NC B7 GND A8 +3.3V B8 +3.3V
A9 +3.3V B9 GND A10 +3.3V B10 +3.3VSBY A11 CB_RESET# B11 PCIE_WAKE# A12 GND B12 NC A13 PCIE_X16_CLKP B13 GND A14 PCIE_X16_CLKN B14 PEG_TX0P A15 GND B15 PEG_TX0N A16 PEG_RX0P B16 GND A17 PEG_RX0N B17 SDVO_CTRLCLK A18 GND B18 GND
43
Pin Definition Pin Definition
A19 NC B19 PEG_TX1P A20 GND B20 PEG_TX1N A21 PEG_RX1P B21 GND A22 PEG_RX1N B22 GND A23 GND B23 PEG_TX2P A24 GND B24 PEG_TX2N A25 PEG_RX2P B25 GND A26 PEG_RX2N B26 GND A27 GND B27 PEG_TX3P A28 GND B28 PEG_TX3N A29 PEG_RX3P B29 GND A30 PEG_RX3N B30 NC A31 GND B31 SDVO_CTRLDATA A32 NC B32 GND A33 NC B33 PEG_TX4P A34 GND B34 PEG_TX4N A35 PEG_RX4P B35 GND A36 PEG_RX4N B36 GND
ICEK 667-T6 Starter Kit User Manual
Page 58
Chapter 2: Jumpers and Connectors
Pin Definition Pin Definition
A37 GND B37 PEG_TX5P A38 GND B38 PEG_TX5N A39 PEG_RX5P B39 GND A40 PEG_RX5N B40 GND A41 GND B41 PEG_TX6P A42 GND B42 PEG_TX6N A43 PEG_RX6P B43 GND A44 PEG_RX6N B44 GND A45 GND B45 PEG_TX7P A46 GND B46 PEG_TX7N A47 PEG_RX7P B47 GND A48 PEG_RX7N B48 NC A49 GND B49 GND A50 NC B50 PEG_TX8P A51 GND B51 PEG_TX8N A52 PEG_RX8P B52 GND A53 PEG_RX8N B53 GND A54 GND B54 PEG_TX9P A55 GND B55 PEG_TX9N A56 PEG_RX9P B56 GND A57 PEG_RX9N B57 GND A58 GND B58 PEG_TX10P A59 GND B59 PEG_TX10N
Pin Definition Pin Definition
A60 PEG_RX10P B60 GND A61 PEG_RX10N B61 GND A62 GND B62 PEG_TX11P A63 GND B63 PEG_TX11N A64 PEG_RX11P B64 GND A65 PEG_RX11N B65 GND A66 GND B66 PEG_TX12P A67 GND B67 PEG_TX12N A68 PEG_RX12P B68 GND A69 PEG_RX12N B69 GND A70 GND B70 PEG_TX13P A71 GND B71 PEG_TX13N A72 PEG_RX13P B72 GND A73 PEG_RX13N B73 GND A74 GND B74 PEG_TX14P A75 GND B75 PEG_TX14N A76 PEG_RX14P B76 GND A77 PEG_RX14N B77 GND A78 GND B78 PEG_TX15P A79 GND B79 PEG_TX15N A80 PEG_RX15P B80 GND A81 PEG_RX15N B81 NC A82 GND B82 NC
44
ICEK 667-T6 Starter Kit User Manual
Page 59
Chapter 2: Jumpers and Connectors
Digital Display Interface (Port B/ DDI #1)
Connector location: JDDI1
Pin Definition Pin Definition
A1 NC B1 +12V
A2 +12V B2 +12V
A3 +12V B3 +12V
A4 GND B4 GND
A5 NC B5 NC
A6 NC B6 NC
A7 NC B7 GND
A8 NC B8 +3.3V
A9 +3.3V B9 NC A10 +3.3V B10 +3.3VSBY A11 NC B11 NC A12 GND B12 NC A13 NC B13 GND A14 NC B14 SDVO_RED_0P A15 NC B15 SDVO_RED_0N A16 SDVO_TVCLKIN_5P B16 GND A17 SDVO_TVCLKIN_5N B17 DDI1_CTRLCLK_AUXP A18 GND B18 GND
45
Pin Definition Pin Definition
A19 NC B19 SDVO_GRN_1P A20 GND B20 SDVO_GRN_1N A21 SDVO_INT_4P B21 GND A22 SDVO_INT_4NW B22 GND A23 NC B23 SDVO_BLU_2P A24 NC B24 SDVO_BLU_2N A25 SDVO_FLDSTALL_6P B25 GND A26 SDVO_FLDSTALL_6N B26 GND A27 GND B27 SDVO_CK_3P A28 GND B28 SDVO_CK_3N A29 NC B29 GND A30 NC B30 NC A31 GND B31 DDI1_CTRLDATA_AUXN A32 NC B32 GND A33 NC B33 NC A34 GND B34 NC A35 NC B35 GND A36 NC B36 GND
ICEK 667-T6 Starter Kit User Manual
Page 60
Chapter 2: Jumpers and Connectors
Pin Definition Pin Definition
A37 GND B37 NC A38 GND B38 NC A39 NC B39 GND A40 NC B40 GND A41 GND B41 DP1_HPD A42 GND B42 NC A43 NC B43 GND A44 NC B44 GND A45 GND B45 NC A46 GND B46 NC A47 NC B47 GND A48 NC B48 NC A49 GND B49 GND A50 NC B50 NC A51 GND B51 NC A52 NC B52 GND A53 NC B53 GND A54 GND B54 NC A55 GND B55 NC A56 NC B56 GND A57 NC B57 GND A58 GND B58 NC A59 GND B59 NC
Pin Definition Pin Definition
A60 NC 0 B60 GND A61 NC B61 GND A62 GND B62 NC A63 GND B63 NC A64 NC B64 GND A65 NC 1 B65 GND A66 GND B66 NC A67 GND B67 NC A68 NC B68 GND A69 NC B69 GND A70 GND B70 NC A71 GND B71 NC A72 NC B72 GND A73 NC B73 GND A74 GND B74 NC A75 GND B75 NC A76 NC B76 GND A77 NC B77 GND A78 GND B78 NC A79 GND B79 NC A80 NC B80 GND A81 NC B81 DDI1_DDC_AUX_SEL A82 GND B82 NC
46
ICEK 667-T6 Starter Kit User Manual
Page 61
Chapter 2: Jumpers and Connectors
PCIe x4
Connector location: JPCIE2
Pin Definition Pin Definition
A1 GND B1 +12V
A2 +12V B2 +12V
A3 +12V B3 +12V
A4 GND B4 GND
A5 NC B5 SMB_CLK
A6 NC B6 SMB_DATA
A7 NC B7 GND
A8 NC B8 +3.3V
A9 +3.3V B9 NC
A0 +3.3V B10 +3.3VSBY A11 CB_RESET# B11 PCIE_WAKE# A12 GND B12 NC A13 PCIE_X4_CLKP B13 GND A14 PCIE_X4_CLKN B14 PCIE_TX0P A15 GND B15 PCIE_TX0N A16 PCIE_RX0P B16 GND
47
Pin Definition Pin Definition
A17 PCIE_RX0N B17 NC A18 GND B18 GND A19 NC B19 PCIE_TX1P A20 GND B20 PCIE_TX1N A21 PCIE_RX1P B21 GND A22 PCIE_RX1N B22 GND A23 GND B23 PCIE_TX2P A24 GND B24 PCIE_TX2N A25 PCIE_RX2P B25 GND A26 PCIE_RX2N B26 GND A27 GND B27 PCIE_TX3P A28 GND B28 PCIE_TX3N A29 PCIE_RX3P B29 GND A30 PCIE_RX3N B30 NC A31 GND B31 NC A32 NC B32 GND
ICEK 667-T6 Starter Kit User Manual
Page 62
Chapter 2: Jumpers and Connectors
PCIe x1 Slots
Connector location: JPCIE3 and JPCIE4
JPCIE3
Pin Definition Pin Definition
A1 GND B1 +12V
A2 +12V B2 +12V
A3 +12V B3 +12V
A4 GND B4 GND
A5 NC B5 SMB_CLK
A6 NC B6 SMB_DATA
A7 NC B7 GND
A8 NC B8 +3.3V
A9 +3.3V B9 NC A10 +3.3V B10 +3.3VSBY A11 CB_RESET# B11 PCIE_WAKE# A12 GND B12 NC A13 PCIE_X1_CLK0P B13 GND A14 PCIE_X1_CLK0N B14 PCIE_TX4P A15 GND B15 PCIE_TX4N A16 PCIE_RX4P B16 GND A17 PCIE_RX4N B17 NC A18 GND B18 GND
JPCIE4
Pin Definition Pin Definition
A1 GND B1 +12V A2 +12V B2 +12V A3 +12V B3 +12V A4 GND B4 GND A5 NC B5 SMB_CLK A6 NC B6 SMB_DATA A7 NC B7 GND A8 NC B8 +3.3V
A9 +3.3V B9 NC A10 +3.3V B10 +3.3VSBY A11 CB_RESET# B11 PCIE_WAKE# A12 GND B12 NC A13 PCIE_X1_CLK4P B13 GND A14 PCIE_X1_CLK4N B14 PCIEX1_TX7P A15 GND B15 PCIEX1_TX7N A16 PCIEX1_RX7P B16 GND A17 PCIEX1_RX7N B17 NC A18 GND B18 GND
48
ICEK 667-T6 Starter Kit User Manual
Page 63
Chapter 2: Jumpers and Connectors
12
Mini-PCIe Slot (Wi-Fi and 3G)
Connector location: MPCIE1
51 52
Pin Definition Pin Definition
1 PCIE_WAKE# 2 3VSB_MINI 3 NC 4 GND 5 NC 6 1V5 7 3VSB_MINI 8 UIM_PWR
9 GND 10 UIM_DATA 11 PMINI1_REFCLKN 12 UIM_CLK 13 MINI1_REFCLKP 14 UIM_RESET 15 GND 16 UIM_VPP 17 NC 18 GND 19 NC 20 3VSB_MINI 21 GND 22 MINI1_RST# 23 PCIE_RXN5 24 3VSB_MINI 25 PCIE_RXP5 26 GND
49
Pin Definition Pin Definition
27 GND 28 1V5 29 GND 30 SMB_CLK 31 MINI1_TXN 32 SMB_DATA 33 MINI1_TXP 34 GND 35 GND 36 USB_4N 37 GND 38 USB_4P 39 3VSB_MINI 40 GND 41 3VSB_MINI 42 NC 43 GND 44 NC 45 NC 46 NC 47 NC 48 1V5 49 NC 50 GND 51 NC 52 3VSB_MINI
ICEK 667-T6 Starter Kit User Manual
Page 64
Chapter 2: Jumpers and Connectors
12

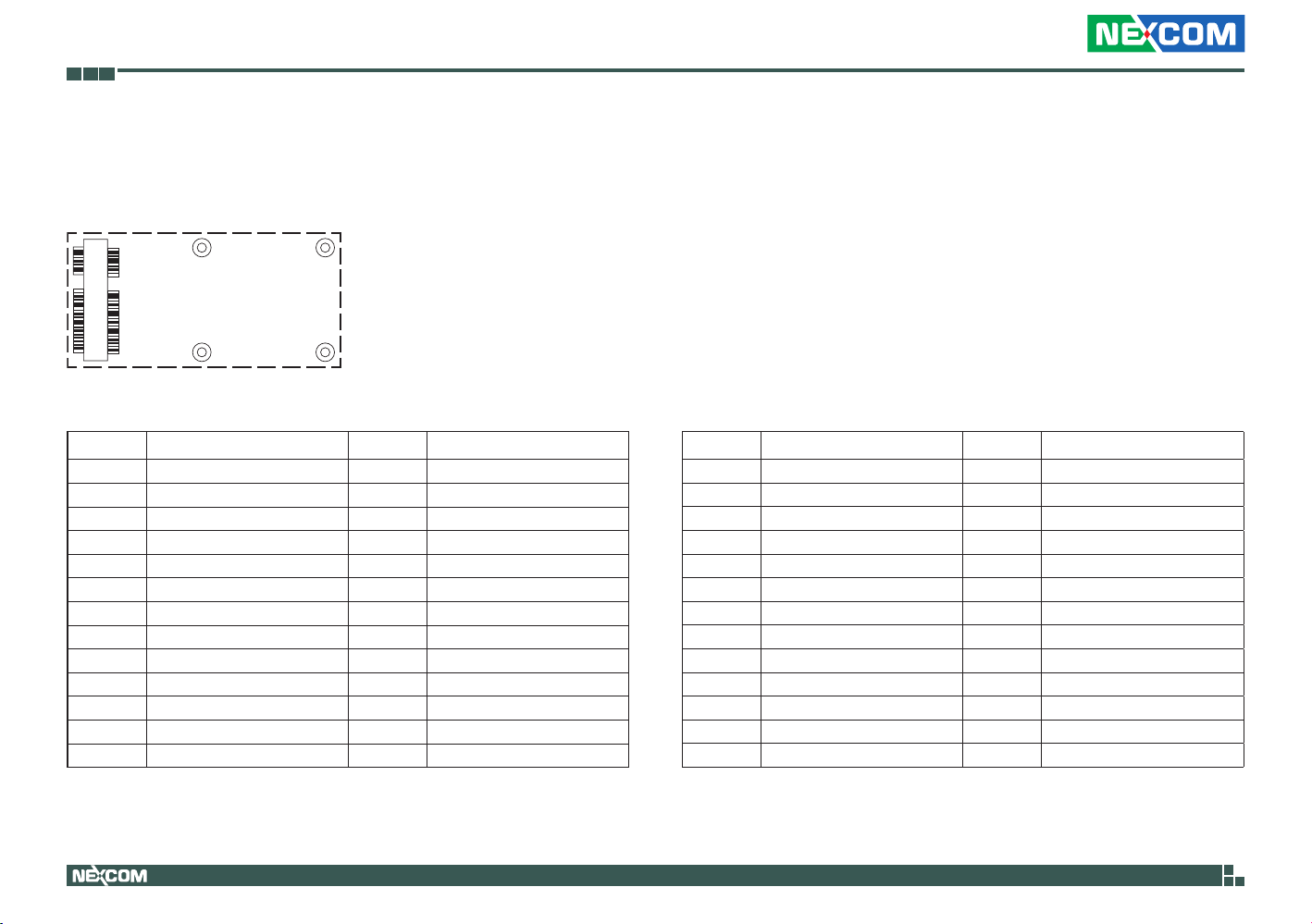

Mini-PCIe Slot (mSATA)
Connector location: MSATA1
51 52
Pin Definition Pin Definition
1 NC 2 +3.3V
3 NC 4 GND
5 NC 6 1V5_MSATA
7 NC 8 NC
9 GND 10 NC 11 NC 12 NC 13 NC 14 NC 15 GND 16 NC 17 NC 18 GND 19 NC 20 NC 21 GND 22 NC 23 SATA_RX3P 24 +3.3V 25 SATA_RX3N 26 GND
50
Pin Definition Pin Definition
27 GND 28 1V5_MSATA 29 GND 30 SMBCLK_MAIN 31 SATA_TXN3 32 SMBDATA_MAIN 33 SATA_TXP3 34 GND 35 GND 36 NC 37 GND 38 NC 39 +3.3V 40 GND 41 +3.3V 42 NC 43 GND 44 NC 45 TEST POINT 46 NC 47 TEST POINT 48 1V5_MSATA 49 NC 50 GND 51 +3.3V 52 +3.3V
ICEK 667-T6 Starter Kit User Manual
Page 65
Chapter 2: Jumpers and Connectors
SIM Card Slot
Connector location: SIM1
C3 C2 C1
C7 C6 C5
Pin Definition Pin Definition
C1 UIM_PWR C5 GND C2 UIM_RESET C6 UIM_VPP C3 UIM_CLK C7 UIM_DATA
51
ICEK 667-T6 Starter Kit User Manual
Page 66
Chapter 2: Jumpers and Connectors
High Speed Board-to-Board Connector: Row A and B, Row C and D
Connector location: J1
Com Express A&B Connector
Com Express C&D Connector
Pin Definition Pin Definition Pin Definition Pin Definition
A1 GND(FIXED) B1 GND(FIXED) C1 GND(FIXED) D1 GND(FIXED) A2 LAN1_MDI3N B2 LAN1_LED_ACT# C2 GND D2 GND A3 LAN1_MDI3P B3 LPC_FRAME# C3 USB3_RX0_N D3 USB3_TX0_N A4 LAN1_LED_LINK100# B4 LPC_AD0 C4 USB3_RX0_P D4 USB3_TX0_P A5 LAN_LED_LINK1G# B5 LPC_AD1 C5 GND D5 GND A6 LAN1_MDI2N B6 LPC_AD2 C6 USB3_RX1_N D6 USB3_TX1_N A7 LAN1_MDI2P B7 LPC_AD3 C7 USB3_RX1_P D7 USB3_TX1_P A8 GBE0_LINK# B8 LPC_DRQ0# C8 GND D8 GND A9 LAN1_MDI1N B9 LPC_DRQ1# C9 USB3_RX2_N D9 USB3_TX2_N
A10 LAN1_MDI1P B10 LPC_CLK C10 USB3_RX2_P D10 USB3_TX2_P A11 GND(FIXED) B11 GND(FIXED) C11 GND(FIXED) D11 GND(FIXED) A12 LAN1_MDI0N B12 PM_PWRBTN# C12 USB3_RX3_N D12 USB3_TX3_N A13 LAN1_MDI0P B13 SMB_CLK C13 USB3_RX3_P D13 USB3_TX3_P
52
ICEK 667-T6 Starter Kit User Manual
Page 67
Chapter 2: Jumpers and Connectors
Pin Definition Pin Definition Pin Definition Pin Definition
A14 LAN_CTREF B14 SMB_DATA C14 GND D14 GND A15 PM_SLP_S3# B15 SMB_ALERT# C15 SDVO_FLDSTALL_6P D15 DDI1_CTRLCLK_AUXP A16 SATA_TX0P B16 SATA_TX1P C16 SDVO_FLDSTALL_6N D16 DDI1_CTRLDATA_AUXN A17 SATA_TX0N B17 SATA_TX1N C17 NC D17 NC A18 PM_SLP_S4# B18 SUS_STAT# C18 NC D18 NC A19 SATA_RX0P B19 SATA_RX1P C19 PCIE_RX6_LAN2P D19 PCIE_TX6_LAN2P A20 SATA_RX0N B20 SATA_RX1N C20 PCIE_RX6_LAN2N D20 PCIE_TX6_LAN2N A21 GND(FIXED) B21 GND(FIXED) C21 GND(FIXED) D21 GND(FIXED) A22 SATA_TX2P B22 SATA_TX3P C22 PCIEX1_RX7P D22 PCIEX1_TX7P A23 SATA_TX2N B23 SATA_TX3N C23 PCIEX1_RX7N D23 PCIEX1_TX7N A24 PM_SLP_S5# B24 PS_PWRGD_CE C24 DP1_HPD D24 NC A25 SATA_RXP2 B25 SATA_RX3P C25 SDVO_INT_4P D25 NC A26 SATA_RXN2 B26 SATA_RX3N C26 SDVO_INT_4N D26 SDVO_RED_0P A27 PM_BATLOW# B27 GAL_WDT# C27 NC D27 SDVO_RED_0N A28 ICH_SATA_LED# B28 HDA_SDIN2 C28 NC D28 NC A29 HDA_SYNC B29 HDA_SDIN1 C29 SDVO_TVCLKIN_5P D29 SDVO_GRN_1P A30 HDA_RST# B30 HDA_SDIN0 C30 SDVO_TVCLKIN_5N D30 SDVO_GRN_1N A31 GND(FIXED) B31 GND(FIXED) C31 GND(FIXED) D31 GND(FIXED) A32 HDA_BIT_CLK B32 HDA_SPKR C32 DDI2_CTRLCLK_AUXP D32 SDVO_BLU_2P A33 HDA_SDOUT B33 I2C_CLK_CE C33 DDI2_CTRLDATA_AUXN D33 SDVO_BLU_2N A34 BIOS_DIS0# B34 I2C_DAT_CE C34 DP2_CTRL_AUX_SEL D34 DDI1_DDC_AUX_SEL A35 PM_THRMTRIP# B35 PM_THRM# C35 NC D35 NC A36 USB_6N B36 USB_7N C36 DDI3_CTRLCLK_AUXP D36 SDVO_CK_3P A37 USB_6P B37 USB_7P C37 DDI3_CTRLDATA_AUXN D37 SDVO_CK_3N A38 USB_OC67# B38 USB_OC45# C38 DP3_CTRL_AUX_SEL D38 NC A39 USB_4N B39 USB_5N C39 DP3_LANE0P D39 DP2_LANE0P A40 USB_4P B40 USB_5P C40 DP3_LANE0N D40 DP2_LANE0N A41 GND(FIXED) B41 GND(FIXED) C41 GND(FIXED) D41 GND(FIXED)
53
ICEK 667-T6 Starter Kit User Manual
Page 68
Chapter 2: Jumpers and Connectors
Pin Definition Pin Definition Pin Definition Pin Definition
A42 USB_2N B42 USB_3N C42 DP3_LANE1P D42 DP2_LANE1P A43 USB_2P B43 USB_3P C43 DP3_LANE1N D43 DP2_LANE1N A44 USB_OC23# B44 USB_OC01# C44 DP3_HPD D44 DP2_HPD A45 USB_0N B45 USB_1N C45 NC D45 NC A46 USB_0P B46 USB_1P C46 DP3_LANE2P D46 DP2_LANE2P A47 +VBAT B47 NC C47 DP3_LANE2N D47 DP2_LANE2N A48 EXCD0_PERST# B48 NC C48 NC D48 NC A49 EXCD0_CPPE# B49 HW_RST# C49 DP3_LANE3P D49 DP2_LANE3P A50 INT_SERIRQ B50 CB_RESET# C50 DP3_LANE3N D50 DP2_LANE3N A51 GND(FIXED) B51 GND(FIXED) C51 NC D51 GND(FIXED) A52 PCIE_TX5P B52 PCIE_RX5P C52 PEG_RX0P D52 PEG_TX0P A53 PCIE_TX5N B53 PCIE_RX5N C53 PEG_RX0N D53 PEG_TX0N A54 ICH_GPI0 B54 ICH_GPO1 C54 TYPE0# D54 PEG_LANE_RV# A55 PCIE_TX4P B55 PCIE_RX4P C55 PEG_RX1P D55 PEG_TX1P A56 PCIE_TX4N B56 PCIE_RX4N C56 PEG_RX1N D56 PEG_TX1N A57 GND(FIXED) B57 ICH_GPO2 C57 TYPE1# D57 TYPE2# A58 PCIE_TX3P B58 PCIE_RX3P C58 PEG_RX2P D58 PEG_TX2P A59 PCIE_TX3N B59 PCIE_RX3N C59 PEG_RX2N D59 PEG_TX2N A60 GND(FIXED) B60 GND(FIXED) C60 GND(FIXED) D60 GND(FIXED) A61 PCIE_TX2P B61 PCIE_RX2P C61 PEG_RX3P D61 PEG_TX3P A62 PCIE_TX2N B62 PCIE_RX2N C62 PEG_RX3N D62 PEG_TX3N A63 ICH_GPI1 B63 ICH_GPO3 C63 NC D63 NC A64 PCIE_TX1P B64 PCIE_RX1P C64 NC D64 NC A65 PCIE_TX1N B65 PCIE_RX1N C65 PEG_RX4P D65 PEG_TX4P A66 GND(FIXED) B66 PCIE_WAKE# C66 PEG_RX4N D66 PEG_TX4N A67 ICH_GPI2 B67 WAKE1# C67 NC D67 GND A68 PCIE_TX0P B68 PCIE_RX0P C68 PEG_RX5P D68 PEG_TX5P A69 PCIE_TX0N B69 PCIE_RX0N C69 PEG_RX5N D69 PEG_TX5N
54
ICEK 667-T6 Starter Kit User Manual
Page 69
Chapter 2: Jumpers and Connectors
Pin Definition Pin Definition Pin Definition Pin Definition
A70 GND(FIXED) B70 GND(FIXED) C70 GND(FIXED) D70 GND(FIXED) A71 LVDSA_DATA0P B71 LVDSB_DATA0P C71 PEG_RX6P D71 PEG_TX6P A72 LVDSA_DATA0N B72 LVDSB_DATA0N C72 PEG_RX6N D72 PEG_TX6N A73 LVDSA_DATA1P B73 LVDSB_DATA1P C73 GND D73 GND A74 LVDSA_DATA1N B74 LVDSB_DATA1N C74 PEG_RX7P D74 PEG_TX7P A75 LVDSA_DATA2P B75 LVDSB_DATA2P C75 PEG_RX7N D75 PEG_TX7N A76 LVDSA_DATA2N B76 LVDSB_DATA2N C76 GND D76 GND A77 LVDS_VDD_EN B77 LVDSB_DATA3P C77 NC D77 NC A78 LVDSA_DATA3P B78 LVDSB_DATA3N C78 PEG_RX8P D78 PEG_TX8P A79 LVDSA_DATA3N B79 L_BKLT_EN C79 PEG_RX8N D79 PEG_TX8N A80 GND(FIXED) B80 GND(FIXED) C80 GND(FIXED) D80 GND(FIXED) A81 LVDSA_CLKP B81 LVDSB_CLKP C81 PEG_RX9P D81 PEG_TX9P A82 LVDSA_CLKN B82 LVDSB_CLKN C82 PEG_RX9N D82 PEG_TX9N A83 LVDS_DDC_CLK B83 L_BKLT_CTRL C83 NC D83 NC A84 LVDS_DDC_DATA B84 +5VSBY C84 GND D84 GND A85 ICH_GPI3 B85 +5VSBY C85 PEG_RX10P D85 PEG_TX10P A86 KB_RST# B86 +5VSBY C86 PEG_RX10N D86 PEG_TX10N A87 KB_A20GATE B87 +5VSBY C87 GND D87 GND A88 PCIE0_CK_REFP B88 BIOS_DIS1# C88 PEG_RX11P D88 PEG_TX11P A89 PCIE0_CK_REFN B89 CRT_RED C89 PEG_RX11N D89 PEG_TX11N A90 GND(FIXED) B90 GND(FIXED) C90 GND(FIXED) D90 GND(FIXED) A91 SPI_POWER B91 CRT_GREEN C91 PEG_RX12P D91 PEG_TX12P A92 SPI_MISO B92 CRT_BLUE C92 PEG_RX12N D92 PEG_TX12N A93 ICH_GPO0 B93 CRT_HSYNC C93 GND D93 GND A94 SPI_CLK B94 CRT_VSYNC C94 PEG_RX13P D94 PEG_TX13P A95 SPI_MOSI B95 CRT_DDC_CLK_MCH C95 PEG_RX13N D95 PEG_TX13N A96 NC B96 CRT_DDC_DATA_MCH C96 GND D96 GND A97 TYPE10# B97 SPI_CS# C97 NC D97 PEG_ENABLE#
55
ICEK 667-T6 Starter Kit User Manual
Page 70
Chapter 2: Jumpers and Connectors
Pin Definition Pin Definition Pin Definition Pin Definition
A98 SER0_TX B98 NC C98 PEG_RX14P D98 PEG_TX14P
A99 SER0_RX B99 NC C99 PEG_RX14N D99 PEG_TX14N A100 GND(FIXED) B100 GND(FIXED) C100 GND(FIXED) D100 GND(FIXED) A101 SER1_TX B101 FANOUT C101 PEG_RX15P D101 PEG_TX15P A102 SER1_RX B102 FANIN C102 PEG_RX15N D102 PEG_TX15N A103 NC B103 SLEEP# C103 GND D103 GND A104 +12V B104 +12V C104 +12V D104 +12V A105 +12V B105 +12V C105 +12V D105 +12V A106 +12V B106 +12V C106 +12V D106 +12V A107 +12V B107 +12V C107 +12V D107 +12V A108 +12V B108 +12V C108 +12V D108 +12V A109 +12V B109 +12V C109 +12V D109 +12V A110 GND(FIXED) B110 GND(FIXED) C110 GND(FIXED) D110 GND(FIXED)
56
ICEK 667-T6 Starter Kit User Manual
Page 71
Chapter 3: System Setup
CAUTION!
Chapter 3: System Setup
The starter kit is preconfigured and assembled. No addtional setup is required. However, if installation is needed, please refer to the instructions below.
Setting up the System
Make sure the power supply is switched off and disconnected
CAUTION!CAUTION!
from the power sources to prevent electric shock or system damage before installing.

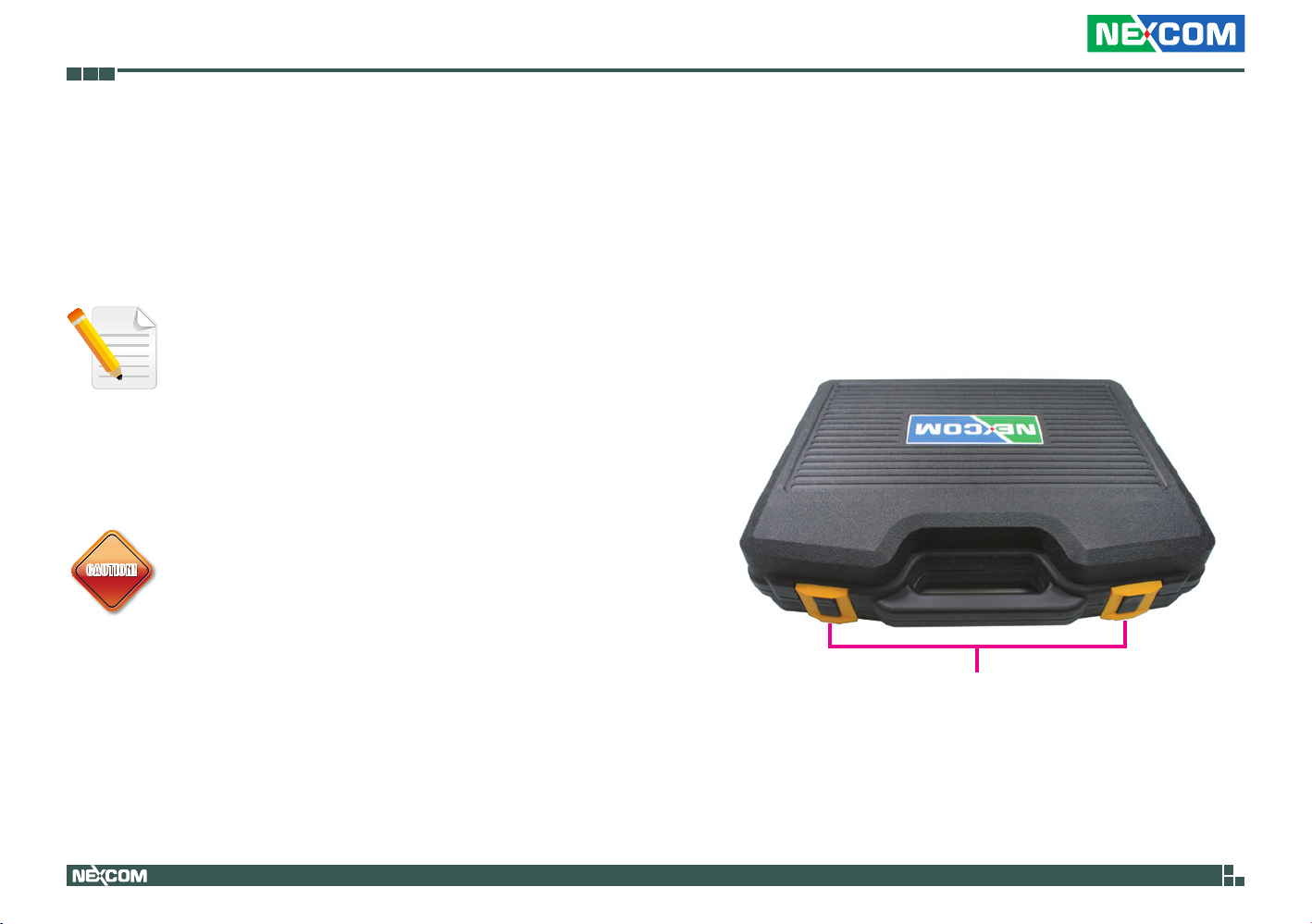

1. Place the case on a stable surface and pull the yellow clasp to release the lock.
Clasp
57
ICEK 667-T6 Starter Kit User Manual
Page 72
Chapter 3: System Setup

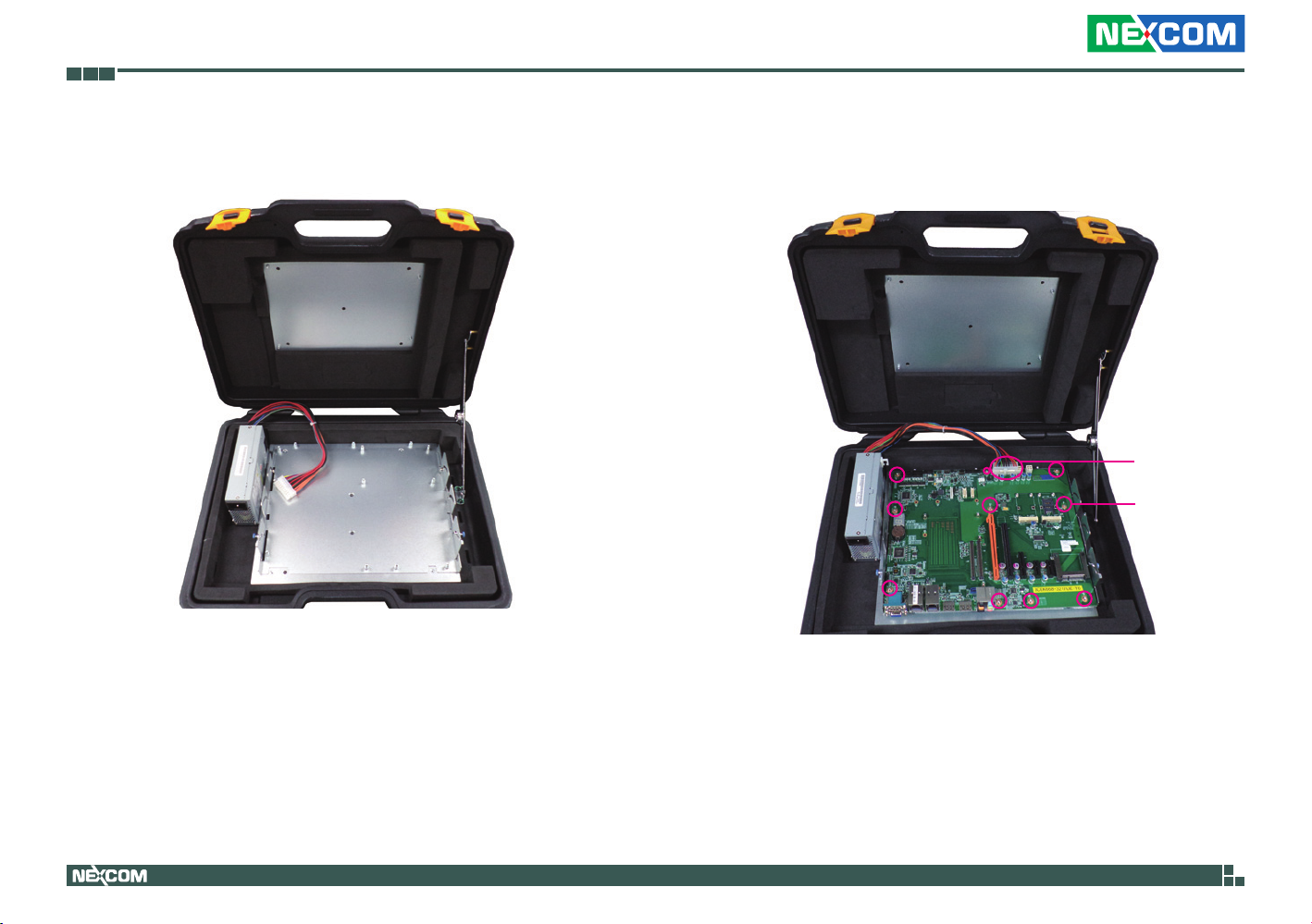

2. Open the case. 3. Align the mounting holes on the ICEB 8060 mainboard to the mounting holes inside the case.
ATX Connector
Mounting holes
4. Tighten screws onto the holes to secure the mainboard, and plug the ATX power supply connector to the ATX connector on the motherboard.
58
ICEK 667-T6 Starter Kit User Manual
Page 73
Chapter 3: System Setup
5. Locate the COM Express connector on the mainboard. 6. Install the ICES 667 module onto the COM Express connector.
Mounting holes
7. Align the mounting holes on the ICES 667 to the heatsink mounting holes on the mainboard.
59
ICEK 667-T6 Starter Kit User Manual
Page 74
Chapter 3: System Setup

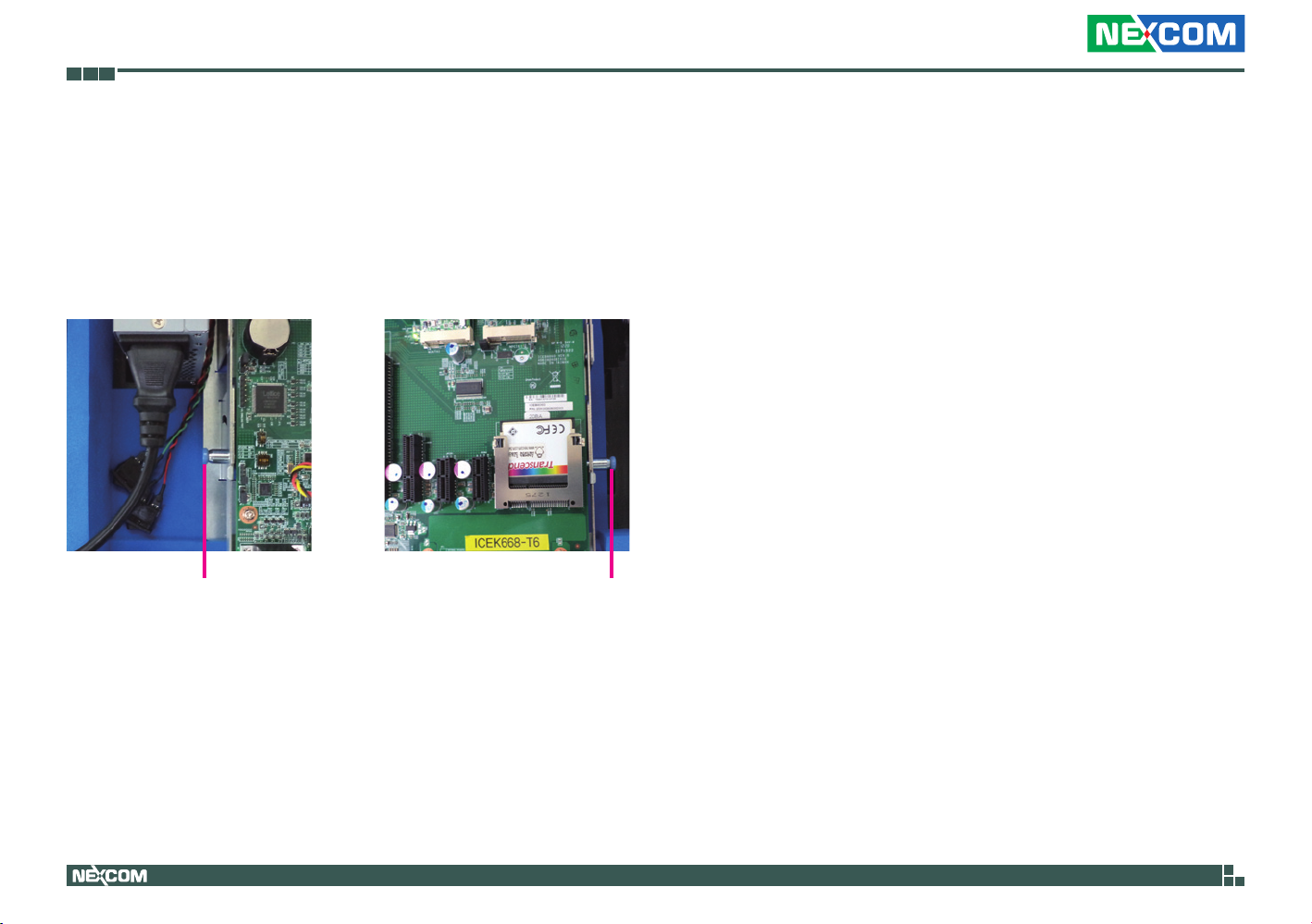

8. Once the holes are aligned, place the heatsink fan on top and tighten
mounting screws to secure the heatsink.
Mounting screws CFast slotCFast card Mounting holes
10. Align the mounting holes on the LCD panel to the mounting holes on
top of the case.
9. Insert the CFast card into the CFast slot.
11. Tighten screws onto the mounting holes to secure the LCD panel.
60
ICEK 667-T6 Starter Kit User Manual
Page 75
Chapter 3: System Setup
12. Connect the LVDS and CCFL cables to the LVDS and CCFL connector
on the mainboard.
CCFL LVDS
13. Plug the AC power cord to the power supply and connect the other
end to a power outlet. Then switch on the system.
AC Power
61
ICEK 667-T6 Starter Kit User Manual
Page 76
Chapter 3: System Setup
There is a metal plate supporting the mainboard that can be lifted up or lowered down. The instructions below illustrate the step-by-step procedures.
NOTE: Before lifting up or lowering down, make sure the two spring-nuts located on the left and right side of metal support plate are inserted/closed to the end-position as depicted in the diagram below.
Left spring-nut Right spring-nut
1. Hold on the left and right spring-nuts using both hands, and pull out the spring-nuts to lift up or lower down.
2. After lifting up the mainboard, make sure the two spring-nuts are inserted and closed in the end-position before plugging any connectors and I/O cards, then power on the system.
3. After lowering down the mainboard, make sure the two spring-nuts are inserted and closed to the end position before powering off the system and closing the cover.
62
ICEK 667-T6 Starter Kit User Manual
Page 77
Chapter 3: System Setup
External Soft-Power On/Off and Hardware Reset Switches
There are two special switches included inside the case to connect to JP18 and JP17 connectors for soft-power on/off and hardware reset function.
JP18: Soft-power on/off (red and black)
JP17: Hardware reset switch (green and black)
63
ICEK 667-T6 Starter Kit User Manual
Page 78
Chapter 3: System Setup
Closing the Case
1. After lowering down the mainboard, make sure the two spring-nuts
are inserted and closed to the end position before powering off.
2. Make sure to place the LCD cover protector onto the LCD panel before closing the case.
64
ICEK 667-T6 Starter Kit User Manual
Page 79
Chapter 4: BIOS Setup
Chapter 4: BIOS Setup
This chapter describes how to use the BIOS setup program for the ICEK 667-T6. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.
To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.
About BIOS Setup
The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.
These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.
With easy-to-use pull down menus, you can configure such items as:
▪ Hard drives, diskette drives, and peripherals
▪ Video display type and display options
▪ Password protection from unauthorized use
▪ Power management features
The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the setup options, and second, to make settings appropriate for the way you use the computer.
When to Configure the BIOS
▪ This program should be executed under the following conditions:
▪ When changing the system configuration
▪ When a configuration error is detected by the system and you are
prompted to make changes to the setup program
▪ When resetting the system clock
▪ When redefining the communication ports to prevent any conflicts
▪ When making changes to the Power Management configuration
▪ When changing the password or making other changes to the security
setup
Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.
65
ICEK 667-T6 Starter Kit User Manual
Page 80
Chapter 4: BIOS Setup
Default Configuration
Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.
Entering Setup
When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:
▪ If the error occurs before the display device is initialized, a series of beeps
will be transmitted.
▪ If the error occurs after the display device is initialized, the screen will
display the error message.
Powering on the computer and immediately pressing <Del> allows you to enter Setup. Another way to enter Setup is to power on the computer and wait for the following message during the POST:

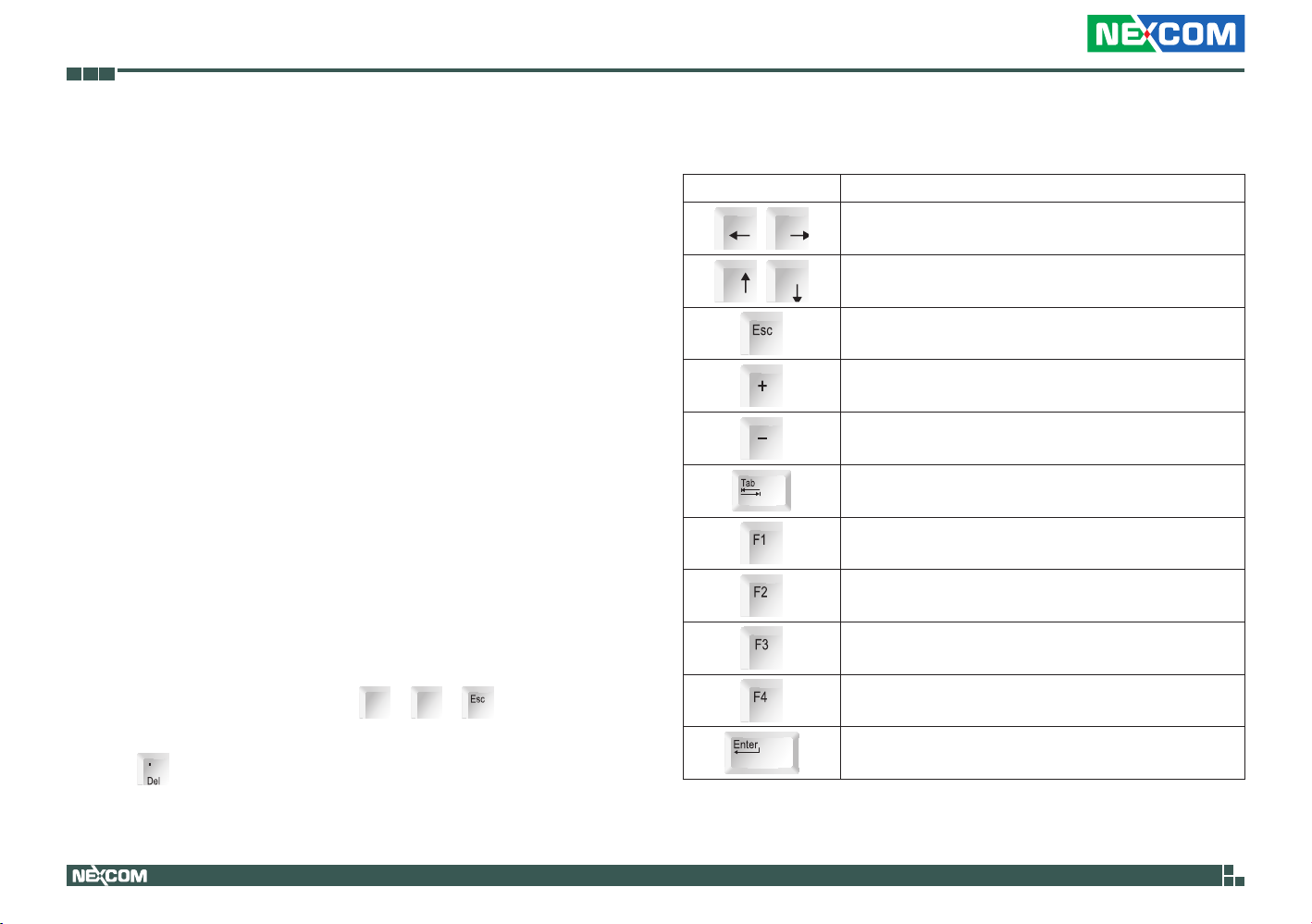

Legends
Key Function
Moves the highlight left or right to select a menu.
Moves the highlight up or down between sub¬menus or fields.
Exits the BIOS Setup Utility.
Scrolls forward through the values or options of the highlighted field.
Scrolls backward through the values or options of the highlighted field.
Selects a field.
Displays General Help.
Load previous values.
Load optimized default values.
TO ENTER SETUP BEFORE BOOT PRESS
Press the
key to enter Setup:
Ctrl
+
Alt
+
66
Saves and exits the Setup program.
Press <Enter> to enter the highlighted sub¬menu
ICEK 667-T6 Starter Kit User Manual
Page 81
Chapter 4: BIOS Setup
Scroll Bar
When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.
Submenu
When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press .
67
ICEK 667-T6 Starter Kit User Manual
Page 82
Chapter 4: BIOS Setup
BIOS Setup Utility
Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from several setup functions and one exit. Use arrow keys to select among the items and press to accept or enter the submenu.
Main
The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced Chipset Boot SecurityMain
BIOS Information BIOS Vendor Core Version Compliancy Project Version Build Date and Time
Memory Information Memory Frequency Total Memory DIMM#0 DIMM#2
ME Firmware Information ME FW Version ME Firmware Mode ME Firmware SKU
System Date
System Time
American Megatrends
4.6.5.3 UEFI 2.3; PI 1.2 I667-002 10/04/2012 10:50:32
1333 Mhz 16384 MB (DDR3) 8192 MB (DDR3) 8192 MB (DDR3)
N/A N/A N/A
[Thu 10/04/2012] [14:53:46]
Save & Exit
Set the Date. Use Tab to switch between Date elements.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
System Date
The date format is <day>, <month>, <date>, <year>. Day displays a day, from Monday to Sunday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.
System Time
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
68
ICEK 667-T6 Starter Kit User Manual
Page 83
Chapter 4: BIOS Setup
Advanced
The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.
Setting incorrect field values may cause the system to malfunction.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced Chipset Boot SecurityMain
ACPI Settings
CPU Conguration SATA Conguration AMT Conguration USB Conguration
H/W Monitor
Super IO Conguration
Serial Port Console Redirection
CPU PPM Conguration
Save & Exit
System ACPI Parameters
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
ACPI Settings
This section is used to configure ACPI Settings.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Main
ACPI Settings
Enable Hibernation [Enabled]
ACPI Sleep State [S3 only(Suspend to...)]
Advanced Chipset PCIPnP Security
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Exit
Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS.
← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit
Enable Hibernation
Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS.
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
ACPI Sleep State
Select the highest ACPI sleep state the system will enter when the suspend button is pressed. The options are Suspend Disabled, S1 (CPU Stop Clock) and S3 (Suspend to RAM).
69
ICEK 667-T6 Starter Kit User Manual
Page 84
Chapter 4: BIOS Setup
CPU Configuration
This section is used to configure the CPU.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
CPU Conguration
Intel(R) Core(TM) i7-3610QE CPU @ 2.30GHz CPU Signature Microcode Patch CPU Speed Processor Cores Intel HT Technology Intel VT-x Technology Intel SMX Technology 64-bit
Hyper-Threading
Intel Virtualization Technology
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
306a9 12 2300 MHZ 4 Supported Supported Supported Supported
[Enabled]
[Disabled]
Enabled for Windows XP and Linux (OS optimized for Hyper­Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology). When Disabled only one thread per enabled core is enabled.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Hyper-Threading
This field is used to enable or disable hyper-threading.
SATA Configuration
This section is used to configure the SATA drives.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
SATA Controller(s) [Enabled]
SATA Mode Selection [IDE]
Serial ATA Port 0 Empty Software Preserve Unknown Serial ATA Port 1 Empty Software Preserve Unknown Serial ATA Port 2 Empty Software Preserve Unknown Serial ATA Port 3 Empty Software Preserve Unknown
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
SATA Controller(s)
Enables or disables the SATA controller.
Enable or disable SATA Device.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Intel® Virtualization Technology
Enables or disables Intel® Virtualization technology.
70
ICEK 667-T6 Starter Kit User Manual
Page 85
Chapter 4: BIOS Setup
SATA Mode Selection
Configures the SATA as IDE, AHCI or RAID mode.
IDE This option configures the Serial ATA drives as Parallel ATA physical storage device. RAID This option allows you to create RAID or Intel Matrix Storage configuration on Serial ATA devices. AHCI This option configures the Serial ATA drives to use AHCI (Advanced Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance.
AMT Configuration
This section is used to configure Active Management Technology (AMT) options.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Intel AMT [Enabled]
BIOS Hotkey Pressed [Disabled] MEBx Selection Screen [Disabled]
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Enable/Disable Intel (R) Active Mangement Technology BIOS Extension. Note: iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled, this requires addtional
rmware in the SPI device.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Intel® AMT
Enables or disables Intel® Active Management Technology.
BIOS Hotkey Pressed
Enables or disables BIOS hotkey press.
MEBx Selection Screen
Enables or disables MEBx selection screen.
71
ICEK 667-T6 Starter Kit User Manual
Page 86
Chapter 4: BIOS Setup
USB Configuration
This section is used to configure the USB.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
USB Conguration
USB Devices: 1 Keyboard, 2 Mice, 2 Hubs
Legacy USB Support
USB3.0 Support Port 60/64 Emulation
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Enabled]
[Enabled] [Enabled]
Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Legacy USB Support
Enable Enables Legacy USB. Auto Disables support for Legacy when no USB devices are connected. Disable Keeps USB devices available only for EFI applications.
Port 60/64 Emulation
Enables the 60h/64h I/O port emulation. You must enable this to fully support USB keyboard legacy for non-USB OSes.
USB3.0 Support
Enables or disables USB 3.0 controller support.
72
ICEK 667-T6 Starter Kit User Manual
Page 87
Chapter 4: BIOS Setup
H/W Monitor
This section is used to monitor hardware status such as temperature, fan speed and voltages.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Pc Health Status
cpu temperature1 System temperature1 Fan1 Speed Fan2 Speed VCORE 5V
3.3V
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
: +34.75 C : +45.000 C : 3600 RPM : N/A : +0.900 V : +5.148 V : +3.378 V
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
CPU Temperature1
Detects and displays the current CPU temperature.
VCORE
Detects and displays the Vcore CPU voltage.
+5V
Detects and displays 5V voltage.
+3.3V
Detects and displays 3.3V voltage.
System Temperature1
Detects and displays the current system temperature.
Fan1 Speed to Fan2 Speed
Detects and displays system fan1 and fan2 speeds.
73
ICEK 667-T6 Starter Kit User Manual
Page 88
Chapter 4: BIOS Setup
Super IO Configuration
This section is used to configure serial ports 0 to 5.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Super IO Conguration
Super IO Chip
Serial Port 0 Conguration
Serial Port 1 Conguration
Serial Port 2 Conguration
Serial Port 3 Conguration
Serial Port 4 Conguration
Serial Port 5 Conguration
IT8783F
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Super IO Chip
Displays the Super I/O chip used on the board.
Set Parameters of Serial Port 0 (COMA)
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Serial Port 0 Configuration
This section is used to configure serial port 0.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Serial Port 0 Conguration
Serial Port
Device Settings
Change Settings
[Disabled]
IO=3F8h; IRQ=4;
[IO=3F8h; IRQ=4]
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Serial Port
Enables or disables the serial port.
Enable or Disable Serial Port (COM)
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Change Settings
Selects an optimal setting for the Super IO device.
74
ICEK 667-T6 Starter Kit User Manual
Page 89
Chapter 4: BIOS Setup
Serial Port 1 Configuration
This section is used to configure serial port 1.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Serial Port 1 Conguration
Serial Port
Device Settings
Change Settings Onboard Serial Port 1 Mode Onboard Serial Port Max Baud Rate
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Enabled]
IO=2F8h; IRQ=3;
[IO=2F8h; IRQ=3;] [RS232] [115200 bps]
Serial Port
Enables or disables the serial port.
Change Settings
Selects an optimal setting for the Super IO device.
Enable or Disable Serial Port (COM)
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Serial Port 2 Configuration
This section is used to configure serial port 2.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Serial Port 2 Conguration
Serial Port
Device Settings
Change Settings
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Enabled]
IO=3E8h; IRQ=10;
[IO=3E8h; IRQ=10;]
Serial Port
Enables or disables the serial port.
Change Settings
Selects an optimal setting for the Super IO device.
Enable or Disable Serial Port (COM)
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Onboard Serial Port 1 Mode
Select this to change the serial port mode to RS232, RS422, RS485 or RS485 Auto.
Onboard Serial Port Max Baud Rate
Select this to change the max baud rate of the serial port.
75
ICEK 667-T6 Starter Kit User Manual
Page 90
Chapter 4: BIOS Setup
Serial Port 3 Configuration
This section is used to configure serial port 3.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Serial Port 3 Conguration
Serial Port
Device Settings
Change Settings
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Enabled]
IO=2E8h; IRQ=11;
[IO=2E8h; IRQ=11;]
Serial Port
Enables or disables the serial port.
Enable or Disable Serial Port (COM)
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Serial Port 4 Configuration
This section is used to configure serial port 4.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Serial Port 4 Conguration
Serial Port
Device Settings
Change Settings
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Enabled]
IO=2F0h; IRQ=6;
[IO=2F0h; IRQ=6;]
Serial Port
Enables or disables the serial port.
Enable or Disable Serial Port (COM)
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Change Settings
Selects an optimal setting for the Super IO device.
Change Settings
Selects an optimal setting for the Super IO device.
76
ICEK 667-T6 Starter Kit User Manual
Page 91
Chapter 4: BIOS Setup
Serial Port 5 Configuration
This section is used to configure serial port 5.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Serial Port 5 Conguration
Serial Port
Device Settings
Change Settings
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Enabled]
IO=2E0h; IRQ=7;
[IO=2E0h; IRQ=7;]
Serial Port
Enables or disables the serial port.
Enable or Disable Serial Port (COM)
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Serial Port Console Redirection
This section is used to configure the serial port console redirection.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
COM0 (Disabled) Console Redirection
COM1 (Pci Bus0, Dev0, Func0) (Disabled) Console Redirection
Serial Port for Out-of-Band Management/ Windows Emergency Management Services (EMS)
Console Redirection
Console Redirection Settings
►
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Enabled]
Console Redirection Enable or Disable.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Console Redirection
Enables or disables console redirection.
Change Settings
Selects an optimal setting for the Super IO device.
77
ICEK 667-T6 Starter Kit User Manual
Page 92
Chapter 4: BIOS Setup
CPU PPM Configuration
This section is used to configure the Processor Power Management (PPM) configuration.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
CPU PPM Conguration
EIST
CPU C3 Report CPU C6 Report CPU C7 Report
[Disabled]
[Disabled] [Disabled] [Disabled]
Enable/Disable Intel SpeedStep
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
EIST
Enables or disables Intel® SpeedStep.
CPU C3 Report
Enables or disables C3 report to the operating system.
CPU C6 Report
Enables or disables C6 report to the operating system.
CPU C7 Report
Enables or disables C7 report to the operating system.
78
ICEK 667-T6 Starter Kit User Manual
Page 93
Chapter 4: BIOS Setup
Chipset
This section is used to configure the system based on the specific features of the chipset.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
PCH-IO Conguration
System Agent (SA) Conguration
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Chipset Boot SecurityMain
Setting incorrect field values may cause the system to malfunction.
Save & Exit
PCH Parameters
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
PCH-IO Configuration
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
USB Conguration
PCH Azalia Conguration
PCH LAN Controller Wake on LAN
Restore AC Power Loss RTC RAM Lock
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Chipset Boot SecurityMain
[Enabled] [Enabled]
[Power Off] [Enabled]
Save & Exit
USB Conguration
settings
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
PCH LAN Controller
Enables or disables onboard NIC.
Wake on LAN
Enables or disables integrated LAN to wake the system.
Restore AC Power Loss
Select AC power state when power is re-applied after a power failure.
RTC RAM Lock
Enables or disables RTC RAM lock.
79
ICEK 667-T6 Starter Kit User Manual
Page 94
Chapter 4: BIOS Setup
USB Configuration
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
USB Conguration
EHCI1
EHCI2
[Enabled]
[Enabled]
Control the USB EHCI (USB 2.0) functions. One EHCI controller must always be enabled.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
EHCI1 and EHCI2
Enables or disables the Enhanced Host Controller Interface (USB 2.0), one EHCI controller must always be enabled.
PCH Azalia Configuration
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
PCH Azalia Conguration
Azalia
[Enabled]
Control Detection of the Azalia device. Disabled = Azalia will be unconditionally disabled Enabled = Azalia will be unconditionally Enabled Auto = Azalia will be enabled if present, disabled otherwise.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Azalia
Control Detection of the Azalia device.
Disabled Azalia will be unconditionally disabled. Enabled Azalia will be unconditionally disabled.
80
ICEK 667-T6 Starter Kit User Manual
Page 95
Chapter 4: BIOS Setup
System Agent (SA) Configuration
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
VT-d
Graphics Conguration NB PCIe Conguration
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Chipset Boot SecurityMain
[Enabled]
VT-d
Enables or disables VT-d function on MCH.
Graphics Configuration
Configures the graphic chip settings.
NB PCIe Configuration
Configures the NB PCI Express settings.
Save & Exit
Check to enable VT-d function on MCH.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Graphics Configuration
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
Graphics Configuration
Primary Display
Internal Graphics DVMT Total Gfx Mem
► LCD Control
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Auto]
[Auto] [256M]
Select which of IGFX/PEG/ PCI Graphics device should be Primary Display Or select SG for Switchable Gfx.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Primary Display
Select which of IGFX/PEG/PCI graphics device should be primary display or select SG for switchable GFx.
Internal Graphics
Keep IGD enabled based on the setup options.
DVMT Total Gfx Mem
Select DVMT5.0 Total Graphic Memory size used by the Internal Graphics Device.
81
ICEK 667-T6 Starter Kit User Manual
Page 96
Chapter 4: BIOS Setup
NB PCIe Configuration
This section is used to configure Northbridge PCI Express settings.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
NB PCIe Configuration PEG0
PEGO - Gen X
Not Present
[Auto]
Congure PEG0 B0:D1:F0
Gen1-Gen3.
Enable PEG
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Enabled]
PEG0 - Gen X
Configure PEG0 B0:D1:F0 Gen1-Gen3.
Enable PEG
Enables or disables the PEG slot.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
82
ICEK 667-T6 Starter Kit User Manual
Page 97
Chapter 4: BIOS Setup
Boot
This section is used to configure the boot features.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Quiet Boot
Launch PXE OpROM policy
Boot Option Priorities
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Quiet Boot
Enabled Displays OEM logo instead of the POST messages. Disabled Displays normal POST messages.
Launch PXE OpROM Policy
Controls the execution of UEFI and legacy PXE OpROM.
Chipset
Boot
[Disabled]
[Disabled]
SecurityMain
Save & Exit
Enables or disables Quiet Boot option
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Security
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced Chipset Boot SecurityMain
Password Description
If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User Will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20
Administrator Password
User Password
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Administrator Password
Select this to reconfigure the administrator’s password.
User Password
Select this to reconfigure the user’s password.
Save & Exit
Set Administrator Password
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
83
ICEK 667-T6 Starter Kit User Manual
Page 98
Chapter 4: BIOS Setup
Save & Exit
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced Chipset Boot SecurityMain
Save Changes and Reset
Discard Changes and Reset
Restore Defaults
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Save & Exit
Reset the system after saving the changes.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Save Changes and Reset
To save the changes and reset, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.
Discard Changes and Reset
To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting.
Load Optimized Defaults
To restore the BIOS to default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.
84
ICEK 667-T6 Starter Kit User Manual
Page 99
Appendix A: Watchdog Timer
Appendix A: Watchdog Timer
WDT Programming Guide
ICES 667 Watch Dog Function Configuration Sequence Description:
Start
Step1. See “SetupWDT” procedure #Setup Watchdog Timer Environment
Step2. See “TimeBaseWDT” procedure #Initial Watchdog Timer. Users can select second or minute.
Step3. See “TimeCountWDT” procedure #Set Watchdog Timer Time-out Value. Users can set time-out value.
Step4: See ExitSetup procedure #Exit Setup Environment
End
85
ICEK 667-T6 Starter Kit User Manual
Page 100
Appendix A: Watchdog Timer
=============================================== SetupWDT PROC mov dx, 2eh mov al, 087h out dx,al nop nop out dx,al ;Write operations to special address port (2E) for entering MB PnP Mode.
mov al, 07h
out 2eh,al mov al, 08h ;Select logical device for Watch Dog. out 2fh,al ret SetupWDT ENDP
=============================================== TimeBaseWDT PROC mov al,0F5h out 2eh,al mov al, 04h ; Here!! set 04h for second, set 0Ch for minute(WDT output through WDTO) out 2fh,al ret TimeBaseWDT ENDP
mov al, 03h ;Here!! Set count 3. out 2fh,al ret TimeCountWDT ENDP
=============================================== ExitSetup PROC mov al, 0AAh out 2eh,al ret ExitSetup ENDP ===============================================
=============================================== TimeCountWDT PROC mov al,0F6h ;WDT Time-out register. out 2eh,al
86
ICEK 667-T6 Starter Kit User Manual
