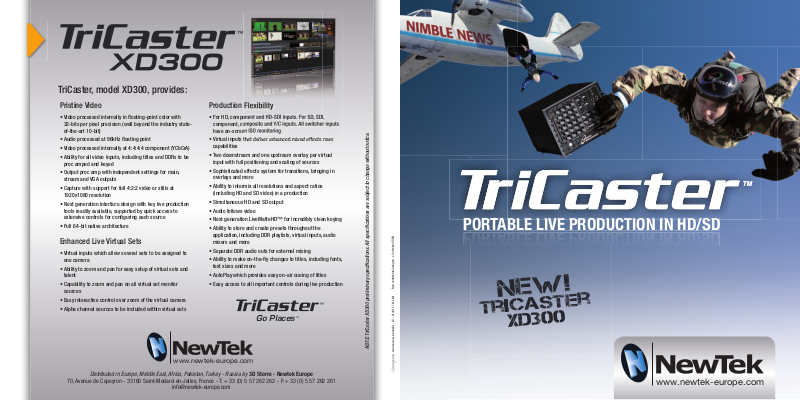

Newtek XD300 BROCHURE
Comm unic atio n mu ltim édia - T él. +33 (0)5 57 2 62 2 64
Comm unic atio n mu ltim édia - T él. +33 (0)5 57 2 62 2 64
TriCaster, model XD300, provides:
Pristine Video
• Video processed internally in fl oating-point color with
32-bits per pixel precision (well beyond the industry stateof-the-art 10-bit)
• Audio processed at 96kHz fl oating point
• Video processed internally at 4:4:4:4 component (YCbCrA)
• Ability for all video inputs, including titles and DDRs to be
proc amped and keyed
• Output proc amp with independent settings for main,
stream and VGA outputs
• Capture with support for full 4:2:2 video or stills at
1920x1080 resolution
• Next generation interface design with key live production
tools readily available, supported by quick access to
extensive controls for confi guring each source
• Full 64-bit native architecture
Enhanced Live Virtual Sets
• Virtual inputs which allow several sets to be assigned to
one camera
• Ability to zoom and pan for easy setup of virtual sets and
talent
• Capability to zoom and pan on all virtual set monitor
sources
• Easy interactive control over zoom of the virtual camera
• Alpha channel sources to be included within virtual sets
Production Flexibility
• For HD, component and HD-SDI inputs. For SD, SDI,
component, composite and Y/C inputs. All switcher inputs
have on-screen ISO monitoring
• Virtual inputs that deliver advanced mixed effects rows
capabilities
• Two downstream and one upstream overlay per virtual
input with full positioning and scaling of sources
• Sophisticated effects system for transitions, bringing in
overlays and more
• Ability to intermix all resolutions and aspect ratios
(including HD and SD video) in a production
• Simultaneous HD and SD output
• Audio follows video
• Next generation LiveMatteHD™ for incredibly clean keying
• Ability to store and create presets throughout the
application, including DDR playlists, virtual inputs, audio
mixers and more
• Separate DDR audio outs for external mixing
• Ability to make on-the-fl y changes to titles, including fonts,
text sizes and more
• AutoPlay which provides easy on-air cueing of titles
• Easy access to all important controls during live production
Go Places
TM
PORTABLE LIVE PRODUCTION IN HD/SD
Non contractual images - v2 october 2009
NEW!
TriCaster
XD300
NOTE: TriCaster XD300 preliminary specifi cations. All specifi cations are subject to change without notice.
Comm unic atio n mu ltim édia - T él. +33 (0)5 57 2 62 2 64
www.newtek-europe.com
70, Avenue de Capeyron - 33160 Saint-Medard-en-Jalles, France - T: + 33 (0) 5 57 262 262 - F:+ 33 (0) 5 57 262 261
Distributed in Europe, Middle East, Africa, Pakistan, Turkey - Russia by 3D Storm - Newtek Europe
info@newtek-europe.com
www.newtek-europe.com
Previewing TriCaster™, model XD300
TriCaster XD300
TriCaster BROADCAST
TriCaster STUDIO
TriCaster PRO
TriCaster
Video
(simultaneous output)
SDSDSD
SD
Supported standard
Component, SDI,
Component, Y/C,
Composite
576i, 480i
(4x3 and 16:9)
SDI, Component, Y/C,
Composite
576i, 480i
(4x3 and 16:9)
Component, Y/C,
Composite
576i, 480i
(4x3 and 16:9)
Component, Y/C,
Composite
576i, 480i
(4x3 and 16:9)
Y/C, Composite
Number of inputs
36633
Video projector
output
Multi preview
(DVI out)
Yes
Mix HD and SD
sources
Yes
Web streaming
Yes
Yes
Yes
Yes
Yes
Virtual sets
Yes
(animated: zoom, pan)
Yes
Yes
Yes
Chromakeyer
Yes, LiveMatte HD
Yes, LiveMatte
Yes, LiveMatte
Yes, LiveMatte
Yes
Downstream Keyer
2
Interactive Titling
Yes, HD
Yes
Yes
Yes
Yes
Video DDR
2
2
Record PGM out
Yes
Yes
Yes
Yes
Yes
External computer
display in
iVGA
iVGA
iVGA
iVGA
iVGA
PGM freeze frame
Yes
Input PROC Amps
Yes, including iVGA
Yes
Yes
Yes
Yes
Vectoscope /
Waveform
Yes
Yes
Yes
Yes
Non linear editing
Yes
Yes
Yes
Yes
Yes
Multi-standard
PAL/NTSC
Yes
Yes
Yes
Yes
Yes
Tally
Yes
Yes
Yes
Audio
SDI embedded, AES
and analog
AES and analog
analog
analog
analog
Weight
7,3 Kg / 16 lbs
7,3 Kg / 16 lbs
7,3 Kg / 16 lbs
4,5 Kg / 10 lbs.
4,5 Kg / 10 lbs.
Dimensions
39,4 D x 21,6 H x 26,4 W (cm)
(15.5 D x 8.5 H x 10.4” W)
39,4 D x 21,6 H x 26,4 W (cm)
(15.5 D x 8.5 H x 10.4” W)
39,4 D x 21,6 H x 26,4 W (cm)
(15.5 D x 8.5 H x 10.4” W)
29,2 D x 20,3 H x 19 W
(cm) (11.5 D x 8 H x 7.5” W)
29,2 D x 20,3 H x 19 W (cm)
(11.5 D x 8 H x 7.5” W)
Ready to Start TriCasting™ Now?
Buy a TriCaster today, start generating
income now and then take advantage of the
NewTek TriCaster Upgrade Guarantee. Any
TriCaster purchased from January 15th till
December 31st 2009 may be traded-up to
the next release of a new TriCaster system
(such as the TriCaster, model XD300) and
you will only pay the difference in price.
NewTek’s TriCaster Upgrade Guarantee
protects your production investment.
PORTABLE LIVE PRODUCTION IN HD/SD
Go Places
TriCaster
and TriCaster, model XD300, raises the bar, capabilities
and expectations. TriCaster, model XD300, is the latest
entry in the TriCaster family for live production and
streaming. TriCaster, model XD300, provides a small
footprint and easy one-person or small team operation
making it possible to live produce in HD/SD and stream
from almost anywhere.
™
is the gold standard in portable live production
Full conditions
of the TriCaster
UPGRADE program
available from
NewTek Europe.
TM
www.newtek-europe.com
