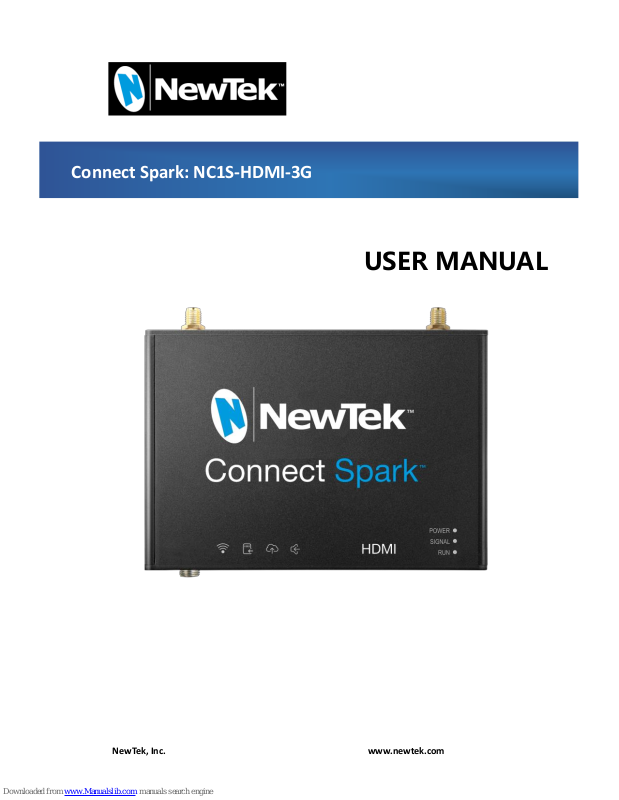

NewTek NC1S-HDMI-3G User Manual
NewTek, Inc. www.newtek.com
Connect Spark: NC1S-HDMI-3G
USER MANUAL
NewTek, Inc. www.newtek.com
About our user manual
Thank you for purchasing NewTekTM NC1S-HDMI-3G WIFI video encoder.
Before install NC1S-HDMI-3G video encoder, please read this user manual
carefully. Please strictly to follow our manual to install and use our encoder, or
install and use under guiding by professional person, to protect your body
safety and to avoid the encoder damage from physical and electrical. The
encoder may be damaged if incorrect electrical connection or the physical
installation, even threaten the operator safety.
Copyright
© 2017 NewTek, Inc.
This manual is protected by international copyright laws. Any of the contents of
this manual can not in any form or manner (electronic or mechanical) copy,
distribute, translate or disseminate, including any information storage and
retrieval photocopying, recording, or stored in systems without NewTek, Inc.
prior written permission.
Trademark
NewTek is registered trademark of NewTek, Inc.
NewTek, Inc. www.newtek.com
Manual
1 PACKING LIST .......................................................... 错误!未定义书签。
2 DEVICE INTERFACES ................................................ 错误!未定义书签。
3 DEVICE CONNECTION........................................................................... 1
3.1 CONNECT VIDEO SIGNAL ................................................................... 1
3.2 CONNECT INTERNET .......................................................................... 1
3.3 CONNECT ANALOG AUDIO INPUT/OUTPUT (OPTION) .......................... 1
3.4 CONNECT THE POWER ADAPTER ........................................................ 1
4 LED INDICATOR DESCRIPTIONS ............................................................ 2
5 DEVICE CONFIGURATION AND MANAGEMENT .................................... 3
5.1 FACTORY DEFAULT IP ADDRESS ......................................................... 3
5.2 LOG IN MANAGEMENT INTERFACE VIA WEB BROWSER ..................... 3
5.3 DEVICE WORKING STATUS ................................................................. 4
5.4 AUDIO SIGNAL SOURCE OPTION ......................................................... 5
5.5 DECODER/VIDEO DECODER SOFTWARE CONNECT THE ENCODER ....... 7
5.6 RESTORE FACTORY SETTINGS ............................................................ 8
5.7 FIRMWARE UPGRADING ..................................................................... 8
5.8 NETWORK CONFIGURATION .............................................................. 9
5.9 QUICK RESET .................................................................................. 10
5.10 REBOOT .......................................................................................... 10
NewTek, Inc. www.newtek.com
Connect Spark: NC1S-HDMI-3G
User Manual
1
1 Device connection
1.1 Connect video signal
(1) Connect HDMI signal
Connect HDMI signal to corresponding NC1S-HDMI-3G HDMI input port
through the corresponding cable from the signal source (such as camera or
other HDMI devices).
To improve signal quality and ensure the effective transmission distance of HDMI
signal, please use high quality HDMI coax. Inferior coax may seriously cause the
signal quality, like snow, streaking, smear, blurring, or worse, no signal input.
1.2 Connect internet
Connect one end of the network cable to the encoder Ethernet interface. The
other end is connected to the network switch, or the computer's Ethernet port.
Please note: When using the common network cable directly to the computer's
network port, the port should have automatic transfer function. Otherwise, please
use a crossover cable to connect.
1.3 Connect analog audio input/output (option)
Audio input/output interface is 3.5mm analogy audio.
1.4 Connect the power adapter
Using the power adapter (DC12V1A) connect to the main product, after the power is
turned on, then the product starts working immediately.
NewTek, Inc. www.newtek.com
Connect Spark: NC1S-HDMI-3G
User Manual
2
Be sure to use the original power adapter, or compatible with the
electrical/mechanical characteristics of device power adapter. Improper power
adapter may damage the device, and even endanger the operator safety! When
you use a charger for charging, adapter shall be installed near the equipment and
shall be easily accessible.
Manufacturer of Power Adapter: Dongguan Xiaoerduo Electronics Co., LTD.
Parameters of Power adapter: Input voltage: 100-240VAC 50/60Hz; Output voltage:
12V; Product name: AC/DC Adapter;Model No.: STD-412K-A+
2 LED indicator descriptions
Name
Color
State
Descriptions
RUN
green
flashing
the device is start to encode, or
encoder is not start, or restore device
to factory settings (and LINK lights
flashing simultaneously)
off
device not working properly
LINK
green
always on
network cable is connected
flashing
restore device to factory settings (and
LINK lights flashing simultaneously)
off
network cable is not connected
POWER
red
always on
power supply is connected
off
power supply is not connected
